Development of a Decision Support System for Sustainable Environmental Management and Stakeholder Engagement

The Water Forum|Centre for Freshwater and Environmental Studies, Dundalk Institute of Technology, Marshes Upper, A91K584 Dundalk Co. Louth, Ireland
The Goyder Institute for Water Research, University of Adelaide, Adelaide, SA 5005, Australia
Institute of Marine Biological Resources and Inland Waters, Hellenic Centre for Marine Research, 19013 Anavissos, Attiki, Greece
Author to whom correspondence should be addressed.
Hydrology 2021, 8(1), 40;
Submission received: 6 February 2021 / Revised: 23 February 2021 / Accepted: 28 February 2021 / Published: 4 March 2021
(This article belongs to the Special Issue Impacts of Land Use Changes on Hydrological Processes and Modelling)


Undertaking integrated and sustainable water resources management (ISWRM) and providing socially acceptable solutions with scientifically solid bases is a dynamic and challenging process. Two basic pillars–umbrellas can be identified in the literature: stakeholder engagement and analysis; and integrated monitoring–modelling in the form of a decision support system (DSS) that can assess, evaluate and rank the management options. This study presents a framework that can be used as a good-practice example of successful stakeholder engagement (public engagement and collaboration with local communities towards shared visions) and an integrated DSS for ISWRM (including characterisation at catchment and local scales, programmes of measures and their evaluation): the Framework for Integrated Land and Landscape Management (FILLM), developed by an Irish multi-disciplinary and multi-stakeholder platform, the Water Forum. The fundamental theoretical principles and practical aspects of the FILLM are analysed. A step-by-step guide is proposed for its application, bridging the above pillars, using examples, reviewing methods and software, and analysing challenges and trends. It can help both socio-economic and environmental scientists (modellers) understand each other’s roles and find reviews of useful tools and methods for their work. This work can be a reference point for future ISWRM and environment management and can contribute to holistic education on such topics.

1. Integrated Water Resources Management and the Situation in Ireland

The technocratic conception of life and the future of the planet, along with the utilitarian approach that treats the environment with a conqueror mentality—i.e., as continuously providing necessary raw materials—are linked to the development model of past decades. In contrast, extreme positions have risen, condemning technological and economic progress as responsible for the destruction of the environment. An intermediate approach is the theory of integrated and sustainable water resources management (ISWRM), which promotes the achievement of economic–productive objectives, but with environmental constraints. The term “water resources management” includes all methods and practices required for the rational conversion of aquatic systems into a state that meets water needs, with the maximum benefits according to predefined goals [1]. The outputs of traditional hydrology (monitoring and allocating the available resources over time and space) are combined with physical, environmental, economic, social and other factors to fulfil policymaking objectives. In modern times the field is evolving and becoming more interdisciplinary, including hydrology, hydraulics, geology, hydrogeology, meteorology, engineering, computer science, statistics, probabilistic theory, sociology, economics, political and law science, systems’ analysis and many more. Combining the above and their optimum use to balance multiple and competitive water users makes modern water resources management (WRM) “integrated” [2]. The term “sustainable” refers to a broader development model promoting the principle that the efforts for covering current needs should not undermine the corresponding efforts of future generations to meet their own needs.
In Ireland, there are limited studies on the principles and applications of ISWRM. Richards et al. [3] use the Water Framework Directive 2000/60 (WFD) as a tool for sustainable grassland production because it integrates economic and environmental concepts. They note that monitoring and understanding catchment hydrology, nutrient transport and how the catchments operate as systems is crucial for targeting the appropriate measures for each purpose. This approach is promoted not only for rural catchments but also for urban ones, as Hall and Murphy [4] show in their analysis, where more than one water use is examined. Another management aspect, regarding full cost recovery as part of a rational water policy and environmental protection, is highlighted by Kelly-Quinn [5] and Quinn et al. [6]. Water utilities in Ireland (Irish Water (IW)) were founded in 2014 and up to today there is no organised consumption metering per household, nor any domestic water tariffs. In this context, scholars try to challenge the public’s “water abundancy” mindset. Daly et al. [7] highlighted the importance of integrated catchment management (ICM) for the proper implementation of the Water Framework Directive in Ireland, and ICM has been adopted as the underpinning concept for delivering Ireland’s second, and forthcoming third, River Basin Management Plan. In an attempt to identify the impediments that slow down integrated WRM, Rolston et al. [8] carried out an assessment of opinions on water management and community engagement. The suggestion was to involve key stakeholders in the River Basin Management Plan process through initiatives that empower communities regarding local water management issues. In summary, the exploration of the ISWRM started from the importance of monitoring and understanding catchment hydrology, including all water uses in planning and using social science and economic tools for water management, and was enriched with the need for integrated catchment management, transparency and stakeholder engagement.
Towards that multi-disciplinary direction, the Water Forum/An Fóram Uisce (AFU) was established as a statutory body in 2017, with the purpose of strengthening democratic input into water decision-making. The Water Forum consists of 26 members representing the perspectives of the community, agriculture, industry, the environment and public water customers. The Water Forum’s primary role is to advise ministers on water policy and more efficient implementation of any water-relevant legislation. Since formation, significant progress has been made; however, the understanding and efficient implementation of ISWRM is still a big challenge. The main issues, as highlighted in the AFU’s research and the reports of the Environmental Protection Agency (EPA), are: the lack of monitoring and control of the urban water networks, leakages from water distribution networks, water quality management (raw sewage discharges, catchment-scale nutrient input into receiving waters, trihalomethane concentrations in drinking water), the lack of project and financial management, limited long-term planning and consideration of risks and methodologies “borrowed”’ from the UK.
A clear lesson from the above concerns the need to develop and communicate integrated management tools, understandably and consistently, which was the aim of this study. A conceptual framework for integrated management was developed based on the principles of ISWRM, structured with potential tools and methods for each step and justified by the literature and examples that successfully applied those principles and tools. The framework goes beyond traditional ISWRM and integrates more environmental and socio-economic disciplines. This approach is a novel element for Ireland and has an operational character, allowing its application in any case study.

2. ISWRM as a Decision Theory Problem and the Role of Integrated Land and Landscape Management

The development of humans and societies is accompanied by a plethora of different situations and options, bringing up increasingly important decisions, and thus decision-making has become a scientific field itself. To cite Nobel prize-holder Herbert Simon, a decision is a complex and complicated process for selecting among alternatives that seem more or less suitable for achieving certain goals [9]. Decision-making is often considered a situation that is synonymous with management. Most water and environmental management problems can be approached as decision-making problems, as they target multiple (often competitive) objectives that can be satisfied by numerous (infinite) alternatives (also called strategies, scenarios or best management practices (BMPs)). These may have different characteristics and results and may not be subject to common measures, while the best solution may not be easily visible, so such problems are characterised as “complex” [1]. Given their versatile role, choosing a BMP is often a broader process than the classic hydrological and techno-economic approach. The peculiarities of decisions on environmental issues (e.g., large-scale works of great importance, investments needed, the determination of the surrounding environment, the difficulty in predicting their results, the involved population and their irreversible character) increase their complexity.
One of the AFU’s objectives is to bridge these gaps, and those identified above. The need for a “manual of good practice” has been identified based on the perspective that water and environmental problems are actually decision-making problems, which must be structured in an integrated way. Three essential stages can be highlighted: (1) identifying the problems, (2) understanding their effects on the system and (3) finding and choosing the optimum ways (BMPs) to tackle them. The role of ISWRM is to achieve that in a way that provides the maximum benefits to all users/stakeholders, even if their interests are competitive. Thus, the decision-making process must be objective, transparent and scientifically supported. These stages are depicted in Table 1, where the main fields to be considered, with their effects and indicative solutions, are summarised.
The above are indicative; they constantly interact and hence they must be part of the planning and decision-making process. Integrated land and landscape management (ILLM) is an increasingly popular approach to addressing most of the above issues and is expanding to other fields. Land, water and landscape management are not new but the recognition that atmospheric systems, geosystems and ecosystem services are interconnected, interlinked and interdependent led research to the understanding of these interconnected processes. Applications usually refer to large-scale processes, combining natural resource management with environmental and livelihood considerations (i.e., integrated modelling and multi-stakeholder approaches for long-term planning).

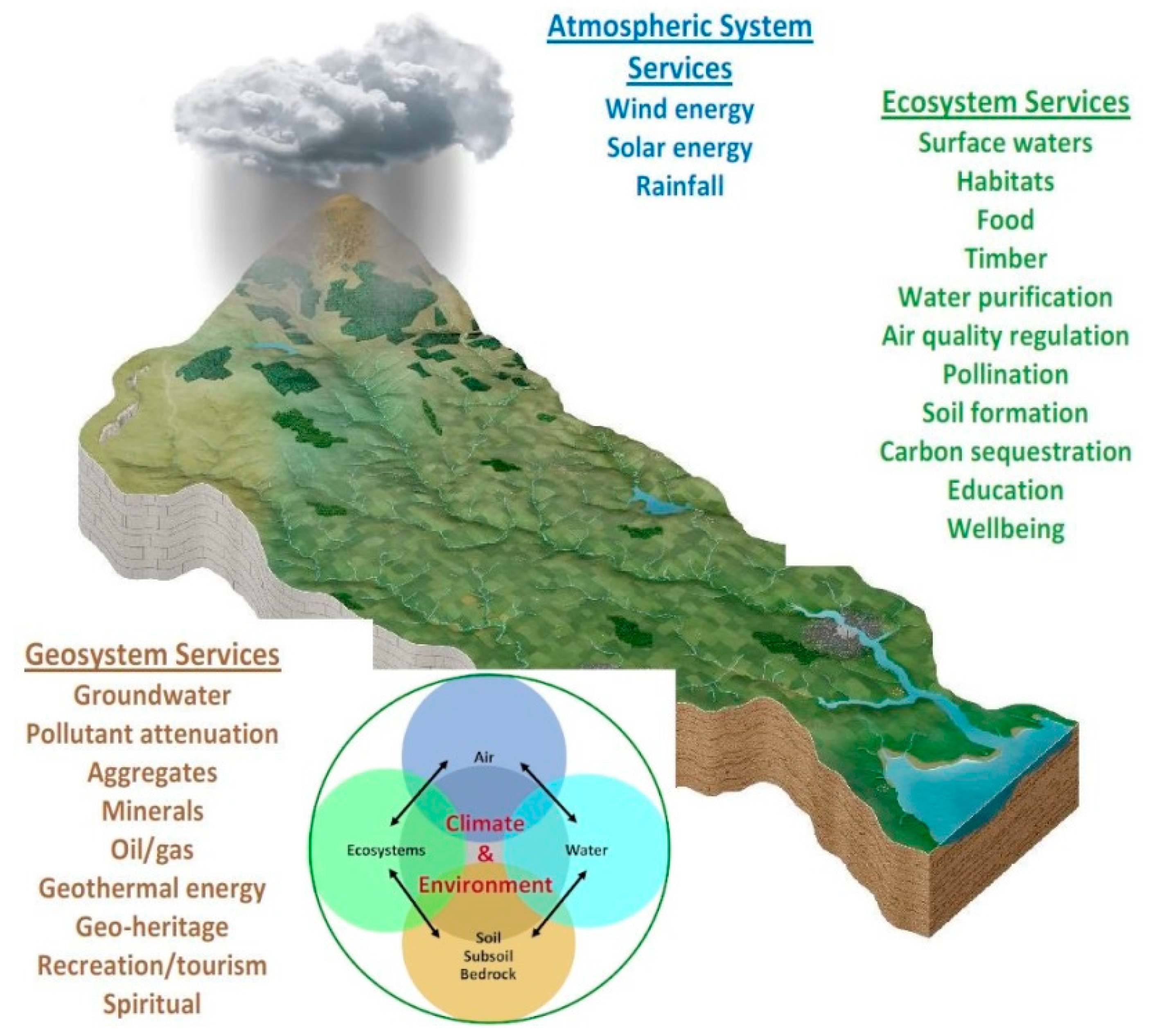

The AFU used this concept as a vehicle for Ireland’s transition to future trends by integrating all the above under a framework; the result of this conception was the Framework for Integrated Land and Landscape Management (FILLM). It was first presented as a new system-based approach, as part of the AFU’s submission to the Department of Housing, Local Government and Heritage on Significant Water Management Issues [26]. The FILLM has been well perceived by the country’s stakeholders so far (the AFU’s broad range of members and the communities they represent, as stated in the regular meetings—details follow in the “stakeholder analysis” section below): it is an easy word to remember and its meaning is synonymous with the interaction of all the above fields; thus, it is a promising way to promote the principles mentioned above to stakeholders and the public.
The practical applications of ILLM are increasing, although in the international experience it is found to be difficult to combine its principles [27]: shared or agreed management objectives with multiple benefits from and for the landscapes and BMPs contributing to all the related fields, through collaborative and community-engaged processes. According to Thaxton et al. [28], private investors and companies have begun to recognise the importance of using ILLM approaches to lower environmental and social risks, build community goodwill and secure the long-term sustainability of supply regions, with positive effects for both rural and urban areas. International policy initiatives and programmes have also been developed recently to support ILLM approaches. However, there are still some significant obstacles:
  • Lack or absence of a stakeholder platform and/or a landscape investment facilitator who can plan and coordinate the necessary actions.
  • Efficient communication with the key stakeholders. The will of decision-makers (DMs) and researchers to work together must be strengthened to efficiently frame the issues and address the challenges through system approaches.
  • Integrated data and modelling that allows the inclusion of ILLM criteria into the planning process and the investment decision-making, providing the necessary information to the investor. The monitoring process must not be limited to the data gathering but should include monitoring of the management outcomes at a large scale.
Recent research has shown that ILLM needs to be developed as a decision support system (DSS) and it’s a conceptual design has been suggested [29]. However, very few research methods exist that can address the above issues altogether and incorporate them in a DSS (including computational guidance). This work attempts to fill this gap by providing solid steps and tools for each stage. To promote discussion and further understanding, the AFU’s FILLM is used as an example as to how a DSS can be implemented.

3. FILLM: Description and Methods

In Ireland, the AFU is the only stakeholder platform relevant to the FILLM’s purposes, having members and representatives from all sectors interested in integrated management to improve water quality. Following the previous section’s conclusion, the other two obstacles are: a guide to the steps and the scientific tools and methods for implementing the FILLM, and the efficient collaboration–communication with the stakeholder groups. Below, the FILLM is outlined and then these two issues are analysed. The FILLM builds on and broadens the concept of integrated catchment management by including other environmental components while retaining catchments as the appropriate landscape units (Figure 1). Catchment-scale environmental management is more appealing and understandable to local communities and facilitates engagement to co-create and develop local solutions. Thus, it can be an overarching framework for European environmental management as a means of connecting, for instance, the Water Framework Directive, the Urban Wastewater Treatment Directive, the Habitats Directive, the Floods Directive, the Drinking Water Directive, climate change adaption and mitigation, soil conservation, spatial planning and sustainable food and timber production, in line with the UN Sustainability Goals for 2030 [30]. A guide to the FILLM’s application stages, including indicative methods, is presented in Table 2.
The over-arching requirements are included in the first fundamental stages, which are continuous processes and define the next stages. Thus, there are two basic pillars:
  • stakeholder analysis: the processes of public engagement, collaboration with local communities, development of a shared vision and its continuous communication;
  • DSS: in a general context, this can include the actions needed for the characterisation and the programmes of measures, including monitoring, modelling, simulation, optimisation of measures and ranking the alternatives. It also includes the last stage, in the context of the continuous monitoring and examining of the system under alternatives, in order to provide flexible management.
Both pillars are essential but challenging and potentially slow to achieve. More points for consideration arise as one goes into their details, which is why the right column of Table 2 includes recommendations and the scientific backgrounds needed. The next two sections refer to each of these pillars, explaining potential approaches and providing examples.

4. Stakeholder Analysis

This process is conceptually simpler; however, many projects fail because of its poor implementation, so it must be based on scientifically solid bases to build trust and get the desirable results. Jacobs et al. [31] found that participatory processes appear to work better in the context of short-term and easily adjusted decisions, such as water allocation decisions, and do not work so well for longer-term, high-stakes decisions regarding infrastructure. Recent advances have highlighted the importance of legal, regulatory and institutional frameworks in supporting: (i) stakeholder engagement, (ii) tools for building water management and governance capacity and (iii) perspectives on water management and governance [32,33]. The AFU’s approach in the context of the FILLM is that all relevant stakeholders with an interest in the FILLM’s objectives and whose opinions and actions will impact the management outcome are included in the AFU’s regular (monthly) meetings. They are also in a continuous information loop in the form of newsletters, public consultations, background (informative) reports on interest topics and publications. All these communication methods are combined and continuous two-way feedback is achieved. The AFU’s members come from the following sectors, often having more than one representative: angling, agriculture, business, the community and voluntary sectors, education, water and environment, fisheries/aquaculture, forestry, general consumers, the National Federation of Group Water Schemes, recreation, river trusts, social housing, tourism and trade unions. The basic principles for every activity are: transparency and openness, fairness, equality and respect, efficiency, collegiality and tolerance and common goal-visions, in line with the FILLM’s approach and the international guidelines and experience [34,35,36].
A shifting point regarding the perception and the practical implementation of such applications is their consideration in the context of systems approaches, as this enables the process’s mathematical representation [1]. Studies from the literature mentioned above have also suggested that the quantitative perspective of the stakeholder analysis needs to be enhanced to achieve a practically efficient decision-making process. A simple step-by-step example of the logical procedure of a systematic stakeholder analysis follows [37,38,39]:
  • Divide the stakeholders into groups based on different characteristics (e.g., how closely they are related to a proposed measure, how adaptive they seem to such changes, etc.).
  • Work with them on a specific problem and explain it to the different groups (some groups will need more time), so that everyone reaches the same level of understanding.
  • As indicated in the previous section, the techno-economic background is necessary to analyse the problem, relate it to technical, social, institutional, economic and environmental characteristics, and find their connections with the transformation process towards a more sustainable future situation.
  • At this stage, the common vision arises naturally as the common desire for the features and expected results of this future situation overall, as well as with regard to each participant’s field.
  • The ways to achieve this can be found in collaboration with the relevant expertise and may include (depending on the problem): behaviour change or adaptation, technical and technological solutions, nature-based solutions, changes in technical, economic, social or institutional frameworks, a search for financial resources, etc. This is a continuous process of overcoming obstacles through novelty and collaboration.

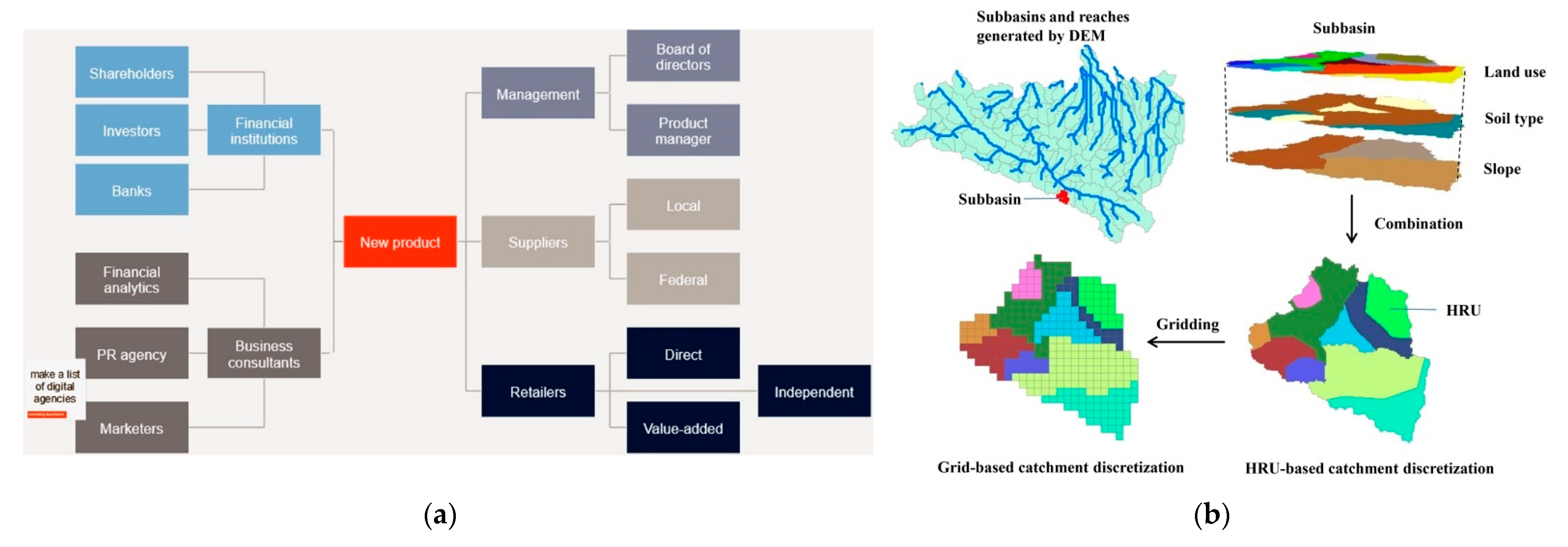

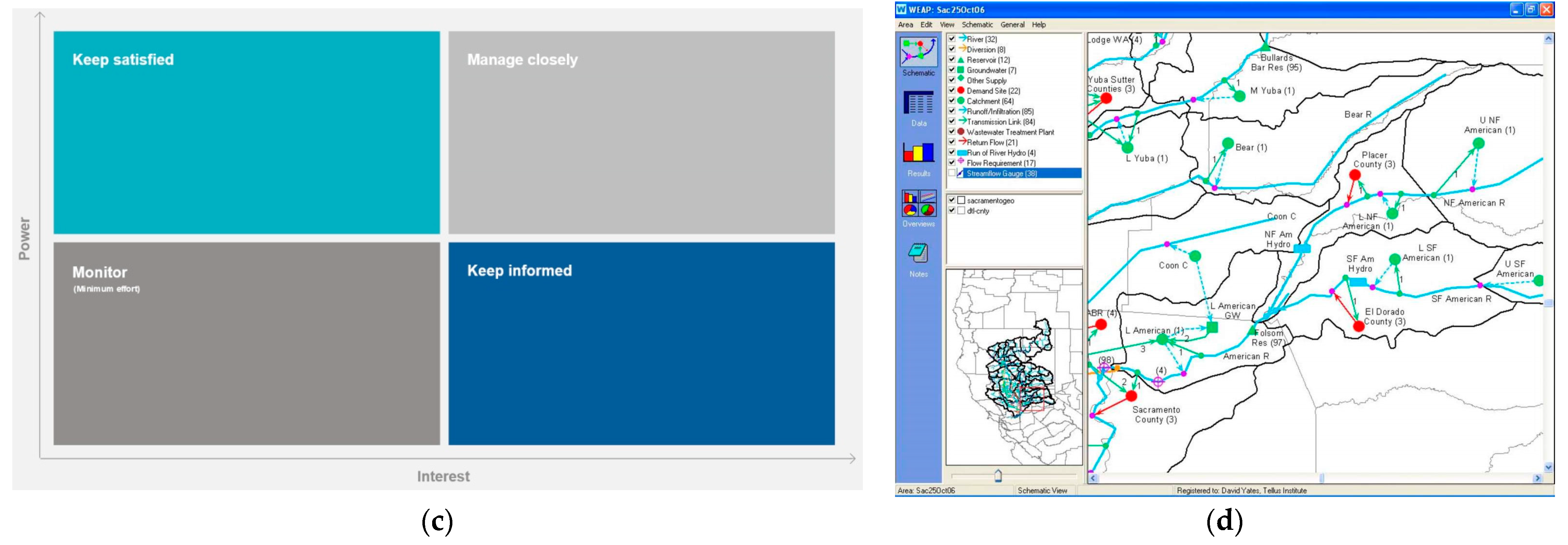

For each step packages and software produce assisting maps and graphs. For an in-depth theoretical analysis of such processes, including different methods to analyse the data arising from each meeting, see the study by Mabelo [40]. It includes a number of stakeholder analysis tools and techniques for complex problems (e.g., versions of power versus interest grids, occasional friends and foes (OFF) and lines of influence network (LOIN) systemigrams to explore stakeholder relationships). A great example of a successful practical application is a recent book by Koundouri [41]. It undertakes stakeholder analysis for proposing investment options and management solutions to achieve the “common vision”, in the direction of the UN Agenda 2030 (the 17 SDGs) and European Commission’s European Green Deal. Such approaches are also proposed in the FILLM, an analytical systemic framework for stakeholder analysis that can turn current challenges into sustainable and fair economic and environmental growth opportunities. This aspect, combined with the other components of the FILLM (e.g., DSS), makes it a unique framework. Figure 2 is a visualisation example of this multi-disciplinary approach proposed by the FILLM, using indicative pieces of works that deploy stakeholder’s analysis, integrated environmental modelling and DSSs. The aim is to show how an application of the FILLM could work, demonstrate the combination of expertise needed and familiarise users with processes covering most of the stages described in Table 2.

5. Decision Support Systems and Applications in ISWRM

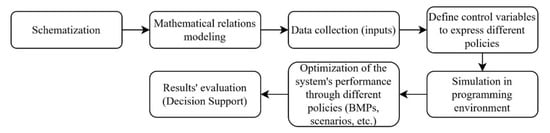

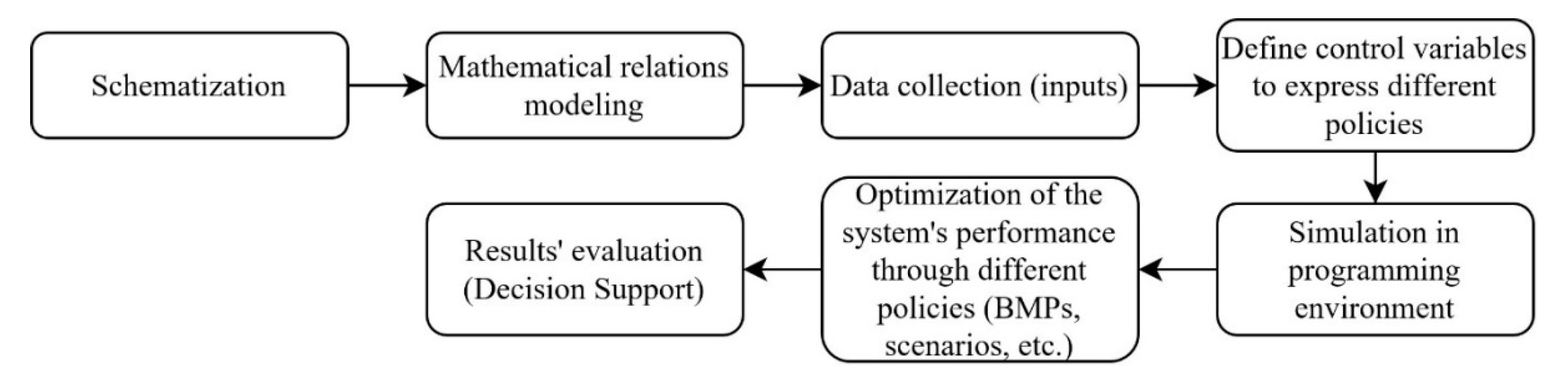

This process refers to the technical part of the project and that is why the introductory sections presented the basic principles of ISWRM and environmental management as complex decision theory problems. This part is emphasized, as in Ireland it is the most challenging component of the FILLM’s implementation; therefore, a detailed list of tools is also provided. Furthermore, the FILLM was initiated as part of the AFU’s contribution to the country’s ISWRM, so this component of the FILLM is used as the demonstration example in this work.
The definition of the term “DSS” that has prevailed is that of an interactive system (software) that uses computational MCA or optimisation techniques to assist decision-makers [45]. DMs usually define the importance of the factors (criteria) involved and the modellers (decision analysts) apply, create or adapt the methods. Figure 3 shows a simple example of the process, with greater detail than the brief high-level description of its stage in Table 2.
Many DSS approaches have been developed and the research is evolving; various relevant books, guides, journals and software have been released for DSS applications in many scientific fields, some even decades ago. Indicatively, the following are some published reviews on the use of MCA in DSSs: Pohekar and Ramachandran [47] included around 90 studies on energy design, Hayashi [48] examined around 80 on agricultural issues and Steuer and Na [49] identified 265 such studies on water economics. Hajkowicz and Collins [50] grouped these studies into seven categories: (i) watershed management (land uses, reservoirs, economy, environmental criteria), (ii) aquifer management and exploitation, (iii) choice of the best project or project evaluation (appraisal of water supply works, dams, reservoirs, diversions, groundwater remediation), (iv) optimum water allocation, (v) water policy and supply planning, (vi) water quality management and (vii) marine protected areas management. Overall, the concept of an ISWRM DSS can be considered synonymous with the concept of integrated modelling, which needs integrated data to use the simulation of the studied case as a basis for the analysis.
Applications of ISWRM DSSs (specifically for water) are mainly based on the hydrological component of the system, which defines the balance among available resources and demand, while gradually trying to incorporate factors that advance the spatial representation, simulation, forecast, social or economic aspects, the optimisation of parameters and variables, the user’s interface, etc. The schematisation mentioned is usually GIS-based and node-based (i.e., for water demand, a node represents each demand site).
Table A1 (Appendix A) presents some of the main DSSs used in ISWRM—of course more applications have been developed (e.g., AQUARIUS, WRAP, ResSim, AQUAPLAN, SimBaT, OASIS, REZES, RDM, NOSTRUM-DSS, WBalMo, ELBE–DSS, CalSim, CALVIN, Vista DSS, etc.; see [51,52]). The main purpose of each DSS is mentioned, followed by a number of elements that significantly affect the modeller’s choices: mapping system existence and interface, modelling capacities of surface water, groundwater, water quality, hydropower, water demand estimation, socio-economic factors (from simple engineering costs to valuation and cost–benefit analysis (CBA) routines), optimisation for calibration and scenario optimum performance, and linking (compatibility) with other models (e.g., agronomic, soil, climate, hydraulic, etc.). For the later element, a simple qualitative scale of low–high potential (based on stars) was used because each DSS has different links to different software, so this was a non-comparable factor. The mentioned packages are continuously updating and upgrading, so an indicative reference to their first version is given whilst the features are based on 2020 data. The purpose of Table A1 is to provide a single up-to-date and complete catalogue of the most common and well-known packages, along with their features, that can be used for ISWRM, assisting future modellers–analysts–researchers in choosing the most appropriate one.
Universities, research centres or companies usually develop these packages. The majority have high license costs and closed programming codes, and thus expert trained personnel are working for their expansion, operation, maintenance and adaptation to the new technologies and tools. The required data vary depending on the software’s purpose and structure. Most of the established DSSs simulate a baseline scenario and then develop alternative “what-if” scenarios or BMPs, which can then be examined comparatively. The way that the decisions are supported varies depending on the model/software (e.g., optimisation, usually just the graphical representation of BMP results, a least-cost approach, cost effectiveness or CBA and, more rarely, MCA). The relationships between the objective(s) of problems and the constraints or criteria, as well as the way that these relationships are synthesized, define the decision methods. The selection of the most appropriate technique is not a new topic: Cohon and Marks [53] evaluated different MCA techniques for WRM problems based on their computational efficiency, clarity of relations and information quality. Tecle [54] used MCA to evaluate 15 MCAs applied in ISWRM. A general finding from comparative studies is that there is no inherently superior method [55,56], but the most appropriate is the one that better fits the specific features of the studied problem, while factors such as ease of use, necessary data and efforts also play a role [57].
Ideally, a DSS should be as integrated as possible, while keeping its functions simple. Of course, there are differences in the factors involved and in how water resource systems are modelled and optimised. However, considering the elements of the reviewed packages, in their completer form, they aim for: (a) a good schematisation (often GIS-based or geo-referenced); (b) detailed simulation of the surface and groundwater hydrology (hydrological water balance and its interaction with climate variations, reservoirs and dams, linking with groundwater simulation models); (c) incorporation of water quality (measurements or simulations using basic equations or linking with water quality software); (d) descriptions of socio-economic factors (engineering basic economic or comprehensive economic analyses); (e) scenario analyses—development and management of different alternative scenarios (what-if scenarios, forecasts, extremes, warning systems, BMPs), exactly as described in the “programmes of measures” stage of FILLM; (f) the ability to evaluate the scenarios (as mentioned earlier, using cost approaches, optimisation or MCA); and, finally, (g) the ability to undertake risk assessments or uncertainty analyses for specific factors.
Decision-making for FILLM incorporates the natural, environmental and socio-economic development dimensions in a way that provides sustainable and socially acceptable solutions. Practically, the decision-making has been up to engineers so far and, again using ISWRM as an example, the most common approaches (but not the only ones) for selecting or evaluating BMPs are as follows.
  • Cost–Benefit Analysis
Once the efficiency of a project has been checked and the factors affecting the design are controlled, deterministic methods are applied, aiming to evaluate the alternatives based on the most economical way. The difference between each scenario’s costs and benefits is the evaluation criterion [58].
  • Optimisation
An objective criterion is selected and the optimal solution to the problem results from its minimisation or maximisation, subject to the constraints of the problem, which usually express the physical, technical, economic, environmental or even political commitments of the problem. There are many techniques depending on the relations of the variables and constraints involved; however, their application is not always easy for all types of problems and simplifying assumptions are often required. This is usually the reason why multi-objective optimisation problems [59] rarely adopt multi-disciplinary problem combinations but are focused on a specific issue [60].
  • Multicriteria Analysis
ISWRM problems must satisfy many criteria, so often there is no optimum solution because it can be optimum for one criterion while others may have a better solution. The multi-dimensionality of decisions and the uncertainty accompanying those problems require the introduction of additional criteria that objectively represent the problems’ scopes. Multicriteria decision analysis is the process used to set criteria and their importance for a problem’s solution. MCA imitates the processes humans follow to decide (matching criteria, weighting importance or comparing alternatives) and converts them into mathematical models to provide an objective and structured approach (compared to the DM’s judgement) [45]. This concept allows the evaluation of policies with uncertain success and risks, making it a useful tool for WRM decisions (see software in [61]), which are still developing [62].

6. Challenges and Current Difficulties

No approach or model is perfect and without any limitations. Engaging all the key stakeholders, keeping them involved, maintaining efficient communication and having accurate and reliable DSS simulations is difficult to achieve in a comprehensive and user-friendly way.
Regarding stakeholder engagement, the will for education and the sense of their potential power and influence is essential. Other “technical” details, e.g., the optimum number of participants, the experiments for communicating the problems, needs, visions and solutions, or continuous motivation and an objective approach based on a common vision, follow based on the above and the analyst’s skills.
Regarding the integrated DSS approach, all its steps include a trade-off between integration, data detail, time, accuracy, user-friendliness and comprehensiveness to stakeholders and DMs. To give a quick example, Alamanos et al. [63] developed two versions of a DSS based on hydro-economic modelling for multi-objective agricultural water resources planning: Version1 is preliminary with limited data, including assumptions and low spatial resolution, and Version2 is a complete version with detailed data, allowing more simulation steps instead of assumptions, and high spatial resolution. Dilemmas between two such approaches often concern modellers. The results and performance of the two versions were compared with criteria referring to:
  • desired general modelling aspects: number of parameters, quantitative variables, qualitative variables, steps allowing stakeholder involvement, simplicity, accuracy, reliability (validation potential), development time, data collection time, input level (data requirements), reasonable computational power, no need of technical/expert support, plausibility of assumptions, management scenarios (alternative options), simulation of future conditions, extension with hydrological variables and extension with socio-economic variables;
  • other model-specific parameters estimated/ evaluated, such as water demand, availability and balance, economic profits, water value, water quality, usefulness in the present situation and in the future and comprehensiveness to decision-makers.
The results showed that it is not easy to lean towards any approach or modelling decision (e.g., which assumptions to follow, which parameters to include or omit, etc.), given also that there are no specific instructions or generally applicable guidelines. However, the comparison proved that even simple models and DSSs with just basic outputs provide significant insights and are highly informative, so any application is encouraged.
The coupling of many complex processes that are subject to different scales, units, time-steps and assumptions is still a challenge in mathematical modelling and data collection and mining. Thus, the main existing restrictions are related to the conversion of the data into common measures, modelling simplifications (assumptions on hydrological, hydrogeological, qualitative, hydraulic and economic analyses, linearisation of nonlinear processes, externalities) and the involvement of stakeholders in certain process stages [64]. Subsequently, these DSSs are mainly used for academic purposes and less in practice.
Applying DSSs to the AFU’s FILLM approach, as analysed systematically above, highlights the potential for wider application of such tools. While the FILLM is used here as an example of such a potential wider application, the role of the AFU would be important because interdisciplinary efforts and commitment are required in order to tackle the limitations mentioned above.

7. Future Trends, Generalisation and Customisation

The FILLM was initiated as a framework that stands between stakeholder engagement and integrated modelling, balancing many competitive and complex challenges. A stakeholder platform (in our example, the AFU) plays a crucial role in engaging and analysing stakeholders, while modelling efforts are still developing. The catchment is the scale of its application, although it is restricted to river basin or sub-catchment applications.
When generalising the application of the FILLM, data limitations are often an issue, so the importance of monitoring and securing the necessary investments, even in research-oriented projects, must be a priority. Achieving satisfactory accuracy and simplicity to ensure that a DSS is practically usable requires continuous monitoring–modelling–engagement and the evaluation of results. Ideally, every catchment should be monitored as a pilot case and continuously receive stakeholder feedback.
Another difficulty arises when the tools narrow the applicability of methods, which seems to pave the way for future modelling approaches. For example, as shown in Table A1, socio-economic aspects appear in only a few cases. This is one of the main reasons that the concept of hydro-economic modelling was expanded as a DSS tool [65,66]. Most of the reviewed hydro-economic models suggest that when the natural–environmental system is simulated, the expression of its components–activities (e.g., demand and supply node relations) as optimisation equations (e.g., minimisation of costs or maximisation of benefits resulting from each activity, subject to the according constraints) is a way of incorporating more socio-economic factors.
Also, in the future there will be an increasing interest in combining the integration of modelling with environmental impact assessment, life-cycle assessment and economically oriented approaches, such as agent-based modelling and equilibrium models (partial or general). Concepts such as web-based DSSs, integration with other models and improvement of the representation of existing DSSs’ modules are leading to open coding. This will make the software more editable, allowing process modifications, different scenario explorations and even participatory processes. Furthermore, the use of artificial intelligence is a trend for improving data storage, data conversion in different patterns, simulations, calibrations and uncertainty issues. The above insights can be justified by the features of the most recent custom-made DSSs, which show a trend for the inclusion of more elements than commercial software, combining them with other specific factors to cover gaps or integrate more aspects, depending on the studied problems.
Droubi et al. [67] coupled WEAP with MODFLOW and Weng et al. [68] developed a scenario-based DSS combining MCA and multi-objective optimisation. The idea of comparing problems with known, documented cases from an ad-hoc database [69] was implemented by Awad et al. [70] with an online database for the Mediterranean Basin. Panagopoulos et al. [71] developed a new DSS methodology for the optimal BMP placing to minimise diffuse surface water pollution using SWAT and genetic algorithms for economic and multiple environmental objectives. Coelho et al. [72] presented a DSS combining MCA, GIS, fuzzy set theory and dynamic programming to optimise criteria-selected solutions. Anzaldi et al. [73] presented a knowledge-based DSS that makes use of decisional knowledge to improve daily operations and find new WRM strategies. Nikolic and Simonovic [74] presented a combination of environmental and socio-economic processes modelling and an agent-based spatially explicit model. Safavi et al. [75] combined expert knowledge-based modelling and WEAP. Alamanos et al. [76,77] developed a methodology for estimating the full cost of irrigation water and incorporated it into a DSS combining hydro-economic modelling and different MCA techniques and their evaluation. Al-Jawad et al. [60] presented a novel integrated DSS using a many-objective optimisation algorithm with auto-adaptive constraints. Mitraka et al. [78] developed the DiAS DSS (combining remote sensing methods and image processing and classification techniques) to monitor and manage disasters in agriculture from integrated mapping data. Haro-Monteagudo et al. [79] combined SWAT and Aquatool under climate change and management scenarios.
Custom-made DSSs include data that the developers trust, are based on their own assumptions and sense of how the system works and perform desirable uncertainty or sensitivity analyses. Stakeholder analysis is included in some parts and is recognised as a vital part in future applications from the early stages of the process. In order to integrate more factors, researchers focus on model linking, simulation completeness and improvements under data limitations, as well as stakeholder training and the will to stay engaged.
The current study showed many examples to prove that the theory exists and that the tools are adapting to the needs of each case. Thus, the future goal should be to bring them out of the academic circles, initially with educational forms. The role of universities, according to the needs of each country, is crucial. Public partnerships are increasing internationally (and this is encouraging) as more key stakeholders realise the potential positive effects of ISWRM (also referred to with the term “water stewardship” in that context) for both their efficiency and environmental sustainability. Although the interests may be competitive when it comes to ISWRM planning and the model building faces difficulties, the FILLM has provided a vision itself for achieving better environmental and socio-economic outcomes; time is needed to reach the results. The successful application of any integrated plan needs stakeholder support and the proper scientific tools. A take-away message for future efforts is that both sides need to be committed, and the FILLM has the potential to serve as the common vision.

8. Conclusions

The above sections described the theoretical principles and the practical aspects for the application of the FILLM, including the stakeholder analysis, the necessary expertise required for each stage and the tools needed to frame the quantitative analyses. The next steps will be to implement the above for a pilot catchment and then expand the application to more cases. Consistency in the selection of tools and overall supervision are required.
Regarding the stakeholder analysis
The international experience has proved that a group of around 30 people from all fields (similar to the AFU’s members’ backgrounds) is an ideal case. This facilitates working with them on the common vision, preferences for measures and the feedback on each stage. If the participants are fewer, the process is underrated and not very efficient. If they are too many, the process will be more like announcing to them the findings rather than working with them. Of course, representatives from the government and the local authorities are key stakeholders to be included too. It is then easier to spread the efficient practices (e.g., if some stakeholders that are regarded as “successful” in their fields follow a new practice or change their behaviour, the others are more likely to follow them—“herding behaviour”).
Regarding modelling
Some impacts (e.g., on water conservation, sustainable drainage, emission reduction, energy savings and job creation) should ideally be quantified through simulations with appropriate hydrologic/techno-economic/economic/environmental models. However, models cannot simulate everything, their results cannot be blindly trusted (especially for the longer term) and model-based evidence does not always translate to realistic policy measures. There are hidden costs not captured by the models or different priorities of DMs and stakeholders. That is why the modellers also need stakeholder input, even if qualitative, which can then be quantified with MCA or other methods and combined with model results.
Regarding broader policy considerations
River basin management plans to implement the Water Framework Directive are based on the same conceptual framework and seek the goals described here in the broader context. The focus so far has been on cooperation, the applicability of complex methods and the lack of a practical guide through interdisciplinary topics.
Each country is free to choose the ways and the methods for achieving the Sustainable Development Goals and not every member state starts from the same point. Therefore, the FILLM must be adapted to national/regional circumstances. That is why the previous section discussed its “customisation”. The challenge is to provide useful input for policymakers to follow the path that seems more beneficial for a country. This enables the achievement of realistic and important goals–steps based on solid bases, rather than trying to cover requirements or overly ambitious goals based on hurried and sloppy movements.

Author Contributions

Conceptualization, methodology, investigation, writing—original draft preparation, A.A.; investigation, writing—review and editing, A.R.; writing—review and editing, visualisation, G.P. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.


This paper is in the context of the Water Forum/An Foram Uisce’s work “Protecting and Enhancing Our Environment: A Framework for Integrated Land and Landscape Management”, for the more efficient implementation of the National and European Environmental legislations in Ireland. We would like to thank Donal Daly for his contribution to the FILLM’s development for the Water Forum.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Common DSS applications in integrated and sustainable water resources management (ISWRM).
Table A1. Common DSS applications in integrated and sustainable water resources management (ISWRM).
DSSReference/DeveloperMain PurposeMappingSurface WaterGroundwaterWater QualityHydropowerWater DemandSocial/ Economic FactorsOptimisationLinking with Other Models 1
CADSWES tools (RiverWare, RiverSmart, Demand Input Tool, etc.)[80]Hydrology planning and management tools for complex and detailed simulationsNode-basedYesNoYesYesDescription of diversion requirementsNo/noYes (linear)*
Iras[81]Interactive river–aquifer system and water qualityNode-basedYesYesYesNoYesNo/noNo*
Integrated Quantity and Quality Model (IQQM)[82]Representation of river systems, no scenario analysisNode-basedYesNoYesNoYesNo/noNo*
Waterware[83]Assessment of exploitation limits and scenarios according to legislationsGIS-basedYesYesYesNoYesNo/noYes***
AquaTool[84]Hydrological plans and management of water resources, providing risk assessmentsNode-basedYesYesYesYesYesNo/noYes (linear and nonlinear)**
REALM[85]Development of a modelling system for water supply systemsNode-basedYesYesNoNoYesNo/yesYes (linear)*
Mulino[86,87]Integrating WFD1 objectives and environmental impacts, with geo-spatial information and MCAGIS-basedNoNoNoNoNoYes/noNo-
MODSIM[88]Solid mathematical background for distributing system flowsNode-basedYesYes (MOD-FLOW)Yes (QUAL-2E)YesYesNo/yesYes (linear)**
Basins[89]A tool for watershed characterisation (land use, soil, pollutant loads and their transport)GIS-basedYesYesYesNoNoNo/noNo**
Ribasim[90]Representation of watersheds’ behaviour under hydrologic conditions and evaluating measuresNode-basedYesNo (needs linking with SEA-WAT)YesNoYesNo/noNo*
DSS for Water Resources Planning Based on Environmental Balance[91]Description, evaluation and assessment of water systems, considering legislationGIS-basedNoNoYesNoYesYes/yesNo*
A Spatial DSS for the Evaluation of Water Demand and Supply Management Schemes[92]Development of a unified software package for describing networks of water sources and usersGIS-basedYesYesNoNoNoNo/noNo-
EnSIS[93]Surveillance and information system based on GISGIS-basedNoNoYesNoYesNo/noNo**
WEAP[94,95]Water balance model, assessing the performance of management scenariosNode-basedYesYesYesYesYesNo/yesYes***
WaterStrategyMan[96]DSS for WFD1 requirements, emphasis on economic principles (e.g., cost recovery, pricing policies)GIS-basedYesYesYesYesYesYes/yesNo-
Hydronomeas[97]Integrated system simulation and optimisationNode-basedYesYesNoYesYesNo/yesYes (linear)*
WARGI[98]Water resources system, simulation of many hydrological scenarios.GIS-basedYesYesNoYesYesNo/noYes (linear or quadratic or mathematical programming)*
MIKE Hydro Basin[99]Simulation of surface, groundwater, water quality, water demand and optimisation of the systemGIS-basedYes (linked with MIKE SHE)YesYesYesYesNo/noYes (excel solver)**
1 Water Framework Directive (European Commission, 2000). Linking ranking scale: * = poor, ** = moderate, *** = very good.
