3.1. Material Characterizations
XRD analysis was conducted to investigate the phase composition and crystallinity of the electrolyte and anode support layers, as shown in

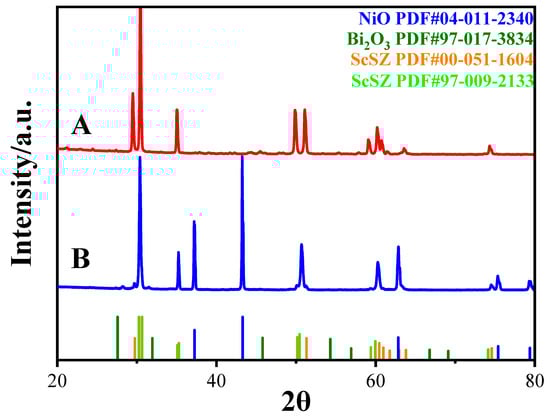

Figure 3. The diffraction patterns of the electrolyte (Sample A) and the anode support (Sample B) are compared alongside the standard reference patterns for NiO (PDF#04-011-2340), Bi
2O
3 (PDF#97-017-3834), and ScSZ (PDF#00-051-1604 and PDF#97-009-2133).
Sample A primarily exhibited an ScSZ structure, as evidenced by major diffraction peaks located at approximately 30.2°, 35.1°, 50.4°, and 59.9°, which corresponded to the standard reflections of cubic ScSZ (PDF#04-008-1973). Additionally, a slight peak shift and minor broadening compared with the ideal cubic positions indicated a rhombohedral distortion, which is consistent with the structural model of ScSZ described in PDF#00-051-1604. This indicates that the sample retained a highly symmetric structure, intermediate between cubic and rhombohedral phases, characteristic of ScSZ with a high scandia content. Although no distinct diffraction peaks corresponding to δ-Bi2O3 were observed, a slight intensity perturbation near 27.5° indicated the possible presence of a minor amount of a segregated Bi2O3 phase. It can be inferred that while most of the Bi2O3 was incorporated into the ScSZ lattice, a small fraction may have existed as isolated nanocrystalline or amorphous domains below the detection limit. The sharpness and symmetry of the major peaks, combined with a low background intensity, confirm the excellent crystallinity. Full-width at half-maximum (FWHM) analysis of the (111) peak at ~30.2° yielded an estimated crystallite size of approximately 45–55 nm, indicating high crystallinity.
Sample B showed dominant crystalline phases identified as NiO and ScSZ. The diffraction peaks at approximately 37.2°, 43.3°, and 62.8° corresponded to the 101, 012, and 110/104 reflections from the NiO phase, while additional peaks near 30.2°, 35.1°, and 50.4° matched those of cubic ScSZ. The possibility of minor rhombohedral distortion, similar to that observed in the electrolyte, cannot be completely excluded. No distinct Bi2O3-related peaks were detected in Sample B, although the potential existence of an amorphous Bi2O3 domain remains plausible. FWHM analysis of the major NiO peak at ~43.3° indicated an estimated crystallite size of approximately 40–50 nm. The clear and sharp diffraction peaks, coupled with a low and stable background, further demonstrated the high crystallinity and low defect density of the anode support.
The rhombohedral distortion in the anode layer appeared less pronounced compared with the electrolyte layer, as no evident peak shift or broadening beyond the cubic ScSZ references was observed. This may be attributed to the presence of NiO and the different local chemical environment in the anode layer, which may have inhibited the degree of rhombohedral distortion in the ScSZ phase.
While the XRD results confirm high crystallinity and phase purity, microstructural features such as porosity, grain connectivity, and interfacial adhesion cannot be inferred from XRD and are evaluated using SEM analysis.
ScSZ samples with 0, 1, 3, and 5 wt% Bi
2O
3 were prepared and sintered at high temperatures to obtain dense structures to investigate the phase evolution induced by Bi
2O

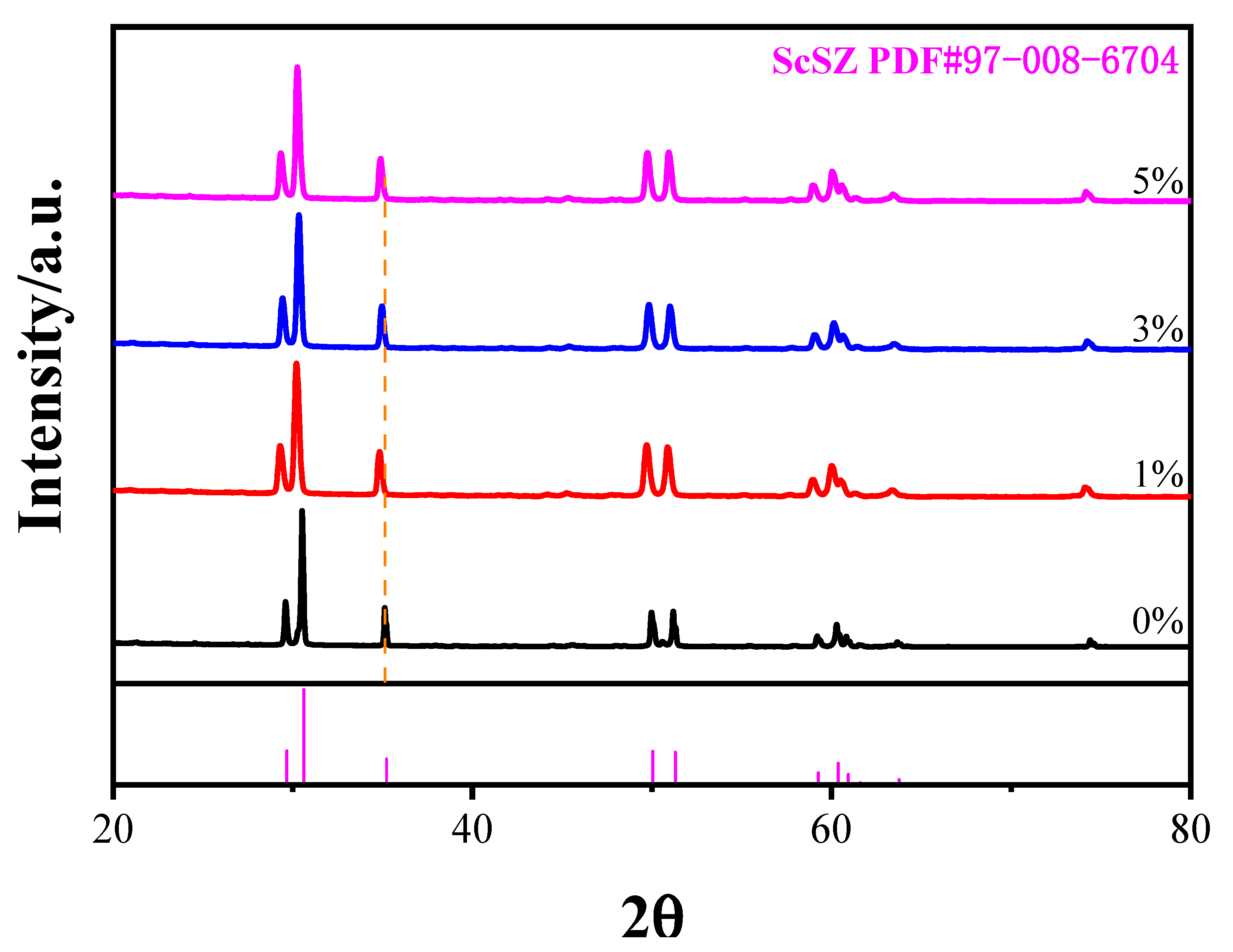

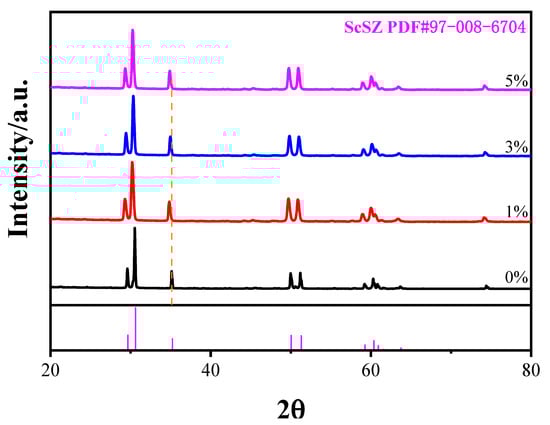

3 doping. The X-ray diffraction (Cu-Kα; 2θ = 20–80°) results are shown in
Figure 4. All samples exhibited major reflections at 2θ ≈ 29.6°, 30.6°, 35.2°, 50.1°, and 51.3°, corresponding to the hexagonal phase reflections of ScSZ (PDF#97-008-6704), including the 006, 152, 154, 158, and 740 planes.
No tetragonal (t-ZrO2; 2θ ≈ 30.3°) or cubic (δ-Bi2O3; 2θ ≈ 27.9°) peaks were observed, indicating that up to 5 wt% Bi2O3 was fully incorporated into the ScSZ lattice without forming detectable secondary phases. This suggests that Bi3+ ions were successfully doped into the ScSZ crystal structure, stabilized by the cooperative substitution of Sc3+ and Bi3+, which suppressed phase separation.
As shown by comparison with the orange dashed line, a slight peak shift toward lower angles and a broader full-width at half-maximum (FWHM) was observed with an increasing Bi2O3 content, implying lattice expansion due to Bi3+ substitution. The expansion was attributed to the significantly larger ionic radius of Bi3+ (1.17 Å) compared with Zr4+ (0.84 Å), leading to local strain and crystal swelling.
Two major effects may arise from the observed lattice expansion:
- (1)
Enhanced ionic transport, as enlarged oxygen pathways may facilitate oxygen ion migration and thereby improve conductivity;
- (2)
Compromised structural stability since excessive expansion could induce internal stress and increase the risk of microcracking during thermal cycling.
3.2. SOFC Microstructure
The influence of the Bi
2O

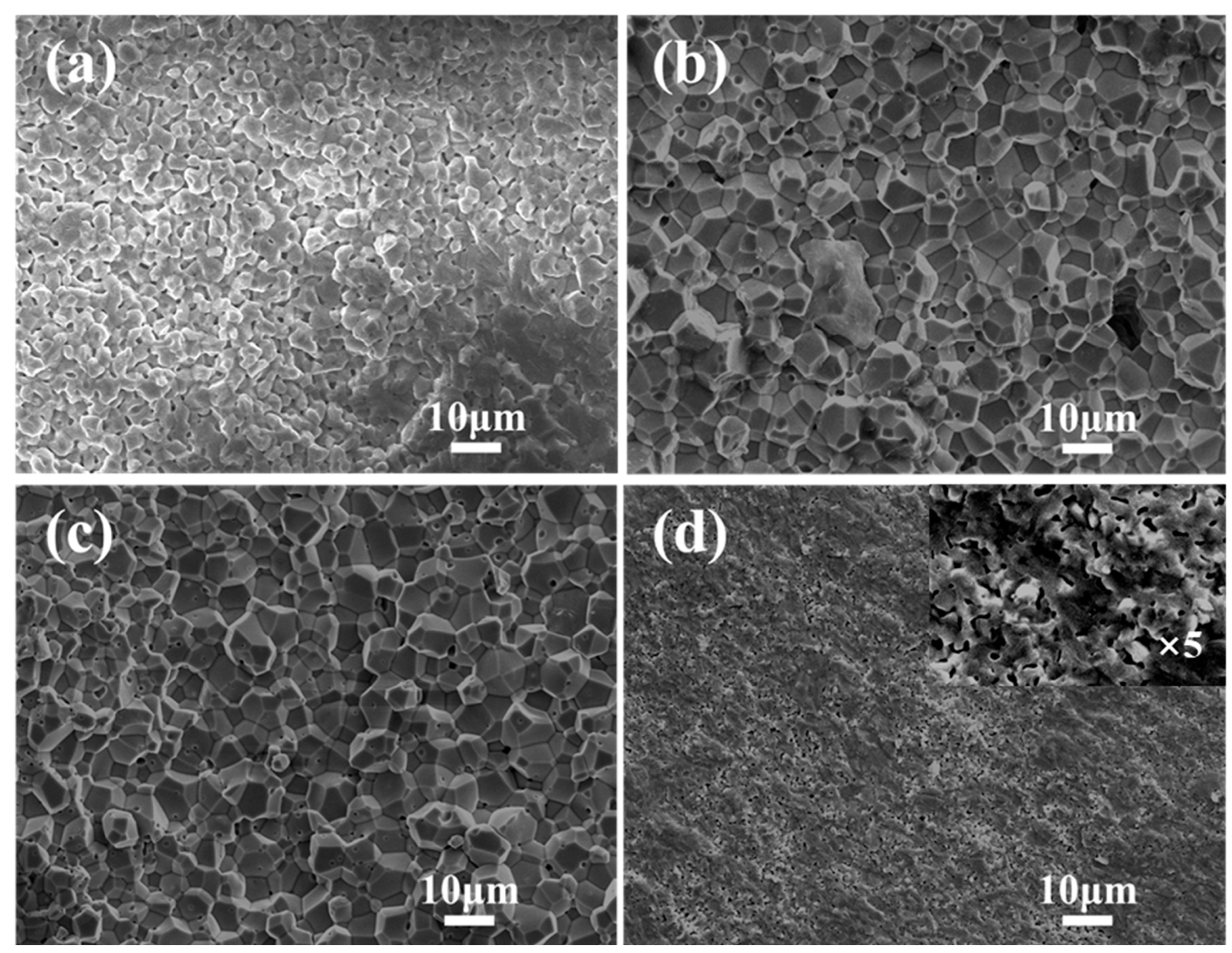

3 doping content on the sintering behavior of ScSZ electrolytes was examined using cross-sectional SEM images (
Figure 5). These images illustrate the microstructural evolution of samples sintered at 1300 °C for 4 h under varying doping conditions.
The undoped sample (
Figure 5a) exhibited insufficient densification, evidenced by a high density of interconnected pores across the cross-section. Nonetheless, distinct grain boundaries were still visible. Upon the addition of 1 wt% Bi
2O
3 (
Figure 5b), the grain boundaries became more well-defined, and the overall porosity was reduced, although a small number of isolated pores remained.
At a doping level of 3 wt% Bi
2O
3 (
Figure 5c), the sample exhibited a well-balanced microstructure characterized by homogeneous grain growth and significantly reduced porosity, with no large pores detected. This suggests that 3 wt% Bi
2O
3 facilitated optimal densification and enhanced the electrolyte’s structural integrity.
In contrast, when the Bi
2O
3 content was increased to 5 wt% (
Figure 5d), abnormal grain growth and heterogeneous particle distribution became apparent. The high-magnification image (×5000) reveals many residual pores dispersed throughout the cross-section, indicating that excessive Bi
2O
3 hindered effective densification.
This deterioration was likely due to the low melting point of Bi
2O
3, which, when present in excess, may lead to uneven liquid-phase formation and the entrapment of volatile species during sintering. The presence of Bi-rich glassy phases along grain boundaries, as reported in a previous study [
26], supports the interpretation that Bi
2O
3 can promote liquid-phase sintering. However, excessive Bi
2O
3 may result in microstructural instability, residual porosity, or pore clustering, ultimately compromising densification and uniformity.
EDS mapping and spot analysis confirmed the presence of Bi in all doped electrolyte samples. However, the Bi signals were marked with asterisks (*), indicating that the detected concentrations were close to the instrument’s detection limit and subject to quantification uncertainty. While these results verify the presence of Bi, the exact chemical state and influence of residual Bi-containing species on ionic conductivity remain to be clarified through further investigation.

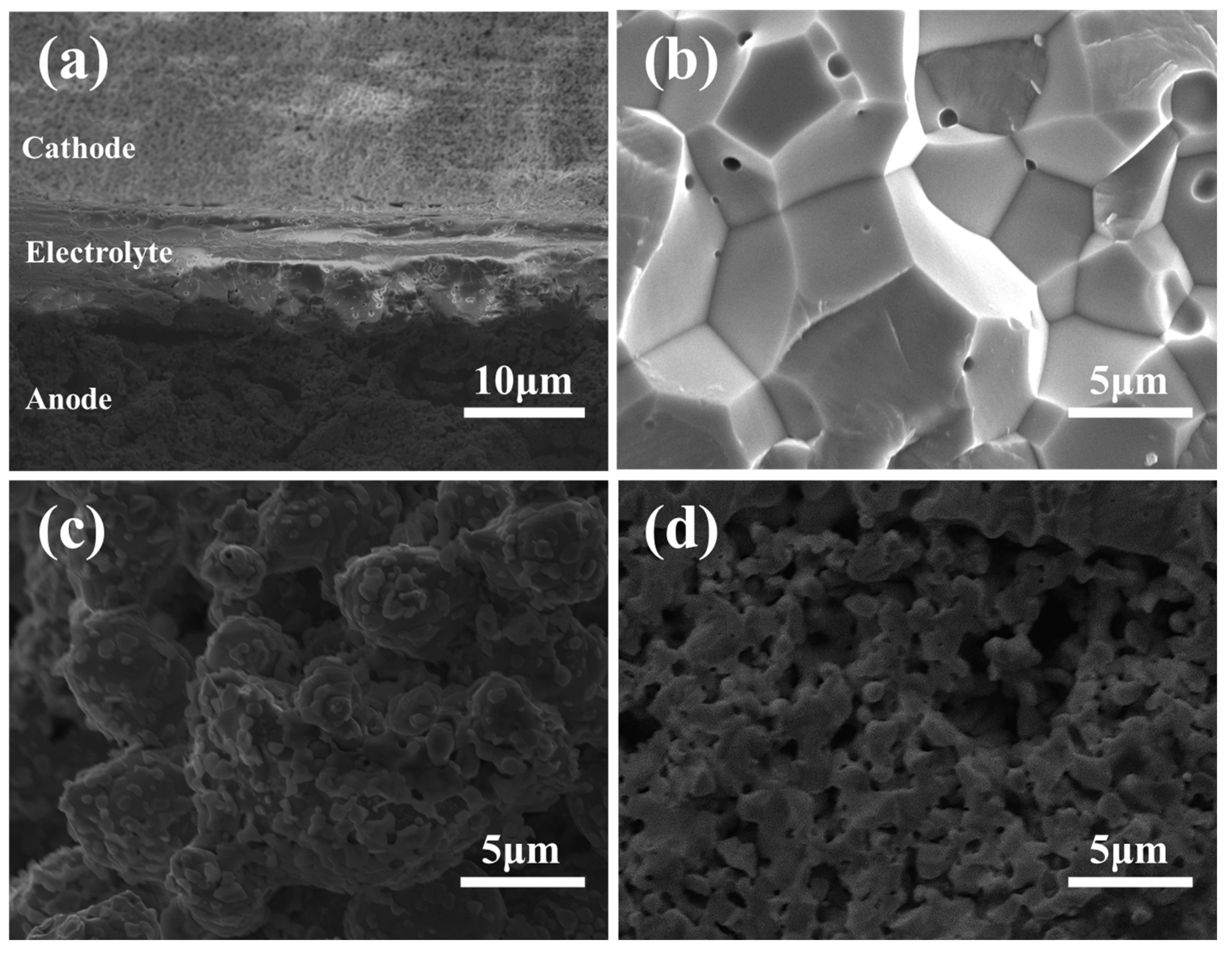

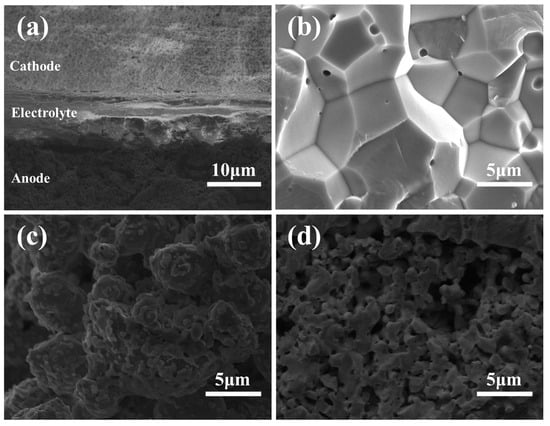

Figure 6 presents cross-sectional SEM images of the single cell incorporating 3 wt% Bi
2O
3-doped ScSZ electrolyte. In the annotated
Figure 6a, the layered structure of the anode-supported SOFC is clearly distinguished, including the porous cathode, dense electrolyte, and porous anode support. The interfaces between layers appear well bonded, with no visible delamination or interfacial defects, indicating good structural integration.
Figure 6b presents a high-magnification SEM image of the electrolyte layer doped with 3 wt% Bi
2O
3. The microstructure exhibits high densification, with well-defined grain boundaries and the absence of interconnected pores. These features confirm the enhanced sintering behavior promoted by Bi
2O
3 addition. Such a dense and structurally uniform layer is critical for preventing gas crossover and achieving a high open-circuit voltage (OCV) in SOFC operation.
Figure 6c presents the porous microstructure of the anode layer doped with Bi
2O
3. A well-developed network of interconnected pores and aggregated particles is observed, indicating that the introduction of Bi
2O
3 did not disrupt the original anode architecture. This preserved porosity facilitated gas diffusion and provided a high surface area, which was favorable for the formation of triple-phase boundaries (TPBs) during fuel cell operation.
Figure 6d depicts the cathode layer, which was fabricated without Bi
2O
3 doping. The cathode maintained a loose, highly porous microstructure with small, uniformly distributed grains. This morphology offered a sufficient surface area and gas pathways to facilitate the oxygen reduction reaction (ORR), demonstrating that the undoped cathode retained excellent catalytic performance. These results confirm that selective doping of Bi
2O
3 into the electrolyte layer improves sintering and densification without compromising the porous structure and functionality of the electrodes.
The porosity was quantified using the Archimedes method to provide further insights into the anode microstructure. Unlike previous studies, in which pre-sintered NiO–ScSZ anodes without Bi
2O
3 doping tended to fracture due to insufficient mechanical integrity, the present sample doped with 3 wt% Bi
2O
3 remained intact, enabling porosity assessment at the pre-sintering stage. This improvement highlights the role of Bi
2O
3 in enhancing low-temperature sintering and mechanical robustness. The pre-sintered NiO-ScSZ support exhibited a porosity of approximately 58.0%, indicating a well-connected porous structure. Subsequent sintering at 1300 °C resulted in a reduced porosity of 44.7%, suggesting significant densification. Upon reduction at 800 °C in hydrogen for 2 h, the porosity increased to approximately 50.0%, attributed to the volumetric shrinkage during the NiO-to-Ni transformation. These results are consistent with the SEM observations in
Figure 6c and confirm the effectiveness of the adopted fabrication strategy. The preservation and partial recovery of porosity upon reduction is beneficial for fuel diffusion and TPB formation, which are both critical for high electrochemical performance.
3.3. SOFC Electrochemical Performance

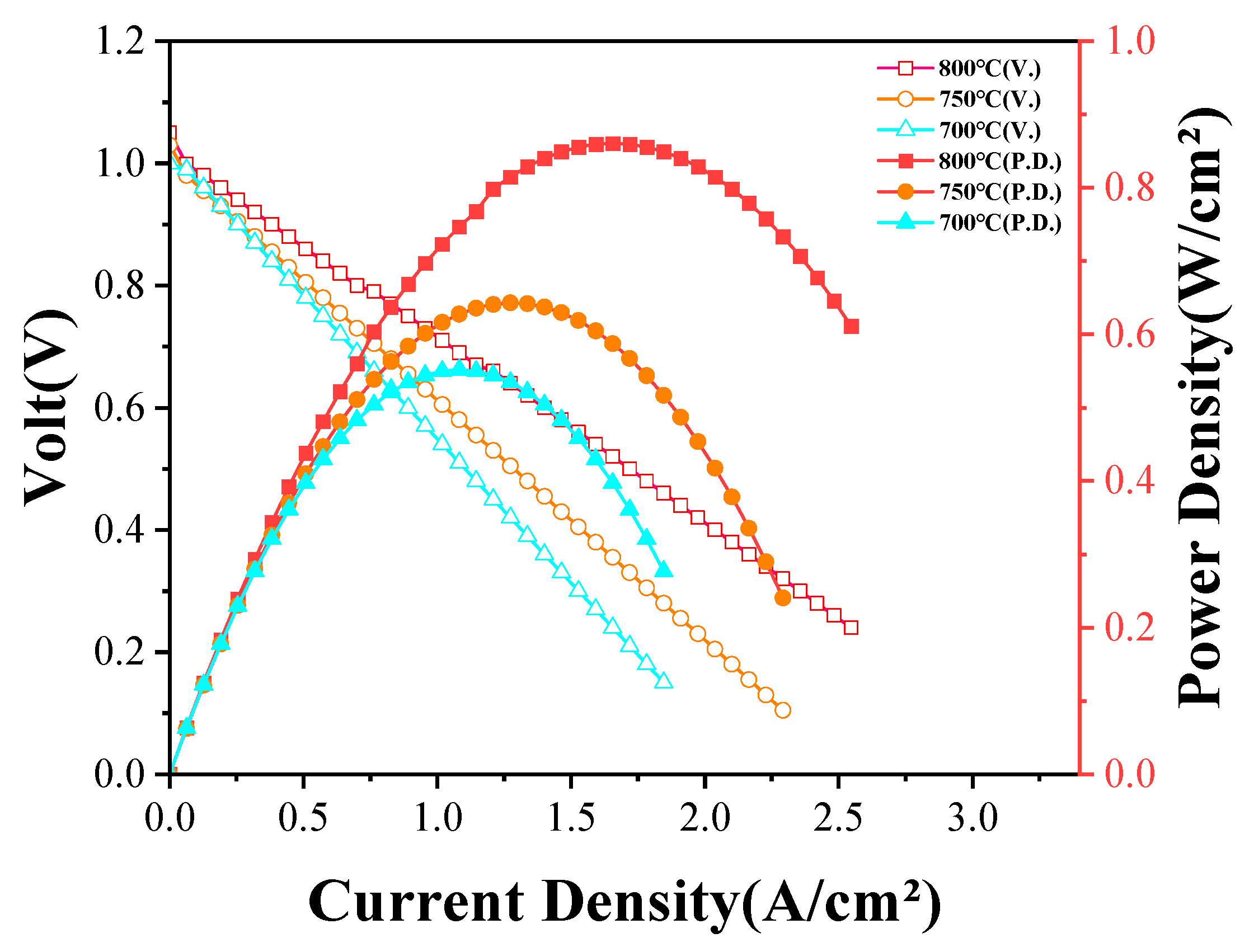

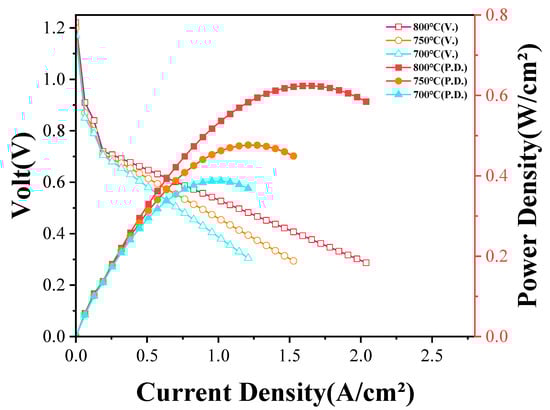

Figure 7 presents the current–voltage (I–V) and current density–power density (I–P) characteristics of the fabricated anode-supported SOFC at various operating temperatures under a humidified hydrogen (~3 vol% H
2O) atmosphere. Before electrochemical measurements, the sealing integrity of the single cell was assessed using a soap bubble flow meter. The gas flow rates at the anode and cathode outlets were nearly identical, confirming excellent sealing performance and electrolyte gas tightness. During the operation, humidified hydrogen and air were continuously supplied to the anode and cathode sides, respectively, with the flow rates kept constant throughout the experiment, ensuring the reliability of the electrochemical data.
The measured OCVs were approximately 1.05 V at 800 °C, 1.03 V at 750 °C, and 1.00 V at 700 °C, indicating the sufficient densification and impermeability of the electrolyte layer. The measured OCV at 800 °C was slightly lower than the theoretical value of ~1.10 V for a system with 3 vol% H2O. This deviation can be attributed to hydrogen dilution by water vapor. As the operating temperature increased, both the current density and peak power density significantly improved. The SOFC achieved peak power densities of 0.861 W/cm2 at 800 °C, 0.643 W/cm2 at 750 °C, and 0.552 W/cm2 at 700 °C.
The performance enhancement at elevated temperatures can be mainly attributed to the increased ionic conductivity of the YSZ electrolyte, reduced ohmic resistance, lower activation overpotential at the electrode interfaces, and accelerated electrochemical reaction kinetics. The I–V profiles exhibited a typical monotonic voltage decrease with increasing current density, reflecting the combined effects of activation, ohmic, and concentration polarizations. At 700 °C, a steeper voltage drop was observed, suggesting that activation polarization was likely the dominant factor under low-temperature operation due to the limited electrocatalytic activity of the LSM cathode. In contrast, the voltage decrease at 800 °C was much more gradual, indicating improved charge transfer characteristics and enhanced electrode reaction kinetics.
This observation underscores the critical importance of maintaining a high operating temperature to minimize polarization loss and optimize cell performance.
Electrochemical impedance spectroscopy (EIS) measurements were not included in this study due to persistent technical issues during frequency sweeps. Future work will incorporate EIS analysis to further distinguish the contributions of ohmic resistance and electrode polarization.
The electrochemical performance of the SOFC under a dry methane atmosphere (CH
4 concentration: 16.7 vol%) was further evaluated, as shown in
Figure 8. The initial OCVs under methane were recorded at approximately 1.22 V at 800 °C, 1.20 V at 750 °C, and 1.17 at 700 °C, which were slightly higher than those obtained under a hydrogen atmosphere, consistent with the higher theoretical potential of methane oxidation. Moreover, the stability of the OCVs during the initial open-circuit operation confirmed the gas tightness of the electrolyte, even under hydrocarbon conditions.
Despite the high initial OCVs, a more pronounced voltage decline with increasing current density was observed during methane operation, particularly at lower temperatures. This behavior was primarily attributed to the sluggish electrochemical oxidation kinetics of methane compared with hydrogen, as well as the increased anode polarization resistance associated with limited fuel oxidation rates. The maximum power densities achieved under a methane atmosphere were 0.624 W/cm2 at 800 °C, 0.477 W/cm2 at 750 °C, and 0.386 W/cm2 at 700 °C, all lower than those measured under hydrogen operation. The performance degradation was likely due to the combined effects of slower methane oxidation, local fuel depletion at high current densities, and potential carbon deposition on the anode surface, which could block active sites and increase polarization losses.
Overall, the fabricated SOFC demonstrated a strong temperature-dependent performance under both humidified hydrogen and dry methane atmospheres, with a significantly enhanced output at elevated temperatures. Nevertheless, even at 800 °C, the power output under methane remained inferior to that under hydrogen, highlighting the necessity for further optimization of the anode microstructure, catalytic activity, and carbon tolerance to achieve efficient and stable direct hydrocarbon-fueled SOFC operation.

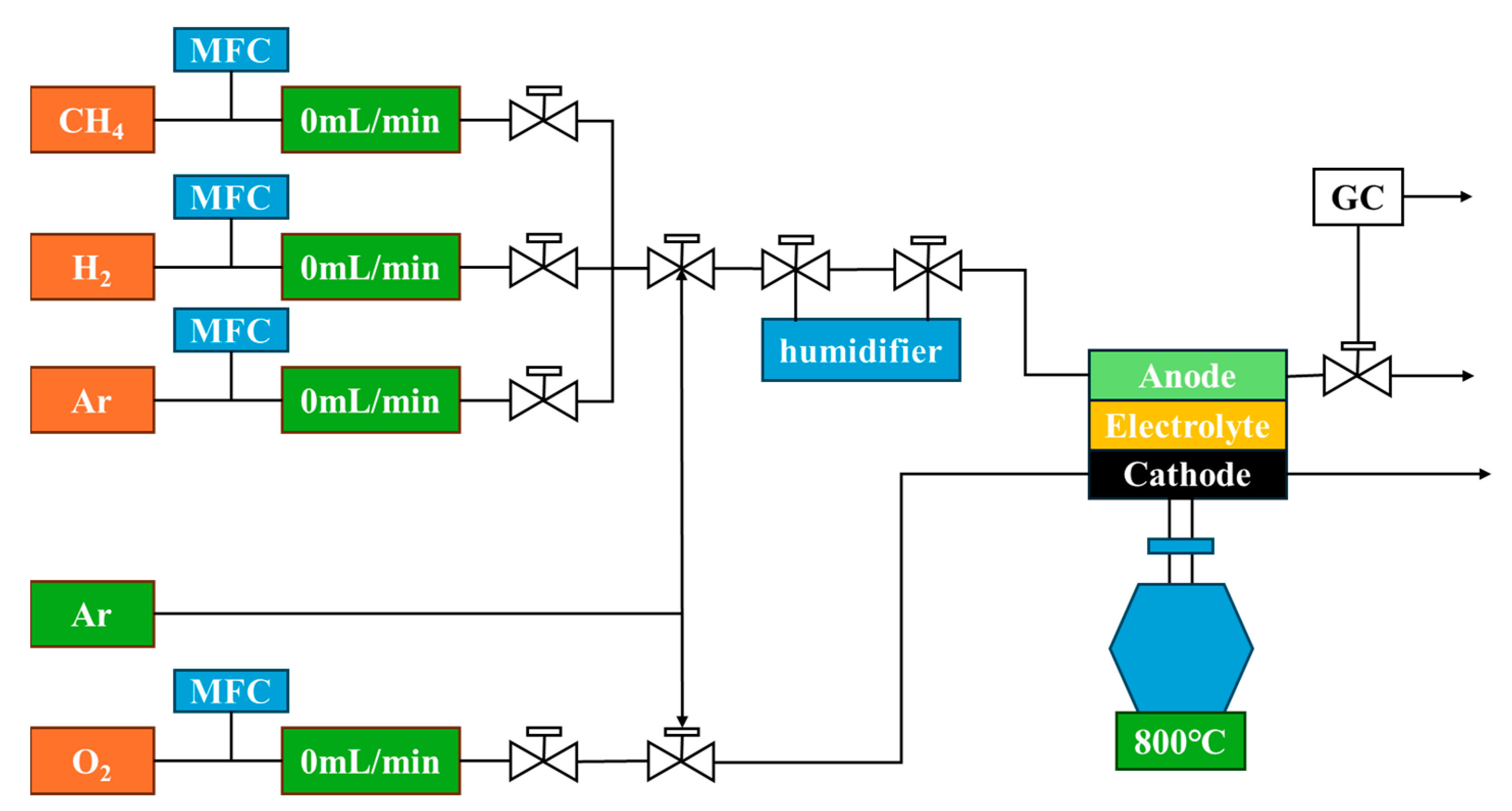

3.4. Gas Analysis
Methane undergoes thermal decomposition at elevated temperatures, including at the TPB on the anode side. The decomposition products—primarily carbon and hydrogen—can subsequently react with oxygen ions (O2−) transported from the cathode. In addition, methane may adsorb onto the surface of the anode catalyst and directly participate in electrochemical oxidation reactions with O2− ions, thereby contributing to the overall fuel oxidation process.
The gas analysis at the anode outlet revealed the presence of six major components: CH4, CO, CO2, H2, H2O, and deposited carbon. These species were involved in a network of electrochemical and thermochemical reactions that collectively defined the local reaction environment and fuel conversion behavior.
The reaction mechanisms of methane reforming and oxidation were previously detailed in [
23] and are briefly summarized in
Table 1.
The gas evolution behaviors of NiO-ScSZ/ScSZ/LSM anode-supported SOFCs were systematically investigated under varying methane concentrations (3.85%, 5.6%, and 10.6%) at 800 °C to assist in evaluating the anode performance, particularly its oxidation activity and carbon tolerance. The results were compared with those of a previously reported NiO–YSZ-based SOFC to clarify the effect of anode composition on electrochemical reaction initiation, methane-reforming behavior, and carbon deposition suppression.
In the NiO-YSZ/YSZ/LSM system under 3.85% methane, gas chromatographic analysis showed that at low current densities (<0.192 A·cm
−2), the anode exhaust predominantly contained CH
4, CO, and H
2, with no detectable CO
2 or H
2O. This indicates that methane decomposition was the dominant process in this regime, with negligible electrochemical oxidation. As the current density increased to approximately 0.192 A·cm
−2, H
2O appeared, signaling the onset of hydrogen electrochemical oxidation. CO
2 formation was only observed above 0.256 A·cm
−2, reflecting the delayed initiation of CO and carbon oxidation. This late activation of oxidation pathways implies insufficient early oxygen ion transport, which can lead to the accumulation of solid carbon and subsequent anode degradation under direct hydrocarbon operation [
23,
27,
28].

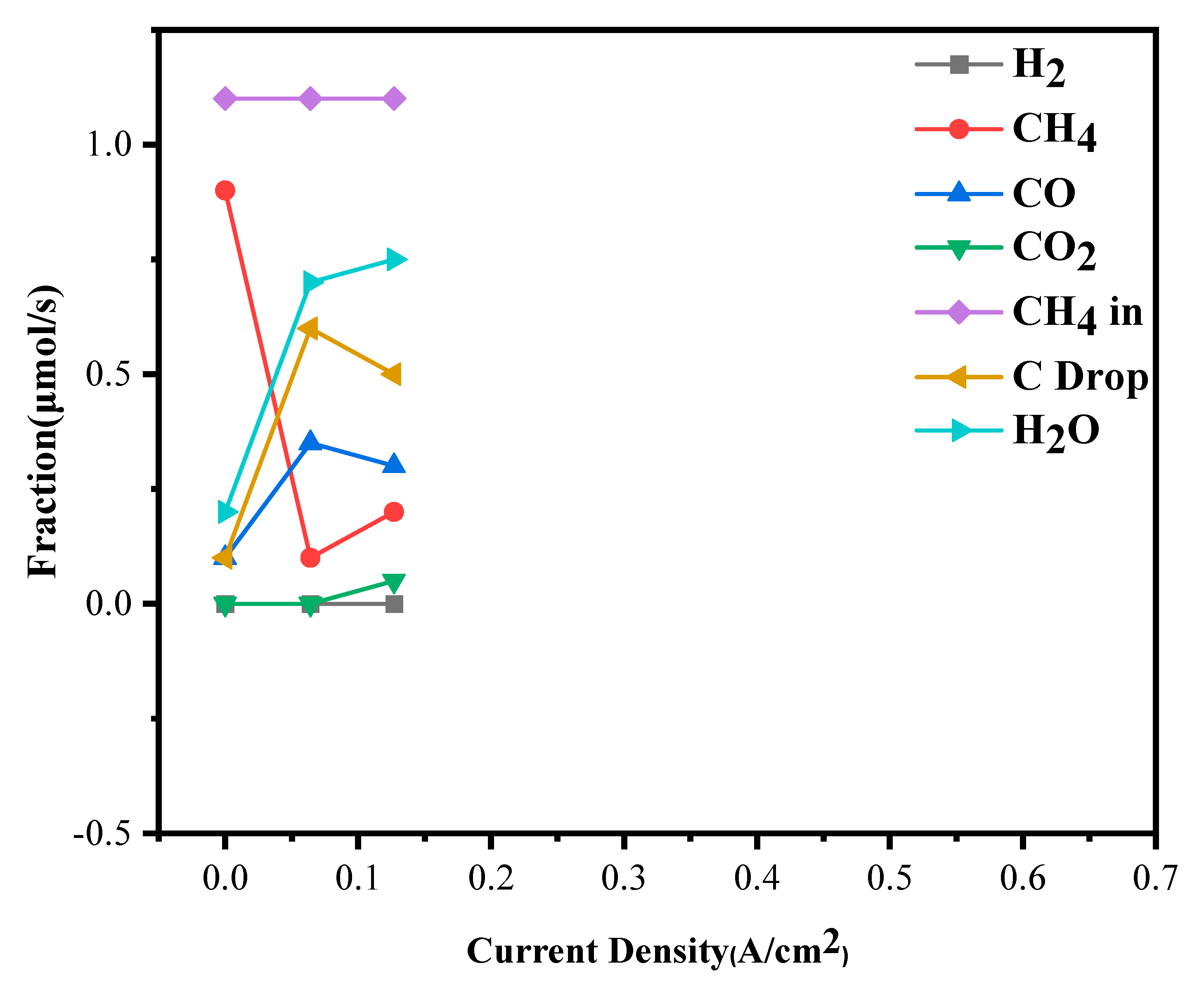

In contrast, the Bi
2O
3-doped NiO-ScSZ/ScSZ/LSM cell operating under 3.85% methane exhibited significantly improved oxidation behavior, as shown in
Figure 9. CO
2 formation initiated at approximately 0.128 A·cm
−2, accompanied by earlier H
2O generation and quicker CH
4 consumption with increasing current density. This earlier activation of oxidation reactions suggests that the improved oxide ion conductivity of the ScSZ electrolyte, together with the optimized anode microstructure, enhanced the oxygen ion flux to the anode, thus enabling the prompt oxidation of reforming intermediates even under mild operating conditions. The ability to rapidly initiate CO and carbon oxidation is critical for minimizing the risk of carbon deposition, ensuring stable anode operation during hydrocarbon fuel utilization.

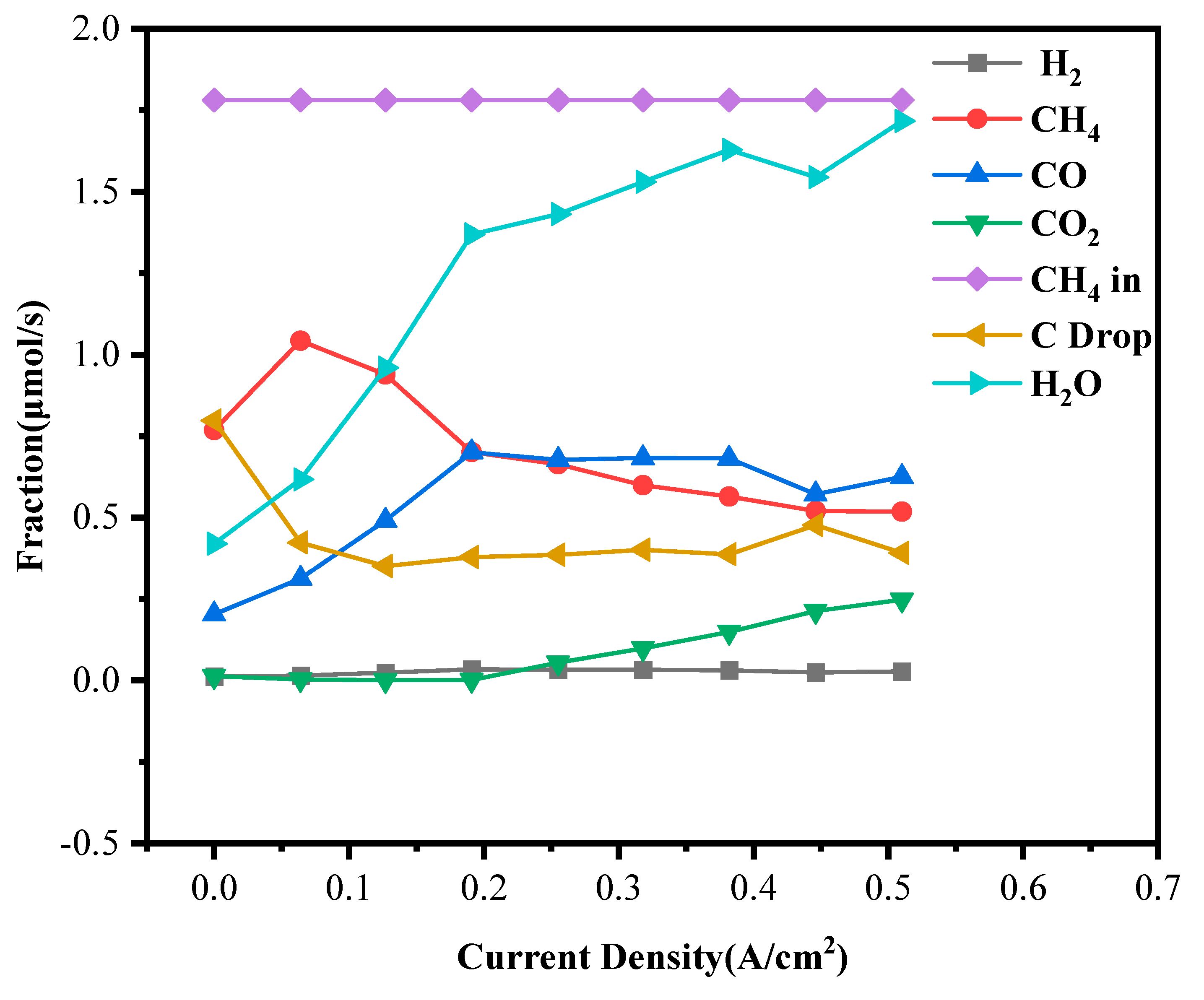

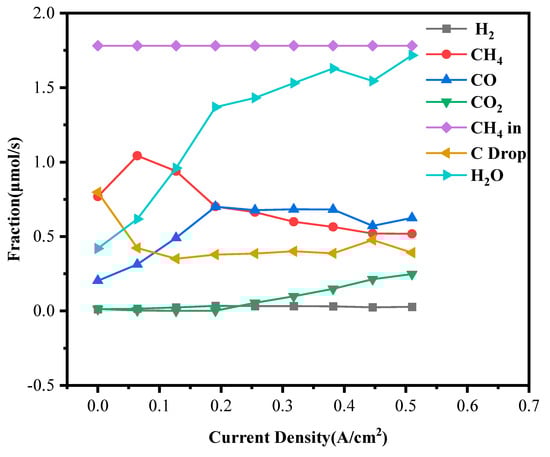

At a 5.6% methane concentration, as shown in
Figure 10, the gas evolution behavior exhibited noticeable changes. The actual onset of CO
2 formation was delayed to approximately 0.256 A·cm
−2. Although minor CO
2 signals were detected at lower current densities, these were considered instrumental artifacts. The elevated methane partial pressure increased the concentrations of H
2 and CO in the anode environment, intensifying the local reducing atmosphere and thereby suppressing the early electrochemical oxidation of intermediate species. Consequently, a higher external current load was required to supply sufficient oxygen ions to overcome the local chemical environment and drive CO and carbon oxidation reactions. Nevertheless, even under these conditions, the NiO-ScSZ/ScSZ/LSM cell maintained stable CH
4 consumption and showed gradual CO
2 and H
2O generation as the current increased, confirming the robust anode reaction kinetics.

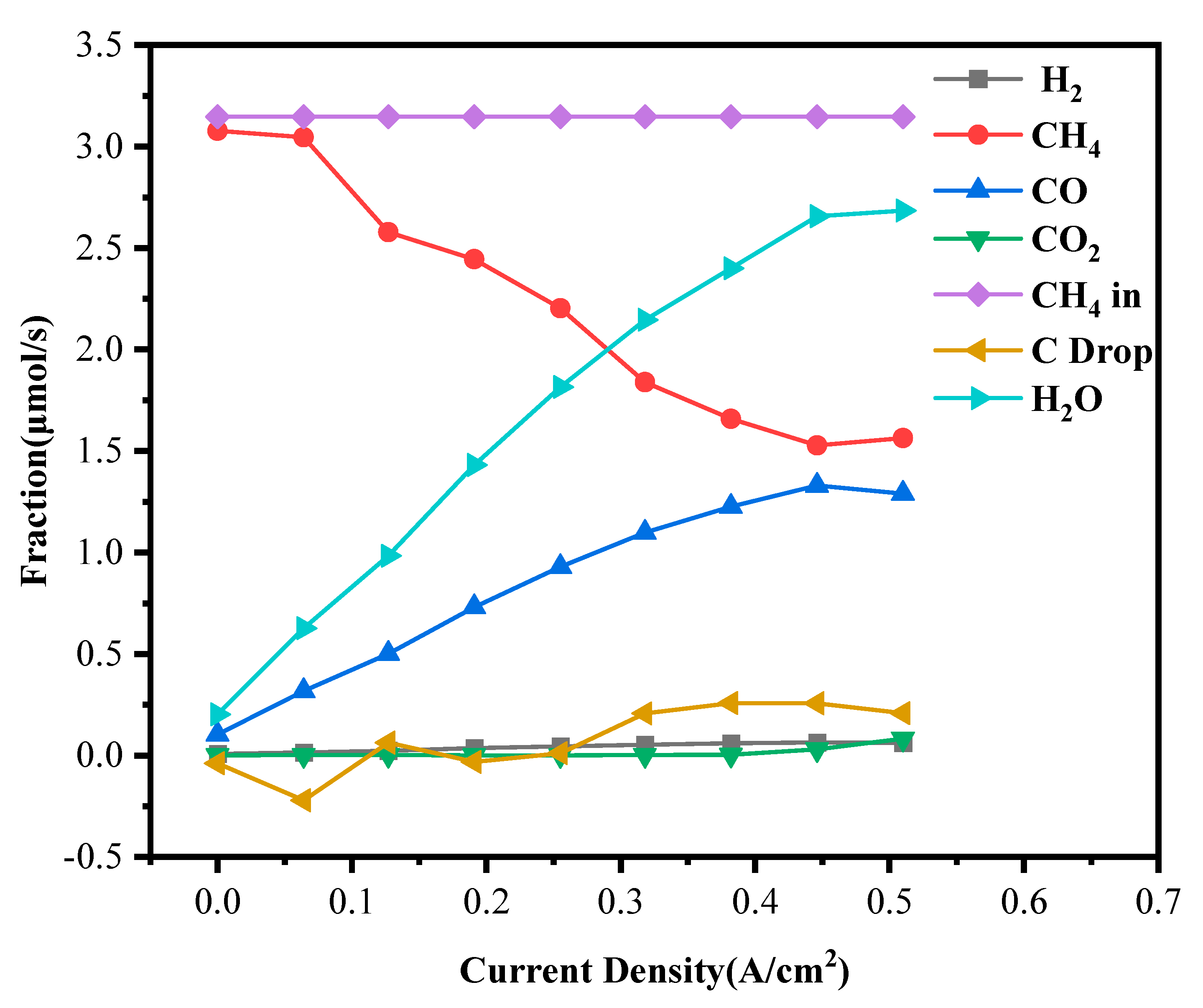

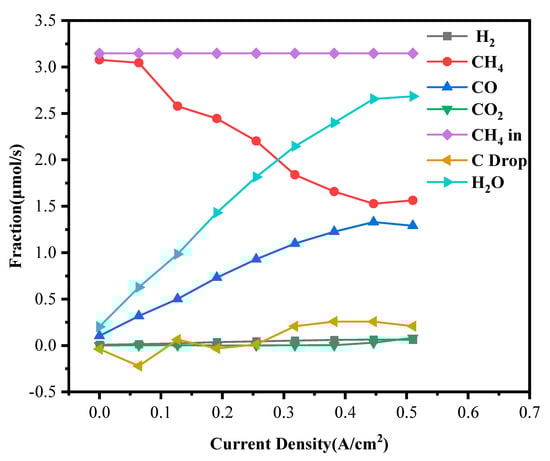

At a 10.6% methane concentration (
Figure 11), the suppression of early oxidation reactions became even more pronounced. The onset of substantial CO
2 production shifted further to approximately 0.445 A·cm
−2. Under such high methane partial pressure, the strongly reducing environment significantly inhibited the early stages of oxygen-ion-involved oxidation reactions. Despite these harsher conditions, the Bi
2O
3-doped NiO-ScSZ/ScSZ/LSM cell exhibited steady CH
4 conversion and continued the generation of CO and H
2, indicating effective reforming activity. Moreover, the emergence of H
2O at relatively low current densities suggested that hydrogen oxidation could proceed even before the full activation of CO or carbon oxidation pathways, reflecting the high electrochemical activity supported by the enhanced oxide ion transport properties of ScSZ.
Overall, the gas analysis results demonstrate that the Bi2O3-doped NiO–ScSZ/ScSZ/LSM anode, combined with the ScSZ electrolyte, effectively promoted earlier and more stable electrochemical oxidation of methane-derived species compared with the conventional NiO-YSZ anode structure. Even as the methane concentration increased and the local anode environment became increasingly reducing, the ScSZ-based system retained strong oxidation activity and maintained fuel conversion without signs of serious carbon accumulation. These characteristics confirm the superior stability and carbon tolerance of the developed anode, supporting its excellent performance after low-temperature co-sintering. The gas evolution behavior under dry methane atmospheres thus provides important auxiliary evidence for the enhanced anode microstructural and electrochemical properties achieved in this work.
