The Effect of Cu and Ga Doped ZnIn₂S₄ under Visible Light on the High Generation of H₂ Production

Abstract

A Cu⁺ and Ga³⁺ co-doped ZnIn₂S₄ photocatalyst (Zn_(1−2x)(CuGa)_xIn₂S₄) with controlled band gap was prepared via a simple one-step solvothermal method. Zn_(1−2x)(CuGa)_xIn₂S₄ acted as an efficient photocatalyst for H₂ evolution under visible light irradiation (λ > 420 nm; 4500 µW/cm²). The effects of the (Cu and Ga)/Zn molar ratios of Zn_(1−2x)(CuGa)_xIn₂S₄ on the crystal structure (hexagonal structure), morphology (microsphere-like flower), optical property (light harvesting activity and charge hole separation ability), and photocatalytic activity have been investigated in detail. The maximum H₂ evolution rate (1650 µmol·h⁻¹·g⁻¹) was achieved over Zn_0.84(CuGa)_0.13In₂S₄, showing a 3.3 times higher rate than that of untreated ZnIn₂S₄. The bandgap energy of Zn_(1−2x)(CuGa)_xIn₂S₄ decreased from 2.67 to 1.90 eV as the amount of doping Cu⁺ and Ga³⁺ increased.

1. Introduction

Global energy shortage and the environmental pollution associated with burning fossil fuels have stimulated people’s interest in clean and sustainable energy. Photocatalytic hydrogen evolution through water splitting and photocatalytic CO₂ reduction on semiconductor photocatalysts, are of interest due to their intriguing application to converting solar energy to chemical energy [1,2,3,4,5,6]. Among the two processes, the photocatalytic hydrogen production plays an important role, producing hydrogen for society. Sunlight contains ultraviolet light, visible light, and infrared light, and it is ideal to use all the wavelengths when using sunlight. It is known that the wavelength ranges of light in which the photocatalyst reacts are caused by the size of the band gap of the photocatalyst [7,8,9]. Metal sulfides have a relatively negative valence band (VB) edge and a narrower band gap derived from sulfide ions than metal oxides. Therefore, photocatalytic activity can be exhibited even with long wavelength light [10,11,12]. The addition of foreign elements, which is one of the ways to change these factors, greatly affects the characteristics of the catalyst. Specific requirements to improve the activity of the photocatalytic material include efficient light absorption, effective separation of photogenerated charge carriers, and better efficiency to the interface for direct release of hydrogen and/or oxygen from water [13,14,15]. In efficient light absorption, the size of the band gap formed by the conduction band (CB) and the valence band of the semiconductor’s photocatalyst is the most important issue [16,17,18]. In regard to the effective separation of photogenerated charge carriers, many elements, such as defects in the crystal structure and band structure, are involved in a complex manner [19,20,21]. Sulfide photocatalysts are advantageous for visible light driven photocatalysts because they have narrow band gaps and negative valence bands, due to the S electron orbital, than oxide-based photocatalysts [22,23,24]. ZnIn₂S₄ has been reported to have a suitable band gap corresponding to the visible-light absorption region, high photocatalytic activity, and considerable chemical stability for photocatalytic H₂ evolution. However, bare ZnIn₂S₄ can show inferior performance for photocatalytic hydrogen evolution due to the short lifetime of the photo-induced carriers, and is expected to be further improved for the visible light response [25,26,27]. In recent years, there have been various studies for improving the photocatalytic activity of ZnIn₂S₄ [28,29]. Cu species, such as Cu⁺ and Cu²⁺, affected the valence band of ZnIn₂S₄ and constituted an advantageous band structure for photocatalysts [30,31,32]. It has been found that Ga doping into TiO₂ produces an oxygen vacancy and an incomplete level conduction band, and electron traps enhance the separation of photogenerated electron-hole pairs [33,34,35]. Additionally, since Zn²⁺ (88 pm), Cu⁺ (91 pm), and Ga³⁺ (76 pm) have relatively similar radii, it is not difficult to replace the Zn²⁺ part of ZnIn₂S₄ with Cu⁺ and Ga³⁺. Since the solid solution changes structural, mechanical, optical, and physical properties more dramatically than simple phase mixtures, the properties can be controlled [36]. Ga doping into ZnGa₂S₄ improved the photocatalytic activity [37]. Since ZnIn₂S₄ and ZnGa₂S₄ have a similar chalcopyrite structure, the insertion of Ga into ZnIn₂S₄ was hypothesized to improve the photocatalytic activity. Therefore, it is reasonable to think that doping Ga into ZnIn₂S₄ improves the hydrogen generation activity. There are a few reports that ZnIn₂S₄ is co-doped Cu⁺ and Ga³⁺. In this study, we investigated photocatalytic activity, optical properties, and surface morphology of ZnIn₂S₄ simultaneously co-doped with Ga³⁺ and Cu⁺.

2. Materials and Methods

2.1. Preparation of Photocatalysts

All chemicals were analytical grade and used as received without further purification. Zn_(1−2x)(CuGa)_xIn₂S₄ compounds were prepared by a simple hydrothermal method. In total, 3.76 mmol of cetyltrimethylammonium bromide (CTAB) (Wako Pure Chemical Industries, Ltd., Japan), a stoichiometric ratio of ZnSO₄·7H₂O (Nacalai Tesque, Inc., Japan), InCl₃ 4H₂O, CuCl (I), gallium chloride (III), and the excess of thioacetamide (TAA) (Wako Pure Chemical Industries, Ltd., Japan) were dissolved in 50 mL of distilled water. The starting chemical regents are shown in Table S1. In order to keep Cu monovalent, nitrogen was purged for 10 min to remove dissolved oxygen. The mixed solution was then transferred into a 100 mL Teflon autoclave. The autoclave was sealed and kept at 160 °C for 1 h and cooled to room temperature naturally. After cooling, the product was dried in a vacuum at 40 °C for 4 h and was ground for 30 min. ZnIn₂S₄ (no doped), Zn_0.87Cu_0.13In₂S_3.935 (only Cu⁺ doped), and Zn_0.87Ga_0.13In₂S_4.065 (only Ga³⁺ doped) were also prepared by the same method as the reference material. The prepared photocatalysts are shown in the Table S2.

2.2. Characterization of Samples

X-ray powder diffraction (XRD) measurements were performed using a Rigaku RINT Ultima-IV diffractometer. That was carried out using Cu radiation at a scan rate of 0.04°/s in a scan range of 10–80°. X-ray photoelectron spectroscopy (XPS) measurements were carried out with a PHI Quantera SXM photoelectron spectrometer using Al Kα radiation. To compensate for surface charges effects, binding energies were calibrated using the C1s peak at 284 eV as the reference. Scanning electron microscope (SEM) observations were performed using a Hitachi S-4000 SEM. The transmission electron microscopy (TEM) images were taken on JEOL product JEM1011. The nitrogen adsorption and desorption isotherm and the Brunaure Emmett Teller (BET) specific surface area were measured from BELSORP miniII (MicrotracBEL Corp). The UV–vis diffuse reflectance spectra (DRS) of the photocatalysts were recorded using a Shimadzu UV-2450 spectrophotometer equipped with an integral sphere assembly, using BaSO₄ as a reflectance standard. Photoluminescence (PL) spectra were obtained at an excitation wavelength of 350 nm using a Shimadzu RF-5300PC spectrofluorophotometer. The band gap was calculated from Equation (1). In addition, valence bands and conduction bands were calculated from XPS results and band gap values.

αhν = A(hν − E_g)ⁿ

(1)

where h, α, ν, A, and Eg represent Planck’s constant, optical absorption coefficient, photon frequency, a constant, and the photonic energy band gap; and n = 1/2 for a direct band gap semiconductor.

2.3. Photocatalytic Hydrogen Generation

The side-irradiation-type pyrex batch reactor (inner volume: 123 mL) was used for the photocatalytic production of hydrogen from aqueous sulfide solution. A 300 W Xe lamp was used as the light source, and the UV part of the light was removed by a cutoff filter (λ ≥ 420 nm). In all experiments, 40 mL of solutiom (pH12) containing 40 mg of catalyst, 0.01 ug Pt/mL of H₂PtCl₆, and 0.25 M Na₂SO₃/0.35 M Na₂S mixed sacrificial agent was added into the reaction cell. The light source was a 4000–4500 µW/cm² Xe-lamp, used for 6 h with a cut-off filter (λ ≥ 420 nm). Nitrogen purged through the system for 30 min before the reaction to remove oxygen. The concentrations of H₂ were measured with a gas chromatograph (GC). The injection, column, and detector in the GC were 50 °C. A thermal conductivity detector (TCD) was used as the detector. The hydrogen generation experimental conditions are shown in

Table 1. Hydrogen generation experimental conditions.

Photocatalyst	Zn(1−2x)(CuGa)xIn2S(4−1.5x) (x = 0, 0.07, 0.10, 0.13, 0.16, 0.19) Zn0.87Cu0.13In2S3.935, Zn0.87Ga0.13In2S4.065
Cocatalyst	H2PtCl6 (1.0 wt%)
Medium	0.25 M Na2SO3/0.35 M Na2S 40 mL, (pH 12)
Reactor	Pyrex glass vessel (volume: 123 mL)
Temperature	Room Temperature (25 °C)
Light source	Xenon lamp (λ ≧ 420 nm, 4500 µW/cm2)
Irradiation time	6 h
Analysis	Gas chromatography (TCD)

. In the experiment on the stability of the photocatalyst, one cycle of photocatalytic hydrogen generation was 6 h, and 4 cycles were performed under the same conditions. At the end of each cycle, a nitrogen purge was performed in the reaction vessel to remove residual hydrogen.

3. Results and Discussion

3.1. Structural Characterization

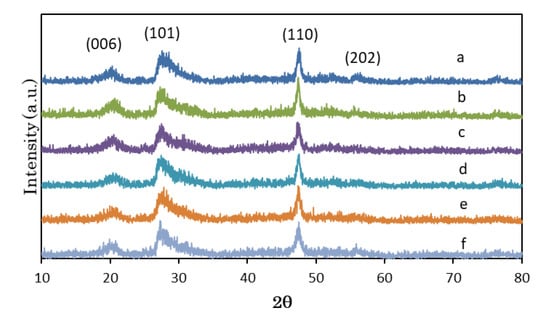

The XRD patterns of Zn_(1−2x)(CuGa)_xIn₂S₄ are shown in Figure 1. The XRD pattern of ZnIn₂S₄ could be indexed as the hexagonal structure (JCPDS number 65-2023). The four diffraction peaks at around 20.8°, 27.5°, 47.2°, and 55.9° could be assigned to the (006), (101), and (110) and (202) planes, respectively [38,39]. The XRD patterns of other composition ratio of Zn_(1−2x)(CuGa)_xIn₂S₄ also showed the similar results. This XRD patterns were in agreement with those reported in previous studies, which revealed it that Zn_(1−2x)(CuGa)_xIn₂S₄ is a hexagonal structure and contained almost no impurities of ZnS. The reason for the fact that that the Cu and Ga derived peaks were not observed could be due to the very low doping amount. In addition, with respect to the peak of the (006) plane, a slight shift toward the high angle was observed when doping with Cu and Ga. This means it that the interplanar spacing is reduced by doping, suggesting that Cu and Ga may be incorporated into the crystal structure of ZnIn₂S₄ and exist as a solid solution. The shift of the peak was observed between x = 0 and 0.13 in the doping amount, and a further shift was not observed when x = 0.16 and 0.19. This result indicates that beyond x = 0.13, it was not incorporated into the crystal structure of ZnIn₂S₄.

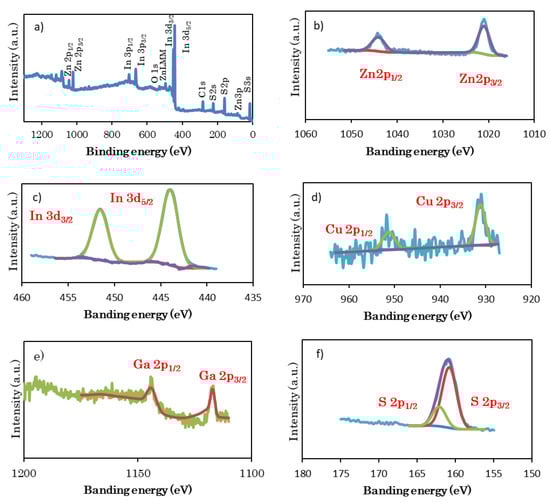

The results of XPS measurement for further structural analysis of photocatalysts are shown in Figure S1. The elemental ratios determined from the XPS spectrum are shown in the Table S3. A series of XPS survey spectra matched the reference material ZnIn₂S₄. This indicates that the impurities are not present, regardless of the doping amounts of Cu and Ga. Furthermore, from the result of elemental ratio analysis of XPS, it was able to be confirmed that the elemental ratio of the prepared catalysts was substantially in agreement with the theoretical ratio. Typical narrow spectra of Zn_(1−2x)(CuGa)_xIn₂S₄ are shown in Figure 2. In the XPS spectrum of Zn 2p, two peaks located at Zn 2p_3/2 (1020.4 eV) and Zn 2p_1/2 (1043.6 eV) were observed. Binding energies of 443.7 (In 3d_5/2) and 451.0 eV (In 3d_3/2) were observed in the XPS spectrum of In 3d. The peaks of S 2p were at 161.3 (S 2p_3/2) and 162.6 eV (S 2p_1/2) [40,41]. In addition, since the peak position of Cu 2p_3/2 was observed only at 932 eV, and Cu 2p_3/2 satellite peak derived from Cu²⁺ was not present at 942 eV, it can be seen that Cu was doped in a monovalent state [42,43]. The Ga 2p_1/2 and Ga 2p_3/2 peaks derived from Ga³⁺ were located at around 1144 eV and 1117 eV, respectively [44]. These results of XRD and XPS show that the basic structure of Zn_(1−2x)(CuGa)_xIn₂S₄ is hexagonal ZnIn₂S₄, co-doped with Cu⁺ and Ga³⁺.

3.2. Morphological Analysis

In order to investigate the influence of Cu and Ga doping on the characteristic surface morphology of Zn_(1−2x)(CuGa)_xIn₂S₄, SEM images of the prepared photocatalysts were observed. The results are shown in Figure 3. In pure ZnIn₂S₄, a microsphere-structure-like flower formed by overlapping of nanosheets was observed [45]. Co-doped with Ga and Cu, the spherical structure was destroyed, and the destruction was promoted as the doping amount increased. The nanosheet structure also collapsed and aggregated as the doping amount of Ga and Cu increased. The shapes of pure ZnIn₂S₄ and Zn_0.62(CuGa)_0.19In₂S₄ were very different. Cu⁺, Ga³⁺, and ZnIn₂S₄ are not composites; solid solutions may have been formed.

The nitrogen adsorption and desorption isotherm and BET specific surface area are shown in Figure S2 and Table S4, respectively. According to the results, co Cu⁺ and Ga³⁺ doping increased the specific surface area. The specific surface area of Zn_0.74(CuGa)_0.13In₂S₄ was six times larger than that of ZnIn₂S₄. This result could be related to the surface morphology observed by SEM.

3.3. Optical Analysis

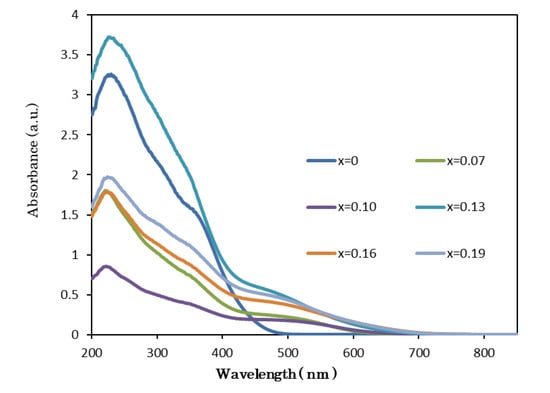

Figure 4 shows the relationship between the doping amount of Cu and Ga to ZnIn₂S₄ and the absorption wavelength region of light using the UV-visible diffuse reflectance spectrum. Figure S3 shows the fitting curve of (αhν)^1/n versus hν, for various Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalysts; the curve was best fitted when n = ½, meaning that Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalysts have a direct band gap transition. As shown in the literature, the absorption edge of pure ZnIn₂S₄ was 480 nm, and the size of the band gap was 2.67 eV. For Zn_(1−2x)(CuGa)_xIn₂S₄, as the doping amount was increased, the absorption edge of photocatalyst was red-shifted, because the 3d orbital derived from Cu⁺ affects the valence band edge of ZnIn₂S₄, and the 4s orbital from Ga³⁺ influences the conduction band edge for ZnIn₂S₄. The absorption edge reached about 700 nm when the doping amount was x = 0.13, but a further increase in the doping amount (x = 0.16 and 0.19) had scarcely any influence on the absorption edge. The results could be explained by the same doping amount over x = 0.13. Additionally, the band gap of Zn_(1−2x)(CuGa)_xIn₂S₄ similarly decreased as the doping amount of Cu⁺ and Ga³⁺ increased. In addition, to evaluate the band structure, the valence band edge measurements for ZnIn₂S₄ and Zn_0.74(CuGa)_0.13In₂S₄ were performed by XPS. From Figure S4, the valence band edge of Zn_0.74(CuGa)_0.13In₂S₄ is visibly 0.7 V lower than that of ZnIn₂S₄.

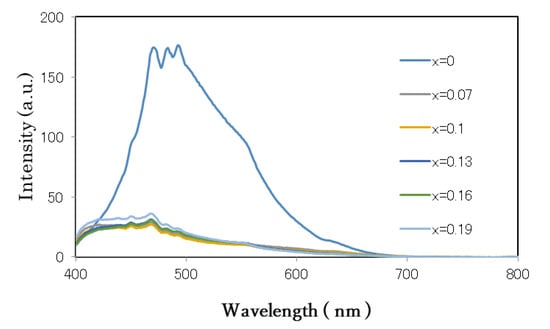

We investigated the photoluminescence spectra in order to investigate the electron-hole pair separation efficiency due to the doping of Cu and Ga, and the results are shown in the Figure 5. Luminescence in ultraviolet and visible regions was observed in the photoluminescence spectrum. In general, ultraviolet emission is associated with exciton transition and recombination from the conduction band level to the valence band, and visible light emission is mainly associated with intrinsic or extrinsic defects in the catalyst. Both peaks in the spectrum were lowered by increasing the Cu⁺ and Ga³⁺ doping. This may be due to the reduction of the recombination rate between the photogenerated holes and the electrons photogenerated in the valence band being trapped in the oxygen vacancies generated in the photocatalyst by doping.

3.4. Photocatalytic Activity

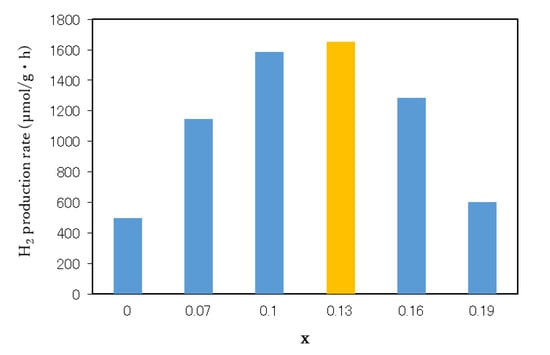

A hydrogen generation was conducted using the photocatalyst Zn_(1−2x)(CuGa)_xIn₂S₄. ZnIn₂S₄, Zn_0.87Cu_0.13In₂S_3.935, and Zn_0.87Ga_0.13In₂S_4.065 were used as comparative objects. All catalysts were loaded with 1 wt% Pt as a cocatalyst. The results are shown in Figure S5. The photocatalyst mono-doped with Ga or Cu showed higher hydrogen generation activity than pure ZnIn₂S₄. Furthermore, the photocatalyst co-doped with Cu and Ga showed the highest hydrogen generation activity. The optimum doping amounts of Cu and Ga were investigated, as shown in Figure 6.

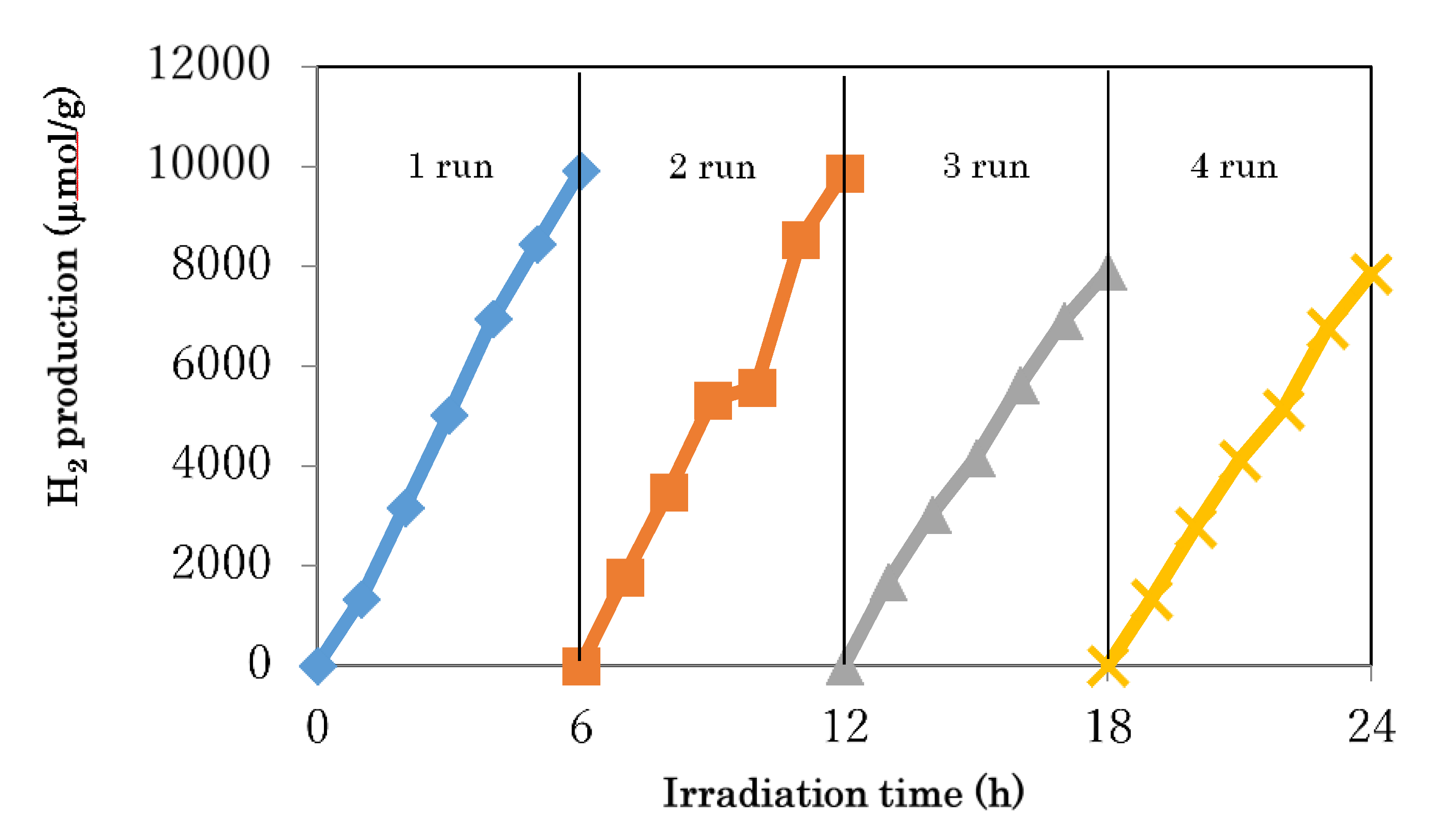

The hydrogen generation increased when the doping amount of Cu and Ga was from x = 0 to 0.13. The largest H₂ production rate was obtained with Zn_(1−2x)(CuGa)_xIn₂S₄ (x = 0.13), and it was 3.3 times better than that of ZnIn₂S₄. However, the amount of hydrogen decreased from x = 0.16 to 0.19. The reason for the photocatalytic activity from increase to decrease may be due to the shielding by Cu and Ga. The dependence of photocatalytic H₂ generation on doping levels has been reported by other studies [31,37]. In the stability test of the photocatalyst in Figure 7, The decrease in the amount of hydrogen production could not be observed in four cycles. A slight change in the amount of hydrogen produced in the 3rd and 4th cycles may have been due to the deterioration of the sacrificial agent. The TEM images before and after the hydrogen generation of Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalyst are shown in the Figure S6. Only after hydrogen generation, a 3–4 nm spot was observed on the sample surface. The spot deposition was Pt, which was produced by the reduction during the hydrogen production.

3.5. Proposed Hydrogenation Mechanism

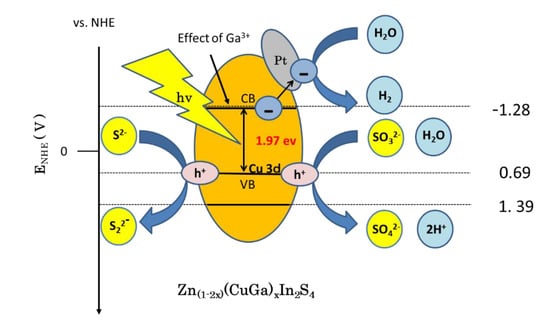

The reaction mechanism is shown in Scheme 1. Irradiation of light having a wavelength corresponding to the band gap energy of the Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalyst excites electrons in the valence band of Zn_(1−2x)(CuGa)_xIn₂S₄ to the conduction band, in order to produce an electron hole pair (Equation (2)). The band gap in the case of Cu⁺ and Ga³⁺ co-doping was narrowed by forming impurity levels derived from the Cu 3d and Ga 4s orbitals on the negative side of the valence band and the positive side of the conduction band of ZnIn₂S₄, respectively. The tuned band gap promotes charge separation of the photocatalyst and improves the visible light response. In Equation (3), some of electrons excited in the conduction band of Zn_(1−2x)(CuGa)_xIn₂S₄ are consumed for the photodeposition of Pt. The hydrogen was produced from H₂O and electrons which were transferred from conduction band of Zn_(1−2x)(CuGa)_xIn₂S₄ to Pt metal (Equation (4)). On the other hand, with regard to holes, sulfite ions and sulfide ions consume the holes and promote a hydrogen generation reaction. The presence of Na₂S is very important for enhancing the photocatalytic activity; on the other hand, Na₂S stabilizes the surface of the metal sulfide by suppressing the formation of surface defects as a scavenger of holes. However, when the concentration of Na₂S is high, the pH becomes high. High pH values are thermodynamically disadvantageous in the reaction represented by Equation (4). As described in the Equations (5)–(7), SO₃²⁻ and S²⁻ consume holes, and promote hydrogen generation reaction. According to Equation (6), S₂²⁻ ions are generated and act as an optical filter. If S₂²⁻ is not consumed, it interferes with light absorption. As shown in Equation (8), the reaction between S₂²⁻ and SO₃²⁻ forms S₂O₃²⁻, is colorless and does not compete with light absorption.

Photocatalyst + hν → e⁻ + h⁺

(2)

Pt²⁺ + 2e⁻_CB → Pt

(3)

2H₂O + 2e⁻_CB → H₂ + 2OH⁻

(4)

SO₃²⁻ + H₂O + 2h⁺_VB → SO₄²⁻ + 2H⁺

(5)

2S²⁻ + 2h⁺_VB → S₂²⁻

(6)

SO₃²⁻ + S²⁻ + 2h⁺_VB → S₂O₃²⁻

(7)

S₂²⁻ + SO₃²⁻ → S₂O₃²⁻ + S²⁻

(8)

4. Conclusions

The novel Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalyst, in which ZnIn₂S₄ is co-doped with Cu⁺ and Ga³⁺ was prepared by a simple one-pot solvothermal method. The amount of doping with Cu⁺ and/or Ga³⁺ into ZnIn₂S₄ has effects on the crystal structures, morphologies, optical properties, and photocatalytic activities of the obtained Zn_(1−2x)(CuGa)_xIn₂S₄ photocatalysts. From the SEM image, doping Cu⁺ and Ga³⁺ breaks microsphere-like flowers. That is due to the insertion of Cu⁺ and Ga³⁺ into Zn²⁺ parts of ZnIn₂S₄. A shifted XRD pattern showed that Zn_(1−2x)(CuGa)_xIn₂S₄ has a high probability for a solid solution of having a hexagonal ZnIn₂S₄ as its basic structure. XPS spectra suggests the presence of Cu⁺ and Ga³⁺ in Zn_(1−2x)(CuGa)_xIn₂S₄. DRS and PL results show that the control of the band gap and suppression of electron-hole recombination were confirmed by doping ZnIn₂S₄ with Cu⁺ and Ga³⁺. In addition, the doping of Cu⁺ and Ga³⁺ improved the photocatalytic activity. The optimum doping amount was Zn: (CuGa) = 0.74:0.13. The hydrogen generation rate by Zn_(1−2x)(CuGa)_xIn₂S₄ at the optimum doping amount was 1650 μmol·g⁻¹·h⁻¹, which was 3.3 times higher than that of ZnIn₂S₄ (500μmol·g⁻¹·h⁻¹). Furthermore, this photocatalyst showed good stability during 24 h of hydrogen generation.
