Performance Evaluation of Nano Ag/Co Modified Hydroxyapatite Catalyst Synthesized via Dielectric Barrier Discharge for Highly Efficient Toluene Oxidation

Abstract

In this study, a series of Ag/Co-HA catalysts were synthesized using a plasma-assisted method. Plasma is a partially ionized gas composed of electrons, ions, neutral molecules, free radicals, photons, and excited-state substances, which can serve as a highly reactive medium for catalyst modification. Its unique discharge characteristics can effectively regulate the dispersion of active sites, electronic structure, and metal–support interactions. The study compared the performance of catalysts prepared by the traditional high-temperature calcination method with those treated by rapid plasma in the toluene oxidation removal reaction. The results showed that the catalyst treated by dielectric barrier discharge (DBD) plasma exhibited excellent low-temperature catalytic activity, achieving 100% toluene conversion and approximately 75% CO₂ selectivity at 275 °C, while the catalyst prepared by traditional calcination only achieved 73% toluene conversion and approximately 50% CO₂ selectivity at 285 °C. This study provides a simple preparation method for the Ag/5Co-HA-P catalyst. Due to the plasma treatment’s ability to precisely control the catalyst structure, along with advantages such as low energy consumption, short processing time, and environmental friendliness, it holds significant application prospects in the field of VOCs treatment.

1. Introduction

Volatile organic compounds (VOCs) are primarily byproducts of human activities, such as transportation and industrial production [1,2]. Large quantities of VOCs are released into the atmosphere, where they contribute to the formation of fine particulate matter (PM2.5) and ozone photochemical pollutants, posing significant risks to both environmental quality and human health [3,4]. Various emission control technologies have been developed to mitigate VOC emissions, including adsorption, condensation, membrane separation, photocatalytic degradation, biodegradation, direct combustion, catalytic oxidation, and plasma treatment [5,6,7]. Among these, plasma technology has gained widespread recognition as an efficient method for toluene removal due to its low energy consumption and absence of secondary pollution. Research on plasma-based purification of atmospheric pollutants has advanced rapidly, establishing plasma technology as a prominent focus in both domestic and international academic communities [8,9].

In recent years, cold plasma technology has emerged as a versatile approach for catalyst preparation. This technique introduces energy into hybrid systems, generating high-energy electrons, photons, ions, and free radicals, thereby creating a highly reactive environment that enables catalysts to exhibit high activity at low temperatures [10,11,12]. Dielectric barrier discharge (DBD) plasma is a widely used plasma source that employs high-frequency, high-voltage power to generate a strong electric field across dielectric barriers, inducing gas discharge and plasma formation, which facilitates gas excitation and initiates chemical reactions. Compared with traditional thermal plasma sources, DBD operates as a non-thermal plasma system, characterized by a low bulk gas temperature while simultaneously producing high-energy electrons. In catalyst modification, DBD plasma promotes the uniform aggregation of particles and enhances the interaction between metal nanoparticles and support materials [13,14,15].

Compared with the catalysts prepared by traditional high-temperature calcination, the catalysts treated by plasma exhibit lower activation energy and higher product selectivity [16,17]. The researchers prepared a CuO/γ-Al₂O₃ catalyst via impregnation at ambient conditions and applied it in a non-thermal plasma DBD reactor. By leveraging the synergy between plasma and catalyst, methane conversion and methanol selectivity improved significantly. Compared to the plasma-only system, using the 5CA catalyst with 5% copper loading increased methanol selectivity from 27% to 37%, while also enhancing methane conversion. This improvement is mainly due to the catalyst-promoted charge deposition and optimization of the gas-phase reaction environment [18,19]. Liu et al. [20] synthesized a Ni/Ga₂O₃ catalyst via cold plasma, achieving 13.8% CO₂ conversion and 56% methanol selectivity at 300 °C and 5 MPa—outperforming catalysts prepared by calcination or chemical reduction. The improved performance resulted from smaller Ni nanoparticles (4.12 nm) due to the low thermal impact of plasma, which suppressed agglomeration and increased active site density. Continuous high-energy electron bombardment also strengthened the Ni–Ga₂O₃ interfacial interaction, enhancing catalytic activity. Our research group synthesized nano-hydroxyapatite by hydrolyzing calcium citrate with ammonia under different hydrothermal temperatures and showed its effectiveness as a support for silver catalysts in toluene removal. Tuning the synthesis temperature precisely controlled the HA crystalline structure, surface-adsorbed oxygen content, and Ag⁰/Ag⁺ ratio. This nanostructured HAP layer enhanced reactant adsorption and diffusion while effectively confining and stabilizing silver nanoparticles, significantly improving catalytic activity and long-term stability [21,22]. A series of novel active materials composed of HAP supported Ni(acac)₂ complexes exhibit high activity in the CO₂ methanation reaction. The optimal grafting temperature is 30 °C, achieving a Ni loading of up to 4.6 wt%. Compared with impregnated Ni/HAP catalysts, the grafting method improves nickel dispersion and reducibility, resulting in smaller particle sizes (3.2–6.3 nm). The grafted Ni(acac)₂/HAP catalyst shows excellent performance, with the optimized Ni(acac)₂/HAP-(5) sample reaching a T₅₀ of 313 °C and 84% CO₂ conversion at 400 °C [23].

Previous studies prepared silver-cobalt bimetallic catalysts using equal-volume impregnation and systematically evaluated their performance in toluene oxidation. Coupling plasma technology with the 3Ag/15Co/HA catalyst achieved efficient toluene removal at low temperatures and significantly enhanced CO₂ selectivity, due to plasma-promoted surface-active oxygen species that boost catalytic oxidation [24]. This study reports the synthesis of a 5Co-HA support via the sol–gel method, followed by silver loading through wet impregnation to form the Ag/5Co-HA catalyst. The catalyst was then modified with DBD plasma treatment to produce Ag/5Co-HA-P. Characterizations show that plasma treatment improves the distribution and reactivity of surface oxygen species and significantly enhances low-temperature catalytic oxidation of toluene.

2. Materials and Methods

2.1. Preparation of the Carrier

HA and 5Co-HA carriers were synthesized using a sol–gel method. For HA, 0.9444 g of calcium nitrate was dissolved in 20 mL of deionized water. For 5Co-HA, a mixture of 0.875 g calcium nitrate and 0.057 g cobalt nitrate was used to achieve a 5% Co³⁺/(Co³⁺ + Ca²⁺) molar ratio. Then, 0.2352 g of phosphoric acid was added to each solution. To maintain the stoichiometric Ca:P ratio of 1.67 for hydroxyapatite, the solutions were stirred thoroughly on a magnetic stirrer (German IKA Company, Staufen im Bresgau, Germany) at a constant temperature. Aqueous ammonia was added dropwise slowly until the pH reached 10. After stirring for another 30 min, the gels were aged for 24 h. The resulting precursors were freeze-dried and then calcined at 400 °C for 2 h in a muffle furnace to obtain pure HA and 5% Co-HA (All the reagents utilized in the experiment were sourced from China National Pharmaceutical Group Co., Ltd., Beijing, China).

2.2. Preparation of Catalysts

(1)

Preparation of Ag/HA catalyst

The Ag/HA catalyst with a theoretical Ag loading of 3 wt% was prepared via the impregnation method. First, a precise amount of AgNO₃ was weighed and dissolved in distilled water, after which the solution was uniformly deposited onto the pre-prepared HA support. The resulting mixture was dried in an oven and subsequently calcined at 300 °C for 2 h under a 5% H₂/Ar atmosphere to obtain the 3% Ag/HA catalyst, hereafter referred to as Ag/HA.

(2)

Preparation of Ag/5Co-HA catalyst

Impregnate 3% Ag onto a 5% Co-HA support. Place the resulting mixture in an oven for drying, followed by the same reduction procedure as described previously, to obtain the 3% Ag/5% Co-HA catalyst, abbreviated as Ag/5Co-HA.

(3)

Preparation of Ag/2.88%Co/HA Catalyst

The 3% Ag/2.88% Co/HA catalyst was prepared as follows. First, a 2.88% Co/HA catalyst was synthesized by impregnating cobalt onto the HA support, followed by calcination at 400 °C for 2 h in a muffle furnace (China Jinan Jingrui Analytical Instrument Co., Ltd., Jinan, China). Then, 3% silver was loaded onto the 2.88% Co/HA support via incipient wetness impregnation. The sample was reduced under the same conditions as above to obtain the final catalyst, referred to as Ag/2.88Co/HA.

(4)

Preparation of Ag/5%Co-HA-P Catalyst

The 3% Ag loading was impregnated onto the 5% Co-HA support. After drying the obtained material in an oven, 0.4 g of the sample was accurately weighed and placed in a plasma-assisted catalytic reactor (Shenzhen Ganwen Technology Co., Ltd., Shenzhen, China). The reaction gas was 5% H₂/Ar, with a total gas flow rate controlled at 40 mL/min. A plasma reduction treatment was carried out at an input power of 160 W for 10 min. The obtained catalyst was labeled as 3% Ag/5% Co-HA-160-10 min and was subsequently abbreviated as Ag/5Co-HA-P.

(5)

Preparation of Ag/2.88%Co/HA-P Catalyst

The 3% Ag was loaded onto a hydroxyapatite support doped with 2.88% Co/HA. After drying the precursor in an oven, 0.4 g of the sample was accurately weighed and transferred into a plasma treatment reactor (Shenzhen Ganwen Technology Co., Ltd., Shenzhen, China). The resulting 3% Ag/2.88% Co/HA-P catalyst was prepared following the same procedure and is hereafter referred to as Ag/2.88Co/HA-P.

2.3. Catalyst Characterization

For physical and chemical characterizations, including XRD, BET, and XPS, please refer to the Supplementary Materials.

2.4. Catalyst Activity Evaluation

To investigate the differences between the catalyst prepared by plasma treatment in a 5% H₂/Ar atmosphere and that obtained via conventional high-temperature calcination, catalytic toluene oxidation was carried out over all the aforementioned samples. The plasma treatment catalyst device is in Figures S1 and S2. The discharge waveform displayed by the oscilloscope is shown in Figure S5. The toluene oxidation experiments were performed in a fixed-bed microreactor using 100 mg of catalyst. Toluene vapor was introduced via the N₂ bubbling method, and the reaction gas mixture consisted of oxygen and nitrogen, with a total flow rate of 130 mL/min, corresponding to a space velocity of 78,000 mL/(g·h). The inlet toluene concentration was maintained at 610 ppm, and the reaction temperature was varied from 90 °C to 300 °C.

Toluene conversion was calculated based on the difference between inlet and outlet concentrations. The toluene conversion rate (X_toluene) and CO₂ selectivity (S_CO2) are calculated according to the following equations:

$$X_{toluene}={\displaystyle \frac{C_{in}-C_{out}}{C_{in}}}\times 100\%$$

(1)

where C_in and C_out denote the toluene concentrations at the inlet and outlet, respectively.

$$S_{CO2}={\displaystyle \frac{C_{CO2}}{7(C_{in}-C_{out})}}\times 100\%$$

(2)

The inlet and outlet concentrations of toluene are denoted by C_in and C_out, respectively, while C_CO2 represents the CO₂ concentration at the outlet.

The fundamental formula for calculating the activation energy using the FWO method (Flynn–Wall–Ozawa method) is as follows:

$$\mathit{ln}\left(\beta \right)=C-0.4567E_a/R{T}_{\alpha }$$

(3)

β denotes the heating rate, Tα represents the temperature (in K) corresponding to a fixed conversion rate, Ea refers to the apparent activation energy.

3. Results

3.1. Structure and Morphology of the Catalyst

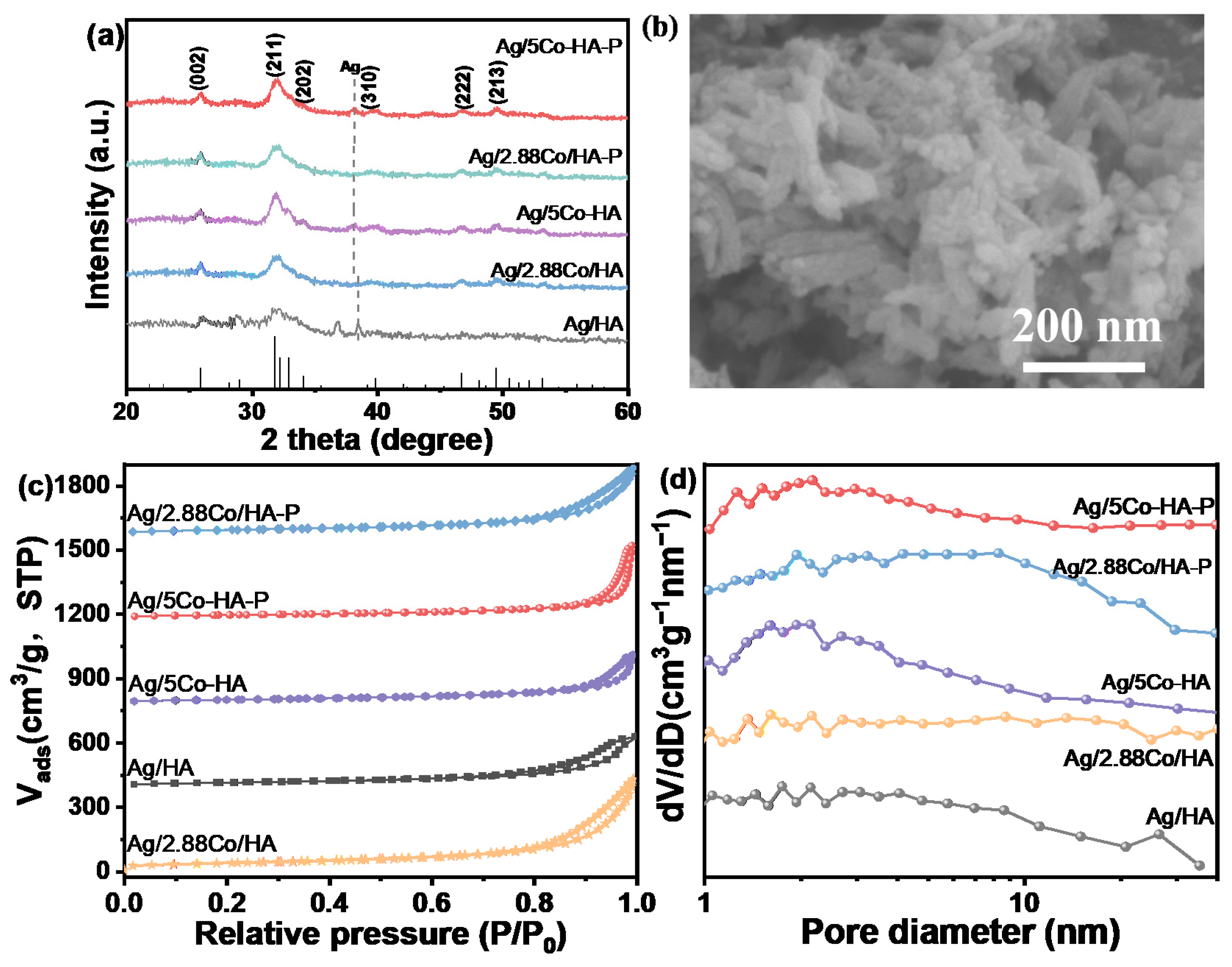

To investigate the influence of DBD plasma treatment on the structural characteristics and physicochemical properties of catalysts, all catalyst samples were systematically characterized using XRD. As shown in Supplementary Material Figure S3a, both the HA support and 5Co-HA exhibit the typical crystalline structure of HA. Figure 1a presents the XRD patterns of the catalysts following high-temperature calcination, as well as before and after DBD plasma treatment. The diffraction peaks observed at 2θ = 25.9° and 31.9° are attributed to the (002) and (211) crystal planes of HA as referenced in the standard JCPDS card (No. 09-0423) [25], confirming that all samples exhibit the characteristic crystalline structure of HA. In comparison, the XRD peaks of plasma-treated catalysts are broader and exhibit lower intensities, whereas those subjected to high-temperature calcination display sharper peaks with higher intensities, suggesting superior crystallinity in the latter. Furthermore, no distinct diffraction peaks corresponding to metallic Co were detected in any of the XRD patterns, irrespective of the treatment method, indicating a high degree of dispersion of cobalt species on the catalyst support [26].

Figure 1b presents the morphological and structural characteristics of the Ag/5Co-HA-P catalyst synthesized via the sol–gel method. The microstructure was analyzed using SEM, which reveals a distinct rod-like morphology. The incorporation of Ag and Co does not significantly alter the overall structural framework of the support. For comparison, the SEM images of the pristine HA-P support are provided in the Supplementary Materials. Figure S4 exhibits a disordered lamellar structure, and no substantial morphological changes are observed following Co doping. The specific surface area, pore volume, and pore size of each catalyst were systematically characterized using a physical adsorption instrument. As shown in Figure 2c, the N₂ adsorption–desorption isotherms of all catalysts display typical Type IV behavior with H3-type hysteresis loops occurring in the P/P₀ = 0.8–1.0 range, indicating the presence of mesoporous structures [27]. The N₂ adsorption–desorption isotherms and pore size distribution plots of the support HA and 5Co-HA are shown in Supplementary Materials Figure S3b,c, which are consistent with the characterization results of each catalyst and are all mesoporous materials. Based on the adsorption branch data, the pore size distribution was further determined using the BJH (Calculating the mesopore size distribution of porous materials, utilizing nitrogen desorption data) model. Notably, for the plasma-treated catalysts, the hysteresis loop size remained largely unchanged, suggesting that plasma treatment has no significant impact on the mesoporous architecture of the catalysts.

As is known from

Table 1. The specific surface area, pore volume and pore size of the catalyst before and after plasma treatment.

Sample	SBET a (cm2/g)	Dp b (nm)	Dv b (cm3/g)
Ag/HA	81.33	9.18	0.37
Ag/5Co-HA	70.92	9.97	0.35
Ag/5Co-HA-P	64.28	16.53	0.53
Ag/2.88Co/HA-P Ag/2.88Co/HA	82.49 80.26	12.37 11.15	0.51 0.47

^a The S_BET of sample were determined by the Brunauer–Emmett–Teller (BET) method. ^b Dv/Vp was the average pore diameter/average pore volume which was calculated by the BJH method.

, the specific surface area of the Co-HA catalyst prepared by the sol–gel method is lower than that of the HA catalyst and the catalysts prepared by the impregnation method. This indicates that during the preparation process, some Co species occupy the pore structure of the support. The Ag/5Co-HA-P catalyst exhibits the smallest specific surface area. This is because, after DBD treatment, the atoms at the grain boundaries of small crystals possess relatively high energy. Due to this elevated energy state, these atoms tend to migrate under plasma activation and subsequently deposit onto the surfaces of larger crystals. This process promotes the coalescence of small crystallites into larger ones-commonly referred to as grain growth. As grain growth proceeds, the crystal packing becomes denser, resulting in a reduction in internal porosity. Consequently, the overall specific surface area of the catalyst further decreases [28].

The pore size distribution of the catalysts exhibits the following trend: Ag/5Co-HA-P > Ag/2.88Co/HA-P > Ag/5Co-HA > Ag/HA, indicating that plasma-treated catalysts promote the formation of larger pore sizes and higher pore volumes. During reduction in a 5% H₂/Ar atmosphere, the plasma-treated catalyst consistently exhibited superior pore structure characteristics compared to the conventionally prepared catalyst—specifically manifested as increased pore size and pore volume. Plasma treatment not only reshapes the catalyst’s pore structure by enhancing pore size and volume but also improves surface properties, significantly boosting catalytic performance. Although the Ag/5Co-HA-P sample exhibited the lowest specific surface area (64.28 cm²/g) among all samples, this phenomenon indicates that plasma treatment promotes grain growth and denser crystal packing, which inherently reduces the specific surface area.

3.2. TEM Analysis

Figure 2a,b presents TEM images of the Ag/5Co-HA-P and Ag/5Co-HA catalysts. It is evident that plasma treatment did not significantly alter the catalyst morphology, the HAP support retained its rod-like layered structure. Following the deposition of Ag and Co, a limited number of small-sized nanoparticles were observed to be dispersed on the surface of the support, with minimal aggregation. The average size of Ag nanoparticles is about 3.35 ± 0.15 nm. Energy-dispersive X-ray spectroscopy (EDS) (FEI Tecnai G2 F20 Field Emission Transmission Electron Microscope) analysis of the Ag/5Co-HA-P catalyst further revealed a uniform distribution of Ag and Co elements across the HAP support, demonstrating excellent dispersibility of the metal components.

3.3. Catalyst Activity

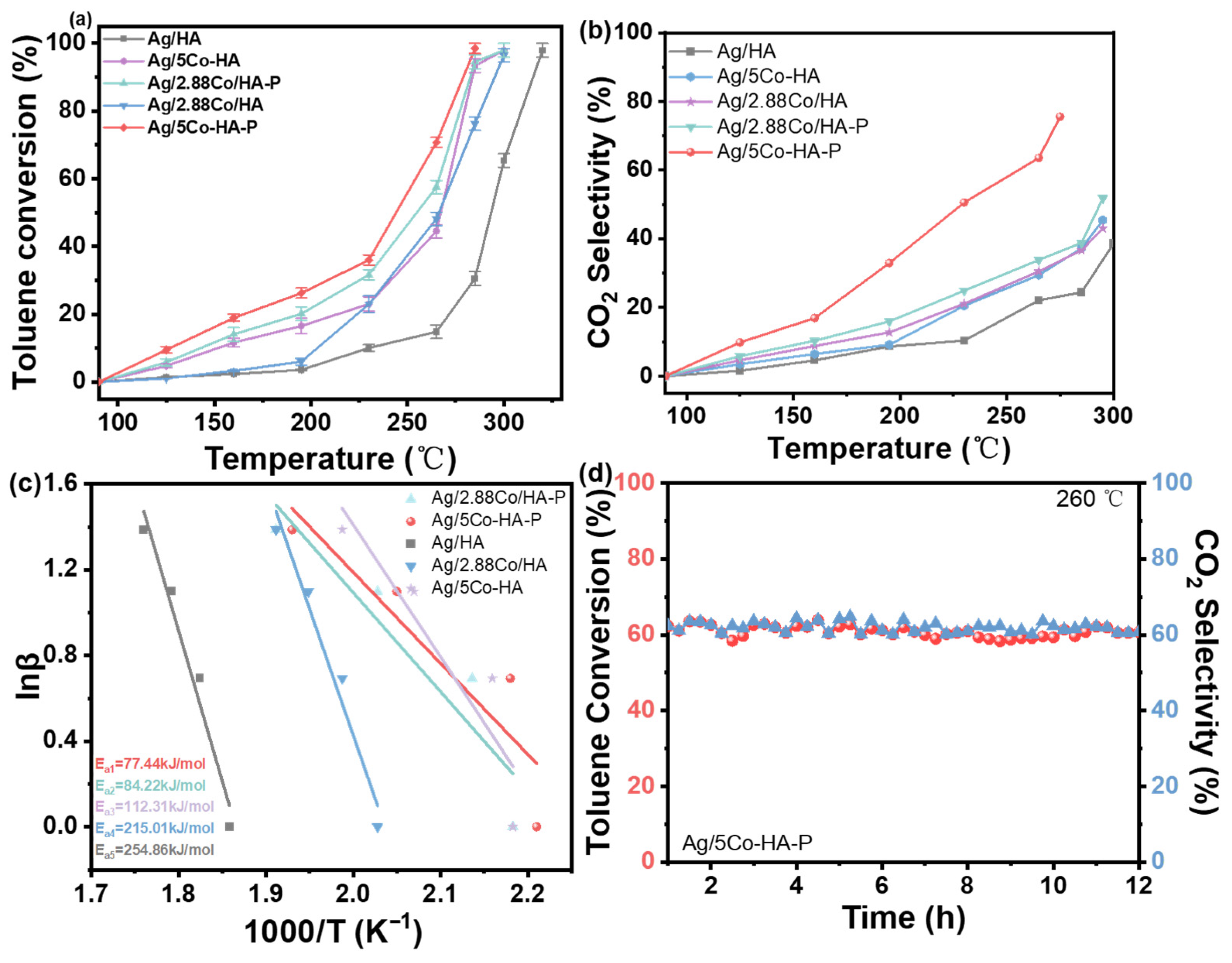

The catalytic oxidation performance of toluene over catalysts prepared by different loading methods reveals that unmodified Ag/HA achieved complete toluene conversion (T₁₀₀) at 315 °C. In comparison, the incorporation of the transition metal Co significantly enhanced low-temperature catalytic activity. Among the tested catalysts, Ag/5Co-HA-P, subjected to plasma treatment, exhibited the highest performance, achieving 100% toluene conversion at 275 °C. Co/HA was prepared via the impregnation method with the same theoretical loading (mass fraction) as that of the modified method For a more accurate comparison, a support with precisely 2.88% Co loading (2.88% Co-HA) was prepared via impregnation, followed by calcination in a muffle furnace (China Jinan Jingrui Analytical Instrument Co., Ltd). Subsequently, 3% Ag was loaded by wet impregnation, and the sample was treated using DBD plasma to yield the Ag/2.88Co-HA-P catalyst. When compared with Ag/5Co-HA-P, the latter demonstrated superior low-temperature activity, particularly when treated under a 5% H₂/Ar plasma atmosphere. This improvement is attributed to the reducing environment promoting the formation of additional active sites during plasma treatment, thereby enhancing catalytic performance. As summarized in Supplementary Materials Table S2, Ag/5Co-HA-P maintained 90% toluene conversion at 270 °C under conditions of low toluene concentration and high GHSV, demonstrating excellent catalytic stability and efficiency. As shown in Figure 3b, the CO₂ selectivity of the Ag/5Co-HA-P catalyst is approximately 20% higher than that of the Ag/HA catalyst. This finding suggests that the synergistic interaction between the metal and plasma enhances the generation of reactive oxygen species within the system. These highly oxidative species facilitate the deep oxidation of toluene, promoting a more complete conversion to CO₂.

To further evaluate the catalytic activity, kinetic studies were conducted. At 20% toluene conversion, the Flynn–Wall–Ozawa (FWO) method was employed to establish a linear relationship between 1/T and lnβ under different heating rates, enabling the calculation of the apparent activation energy [29]. As shown in Figure 3c, the Ag/5Co-HA-P catalyst exhibited the lowest activation energy of 77.44 kJ/mol, significantly lower than that of the other samples. This indicates that Ag/5Co-HA-P possesses a reduced reaction energy barrier, facilitating the catalytic oxidation of toluene. The kinetic results are in excellent agreement with its superior catalytic performance.

3.4. Catalyst Stability Test

Under specific reaction conditions, stability represents a critical parameter for assessing the catalytic performance in toluene oxidation. Given that the Ag/5Co-HA-P catalyst treated with 5% H₂/Ar plasma demonstrates superior catalytic activity, a 12 h stability test was performed at 260 °C, with results presented in Figure 3d. The data show that the catalyst maintains consistent toluene conversion and CO₂ generation rates throughout the test, indicating excellent catalytic durability.

4. Discussion

4.1. H₂-TPR Analysis

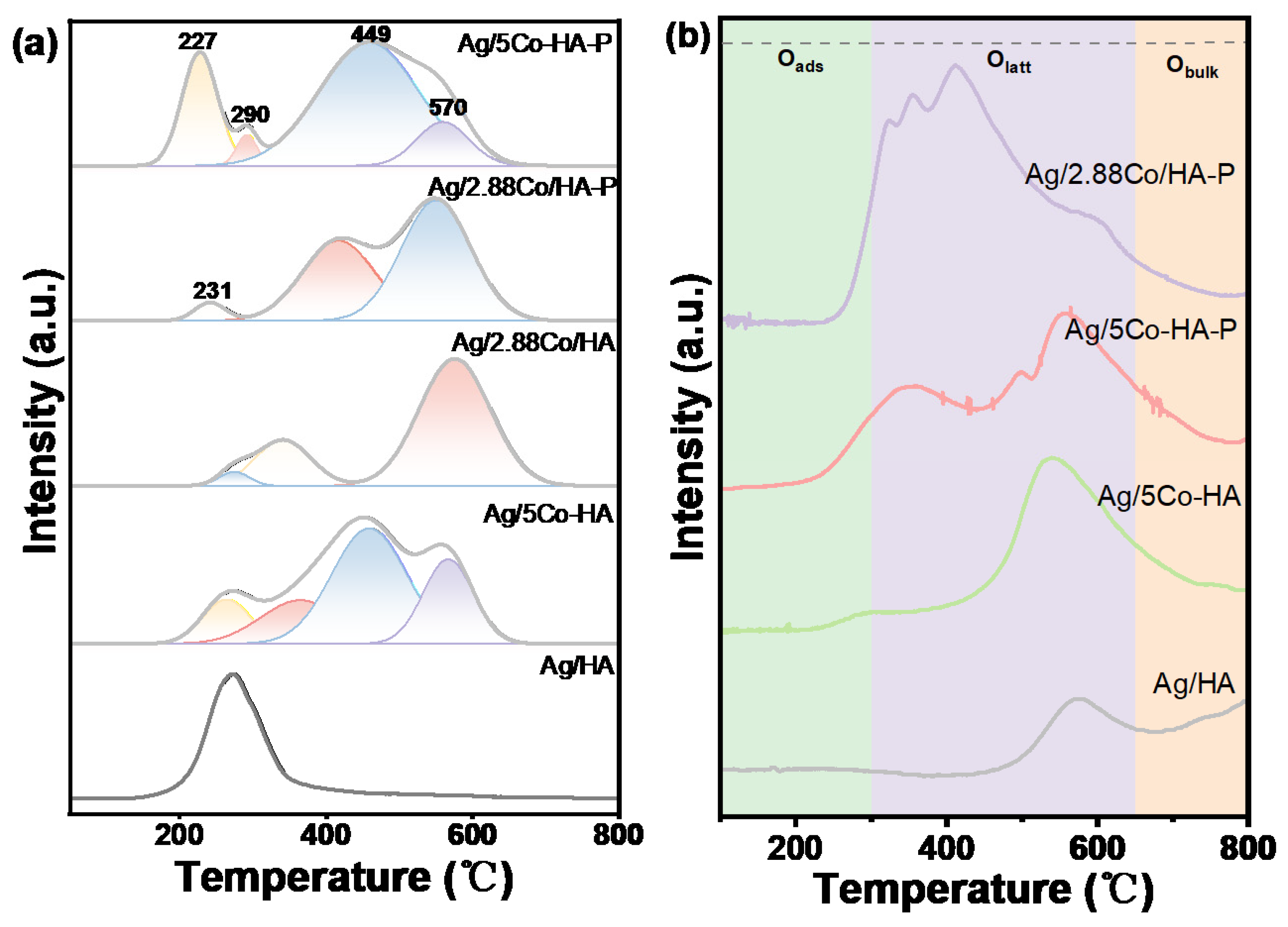

Figure 4a presents the H₂-TPR profiles of the catalysts treated with DBD plasma. Reduction peaks observed in the temperature range of 100–300 °C are attributed to the reduction of silver species on the catalyst surface, specifically corresponding to the conversion of Ag₂O to Ag⁰ [30]. For the Ag/HA catalyst, the Ag⁰ reduction peak appears at 272 °C, whereas in the Ag/5Co-HA-P catalyst, this peak shifts to 222 °C, indicating enhanced reducibility of the silver species. The H₂-TPR profile of the Ag/5Co-HA catalyst displays two well-defined reduction peaks at 456 °C and 563 °C, which correspond to the two-step reduction of Co₃O₄: the first peak at approximately 456 °C is associated with the reduction of Co³⁺ to Co²⁺, followed by a more intense peak at around 563 °C, assigned to the subsequent reduction of Co²⁺ to Co⁰ [31]. In contrast, for the Ag/5Co-HA-P catalyst, the cobalt reduction peak shifts forward to 412 °C, suggesting a lower reduction temperature and thus improved reducibility of the cobalt species. This shift implies that the interaction between the active components and the HAP support has been effectively optimized in the plasma-treated sample, thereby facilitating the reduction process and enhancing catalytic performance [32]. Generally, a lower reduction peak temperature reflects weaker metal–support interaction and higher reducibility of the metal species. Among the four samples, the Ag/5Co-HA-P catalyst exhibits the lowest reduction peak temperature and the highest H₂ consumption, as indicated by the area under the reduction peak, demonstrating its superior reducibility. This enhanced reduction capability facilitates the formation of a greater number of oxygen vacancies, which play a crucial role in promoting the catalytic oxidation of toluene [33]. Typically, a lower reduction peak temperature corresponds to improved catalyst reducibility, further confirming that plasma treatment significantly enhances the redox properties of the catalyst.

4.2. O₂-TPD Analysis

To elucidate the chemical characteristics of oxygen species in the sample, O₂-TPD experiments were conducted on the DBD plasma-treated catalyst over a temperature range of 100–800 °C. As illustrated in Figure 4b, the oxygen desorption profile can be deconvoluted into three distinct temperature regions: the low-temperature peak below 350 °C is assigned to the desorption of chemisorbed oxygen from surface oxygen vacancies; the medium-temperature peak between 350 °C and 600 °C primarily corresponds to the release of surface lattice oxygen; and the high-temperature peak above 600 °C is attributed to the evolution of bulk lattice oxygen [34]. According to prior studies, oxygen species desorbing within the 350–600 °C range exhibit relatively high reactivity and are critically involved in the catalytic oxidation of volatile organic compounds (VOCs) [35].

The increased lattice oxygen (O_latt) content on the surface of the Ag/5Co-HA-P catalyst can be attributed to the strong interaction between Ag and the Co-HAP support, which effectively modulates the catalyst’s surface structure. Meanwhile, plasma treatment facilitates the formation of additional oxygen vacancies, thereby promoting the desorption of O_latt and accelerating the catalytic oxidation of toluene. Comparative analysis of lattice oxygen desorption peak areas during temperature-programmed experiments reveals that the DBD-treated Ag/5Co-HA-P catalyst exhibits the largest peak area, indicating the highest concentration of chemisorbed oxygen. This demonstrates superior oxygen adsorption capacity and enhanced oxygen mobility, resulting in improved reducibility. Given that chemisorbed oxygen typically arises from the adsorption and activation of gaseous O₂ at oxygen vacancies on metal oxides, it is reasonable to infer a high density of oxygen vacancies in the Ag/5Co-HA-P catalyst. This conclusion is in excellent agreement with the H₂-TPR characterization results.

4.3. XPS Analysis

To further investigate the surface structure of the samples, X-ray photoelectron spectroscopy (XPS) (Thermo ESCALAB 250Xi Spectrometer, Thermo Fisher Scientific, Waltham, MA, USA) was employed to characterize each catalyst. As shown in Figure 5a, the O1s XPS spectra of the catalysts can be deconvoluted into two components: a lower binding energy range of 531.0–531.4 eV and a higher range of 531.7–533.8 eV, which are assigned to adsorbed water molecules (O_OH), as well as surface lattice oxygen (O_latt) and surface adsorbed oxygen (O_ads), respectively. The surface adsorbed oxygen species include O⁻, O²⁻, and O₂²⁻, among others [36]. As shown in

Table 2. XPS analysis of Ag3d, Co 2p and O1s for the samples.

Sample	Ag0/Ag+	Co3+/(Co3+ + Co2+)	Oads/(Oads + OOH)
Ag/HA	1.5	/	0.33
Ag/5Co-HA	1.77	0.51	0.34
Ag/5Co-HA-P	3.04	1.05	1.6
Ag/2.88Co/HA-P	2.34	0.66	0.61

, the relative content of adsorbed oxygen and oxygen vacancies is quantified by the O_ads/(O_ads + O_OH) ratio. The Ag/5Co-HA-P catalyst exhibits an O_ads ratio of 1.6, significantly higher than that of other comparative catalysts. This enhancement can be attributed to the synergistic anchoring effect between Ag and Co at the interface, which promotes the stable dispersion of metal nanoparticles on the HAP support and consequently facilitates the formation of additional oxygen vacancies. Previous studies have established that oxygen vacancies play a crucial role in the catalytic oxidation of VOCs. Notably, a higher concentration of oxygen vacancies is positively correlated with superior oxidation activity. The abundance of oxygen vacancies in this catalyst not only enhances the adsorption and activation of O₂ molecules but also accelerates the decomposition and migration of the harmful by-product O₃. As a result, more reactive lattice oxygen and adsorbed oxygen species are generated, thereby significantly improving the toluene degradation performance of the catalyst [37].

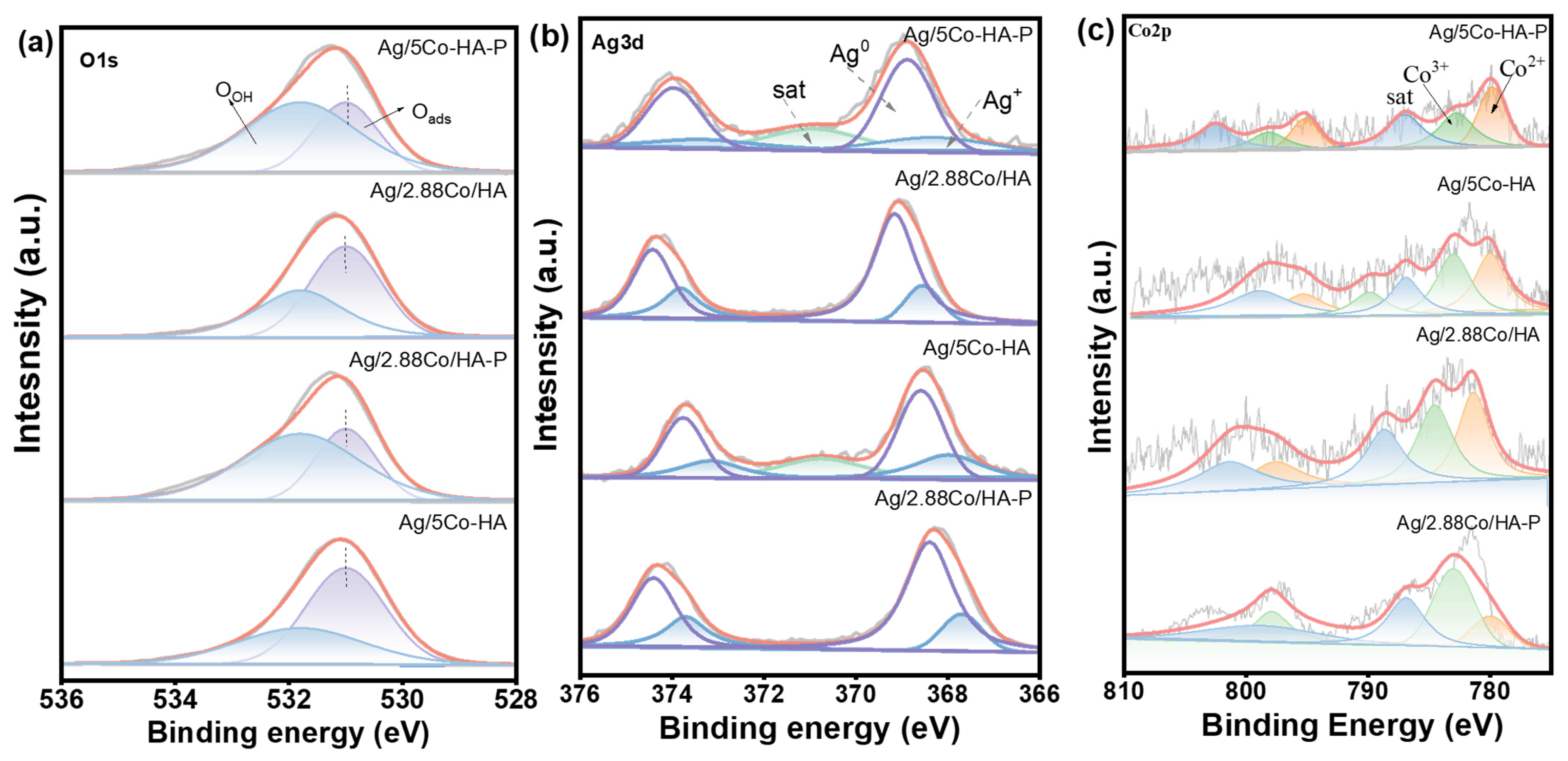

To investigate the valence state transformations of Ag nanoparticles and the evolution of the chemical environment on the catalyst surface during plasma-assisted synthesis, XPS was employed to characterize catalysts prepared under different atmospheric conditions. As shown in Figure 5b, the Ag 3d spectra of all samples exhibit two distinct peaks corresponding to Ag⁺ and Ag⁰ species, indicating that silver was not fully reduced to its metallic state during plasma treatment. The binding energies of Ag 3d_5/2 were observed at 367.7 eV (assigned to Ag⁺) and 368.4 eV (assigned to Ag⁰), reflecting two chemically distinct silver states. Variations in the relative content of Ag⁰ across samples can be attributed to differences in catalyst preparation methods. Notably, the Ag/5Co-HA-P catalyst exhibited over a 1% increase in Ag⁰ content compared to other samples. A higher proportion of metallic silver provides more accessible active sites for the catalytic oxidation of toluene, thereby enhancing catalytic performance. This enhancement is likely due to the effective interaction between high-energy electrons generated during DBD plasma treatment in a 5% H₂/Ar atmosphere and the surface silver species, which promotes the reduction of Ag⁺ to Ag⁰ [38,39].

As shown in Figure 5c, the Co 2p energy spectrum exhibits two primary peaks at binding energies of 795.1 eV and 780.1 eV, which are assigned to the spin–orbit splitting components of Co 2p_3/2 and Co 2p_1/2, respectively—characteristic features of the Co 2p electronic structure. Additionally, two distinct satellite peaks at 802.5 eV and 787.1 eV are clearly observed, corresponding to shake-up satellite transitions, consistent with previously reported data [40,41]. The Co³⁺ content serves as a key indicator of oxygen vacancy concentration in the material. As indicated in Table 2, the Ag/5Co-HA-P catalyst exhibits a Co³⁺/Co²⁺ ratio of 1.05, suggesting a relatively high concentration of Co³⁺ species, thereby providing abundant adsorption and reaction sites for reactive oxygen species. This may be attributed to the enhanced formation of Co³⁺ during the reduction process of the support. Previous studies have demonstrated that Co³⁺ cations act as the principal active centers in the catalytic oxidation of toluene; thus, a higher Co³⁺ content increases the density of active sites and enhances the catalyst’s oxidative performance toward toluene [42].

4.4. Raman Analysis

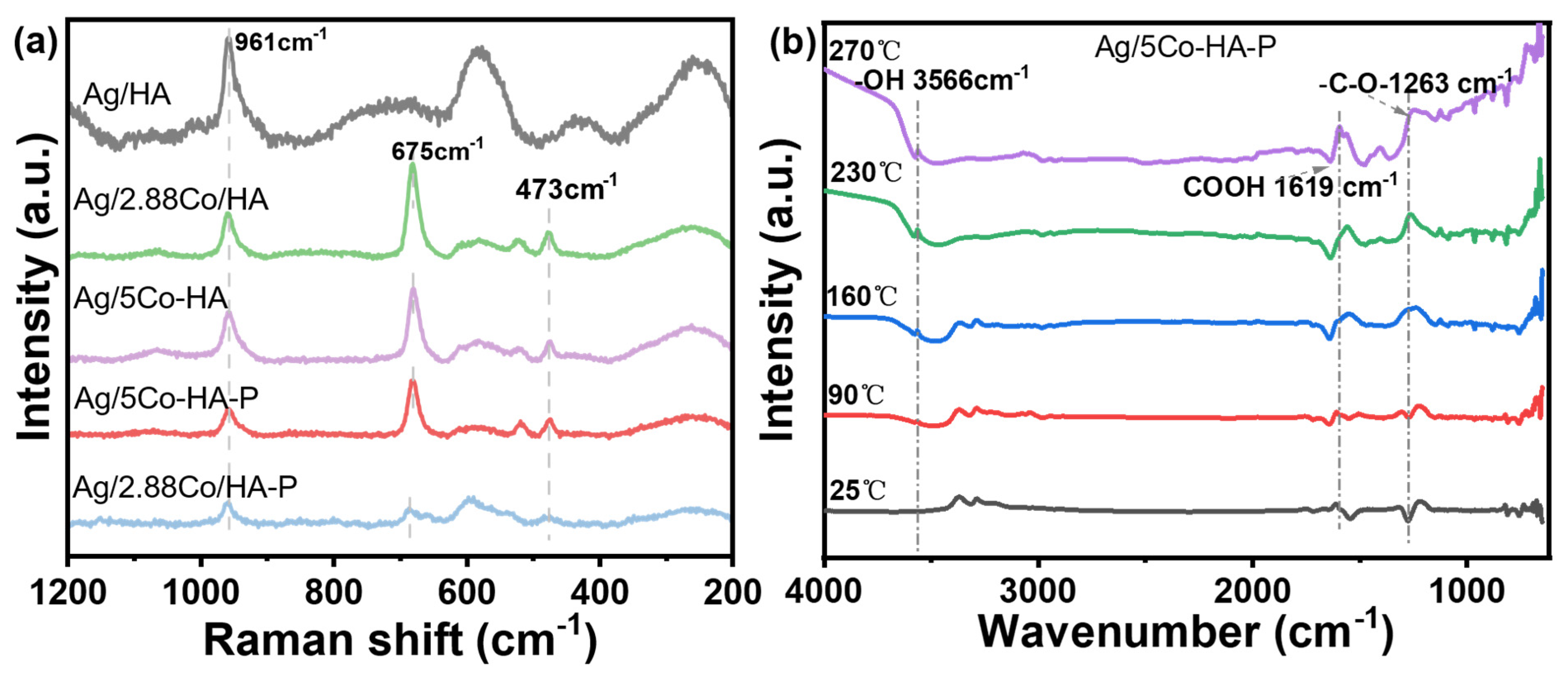

Figure 6a presents the Raman spectra of HAP and various catalysts supported on HAP. As observed, all catalysts display a prominent characteristic absorption peak at 961 cm⁻¹, corresponding to the symmetric stretching vibration mode (V₁) of the PO₄^3- group in HAP [43]. Notably, upon loading of the active components, the intensity of this peak is reduced across all samples, suggesting a decrease in the crystallinity of the HAP support as a result of the impregnation process. The peak at 473 cm⁻¹ is assigned to the E_2g vibration mode, while the signal at 675 cm⁻¹ is associated with the A_1g vibration mode of octahedrally coordinated Co³⁺ in Co₃O₄-both are characteristic Raman-active modes of Co₃O₄. Furthermore, the incorporation of Ag weakens the Co–O bond strength, thereby attenuating the interaction between cobalt and oxygen ions [44].

4.5. In Situ DRIFTS Spectra

Figure 6b presents the in situ diffuse reflectance infrared Fourier transform spectroscopy (In situ DRIFTS) of the Ag/5Co-HA-P catalyst recorded at various temperatures, aimed at analyzing the evolution of surface functional groups during thermal treatment. At 25 °C, no distinct absorption peak is observed at 3566 cm⁻¹, indicating relatively high transmittance. As the temperature increases, the absorbance at this wavenumber progressively decreases, reflecting a corresponding increase in the infrared absorption intensity of hydroxyl groups. This trend can be attributed to enhanced formation or surface exposure of hydroxyl species induced by elevated temperatures, thereby strengthening their interaction with incident infrared radiation [45]. The peak at 1619 cm⁻¹ corresponds to the asymmetric vibration of carboxylate species, which are generated upon the cleavage of benzene rings. This peak remains present or even intensifies at high temperatures (230–270 °C), strongly indicating that benzene ring-containing intermediates and post-ring-opening carboxylate species accumulate throughout the entire reaction temperature range. At 25 °C, the adsorption peak at 1619 cm⁻¹ is relatively high, indicating weak infrared absorption by carboxyl groups. As the temperature increases to 90 °C and 160 °C, the absorbance at this wavenumber remains high, and the characteristic absorption of carboxyl groups is not clearly observed. However, when the temperature reaches 230 °C and 270 °C, the at 1619 cm⁻¹ decreases significantly, suggesting enhanced infrared absorption by carboxyl groups. This change may result from surface oxidation reactions or functional group rearrangements under high-temperature conditions, leading to an increased concentration of carboxyl groups or a more infrared-active vibrational mode. The peak at 1263 cm⁻¹ corresponds to the C–O stretching vibration, which is present in aromatic alcohols or acids such as benzyl alcohol and benzoic acid. At 25 °C and 90 °C, the adsorption peak at 1263 cm⁻¹ is also relatively high, indicating weak absorption by the -C-O- bond. Although a slight decrease in absorbance is observed at 160 °C, the value remains high. At 230 °C and 270 °C, the transmittance at 1263 cm⁻¹ drops markedly, demonstrating significantly enhanced infrared absorption by the -C-O- bond. Analysis of the temperature-dependent trend suggests that elevated temperatures may promote the formation of -C-O- containing functional groups or structural reorganization, thereby enhancing the infrared responsiveness of this bond [46,47].

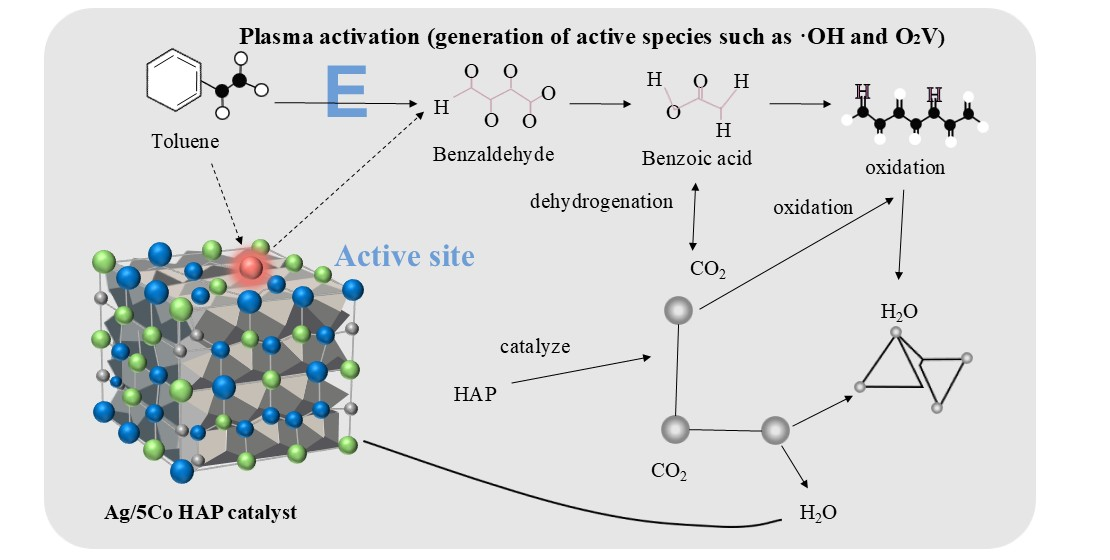

Plasma rapidly generates highly reactive species such as ·OH and O· at room temperature, effectively breaking the benzene ring and side chain of toluene and producing reactive intermediates. The catalyst then selectively oxidizes these intermediates into CO₂ and H₂O by adsorbing active species, supplying lattice oxygen, and lowering the reaction energy barrier [48]. The results of in situ DRIFTS and Raman spectroscopy indicate that the reaction mechanism over the Ag/5Co-HA-P catalyst during toluene catalytic oxidation proceeds as follows:

The tolyl group (C₆H₅CH₂·) can react with O^- or OH·, leading to oxidation at the carbon atom of its methyl group.

$${\mathrm{C}}_6{\mathrm{H}}_5\mathrm{C}{\mathrm{H}}_2·+{\mathrm{O}}^{-}\to {\mathrm{C}}_6{\mathrm{H}}_5\mathrm{C}\mathrm{H}\mathrm{O}\left(\mathrm{b}\mathrm{e}\mathrm{n}\mathrm{z}\mathrm{a}\mathrm{l}\mathrm{d}\mathrm{e}\mathrm{h}\mathrm{y}\mathrm{d}\mathrm{e},\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{m}\mathrm{e}\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{e} 1\right)+{\mathrm{e}}^{-}$$

(4)

$${\mathrm{C}}_6{\mathrm{H}}_5\mathrm{C}\mathrm{H}\mathrm{O}+\mathrm{O}\mathrm{H}·\to {\mathrm{C}}_6{\mathrm{H}}_5\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}\left(\mathrm{b}\mathrm{e}\mathrm{n}\mathrm{z}\mathrm{o}\mathrm{i}\mathrm{c} \mathrm{a}\mathrm{c}\mathrm{i}\mathrm{d},\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{m}\mathrm{e}\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{e} 2\right)+{\mathrm{H}}^{+}$$

(5)

$${\mathrm{C}}_6{\mathrm{H}}_5\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}\to {\mathrm{C}}_6{\mathrm{H}}_5·\left(\mathrm{p}\mathrm{h}\mathrm{e}\mathrm{n}\mathrm{y}\mathrm{l} \mathrm{r}\mathrm{a}\mathrm{d}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{l},\mathrm{i}\mathrm{n}\mathrm{t}\mathrm{e}\mathrm{r}\mathrm{m}\mathrm{e}\mathrm{d}\mathrm{i}\mathrm{a}\mathrm{t}\mathrm{e} 3\right)+{\mathrm{C}\mathrm{O}}_2$$

(6)

Under the strong oxidation of hydroxyl radicals (OH·), the benzene ring of phenyl radicals (C₆H₅·) undergoes a ring-opening reaction, which leads to the breakage of C=C and generates aliphatic dicarboxylic acid intermediates (such as adipic acid, HOOC(CH₂)₄COOH, denoted as intermediate 4).

Under the synergistic action of O^-, OH·, and Co³⁺, the C-C bonds in aliphatic dicarboxylic acids are progressively cleaved, yielding low-molecular-weight carboxylic acids such as acetic acid (CH₃COOH) and formic acid (HCOOH).

$${\mathrm{C}\mathrm{H}}_3\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}+2{\mathrm{O}}_2\to 2{\mathrm{C}\mathrm{O}}_2+2{\mathrm{H}}_2\mathrm{O}$$

(7)

$$\mathrm{H}\mathrm{C}\mathrm{O}\mathrm{O}\mathrm{H}+{\displaystyle \frac{1}{2}}{\mathrm{O}}_2\to {\mathrm{C}\mathrm{O}}_2+{\mathrm{H}}_2\mathrm{O}$$

(8)

5. Conclusions

In conclusion, plasma treatment enables precise control over catalyst structure and electronic properties under mild, eco-friendly conditions, significantly improving activity, selectivity, and stability. It also simplifies synthesis and reduces energy consumption. Characterization shows that plasma-treated catalysts exhibit higher hydrogen consumption and richer oxygen vacancies, enhancing toluene adsorption. Kinetic analysis reveals low activation energy, favoring low-temperature catalytic oxidation of toluene. Among tested catalysts, Ag/5Co-HA-P demonstrates excellent low-temperature activity and cycling stability, achieving 100% toluene conversion at 275 °C with 75.5% CO₂ selectivity. The low activation energy aligns well with high catalytic performance. Comparative studies indicate that Ag/5Co-HA-P performs best due to effective anchoring of cobalt species in the hydroxyapatite lattice, which stabilizes low-valent cobalt during reduction and promotes efficient toluene oxidation.
