# Theoretical Modeling of Oral Glucose Tolerance Tests Guides the Interpretation of the Impact of Perinatal Cadmium Exposure on the Offspring’s Glucose Homeostasis

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

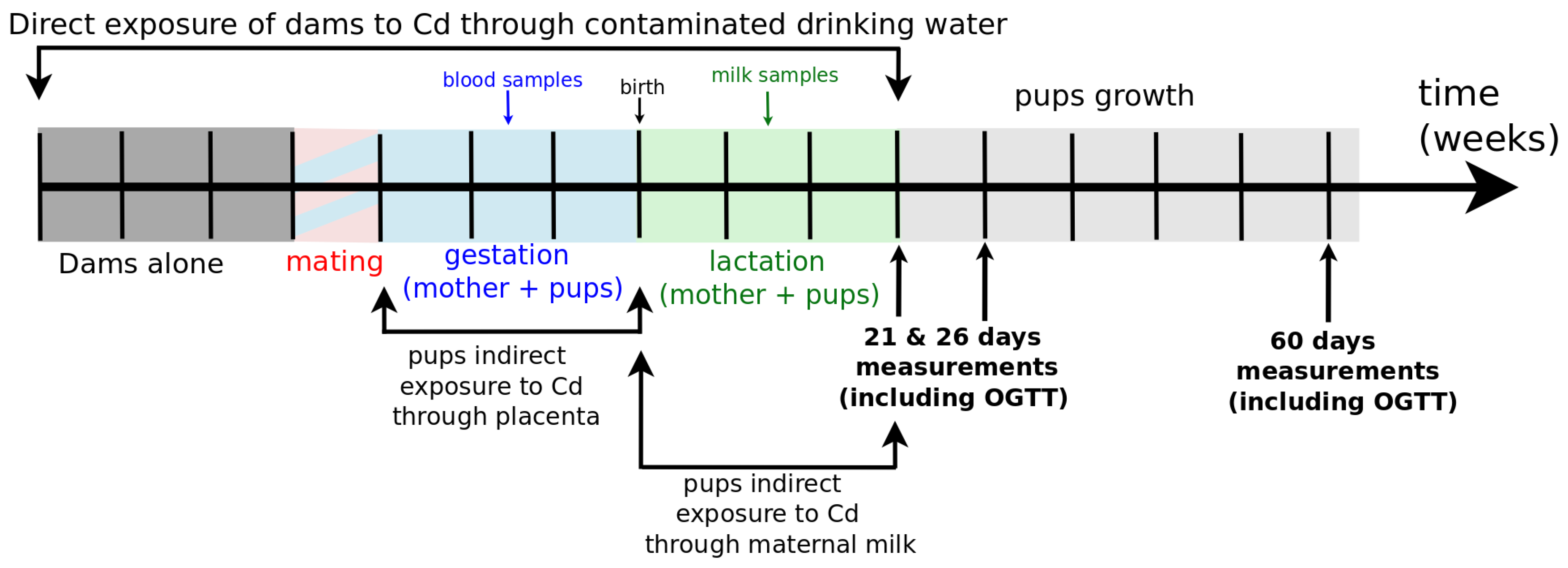

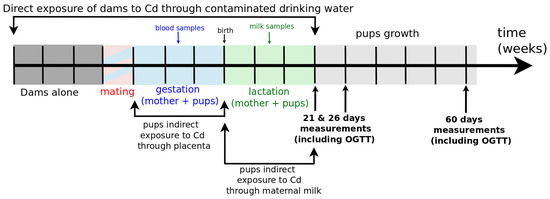

#### 2.1. Summary of the Animal Study on Which Modeling Was Applied

#### 2.2. The Minimal Model (MINMOD)

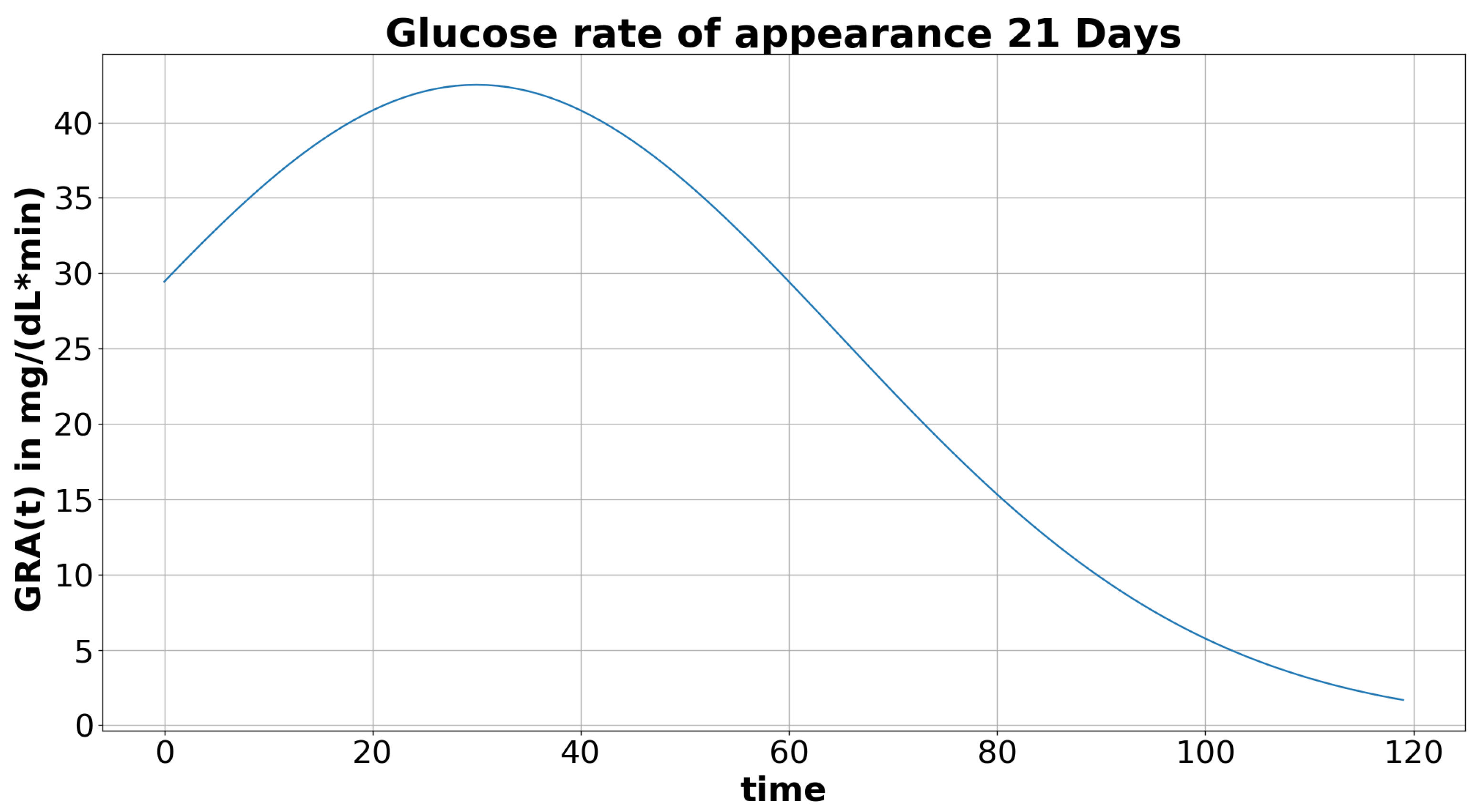

#### 2.3. Glucose Tolerance Test Simulation Procedures

## 3. Results

#### 3.1. OGTT Modeling

#### 3.2. Parameter Analysis

**Hypothesis**

**1.**

- -
**Hypothesis 1.1:**${r}_{Cd}$ varies: this shows the effect of cadmium on the glucose removal by the tissues. If ${r}_{Cd}<1$, then the system has developed insulin resistance.- -
**Hypothesis 1.2:**${p}_{3}$ varies: this represents the effect of insulin on the rate of glucose withdrawal from the circulation.- -
**Hypothesis 1.3:**${p}_{2}$ varies: this affects the decrease rate of $\mathrm{X}\left(t\right)$, which is the glucose withdrawal rate.

**Hypothesis**

**2.**

**Hypothesis**

**3.**

- -
**Hypothesis 3.1:**γ varies: this models an evolution of the insulin release rate, in response to glucose, in the slow phase of insulin production.- -
**Hypothesis 3.2:**${p}_{4}$ varies: this models the stored insulin release rate.- -
**Hypothesis 3.3:**h varies: this affects the glucose response threshold.

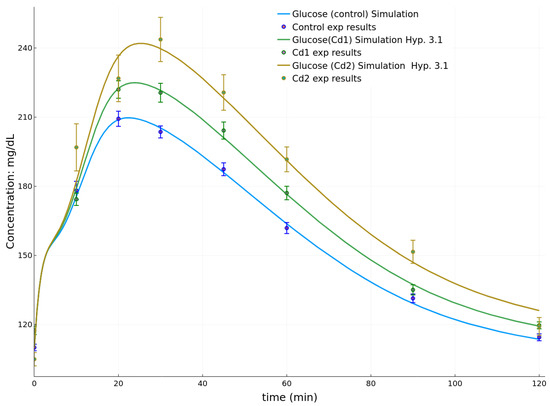

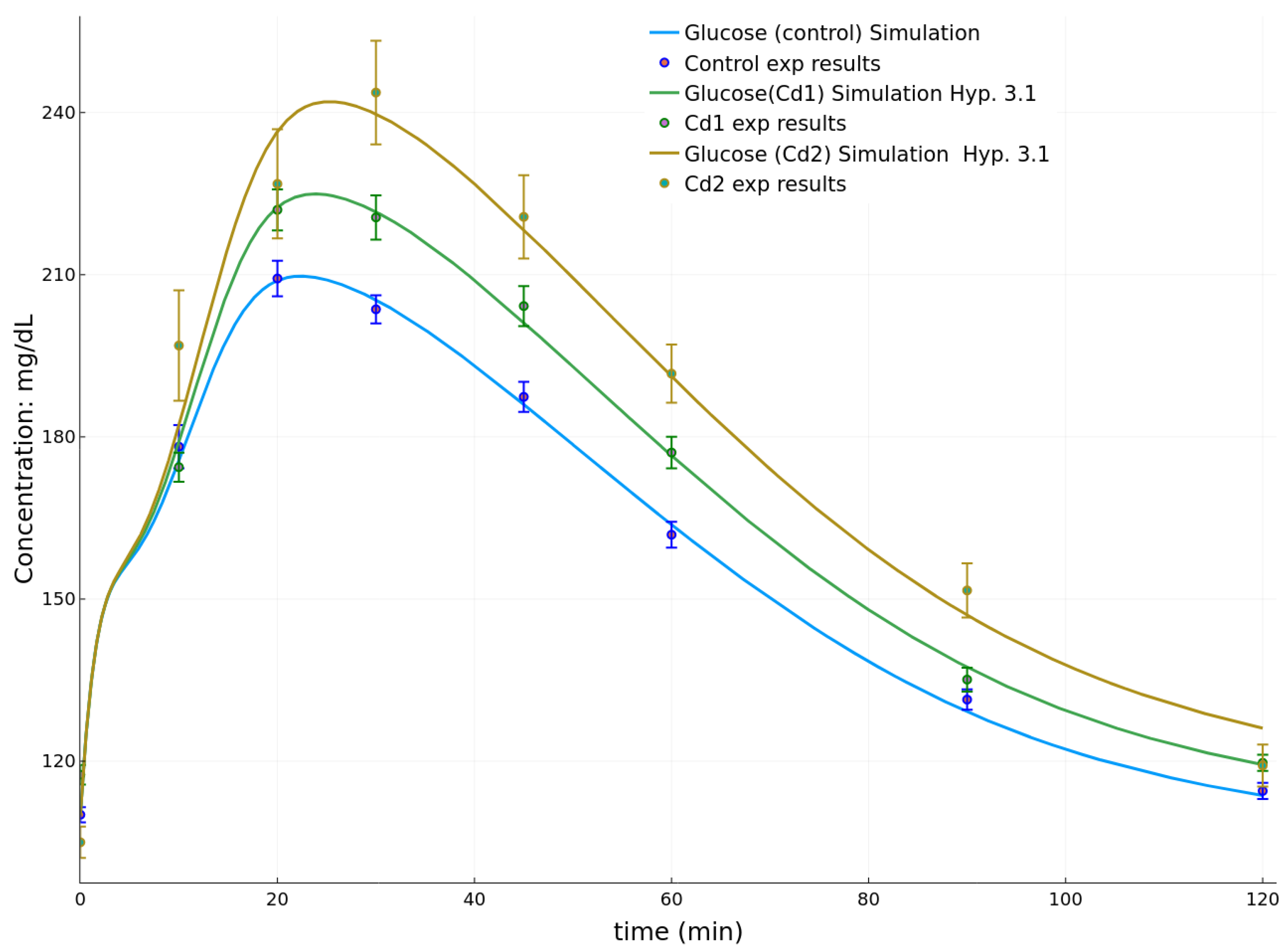

#### 3.2.1. Results at PND21 (Weaning)

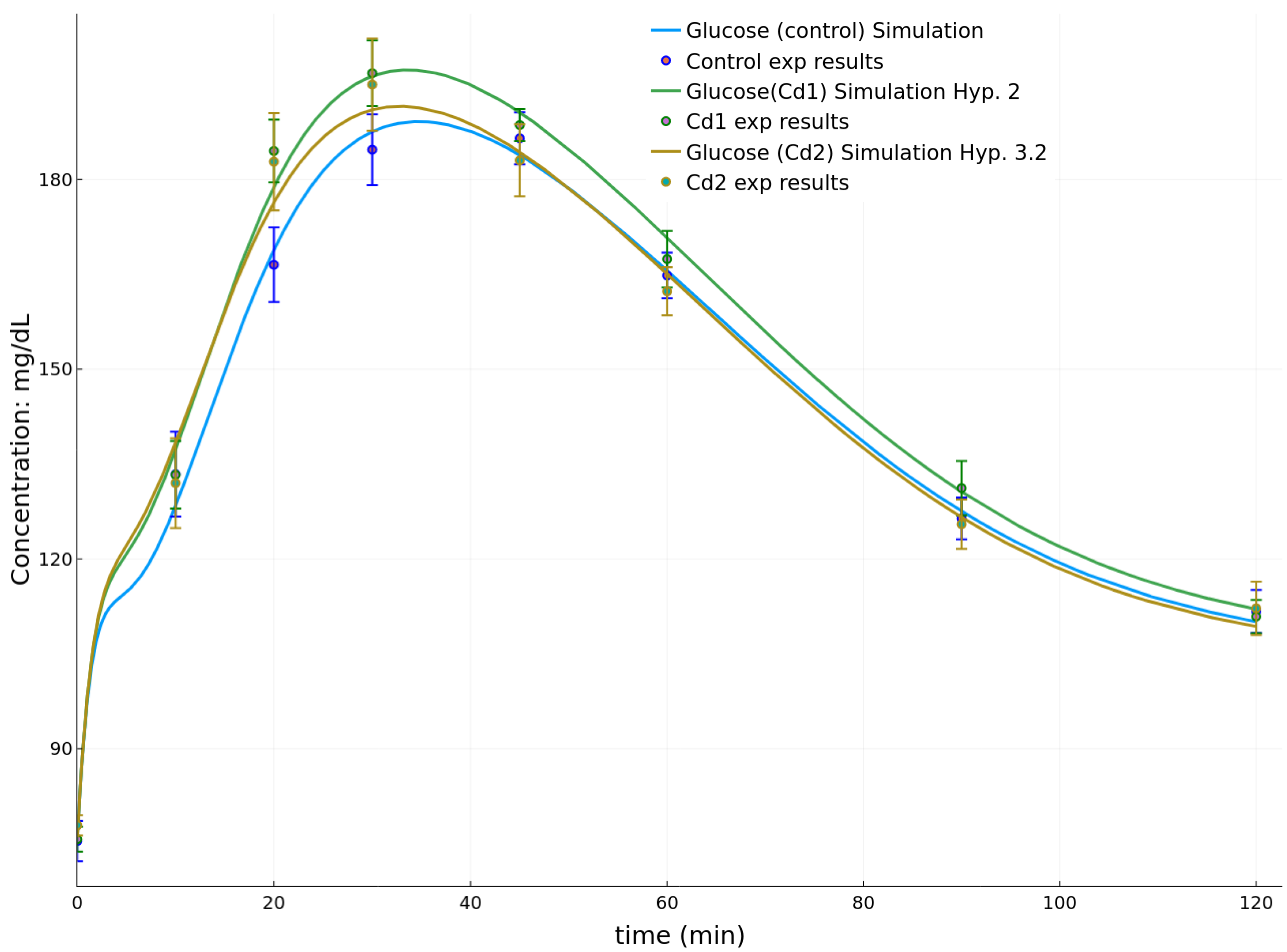

#### 3.2.2. Results at PND26

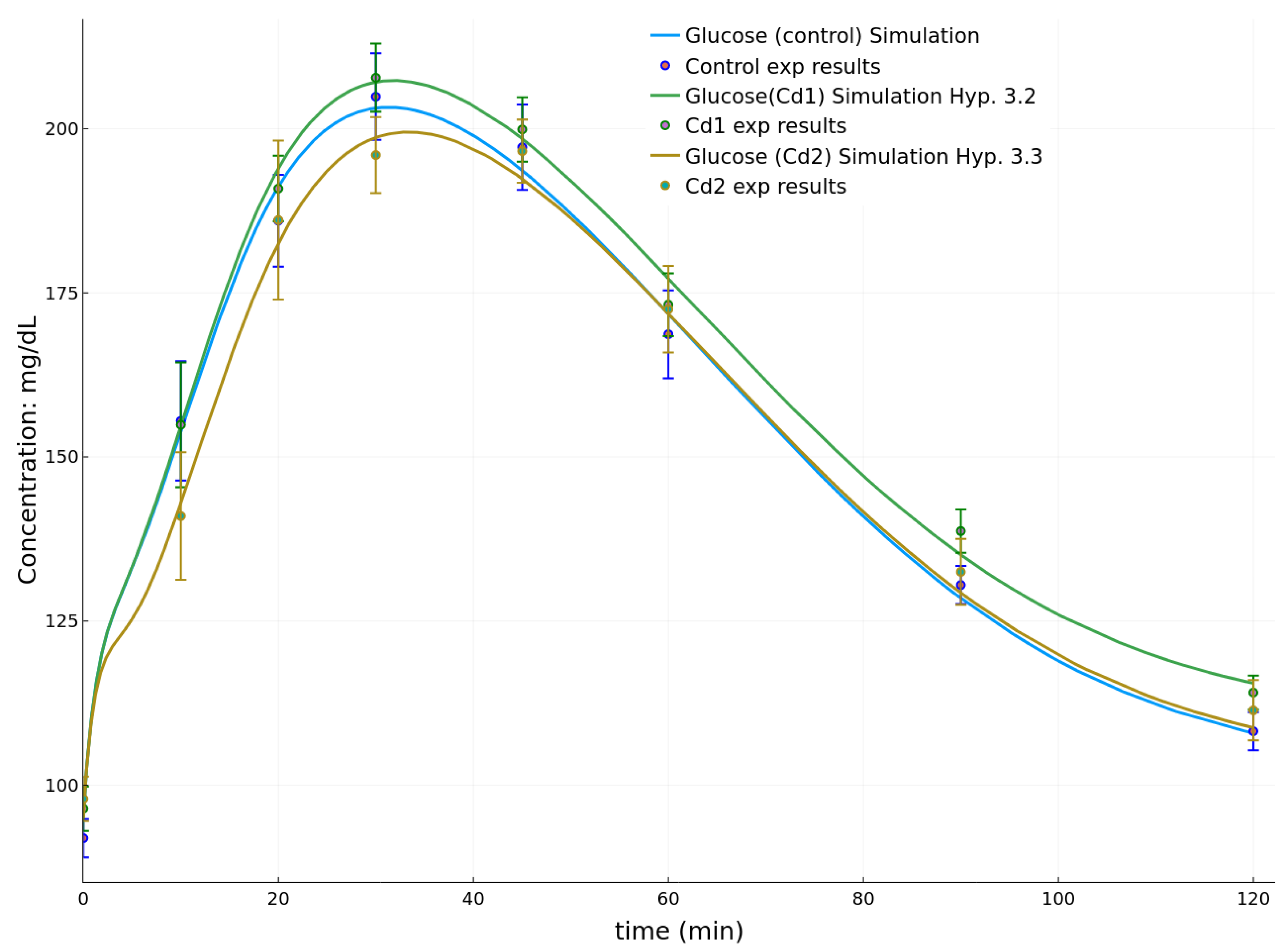

#### 3.2.3. Results at PND60

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

PND21 | Post-Natal Day 21 |

PND26 | Post-Natal Day 26 |

PND60 | Post-Natal Day 60 |

RRP | Readily Releasable Pool |

OGTT | Oral Glucose Tolerance Test |

AUC | Area Under the Curve |

MINMOD | Minimal Model |

## References

- Hannon, T.S.; Kahn, S.E.; Utzschneider, K.M.; Buchanan, T.A.; Nadeau, K.J.; Zeitler, P.S.; Ehrmann, D.A.; Arslanian, S.A.; Caprio, S.; Edelstein, S.L.; et al. Review of methods for measuring β-cell function: Design considerations from the Restoring Insulin Secretion (RISE) Consortium. Diabetes Obes. Metab.
**2018**, 20, 14–24. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Schwartz, G.G.; Il’yasova, D.; Ivanova, A. Urinary cadmium, impaired fasting glucose, and diabetes in the NHANES III. Diabetes Care
**2003**, 26, 468–470. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Barregard, L.; Bergström, G.; Fagerberg, B. Cadmium exposure in relation to insulin production, insulin sensitivity and type 2 diabetes: A cross-sectional and prospective study in women. Environ. Res.
**2013**, 121, 104–109. [Google Scholar] [CrossRef] - Guo, F.F.; Hu, Z.Y.; Li, B.Y.; Qin, L.Q.; Fu, C.; Yu, H.; Zhang, Z.L. Evaluation of the association between urinary cadmium levels below threshold limits and the risk of diabetes mellitus: A dose-response meta-analysis. Environ. Sci. Pollut. Res. Int.
**2019**, 1–10. [Google Scholar] [CrossRef] [PubMed] - Kuo, C.C.; Moon, K.; Thayer, K.A.; Navas-Acien, A. Environmental chemicals and type 2 diabetes: An updated systematic review of the epidemiologic evidence. Curr. Diab. Rep.
**2013**, 13, 831–849. [Google Scholar] [CrossRef] - Li, Y.; Zhang, Y.; Wang, W.; Wu, Y. Association of urinary cadmium with risk of diabetes: A meta-analysis. Environ. Sci. Pollut. Res. Int.
**2017**, 24, 10083–10090. [Google Scholar] [CrossRef] - Moon, S.S. Association of lead, mercury and cadmium with diabetes in the Korean population: The Korea National Health and Nutrition Examination Survey (KNHANES) 2009–2010. Diabet Med.
**2013**, 30, e143–e148. [Google Scholar] [CrossRef] - Noor, N.; Zong, G.; Seely, E.W.; Weisskopf, M.; James-Todd, T. Urinary cadmium concentrations and metabolic syndrome in US adults: The National Health and Nutrition Examination Survey 2001–2014. Environ. Int.
**2018**, 121, 349–356. [Google Scholar] [CrossRef] - Tinkov, A.A.; Filippini, T.; Ajsuvakova, O.P.; Aaseth, J.; Gluhcheva, Y.G.; Ivanova, J.M.; Bjørklund, G.; Skalnaya, M.G.; Gatiatulina, E.R.; Popova, E.V.; et al. The role of cadmium in obesity and diabetes. Sci. Total Environ.
**2017**, 601, 741–755. [Google Scholar] [CrossRef] - Wallia, A.; Allen, N.B.; Badon, S.; El Muayed, M. Association between urinary cadmium levels and prediabetes in the NHANES 2005–2010 population. Int. J. Hyg. Environ. Health
**2014**, 217, 854–860. [Google Scholar] [CrossRef] [Green Version] - Rahman, A.; Kumarathasan, P.; Gomes, J. Infant and mother related outcomes from exposure to metals with endocrine disrupting properties during pregnancy. Sci. Total Environ.
**2016**, 569, 1022–1031. [Google Scholar] [CrossRef] [PubMed] - Shapiro, G.; Dodds, L.; Arbuckle, T.; Ashley-Martin, J.; Fraser, W.; Fisher, M.; Taback, S.; Keely, E.; Bouchard, M.; Monnier, P.; et al. Exposure to phthalates, bisphenol A and metals in pregnancy and the association with impaired glucose tolerance and gestational diabetes mellitus: The MIREC study. Environ. Int.
**2015**, 83, 63–71. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Huang, C.C.; Kuo, C.Y.; Yang, C.Y.; Liu, J.M.; Hsu, R.J.; Lee, K.I.; Su, C.C.; Wu, C.C.; Lin, C.T.; Liu, S.H.; et al. Cadmium exposure induces pancreatic β-cell death via a Ca2+-triggered JNK/CHOP-related apoptotic signaling pathway. Toxicology
**2019**, 425, 152252. [Google Scholar] [CrossRef] [PubMed] - Li, X.; Li, M.; Xu, J.; Xiao, W.; Zhang, Z. Decreased insulin secretion but unchanged glucose homeostasis in cadmium-exposed male C57BL/6 mice. J. Toxicol.
**2019**, 2019. [Google Scholar] [CrossRef] [Green Version] - Jacquet, A.; Ounnas, F.; Lenon, M.; Arnaud, J.; Demeilliers, C.; Moulis, J.M. Chronic exposure to low-level cadmium in diabetes: Role of oxidative stress and comparison with polychlorinated biphenyls. Curr. Drug Targets
**2016**, 17, 1385–1413. [Google Scholar] [CrossRef] [PubMed] - Barry, E.; Roberts, S.; Oke, J.; Vijayaraghavan, S.; Normansell, R.; Greenhalgh, T. Efficacy and effectiveness of screen and treat policies in prevention of type 2 diabetes: Systematic review and meta-analysis of screening tests and interventions. BMJ
**2017**, 356, i6538. [Google Scholar] [CrossRef] [Green Version] - Jacquet, A. Conséquences d’une Exposition Chronique à des Doses Modérées de Cadmium sur le Métabolisme du Glucose de Rats à Différents Stades de la vie. Ph.D. Thesis, Université Grenoble Alpes, Saint-Martin-d’Hères, France, 2017. [Google Scholar]
- Jacquet, A.; Barbeau, D.; Arnaud, J.; Hijazi, S.; Hazane-Puch, F.; Lamarche, F.; Quiclet, C.; Couturier, K.; Fontaine, E.; Moulis, J.M.; et al. Impact of maternal low-level cadmium exposure on glucose and lipid metabolism of the litter at different ages after weaning. Chemosphere
**2019**, 219, 109–121. [Google Scholar] [CrossRef] - Jacquet, A.; Arnaud, J.; Hininger-Favier, I.; Hazane-Puch, F.; Couturier, K.; Lénon, M.; Lamarche, F.; Ounnas, F.; Fontaine, E.; Moulis, J.M.; et al. Impact of chronic and low cadmium exposure of rats: Sex specific disruption of glucose metabolism. Chemosphere
**2018**, 207, 764–773. [Google Scholar] [CrossRef] - Pacini, G.; Bergman, R.N. MINMOD: A computer program to calculate insulin sensitivity and pancreatic responsivity from the frequently sampled intravenous glucose tolerance test. Comput. Methods Prog. Biomed.
**1986**, 23, 113–122. [Google Scholar] [CrossRef] - Nittala, A.; Ghosh, S.; Stefanovski, D.; Bergman, R.; Wang, X. Dimensional analysis of MINMOD leads to definition of the disposition index of glucose regulation and improved simulation algorithm. Biomed. Eng. Online
**2006**, 5, 44. [Google Scholar] [CrossRef] [Green Version] - Rackauckas, C.; Nie, Q. DifferentialEquations.jl—A performant and feature-rich ecosystem for solving differential equations in Julia. J. Open Res. Softw.
**2017**, 5. [Google Scholar] [CrossRef] [Green Version] - Kang, H.; Han, K.; Choi, M. Mathematical model for glucose regulation in the whole-body system. Islets
**2012**, 4, 84–93. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Breda, E.; Cavaghan, M.K.; Toffolo, G.; Polonsky, K.S.; Cobelli, C. Oral glucose tolerance test minimal model indexes of β-cell function and insulin sensitivity. Diabetes
**2001**, 50, 150–158. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Breda, E.; Toffolo, G.; Polonsky, K.S.; Cobelli, C. Insulin release in impaired glucose tolerance: Oral minimal model predicts normal sensitivity to glucose but defective response times. Diabetes
**2002**, 51, S227–S233. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Dalla Man, C.; Campioni, M.; Polonsky, K.S.; Basu, R.; Rizza, R.A.; Toffolo, G.; Cobelli, C. Two-hour seven-sample oral glucose tolerance test and meal protocol. Diabetes
**2005**, 54, 3265–3273. [Google Scholar] [CrossRef] [Green Version] - Dalla Man, C.; Caumo, A.; Basu, R.; Rizza, R.; Toffolo, G.; Cobelli, C. Measurement of selective effect of insulin on glucose disposal from labeled glucose oral test minimal model. Am. J. Physiol. Endocrinol. Metab.
**2005**, 289, E909–E914. [Google Scholar] [CrossRef] - Dalla Man, C.; Rizza, R.A.; Cobelli, C. Meal simulation model of the glucose-insulin system. IEEE Trans. Biomed. Eng.
**2007**, 54, 1740–1749. [Google Scholar] [CrossRef] - Cobelli, C.; Dalla Man, C.; Toffolo, G.; Basu, R.; Vella, A.; Rizza, R. The oral minimal model method. Diabetes
**2014**, 63, 1203–1213. [Google Scholar] [CrossRef] [Green Version] - Wielinga, P.Y.; Wachters-Hagedoorn, R.E.; Bouter, B.; van Dijk, T.H.; Stellaard, F.; Nieuwenhuizen, A.G.; Verkade, H.J.; Scheurink, A.J. Hydroxycitric acid delays intestinal glucose absorption in rats. Am. J. Physiol. Gastrointest. Liver Physiol.
**2005**, 288, G1144–G1149. [Google Scholar] [CrossRef] [Green Version] - Constable, B. Changes in blood volume and blood picture during the life of the rat and guinea-pig from birth to maturity. J. Physiol.
**1963**, 167, 229–238. [Google Scholar] [CrossRef] [Green Version] - Henquin, J.C.; Nenquin, M.; Stiernet, P.; Ahren, B. In vivo and in vitro glucose-induced biphasic insulin secretion in the mouse: Pattern and role of cytoplasmic Ca2+ and amplification signals in β-cells. Diabetes
**2006**, 55, 441–451. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Salvucci, M.; Neufeld, Z.; Newsholme, P. Mathematical model of metabolism and electrophysiology of amino acid and glucose stimulated insulin secretion: In vitro validation using a β-cell line. PLoS ONE
**2013**, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]

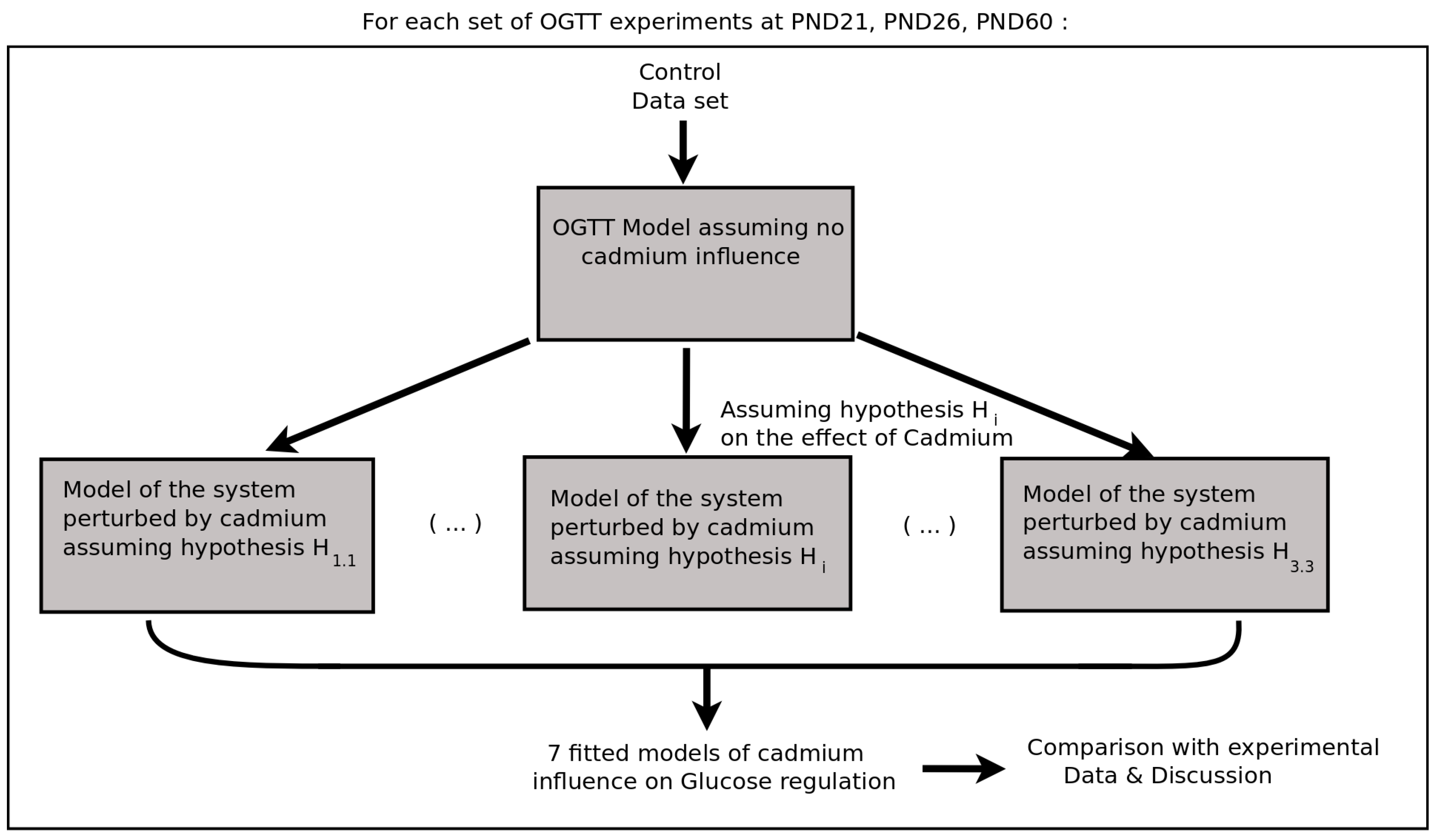

**Figure 3.**Modeling method to test hypotheses on the possible targets of cadmium. In the diagram, the index i spans hypotheses 1.1–3.3.

PND21 | PND26 | PND60 | |
---|---|---|---|

Control | 48 | 13 | 12 |

Cd1 | 38 | 18 | 17 |

Cd2 | 35 | 10 | 12 |

PND21 | PND26 | PND60 | Unit | |
---|---|---|---|---|

Body mass | 45 | 65 | 205 | g |

Blood volume | $0.03$ | $0.04$ | $0.128$ | dL |

K | 3729 | 4040 | 3982 | mg/(dL$\phantom{\rule{0.166667em}{0ex}}\xb7\phantom{\rule{0.166667em}{0ex}}$min) |

**Table 3.**Goodness of fit from Equation (5) of each hypothesis applied to the Cd1 and Cd2 datasets at PND21. The symbol − denotes a value no better than the control parameter set.

Hypothesis | Cd1 | Cd2 |
---|---|---|

No Hyp. | $0.0188$ | $0.0144$ |

Hyp 1.1 | $0.0144$ | $0.00820$ |

Hyp 1.2 | $0.0144$ | $0.00821$ |

Hyp 1.3 | $0.0140$ | $0.00789$ |

Hyp 2 | $0.0145$ | $0.00852$ |

Hyp 3.1 | $0.00566$ | $0.00433$ |

Hyp 3.2 | − | $0.0137$ |

Hyp 3.3 | $0.0102$ | $0.00740$ |

**Table 4.**Initial condition determined for the control group at PND21. These initial conditions are conserved for groups Cd1 and Cd2. Note that 1 U = 0.0347 mg of insulin.

Variable | Value | Unit |
---|---|---|

$\mathrm{G}\left(0\right)$ | $110.0$ | mg/dL |

$\mathrm{X}\left(0\right)$ | $0.0$ | min${}^{-1}$ |

$\mathrm{I}\left(0\right)$ | $16.0$ | nU/dL |

${\mathrm{I}}_{s}\left(0\right)$ | $5950.0$ | nU/dL |

**Table 5.**Parameters values fitted for the control group as well as groups Cd1 and Cd2 at PND21 (considering Hypothesis 3.1 for both groups).

Parameters | Ctrl | Cd1 | Cd2 | Unit |
---|---|---|---|---|

${p}_{1}$ | $0.01$ | − | − | min${}^{-1}$ |

${\mathrm{G}}_{b}$ | $100.0$ | − | − | mg/dL |

${p}_{2}$ | $0.56$ | − | − | min${}^{-1}$ |

${p}_{3}$ | $0.0155$ | − | − | (dL/nU)min${}^{-2}$ |

${\mathrm{I}}_{b}$ | $10.0$ | − | − | nU/dL |

n | $10.53$ | − | − | min${}^{-1}$ |

$\gamma $ | $0.0310$ | $0.0258$ | $0.0215$ | (nU/dL)min${}^{-2}$ |

h | $85.0$ | − | − | mg/dL |

${p}_{4}$ | $0.033$ | − | − | min${}^{-1}$ |

${r}_{Cd}$ | $1.0$ | − | − | N.U. |

**Table 6.**Goodness of fit from Equation (5) for each dataset of the control group at PND21, -26 and -60.

Control Groups | Goodness of Fit |
---|---|

PND21 | $0.00311$ |

PND26 | $0.00315$ |

PND60 | $0.00251$ |

Variable | Value | Unit |
---|---|---|

$\mathrm{G}\left(0\right)$ | $76.0$ | mg/dL |

$\mathrm{X}\left(0\right)$ | $0.0$ | min${}^{-1}$ |

$\mathrm{I}\left(0\right)$ | $34.0$ | nU/dL |

${\mathrm{I}}_{s}\left(0\right)$ | $5950.0$ | nU/dL |

**Table 8.**Goodness of fit from Equation (5) of each hypothesis applied to the datasets of groups Cd1 and Cd2 at PND26.

Hypothesis | Cd1 | Cd2 |
---|---|---|

No Hyp. | $0.00972$ | $0.00600$ |

Hyp 1.1 | $0.00411$ | $0.00444$ |

Hyp 1.2 | $0.00410$ | $0.00435$ |

Hyp 1.3 | $0.00398$ | $0.00434$ |

Hyp 2 | $0.00395$ | $0.00442$ |

Hyp 3.1 | $0.00762$ | $0.00584$ |

Hyp 3.2 | $0.00638$ | $0.00388$ |

Hyp 3.3 | $0.00819$ | $0.00465$ |

**Table 9.**Parameters values fitted for the control group as well as groups Cd1 and Cd2 at PND26 (considering Hypothesis 3.2 for Cd2 and Hypothesis 2 for Cd1).

Parameters | Ctrl | Cd1 | Cd2 | Unit |
---|---|---|---|---|

${p}_{1}$ | $0.01$ | − | − | min${}^{-1}$ |

${\mathrm{G}}_{b}$ | $100.0$ | − | − | mg/dL |

${p}_{2}$ | $0.61$ | − | − | min${}^{-1}$ |

${p}_{3}$ | $0.0245$ | − | − | (dL/nU)min${}^{-2}$ |

${\mathrm{I}}_{b}$ | $05.0$ | − | − | nU/dL |

n | $09.44$ | $9.93$ | − | min${}^{-1}$ |

$\gamma $ | $0.0110$ | − | − | (nU/dL)min${}^{-2}$ |

h | $79.0$ | − | − | mg/dL |

${p}_{4}$ | $0.0215$ | − | $0.201$ | min${}^{-1}$ |

${r}_{Cd}$ | $1.0$ | − | − | N.U. |

Variable | Value | Unit |
---|---|---|

$\mathrm{G}\left(0\right)$ | $95.0$ | mg/dL |

$\mathrm{X}\left(0\right)$ | $0.0$ | min${}^{-1}$ |

$\mathrm{I}\left(0\right)$ | $34.0$ | nU/dL |

${\mathrm{I}}_{s}\left(0\right)$ | $5950.0$ | nU/dL |

**Table 11.**Parameter values fitted for the control group as well as groups Cd1 and Cd2 at PND60 (considering Hypothesis 3.3 for Cd2 and Hypothesis 3.2 for Cd1).

Parameters | Ctrl | Cd1 | Cd2 | Unit |
---|---|---|---|---|

${p}_{1}$ | $0.01$ | − | − | min${}^{-1}$ |

${\mathrm{G}}_{b}$ | $100.0$ | − | − | mg/dL |

${p}_{2}$ | $0.79$ | − | − | min${}^{-1}$ |

${p}_{3}$ | $0.0335$ | − | − | (dL/nU)min${}^{-2}$ |

${\mathrm{I}}_{b}$ | $06.0$ | − | − | nU/dL |

n | $8.35$ | − | − | min${}^{-1}$ |

$\gamma $ | $0.0078$ | − | − | (nU/dL)min${}^{-2}$ |

h | $65.0$ | $73.0$ | − | mg/dL |

${p}_{4}$ | $0.0170$ | − | $0.0180$ | min${}^{-1}$ |

${r}_{Cd}$ | $1.0$ | − | − | N.U. |

**Table 12.**Goodness of fit from Equation (5) of each hypothesis applied to the datasets of groups Cd1 and Cd2 at PND60.

Hypothesis | Cd1 | Cd2 |
---|---|---|

No Hyp. | $0.00440$ | $0.00403$ |

Hyp 1.1 | $0.00395$ | $0.00304$ |

Hyp 1.2 | $0.00395$ | $0.00304$ |

Hyp 1.3 | $0.00396$ | $0.00312$ |

Hyp 2 | $0.00374$ | $0.00325$ |

Hyp 3.1 | $0.00267$ | − |

Hyp 3.2 | $0.00439$ | $0.00194$ |

Hyp 3.3 | $0.00204$ | $0.00402$ |
