Optimization of the Formulation and Properties of 3D-Printed Complex Egg White Protein Objects
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

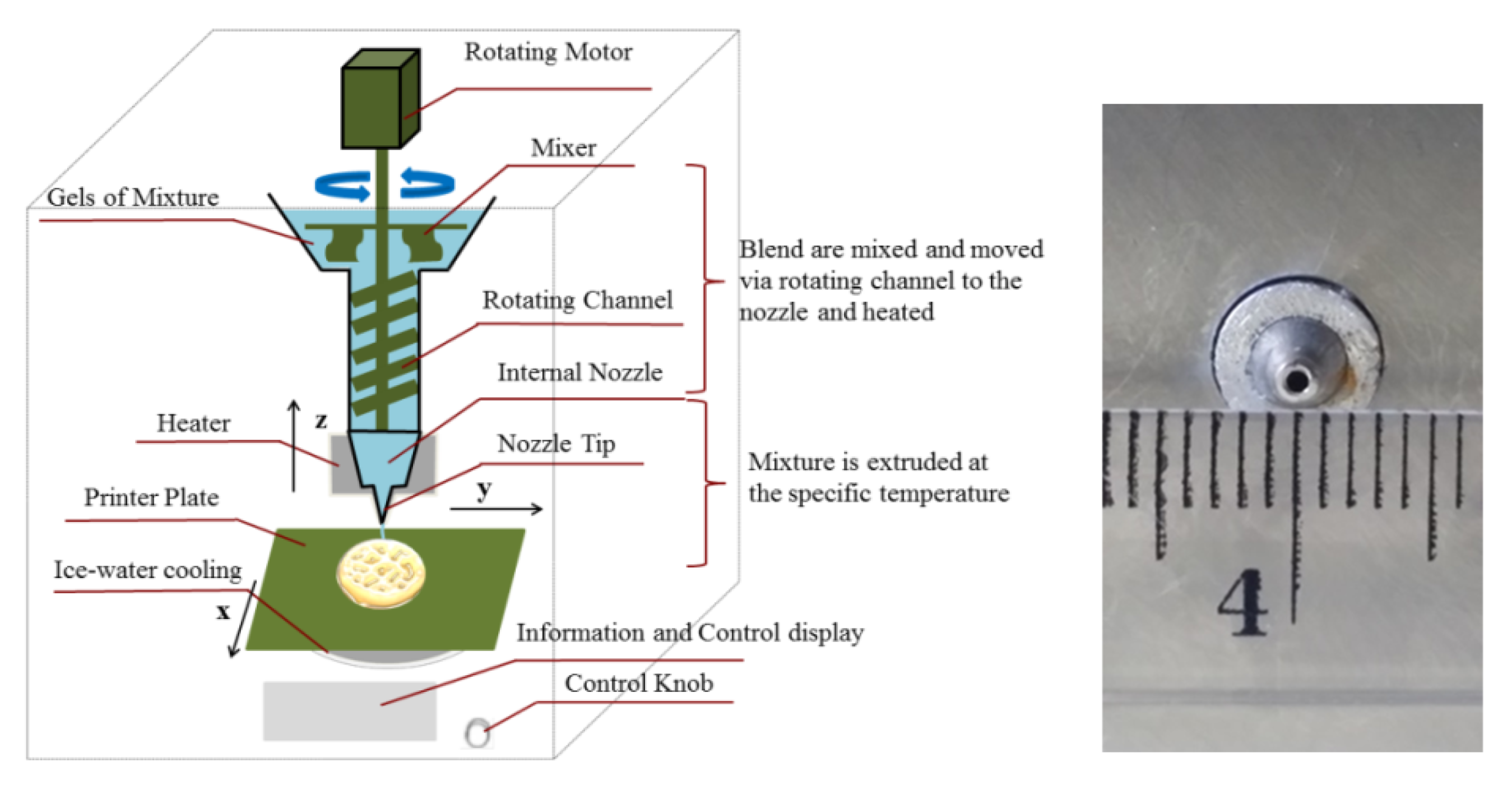

2.2. 3D Printing
2.3. Experimental Design and Optimization of the Printing Formulation
2.4. Preparation of the Complex Printing System
2.5. Sensory Evaluation
2.6. Property Analysis of Different Formulations
2.6.1. Relationship between Viscosity and Sensory Evaluation
2.6.2. Rheological Measurement
2.6.3. Tribological Measurement
2.7. Scanning Electron Microscopy (SEM) of the Printing Mixture Systems
2.8. Statistics
3. Results and Discussion
3.1. Optimization of 3D Printing Formulation

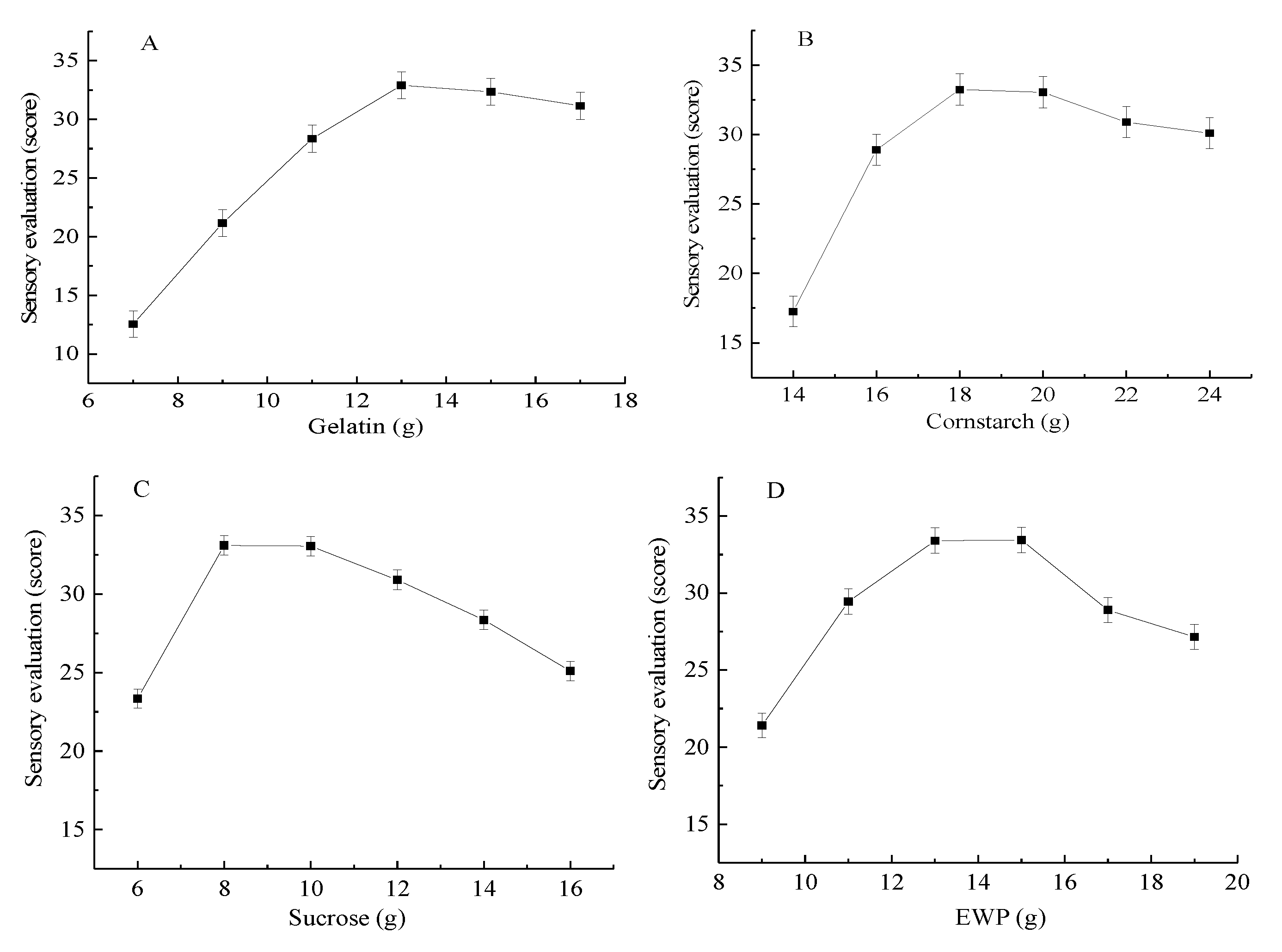

3.1.1. Single-Factor Results

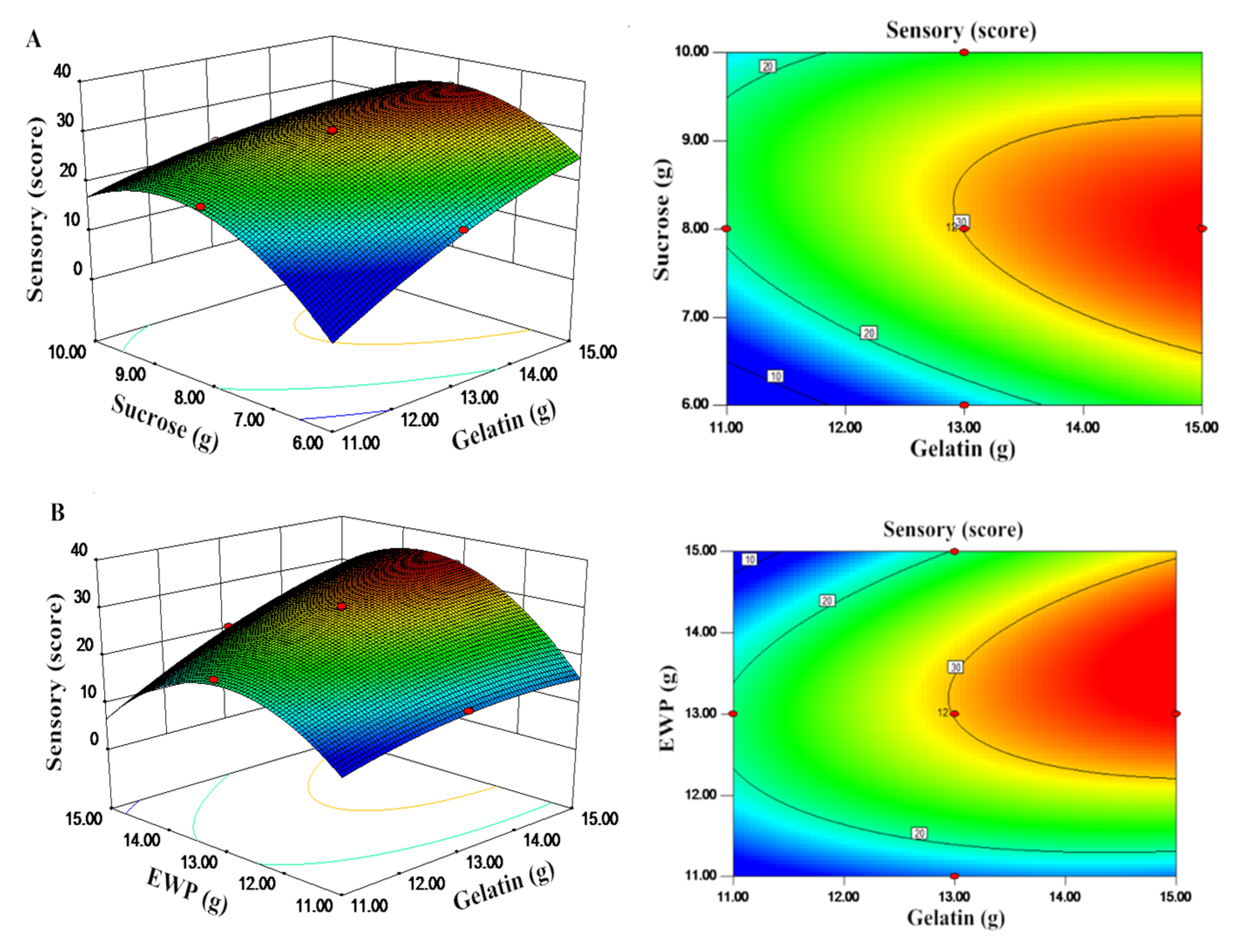

3.1.2. Analysis of Response-Surface Design

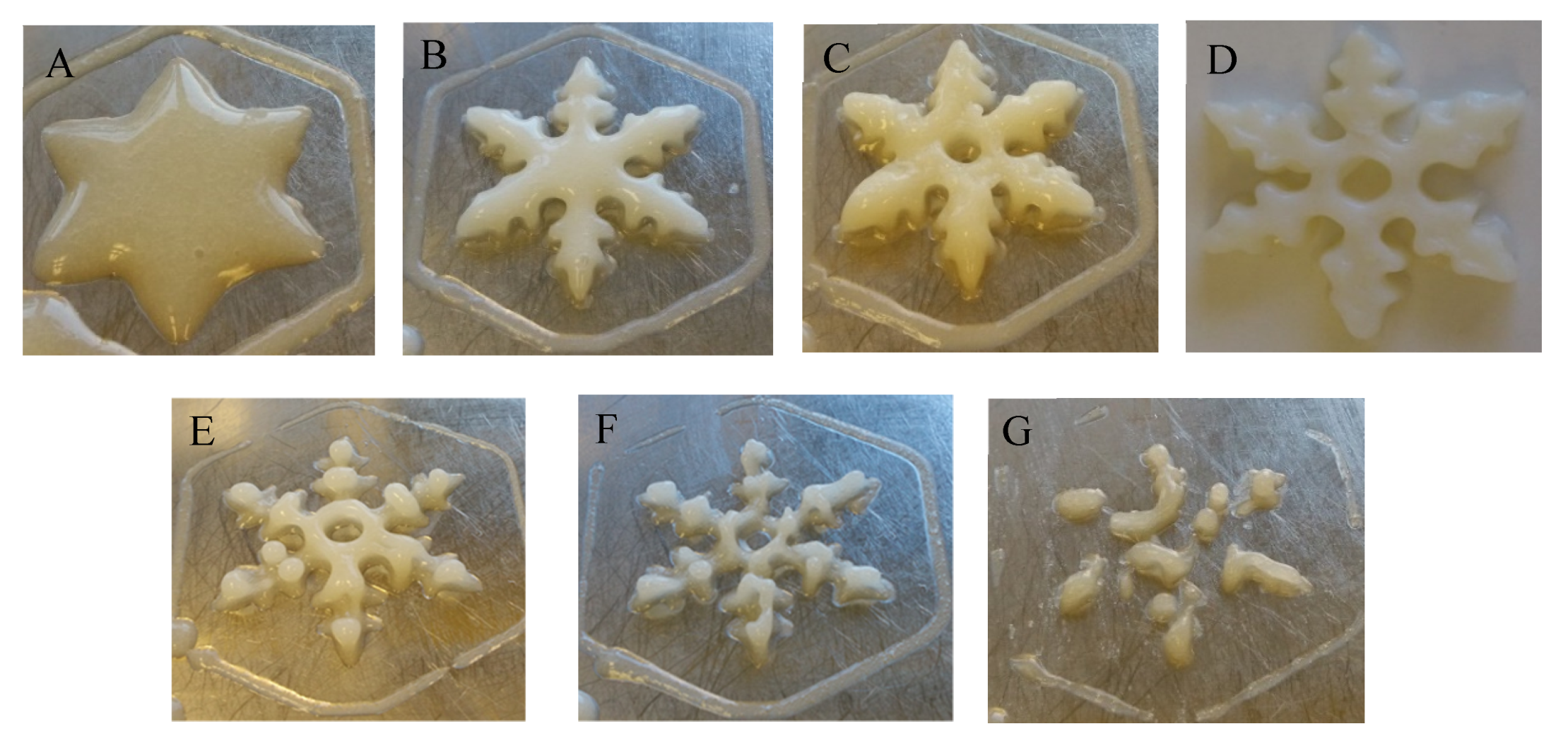

3.2. Effects of the Amounts of the Added Materials on the Sensory Evaluation

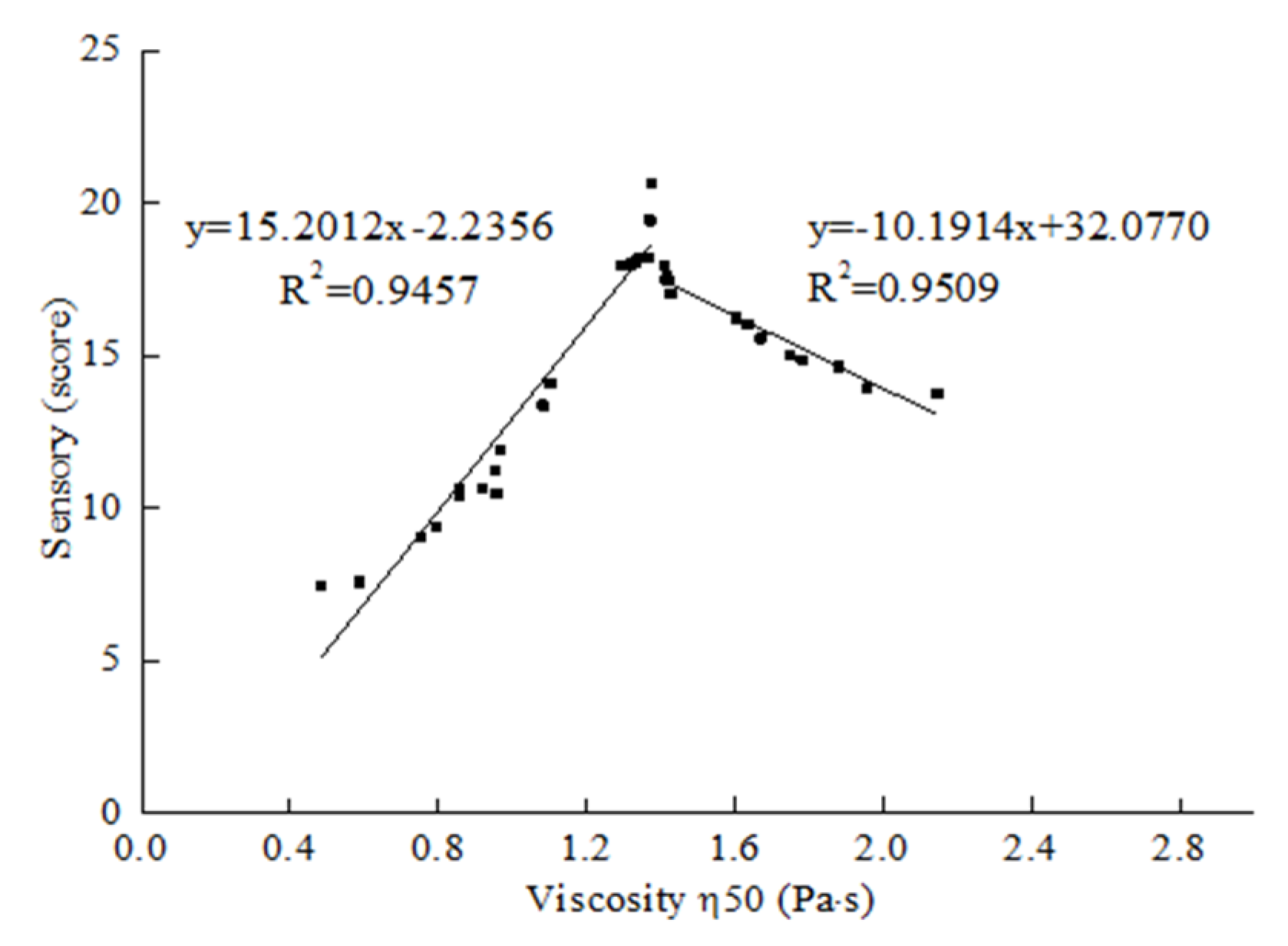

3.3. Relationship between Viscosity and Sensory Evaluation

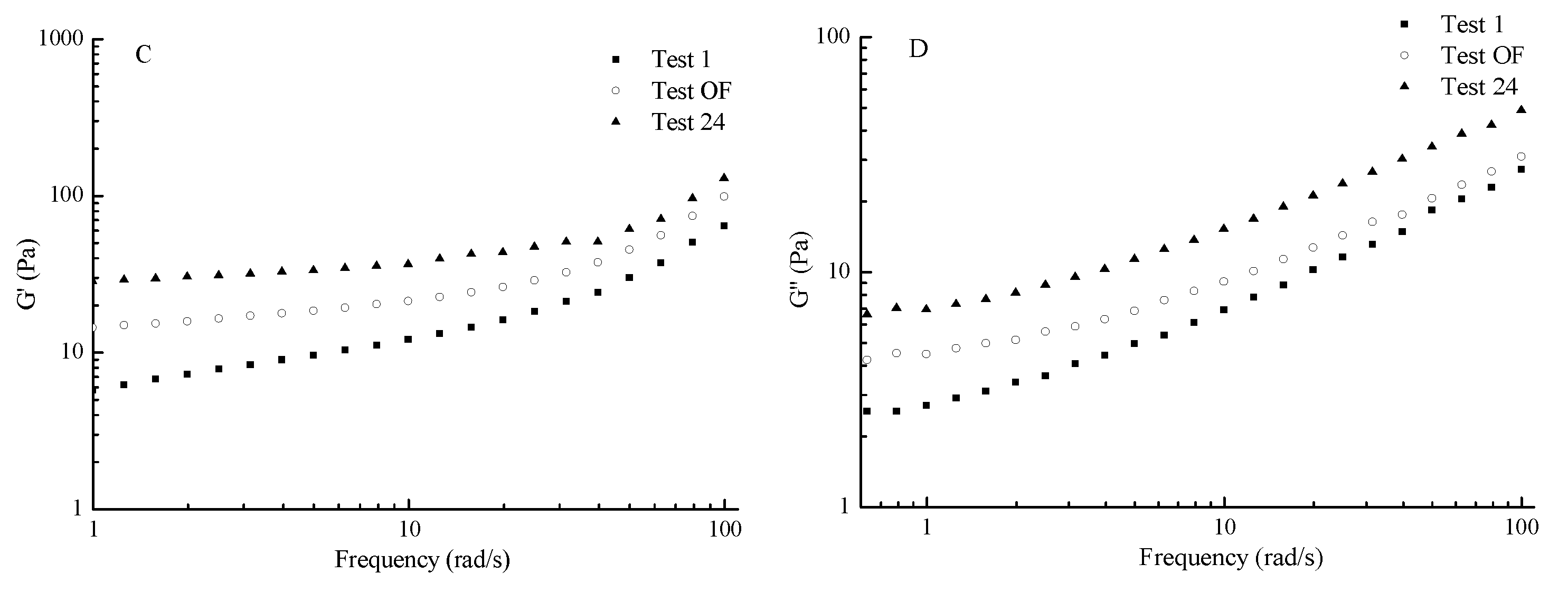

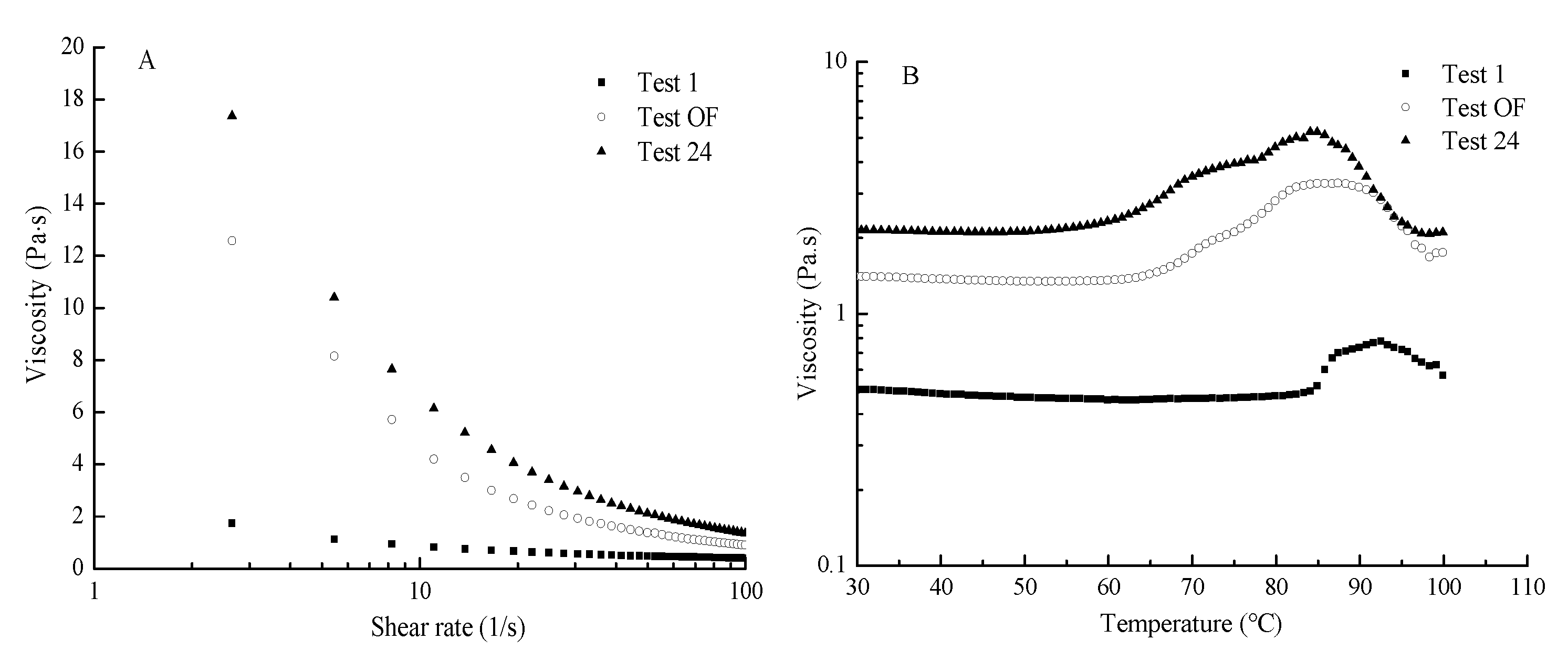

3.4. Rheological Behavior

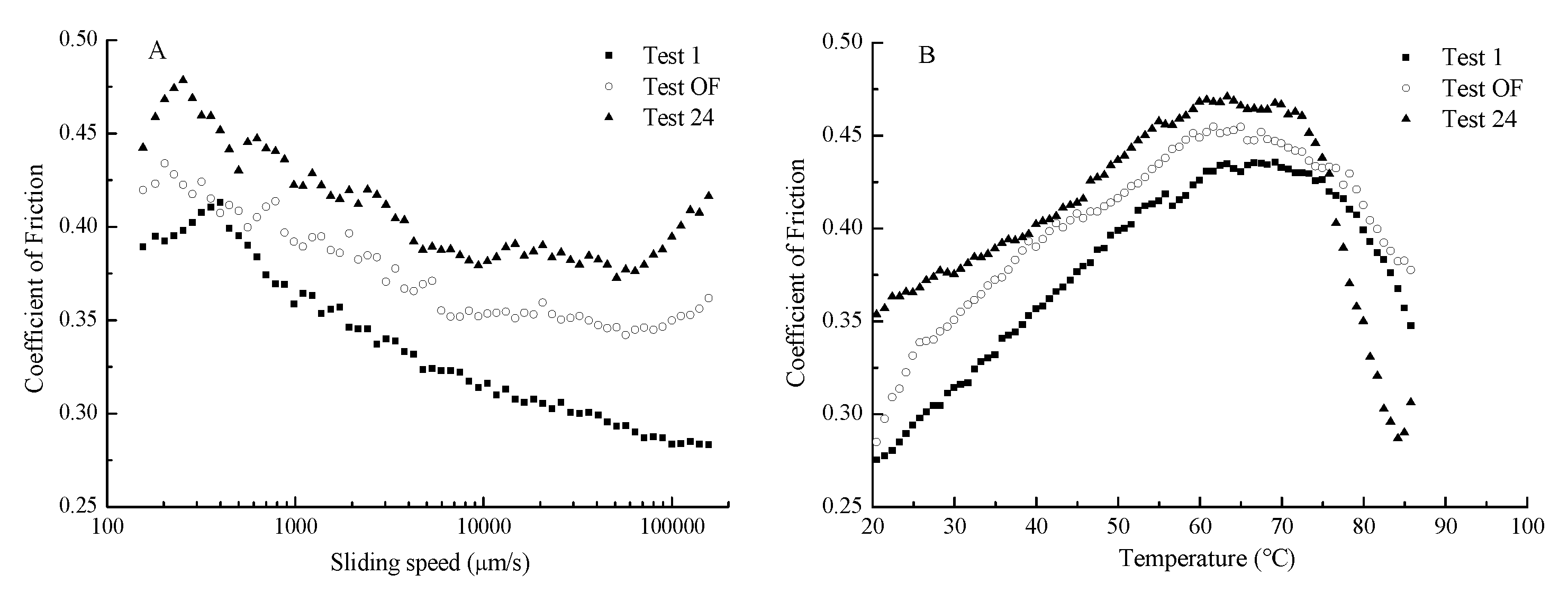

3.5. Tribological Behavior

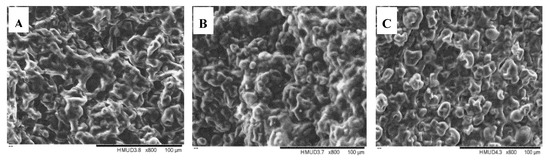

3.6. SEM Image of the Printing Systems
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
Appendix A
Analysis of Response-Surface Design
Variables | Symbol | Coded Levels | ||||
---|---|---|---|---|---|---|
−2 | −1 | 0 | 1 | 2 | ||
Gelatin (g) | X1 | 11 | 12 | 13 | 14 | 15 |
Cornstarch (g) | X2 | 16 | 17 | 18 | 19 | 20 |
Sucrose (g) | X3 | 6 | 7 | 8 | 9 | 10 |
EWP (g) | X4 | 11 | 12 | 13 | 14 | 15 |
Test Order | X1: Gelatin (g) | X2: Cornstarch (g) | X3: Sucrose (g) | X4: EWP (g) | Viscosity η50 (Pa·s) | Y: Sensory (score) |
---|---|---|---|---|---|---|
1 | −1 | −1 | −1 | −1 | 0.483 ± 0.008 | 12.35 ± 0.73 |
2 | −1 | −1 | −1 | 1 | 0.587 ± 0.013 | 18.45 ± 0.89 |
3 | −1 | −1 | 1 | −1 | 0.857 ± 0.017 | 17.70 ± 1.04 |
4 | −1 | −1 | 1 | 1 | 0.959 ± 0.014 | 26.05 ± 1.08 |
5 | −1 | 1 | −1 | −1 | 0.937 ± 0.016 | 17.95 ± 0.97 |
6 | −1 | 1 | −1 | 1 | 0.977 ± 0.021 | 20.75 ± 0.95 |
7 | −1 | 1 | 1 | −1 | 1.112 ± 0.016 | 23.25 ± 0.99 |
8 | −1 | 1 | 1 | 1 | 1.693 ± 0.026 | 26.70 ± 1.06 |
9 | 1 | −1 | −1 | −1 | 0.952 ± 0.014 | 12.70 ± 0.77 |
10 | 1 | −1 | −1 | 1 | 1.721 ± 0.023 | 23.10 ± 1.11 |
11 | 1 | −1 | 1 | −1 | 1.885 ± 0.015 | 19.45 ± 0.97 |
12 | 1 | −1 | 1 | 1 | 1.619 ± 0.019 | 31.35 ± 1.42 |
13 | 1 | 1 | −1 | −1 | 1.586 ± 0.025 | 17.40 ± 1.12 |
14 | 1 | 1 | −1 | 1 | 1.379 ± 0.030 | 24.85 ± 1.27 |
15 | 1 | 1 | 1 | −1 | 1.558 ± 0.028 | 23.80 ± 1.12 |
16 | 1 | 1 | 1 | 1 | 1.371 ± 0.040 | 32.25 ± 1.34 |
17 | −2 | 0 | 0 | 0 | 1.083 ± 0.012 | 21.85 ± 1.19 |
18 | 2 | 0 | 0 | 0 | 1.375 ± 0.038 | 34.15 ± 1.62 |
19 | 0 | −2 | 0 | 0 | 0.753 ± 0.011 | 15.20 ± 1.08 |
20 | 0 | 2 | 0 | 0 | 1.320 ± 0.018 | 30.05 ± 1.86 |
21 | 0 | 0 | −2 | 0 | 0.896 ± 0.014 | 17.40 ± 1.07 |
22 | 0 | 0 | 2 | 0 | 1.814 ± 0.016 | 22.55 ± 1.25 |
23 | 0 | 0 | 0 | −2 | 0.795 ± 0.012 | 15.55 ± 0.93 |
24 | 0 | 0 | 0 | 2 | 2.058 ± 0.017 | 20.35 ± 1.15 |
25 | 0 | 0 | 0 | 0 | 1.291 ± 0.015 | 30.00 ± 1.61 |
26 | 0 | 0 | 0 | 0 | 1.339 ± 0.016 | 30.35 ± 1.57 |
27 | 0 | 0 | 0 | 0 | 1.327 ± 0.017 | 30.30 ± 1.59 |
28 | 0 | 0 | 0 | 0 | 1.339 ± 0.016 | 30.35 ± 1.52 |
29 | 0 | 0 | 0 | 0 | 1.320 ± 0.017 | 30.05 ± 1.59 |
30 | 0 | 0 | 0 | 0 | 1.331 ± 0.018 | 30.30 ± 1.64 |
31 | 0 | 0 | 0 | 0 | 1.386 ± 0.017 | 30.15 ± 1.61 |
32 | 0 | 0 | 0 | 0 | 1.385 ± 0.018 | 30.30 ± 1.55 |
33 | 0 | 0 | 0 | 0 | 1.391 ± 0.016 | 29.90 ± 1.58 |
34 | 0 | 0 | 0 | 0 | 1.395 ± 0.018 | 28.90 ± 1.59 |
35 | 0 | 0 | 0 | 0 | 1.368 ± 0.017 | 30.55 ± 1.63 |
36 | 0 | 0 | 0 | 0 | 1.393 ± 0.017 | 29.85 ± 1.48 |
Test Order | Appearance | Flavor | Taste | Texture | Overall Acceptability |
---|---|---|---|---|---|
1 | 2.51 ± 0.21 | 1.56 ± 0.14 | 3.35 ± 0.24 | 2.36 ± 0.20 | 2.57 ± 0.22 |
2 | 3.75 ± 0.26 | 3.22 ± 0.19 | 3.98 ± 0.23 | 3.58 ± 0.25 | 3.92 ± 0.24 |
3 | 3.59 ± 0.27 | 3.78 ± 0.27 | 3.25 ± 0.27 | 3.46 ± 0.26 | 3.62 ± 0.47 |
4 | 5.37 ± 0.35 | 4.23 ± 0.26 | 6.04 ± 0.35 | 5.20 ± 0.36 | 5.21 ± 0.33 |
5 | 3.52 ± 0.19 | 3.5 ± 0.31 | 3.78 ± 0.29 | 3.54 ± 0.31 | 3.61 ± 0.24 |
6 | 4.19 ± 0.21 | 4.56 ± 0.21 | 3.68 ± 0.26 | 4.15 ± 0.24 | 4.17 ± 0.27 |
7 | 4.69 ± 0.42 | 4.03 ± 0.32 | 5.12 ± 0.31 | 4.61 ± 0.37 | 4.80 ± 0.28 |
8 | 5.31 ± 0.36 | 5.65 ± 0.38 | 4.94 ± 0.35 | 5.42 ± 0.33 | 5.38 ± 0.32 |
9 | 2.49 ± 0.14 | 2.63 ± 0.22 | 2.48 ± 0.26 | 2.59 ± 0.16 | 2.51 ± 0.24 |
10 | 4.68 ± 0.33 | 4.33 ± 0.23 | 4.82 ± 0.32 | 4.59 ± 0.29 | 4.68 ± 0.32 |
11 | 3.91 ± 0.15 | 3.07 ± 0.15 | 4.46 ± 0.27 | 3.87 ± 0.19 | 4.14 ± 0.31 |
12 | 6.28 ± 0.39 | 6.65 ± 0.39 | 5.84 ± 0.27 | 6.31 ± 0.42 | 6.27 ± 0.35 |
13 | 3.42 ± 0.36 | 3.02 ± 0.32 | 3.97 ± 0.26 | 3.45 ± 0.37 | 3.54 ± 0.27 |
14 | 4.99 ± 0.35 | 4.21 ± 0.31 | 5.57 ± 0.35 | 4.98 ± 0.32 | 5.10 ± 0.31 |
15 | 4.77 ± 0.37 | 5.23 ± 0.32 | 4.38 ± 0.27 | 4.75 ± 0.35 | 4.67 ± 0.35 |
16 | 6.42 ± 0.41 | 6.02 ± 0.38 | 6.78 ± 0.39 | 6.53 ± 0.39 | 6.50 ± 0.42 |
17 | 4.41 ± 0.31 | 3.78 ± 0.28 | 4.69 ± 0.30 | 4.45 ± 0.32 | 4.52 ± 0.33 |
18 | 6.92 ± 0.34 | 5.89 ± 0.31 | 7.57 ± 0.34 | 6.84 ± 0.42 | 6.93 ± 0.35 |
19 | 3.02 ± 0.21 | 3.24 ± 0.23 | 2.89 ± 0.13 | 3.08 ± 0.30 | 2.97 ± 0.29 |
20 | 6.03 ± 0.36 | 5.98 ± 0.24 | 6.06 ± 0.47 | 6.00 ± 0.37 | 5.98 ± 0.36 |
21 | 3.47 ± 0.22 | 3.78 ± 0.25 | 3.13 ± 0.24 | 3.49 ± 0.23 | 3.53 ± 0.21 |
22 | 4.55 ± 0.31 | 4.76 ± 0.28 | 4.23 ± 0.32 | 4.50 ± 0.32 | 4.51 ± 0.31 |
23 | 3.15 ± 0.23 | 3.45 ± 0.25 | 2.72 ± 0.24 | 3.12 ± 0.26 | 3.11 ± 0.25 |
24 | 4.05 ± 0.31 | 3.56 ± 0.23 | 4.57 ± 0.25 | 4.09 ± 0.21 | 4.08 ± 0.26 |
25 | 6.01 ± 0.49 | 5.83 ± 0.36 | 6.19 ± 0.39 | 5.98 ± 0.37 | 5.99 ± 0.37 |
26 | 6.05 ± 0.46 | 6.57 ± 0.32 | 5.58 ± 0.38 | 6.06 ± 0.41 | 6.09 ± 0.38 |
27 | 6.07 ± 0.44 | 5.61 ± 0.36 | 6.45 ± 0.42 | 6.08 ± 0.45 | 6.09 ± 0.42 |
28 | 6.04 ± 0.45 | 5.83 ± 0.32 | 6.43 ± 0.39 | 6.01 ± 0.42 | 6.04 ± 0.39 |
29 | 6.02 ± 0.39 | 6.37 ± 0.31 | 5.67 ± 0.33 | 6.02 ± 0.38 | 5.97 ± 0.39 |
30 | 5.98 ± 0.35 | 5.32 ± 0.23 | 6.95 ± 0.41 | 6.03 ± 0.40 | 6.02 ± 0.38 |
31 | 6.03 ± 0.42 | 6.32 ± 0.31 | 5.76 ± 0.34 | 6.01 ± 0.39 | 6.03 ± 0.41 |
32 | 6.02 ± 0.40 | 5.98 ± 0.34 | 6.22 ± 0.35 | 6.03 ± 0.42 | 6.05 ± 0.40 |
33 | 6.01 ± 0.45 | 5.65 ± 0.36 | 6.22 ± 0.42 | 6.02 ± 0.43 | 6.00 ± 0.43 |
34 | 5.69 ± 0.44 | 5.42 ± 0.35 | 6.12 ± 0.45 | 5.81 ± 0.41 | 5.86 ± 0.39 |
35 | 6.06 ± 0.38 | 6.24 ± 0.37 | 6.11 ± 0.37 | 6.03 ± 0.39 | 6.11 ± 0.38 |
36 | 5.98 ± 0.41 | 5.44 ± 0.35 | 6.35 ± 0.42 | 6.01 ± 0.40 | 6.07 ± 0.38 |
Source of Variation | Sum of Squares (SS) | Degree of Freedom (df) | Mean Squares (MS) | F-Value | p-Value | Significance |
---|---|---|---|---|---|---|
X1 | 290.51 | 1 | 290.51 | 888.89 | <0.0001 | |
X2 | 284.97 | 1 | 284.97 | 871.93 | <0.0001 | |
X3 | 54.30 | 1 | 54.30 | 166.15 | <0.0001 | |
X4 | 40.82 | 1 | 40.82 | 124.90 | <0.0001 | |
X1X2 | 1.82 | 1 | 1.82 | 5.58 | 0.0279 | |
X1X3 | 13.32 | 1 | 13.32 | 40.76 | <0.0001 | |
X1X4 | 19.14 | 1 | 19.14 | 58.57 | <0.0001 | |
X2X3 | 0.53 | 1 | 0.53 | 1.61 | 0.2186 | |
X2X4 | 1.32 | 1 | 1.32 | 4.05 | 0.0573 | |
X3X4 | 0.36 | 1 | 0.36 | 1.10 | 0.3059 | |
X12 | 10.93 | 1 | 10.93 | 33.44 | <0.0001 | |
X22 | 118.97 | 1 | 118.97 | 364.00 | <0.0001 | |
X32 | 214.76 | 1 | 214.76 | 657.12 | <0.0001 | |
X42 | 306.90 | 1 | 306.90 | 939.03 | <0.0001 | |
Regression | 1358.65 | 14 | 97.05 | 296.94 | <0.0001 | Significant |
Residual | 6.86 | 21 | 0.33 | |||
Lack of Fit | 4.86 | 10 | 0.49 | 2.67 | 0.0611 | Not significant |
Pure Error | 2.00 | 11 | 0.18 | |||
Cor Total | 1365.52 | 35 | ||||
R2 | 0.9950 | |||||
Adj-R2 | 0.9916 | |||||
CV | 2.32 | |||||
Std. Deviation | 0.57 | |||||
Adeq precision | 59.832 |
