Next Article in Journal
Molecularly Imprinted Polymer as Selective Sorbent for the Extraction of Zearalenone in Edible Vegetable Oils
Next Article in Special Issue
What Can Neuromarketing Tell Us about Food Packaging?
Previous Article in Journal
Application of Non-Destructive Rapid Determination of Piperine in Piper nigrum L. (Black Pepper) Using NIR and Multivariate Statistical Analysis: A Promising Quality Control Tool
Previous Article in Special Issue
Modified Atmosphere and Humidity Film Reduces Browning Susceptibility of Oriental Melon Suture Tissue during Cold Storage
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Biodegradable Antimicrobial Food Packaging: Trends and Perspectives

Faculty of Applied Chemistry and Materials Science, University Politehnica of Bucharest, 060042 Bucharest, Romania
Section of Chemical Sciences, Academy of Romanian Scientists, 050045 Bucharest, Romania
Department of Field Crops, Faculty of Agriculture, Hatay Mustafa Kemal University, 31030 Antakya Hatay, Turkey
Author to whom correspondence should be addressed.
Foods 2020, 9(10), 1438;
Submission received: 6 September 2020 / Revised: 1 October 2020 / Accepted: 7 October 2020 / Published: 11 October 2020
(This article belongs to the Special Issue Food Packaging Strategies)


This review presents a perspective on the research trends and solutions from recent years in the domain of antimicrobial packaging materials. The antibacterial, antifungal, and antioxidant activities can be induced by the main polymer used for packaging or by addition of various components from natural agents (bacteriocins, essential oils, natural extracts, etc.) to synthetic agents, both organic and inorganic (Ag, ZnO, TiO2 nanoparticles, synthetic antibiotics etc.). The general trend for the packaging evolution is from the inert and polluting plastic waste to the antimicrobial active, biodegradable or edible, biopolymer film packaging. Like in many domains this transition is an evolution rather than a revolution, and changes are coming in small steps. Changing the public perception and industry focus on the antimicrobial packaging solutions will enhance the shelf life and provide healthier food, thus diminishing the waste of agricultural resources, but will also reduce the plastic pollution generated by humankind as most new polymers used for packaging are from renewable sources and are biodegradable. Polysaccharides (like chitosan, cellulose and derivatives, starch etc.), lipids and proteins (from vegetal or animal origin), and some other specific biopolymers (like polylactic acid or polyvinyl alcohol) have been used as single component or in blends to obtain antimicrobial packaging materials. Where the package’s antimicrobial and antioxidant activities need a larger spectrum or a boost, certain active substances are embedded, encapsulated, coated, grafted into or onto the polymeric film. This review tries to cover the latest updates on the antimicrobial packaging, edible or not, using as support traditional and new polymers, with emphasis on natural compounds.

Graphical Abstract

1. Introduction

The Food and Agriculture Organization of the United Nations, FAO, statistical data indicate that about one-third of the produced food is lost or wasted each year because to shelf life expiring, alteration, or spoilage due to microbial activity. About 40–50% of fruits and vegetables, 35% of fish, 30% of cereals, and 20% of dairy and meat products are lost yearly. The main culprits are the presence of bacteria and fungi, oxygen-driving processes, and presence of some enzymes. In the less developed countries 40% of the total losses occurs right after harvesting, until processing, because of poor infrastructure while in the developed countries 40% of total losses occur at retail and customer level as food waste. At retail level large quantities are wasted because of the artificial emphasis put on the exterior look [1]. Generally speaking, the food loss occurs at production, handling, storage, and processing level, while food waste indicate the losses at distribution, market, and final consumer level [2,3].
The global food packaging market was estimated at over USD 300 billion in 2019 and has a predicted increasing rate of 5.2% yearly. The paper-based segment represents 31.9% of the total value and dominate as a biodegradable material. Unfortunately, the plastic food packaging is expected to exhibit a rapid growth globally due to superior properties and lower prices. This increase comes with environmental and pollution problems [4,5]. In developed countries the market is highly regulated by agencies such as Food and Drug Administration (FDA) or European Commission (EC). Those regulatory bodies are shifting the market toward more sustainable packaging solutions like bio-based polymers and are putting pressure on reduction of traditional plastic packaging. In the same time the economy must be transformed from a linear model to the circular economy [6]. The packaging is one of the most powerful tools in food industry as it acts also as a communication and branding medium beside its traditional role. As a marketing tool the packaging can promote a healthier lifestyle and change by itself the consumer habits [7,8,9,10,11,12].
At present, most food packaging materials are based on petrochemical polymers because of historic factors, low-cost, and good barrier performances. These polymers are nonbiodegradable and worldwide they have already raised a lot of environmental concerns regarding short- and long-term pollution [13,14,15,16,17,18,19]. These two factors are putting an increasing pressure on food industry to develop new types of antimicrobial packaging materials, mainly based on natural, renewable sources, or biopolymers that are environmentally safe. While the simplest way to achieve antimicrobial activity is to modify the currently used packaging materials, the environmental pressure is slowly phasing out the nonbiodegradable polymers [20,21,22,23,24,25].
The development of antimicrobial packages is a promising path for actively controlling the bacterial and fungal proliferation that leads to food spoilage [26,27,28,29]. Antimicrobial packages have a pivotal role in food safety and preservation. This type of package increases the latency phase and reduce the growth of microorganisms, enhancing the food quality and safety, ensuring a longer shelf life [30,31,32,33]. By using antimicrobial materials for food package, the shelf life is extended and the growth of microorganisms is slowed, thus ensuring a better quality and safety for meat, vegetables, fruits, and dairy products [34,35,36,37].
The methods employed in obtaining antimicrobial activity vary from adding sachets with volatile antimicrobial agents inside current packaging to incorporating the active agent directly into biopolymers and from coating or grafting antimicrobial substances on polymeric surface to the use of intrinsic antimicrobial polymers or antimicrobial pads (Figure 1) [38,39,40,41,42].
The antimicrobial packaging strategies can be classified in two types. First type is represented by the packaging materials with direct contact between the antimicrobial surface and the preserved food, in which the active agents can migrate into the food. Such packaging are used for food that is wrapped in foils or under vacuum. A second strategy is having the antimicrobial agent inside the package, but not in direct contact with the food, and here can be mentioned the modified atmosphere packaging (MAP) [26,43,44,45].
Although an increasing number of antimicrobial agents (like ethanol, carbon dioxide, silver ions or nanoparticles, chlorine dioxide, antibiotics, organic acids, essential oils etc.) [30,46,47,48,49] have been tested with the aim of inhibiting the growth of microorganisms on food, the number of antimicrobial packaging commercially available is still limited. A notable exception is in the case of silver-based antimicrobial packaging that are in use in countries like Japan or the United States [44]. The introduction of silver-based antimicrobial package solutions is expected to grow also in E.U. after the inclusion on the provisional list of permitted food additives and in the list of permitted surface biocidal products. The literature reports a wide range of antimicrobial agents like metallic nanoparticles (Ag, Cu, bimetallic etc.) [50,51,52], oxide nanoparticles (ZnO, TiO2, CuO, etc.) [53,54,55], clay nanoparticles (cloisite, montmorillonite, bentonite) [56,57,58], natural extracts (essential oils or hydrophilic extracts) [59,60,61], natural antimicrobials (nisin, pediocin, antibiotics, etc.) [62,63,64], biopolymers (chitosan) [65,66,67], enzymes (lysozyme, peroxidase) [68,69,70], synthetic antimicrobial agents (including synthetic antibiotics) [71].
The natural antimicrobial compounds are obtained from vegetal sources like cloves, cinnamon, thyme, ginger, oregano, rosemary, garlic, etc. All these have a good potential for the meat industry [72,73]. In a similar way, other natural antimicrobial agents can be isolated from substances produced by bacterial or fungal activity such as pediocin, nisin, and various bacteriocins. In the meat industry, currently, some technologies based on blocking the microbial activity are in use that can enhance the organoleptic properties and packaging performance [30,74,75,76,77]. Various synthetic antimicrobial agents have been reported for bread and pastry packaging [78,79,80] or for fruits and vegetables [81,82,83].
While most of the literature present tests of antibacterial activity on strains that usually spoil the food (Escherichia coli, Staphylococcus aureus, Salmonella enterica, etc.) [84], there are some authors who test the packaging materials also against various fungal strains (yeasts and molds) [85]. Developing new packaging materials must pass some specific tests beside the above-mentioned antibacterial activity. Some additives (usually natural extracts or specific substances) have antioxidant activity that aids in prolonging shelf life. The new packaging material must have good mechanical resistance and barrier properties. The water vapor permeability (WVP) plays a crucial role in preserving the food. Permeability to other gases, namely oxygen, carbon dioxide, ethylene, and various aromatics is also very important when polymeric film is designed. Some other characteristics like transparency, thermo sealability, leakage of additives etc., will be described further.
The problem of food loss due to spoilage by microorganisms can be addressed by using antimicrobial packaging, be it traditional fossil-based polymers (PVC, PET, PE, PP, etc.) or biodegradable ones (cellulose, starch, chitosan, etc.). The ecological impact generated by the plastics cannot be solved unless we replace the traditional packaging materials with biopolymers from renewable sources.
The aim of the review is to present some of the latest research trends in the antimicrobial food packaging, the work horse polymers, antibacterial and antifungal agents, as well as to review the strategies presented by the literature. We searched for original articles and reviews that addressed the antimicrobial packaging subject. In order to identify the strategies and latest trends in the domain of antimicrobial food packaging we survey the Scopus, Clarivate, and Science Direct databases with emphasis on 2017–2020 interval. The search engines were used to find relevant documents by using keywords as “antimicrobial food packaging” “antimicrobial peptides” “biopolymers” “essential oils” and “antimicrobial peptides” Additional documents were identified by examining references listed in key articles. The initial number of documents obtained by searching the databases was 275,125. By restricting the time interval, the number dropped to 88,327. Based on title and abstract information we included only the articles that were considered relevant for antimicrobial food packaging subject. Therefore, 289 articles were included in this systematic review.

2. Antimicrobial Packaging Obtained by Modification of Current Materials

Nowadays there are two main research directions for the packaging industry. First research approach is to modify the current packaging materials in order to confer antimicrobial and antioxidant activities, plus better mechanical and barrier properties. This direction is somehow closer to the manufacture sector, which will not be forced to make radical changes into the production lines, so the implementation costs are lower. While the consumer will enjoy a safer food with longer shelf life, the generated pollution is the main drawback of this approach. The nonbiodegradable plastics will still be produced and will still be an environmental hazard. The second approach, with increasing support from consumers and researchers is to replace all the nonbiodegradable polymers with biodegradable ones, obtained from renewable sources. This is more ecological but is also more costly, demanding a dramatic change of the packaging manufacture sector.
For large quantities from some foods (sugar, flour, rice, potato, beans, etc.) the storage and transport can be done in textile bags. Therefore, some researchers aim to obtain fabrics with antibacterial and antifungal properties (that can also be used outside of food industry, for clothing for example). One method presented in the literature is to load the fabric with quaternary ammonium salts that contain isocyanate moiety (CAI) and sulfopropyl betaine (SPB) by soaking-drying process. Both moieties, SPB and CAI, can be covalently bounded to the fabric surface and will give excellent bactericidal and antifungal properties. The effect is long-lasting and cannot be washed away (Figure 2). This functionalization of cotton fabric will not modify significatively the permeability to water vapor or air or its hydrophilic character. The mechanical properties of the fabric are enhanced after the treatment, the textile bag presents better tearing and breaking properties. Increasing the CAI load leads to a stronger covalent bond and the ratio SPB/CAI can be used to enhance the retention of the antibacterial agents. The fabric has not exhibited any noticeable migration of the chemical agents, the test indicating a strong retention into the cotton fiber. As a consequence there is no toxicity of stored food due to the migration of CAI or SPB [86].
By same general method the antimicrobial activity can be obtained for other innovative packages. The deposition or the embedding of bactericidal and antimycotic agents into the polyvinyl chloride (PVC) [87], polyethylene terephthalate (PET) [88], polyethylene (PE) [89], or polypropylene (PP) [90] films that are used normally for food packaging, do not request a fundamental change of the production lines and the new types of packaging can easily enter production.
Mixed cellulose/PP pillow packages can be used to extend the shelf life of iceberg lettuce if emitting sachets with eugenol, carvacrol, or trans-anethole are put inside [91]. The sachets will slowly release the natural antimicrobial agent and help preserve the food. This is an easy, low-cost method to confer antibacterial activity to the packaging materials already in the market and can be classified as modified atmosphere packaging (MAP), and can be seen as an intermediate step toward obtaining antimicrobial packaging without addressing the problem of plastics pollution [92].
Small modifications for actual packaging materials are described in [93], where the authors have obtained a bilayer film from low-density polyethylene (LDPE), in which one layer has incorporated various essential oils. PVC was also modified by adding orange essential oil and the obtained films were proved to have antimicrobial activity [94]. These traditional polymeric films can have silver nanoparticles (AgNPs) or oxide nanoparticles embedded into them or deposited on the surface. The polymeric film or the nanoparticles can in turn be loaded with essential oils as antimicrobial agents. PVC film with embedded nanoparticles like AgNPs [87], TiO2 [95], ZnO [96] are reported in literature.
The AgNPs can be loaded on silica, and these in turn can be embedded into the PP film. This kind of composite film can be obtained by hot pressing the silica powder onto the PP film. The antimicrobial film thus obtained has superior mechanical properties and the test made on fresh mackerel indicate a longer shelf life. In the samples with AgNPs/SiO2 5% and 10% respectively concentrations of 3.06 and 3.11 log CFU/g for pathogen agents were recorded, while into the control sample the concentration reached a peak of 4.81 log CFU/g. In the same time the level of trimethyl amine increased from 1.6 to 2.5 mg/100 g in the control sample, but there was no modification in the samples packaged with composite films. The color of the fish meat stays red for samples with composite film, but changed from red to yellow for the control sample [97].
Polyethylene terephthalate (PET) can be used as antimicrobial packaging after surface modification. Because of its inertness the PET film requires an activation treatment so that functionalization/grafting can succeed. Antimicrobial peptides (AMPs) are an important class of amphiphilic molecules capable to suppress growth of microbes. They are composed of 12 to 100 amino acids and therefore are quite different structurally. Functionalization of PET with an AMP, mitochondrial-targeted peptide 1 (MTP1), is presented in by Gogliettino, M. et al. [98]. The antimicrobial packaging PET-MTP1 was used to prolong the shelf life from 4 to 10 days for meat and cheese.
Among AMPs, nisin and pediocin are used commercially, but other species such lacticin 3147 or enterocin AS-48 have been proposed for industrial applications. The prime target are the dairy products as these bacteriocins can be produced by lactic acid bacteria [99]. The main problem is to find ways to immobilize AMPs on film’s surface without losing the antimicrobial activity. Direct incorporation, coating, or immobilization are the main strategies [100]. Various methods are proposed in literature, such as cold plasma treatment [101], enzyme (laccase) surface modification [102], adsorption on nanoparticles [103] etc.
Among the desirable properties that a film must possess to be used in food packaging is the heat-sealing capability. While traditional PE or PP films can be easily heat sealed, some of the biopolymers, like cellulosic films made from nanofibers, lack sealability. This problem has made the industry reluctant to market them. This shortcoming can be overcome by using the traditional PE or PP films on which cellulosic nanofibers can be deposited. This composite film will present the advantages from both materials. Peng Lu et al. [104] have demonstrated that these cellulose nanofibers can also be loaded with various antimicrobial agents, like nisin for example, to enhance the film properties (Figure 3). PE and PP films have been treated with cold plasma in order to improve hydrophilic character and to make them compatible with cellulose fibers. The cellulose layer has led to a decrease of the oxygen permeability from 67.03 to 24.02 cc/m2·day. Adding the nisin (an AMP) has no influence on permeability, but has conferred antibacterial properties to the films. The test made against Listeria monocytogenes have showed a kill ratio of 94%, indicating the economic potential of this kind of packaging.
Cellulose-based materials play an important role in the packaging industry, therefore, many researchers are trying to improve them. The poor mechanical performance and the lack of water resistance are some of the factors that limit the applicability domains. Zhu R. et al. [105]. have proved that by applying recycled cellulose, obtained in ionic liquids, over plain paper, the mechanical properties are improved greatly. Moreover, by using only 2% cellulose in paper composition the oxygen permeability drops by a factor of 106. Although the composite is hydrophilic in nature, it has good resistance to water action and keeps its form when submerged.
Traditionally, for improving the WVP values, the oil resistance, or the mechanical properties of paper packaging, at least one side is usually covered by a thin film of PE, or PET to a lesser extent. Therefore, in the quest of replacing the fossil-based polymers with biodegradable ones, researchers come with innovative composite materials that present new and superior properties. A method of enhancing the properties of paper packaging is described in [106] where the plain sheet was covered with a functionalized biopolymer coating. The film was obtained by mixing alginate with carboxymethyl cellulose and carrageenan, and was loaded with grapefruit seeds extract. The microscopy studies indicate that the biopolymer is compatible with the paper support, filling the pores and levelling the spaces between the cellulose fibers, in the end resulting a smooth surface. The whole range of properties for this type of packaging: water and oil resistance, WVP, hydrophobicity, and mechanical properties were not only superior to the simple paper support but also to paper-PE packages used at present. The obtained biopolymer film presented antibacterial properties against two pathogens L. monocytogenes and E. coli, which were destroyed in 3 and respectively 9 h of exposing. The test made on fish meat inoculated with bacteria have demonstrated the total elimination of the infection in 6–9 days, proving the economic potential of this packaging type [106].
A similar strategy for improving paper packaging is described in [107] where cellulosic paper was covered with a chitosan layer by dip-coating method. The chitosan solution also contained nisin up to 1 g/mL as antibacterial agent for the packaging material. Various compositions based also on chitosan with the addition of zein and rosemary oil coated on paper were tested by Brodnjak and Tihole [108]. As expected, the WVP values dropped sharply after coating the paper, while the new packaging exhibited antimicrobial activity.
Such experiments have demonstrated the possibility of obtaining antimicrobial packaging, usually as a nanocomposite film, based on materials that are currently in use in the food industry. The increase in production cost is one of the main drawbacks for the introduction of new technologies. The industry will adopt new technologies that can be re-engineered from the existing ones with minimal modification of the production lines. These modifications can be induced by new regulations, by predicting increasing profits or by changes in public perception and demand [109].

3. Biodegradable Polymeric Antimicrobial Packaging

Since their invention in 1959, a great number of plastic bags and other plastic packages have been produced from fossil fuels and their contribution to the pollution has become a global problem. The obvious solution is to produce bags and packages based on biodegradable materials, with low environmental impact. By adding antimicrobial properties to the biodegradable packages these new materials can offer an enhanced protection against food spoilage, extending the shelf life.
In the search of alternative materials to the plastics, the scientists have put a special emphasis on biopolymers. One of the most important conditions, the availability, is fulfilled by some abundant natural polymers like cellulose (and derivatives like carboxymethyl cellulose—CMC, methyl cellulose—MC, cellulose acetate—CA, etc.), chitosan, lignin, starch, polylactic acid (PLA), polyvinyl alcohol (PVA), alginic acid and derivatives etc. (Table 1). To be used in the food industry, these materials must be nontoxic, renewable, and present the right properties. Although many of them are included in the polysaccharides class and possess a similar monomeric structure (Figure 4), the polymeric chain configuration, hydrogen bonds, and substituents play a crucial role in shaping the specific properties of each biopolymer. The biopolymer films must be resistant, to not exfoliate and to not permit the gas or vapor exchange between food and atmosphere. Some of the most abundant biopolymers have also antimicrobial intrinsic activity (like chitosan), but usually in the native form they have low mechanical resistance and poor barrier properties. Unfortunately, cellulose, the most abundant biopolymer, lacks any antibacterial activity and therefore it must be loaded with antimicrobial agents. These agents can also become reinforcing components improving the mechanical properties and enhancing the WVP values.
PVA has high hydrophilic properties, is water soluble, with a good crystallinity, and has many hydroxyl moieties at side chains which can form hydrogen or covalent bonds with other polymers or can help loading various antimicrobial agents [145]. PLA can present good crystallinity, but is soluble only in organic solvents, and therefore reinforcing it with nanoparticles requires surface compatibilization [146]. Alginic acid and its sodium salt are easily water soluble to be used raw. Therefore they are mixed with lipidic compounds (like essential oils which also give antibacterial activity to the final material) and reinforced with various nanoparticles [147]. Chitosan is water soluble (acidic pH) and can also provide -OH and -NH2 moieties for hydrogen bonds. Cellulose and its derivatives represent a class of hydrophilic biopolymers, which again present free hydroxyl moieties. The strategy for improving the water resistance of biopolymers with -OH moieties is to mix them in composite materials, where same moieties will help them cross-linking. This blending of individual polymers gives many hydrogen bonds which improve the mechanical properties of the composite. Sometimes the simple blending of two polymers does not yield automatically a better material. PVA/CMC composite films have low water resistance and present no antimicrobial activity for example. Adding inorganic nanoparticles (like Ag, ZnO, TiO2, Fe3O4, etc.) and essential oils in such polymeric films will improve both WVP and antimicrobial activity [111,148,149,150,151].
In the food industry, the water vapor and oxygen barrier properties of the packaging are crucial, but the permeability to CO2 and aromatic compounds plays an important role too. The engineering of the composite films generally aims to enhance the properties of the base biopolymer (usually a polysaccharide), in order to obtain the desired properties. Also, in the active or intelligent packaging the nanomaterials can act as antimicrobial agents, oxygen scavengers, or as signals for improper storage conditions. Compatibilization between nanomaterials and the polymeric matrix is the main challenge in obtaining antimicrobial packaging [152].
The bio-nanocomposite materials represent an important alternative to the traditional fossil-based plastics used as packaging. These are biocompatible, biodegradable, and can exhibit superior performances, both mechanical and chemical. Biopolymers like chitosan, carboxymethyl cellulose, starch, alginate, casein, carrageenan, or cellophane can solve the ecological problem of packages due to their biodegradability and non-toxic nature. But polysaccharides also have some drawbacks beside their clear advantages. Some mechanical properties are inferior, and they have a low water resistance or high permeability. Consequently, by embedding various nanomaterials into the natural polymeric film better thermal and mechanical properties can be obtained, but also the water vapor and oxygen barrier properties can be enhanced, without losing the biodegradability or the non-toxic character of the biopolymer. The most used are clay nanoparticles (like montmorillonites, kaolinite, or laponite), oxide nanoparticles (ZnO or TiO2), or silver nanoparticles (AgNPs). In Table 2 are presented some types of antimicrobial packaging materials, their main polymer, antimicrobial agent, and the tested kind of food.

3.1. Edible Films

The edible films represent a protection packaging, with antimicrobial activity for the food safety. The literature reports a large variety of materials which can form films for food packaging, ultimately their properties indicating the exact food on which the film or coating can be used [180]. Edible packaging materials or coatings must be non-toxic, adherent to food surface, be tasteless or present an agreeable taste, have good barrier properties and prevent water depletion of the food, must have a good stability in time and prevent the mold formation, good appearance in order to be accepted by consumers, and must be economically viable.
Edible films are composed of polysaccharides, proteins, or lipids and they must present better barrier properties and antimicrobial activity in order to extend the shelf life. Among polysaccharides we can enumerate starch, cellulose derivatives, alginate, chitosan, pectin, carrageenan etc. Proteins can be extracted from animal sources like casein, whey, collagen, gelatin, egg white, etc. or can be from vegetal sources like corn zein, gluten, soy proteins, rice bran, peanut, keratin etc. The third category, lipids, is composed of saturated or unsaturated fatty acids.
The use of edible films for food packaging is not a new technology. In the past collagen-based membranes were used for various meat products like sausages, hotdogs, salami etc. At present, the food industry is searching for alternatives that can also prolongate the shelf life of the products [181].
The edible films for fruits, cheese, and meat products are usually based on natural, abundant, cheap, edible polymers, which can effectively enhance the quality of the food and at the same time can reduce the quantity of foodstuff that is altered. This kind of films can replace successfully the waxy coatings that are used on various fruits (apples, oranges, limes etc.) and that are toxic and are forbidden by an increasing number of countries. Edible biopolymers inhibit the food alteration and complies to the directives requested by EU market: organic food, healthier, and with longer shelf life.

3.2. Polysaccharides-Based Films

Chitosan, one of the most abundant natural polymers, is the work horse for such innovative edible antimicrobial packaging. It is a polysaccharide, with intrinsic antibacterial activity, usually extracted from shells of crabs and shrimps. It also has some antioxidant properties and is biocompatible, biodegradable, and most of all is edible.

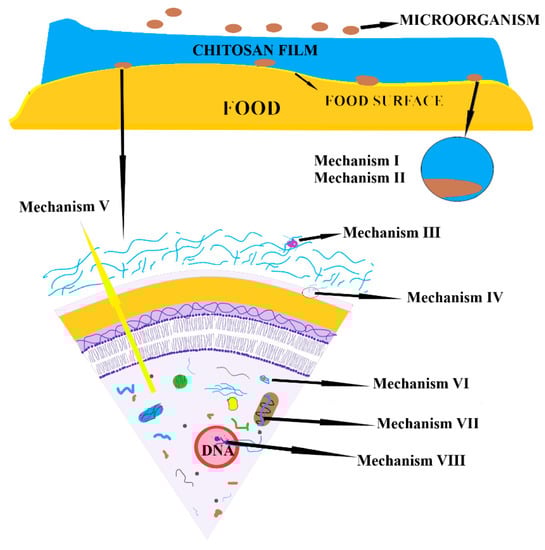

A chitosan packaging film can protect the food by multiple mechanisms. The film can block the microorganism’s access to the food as any physical barrier. It can hinder the respiratory activity by blocking oxygen transfer and can cause a physical obstruction so that microorganisms cannot reach the nutrients (mechanisms I and II—Figure 5). Various nutrients can be chelated by chitosan chains (mechanism III) and the outer cellular membrane of the microorganisms can be disrupted by electrostatic interactions (mechanism IV), all these adding a supplementary stress which microorganisms must endure. The antibacterial activity of chitosan can also be the result of damaged cell membrane, which will lead to leakage of intracellular electrolytes (mechanism V). Once the chitosan chains have diffused inside through cellular wall, there are multiple action pathways that leads to microorganism’s death. It can chelate internal nutrients or essential metal ions from cellular plasma (mechanism VI), it can influence the gene expression (mechanism VII) or it can penetrate the nucleus and bind the DNA, thus inhibiting the replication process (mechanism VIII) [182].
Among its drawbacks are the higher cost, the acidic hydrolysis and weak mechanical properties. Therefore, in many cases it will not be used alone but in a nanocomposite film, in which the other components (polymers or nanoparticles) will compensate for the poor performances of chitosan in some areas. Usually improving the mechanical properties of polymers requires some plasticizers. Chitosan has a good compatibility with glycerol, xylitol, sorbitol etc.
The use of chitosan in edible films can raise the problem of its origin. Traditionally the chitosan is obtained from the marine crustacean’s exoskeleton, which would make it undesirable for strict vegetarians or for halal and kosher food. Nevertheless, it can be obtained also from alternative sources like mushroom inferior stem (which itself is a residual product that is usually discarded) [183].
Priyadarshi, R. et al. [184] have obtained chitosan-based antimicrobial packaging by forming the polymeric film directly on the surface of the food. As binding agent, they used citric acid, that also enhanced the film stability and antioxidant properties. As plasticizer they used glycerol, which gave flexibility to the film. In fact, the elongation capacity was increased 12 folds, but this decreased the tear resistance. The as-obtained packaging material had a superior water resistance, reducing WVP by 29%. Also, the films were transparent, which is desirable from consumers’ point of view, as they will always want to be able to see the food inside the packaging. Finally, the test made on green chili indicated an extended shelf life [184].
Enhancement of chitosan film properties was done by adding layers of other polymers and embedding nanoparticles. Bilayer films obtained from chitosan and polycaprolactone (PCL) have been obtained by pressing or coating. Both layers have been loaded with nanocellulose (2–5%) and grape seeds extract (15% w/w). The presence of nanocellulose (NC) have reduced significantly the WVP and the film opacity, while the grape seeds extract had the opposite action. The films obtained by pressing exhibited higher values for elastic modulus and stretch resistance than the films obtained by coating from solution. Both film types had antimicrobial activity and the grape seeds extract preserved the antioxidant activity while being loaded into the chitosan matrix [185]. Similar mechanical behavior was reported in [186] where authors obtained a composite chitosan-based film by adding cellulose nanocrystals and grape pomace extracts. Adding NC increased tensile strength and decreased elongation and WVP while the grape pomace extract had opposite effect.
Uranga J. et al. have created antibacterial films from chitosan and citric acid, but also added fish gelatin into the composition. The films have antibacterial activity on E. coli, act as a UV barrier, have good mechanical properties, and the citric acid acts like an inhibitor against swelling in the presence of water [187]. Such films can be used for products like seafood. In the case of fish or shellfish the food alteration happens because of the modification induced by enzymes activity that are naturally presented in meat, reactions like lipids oxidation or because of the microorganism’s metabolism. Chitosan films can reduce the lipids oxidation reactions, although the native antioxidant properties are not so good. To overcome this problem, Uranga, J. et al. developed a new strategy by adding into the chitosan—fish gelatin mix, anthocyanins obtained from processing food wastes. Anthocyanins preserved antioxidant activity during the mold pressing process, the obtained packaging exhibiting antimicrobial and antioxidant activity, along good mechanical and WVP properties [188]. Other groups loaded the chitosan-gelatin film with procyanidin or various other antioxidants [189,190]. Enhancement of antioxidant activity of chitosan films can be done also by adding some radicals like 2,2,6,6-tetra-methylpyperidine-1-oxyl. The desired mechanical properties can be achieved by adding up to 15% cellulose nanofibers and a plasticizer like sorbitol (25%). Beside the antibacterial effect on E. coli, the films also reduced the proliferation for Salmonella enterica or L. monocytogenes [191].

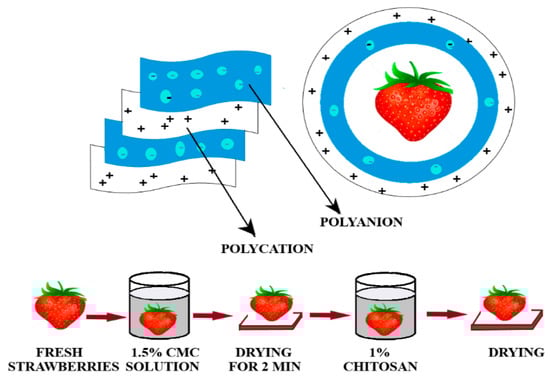

Another type of edible chitosan-based film was obtained by Jiwei Yan et al. [155] and used for fresh strawberries. The fruits were covered with a bicomponent film (layer-by-layer LBL) by successive immersions in solutions of 1% chitosan and 1.5% carboxymethyl cellulose (Figure 6).
The results have indicated a significant enhancement of the LBL film properties when compared with the simple chitosan one. The bicomponent film has conserved the fruits for longer time, preserving the consistency, the flavor and allowed only minimal changes in acidity and total soluble substance because the LBL film has decreased the metabolic degradation of carbohydrates, fatty acids, and amino acids from the fruits, preserving them for eight days [155].
The thymol, a component from thyme essential oil, has also been used as antibacterial agent in the edible chitosan films. A nano-emulsion of thymol was loaded onto a film made from chitosan and quinoa proteins. Strawberries covered with such films have presented a superior resistance against fungi. If initially the edible film has somehow altered the fruits flavor, starting from the 5th day the sensorial qualities have been enhanced when compared with control batch. In addition, the shelf life was extended by four days, mass loss was diminished, and parameters like pH, titratable acidity or soluble substances percent were not altered [192].
Another composite film that has attracted many researchers is the chitosan/ polyvinyl alcohol (PVA). This composite presents good biocompatibility and low toxicity, has broad spectrum antibacterial activity on both Gram-positive and Gram-negative strains, exhibits good thermal stability, and can be loaded with desired antimicrobial agents. Yun, Y.H. et al. [193] have prepared mixed polymeric films based on chitosan and PVA for fruit preservation. The films with 1:1 ratio between polymers, used sulfosuccinic acid as the binding agent, therefore the reticulation could be made by UV light exposure (approx. 20 min). Glycerol, xylitol, and sorbitol were used as plasticizers. The composite with sorbitol presented the best mechanical and thermal properties. All the samples had lower WVP than simple polymeric films. The reported results indicate that after 70 days storage, the fruits presented negligible decay. The packaging material is biodegradable, test showing a 40–65% disintegration after 220 days. Yang, W. et al. [194] have obtained a hydrogel by mixing chitosan and PVA in which they added 1–3% lignin nanoparticles. Lignin is the second most abundant natural polymer after cellulose, but usually is used in low value products, mostly for burning. In this hydrogel, lignin exhibited antioxidant activity and UV filter properties, while being also a reinforcing and antibacterial agent (Figure 7).
Best properties have been obtained for 1% lignin as higher quantity gave no further benefits because of agglomeration of nanoparticles. The hydrogel has a porous structure like honeycomb, with micron size pores which can be further loaded with antimicrobial agents. The tests made by the authors indicate a synergic activity between chitosan and lignin against E. coli and S. aureus, and also enhancing of antioxidant properties [194]. Youssef, A.M. et al. have improved same polymeric mix chitosan/PVA by using glycerol as plasticizer and adding TiO2 nanoparticles. The coating was successfully used to preserve Karish cheese for 25 days, best results being obtained for 3% TiO2 [174].
The chitosan-based films can also be used on fruits and vegetables that are ripening under ethylene action. Because such films can absorb the ethylene, they can postpone the unwanted ripening. The literature mentions the composition 6 g chitosan: 7 g KMnO4: 2 mL sorbitol, to preserve tomatoes up to five times longer at room temperature [195]. Similar findings have been reported for other nanocomposite chitosan-based films. In order to enhance the antibacterial properties of the chitosan coating, TiO2 nanoparticles can be embedded into the film. The coating can be applied straight from the solvent on the packaging. Such films have been used to protect the cherry tomatoes and to postpone the ripening after harvest. The authors have monitored the consistency, color changes, lycopene quantity, mass loss, total soluble substance, ascorbic acid, and concentration for CO2 and ethylene inside the package. The conclusion was that the addition of the TiO2 nanoparticles have enhanced the packaging quality, the cherry tomatoes presenting less changes when compared with simple chitosan packaging or with the control lot. Authors have attributed the behavior to the photocatalytic activity of TiO2 versus ethylene gas (Figure 8) [154].
Chitosan is compatible also with ZnO nanoparticles, the composite having a more potent antibacterial activity due to synergism [54]. Good results are reported for example by [196] who manage to reduce the proliferation of E. coli and S. aureus on poultry by 4.3 and 5.32 units on log CFU/mL when compared with control. Generally speaking, the meat products have a high nutritional value and represent a good medium for microorganisms growth, thus being preserved only for a few days in the fridge. Therefore, it is no surprise that many researchers have obtained chitosan-based packaging for meat products [197,198].
A chitosan / cassava starch film was obtained by Zhao, Y.J. et al. [172] by using subcritical water technology. The authors added glycerol as the plasticizer and gallic acid in order to achieve antimicrobial and antioxidant activity for the film. The formation of new hydrogen bonds, electrostatic interactions, and ester bonds between starch, chitosan, and gallic acid had the effect of decreasing permeability to water vapors. Antimicrobial tests on foodborne diseases microorganisms have indicated a prolonged shelf life for pre-inoculated ham from 7 to 25 days when compared with the control. Various edible films based on chitosan and starch (extracted from oak) have been investigated by Zheng K. et al., who have indicated that increasing the starch ration from 0 to 50% has improved the mechanical properties by 20%, has decreased the WVP by 3%, and diminished the oxygen permeability by 2.5 times. Aiming to improve the antimicrobial activity, the authors have added essential oil from Litsea cubeba, which further increased the barrier capabilities of the packaging [199].
As mentioned before, by incorporating essential oils into chitosan films the antimicrobial and antioxidant activity is usually greatly enhanced. The literature presents many reports of such films that are efficient against food altering pathogens, bacteria, and fungus, that spoil the harvest. The use of essential oils and plant extracts with edible natural biopolymers is one of the newest research trends in food packaging industry.
Some essential oils are produced from crops that are especially made for this purpose (lavender, thyme, cinnamon, basil, rosemary, etc.). Other essential oils or extracts are obtained as by-products processing agricultural wastes (grape seeds, apricot kernels, orange peel, etc.). One of the challenges in this type of food packaging is that the producer must match the type of essential oil with the type of the protected food. While thyme, ginger, or rosemary essential oil will be well received by consumers on the meat-based products, not many consumers will like them with fruits. Same can be said about cinnamon and vanilla which are compatible with pastry, but do not go so well with meat. In the same time the essential oils from orange or lime can be used in fruits or seafood packaging (Table 3).
Apricot kernels are a major agricultural waste. One possible utilization for them is to extract the essential oil from the bitter core. The chemical composition for this essential oil indicates the oleic acid as the main fatty acid, but also reveals the presence of N-methyl-2-pyrolidone which is a strong antioxidant and antimicrobial agent. By mixing chitosan with apricot essential oil in 1:1 ratio, the WVP dropped by 41% and the mechanical resistance increased by 94%. The antimicrobial activity was tested on bread slices, on which the chitosan-essential oil package managed to block the fungus growth [206]. The possible use of agricultural waste was further exemplified by Zegarra, M. et al. who have used chitosan films loaded with acerola extract from residues to extend the shelf life of meat [164].
Essential oil from Perilla frutescens (L.) Britt. was introduced by Zhang Z.J. et al. in a chitosan-based film, ranging from 0.2–1% v/v, in order to enhance the antibacterial properties against E. coli, S. aureus, and Bacillus subtilis. The essential oil also enhanced the mechanical properties, the UV blocking capacity and decreased the WVP and swelling capacity [207].
Another essential oil with good antioxidant and antimicrobial activity is extracted from cinnamon. It improves the antibacterial activity of the chitosan-based film, but also decreases the oxidation speed for lipids and reduces the WVP. Tests by Ojagh S.M. et al. have shown that if after 16 days the control sample had a bacterial load of 8.43 log CFU/g, the chitosan presented a bacterial load of 6.79 and the sample packed in chitosan-essential oil had a bacterial load of only 6.68 log CFU/g (for both chitosan-based films the bacterial load being under the limit of 7 log CFU/g) [208]. Same combination of chitosan–cinnamon essential oil has been tested for increasing the preservation time of jujube (date) fruits. Normally, these fruits have a shelf life of only 15 days and the orchards cannot be efficiently exploited as the post-harvest losses are too high. The use of fungicides is not acceptable because of health concerns and any way the ripe fruits have the highest decay rate. Xing Y. et al. have shown that chitosan–cinnamon essential oil films have lower WVP and therefore prevent the mass loss. The test indicates that the shelf life can be increased to 60 days as the decay rate is drastically reduced. The antimicrobial activity was tested on E. coli, S. aureus, Rhizopus nigricans, Penicillium citrinum, Aspergillus flavus, and Penicillium expansum, the best results being observed on R. nigricans and S. aureus strains [209].
Chitosan films have a poor performance regarding WVP, and this drawback must be removed by structural modifications. The solution is to add some lipidic compounds which are hydrophobic. Best candidates are fatty acids and essential oils or just compounds from essential oils. The use of selected compounds is a strategy to remove some of the unpleasant or too strong flavor of essential oil, or to avoid including potential toxic components into the packaging. Wang, Q. et al. have loaded the chitosan film with carvacrol and caprylic acid. Carvacrol is one of the major components of oregano and thyme essential oils with good antimicrobial and antioxidant activities and is listed as GRAS (generally recognized as safe) by FDA. The caprylic acid is also listed as GRAS, has a broad antibacterial spectrum and is naturally found in palm seed oil, coconut oil, or ruminant milk [162]. The edible films were used as packaging solution for white shrimps, Litopenaeus vannamei, for 10 days. During this time the growth of microorganisms was hindered, nitrogen volatile compounds were not evolved, and the pH variation was small when compared with control sample. The surface melanosis was delayed, and the organoleptic properties of the shrimps were enhanced. Research indicates that combining the chitosan with carvacrol generated a synergic effect, and adding the caprylic acid further enhanced the antimicrobial activity of the film [162]. Pabast, M. et al. have obtained better WVP properties for chitosan-based films by adding the Satureja khuzestanica essential oil encapsulated into nanoliposomes. The nanoliposomes of ~95 nm were obtained from a mix of soy-lecithin and had an encapsulation efficiency of 46–69%. By encapsulating the essential oil into nanoliposomes the release rate has decreased, which led to a prolonged antibacterial and antioxidant activity. The meat packed with this film was preserved for 20 days at 4 °C without spoilage [170].
Cellulose is the other most common polysaccharide used for edible films and for biodegradable packaging materials. It can be obtained from a great variety of sources (vegetal or bacterial). The poor mechanical performance and the lack of water resistance are the factors that limit the applicability domains. By loading the cellulose with an antimicrobial agent, the added value to packaging materials increases. The literature presents many cellulose-based edible films, for example obtained from CMC and glycerol mixed with essential oil from lemon, orange, or other citrus as antibacterial agent. The tests have indicated substantial increases of the antibacterial activity against E. coli or S. aureus by adding up to 2% essential oil (MIC 100, 250, and 225 mg/mL for lime, lemon, and orange) [210].
Ortiz, C.M. et al. have used microfibrillated cellulose mixed with soy proteins and glycerin as plasticizer to obtain biodegradable packaging. Further, the film was loaded with clove essential oil to enhance the antimicrobial and antioxidant activity against spoilage microorganisms. The addition of the essential oil had also the effect of a plasticizer, improved WVP, but increased oxygen permeability. The cellulose fibers had 50–60 nm diameter and ~35% crystallinity [211]. A similar composition based on soy protein, cellulose nanocrystals, and pine needle extract was reported by Yu, Z. et al. [212]. The use of cellulose nanocrystals and pine extract lowered WVP for the film by impeding on hydrogen bond formation and increased the mechanical strength.
In order to improve the mechanical and barrier properties cellulose can be reinforced with other polymers or with nanoparticles. The normal choice rests with natural, abundant polymers, which can be used as they are or after chemical modification [213]. Cellulose can be combined not only with other polysaccharides [214] but also with proteins [215,216] or lipids [217,218]. Zhang X. et al. have obtained by coagulation into a LiCl/ dimethyl acetamide/AgNO3/PVP solution, in one step synthesis, a cellulosic film with embedded AgCl crystals. An important role for the embedding process is played by the presence of PVP. By light exposure some of the AgCl was decomposed and Ag@AgCl nanoparticles were generated. The shape and size of these nanoparticles can be tuned by PVP concentration. The test made on E. coli and Staphylococcus aureus have demonstrated a strong antibacterial activity, after three hours of exposure no viable bacteria being identified [219].
Zahedi, Y. et al. reports the synthesis of a composite film based on CMC with 5% montmorillonite and 1–4% ZnO [220]. The addition of these nanoparticles decreased WVP values by 53% and enhanced the mechanical resistance. The nanoparticles also were an efficient UV blocking agent. Tyagi, P. et al. obtained an improved paper-based package material by coating it with a composite made of nanocellulose, montmorillonite, soy protein, and alkyl ketene dimer [221]. When researchers obtain similar composites based on cellulose or chitosan (with montmorillonite and essential oils for example) the intrinsic antibacterial activity of chitosan will always make the difference between them [222]. Elsewhere [223], AgNPs immobilized on laponite were obtained with quaternized chitosan and used for litchi packaging. Turning chitosan into a quaternary ammonium salt or subjecting it to other chemical modifications is an efficient way to enhance its properties. CMC can be mixed in any proportion with such modified chitosan as the two substances are miscible because of the formation of hydrogen bonds. The composite film has better mechanical and thermal performances. The WVP is decreased, but the oxygen permeability is increased in such composites. The CMC-chitosan composite has antibacterial activity against S. aureus and E. coli, and the test made on fresh bananas indicated an increased shelf life for the coated fruits [224].
Bacterial cellulose (BC) from Gluconacetobacter xylinus can be transformed into cellulose nanocrystals by acidic hydrolysis. These BC nanocrystals with size of 20–30 nm, together with silver nanoparticles (AgNPs) with size of 35–50 nm can be embedded into chitosan films. The embedding process has a significative influence on the color and transparency of the films, but it greatly enhances the mechanical and barrier properties. The forming of new hydrogen bonds between chitosan and BC indicate that the embedding is not only physical, but also implying a chemical process. The antimicrobial properties of these films vs. food specific pathogenic agents, suggest a synergic action of chitosan and BC-incorporated nanoparticles [225]. Incorporation of AgNPs into the methylcellulose films can be achieved with Lippia alba extract. The films have a smaller mechanical resistance and elastic modulus than the control lot, but they are easier to stretch and have a higher hydrophobicity. In the same time the antioxidant and antimicrobial activity are higher when compared with same control films [226].
The literature reports also nanocomposite films based on cellulose that contain not only AgNPs but also oxide nanoparticles from transition metals like CuO or ZnO. During production of regenerated cellulose fibers from cotton or microcrystalline cellulose from BC, oxide nanoparticles can be attached to the fiber surface by multiple hydrogen bonds (generated by hydroxyl moieties), without any additional functionalization. The number of oxide nanoparticles attached to the cellulose is nevertheless smaller than the AgNPs that can be loaded. The thermal stability of the composite films with AgNPs and ZnONPs is higher if compared with bare cellulose film. Antibacterial tests done on E. coli and L. monocytogenes indicate a strong inhibition of this strains [227].
Starch is also a common polysaccharide used for edible films, and unlike cellulose, it has also a nutritional value for humans. Simple starch films mixed with various natural compounds can form efficient antimicrobial packaging materials [228]. Starch films loaded with clove leaf oil can preserve Listeria inoculated cheese for 24 days. The clove leaf oil fulfills multiple roles, as it increases tensile strength and elongation break, but also inhibited L. monocytogenes proliferation, acted as UV barrier and radical scavenger [176]. An innovative design based on cheese whey and starch from agricultural waste is presented by Dinika et al. [229]. In this case the AMP from cheese whey are responsible for the activity of the final edible antimicrobial packaging film. Trongchuen, K. et al., have also obtained a starch-based composite that can be used as antimicrobial packaging material. Tests indicated a good activity against E. coli and S. aureus for composition containing starch foam, 10% extracted spent coffee ground (SCG), and 8% oregano essential oil [230]. A similar composition but with enhanced antimicrobial and antioxidant properties was developed by Ounkaew A. et al. who mixed starch with PVA and in the resulting nanocomposite-incorporated SCG and citric acid [231].
Other authors used bentonite clay to reinforce the starch-based film (cassava starch) in order to improve the mechanical properties. As plasticizer 2% glycerol was used. To ensure antimicrobial activity, 2.5% cinnamon essential oil was added. Antibacterial tests on E. coli, S. aureus, and Salmonella typhimurium confirmed the capacity of this packaging material to protect the food against such strains. Test made on meat balls indicates that the film was able to extend the shelf life up to 96 h (keeping the bacterial population under the FDA recommended value of 106 CFU/g) [232].

3.3. Other Biopolymers-Based Films

Another biopolymer that has attracted much attention is the PLA, which can be easily produced by bacterial fermentation of some renewable resources like corn starch or sugar beet. At the end of economic life, the PLA products are easily decomposed as they are biodegradable. The main problem for PLA films to be accepted as a good candidate for food packages is the poor barrier properties, as oxygen can easily permeate thru PLA films.
Composite based on PLA and nanocellulose loaded with plant essential oils (from Mentha piperita or Bunium percicum) were used to extend shelf life for grounded beef up to 12 days in refrigerated condition [171]. While the authors report no significant differences of WVP when adding nanocellulose to PLA, the values decrease to 50% when essential oils are added. Therefore some authors studied the possibility of using PLA films loaded only with some major components of essential oils as antimicrobials [233]. Better properties are reported when PLA is mixed with proteins before being loaded with essential oils [234].
Another way to improve the WVP is presented by Zhu J.Y. et al., who have obtained bi and tri-layer films from PLA and gliadin, without surface modification [158]. These films have a good mechanical resistance, do not exfoliate, and most important, the gliadin improves the barrier properties of the PLA toward oxygen, while the PLA improves the barrier properties of gliadin toward water vapor. By loading the films with antimicrobial agents such thymol, the authors have obtained a biodegradable polymeric film with antibacterial activity, which is suitable for food packaging. Moreover, the film has exhibit different antimicrobial activity on each side, the gliadin side being more potent than the PLA, indicating a preferential release (Figure 9).
Yin, X. et al. have also synthetized PLA films in which they added salicylic acid (SA). SA is heavily utilized after harvesting for fruits and vegetables preservation. The authors have demonstrated that if PLA film is loaded with up to 6% SA the antibacterial activity against E. coli can reach 97.63% while the WVP drops to 11.4 × 10−14 g cm/(cm2 s Pa) [235].
Three-components composite films, based on PLA mixed with chitosan and loaded with tea polyphenols, in various molar rapports have been obtained by Ye, J. et al. [236]. The three-component film has superior mechanical properties, lower WVP, and better heat-sealability. While the pure PLA has a strength of heat-seal of 2.75 ± 0.41 N/15 mm, the composite film with PLA-tea polyphenols-chitosan presents a strength up to three times higher. The large number of -OH and -NH2 moieties from the chitosan polymeric chains and its viscosity ensures an easy and durable welding of the membrane. The tests made on cherries have indicated that the optimum ratio between tea polyphenols and chitosan is 3:7 for prolonging the shelf life from 2 to 8 days at room temperature. In this case was observed the lowest degradation speed and was obtained the best preservation of the vitamins and total solid substance. The vitamin C content was higher for all samples packed with films with tea polyphenols as these substances have antioxidant activity and thus protect vitamin C from interacting with free radicals, decreasing the decay speed.
Like other polymers used for food packaging, the PLA films can also be reinforced with nanoparticles, which can exhibit antimicrobial activity [237]. Zhang, C. et al. have added up to 10% w/w AgNPs into PLA obtaining a film that has the capacity to prolong freshness of fruits (strawberries). The optimum results were reported for the film containing 5% AgNPs [150]. Li, W. et al. [238] have reported that both TiO2 and Ag nanoparticles can be embedded into PLA. The obtained films have lower WVP when compared with the bare polymer, lower transparency, and lower elastic modulus. The FTIR analysis has failed to evidence any new bonds, indicating the physical embedding of nanoparticles into the PLA. Same results were obtained by DSC, as the vitreous transition and melting temperatures remained unchanged. The only observable modification is the crystallinity degree due to the presence of nanoparticles. Although there is only a physical embedding, the migration tests revealed a good nanocomposite stability, with no detectable levels of nanoparticles migrating into the food. The antimicrobial activity has been tested against E. coli and L. monocytogenes as typical microorganisms infecting food. As the TiO2 percent increased from 1 to 5% the antimicrobial activity improved, the bacterial concentration decreased from 9.12 to 3.45 log CFU/mL. By adding the AgNPs along with TiO2 the bacterial concentration further decreased to 3.06 log CFU/mL. Antibacterial activity against E. coli for PLA-based films reinforced with aluminum-doped ZnO nanoparticles was reported by Valerini, D. et al. [239] and PLA films loaded with ZnO nanoparticles were investigated for preserving fresh cut apple in [240].
Gelatin films have also been tested in conjunction with various antimicrobial agents as active packaging materials [157,167,241]. In order to slow the release kinetics of the antimicrobials, the active substance can be encapsulated in a copolymer, in beta-cyclodextrin, in clays nanoparticles (like montmorillonite, halloysite etc.) or can be included as a nanoemulsion [241,242]. In order to improve the mechanical and barrier properties, gelatin can be reinforced with other polymers like polycaprolactone [133], sodium alginate [243], chitosan [244], starch [245], cellulose, and derivatives [246]. The mechanical properties are improved also by adding nanoparticles like ZnO [163], TiO2 [247], Ag [248].
The bionanocomposites based on poly-(butylene adipate-co-terephthalate)/ Ag2O (PBAT/Ag2O) obtained directly from solvent (CHCl3) have presented promising properties for antimicrobial packaging. The best properties were obtained for 1–10% Ag2O load on the PBAT film. Over 10% Ag2O the nanoparticles present a tendency to form agglomerates. The mechanical properties of composites were superior to the matrix polymer film up to 7% Ag2O. Most importantly, the permeability of oxygen and water vapor was lower for the nanocomposite films than for the simple PBAT film. The antimicrobial activity against Klebsiella pneumonia and S. aureus strains indicate that these nanocomposite films can be used in food industry [249]. Nisin can also be incorporated into PBAT polymeric matrix to produce an antimicrobial packaging [250], with good results against L. monocytogenes.

4. Toxicity Studies

The materials used for the innovative antimicrobial food packaging films are usually biopolymers that are biocompatible and safe for human use. Most of them are classified as GRAS and are edible. For example, chitosan or cellulose are considered GRAS in micron scale. While nanocellulose indicate minimal cytotoxicity it still may have an impact over gut microbial population and alter intestinal function, by reducing nutrient absorption [251,252,253]. The use of nanomaterials in food packaging brings a series of advantages as direct antimicrobial activity, support for other antibacterial agents or sensors to detect food contaminants (mostly metabolic products of bacterial activity), but at the same time there is a need to evaluate the risks implied by the use of metallic and oxide nanoparticles. The nanoparticles interact with bacterial cells and can even inhibit biofilms formation, but at the same time can migrate into food and interact with human cells [254,255,256,257]. Therefore, before marketing any novel antimicrobial food packaging, a careful study of nanoparticles migration into food and their associated toxicology must be undertaken. From the available literature studies, it is clear that nanoparticles present toxicological effects in living organisms and may have a profound impact on environmental ecosystems [258,259,260].
AgNPs are among the most studied and used antibacterial agents and therefore many research are devoted to the AgNPs effects and implications for human health [261,262,263]. Studies on zebrafish indicate that AgNPs and AuNPs enhance the secretion of alanine aminotransferase and aspartate aminotransferase. The increased levels of these enzymes lead to increased level generation of ROS, that can cause oxidative stress and immunotoxicity. AgNPs also induced formation of micronuclei and nuclear abnormalities [264]. Unfortunately, with the increased application of nanomaterials, metal nanoparticles have been widely detected in the environment. There are alarming reports about nanoparticles accumulation in seafood [265,266,267], but also about their cytotoxic and genotoxic effect in plants [268,269,270].
Toxicological concerns exist also for copper and copper oxide nanoparticles as studies indicate a strong relation between decreasing nanoparticles size and increasing phytotoxicity [271,272,273]. Some recent studies also indicate effects on plastids, mitochondria, protoplasm, and membranes for Hordeum sativum distichum [274] or Abelmoschus esculentus [275].
ZnO and TiO2 nanoparticles are widely used not only in antimicrobial packaging but also in cosmetics and paints. ZnO is classified by FDA as GRAS and its toxicological effects are still under investigation, but some reports on ZnO nanoparticles are already alarming [276,277,278]. ZnO nanoparticles can pass the stomach and enter in the digestion process in intestine [279] and can induce hyperproliferation of malignant cells [280]. Studies made on mice indicated that TiO2 nanoparticles alter gastrointestinal homeostasis, induce cytotoxicity and genotoxicity [281,282,283,284,285].
For essential oils the studies report no toxicity at the concentration used in food packaging [286,287,288]. There are some concerns that at inhibitory concentration for pathogenic bacteria the essential oil can negatively impact also the beneficial bacteria [289].

5. Conclusions

As we presented here, there are many strategies that can be adopted to combat the food loss. The use of antimicrobial packaging is gaining ground as both regulatory bodies authorities and general public are taking steps toward acceptance. The general trend is to implement new biodegradable polymers so both problems (antimicrobial activity and plastic pollution) can be addressed. Emphasis is on natural, abundant, and cheap polymers, but they require modification and carefully chosen additives in order to confer the properties required by the packaging industry.
Beside the main polymer, the composite usually contains at least one additive as a plasticizer. This additive plays an important role in achieving the desired mechanical properties. Researchers have a wide range of compounds to choose from: xylitol, mannitol, glycerol, sucrose, polyethylene glycol (PEG), sorbitol, fatty acids, urea, corn syrup, soy proteins, etc. Plasticizers can represent a weight percent between 10 and 65%, depending on the polymer rigidity. Beside the plasticizers, other additives might be included into the polymeric mix, such as antioxidants, antimicrobials, emulsifiers, nutraceuticals, probiotics, etc. Sometimes these additives influence the mechanical properties. While nanoparticles are also reinforcing agents that usually increase the mechanical resistance, essential oils increase the elasticity of the film. Some additives modify the barrier properties, like essential oils or other lipids that decrease WVP.
The replacement of traditional non-compostable oil-derived plastics with antimicrobial biodegradable packaging materials brought new challenges due to incorporation of the antimicrobials into the polymeric matrix, compatibilities between various components and easier degradation by heat and light. Some of the antimicrobials suffer a high loss rate because of inherent volatilization (essential oils for example) and future studies are required to improve the durability and efficiency of novel antimicrobial packaging materials.
The increased demand for cleaner and less processed food, with lower additives content also led to the development of antimicrobial packaging. Beyond the desired antimicrobial activity, the additives used in these innovative packaging can be responsible for the contamination of the food. Migration of undesirable substances must be under the limits established by regulations to ensure the consumer’s safety. For nanoparticles specific toxicological test must be carried out to indicate whether they are safe or not for humans in long term. Also, one must take into account the possible long-term environmental impact of these antimicrobial substances once they end up to landfill. Therefore, reducing the toxicity and environmental impact of synthetic antimicrobial agents is an important subject for further research.
The presence of various additives into the polymeric film must also not affect in a negative way the organoleptic properties of the food, otherwise consumers will reject the new packaging. The packaging must be as transparent as possible because the customers want to see what they are buying. Wrong tints that will give the impression of dusty, dirty, or oxidized will not be received well. Once this kind of antimicrobial packaging is available at a larger scale, the extension of shelf life will become a reality, and since the producers usually mark only the expiry date, customers will not be able to judge the exact freshness of the food. Nevertheless, both regulatory bodies and consumer pressure will shape the future of antimicrobial packaging toward novel, cost efficient, bio-degradable materials that can ensure food safety, quality, and longer shelf life with fewer additives.

Author Contributions

Conceptualization, O.C.O. and D.A.K.; resources, D.A.K.; writing—original draft preparation, L.M. and D.F.; writing—review and editing, A.F. and O.C.O.; visualization, L.M.; supervision, E.A.; project administration, E.A.; funding acquisition, O.C.O. All authors have read and agreed to the published version of the manuscript.


This work was supported by a grant of the Romanian Ministry of Research and Innovation, CCCDI—UEFISCDI, project number PN-III-P1-1.2-PCCDI-2017-0689/P1. “Lib2Life—Revitalizarea bibliotecilor şi a patrimoniului cultural prin tehnologii avansate” within PNCDI III.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Technical Platform on the Measurement and Reduction of Food Loss and Waste. Available online: (accessed on 25 August 2020).
  2. Ishangulyyev, S.; Kim, S.; Lee, S.H. Understanding Food Loss and Waste-Why Are We Losing and Wasting Food? Foods 2019, 8, 297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Jiang, B.; Na, J.X.; Wang, L.L.; Li, D.M.; Liu, C.H.; Feng, Z.B. Reutilization of Food Waste: One-Step Extration, Purification and Characterization of Ovalbumin from Salted Egg White by Aqueous Two-Phase Flotation. Foods 2019, 8, 286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Food Packaging Market Size, Share&Trends Analysis Report By Type (Rigid, Flexible), By Material (Paper, Plastic), By Application (Bakery and Confectionery, Dairy Products), By Region, And Segment Forecasts, 2020–2027. Available online: (accessed on 26 September 2020).
  5. Wohner, B.; Gabriel, V.H.; Krenn, B.; Krauter, V.; Tacker, M. Environmental and economic assessment of food-packaging systems with a focus on food waste. Case study on tomato ketchup. Sci. Total Environ. 2020, 738. [Google Scholar] [CrossRef]
  6. EU Circular Economy Action Plan. A New Circular Economy Action Plan for a Cleaner and More Competitive Europe. Available online: (accessed on 26 September 2020).
  7. Kuster-Boluda, I.; Vila, N. Can Health Perceptions, Credibility, and Physical Appearance of Low-Fat Foods Stimulate Buying Intentions? Foods 2020, 9, 866. [Google Scholar] [CrossRef] [PubMed]
  8. Kuster, I.; Vila, N.; Sarabia, F. Food packaging cues as vehicles of healthy information: Visions of millennials (early adults and adolescents). Food Res. Int. 2019, 119, 170–176. [Google Scholar] [CrossRef]
  9. Hernandez, A.; Vila, N.; Kuster, I.; Rodriguez, C. Clustering Spanish alcoholic beverage shoppers to focus marketing strategies. Int. J. Wine Bus. Res. 2019, 31, 362–384. [Google Scholar] [CrossRef]
  10. Vila-Lopez, N.; Kuster-Boluda, I. Consumers’ physiological and verbal responses towards product packages: Could these responses anticipate product choices? Physiol. Behav. 2019, 200, 166–173. [Google Scholar] [CrossRef]
  11. Vila-Lopez, N.; Küster-Boluda, I. A bibliometric analysis on packaging research: Towards sustainable and healthy packages. Br. Food J. 2020. ahead of print. [Google Scholar] [CrossRef]
  12. Bou-Mitri, C.; Abdessater, M.; Zgheib, H.; Akiki, Z. Food packaging design and consumer perception of the product quality, safety, healthiness and preference. Nutr. Food Sci. 2020. ahead-of-print. [Google Scholar] [CrossRef]
  13. Makaremi, M.; Yousefi, H.; Cavallaro, G.; Lazzara, G.; Goh, C.B.S.; Lee, S.M.; Solouk, A.; Pasbakhsh, P. Safely Dissolvable and Healable Active Packaging Films Based on Alginate and Pectin. Polymers 2019, 11, 1594. [Google Scholar] [CrossRef] [Green Version]
  14. Kaladharan, P.; Singh, V.V.; Asha, P.S.; Edward, L.; Sukhadane, K.S. Marine plastic litter in certain trawl grounds along the peninsular coasts of India. Mar. Pollut. Bull. 2020, 157, 111299. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, F.Y.; Chen, H.; Yang, J.H.; Long, R.Y.; Li, W.B. Impact of regulatory focus on express packaging waste recycling behavior: Moderating role of psychological empowerment perception. Environ. Sci. Pollut. Res. 2019, 26, 8862–8874. [Google Scholar] [CrossRef] [PubMed]
  16. White, A.; Lockyer, S. Removing plastic packaging from fresh produce—What’s the impact? Nutr. Bull. 2020, 45, 35–50. [Google Scholar] [CrossRef]
  17. Guo, J.J.; Huang, X.P.; Xiang, L.; Wang, Y.Z.; Li, Y.W.; Li, H.; Cai, Q.Y.; Mo, C.H.; Wong, M.H. Source, migration and toxicology of microplastics in soil. Environ. Int. 2020, 137, 105263. [Google Scholar] [CrossRef] [PubMed]
  18. Boz, Z.; Korhonen, V.; Sand, C.K. Consumer Considerations for the Implementation of Sustainable Packaging: A Review. Sustainability 2020, 12, 2192. [Google Scholar] [CrossRef] [Green Version]
  19. Clark, N.; Trimingham, R.; Wilson, G.T. Incorporating Consumer Insights into the UK Food Packaging Supply Chain in the Transition to a Circular Economy. Sustainability 2020, 12, 6106. [Google Scholar] [CrossRef]
  20. Zemljic, L.F.; Plohl, O.; Vesel, A.; Luxbacher, T.; Potrc, S. Physicochemical Characterization of Packaging Foils Coated by Chitosan and Polyphenols Colloidal Formulations. Int. J. Mol. Sci. 2020, 21, 495. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Esmailzadeh, H.; Sangpour, P.; Shahraz, F.; Eskandari, A.; Hejazi, J.; Khaksar, R. CuO/LDPE nanocomposite for active food packaging application: A comparative study of its antibacterial activities with ZnO/LDPE nanocomposite. Polym. Bull. 2020. published online. [Google Scholar] [CrossRef]
  22. Zia, J.; Paul, U.C.; Heredia-Guerrero, J.A.; Athanassiou, A.; Fragouli, D. Low-density polyethylene/curcumin melt extruded composites with enhanced water vapor barrier and antioxidant properties for active food packaging. Polymer 2019, 175, 137–145. [Google Scholar] [CrossRef]
  23. Habib, S.; Lehocky, M.; Vesela, D.; Humpolicek, P.; Krupa, I.; Popelka, A. Preparation of Progressive Antibacterial LDPE Surface via Active Biomolecule Deposition Approach. Polymers 2019, 11, 1704. [Google Scholar] [CrossRef] [Green Version]
  24. Giannakas, A.; Salmas, C.; Leontiou, A.; Tsimogiannis, D.; Oreopoulou, A.; Braouhli, J. Novel LDPE/Chitosan Rosemary and Melissa Extract Nanostructured Active Packaging Films. Nanomaterials 2019, 9, 1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kuster-Boluda, A.; Vila, N.V.; Kuster, I. Managing international distributors’ complaints: An exploratory study. J. Bus. Ind. Mark. 2020. [Google Scholar] [CrossRef]
  26. Kerry, J.P.; O’Grady, M.N.; Hogan, S.A. Past, current and potential utilisation of active and intelligent packaging systems for meat and muscle-based products: A review. Meat Sci. 2006, 74, 113–130. [Google Scholar] [CrossRef] [PubMed]
  27. O’Callaghan, K.A.M.; Kerry, J.P. Assessment of the antimicrobial activity of potentially active substances (nanoparticled and non-nanoparticled) against cheese-derived micro-organisms. Int. J. Dairy Technol. 2014, 67, 483–489. [Google Scholar] [CrossRef]
  28. Rai, M.; Ingle, A.P.; Gupta, I.; Pandit, R.; Paralikar, P.; Gade, A.; Chaud, M.V.; dos Santos, C.A. Smart nanopackaging for theenhancement of foodshelf life. Environ. Chem. Lett. 2019, 17, 277–290. [Google Scholar] [CrossRef]
  29. Vilas, C.; Mauricio-Iglesias, M.; Garcia, M.R. Model-based design of smart active packaging systems with antimicrobial activity. Food Packag. Shelf 2020, 24, 100446. [Google Scholar] [CrossRef]
  30. Jayasena, D.D.; Jo, C. Essential oils as potential antimicrobial agents in meat and meat products: A review. Trends Food Sci. Technol. 2013, 34, 96–108. [Google Scholar] [CrossRef]
  31. Szabo, K.; Teleky, B.E.; Mitrea, L.; Calinoiu, L.F.; Martau, G.A.; Simon, E.; Varvara, R.A.; Vodnar, D.C. Active Packaging-Poly(Vinyl Alcohol) Films Enriched with Tomato By-Products Extract. Coatings 2020, 10, 141. [Google Scholar] [CrossRef] [Green Version]
  32. Motelica, L.; Ficai, D.; Oprea, O.C.; Ficai, A.; Andronescu, E. Smart Food Packaging Designed by Nanotechnological and Drug Delivery Approaches. Coatings 2020, 10, 806. [Google Scholar] [CrossRef]
  33. Shruthy, R.; Jancy, S.; Preetha, R. Cellulose nanoparticles synthesised from potato peel for the development of active packaging film for enhancement of shelf life of raw prawns (Penaeus monodon) during frozen storage. Int. J. Food Sci. Technol. 2020. [Google Scholar] [CrossRef]
  34. Han, J.H. Antimicrobial food packaging. Food Technol. Chic. 2000, 54, 56–65. [Google Scholar]
  35. Surendhiran, D.; Li, C.Z.; Cui, H.Y.; Lin, L. Fabrication of high stability active nanofibers encapsulated with pomegranate peel extract using chitosan/PEO for meat preservation. Food Packag. Shelf Life 2020, 23, 100439. [Google Scholar] [CrossRef]
  36. Settier-Ramirez, L.; Lopez-Carballo, G.; Gavara, R.; Hernandez-Munoz, P. PVOH/protein blend films embedded with lactic acid bacteria and their antilisterial activity in pasteurized milk. Int. J. Food Microbiol. 2020, 322, 108545. [Google Scholar] [CrossRef]
  37. Ramos, M.; Beltran, A.; Fortunati, E.; Peltzer, M.; Cristofaro, F.; Visai, L.; Valente, A.J.M.; Jimenez, A.; Kenny, J.M.; Garrigos, M.C. Controlled Release of Thymol from Poly(Lactic Acid)-Based Silver Nanocomposite Films with Antibacterial and Antioxidant Activity. Antioxidants 2020, 9, 395. [Google Scholar] [CrossRef] [PubMed]
  38. Chiabrando, V.; Garavaglia, L.; Giacalone, G. The Postharvest Quality of Fresh Sweet Cherries and Strawberries with an Active Packaging System. Foods 2019, 8, 335. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Ojogbo, E.; Ward, V.; Mekonnen, T.H. Functionalized starch microparticles for contact-active antimicrobial polymer surfaces. Carbohyd. Polym. 2020, 229, 115442. [Google Scholar] [CrossRef] [PubMed]
  40. Pan, Y.F.; Xia, Q.Y.; Xiao, H.N. Cationic Polymers with Tailored Structures for Rendering Polysaccharide-Based Materials Antimicrobial: An Overview. Polymers 2019, 11, 1283. [Google Scholar] [CrossRef] [Green Version]
  41. Brezoiu, A.M.; Prundeanu, M.; Berger, D.; Deaconu, M.; Matei, C.; Oprea, O.; Vasile, E.; Negreanu-Pirjol, T.; Muntean, D.; Danciu, C. Properties of Salvia officinalis L. and Thymus serpyllum L. Extracts Free and Embedded into Mesopores of Silica and Titania Nanomaterials. Nanomaterials 2020, 10, 820. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, Z.J.; Wang, X.J.; Gao, M.; Zhao, Y.L.; Chen, Y.Z. Sustained release of an essential oil by a hybrid cellulose nanofiber foam system. Cellulose 2020, 27, 2709–2721. [Google Scholar] [CrossRef]
  43. Fang, Z.X.; Zhao, Y.Y.; Warner, R.D.; Johnson, S.K. Active and intelligent packaging in meat industry. Trends Food Sci. Technol. 2017, 61, 60–71. [Google Scholar] [CrossRef]
  44. Realini, C.E.; Marcos, B. Active and intelligent packaging systems for a modern society. Meat Sci. 2014, 98, 404–419. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Yildirim, S.; Rocker, B.; Pettersen, M.K.; Nilsen-Nygaard, J.; Ayhan, Z.; Rutkaite, R.; Radusin, T.; Suminska, P.; Marcos, B.; Coma, V. Active Packaging Applications for Food. Compr. Rev. Food Sci. Food Saf. 2018, 17, 165–199. [Google Scholar] [CrossRef] [Green Version]
  46. Malhotra, B.; Keshwani, A.; Kharkwal, H. Antimicrobial food packaging: Potential and pitfalls. Front. Microbiol. 2015, 6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Suppakul, P.; Miltz, J.; Sonneveld, K.; Bigger, S.W. Antimicrobial properties of basil and its possible application in food packaging. J. Agric. Food Chem. 2003, 51, 3197–3207. [Google Scholar] [CrossRef] [PubMed]
  48. Saadat, S.; Pandey, G.; Tharmavaram, M.; Braganza, V.; Rawtani, D. Nano-interfacial decoration of Halloysite Nanotubes for the development of antimicrobial nanocomposites. Adv. Colloid Interface Sci. 2020, 275, 102063. [Google Scholar] [CrossRef]
  49. Arsenie, L.V.; Lacatusu, I.; Oprea, O.; Bordei, N.; Bacalum, M.; Badea, N. Azelaic acid-willow bark extract-panthenol—Loaded lipid nanocarriers improve the hydration effect and antioxidant action of cosmetic formulations. Ind. Crops Prod. 2020, 154, 112658. [Google Scholar] [CrossRef]
  50. Arfat, Y.A.; Ejaz, M.; Jacob, H.; Ahmed, J. Deciphering the potential of guar gum/Ag-Cu nanocomposite films as an active food packaging material. Carbohyd. Polym. 2017, 157, 65–71. [Google Scholar] [CrossRef]
  51. Nedelcu, I.A.; Ficai, A.; Sonmez, M.; Ficai, D.; Oprea, O.; Andronescu, E. Silver Based Materials for Biomedical Applications. Curr. Org. Chem. 2014, 18, 173–184. [Google Scholar] [CrossRef]
  52. Pica, A.; Guran, C.; Andronescu, E.; Oprea, O.; Ficai, D.; Ficai, A. Antimicrobial performances of some film forming materials based on silver nanoparticles. J. Optoelectron. Adv. Mater. 2012, 14, 863–868. [Google Scholar]
  53. Oprea, O.; Andronescu, E.; Ficai, D.; Ficai, A.; Oktar, F.N.; Yetmez, M. ZnO Applications and Challenges. Curr. Org. Chem. 2014, 18, 192–203. [Google Scholar] [CrossRef]
  54. Vasile, B.S.; Oprea, O.; Voicu, G.; Ficai, A.; Andronescu, E.; Teodorescu, A.; Holban, A. Synthesis and characterization of a novel controlled release zinc oxide/gentamicin-chitosan composite with potential applications in wounds care. Int. J. Pharm. 2014, 463, 161–169. [Google Scholar] [CrossRef] [PubMed]
  55. Siripatrawan, U.; Kaewklin, P. Fabrication and characterization of chitosan-titanium dioxide nanocomposite film as ethylene scavenging and antimicrobial active food packaging. Food Hydrocoll. 2018, 84, 125–134. [Google Scholar] [CrossRef]
  56. de Araujo, M.J.G.; Barbosa, R.C.; Fook, M.V.L.; Canedo, E.L.; Silva, S.M.L.; Medeiros, E.S.; Leite, I.F. HDPE/Chitosan Blends Modified with Organobentonite Synthesized with Quaternary Ammonium Salt Impregnated Chitosan. Materials 2018, 11, 291. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Nouri, A.; Yaraki, M.T.; Ghorbanpour, M.; Agarwal, S.; Gupta, V.K. Enhanced Antibacterial effect of chitosan film using Montmorillonite/CuO nanocomposite. Int. J. Biol. Macromol. 2018, 109, 1219–1231. [Google Scholar] [CrossRef]
  58. Salmas, C.; Giannakas, A.; Katapodis, P.; Leontiou, A.; Moschovas, D.; Karydis-Messinis, A. Development of ZnO/Na-Montmorillonite Hybrid Nanostructures Used for PVOH/ZnO/Na-Montmorillonite Active Packaging Films Preparation via a Melt-Extrusion Process. Nanomaterials 2020, 10, 1079. [Google Scholar] [CrossRef]
  59. Lacatusu, I.; Badea, N.; Badea, G.; Brasoveanu, L.; Stan, R.; Ott, C.; Oprea, O.; Meghea, A. Ivy leaves extract based—Lipid nanocarriers and their bioefficacy on antioxidant and antitumor activities. RSC Adv. 2016, 6, 77243–77255. [Google Scholar] [CrossRef]
  60. Lacatusu, I.; Badea, N.; Badea, G.; Oprea, O.; Mihaila, M.A.; Kaya, D.A.; Stan, R.; Meghea, A. Lipid nanocarriers based on natural oils with high activity against oxygen free radicals and tumor cell proliferation. Mater. Sci. Eng. C 2015, 56, 88–94. [Google Scholar] [CrossRef]
  61. Yahaya, W.A.W.; Abu Yazid, N.; Azman, N.A.M.; Almajano, M.P. Antioxidant Activities and Total Phenolic Content of Malaysian Herbs as Components of Active Packaging Film in Beef Patties. Antioxidants 2019, 8, 204. [Google Scholar] [CrossRef] [Green Version]
  62. Yu, H.H.; Kim, Y.J.; Park, Y.J.; Shin, D.M.; Choi, Y.S.; Lee, N.K.; Paik, H.D. Application of mixed natural preservatives to improve the quality of vacuum skin packaged beef during refrigerated storage. Meat Sci. 2020, 169, 108219. [Google Scholar] [CrossRef]
  63. Huang, T.Q.; Qian, Y.S.; Wei, J.; Zhou, C.C. Polymeric Antimicrobial Food Packaging and Its Applications. Polymers 2019, 11, 560. [Google Scholar] [CrossRef] [Green Version]
  64. Liang, S.M.; Wang, L.J. A Natural Antibacterial-Antioxidant Film from Soy Protein Isolate Incorporated with Cortex Phellodendron Extract. Polymers 2018, 10, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Gingasu, D.; Mindru, I.; Patron, L.; Ianculescu, A.; Vasile, E.; Marinescu, G.; Preda, S.; Diamandescu, L.; Oprea, O.; Popa, M.; et al. Synthesis and Characterization of Chitosan-Coated Cobalt Ferrite Nanoparticles and Their Antimicrobial Activity. J. Inorg. Organomet. Polym. 2018, 28, 1932–1941. [Google Scholar] [CrossRef]
  66. Radulescu, M.; Ficai, D.; Oprea, O.; Ficai, A.; Andronescu, E.; Holban, A.M. Antimicrobial Chitosan based Formulations with Impact on Different Biomedical Applications. Curr. Pharm. Biotechnol. 2015, 16, 128–136. [Google Scholar] [CrossRef] [PubMed]
  67. Nguyen, T.T.; Dao, U.T.T.; Bui, Q.P.T.; Bach, G.L.; Thuc, C.N.H.; Thuc, H.H. Enhanced antimicrobial activities and physiochemical properties of edible film based on chitosan incorporated with Sonneratia caseolaris (L.) Engl. leaf extract. Prog. Org. Coat. 2020, 140, 105487. [Google Scholar] [CrossRef]
  68. Sofi, S.A.; Singh, J.; Rafiq, S.; Ashraf, U.; Dar, B.N.; Nayik, G.A. A Comprehensive Review on Antimicrobial Packaging and its Use in Food Packaging. Curr. Nutr. Food Sci. 2018, 14, 305–312. [Google Scholar] [CrossRef]
  69. Mirabelli, V.; Salehi, S.M.; Angiolillo, L.; Belviso, B.D.; Conte, A.; Del Nobile, M.A.; Di Profio, G.; Caliandro, R. Enzyme Crystals and Hydrogel Composite Membranes as New Active Food Packaging Material. Glob. Chall. 2018, 2. [Google Scholar] [CrossRef] [Green Version]
  70. Galante, Y.M.; Merlini, L.; Silvetti, T.; Campia, P.; Rossi, B.; Viani, F.; Brasca, M. Enzyme oxidation of plant galactomannans yielding biomaterials with novel properties and applications, including as delivery systems. Appl. Microbiol. Biotechnol. 2018, 102, 4687–4702. [Google Scholar] [CrossRef]
  71. Avramescu, S.M.; Butean, C.; Popa, C.V.; Ortan, A.; Moraru, I.; Temocico, G. Edible and Functionalized Films/Coatings—Performances and Perspectives. Coatings 2020, 10, 687. [Google Scholar] [CrossRef]
  72. Feng, K.; Wen, P.; Yang, H.; Li, N.; Lou, W.Y.; Zong, M.H.; Wu, H. Enhancement of the antimicrobial activity of cinnamon essential oil-loaded electrospun nanofilm by the incorporation of lysozyme. RSC Adv. 2017, 7, 1572–1580. [Google Scholar] [CrossRef] [Green Version]
  73. He, S.K.; Yang, Q.M.; Ren, X.Y.; Zi, J.H.; Lu, S.S.; Wang, S.Q.; Zhang, Y.B.; Wang, Y.F. Antimicrobial Efficiency of Chitosan Solutions and Coatings Incorporated with Clove Oil and/or Ethylenediaminetetraacetate. J. Food Saf. 2014, 34, 345–352. [Google Scholar] [CrossRef]
  74. Arvanitoyannis, I.S.; Stratakos, A.C. Application of Modified Atmosphere Packaging and Active/Smart Technologies to Red Meat and Poultry: A Review. Food Bioprocess Technol. 2012, 5, 1423–1446. [Google Scholar] [CrossRef]
  75. Fratianni, F.; De Martino, L.; Melone, A.; De Feo, V.; Coppola, R.; Nazzaro, F. Preservation of Chicken Breast Meat Treated with Thyme and Balm Essential Oils. J. Food Sci. 2010, 75, M528–M535. [Google Scholar] [CrossRef] [PubMed]
  76. Mulla, M.; Ahmed, J.; Al-Attar, H.; Castro-Aguirre, E.; Arfat, Y.A.; Auras, R. Antimicrobial efficacy of clove essential oil infused into chemically modified LLDPE film for chicken meat packaging. Food Control 2017, 73, 663–671. [Google Scholar] [CrossRef]
  77. Radulescu, M.; Popescu, S.; Ficai, D.; Sonmez, M.; Oprea, O.; Spoiala, A.; Ficai, A.; Andronescu, E. Advances in Drug Delivery Systems, from 0 to 3D Superstructures. Curr. Drug Targets 2018, 19, 393–405. [Google Scholar] [CrossRef] [PubMed]
  78. Lopes, F.A.; Soares, N.D.F.; Lopes, C.D.P.; da Silva, W.A.; Baffa, J.C.; Medeiros, E.A.A. Conservation of Bakery Products Through Cinnamaldehyde Antimicrobial Films. Packag. Technol. Sci. 2014, 27, 293–302. [Google Scholar] [CrossRef]
  79. Rivero, S.; Giannuzzi, L.; Garcia, M.A.; Pinotti, A. Controlled delivery of propionic acid from chitosan films for pastry dough conservation. J. Food Eng. 2013, 116, 524–531. [Google Scholar] [CrossRef]
  80. Mihaly-Cozmuta, A.; Peter, A.; Craciun, G.; Falup, A.; Mihaly-Cozmuta, L.; Nicula, C.; Vulpoi, A.; Baia, M. Preparation and characterization of active cellulose-based papers modified with TiO2, Ag and zeolite nanocomposites for bread packaging application. Cellulose 2017, 24, 3911–3928. [Google Scholar] [CrossRef]
  81. Al-Naamani, L.; Dutta, J.; Dobretsov, S. Nanocomposite Zinc Oxide-Chitosan Coatings on Polyethylene Films for Extending Storage Life of Okra (Abelmoschus esculentus). Nanomaterials 2018, 8, 479. [Google Scholar] [CrossRef] [Green Version]
  82. Xing, Y.G.; Li, X.L.; Guo, X.L.; Li, W.X.; Chen, J.W.; Liu, Q.; Xu, Q.L.; Wang, Q.; Yang, H.; Shui, Y.R.; et al. Effects of Different TiO2 Nanoparticles Concentrations on the Physical and Antibacterial Activities of Chitosan-Based Coating Film. Nanomaterials 2020, 10, 1365. [Google Scholar] [CrossRef]
  83. Xing, Y.G.; Li, W.X.; Wang, Q.; Li, X.L.; Xu, Q.L.; Guo, X.L.; Bi, X.F.; Liu, X.C.; Shui, Y.R.; Lin, H.B.; et al. Antimicrobial Nanoparticles Incorporated in Edible Coatings and Films for the Preservation of Fruits and Vegetables. Molecules 2019, 24, 1695. [Google Scholar] [CrossRef] [Green Version]
  84. Sun, L.J.; Yang, S.S.; Qian, X.R.; An, X.H. High-efficacy and long term antibacterial cellulose material: Anchored guanidine polymer via double “click chemistry“. Cellulose 2020, 27, 8799–8812. [Google Scholar] [CrossRef]
  85. Jouneghani, R.S.; Castro, A.H.F.; Panda, S.K.; Swennen, R.; Luyten, W. Antimicrobial Activity of Selected Banana Cultivars Against Important Human Pathogens, Including Candida Biofilm. Foods 2020, 9, 435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Zhang, S.B.; Yang, X.H.; Tang, B.; Yuan, L.J.; Wang, K.; Liu, X.Y.; Zhu, X.L.; Li, J.N.; Ge, Z.C.; Chen, S.G. New insights into synergistic antimicrobial and antifouling cotton fabrics via dually finished with quaternary ammonium salt and zwitterionic sulfobetaine. Chem. Eng. J. 2018, 336, 123–132. [Google Scholar] [CrossRef]
  87. Braga, L.R.; Rangel, E.T.; Suarez, P.A.Z.; Machado, F. Simple synthesis of active films based on PVC incorporated with silver nanoparticles: Evaluation of the thermal, structural and antimicrobial properties. Food Packag. Shelf Life 2018, 15, 122–129. [Google Scholar] [CrossRef]
  88. Bastante, C.C.; Cardoso, L.C.; Ponce, M.T.F.; Serrano, C.M.; de la Ossa-Fernandez, E.J.M. Characterization of olive leaf extract polyphenols loaded by supercritical solvent impregnation into PET/PP food packaging films. J. Supercrit. Fluid 2018, 140, 196–206. [Google Scholar] [CrossRef]
  89. Ahmed, J.; Mulla, M.; Arfat, Y.A.; Bher, A.; Jacob, H.; Auras, R. Compression molded LLDPE films loaded with bimetallic (Ag-Cu) nanoparticles and cinnamon essential oil for chicken meat packaging applications. LWT Food Sci. Technol. 2018, 93, 329–338. [Google Scholar] [CrossRef]
  90. Egodage, D.P.; Jayalath, H.T.S.; Samarasekara, A.M.P.B.; Amarasinghe, D.A.S.; Madushani, S.P.A.; Senerath, S.M.N.S. Novel Antimicrobial Nano Coated Polypropylene Based Materials for Food Packaging Systems. In Proceedings of the 2017 3rd International Moratuwa Engineering Research Conference (Mercon), Moratuwa, Sri Lanka, 29–31 May 2017; pp. 88–92. [Google Scholar]
  91. Wieczynska, J.; Cavoski, I. Antimicrobial, antioxidant and sensory features of eugenol, carvacrol and trans-anethole in active packaging for organic ready-to-eat iceberg lettuce. Food Chem. 2018, 259, 251–260. [Google Scholar] [CrossRef] [PubMed]
  92. Llana-Ruiz-Cabello, M.; Pichardo, S.; Bermudez, J.M.; Banos, A.; Ariza, J.J.; Guillamon, E.; Aucejo, S.; Camean, A.M. Characterisation and antimicrobial activity of active polypropylene films containing oregano essential oil and Allium extract to be used in packaging for meat products. Food Addit. Contam. A 2018, 35, 782–791. [Google Scholar] [CrossRef] [PubMed]
  93. Dong, Z.; Xu, F.J.; Ahmed, I.; Li, Z.X.; Lin, H. Characterization and preservation performance of active polyethylene films containing rosemary and cinnamon essential oils for Pacific white shrimp packaging. Food Control 2018, 92, 37–46. [Google Scholar] [CrossRef]
  94. da Silva, C.F.; de Oliveira, F.S.M.; Gaetano, V.F.; Vinhas, G.M.; Cardoso, S.A. Orange essential oil as antimicrobial additives in poly(vinyl chloride) films. Polimeros 2018, 28, 332–338. [Google Scholar] [CrossRef]
  95. Krehula, L.K.; Papic, A.; Krehula, S.; Gilja, V.; Foglar, L.; Hrnjak-Murgic, Z. Properties of UV protective films of poly(vinyl-chloride)/TiO2 nanocomposites for food packaging. Polym. Bull. 2017, 74, 1387–1404. [Google Scholar] [CrossRef]
  96. Li, X.H.; Xing, Y.; Jiang, Y.H.; Ding, Y.L.; Li, W.L. Antimicrobial activities of ZnO powder-coated PVC film to inactivate food pathogens. Int. J. Food Sci. Technol. 2009, 44, 2161–2168. [Google Scholar] [CrossRef]
  97. Singh, S.; Lee, M.; Gaikwad, K.K.; Lee, Y.S. Antibacterial and amine scavenging properties of silver-silica composite for post-harvest storage of fresh fish. Food Bioprod. Process. 2018, 107, 61–69. [Google Scholar] [CrossRef]
  98. Gogliettino, M.; Balestrieri, M.; Ambrosio, R.L.; Anastasio, A.; Smaldone, G.; Proroga, Y.T.R.; Moretta, R.; Rea, I.; De Stefano, L.; Agrillo, B.; et al. Extending the Shelf-Life of Meat and Dairy Products via PET-Modified Packaging Activated With the Antimicrobial Peptide MTP1. Front. Microbiol. 2020, 10. [Google Scholar] [CrossRef] [PubMed]
  99. Silva, C.C.G.; Silva, S.P.M.; Ribeiro, S.C. Application of Bacteriocins and Protective Cultures in Dairy Food Preservation. Front. Microbiol. 2018, 9. [Google Scholar] [CrossRef]
  100. Santos, J.C.P.; Sousa, R.C.S.; Otoni, C.G.; Moraes, A.R.F.; Souza, V.G.L.; Medeiros, E.A.A.; Espitia, P.J.P.; Pires, A.C.S.; Coimbra, J.S.R.; Soares, N.F.F. Nisin and other antimicrobial peptides: Production, mechanisms of action, and application in active food packaging. Innov. Food Sci. Emerg. 2018, 48, 179–194. [Google Scholar] [CrossRef]
  101. Agrillo, B.; Balestrieri, M.; Gogliettino, M.; Palmieri, G.; Moretta, R.; Proroga, Y.T.R.; Rea, I.; Cornacchia, A.; Capuano, F.; Smaldone, G.; et al. Functionalized Polymeric Materials with Bio-Derived Antimicrobial Peptides for “Active” Packaging. Int. J. Mol. Sci. 2019, 20, 601. [Google Scholar] [CrossRef] [Green Version]
  102. Corrales-Urena, Y.R.; Souza-Schiaber, Z.; Lisboa, P.N.; Marquenet, F.; Michael Noeske, P.L.; Gatjen, L.; Rischka, K. Functionalization of hydrophobic surfaces with antimicrobial peptides immobilized on a bio-interfactant layer. RSC Adv. 2020, 10, 376–386. [Google Scholar] [CrossRef] [Green Version]
  103. Torres, L.M.F.C.; Braga, N.A.; Gomes, I.P.; Almeida, M.T.; Santos, T.L.; de Mesquita, J.P.; da Silva, L.M.; Martins, H.R.; Kato, K.C.; dos Santos, W.T.P.; et al. Nanobiostructure of fibrous-like alumina functionalized with an analog of the BP100 peptide: Synthesis, characterization and biological applications. Colloid Surf. B 2018, 163, 275–283. [Google Scholar] [CrossRef]
  104. Lu, P.; Guo, M.Y.; Xu, Z.J.; Wu, M. Application of Nanofibrillated Cellulose on BOPP/LDPE Film as Oxygen Barrier and Antimicrobial Coating Based on Cold Plasma Treatment. Coatings 2018, 8, 207. [Google Scholar] [CrossRef] [Green Version]
  105. Zhu, R.N.; Liu, X.; Song, P.P.; Wang, M.; Xu, F.; Jiang, Y.J.; Zhang, X.M. An approach for reinforcement of paper with high strength and barrier properties via coating regenerated cellulose. Carbohyd. Polym. 2018, 200, 100–105. [Google Scholar] [CrossRef] [PubMed]
  106. Shankar, S.; Rhim, J.W. Antimicrobial wrapping paper coated with a ternary blend of carbohydrates (alginate, carboxymethyl cellulose, carrageenan) and grapefruit seed extract. Carbohyd. Polym. 2018, 196, 92–101. [Google Scholar] [CrossRef] [PubMed]
  107. Divsalar, E.; Tajik, H.; Moradi, M.; Forough, M.; Lotfi, M.; Kuswandi, B. Characterization of cellulosic paper coated with chitosan-zinc oxide nanocomposite containing nisin and its application in packaging of UF cheese. Int. J. Biol. Macromol. 2018, 109, 1311–1318. [Google Scholar] [CrossRef] [PubMed]
  108. Brodnjak, U.V.; Tihole, K. Chitosan Solution Containing Zein and Essential Oil as Bio Based Coating on Packaging Paper. Coatings 2020, 10, 497. [Google Scholar] [CrossRef]
  109. Mandolini, M.; Campi, F.; Favi, C.; Germanil, M. Manufacturing processes re-engineering for cost reduction: The investment casting case study. In Proceedings of the Asme International Design Engineering Technical Conferences and Computers and Information in Engineering Conference, 2019, Vol 4; American Society of Mechanical Engineers: New York, NY, USA, 2020; Volume 4. [Google Scholar]
  110. Khezrian, A.; Shahbazi, Y. Application of nanocompostie chitosan and carboxymethyl cellulose films containing natural preservative compounds in minced camel’s meat. Int. J. Biol. Macromol. 2018, 106, 1146–1158. [Google Scholar] [CrossRef] [PubMed]
  111. Zhao, S.W.; Guo, C.R.; Hu, Y.Z.; Guo, Y.R.; Pan, Q.J. The preparation and antibacterial activity of cellulose/ZnO composite: A review. Open Chem. 2018, 16, 9–20. [Google Scholar] [CrossRef]
  112. Kaya, M.; Khadem, S.; Cakmak, Y.S.; Mujtaba, M.; Ilk, S.; Akyuz, L.; Salaberria, A.M.; Labidi, J.; Abdulqadir, A.H.; Deligoz, E. Antioxidative and antimicrobial edible chitosan films blended with stem, leaf and seed extracts of Pistacia terebinthus for active food packaging. RSC Adv. 2018, 8, 3941–3950. [Google Scholar] [CrossRef] [Green Version]
  113. Sun, L.J.; Sun, J.J.; Liu, D.J.; Fu, M.H.; Yang, X.; Guo, Y.R. The preservative effects of chitosan film incorporated with thinned young apple polyphenols on the quality of grass carp (Ctenopharyngodon idellus) fillets during cold storage: Correlation between the preservative effects and the active properties of the film. Food Packag. Shelf Life 2018, 17, 1–10. [Google Scholar] [CrossRef]
  114. Beltran, C.A.U.; Florez, I.F. Preparation of bio-packages from native starches and essential oils prolonging shelf life in strawberries. Rev. Colomb. Investig. 2018, 5, 71–86. [Google Scholar] [CrossRef]
  115. Issa, A.T.; Schimmel, K.A.; Worku, M.; Shahbazi, A.; Ibrahim, S.A.; Tahergorabi, R. Sweet Potato Starch-Based Nanocomposites: Development, Characterization, and Biodegradability. Starch-Starke 2018, 70. [Google Scholar] [CrossRef]
  116. Tedeschi, G.; Guzman-Puyol, S.; Ceseracciu, L.; Paul, U.C.; Picone, P.; Di Carlo, M.; Athanassiou, A.; Heredia-Guerrero, J.A. Multifunctional Bioplastics Inspired by Wood Composition: Effect of Hydrolyzed Lignin Addition to Xylan-Cellulose Matrices. Biomacromolecules 2020, 21, 910–920. [Google Scholar] [CrossRef] [PubMed]
  117. Nechita, P.; Roman, M. Review on Polysaccharides Used in Coatings for Food Packaging Papers. Coatings 2020, 10, 566. [Google Scholar] [CrossRef]
  118. Fabra, M.J.; Falco, I.; Randazzo, W.; Sanchez, G.; Lopez-Rubio, A. Antiviral and antioxidant properties of active alginate edible films containing phenolic extracts. Food Hydrocoll. 2018, 81, 96–103. [Google Scholar] [CrossRef]
  119. Aziz, M.S.A.; Salama, H.E.; Sabaa, M.W. Biobased alginate/castor oil edible films for active food packaging. LWT Food Sci. Technol. 2018, 96, 455–460. [Google Scholar] [CrossRef]
  120. Hu, Z.; Hong, P.Z.; Liao, M.N.; Kong, S.Z.; Huang, N.; Ou, C.Y.; Li, S.D. Preparation and Characterization of Chitosan-Agarose Composite Films. Materials 2016, 9, 816. [Google Scholar] [CrossRef] [Green Version]
  121. Kusznierewicz, B.; Staroszczyk, H.; Malinowska-Panczyk, E.; Parchem, K.; Bartoszek, A. Novel ABTS-dot-blot method for the assessment of antioxidant properties of food packaging. Food Packag. Shelf Life 2020, 24, 100478. [Google Scholar] [CrossRef]
  122. Lei, J.; Zhou, L.; Tang, Y.J.; Luo, Y.; Duan, T.; Zhu, W.K. High-Strength Konjac Glucomannan/Silver Nanowires Composite Films with Antibacterial Properties. Materials 2017, 10, 524. [Google Scholar] [CrossRef] [Green Version]
  123. Wu, C.H.; Li, Y.L.; Sun, J.S.; Lu, Y.Z.; Tong, C.L.; Wang, L.; Yan, Z.M.; Pang, J. Novel konjac glucomannan films with oxidized chitin nanocrystals immobilized red cabbage anthocyanins for intelligent food packaging. Food Hydrocoll. 2020, 98, 105245. [Google Scholar] [CrossRef]
  124. Li, S.B.; Yi, J.J.; Yu, X.M.; Wang, Z.Y.; Wang, L. Preparation and characterization of pullulan derivative/chitosan composite film for potential antimicrobial applications. Int. J. Biol. Macromol. 2020, 148, 258–264. [Google Scholar] [CrossRef]
  125. Hassan, A.H.A.; Cutter, C.N. Development and evaluation of pullulan-based composite antimicrobial films (CAF) incorporated with nisin, thymol and lauric arginate to reduce foodborne pathogens associated with muscle foods. Int. J. Food Microbiol. 2020, 320, 108519. [Google Scholar] [CrossRef]
  126. da Silva, F.T.; da Cunha, K.F.; Fonseca, L.M.; Antunes, M.D.; El Halal, S.L.M.; Fiorentini, A.M.; Zavareze, E.D.; Dias, A.R.G. Action of ginger essential oil (Zingiber officinale) encapsulated in proteins ultrafine fibers on the antimicrobial control in situ. Int. J. Biol. Macromol. 2018, 118, 107–115. [Google Scholar] [CrossRef] [PubMed]
  127. Echeverria, I.; Lopez-Caballero, M.E.; Gomez-Guillen, M.C.; Mauri, A.N.; Montero, M.P. Active nanocomposite films based on soy proteins-montmorillonite- clove essential oil for the preservation of refrigerated bluefin tuna (Thunnus thynnus) fillets. Int. J. Food Microbiol. 2018, 266, 142–149. [Google Scholar] [CrossRef] [PubMed]
  128. Kouravand, F.; Jooyandeh, H.; Barzegar, H.; Hojjati, M. Characterization of cross-linked whey protein isolate-based films containing Satureja Khuzistanica Jamzad essential oil. J. Food Process. Perservation 2018, 42. [Google Scholar] [CrossRef]
  129. Aziz, S.G.G.; Almasi, H. Physical Characteristics, Release Properties, and Antioxidant and Antimicrobial Activities of Whey Protein Isolate Films Incorporated with Thyme (Thymus vulgaris L.) Extract-Loaded Nanoliposomes. Food Bioprocess. Technol. 2018, 11, 1552–1565. [Google Scholar] [CrossRef]
  130. Altan, A.; Aytac, Z.; Uyar, T. Carvacrol loaded electrospun fibrous films from zein and poly(lactic acid) for active food packaging. Food Hydrocoll. 2018, 81, 48–59. [Google Scholar] [CrossRef] [Green Version]
  131. Ahmad, M.; Nirmal, N.P.; Danish, M.; Chuprom, J.; Jafarzedeh, S. Characterisation of composite films fabricated from collagen/chitosan and collagen/soy protein isolate for food packaging applications. RSC Adv. 2016, 6, 82191–82204. [Google Scholar] [CrossRef]
  132. Ocak, B. Film-forming ability of collagen hydrolysate extracted from leather solid wastes with chitosan. Environ. Sci. Pollut. Res. 2018, 25, 4643–4655. [Google Scholar] [CrossRef]
  133. Figueroa-Lopez, K.J.; Castro-Mayorga, J.L.; Andrade-Mahecha, M.M.; Cabedo, L.; Lagaron, J.M. Antibacterial and Barrier Properties of Gelatin Coated by Electrospun Polycaprolactone Ultrathin Fibers Containing Black Pepper Oleoresin of Interest in Active Food Biopackaging Applications. Nanomaterials 2018, 8, 199. [Google Scholar] [CrossRef] [Green Version]
  134. Kim, H.; Beak, S.E.; Song, K.B. Development of a hagfish skin gelatin film containing cinnamon bark essential oil. LWT Food Sci. Technol. 2018, 96, 583–588. [Google Scholar] [CrossRef]
  135. Abdollahzadeh, E.; Ojagh, S.M.; Fooladi, A.A.I.; Shabanpour, B.; Gharahei, M. Effects of Probiotic Cells on the Mechanical and Antibacterial Properties of Sodium-Caseinate Films. Appl. Food Biotechnol. 2018, 5, 155–162. [Google Scholar] [CrossRef]
  136. Chevalier, E.; Assezat, G.; Prochazka, F.; Oulahal, N. Development and characterization of a novel edible extruded sheet based on different casein sources and influence of the glycerol concentration. Food Hydrocoll. 2018, 75, 182–191. [Google Scholar] [CrossRef]
  137. Akyuz, L.; Kaya, M.; Ilk, S.; Cakmak, Y.S.; Salaberria, A.M.; Labidi, J.; Yilmaz, B.A.; Sargin, I. Effect of different animal fat and plant oil additives on physicochemical, mechanical, antimicrobial and antioxidant properties of chitosan films. Int. J. Biol. Macromol. 2018, 111, 475–484. [Google Scholar] [CrossRef] [PubMed]
  138. Tonyali, B.; McDaniel, A.; Amamcharla, J.; Trinetta, V.; Yucel, U. Release kinetics of cinnamaldehyde, eugenol, and thymol from sustainable and biodegradable active packaging films. Food Packag. Shelf Life 2020, 24, 100484. [Google Scholar] [CrossRef]
  139. Saurabh, C.K.; Gupta, S.; Variyar, P.S. Development of guar gum based active packaging films using grape pomace. J. Food Sci. Technol. 2018, 55, 1982–1992. [Google Scholar] [CrossRef]
  140. Zhang, D.; Yu, G.H.; Long, Z.; Xiao, H.N.; Qian, L.Y. Bio-Wax Latex-Modified Paper as Antimicrobial and Water-Vapor-Resistant Packaging Material. J. Wood Chem. Technol. 2016, 36, 182–191. [Google Scholar] [CrossRef]
  141. Swaroop, C.; Shukla, M. Nano-magnesium oxide reinforced polylactic acid biofilms for food packaging applications. Int. J. Biol. Macromol. 2018, 113, 729–736. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  142. Lopusiewicz, L.; Jedra, F.; Mizielinska, M. New Poly(lactic acid) Active Packaging Composite Films Incorporated with Fungal Melanin. Polymers 2018, 10, 386. [Google Scholar] [CrossRef] [Green Version]
  143. Shao, P.; Yan, Z.P.; Chen, H.J.; Xiao, J. Electrospun poly(vinyl alcohol)/permutite fibrous film loaded with cinnamaldehyde for active food packaging. J. Appl. Polym. Sci. 2018, 135. [Google Scholar] [CrossRef]
  144. Arrieta, M.P.; de Dicastillo, C.L.; Garrido, L.; Roa, K.; Galotto, M.J. Electrospun PVA fibers loaded with antioxidant fillers extracted from Durvillaea antarctica algae and their effect on plasticized PLA bionanocomposites. Eur. Polym. J. 2018, 103, 145–157. [Google Scholar] [CrossRef]
  145. Chen, C.W.; Xu, Z.W.; Ma, Y.R.; Liu, J.L.; Zhang, Q.J.; Tang, Z.P.; Fu, K.J.; Yang, F.X.; Xie, J. Properties, vapour-phase antimicrobial and antioxidant activities of active poly(vinyl alcohol) packaging films incorporated with clove oil. Food Control 2018, 88, 105–112. [Google Scholar] [CrossRef]
  146. Baek, N.; Kim, Y.T.; Marcy, J.E.; Duncan, S.E.; O‘Keefe, S.F. Physical properties of nanocomposite polylactic acid films prepared with oleic acid modified titanium dioxide. Food Packag. Shelf Life 2018, 17, 30–38. [Google Scholar] [CrossRef]
  147. Alboofetileh, M.; Rezaei, M.; Hosseini, H.; Abdollahi, M. Morphological, physico-mechanical, and antimicrobial properties of sodium alginate-montmorillonite nanocomposite films incorporated with marjoram essential oil. J. Food Process. Perservation 2018, 42, e13596. [Google Scholar] [CrossRef]
  148. Youssef, A.M.; Abdel-Aziz, M.E.; El-Sayed, E.S.A.; Abdel-Aziz, M.S.; El-Hakim, A.A.A.; Kamel, S.; Turky, G. Morphological, electrical & antibacterial properties of trilayered Cs/PAA/PPy bionanocomposites hydrogel based on Fe3O4-NPs. Carbohyd. Polym. 2018, 196, 483–493. [Google Scholar] [CrossRef]
  149. Yousuf, B.; Qadri, O.S.; Srivastava, A.K. Recent developments in shelf-life extension of fresh-cut fruits and vegetables by application of different edible coatings: A review. LWT Food Sci. Technol. 2018, 89, 198–209. [Google Scholar] [CrossRef]
  150. Zhang, C.; Li, W.H.; Zhu, B.F.; Chen, H.Y.; Chi, H.; Li, L.; Qin, Y.Y.; Xue, J. The Quality Evaluation of Postharvest Strawberries Stored in Nano-Ag Packages at Refrigeration Temperature. Polymers 2018, 10, 894. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  151. Singh, S.; Gaikwad, K.K.; Lee, Y.S. Antimicrobial and antioxidant properties of polyvinyl alcohol bio composite films containing seaweed extracted cellulose nano-crystal and basil leaves extract. Int. J. Biol. Macromol. 2018, 107, 1879–1887. [Google Scholar] [CrossRef]
  152. Youssef, A.M.; El-Sayed, S.M. Bionanocomposites materials for food packaging applications: Concepts and future outlook. Carbohyd. Polym. 2018, 193, 19–27. [Google Scholar] [CrossRef]
  153. Maleki, G.; Sedaghat, N.; Woltering, E.J.; Farhoodi, M.; Mohebbi, M. Chitosan-limonene coating in combination with modified atmosphere packaging preserve postharvest quality of cucumber during storage. J. Food Meas. Charact. 2018, 12, 1610–1621. [Google Scholar] [CrossRef]
  154. Kaewklin, P.; Siripatrawan, U.; Suwanagul, A.; Lee, Y.S. Active packaging from chitosan-titanium dioxide nanocomposite film for prolonging storage life of tomato fruit. Int. J. Biol. Macromol. 2018, 112, 523–529. [Google Scholar] [CrossRef]
  155. Yan, J.; Luo, Z.; Ban, Z.; Lu, H.; Li, D.; Yang, D.; Aghdam, M.S.; Li, L. The effect of the layer-by-layer (LBL) edible coating on strawberry qualityand metabolites during storage. Postharvest Biol. Technol. 2019, 147, 29–38. [Google Scholar] [CrossRef]
  156. Shahbazi, Y. Application of carboxymethyl cellulose and chitosan coatings containing Mentha spicata essential oil in fresh strawberries. Int. J. Biol. Macromol. 2018, 112, 264–272. [Google Scholar] [CrossRef] [PubMed]
  157. Li, L.L.; Wang, H.L.; Chen, M.M.; Jiang, S.W.; Jiang, S.T.; Li, X.J.; Wang, Q.Y. Butylated hydroxyanisole encapsulated in gelatin fiber mats: Volatile release kinetics, functional effectiveness and application to strawberry preservation. Food Chem. 2018, 269, 142–149. [Google Scholar] [CrossRef] [PubMed]
  158. Zhu, J.Y.; Tang, C.H.; Yin, S.W.; Yang, X.Q. Development and characterisation of polylactic acid-gliadin bilayer/trilayer films as carriers of thymol. Int. J. Food Sci. Technol. 2018, 53, 608–618. [Google Scholar] [CrossRef]
  159. Rezaei, F.; Shahbazi, Y. Shelf-life extension and quality attributes of sauced silver carp fillet: A comparison among direct addition, edible coating and biodegradable film. LWT Food Sci. Technol. 2018, 87, 122–133. [Google Scholar] [CrossRef]
  160. Hassanzadeh, P.; Moradi, M.; Vaezi, N.; Moosavy, M.H.; Mahmoudi, R. Effects of chitosan edible coating containing grape seed extract on the shelf-life of refrigerated rainbow trout fillet. Vet. Res. Forum. 2018, 9, 73–79. [Google Scholar]
  161. Ma, Y.C.; Li, L.; Wang, Y.F. Development of PLA-PHB-based biodegradable active packaging and its application to salmon. Packag. Technol. Sci. 2018, 31, 739–746. [Google Scholar] [CrossRef]
  162. Wang, Q.Y.; Lei, J.; Ma, J.J.; Yuan, G.F.; Sun, H.Y. Effect of chitosan-carvacrol coating on the quality of Pacific white shrimp during iced storage as affected by caprylic acid. Int. J. Biol. Macromol. 2018, 106, 123–129. [Google Scholar] [CrossRef]
  163. Ejaz, M.; Arfat, Y.A.; Mulla, M.; Ahmed, J. Zinc oxide nanorods/clove essential oil incorporated Type B gelatin composite films and its applicability for shrimp packaging. Food Packag. Shelf Life 2018, 15, 113–121. [Google Scholar] [CrossRef]
  164. Zegarra, M.D.C.P.; Santos, A.M.P.; Silva, A.M.A.D.; Melo, E.D. Chitosan films incorporated with antioxidant extract of acerola agroindustrial residue applied in chicken thigh. J. Food Process. Perservation 2018, 42. [Google Scholar] [CrossRef]
  165. Souza, V.G.L.; Pires, J.R.A.; Vieira, E.T.; Coelhoso, I.M.; Duarte, M.P.; Fernando, A.L. Shelf Life Assessment of Fresh Poultry Meat Packaged in Novel Bionanocomposite of Chitosan/Montmorillonite Incorporated with Ginger Essential Oil. Coatings 2018, 8, 177. [Google Scholar] [CrossRef] [Green Version]
  166. Pires, J.R.A.; de Souza, V.G.L.; Fernando, A.L. Chitosan/montmorillonite bionanocomposites incorporated with rosemary and ginger essential oil as packaging for fresh poultry meat. Food Packag. Shelf Life 2018, 17, 142–149. [Google Scholar] [CrossRef]
  167. Lin, L.; Zhu, Y.L.; Cui, H.Y. Electrospun thyme essential oil/gelatin nanofibers for active packaging against Campylobacter jejuni in chicken. LWT Food Sci. Technol. 2018, 97, 711–718. [Google Scholar] [CrossRef]
  168. Yang, W.E.; Xie, Y.H.; Jin, J.H.; Liu, H.; Zhang, H.X. Development and Application of an Active Plastic Multilayer Film by Coating a Plantaricin BM-1 for Chilled Meat Preservation. J. Food Sci. 2019, 84, 1864–1870. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  169. Rad, F.H.; Sharifan, A.; Asadi, G. Physicochemical and antimicrobial properties of kefiran /waterborne polyurethane film incorporated with essential oils on refrigerated ostrich meat. LWT Food Sci. Technol. 2018, 97, 794–801. [Google Scholar] [CrossRef]
  170. Pabast, M.; Shariatifar, N.; Beikzadeh, S.; Jahed, G. Effects of chitosan coatings incorporating with free or nano-encapsulated Satureja plant essential oil on quality characteristics of lamb meat. Food Control 2018, 91, 185–192. [Google Scholar] [CrossRef]
  171. Talebi, F.; Misaghi, A.; Khanjari, A.; Kamkar, A.; Gandomi, H.; Rezaeigolestani, M. Incorporation of spice essential oils into poly-lactic acid film matrix with the aim of extending microbiological and sensorial shelf life of ground beef. LWT Food Sci. Technol. 2018, 96, 482–490. [Google Scholar] [CrossRef]
  172. Zhao, Y.J.; Teixeira, J.S.; Ganzle, M.M.; Saldana, M.D.A. Development of antimicrobial films based on cassava starch, chitosan and gallic acid using subcritical water technology. J. Supercrit. Fluid 2018, 137, 101–110. [Google Scholar] [CrossRef]
  173. Ribeiro-Santos, R.; de Melo, N.R.; Andrade, M.; Azevedo, G.; Machado, A.V.; Carvalho-Costa, D.; Sanches-Silva, A. Whey protein active films incorporated with a blend of essential oils: Characterization and effectiveness. Packag. Technol. Sci. 2018, 31, 27–40. [Google Scholar] [CrossRef]
  174. Youssef, A.M.; El-Sayed, S.M.; El-Sayed, H.S.; Salama, H.H.; Assem, F.M.; Abd El-Salam, M.H. Novel bionanocomposite materials used for packaging skimmed milk acid coagulated cheese (Karish). Int. J. Biol. Macromol. 2018, 115, 1002–1011. [Google Scholar] [CrossRef]
  175. Lotfi, M.; Tajik, H.; Moradi, M.; Forough, M.; Divsalar, E.; Kuswandi, B. Nanostructured chitosan/monolaurin film: Preparation, characterization and antimicrobial activity against Listeria monocytogenes on ultrafiltered white cheese. LWT Food Sci. Technol. 2018, 92, 576–583. [Google Scholar] [CrossRef]
  176. Yang, S.Y.; Cao, L.; Kim, H.; Beak, S.E.; Bin Song, K. Utilization of Foxtail Millet Starch Film Incorporated with Clove Leaf Oil for the Packaging of Queso Blanco Cheese as a Model Food. Starch-Starke 2018, 70. [Google Scholar] [CrossRef]
  177. Guitian, M.V.; Ibarguren, C.; Soria, M.C.; Hovanyecz, P.; Banchio, C.; Audisio, M.C. Anti-Listeria monocytogenes effect of bacteriocin-incorporated agar edible coatings applied on cheese. Int. Dairy J. 2019, 97, 92–98. [Google Scholar] [CrossRef]
  178. Mushtaq, M.; Gani, A.; Gani, A.; Punoo, H.A.; Masoodi, F.A. Use of pomegranate peel extract incorporated zein film with improved properties for prolonged shelf life of fresh Himalayan cheese (Kalari/kradi). Innov. Food Sci. Emerg. 2018, 48, 25–32. [Google Scholar] [CrossRef]
  179. Orsuwan, A.; Sothornvit, R. Active Banana Flour Nanocomposite Films Incorporated with Garlic Essential Oil as Multifunctional Packaging Material for Food Application. Food Bioprocess. Technol. 2018, 11, 1199–1210. [Google Scholar] [CrossRef]
  180. Pavli, F.; Tassou, C.; Nychas, G.J.E.; Chorianopoulos, N. Probiotic Incorporation in Edible Films and Coatings: Bioactive Solution for Functional Foods. Int. J. Mol. Sci. 2018, 19, 150. [Google Scholar] [CrossRef] [Green Version]
  181. Yousefi, M.; Azizi, M.; Ehsani, A. Antimicrobial coatings and films on meats: A perspective on the application of antimicrobial edible films or coatings on meats from the past to future. Bali Med. J. 2018, 7, 87–96. [Google Scholar] [CrossRef]
  182. Wang, H.X.; Qan, J.; Ding, F.Y. Emerging Chitosan-Based Films for Food Packaging Applications. J. Agric. Food Chem. 2018, 66, 395–413. [Google Scholar] [CrossRef]
  183. Dutta, A.S.P.K. Extraction of Chitin-Glucan Complex from Agaricus bisporus: Characterization and Antibacterial Activity. J. Polym. Mater. 2017, 34, 1–9. [Google Scholar]
  184. Priyadarshi, R.; Sauraj; Kumar, B.; Negi, Y.S. Chitosan film incorporated with citric acid and glycerol as an active packaging material for extension of green chilli shelf life. Carbohyd. Polym. 2018, 195, 329–338. [Google Scholar] [CrossRef]
  185. Sogut, E.; Seydim, A.C. Development of Chitosan and Polycaprolactone based active bilayer films enhanced with nanocellulose and grape seed extract. Carbohyd. Polym. 2018, 195, 180–188. [Google Scholar] [CrossRef]
  186. Xu, Y.X.; Willis, S.; Jordan, K.; Sismour, E. Chitosan nanocomposite films incorporating cellulose nanocrystals and grape pomace extracts. Packag. Technol. Sci. 2018, 31, 631–638. [Google Scholar] [CrossRef]
  187. Uranga, J.; Puertas, A.I.; Etxabide, A.; Duenas, M.T.; Guerrero, P.; de la Caba, K. Citric acid-incorporated fish gelatin/chitosan composite films. Food Hydrocoll. 2019, 86, 95–103. [Google Scholar] [CrossRef]
  188. Uranga, J.; Etxabide, A.; Guerrero, P.; de la Caba, K. Development of active fish gelatin films with anthocyanins by compression molding. Food Hydrocoll. 2018, 84, 313–320. [Google Scholar] [CrossRef]
  189. Ramziia, S.; Ma, H.; Yao, Y.Z.; Wei, K.R.; Huang, Y.Q. Enhanced antioxidant activity of fish gelatin-chitosan edible films incorporated with procyanidin. J. Appl. Polym. Sci. 2018, 135. [Google Scholar] [CrossRef]
  190. Perez-Cordoba, L.J.; Norton, I.T.; Batchelor, H.K.; Gkatzionis, K.; Spyropoulos, F.; Sobral, P.J.A. Physico-chemical, antimicrobial and antioxidant properties of gelatin-chitosan based films loaded with nanoemulsions encapsulating active compounds. Food Hydrocoll. 2018, 79, 544–559. [Google Scholar] [CrossRef]
  191. Soni, B.; Mahmoud, B.; Chang, S.; El-Giar, E.M.; Hassan, E.B. Physicochemical, antimicrobial and antioxidant properties of chitosan/TEMPO biocomposite packaging films. Food Packag. Shelf Life 2018, 17, 73–79. [Google Scholar] [CrossRef]
  192. Robledo, N.; Lopez, L.; Bunger, A.; Tapia, C.; Abugoch, L. Effects of Antimicrobial Edible Coating of Thymol Nanoemulsion/Quinoa Protein/Chitosan on the Safety, Sensorial Properties, and Quality of Refrigerated Strawberries (Fragaria × ananassa) Under Commercial Storage Environment. Food Bioprocess. Technol. 2018, 11, 1566–1574. [Google Scholar] [CrossRef]
  193. Yun, Y.H.; Lee, C.M.; Kim, Y.S.; Yoon, S.D. Preparation of chitosan/polyvinyl alcohol blended films containing sulfosuccinic acid as the crosslinking agent using UV curing process. Food Res. Int. 2017, 100, 377–386. [Google Scholar] [CrossRef]
  194. Yang, W.; Fortunati, E.; Bertoglio, F.; Owczarek, J.S.; Bruni, G.; Kozanecki, M.; Kenny, J.M.; Torre, L.; Visai, L.; Puglia, D. Polyvinyl alcohol/chitosan hydrogels with enhanced antioxidant and antibacterial properties induced by lignin nanoparticles. Carbohyd. Polym. 2018, 181, 275–284. [Google Scholar] [CrossRef]
  195. Warsiki, E. Application of chitosan as biomaterial for active packaging of ethylene absorber. In Proceedings of the 2nd International Conference on Biomass: Toward Sustainable Biomass Utilization for Industrial and Energy Applications, Bogor, Indonesia, 24–25 July 2017; Volume 141. [Google Scholar] [CrossRef]
  196. Souza, V.G.L.; Rodrigues, C.; Valente, S.; Pimenta, C.; Pires, J.R.A.; Alves, M.M.; Santos, C.F.; Coelhoso, I.M.; Fernando, A.L. Eco-Friendly ZnO/Chitosan Bionanocomposites Films for Packaging of Fresh Poultry Meat. Coatings 2020, 10, 110. [Google Scholar] [CrossRef] [Green Version]
  197. Suo, B.; Li, H.R.; Wang, Y.X.; Li, Z.; Pan, Z.L.; Ai, Z.L. Effects of ZnO nanoparticle-coated packaging film on pork meat quality during cold storage. J. Sci. Food Agric. 2017, 97, 2023–2029. [Google Scholar] [CrossRef] [PubMed]
  198. Kumar, S.; Mudai, A.; Roy, B.; Basumatary, I.B.; Mukherjee, A.; Dutta, J. Biodegradable Hybrid Nanocomposite of Chitosan/Gelatin and Green Synthesized Zinc Oxide Nanoparticles for Food Packaging. Foods 2020, 9, 1143. [Google Scholar] [CrossRef] [PubMed]
  199. Zheng, K.W.; Li, W.; Fu, B.Q.; Fu, M.F.; Ren, Q.L.; Yang, F.; Qin, C.Q. Physical, antibacterial and antioxidant properties of chitosan films containing hardleaf oatchestnut starch and Litsea cubeba oil. Int. J. Biol. Macromol. 2018, 118, 707–715. [Google Scholar] [CrossRef] [PubMed]
  200. Sharma, H.; Mendiratta, S.K.; Agrawal, R.K.; Talukder, S.; Kumar, S. Studies on the potential application of various blends of essential oils as antioxidant and antimicrobial preservatives in emulsion based chicken sausages. Br. Food J. 2018, 120, 1398–1411. [Google Scholar] [CrossRef]
  201. Shahbazi, Y.; Karami, N.; Shavisi, N. Effect of Mentha spicata essential oil on chemical, microbial, and sensory properties of minced camel meat during refrigerated storage. J. Food Saf. 2018, 38. [Google Scholar] [CrossRef]
  202. Azadbakht, E.; Maghsoudlou, Y.; Khomiri, M.; Kashiri, M. Development and structural characterization of chitosan films containing Eucalyptus globulus essential oil: Potential as an antimicrobial carrier for packaging of sliced sausage. Food Packag. Shelf Life 2018, 17, 65–72. [Google Scholar] [CrossRef]
  203. Niu, B.; Yan, Z.P.; Shao, P.; Kang, J.; Chen, H.J. Encapsulation of Cinnamon Essential Oil for Active Food Packaging Film with Synergistic Antimicrobial Activity. Nanomaterials 2018, 8, 598. [Google Scholar] [CrossRef] [Green Version]
  204. Dolea, D.; Rizo, A.; Fuentes, A.; Barat, J.M.; Fernandez-Segovia, I. Effect of thyme and oregano essential oils on the shelf life of salmon and seaweed burgers. Food Sci. Technol. Int. 2018, 24, 394–403. [Google Scholar] [CrossRef]
  205. Ju, J.; Xu, X.M.; Xie, Y.F.; Guo, Y.H.; Cheng, Y.L.; Qian, H.; Yao, W.R. Inhibitory effects of cinnamon and clove essential oils on mold growth on baked foods. Food Chem. 2018, 240, 850–855. [Google Scholar] [CrossRef]
  206. Priyadarshi, R.; Sauraj; Kumar, B.; Deeba, F.; Kulshreshtha, A.; Negi, Y.S. Chitosan films incorporated with Apricot (Prunus armeniaca) kernel essential oil as active food packaging material. Food Hydrocoll. 2018, 85, 158–166. [Google Scholar] [CrossRef]
  207. Zhang, Z.J.; Li, N.; Li, H.Z.; Li, X.J.; Cao, J.M.; Zhang, G.P.; He, D.L. Preparation and characterization of biocomposite chitosan film containing Perilla frutescens (L.) Britt. essential oil. Ind. Crops Prod. 2018, 112, 660–667. [Google Scholar] [CrossRef]
  208. Ojagh, S.M.; Rezaei, M.; Razavi, S.H.; Hosseini, S.M.H. Effect of chitosan coatings enriched with cinnamon oil on the quality of refrigerated rainbow trout. Food Chem. 2010, 120, 193–198. [Google Scholar] [CrossRef]
  209. Xing, Y.G.; Lin, H.B.; Cao, D.; Xu, Q.L.; Han, W.F.; Wang, R.R.; Che, Z.M.; Li, X.H. Effect of Chitosan Coating with Cinnamon Oil on the Quality and Physiological Attributes of China Jujube Fruits. Biomed. Res. Int. 2015, 835151. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  210. Srikandace, Y.; Indrarti, L.; Indriyati; Sancoyorini, M.K. Antibacterial activity of bacterial cellulose-based edible film incorporated with Citrus spp essential oil. IOP Conf. Ser. Earth Environ. 2018, 160. [Google Scholar] [CrossRef]
  211. Ortiz, C.M.; Salgado, P.R.; Dufresne, A.; Mauri, A.N. Microfibrillated cellulose addition improved the physicochemical and bioactive properties of biodegradable films based on soy protein and clove essential oil. Food Hydrocoll. 2018, 79, 416–427. [Google Scholar] [CrossRef]
  212. Yu, Z.L.; Sun, L.; Wang, W.; Zeng, W.C.; Mustapha, A.; Lin, M.S. Soy protein-based films incorporated with cellulose nanocrystals and pine needle extract for active packaging. Ind. Crops Prod. 2018, 112, 412–419. [Google Scholar] [CrossRef]
  213. Fardioui, M.; Kadmiri, I.M.; Qaiss, A.E.; Bouhfid, R. Bio-active nanocomposite films based on nanocrystalline cellulose reinforced styrylquinoxalin-grafted-chitosan: Antibacterial and mechanical properties. Int. J. Biol. Macromol. 2018, 114, 733–740. [Google Scholar] [CrossRef]
  214. Freire, C.S.R.; Fernandes, S.C.M.; Silvestre, A.J.D.; Neto, C.P. Novel cellulose-based composites based on nanofibrillated plant and bacterial cellulose: Recent advances at the University of Aveiro—A review. Holzforschung 2013, 67, 603–612. [Google Scholar] [CrossRef]
  215. Shabanpour, B.; Kazemi, M.; Ojagh, S.M.; Pourashouri, P. Bacterial cellulose nanofibers as reinforce in edible fish myofibrillar protein nanocomposite films. Int. J. Biol. Macromol. 2018, 117, 742–751. [Google Scholar] [CrossRef]
  216. Gilbert, J.; Cheng, C.J.; Jones, O.G. Vapor Barrier Properties and Mechanical Behaviors of Composite Hydroxypropyl Methylcelluose/Zein Nanoparticle Films. Food Biophys. 2018, 13, 25–36. [Google Scholar] [CrossRef]
  217. Shen, Z.; Kamdem, D.P. Antimicrobial activity of sugar beet lignocellulose films containing tung oil and cedarwood essential oil. Cellulose 2015, 22, 2703–2715. [Google Scholar] [CrossRef]
  218. Coma, V.; Sebti, I.; Pardon, P.; Deschamps, A.; Pichavant, F.H. Antimicrobial edible packaging based on cellulosic ethers, fatty acids, and nisin incorporation to inhibit Listeria innocua and Staphylococcus aureus. J. Food Protect. 2001, 64, 470–475. [Google Scholar] [CrossRef] [PubMed]
  219. Zhang, X.M.; Shu, Y.; Su, S.P.; Zhu, J. One-step coagulation to construct durable anti-fouling and antibacterial cellulose film exploiting Ag@AgCl nanoparticle- triggered photo-catalytic degradation. Carbohyd. Polym. 2018, 181, 499–505. [Google Scholar] [CrossRef] [PubMed]
  220. Zahedi, Y.; Fathi-Achachlouei, B.; Yousefi, A.R. Physical and mechanical properties of hybrid montmorillonite/zinc oxide reinforced carboxymethyl cellulose nanocomposites. Int. J. Biol. Macromol. 2018, 108, 863–873. [Google Scholar] [CrossRef] [PubMed]
  221. Tyagi, P.; Hubbe, M.A.; Lucia, L.; Pal, L. High performance nanocellulose-based composite coatings for oil and grease resistance. Cellulose 2018, 25, 3377–3391. [Google Scholar] [CrossRef]
  222. Shahbazi, Y. Characterization of nanocomposite films based on chitosan and carboxymethylcellulose containing Ziziphora clinopodioides essential oil and methanolic Ficus carica extract. J. Food Process. Perservation 2018, 42. [Google Scholar] [CrossRef]
  223. Wu, Z.G.; Huang, X.J.; Li, Y.C.; Xiao, H.Z.; Wang, X.Y. Novel chitosan films with laponite immobilized Ag nanoparticles for active food packaging. Carbohyd. Polym. 2018, 199, 210–218. [Google Scholar] [CrossRef]
  224. Hu, D.Y.; Wang, H.X.; Wang, L.J. Physical properties and antibacterial activity of quaternized chitosan/carboxymethyl cellulose blend films. LWT Food Sci. Technol. 2016, 65, 398–405. [Google Scholar] [CrossRef]
  225. Salari, M.; Khiabani, M.S.; Mokarram, R.R.; Ghanbarzadeh, B.; Kafil, H.S. Development and evaluation of chitosan based active nanocomposite films containing bacterial cellulose nanocrystals and silver nanoparticles. Food Hydrocoll. 2018, 84, 414–423. [Google Scholar] [CrossRef]
  226. Nunes, M.R.; Castilho, M.D.M.; Veeck, A.P.D.; da Rosa, C.G.; Noronha, C.M.; Maciel, M.V.O.B.; Barreto, P.M. Antioxidant and antimicrobial methylcellulose films containing Lippia alba extract and silver nanoparticles. Carbohyd. Polym. 2018, 192, 37–43. [Google Scholar] [CrossRef]
  227. Shankar, S.; Oun, A.A.; Rhim, J.W. Preparation of antimicrobial hybrid nano-materials using regenerated cellulose and metallic nanoparticles. Int. J. Biol. Macromol. 2018, 107, 17–27. [Google Scholar] [CrossRef] [PubMed]
  228. Caetano, K.D.; Lopes, N.A.; Costa, T.M.H.; Brandelli, A.; Rodrigues, E.; Flores, S.H.; Cladera-Olivera, F. Characterization of active biodegradable films based on cassava starch and natural compounds. Food Packag. Shelf Life 2018, 16, 138–147. [Google Scholar] [CrossRef]
  229. Dinika, I.; Utama, G.L. Cheese whey as potential resource for antimicrobial edible film and active packaging production. Food Raw Mater. 2019, 7, 229–239. [Google Scholar] [CrossRef]
  230. Trongchuen, K.; Ounkaew, A.; Kasemsiri, P.; Hiziroglu, S.; Mongkolthanaruk, W.; Wannasutta, R.; Pongsa, U.; Chindaprasirt, P. Bioactive Starch Foam Composite Enriched With Natural Antioxidants from Spent Coffee Ground and Essential Oil. Starch-Starke 2018, 70. [Google Scholar] [CrossRef]
  231. Ounkaew, A.; Kasemsiri, P.; Kamwilaisak, K.; Saengprachatanarug, K.; Mongkolthanaruk, W.; Souvanh, M.; Pongsa, U.; Chindaprasirt, P. Polyvinyl Alcohol (PVA)/Starch Bioactive Packaging Film Enriched with Antioxidants from Spent Coffee Ground and Citric Acid. J. Polym. Environ. 2018, 26, 3762–3772. [Google Scholar] [CrossRef]
  232. Iamareerat, B.; Singh, M.; Sadiq, M.B.; Anal, A.K. Reinforced cassava starch based edible film incorporated with essential oil and sodium bentonite nanoclay as food packaging material. J. Food Sci. Technol. 2018, 55, 1953–1959. [Google Scholar] [CrossRef]
  233. Jash, A.; Paliyath, G.; Lim, L.T. Activated release of bioactive aldehydes from their precursors embedded in electrospun poly(lactic acid) nonwovens. RSC Adv. 2018, 8, 19930–19938. [Google Scholar] [CrossRef] [Green Version]
  234. Beak, S.; Kim, H.; Song, K.B. Sea Squirt Shell Protein and Polylactic Acid Laminated Films Containing Cinnamon Bark Essential Oil. J. Food Sci. 2018, 83, 1896–1903. [Google Scholar] [CrossRef]
  235. Yin, X.; Sun, C.; Tian, M.Y.; Wang, Y. Preparation and Characterization of Salicylic Acid/Polylactic Acid Composite Packaging Materials. Lect. Notes Electr. Eng. 2018, 477, 811–818. [Google Scholar] [CrossRef]
  236. Ye, J.S.; Wang, S.Y.; Lan, W.J.; Qin, W.; Liu, Y.W. Preparation and properties of polylactic acid-tea polyphenol-chitosan composite membranes. Int. J. Biol. Macromol. 2018, 117, 632–639. [Google Scholar] [CrossRef]
  237. Ahmed, J.; Arfat, Y.A.; Bher, A.; Mulla, M.; Jacob, H.; Auras, R. Active Chicken Meat Packaging Based on Polylactide Films and Bimetallic Ag-Cu Nanoparticles and Essential Oil. J. Food Sci. 2018, 83, 1299–1310. [Google Scholar] [CrossRef] [PubMed]
  238. Li, W.H.; Zhang, C.; Chi, H.; Li, L.; Lan, T.Q.; Han, P.; Chen, H.Y.; Qin, Y.Y. Development of Antimicrobial Packaging Film Made from Poly(Lactic Acid) Incorporating Titanium Dioxide and Silver Nanoparticles. Molecules 2017, 22, 1170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  239. Valerini, D.; Tammaro, L.; Di Benedetto, F.; Vigliotta, G.; Capodieci, L.; Terzi, R.; Rizzo, A. Aluminum-doped zinc oxide coatings on polylactic acid films for antimicrobial food packaging. Thin Solid Films 2018, 645, 187–192. [Google Scholar] [CrossRef]
  240. Li, W.H.; Li, L.; Cao, Y.; Lan, T.Q.; Chen, H.Y.; Qin, Y.Y. Effects of PLA Film Incorporated with ZnO Nanoparticle on the Quality Attributes of Fresh-Cut Apple. Nanomaterials 2017, 7, 207. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  241. Li, M.X.; Zhang, F.; Liu, Z.D.; Guo, X.F.; Wu, Q.; Qiao, L.R. Controlled Release System by Active Gelatin Film Incorporated with beta-Cyclodextrin-Thymol Inclusion Complexes. Food Bioprocess. Technol. 2018, 11, 1695–1702. [Google Scholar] [CrossRef]
  242. Raquel, B.; Cristina, N.; Filomena, S. Encapsulation Systems for Antimicrobial Food Packaging Components: An Update. Molecules 2020, 25, 1134. [Google Scholar]
  243. Dou, L.X.; Li, B.F.; Zhang, K.; Chu, X.; Hou, H. Physical properties and antioxidant activity of gelatin-sodium alginate edible films with tea polyphenols. Int. J. Biol. Macromol. 2018, 118, 1377–1383. [Google Scholar] [CrossRef]
  244. Bonilla, J.; Poloni, T.; Lourenco, R.V.; Sobral, P.J.A. Antioxidant potential of eugenol and ginger essential oils with gelatin/chitosan films. Food Biosci. 2018, 23, 107–114. [Google Scholar] [CrossRef]
  245. Moreno, O.; Atares, L.; Chiralt, A.; Cruz-Romero, M.C.; Kerry, J. Starch-gelatin antimicrobial packaging materials to extend the shelf life of chicken breast fillets. LWT Food Sci. Technol. 2018, 97, 483–490. [Google Scholar] [CrossRef]
  246. Liu, Y.Y.; Li, Y.; Deng, L.L.; Zou, L.; Feng, F.Q.; Zhang, H. Hydrophobic Ethylcellulose/Gelatin Nanofibers Containing Zinc Oxide Nanoparticles for Antimicrobial Packaging. J. Agric. Food Chem. 2018, 66, 9498–9506. [Google Scholar] [CrossRef]
  247. He, Q.Y.; Zhang, Y.C.; Cai, X.X.; Wang, S.Y. Fabrication of gelatin-TiO2 nanocomposite film and its structural, antibacterial and physical properties. Int. J. Biol. Macromol. 2016, 84, 153–160. [Google Scholar] [CrossRef] [PubMed]
  248. Kumar, S.; Shukla, A.; Baul, P.P.; Mitra, A.; Halder, D. Biodegradable hybrid nanocomposites of chitosan/gelatin and silver nanoparticles for active food packaging applications. Food Packag. Shelf Life 2018, 16, 178–184. [Google Scholar] [CrossRef]
  249. Venkatesan, R.; Rajeswari, N.; Tamilselvi, A. Antimicrobial, mechanical, barrier, and thermal properties of bio-based poly (butylene adipate-co-terephthalate) (PBAT)/Ag2O nanocomposite films for packaging application. Polym. Adv. Technol 2018, 29, 61–68. [Google Scholar] [CrossRef]
  250. Zehetmeyer, G.; Meira, S.M.M.; Scheibel, J.M.; da Silva, C.D.; Rodembusch, F.S.; Brandelli, A.; Soares, R.M.D. Biodegradable and antimicrobial films based on poly(butylene adipate-co-terephthalate) electrospun fibers. Polym. Bull. 2017, 74, 3243–3268. [Google Scholar] [CrossRef]
  251. Khare, S.; DeLoid, G.M.; Molina, R.M.; Gokulan, K.; Couvillion, S.P.; Bloodsworth, K.J.; Eder, E.K.; Wong, A.R.; Hoyt, D.W.; Bramer, L.M.; et al. Effects of ingested nanocellulose on intestinal microbiota and homeostasis in Wistar Han rats. Nanoimpact 2020, 18. [Google Scholar] [CrossRef] [PubMed]
  252. DeLoid, G.M.; Cao, X.Q.; Molina, R.M.; Silva, D.I.; Bhattacharya, K.; Ng, K.W.; Loo, S.C.J.; Brain, J.D.; Demokritou, P. Toxicological effects of ingested nanocellulose in in vitro intestinal epithelium and in vivo rat models. Environ. Sci. Nano 2019, 6, 2105–2115. [Google Scholar] [CrossRef]
  253. Chen, Y.J.; Lin, Y.J.; Nagy, T.; Kong, F.B.; Guo, T.L. Subchronic exposure to cellulose nanofibrils induces nutritional risk by non-specifically reducing the intestinal absorption. Carbohyd. Polym. 2020, 229. [Google Scholar] [CrossRef]
  254. Dimitrijevic, M.; Karabasil, N.; Boskovic, M.; Teodorovic, V.; Vasilev, D.; Djordjevic, V.; Kilibarda, N.; Cobanovic, N. Safety aspects of nanotechnology applications in food packaging. In Proceedings of the 58th International Meat Industry Conference (Meatcon2015), Mt. Zlatibor, Serbia, 4–7 October 2015; Volume 5, pp. 57–60. [Google Scholar] [CrossRef] [Green Version]
  255. dos Santos, C.A.; Ingle, A.P.; Rai, M. The emerging role of metallic nanoparticles in food. Appl. Microbiol. Biotechnol. 2020, 104, 2373–2383. [Google Scholar] [CrossRef]
  256. Doskocz, N.; Zaleska-Radziwill, M.; Affek, K.; Lebkowska, M. Ecotoxicity of selected nanoparticles in relation to micro-organisms in the water ecosystem. Desalin Water Treat. 2020, 186, 50–55. [Google Scholar] [CrossRef]
  257. Noori, A.; Ngo, A.; Gutierrez, P.; Theberge, S.; White, J.C. Silver nanoparticle detection and accumulation in tomato (Lycopersicon esculentum). J. Nanopart Res. 2020, 22. [Google Scholar] [CrossRef]
  258. Dash, S.R.; Kundu, C.N. Promising opportunities and potential risk of nanoparticle on the society. IET Nanobiotechnol. 2020, 14, 253–260. [Google Scholar] [CrossRef]
  259. Garcia, C.V.; Shin, G.H.; Kim, J.T. Metal oxide-based nanocomposites in food packaging: Applications, migration, and regulations. Trends Food Sci. Technol. 2018, 82, 21–31. [Google Scholar] [CrossRef]
  260. Souza, V.G.L.; Fernando, A.L. Nanoparticles in food packaging: Biodegradability and potential migration to food-A review. Food Packag. Shelf Life 2016, 8, 63–70. [Google Scholar] [CrossRef]
  261. Istiqola, A.; Syafiuddin, A. A review of silver nanoparticles in food packaging technologies: Regulation, methods, properties, migration, and future challenges. J. Chin. Chem. Soc. 2020. [Google Scholar] [CrossRef]
  262. Sahoo, R.K. Packaging: Polymer-Metal-Based Micro- and Nanocomposites. Encycl. Polym. Appl. 2019, I–III, 2021–2040. [Google Scholar] [CrossRef]
  263. Morais, L.D.; Macedo, E.V.; Granjeiro, J.M.; Delgado, I.F. Critical evaluation of migration studies of silver nanoparticles present in food packaging: A systematic review. Crit. Rev. Food Sci. 2019. [Google Scholar] [CrossRef] [PubMed]
  264. Ramachandran, R.; Krishnaraj, C.; Kumar, V.K.A.; Harper, S.L.; Kalaichelvan, T.P.; Yun, S.I. In vivo toxicity evaluation of biologically synthesized silver nanoparticles and gold nanoparticles on adult zebrafish: A comparative study. 3 Biotech 2018, 8, 441. [Google Scholar] [CrossRef]
  265. Zhou, Q.F.; Liu, L.H.; Liu, N.A.; He, B.; Hu, L.G.; Wang, L.N. Determination and characterization of metal nanoparticles in clams and oysters. Ecotoxicol. Environ. Saf. 2020, 198. [Google Scholar] [CrossRef]
  266. Gong, Y.; Chai, M.W.; Ding, H.; Shi, C.; Wang, Y.; Li, R.L. Bioaccumulation and human health risk of shellfish contamination to heavy metals and As in most rapid urbanized Shenzhen, China. Environ. Sci. Pollut. Res. 2020, 27, 2096–2106. [Google Scholar] [CrossRef]
  267. Shah, N.; Khan, A.; Ali, R.; Marimuthu, K.; Uddin, M.N.; Rizwan, M.; Rahman, K.U.; Alam, M.; Adnan, M.; Jawad, S.M.; et al. Monitoring Bioaccumulation (in Gills and Muscle Tissues), Hematology, and Genotoxic Alteration in Ctenopharyngodon idella Exposed to Selected Heavy Metals. Biomed. Res. Int. 2020, 2020. [Google Scholar] [CrossRef] [Green Version]
  268. Wu, J.; Wang, G.Y.; Vijver, M.G.; Bosker, T.; Peijnenburg, W.J.G.M. Foliar versus root exposure of AgNPs to lettuce: Phytotoxicity, antioxidant responses and internal translocation. Environ. Pollut. 2020, 261. [Google Scholar] [CrossRef] [PubMed]
  269. Becaro, A.A.; Siqueira, M.C.; Puti, F.C.; de Moura, M.R.; Correa, D.S.; Marconcini, J.M.; Mattoso, L.H.C.; Ferreira, M.D. Cytotoxic and genotoxic effects of silver nanoparticle/carboxymethyl cellulose on Allium cepa. Environ. Monit. Assess. 2017, 189. [Google Scholar] [CrossRef] [PubMed]
  270. Ma, C.X.; Liu, H.; Chen, G.C.; Zhao, Q.; Guo, H.Y.; Minocha, R.; Long, S.; Tang, Y.Z.; Saad, E.M.; DeLaTorreRoche, R.; et al. Dual roles of glutathione in silver nanoparticle detoxification and enhancement of nitrogen assimilation in soybean (Glycine max (L.) Merrill). Environ. Sci. Nano 2020, 7, 1954–1966. [Google Scholar] [CrossRef]
  271. Yang, Z.Z.; Xiao, Y.F.; Jiao, T.T.; Zhang, Y.; Chen, J.; Gao, Y. Effects of Copper Oxide Nanoparticles on the Growth of Rice (Oryza sativa L.) Seedlings and the Relevant Physiological Responses. Int. J. Environ. Res. Public Health 2020, 17, 1260. [Google Scholar] [CrossRef] [Green Version]
  272. Yusefi-Tanha, E.; Fallah, S.; Rostamnejadi, A.; Pokhrel, L.R. Particle size and concentration dependent toxicity of copper oxide nanoparticles (CuONPs) on seed yield and antioxidant defense system in soil grown soybean (Glycine max cv. Kowsar). Sci. Total Environ. 2020, 715. [Google Scholar] [CrossRef]
  273. Rajput, V.; Minkina, T.; Sushkova, S.; Behal, A.; Maksimov, A.; Blicharska, E.; Ghazaryan, K.; Movsesyan, H.; Barsova, N. ZnO and CuO nanoparticles: A threat to soil organisms, plants, and human health. Environ. Geochem. Health 2020, 42, 147–158. [Google Scholar] [CrossRef]
  274. Rajput, V.; Minkina, T.; Fedorenko, A.; Sushkova, S.; Mandzhieva, S.; Lysenko, V.; Duplii, N.; Fedorenko, G.; Dvadnenko, K.; Ghazaryan, K. Toxicity of copper oxide nanoparticles on spring barley (Hordeum sativum distichum). Sci Total Environ. 2018, 645, 1103–1113. [Google Scholar] [CrossRef]
  275. Baskar, V.; Safia, N.; Preethy, K.S.; Dhivya, S.; Thiruvengadam, M.; Sathishkumar, R. A comparative study of phytotoxic effects of metal oxide (CuO, ZnO and NiO) nanoparticles on in-vitro grown Abelmoschus esculentus. Plant. Biosyst. 2020. [Google Scholar] [CrossRef]
  276. Jeon, Y.R.; Yu, J.; Choi, S.J. Fate Determination of ZnO in Commercial Foods and Human Intestinal Cells. Int. J. Mol. Sci. 2020, 21, 433. [Google Scholar] [CrossRef] [Green Version]
  277. Pereira, F.F.; Paris, E.C.; Bresolin, J.D.; Mitsuyuki, M.C.; Ferreira, M.D.; Correa, D.S. The Effect of ZnO Nanoparticles Morphology on the Toxicity Towards Microalgae Pseudokirchneriella subcapitata. J. Nanosci. Nanotechnol. 2020, 20, 48–63. [Google Scholar] [CrossRef]
  278. Vasile, O.R.; Serdaru, I.; Andronescu, E.; Trusca, R.; Surdu, V.A.; Oprea, O.; Ilie, A.; Vasile, B.S. Influence of the size and the morphology of ZnO nanoparticles on cell viability. CR Chim. 2015, 18, 1335–1343. [Google Scholar] [CrossRef]
  279. Voss, L.; Saloga, P.E.J.; Stock, V.; Bohmert, L.; Braeuning, A.; Thunemann, A.F.; Lampen, A.; Sieg, H. Environmental Impact of ZnO Nanoparticles Evaluated by in Vitro Simulated Digestion. ACS Appl. Nano Mater. 2020, 3, 724–733. [Google Scholar] [CrossRef]
  280. Meng, J.; Zhou, X.L.; Yang, J.; Qu, X.J.; Cui, S.X. Exposure to low dose ZnO nanoparticles induces hyperproliferation and malignant transformation through activating the CXCR2/NF-kappa B/STAT3/ERK and AKT pathways in colonic mucosal cells. Environ. Pollut. 2020, 263. [Google Scholar] [CrossRef] [PubMed]
  281. Musial, J.; Krakowiak, R.; Mlynarczyk, D.T.; Goslinski, T.; Stanisz, B.J. Titanium Dioxide Nanoparticles in Food and Personal Care Products-What Do We Know about Their Safety? Nanomaterials 2020, 10, 1110. [Google Scholar] [CrossRef] [PubMed]
  282. Kurtz, C.C.; Mitchell, S.; Nielsen, K.; Crawford, K.D.; Mueller-Spitz, S.R. Acute high-dose titanium dioxide nanoparticle exposure alters gastrointestinal homeostasis in mice. J. Appl. Toxicol. 2020, 40, 1384–1395. [Google Scholar] [CrossRef] [PubMed]
  283. Hashem, M.M.; Abo-El-Sooud, K.; Abd-Elhakim, Y.M.; Badr, Y.A.H.; El-Metwally, A.E.; Bahy-El-Diena, A. The long-term oral exposure to titanium dioxide impaired immune functions and triggered cytotoxic and genotoxic impacts in rats. J. Trace Elem. Med. Biol. 2020, 60. [Google Scholar] [CrossRef] [PubMed]
  284. Cao, X.Q.; Han, Y.H.; Gu, M.; Du, H.J.; Song, M.Y.; Zhu, X.A.; Ma, G.X.; Pan, C.; Wang, W.C.; Zhao, E.M.; et al. Foodborne Titanium Dioxide Nanoparticles Induce Stronger Adverse Effects in Obese Mice than Non-Obese Mice: Gut Microbiota Dysbiosis, Colonic Inflammation, and Proteome Alterations. Small 2020. [Google Scholar] [CrossRef]
  285. Bettencourt, A.; Goncalves, L.M.; Gramacho, A.C.; Vieira, A.; Rolo, D.; Martins, C.; Assuncao, R.; Alvito, P.; Silva, M.J.; Louro, H. Analysis of the Characteristics and Cytotoxicity of Titanium Dioxide Nanomaterials Following Simulated In Vitro Digestion. Nanomaterials 2020, 10, 1516. [Google Scholar] [CrossRef]
  286. Najnin, H.; Alam, N.; Mujeeb, M.; Ahsan, H.; Siddiqui, W.A. Biochemical and toxicological analysis of Cinnamomum tamala essential oil in Wistar rats. J. Food Process. Perservation 2020, 44. [Google Scholar] [CrossRef]
  287. Costa, W.K.; de Oliveira, J.R.S.; de Oliveira, A.M.; Santos, I.B.D.; da Cunha, R.X.; de Freitas, A.F.S.; da Silva, J.W.L.M.; Silva, V.B.G.; de Aguiar, J.C.R.D.F.; da Silva, A.G.; et al. Essential oil from Eugenia stipitata McVaugh leaves has antinociceptive, anti-inflammatory and antipyretic activities without showing toxicity in mice. Ind. Crops Prod. 2020, 144. [Google Scholar] [CrossRef]
  288. Bonin, E.; Carvalho, V.M.; Avila, V.D.; dos Santos, N.C.A.; Benassi-Zanqueta, E.; Lancheros, C.A.C.; Previdelli, I.T.S.; Ueda-Nakamura, T.; de Abreu, B.A.; do Prado, I.N. Baccharis dracunculifolia: Chemical constituents, cytotoxicity and antimicrobial activity. LWT Food Sci. Technol. 2020, 120. [Google Scholar] [CrossRef]
  289. Abou Baker, D.H.; Al-Moghazy, M.; ElSayed, A.A.A. The in vitro cytotoxicity, antioxidant and antibacterial potential of Satureja hortensis L. essential oil cultivated in Egypt. Bioorg. Chem. 2020, 95. [Google Scholar] [CrossRef] [PubMed]

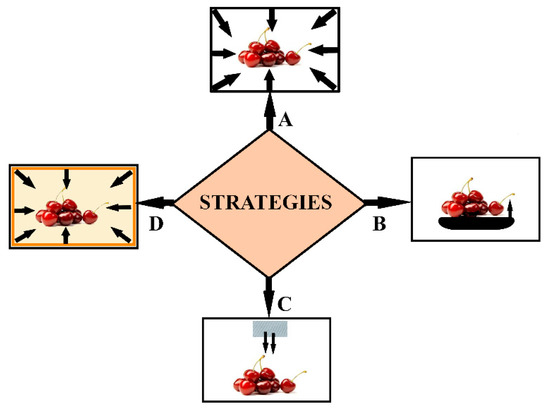

Figure 1. Main strategies employed to obtain antimicrobial packaging. The antimicrobial agents can be: incorporated into the polymeric film (A); in direct contact from pads (B); released from sachets (C); or coated onto polymeric film (D).
Figure 1. Main strategies employed to obtain antimicrobial packaging. The antimicrobial agents can be: incorporated into the polymeric film (A); in direct contact from pads (B); released from sachets (C); or coated onto polymeric film (D).
Foods 09 01438 g001

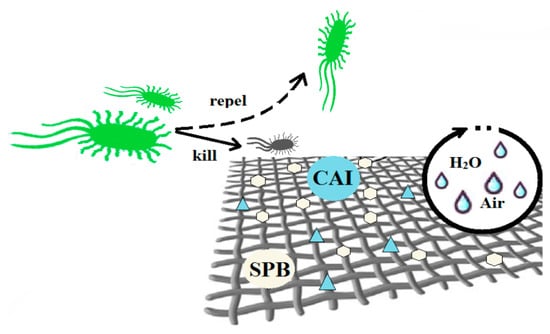

Figure 2. Antimicrobial textile loaded with nanoparticles or other bactericidal and antimycotic agents (isocyanate moiety—CAI and sulfopropyl betaine—SPB).
Figure 2. Antimicrobial textile loaded with nanoparticles or other bactericidal and antimycotic agents (isocyanate moiety—CAI and sulfopropyl betaine—SPB).
Foods 09 01438 g002

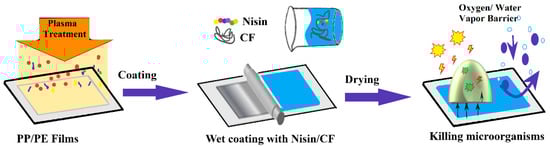

Figure 3. Coating of polypropylene/polyethylene (PP/PE) films with other polymers (cellulose fibers—CF) and loading with antibacterial agents (nisin)—adapted after information presented in [104].
Figure 3. Coating of polypropylene/polyethylene (PP/PE) films with other polymers (cellulose fibers—CF) and loading with antibacterial agents (nisin)—adapted after information presented in [104].
Foods 09 01438 g003

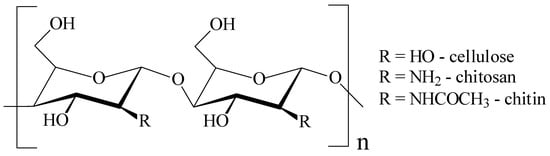

Figure 4. Comparison among structures of various polysaccharides.
Figure 4. Comparison among structures of various polysaccharides.
Foods 09 01438 g004
Figure 5. The mechanisms by which the chitosan films manifest antibacterial activity—adapted after information presented in [182].
Figure 5. The mechanisms by which the chitosan films manifest antibacterial activity—adapted after information presented in [182].
Foods 09 01438 g005
Figure 6. Obtaining the LBL films from chitosan and carboxymethyl cellulose solutions—adapted after information presented in [155].
Figure 6. Obtaining the LBL films from chitosan and carboxymethyl cellulose solutions—adapted after information presented in [155].
Foods 09 01438 g006

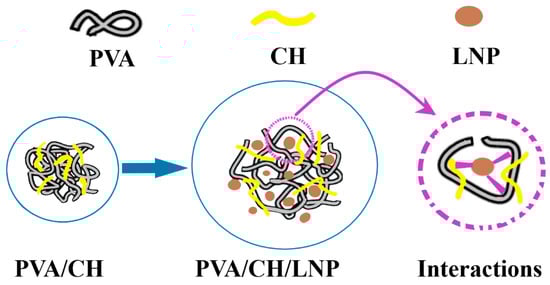

Figure 7. Schematic depiction of polyvinyl alcohol (PVA) and chitosan chains interactions with lignin nanoparticles—adapted after information presented in [194].
Figure 7. Schematic depiction of polyvinyl alcohol (PVA) and chitosan chains interactions with lignin nanoparticles—adapted after information presented in [194].
Foods 09 01438 g007
Figure 8. Scheme of the ethylene degradation due to photocatalytic activity of oxidic nanoparticles embedded into chitosan film—adapted after information presented in [154].
Figure 8. Scheme of the ethylene degradation due to photocatalytic activity of oxidic nanoparticles embedded into chitosan film—adapted after information presented in [154].
Foods 09 01438 g008

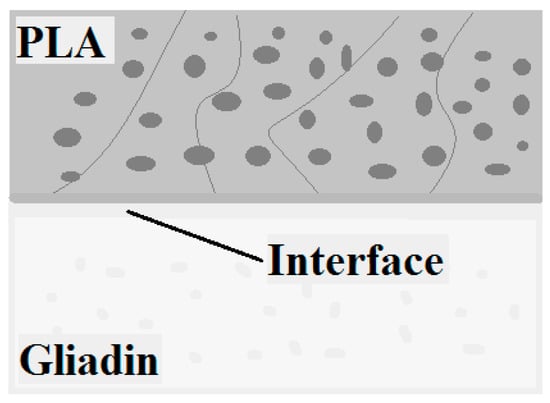

Figure 9. The interface between polylactic acid (PLA) and gliadin layers—adapted after information presented in [158].
Figure 9. The interface between polylactic acid (PLA) and gliadin layers—adapted after information presented in [158].
Foods 09 01438 g009
Table 1. Principal film forming biodegradable classes of substances used in packaging.
Table 1. Principal film forming biodegradable classes of substances used in packaging.
Film Forming ClassSubstanceReference
Lipids and waxesPlant oil and animal fat[137,138]
Table 2. Antimicrobial packages and their applicability.
Table 2. Antimicrobial packages and their applicability.
Product PreservedPackaging MaterialAntimicrobial AgentReference
Iceberg lettuceCelluloseClove and oregano oils[91]
TomatoChitosanTiO2 nanoparticles[154]
StrawberriesChitosan/CMCChitosan/citric acid[155]
StrawberriesChitosan/CMCMentha spicata oil[156]
StrawberriesGelatinButylated hydroxyanisole[157]
Crap filletsAlginate/CMCZiziphora clinopodioides oil / ZnO[159]
Rainbow trout filletChitosanGrape seed extract[160]
SalmonPLAGlycerol monolaurate[161]
ShrimpsGelatinZnO /clove oil[163]
ChickenChitosanAcerola residue extract[164]
PoultryChitosanGinger oil[165,166]
ChickenGelatinThyme oil[167]
Ostrich meatKefiran/polyurethaneZataria multiflora oil[169]
Lamb meatChitosanSatureja plant oil[170]
Ground beefPLA/NCMentha piperita, Bunium percicum[171]
HamChitosan/starchGallic acid[172]
SalamiWhey proteinCinnamomum cassia, Rosmarinus officinalis oils[173]
CheeseCellulose /ChitosanMonolaurin[175]
CheeseStarchClove leaf oil[176]
CheeseZeinPomegranate peel extract[178]
Peanuts (roasted)Banana flour (starch)Garlic essential oil[179]
Table 3. Essential oils and extracts and the usual compatibilities.
Table 3. Essential oils and extracts and the usual compatibilities.
Food TypeEssential Oil / ExtractReferences
MeatAcerola extract, oregano oil, ginger oil, betel oil, mentha spicata oil, rosemarin oil, ziziphora clinopodioides oil, zataria multiflora oil, satureja plant oil, thyme oil, grape seed extract, eucalyptus oil[151,159,160,162,164,165,166,167,169,170,171,173,200,201,202]
Vegetables and fruitsLitsea cubeba oil, clove and oregano oils, mentha spicata, cinnamon oil, limonene, thyme oil[91,114,153,156,178,199,203,204]
Pastry and breadGarlic essential oil, pomegranate peel extract, cinnamon oil, clove oil[178,179,205]
Dairy and cheeseClove leaf oil, ginger oil[107,126,176]

Share and Cite

MDPI and ACS Style

Motelica, L.; Ficai, D.; Ficai, A.; Oprea, O.C.; Kaya, D.A.; Andronescu, E. Biodegradable Antimicrobial Food Packaging: Trends and Perspectives. Foods 2020, 9, 1438.

AMA Style

Motelica L, Ficai D, Ficai A, Oprea OC, Kaya DA, Andronescu E. Biodegradable Antimicrobial Food Packaging: Trends and Perspectives. Foods. 2020; 9(10):1438.

Chicago/Turabian Style

Motelica, Ludmila, Denisa Ficai, Anton Ficai, Ovidiu Cristian Oprea, Durmuş Alpaslan Kaya, and Ecaterina Andronescu. 2020. "Biodegradable Antimicrobial Food Packaging: Trends and Perspectives" Foods 9, no. 10: 1438.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
