Effect of Oral Physiology Parameters on In-Mouth Aroma Compound Release Using Lipoprotein Matrices: An In Vitro Approach

by
Amparo Tarrega
1,†,
Claude Yven
1,‡,
Etienne Semon
1,2,
Patrick Mielle
1 and
Christian Salles
1,*
1
CSGA (Centre des Sciences du Goût et de l’Alimentation), AgroSup Dijon, CNRS, INRA, Université de Bourgogne Franche-Comté, F-21000 Dijon, France
2
ChemoSens Platform, CSGA, F-21000 Dijon, France
*
Author to whom correspondence should be addressed.
†
Present address: Instituto de Agroquímica y Tecnología de Alimentos (IATA-CSIC), Paterna, 46980 Valencia, Spain.
‡
Present address: French National Research Agency (ANR), F-75012 Paris, France.
Foods 2019, 8(3), 106; https://doi.org/10.3390/foods8030106
Submission received: 17 January 2019 / Revised: 11 March 2019 / Accepted: 15 March 2019 / Published: 21 March 2019
(This article belongs to the Special Issue The Contribution of Food Oral Processing)
Browse Figures
Versions Notes

Abstract

:
Temporal aroma compound release during eating is a function of the physicochemical properties of the food matrix, aroma compounds, and oral physiology of individuals. However, the influence of each parameter on the release of each aroma component should be clarified. Two flavored lipoprotein matrices varying in composition were chewed in a chewing simulator that reproduced most of the physiological functions of the mouth. Aroma compound releases (butanoic acid, 2-heptanone, ethyl butyrate, 3-octanone, and 2-nonanone) were followed in real time by direct connection of the device to APCI-MS (atmospheric pressure chemical ionization mass spectrometry). Each oral parameter was controlled and decoupled using the in vitro device. The food matrix composition had only a low impact on aroma compound release, but the controlled oral parameters had significantly different influences on the release of aroma compounds according to their physicochemical characteristics. The release of certain compounds seemed more sensitive to bite force, while others seemed more sensitive to the shearing angle. The salivary flow rate primarily influenced the more hydrophobic compounds. Significant interactions were also observed between shear angle, salivary flow rate, and lipoprotein matrix composition, mainly for the release of the more hydrophobic volatile compounds; this needs further investigations to be clarified.

Graphical Abstract

1. Introduction

Food oral processing is a complex phenomenon involving several physical, chemical, and physiological mouth functions, leading to food breakdown and changes in in-mouth flavor release and perception before swallowing [1]. The main consequences of the oral process are the food matrix breakdown by mastication and impregnation of food by saliva, which are subjected to several physical, chemical, and biochemical operations [1,2]. During this step of food oral processing, the perception of flavor and texture are progressively affected. The release of aroma and taste compounds from food and their delivery to receptors are key factors leading to flavor perception. The breakdown of food into particles under eating conditions increases the surface area of the food that is exposed to saliva and air; this process drives the release of volatile compounds into the gas phase of the oro-nasal cavity. Moreover, aroma compound release is influenced by several physicochemical factors. During chewing and swallowing, aroma compound release, currently evaluated by nosespace analysis using online mass spectrometry [3], is dependent on food composition and texture, saliva and mastication parameters, as well as the nature of the aroma compounds in terms of partition coefficient and lipophilia [4,5,6]. In fat-containing foods, the retention and release of aroma compounds mainly depends on their solubility in the aqueous and oil phases and thus on their hydrophobicity [7,8], which is expressed by the log P value [9]. Most of the aroma compounds are more soluble in fat than in water. They are considered as hydrophobic (log P > 1) and less released in the gas phase from oil than from water, while the hydrophilic aroma compounds (log P < 1) are less retained by the oil phase and thus present quite similar air/water and air/oil partition coefficients. Consequently, the release of aroma compounds in the mouth from low-fat foods is higher than that with regular fat foods [6,10,11]. Flavor release and perception are mainly consequences of oral processing. In this process, saliva has various effects on aroma compounds, such as dilution, molecular interactions with saliva components, and enzymatic conversion. It also participates in aroma release. Consequently, it is a major actor in the perception of aroma [12]. A large inter-individual variability has been reported for salivary composition, in particular for alpha-amylase [13,14] and mucins [15]. The variability in composition may be related to variability in perception [16,17,18].
During this process, aroma compound release varies according to oral parameters [19] that are very dependent on individual oral physiology [5,20,21]. The release of flavor compounds from the food and their delivery to receptors are key factors leading to flavor perception. Temporal in vivo studies currently enable the direct release-perception tests because it is the most natural and realistic way to study flavor release and perception and to take into account all the complexity of the oral process involved in flavor release. However, such in vivo analyses may encounter limitations, such as major inter-individual differences due mainly to physiological and anatomical differences and moderate intra-individual reproducibility. In addition, the food sample must be acceptable to panelists, and only a limited number of samples can be evaluated daily. Another major limitation is the complexity of the oral functions and their interactions. The main consequence is difficulty for the specific role of each oral and product parameter to fully explain flavor release and perception. Thus, artificial devices have been developed to mimic human flavor release during food consumption under controlled conditions and to overcome these in vivo limitations [22,23,24]. It is a very hard task to simulate and integrate all the oral functions in a single and universal system. Thus, specificities and functionalities of each system should be conceived and tailored to address the asked scientific questions.
Several devices have been developed to simulate human flavor release and bolus formation under mouth-like conditions [23]. Many of them are limited to a controlled stirring or shearing of food particles in a liquid, while volatile compound released in the headspace is sampled [25]. More recently, devices were developed with higher functionality levels. Although they are far from mimicking all the main human mouth functions, mechanical food breakdown was more realistically reproduced, leading to relevant flavor release kinetics produced under controlled conditions. As examples, a mechanical chewing device was specifically developed to study the dynamic release of volatile compounds by direct connection to a proton transfer reaction mass spectrometer (PTR-MS) and sweeteners by saliva sampling analysis from chewing gums [26], although this system reproduced real human mastication patterns rather poorly. Additionally, an innovative and dynamic model mouth was specifically developed to investigate whether the intraoral pressure produced by the tongue affects the release of odorant compounds [27] by connecting online to a PTR-MS apparatus.
A chewing simulator allowing fluid sampling that integrates most of the main human oral functions has been described previously [24,28]. In particular, the shear force, compression force, salivary flow rate, and tongue function reflect average realistic physiological parameters obtained from human subjects and can be decoupled. In this study, we aimed to explore the variations in in vitro aroma release on model cheeses when oral parameters were decoupled using this chewing simulator [24]. The main goals were to test the suitability of the chewing simulator to study differences in flavor release according to parameters based on human oral physiology and to tentatively elucidate the influence of each oral parameter on the volatile compound kinetics, the nature of these compounds, and the composition of the model cheese.

2. Materials and Methods

2.1. Materials

2.1.1. Chemicals

The volatile compounds used—butanoic acid, 2,3-butanedione, 2-heptanone, 2-nonanone, 3-octanone, ethyl hexanoate, ethyl butanoate, dimethyldisulphide—were food grade (Aldrich, St Quentin Fallavier, France). Pure water was prepared using a Milli-Q system (Millipore, St Quentin en Yvelines, France). Anhydrous milk fat (MF-Cormans, Goe-Limbourg, Belgique), powder of milk proteins (dry matter > 950 g/kg; free of fat) (Eurial Poitouraine, Nantes, France), sodium chloride (Jerafrance, Jeufosse, France), and rennet (Labo ABIA, Meursault, France) were used to prepare the lipoprotein matrices. All ingredients were food grade and assessed for microbiological safety.

2.1.2. Lipoprotein Matrix

• Preparation
Flavored lipoprotein matrices (LPMs) were generated by the action of rennet on a mixture of milk protein, milk fat, NaCl, and water [29], to which the aroma compounds were added. Two LPMs were prepared, differing in their fat/milk powder ratio (Table 1): 0.5 for LPM1 and 1 for LPM2. The aroma compound solution was made of (in mg/kg): butanoic acid (10), 2,3-butanedione (3), 2-heptanone (5), 2-nonanone (5), 3-octanone (5), ethyl hexanoate (5), ethyl butanoate (4), and dimethyldisulphide (10) diluted in polyethyleneglycol (1 mL). Rennet extract containing 520 mg/l of chymosin (Sanofi Bio-Industries, Paris, France) diluted in 9 volumes of water was used for the coagulation step. This aroma formulation was optimized in the laboratory from internal cheese aroma analyses data to provide a standard cheese note that was acceptable by the consumers.
The LPM compositions are given in Table 1. The fat ratio was chosen based on a previous study [30] to be consistent with the fat content of standard marketed cheeses. Pure water, milk fat, milk protein powder, and NaCl were vigorously mixed with a Blender® (Waring, Torrington, CT, USA) at medium speed (graduation 7) for 12 min. The mixture was cooled in a beaker, then placed in a thermostated bath at 32 °C. The pH was measured using a penetrometric electrode (Mettler-Toledo, Viroflay, France) and was adjusted at pH 6.5 using small aliquots of NaOH solution. After 30 min of resting, the aroma compound solution (0.5 mL) and rennet solution (4.8 mL) were added and mixed vigorously for 1 min. Prior to the coagulation, the mixture was immediately poured into a plastic bag and vacuum sealed, and then was completely immersed in a controlled-temperature bath at 32 °C for 3 h. The products were then stored at 4 °C until use.
• Instrumental texture analyses
LPM1 and LPM2 were analyzed by uniaxial compression at constant speed [31]. Cylinders of 3 cm length characterized by a ratio length/diameter of 1.3 were prepared for each LPM using a die-cutter of 2.3 cm internal diameter. Each sample was placed in a hermetically closed plastic cup at 19 °C for 15 min before experiments. The resistance strength, developed as a function of the deformation of the sample, was measured at 15 °C using a texture analyzer (TA-XT2, Stable Micro Systems Ltd., Champlan, France). The displacement speed of the superior plate (10 cm diameter) was 0.8 mm/s, and the samples were compressed until a deformation rate of 80% of their initial height.

2.2. In Vivo Mastication

Relevant physiological parameters (salivary flow rate, number of chew, shear angle, total duration of mastication, time between two chews, chew rate) were measured on three human subjects (volunteer staff of the laboratory; males; between 25 and 45 years old) without any pathology to obtain a range of representative and realistic values to use as inputs into the chewing simulator (Table 2). The procedure to analyze aroma release was the same as described in [32]. In particular, they were asked to chew the LPM cubes in their own way without any specific instruction. They were informed of the experiment objective and conditions. They gave their informed consent before they participated in the study. The study was conducted in accordance with the Declaration of Helsinki, and the protocol was approved by the relevant institutional and national regulations and legislation (Comité de Protection des Personnes Est-1, N° 2013/64–IDRCB 2013–A01084-41 on 21 November 2013).

2.2.1. Salivary Flow Rate

The whole saliva flow rate was measured under real conditions of model cheese eating with LPM2, as it was reported in a previous study that salivary flow rate was not found to vary for the same subject when eating different model cheeses samples [5]. The total flow rate was determined by calculating the weight difference. To determine the salivation with both mechanical and chemical stimulations due to the presence of LPM in their mouths, the subjects were instructed to swallow just before introducing 5.0 ± 0.1 g of model cheese in their mouth and then to chew over a one minute period without swallowing. Next, the subjects spat out all the bolus and saliva in a tare flask, quickly cleansed their mouths with 10 g of mineral water, and spat in the same tare flask. All the measurements were performed in triplicate and at the same time of day for all subjects.

2.2.2. Electromyography Recording

The electromyography (EMG) recordings were conducted according to Mioche et al. [33]. The left and right superficial masseters and anterior temporalis muscles of each volunteer were located by palpation when the teeth were clenched. After careful cleaning of the overlying skin, two surface electrodes (Bionic France, Ternay, France) coated with a conductive paste were fixed 2 cm apart lengthwise along each muscle with an adhesive. An additional earth electrode was attached to the subjects’ ear lobes. Each subject was instructed to naturally eat 5 g of model cheese. The experiments were performed in triplicate for each product.
After signal rectification, several variables were analyzed for the complete sequence of mastication, starting at the moment of food intake and ending at the last swallow—chewing time (total sequence duration before the last swallow), number of chews during the chewing time, chewing rate per minute, the mean voltage of each burst, the sum of the integrated areas of all individual bursts in the sequence (burst duration multiplied by its mean voltage expressed in mV·s), previously called muscle work, and the mean work (total work divided by the number of bursts).

2.2.3. Motion Capture

An infrared light-emitting diode (LED) was attached to the chin to follow the movements of the lower jaw, a second reference LED was attached to the brow, and a third one was attached to the laryngeal prominence to follow swallowing events. The LEDs were attached using a double-sided adhesive strap. The positions of the LEDs were recorded using an optical motion capture system (Northern Digital Optotrak, Radolfzell, Germany). The recording of jaw movement during chewing was superimposed to correctly align with the EMG recording to better repair chewing events. It was also used to calculate the average shearing angle of the lower jaw used as a parameter for the chewing simulator.
All the data gathered using these three methods were used as input parameters in the chewing simulator methods.

2.3. In Vitro Mastication

2.3.1. Chewing Simulator

A chewing simulator specially developed for in vitro flavor release study was used [24,28]. Particularly, it was fitted with a special valve for the online sampling of the gas phase. The chewing simulator was connected to an APCI-MS (mass spectrometer equipped with an atmospheric pressure ionization source) apparatus (Esquire-LC ion trap, Bruker Daltonique, Wissembourg, France). The operating procedure for mass spectrometry was the same as described in [32].
The upper part of the chewing simulator (Figure 1) was made of the upper jaw and conical palate containing the saliva inlet injector located approximately 10 mm from the upper teeth crown and central gas valve. The sampling valve was in close position when the distance between the tongue and palate was lower than 10 mm to avoid the valve and tubing from becoming contaminated and clogged. A bypass allowed the gas to flow towards the analyzer to maintain the baseline when the sampling valve was off. When the valve was open, volatiles in the headspace of the chewing simulator passed through the valve and were transferred to the mass spectrometer via the Venturi effect regulating the gas flow rate. On the opposite side of the valve, a vent allowed external air to enter the cell. All the surfaces of the chewing simulator in contact with the food were made of polyetheretherketone (PEEK). The transfer line was a deactivated fused silica capillary tube [24,28].
The bite force (BF; between 20 and 35 daN), salivary flow rate (between 1 and 4 mL/min), and shearing angle (SA; 3 and 5°, respectively, corresponding to a 1/8 and 1/5 tooth shift, respectively) were the variable parameters. Three replicates were performed for each measurement condition and for each of the two LPMs (Table 1). Artificial saliva containing minerals and mucin was used [34]. A syringe pump controlled by the chewing simulator software ensured the constant artificial salivary flow rate.

2.3.2. Volatile Compound Release Measurements

The nosespace sampled online from a subject or the chewing simulator was drawn at 30 or 80 mL/min and flowed through a heated capillary transfer line (150 °C, 0.53 mm i.d.) into an ion-trap mass spectrometer Esquire-LC (Brucker Daltronique, Wissembourg, France) equipped with a modified APCI source [35]. Aroma compounds were ionized by a 5-kV positive ion corona pin discharge. After checking the main ions for each volatile compound using single aroma compound solutions as references, the data were collected for detectable ions corresponding to protonated aroma compound molecules incorporated in the model cheeses (Table 3). The intensity of the signal was expressed in arbitrary units. In all cases, the room air and exhaled air by the subject or by the chewing simulator—before introducing the food sample in the mouth—was recorded and then was subtracted from the records obtained when chewing foods. Aroma release, jaw muscle contraction, and motion were recorded at the same time for the three subjects. Two parameters were extracted from each release curve—the release rate (RR) taken at the beginning of the chewing process, and magnitude, defined as the difference between the level of release before and after the chewing process (Cmax) (Figure 2).
The hydrophobicity of the aroma compounds (Log P) was calculated with BIOVIA discovery studio software (version 2017, BIOVIA Corporate Europe, Cambridge, UK) according to Ghose et al. [35].

2.4. Statistical Analyses

The data were processed using Stat SAS system release 6.12 (SAS Institute Inc, Cary, NC, USA). Analyses of Variance (ANOVA) were performed at the level α = 0.05 to study the variation in oral parameters (model including product, subject, and product * subject effects) and aroma compound release parameters (model including product, oral parameter, product * oral parameter). The means were compared using the Newman-Keuls multiple comparison tests.

3. Results

The two lipoprotein matrices used in this study were different only in their fat/protein ratio (0.5 and 1). These food matrices were comprised of milk fat and proteins that were coagulated using rennet. Their composition and rheological characteristics are given in Table 1. Among the four rheological parameters obtained by uniaxial compression, significant differences were observed for the modulus of deformability (MD). Thus, the lipoprotein matrix LPM2 with higher dry matter and fat content showed a higher MD value, indicating a harder structure than LPM1. The LPMs were aromatized with a very simple volatile compound composition to mimic a typical cheese flavor (Table 1). However, two of them, 2,3-butanedione and dimethyldisulphide, were not detectable by APCI-MS because of the low sensitivity for their detection. Thus, the presented data concern only the five detectable ions corresponding to butanoic acid, 2-heptanone, 2-nonanone, 3-octanone, ethyl hexanoate, and ethyl butanoate (Table 1).

3.1. In Vivo Aroma Compound Release

The oral physiological characteristics of the three subjects (named A, B, and C) were evaluated mainly to limit the decoupled oral functions of the chewing simulator to simulate mastication and salivation with realistic values. The obtained results with the three subjects were in agreement with previous works [5,20,21], thus we considered that the obtained results could be used as relevant information for the in vitro experiments. These in vivo results are briefly presented below.
The oral physiological parameters recorded on the three subjects are reported in Table 2. No influence of LPM or the interaction subject LPM was observed on chewing parameters. The influence of subjects was observed on most of the measured oral parameters. The salivary flow rate was evaluated for each panelist using a lipoprotein matrix (LPM2) to obtain representative values with the food product, considering mechanical and chemical stimulations specifically provided by the studied products. The salivary flow rates of A and B were significantly higher than that of C. By contrast, the shearing angles of A and B were significantly lower than that of C. The number of chewing cycles and chewing duration of B and C were similar but significantly higher than those of A. The maximal amplitude of chewing cycle and total muscle work were significantly different for each of the subjects in the decreasing order: B > C > A.
Concerning aroma compound release, no influence of the LPM on either the RR value or on Cmax—regardless of the ion considered—was observed. The overall effect of the subjects on RR was significant (F = 11.94, p = 0.00002) with the decreasing order: B > C > A.
The effects of the subject factors on Cmax and RR and interaction with LPM are reported in Table 3, confirming the large inter-individual variability. Correlations between the aroma release and chewing parameters were found. Cmax and the number of chewing cycles were well correlated regardless of the ion considered. For each ion, the significant correlations were as follows: butanoic acid (m/z 89; r = 0.48, p = 0.041), 2-heptanone (m/z 115; r = 0.68, p = 0.002), ethyl butyrate (m/z 117; r = 0.57, p = 0.012), 3-octanone (m/z 129; r = 0.55, p = 0.018), 2-nonanone (m/z 143; r = 0.58, p = 0.011), and ethyl hexanoate (m/z 145; r = 0.47, p = 0.044). Correlations between Cmax and total muscle work for ions 89 (r = 0.67, p = 0.002), 115 (r = 0.52, p = 0.027), 117 (r = 0.67, p = 0.002), and 143 (r = 0.578, p = 0.012) were also reported. Moreover, for ion 89, correlations between RR and total muscle work (r = 0.54, p = 0.021) and between RR and the salivary flow rate (r = −0.72, p = 0.026), were observed. However, because of the low number of observations, these in vivo data could not be further interpreted and should be further validated with a larger number of panelists. They were mainly used as a basis for our choice of in vitro chewing parameters.

3.2. In Vitro Chewing Process

The good superposition of the total ionic current obtained for three replicates made under the same conditions shows the good reproducibility of the in vitro aroma compound release measurements made by direct coupling between the chewing simulator and APCI-MS. For example, three replicates obtained with LPM1 are shown in Figure 2. The reproducibility was generally better than what can be observed in in vivo studies that are sensitive to inter- and intra-individual variability and reproducibility [36,37]. The pattern of the temporal curve obtained while using the device was different from the typical symmetrical curve, with a pre-swallowing and a post-swallowing phase that could usually be observed for in vivo temporal compound release kinetics [38]. On the in vitro curves, the absence of the post-swallowing phase was due to the absence of a swallowing function of the chewing simulator. Thus, only the release rate (RR) and maximum concentration of released compounds (Cmax) could be extracted from the pre-swallowing phase of the curve.
The release kinetics for each detectable ion and their analyses were followed according to their volatility and affinity for the different phases after extraction of the initial slope, indicating the release rate and maximum intensity from these curves. If each ion was considered independently, it was clear that differences in aroma compound release were observed according to the physicochemical characteristics of the volatile compound and the oral parameters. For each ion, all the obtained results are reported in Table 4. The maximum concentration values of less hydrophobic compounds (butanoic acid, 2-heptanone, and ethyl butyrate) were mainly affected by bite force and shear angle. A higher bite force and shear angle resulted in a higher aroma release. The aroma release parameters of more hydrophobic compounds (3-octanone, 2-nonanone, and ethyl hexanoate) were, in general, affected by the salivary flow rate, but the effect depended on the type of lipoprotein matrix and shear angle, as observed by the significant interaction effects.

4. Discussion

4.1. Texture of the Lipoprotein Matrices

The two LPMs mainly varied in their fat/milk protein ratio by a factor of two. This parameter is an important factor in aroma compound release and texture variability [4]. The rheological properties of the two LPMs presented in Table 1 only differed in their modulus of deformability, indicating a lower elasticity of LPM2 than that of LPM1. Although the LPMs required sufficient chewing activity to be broken in the mouth, their difference in elasticity did not affect the oral parameters of the panelists (Table 2). It was noticed that, with a larger variation in texture, differences in the oral parameters were reported [4,39,40], and during all the in vivo process, effects of bolus hardness on masticatory kinetics were observed [2,41,42]. Thus, the absence of a difference in the oral parameters between the two LPMs for each panelist could be explained by the difference in texture between the two LPMs being insufficient to trigger to a change in the mastication pattern of the subjects.

4.2. Effect of Bite and Shear Forces on In Vitro Aroma Compound Release

Concerning in vitro aroma compound release, mechanical mastication increased the release of the aroma compounds, as already mentioned by several works performed with in vitro systems [22,43,44].
In our study (Table 4), the less hydrophobic volatile compounds—butanoic acid, 2-heptanone, and ethyl butanoate—were more released when the bite force and shearing angle were higher (Table 4). This showed the importance of these two mechanical parameters for the release of these compounds. The progressive increase in the exchange area of the particles due to the breakdown of the matrix could easily explain this observation. A high bite force led to better food breakdown in the mouth. However, no effect on the release rate was found in either BF or SA, suggesting that these two parameters did not influence the kinetics of release of the less hydrophobic volatile compounds but only the overall quantity of the released components.
For the more hydrophobic compounds, the effects of BF and SA were less clear and seemed more specific to the nature of the volatile compound. Concerning the maximum released concentration, a significant effect of BF (but not of SA) was observed for 3-octanone, while a significant effect of SA (but not of BF) was observed for 2-nonanone. For ethyl hexanoate, only a significantly higher release rate was observed with an increase in the shearing angle. These volatile compound behavior differences were rather difficult to interpret and need further specific investigations to be more clearly understood. The data reported in Table 4 clearly show the impact of the shearing angle in the aroma compound release intensity. Generally, the overall mechanical effect of the jaw on food breakdown and aroma compound release is the result of shear and compression forces. In this study, shear force, related to the horizontal movement, could be independent of the bite force related to the vertical movement of the chewing functions reproduced in vitro, showing their own impact on aroma compound release. The closing angle and width of the chewing loop were found to be significantly correlated with the toughness and modulus of elasticity, which were two mechanical properties of the food, whereas the vertical movement was not correlated [45]. In addition, it was reported that, in vivo, the lateral chewing motion was dependent on the consistency of the food, although differences between subjects were observed due to the retro control by mechanoreceptors [46]. A greater consistency of foods resulted in a larger lateral chewing motion of the lower jaw. These observations were in favor of a high involvement of the shearing forces in the food breakdown of hard foods and bolus formation, leading to higher spreadability of the bolus and potentially higher emulsification of the bolus in saliva, thus increasing the exchange surface with air. This could influence aroma compound release differently according to the nature of the volatile compounds.

4.3. Effect of Salivary Flow Rate on In Vitro Aroma Compound Release

A significant effect of the salivary flow rate on the aroma compound release was observed only for the most hydrophobic compounds—ethyl hexanoate, 3-octanone, and 2-nonanone. For these compounds, an increase in the salivary flow rate led to a decrease in the maximum concentration of released compounds, and in addition, a decrease in the release rate for ethyl hexanoate, which was the least hydrophobic of these three molecules. We have to consider here that the food matrix is a complex medium. Consequently, the behavior of volatile compounds and their partition between the different phases cannot be explained only by their hydrophobicity, as is the case for simple models. Despite the hydrophobic character of these compounds, the progressive increase of artificial saliva volume should be in favor of their displacement to the water phase, leading to a higher release in the air phase because of their hydrophobicity [48]. Although the retention/release phenomenon is not understood completely in complex food matrices [49], a possible explanation is the effect of dilution by an increase of saliva volume, increasing the capacity of the water phase to retain more hydrophobic volatile compounds, leading to a partition less in favor of the gas phase. This effect does not affect the less hydrophobic molecules that are more soluble in water. It cannot be excluded that this effect could also be due to interactions with salivary proteins that are progressively introduced with saliva during the chewing process, but this is not generally described as the major phenomenon that explains volatile compound retention [12]. Previous in vitro studies have shown that increasing salivary flow rate decreased the aroma released from bell peppers [44], and the addition of saliva and water decreased the release of some aroma compounds from coffee brews [50].
However, the impact of the salivary flow rate on aroma compound release is not so clear and varies according to the studies and conditions. In an in vivo study, Pionnier et al. found no influence of the salivary flow rate on the release of aroma compounds of various polarities during the chewing of a model cheese [38]. In another in vivo study, it was reported that the salivary flow rate did not vary among cheese samples, but, at the end of mastication, the amount of saliva in boluses differed depending on the hardness and fat content of cheeses [5]. The authors suggested that the combined effects of both the chewing process and salivary flow rates were responsible for differences in aroma compound release between subjects. However, it was not possible to independently decouple the effects of each phenomenon.

4.4. Effect of Oral Functions and Food Composition Interactions on In Vitro Aroma Compound Release

Different interactions between oral parameters and composition factors were observed, thus modulating the main effects described above.
Although fewer effects were observed concerning the release rate, a significant interaction showed that, only for 2-heptanone, the release rate was significantly higher when the shearing angle and fat content were the highest, also corresponding to the hardest lipoprotein matrix, which contained less water and fewer proteins. This effect seemed rather complex and specific to this compound.
For the more hydrophobic volatile compounds, salivary flow rate effect showed significant interaction with the LPM and shear angle factors, indicating that the effect salivary flow rate had on aroma compound release depended on the food matrix and the extent of chewing. The effect of the salivary flow rate showed interaction with other factors. Significant interaction with the lipoprotein matrix was observed for the maximum concentration of the more hydrophobic aroma compound released—apart from 2-nonanone, for which the interaction was observed for RR. The maximum concentrations of the released 3-octanone and ethyl hexanoate were significantly higher at the high salivary flow rate when the fat content was highest, while it was the opposite for ethyl butanoate, which was the less hydrophobic volatile compound for which this interaction was significant. 2-nonanone was released significantly more slowly when the food matrix contained more proteins and less fat, and the salivary flow rate was low. Slight differences occurred between the effects of interactions between the volatile compounds. However, the resulting observed effect was that the combination of the low salivary flow rate and low fat and high protein content of the food matrix was in favor of a lower release of hydrophobic volatile compounds, while the combination of a high salivary flow rate and high fat and low protein food matrix was in favor of a higher release. These observations were consistent with previous observations [4,51]. However, this interaction was not easy to interpret because several composition parameters varied. This needs further in vitro experiments to be unraveled.
In in vivo studies, it is often questionable whether such effects of texture and composition of the food matrices on aroma compound release are due to physicochemical interactions between the food components and volatile compounds or due to a change in the chewing behavior because of the retro-control of the chewing function by texture perception [39,40]. Here, the control and decoupling of the chewing parameters using the device allowed us to discard the second assessment.
Significant interactions between the salivary flow rate and shearing angle were also observed for the release of the more hydrophobic volatile compounds. For 3-octanone and ethyl hexanoate, the maximum concentration of released compounds was significantly higher for the higher salivary flow rate and shearing angle than for the other cases due to a more efficient extraction with an important mixing effect in a larger quantity of solvent. A lower release rate of 2-nonanone and ethyl hexanoate was observed when low shearing and low salivary flow rate were combined. In this case, a lower mixing combined with a low salivary flow rate led to fewer exchanges between the gas phase and liquid phase and thus to a slower release.

5. Conclusions

The chewing simulator can precisely reproduce the compression and shear forces of human jaws, causing temporal food breakdown and compound release. In this in vitro study, each oral parameter and the interactions between them could differently influence temporal aroma compound release according to the nature of the aroma compounds. Moreover, we were able to control each parameter separately so that the effects could be measured one at a time in isolation, particularly for the bite and shear forces on aroma compound release.
In most in vivo studies dealing with relationships between oral processing and temporal aroma compound release, it is difficult to attribute the relative importance of each single oral parameter to the individual aroma compound release pattern. Moreover, individuals adapt their individual eating pattern to the texture and consistency of the food matrix, leading to changes in aroma compound release [5,52]. Thus, generally, the part of the in-mouth release of stimuli due to food characteristics and the adaptation of food oral processing according to texture perception are difficult to differentiate. The possibility of controlling and decoupling oral functions with our chewing simulator device could allow overcoming limitations of the in vivo aroma compound release studies.
Using this device, we were able to explain the temporal release of the studied volatile compounds by the effect of the components of the surrounding media and physical constraints due to mastication on aroma compound release. In particular, we reported effects of salivary flow rate varying according to the hydrophobicity of the volatile compounds and a clear effect of bite force and shear angle on the less hydrophobic volatile compounds, leading to a higher release. The disconnection between the bite force and the shearing angle allowed us to highlight the importance of the shear angle on flavor release during chewing. However, for the release of the more hydrophobic volatile compounds, the effects of the bite force and shear angle seemed more typical of the nature of the compounds and thus were more difficult to interpret. Significant interactions were also observed between shear angle, salivary flow rate, and lipoprotein matrix composition, mainly for the release of the more hydrophobic volatile compounds, which needs further investigation to be clarified.
Thus, this tool allows identification of the main physical or physiological phenomena explaining the active release, as well as validation of the proposed assumptions to model in silico aroma compound release. Additional functionalities that have been shown to be important for aroma compound release are lacking. Their integration in this device and the improvement of the system are under investigation.

Author Contributions

Data curation, A.T., C.Y. and E.S.; Investigation, A.T. and C.Y.; Methodology, E.S. and P.M.; Supervision, C.S.; Writing-original draft, C.S.; Writing-review and editing, A.T., C.Y., E.S., P.M. and C.S.

Funding

This research was funded by INRA (Internal); the Conseil Régional de Bourgogne (France) and European Regional Development Fund (ERDF) funded the equipment used in this project (development of chewing simulator, mass spectrometer).

Acknowledgments

We sincerely thank the Plateform of Technology (Plateform3D, SAYENS, Le Creusot, France) for developing the device and their technical help. We acknowledge Jacques Maratray (CSGA, INRA, Dijon, France) for developing the software to monitor the chewing simulator and Christine Achilléos (URTAL, INRA, Poligny, France) for the rheological measurements.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Salles, C.; Chagnon, M.C.; Feron, G.; Guichard, E.; Laboure, H.; Morzel, M.; Semon, E.; Tarrega, A.; Yven, C. In-mouth mechanisms leading to flavor release and perception. Crit. Rev. Food Sci. Nutr. 2011, 51, 67–90. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, J. Food oral processing—A review. Food Hydrocolloid. 2009, 23, 1–25. [Google Scholar] [CrossRef]
  3. Deleris, I.; Saint-Eve, A.; Semon, E.; Guillemin, H.; Guichard, E.; Souchon, I.; Le Quere, J.-L. Comparison of direct mass spectrometry methods for the on-line analysis of volatile compounds in foods. J. Mass Spectrom. 2013, 48, 594–607. [Google Scholar] [CrossRef] [PubMed]
  4. Boisard, L.; Tournier, C.; Sémon, E.; Noirot, E.; Guichard, E.; Salles, C. Salt and fat contents influence the microstructure of model cheeses, chewing/swallowing and in vivo aroma release. Flav. Fragr. J. 2014, 29, 95–106. [Google Scholar] [CrossRef]
  5. Tarrega, A.; Yven, C.; Sémon, E.; Salles, C. In-mouth aroma compound release during cheese consumption: Relationship with food bolus formation. Int. Dairy J. 2011, 21, 358–364. [Google Scholar] [CrossRef]
  6. Frank, D.; Appelqvist, I.; Piyasiri, U.; Delahunty, C. In vitro measurement of volatile release in model lipid emulsions using proton transfer reaction mass spectrometry. J. Agric. Food Chem. 2012, 60, 2264–2273. [Google Scholar] [CrossRef] [PubMed]
  7. Guichard, E. Interactions between flavor compounds and food ingredients and their influence on flavor perception. Food Rev. Int. 2002, 18, 49–70. [Google Scholar] [CrossRef]
  8. Paravisini, L.; Guichard, E. Interactions between aroma compounds and food matrix. In Flavour: From Food to Perception; Guichard, E., Salles, C., Morzel, M., Le Bon, A.-M., Eds.; John Wiley & Sons Inc.: Chichester, UK, 2017; pp. 208–234. [Google Scholar]
  9. Rekker, R.F. The Hydrophobic Fragmental Constant. Its Derivation and Application; Nauta, W., Rekker, R.F., Eds.; Elsevier Scientific Publishing Co.: Amsterdam, The Netherlands, 1977; pp. 1–389. [Google Scholar]
  10. Frank, D.; Eyres, G.T.; Piyasiri, U.; Cochet-Broch, M.; Delahunty, C.M.; Lundin, L.; Appelqvist, I.M. Effects of agar gel strength and fat on oral breakdown, volatile release, and sensory perception using in vivo and in vitro systems. J. Agric. Food Chem. 2015, 63, 9093–9102. [Google Scholar] [CrossRef] [PubMed]
  11. Frank, D.C.; Eyres, G.T.; Piyasiri, U.; Delahunty, C.M. Effect of food matrix structure and composition on aroma release during oral processing using in vivo monitoring. Flav. Fragr. J. 2012, 27, 433–444. [Google Scholar] [CrossRef]
  12. Ployon, S.; Morzel, M.; Canon, F. The role of saliva in aroma release and perception. Food Chem. 2017, 226, 212–220. [Google Scholar] [CrossRef]
  13. Hirtz, C.; Chevalier, F.; Centeno, D.; Rofidal, V.; Egea, J.C.; Rossignol, M.; Sommerer, N.; de Periee, D.D. MS characterization of multiple forms of alpha-amylase in human saliva. Proteomics 2005, 5, 4597–4607. [Google Scholar] [CrossRef] [PubMed]
  14. Perry, G.H.; Dominy, N.J.; Claw, K.G.; Lee, A.S.; Fiegler, H.; Redon, R.; Werner, J.; Villanea, F.A.; Mountain, J.L.; Misra, R.; et al. Diet and the evolution of human amylase gene copy number variation. Nat. Genet. 2007, 39, 1256–1260. [Google Scholar] [CrossRef] [PubMed]
  15. Denny, P.C.; Denny, P.A.; Klauser, D.K.; Hong, S.H.; Navazesh, M.; Tabak, L.A. Age-related-changes in mucins from human whole saliva. J. Dent. Res. 1991, 70, 1320–1327. [Google Scholar] [CrossRef]
  16. Feron, G. Unstimulated saliva: Background noise in taste molecules. J. Texture Stud. 2018. [Google Scholar] [CrossRef] [PubMed]
  17. Mejean, C.; Morzel, M.; Neyraud, E.; Issanchou, S.; Martin, C.; Bozonnet, S.; Urbano, C.; Schlich, P.; Hercberg, S.; Peneau, S.; et al. Salivary Composition Is Associated with Liking and Usual Nutrient Intake. PloS ONE 2015, 10. [Google Scholar] [CrossRef]
  18. Neyraud, E.; Palicki, O.; Schwartz, C.; Nicklaus, S.; Feron, G. Variability of human saliva composition: Possible relationships with fat perception and liking. Arch. Oral Biol. 2012, 57, 556–566. [Google Scholar] [CrossRef]
  19. Guichard, E.; Salles, C.; Morzel, M.; Le Bon, A.-M. Flavour: From Food to Perception; John Wiley & Sons Inc.: Chichester, UK; Hoboken, NJ, USA, 2017; pp. 1–400. [Google Scholar]
  20. Gierczynski, I.; Laboure, H.; Guichard, E. In vivo aroma release of milk gels of different hardnesses: Inter-individual differences and their consequences on aroma perception. J. Agric. Food Chem. 2008, 56, 1697–1703. [Google Scholar] [CrossRef]
  21. Laboure, H.; Repoux, M.; Courcoux, P.; Feron, G.; Guichard, E. Inter-individual retronasal aroma release variability during cheese consumption: Role of food oral processing. Food Res. Int. 2014, 64, 692–700. [Google Scholar] [CrossRef]
  22. Poinot, P.; Arvisenet, G.; Grua-Priol, J.; Fillonneau, C.; Prost, C. Use of an artificial mouth to study bread aroma. Food Res. Int. 2009, 42, 717–726. [Google Scholar] [CrossRef]
  23. Salles, C.; Benjamin, O. Models of the oral cavity for the investigation of olfaction. In Handbook of Odour; Buettner, A., Ed.; Springer: Berlin, Germany, 2017; pp. 303–318. [Google Scholar]
  24. Salles, C.; Tarrega, A.; Mielle, P.; Maratray, J.; Gorria, P.; Liaboeuf, J.; Liodenot, J.J. Development of a chewing simulator for food breakdown and the analysis of in vitro flavor compound release in a mouth environment. J. Food Eng. 2007, 82, 189–198. [Google Scholar] [CrossRef]
  25. Piggott, J.R.; Schaschke, C.J. Release cells, breath analysis and in-mouth analysis in favour research. Biomol. Eng. 2001, 17, 129–136. [Google Scholar] [CrossRef]
  26. Krause, A.J.; Henson, L.S.; Reineccius, G.A. Use of a chewing device to perform a mass balance on chewing gum components. Flav. Fragr. J. 2011, 26, 47–54. [Google Scholar] [CrossRef]
  27. Benjamin, O.; Silcock, P.; Kieser, J.A.; Waddell, J.N.; Swain, M.V.; Everett, D.W. Development of a model mouth containing an artificial tongue to measure the release of volatile compounds. Innov. Food Sci. Emerg. Technol. 2012, 15, 96–103. [Google Scholar] [CrossRef]
  28. Mielle, P.; Tarrega, A.; Sémon, E.; Maratray, J.; Gorria, P.; Liodenot, J.J.; Liaboeuf, J.; Andrejewski, J.L.; Salles, C. From human to artificial mouth, from basics to results. Sens. Actuator B Chem. 2010, 146, 440–445. [Google Scholar] [CrossRef]
  29. Floury, J.; Camier, B.; Rousseau, F.; Lopez, C.; Tissier, J.-P.; Famelart, M.-H. Reducing salt level in food: Part 1. Factors affecting the manufacture of model cheese systems and their structure-texture relationships. Lwt-Food Sci. Technol. 2009, 42, 1611–1620. [Google Scholar] [CrossRef]
  30. Lawrence, G.; Buchin, S.; Achilleos, C.; Berodier, F.; Septier, C.; Courcoux, P.; Salles, C. In vivo sodium release and saltiness perception in solid lipoproteic matrices. 1. Effect of composition and texture. J. Agric. Food Chem. 2012, 60, 5287–5298. [Google Scholar] [CrossRef]
  31. Noel, Y.; Zannoni, M.; Hunter, E.A. Texture of Parmigiano Reggiano cheese: Statistical relationships between rheological and sensory variates. Lait 1996, 76, 243–254. [Google Scholar] [CrossRef]
  32. Tarrega, A.; Yven, C.; Semon, E.; Salles, C. Aroma release and chewing activity during different model cheeses. Int. Dairy J. 2008, 18, 849–857. [Google Scholar] [CrossRef]
  33. Mioche, L.; Bourdiol, P.; Martin, J.F.; Noël, Y. Variations in human masseter and temporalis muscle activity related to food texture during free and side-imposed mastication. Arch. Oral Biol. 1999, 44, 1005–1012. [Google Scholar] [CrossRef]
  34. Odake, S.; Roozen, J.P.; Burger, J.J. Flavor release of diacetyl and 2-heptanone from cream style dressings in three mouth model systems. Biosci. Biotechnol. Biochem. 2000, 64, 2523–2529. [Google Scholar] [CrossRef]
  35. Sémon, E.; Gierczynski, I.; Langlois, D.; Le Quéré, J.-L. Analysis of aroma compounds by atmospheric pressure chemical ionisation—Ion trap mass spectrometry. Construction and validation of an interface for in vivo analysis of human breath volatile content. In Proceedings of the 16th International Mass Spectrometry Conference, Edinburgh, Scotland, UK, 31 August–5 September 2003. CD-ROM Supplement, abstract 324. [Google Scholar]
  36. Repoux, M.; Semon, E.; Feron, G.; Guichard, E.; Laboure, H. Inter-individual variability in aroma release during sweet mint consumption. Flav. Fragr. J. 2012, 27, 40–46. [Google Scholar] [CrossRef]
  37. Ruijschop, R.M.A.J.; Burgering, M.J.M.; Jacobs, M.A.; Boelrijk, A.E.M. Retro-Nasal Aroma Release Depends on Both Subject and Product Differences: A Link to Food Intake Regulation? Chem. Senses 2009, 34, 395–403. [Google Scholar] [CrossRef]
  38. Pionnier, E.; Chabanet, C.; Mioche, L.; Le Quere, J.L.; Salles, C. 1. In vivo aroma release during eating of a model cheese: Relationships with oral parameters. J. Agric. Food Chem. 2004, 52, 557–564. [Google Scholar] [CrossRef]
  39. Dan, H.; Kohyama, K. Interactive relationship between the mechanical properties of food and the human response during the first bite. Arch. Oral Biol. 2007, 52, 455–464. [Google Scholar] [CrossRef]
  40. van der Bilt, A. Assessment of mastication with implications for oral rehabilitation: A review. J. Oral Rehabil. 2011, 38, 754–780. [Google Scholar] [CrossRef]
  41. Anderson, K.; Throckmorton, G.S.; Buschang, P.H.; Hayasaki, H. The effects of bolus hardness on masticatory kinematics. J. Oral Rehabil. 2002, 29, 689–696. [Google Scholar] [CrossRef]
  42. Chen, J. Food oral processing: Mechanisms and implications of food oral destruction. Trends Food Sci. Technol. 2015, 45, 222–228. [Google Scholar] [CrossRef]
  43. van Ruth, S.M.; Buhr, K. Influence of mastication rate on dynamic flavour release analysed by combined model mouth/proton transfer reaction-mass spectrometry. Int. J. Mass Spectrom. 2004, 239, 187–192. [Google Scholar] [CrossRef]
  44. Van Ruth, S.M.; Roozen, J.P. Influence of mastication and saliva on aroma release in a model mouth system. Food Chem. 2000, 71, 339–345. [Google Scholar] [CrossRef]
  45. Agrawal, K.R.; Lucas, P.W.; Bruce, I.C. The effects of food fragmentation index on mandibular closing angle in human mastication. Arch. Oral Biol. 2000, 45, 577–584. [Google Scholar] [CrossRef]
  46. Filipic, S.; Keros, J. Dynamic influence of food consistency on the masticatory motion. J. Oral Rehabil. 2002, 29, 492–496. [Google Scholar] [CrossRef] [PubMed]
  47. Ghose, A.K.; Viswanadhan, V.N.; Wendoloski, J.J. Prediction of hydrophobic (lipophilic) properties of small organic molecules using fragmental methods: An analysis of ALOGP and CLOGP methods. J. Phys. Chem. A 1998, 102, 3762–3772. [Google Scholar] [CrossRef]
  48. Tromelin, A.; Andriot, I.; Kopjar, M.; Guichard, E. Thermodynamic and Structure Property Study of Liquid-Vapor Equilibrium for Aroma Compounds. J. Agric. Food Chem. 2010, 58, 4372–4387. [Google Scholar] [CrossRef] [PubMed]
  49. Ayed, C.; Lubbers, S.; Andriot, I.; Merabtine, Y.; Guichard, E.; Tromelin, A. Impact of structural features of odorant molecules on their retention/release behaviours in dairy and pectin gels. Food Res. Int. 2014, 62, 846–859. [Google Scholar] [CrossRef]
  50. Genovese, A.; Caporaso, N.; Civitella, A.; Sacchi, R. Effect of human saliva and sip volume of coffee brews on the release of key volatile compounds by a retronasal aroma simulator. Food Res. Int. 2014, 61, 100–111. [Google Scholar] [CrossRef]
  51. Boisard, L.; Andriot, I.; Martin, C.; Septier, C.; Boissard, V.; Salles, C.; Guichard, E. The salt and lipid composition of model cheeses modifies in-mouth flavour release and perception related to the free sodium ion content. Food Chem. 2014, 145, 437–444. [Google Scholar] [CrossRef] [PubMed]
  52. Blissett, A.; Hort, J.; Taylor, A.J. Influence of chewing and swallowing behavior on volatile release in two confectionery systems. J. Texture Stud. 2006, 37, 476–496. [Google Scholar] [CrossRef]
Foods 08 00106 g001 550

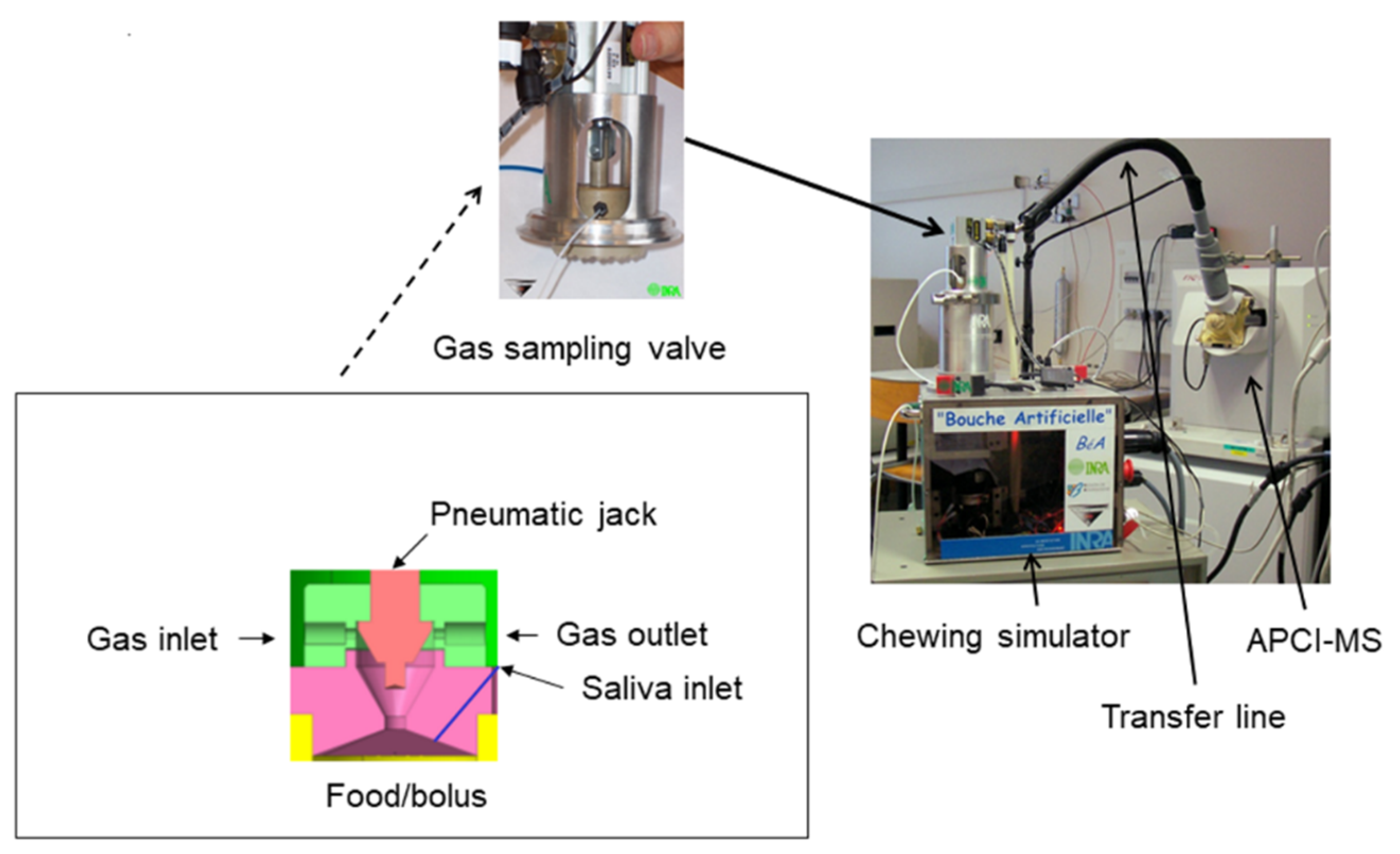

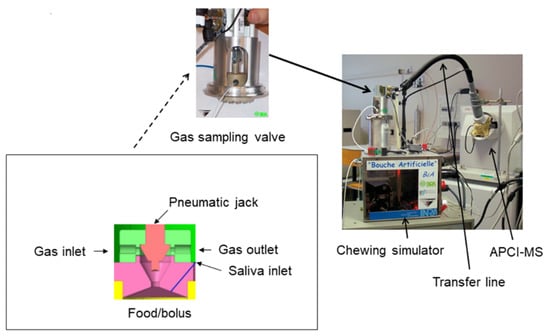

Figure 1. Chewing simulator connected to the atmospheric pressure chemical ionization mass spectrometer (APCI-MS) for online and real time analyses of aroma compound release under in vitro mastication conditions with details of the gas sampling valve.
Figure 1. Chewing simulator connected to the atmospheric pressure chemical ionization mass spectrometer (APCI-MS) for online and real time analyses of aroma compound release under in vitro mastication conditions with details of the gas sampling valve.
Foods 08 00106 g001
Foods 08 00106 g002 550

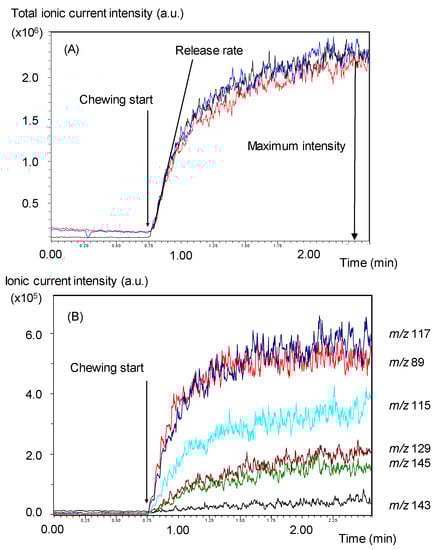

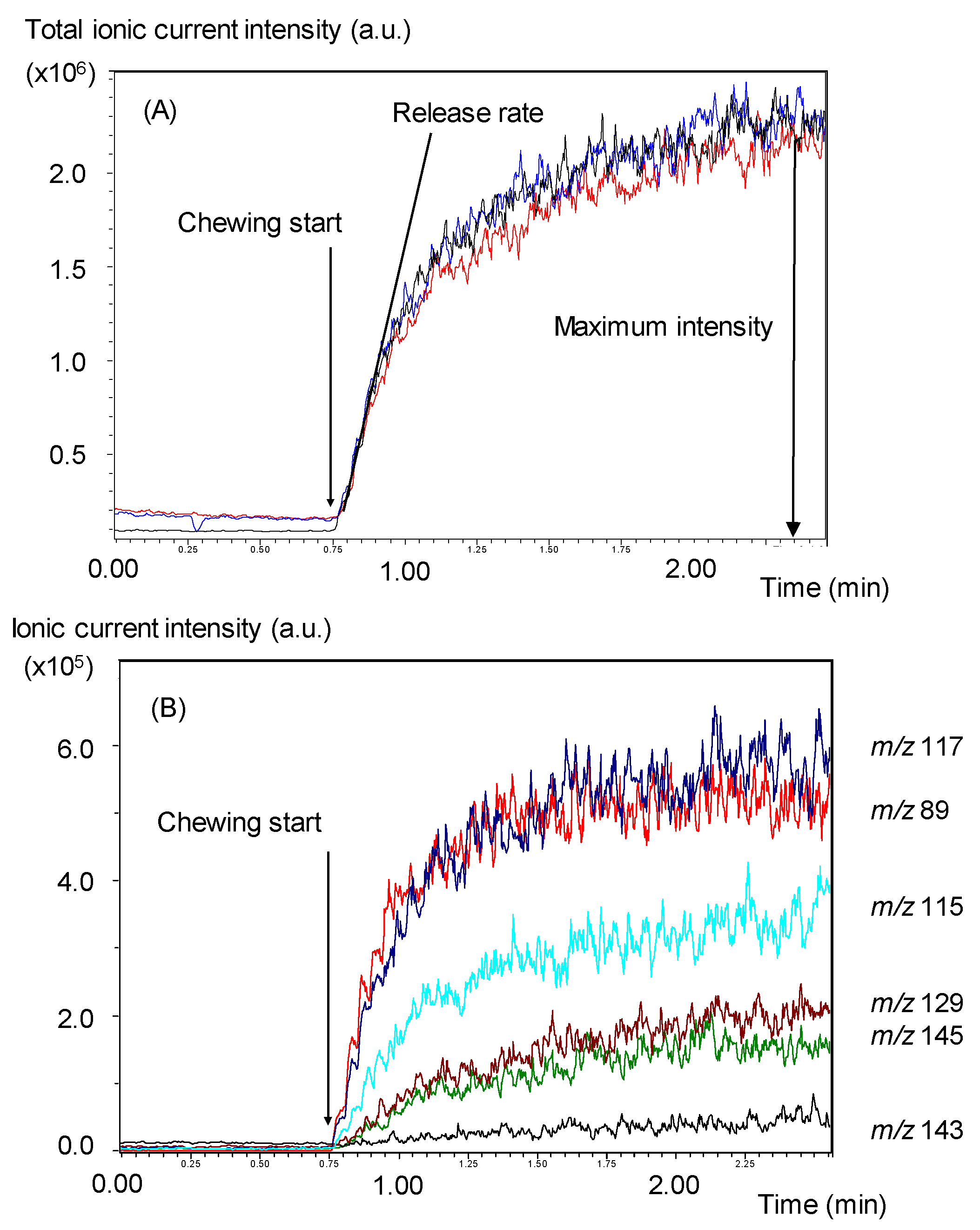

Figure 2. Example of in vitro temporal aroma compound release curves obtained by online coupling of the chewing simulator with the APCI-MS apparatus (3 replicates). (A) The total ionic current presented in ordinate is representative of the overall volatile compounds concentration in the gas phase according to the time. (B) Ionic current intensity for each detected ion in function of the chewing time. Conditions: initial volume of saliva: 1 mL; salivary flow rate: 1 mL/min; compression force: 25 DaN; shearing angle: 3°. Volatile compounds in lipoprotein matrices (µL/kg): butanoic acid (10); 2,3-butanedione (3); 2-heptanone (5); 2-nonanone (5); 3-octanone (5); ethyl hexanoate (5); ethyl butanoate (4); dimethyldisulphide (10). Ions: m/z 117 (ethylbutanoate); m/z 89 (butanoic acid); m/z 115 (2-heptanone); m/z 129 (3-octanone); m/z 145 (ethylhexanoate); m/z 143 (2-nonanone).
Figure 2. Example of in vitro temporal aroma compound release curves obtained by online coupling of the chewing simulator with the APCI-MS apparatus (3 replicates). (A) The total ionic current presented in ordinate is representative of the overall volatile compounds concentration in the gas phase according to the time. (B) Ionic current intensity for each detected ion in function of the chewing time. Conditions: initial volume of saliva: 1 mL; salivary flow rate: 1 mL/min; compression force: 25 DaN; shearing angle: 3°. Volatile compounds in lipoprotein matrices (µL/kg): butanoic acid (10); 2,3-butanedione (3); 2-heptanone (5); 2-nonanone (5); 3-octanone (5); ethyl hexanoate (5); ethyl butanoate (4); dimethyldisulphide (10). Ions: m/z 117 (ethylbutanoate); m/z 89 (butanoic acid); m/z 115 (2-heptanone); m/z 129 (3-octanone); m/z 145 (ethylhexanoate); m/z 143 (2-nonanone).
Foods 08 00106 g002
Table
Table 1. Composition and characteristics of the lipoprotein matrix (LPM) samples (% of total mass).
Table 1. Composition and characteristics of the lipoprotein matrix (LPM) samples (% of total mass).
LPM 1LPM 2
Composition for 500 g
 Water (g)310 (62)275 (55)
 Anhydrous milk fat (g)61.5 (12.3)110 (22)
 Milk powder (g)123.5 (24.7)110 (22)
 NaCl (g)5 (1)5 (1)
 Aromatic solution a (mL)0.5 (0.1)0.5 (0.1)
 Rennet b (mL)4.8 (0.96)4.8 (0.96)
 Fat/Milk Protein powder0.51
Rheological characteristics
 MD (kPa)32.78 *44.38 *
 Df (-)0.420.40
 Cf (kPa)23.3623.88
 Wf (kJ/m3)4.144.34
* Significantly different (F = 7.76; p = 0.022); a Composition: butanoic acid (10 µL), 2,3-butanedione (3 µL), 2-heptanone (5 µL), 2-nonanone (5 µL), 3-octanone (5 µL), ethyl hexanoate (5 µL), ethyl butanoate (4 µL), dimethyl disulphide (10 µL), and polyethyleneglycol up to 1 mL; b active chymosin 520 mg/L, dilution 1/10; MD: modulus of deformability, Df: fracture strain, Cf: fracture stress, Wf: fracture work.
Table
Table 2. Physiological results obtained for each subject during chewing LPM1 and LPM2.
Table 2. Physiological results obtained for each subject during chewing LPM1 and LPM2.
SubjectProductSalivary Flow Rate (mL/s)Chewing Duration (s)Total Work of Muscle (mV s)Number of Chewing CyclesMandible Force (daN)Shearing Angle (°)
ALPM1 13.5 ± 2.91.01 ± 0.3125.0 ± 8.513.3 ± 1.12.6 ± 0.4
LPM24.0 ± 0.415.1 ± 4.91.06 ± 0.1321.3 ± 4.011.5 ± 0.52.7 ± 0.6
BLPM1 23.1 ± 6.73.48 ± 0.2533.7 ± 7.021.6 ± 1,55.0 ± 0.5
LPM22.8 ± 0.224.9 ± 0.73.75 ± 0.2338.0 ± 020.4 ± 0.54.7 ± 0.5
CLPM1 28.0 ± 2.42.92 ± 0.1939.0 ± 3.616.4 ± 0.43.1 ± 1.5
LPM23.5 ± 0.223.7 ± 0.82.60 ± 0.1633.7 ± 3.116.9 ± 0.83.0 ± 0.3
LPM1: lipoprotein matrix with 0.5 fat/milk protein ratio; LPM2: lipoprotein matrix with 1 fat/milk protein ratio; 3 replicates for each of the 3 subjects (A, B and C).
Table
Table 3. In vivo aroma compound release. Fisher statistics from Analyses of Variance (ANOVA) of the temporal aroma compound release parameters. Only significant results (p < 0.05) are reported. Cmax: maximum released concentration; RR: release rate; LPM: lipoprotein matrix.
Table 3. In vivo aroma compound release. Fisher statistics from Analyses of Variance (ANOVA) of the temporal aroma compound release parameters. Only significant results (p < 0.05) are reported. Cmax: maximum released concentration; RR: release rate; LPM: lipoprotein matrix.
Ions (m/z)Release ParametersFpSubject Effect
89Cmax5.660.018B > (C = A)
RR7.440.007B > (C = A)
115Cmax7.710.007(B = C) > A
RR9.36<0.001B > (C = A)
117Cmax5.470.021B ≥ C ≥ A (B > A)
RR5.440.021B ≥ A ≥ C (B > C)
129Cmax5.980.015C ≥ B ≥ A (C > A)
RR7.980.006(B = A) > C
143Cmax5.880.016(B = C)> A
RR7.340.008B ≥ A ≥ C (B > C)
RR9.310.003Subject*LPM: B-LPM2 > B-LMP1
145RR4.580.033B ≥ A ≥ C (B > C)
m/z: mass/charge ratio; m/z 89 (Butanoic acid); m/z 115 (2-Heptanone); m/z 117 (Ethyl butanoate); m/z 129 (3-Octanone); m/z 143 (2-Nonanone); m/z 145 (Ethyl hexanoate). F: Fisher value calculated by ANOVA; * indicates interaction between parameters.
Table
Table 4. In vitro aroma compound release from lipoprotein matrices. Fisher statistics from Analyses of Variance (ANOVA) of the temporal aroma compound release parameters. Only significant results (p < 0.05) are reported. Cmax: maximum released concentration; RR: release rate; LPM: lipoprotein matrix; BF: bite force; SA: shearing angle; SF: salivary flow rate.
Table 4. In vitro aroma compound release from lipoprotein matrices. Fisher statistics from Analyses of Variance (ANOVA) of the temporal aroma compound release parameters. Only significant results (p < 0.05) are reported. Cmax: maximum released concentration; RR: release rate; LPM: lipoprotein matrix; BF: bite force; SA: shearing angle; SF: salivary flow rate.
Compound
(Log P)		 Butanoic Acid
(0.918)		Ethyl Butanoate
(1.492)		2-Heptanone
(1.931)		Ethyl Hexanoate
(2.405)		3-Octanone
(2.598)		2-Nonanone
(2.843)
m/z 89115117145129143
CmaxRRCmaxRRCmaxRRCmaxRRCmaxRRCmaxRR
BFF15.77 7.09 5.02 26.56
p-value0.00050.01390.0356<0.0001
SAF23.10 12.51 8.92 9.175.22
p-value <0.00010.00170.00640.00580.0315
SFF 13.897.2413.30 6.30
p-value<0.00010.00350.00010.0063
LPM*SAF 6.04
p-value0.0216
LPM*SFF 6.11 7.19 6.20 6.95
p-value0.02130.0310.02010.0145
SF*SAF 5.595.555.62 5.97
p-value0.01010.01050.00990.0078
m/z: mass/charge ratio; Log P: hydrophobicity of the aroma compounds (calculated with BIOVIA™ discovery studio software (version 2017, BIOVIA™ Corporate Europe, Cambridge, UK) according to Ghose et al. [47]. F: Fisher value calculated by ANOVA; * indicates interaction between parameters.

Share and Cite

MDPI and ACS Style

Tarrega, A.; Yven, C.; Semon, E.; Mielle, P.; Salles, C. Effect of Oral Physiology Parameters on In-Mouth Aroma Compound Release Using Lipoprotein Matrices: An In Vitro Approach. Foods 2019, 8, 106. https://doi.org/10.3390/foods8030106

AMA Style

Tarrega A, Yven C, Semon E, Mielle P, Salles C. Effect of Oral Physiology Parameters on In-Mouth Aroma Compound Release Using Lipoprotein Matrices: An In Vitro Approach. Foods. 2019; 8(3):106. https://doi.org/10.3390/foods8030106

Chicago/Turabian Style

Tarrega, Amparo, Claude Yven, Etienne Semon, Patrick Mielle, and Christian Salles. 2019. "Effect of Oral Physiology Parameters on In-Mouth Aroma Compound Release Using Lipoprotein Matrices: An In Vitro Approach" Foods 8, no. 3: 106. https://doi.org/10.3390/foods8030106

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
