Comparison of Conventional and Microwave Treatment on Soymilk for Inactivation of Trypsin Inhibitors and In Vitro Protein Digestibility

Department of Bioresource Engineering, Faculty of Agriculture and Environmental Studies, McGill University, Sainte-Anne-de-Bellevue, QC H9X 3V9, Canada
School of Engineering, University of Guelph, Guelph, ON N1G 2W1, Canada
Author to whom correspondence should be addressed.
Submission received: 12 December 2017 / Revised: 22 December 2017 / Accepted: 27 December 2017 / Published: 8 January 2018
(This article belongs to the Special Issue Food Proteins and Bioactive Peptides)


Soymilk is lower in calories compared to cow’s milk, since it is derived from a plant source (no cholesterol) and is an excellent source of protein. Despite the beneficial factors, soymilk is considered as one of the most controversial foods in the world. It contains serine protease inhibitors which lower its nutritional value and digestibility. Processing techniques for the elimination of trypsin inhibitors and lipoxygenase, which have shorter processing time and lower production costs are required for the large-scale manufacturing of soymilk. In this study, the suitable conditions of time and temperature are optimized during microwave processing to obtain soymilk with maximum digestibility with inactivation of trypsin inhibitors, in comparison to the conventional thermal treatment. The microwave processing conditions at a frequency of 2.45 GHz and temperatures of 70 °C, 85 °C and 100 °C for 2, 5 and 8 min were investigated and were compared to conventional thermal treatments at the same temperature for 10, 20 and 30 min. Response surface methodology is used to design and optimize the experimental conditions. Thermal processing was able to increase digestibility by 7% (microwave) and 11% (conventional) compared to control, while trypsin inhibitor activity reduced to 1% in microwave processing and 3% in conventional thermal treatment when compared to 10% in raw soybean.

1. Introduction

Soymilk is a high protein liquid with considerable amounts of carbohydrates, fats, essential vitamins and mineral, generally produced by grinding soaked soybeans in excess water, which is then filtered to separate out the milk from solids and fiber. It is a stable oil in water emulsion, where the continuous phase is formed by dispersed soybean protein. Soymilk is composed of 94% water, 3% protein, 1.5% fat and 1.5% of carbohydrates. It also contains 7.36 and 0.33 mg/100 mL of riboflavin and thiamin, respectively, a composition similar to cow’s milk but with little-saturated fat and no cholesterol [1,2,3]. The nutritional profile of soymilk and cow’s milk (3.25% milkfat) are summarized in Table 1 [4].
In recent years, the consumption of soymilk has increased, especially among consumers who are lactose intolerant, vegetarian, vegan and/or seeking healthy diets. It is also considered safe for children with galactosemia [5], as galactose is absent in soymilk. In developing countries, soymilk is used as a low-cost substitute for cow’s milk in many food preparations [6,7]. This increase in consumption of soymilk can also be attributed to the presence of high-quality protein and low-fat content [2]. In 1999, the U.S. Food and Drug Administration approved the health claim for soy protein, which states that its consumption may reduce the risk of heart diseases by lowering the levels of low-density lipoproteins adding to its acceptance by a wide variety of consumers [8]. Several researchers have also associated the consumption of soy products to reduced risks of coronary heart diseases, atherosclerosis, type 2 diabetes, colorectal cancer, breast cancer and prostate cancer [9,10,11].
Despite all the beneficial factors, the nutritional value of soy milk is reduced by the presence of a variety of anti-nutritional factors such as Kunitz trypsin inhibitors (KTI), Bowman-Birk inhibitors (BBI) and lipoxygenase (LOX). Soybean contains the highest amount of protease inhibitors that accounts for two to six percent of whole soybean protein [12]. These proteases (KTI and BBI) inhibit the enzymatic activity of trypsin and chymotrypsin, the primary digestive enzymes responsible for reducing the proteins into dipeptides and tripeptides. The KTI has a molecular weight of 20 kDa with two disulfide bridges and exhibits specificity to inhibit trypsin. BBI has a molecular weight of eight kDa with seven disulfide bonds and exhibits specificity to inhibit chymotrypsin and trypsin [13,14]. Rouhana et al. reported 60% of soymilk trypsin inhibition activity (TIA) was from KTI [15]. High levels of active KTI have been shown to reduce protein digestibility and cause pancreatic carcinogenesis upon consumption [16]. In animals, protease inhibitors have been associated with growth suppression and pancreatic hypertrophy, emphasizing the need for identification and development of effective techniques to reduce their presence in soy products [17,18,19]. Soybean trypsin inhibitors are heat stable and require a long processing time. According to Yuan et al., TIA values decreased to 13% of the original raw soymilk TIA values when processed by the traditional thermal treatment (heating at 100 °C for 20 min) [20]. However, the long processing time may affect the other nutritional properties of soy products and hence should be avoided [20,21]. At the same time, 100% inactivation of trypsin inhibitors (TI) causes overheating and damages the proteins by destroying lysine, tryptophan and cysteine in soymilk. Thus, extended periods of thermal treatment inactivate TI effectively, but it denatures essential soybean proteins resulting in amino acid degradation, browning reaction and other deteriorative reactions [20,21]. The flavor, color, and vitamin content are also affected depending on the type of heat treatment used [21,22]. Hence, processing plays an essential role in the sensory appeal and nutritive value of soybean and soy products including soymilk. The various factors to be considered for a good quality soymilk during processing are yield, nutritional quality, anti-nutritional profile, color attributes, particle size, texture profile and organoleptic quality [14,23].
Moreover, there are still questions concerning the ideal processing conditions to produce commercially sterile soymilk with minimum nutrient degradation. Manufacturing techniques are required that have shorter processing time, are energy efficient (environment-friendly), have lower production costs and maintain the quality of soymilk [24]. Autoclaving, batch boiling and steam injection [25,26], Ultra-High Temperature (UHT) [27], High Temperature and Pressure combination [28], Ohmic heating [29], and High-Pressure Processing (HPP) [17] are processing methods that have been explored for inactivation of TI in soymilk.
Industrial scale dielectric heat treatment technology at 42 MHz (Radio frequency) and 2450 MHz (Microwave) were found to be effective against TI in soybean and these methods also improved the overall quality of the protein. The processing time required to reach safe levels of TI inactivation is less in microwave treatment when compared to conventional methods for soybeans [30]. Studies by Barac and his team showed that the TI levels were reduced to 13% of the initial value in soybean during microwave roasting at 2.45 GHz for two min [31]. In a study conducted by Yoshida et al., the inactivation of the anti-nutritional factors to safe limits of soaked soybean at 2.45 GHz requires only four min [32]. In comparison, the conventional batch boiling process takes 15 min at 100 °C to inactivate the levels of TI to 20% [15]. To the best of our knowledge, no studies have been done on the inactivation of soybean trypsin inhibitor in soymilk using microwave processing despite the upsides of using this dielectric processing technique. This can be regarded as a potential alternative to existing conventional processing methods in the food industry for inactivation of anti-nutritional factors.
This study reports the effect of microwave processing on the reduction of TIA in comparison to the conventional thermal processing of soymilk. In vitro Protein digestibility (IVPD) studies were also performed to assess the effects of microwave processing on its digestibility at different time and temperature conditions. Optimization of these processing techniques was performed using Response Surface Analysis.

2. Materials and Methods

Soybeans (Glycine max) was procured from Goliath, QC, Canada. Initial moisture content was found to be 10.1% on a wet basis. The moisture content was determined by AOAC official method for moisture content in soybean flour by hot air oven method. Soybean flour (5 g) was dried in an oven at 130 °C ± 3 °C for two hours, after which the weight became constant [33]. Fresh soymilk was prepared from fresh soybean before performing thermal and microwave processing.

2.1. Soymilk Preparation

Soybeans were washed, cleaned and soaked in distilled water in the ratio 1:10 (w:v) (bean:water) for 18 h at room temperature (25 °C) for complete hydration. The soymilk was prepared by wet grinding the hydrated soybeans along with water for three mins at high speed in a stainless-steel blender (Nutri Bullet, NutriBullet LLC, Pacoima, CA, USA). The slurry was filtered through a double layer of cheesecloth to separate out the solids from soymilk. Raw soymilk obtained had a pH of 6.5 [8,34].

2.2. Solvents and Reagents

All reagents and solvent used were of High-Performance Liquid Chromatography (HPLC) grade and were purchased from Fisher Scientific (Ottawa, ON, Canada). The enzymes used for in vitro Protein Digestibility (IVPD %) determination and trypsin inhibitor assay were purchased from Sigma Aldrich (Oakville, ON, Canada).

2.3. Conventional Thermal Treatment

For conventional thermal treatment, 30 mL of soymilk was placed in a water bath which was pre-set and maintained at the processing temperatures of 70 °C, 85 °C and 100 °C. The samples were treated for 10, 20 and 30 min in the water bath. All the experiments were conducted in triplicate. After cooling at room temperature, the samples were collected, stored overnight at 40 °C and later freeze-dried in a laboratory freeze-dryer (Gamma 1-16 LSC Freeze dryer, Martin Christ Gefriertrocknungsanlagen GmbH, Osterode am Harz, Germany) and stored in opaque air-tight containers at −20 °C until further analysis was conducted.

2.4. Microwave Processing

The microwave processing was conducted using the MiniWAVE digestion system (SCP Science, Baie-D’Urfe, QC, Canada) that operates at a frequency of 2.45 GHz at 1000 watts. The soymilk samples were heated in cylindrical quartz reactor vessels. The experiments were conducted at processing temperatures of 70 °C, 85 °C and 100 °C for 2, 5 and 8 min. The sample temperature was monitored using Infra-red (IR) sensors located on the sidewalls and displayed in real time on the controller screen during the run. The MiniWAVE system uses a single magnetron located below the floor of the chamber. After the treatment, the reactor vessels were cooled to room temperature gradually by the cooling unit of the microwave system. The samples were stored until further analysis in the same manner as that of conventionally treated samples.

2.5. Chemical Analysis

2.5.1. In Vitro Protein Digestibility (Multi Enzyme Method)

The In-vitro Protein Digestibility (IVPD) of soybean protein was evaluated using the multi-enzyme method. The working protein suspension was prepared by dissolving samples to yield 312.5 mg of protein in 50 mL of distilled water, whose pH was adjusted to 8.0 using 0.1 N NaOH and 0.1 N HCl. A multi-enzyme mixture was prepared, containing 1.6 mg/mL trypsin, 3.6 mg/mL chymotrypsin, and 1.3 mg/mL peptidase and its pH was adjusted to 8.0. The mixture was placed in an ice-bath and continuously stirred [35,36,37,38]. Five milliliters of the multi-enzyme solution were added to the samples, which were maintained at 37 °C in a water bath for the digestion with continuous stirring. The pH was measured after 10 min of the digestion and IVPD was calculated using Equation (1) [37].
IVPD % = 210.46 − (18.10 × pH10min)

2.5.2. Trypsin Inhibitor Assay

In this study, the total Trypsin inhibitor assay was assessed using the procedure followed by Hamerstrand et al. [39,40] with some modifications. Freeze dried soy milk (0.5 g) was extracted with 50 mL of 0.01 M NaOH for three hours, with constant stirring at room temperature. The suspension was then allowed to stand for two hours at 4 °C. The supernatant from each sample was collected and diluted, such that 2 mL of the extract could produce 40–60% trypsin inhibitor activity.
Trypsin (type 1× from bovine pancreas, Sigma Chemical Co.) was used as a standard. Diluted soymilk supernatant (1 mL) was pipetted into test tubes in triplicates containing 2 mL of trypsin solution (20 mg in 0.001 M HCl). The control sample (blank) consisted of diluted sample extract and distilled water. The tubes were preheated at 37 °C for 10 min and then, 5 mL of benzyl-DL-arginine-para-nitroanilide (BAPNA), pre-warmed to 37 °C, and was added to each of the tubes and vortexed. After incubating this mixture at 37 °C for 10 min, the reaction was stopped by adding 1 mL of acetic acid (30%). The samples were centrifuged at 3000 g for 10 min. The absorbance of the clear supernatant was measured using spectrophotometer at 410 nm [41,42]. TIA is calculated in terms pure trypsin/g sample as weighed (mg/g).
TIA = (2.632 × D × AI)/S
where D is the dilution factor (factor by which the original soymilk sample was diluted to obtain an inhibition between 40% and 60% by 1 mL of the diluted extract), S is the sample weight and AI is the change in absorbance due to trypsin inhibitor/mL diluted sample extracted.

2.6. Statistical Design and Analysis

In this study, a response surface methodology including the design of experiments, fitting of mathematical model and optimization of processing condition for soymilk samples was employed. The central composite design (CCD) with uniform precision was applied for two independent factors, namely temperature (X1) and time (X2), each at three levels (−1, 0, and +1) as shown in Table 2. The design used to plan experiments consisted of a total of 14 combinations with six central, four factorial and four axial points combinations as shown in Table 3. The responses: TIA and IVPD were recorded. JMP software version 11 (SAS Institute Inc., Cary, NC, USA) was used for the experimental design and analysis. The functional relationship between the factors (Xi, Xj, Xk, etc.) and responses (Y) was unknown, hence a regression model (Equation (3)) was used to analyze the actual response surfaces [43,44,45].
Y = β 0 + i = 1 i = n β i X i + i = 1 i = n β i i X i 2 + i = 1 i = n j = 1 j = n β i j X i X j
where β0 is the constant coefficient, βi is the linear coefficient, βii is the quadratic coefficient for main process parameters and βij is the second order interaction coefficient of variables i and j, respectively. The statistical design was prepared taking the temperature in °C and time in min. Separate CCD was prepared for both conventional thermal processing and microwave processing method. F value and its significance, Lack of Fit (LOF), and the coefficient of determination (R2) were assessed and the ANOVA analysis of the predictive model with the corresponding significant terms were reported in Table 5, Table 6, Table 8, Table 9. The differences among the treatments were also detected using Duncan multiple-range test using the probability level 0.05 [46].

3. Results and Discussion

3.1. Optimization of Conditions for IVPD during Microwave and Conventional Processing

Legumes are known to have a lower protein digestibility, which is attributed to the presence of anti-nutritional factors [14,47]. On average, IVPD of microwave processed and conventionally treated soymilk samples was 85 ± 1.5% and 88 ± 2.0%, respectively (shown in Table 4). The nutritional quality of soybean protein cannot be determined by its amino acid composition alone, but its digestibility in the small intestine and determining the bioavailability should also be considered. Our investigations of the results for microwave and conventional processing of soymilk indicated that both the independent factors; temperature (temp) and time (t) significantly (p ≤ 0.05) affected the IVPD of soy proteins (Table 5 and Table 6). Overall, the regression model developed after ANOVA analysis was significant (p < 0.05) for both the treatments with insignificant lack of fit (p > 0.05). For both treatments, it can be interpreted that, by increasing the treatment temperature and time, an increase in IVPD was observed. In the case of microwave processing, from the values of parameter estimates or regression coefficients it was concluded that the most influential factor affecting the IVPD is the temperature with the highest regression coefficient of 1.694, followed by a square term of time, 1.250, a linear term of time, 0.3519, and lastly the interactive term of temperature and time with −0.620 regression coefficient. The negative regression coefficient for the interactive term (temp × time) suggested that as the microwave processing time was increased at any processing temperature a slight decrease in IVPD was observed till the time reached approximately 5 min and later the IVPD increased (Figure 1). This observation led to a conclusion that can be related to the changes in the conformation of proteins under the influence of oscillating electric field of microwave (2.4 GHz). As the sample was subjected to microwave processing a change in the confirmation of soymilk protein would reduce its susceptibility to the digestive enzymes but as the processing time increased the protein would denature and digestion would proceed as desired. This conclusion is based on previous observations made by the researchers though molecular modelling studies conducted to evaluate the effect of oscillating and static electric fields on various food proteins including peanut and soybean hydrophobic proteins [48,49,50]. Similar studies were conducted to understand the structure and digestibility in other legumes such as dry beans (Phaseolus vulgaris) and green peas (Pisum sativum) [51], sorghum (Sorghum bicolor) and maize (Zea mays) [52,53].
The predictive quadratic model (Equation (4)) generated for microwave processing of soymilk was significant (p < 0.0001) with R2 value of 0.83 and insignificant lack of fit.
IVPD microwave = 84.683 + 1.694 [ ( Temperature 85 ) 15 ] + 0.351 [ ( Time 5 ) 3 ] + [ ( Temperature 85 ) 15 × [ ( Time 5 ) 3 ] × 0.620 ] + [ [ ( Time 5 ) 3 ] × [ ( Time 5 ) 3 ] × 1.250 ]
As in the case of conventional processing, it was observed that the most influential factor was the temperature with a regression coefficient of 2.127 followed by time with 1.765 regression coefficient. None of the other model parameters including the cross terms and square terms were significant leading to a linear regression model (Equation (5)) with R2 of 0.80. Several researchers have suggested that the treatment temperature is the key determinant of food protein digestibility [54,55]. A similar linear relationship between treatment time and temperature were observed by Wallace et al. (1971) in their study on the effect of different heat processing conditions on the TIA and the IVPD of various soymilk preparation (Figure 2). They reported that digestibility of proteins increased with an increase of the heat treatment and it also coincided with a decrease in the TIA [26]. Our study showed similar results, maximum digestibility of soymilk proteins occurred at 100 °C for 30 min of conventional processing. Other studies establishing the relationship of increase in digestibility due to a decrease in anti-nutritional factors were seen in rice [56], cowpea [57], chickpeas [58], moth beans [59], and common beans [60].
IVP D connventional = 88.731 + 2.127 [ ( Temperature 85 ) 15 ] + 1.765 [ ( Time 20 ) 10 ]

3.2. Optimization of Conditions for TIA during Microwave and Conventional Processing

Trypsin inhibitor activity (TIA) governs the nutritional value of soymilk protein [61,62]. The average values for TIA during microwave and conventional processing is mentioned in Table 7. It has been reported by several researchers that overheating for complete removal of TIA reduces the overall nutritive value of soybeans [63]. Hence, a precise, controlled thermal process or a novel process is required for preparation of soymilk with maximum nutritive value. In this study analysis of the effect of microwave and conventional processing of soymilk on TIA revealed that both temperature and time play a significant (p < 0.05) role in determining it. Table 8 presents the ANOVA analysis for the effect of temperature and time on TIA for microwave processing. From the table, we can observe that regression model developed was significant with (p < 0.0001), insignificant lack of fit (p > 0.05) and R2 of 0.91 and that the independent factors temperature, its square term and time played a significant role. The regression coefficient analysis also supported the aforementioned observation, where temperature with regression coefficient estimate of −0.558, followed by its cross term with regression coefficient estimate of −0.192 and lastly time with a regression coefficient of −0.108 suggested that TIA decreases with increase in temperature and time (Figure 3), but overall presence of the significant temperature square term suggested temperatures significant influence on TIA. According to Rajko et al., inactivation of trypsin inhibitors requires more absorbed heat energy for longer processing time [64]. Similar experimental results were obtained by Alajaji and El-Adawy, during the microwave oven cooking of chickpea on high temperature for 15 min [58]. According to the studies by Oliveria and Haghighi, reduction in TIA was more pronounced in samples at higher temperatures as was expected because soybean TI loses activity irreversibly in the temperature range 80–110 °C [65]. In addition, studies by Esaka et al., TIA was not detectable after microwave heating at 120 °C for 5 min in case of winged bean seeds [66]. The predictive quadratic equation for effect of microwave processing on TIA was obtained as (Equation (6)).
TIA Microwave = 1.245 + ( 0.558 [ ( Temperature 85 ) 15 ] ) + ( 0.108 [ ( Time 5 ) 3 ] ) + ( [ ( Temperature 85 ) 15 ] × ( [ ( Temperature 85 ) 15 ] × 0.191 ) )
For the conventional process of soymilk and its effect on trypsin inhibitor activity it was observed that all the independent factors and its quadratic or cross terms significantly affected it (p < 0.05). As seen in Table 9, the predictive model generated was significant (p < 0.0001) with insignificant lack of fit and R2 of 0.77. The response surface graph presented in Figure 4 shows that highest TIA was obtained at lowest temperature for shortest processing time. As the processing time was increased, the TIA decreased at any given temperature. This observation can also be confirmed with analysis of regression coefficients of process parameters, which suggested that the most influential parameter was a temperature with regression coefficient estimate of −0.173, followed by time with −0.138, and their cross term with 0.099 and lastly with a square term of time, 0.102, and temperature, 0.099. Similar results were observed in lentil, chickpea and pea flours that were thermally processed by boiling in a water bath at 90 °C for 20 min, which significantly reduced the levels of trypsin inhibitors [67]. According to the results of Osman et al., hydrothermal treatment of Tepary bean extract at 100 °C for 60 min completely inactivated the TI [68]. Similar results were observed by Andrade et al., recommending a dry heat of 200 °C for 20 min for soy flour samples, showing temperature plays an essential role in inactivation of TI [69]. The predictive quadratic regression model generated for conventional processing is presented by Equation (7).
TIA conventional = 0.228 + ( 0.173 [ ( Temperature 85 ) 15 ] ) + ( 0.138 [ ( Time 20 ) 10 ] ) + ( [ ( Temperature 85 ) 15 ] × [ ( Time 20 ) 10 ] × 0.099 ) + ( [ ( Temperature 85 ) 15 ] × [ ( Temperature 85 ) 15 ] × 0.099 ) + ( [ ( Time 20 ) 10 ] × [ ( Time 20 ) 10 ] × 0.102 )
Thus, to obtain soymilk with maximum digestibility with inactivation of TI, microwave processing (2.45 GHz) at 100 °C for 8 min is recommended, in comparison to conventional processing at 100 °C for 30 min.

4. Conclusions

In this study, microwave processing (2450 MHz, 1000 Watts) at different conditions of temperature (70 °C, 85 °C and 100 °C) and time (2, 5 and 8 min) were applied to soymilk samples, in comparison to conventional thermal treatments at the same temperatures and time (10, 20 and 30 min). The IVPD increased with increase in time and temperature during microwave processing (100 °C for 8 min) and conventional processing (100 °C for 30 min) to 87% and 92%, respectively. This is higher compared to an initial digestibility of raw soymilk, which was estimated to be 80.5%. Similarly, TIA for conventional treatment (100 °C for 30 min) is 1% and for microwave processing (100 °C for 8 min) is 3% from an initial TIA of 10% of raw soymilk. Hence, microwave processing can be used as a potential alternative method of processing soymilk for increased digestibility and elimination of anti-nutritional factors.


The authors would like to acknowledge the financial support of NSERC (Natural Sciences and Engineering Research Council of Canada) and MAPAQ (Ministère de l’Agriculture, des Pêcheries et de l’Alimentation du Québec) for this study. The authors are grateful to Lawrence Goodridge and Mark Lefsurd for their technical support.

Author Contributions

B.H.V., S.K.V. and Y.G. conceived and designed the experiments; B.H.V. and S.K.V. performed the experiments; B.H.V. and A.S. analyzed the data; Y.G. and A.S. contributed reagents/materials/analysis tools; B.H.V., S.K.V. and A.S. wrote the paper; V.R. is the supervisor under whom the project was conceived and executed

Conflicts of Interest

The authors declare no conflict of interest.


  1. Buzzell, R. Composition and properties of soymilk and tofu made from Ontario light hilum soybeans. Can. Inst. Food Sci. Technol. J. 1987, 20, 363–367. [Google Scholar]
  2. Lakshmanan, R.; De Lamballerie, M.; Jung, S. Effect of soybean-to-water ratio and pH on pressurized soymilk properties. J. Food Sci. 2006, 71, E384–E391. [Google Scholar] [CrossRef]
  3. Jasti, L.; Lavanya, K.; Fadnavis, N. Adsorption induced denaturation: Application to denaturation of soybean trypsin inhibitor (SBTI) and lipoxygenase (LOX) in soymilk. Biotechnol. Lett. 2015, 37, 147–151. [Google Scholar] [CrossRef] [PubMed]
  4. USDA. USDA National Nutrient Database for Standard Reference; US Department of Agriculture, Agricultural Research Service, Nutrient Data Laboratory: Beltsville, MD, USA, 2015. [Google Scholar]
  5. Friedman, M.; Brandon, D.L. Nutritional and health benefits of soy proteins. J. Agric. Food Chem. 2001, 49, 1069–1086. [Google Scholar] [CrossRef] [PubMed]
  6. Reilly, J.K.; Lanou, A.J.; Barnard, N.D.; Seidl, K.; Green, A.A. Acceptability of soymilk as a calcium-rich beverage in elementary school children. J. Am. Diet. Assoc. 2006, 106, 590–593. [Google Scholar] [CrossRef] [PubMed]
  7. Cruz, N.; Capellas, M.; Hernández, M.; Trujillo, A.J.; Guamis, B.; Ferragut, V. Ultra high pressure homogenization of soymilk: Microbiological, physicochemical and microstructural characteristics. Food Res. Int. 2007, 40, 725–732. [Google Scholar] [CrossRef]
  8. Min, S.; Yu, Y.; Martin, S.S. Effect of soybean varieties and growing locations on the physical and chemical properties of soymilk and tofu. J. Food Sci. 2005, 70, C8–C21. [Google Scholar] [CrossRef]
  9. Anderson, R.L.; Wolf, W.J. Compositional changes in trypsin inhibitors, phytic acid, saponins and isoflavones related to soybean processing. J. Nutr. 1995, 125, 581S–588S. [Google Scholar] [PubMed]
  10. Kerwin, S. Soy saponins and the anticancer effects of soybeans and soy-based foods. Curr. Med. Chem. Anti-Cancer Agents 2004, 4, 263–272. [Google Scholar] [CrossRef] [PubMed]
  11. Hwang, Y.W.; Kim, S.Y.; Jee, S.H.; Kim, Y.N.; Nam, C.M. Soy food consumption and risk of prostate cancer: A meta-analysis of observational studies. Nutr. Cancer 2009, 61, 598–606. [Google Scholar] [CrossRef] [PubMed]
  12. Vinh, L.T.; Dworschak, E. Trypsin and chymotrypsin inhibitor activities in plant foods from vietnam and hungary. Mol. Nutr. Food Res. 1986, 30, 53–58. [Google Scholar] [CrossRef]
  13. Liener, I.E. Implications of antinutritional components in soybean foods. Crit. Rev. Food Sci. Nutr. 1994, 34, 31–67. [Google Scholar] [CrossRef] [PubMed]
  14. Vagadia, B.H.; Vanga, S.K.; Raghavan, V. Inactivation methods of soybean trypsin inhibitor—A review. Trends Food Sci. Technol. 2017, 64, 115–125. [Google Scholar] [CrossRef]
  15. Rouhana, A.; Adler-Nissen, J.; Cogan, U.R.I.; FrØKiÆR, H. Heat inactivation kinetics of trypsin inhibitors during high temperature-short time processing of soymilk. J. Food Sci. 1996, 61, 265–269. [Google Scholar] [CrossRef]
  16. Xiao, C.W.; Wood, C.M.; Robertson, P.; Gilani, G.S. Protease inhibitor activities and isoflavone content in commercial soymilks and soy-based infant formulas sold in Ottawa, Canada. J. Food Compos. Anal. 2012, 25, 130–136. [Google Scholar] [CrossRef]
  17. Van Der Ven, C.; Matser, A.M.; Van Den Berg, R.W. Inactivation of soybean trypsin inhibitors and lipoxygenase by high-pressure processing. J. Agric. Food Chem. 2005, 53, 1087–1092. [Google Scholar] [CrossRef] [PubMed]
  18. Grant, G. Anti-nutritional effects of soyabean: A review. Prog. Food Nutr. Sci. 1988, 13, 317–348. [Google Scholar]
  19. Friedman, M.; Brandon, D.L.; Bates, A.H.; Hymowitz, T. Comparison of a commercial soybean cultivar and an isoline lacking the kunitz trypsin inhibitor: Composition, nutritional value, and effects of heating. J. Agric. Food Chem. 1991, 39, 327–335. [Google Scholar] [CrossRef]
  20. Yuan, S.; Chang, S.K.C.; Liu, Z.; Xu, B. Elimination of trypsin inhibitor activity and beany flavor in soy milk by consecutive blanching and ultrahigh-temperature (UHT) processing. J. Agric. Food Chem. 2008, 56, 7957–7963. [Google Scholar] [CrossRef] [PubMed]
  21. Adams, J. Review: Enzyme inactivation during heat processing of food-stuffs. Int. J. Food Sci. Technol. 1991, 26, 1–20. [Google Scholar] [CrossRef]
  22. Agrahar-Murugkar, D.; Jha, K. Effect of drying on nutritional and functional quality and electrophoretic pattern of soyflour from sprouted soybean (Glycine max). J. Food Sci. Technol. 2010, 47, 482–487. [Google Scholar] [CrossRef] [PubMed]
  23. Sancho, F.; Lambert, Y.; Demazeau, G.; Largeteau, A.; Bouvier, J.-M.; Narbonne, J.-F. Effect of ultra-high hydrostatic pressure on hydrosoluble vitamins. J. Food Eng. 1999, 39, 247–253. [Google Scholar] [CrossRef]
  24. Chen, Y.; Xu, Z.; Zhang, C.; Kong, X.; Hua, Y. Heat-induced inactivation mechanisms of kunitz trypsin inhibitor and Bowman-Birk inhibitor in soymilk processing. Food Chem. 2014, 154, 108–116. [Google Scholar] [CrossRef] [PubMed]
  25. Murugkar, D. Effect of different process parameters on the quality of soymilk and tofu from sprouted soybean. J. Food Sci. Technol. 2015, 52, 2886–2893. [Google Scholar] [CrossRef] [PubMed]
  26. Wallace, G.M.; Bannatyne, W.R.; Khaleque, A. Studies on the processing and properties of soymilk: II.—Effect of processing conditions on the trypsin inhibitor activity and the digestibility in vitro of proteins in various soymilk preparations. J. Sci. Food Agric. 1971, 22, 526–531. [Google Scholar] [CrossRef] [PubMed]
  27. Kwok, K.-C.; Liang, H.-H.; Niranjan, K. Mathematical modelling of the heat inactivation of trypsin inhibitors in soymilk at 121–154 °C. J. Sci. Food Agric. 2002, 82, 243–247. [Google Scholar] [CrossRef]
  28. Guerrero-Beltrán, J.A.; Estrada-Girón, Y.; Swanson, B.G.; Barbosa-Cánovas, G.V. Pressure and temperature combination for inactivation of soymilk trypsin inhibitors. Food Chem. 2009, 116, 676–679. [Google Scholar] [CrossRef]
  29. Lu, L.; Zhao, L.; Zhang, C.; Kong, X.; Hua, Y.; Chen, Y. Comparative effects of ohmic, induction cooker, and electric stove heating on soymilk trypsin inhibitor inactivation. J. Food Sci. 2015, 80, C495–C503. [Google Scholar] [CrossRef] [PubMed]
  30. Kala, B.; Mohan, V. Effect of microwave treatment on the antinutritional factors of two accessions of velvet bean, Mucuna Pruriens (L.) DC. var. Utilis (Wall. ex Wight) Bak. ex Burck. Int. Food Res. J. 2012, 19, 961–969. [Google Scholar]
  31. Barać, M.; Stanojević, S. The effect of microwave roasting on soybean protein composition and components with trypsin inhibitor activity. Acta Alimentaria 2005, 34, 23–31. [Google Scholar] [CrossRef]
  32. Yoshida, H.; Kajimoto, G. Effects of microwave treatment on the trypsin inhibitor and molecular species of triglycerides in soybeans. J. Food Sci. 1988, 53, 1756–1760. [Google Scholar] [CrossRef]
  33. Horwitz, W.; Latimer, G.W. Official Methods of Analysis of AOAC International; AOAC International: Gaithersburg, MD, USA, 2006. [Google Scholar]
  34. Li, Y.-Q.; Chen, Q.; Liu, X.-H.; Chen, Z.-X. Inactivation of soybean lipoxygenase in soymilk by pulsed electric fields. Food Chem. 2008, 109, 408–414. [Google Scholar] [CrossRef] [PubMed]
  35. Astwood, J.D.; Leach, J.N.; Fuchs, R.L. Stability of food allergens to digestion in vitro. Nat. Biotechnol. 1996, 14, 1269–1273. [Google Scholar] [CrossRef] [PubMed]
  36. Bodwell, C.; Satterlee, L.; Hackler, L. Protein digestibility of the same protein preparations by human and rat assays and by in vitro enzymic digestion methods. Am. J. Clin. Nutr. 1980, 33, 677–686. [Google Scholar] [PubMed]
  37. Hsu, H.; Vavak, D.; Satterlee, L.; Miller, G. A multienzyme technique for estimating protein digestibility. J. Food Sci. 1977, 42, 1269–1273. [Google Scholar] [CrossRef]
  38. Vanga, S.K.; Singh, A.; Kalkan, F.; Gariepy, Y.; Orsat, V.; Raghavan, V. Effect of thermal and high electric fields on secondary structure of peanut protein. Int. J. Food Prop. 2015, 19, 1259–1271. [Google Scholar] [CrossRef]
  39. Hamerstrand, G.; Black, L.; Glover, J. Trypsin inhibitors in soy products: Modification of the standard analytical procedure. Cereal Chem. 1981, 58, 42–45. [Google Scholar]
  40. Embaby, H.E.-S. Effect of heat treatments on certain antinutrients and in vitro protein digestibility of peanut and sesame seeds. Food Sci. Technol. Res. 2010, 17, 31–38. [Google Scholar] [CrossRef]
  41. Jiang, S.; Cai, W.; Xu, B. Food quality improvement of soy milk made from short-time germinated soybeans. Foods 2013, 2, 198–212. [Google Scholar] [CrossRef] [PubMed]
  42. Kakade, M.; Rackis, J.; McGhee, J.; Puski, G. Determination of trypsin inhibitor activity of soy products: A collaborative analysis of an improved procedure. Cereal Chem. 1974, 51, 376–382. [Google Scholar]
  43. Myers, R.H.; Montgomery, D.C.; Anderson-Cook, C.M. Response Surface Methodology: Process and Product Optimization Using Designed Experiments; John Wiley & Sons: Hoboken, NJ, USA, 2009; Volume 705. [Google Scholar]
  44. Singh, A.; Vanga, S.K.; Nair, G.R.; Gariepy, Y.; Orsat, V.; Raghavan, V. Electrohydrodynamic drying (EHD) of wheat and its effect on wheat protein conformation. LWT-Food Sci. Technol. 2015, 64, 750–758. [Google Scholar] [CrossRef]
  45. Singh, A.; Lahlali, R.; Vanga, S.K.; Karunakaran, C.; Orsat, V.; Raghavan, V. Effect of high electric field on secondary structure of wheat gluten. Int. J. Food Prop. 2015, 19, 1217–1226. [Google Scholar] [CrossRef]
  46. Su, G.; Chang, K.C. Trypsin inhibitor activity in vitro digestibility and sensory quality of meat-like yuba products as affected by processing. J. Food Sci. 2002, 67, 1260–1266. [Google Scholar] [CrossRef]
  47. Vanga, S.K.; Raghavan, V. How well do plant based alternatives fare nutritionally compared to cow’s milk? J. Food Sci. Technol. 2017. [Google Scholar] [CrossRef]
  48. Vanga, S.K.; Singh, A.; Raghavan, V. Effect of thermal and electric field treatment on the conformation of Ara h 6 peanut protein allergen. Innov. Food Sci. Emerg. Technol. 2015, 30, 79–88. [Google Scholar] [CrossRef]
  49. Singh, A.; Orsat, V.; Raghavan, V. Soybean hydrophobic protein response to external electric field: A molecular modeling approach. Biomolecules 2013, 3, 168–179. [Google Scholar] [CrossRef] [PubMed]
  50. Vagadia, B.H.; Vanga, S.K.; Singh, A.; Raghavan, V. Effects of thermal and electric fields on soybean trypsin inhibitor protein: A molecular modelling study. Innov. Food Sci. Emerg. Technol. 2016, 35, 9–20. [Google Scholar] [CrossRef]
  51. Deshpande, S.S.; Damodaran, S. Structure-digestibility relationship of legume 7S proteins. J. Food Sci. 1989, 54, 108–113. [Google Scholar] [CrossRef]
  52. Duodu, K.; Taylor, J.; Belton, P.; Hamaker, B. Factors affecting sorghum protein digestibility. J. Cereal Sci. 2003, 38, 117–131. [Google Scholar] [CrossRef] [Green Version]
  53. Duodu, K.; Tang, H.; Grant, A.; Wellner, N.; Belton, P.; Taylor, J. FTIR and solid state 13C-NMR spectroscopy of proteins of wet cooked and popped sorghum and maize. J. Cereal Sci. 2001, 33, 261–269. [Google Scholar] [CrossRef]
  54. Bax, M.L.; Aubry, L.; Ferreira, C.; Daudin, J.D.; Gatellier, P.; Rémond, D.; Santé-Lhoutellier, V. Cooking temperature is a key determinant of in vitro meat protein digestion rate: Investigation of underlying mechanisms. J. Agric. Food Chem. 2012, 60, 2569–2576. [Google Scholar] [CrossRef] [PubMed]
  55. Li, H.; Zhu, K.; Zhou, H.; Peng, W.; Guo, X. Comparative study about some physical properties, in vitro digestibility and immunoreactivity of soybean protein isolate for infant formula. Plant Foods Hum. Nutr. 2013, 68, 124–130. [Google Scholar] [CrossRef] [PubMed]
  56. Sagum, R.; Arcot, J. Effect of domestic processing methods on the starch, non-starch polysaccharides and in vitro starch and protein digestibility of three varieties of rice with varying levels of amylose. Food Chem. 2000, 70, 107–111. [Google Scholar] [CrossRef]
  57. Laurena, A.; Garcia, V.; Mae, E.; Mendoza, T. Effects of heat on the removal of polyphenols and in vitro protein digestibility of cowpea (Vigna Unguiculata (L.) Walp.). Plant Foods Hum. Nutr. 1987, 37, 183–192. [Google Scholar] [CrossRef]
  58. Alajaji, S.A.; El-Adawy, T.A. Nutritional composition of chickpea (Cicer Arietinum L.) as affected by microwave cooking and other traditional cooking methods. J. Food Compos. Anal. 2006, 19, 806–812. [Google Scholar] [CrossRef]
  59. Negi, A.; Boora, P.; Khetarpaul, N. Effect of microwave cooking on the starch and protein digestibility of some newly released moth bean (Phaseolus Aconitifolius Jacq.) cultivars. J. Food Compos. Anal. 2001, 14, 541–546. [Google Scholar] [CrossRef]
  60. Marconi, E.; Ruggeri, S.; Cappelloni, M.; Leonardi, D.; Carnovale, E. Physicochemical, nutritional, and microstructural characteristics of chickpeas (Cicer Arietinum L.) and common beans (Phaseolus Vulgaris L.) following microwave cooking. J. Agric. Food Chem. 2000, 48, 5986–5994. [Google Scholar] [CrossRef] [PubMed]
  61. Hackler, L.R.; Van Buren, J.P.; Streinkraus, K.H.; El Rawi, I.; Hand, D.B. Effect of heat treatment on nutritive value of soymilk protein fed to weanling rats. J. Food Sci. 1965, 30, 723–728. [Google Scholar] [CrossRef]
  62. Lei, M.G.; Bassette, R.; Reeck, G.R. Effect of cysteine on heat inactivation of soybean trypsin inhibitors. J. Agric. Food Chem. 1981, 29, 1196–1199. [Google Scholar] [CrossRef] [PubMed]
  63. Skrede, A.; Krogdahl, A. Heat affects nutritional characteristics of soybean meal and excretion of proteinases in mink and chicks. Nutr. Rep. Int. 1985, 32, 479–489. [Google Scholar]
  64. Rajkó, R.; Szabó, G.; Vidal-Valverde, C.; Kovács, E. Designed experiments for reducing antinutritive agents in soybean by microwave energy. J. Agric. Food Chem. 1997, 45, 3565–3569. [Google Scholar] [CrossRef]
  65. Oliveira, L.S.; Haghighi, K. Conjugate heat and mass transfer in convective drying of multiparticle systems part II: Soybean drying. Dry. Technol. 1998, 16, 463–483. [Google Scholar] [CrossRef]
  66. Esaka, M.; Suzuki, K.; Kubota, K. Effects of microwave heating on lipoxygenase and trypsin inhibitor activities, and water absorption of winged bean seeds. J. Food Sci. 1987, 52, 1738–1739. [Google Scholar] [CrossRef]
  67. Ma, Z.; Boye, J.I.; Simpson, B.K.; Prasher, S.O.; Monpetit, D.; Malcolmson, L. Thermal processing effects on the functional properties and microstructure of lentil, chickpea, and pea flours. Food Res. Int. 2011, 44, 2534–2544. [Google Scholar] [CrossRef]
  68. Osman, M.A.; Reid, P.M.; Weber, C.W. Thermal inactivation of tepary bean (Phaseolus Acutifolius), soybean and lima bean protease inhibitors: Effect of acidic and basic pH. Food Chem. 2002, 78, 419–423. [Google Scholar] [CrossRef]
  69. Andrade, J.C.; Mandarino, J.M.G.; Kurozawa, L.E.; Ida, E.I. The effect of thermal treatment of whole soybean flour on the conversion of isoflavones and inactivation of trypsin inhibitors. Food Chem. 2016, 194, 1095–1101. [Google Scholar] [CrossRef] [PubMed]

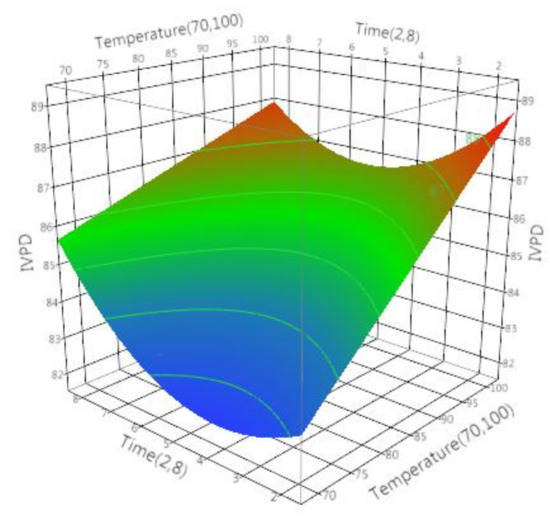

Figure 1. Effect of time (min) and temperature (°C) on in vitro protein digestibility (IVPD) of soymilk during microwave processing.
Figure 1. Effect of time (min) and temperature (°C) on in vitro protein digestibility (IVPD) of soymilk during microwave processing.
Foods 07 00006 g001

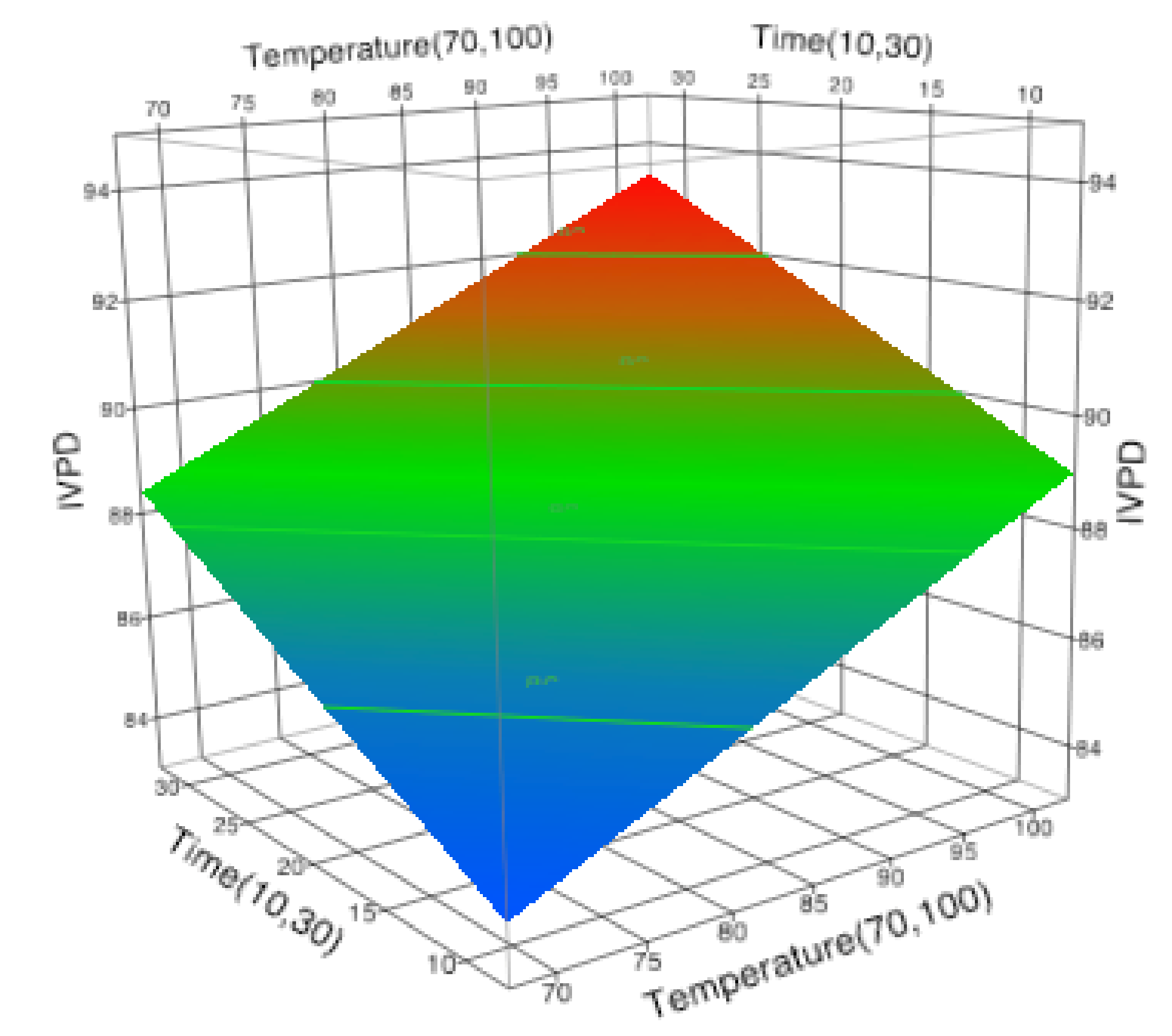

Figure 2. Effect of time (min) and temperature (°C) on in vitro protein digestibility (IVPD) of soymilk during conventional thermal treatment.
Figure 2. Effect of time (min) and temperature (°C) on in vitro protein digestibility (IVPD) of soymilk during conventional thermal treatment.
Foods 07 00006 g002

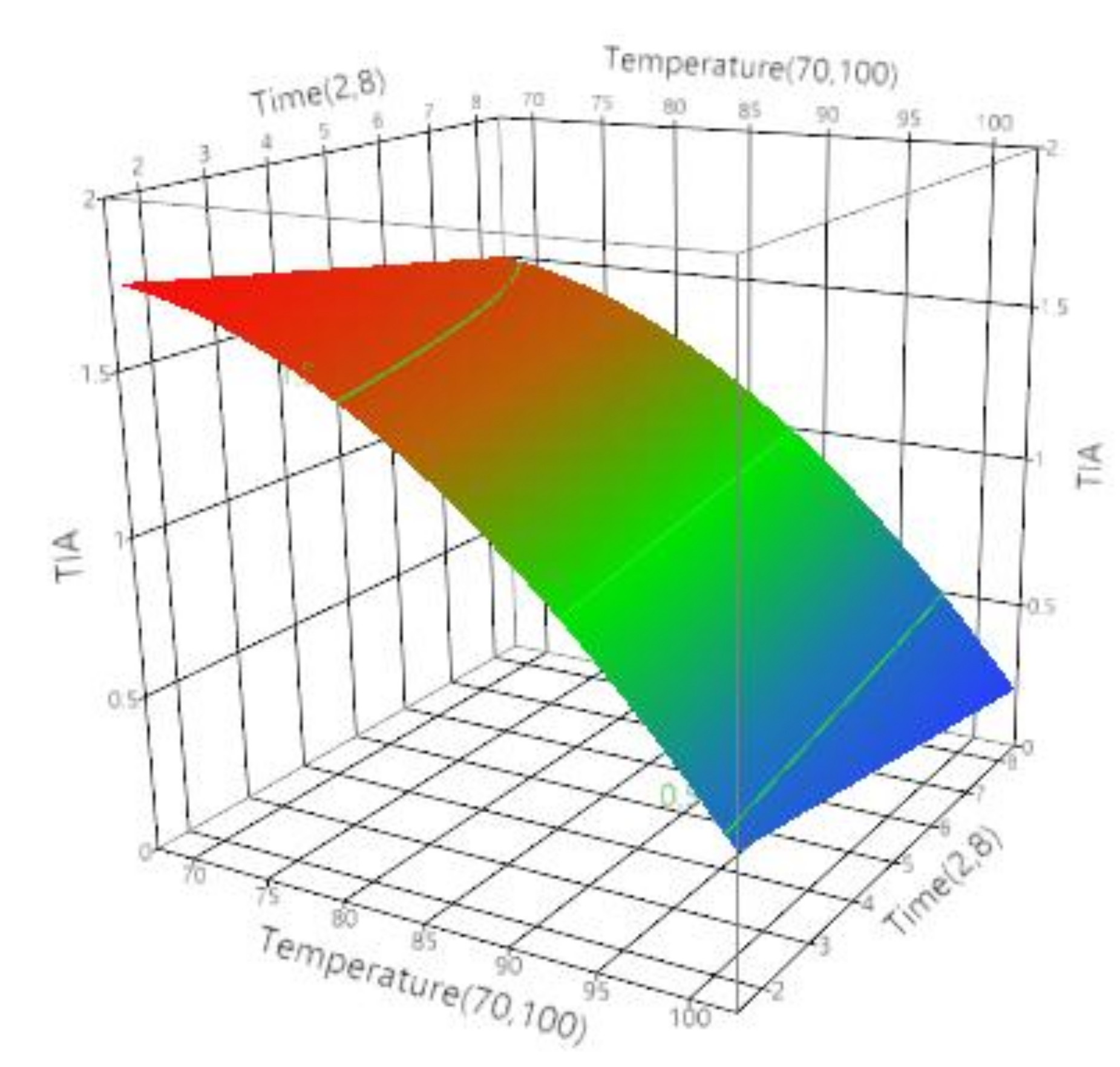

Figure 3. Effect of time (min) and temperature (°C) on trypsin inhibitor activity (TIA) of soymilk during microwave processing.
Figure 3. Effect of time (min) and temperature (°C) on trypsin inhibitor activity (TIA) of soymilk during microwave processing.
Foods 07 00006 g003

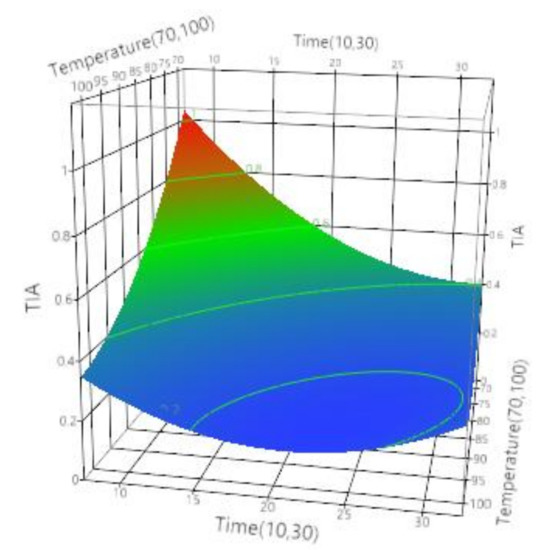

Figure 4. Effect of time (min) and temperature (°C) on trypsin inhibitor activity (TIA) of soymilk during conventional thermal treatment.
Figure 4. Effect of time (min) and temperature (°C) on trypsin inhibitor activity (TIA) of soymilk during conventional thermal treatment.
Foods 07 00006 g004
Table 1. Nutritional profile of soymilk and cow’s milk (unfortified).
Table 1. Nutritional profile of soymilk and cow’s milk (unfortified).
NutrientsSoymilkCow Milk
Dietary fiber0.40.0
Trans fatty acids0-
All the values reported are per 100 g. Report: 01077 and 16166, United States Department of Agriculture (USDA) Database.
Table 2. Central composite design for processing of soymilk with independent variables and their coded and actual values.
Table 2. Central composite design for processing of soymilk with independent variables and their coded and actual values.
Process ParametersUnitsCoded Levels
Time (Microwave processing)Min258
Time (Conventional water bath)Min102030
Table 3. Central composite design showing different combinations of temperature and time for processing of soymilk.
Table 3. Central composite design showing different combinations of temperature and time for processing of soymilk.
Experimental RunTemperature (°C)Time (min) Microwave ProcessingTime (min) Conventional Processing
Table 4. Summarized statistics for in vitro protein digestibility of soymilk processing using process parameters according to central composite design.
Table 4. Summarized statistics for in vitro protein digestibility of soymilk processing using process parameters according to central composite design.
Microwave ProcessingConventional Processing
Range (% digestibility)82–8984–92
Standard deviation±1.4586±2.018
Table 5. ANOVA for effect of time (t) and temperature (temp) for in vitro protein digestibility for microwave processing.
Table 5. ANOVA for effect of time (t) and temperature (temp) for in vitro protein digestibility for microwave processing.
SourceDF *Sum of SquaresMean SquareF Ratiop-Value
Temperature (temp)151.6754 128.9695<0.0001
Time (t)12.2296 5.56450.0237
Temp × t14.5892 11.45370.0017
t2116.0418 40.0366<0.0001
Lack of fit43.40250.85062.45750.0648
C. Total4189.3613
Pure Error3311.42250.3461
Total Error3714.8251
* DF: degrees of freedom.
Table 6. ANOVA for effect of time (t) and temperature (temp) for in vitro protein digestibility for conventional processing.
Table 6. ANOVA for effect of time (t) and temperature (temp) for in vitro protein digestibility for conventional processing.
SourceDFSum of SquaresMean SquareF Ratiop-Value
Temperature (temp)181.4675 94.6810<0.0001
Time (t)156.0940 65.1919<0.0001
Lack of fit64.21830.70300.79080.5836
C. Total41171.1185
Pure Error3329.33880.8891
Total Error3933.5572
Table 7. Summarized statistics for trypsin inhibition activity of soymilk processing using process parameters according to central composite design.
Table 7. Summarized statistics for trypsin inhibition activity of soymilk processing using process parameters according to central composite design.
Microwave ProcessingConventional Processing
Range (% inhibition)3–18.81–9
Standard deviation±4.0333±2.002
Table 8. ANOVA for effect of time (t) and temperature (temp) on trypsin inhibitor activity for microwave processing.
Table 8. ANOVA for effect of time (t) and temperature (temp) on trypsin inhibitor activity for microwave processing.
SourceDFSum of SquaresMean SquareF Ratiop-Value
Temperature (temp)15.6224 343.9744<0.0001
Time (t)10.2112 12.92410.0009
Temp210.3778 23.1169<0.0001
Lack of fit50.08140.01630.99560.4356
C. Total416.8326
Pure Error330.53970.0163
Total Error380.6211
Table 9. ANOVA for effect of time (t) and temperature (temp) for trypsin inhibitor activity for conventional processing.
Table 9. ANOVA for effect of time (t) and temperature (temp) for trypsin inhibitor activity for conventional processing.
SourceDFSum of SquaresMean SquareF Ratiop-Value
Temperature (temp)10.5408 50.9176<0.0001
Time (t)10.3472 32.6918<0.0001
Temp210.1180 11.11080.0020
Temp × t10.0835 7.86240.0081
t210.0892 8.40010.0064
Lack of fit30.25510.085022.0541<0.0001
C. Total411.6844
Pure Error330.12720.0040
Total Error360.3823

Share and Cite

MDPI and ACS Style

Vagadia, B.H.; Vanga, S.K.; Singh, A.; Gariepy, Y.; Raghavan, V. Comparison of Conventional and Microwave Treatment on Soymilk for Inactivation of Trypsin Inhibitors and In Vitro Protein Digestibility. Foods 2018, 7, 6.

AMA Style

Vagadia BH, Vanga SK, Singh A, Gariepy Y, Raghavan V. Comparison of Conventional and Microwave Treatment on Soymilk for Inactivation of Trypsin Inhibitors and In Vitro Protein Digestibility. Foods. 2018; 7(1):6.

Chicago/Turabian Style

Vagadia, Brinda Harish, Sai Kranthi Vanga, Ashutosh Singh, Yvan Gariepy, and Vijaya Raghavan. 2018. "Comparison of Conventional and Microwave Treatment on Soymilk for Inactivation of Trypsin Inhibitors and In Vitro Protein Digestibility" Foods 7, no. 1: 6.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
