Article

Impairment of Respiratory Chain Function and Involvement of Alternative Respiratory Pathway in Mitochondria of Potato Tubers Infected by Pectobacteriumcarotovorum subsp. carotovorum

by
Minzhi Ma
,
Suleman Muhammad
,
Jiangong Duan
,
Lu Bai
and
Hongyu Li
*
Institute of Microbiology, School of Life Sciences, Lanzhou University, Tianshui Road No. 222, Lanzhou 730000, China
*
Author to whom correspondence should be addressed.
Foods 2022, 11(11), 1574; https://doi.org/10.3390/foods11111574
Submission received: 4 April 2022 / Revised: 19 May 2022 / Accepted: 20 May 2022 / Published: 27 May 2022
(This article belongs to the Section Food Microbiology)
Browse Figures
Review Reports Versions Notes

Abstract

:
The significance of alternative respiratory pathway (AOXs) during the interaction between soft rot bacteria (Pectobacterium carotovorum subsp. carotovorum, (Pcc.)) and potato tubers is well-defined. However, the role of the AOXs in impaired mitochondrial respiratory chain function during the Pcc. infection is yet to be studied. In this study, the results show that with the aggravation of infection of Pcc., the capacity for alternative respiration in mitochondria of potato tubers increased gradually. The mitochondrial membrane potential increased more significantly after infection with Pcc. when the AOXs in potato tubers was partially blocked using salicylhydroxamic acid (SHAM) beforehand. In addition, the activity of complex III decreased more drastically while the activity of complex IV increased more significantly in the partial absence of the AOXs in the mitochondria. Furthermore, the mitochondrial endogenous respiration, mitochondrial respiratory state 3 and respiratory control rate (RCR) decreased more significantly and the value of RCR reached around 1.0 with the aggravation of infection of Pcc. in the partially absence of AOXs in the mitochondria.

1. Introduction

Potato (Solanum tuberosum L.) is the fourth-ranked staple food crop worldwide after wheat, rice, and maize, with a great impact on world agricultural economic stability and food security [1,2]. Potato tubers are not only a rich source of nutrients to provide energy for people, but also have the positive effects of improving anti-inflammatory and anticancer activities for the human body [3,4,5]. However, one of the main causal agents affecting the growth and post-harvest storage of potato tubers is the occurrence of bacterial soft rot disease [6]. Bacterial soft rot disease caused by Pectobacterium carotovorum subsp. carotovorum (Pcc.), is a major disease leading to severe losses of potato tubers during transport and storage [7,8].
During plant-pathogen interactions, an obvious feature of host plants infected by pathogens is an increase in their respiratory rate, and this phenomenon is accompanied by a series of physiological changes in the mitochondrial respiratory chain of host plants at the cellular level [9,10]. It is well known that the mitochondrial respiratory chain is one of the key components of cellular respiration, it is also one of the earliest and most sensitive pathways involved in cell impairment [11]. Involvements of mitochondrial respiration in plant defense responses induced by biotic factors have been implicated in some studies in which the mitochondrial respiratory state 3 or 4 and complex enzymes of the mitochondrial respiratory chain are changed, which can affect plant growth and physiological function [12,13]. More importantly, the change of respiratory rate in the mitochondria of host plants during their interaction with pathogens is mainly caused by the operation of the AOXs in the mitochondrial respiratory chain.
In contrast to that of animal mitochondria, plant mitochondria possess a unique respiratory pathway, the cyanide-insensitive alternative pathway (AOXs) that is catalyzed by the alternative oxidase, which is located in the mitochondrial inner membrane and acts as a terminal oxidase in mitochondrial electron transport respiration [14,15]. During plant-pathogen interactions, the operation level of the AOXs in host plants are enhanced in response to pathogen attack [16,17,18,19]. It is also believed that the presence of the AOXs allows the flexibility of plant respiratory metabolism, especially under environmental stress [20]. The key role of the AOXs are to prevent over reduction of the respiratory chain and to maintain mitochondrial respiratory chain function when host plants are subjected to biotic condition stresses [21,22,23]. Studies have shown that the capacity of the AOXs in vivo are increased following specific drug inhibition of the activities of complex III or IV during the growth of tobacco suspension cells [24]. Although the compatible interaction between potato tubers and Pcc. is accompanied by the acceleration of respiratory rate in tuber slices [14,25], the changes of mitochondrial respiratory processes and complex activity, as well as the role of the AOXs in the impaired mitochondrial respiratory chain remains unknown. Therefore, the study of the role of the AOXs on mitochondrial respiratory chain function during the interaction between potato tubers and Pcc. is critical to understanding more about the AOXs as valuable regulators of mitochondrial respiratory chain function during pathophysiological processes in potato tubers [15].
The objectives of this study were to provide a theoretical insight into the mitochondrial respiratory chain during the interaction between potato tubers and soft rot bacterial infection. We observed the extent of infection of two strains of Pcc. in potato tubers by estimating the mitochondrial membrane potential in them and determining the total as well as the alternative respiratory rate and analyzing the activity of the complex III and complex IV during the mitochondrial respiratory chain processes modulated by Pcc.S and Pcc.L, respectively.

2. Materials and Methods

2.1. Potato Tubers and Pathogenic Bacteria

The susceptible variety of potato tubers (Solanum tuberosum L. cv. Atlantic) was provided by the School of Life Sciences, Gansu Agricultural University. Tubers without obvious defects or physical injuries and of appropriate size and appearance were selected. To maintain the physiological activity, potato tubers were placed in mesh bags, brought to the laboratory within 4 h, and stored in darkness at 20 ± 3 °C, RH 85–90% conditions before further use.
Pectobacterium carotovorum subsp. carotovorum (Pcc.) is a major pathogen of soft rot disease of potato tuber. Two strains of Pcc. were selected and named Pcc.S and Pcc.L, respectively, and were provided by the Microbiology Laboratory of the School of Life Sciences of Lanzhou University, China. These two strains of Pcc. were selected for their ability to produce soft rot symptoms on potato tubers, either on detached potato tuber or in inoculated plants. The Pcc.S had strong pathogenicity, while the Pcc.L had weak pathogenicity to potato tubers [14]. Both Pcc.S and Pcc.L were cultured in 100 mL liquid Luria–Bertani medium at a shaker with a temperature of 26 ± 1 °C and a speed of 160 rpm/min. Finally, the suspension of the two strains of Pcc. were diluted and adjusted to a concentration of 1.0 × 108 CFU/mL with sterile distilled water.

2.2. Experiment Design and Treatments

Salicylhydroxamic acid (SHAM), as a specific inhibitor of the AOXs that can inhibit alternative oxidase activity [26,27], was used in this study. The experiment design was that some of the potato tuber slices were vacuum-infiltrated by 5 mM SHAM (+sham) within 30 min, and another set of the potato tuber slices were without SHAM, or no-SHAM treatment (−sham).
Healthy potato tubers of the same size were selected. One tuber was soaked in 300 mL 1% sodium hypochlorite solution in a sterile beaker to surface sterilize it for 5 min. This was followed by soaking it in 300 mL 75% ethanol for 1 min in another sterile beaker. The tubers were then rinsed 3–4 times with sterile distilled water, followed by air-drying on a sterile bench. Then, round slices of 6 mm diameter and 1 mm in thickness were cut with a sterile puncher and scalpel from the tubers.
The potato tuber slices (10 g, diameter 6 mm, thickness 1 mm approximately) were each pretreated with 50 µL 5 mM SHAM in a sterile Petri dish (diam = 90 mm), followed by absorption using vacuum filtration for 30 min to completely absorb the SHAM into the potato tuber slices. After vacuuming, the slices were inoculated with stirring in each Petri dish, respectively, with 10 mL of the two strains of bacterial suspensions for 2, 4, 6, 8, 10, 12 h in a microbial incubator at 26 ± 1 °C, 16 h illumination and 8 h darkness conditions. The control groups (natural aging tuber slices) were placed in a Petri dish with the same amount of sterile distilled water. All experiments were carried out in triplicate.

2.3. Observation and Measurement of Soft Rot Degree of Potato Tuber Slices

The samples of potato tuber slices with each treatment were observed at 2, 4, 6, 8, 10, 12 h after infection with Pcc.S and Pcc.L, respectively. The extent of the symptoms was evaluated by comparison with the phenotype characteristics of the symptoms caused by Pcc.S and Pcc.L in potato tuber slices, and by determining the amount of softened tissue in the potato tuber slices.
The membrane permeability of the samples of potato tuber slices was measured using a conductivity meter (DDS-510) according to the method of Hua et al. [14]. The bacterial suspension was aspirated from the 10 mL test tube with 1.0 g samples of tuber slices, and 3 mL of deionized water was added to the test tube, this conductivity was measured and recorded as P1. The conductivity of deionized water without samples of tuber slices was determined and recorded as P0. The test tube of each sample was placed in boiling water for 30 min and then removed and kept at 25 °C. The conductivity of each tube was measured again and recorded as P1*. The conductivity of deionized water without samples of tuber slices was measured under the same conditions and recorded as P0*.
Membrane permeability (P%) = [1 − (P1 − P0)/(P1* − P0*)] × 100%

2.4. Extraction and Separation of Mitochondria

Mitochondria of treated potato tuber slices were extracted according to a method previously described by Hua et al. [14] with modifications. First, 10 g of inoculated potato tuber slices and extraction solution (350 mM mannitol, 250 mM sucrose, 1 mM EDTA, 0.1% Bovine serum albumin (BSA), 10 mM Tris-HCl buffer) were mixed in a 1:2 ratio (w/v), then the pH was adjusted to 7.2. The homogenate was filtered through a 200-mesh sieve and centrifuged at 1000× g for 15 min, and the resulting supernatant was centrifuged at 10,000× g for 15 min to yield the mitochondrial pellet. The pellet was washed with mitochondrial washing solution (350 mM mannitol, 250 mM sucrose, 0.1% BSA, 10 mM Tris-HCl buffer, pH 7.2), and the suspension was centrifuged at 250× g for 10 min. The supernatant was centrifuged at 9000× g for 15 min again. Finally, the mitochondrial pellet was suspended with a washing solution. All the steps were strictly operated on ice to ensure the isolation of high-quality mitochondria preparation. The mitochondrial protein content was determined using the BCA Protein Assay Kit (Beijing Solarbio Science & Technology, Co., Ltd., Beijing, China).

2.5. Measurement of Mitochondrial Membrane Potential

The mitochondrial membrane potential was determined by flow cytometry according to the method of Doherty and Perl [28]. A 500 µL mitochondrial pellet suspension of each treatment was added to a flow tube for staining. Then, 10 µM Rhodamine123 was added into the mitochondrial suspension and incubated at 37 °C for 10 min. The mitochondrial membrane potential was determined by the release of Rhodamine123 from the mitochondria by using flow cytometry. The data were analyzed with FlowJo version 7.5.5 software (Tree Star Inc., Ashland, OR, USA).

2.6. Measurement of AOXs in Mitochondria

Aliquots of mitochondria (0.2 mg/mL) were used in all of the respiration measurements using a Clark-type oxygen electrode (Hand-Tech) according to Jacoby et al. [26] with modification. A 50 µL mitochondrial pellet suspension was added to a mixture containing respiratory substrate 10 µL 0.4 M α-ketoglutaric acid and the assay was performed in 1800 µL of the reaction mixture of 300 mM sucrose, 10 mM NaCl, 5 mM KH2PO4, 2 mM MgSO4, 0.1% BSA, and 10 mM TES, pH 7.2. The AOXs rate was defined as the sensitivity of O2 uptake to 50 µL 5 mM SHAM. The COX respiratory pathway rate was defined as the sensitivity of O2 uptake to 50 µL 1 mM KCN in the presence of 5 mM SHAM.

2.7. Measurement of Complex III and Complex IV Activity of Mitochondrial Respiratory Chain

The complex III activity was measured by monitoring the reduction of cytochrome c (20 µM) at 550 nm according to a method of Jacoby et al. [26] with modification. A volume of 180 µL reaction mixture consisted of 25 mM potassium phosphate (pH 7.2), 0.5 mM EDTA, 5 mM MgCl2, 2 mM KCN, 2 µg/mL rotenone, 20 mM succinate, and 0.1% BSA. Then, 0.4 µL 25 µM cytochrome c and 1 µL 100 µM ubiquinol were added to the assay medium, and the nonenzymatic rate was recorded for 1 min. Then, the 20 µL mitochondrial freeze-thawing liquid was added and the increase in absorbance was measured and recorded for 3 min.
The complex IV activity (cytochrome c oxidase activity) was measured by oxidation of cytochrome c (20 µM) at 550 nm in a reaction medium containing 180 µL 25 mM potassium phosphate (pH 7.2) and 0.4 µL 25 µM reducing cytochrome c. Then, 20 µL mitochondrial freeze-thawing liquid was added into the reaction medium and the reduction of absorbance was recorded for 3 min according to the method of Jacoby et al. [26] with modification.

2.8. Measurement of Mitochondrial Respiratory Chain Function

Aliquots of mitochondria (0.2 mg/mL) were used in all of the respiration measurements using a Clark-type oxygen electrode (Hand-Tech) according to Jacoby et al. [26] with modification. A 50 µL mitochondrial suspension was added to a mixture containing a respiratory substrate of 10 µL 0.4 M α-ketoglutaric acid. The assay was performed in a reaction mixture with 0.35 M mannitol, 0.25 M sucrose, 10 mM KCl, 0.2 mM EDTA, 5 mM MgCl2, 10 mM Tris-HCl buffer (pH 7.2), 5 mM phosphate buffer (pH 7.2). Then, 0.5 mL mitochondrial suspension and 50 µL respiratory substrate were added into the reaction chamber, the oxygen absorption rate reached equilibrium, and then 1.2 µM ADP was added, the oxygen absorption rate was called state 3. When the phosphorylation reaction substrate ADP was consumed, the oxygen absorption rate of mitochondrial decreased automatically, which was in state 4. The respiratory control rate (RCR) was calculated using the ratio of state 3 and state 4 respiratory rates.

2.9. Statistical Analysis

The effects of infection status, pathogenicity, membrane permeability, mitochondrial total respiration, capacity of alternative respiration, Valt’/Vtotal, mitochondrial state respiration, respiratory control ratio, complex III and complex IV activity, and mitochondrial membrane potential were analyzed by three-way ANOVA (linear mixed-effect models). Data for two strains of Pcc. inoculations with the same treatment times were analyzed, and the mean differences determined using the independent-sample t-test with SPSS version 22.0 software for (SPSS Inc., Chicago, IL, USA).

3. Results

3.1. Infection Degree of Pcc.L and Pcc.S on Potato Tuber Slices

The results of the degree of infection of soft rot bacteria on potato tuber slices showed that there was stronger pathogenicity and a higher degree of rot in potato tuber slices infected by Pcc.S than in those infected by Pcc.L, whether in the SHAM pretreated groups (+sham) or in the no-SHAM treatment groups (−sham) (Figure 1). The membrane permeability of tuber slices infected by Pcc.S and Pcc.L in the SHAM pretreated groups were 80.98% and 70.41%, respectively, and were 65.80% and 60.20% at 12 h after infection, respectively (Table 1). In addition, the membrane permeability of tuber slices in the SHAM pretreated groups were 1.15 times and 1.09 times as great as that of in the no-SHAM treated groups infected by Pcc.L and Pcc.S, respectively.

3.2. Mitochondrial Membrane Potential

The value of the mitochondrial membrane potential showed a continuous increasing trend when infected by Pcc.L and Pcc.S, both in the SHAM pretreated groups and in the no-SHAM treated groups, but the value of the mitochondrial membrane potential in the SHAM pretreated groups was more than that of the no-SHAM treated groups. There were significant differences (p < 0.05) between the mitochondrial membrane potential of tuber slices after infection with Pcc.S and Pcc.L from 4 h to 12 h, respectively (Figure 2b). But there were significant differences (p < 0.05) between the mitochondrial membrane potential of tuber slices after infection with Pcc.L and Pcc.S at 10 h and 12 h. (Figure 2a). In addition, the value of the mitochondrial membrane potential in the SHAM pretreated groups was 6.32 times and 5.86 times as great as that in the no-SHAM treated groups at 12 h after infection with Pcc.L and Pcc.S, respectively.

3.3. Mitochondrial Alternative Respiratory Pathway

Compared with the control, the total respiratory rate of mitochondria increased in the SHAM pretreated groups and in the no-SHAM groups after infection with two strains of Pcc. The total respiratory rate of mitochondria infected with Pcc.S at 8 h was significantly higher (p < 0.05) than that infected by Pcc.L (Figure 3a), and there were significant differences (p < 0.05) between total respiratory rate after infection with Pcc.S and Pcc.L at 4 h, 10 h, and 12 h.
In the no-SHAM treated groups, the actual respiratory rate of the AOXs increased in both mitochondria of tuber slices infected by Pcc.L and Pcc.S, and the actual alternative respiratory rate of mitochondria infected by Pcc.S at 8 h was significantly higher (p < 0.05) than that of mitochondria infected by Pcc.L (Figure 3c). In the SHAM pretreated groups, the actual alternative respiratory rate of mitochondria had increased and then decreased in both mitochondria of tuber slices infected by Pcc.L and Pcc.S. There were significant differences (p < 0.05) between actual alternative respiratory rates infection with Pcc.S and Pcc.L at 4 h, 6 h, and 12 h after infection (Figure 3d).
Compared with the control group, the ratio of alternative respiratory rate to total respiratory rate (Valt’/Vtotal) increased after infection with two strains of Pcc. in the no-SHAM treated groups, and there were significant differences (p < 0.05) between Pcc.S and Pcc.L infection from 6 h to 12 h (Figure 3e). In the SHAM pretreated groups, the value of Valt’/Vtotal showed a decreasing trend (Figure 3f). The value of Valt’/Vtotal in the no-SHAM treated groups was 10.78 times and 10.03 times as great as that in the SHAM pretreated groups at 12 h after infection with Pcc.L and Pcc.S, respectively.

3.4. Mitochondrial Complex III and Complex IV Activity

We observed a substantial decline in the activity of complex III in the mitochondria of infected tuber slices, both in the SHAM pretreated groups and in the no-SHAM treated groups. Compared with the control, the activity of complex III exhibited the earliest and strongest action in response to Pcc.L infection in the SHAM pretreated groups, and there were significant differences (p < 0.05) between Pcc.S and Pcc.L infection from 8 h to 12 h (Figure 4b). However, the activity of complex III showed the strongest response to Pcc.S infection in the no-SHAM treated groups, and there were significant differences (p < 0.05) between Pcc.L and Pcc.S infection from 10 h to 12 h (Figure 4a). The activity of complex III in the SHAM pretreated groups was 35.94% and 83.33% lower than that of in the no-SHAM treated groups at 12 h after infection with Pcc.L and Pcc.S, respectively.
The activity of complex IV increased in mitochondria throughout the infection phase, but the enhancement of complex IV activity in the SHAM pretreated groups was more than that of in the no-SHAM treated groups (Figure 4c,d). The activity of complex IV showed the strongest susceptibility in response to Pcc.S infection, and there were significant differences (p < 0.05) between Pcc.S and Pcc.L infection from 8 h to 12 h, both in the SHAM pretreated groups and in the no-SHAM treated groups (Figure 4c,d). The activity of complex IV in the SHAM pretreated groups was 66.17% and 78.71% higher than that of in the no-SHAM treated groups at 12 h after infection with Pcc.L and Pcc.S, respectively.

3.5. Mitochondrial Respiratory Chain Function

The endogenous respiratory rate of mitochondria showed an increasing trend infected by Pcc.S and Pcc.L as compared to the control group. There were significant differences (p < 0.05) between the mitochondrial endogenous respiratory rate at 8 h, 10 h and 12 h after inoculation Pcc.S and Pcc.L (Figure 5a). However, in the SHAM pretreated groups, the mitochondrial endogenous respiratory rate increased firstly and then declined induced by Pcc.S and Pcc.L, respectively (Figure 5b).
In the no-SHAM treated groups, the respiratory state 3 and state 4 of mitochondria began to rise rapidly in the tuber slices infected by two strains of Pcc., and there were significant differences (p < 0.05) in them between Pcc.S and Pcc.L infection from 6 h to 12 h, respectively (Figure 5c,e). Unlike the no-SHAM treated groups, the respiratory state 3 of mitochondria changed slowly in the SHAM pretreated groups (Figure 5d).
The value of RCR displayed a continuous decline trend in mitochondria infected by Pcc.L and Pcc.S as compared to the control (Figure 5g). However, the value of RCR in the SHAM pretreated groups decreased more than that of the no-SHAM treated groups (Figure 5h). The values of RCR in the SHAM pretreated groups was 38.59% and 30.32% lower than that of in the no-SHAM treated groups at 12 h after infection with Pcc.L and Pcc.S, respectively.

4. Discussion

Potato tubers are easily invaded by soft rot bacteria Pcc. in the post-harvest and storage stage. Mitochondria play an important role in potato tuber in response to soft rot disease. The change in the mitochondrial respiratory pathway leads to efficient disease response and may protect the plant from pathogen invasion [15]. This study was conducted to observe the mitochondrial responses during the interaction between potato tubers and soft rot bacteria Pcc., and especially the role of the AOXs in the mitochondrial respiratory chain. The infection of potato tuber slices by Pcc.L and Pcc.S can lead to soft rot in tuber slices and an increase of their membrane permeability at 12 h after infection. It was also found that the symptomatic infection and membrane permeability were higher in the potato tuber slices when the AOXs were inhibited using SHAM, suggesting that the presence of the AOXs alters the disease susceptibility of potato tubers. This result is similar to that of a study by Li et al. where they present that soft rot bacterial infection of potatoes in activation of the increase of cyanide-resistant respiration in tubers, and Pcc.S can induce more cyanide-resistant respiration in tubers [29].
In addition to phenotypic changes, an increase in the respiratory rate of a host plant is a widespread phenomenon during plant-pathogen interaction [10,30]. We determined that the rates of the total respiration and the alternative respiration both increased in response to pathogen infection in the without SHAM treatment group. The capacity of alternative respiration and the value of Valt’/Vtotal were very low and tended to decrease when the AOXs were inhibited by SHAM. This result of an increase of mitochondrial AOXs and of total respiration of tuber slices induced by Pcc. is consistent with the results proposed by Simons et al. They showed that the infection of Arabidopsis leaves with the virulent tomato strain Pseudomonas syringae pv. resulted in an increase in both total respiration and cyanide-resistant O2 uptake level [30].
The mitochondrial respiratory chain consists of a few other enzyme complexes besides the AOXs. Among them, complex III and complex IV are the key enzymes associated with mitochondrial respiratory chain reactions. Complex III is cytochrome b-c1, which is responsible for electron transfer, while complex IV is the only oxidase in the mitochondrial respiratory chain, and cause the oxidation-reduction reactions of O2 leading to the synthesis of two H2O molecules ultimately [31,32]. Evidence showed that in the interaction between host plants and pathogens, complex III and complex IV were impaired by pathogens, resulting in mitochondrial respiratory chain dysfunction [33,34]. In this study, the activity of complex III in mitochondria of the tubers declined with the aggravation of Pcc. infection regardless of the presence of the AOXs, suggesting that the mitochondrial respiratory chain was disrupted by Pcc. which led to the mitochondrial respiratory chain dysfunction. It was also found that the activity of complex III declined, while the activity of complex IV increased when the AOXs were partially blocked with SHAM. This result suggests that the AOXs were able to correct pathological states associated with respiratory impairment, notably those affecting complex III and complex IV, and to maintain the function of the mitochondrial respiratory chain as reported by Szibor et al. and Giordano et al. in their respective studies [35,36].
We also found that in the presence of the AOXs, the mitochondrial endogenous respiration showed a trend of increasing rapidly with infection of pathogenic bacteria. This result showed that the increased mitochondrial endogenous respiration of the host plant was mainly caused by the operation of the AOXs [10]. Generally, states 3 and 4 are studied to evaluate mitochondrial function. State 3 reflects the substrate permeability of the mitochondrial inner membrane and the operation of the respiratory chain. State 4 reflects the permeability of the mitochondrial inner membrane, which is regulated by the mitochondrial membrane potential [26]. The RCR reflects mitochondrial membrane integrity and mitochondrial function state, as well as the degree of oxidative phosphorylation coupling [37]. In this study, we found that the value of RCR decreased with the increase of the infection degree of soft rot bacteria, but the value was greater than 1.5 in the presence of the AOXs. The value of RCR decreased rapidly and was close to 1.0 when the AOXs was partially blocked. This result suggests that the uncoupling degree of mitochondrial oxidative phosphorylation was enhanced when the AOXs were inhibited. It further illustrates that the mitochondria were disrupted in varying degree by two strains of pathogenic bacteria, which increased mitochondrial membrane permeability, resulted in the decline of mitochondrial integrity and in a series of membrane dysfunctions, as well as decreased respiratory rate, and finally led to mitochondrial respiratory dysfunction. The results suggest that the AOXs involve and regulate the mitochondrial respiration chain function to maintain host plant metabolism under the pathogenic bacteria stress [20].

5. Conclusions

The mitochondrial respiratory chain of potato tubers was impaired by two strains of Pcc. to varying degrees, which led to the increase of the AOXs. However, when the AOXs were partially blocked, the mitochondrial membrane integrity and complex III activity was significantly reduced with the increased soft rot symptoms. We conclude that increased AOXs activity can maintain mitochondrial respiratory chain and protect mitochondrial function to a certain extent, so as to alleviate the damage of pathogenic bacteria to potato tubers. This study provides insights for plant breeders to develop varieties with increased AOXs activity to prevent plants from oxidative damage caused by biotic stresses.

Author Contributions

M.M. writing—original draft, review and editing; S.M. data curation, proofreading; J.D. methodology, software; L.B. resources, instruments; H.L. project administration, funding acquisition, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially funded by the National Natural Science Foundation of China (Grant number 31772147; Grant number 31571989; Funder: Hongyu Li) and The Fundamental Research Funds for the Central Universities of China (Grant number lzujbky-2019-pd07; Funder: Minzhi Ma).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

We thank all the authors who participated in this paper. We also thank Shakeel Shahzad and Muhammad Naveed for modifying the wording of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Czajkowski, R.; Perombelon, M.C.M.; van Veen, J.A.; van der Wolf, J.M. Control of Blackleg and Tuber Soft Rot of Potato Caused by Pectobacterium and Dickeya Species: A Review. Plant Pathol. 2011, 60, 999–1013. [Google Scholar] [CrossRef]
  2. Saar-Reismaa, P.; Kotkas, K.; Rosenberg, V.; Kulp, M.; Kuhtinskaja, M.; Vaher, M. Analysis of Total Phenols, Sugars, and Mineral Elements in Colored Tubers of Solanum tuberosum L. Foods 2020, 9, 1862. [Google Scholar] [CrossRef] [PubMed]
  3. Kalita, D.; Holm, D.G.; LaBarbera, D.V.; Petrash, J.M.; Jayanty, S.S. Inhibition of α-glucosidase, α-amylase, and Aldose Reductase by Potato Polyphenolic Compounds. PLoS ONE 2018, 13, e0191025. [Google Scholar] [CrossRef] [PubMed]
  4. Reddivari, L.; Wang, T.M.; Wu, B.N.; Li, S.Y. Potato: An Anti-Inflammatory Food. Am. J. Potato Res. 2019, 96, 164–169. [Google Scholar] [CrossRef]
  5. Schilling, G.; Eissner, H.; Schmidt, L.; Peiter, E. Yield Formation of Five Crop Species Under Water Shortage and Differential Potassium Supply. J. Plant Nutr. Soil Sci. 2016, 179, 234–243. [Google Scholar] [CrossRef]
  6. Hadizadeh, I.; Peivastegan, B.; Hannukkala, A.; van der Wolf, J.M.; Nissinen, R.; Pirhonen, M. Biological Control of Potato Soft Rot Caused by Dickeya solani and the Survival of Bacterial Antagonists Under Cold Storage Conditions. Plant Pathol. 2019, 68, 297–311. [Google Scholar] [CrossRef] [Green Version]
  7. Charkowski, A.O. The Changing Face of Bacterial Soft-Rot Diseases. Annu. Rev. Phytopathol. 2018, 56, 269–288. [Google Scholar] [CrossRef]
  8. Marquez-Villavicencio, M.D.; Groves, R.L.; Charkowski, A.O. Soft Rot Disease Severity Is Affected by Potato Physiology and Pectobacterium Taxa. Plant Dis. 2011, 95, 232–241. [Google Scholar] [CrossRef] [Green Version]
  9. Tomlinson, P.F.; Moreland, D.E. Cyanide-Resistant Respiration of Sweet Potato Mitochondria. Plant Physiol. 1975, 55, 365–369. [Google Scholar] [CrossRef] [Green Version]
  10. Hanqing, F.; Kun, S.; Mingquan, L.; Hongyu, L.; Xin, L.; Yan, L.; Yifeng, W. The Expression, Function and Regulation of Mitochondrial Alternative Oxidase Under Biotic Stresses. Mol. Plant Pathol. 2010, 11, 429–440. [Google Scholar] [CrossRef]
  11. Rong, Z.; Tu, P.; Xu, P.; Sun, Y.; Yu, F.; Tu, N.; Guo, L.; Yang, Y. The Mitochondrial Response to DNA Damage. Front. Cell Dev. Biol. 2021, 9, 669379. [Google Scholar] [CrossRef] [PubMed]
  12. Koornneef, A.; Pieterse, C.M. Cross Talk in Defense Signaling. Plant Physiol. 2008, 146, 839–844. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Rasmusson, A.; Møller, I. Mitochondrial Electron Transport and Plant Stress. In Plant Mitochondria. Advances in Plant Biology; Kempken, F., Ed.; Springer: New York, NY, USA, 2011; Volume 1, pp. 357–381. [Google Scholar] [CrossRef]
  14. Hua, D.; Duan, J.; Ma, M.; Li, Z.; Li, H. Reactive Oxygen Species Induce Cyanide-Resistant Respiration in Potato Infected by Erwinia carotovora subsp. Carotovora. J. Plant Physiol. 2020, 246–247, 153132. [Google Scholar] [CrossRef] [PubMed]
  15. Suleman, M.; Ma, M.; Ge, G.; Hua, D.; Li, H. The Role of Alternative Oxidase in Plant Hypersensitive Response. Plant Biol. 2021, 23, 415–419. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, L.; Oh, Y.; Li, H.; Baldwin, I.T.; Galis, I. Alternative Oxidase in Resistance to Biotic Stresses: Nicotiana attenuata AOX Contributes to Resistance to a Pathogen and a Piercing-Sucking Insect but not Manduca sexta larvae. Plant Physiol. 2012, 160, 1453–1467. [Google Scholar] [CrossRef] [Green Version]
  17. Vanlerberghe, G.C. Alternative Oxidase: A Mitochondrial Respiratory Pathway to Maintain Metabolic and Signaling Homeostasis During Abiotic and Biotic Stress in Plants. Int. J. Mol. Sci. 2013, 14, 6805–6847. [Google Scholar] [CrossRef]
  18. Gandin, A.; Denysyuk, M.; Cousins, A.B. Disruption of the Mitochondrial Alternative Oxidase (AOX) and Uncoupling Protein (UCP) Alters Rates of Foliar Nitrate and Carbon Assimilation in Arabidopsis thaliana. J. Exp. Bot. 2014, 65, 3133–3142. [Google Scholar] [CrossRef] [Green Version]
  19. Kühn, K.; Obata, T.; Feher, K.; Bock, R.; Fernie, A.R.; Meyer, E.H. Complete Mitochondrial Complex I Deficiency Induces an Up-Regulation of Respiratory Fluxes That Is Abolished by Traces of Functional Complex I. Plant Physiol. 2015, 168, 1537–1549. [Google Scholar] [CrossRef] [Green Version]
  20. Mackenzie, S.; McIntosh, L. Higher Plant Mitochondria. Plant Cell 1999, 11, 571–586. [Google Scholar] [CrossRef]
  21. Lambers, H. The Physiological Significance of Cyanide-Resistant Respiration in High-Plants. Plant Cell Environ. 1980, 3, 293–302. [Google Scholar] [CrossRef]
  22. Millenaar, F.F.; Lambers, H. The Alternative Oxidase: In Vivo Regulation and Function. Plant Biol. 2003, 5, 2–15. [Google Scholar] [CrossRef]
  23. Yoshida, K.; Watanabe, C.K.; Hachiya, T.; Tholen, D.; Shibata, M.; Terashima, I.; Noguchi, K. Distinct Responses of the Mitochondrial Respiratory Chain to Long-and Short-Term High-Light Environments in Arabidopsis thaliana. Plant Cell Environ. 2011, 34, 618–628. [Google Scholar] [CrossRef] [PubMed]
  24. Vanlerberghe, G.C.; Vanlerberghe, A.E.; McIntosh, L. Molecular Genetic Alteration of Plant Respiration (Silencing and Overexpression of Alternative Oxidase in Transgenic Tobacco). Plant Physiol. 1994, 106, 1503–1510. [Google Scholar] [CrossRef] [Green Version]
  25. Maher, E.A.; Deboer, S.H.; Kelman, A. Serogroups of Erwinia carotovora Involved in Systemic Infection of Potato Plants and Infestation of Progeny Tubers. Am. Potato J. 1986, 63, 1–11. [Google Scholar] [CrossRef]
  26. Jacoby, R.P.; Millar, A.H.; Taylor, N.L. Assessment of Respiration in Isolated Plant Mitochondria Using Clark-Type Electrodes. Methods Mol. Biol. 2015, 1305, 165–185. [Google Scholar] [CrossRef] [PubMed]
  27. Duvenage, L.; Munro, C.A.; Gourlay, C.W. The Potential of Respiration Inhibition As a New Approach to Combat Human Fungal Pathogens. Curr. Genet. 2019, 65, 1347–1353. [Google Scholar] [CrossRef] [Green Version]
  28. Doherty, E.; Perl, A. Measurement of Mitochondrial Mass by Flow Cytometry During Oxidative Stress. React. Oxyg. Species 2017, 4, 275–283. [Google Scholar] [CrossRef] [Green Version]
  29. Li, H.y.; Zhou, G.k.; Hu, T.q.; Meng, X.q.; Wan, D.s.; Shen, X.; Bi, Y.R.; Guo, J.k.; Liang, H.G.; Zhang, L.X. Cyanide-Resistant Alternative Pathway Was Involved in the Compatible Interaction Between Potato Tuber (Salonum tuberosum L.) and Soft Rot Bacteria (Erwinia carotovora pv. Carotovora). Acta Botanica Boreali-Occidentalia Sinica 2000, 20, 997–1002. [Google Scholar]
  30. Simons, B.H.; Millenaar, F.F.; Mulder, L.; Van Loon, L.C.; Lambers, H. Enhanced Expression and Activation of the Alternative Oxidase During Infection of Arabidopsis With Pseudomonas syringae pv Tomato. Plant Physiol. 1999, 120, 529–538. [Google Scholar] [CrossRef] [Green Version]
  31. Kayser, E.B.; Sedensky, M.M.; Morgan, P.G. The Effects of Complex I Function and Oxidative Damage On Lifespan and Anesthetic Sensitivity in Caenorhabditis elegans. Mech. Ageing Dev. 2004, 125, 455–464. [Google Scholar] [CrossRef]
  32. Lin, Y.J.; Yu, X.Z.; Li, Y.H.; Yang, L. Inhibition of the Mitochondrial Respiratory Components (Complex I and Complex III) As Stimuli to Induce Oxidative Damage in Oryza sativa L. Under Thiocyanate Exposure. Chemosphere 2020, 243, 125472. [Google Scholar] [CrossRef] [PubMed]
  33. Wagner, A.M.; Krab, K. The Alternative Respiration Pathway in Plants-Role and Regulatin. Physiol. Plant. 1995, 95, 318–325. [Google Scholar] [CrossRef]
  34. Amirsadeghi, S.; Robson, C.A.; Vanlerberghe, G.C. The Role of the Mitochondrion in Plant Responses to Biotic Stress. Physiol. Plant. 2007, 129, 253–266. [Google Scholar] [CrossRef]
  35. Szibor, M.; Dhandapani, P.K.; Dufour, E.; Holmström, K.M.; Zhuang, Y.; Salwig, I.; Wittig, I.; Heidler, J.; Gizatullina, Z.; Gainutdinov, T.; et al. Broad AOX Expression In a Genetically Tractable Mouse Model Does Not Disturb Normal Physiology. Dis. Model. Mech. 2017, 10, 163–171. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Giordano, L.; Farnham, A.; Dhandapani, P.K.; Salminen, L.; Bhaskaran, J.; Voswinckel, R.; Rauschkolb, P.; Scheibe, S.; Sommer, N.; Beisswenger, C.; et al. Alternative Oxidase Attenuates Cigarette Smoke-Induced Lung Dysfunction and Tissue Damage. Am. J. Respir. Cell Mol. Biol. 2019, 60, 515–522. [Google Scholar] [CrossRef] [PubMed]
  37. Brand, M.D.; Nicholls, D.G. Assessing Mitochondrial Dysfunction in Cells. Biochem. J. 2011, 435, 297–312. [Google Scholar] [CrossRef] [Green Version]
Foods 11 01574 g001 550
Figure 1. The effect of Pcc.L and Pcc.S treatments on the infection degree of potato tuber slices. “L” and “S” indicate pathogenic bacteria of Pcc.L and Pcc.S, respectively. “2, 6, 12” indicate post-inoculation time (h). “+” and “−” indicate salicylhydroxamic acid pretreatment and without salicylhydroxamic acid treatment, respectively.
Figure 1. The effect of Pcc.L and Pcc.S treatments on the infection degree of potato tuber slices. “L” and “S” indicate pathogenic bacteria of Pcc.L and Pcc.S, respectively. “2, 6, 12” indicate post-inoculation time (h). “+” and “−” indicate salicylhydroxamic acid pretreatment and without salicylhydroxamic acid treatment, respectively.
Foods 11 01574 g001
Foods 11 01574 g002 550

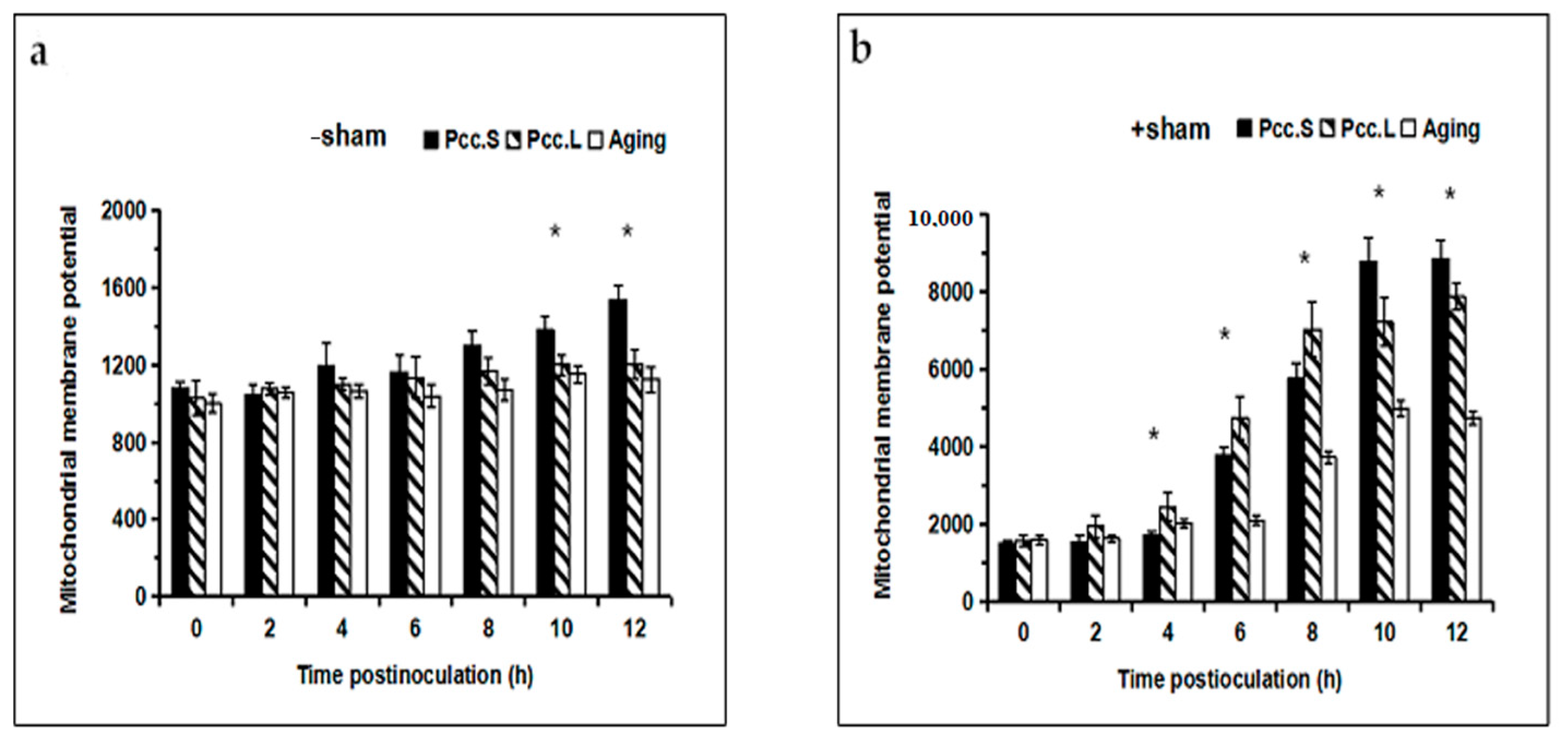

Figure 2. The effect of Pcc.L and Pcc.S treatments on mitochondrial membrane potential of tuber slices in the no salicylhydroxamic acid treated group (a) and that of the salicylhydroxamic acid pretreated group (b). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Figure 2. The effect of Pcc.L and Pcc.S treatments on mitochondrial membrane potential of tuber slices in the no salicylhydroxamic acid treated group (a) and that of the salicylhydroxamic acid pretreated group (b). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Foods 11 01574 g002
Foods 11 01574 g003 550

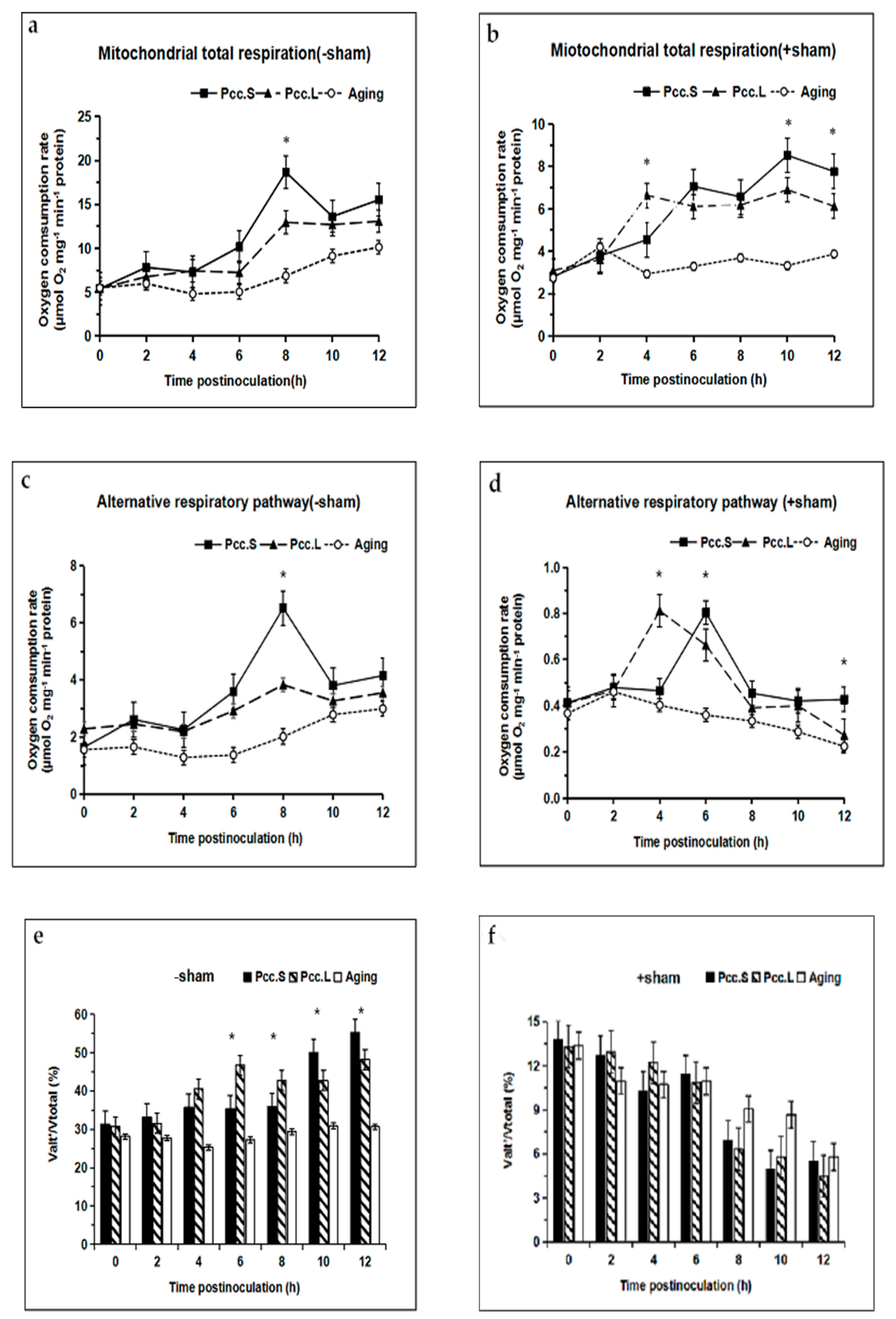

Figure 3. Effect of Pcc.L and Pcc.S treatments on mitochondrial total respiratory rate, alternative respiratory rate and Valt’/Vtotal of tuber slices in no salicylhydroxamic acid treated group (a,c,e) and those of the salicylhydroxamic acid pretreated group (b,d,f). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Figure 3. Effect of Pcc.L and Pcc.S treatments on mitochondrial total respiratory rate, alternative respiratory rate and Valt’/Vtotal of tuber slices in no salicylhydroxamic acid treated group (a,c,e) and those of the salicylhydroxamic acid pretreated group (b,d,f). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Foods 11 01574 g003
Foods 11 01574 g004 550

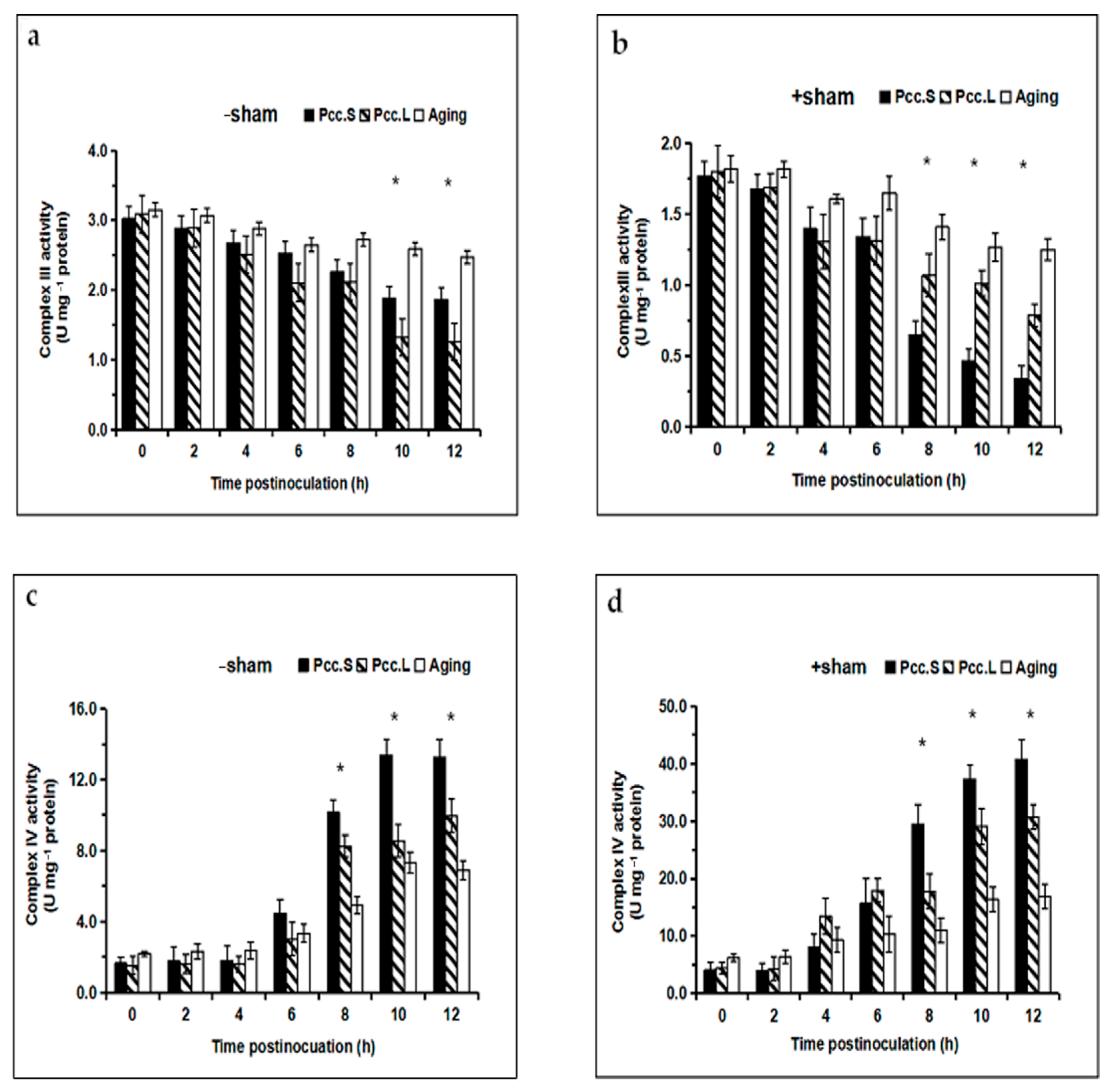

Figure 4. Effect of Pcc.L and Pcc.S treatment on mitochondrial complex III and complex IV activity of tuber slices in the no salicylhydroxamic acid treated group (a,c) and those of the salicylhydroxamic acid pretreated group (b,d). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Figure 4. Effect of Pcc.L and Pcc.S treatment on mitochondrial complex III and complex IV activity of tuber slices in the no salicylhydroxamic acid treated group (a,c) and those of the salicylhydroxamic acid pretreated group (b,d). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Foods 11 01574 g004
Foods 11 01574 g005a 550Foods 11 01574 g005b 550

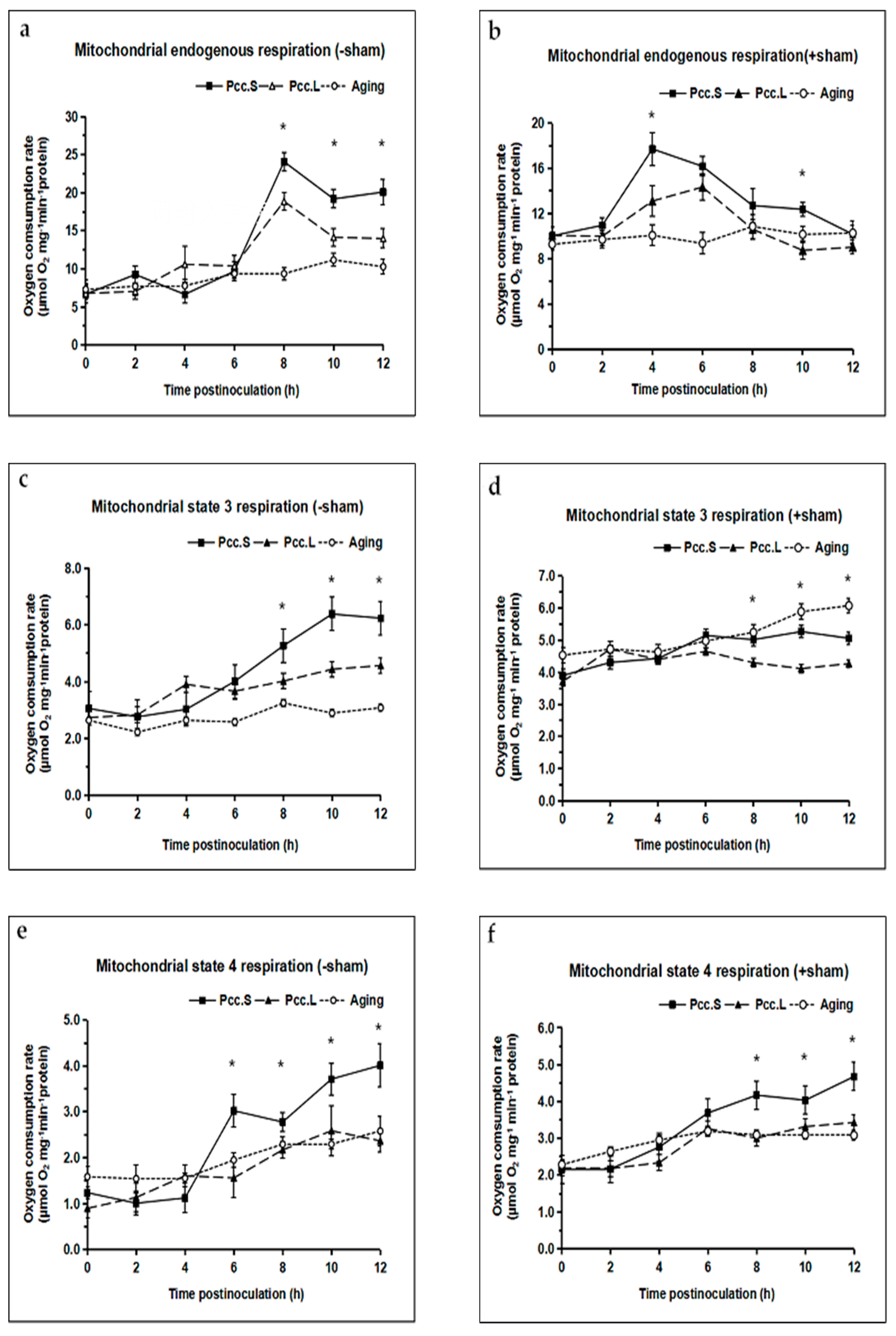

Figure 5. Effect of Pcc.L and Pcc.S treatment on mitochondrial endogenous respiration, mitochondrial state 3, state 4 and the relative control rate of tuber slices in the no salicylhydroxamic acid treated group (a,c,e,g) and those of the salicylhydroxamic acid pretreated group (b,d,f,h). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Figure 5. Effect of Pcc.L and Pcc.S treatment on mitochondrial endogenous respiration, mitochondrial state 3, state 4 and the relative control rate of tuber slices in the no salicylhydroxamic acid treated group (a,c,e,g) and those of the salicylhydroxamic acid pretreated group (b,d,f,h). Aging indicates naturally aged potato tuber slices as control. Bars with * (t-test) were significantly different at p < 0.05 between Pcc.S and Pcc.L. The standard errors (Vertical bars) of three replicates are shown.
Foods 11 01574 g005aFoods 11 01574 g005b
Table
Table 1. The change of potato tuber slices after inoculation with Pcc.L and Pcc.S on 12 h.
Table 1. The change of potato tuber slices after inoculation with Pcc.L and Pcc.S on 12 h.
TreatmentStrainsPathogenicityRot DegreeColorp %
−shamAging−+White49.90 d
Pcc.Lweak+++Brown60.20 c
Pcc.Sstrong++++Dark brown65.80 c
+shamAging−+White53.78 d
Pcc.Lweak++++Brown70.41 b
Pcc.Sstrong+++++Dark brown80.98 a
+ sham indicates potato tuber slices were pretreated by salicylhydroxamic acid; − sham indicates potato tuber slices without salicylhydroxamic acid. Aging indicates naturally aged potato tuber slices as control. “+” indicates rot degree of potato tuber slice infected by Pcc.L and Pcc.S. P % indicates membrane permeability of potato tuber slices. “a,b,c,d” were significantly different at p < 0.05 for the same treatment.
