Real-Time PCR Method Combined with a Matrix Lysis Procedure for the Quantification of Listeria monocytogenes in Meat Products

Departamento de Producción Animal y Ciencia de los Alimentos, Facultad de Veterinaria, Instituto Agroalimentario de Aragón -IA2-, Universidad de Zaragoza-CITA, C/Miguel Servet 177, 50013 Zaragoza, Spain
Facultad de Farmacia, Universidad Complutense de Madrid, Plaza Ramón y Cajal s/n, 28040 Madrid, Spain
Author to whom correspondence should be addressed.
Foods 2021, 10(4), 735;
Submission received: 9 February 2021 / Revised: 24 March 2021 / Accepted: 25 March 2021 / Published: 30 March 2021


In this study a real-time PCR method has been developed for the specific quantification of the foodborne pathogen Listeria monocytogenes on meat products through the gene hlyA. The PCR was combined with a matrix lysis that allowed the obtaining of the microorganisms without sample dilution and the elimination the PCR inhibitors from dry-cured ham. The qPCR method calibration curve had an efficiency of 100.4%, limits of detection and quantification were 30.1 ± 6.2 CFU/g which is under the legal limit of L. monocytogenes in ready-to-eat products, and an analytical variability <0.25 log hlyA gene copies/reaction. The analysis was performed simultaneously with the reference method ISO 11290-2. The comparison of the qPCR-matrix lysis results with the reference method showed an excellent correspondence, with a relative accuracy between 95.83–105.20%. Finally, the method was applied to commercial derived meat samples and the pathogen was quantified in one of the commercial samples assayed in 69.1 ± 13.9 CFU/g while the reference method did not quantify it. The optimized qPCR showed higher precision and sensitivity than the reference method at low concentrations of the microorganism in a shorter time. Therefore, qPCR-matrix lysis shows a potential application in the meat industry for L. monocytogenes routine control.

1. Introduction

Nowadays, Spain produces a large number of ready-to-eat pork products such as cold cuts, cured or enriched with flour and spices for its nationwide consume or exportation to third-world countries because of its variety, quality and distinguished and valued taste. Consequently, the pork meat industry implies an important contribution to national economy, positioning Spain as 2nd pork meat producer in the EU after Germany, and 4th producer of elaborated meat products in 2018 (Asociación Nacional de industrias de la Carne de España).
Spanish ready to eat (RTE) meat products security is a continuous challenge to the food industry. Effective control of the different food pathogens is essential, and Listeria monocytogenes is one of the most important for public health. This microorganism causes a severe foodborne disease known as listeriosis, which mainly affects certain high risk groups such as pregnant women, infants, elderly, or individuals with a weakened immune system, and has a lethality of 20–30% [1,2]. Besides, L. monocytogenes is an ubiquitous organism commonly present on the surface of the food processing machinery, that can also produce biofilms leading to its and the crossed contamination among different products of the production chain [3]. Thus, this microorganism survives and reproduces under unfavorable conditions; low water activity, wide pH range, high concentrations of NaCl, or presence of antimicrobials. Among all, RTE meat products are the one of the main high-risk foods because their exposure to the elaboration surfaces during several steps such as deboning, cut, slicing, or packaging, their relative long shelf-life under refrigeration and its consumption without any treatment that may eliminate the pathogen [4].
Currently, the prevalence of L. monocytogenes in meat products in Spain is variable, between 1% and 29.7% depending on the hygienic conditions during its processing [5,6,7]. The European Food Safety Authority has reported a prevalence of this microorganism of 1.3% in pork-derived RTE meat products [8]. Nevertheless, recently in 2019, there was the most important outbreak of L. monocytogenes in Spain, with more than 200 cases. It was associated to carne mechada, a ready-to-eat meat product traditionally consumed in the south of this country Centro de Coordinación de Alertas y Emergencias Sanitarias, Ministerio de Sanidad, Consumo y Bienestar Social of Spain)The genetic correspondence of L. monocytogenes among the isolated in the food product, industry surfaces, and clinical cases showed that the contamination took place in the industry during the food processing.
In order to avoid the health-related consequences and maintain these products market competitivity, meat industry has to comply with microbiological criteria established by the EU (Commission Regulation (EC) No 2073/2005 (2005) for L. monocytogenes. For RTE products that able to support the growth of L. monocytogenes, the limit is non-detected L. monocytogenes in 25 g of products before they leave the production plant, or 100 CFU/g during its complete shelf-life. For RTE products unable to support the growth of the pathogen, products cannot have greater than 100 CFU/g during their shelf-life [4,8,9].
This Commission Regulation also established the reference methods for the detection and quantification of L. monocytogenes, ISO 11290-1 and ISO 11290-2, respectively. Nevertheless, these methods present several limitations such as prolonged procedure, high costs, and has a low sensitivity and precision at low concentrations [10]. Although a low percentage of samples exceeds the legal limit of 100 CFU/g, food industry requires a quick, simple, and efficient method for the detection and quantification of L. monocytogenes that can be integrated in its Hazard Analysis and Critical Control Points (HACCP) system.
As alternative to the reference methods, electrochemistry, molecular or immunochemistry techniques have been studied for the quantification of L. monocytogenes in food. In the last few years several quantitative PCR methods have been developed because of its advantages in terms of reliability, sensitivity, specificity, automatization, and multiple sample analysis [11,12,13,14,15]. Nevertheless, these techniques require a sample dilution before the analysis in order to reduce the concentration of inhibitors that may affect the PCR reaction efficiency and influence negatively the limit of detection and quantification. On the other hand, the concentration of L. monocytogenes in food is usually low, so the dilution of the sample affects the reliable quantification of the pathogen. The analysis of samples without prior dilution is a challenge to address. This implies the proper preparation of the sample to avoid the negative effects of the inhibitors and the concentration of the microorganisms. With this aim, several studies have included different steps such as centrifugation, membrane filtration, or the use of specific buffers [16,17,18]. The new procedures must be validated and compared with the reference method to ensure the results quality.
Because of this, the aim of this work has been the optimization and evaluation of a fast quantitative method based on matrix lysis procedure combined with real time PCR for L. monocytogenes in RTE meat products, in order to contribute to the control of this pathogen in meat industry.

2. Materials and Methods

2.1. Quantitative PCR Optimization

2.1.1. Bacterial Culture Conditions and DNA Extraction

To optimize the PCR amplification conditions, DNA was extracted from a pure culture of L. monocytogenes ATCC 19114 (American Type of American Collection). A bacterial colony was grown on 10 mL of Brain Heart Infusion broth (BHI) at 37 °C overnight to a final bacterial concentration of 2–3 × 109 CFU/mL.
DNA was extracted from 1 mL of the overnight culture with DNeasy Blood and Tissue Kit (Qiagen, Hilden, Germany) following the manufacturer’s instructions. Samples were centrifuged at 10,000× g for 1 min in a final volume of elution buffer of 150 μL. The final DNA concentration (ng/mL) and its purity was measured by spectrophotometry using Nanodrop 2000 (and the software NanoDrop 2000/2000 c (version 1.3.1) (Thermo Scientific, Waltham, MA, USA). Finally, to perform the PCR analysis, purified DNA was solved in molecular biology grade water.

2.1.2. Quantitative PCR Assay

For the quantification of L. monocytogenes, the gene hlyA, a 113 bp fragment, was targeted. Probe and primers set employed in the assays were selected according to a previous study [19]. The reactions contained TaqMan Master Mix 1X (BIORON, Römerberg, Germany), forward primer (125 or 175 nM), reverse primer (125 or 175 nM), Taqman probe (125–250 nM), 5 μL DNA previously extracted (3 pg DNA) and water (final volume 25 μL). The set of primers and Taqman probe are shown in Table 1.
The amplification was performed with Miniopticon® Real Time PCR System (Bio-Rad, Hercules, CA, USA) and the software CFX Manager. The amplification program steps were a pre-incubation at 94 °C for 3 min followed by 45 cycles: denaturalization at 95 °C for 20 s, annealing at 60 to 65 °C for 20 s, and extension at 72 °C for 20 s.
For the optimization of the PCR conditions, all reactions were performed in triplicate and it was included a negative control of the DNA extraction (distilled water), and a positive and negative control of the PCR (Listeria monocytogenes DNA ATCC 19114). It was assayed a rage of annealing temperature from 60 °C to 65 °C and different combinations of prime/probe concentrations: 350/250, 350/125, 250/250, and 250/125 nM. A higher final product (end-point fluorescence) and a lower value of Cq (quantification cycle) were the criteria employed to select the annealing temperature and the primer/probe concentrations. A DNA standard curve and a cell standard curve were constructed. For both curves the reaction efficiency (E) was determined according to Equation (1) [20].
E   ( % ) = ( ( 10     1 / s l o p e )     1 ) × 100

DNA Calibration Curve

DNA was extracted from 1 mL of the overnight culture in water were performed to a final range of 3.1 × 106 to 3.1 fg/PCR reaction. Assuming that 3.16 fg of DNA equals the mass of one single whole genome of L. monocytogenes and that hlyA is present in single copy, the range assayed was from 9.8 × 105 to 0.98 genomic equivalents of L. monocytogenes/reaction. Every DNA concentration amplification assay was performed in triplicate in three different days (total assays = 63).

Cellular Calibration Curve

From 1 mL of the overnight culture, nine serial tenfold dilutions in peptone water 0.1% were performed to a final range of 2 × 107 to 2 × 101 CFU/mL, approximately. DNA was extracted from each dilution according to Section 2.1.1 and 5 μL of the extracted DNA were analyzed by qPCR in triplicate in 3 different days (total assays = 81). Simultaneously, the bacterial concentration of each dilution was verified by plating on BHI agar (37 °C/24 h).

2.2. Quantification of L. monocytogenes in Meat Products

2.2.1. Samples Artificial Contamination

Dry cured ham was selected as meat product to be artificially contaminated. Sample contamination was performed with two aims. First, 30 ham samples of 6 g were divided in 3 sets (set = 10 samples) to be artificially contaminated with serial dilutions of L. monocytogenes to evaluate the proposed PCR method linearity, efficiency, precision, analytical variability, and limits of detection (LOD) and quantification (LOQ) (Method A).
Then other 60 ham samples of 6 g each were divided in 6 sets to quantify with the three methods: A, B, and reference ISO 11290-2/A1:2018, and determine the relative accuracy regarding the reference method. A total of 20 samples were analyzed by each method.
To artificially contaminate the ham samples, serial tenfold dilutions from a single L. monocytogenes overnight culture broth of 2–3 × 109 CFU/mL were prepared. From each set, nine samples were contaminated with different concentrations of the understudy bacterial strain: 3 × 106, 3 × 105, 3 × 104, 3 × 103, 3 × 102, 3 × 101, 1.5 × 101, 7.5, 3 CFU/g, approximately, and one was used as negative control. Each ham sample was contaminated with 100 μL of the prepared dilutions.

2.2.2. Methods for the Quantification of L. monocytogenes in Meat Products

Three different methods for the quantification of L. monocytogenes in meat products were evaluated (Figure 1). Two sets of 10 samples were evaluated in triplicate with each method (n = 180 samples). A scheme of the steps in each quantification procedure is represented in Figure 1.

Method A

Contaminated dry cured ham samples were first summited to a Matrix lysis, an adapted procedure previously described by Mester et al. [17] and Witte et al. [15]. According to this technique, 6 g of ham were mixed with 30 mL of lysis buffer (1 M MgCl2 y 50 mM Tris pH 7.6) and homogenized in a Stomacher bag (51 μm pore diameter) with a Stomacher 400 Circulator laboratory blender for 2 min at 260 rpm. The obtained liquid was transferred to a 50 mL sterile tubes and lysis buffer was added to a final total volume of 45 mL. Samples were incubated under shaking for 30 min at 37 °C. Then they were centrifuged at 3300× g at 30 °C. Supernatant was eliminated and the pellet was suspended in 45 mL of washing buffer (0.5% Tween 20 and 1X PBS) to be centrifuged 3300× g for 30 min at 30 °C. Supernatant was eliminated and the pellet suspended in 750 μL of PBS and centrifuged 9000× g for 5 min. This last step was performed twice. A DNA extraction was performed from the last obtained pellet according to the procedure previously described (Section 2.1) and the bacterial quantification was performed in triplicate for each sample by the optimized PCR method (n = 60). Besides, it was added in every well as an internal amplification control (IAC) (Exopol, Spain), composed by two primers and a probe bound to the fluorophore HEX that targeted the action gene.
A ham calibration curve was built from the analysis through this method. Three contaminated sample sets were analyzed through this method and the curve was built by confronting the obtained mean value of Cq obtained with qPCR versus the mean of bacteria culture concentration (log CFU/g) obtained with the reference method. Several parameters of the curve were determined according to Bustin et al. [20]; correlation coefficient (R2), linear dynamic range, efficiency, limits of detection (LOD), and quantification (LOQ), variation coefficient intra-assay and inter-assay (accepted <15%(European Pharmacopoeia, 2015), and analytical variability (standard deviation <0.25 log copies/reaction [21].

Method B

Matrix lysis was performed as in method A. The final pellet was suspended in 2.4 mL of PBS and colony count on Rapid L-mono agar in at 37 °C for 24 h (triplicate). The presumptive colonies were confirmed by the rhamnose test (37 °C for 24 h). This method B was performed to evaluate the matrix lysis effect on the final plate count compared it with the reference method. The presumptive colonies were confirmed by the rhamnose test (37 °C for 24 h).

Reference Method ISO 11290-2/A1:2018

In this procedure 6 g of the artificially contaminated ham were mixed with buffered peptone water (1/5 dilution) by homogenization with the Stomacher 400 Circulator laboratory blender for 2 min at 260 rpm. From each sample, tenfold dilutions were performed, and were inoculated on agar OCLA and chromogenic Rapid L. mono agar to be incubated at 37 °C/48 h and 37 °C/24 h, respectively (triplicate). The presumptive colonies were confirmed by the rhamnose test (37 °C for 24 h).
Once performed, the quantification of the experimentally contaminated samples through the three methods, the relative accuracy of methods A and B was determined as stablished in ISO 16140. It is a critical validation parameter that measures the closeness between the alternative method and the accepted reference value [20]. The relative accuracy was expressed as the percentage of CFU/g calculated by methods A and B versus the standard reference method. A relative of accuracy of 100% indicates a total agreement between the alternative and reference method.

2.3. Quantification of L. monocytogenes in Commercial Meat Products

There were selected a total of 43 samples of commercial meat products from Spain to evaluate the presence of L. monocytogenes: 38 samples of cured products (14 ham, 8 sausages, and 16 others), and 5 samples of deli meat.
First it was evaluated its presence in 25 g with the commercial iQ-Check L. monocytogenes II kit (Bio-Rad) PCR real time method. Then, the pathogen was quantified in those samples where it was detected.
From every sample 37 g were mixed in a sterile bag in the Stomacher Circulator 400 (260 rpm/2 min). Then the sample was divided in three; one portion of 25 g for detection purposes, and two portions of 6 g for quantifying. One portion of 6 g was evaluated with the optimized PCR method, while the other (6 g) was counted with the reference ISO 11290-2/A1:2018 method.

3. Results and Discussion

3.1. Optimization and Development of qPCR Method

For the validation of a PCR method for the quantification of L. monocytogenes the influence of annealing temperature, primers concentration, and probe concentration on the Cq and end-point were evaluated. Table 2 shows the Cq and end-point values obtained at the different experimental conditions tested.
Although the Cq and end-points values were similar despite the different conditions assayed, it was selected as an annealing temperature of 64 °C and 350 nM and 250 nM of primers and probe concentrations, respectively, which corresponds to the lowest Cq value, 30.31 ± 0.03, and the highest end-point, 0.34 ± 0.09.

3.2. qPCR Calibration Curves

Under the optimized experimental PCR conditions, a DNA calibration curve was built from the PCR analysis of serial DNA dilutions extracted from a pure culture. Equation (2)
Cq = −3.357 log fg DNA/reaction + 41.155; R2 = 0.999
DNA calibration curve slope was close to the optimum theoretical value −3.32, and the PCR reaction efficiency (E) was 98.5%, which is between the accepted range of 90–105% [20,22]. Both LOD and LOQ were 30 fg DNA/reaction or 9.5 genomic equivalents/PCR reaction since at this concentration all nine replicates were amplified and quantified. The obtained calibration curve results are similar to the ones reported in previous studies [19]. Quero et al. [21] obtained similar results in terms of dynamic linear range, correlation and efficiency, nevertheless obtained a LOD and LOQ of 1–5 genomic equivalent/PCR reaction. The DNA calibration curve results showed that the amplification parameters were adequate to perform the quantification of L. monocytogenes.
Then a cellular calibration curve was built from the triplicate PCR analysis of serial culture dilutions of a pure L. monocytogenes overnight solution Equation (3).
Cq = −3.503 log CFU/mL + 445.057; R2 = 0.998
The obtained curve presented six orders of magnitude linear dynamic range and the determined reaction efficiency within the accepted ranged, 92.9%. The LOD and LOQ values were 1.88 ± 0.10 log CFU/mL in both cases, which correspond to 2.4 ± 0.6 genomic equivalents of L. monocytogenes/reaction. These results are similar to other authors in terms of efficiency, dynamic linear range, and linearity [14,16]. Nevertheless, the LOD and LOQ obtain by Paul et al. [23] were 10 genomic equivalents/reaction, four times higher to the achieved in this study. The PCR quantification performed from serial dilution of a L. monocytogenes pure culture obtained in this is study provide a quantification curve with optimization values within the accepted ranges and lower concentration limits for the detection and quantification of the pathogen.
Finally, dry cured ham commercial samples were experimentally contaminated with a known bacterial concentration to be processed according to method A. After the matrix lysis and DNA extraction were performed as previously described in Section 2.2.2, L. monocytogenes was quantified under the PCR optimized conditions, in order to build a ham calibration curve (Equation (4)).
Cq = −3.313 log CFU/g of ham + 43.937; R2 = 0.987
The PCR method was capable of amplify from 6.82 ± 0.11 to 1.48 ± 0.10 log CFU/g within the accepted values of linearity, R2 = 0.9875, linear dynamic range, 5 orders of magnitude, and efficiency, E% = 100.4% [22]. The method LOD and LOQ was 1.48 ± 0.10 log CFU/g in both cases, which correspond to 30.1 ± 6.2 CFU/g or 6.0 ± 1.2 genomic equivalents of L. monocytogenes/reaction (Table 3).
Other authors have developed PCR methods for the detection and quantification of L. monocytogenes in different food matrices. Rantsiou et al. [14] developed a qPCR for meat products, cured ham among them, with values of correlation efficiency and lineal dynamic range within the accepted values. However, the LOD and LOQ was higher than the achieved in this work, 103 CFU/g. Rodríguez-Lázaro et al. [24] quantification study results from pork and salmon samples were also limited in terms of dynamic rage (3 × 105 to 3 × 107 CFU/g) and LOD and LOQ (3 × 105 CFU/g). Nevertheless, when they performed in another study a pre-PCR filtration treatment, the dynamic range improved to 4 logs, from 106 to 103 CFU/g [25].
The quantification via PCR of the microorganism in a solid food product is usually performed by a homogenization in buffered water causing the sample dilution 1:10. Then, an aliquot, generally 1 mL, is used for the DNA extraction and PCR quantification. The final DNA concentration from the microorganism is reduced five log unities regarding its initial concentration on the aliment [24]. Because of this, sample pretreatment before the qPCR has become an issue of great importance [18]. In order to develop a method with lower values of LOD and LOQ several authors have attempted the microorganism concentration before its analysis. Hough et al. [26] developed a qPCR method for L. monocytogenes in cabbage, with a centrifugation step for the concentration of the microorganism which extended the range at which the pathogen quantification to a final LOD of 1.4 × 102 CFU/25 g. Besides, the sample concentration may cause the increase of sample inhibitors, affecting the DNA extraction or the PCR reaction. In order to reduce the presence of this inhibitors have also been reported experimental steps pre-PCR. D’Urso et al. [16] achieved a LOD of 10 CFU/10 g of yogurt when they performed centrifugation followed by a filtration before the DNA extraction. Rossmanith et al. developed a method based on matrix lysis for L. monocytogenes enrichment and the reduction of proteins, fatty acids, and carbohydrates achieving a LOD of 7.3 CFU/mL of milk. Finally, Mester et al. [17] and Witte et al. [15] applied a matrix lysis procedure for the pathogen quantification in dairy products and egg, reducing LOD and LOQ to <10 CFU/g.
As far as we know there are no other studies reporting limits of detection and quantification below the legal limit of 100 CFU/g for RTE meat products, which have a complex food matrix composition. In this work the method described by Witte et al. was applied [15], based in a matrix lysis solution, constituted by MgCl2 to solubilized proteins, and Tween 20 a non-ionic surfactant for fatty acids elimination. This pretreatment allowed the microorganism DNA extraction, without previous dilution, and the elimination of ham inhibitors, leading to LOD and LOQ values under legal limit (100 UFC/g or mL). As it can be observed Figure 2, where the three calibration curves built in this work are represented, dry cured ham curve is different to DNA and cellular curves, since its mean Cq was 2.6 higher than the other curves. The most probable cause is the aliment matrix effect, which has been reduced by the matrix lysis procedure. Quero et al. [21] reported a higher shift in the mean Cq regarding DNA and cellular L. monocytogenes in the study of cheese samples.
Even if they are preformed preliminary assays with pure DNA or pure L. monocytogenes strain, the qPCR final method should be further validated in the alimentary matrix in which the future control assays will be performed by the meat industry. Differences in the food composition and structure may affect to DNA extraction and amplification.
Method A repeatability and reproducibility were evaluated by the determination of intra and inter-assay variability. The following Table 3 shows the results of Cq of cured ham samples experimentally contaminated.
The variability determination was performed down to the lowest concentration at which all nine replicates were amplified, 1.48 ± 0.10 log CFU/g (6th level of contamination). Intra-assay CV and inter-assay CV varied between 0.06–2.81% and 0.84–1.91%, respectively, which is under the accepted maximum value 15%. Berrada et al. [27] on the development of a qPCR for L. monocytogenes in salads, obtained higher values of CV, 9–22%. In this study the quantification of this pathogen in cured ham was precise and reproducible from 6.82 ± 0.11 to 1.48 ± 0.10 log CFU/g. The analytical variability into this range of concentration was inferior to the maximum allowed limit of 0.25 log copies/reaction.

3.3. Comparison of Methods A and B versus Reference Method

The relative accuracy of the qPCR alternative method combined with matrix lysis was compared with the reference method ISO 11290-2. To do so, a total of 6 sets of 10 samples contaminated with tenfold dilutions of L. monocytogenes were analyzed with the three different procedures (2 sets for each method). The bacterial concentrations obtained and the relative accuracy of procedures A and B regarding the reference method are gathered in Table 4.
The loss of viable bacterial cells after the matrix lysis procedure was evaluated through the determination of the relative accuracy of method B regarding the reference method. This relative accuracy results varied into the range 92.70% to 108.69%, presenting higher values at lower concentrations. These results are higher than the obtained by Mester et al. [17], who used a similar matrix pretreatment in different food products (milk, dairy, and eggs). They reported an 88% of pathogen recovery after agar plate counting, which was considered satisfactory. An adequate sample preparation previous to the analysis is of great importance to avoid bacterial reduction by dilution Rossmanith et al., [18] and therefore underestimation of the pathogen concentration. In this work, the accuracy results reveal that there was not cell loss, so the sample preparation is adequate for the quantification of L. monocytogenes in this alimentary matrix.
The quantification with qPCR after the matrix lysis procedure was also compared with the reference method and the results of relative accuracy are reported in Table 5. The values obtained were comprised among 95.83% and 105.20%. Despite the complexity of meat matrix, these results are into a narrow interval and close to 100%, which reveal a high concordance with the reference method in the quantification of this pathogen. The relative accuracy results obtained were better than the previously reported by [24,25] (89.12%–116.33%) in meat products. Nevertheless, D’Urso et al. [16], who studied L. monocytogenes in milk, dairy products, and eggs, also reported quantitative PCR results with an excellent correspondence with the reference method (95.72–104.03%).
The qPCR method has adjusted to all quantification parameters required and it can also be performed in a shorter time than the reference method. The complete procedure matrix lysis + DNA extraction + 45 PCR cycles takes approximately 2 h while the reference method requires at least 4 days, including the incubation periods and the biochemical identification.

3.4. L. monocytogenes Quantification Meat Commercial Products

A total of 43 commercial samples were analyzed to evaluate the presence of L. monocytogenes in 25 g and it was detected in 23.3% of the samples: 10 of dry cured ham and other cured products (Table 5). The methods of reference and qPCR were applied to perform the quantification of the microorganism in those that resulted positive. Other authors have also reported the low counting for this kind of product. Gómez et al. detected the pathogen in 27.9% of the analyzed meat samples but the quantification with the reference method was in most of them under 100 CFU/g. Thévenot et al. [28] detected the pathogen in 10% of the samples being the final counting <3 CFU/g in all of them with the reference method. Rodriguez-Lazaro et al. [25] observed higher presence in chorizo than in other meat products detecting the microorganism in 77% of them, although the quantification revealed that L. monocytogenes concentration was <10 CFU/g.
In this work, after the quantification through the reference method, microbial growth was not observed in the chromogenic agar, so the presence of L. monocytogenes in all positive samples was <5 CFU/g. When the qPCR method was applied, 9 of the samples presented a concentration under the LOQ (<30.1 ± 6.2 CFU/g), while 1 of them presented a mean Cq of 37.84 ± 0.28, which correspond according to the ham calibration curve to 1.84 ± 0.08 log CFU/g or 69.1 ± 13.9 CFU/g. Nevertheless, this result is under the legal limit of 100 CFU/g, stablished by the (Commission Regulation (EC) No 2073/2005, 2005).
These differences in quantification among the qPCR method and the reference method, have already been reported in other food products. Mester et al. [17] observed significant differences when quantifying positive samples of cheese for L. monocytogenes. Furthermore, for experimentally samples contaminated with 100 CFU/g the reference method quantified between 13–741 CFU/g and 15–646 CFU/g [10].
As it has been previously observed, the reference method might be insufficiently sensitive to quantify the microorganism in those samples with a low concentration because of food matrix effect or concomitant microbial flora. Nevertheless, the presence of stressed bacteria with difficulty to grow in selective medium could affect negatively to the quantification reference method underestimating the pathogen concentration [29].

4. Conclusions

In conclusion, the qPCR method for quantifying L. monocytogenes complies with all assayed validation parameters. The pre-treatment with matrix lysis permitted the dilution of the PCR inhibitors and thereby significantly reduced the limits of detection and quantification, making this work the first to reports a procedure to quantify L. monocytogenes in meat products with an LOQ as low as 30 CFU/g.
Because of the observed insufficient precision of the reference method at low concentrations, this qPCR procedure is presented to the food industry as an excellent alternative to quantify this pathogen in meat samples. This substitution allows a faster and more sensitive quantification of the microorganism in multiple samples simultaneously, that can be included in the HACCP system.

Author Contributions

M.L.: methodology, validation and formal analysis; C.G.-R.: writing original draft preparation and writing—review and editing; C.R.: conceptualization, resources, supervision, data curation and writing review and editing. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Gobierno de Aragón/FEDER (Grupo de referencia A06_20R) and Grant No. C091/2014 from Gobierno de Aragón/FSE.

Institutional Review Board Statement

Not applicable

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors do not have any conflict of interest to declare. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Lomonaco, S.; Nucera, D.; Filipello, V. The evolution and epidemiology of Listeria monocytogenes in Europe and the United States. Infect. Genet. Evol. 2015, 35, 172–183. [Google Scholar] [CrossRef] [PubMed]
  2. Buchanan, R.L.; Gorris, L.G.M.; Hayman, M.M.; Jackson, T.C.; Whiting, R.C. A review of Listeria monocytogenes: An update on outbreaks, virulence, dose-response, ecology, and risk assessments. Food Control 2017, 75, 1–13. [Google Scholar] [CrossRef]
  3. Fagerlund, A.; Møretrø, T.; Heir, E.; Briandet, R.; Langsrud, S. Cleaning and Disinfection of Biofilms Composed of Listeria monocytogenes and Background Microbiota from Meat Processing Surfaces. Appl. Environ. Microbiol. 2017, 83. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. European Food Safety Authority (EFSA) on Biological Hazards (BIOHAZ); Ricci, A.; Allende, A.; Bolton, D.; Chemaly, M.; Davies, R.; Fernández Escámez, P.S.; Girones, R.; Herman, L.; Koutsoumanis, K.; et al. Listeria monocytogenes contamination of ready-to-eat foods and the risk for human health in the EU. EFSA J. 2018, 16, e05134. [Google Scholar] [CrossRef]
  5. Gomez, D.; Iguácel, L.; García, C.; Carramiñana, J.; Ariño, A.; Yangüela, J. Occurrence of Listeria monocytogenes in Ready-to-Eat Meat Products and Meat Processing Plants in Spain. Foods 2015, 4, 271–282. [Google Scholar] [CrossRef] [Green Version]
  6. Henriques, A.R.; Gama, L.T.; Fraqueza, M.J. Tracking Listeria monocytogenes contamination and virulence-associated characteristics in the ready-to-eat meat-based food products industry according to the hygiene level. Int. J. Food Microbiol. 2017, 242, 101–106. [Google Scholar] [CrossRef] [PubMed]
  7. Rota, C.; Labrador, M.; Escolar, C.; Bayarri, S.; Conchello, P.; Ariño, A.; Yangüela, J.A. Control de Listeria monocytogenes en la industria cárnica Red de Excelencia Consolider Procarse. In Productos Cárnicos Seguros, Nutritivos y Saludables; Capítulo XI; Núñez, M.F., Jiménez-Colmenero, J.J., Eds.; Córdoba Universidad de Extremadur: Cordoba, Spain, 2017; ISBN 978-84-697-6357-5. [Google Scholar]
  8. European Food Safety Authority (EFSA) and European Centre for Disease Prevention and Control (ECDC). Multi-Country Outbreak of Listeria monocytogenes Serogroup IVb, Multi-Locus Sequence Type 6, Infections Linked to Frozen Corn and Possibly to Other Frozen Vegetables—First Update; EFSA Supporting Publication: Parma, Italy, 2018; Volume 15. [Google Scholar] [CrossRef]
  9. Agencia Española de Seguridad Alimentaria y Nutrición (AESAN). Directrices Para el Muestreo Oficial de Líneas de Producción de Alimentos Listos Para el Consumo Que Pueden Plantear Riesgo de Listeria Monocytogenes y Actuaciones Consiguientes; Agencia Española de Consumo, Seguridad Alimentaria y Nutrición (AECOSAN): Madrid, Spain, 2013; pp. 1–12. [Google Scholar]
  10. Auvolat, A.; Besse, N.G. The challenge of enumerating Listeria monocytogenes in food. Food Microbiol. 2016, 53, 135–149. [Google Scholar] [CrossRef]
  11. De Oliveira, M.A.; Ribeiro, A.E.G.; Bergamini, M.A.M.; De Martinis, P.E.C. Quantification of Listeria monocytogenes in minimally processed leafy vegetables using a combined method based on enrichment and 16S rRNA real-time PCR. Food Microbiol. 2010, 27, 19–23. [Google Scholar] [CrossRef] [PubMed]
  12. Fuchizawa, I.; Shimizu, S.; Ootsubo, M.; Kawai, Y.; Yamazaki, K. Specific and Rapid Quantification of Viable Listeria monocytogenes Using Fluorescence in situ Hybridization in Combination with Filter Cultivation. Microbes Environ. 2009, 24, 273–275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. O’Grady, J.; Ruttledge, M.; Sedano-Balbás, S.; Smith, T.J.; Barry, T.; Maher, M. Rapid detection of Listeria monocytogenes in food using culture enrichment combined with real-time PCR. Food Microbiol. 2009, 26, 4–7. [Google Scholar] [CrossRef] [Green Version]
  14. Rantsiou, K.; Alessandria, V.; Urso, R.; Dolci, P.; Cocolin, L. Detection, quantification and vitality of Listeria monocytogenes in food as determined by quantitative PCR. Int. J. Food Microbiol. 2008, 121, 99–105. [Google Scholar] [CrossRef]
  15. Witte, A.K.; Fister, S.; Mester, P.; Schoder, D.; Rossmanith, P. Evaluation of the performance of quantitative detection of the Listeria monocytogenes prfA locus with droplet digital PCR. Anal. Bioanal. Chem. 2016, 408, 7583–7593. [Google Scholar] [CrossRef] [Green Version]
  16. D’Urso, O.F.; Poltronieri, P.; Marsigliante, S.; Storelli, C.; Hernández, M.; Rodríguez-Lázaro, D. A filtration-based real-time PCR method for the quantitative detection of viable Salmonella enterica and Listeria monocytogenes in food samples. Food Microbiol. 2009, 26, 311–316. [Google Scholar] [CrossRef]
  17. Mester, P.; Schoder, D.; Wagner, M.; Rossmanith, P. Rapid Sample Preparation for Molecular Biological Food Analysis Based on Magnesium Chloride. Food Anal. Methods 2014, 7. [Google Scholar] [CrossRef]
  18. Rossmanith, P.; Mester, P.; Wagner, M.; Schoder, D. Demonstration of the effective performance of a combined enrichment/real-time PCR method targeting the prfA gene of Listeria monocytogenes by testing fresh naturally contaminated acid curd cheese. Lett. Appl. Microbiol. 2010, 51, 480–484. [Google Scholar] [CrossRef] [PubMed]
  19. Nogva, H.K.; Rudi, K.; Naterstad, K.; Holck, A.; Lillehaug, D. Application of 5’-nuclease PCR for quantitative detection of Listeria monocytogenes in pure cultures, water, skim milk, and unpasteurized whole milk. Appl. Environ. Microbiol. 2000, 66, 4266–4271. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef] [Green Version]
  21. Quero, G.; Santovito, E.; Visconti, A.; Fusco, V. Quantitative detection of Listeria monocytogenes in raw milk and soft cheeses: Culture-independent versus liquid- and solid-based culture-dependent real time PCR approaches. Leb. Technol. 2014, 58, 11–20. [Google Scholar] [CrossRef]
  22. Broeders, S.; Huber, I.; Grohmann, L.; Berben, G.; Taverniers, I.; Mazzara, M.; Roosens, N.; Morisset, D. Guidelines for validation of qualitative real-time PCR methods. Trends Food Sci. Technol. 2014, 37, 115–126. [Google Scholar] [CrossRef]
  23. Paul, M.; Baranzoni, G.M.; Albonetti, S.; Brewster, J.D. Direct, quantitative detection of Listeria monocytogenes in fresh raw whole milk by qPCR. Int. Dairy J. 2015, 41, 46–49. [Google Scholar] [CrossRef]
  24. Rodríguez-Lázaro, D.; Pla, M.; Scortti, M.; Monzó, H.J.; Vázquez-Boland, J.A. A novel real-time PCR for Listeria monocytogenes that monitors analytical performance via an internal amplification control. Appl. Environ. Microbiol. 2005, 71, 9008–9012. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Rodriguez-Lazaro, D.; Gonzalez-García, P.; Gattuso, A.; Gianfranceschi, M.V.; Hernandez, M. Reducing time in the analysis of Listeria monocytogenes in meat, dairy and vegetable products. Int. J. Food Microbiol. 2014, 184, 98–105. [Google Scholar] [CrossRef] [PubMed]
  26. Hough, A.J.; Harbison, S.-A.; Savill, M.G.; Melton, L.D.; Fletcher, G. Rapid enumeration of Listeria monocytogenes in artificially contaminated cabbage using real-time polymerase chain reaction. J. Food Prot. 2002, 65, 1329–1332. [Google Scholar] [CrossRef] [PubMed]
  27. Berrada, H.; Soriano, J.M.; Picó, Y.; Mañes, J. Quantification of Listeria monocytogenes in salads by real time quantitative PCR. Int. J. Food Microbiol. 2006, 107, 202–206. [Google Scholar] [CrossRef]
  28. Thévenot, D.; Delignette-Muller, M.L.; Christieans, S.; Vernozy-Rozand, C. Prevalence of Listeria monocytogenes in 13 dried sausage processing plants and their products. Int. J. Food Microbiol. 2005, 102, 85–94. [Google Scholar] [CrossRef]
  29. Jadhav, S.; Bhave, M.; Palombo, E.A. Methods used for the detection and subtyping of Listeria monocytogenes. J. Microbiol. Methods 2012, 88, 327–341. [Google Scholar] [CrossRef] [PubMed]

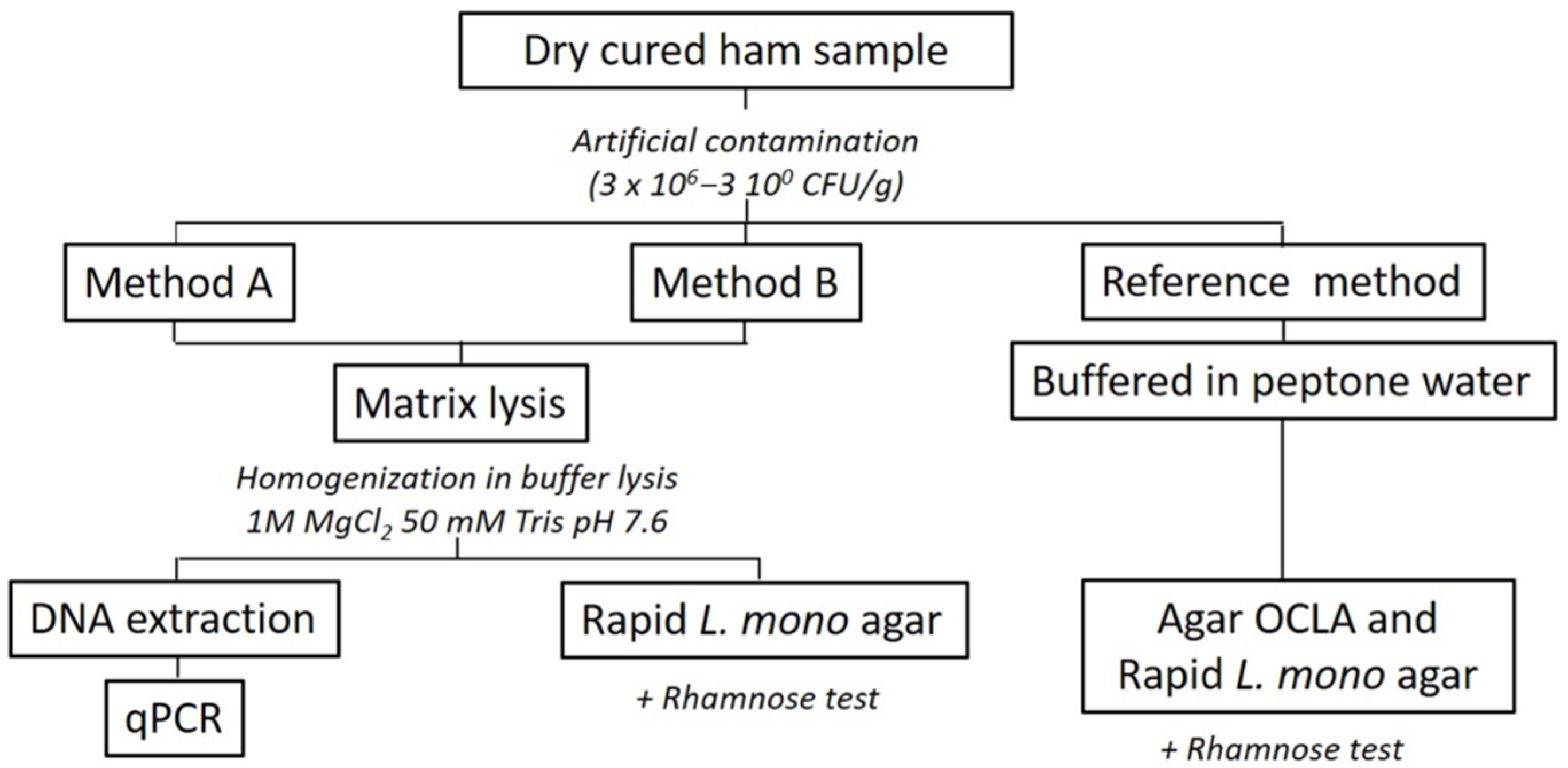

Figure 1. Scheme of the L. monocytogenes quantification methods steps.
Figure 1. Scheme of the L. monocytogenes quantification methods steps.
Foods 10 00735 g001

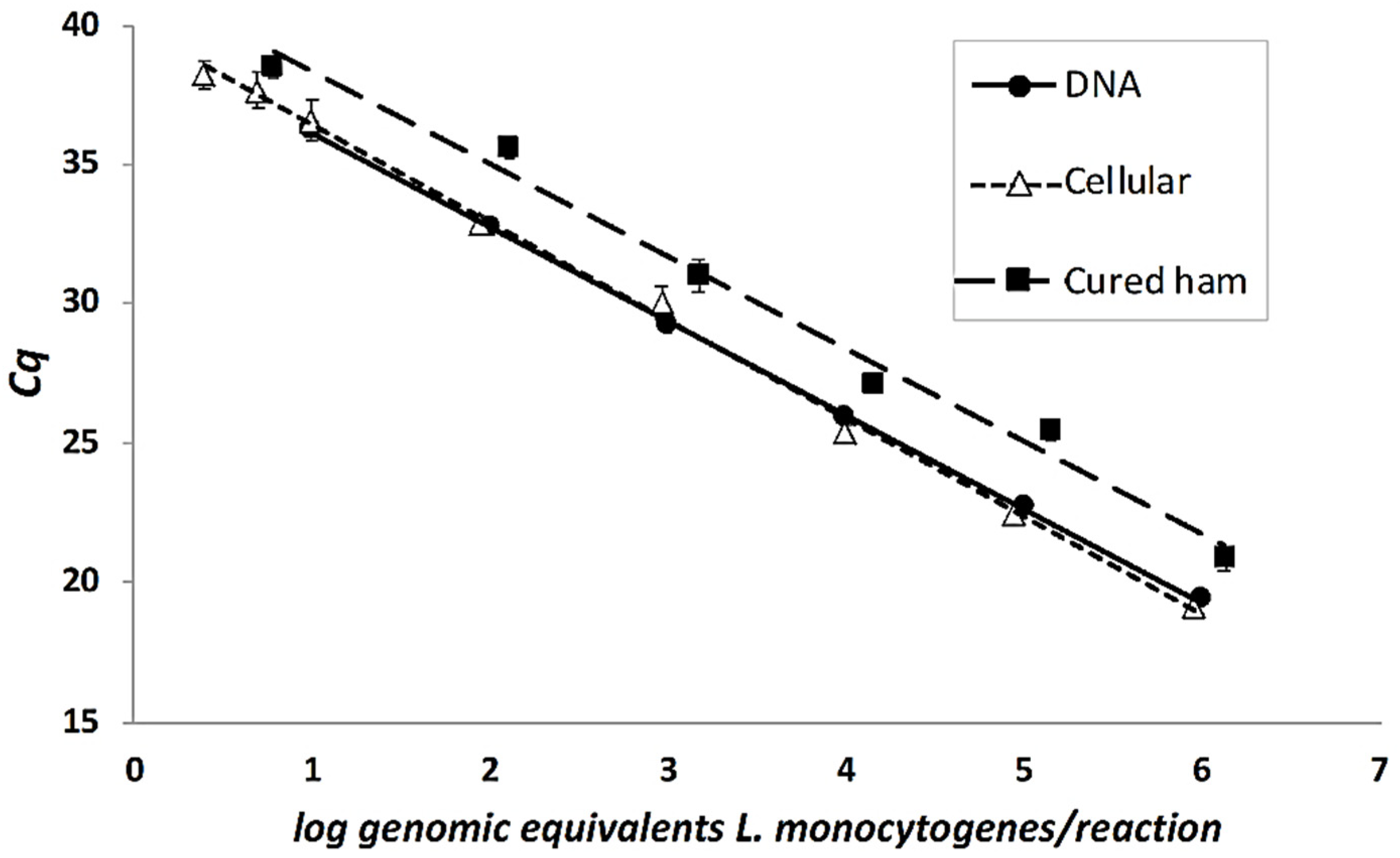

Figure 2. DNA, cellular, and cured ham calibration curves of L. monocytogenes ATCC 19114. Cq: quantification cycle.
Figure 2. DNA, cellular, and cured ham calibration curves of L. monocytogenes ATCC 19114. Cq: quantification cycle.
Foods 10 00735 g002
Table 1. Primers and probe sequence used in this study.
Table 1. Primers and probe sequence used in this study.
Primers/ProbeSequence (5′–3′)Amplicon (bp)
Table 2. Cq (quantification cycle) and end-point values ± their standard deviation at different annealing temperatures and primers/probe concentrations.
Table 2. Cq (quantification cycle) and end-point values ± their standard deviation at different annealing temperatures and primers/probe concentrations.
Annealing (°C)350/250 1 (nM)350/125 1 (nM)250/250 1 (nM)250/125 1 (nM)
Cq 2End-Point 3Cq 2End-Point 3Cq 2End-Point 3Cq 2End-Point 3
6531.18 ± 0.050.21 ± 0.0232.91 ± 0.280.07 ± 0.0132.50 ± 0.130.15 ± 0.0032.48 ± 0.550.12 ± 0.03
64.730.77 ± 0.020.27 ± 0.0132.17 ± 0.240.10 ± 0.0131.88 ± 0.400.20 ± 0.0231.87 ± 0.100.15 ± 0.01
6430.31 ± 0.030.34 ± 0.0931.59 ± 0.050.13 ± 0.0130.81 ± 0.520.27 ± 0.0831.07 ± 0.290.19 ± 0.03
63.131.56 ± 0.420.16 ± 0.0431.97 ± 0.050.10 ± 0.0031.99 ± 0.690.13 ± 0.0831.27 ± 0.030.17 ± 0.00
6230.59 ± 0.450.33 ± 0.1032.04 ± 0.290.11 ± 0.0130.75 ± 0.570.26 ± 0.0931.09 ± 0.010.20 ± 0.01
61.130.89 ± 0.200.31 ± 0.0031.88 ± 0.060.13 ± 0.0031.06 ± 0.120.25 ± 0.0231.19 ± 0.010.19 ± 0.01
60.431.05 ± 0.000.30 ± 0.0232.16 ± 0.040.12 ± 0.0031.18 ± 0.130.23 ± 0.0231.43 ± 0.070.18 ± 0.01
6031.87 ± 0.240.18 ± 0.0332.77 ± 0.880.09 ± 0.0432.08 ± 0.470.14 ± 0.0231.90 ± 0.790.15 ± 0.07
1 Concentration of primers and probe used in qPCR (nM); 2 Mean Cq ± standard deviation of three replicates; 3 Mean Endpoint medio; ± standard deviation of three replicates; Bolded numbers are the best results.
Table 3. PCR validation results of experimentally contaminated cured ham samples.
Table 3. PCR validation results of experimentally contaminated cured ham samples.
Level 1Ref Method 2qPCR Method
log CFU/gCq 3Ratio 4Intra-Assay CV 5Inter-Assay CV 6Variability 7Max Variability 8
16.82 ± 0.1120.85 ± 0.399/90.430.422.811.910.121.57
25.85 ± 0.0325.49 ± 0.399/90.900.252.281.540.161.22
34.86 ± 0.0527.12 ± 0.229/90.891.030.610.840.071.09
43.87 ± 0.0630.98 ± 0.589/90.061.790.461.880.180.80
52.80 ± 0.0335.56 ± 0.399/90.820.971.
61.48 ± 0.1038.35 ± 0.569/90.942.490.981.480.170.24
1 Level of contamination assayed; 2 Mean ± standard deviation of the replicate analysis through the reference method; 3 Mean ± standard deviation of the obtained Cq from 9 replicates; 4 Ratio: positive PCR/total PCR; 5 Intra-assay CV of the log CFU/g determined with PCR expressed in percentage; 6 Inter-assay CV of the log CFU/g determined with PCR expressed in percentage; 7 standard deviation of log gen copies hlyA/PCR reaction; 8 Maximum standard deviation value that can be achieved in each contamination level, determines as 0.25 log gen hlyA copies/reaction.
Table 4. Bacterial concentration (±sd) and relative accuracy (±sd) of methods A and B regarding ISO 11290-2 for the quantification of L. monocytogenes in cured ham samples.
Table 4. Bacterial concentration (±sd) and relative accuracy (±sd) of methods A and B regarding ISO 11290-2 for the quantification of L. monocytogenes in cured ham samples.
Ref MethodMethod AMethod B
LevelPlate Counting (log CFU/g)qPCR (log CFU/g)Relative Accuracy (%)Plate Counting (log CFU/g)Relative Accuracy (%)
16.41 ± 0.386.38 ± 0.4299.49 ± 0.926.54 ± 0.49102.03 ± 2.26
25.38 ± 0.255.51 ± 0.19102.47 ± 1.745.45 ± 0.42101.30 ± 4.39
34.36 ± 0.454.31 ± 0.2999.22 ± 5.084.70 ± 0.1592.70 ± 6.98
43.15 ± 0.173.02 ± 0.1995.83 ± 1.223.21 ± 0.18101.90 ± 0.30
52.15 ± 0.092.13 ± 0.0799.11 ± 1.262.23 ± 0.13103.72 ± 2.41
61.80 ± 0.111.89 ± 0.09105.02 ± 2.021.93 ± 0.1197.80 ± 0.62
Table 5. Detection and quantification of L. monocytogenes in different commercial meat products.
Table 5. Detection and quantification of L. monocytogenes in different commercial meat products.
Detection IQ-CheckQuantification
nqPCR Detected/25 gqPCR (CFU/g)ISO 11290-2 (CFU/g)
- Ham144<30.1 ± 6.2 (n = 4)<5
- Sausage82<30.1 ± 6.2 (n = 2)<5
- Others164<30.1 ± 6.2 (n = 3)
69.1 ± 13.9 (n = 1)
Deli meat5ndnana
nd: not detected; na: not analyzed.
