Synthesis of Ru₂Br(μ-O₂CC₆H₄–R)₄ (R = o-Me, m-Me, p-Me) Using Microwave Activation: Structural and Magnetic Properties

Abstract

New bromidotetracarboxylatodiruthenium(II,III) compounds of the type [Ru₂Br(μ-O₂CC₆H₄–R)₄]_n [R = o-Me (1), m-Me (2), p-Me (3)] have been prepared using microwave-assisted methods. Syntheses by means of solvothermal and conventional activations have also been carried out to compare different preparation methods. The crystal structure determination of complexes 1–3 is also described. All compounds display a typical carboxylate-bridged paddlewheel-type structure with the metal atoms connected by four bridging carboxylate ligands. The axial bromide ligands connect the dimetallic units giving one-dimensional zigzag chains. The magnetic properties of all compounds have also been analyzed. Weak antiferromagnetic intermolecular interactions mediated by the bromide ligands and an appreciable zero field splitting are calculated in the fits of the magnetic data of these complexes.

1. Introduction

Since the publication of the first paper describing a quadruple bond between two metal atoms [1], whose 50th anniversary is being celebrated this year, 2014, the number of compounds containing metal-metal bonds has grown at an extraordinary rate [2,3]. The study of compounds with metal–metal bonds has been very important in the last 50 years, not only for furthering our understanding of the metal-metal bond, but also for the applications of this type of complexes in several fields [2,3].

One of the most interesting types of compounds with metal-metal bonds is the dinuclear species called “paddlewheel” or “lantern” compounds. These complexes of formula [M₂L₄]ⁿ⁺ (M = transition metal, L = three atom bridging mononegative ligand, n = 0, 1, 2) are known for most of the transition metals [2,3]. In particular, the chloridotetracarboxylatodiruthenium(II,III) complexes have been extensively studied due to their interesting magnetic and electronic properties [2,3,4,5]. In these complexes the ruthenium atoms present formally two different oxidation states (2 and 3), although actually the averaged oxidation state is 2.5. This fact is supported by a σ²π⁴δ²(π*δ*)³ electronic structure of the Ru₂⁵⁺ unit, and therefore these compounds have a Ru-Ru bond order of 2.5 [2,3,4,5,6]. The potential uses of this type of ruthenium complexes as pharmaceutical agents, [7,8] and references in [7] as molecular materials and in nanochemistry, have led to a renewed interest [9,10,11,12,13]. In any case, the properties of chloro compounds [Ru₂Cl(µ-O₂CR)₄] are the most studied in the diruthenium chemistry, whereas the analogous bromo derivatives [Ru₂Br(µ-O₂CR)₄] have received less attention. The communication between the diruthenium units could be strongly dependent on the bridging halide ligand nature and, therefore, it is important to analyze the differences between chloride and bromide derivatives.

Chloridotetracarboxylatodiruthenium(II,III) complexes are usually obtained by the metathesis reaction of [Ru₂Cl(μ-O₂CMe)₄] with an excess of the corresponding carboxylic acid in a mixture of methanol/water at reflux for several hours [2,3,4,5]. In some cases, two metathesis cycles are necessary to ensure the complete replacement of the acetate ligand in [Ru₂Cl(μ-O₂CMe)₄]. However, the use of microwave activation opens up the possibility to prepare dinuclear compounds in a substantially reduced time [14,15,16,17,18,19,20,21,22].

In fact, for dinuclear complexes, Johnson and Powel [14] noted that dimolybdenum tetracarboxylates could be obtained in less than 1 h using a microwave oven and a closed vessel. This procedure leads to better yields and shorter reaction times than the conventional ones. In addition, we have also recently shown that microwave activation is very useful in the preparation of dinuclear complexes of ruthenium [15,16,17,18,19,20,21,22].

In this paper we analyze the use of microwave activation for the preparation of three new bromidotetracarboxylatodiruthenium(II,III) derivatives [Ru₂Br(μ-O₂CC₆H₄–R)₄]_n [R = o-Me (1), m-Me (2), p-Me (3)]. We have chosen the o-, m- and p-methylbenzoate ligands in order to study the influence of an aromatic ligand with the same substituent in different positions on the properties of these complexes. The preparation by solvothermal and conventional methods has been also carried out in order to compare different synthesis procedures.

2. Results and Discussion

2.1. Synthetic Aspects

The reaction of [Ru₂Br(µ-O₂CMe)₄] with o-, m- and p-toluic acid in deionised water was carried out in a TFM Teflon vessel placed in a microwave oven. After 16 h of activation at 130 °C the complexes [Ru₂Br(μ-O₂CC₆H₄–R)₄]_n [R = o-Me (1), m-Me (2), p-Me (3)] were obtained in 44%, 80% and 51% yield for 1, 2 and 3 respectively. Thus, using microwave activation and a green solvent, like water, the bromidotetracarboxylato derivatives 1–3 have been obtained from moderate to high yields. In order to compare these results with other preparation procedures, the use of solvothermal and conventional activation were also tested. Using solvothermal activation 1, 2 and 3 were obtained in 68%, 59% and 65% yield respectively. Compounds 1–3 have been also prepared using the conventional metathesis reaction of [Ru₂Br(μ-O₂CMe)₄] with the corresponding o-, m- and p-toluic acid in water/methanol mixture at reflux. By this procedure, complexes were obtained in 70%, 51% and 89% yield respectively. In all of the tested procedures, the yields range from moderate to high and there are no significant differences between them. Thus, the use of microwave activation in the preparation of 1–3 does not improve the yield, in contrast with previous results reported for the successful application of microwave energy in the preparation of tetrakis(diaryltriazenido)diruthenium complexes [15,16]. These results also contrast with those observed in the microwave preparation of chloridotetracarboxylatodiruthenium compounds [17,18], which leads to better yields than the conventional methods. These differences are probably more related to the nature of the halide ions than to the used carboxylate ligand.

Complexes 1–3 are insoluble in most usual organic solvents, similarly to other halidotetraarylcarboxylatodiruthenium complexes. As has been previously observed in analogous complexes [15,16,17,18,19,20,21,22], in the case of compounds 1–3 the conventional and microwave preparation methods lead to microcrystalline solids, whereas the solvothermal reaction allows the obtention of larger single crystals for all of them.

2.2. Crystal Structures

The crystal structure determination of complexes 1–3 has been carried out. All of the complexes adopt the typical paddlewheel structure, with two ruthenium atoms supported by four bridging carboxylate ligands (Figure 1, Figure 2 and Figure 3). The cationic [Ru₂(µ-O₂CR)₄]⁺ units are bridged by bromide anions giving infinite zigzag chains (–Ru–Ru–Br–)_n. Thus, each Ru atom shows a slightly distorted octahedral environment, with the four equatorial positions occupied by the oxygen atoms of the carboxylate ligands. The axial sites are occupied by a bromide ligand and by the other Ru atom from the same dimetallic unit. The Ru–Ru bond lengths are 2.2938(5) Å for 1, 2.2885(8) and 2.2893(8) Å for 2 and 2.2898(7) Å for 3. These distances are very similar to those found in analogous chloridocarboxylates [Ru₂Cl(µ-O₂CR)₄] (Table 1) [17] and in other carboxylatodiruthenium complexes containing the Ru₂⁵⁺ unit [2,3,4,5]. The Ru–Br distances range from 2.6630(5) to 2.7030(7) Å (Table 1) and are similar to those found in bromidocarboxylates [Ru₂Br(μ-O₂CH)₄] (2.7170(8) and 2.7313(9) Å) [23], [Ru₂Br(μ-O₂CEt)₄] (2.7101 Å) [11] and [Ru₂Br(μ-O₂CPh)₄] (2.6700(5) Å), [Ru₂Br(μ-O₂CC₆H₄-p-OMe)₄(H₂O)]·H₂O (2.671(2) Å), [Ru₂Br(μ-O₂CCMePh₂)₄(EtOH)·0.5EtOH] (2.6108(17) Å) [24]. The analogous bromidotetraamidate complexes [Ru₂Br(μ-NHOCC₆H₄–R)₄]_n (R = o-Me, m-Me, p-Me) also show similar Ru–Br distances: from 2.6655(7) to 2.728(2) Å [18]. The Ru–Br–Ru angle in 1–3 is very similar, ranging from 116.36(2)° to 116.56(2)°. In the solid state, the one dimensional zigzag chains are packed only by van der Waals forces.

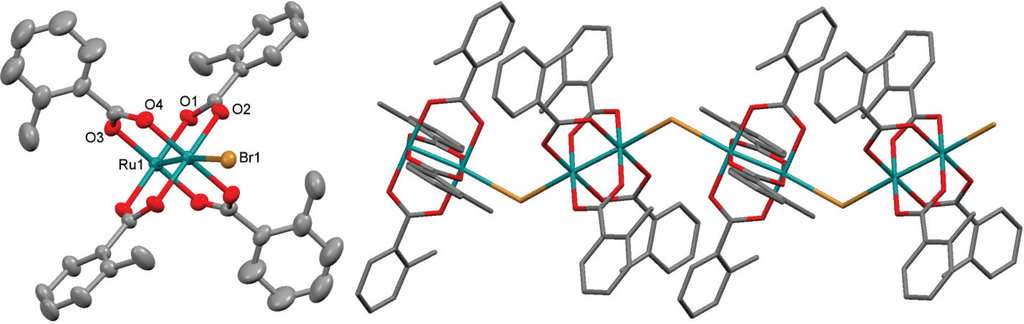

Figure 1. Left: thermal-ellipsoid representation of the paddlewheel monomer of complex 1 (50% probability ellipsoids); Right: zigzag chain. Hydrogen atoms are omitted in both cases for clarity.

Figure 1. Left: thermal-ellipsoid representation of the paddlewheel monomer of complex 1 (50% probability ellipsoids); Right: zigzag chain. Hydrogen atoms are omitted in both cases for clarity.

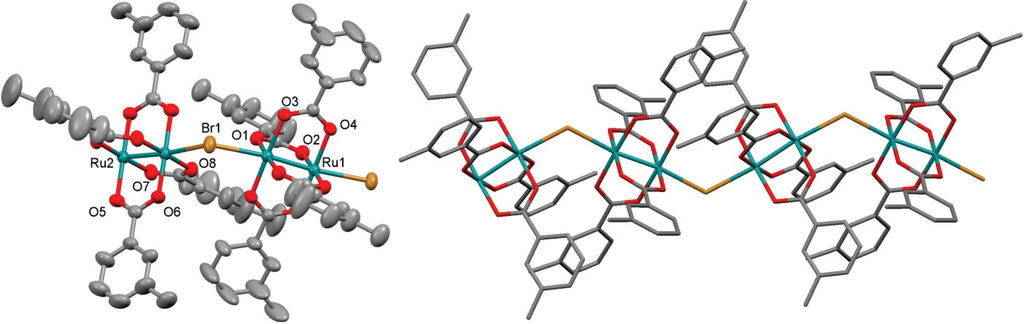

Figure 2. Left: thermal-ellipsoid representation of the one paddlewheel unit of complex 2 (50% probability ellipsoids); Right: zigzag chain. Hydrogen atoms are omitted in both cases for clarity.

Figure 2. Left: thermal-ellipsoid representation of the one paddlewheel unit of complex 2 (50% probability ellipsoids); Right: zigzag chain. Hydrogen atoms are omitted in both cases for clarity.

Figure 3. Left: thermal-ellipsoid representation of two paddlewheel units of 3 (50% probability ellipsoids); Right: packing of zigzag chains. Hydrogen atoms are omitted in both cases for clarity.

Figure 3. Left: thermal-ellipsoid representation of two paddlewheel units of 3 (50% probability ellipsoids); Right: packing of zigzag chains. Hydrogen atoms are omitted in both cases for clarity.

Table 1. Bond distances and angles in compounds 1–3 and in the carboxylate compounds [Ru₂Cl(μ-O₂CC₆H₄–R)₄]_n (R = o-Me, m-Me, p-Me).

Compound	Ru–Ru/Å	Ru–X/Å	Ru–X–Ru/°	θ angle/°
[Ru2Br(μ-O2CC6H4-o-CH3)4]n (1)	2.2938(5)	2.6910(4)	116.36(2)	48.89
				9.52
[Ru2Br(μ-O2CC6H4-m-CH3)4]n (2)				8.26
	2.2885(8)	2.6815(7)	116.56(2)	4.35
	2.2893(8)	2.7030(7)		24.79
				3.92
[Ru2Br(μ-O2CC6H4-p-CH3)4]n (3)	2.2898(7)	2.6630(5)	116.51(3)	10.58
				5.78
[Ru2Cl(μ-O2CC6H4-o-CH3)4]n a	2.2875(3)	2.5590(4)	121.45(3)	51.13
				11.47
[Ru2Cl(μ-O2CC6H4-m-CH3)4]n a				9.99
	2.295(2)	2.585(4)	118.8(2)	5.45
	2.283(3)	2.565(4)		28.13
				3.47
[Ru2Cl(μ-O2CC6H4-p-CH3)4]n a	2.2906(5)	2.5400(6)	118.88(4)	10.43
				4.73

^a Reference [17].

Table 1. Bond distances and angles in compounds 1–3 and in the carboxylate compounds [Ru₂Cl(μ-O₂CC₆H₄–R)₄]_n (R = o-Me, m-Me, p-Me).

Compound	Ru–Ru/Å	Ru–X/Å	Ru–X–Ru/°	θ angle/°
[Ru2Br(μ-O2CC6H4-o-CH3)4]n (1)	2.2938(5)	2.6910(4)	116.36(2)	48.89
				9.52
[Ru2Br(μ-O2CC6H4-m-CH3)4]n (2)				8.26
	2.2885(8)	2.6815(7)	116.56(2)	4.35
	2.2893(8)	2.7030(7)		24.79
				3.92
[Ru2Br(μ-O2CC6H4-p-CH3)4]n (3)	2.2898(7)	2.6630(5)	116.51(3)	10.58
				5.78
[Ru2Cl(μ-O2CC6H4-o-CH3)4]n a	2.2875(3)	2.5590(4)	121.45(3)	51.13
				11.47
[Ru2Cl(μ-O2CC6H4-m-CH3)4]n a				9.99
	2.295(2)	2.585(4)	118.8(2)	5.45
	2.283(3)	2.565(4)		28.13
				3.47
[Ru2Cl(μ-O2CC6H4-p-CH3)4]n a	2.2906(5)	2.5400(6)	118.88(4)	10.43
				4.73

^a Reference [17].

The main structural parameters of complexes 1–3 are analogous, showing a slight variation in function of the position of the methyl group. The main difference is found in the dihedral angle, θ, defined by the plane occupied by the carboxylate group and the ruthenium atoms and the plane defined by the phenyl ring (Table 1). In each paddlewheel unit of each complex two θ angles can be found, showing a different orientation of the phenyl rings located in cis. The methyl group in the ortho position in complex 1 forces the greatest rotation of the aromatic rings: 48.89° and 9.52°, being lower in 2 and 3 (Table 1). A very similar rotation θ angle is found in the analogous chloro derivatives [Ru₂Cl(μ-O₂CC₆H₄–R)₄]_n (Table 1). It is noteworthy that the presence of the methyl group in the ortho, meta or para positions of the aromatic ring does not have any influence in the Ru–Br–Ru angle for the bromo derivatives. This result contrast with those observed in the chloro compound Ru₂Cl(μ-NHOCC₆H₄-o-Me)₄]_n in which the ortho complex show a Ru–Cl–Ru angle of 180° [17].

To be sure that each sample contains only a single phase, the PXRD diffractograms simulated from the X-ray single crystal determination and the PXRD experimental measurements of the bulk samples were compared. As can be observed in the Supplementary File (Figures S1–S3), both diffractograms for each sample agree well.

2.3. Spectroscopic Properties

The IR spectra of compounds 1–3 (Figures S4–S6, Supplementary Information) show very strong antisymmetric and symmetric stretching COO bands (1466–1376 cm⁻¹) due to the bridging equatorial carboxylate ligands. The pattern of all spectra is very similar, suggesting the same basic unit of two ruthenium atoms supported by four bridging carboxylate ligands. Characteristic bands of the toluic groups are also observed. The C–C stretching bands of the phenyl group appear in the range 1608–1494 cm⁻¹ and weak bands corresponding to the methyl group are observed between 2973 and 2912 cm⁻¹. No appreciable differences in the IR spectra of each compound have been observed for the different synthesis procedures used.

The diffuse reflectance spectra of all complexes show only three well defined bands: (i) the absorption band observed in the range 344–350 nm, which could be assigned to a ligand-metal charge-transfer σ(axial ligand)→σ*(Ru₂) transition, in agreement with those described for other diruthenium compounds [25,26,27]; (ii) the band observed between 479 and 492 nm, which is attributed to the π(Ru–O, Ru₂)→π*(Ru₂) transition [17,24,28,29], although it could also have some σ→σ* character [25,26,27]; (iii) the band found in the NIR region in the range 1128–1168 nm, which can be assigned to the δ(Ru₂)→δ*(Ru₂) transition [17,24,25,26,27,28,29,30]. Table 2 collects the electronic data of complexes 1–3 and Figure S7 shows the corresponding curves in the Supplementary Infoprmation. The electronic spectrum of each compound is independent of the used synthetic procedure.

Table 2. Electronic spectra data (nm) for compounds 1–3.

Compound	σ(Axial ligand)→σ*(Ru2)	π(Ru–O, Ru2)→π*(Ru2)	δ(Ru2)→δ*(Ru2)
1	344	479	1128
2	349	486	1153
3	350	492	1168

Table 2. Electronic spectra data (nm) for compounds 1–3.

Compound	σ(Axial ligand)→σ*(Ru2)	π(Ru–O, Ru2)→π*(Ru2)	δ(Ru2)→δ*(Ru2)
1	344	479	1128
2	349	486	1153
3	350	492	1168

2.4. Magnetic Properties

Magnetic measurements at variable temperature of compounds 1–3 show magnetic moments at room temperature in the range 4.20–4.50 µ_B (Table 3), similar to those found in other tetracarboxylatodirutenium(II,III) compounds [2,3,4,5]. These values are in accordance with the ground-state configuration σ²π⁴δ²(π*δ*)³, proposed by Norman et al. [6], which indicates the presence of three unpaired electrons per diruthenium unit. The representation of the magnetic moment versus temperature shows a continuous decrease, which becomes more pronounced at very low temperatures, whereas the molar susceptibility increases continuously. This behavior is typical of similar zigzag polymeric diruthenium(II,III) tetracarboxylates, and is ascribed to a large zero-field splitting (D) and a weak degree of antiferromagnetic coupling (zJ) between the Ru₂⁵⁺ units. The model of Cukiernick et al. [31] has been used previously to fit the magnetic data in similar diruthenium(II,III) compounds [2,3,4,5,17,18]. This model takes into account the existence of D and zJ, but also a temperature independent paramagnetism (TIP) and a paramagnetic impurity (P) of a mononuclear complex of Ru(III) with S = 1/2, as is usual in similar fits (See the equations in Supplementary File). This model permits to successfully fit the magnetic data of compounds 1–3. A very good agreement between the experimental and calculated curves of the magnetic moment and the molar susceptibility for complexes 1–3 is observed. Figure 4 shows the experimental and calculated curves using this model for complex 1. Similar fits are obtained for complexes 2 and 3 (Figure S8 and S9, Supplementary Information). The calculated magnetic parameters (g, D, zJ, TIP and P) obtained in these fits are collected in Table 3 together with the σ² value, which indicates the quality of the fits. The large zero-field splitting calculated values (D = 49.22–51.77 cm⁻¹) are similar to those found for analogous compounds [2,3,4,5,17,18,31,32,33]. The calculated zJ antiferromagnetic coupling constants vary from −0.73 to −2.76 cm⁻¹. These low values are consistent with a polymeric structure based in zigzag chains [4,5,17,18,31,32,33], where the interchange antiferromagnetic interaction is propagated through the bridging bromide ligands.

Table 3. Magnetic parameters obtained in the fits of the magnetic moment as a function of temperature for compounds 1–3.

Compound	µeff. (rt, µB)	g	D (cm−1)	zJ (cm−1)	TIP (mL/mol)	P(%)	σ2
1	4.39	2.12	49.22	−2.60	1.42 × 10−3	0.01	1.45 × 10−5
2	4.50	2.09	51.77	−0.73	1.81 × 10−3	1.02 × 10−4	1.99 × 10−5
3	4.20	2.13	51.09	−2.76	3.68 × 10−4	0.64	3.33 × 10−5

Table 3. Magnetic parameters obtained in the fits of the magnetic moment as a function of temperature for compounds 1–3.

Compound	µeff. (rt, µB)	g	D (cm−1)	zJ (cm−1)	TIP (mL/mol)	P(%)	σ2
1	4.39	2.12	49.22	−2.60	1.42 × 10−3	0.01	1.45 × 10−5
2	4.50	2.09	51.77	−0.73	1.81 × 10−3	1.02 × 10−4	1.99 × 10−5
3	4.20	2.13	51.09	−2.76	3.68 × 10−4	0.64	3.33 × 10−5

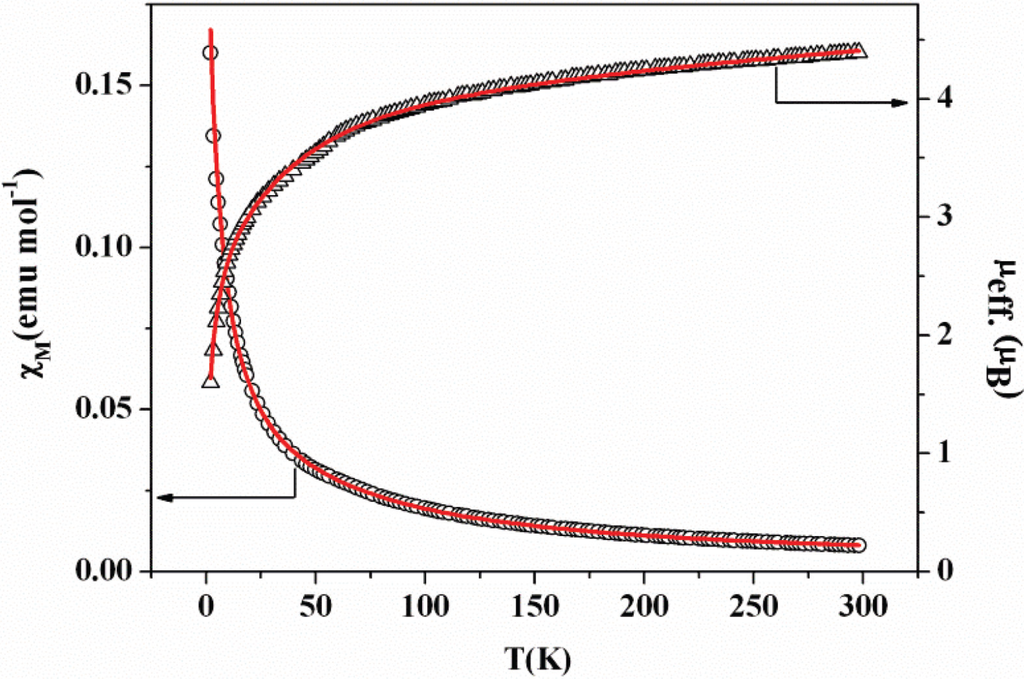

Figure 4. Temperature dependence of the molar susceptibility χ_M (○) and µ_eff. (Δ) for complex 1; solid lines are the product of a least-squares fit to the model indicated in the text.

Figure 4. Temperature dependence of the molar susceptibility χ_M (○) and µ_eff. (Δ) for complex 1; solid lines are the product of a least-squares fit to the model indicated in the text.

3. Experimental Section

3.1. General Considerations

All reactants and solvents were used as received. The precursors [Ru₂Cl(µ-O₂CMe)₄] and [Ru₂Br(µ-O₂CMe)₄] were synthesized according to published general procedures [34,35]. Microwave reactions were carried out in an ETHOS ONE (Shelton, CT, USA) microwave oven using TFM (Shelton, CT, USA ) Teflon closed vessels equipped with a temperature sensor and pressure control. Solvothermal synthesis was carried out in a Memmert (Schwabach, Germany) Universal Oven UFE 400 using Teflon-lined stainless steel autoclaves. Elemental analyses were done by the Microanalytical Service of the Universidad Complutense de Madrid. FT-IR spectra were recorded in a Perkin Elmer (Waltham, MA, USA) Spectrum 100 with a universal ATR accessory in the range 4000–650 cm⁻¹. Magnetization measurements at variable temperature were obtained with a Quantum Design MPMSXL SQUID (San Diego, CA, USA) (Superconducting Quantum Interference Device) magnetometer over a temperature range of 2–300 K at the constant field of 1 T. Molar susceptibility values calculated from magnetization data were corrected for the diamagnetic contribution of both the sample holder and the compound to the susceptibility. The molar diamagnetic corrections for the complexes were calculated on the basis of Pascal’s constants. As impurities even in low concentrations can affect the magnetic results, crushed crystals were used in the magnetic measurements to ensure the homogeneity of the sample. Electronic spectra of the complexes in the solid state were acquired on a Cary (Santa Clara, CA, USA) 5 G spectrophotometer equipped with a Praying Mantis (Santa Clara, CA, USA) accessory for diffuse reflectance measurements. The reflectance data were converted by the instruments software (Santa Clara, CA, USA) to the F(R∞) values according to the Kubelka-Munk theory. Powder X-ray diffraction (PXRD) measurements were done on an X’Pert (Almelo, The Netherlands) PRO ALPHA1 diffractometer with θ/2θ configuration. Rietveld refinements were carried out using X’pert High Score Plus software (Almelo, The Netherlands) in automatic mode.

3.2. X-ray Data Collection and Structure Refinement

Data collection was carried out at room temperature on a Bruker Smart (Bremen, Germany) CCD diffractometer for 1 and on a Xcalibur (Santa Clara, CA, USA), Atlas CCD diffractometer for 2 and 3. In all cases, graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å) operating at 50 kV and 35 mA for 1 and at 50 kV and 40 mA for 2 and 3 was used. The exposure times were 20 s for 1 and 11.1 s, and 3.34 s for 2 and 3.

A summary of the fundamental crystal and refinement data is given in Table 4.

Table 4. Crystallographic data for 1–3.

Crystal Data	1	2	3
Empirical formula	C32H28BrO8Ru2	C32H28BrO8Ru2	C32H28BrO8Ru2
Formula wt	822.59	822.59	822.59
Diffractometer	Bruker, CCD area detector	Oxford, Xcalibur™A	Oxford, Xcalibur™A
Scan method	Phi and Omega	Omega	Omega
Radiation	MoKα(0.71073 Å)	MoK(0.71073 Å)	MoK(0.71073 Å)
Crystal system	Monoclinic	Monoclinic	Monoclinic
Space group	C2/c	P21/c	I2/a
a/Å	18.773(1)	13.0936(4)	12.9939(7)
b/Å	13.5213(9)	11.1271(4)	10.1996(5)
c/Å	13.1634(8)	21.8306(7)	24.830(2)
α/°	90	90	90
β/°	109.159(1)	98.071(3)	94.623(5)
γ/°	90	90	90
V/Å3	3156.3(3)	3149.1(2)	3280.0(3)
Z	4	4	4
ρc/g/cm3	1.731	1.735	1.666
µ(Mo-Kα)/mm−1	2.272	2.277	2.186
F(000)	1628	1628	1628
Crystal size/mm3	0.33 × 0.10 × 0.06	0.38 × 0.16 × 0.07	0.50 × 0.09 × 0.07
θ range/°	1.89 to 26.00	3.37 to 26.00	3.43 to 26.00
Index ranges	−23, −14, −16 to 23, 16, 16	−15, −13, −26 to 16, 13, 24	−15, −12, −24 to 16, 12, 30
Reflections collected	12858	15156	8036
Unique reflections	3096	6181	3217
[Rint]	[Rint = 0.0440]	[Rint = 0.0399]	[Rint = 0.0454]
Completeness to theta	99.4%	99.8%	99.8%
Absorption correction	Semi-empirical from equivalents	Semi-empirical from equivalents	Semi-empirical from equivalents
Data/restraints/parameters	3096/0/183	6181/0/364	3217/0/195
H-atom treatment	Calculated positions and refined HFIX	Calculated positions and refined HFIX	Calculated positions and refined HFIX
Goodness-of-fit on F2	0.995	0.993	0.997
R1 (reflns obsd) [I > 2σ(I)] a	0.0263 (2492)	0.0445 (4452)	0.0406(2290)
wR2 (all data) b	0.0572	0.1206	0.0851
Largest diff. peak and hole/e. Å−3	0.560 and −0.469	0.954 and −0.909	0.700 and −0.497

^a R₁ = Σ||F_o| − |F_c||/Σ|F_o|;^b wR₂ = {Σ[w(F_o² − F_c²)²]/Σ[w(F_o²)²]}.

Table 4. Crystallographic data for 1–3.

Crystal Data	1	2	3
Empirical formula	C32H28BrO8Ru2	C32H28BrO8Ru2	C32H28BrO8Ru2
Formula wt	822.59	822.59	822.59
Diffractometer	Bruker, CCD area detector	Oxford, Xcalibur™A	Oxford, Xcalibur™A
Scan method	Phi and Omega	Omega	Omega
Radiation	MoKα(0.71073 Å)	MoK(0.71073 Å)	MoK(0.71073 Å)
Crystal system	Monoclinic	Monoclinic	Monoclinic
Space group	C2/c	P21/c	I2/a
a/Å	18.773(1)	13.0936(4)	12.9939(7)
b/Å	13.5213(9)	11.1271(4)	10.1996(5)
c/Å	13.1634(8)	21.8306(7)	24.830(2)
α/°	90	90	90
β/°	109.159(1)	98.071(3)	94.623(5)
γ/°	90	90	90
V/Å3	3156.3(3)	3149.1(2)	3280.0(3)
Z	4	4	4
ρc/g/cm3	1.731	1.735	1.666
µ(Mo-Kα)/mm−1	2.272	2.277	2.186
F(000)	1628	1628	1628
Crystal size/mm3	0.33 × 0.10 × 0.06	0.38 × 0.16 × 0.07	0.50 × 0.09 × 0.07
θ range/°	1.89 to 26.00	3.37 to 26.00	3.43 to 26.00
Index ranges	−23, −14, −16 to 23, 16, 16	−15, −13, −26 to 16, 13, 24	−15, −12, −24 to 16, 12, 30
Reflections collected	12858	15156	8036
Unique reflections	3096	6181	3217
[Rint]	[Rint = 0.0440]	[Rint = 0.0399]	[Rint = 0.0454]
Completeness to theta	99.4%	99.8%	99.8%
Absorption correction	Semi-empirical from equivalents	Semi-empirical from equivalents	Semi-empirical from equivalents
Data/restraints/parameters	3096/0/183	6181/0/364	3217/0/195
H-atom treatment	Calculated positions and refined HFIX	Calculated positions and refined HFIX	Calculated positions and refined HFIX
Goodness-of-fit on F2	0.995	0.993	0.997
R1 (reflns obsd) [I > 2σ(I)] a	0.0263 (2492)	0.0445 (4452)	0.0406(2290)
wR2 (all data) b	0.0572	0.1206	0.0851
Largest diff. peak and hole/e. Å−3	0.560 and −0.469	0.954 and −0.909	0.700 and −0.497

^a R₁ = Σ||F_o| − |F_c||/Σ|F_o|;^b wR₂ = {Σ[w(F_o² − F_c²)²]/Σ[w(F_o²)²]}.

The structures were solved by direct methods and refined by full-matrix least-squares procedures on F² (SHELXL-97) [36].

All non-hydrogen atoms were refined anisotropically. All hydrogen atoms were included in their calculated positions and refined riding on the respective carbon atoms.

CCDC 1010423–1010425 contains the supplementary crystallographic data of complexes 1–3. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre [37].

3.3. Synthesis

Synthesis of [Ru₂Br(µ-O₂CC₆H₄-o-Me)₄], 1. This compound was prepared by the following methods:

Method (a): Microwave assisted synthesis. A 85 mL TFM Teflon vessel with magnetic stirrer bar was loaded with [Ru₂Br(µ-O₂CMe)₄] (0.13 g, 0.25 mmol), o-toluic acid (0.20 g, 1.5 mmol) and deionised water (8 mL). The vessel was sealed with a lid equipped with temperature and pressure sensors, and placed in the microwave oven. Reaction mixture was then treated by a three-step program consisting of: (i) a 15 min heating ramp up to 130 °C; (ii) a 16 h isotherm at 130 °C; and (iii) a 20 min cooling ramp down to room temperature. A brown suspension was obtained. The solid is filtered and washed twice with 10 mL of cold ethanol. Yield: 44%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-o-Me)₄], C₃₂H₂₈O₈BrRu₂: C, 46.72; H, 3.43. Found (%): C, 46.51; H, 3.41.

Method (b): Solvothermal synthesis. Except for MeOH, used in this case as a solvent, the same reagents and quantities used in method (a) were added to a 23 mL Teflon-lined autoclave and stirred several minutes to homogenize the reaction mixture. Reactor was closed and heated under a three-step program consisting of: (i) a 2 h heating ramp up to 130 °C; (ii) a 24 h isotherm at 130 °C; and (iii) a 24 h cooling ramp down to room temperature. The microcrystalline brown solid obtained was filtered and washed with cold ethanol (5 × 10 mL). Yield: 68%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-o-Me)₄]·1.5H₂O, C₃₂H₃₁O_9.5BrRu₂: C, 45.24; H, 3.68. Found (%): C, 45.14; H, 3.32.

Method (c): Conventional synthesis. 0.20 g of o-toluic acid (1.5 mmol) were added to a suspension of bromidotetrakis(acetato)diruthenium(II,III) (0.13 g, 0.25 mmol) in 30 mL of MeOH/H₂O. Reaction mixture was refluxed for 4 h, giving a brown precipitate. The solvent was removed by filtration and the brown solid washed twice with 10 mL of absolute ethanol. Yield: 70%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-o-Me)₄]·H₂O, C₃₂H₃₀O₉BrRu₂: C, 45.72; H, 3.60. Found (%): C, 45.82; H, 3.37.

IR (cm⁻¹): 2972w, 2927w, 1603w, 1570w, 1497w, 1462m, 1441s, 1386s, 1290m, 1194w, 1153m, 1104m, 1052w, 1032w, 948w, 856m, 788m, 750m, 740s, 670s.

µ_eff (rt) = 4.39 µ_B.

Synthesis of [Ru₂Br(µ-O₂CC₆H₄-m-Me)₄], 2. This compound was obtained using the same synthetic methods described for 1, with m-toluic acid (0.20 g, 1.5 mmol).

Method (a): Yield: 80%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-m-Me)₄], C₃₂H₂₈O₈BrRu₂: C, 46.72; H, 3.43. Found (%): C, 46.56; H, 3.43.

Method (b): Yield: 59%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-m-Me)₄]·2H₂O, C₃₂H₃₂O₁₀BrRu₂: C, 44.76; H, 3.76. Found (%): C, 44.73; H, 3.32.

Method (c): Yield: 51%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-m-Me)₄], C₃₂H₂₈O₈BrRu₂: C, 46.72; H, 3.43. Found (%): C, 47.02; H, 3.42.

IR (cm⁻¹): 2920w, 1591w, 1508m, 1493m, 1466m, 1413s, 1386s, 1288m, 1225m, 1168w, 1120w, 1089m, 1040w, 1006w, 932w, 912w, 898w, 816w, 791m, 748s, 679s.

µ_eff (rt) = 4.50 µ_B.

Synthesis of [Ru₂Br(µ-O₂CC₆H₄-p-Me)₄], 3. This compound was obtained using the same synthetic methods described for 1, with m-toluic acid (0.20 g, 1.5 mmol).

Method (a): Yield: 51%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-p-Me)₄], C₃₂H₂₈O₈BrRu₂: C, 46.72; H, 3.43. Found (%): C, 46.63; H, 3.44.

Method (b): Yield: 65%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-p-Me)₄]·0.5H₂O, C₃₂H₂₉O_8.5BrRu₂: C, 46.22; H, 3.51. Found (%): C, 46.13; H, 3.38.

Method (c): Yield: 89%. Anal. Calcd. (%) for [Ru₂Br(µ-O₂CC₆H₄-p-Me)₄]·0.5H₂O, C₃₂H₂₉O_8.5BrRu₂: C, 46.22; H, 3.51. Found (%): C, 46.02; H, 3.37.

IR (cm⁻¹): 2916w, 1607m, 1514w, 1448m, 1398s, 1296m, 1212w, 1179m, 1145m, 1116w, 1121w, 854w, 843w, 781m, 753s, 693m.

µ_eff (rt) = 4.20 µ_B.

4. Conclusions

Bromidotetraarylcarboxyatodiruthenium(II,III) complexes can be obtained using microwave activation with moderate to high yield. Solvothermal activation and conventional synthesis lead to the same complexes in similar yields. No appreciable differences have been observed in the properties of the compounds depending on the synthetic procedure. The presence of a methyl substituent in the ortho, metha or para positions does not have any significant influence on the properties of these complexes. The change of chloride ion by bromide ligand as a connector between the dinuclear units has little influence on the properties of the halidotetracarboxylatodiruthenium compounds.
