Metalloamination/Cyclization of Zinc(II) Amides Derived from N,N-Dimethylhydrazinoalkenes—Applications for the Direct C-SP² Functionalization of Aryl and Vinyl Electrophiles

Abstract

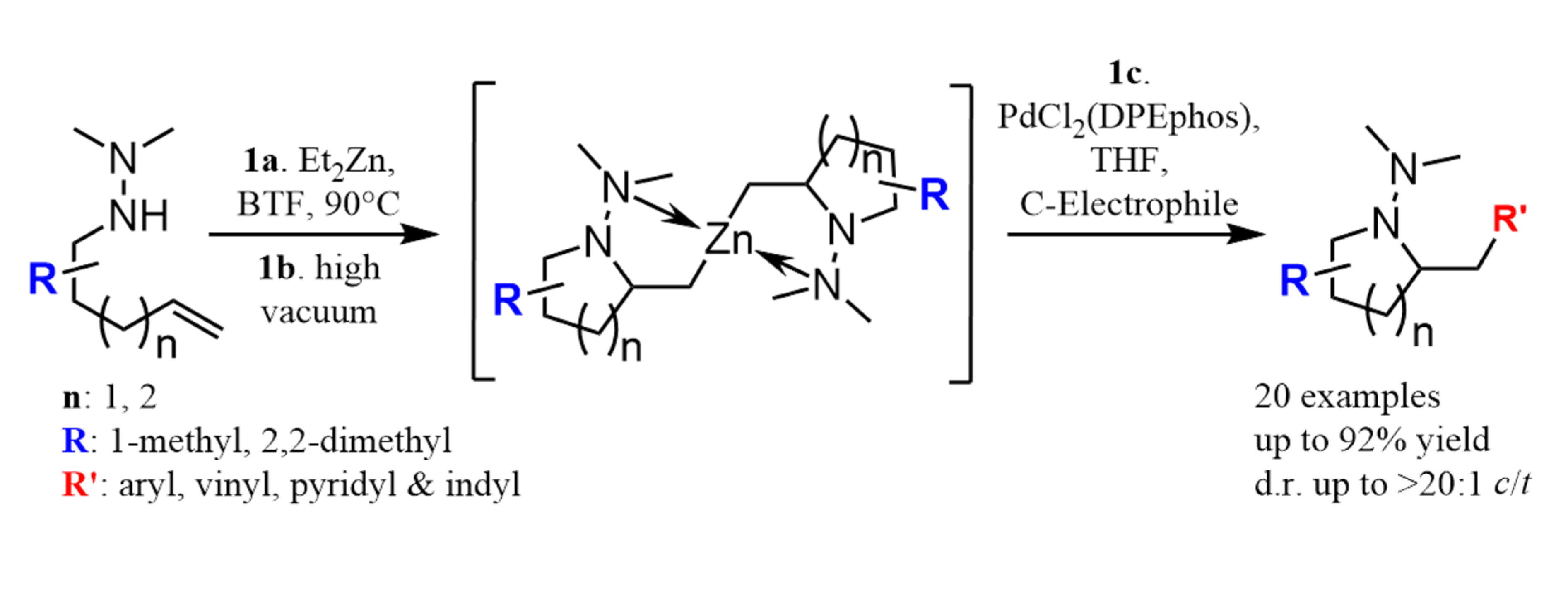

Treatment of N,N-dimethylhydrazinoalkenes with diethylzinc followed by exposure of the resulting ethylzinc amides to high vacuum drives a Schlenck redistribution metalloamination/cyclization to generate the corresponding bis(organozinc) intermediates in excellent conversions. Direct treatment of these with appropriate aryl or vinyl electrophiles in the presence of catalytic PdCl₂ (DPEphos) provides the corresponding arylated or alkenylated pyrrolidines and piperidines with high efficiency.

1. Introduction

Nitrogen heterocycles are crucial drug scaffolds, accounting for approximately 75% of all small-molecule FDA-approved drugs available on the market [1]. They also serve as life’s building blocks, appearing in DNA, RNA, enzymes, and ribosomes [2]. Non-aromatic nitrogen heterocycles are among the most common drug moieties, with piperidine, piperazine, and pyrrolidine being, respectively, the most, third most, and fifth most frequently encountered azacycles [3]. The installation of stereocenters in saturated azacyclic sites poses a challenge that can be addressed by utilizing a hydroamination/cyclization or, more directly, by a metalloamination/cyclization-functionalization sequence [4,5]. Stahl reported the first substrate-based diastereoselective aminocyclization using Pd(TFA)₂ as the catalyst (>20:1 dr). In these cases alkene containing products were obtained as a result of β-hydride elimination [6]. Waser subsequently described an efficient aminocyclization/alkynylation protocol mediated by a DPEphos•Pd(II) complex [7]. In sharp contrast to the Group 10 metals, examples of alkene amination processes mediated by Zn(II) are comparatively rare [8]. Our group first reported a diastereoselective synthesis of 2,5- and 3,5-substituted piperidines and pyrrolidines (up to >20:1 dr) using N,N-dimethylhydrazinoalkene substrates and diethylzinc in a cyclization/coupling tandem protocol via N-chelated organozinc intermediates [9]. This work was later optimized and expanded from allylation and acylation to propargylation and alkynylation [10,11,12,13]. In this contribution, we describe catalyst optimization for vinylation and arylation of organozinc metalloamination intermediates to obtain the corresponding C-SP² functionalized products as well as the X-ray crystal structure for the essential spirobicyclic Zn(II) intermediate, for which only NMR evidence was previously available. For the arylation and vinylation, a Negishi-type cross-coupling presented the major advantage of using the zinc intermediate as is, without additional transmetallation. Negishi couplings generally require palladium(0) [13,14], palladium(II) [15,16], nickel(0) [17], or nickel(II) [18] catalysts to occur. But palladium catalysts tend to offer a higher functional-group tolerance [19].

2. Results and Discussion

An initial catalyst evaluation was performed using diethylzinc as a model to investigate substitution vs. β-hydride elimination. Pd(II)-catalyzed coupling of diethylzinc with 4-bromoanisole using a total of ten catalysts was closely monitored by ¹H NMR. The selection of 4-bromoanisole was based on its comparatively modest reactivity as a coupling partner. The use of bis(cyclooctadiene)Ni(0) lead to a mediocre consumption of diethylzinc, while alternative nickel(II) species were shown to be even less efficient, with the exception of NiCl₂(DPPF), for which the selectivity towards cross-coupling was improved. Palladium catalysts typically showed higher reactivity than their nickel(II) counterparts. Accordingly, Pd₂(dba)₃ afforded limited conversion and selectivity. In addition, Pd(II) catalysts varied widely in selectivity, and these trends were ligand dependent. Phosphine-ligated catalysts were found to favor the desired Negishi pathway, particularly those with large bite angles (e.g., DPPF, DPEphos, and Xantphos) [20]. Of these, DPEphos [21] proved optimal. In contrast, Pd(II) complexes of monodentate phosphines, such as triphenylphosphine, were less efficient (

Table 1. Catalyst screening for Negishi cross-coupling using diethylzinc and 4-bromoanisole.

Entry	Catalyst	Et2Zn Consumption 1 [%]	Yield 2 [%]
1	Ni(cod)2	46	16
2	NiCl2(DME)	44	2
3	NiBr2	23	0
4	NiCl2(DPPF)	35	29
5	Pd2(dba)3	24	3
6	Pd(OAc)2	100	11
7	PdCl2(PPh3)2	50	13
8	PdCl2(DPPF)	58	47
9	PdCl2(DPEphos)	100	77
10	PdCl2(Xantphos)	100	69

0.1 mmol diethylzinc, 0.4 mmol 4-bromoanisole and 0.3 mL of benzotrifluoride were charged in a J. Young tube followed by a catalyst (2.5 mol% to diethylzinc). ¹ At 20 h. Percent consumption followed as disappearance of diethylzinc’s CH₂ peak by ¹H NMR. ² Percent yield followed as appearance of benzylic CH₂ by ¹H NMR.

).

In these studies, major side products were identified as ethylene (singlet, 5.5 ppm) and ethane (singlet, 0.0 ppm), which most likely resulted from β-hydride elimination followed by reductive elimination. The formation of ethylene would imply a more rapid β-hydride elimination than reductive elimination. This contrasts with the literature examples, which state that the small atomic radius of nickel reduces its ability to undergo β-hydride elimination compared to palladium [22]. Recent work has also shown the propensity for nickel catalysts to create clusters with zinc and undergo alternative pathways through one-electron transfer mechanisms [23,24].

Among all the catalysts that were examined, PdCl₂(DPEphos) furnished the highest conversion to the cross-coupled product, second only to PdCl₂(Xantphos), in accordance with Waser’s findings [7,25]. Experiments were subsequently conducted using the optimized cross-coupling conditions on the bis(amido)zinc intermediates 4 and 5 (

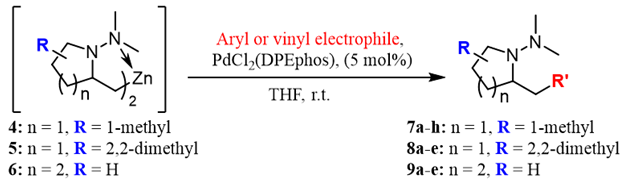

Table 2. Cross-coupling reactions between a range of electrophiles and organozinc intermediates 4–6.

Intermediate	Electrophile	Product	Yield [%]	Intermediate	Electrophile	Product	Yield [%]
4		7a a	92	5		8a	83
		7b a	71			8b	86
		7c a	73 (78) b			8c	60 (64) b
		7d a	66			8d	85
		7e a	69			8e	81
		7f a	77	6		9a	39 c
		7g a	65			9b	45 c
		7h a	61			9c	58 c
						9d	31 c
						9e	72 c

0.10 mmol scale; 1.2 equiv. diethylzinc in BTF (0.3 mL) was used in the first step, followed by 1.2–2.0 equiv. electrophile in THF (0.3 mL) and PdCl₂(DPEphos) (5 mol%). Stepwise reaction completion was monitored by ¹H NMR, first by the disappearance of alkene peaks and then by the disappearance of zinc methylene peaks. All yields are reported as isolated yields. ^a Diastereomeric ratio (cis/trans = 20:1), determined by ¹H NMR. ^b 1.0 mmol scale; BTF (3.0 mL) then THF (3.0 mL). ^c 0.10 mmol scale; BTF (0.4 mL) then THF (0.4 mL).

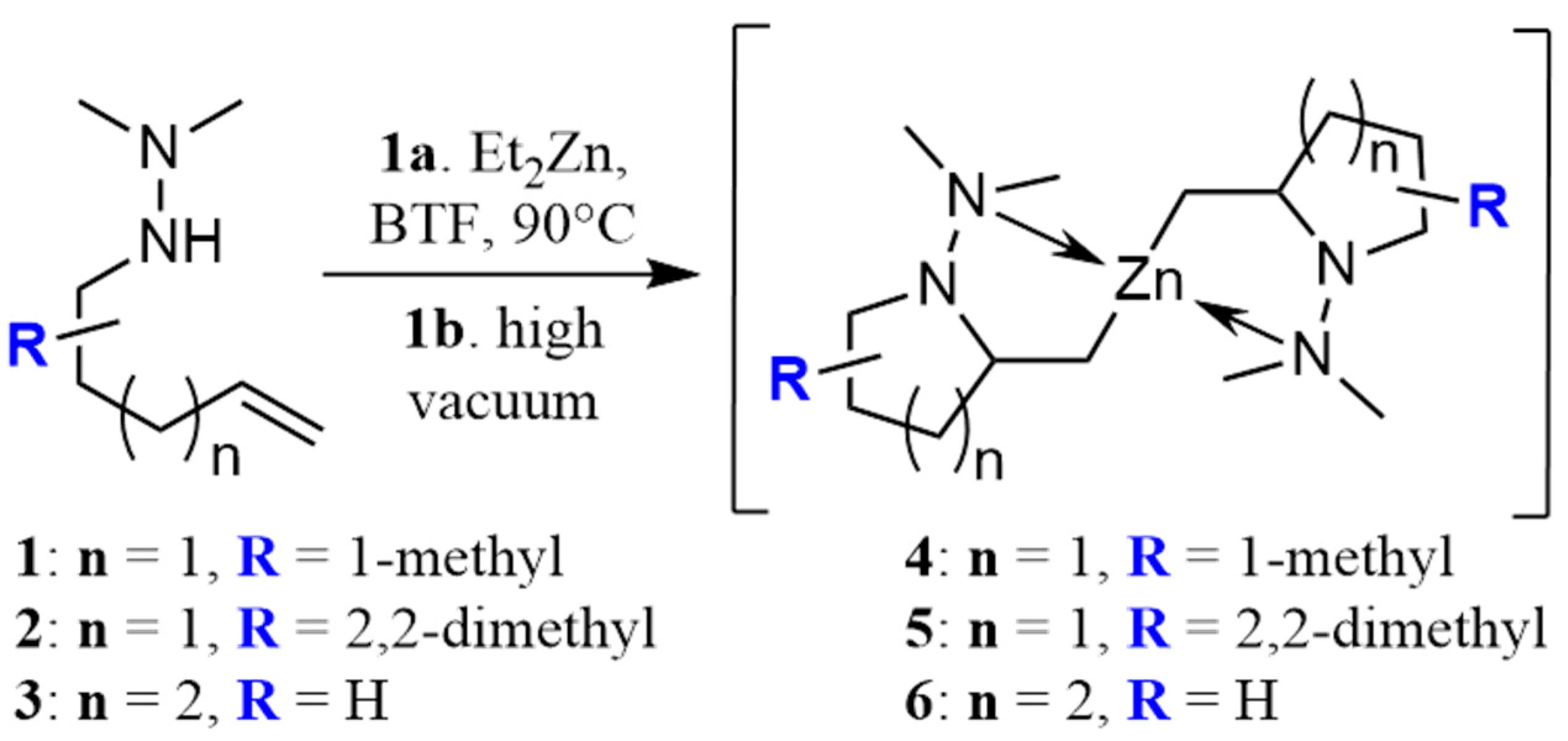

) instead of diethylzinc. Intermediates 4 and 5 were obtained from their respective N,N-dimethylhydrazinoalkenes 1 and 2, followed by removal of the volatile components in vacuo, subsequent addition of THF, PdCl₂(DPEphos), and an appropriate electrophile. The conformationally biased 2,2-dimethyl-bearing hydrazinoalkene 1 underwent facile conversion to the intermediate 5, while 1-methyl-bearing substrate 2 gave a slightly lower conversion (c.a., 95%, Scheme 1). The halide electrophiles were chosen to probe reaction scope and limitations. These included aryl, vinyl, pyridyl and indolyl halides, and spanned the range from poorly to highly activated electrophiles as well as varied steric hinderance levels.

2-Bromopropene, (E)-1-bromo-2-phenylethene, and methyl α-bromoacrylate were selected to probe the ability of vinylic bromides to serve as cross-coupling participants. (E)-β-bromostyrene provided an example of lower hindrance compared to 2-bromopropene, while methyl α-bromoacrylate differs from the latter with higher electrophilicity. In addition, the alleneic halide 1-Bromo-1,2-propadiene was examined. Diverse aryl halides were evaluated, where trends in reactivity were explored by comparing 4-bromoanisole, 2-bromo benzoate esters, 2-bromotoluene, 2-bromo-5-chlorotoluene and 2-bromomesitylene, as were 3-bromo- and 7-bromo-1-tosyl-1H-indole, in cross-coupling reactions with organizinc intermediate 4. 2-Bromo- and 2-chloropyridine were also examined as pyridine-based substrates possessing activated 2-positions. 2-Bromo and 2-iodothiophene were also tested using organozinc intermediates 4 and 5. (E)-β-Bromostyrene-derived products were isolated in excellent yields, whereas 2-bromopropene proved an inefficient coupling partner. Similarly, 1-bromo-1,2-propadiene and methyl α-bromoacrylate were comparatively inefficient as reactants.

It is also of interest that 4-bromoanisole and the more electrophilic 2-bromobenzoate esters gave similar yields. As expected, bromine was the only targeted halide in 2-bromo-5-chlorotoluene reactions and was similar to 2-bromotoluene in speed of consumption and yield. The more hindered 2-bromomesitylene proved unreactive toward all three organozinc intermediates. 7-Bromo-1-tosyl-1H-indole led to the desired product in its reaction with organozinc 4. 2-Chloropyridine and 2-bromopyridine provided full conversions and in good yields. Both 2-bromo and 2-iodothiophene were not suitable under these conditions presumably due to high zinc–sulfur affinity [26].

Overall, yields obtained for pyrrolidines (e.g., 7a–8e) were acceptable, with higher yields being obtained for 2-chloropyridine and (E)-β-bromostyrene compared to typical aryl bromides or 7-bromo-1-tosyl-1H-indole. When closely followed by ¹H NMR, the cross-coupling reaction can be accompanied by retro-metalloamination/cyclization of the organozinc intermediates in the cases of organozincs 4 and 6, which results in back-conversion to the starting N,N-dimethylhydrazinoalkene. This was found to be electrophile-dependent in nature, and the use of two equivalents of the electrophilic component mitigated this side reaction.

Lower conversion of the pro-6-membered zinc amide corresponding to 3 to organozinc 6 also impeded the cross-coupling step. Accordingly, more reactive nonaflate electrophiles [27] were needed for successful cross-couplings to occur in respectable yields. A series of aryl nonaflates of varying reactivity were examined as shown in Table 2. Piperidine derivatives were thus obtained in yields as high as 72% through the use of two equivalents of nonaflate.

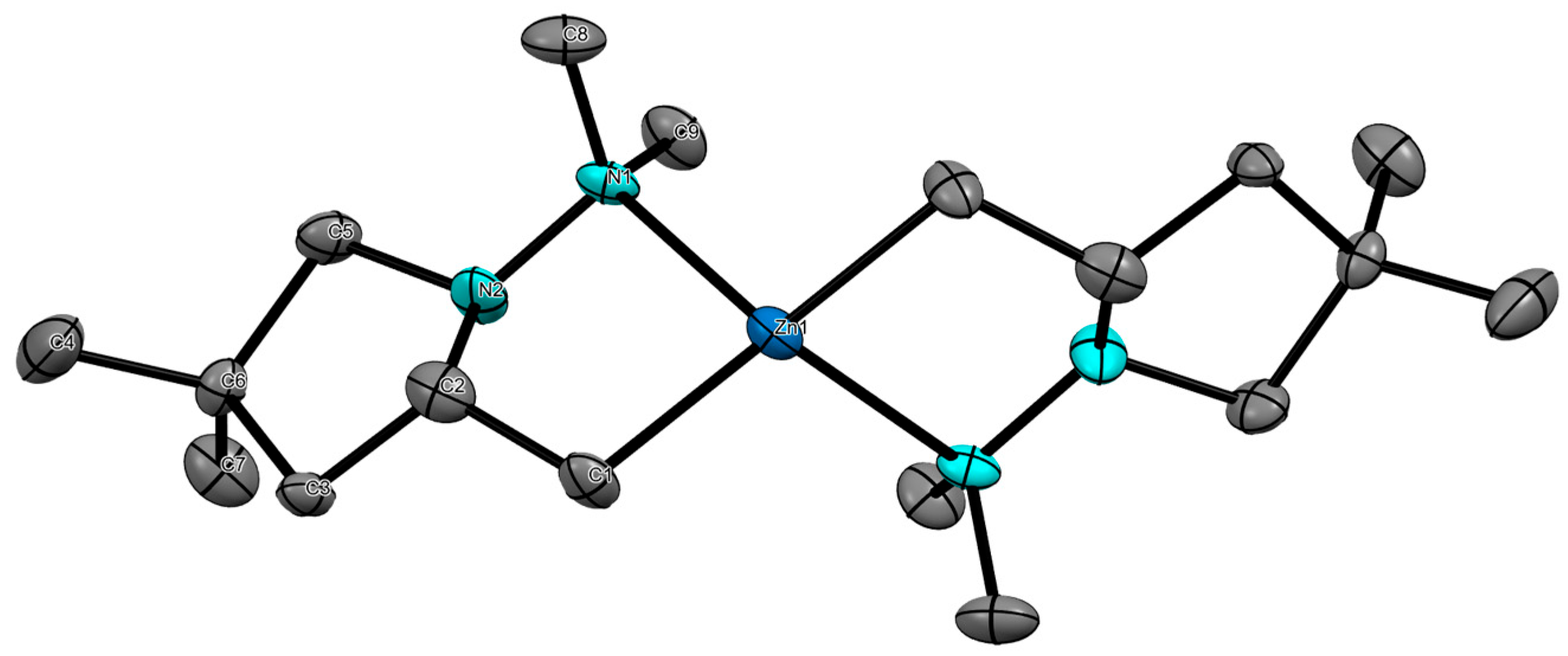

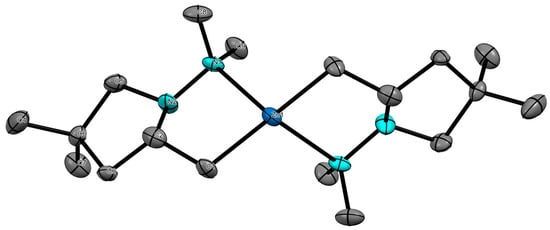

A more detailed study on the generation of the organozinc intermediates for use in cross-coupling was needed to clarify the mechanism of metalloamination/cyclization. The mechanism was initially investigated by ¹H NMR using the 2,2-dimethyl bearing substrate 2 since the Thorpe–Ingold effect favors complete conversion to organozinc 5. Instantaneous coordination of diethylzinc to the hydrazine’s N-H nitrogen was observed through the deshielding of this hydrogen (Δδ = 0.49 ppm, C₆D₆). Subsequent heating at 90 °C for 16 h resulted in full conversion to the ethylzinc bearing species 11 as observed by ¹H NMR (Scheme 1). Removal of the volatile components under high vacuum caused a shift in the Schlenk equilibrium [28], which favored the formation of the d¹⁸ dialkylzinc dimer 5 that crystallized as a solid. This was identified by ¹H NMR and X-ray crystallography (Figure 1). Addition of triethylamine after cyclization to the ethyl alkylzinc intermediate 11 favored the evaporation of the more volatile amine-chelated diethylzinc under high vacuum, quickly promoting the zinc dimer complex 5 (Scheme 2) [29]. This crystal appears to be the first identified hydrazine-organozinc dimer. The closest structure previously reported contains an amine-alkyl zinc dimer and presents a similar metal center, as both have a seesaw-like geometry [30]. The obtained angles around the metal center were 160.34° (C-Zn-C) and 112.39° (N-Zn-N); thus, a respective relative difference of 11% and 6% was found compared to seesaw. Additionally, the intermediate 5 withstands long exposures to the air, eventually reacting with water, and not oxygen, leading to ring opening, giving the starting hydrazinoalkene.

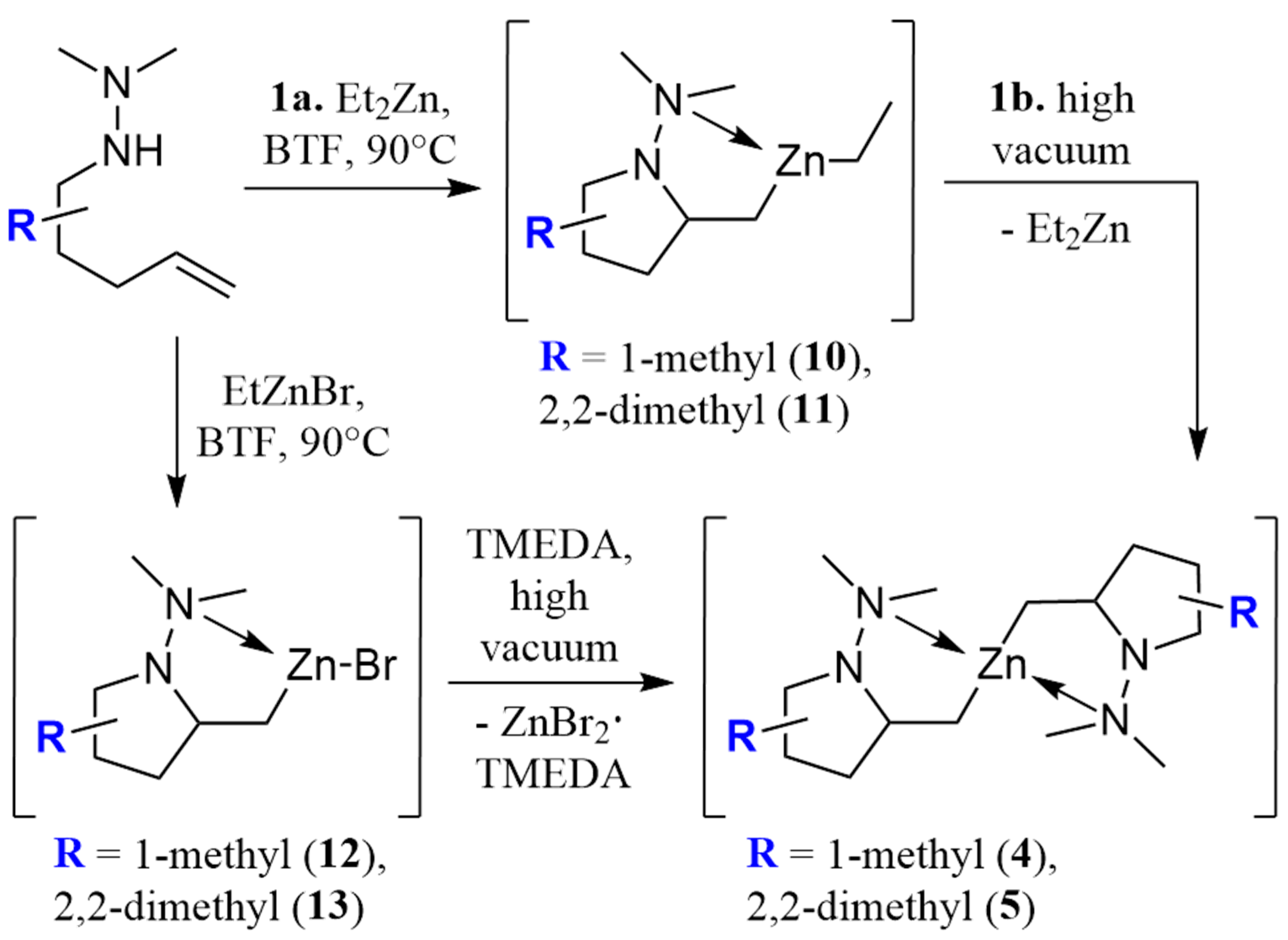

Ethylzinc bromide was also evaluated for N-metallation, leading to the formation of ethane and the generation of the intermediate alkylzinc bromides (Scheme 2, 12 and 13). Organozinc halides benefit from lower reactivities than the corresponding dialkyls [31], and therefore benefit from higher functional group tolerances [32]. In the case of organozinc bromide 12 (d¹⁶ complex) in benzotrifluoride, the addition of TMEDA lead to the precipitation of ZnBr₂(TMEDA) thereby driving transmetallation to the zinc dimer 5 (d¹⁸ complex, Scheme 2) [33,34]. This experimental protocol was repeated with the 1-methyl substituted N,N-dimethylhydrazine 1 and its structural isomer 2 to generate organozincs 4 and 6. Although both were formed as oils at room temperature [35], these intermediates were identified by ¹H and ¹³C NMR and proved to be very effective cross-coupling partners.

3. Materials and Methods

The synthesis and characterization of all reported products are presented in sections S-I through S-IV of the electronic Supplementary Information File.

Oven- or flame-dried glassware was employed under nitrogen unless otherwise noted. All materials were used as received from commercial sources. Syntheses of hydrazines adapted from previously reported procedures [10]. Thin-layer chromatography (TLC) employed 0.25 mm glass silica gel plates with UV indicator and visualized with UV light (254 nm) or potassium permanganate staining. Nuclear magnetic resonance (NMR) data was obtained from a Bruker AVANCE III HD NMR spectrometer equipped with an Ascend 500 (500 MHz) magnet from Bruker Corporation, Billerica, United States. High-resolution mass spectra (HRMS) were obtained from a Bruker MicroTOF with a Dart 100—SVP 100 ion source from Bruker Daltonics GmbH & Co. KG, Bremen, Germany, or an Agilent 7890A/5975C TAD series GC/MSD from Agilent Technologies, Santa Clara, United States. The X-ray diffraction data were measured at 100 K on a Bruker D8 Venture Duo X-ray diffractometer from Bruker AXS GmbH, Karlsruhe, Germany, equipped with a CMOS IμS 3.0 Mo source from Incoatec GmbH, Geesthacht, Germany, and a PHOTON detector from Bruker AXS GmbH, Karlsruhe, Germany.

4. Representative Experimental Procedures

1.0 mmol scale: Compound 7c was prepared using the following procedure: In a nitrogen-filled glovebox, a 10 mL Schlenk flask equipped with a magnetic stirring bar was charged with diethylzinc (0.128 mL, 1.2 eq.), benzotrifluoride (4 mL) and 2-(hex-5-en-2-yl)-1,1-dimethylhydrazine (0.185 mL, 1.0 mmol). The reactant mixture was removed from the glovebox and placed in a 90 °C oil bath for 8 h. The reaction mixture was returned to room temperature and the solvent was removed under vacuum. The flask was returned to the glovebox and was charged with THF (4 mL), 2-bromo-5-chlorotoluene (0.160 mL, 1.2 mmol), and PdCl₂ (DPEPhos) (35.8 mg, 5 mol%). After 16 h of stirring, the resulting mixture was dispersed into diethyl ether (10 mL) and washed with water (2 × 10 mL). The combined aqueous phases were then back-extracted with diethyl ether (3 × 10 mL); then, the combined organics were washed with brine (20 mL), dried over Na₂SO₄, and concentrated in vacuo. The crude product was further purified via flash column chromatography (hexanes to 1:9 ethyl acetate/hexanes gradient) to afford 0.209 g (78%) of compound 7c as a clear oil.

0.1 mmol scale: Compound 9c was prepared using the following procedure: In a nitrogen-filled glove box, a J. Young tube equipped with a C₆D₆ insert was charged with benzotrifluoride (0.4 mL), 2-(hex-5-en-1-yl)-1,1-dimethylhydrazine (0.1 mmol), and diethylzinc (12.3 μL, 1.2 eq.). The reactant mixture heated at 60 °C for 16 h, and then tetramethylethylenediamine (30.0 μL, 2.0 eq.) was added. Completion of the reaction was monitored by the disappearance of the alkene peaks by ¹H NMR. Upon completion, volatiles were removed under high vacuum and the tube was charged with THF (0.3 mL), 4-methyl-7-nonafluorobutylsulfonyloxy coumarin (2.0 eq.), and DPEphos-PdCl₂ (3.58 mg, 5 mol%). The reactant mixture was allowed to stand at room temperature overnight. The resulting mixture was dispersed into diethyl ether (1 mL) and washed with water (2 mL). The combined aqueous phases were then back-extracted with diethyl ether (3 × 1 mL); then, the combined organics were washed with brine (2 mL), dried over Na₂SO₄, and concentrated in vacuo. The crude product was further purified via flash column chromatography (1:19 to 1:1 ethyl acetate/hexanes gradient) to afford 17.5 mg (58%) of compound 9c as a clear oil.

5. Conclusions

Treatment of N,N-dimethylhydrazinoalkenes with diethylzinc followed by exposure of the resulting ethylzinc amide to high vacuum drives a Schlenck redistribution metalloamination/cyclization to generate the corresponding bis(organozinc) intermediates in excellent conversions. The metalloamination event is noteworthy in that it represents one of the very few migratory insertion reactions involving the participation of a zinc(II) intermediate and an alkene. Interception of the bis(organozinc)s containing 5-membered azacycles 4 and 5 with appropriate aryl or vinyl bromides in the presence of catalytic PdCl₂(DPEphos) provides the corresponding arylated or alkenylated pyrrolidines 7a–h and 8a–e with high efficiency. In the case of the bis(organozinc) 6, leading to 6-membered azacycles, more reactive nonaflates should be used to mitigate retro-metalloamination/cyclization, thereby furnishing the corresponding piperidines 9a–e in acceptable yields.
