Spontaneous Release of Metalloradicals and Coordinatively Unsaturated Species in Asymmetric Iridium Dimers to Promote C-N Bond Formation

Abstract

An unusual iridium dimer 1, [(4-cpbo)Ir(μ-Cl)(μ-O)Ir(4-cpbo)] (4-cpbo = 4-chlorophenylbenzoxazolato-N,C²), was obtained by the oxidative addition of oxygen and reductive elimination of chlorine from a precursor [(4-cpbo)₂Ir(μ-Cl)]₂. This iridium dimer 1 has a metastable structure with an asymmetric bridge, can spontaneously release metalloradicals and coordinatively unsaturated species in solution at room temperature, and exhibits high catalytic ability for synthetic applications.

1. Introduction

It is well known that metal radicals and coordinatively unsaturated species play important roles in various fields, including energy transfer in biological systems, pharmaceutical research, and synthetic chemistry [1,2,3]. Various topics have been discussed in order to study the application of metal radicals and coordinatively unsaturated species, most of which focused on the study of group 9 metal complexes [4,5,6,7,8,9]. Although rare, other elements have also been explored, such as nickel [10,11], iron [12], and copper complexes [13,14]. One of the most important properties of metalloradical is metalloradical catalysis (MRC), which leads to a diversity of catalytic reactions, such as, C−H activation, H−H activation, and C−H amination [15,16,17]. Complexes with vacant coordination are also widely used to catalyze oxidative addition and reductive elimination reactions. In most cases, metal radicals and coordinatively unsaturated species are generated by the dissociation of some unstable molecules, for example, by chemical, photochemical, or electrochemical reactions [18,19]. The formation of these reactive species at ambient temperature without additional reaction conditions is rarely observed, but it is important. In 1988, the concept of 18+δ was reported, where the value of δ represents the fraction of electrons that are located in the metal center [20]. Because 18+δ complexes often undergo further reactions, such as ligand dissociation, reduction, or oxidation of metal atoms, etc., the synthesis and separation of such complexes are relatively difficult, and there are few reports on 18+δ complexes [21,22,23]. In this report, we discovered a novel diiridium compound with an 18+δ structure, a metastable structure with an asymmetric bridge, which can spontaneously release metalloradicals and coordinatively unsaturated species in solution at room temperature and exhibits high catalytic ability for C-N bond formation.

Organic nitrogen compounds are essential components and play a vital role in bioactive compounds. The construction of nitrogen-containing organic groups is an important technology in the fields of organic synthetic chemistry, medicine, and fine chemical industry. The C-N bond formation is traditionally carried out by the alkylation of amines with alkyl halides, which is usually fast but has significant disadvantages [24,25]. For example, excessive alkylation leads to lower yields of desired product, and side reactions lead to complicated purification procedures. To date, there are many improved methods for C-N bond formation, including hydroamination [26,27], Ullmann reactions [28,29], and Buchwald−Hartwig coupling [30,31]. Recently, several reports have demonstrated a robust and sustainable approach to forming new C–N bonds using a catalytic hydrogen autotransfer (HA) strategy by using less toxic and more readily available alcohols as alkylating agents [32,33,34]. Additionally, various amine N-alkylation catalysts using alcohols as alkylating agents have been discovered, the most common of which are iridium [35,36,37] and ruthenium [38,39] complexes, and many others have been explored [40,41]. Most of these studies report useful catalytic systems, but most of them must use bases, solvents, and other additives, which limits the development of these truly green process proposals.

In this report, we introduce an asymmetric iridium dimer as a catalyst for the N-alkylation of amines to prepare nitrogen-containing derivatives and heterocyclic compounds. The catalyst can directly promote the formation of C-N bonds without preactivation steps and additives such as solvents and bases. In the reaction system, the only by-product is water, which can be used in tandem reactions or specific intermolecular cyclization reactions to construct biologically active drugs or other specific applications.

2. Results and Discussion

2.1. Synthesis and Structural Characterization

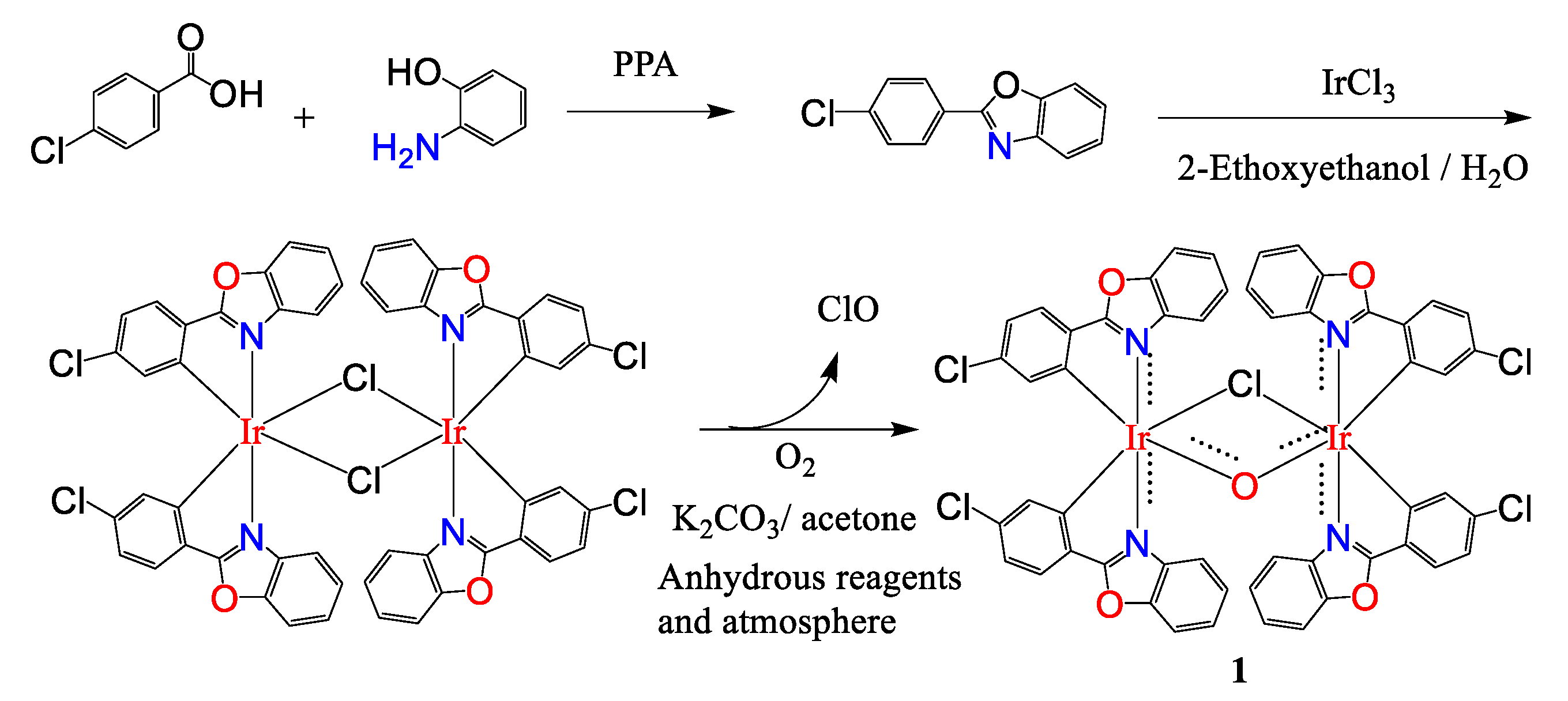

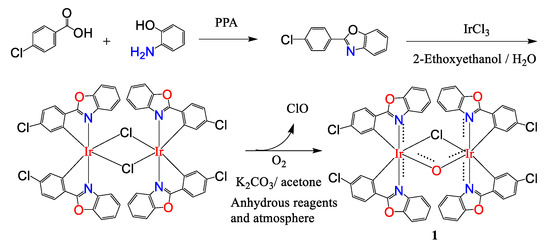

Reaction of [(4-cpbo)₂Ir(μ-Cl)]₂ (4-cpbo = 4-chlorophenylbenzoxazolato-N,C²) with oxygen in anhydrous acetone and a catalytic amount of anhydrous potassium carbonate produces the unusual iridium dimer [(4-cpbo)Ir(μ-Cl)(μ-O)Ir(4-cpbo)] (1) (Scheme 1).

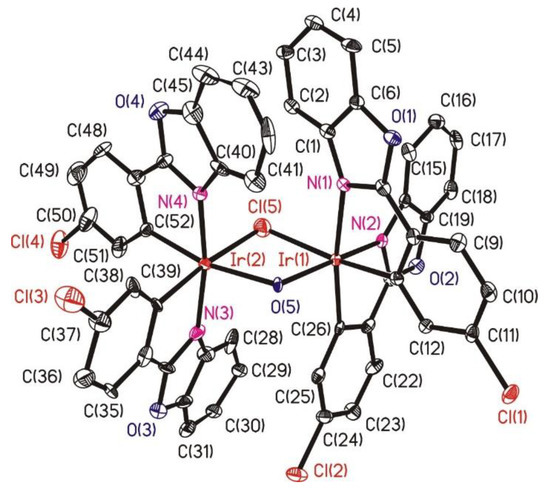

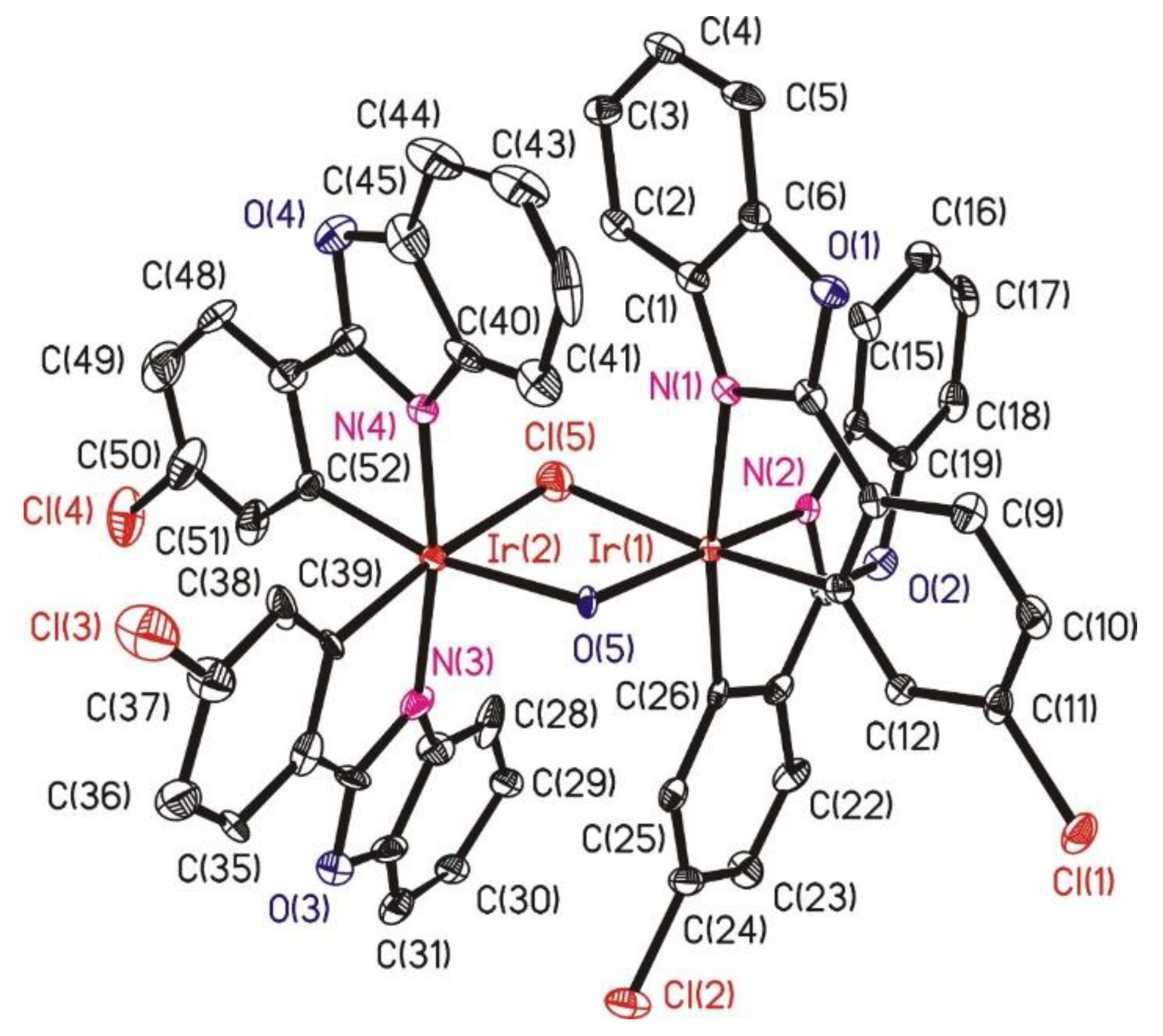

A single-crystal X-ray structure determination confirmed the dimeric nature of 1 (Figure 1). The diffraction data of complex 1 was collected on a Bruker SMART APEX CCD diffractometer with graphite-monochromatized Mo Kα X-ray radiation (λ = 0.71073 Å) at 150K. All calculations for the structure determination were carried out using SHELXTL package (version 5.1). The positions of the heavy atoms, including the iridium atoms, were located by the direct method. The remaining atoms were found in a series of alternating difference Fourier maps and least-square refinement [6]. Crystal data for compound 1: formula C₅₂H₂₈Cl₅Ir₂N₄O₅·2((CH₃)₂CO), M = 1466.59, Monoclinic, space group P 21/c, a = 12.7868 (5), b = 21.2778 (8), c = 21.4635 (8) Å, V = 5676.5(4) ų, Z = 4, ρ_calc = 1.716 gcm⁻³, F(000) = 2844, T = 150(2) K, 2θ_max = 29.392°, 13,327 reflections collected, 8882 unique, GooF = 1.052, R1 = 0.0635, wR₂ = 0.1376. The Ir1-Cl-Ir2, Ir1-O-Ir2, Cl-Ir1-O, and Cl-Ir2-O angles are 87.76 (11), 105.0 (3), 83.49 (17), and 83.62 (17)°, respectively. The dihedral angle between Ir1-Cl-Ir2 and Ir1-O-Ir2 is 4.9^o. Crystallographic information indicates that complex 1 has an asymmetric bridge connecting the two iridium nuclei, and the selected bond distances and bond angles are listed in

Table 1. Selected Bond Distance (Å) and Bond Angles for Compound 1.

Bond Distance (Å)
Ir(1)-N(1)	2.157 (7)	Ir(1)-N(2)	2.049 (7)
Ir(1)-C(13)	2.011 (9)	Ir(1)-C(26)	2.035 (9)
Ir(1)-Cl(5)	2.457 (3)	Ir(1)-O(5)	2.093 (5)
Ir(2)-N(3)	2.069 (8)	Ir(2)-N(4)	2.037 (7)
Ir(2)-C(39)	2.021 (9)	Ir(2)-C(52)	2.022 (10)
Ir(2)-Cl(5)	2.402 (3)	Ir(2)-O(5)	2.153 (5)
Bond Angles (o)
Ir(1)-Cl(5)-Ir(2)	87.76 (11)	Ir(1)-O(5)-Ir(2)	105.0 (3)
C(13)-Ir(1)-C(26)	92.7 (3)	C(39)-Ir(2)-C(52)	94.7 (4)
N(1)-Ir(1)-N(2)	95.8 (3)	N(3)-Ir(2)-N(4)	170.5 (3)
C(26)-Ir(1)-N(1)	171.9 (3)	C(39)-Ir(2)-N(3)	79.5 (4)
C(13)-Ir(1)-Cl(5)	170.4 (3)	C(39)-Ir(2)-Cl(5)	173.5 (3)
O(5)-Ir(1)-Cl(5)	83.49 (17)	O(5)-Ir(2)-Cl(5)	83.62 (17)
N(2)-Ir(1)-O(5)	171.6 (2)	C(52)-Ir(2)-O(5)	167.7 (3)

.

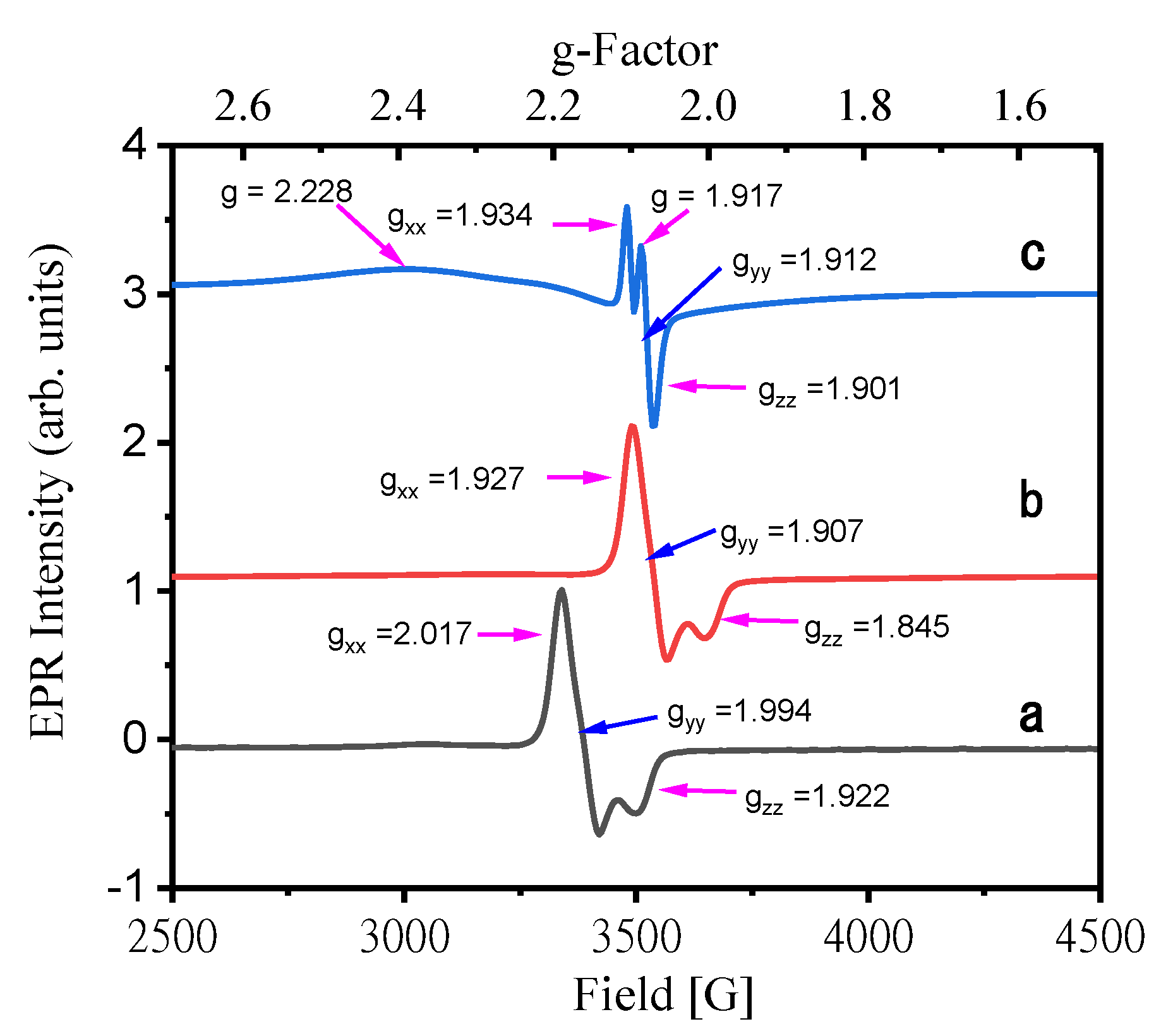

Electron paramagnetic resonance (EPR) spectra of iridium complex 1 crystals were recorded at 77 and 298 K and in dichloromethane solution at 298 K (Figure 2). The low temperature EPR spectrum of complex 1 crystal displays rhombic symmetry with gx = 2.017, gy = 1.994, and gz = 1.922 (Figure 2a). The unresolved hyperfine structure is significantly broadened, indicating that the unpaired electron is localized on a mixed orbital composed of ligand pi and metal d orbitals. At room temperature, the crystal of complex 1 shows an EPR pattern similar to that at 77K, but the g-tensor component moves significantly (gx = 1.927, gy = 1.907, and gz = 1.845, Figure 2b), indicating that the distribution of the unpaired electrons remains unchanged, but as the temperature increases, the microenvironment of the complex 1 crystal is affected. The solution of complex 1 at 298 K shows more complicated EPR signals (Figure 2c). The g factors are 2.228, 1.934, 1.917, 1.912, and 1.901, respectively, indicating that new free radicals are released in the solution.

Theoretical calculations used Becke’s three-parameter B3LYP for C, H, O, N, and Cl, and the LANL2DZ basis set for the element Ir used the package Gaussian 03. The atomic coordinates of the complexes were obtained directly from X-ray crystallography and used as the initial geometry for optimization. The metric parameters obtained from the X-ray structure and DFT calculations are in good agreement (

Table 2. Comparison of selected bond lengths (Å) and angles (°) of 1 from crystallography and DFT calculation.

	Ir-Cl	Ir-O	Ir-N	Ir-C
X-ray	2.457 (3)	2.153 (5)	2.157 (7)	2.035 (9)
	2.402 (3)	2.093 (5)	2.069 (8)	2.022 (10)
			2.049 (7)	2.021 (9)
			2.037 (7)	2.011 (9)
DFT	2.454	2.150	2.154	2.031
	2.309	2.090	2.065	2.017
			2.045	2.016
			2.033	2.008

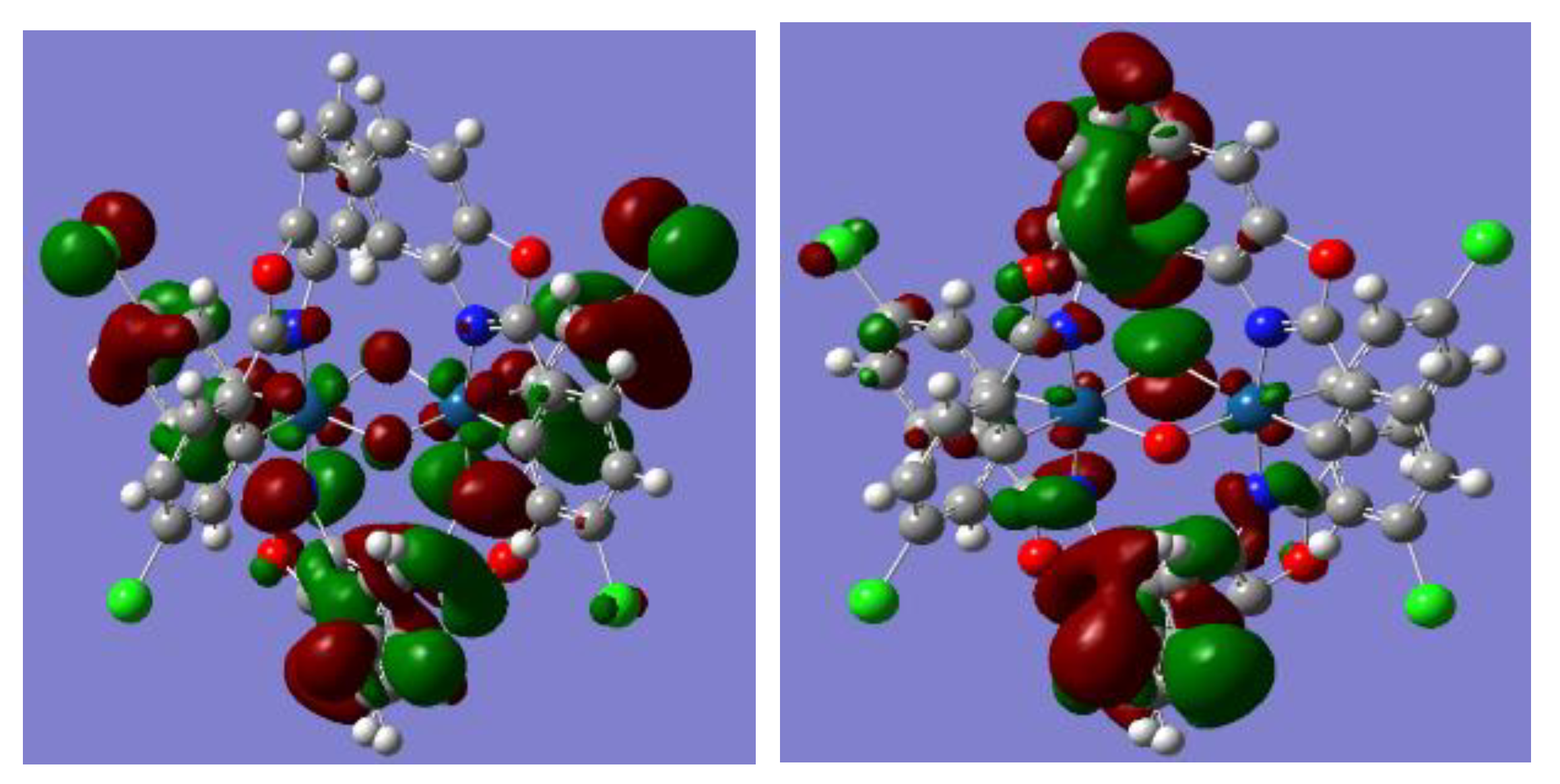

), and the atomic coordinates (Angstroms) of complex 1 are listed in Supplementary Materials Table S1. The calculated single-molecular orbital (SOMO) of compound 1 is composed of 87.91% π(4cpbo) + 10.53% d(Ir) + 1.34% (μ-O) + 0.3916% (μ-Cl) (Figure 3). This is consistent with the EPR spectrum observation of the crystal of complex 1, where the unpaired electrons are delocalized to iridium, μ-O, μ-Cl, and two ligands 4cpbo. This delocalization stabilizes the structure of 1 and leads to the isolation of this compound.

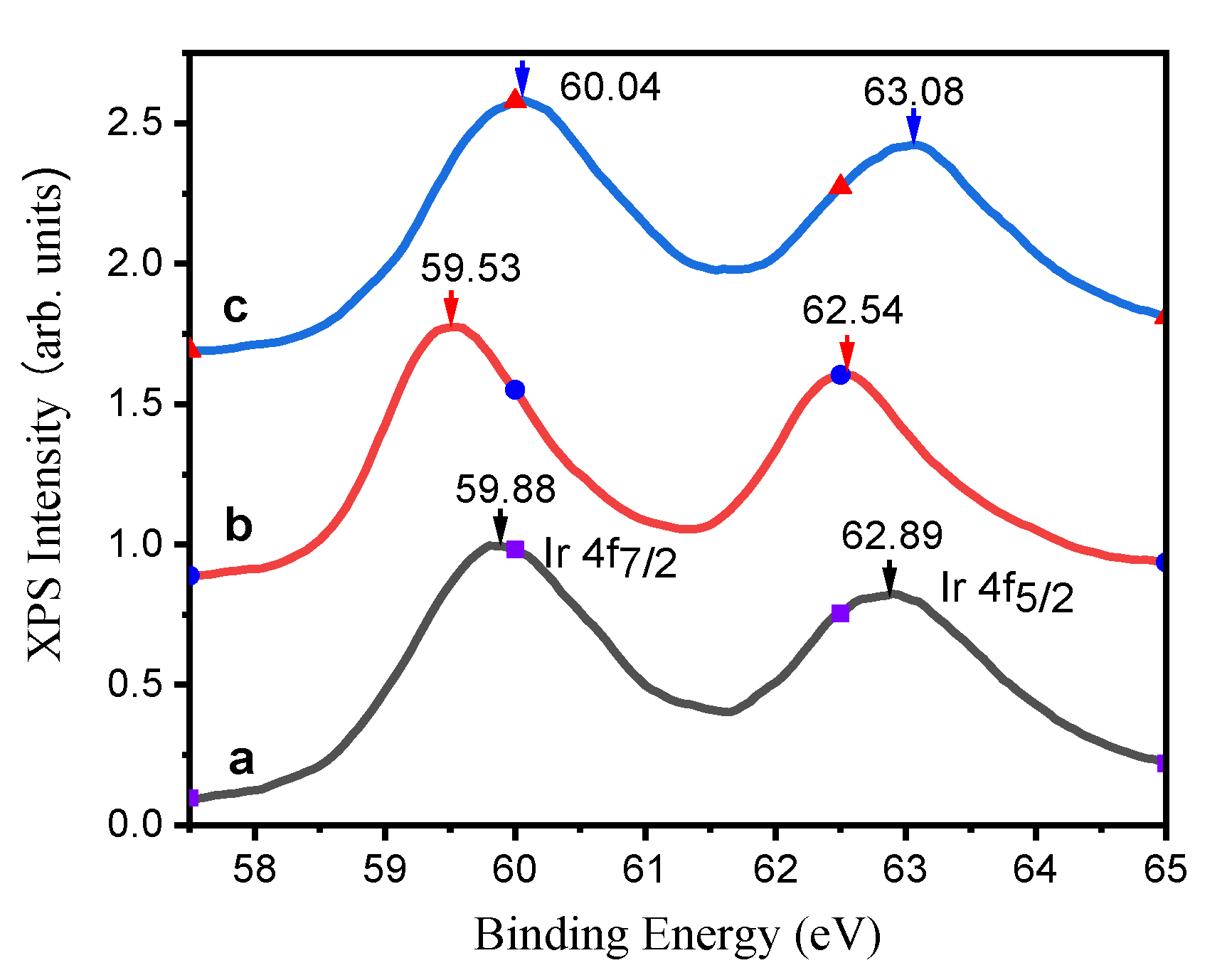

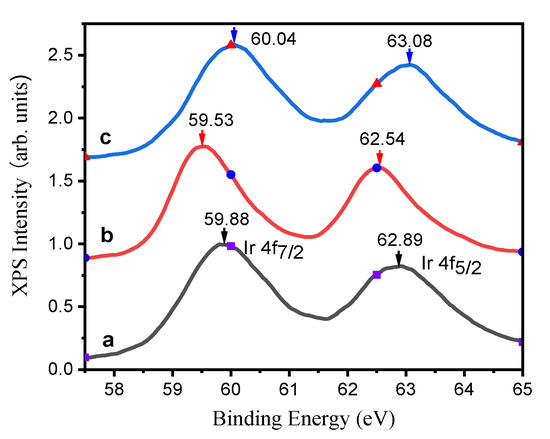

To double check, XPS tests were performed to explore the oxidation states of iridium ions. The Ir 4f XPS spectrum of complex 1 shows Ir 4f_7/2 (59.88 eV) and Ir 4f_5/2 (62.89 eV) peaks (Figure 4a). Compared with the spectrum of [(4cpbo)₂Ir^III(μ-Cl)]₂ Figure 4b) (Ir 4f_7/2 = 59.53 eV, Ir 4f_5/2 = 62.54 eV), the XPS spectrum of complex 1 shifted by about 0.35 and 0.46 eV toward higher binding energies. Compared with the spectrum of [(dfpbo)₂Ir^IV(μ-O)]₂ (Figure 4c) (Ir 4f_7/2 = 60.04 eV, Ir 4f_5/2 = 63.08 eV), the XPS spectrum of complex 1 shifted by about 0.05 and 0.19 eV toward slightly lower binding energies. The comparison of XPS spectra of iridium complexes shows that the oxidation state of iridium ion in 1 is higher than +3 but close to +4.

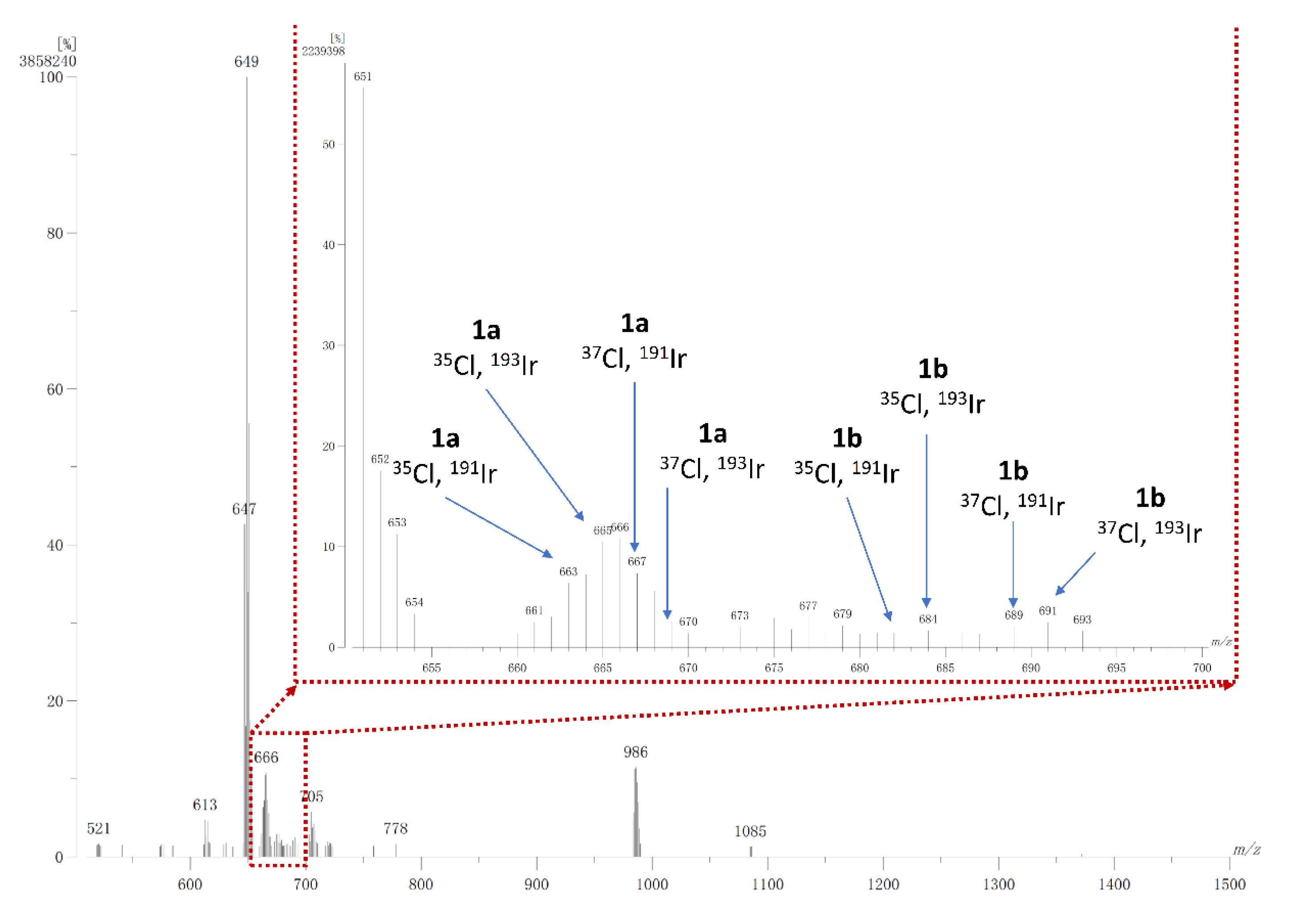

The (FAB+) (Fast Atom Bombardment) spectrum of 1 (Figure 5) shows medium-intensity complex patterns of [(4cpbo)₂IrO]•⁺ [¹⁹¹Ir, ³⁵Cl m/z 663 (6.36%), ¹⁹³Ir, ³⁵Cl m/z 665 (10.47%), ¹⁹¹Ir, ³⁷Cl m/z 667 (7.35%), and ¹⁹³Ir, ³⁷Cl m/z 669 (2.52%)] and [[(4cpbo)₂IrO]+H]•⁺ [¹⁹¹Ir, ³⁵Cl m/z 664 (7.24%), ¹⁹³Ir, ³⁵Cl m/z 666 (10.79%), ¹⁹¹Ir, ³⁷Cl m/z 668 (5.56%), and ¹⁹³Ir, ³⁷Cl m/z 670 (1.40%)]. The low-intensity complex patterns of [(4cpbo)₂IrCl]•⁺ [¹⁹¹Ir, ³⁵Cl, ³⁵Cl l m/z 682 (1.4%), ¹⁹³Ir, ³⁵Cl, ³⁵Cl m/z 684 (1.65%), ¹⁹¹Ir, ³⁵Cl, ³⁷Cl m/z 686 (1.39%)] and [[(4cpbo)₂IrCl]+H]•⁺ [¹⁹¹Ir, ³⁵Cl, ³⁷Cl m/z 687 (1.36%), ¹⁹¹Ir, ³⁷Cl, ³⁷Cl m/z 689 (2.06%), and ¹⁹³Ir, ³⁷Cl, ³⁷Cl m/z 691 (2.47%)] were also observed. Which indicates that complex 1 is readily dissociated to form metalloradicals [(4cpbo)₂IrO]•⁺ and [(4cpbo)₂IrCl]•⁺. The molecular peak of [(4-cpbo)Ir(μ-Cl)(μ-O)Ir(4-cpbo)] is relatively weak, indicating that complex 1 is easily dissociated. [(4-cpbo)₂Ir(μ-Cl)]₂ peak is observed at m/z 1372, which reveal that two metalloradicals [(4cpbo)₂IrCl]• can combine with each other to form a binuclear species, which also explains why the intensity of [(4cpbo)₂IrCl]•⁺ is much lower than that of [(4cpbo)₂IrO]•⁺.

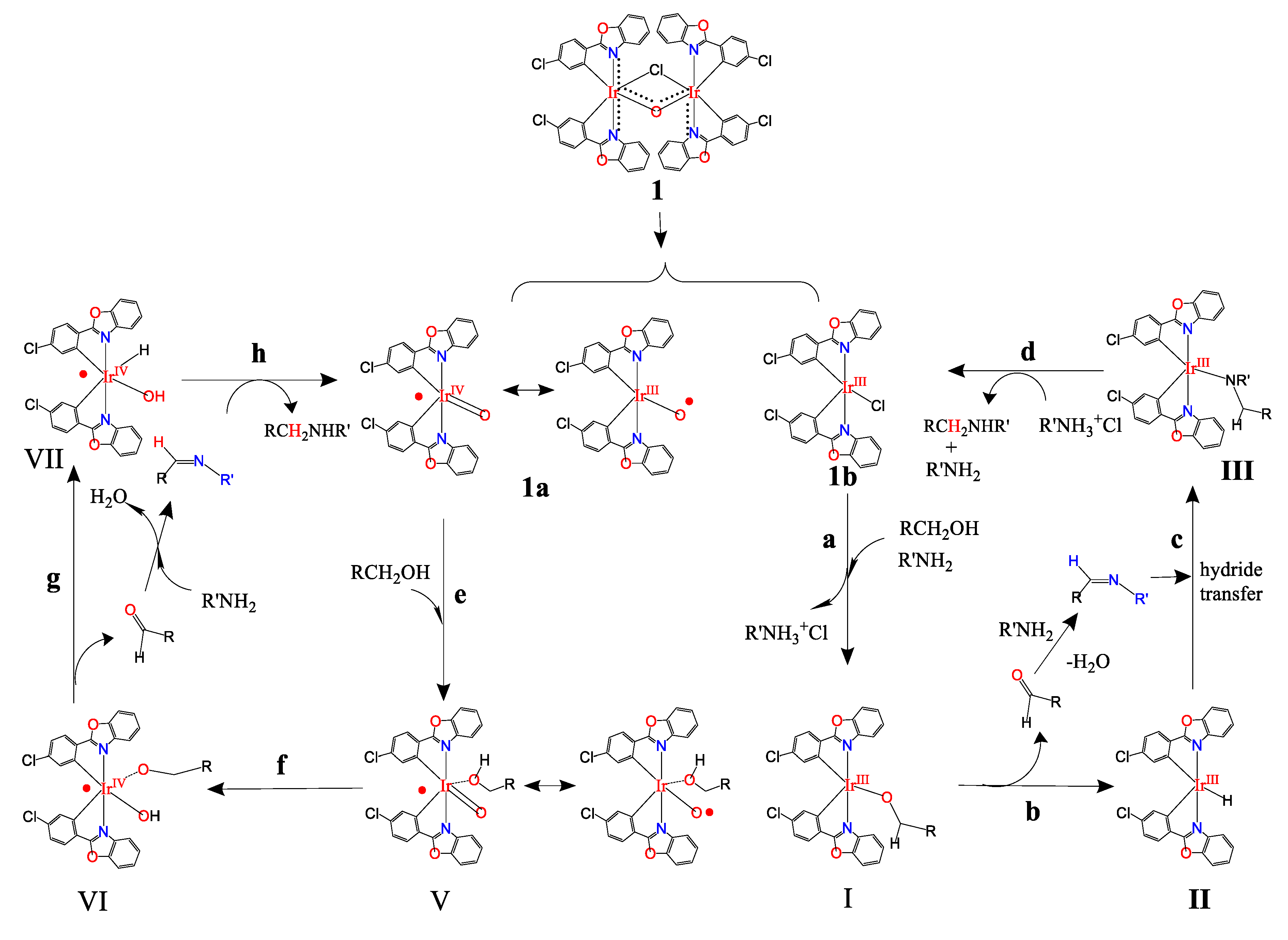

The above information indicates that the asymmetric bridged dimer complex 1 has an unpaired electron delocalized throughout the molecule, which can dissociate in solution to release various mononuclear iridium species, including an iridium radical (1a) and a mononuclear iridium complex with a vacant coordination site (1b) (Scheme 2). Both metallic radicals and coordinatively unsaturated species can activate a variety of chemical bonds, such as carbon–hydrogen bond activation (CHA) and carbon–carbon bond activation (CCA), which has been widely studied and used in various applications such as metathesis, polymerization, C-C bond formation, and C-N bond formation. Here, complex 1 is catalytically active for C-N bond formation. The alcohol binds to the vacant coordination site of 1b and is then deprotonated by the extra amine, resulting in the dissociation of ammonium chloride to give the coordinatively unsaturated Ir-alkoxide complex I (step a). Then, β-hydride elimination occurs to give an Ir(III)-hydride complex II and an aldehyde (step b). Dehydration condensation of aldehydes and amines yields imine intermediate, which is attacked by Ir-hydrides to yield Ir-amide intermediates III (step c). Finally, protonation by ammonium chloride furnishes the catalytic cycle to generate alkylated amines and a recovered Ir catalyst (step d). For the left cycle, the iridium radical (1a) traps alcohol in the first step (step e). Then, there is a proton transfer from bound alcohol to oxido ligand, resulting in iridium complex VI with hydroxido and alkoxido ligands (step f). Then, β-hydride elimination occurs to give an iridium complex VII with hydrido and hydroxido ligands and released aldehyde undergoes dehydrative condensation with amine to give imine intermediate (step g). Finally, proton and hydride transfer from iridium-hydride and -hydroxide complex to imine yields N-alkylation product and recovered iridium complex 1a (step h).

2.2. Initial Catalytic Studies

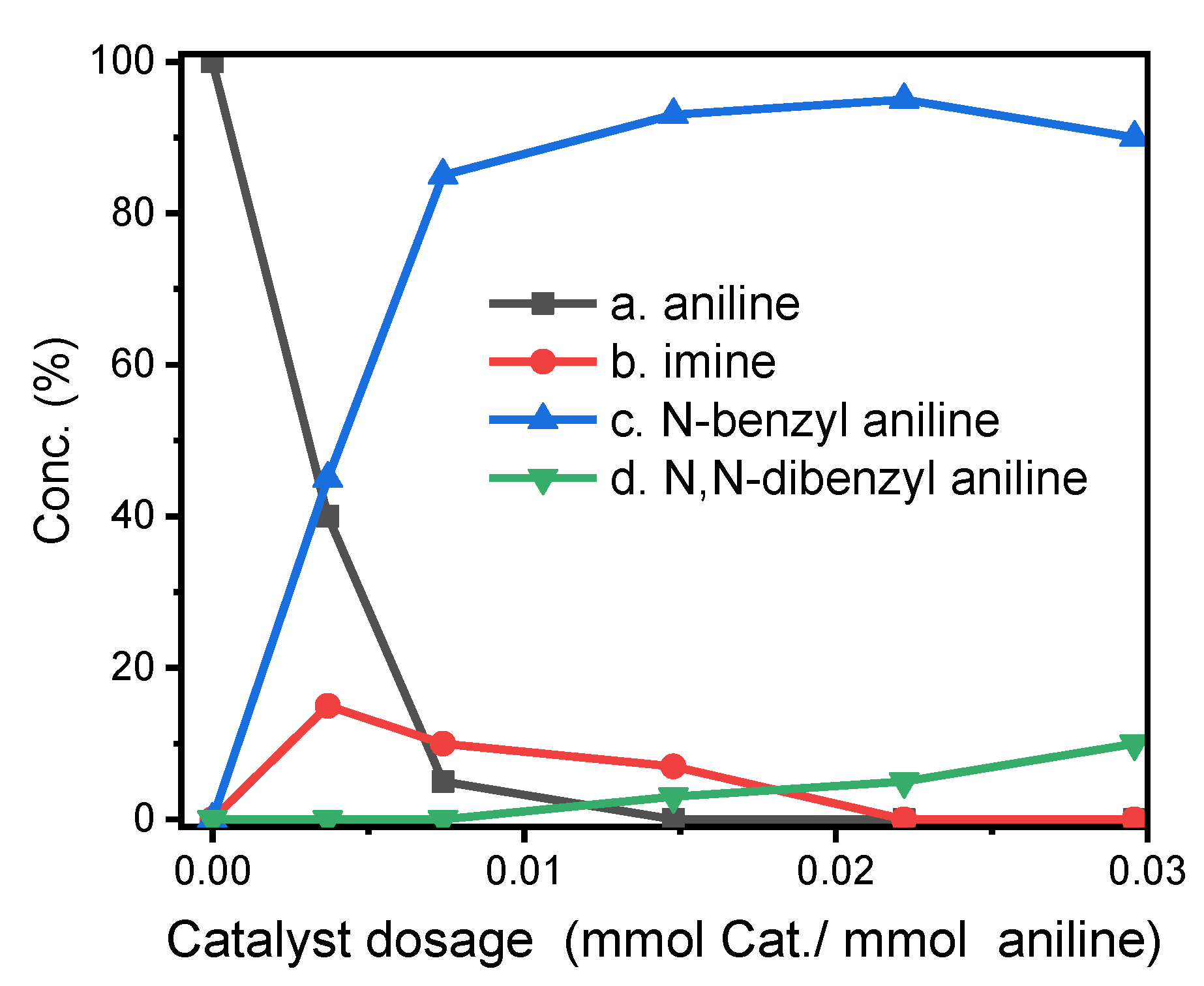

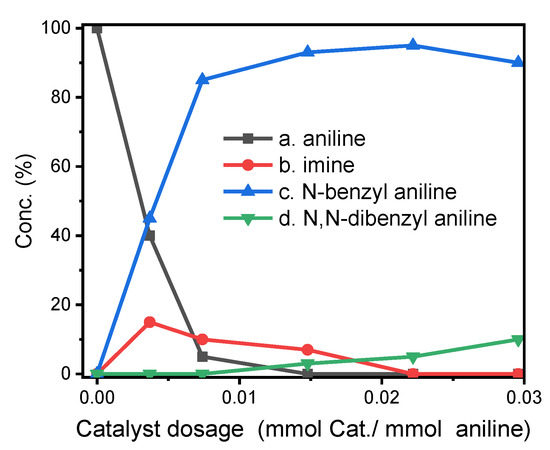

We carried out a series of catalytic reactions according to different catalyst loading ratios to optimize the catalytic conditions of complex 1. The ratio of catalyst to amine is in the range of 0.0040 to 0.030 (mmol/mmol) (Cat./aniline), and reactions were placed in Schlenk tubes at 120 °C for 24 h. The composition of the reaction mixture was determined by GC-MS summarized in Figure 6. At a high catalyst loading ratio (0.022 mmol/mmol), the target alkylation product (N-benzylaniline) was the main product (>95%), and the over-alkylated product (N,N-dibenzylaniline) was the minor product (~4%), and traces of imines (<1%) were observed. At an even higher catalyst loading ratio (0.03 mmol/mmol), the imine disappeared, but the concentration of the target alkylated product decreased (<90%), and the concentration of the over-alkylated product increased significantly (>10%). In contrast, at low loading ratio (0.004 mmol/mmol), the conversion of aniline was very low (~60%), a large amount of intermediates (imines) were observed (~15%), and the concentration of target alkylation product was also low (~45%); therefore, the ideal catalyst loading ratio should be 0.015~0.022 mmol/mmol.

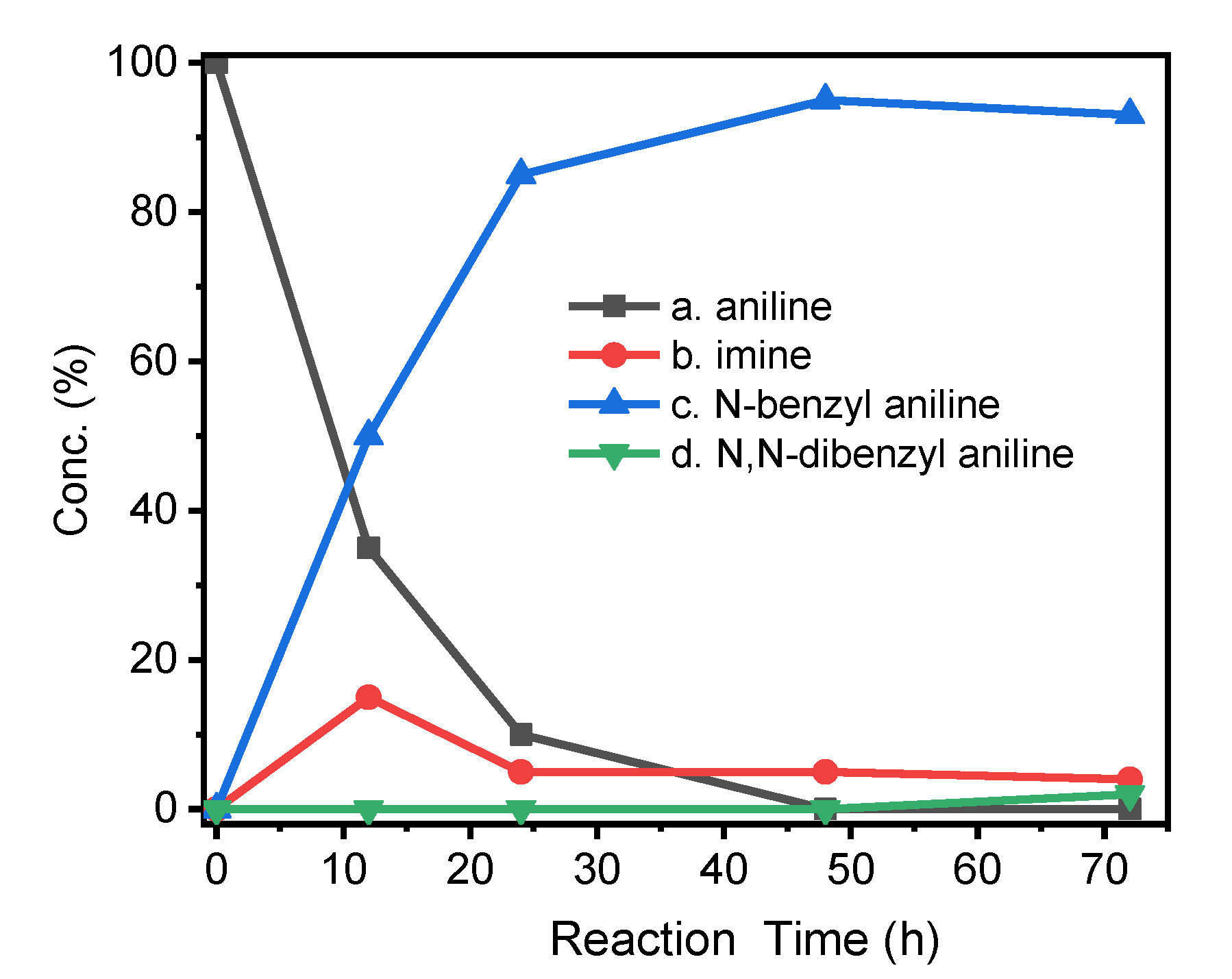

Furthermore, the progression of the N-alkylation reaction showed that the percentage of N-alkylated products increased sharply in the early stage, and intermediate imines were also found (Figure 7). After 24 h of reaction, the concentration of the target product still increased steadily, but the proportion of imine disappeared obviously, indicating that the intermediate imine was rapidly converted into N-alkylated products. After 48 h of reaction, the target alkylated product reached the maximum concentration (95%), and then the over-alkylated product gradually appeared.

2.3. Substrate Scope

Based on the optimized conditions, complex 1 was used to investigate the substrate scope for N-alkylation of amines with alcohols as alkylating reagents (

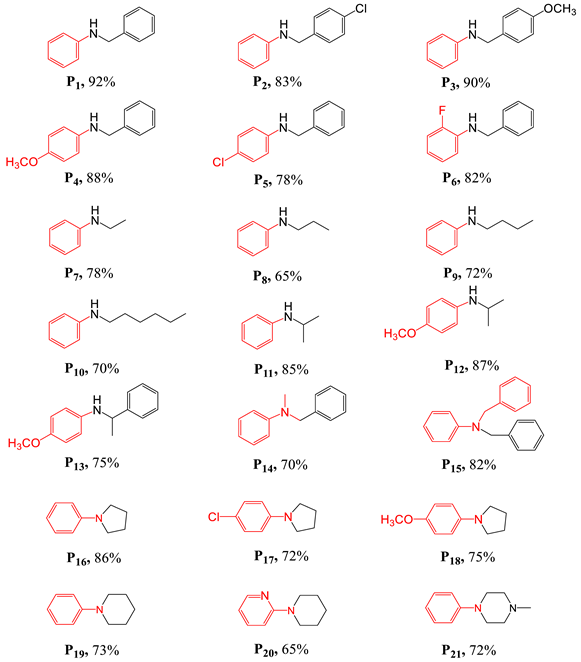

Table 3. Complex 1 catalyzed N-alkylation of amines.

Amines (1 mmol), alcohols (2 mmol), catalyst (0.018 mmol), without base and solvent, and reaction was carried out at 120 °C for 48 h.

). First, aniline was alkylated with benzyl alcohol, 4-chlorobenzyl alcohol, and p-anisyl alcohol as alkylating agents. The isolated yields of the secondary amine products P1, P2, and P3 were 92%, 83%, and 90%, respectively.

Substituted anilines such as p-anisidine, 4-chloroaniline, and 2-fluoroaniline were also well alkylated by benzyl alcohol to give the corresponding amines P₄, P₅, and P₆ in high yields of 88%, 78%, and 82%, respectively. Although the yields of substrates with electron-withdrawing groups were slightly lower than those with electron-donating groups, they were all within an acceptable range.

We also screened various substrates to assess whether our catalysts could expand the range of N-alkylation of amines with aliphatic alcohols. Thankfully, aliphatic alcohols were successful in alkylating amines with good selectivity and yield, for example, N-alkylation of aniline using ethanol, propanol, butanol, and hexanol as alkylating agents. The yields of products P₇, P₈, P₉, and P₁₀ reached 78%, 65%, 72%, and 70%, respectively.

Since the formation of a C-N bond between nitrogen and a secondary carbon is an important step in the construction of some natural products or pharmaceuticals, we constructed this bond by alkylating amines with secondary aliphatic alcohols as alkylating agents. Interestingly, both aliphatic and aromatic amines can be coupled with secondary aliphatic alcohols. Most of these reactions showed high conversions and good to excellent yields. For example, alkylation of aniline with alcohol (isopropyl alcohol) at 90% conversion yields the corresponding product P₁₁ at 75% yield. Alkylation of 4-methoxyaniline with isopropanol and 1-phenethyl alcohol as alkylating reagents also gave good yields of P₁₂ and P₁₃, 87% and 75%, respectively. Secondary amines were also successfully alkylated; for example, N-methylaniline and N-benzylaniline were successfully alkylated by benzyl alcohol to give the corresponding products P₁₄ and P₁₅ at 70% and 82% yields, respectively.

In addition, intermolecular cyclization was also achieved through the cyclization reaction of amines with diols. Aniline, 4-chloroaniline, and 4-methoxyaniline were reacted with 1,4-butanediol to form five-membered cyclic amines P₁₆, P₁₇, and P₁₈ at 86%, 72%, and 75% yields, respectively. The reaction of 1,5- pentanediol with different amines gave six-membered cyclized products in good yields, with yields of 70% and 82% for P₁₉ and P₂₀, respectively. Interestingly, by using N-substituted diethanolamine, the piperazine derivative (P₂₁) was obtained, which is a phenylpiperazine derivative characterized in that the phenyl group is attached to the piperazine ring. Many phenylpiperazine derivatives are drugs, such as bifepronol, dropromazine, eloprazole, antrafenin, and ciprofloxacin.

2.4. Synthetic Application

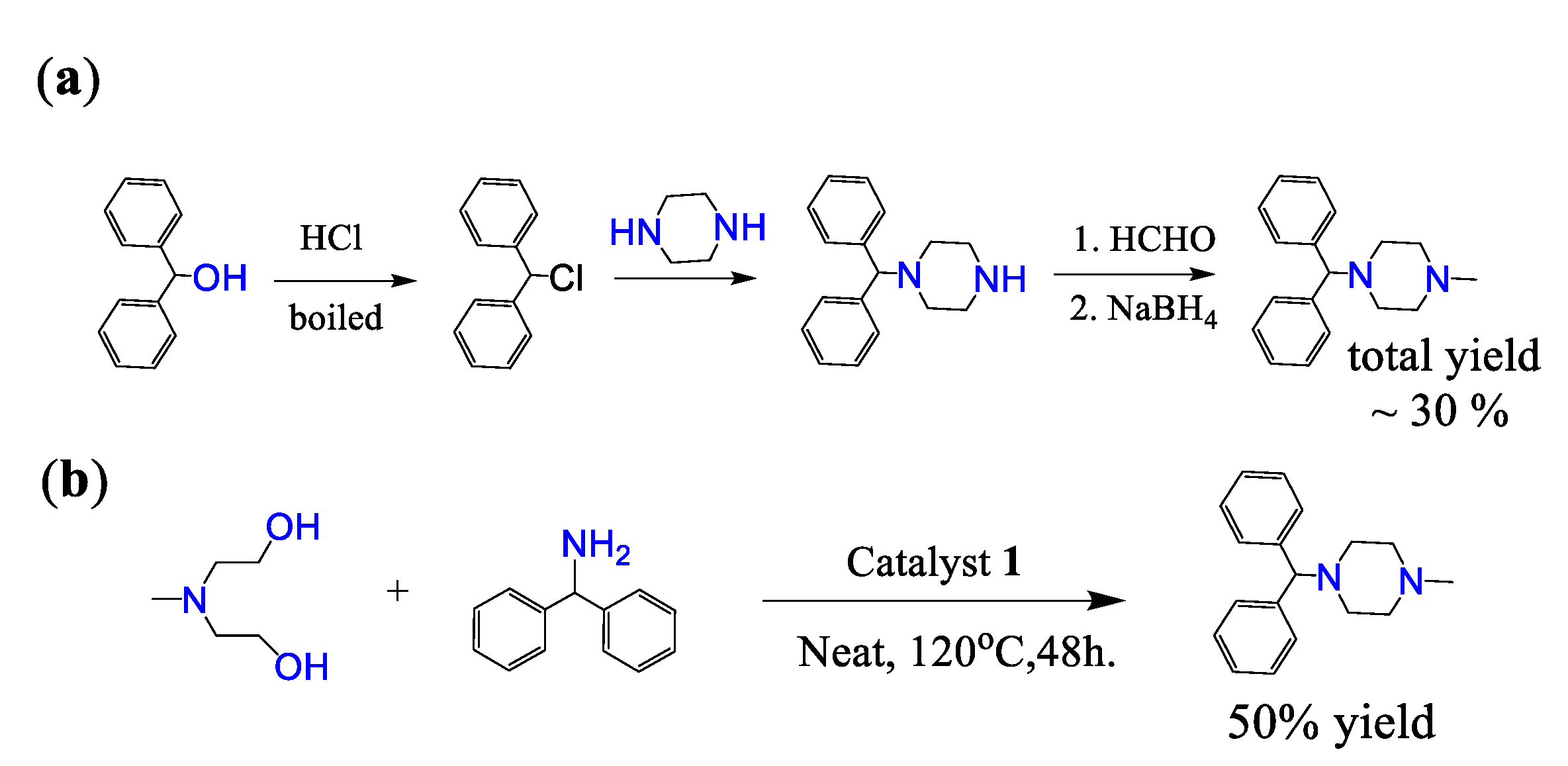

Cyclizine is an important drug for the treatment of nausea and dizziness caused by motion sickness or dizziness and is included in the World Health Organization List of Essential Medicines [32,42]. Scheme 3a shows the previously reported preparation of cyclizine, which requires at least four steps and an overall yield of about 30% [43,44]. Many harmful and expensive chemicals must be used, and toxic and ecologically unfavorable substances are released into the environment. In our report, cyclizine was prepared by one-step catalysis using an intermolecular cyclization reaction (Scheme 3b). In a Schlenk tube, N-methyldiethanolamine (MDEA) was mixed with diphenylmethanamine and complex 1 and then reacted at 140 °C for 48 h under nitrogen. The product cyclizine was purified by column chromatography, and the isolated yield was 50%, which was good compared with known methods.

2.5. Conclusions

In summary, we present an unusual iridium compound with an asymmetric bridge that delocalizes unpaired electrons across the molecule and that can dissociate in solution to release various catalytically active species. The compound exhibits diverse catalytic capabilities and good catalytic performance for various reactions, which indicates that it will become an important substance in the exploration of iridium chemistry, catalytic chemistry, and material science.

3. Experimental Section

3.1. Materials and Methods

4-chlorobenzoic acid was purchased from Matrix, and IrCl₃.nH₂O was from Seedchem Co. All other chemicals were purchased from Acros and used as received. NMR spectra were measured on a Bruker Advance-400 MHz or a Mercury 300 MHz NMR spectrometer. Elemental analyses (CHN) were obtained from an Elementar vario EL III analyzer. Mass spectrometry was performed on a Finnigan/Thermo Quest MAT 95XL instrument using electron impact ionization for organic compounds and fast atom bombardment for metal complexes.

3.2. Synthetic Procedures

3.2.1. Synthesis of 4-Chlorophenylbenzoxazole, (4-cpboH)

The benzoxazole derivative ligand 4-cpboH was prepared using Philips’ condensation as follows: 1 equivalent of 4-chlorobenzoic acid and 1.05 equivalent of 2-aminophenol were added to polyphosphoric acid (10 g/mmol of 4-chlorobenzoic acid), and then the mixture was stirred at 200 °C for 5 h. After cooling to room temperature, the mixture was slowly poured into pure water and stirred thoroughly; the precipitate was collected by filtration, washed with pure water (3 × 100 mL), and dried to obtain a crude product. The crude product was purified by silica gel column chromatography with n-hexane-dichloromethane (1:1~1:5) as the eluent to obtain the pure product.

Yield: 85%. ¹H NMR (300 MHz, CDCl₃, 298 K; δ (ppm)): 7.74−7.80 (m, 3H), 7.56−7.59 (m, 1H), 7.36−7.41 (m, 2H), 6.96−7.00 (m, 1H). ¹³C NMR (75 MHz, CDCl₃, 298 K; δ (ppm)): 161.4, 151.3, 138.4, 137.2, 129.2, 128.2, 128.1, 127.6, 124.3, 119.9, 110.6. Anal. Calcd for C₁₃H₈ClNO (MW = 229.66): C, 67.98; H, 3.51; N, 6.10. Found: C, 67.50; H, 3.48; N, 5.99%. MS (m/z): 229.6605.

3.2.2. Synthesis of [(4-cpbo)₂Ir(μ-Cl)]₂

The cyclometalated Ir(III) chloride-bridged dimer [(4-cpbo)2Ir(μ-Cl)]2 was synthesized according to a previous paper. A mixture of 2-ethoxylethanol and water (3:1, v/v) was added to a flask containing iridium trichloride (IrCl₃∙3H₂O, 2 mmol) and 4-cpboH (5 mmol), and the mixture was refluxed for 24 h under nitrogen. After cooling to room temperature, the mixture was poured into 20 mL of pure water, and the dimer precipitate was filtered off, washed with deionized water, and followed by drying at 60 °C in a vacuum oven.

Yield: 75%. ¹H NMR (300 MHz, DMSO-d⁶, 298 K; δ (ppm)): 7.71 (d, J = 8.5, 2H), 7.59 ((dd, J = 8.5, 4.3 Hz, 1H), 7.53 (d, J = 8.5 Hz, 1H), 7.50 (dd, J = 8.5, 4.3 Hz, 1H), 7.28 (dt, J = 5.6, 4.3 Hz, 1H), 7.22 (dt, J = 5.6, 4.3 Hz, 1H). ¹³C NMR (75 MHz, CDCl₃, 298 K; δ (ppm)): 163.7, 155.3, 139.1, 167.5, 134.6, 134.4, 131.6, 130.6, 130.1, 123.3, 123.2, 121.9, 112.6. Anal. Calcd for C₅₂H₂₈Cl₆Ir₂N₄O₄: C, 45.58; H, 2.06; N, 4.09. Found: C, 45.89; H, 2.08; N, 3.98%. MS (FAB; m/z): 1372.0320

3.2.3. Synthesis of Compound 1, [(4-cpbo)Ir(μ-Cl) (μ-O)Ir(4-cpbo)]

A flask was charged with 100 mg of [(4-cbo)₂Ir(μ-Cl)]₂, 50 mg of anhydrous potassium carbonate, and 20 mL of acetone. The solution was stirred and warmed to 60 °C for 72 h. The precipitate dimer was filtered off and recrystallized from acetone.

Experimental data for 1: Yield: 60% based on iridium. Anal. Calcd for C₅₂H₂₈Cl₅Ir₂N₄O₅·2((CH₃)₂CO): C, 47.49; H, 2.74; N, 3.82. Found: C, 47.25; H, 2.70; N, 3.98%. MS (FAB; m/z): 1352.0610.

3.2.4. General Procedure for N-alkylation Reaction

Add 1 mmol of amine, 2 mmol of alcohol, and 0.018 mmol of complex 1 to a Schlenk tube and react at 120 °C for 48 h under nitrogen. Then, the reaction mixture was cooled down and the residue was purified by column chromatography using n-hexane/dichloromethane as eluent to allow for a pure product. The desired product has been fully characterized by 1H, 13C NMR, and MS spectroscopy.

Spectral Data of of N-benzylaniline (P₁): ¹H NMR (d-chloroform, 600 MHz) = 7.38–7.33 (m, Ar, 4H), 7.28–7.25 (m, Ar, 1H), 7.19–7.16 (m, Ar, 2H), 6.73–6.68 (t, Ar, 1H), 6.65–6.63 (d, Ar, 2H, JHH = 7.8 Hz), 4.33 (s, CH2, 2H), 4.02 (br. S, NH, 1H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.2, 139.4, 129.3, 128.7, 127.5, 127.3, 117.6, 112.8, 48.3. MS (ESI/CI): m/z = 183.02, Calculated for C13H13N: 183.26 g/mol. IR (FT ATR): ν = 3411 (w), 3023 (w), 1605 (m), 1508 (m), 1321 (w), 1262 (m), 732 (s) cm⁻¹

Spectral Data of of N-(p-chlorobenzyl)aniline (P₂): ¹H NMR (d-chloroform, 600 MHz) = 7.29 (s, 3H, Ar), 7.17–7.11 (m, 2H, Ar), 6.73–6.68 (m, 1H, Ar), 6.58–6.59 (m, 2H, Ar), 4.28 (d, 2H, JHH = 5.4 Hz), 4.05 (br. S, NH, 1H). ¹³C NMR (d-Chloroform, 150 MHz) = 147.8, 137.8, 132.9, 129.3,128.8, 128.7, 117.8, 112.9, 47.506. MS (ESI/CI): m/z = 216.98, Calculated for C₁₃H₁₂NCl⁺ [M]⁺: 217.68 g/mol. IR (FT ATR): ν = 3418 (w), 3045 (w), 28,434 (w), 16,045 (s), 1498 (s), 1321 (m), 1254 (m), 1090 (m), 814 (m), 745 (s) cm⁻¹.

Spectral Data of of N-(4-methoxybenzyl)aniline (P₃): ¹H NMR (d-chloroform, 600 MHz) = 7.29–7.27 (d, JHH = 8.4 Hz, 2H, Ar), 7.18–7.15 (m, 2H, Ar), 6.88–6.86 (m, 2H, Ar), 6.72–6.69 (t, 1H, Ar), 6.63–6.62 (m, 2H, Ar), 4.24 (br. S, NH, 1H), 3.91 (d, JHH = 13.2 Hz, 1H), 3.79 (s, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 158.9, 148.2, 131.4, 129.3, 128.8, 117.5, 113.8, 112.8, 55.3, 47.8. MS (ESI/CI): m/z = 213.21, Calculated for C₁₄H₁₅NO⁺ [M]⁺: 213.28 g/mol. IR (FT ATR): ν = 3411 (w), 3028 (w), 2836 (w), 16,045 (s), 1508 (s), 1239 (s), 1172 (m), 1030 (m), 821 (m), 747 (s) cm⁻¹.

Spectral Data of of benzyl(4-methoxyphenyl)amine (P₄): ¹H NMR (d-chloroform, 600 MHz) = 7.37–7.32 (m, Ar, 4H), 7.27–7.25 (t, Ar, 1H), 6.77–6.76 (m, Ar, 2H), 6.59–6.60 (m, Ar, 2H), 4.27 (s, CH2, 2H), 3.73 (s, CH3, 3H).¹³C NMR (CDCl₃, 150 MHz) δ (ppm) = 152.2, 142.5, 139.7, 128.6, 127.6, 127.2, 114.9, 114.1, 55.8, 49.3. MS (ESI/CI): m/z = 213.05, Calculated for C₁₄H₁₅NO⁺ [M]⁺: 213.28 g/mol. IR (FT ATR): ν = 3403 (w), 3030 (w), 2836 (w), 1515 (s), 1232 (s), 1179 (w), 1030 (m), 821 (m), 739 (m) cm⁻¹.

Spectral Data of of N-(4-chlorophenyl)benzylamine (P₅): ¹H NMR (d-chloroform, 600 MHz) = 7.34–7.20 (m, Ar, 4H), 7.11–7.07 (m, Ar, 2H), 6.55–6.5102 (m, Ar, 2H), 4.62 (s, 1H), 4.30, 4.29 (d, CH2, 2H, JHH = 6.0 Hz), 4.05 (br. S, NH, 1H). ¹³C NMR (d-Chloroform, 150 MHz) = 146.7, 138.8, 128.9, 128.7, 127.5, 127.4, 127.1, 126.6, 122.1, 113.9, 54.5, 48.4. MS (ESI/CI): m/z = 217.14, Calculated for C₁₃H₁₂NCl⁺ [M]⁺: 217.70 g/mol. IR (FT ATR): ν = 3411 (w), 3030 (w), 2851 (w), 1597(s), 1498 (s), 1314 (m) 1179 (w), 1090 (w), 8134 (m), 7312 (m) cm⁻¹.

Spectral Data of of N-benzyl-(2-fluorophenyl)amine (P₆): ¹H NMR (d-chloroform, 600 MHz) = 7.38–7.33 (m, Ar, 4H), 7.29–7.240 (m, Ar, 1H), 6.99–6.93 (m, Ar, 2H), 6.6718–6.65 (m, Ar, 1H), 6.64–6.59 (m, Ar, 1H), 4.37–4.36 (d, 2H, JHH = 5.4 Hz), 4.31 (br. S, NH, 1H). ¹³C NMR (d-Chloroform, 150 MHz) = 152.3, 150.7, 138.9, 136.6, 128.7, 127.4, 124.6, 116.8, 114.5, 114.3, 112.3, 47.8. MS (ESI/CI): m/z = 202.08, Calculated for C₁₃H₁₂NF⁺ [M]⁺: 201.25 g/mol. IR (FT ATR): ν = 3433 (w), 3030 (w), 2926 (w), 1620 (m), 15,145 (s), 13,356 (m), 1247 (m), 1187 (m), 747 (s) cm⁻¹.

Spectral Data of of N-ethyl-N-phenylamine (P₇): ¹H NMR (d-chloroform, 600 MHz) = 7.25–7.15 (m, Ar, 2H), 6.69–6.67 (t, Ar, 1H), 6.59–6.59 (d, Ar, 2H, JHH = 7.8 Hz), 3.521 (br. S, NH, 1H), 3.10–3.09 (q, 2H), 0.93–0.82 (t, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.11, 129.9, 116.6, 112.2, 45.1, 15.7. MS (ESI/CI): m/z = 121.08, Calculated for C₈H₁₁N⁺ [M]⁺: 121.19 g/mol. IR (FT ATR): ν = 3411 (w), 3050 (w), 2925 (m), 2858 (m), 1605 (s), 1508 (s), 1463 (s), 1321 (m), 12,612 (m), 1148 (m), 1028 (s), 747 (s) cm⁻¹.

Spectral Data of of N-propylaniline (P₈): ¹H NMR (d-chloroform, 600 MHz) = 7.171–7.15 (m, Ar, 2H), 6.69–6.66 (t, Ar, 1H), 6.61–6.59 (t, Ar, 2H,), 3.62 (br. S, NH, 1H), 3.08–3.06 (t, 2H), 1.65–1.61 (m, CH2, 2H), 0.99–0.98 (t, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.5, 129.3, 117.1, 112.7, 45.8, 22.8, 11.7. MS (ESI/CI): m/z = 135.13, Calculated for C₉H₁₃N⁺ [M]⁺: 135.21 g/mol. IR (FT ATR): ν = 3411 (w), 3022.3 (w), 2963 (w), 2933 (w), 1605 (m), 1508 (m), 1321 (m), 1254 (m), 1148 (w), 866 (w), 747 (m) cm⁻¹.

Spectral Data of of N-(n-butyl)aniline (P₉): ¹H NMR (d-chloroform, 600 MHz) = 7.17–7.14 (m, Ar, 2H), 6.62–6.66 (m, Ar, 1H), 6.59–6.58 (m, Ar, 2H), 3.57 (br. S, NH, 1H), 3.11–3.080(t, 2H), 1.62–1.55 (m, 2H), 1.45–1.39 (m, 2H), 0.96–0.93 (t, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.6, 129.2, 117.1, 112.7, 43.7, 31.7, 20.3, 13.4. MS (ESI/CI): m/z = 149.09, Calculated for C₁₀H₁₅N⁺ [M]⁺: 149.24 g/mol. IR (FT ATR): ν = 3418 (w), 3052 (w), 2933 (m), 2866 (m), 1605 (s), 1508 (s), 1321 (m), 1262 (m), 739 (s) cm⁻¹.

Spectral Data of of N-hexylaniline (P₁₀): ¹H NMR (d-chloroform, 600 MHz) = 7.17–7.14 (m, Ar, 2H), 6.68–6.66 (m, Ar, 1H), 6.59–6.58 (m, Ar, 2H), 3.57 (br. S, NH, 1H), 3.11–3.0718 (t, 2H), 1.62–1.55 (m, 2H), 1.45–1.39 (m, 2H), 0.96–0.93 (t, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.6, 129.2, 117.7, 112.7, 43.7, 31.7, 28.8, 27.4, 23.3, 134.0. MS (ESI/CI): m/z = 177.17, Calculated for C₁₂H₁₉N⁺ [M]⁺: 177.29 g/mol. IR (FT ATR): ν = 3401 (w), 3058 (w), 2926 (m), 2856 (w), 1605 (s), 1508 (s), 1321(m), 1254 (m), 1179 (w), 8656 (w), 7470(s) cm⁻¹.

Spectral Data of of N-Isopropylaniline (P₁₁): ¹H NMR (d-chloroform, 600 MHz) = 7.16–7.14 (m, Ar, 2H), 6.70–6.68 (m, Ar, 1H), 6.61–6.59 (m, Ar, 2H), 3.40–3.37 (m, 1H), 1.10–1.09 (d, 6H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.5, 129.3, 117.1, 112.7, 51.9, 21.9. MS (ESI/CI): m/z = 135.23, Calculated for C₉H₁₃N⁺ [M]⁺: 135.21 g/mol. IR (FT ATR): ν = 3396 (w), 3058 (w), 1635 (m), 1582 (s), 1463 (m), 1269 (m), 739 (s) cm⁻¹.

Spectral Data of of N-Isopropyl-p-anisidine (P₁₂): ¹H NMR (d-chloroform, 600 MHz) = 7.51–7.49 (m, Ar, 2H), 6.97–6.94 (m, Ar, 2H), 4.50–4.44 (m, 1H), 1.10–1.09 (d, 6H). ¹³C NMR (CDCl₃, 150 MHz) δ (ppm) = 154.2, 147.5, 142.6, 130.7, 55.9, 52.9, 49.6, 22.1. MS (ESI/CI): m/z = 165.23, Calculated for 10H15ON⁺ [M]⁺: 165.24 g/mol. IR (FT ATR): ν = 3366 (w), 2963 (w), 1618 (w), 1508 (s), 1232 (s), 1172 (m), 10,378 (m), 821 (m) cm⁻¹.

Spectral Data of of 4-Methoxy-N-(1-phenylethyl)aniline (P₁₃): ¹H NMR (d-chloroform, 600 MHz) = 7.51–7.49 (m, Ar, 2H), 7.19–7.17 (m, Ar, 2H), 6.90–6.66 (m, Ar, 3H), 6.62–6.59 (m, Ar, 2H), 4.21–4.18 (q, 1H). ¹³C NMR (d-Chloroform, 150 MHz) = 154.2, 148.6, 147.5, 142.6, 130.7, 129.2, 117.2, 112.617, 50.4, 30.9. MS (ESI/CI): m/z = 227.17, Calculated for C₁₅H₁₇NO⁺ [M]⁺: 227.31 g/mol. IR (FT ATR): ν = 3388 (m), 3217 (w), 2918 (m), 2844 (w), 1635 (m), 1508 (s), 1463 (s), 1299 (w), 1232 (s), 1127 (w), 1028 (s), 821 (s) cm⁻¹.

Spectral Data of of N-methyl-N-phenyl-benzenemethanamine (P₁₄): ¹H NMR (d-chloroform, 600 MHz) = 7.36–7.31 (m, Ar, 4H), 7.26–7.23 (m, Ar, 1H), 7.16–7.14 (m, Ar, 2H), 6.71–6.68 (t, Ar, 1H), 6.67–6.64 (d, Ar, 2H, JHH = 7.8Hz), 4.36 (s, CH2, 2H), 3.11 (s, 3H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.8, 139.9, 129.7, 128.9, 127.9, 127.6, 117.3, 112.6, 48.1, 45.8. MS (ESI/CI): m/z = 197.07, Calculated for C₁₄H₁₅N ⁺ [M]⁺: 197.22 g/mol. IR (FT ATR): ν = 30,298 (w), 2925 (w), 2858 (w), 1597 (s), 1498 (s), 1456 (m), 13510 (m), 1112 (m), 1028 (m), 9401 (m), 747 (s), 724 (s) cm⁻¹.

Spectral Data of of N,N-dibenzylaniline (P₁₅): ¹H NMR (d-chloroform, 600 MHz) = 7.32–7.30 (m, Ar, 4H), 7.25–7.23 (m, Ar, 6H), 7.17–7.14 (m, Ar, 2H), 6.73–6.66 (m, Ar, 2H), 4.64–4.61 (d, Ar, 2H, JHH = 23.4 Hz). ¹³C NMR (d-Chloroform, 150 MHz) = 149.2, 138.6, 129.2, 128.7, 126.9, 126.7, 116.7, 112.4, 54.2. MS (ESI/CI): m/z = 273.21, Calculated for C₂₀H₁₉N⁺ [M]⁺: 273.38 g/mol. IR (FT ATR): ν = 3038 (w), 2918 (m), 1597 (s), 1499 8 (s), 1456 (m), 1359 (m) 12,312 (m), 1028 (w), 956 (m), 732 (s) cm⁻¹.

Spectral Data of of N-phenylpyrrolidine (P₁₆): ¹H NMR (d-chloroform, 600 MHz) = 7.26 (m, 2H), 7.12 (m, 1H), 6.84 (m, 1H), 3.19–3.18 (m, 4H), 2.33 (s, 3H), 1.94–1.92 (m,4H). ¹³C NMR (d-Chloroform, 150 MHz) = 148.6, 129.7, 115.8, 111.97, 47.9, 26.0. MS (ESI/CI): m/z = 147.13, Calculated for C13H13N: 147.23 g/mol. IR (FT ATR): ν = 3058 (w), 3028 (w), 2963 (m), 2926 (s), 2836 (m), 1605 (m), 15,967 (s), 1508 (s), 1463 (m), 1366 (s), 1357 (w), 1239 (w), 11,867 (m), 1157 (m), 993 (m), 7467 (s), 6869 (s) cm^–1.

Spectral Data of of N-(4-chlorophenyl) pyrrolidine (P₁₇): ¹H NMR (d-chloroform, 600 MHz) = 7.26–7.64 (m, 2H), 6.58–6.95 (m, 2H), 3.86–3.76 (m, 4H), 2.54–2.51 (m, 4H). ¹³C NMR (d-Chloroform, 150 MHz) = 147.5, 130.01, 121.3, 113.6, 48.7, 26.3. MS (ESI/CI): m/z = 181.22, Calculated for C₁₁H₁₂NCl⁺ [M]⁺: 181.67 g/mol. FTIR (ATR): ν = 2963 (w), 2926 (s), 2858 (m), 1739 (s), 1605 (m), 1471 (m), 1463 (m), 1374 (s), 276 (w), 1232 (s), 1157 (w), 1075 (w), 1015 (w), 799 (m) cm⁻¹.

Spectral Data of of N-(4-methoxyphenyl) pyrrolidine (P₁₈): ¹H NMR (d-chloroform, 600 MHz) = 6.87 (d, J = 9.0 Hz, 2H), 6.55 (d, J = 9.0 Hz, 2H), 3.767 (s, 3H), 3.23 (t, J = 6.5 Hz, 4H), 2.02–1.99 (m, 4H). ¹³C NMR (d-Chloroform, 150 MHz) = 116.3, 113.2, 57.1, 49.3, 26.21. MS (ESI/CI): m/z = 177.256, Calculated for C₁₁H₁₅NO⁺ [M]⁺: 177.25 g/mol. FTIR (ATR): ν = 3045 (w), 2948 (m), 2926(s), 2856(m), 1620 (w), 1515 (m), 1485 (w), 1463 (m), 1366 (m), 1276 (w), 1239 (m), 1179 (w), 1157 (w), 1045 (m), 971 (w), 806 (s), 732 (w)cm⁻¹.

Spectral Data of of N-phenylpiperidine (P₁₉): ¹H NMR (d-chloroform, 600 MHz) = 7.45 (t, 2H, J = 7.4 Hz), 6.99 (d, 2H, J = 7.8 Hz), 6.73 (t, 1H, J = 7.3 Hz), 3.36 (t, 4H, J = 6.7 Hz), 1.81 (m, 4H), 1.62 (t, 2H, J = 4.8 Hz). ¹³C NMR (CDCl₃, 150 MHz) δ (ppm) = 152.6, 129.9, 119.7, 117.3, 60.12, 26.6, 24.9. MS (ESI/CI): m/z = 161.12, Calculated for C₁₁H₁₅N⁺ [M]⁺: 161.25 g/mol. IR (FT ATR): v = 2933 (m), 2854 (m), 2806 (m), 1598 (s), 1495 (s), 1451 (m), 1385 (m), 1236 (s), 1221 (s), 1132 (m), 918 (m), 754 (s) cm^–1.

Spectral Data of of 1-(piperidine-1-yl) pyridine (P₂₀): ¹H NMR (d-chloroform, 600 MHz) = 8.28 (ddd, 1H), 7.62 (ddd, 1H), 6.85 (dd, 1H), 6.76 (ddd, 4H), 1.86 (td, 6H). ¹³C NMR (d-Chloroform, 150 MHz) = 156.0, 148.2, 137.5, 112.6, 107.3, 46.6, 25.8, 25.0. MS (ESI/CI): m/z = 162.21, Calculated for C₁₀H₁₄N₂⁺ [M]⁺: 162.24 g/mol. FTIR (ATR): ν = 3008 (w), 2926 (m), 2851 (m), 1597 (s), 1485 (s), 1433 (s), 1381 (w), 1314 (m), 1247 (s),1157 (w), 1127 (m), 1023 (w), 8501 (w), 769 (s),733 (w) cm⁻¹.

Spectral Data of of 1-methyl-4-(pyridin-2-yl) piperazine (P₂₁): ¹H NMR (d-chloroform, 600 MHz) = 8.21 (dd, 1H),7.66 (ddd, 1H), 6.88–6.78 (m, 2H), 3.74 –3.66 (m, 4H), 3.22–3.13 (m, 4H). ¹³C NMR (d-Chloroform, 150 MHz) = 160.4, 147.9, 137.6, 110.1, 107.2, 46.1, 45.8. MS (ESI/CI): m/z = 177.23, Calculated for C₁₀H₁₅N₃⁺ [M]⁺: 177.245 g/mol. IR(ATR): ν = 3329 (s), 2933 (m), 2866 (m), 1627 (m), 1605 (s), 1530 (w), 1515 (s), 1448 (m), 1157 (w), 1053 (m), 1030 (w), 888 (w), 859 (w), 769 (s), 702 (w) cm⁻¹.

3.2.5. Intermolecular Cyclyzation to Synthesize Cyclizine

In a Schlenk tube, 1mmol of N-methyldiethanolamine (MDEA) was mixed with 2mmol of diphenylmethanamine and complex 1, and the reaction was carried at 140℃ for 48 h under nitrogen. The product cyclizine was purified by column chromatography with an isolated yield of 60%. It was fully characterized by ¹H, ¹³C NMR, and MS spectroscopy.

¹H NMR (d-chloroform, 600 MHz) = 7.45–7.18 (m, 10H, Ph), 4.27 (s, 1H, N-CH), 3.32 (s, 8H, N-CH), 2.31 (s, 3H, N-CH3). ¹³C NMR (d-Chloroform, 150 MHz) = 144.0, 129.7, 129.0, 128.5, 77.5, 56.1, 52.4, 45.7. MS (ESI/CI): m/z = 266.12, Calculated for C18H22N₂ [M]⁺: 266.38 g/mol. FTIR (ATR): ν = 3060 (w), 3030 (w), 2926 (m), 2858 (w), 1620 (s), 1493 (m), 1448 (m), 1276 (m), 1150 (w), 1075 (w), 1030 (w), 985 (w), 926 (w), 859 (w), 747 (s), 702 (s) cm⁻¹.

3.3. Electron Paramagnetic Resonance (EPR)

EPR was measured with a Bruker EMX-10/12 spectrometer. The samples were dissolved in toluene. EPR settings: field, center field 3520.000 G, sweep width 100.000 G, resolution 2048 points; microwave frequency, 9.879 GHz; microwave power, 10.080 mW; number of scans, 1.

3.4. Single-Crystal X-ray Diffraction

All the crystals were obtained from a mixed solution of dichloromethane and n-hexane. The diffraction data for complex 1 was collected on a Bruker SMART APEX CCD diffractometer with a graphite-monochromatized MoKα X-ray radiation (λ = 0.71073 Å) at 110 K. All the calculations for the structural determination were carried out using a SHELXS-97 package. The positions of the heavy atoms, including the iridium atoms, were located using the direct method. The remaining atoms were found in a series of alternating difference Fourier maps and least-square refinement. The crystallographic data for all the structures reported here have been deposited in the Cambridge Data Centre as supplementary publication number CCDC 2100518.
