Coal Combustion Warning System Based on TDLAS and Performance Research

Abstract

As the signature gas released before coal combustion, methane’s telemetry accuracy is susceptible to environmental influences, which is a difficult problem that needs to be solved. This article provides a detailed exposition on the application of Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology in the field of gas monitoring, with particular emphasis on its advantages in coal safety detection. The coal combustion experiment is conducted to determine the required performance indexes. Through the temperature compensation algorithm and normalized signals, the impact of factors such as ambient temperature and environmental noise is reduced, effectively improving the signal-to-noise ratio and accuracy. The experiments demonstrate that this system effectively lowers the detection limit for methane while improving measurement accuracy, thereby providing robust support for the early warning of coal spontaneous combustion.

1. Introduction

As China’s economy continues to grow, the demand for energy is becoming increasingly urgent. Coal is and will remain one of China’s main energy sources [1]. From 2014 to 2021, coal consumption in China’s energy consumption increased from 4.02649 × 10⁹ tons of standard coal to 4.79161 × 10⁹ tons of standard coal [2]. However, safety issues still exist in coal storage and transportation. Although coal mine accidents are decreasing year by year, it is predicted that 4.5 coal mine accidents will result in 14 deaths in 2025 [3]. Coal, as an organic material with a complex composition, releases various gases when burned [4]. As methane is one of the characteristic gases for the early warning of coal smoldering, the accurate and flexible telemetry of methane concentration is an important means to prevent safety hazards such as spontaneous combustion. Currently, few studies have investigated gas emissions during the coal smoldering stage. However, it can be anticipated that the release rates of various gases during smoldering are generally low, which significantly increases the difficulty of early warning detection for coal smoldering.

Currently, traditional methane sensors include combustion catalytic sensors, semiconductor sensors, thermoelectric sensors, etc. [5]. Spectroscopic sensors, on the other hand, include DOAS (Differential Optical Absorption Spectroscopy), FTIR (Fourier Transform Infrared), and TDLAS, among others. Catalytic combustion sensors usually consist of a temperature sensor, a catalytic burner, and a heater unit, which works on the principle of the presence of a catalyst in the surface layer that interacts with the gas and releases heat through combustion at low temperatures [6]. The methane concentration is measured by detecting the temperature difference. Although they are cost-effective, these sensors are unable to achieve the required level of sensitivity to prevent coal smoldering due to the limitations of their detection principle. Yang Ziyang et al. pointed out that the zero-point drift of catalytic combustion methane detectors should not exceed 0.1%, yet this range of drift remains excessive for detecting coal smoldering [7]. In addition, due to its chemical reaction, it is not as safe as a physical approach. The resistance of semiconductor sensors changes when exposed to methane [8]. Tao et al. developed a novel optical fiber sensing element with a detection limit as low as 0.1%. However, this sensitivity still proves to be inadequate for coal smoldering early-warning purposes [9]. Overall, non-spectral sensors have a lower cost, but poor environmental adaptability and limited detection accuracy [10]. For comparison, Yanan Cao et al. employed deep learning residual networks to achieve high-performance filtering and the high-sensitivity concentration retrieval of methane in photoacoustic spectroscopy, attaining a measurement precision of 0.0626 ppm and a minimum detection limit (MDL) of 1.47 ppb. [11] DOAS and FTIR technologies, on the other hand, are based on a spectral approach to detection. DOAS technology has a wide range of applications [12]. However, its detection distance range is too far and often passive, making it unsuitable for the telemetry of smoldering coal. FTIR detection accuracy is lower compared to the TDLAS and is not suitable for coal smoldering telemetry as well.

In comparison, laser absorption spectroscopy based on TDLAS technology has advantages such as being non-contact, having no chemical reaction, high sensitivity, strong anti-interference, and a fast response speed. Therefore, it has been widely used in gas detection [13]. Dong Lei et al. conducted the harmonic detection of methane gas using a digital lock-in amplifier, which achieved a methane concentration measurement with an ultimate sensitivity of 2.9 ppm·m at a distance of 1.63 m [14]. However, 1.63 m is too close for coal mine telemetry to meet the requirements of coal smoldering detection. Jun Xu designed a new methane telemetry device to realize the detection of a methane concentration with a minimum detection limit of 70.5 ppm [15] which is not enough to realize the purpose of coal smoldering warning. By introducing a focusable lens into the telemetry collimation system, Li Guolin dynamically adjusted the perfusion dispersion performance so that the methane telemetry system receives light maximization while avoiding stray light interference to a certain extent [16]. Although it achieves the purpose of methane telemetry concentration, due to its simulation of natural gas leakage, the methane concentration, which is more than 1000 ppm, is too much for coal smoldering. So, it cannot be applied well in the lower-concentration methane detection of coal smoldering detection. Yang Haoqing et al. investigated methane remote sensing using TDLAS, achieving a detection range of 30 m. However, there are significant signal fluctuations due to environmental interference, as evident in their experimental data [17]. Wu Qi et al. focused on miniaturizing methane sensors and improving response speed, but their study did not sufficiently account for environmental factors, particularly temperature variations, which can critically affect sensor accuracy [18]. To enable the early remote detection of coal smoldering, distance measurement is equally crucial. Hansemann et al. pioneered an integrated approach combining Tunable Diode Laser Absorption Spectroscopy (TDLAS) with optical ranging techniques to achieve the high-spatial-resolution measurement of gas-phase properties in particle-laden flows. This technical approach offers great advantages for coal storage safety monitoring [19].

In summary, remote measurement of low-concentration methane has rarely been achieved to date. Additionally, there is still a lack of effective methods to mitigate interference from external factors, particularly variations in ambient temperature. This article presents the methane concentration required for the smoldering detection of coal, as determined through experimental means. Concurrently, a novel methane concentration detection device has been conceptualized. Temperature compensation algorithms have been invented to improve the system’s immunity to interference. In this way, the long-distance warning of coal cloudy combustion is realized, contributing to coal safety.

2. Theory

2.1. Selection of Gas Absorption Spectral Lines

The process of gas absorption detection utilizing spectroscopy entails the initial step of selecting the absorption spectral lines of the gas. The selection of spectral lines generally necessitates high spectral absorption intensity, separation from other gas spectral lines, and the availability of commercially available lasers [20].

There are several gases associated with the prevention of the combustion of coal, such as methane, carbon monoxide, sulfur dioxide, and other hydrocarbons. To reduce the cost and increase the feasibility, a comparison of these gases is required. The first gas to be eliminated is carbon dioxide, which is present in the air at a level of about 300 ppm [21]. The release of gases is low when the coal is in the preliminary combustion stage and no significant change in content can be realized. Sulfur dioxide has a high absorption intensity as shown in Figure 1a [22], but it is mainly concentrated in the mid-infrared spectrum. In the near-infrared band, it has almost no absorption spectrum. Lasers in the mid-infrared band are more expensive and less economical, so they are not the preferred option.

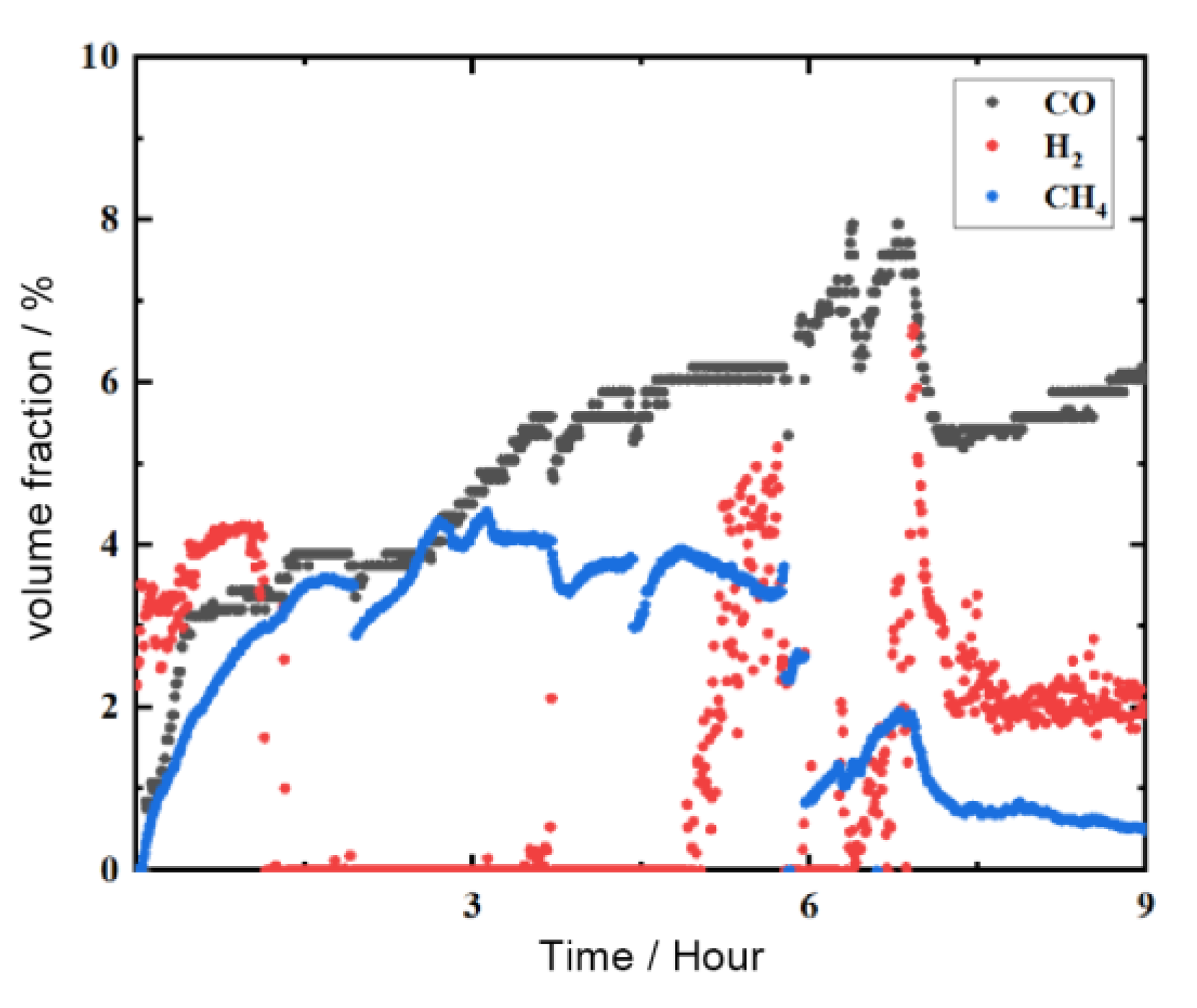

Therefore, it is worth considering the comparison between methane and carbon monoxide. In the early stages of coal combustion, as illustrated in Figure 2, Xu Xiangcen pointed out in his research that the releases of methane and carbon monoxide are of the same order of magnitude [23]. As combustion progresses, the release of methane gradually decreases, while carbon monoxide remains at a high level.

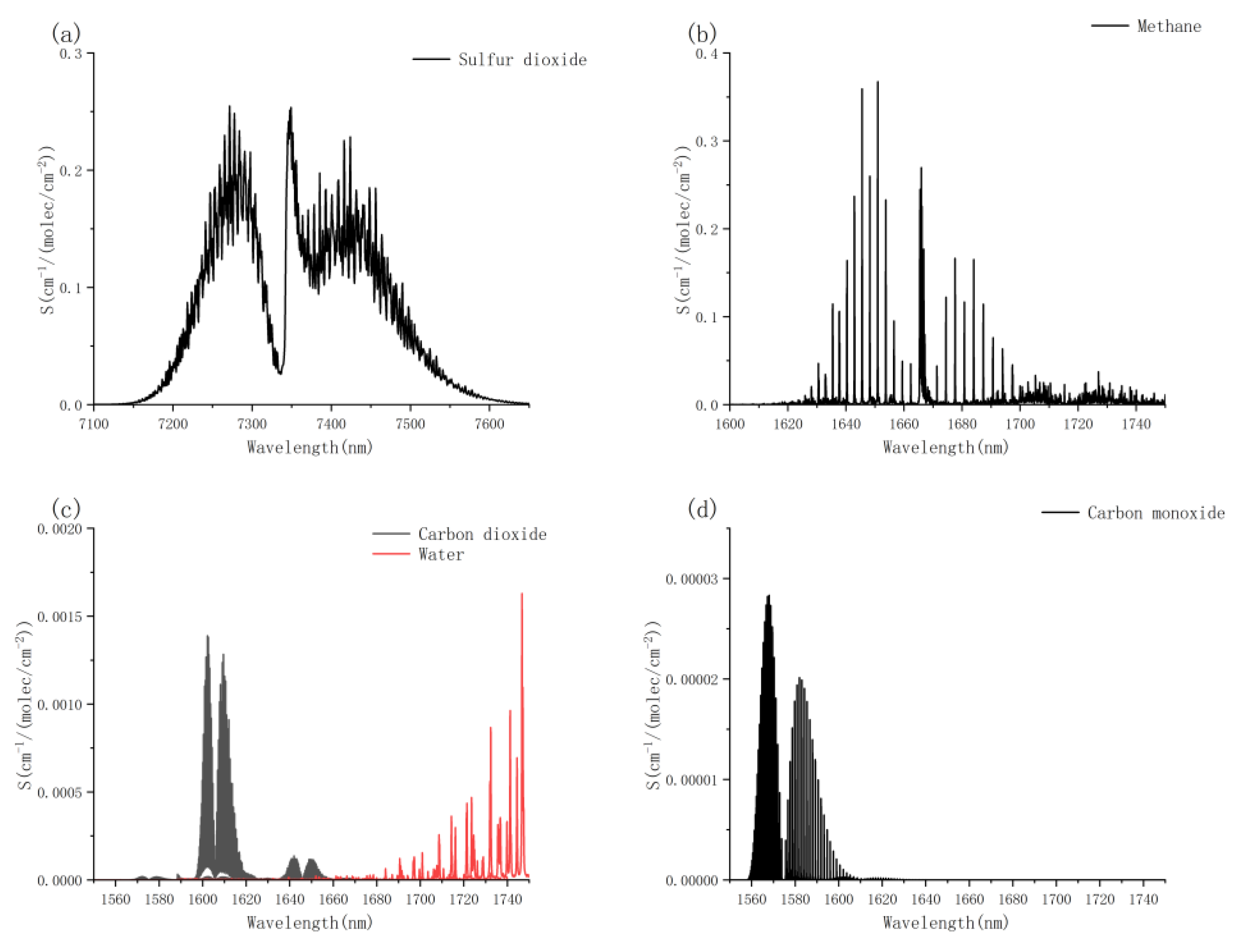

However, we are considering the case of the smoldering of coal, and the later gas releases are somewhat negligible. As shown in Figure 1b,c, the absorption strength of carbon monoxide is weak compared to methane. At a temperature of 300 K and a barometric pressure of one atmosphere, as reported in the HITRAN database, a prominent methane absorption spectral line is observed at 1653.7 nm. Considering that the absorption intensity of carbon monoxide in this band is still several orders of magnitude different from that of methane, and that the release intensity of carbon monoxide does not have a significant advantage over that of methane, all of the absorption intensities can be considered to be those of methane. Stronger absorption spectral line intensities obviously lead to better detection accuracy when the amount of gas released is certain. In addition to the absorption intensity, airborne interfering gases such as water and carbon dioxide are also to be considered. As shown in Figure 1c, the intensity of the water and carbon dioxide absorption spectral lines is significantly lower than that of methane. Even though the content of carbon dioxide and water in air is more than that of methane, the absorption intensity at 1653.7 nm is negligible compared to that of methane. In summary, methane is a very reasonable choice as a characteristic gas for the combustion of coal.

2.2. Beer–Lambert Law

The intensity of a light beam attenuates as it passes through a medium. The degree of attenuation can be calculated using Equation (1):

$${\displaystyle \frac{I\left(v\right)}{I_0\left(v\right)}}=e^{-K\left(v\right)CL}$$

(1)

This formula is the Beer–Lambert Law, where $I_0\left(v\right)$ is the initial intensity of light emitted from the light source, $I\left(v\right)$ is the intensity of light absorbed by the gas to be measured, $C$ is the concentration of the gas to be measured, $K\left(v\right)$ is the absorption coefficient, and $L$ is the absorbed light range. Among them, the gas absorption coefficient $K\left(v\right)$ can be expressed as follows:

$$K\left(v\right)=S\left(T\right)\phi \left(v\right)N$$

(2)

$S\left(T\right)$ is the linear intensity of the gas absorption spectrum; $\phi \left(v\right)$ is a linear function; and $N$ is the gas molecular density. Usually, the absorption coefficient of the gas to be measured is small. Therefore, when the value of $CL$ is small, $K\left(v\right)CL$ is much smaller than 1 and that can be neglected. Therefore, the following formula can be obtained:

$$I\left(v\right)\approx I_0\left(v\right)\left(1-K\left(v\right)CL\right)$$

(3)

It can be seen that when the path length and the outgoing intensity of the light are fixed and the absorption coefficient or the path is not too long, since the absorption coefficient is essentially linear with the gas concentration, the concentration of the gas to be measured can be derived by comparing the incident light with the outgoing light intensity.

2.3. Scanning Signal Modulation

Due to the massive presence of low-frequency noise in the environment, high frequency modulation of the signal is necessary to make the signal more resistant to interference, where WMS (Wavelength modulation spectroscopy) can reach this purpose [24]. WMS is usually achieved by superimposing a high-frequency modulating waveform on a low-frequency scanning waveform electrical signal, thereby resulting in the tuning of the laser’s output wavelength. The wavelength modulation technique reduces the interference of low-frequency noise in the measurement system and improves the measurement sensitivity. The harmonic signals on the high-frequency modulation frequency components are extracted by demodulating the absorbed light intensity, thus realizing the measurement of gas parameters. When a high-frequency modulation signal is introduced to the output wavelength of the laser, the variation in the laser output wavelength with time can be expressed as the following equation:

$$v\left(t\right)=\overline{v}\left(t\right)+a\cos \left(2\pi f_{m}t\right)$$

(4)

$\overline{v}\left(t\right)$ is the laser outgoing center wave number, $a$ is the modulation depth, and $f_m$ is the modulation frequency. The laser outgoing light intensity can be expressed as follows:

$$I\left(t\right)=\overline{I_0}\left[1+\sum _{m=1}^{\infty }{i}_m\cos \left(m·2\pi f_{m}t+{\phi }_m\right)\right]\#\left(5\right)$$

(5)

where $I_0$ is the direct flow of the laser light intensity, $i_m$ is the amplitude of the linear term and the amplitude of the nonlinear term of the light intensity modulation, and ${\phi }_m$ is the phase difference between the frequency modulation and the light intensity modulation. The nonlinear light intensity modulation is usually taken as a two-fold frequency, so the above equation can be simplified as:

$$I\left(t\right)=\overline{I_0}\left[1+i_1\cos \left(2\pi ft+{\phi }_1\right)+i_2\cos \left(4\pi ft+{\phi }_2\right)\right]$$

(6)

The absorption spectral line luminescence strong transmittance can be expressed as follows:

$$\tau \left(v\right)={\displaystyle \frac{I_t}{I_0}}=e^{-a\left(v\right)}$$

(7)

The transmittance of a wavelength-modulated spectrum is an even function of $2\pi f_m$ with a Fourier cosine expansion:

$$\tau \left(t\right)=\sum _{n=0}^{n=+\infty }{H}_n\left(\overline{v},a\right)\cos \left(n·2\pi f_{m}t\right)$$

(8)

where $H_n(\overline{v},a)$ denotes the coefficients of the nth-order harmonics, which are specified as follows:

$$H_n\left(\overline{v},a\right)={\displaystyle \frac{1}{2\pi }}{\int }_{-\pi }^{\pi }\tau \left(\overline{v}+acos\theta \right)·cosn\theta ·d\theta$$

(9)

The transmitted light intensity signal is multiplied by a sinusoidal reference signal and a cosine reference signal with a frequency of $f_m$, respectively, for digital phase-locking, and then the X component and Y component of the first harmonic signal of the absorbed signal are obtained by a low-pass filter:

$$X_{1f}={\displaystyle \frac{G\overline{I_0}}{2}}[H_1+i_1\left(H_0+{\displaystyle \frac{H_2}{2}}\right)\cos ({\phi }_1-\phi )+{\displaystyle \frac{i_2}{2}}(H_1+H_3)\cos ({\phi }_2-\phi )]$$

$$Y_{1f}={\displaystyle \frac{G\overline{I_0}}{2}}[\left(H_0-{\displaystyle \frac{H_2}{2}}\right)\sin \left({\phi }_1-\phi \right)+{\displaystyle \frac{i_2}{2}}(H_1-H_3)\cos ({\phi }_2-\phi )]$$

$$R_{1f}=\sqrt{X_{1f}^2+Y_{1f}^2}$$

(10)

$$X_{2f}={\displaystyle \frac{G\overline{I_0}}{2}}[H_2+{\displaystyle \frac{i_1}{2}}\left(H_1+H_3\right)\cos \left({\phi }_1-\phi \right)+i_2(H_0+{\displaystyle \frac{H_4}{2}})\cos ({\phi }_2-\phi )]$$

$$Y_{2f}={\displaystyle \frac{G\overline{I_0}}{2}}[{\displaystyle \frac{i_1}{2}}\left(H_1-H_3\right)\sin \left({\phi }_1-\phi \right)+i_2(H_0-{\displaystyle \frac{H_4}{2}})sin({\phi }_2-\phi )]$$

$$R_{2f}=\sqrt{X_{2f}^2+Y_{2f}^2}$$

(11)

$$S_{2f}=\sqrt{{\left(X_{2f}-X_{2f}^0\right)}^2+{{(Y}_{2f}-Y_{2f}^0)}^2}$$

(12)

The use of $1f$ to normalize the $2f$ signal eliminates the effect of the photoelectric amplification factor of the detection system, and the normalized signal is not subject to variations in light intensity due to non-absorbing factors such as particles, laser power fluctuations, and so on. The normalization process can be expressed as follows:

$$S_{{\displaystyle \frac{2f}{1f}}}=\sqrt{{\left({\displaystyle \frac{X_{2f}}{R_{1f}}}-{\displaystyle \frac{X_{2f}^0}{R_{1f}^0}}\right)}^2+{\left({\displaystyle \frac{Y_{2f}}{R_{1f}}}-{\displaystyle \frac{Y_{2f}^0}{R_{1f}^0}}\right)}^2}\#\left(14\right)$$

(13)

At the center frequency, the singular term of $H_k$ is 0. In the case of weak absorption ($\alpha \left(v\right)$ < 0.05), $i_2$ ≈ 0 for small modulation depths, and the $2f/1f$ signal at the center of the spectral line can be expressed in a simplified way as follows:

$$S_{{\displaystyle \frac{2f}{1f}}}\left(\overline{v_0}\right)\approx {\displaystyle \frac{H_2\left(v_0\right)}{i_1}}$$

(14)

Due to the different reflection coefficients of different coal surfaces, the reflection coefficients under different conditions also exist differently, which leads to different light intensities that can be received by the detector under different conditions. At the same time, considering the possible particulate matter blocking in the application environment, this paper adopts the $2f/1f$ signal as the signal to be measured, which effectively suppresses the detection error caused by the energy change.

3. Coal Smoldering Methane Release Experiments

3.1. Experimental Content and Process

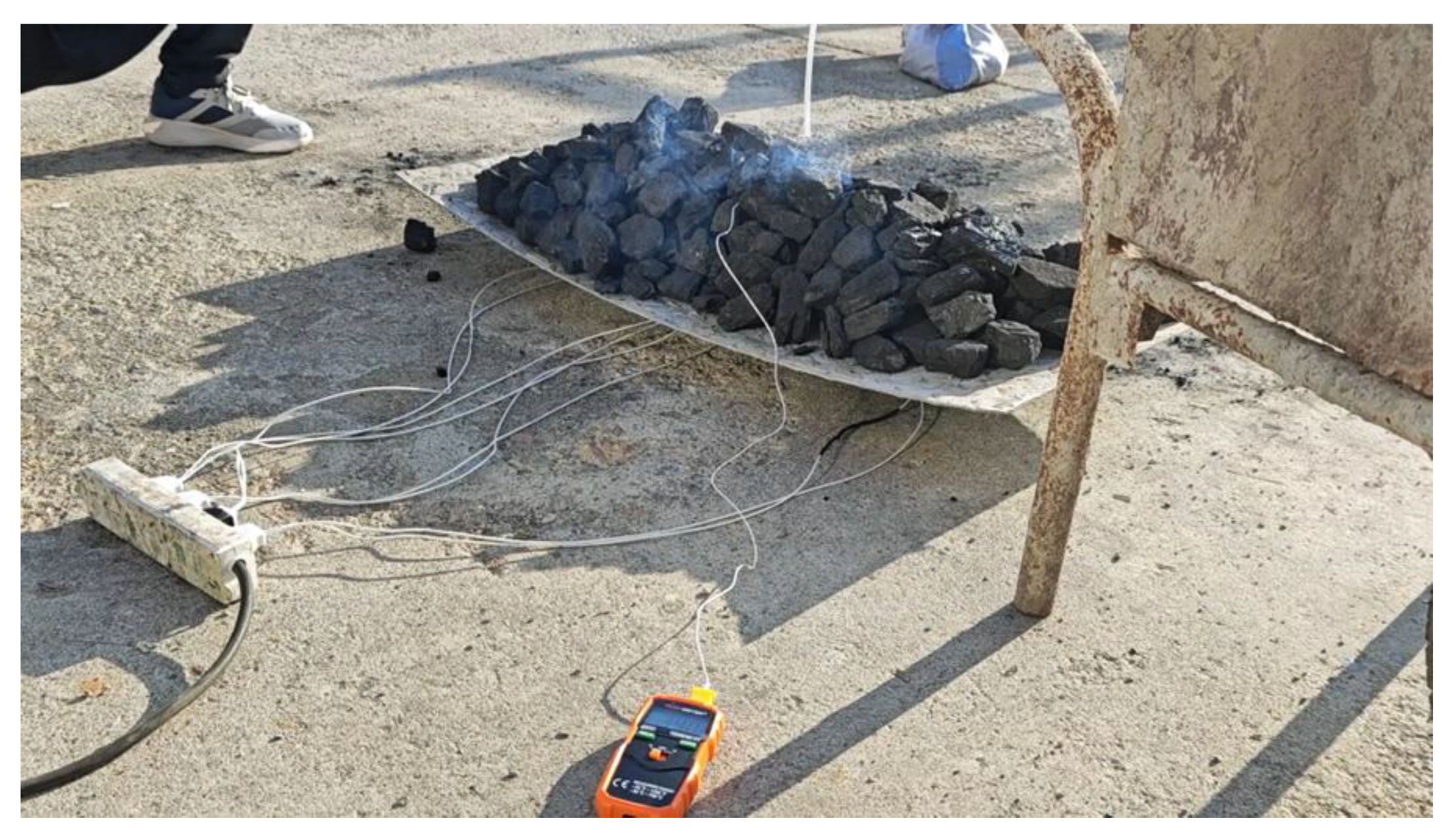

To ascertain the actual coal smoldering situation when methane is released, it is necessary to conduct an outdoor coal smoldering experiment. The experimental environment was an outdoor open field. The ambient temperature was recorded at 29 °C, the wind velocity was measured at 0 m/s, and the weather conditions were clear. A coal pile with dimensions of 1 m in length, 0.5 m in width, and 0.4 m in height was arranged on the ground. The coal stockpile predominantly consists of anthracite, a prevalent coal type characterized by minimal smoke emissions during combustion due to its high carbon content and low volatile matter ratios. Beneath the coal pile, a steel plate and three electric heating wires with a heating power of 1000 W each were positioned. During the experiment, the three electric heating wires were operated at a power of 3000 W, thereby heating the bottom of the pile. A gas pipe was suspended above the pile to absorb the combustion gases through an air pump, and the absorbed gases were directed to a gas absorption cell, where a high-precision methane concentration meter was employed to ascertain the methane concentration, with a range of 0–100 ppm. The instrument achieves a detection precision of 10 ppt, which fully meets the analytical requirements for quantifying atmospheric methane concentrations. Concurrently, a temperature sensor, which is calibrated to achieve a measurement accuracy of ±0.1 °C, was employed, and a temperature probe was buried in the middle layer of the pile to detect the temperature in the center of the coal pile. Additionally, an infrared thermal imager was employed to capture the temperature of the entire coal pile surface. The coal pile was heated from the ambient temperature until complete ignition was achieved. The experimental setup is depicted in Figure 3.

3.2. Experimental Results and Conclusions

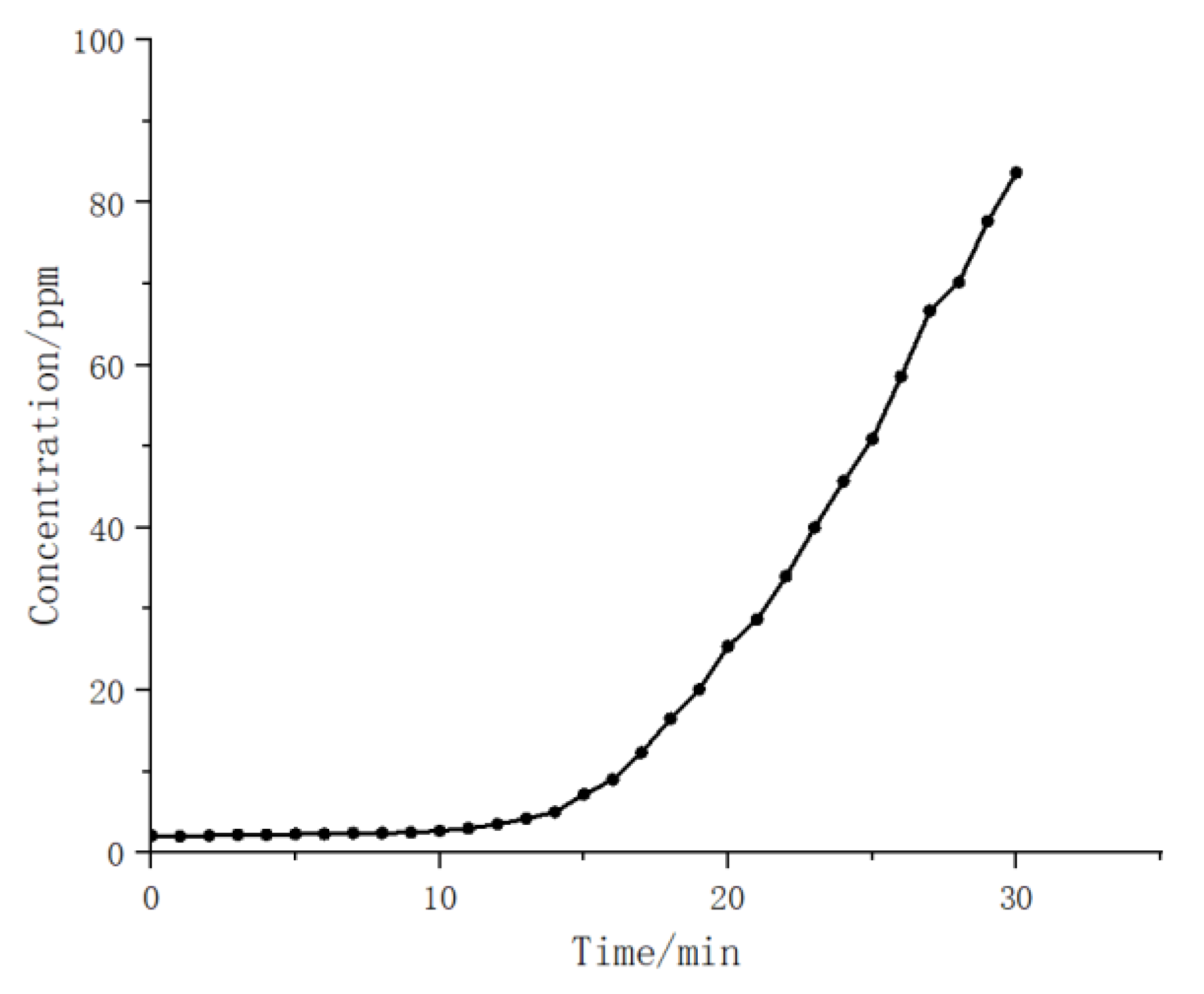

The experiment lasted a total of 30 min. During 0 to 10 min of energization, the bottom of the coal pile continued to warm up, but there was no visible reaction on the surface. At the same time, the methane concentration remained at the conventional level of atmospheric methane concentration [25], which is about 2 ppm. From the 1st to the 20th minute, a small amount of white smoke appeared on the surface of the coal pile, signaling the beginning of smoldering, and a small increase in methane concentration was observed. From the 20th to the 30th minute, the smoke appearing on the surface of the coal pile became larger and larger, while the methane concentration showed a relatively large increase. At the 30th minute, the white smoke on the surface of the coal pile became very visible, but no open flame was produced. At the same time, the methane concentration reached the highest point in the experiment, 84 ppm, and since the concentration was close to the maximum detection limit of the methane detection instrument, the fire was extinguished and the experiment was completed. The methane concentration during the experiment is shown in Figure 4.

Experimental findings have demonstrated that substantial levels of methane are released during smoldering, which can be differentiated from the atmospheric methane concentration when no combustion occurs. To ensure the detection of smoldering, it is imperative to establish a lower limit of detection that is at least 80 ppm. However, given the time-sensitive and urgent requirements for coal combustion, and considering the thickness of the air mass in the vicinity of the coal pile, it is highly desirable to achieve a limit of detection that is less than 50 ppm.

The range of the presence of the released gas was also measured during the experiment. The concentration of methane was higher in the range from 10 cm to 20 cm around the pile and the methane rose with the air heated by the combustion. Once the horizontal distance from the coal pile exceeded 20 cm, the methane concentration decreased to atmospheric levels. Therefore, it is more appropriate to model the air mass 15 cm around the coal pile.

The experiment also demonstrated the unreliability of some early warning methods. Firstly, there is the temperature inside the coal pile, due to the position of the temperature probe which is fixed in the middle layer of the coal pile where it has not been ignited, and the burning area is located in the lower layer. The temperature difference remains small, and the highest temperature did not exceed 33 °C. If such a small temperature difference is used for coal smoldering warning, it will frequently activate the alarm late or falsely, which cannot meet the requirements of coal mine safety. The problem of the infrared thermal imager is similar to that of the temperature probe. Thermal imagers only receive infrared rays from the surface of coal but cannot receive infrared rays from the inside of the pile. Therefore, it cannot realize the detection of coal smoldering located at the bottom of the coal pile. Throughout the experiment, the surface temperature of the coal pile did not significantly exceed the ambient temperature. For non-spectral methane concentration detection devices, it is difficult to reach the lower detection limit of 100 ppm. For example, with a spectral methane detection device with a multi-pass cell, unless the gas pipe is moved in a wide range or a very large number of methane detection devices are arranged, methane detection over a large area cannot be realized. The multi-pass cell’s merits lie in its capacity for ppb-level accuracy [26], though its cost is a notable disadvantage. However, such a high detection accuracy is an excess for methane telemetry. If telemetry is used for measurement, the whole set can be built on the PTZ (Pan-Tilt-Zoom). By moving the PTZ, a wide range of scanning area can be realized.

Assuming that the thickness of a methane gas cloud with a concentration of 50 ppm is 15 cm and the methane concentration in the air is 2 ppm in the case of negative coal ignition, the use of ppm·m for the unit is more in line with the practical needs due to the special characteristics of long-distance methane detection. If it is necessary to realize the early warning of coal negative combustion at 10 m, 20 m, and 50 m, the lower limit of detection should be 2.72 ppm·m, 2.36 ppm·m, and 2.15 ppm·m, respectively.

4. Methane Telemetry System and Performance

4.1. System Structure

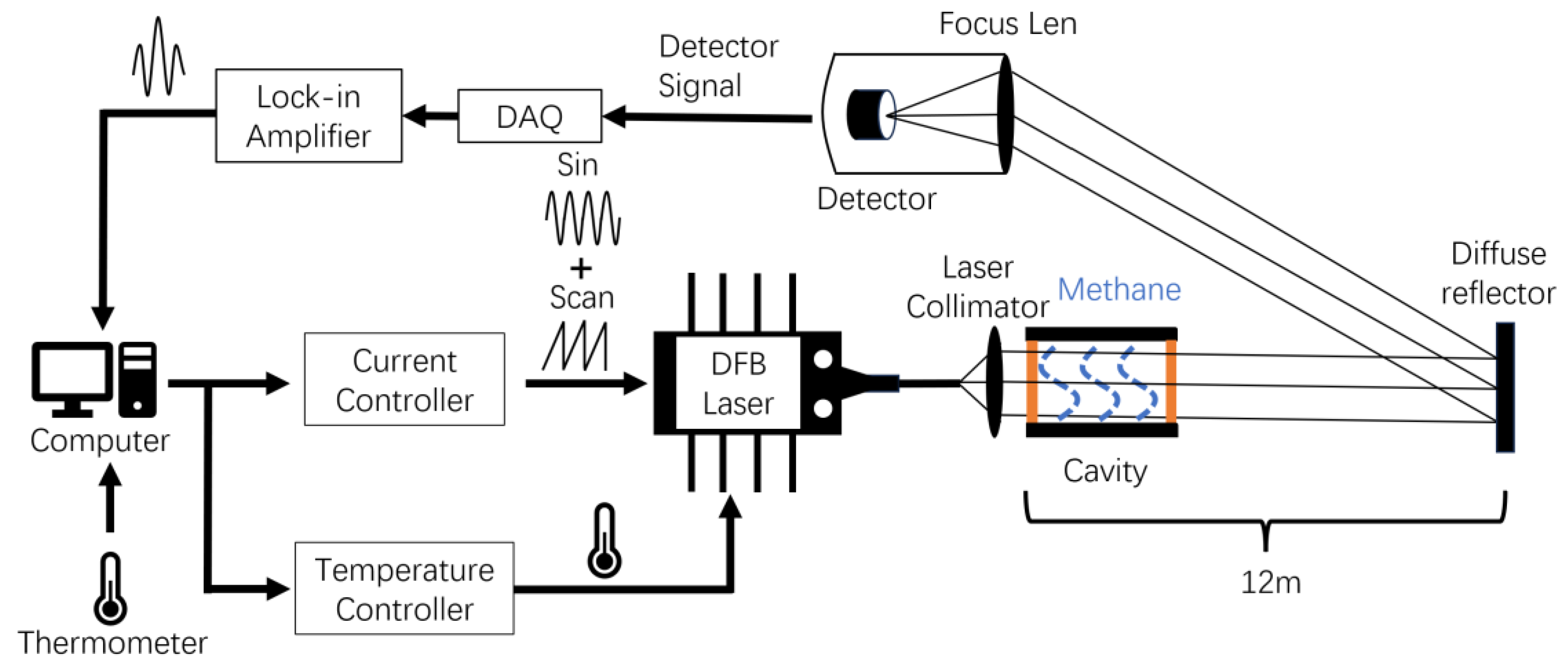

The structure and device of the methane telemetry system are shown in Figure 5, including the optical part, the electrical part, and the software algorithms.

In the optical part, the DFB laser (NEL NLK1U5FAAA, 1653 nm laser) emits a laser signal which is passed through a variable fiber optic attenuator to control the signal strength. The variable fiber optic attenuator is connected to a laser collimator, which collimates the laser light into parallel light that passes through a cavity with a length of 30 cm. The gas cavity is flanked on both sides by infrared wavelength windows with a transmittance of more than 99%. After passing through the cavity, a diffuse reflecting plate is set up at a distance of 12 m so that the laser light is diffusely reflected. A portion of the light is reflected and converged to the detector (PDAPC4, Thorlabs) by a transmission telescope head.

A DAQ (USB-6211, National Instruments) is under the control of a computer, and it outputs a sawtooth wave signal at 10 Hz, superimposed on a sinusoidal modulation signal at 2 kHz. The laser driver board scans a current range of 50 mA to 70 mA to control the laser wavelength. The laser’s internal thermistor and thermoelectric cooler (MTD415T, Thorlabs) are managed by a temperature controller, which maintains the internal temperature of the laser measurement point at a constant 23.5 °C with an accuracy of 0.002 °C. This is performed to avoid changes in the laser wavelength due to temperature variations. The analog signal received by the detector is converted to a digital signal by the DAQ and subsequently input to the computer. The computer program then decodes the digital signal and calculates the concentration value along the measured path. In this system, the generation of modulation signals, the acquisition of detection signals, and the lock-in amplifiers are realized through MATLAB R2022b for continuous, automatic, and full-process operation.

4.2. Situation Simulation and Calculation of Readings

To simulate the situation, the cavity is positioned in front of the collimator, with dimensions of 30 cm in length, 50 mm in diameter, and a volume of approximately 0.6 L. As the coal undergoes combustion, the light traverses the measured gas in a back-and-forth motion. The cavity utilized in the experiment is exclusively traversed by the signal emitted, thereby ensuring that the thickness of the air mass simulated by the 30 cm cavity in this experiment is equivalent to 15 cm around the coal. The methane concentration in the laboratory is 2 ppm and the optical range length is 12 m.

$$X=0.15\times c_e+11.85\times 2=0.15c_e+23.7$$

(15)

Let $X$ represent the total gas absorption capacity of the optical path, and $c_e$ is the methane concentration in the gas cavity (unit: ppm). Thus, the methane concentration $c_e$ (ppm) in the cavity can be converted to the telemetry-common unit $c_m$ (ppm·m). Here, $c_m$ denotes the methane concentration integrated along the optical path, a key parameter for telemetry.

$$c_m={\displaystyle \frac{X}{12}}={\displaystyle \frac{c_e}{80}}+1.975$$

(16)

The gas can be introduced and extracted using valves located at opposing ends of the cavity. The gas distribution within the cavity is facilitated by a gas distributor, which enables the modulation of the gas ratio. The flow rate is 400 mL/min, and the gas in the cavity can be completely replaced in two minutes. The second valve is connected to the external environment, thereby ensuring that waste gases do not impact the laboratory’s atmosphere.

It is imperative to reduce the potential impact of extrinsic vibrations, laser energy attenuation, stray light, and detector response fluctuations on the outcomes obtained by the direct absorption method. In order to improve the signal-to-noise ratio, and improve the detection accuracy and detection limit of the gas, the second harmonic and the first harmonic of the wavelength modulation technology are detected and normalized.

5. Results

5.1. Performance of the Instrument

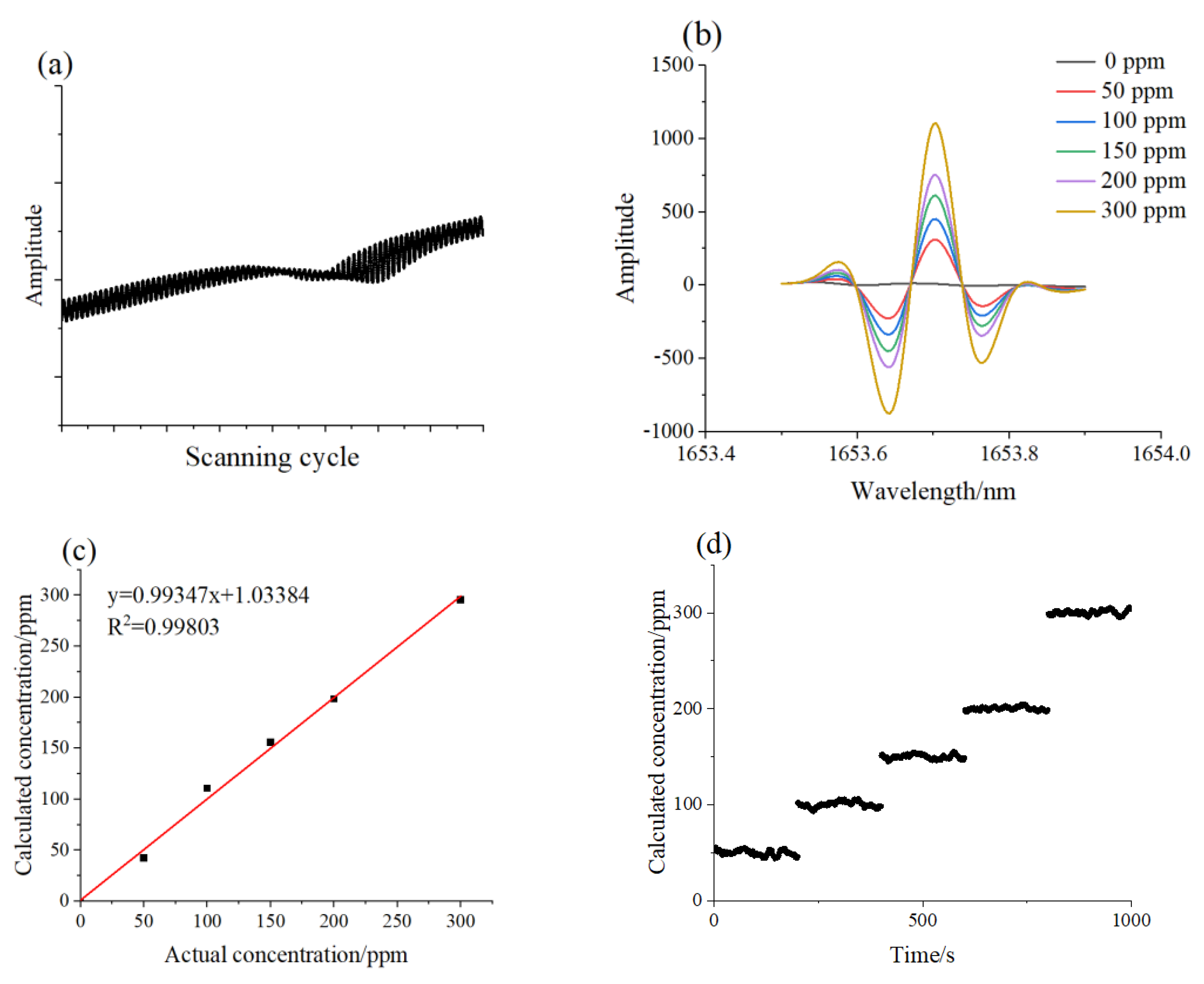

A methane-filled gas cavity with different standard concentrations is used to simulate the occurrence of smoldering around the coal. The raw signal is shown in Figure 6a and the second harmonic plots for different methane concentrations are presented in Figure 6b. To enhance the effect, in this step of the experiment, the detector is placed directly behind the cavity to avoid interference from atmospheric methane concentrations. It can be seen that the peak of the second harmonic signal still shows a clear correlation with the methane concentration.

The experimental set is used to simulate the concentration of methane released when smoldering. The simulated gases range from 0 ppm to 300 ppm and the air pressure is 1 atm to test whether it can realize the warning of coal smoldering. The lock-in amplifier output signal is averaged, normalized, filtered and amplified to obtain the $2f/1f$ signal, and the results are calibrated. During the experiment, the system detects the gas concentration at a frequency of 10 Hz and then averages it to reduce the noise’s interference. Each gas proportioning is performed for a total of 15 min. Due to the large volume of the gas cavity, it takes approximately 2 min to fill, so the first 3 min of data is removed and the concentration calculated for the next 12 min is averaged. A total of 5 sets of data including 0 ppm, 50 ppm, 100 ppm, 150 ppm, 200 ppm, and 300 ppm are included in the experiment and the results are shown in Figure 6c,d. The fitting function is y=0.99347x + 1.03384 and R² = 0.998, which shows that there is a good linear relationship between the methane concentration values and the $2f/1f$ signal.

Since the second harmonic signal has already been linearly related to the methane concentration, the purpose of methane content measurement can also be achieved by directly adopting the peak of the second harmonic for methane concentration calculation, if we do not take into account that the strength of the signal leads to changes in the readings. In practical engineering applications, the use of the second harmonic ($2f$) peak amplitude for methane quantification does not necessarily degrade measurement accuracy compared to alternative methods. However, the additional computational overhead required for simultaneously extracting the $1f$ signal and calculating the $2f/1f$ ratio can introduce resource constraints in real-time monitoring scenarios. A comparative analysis of these two approaches is thus justified to optimize system performance versus measurement precision trade-offs. We can compare the stability of the two ways. The comparison results are shown in Figure 7.

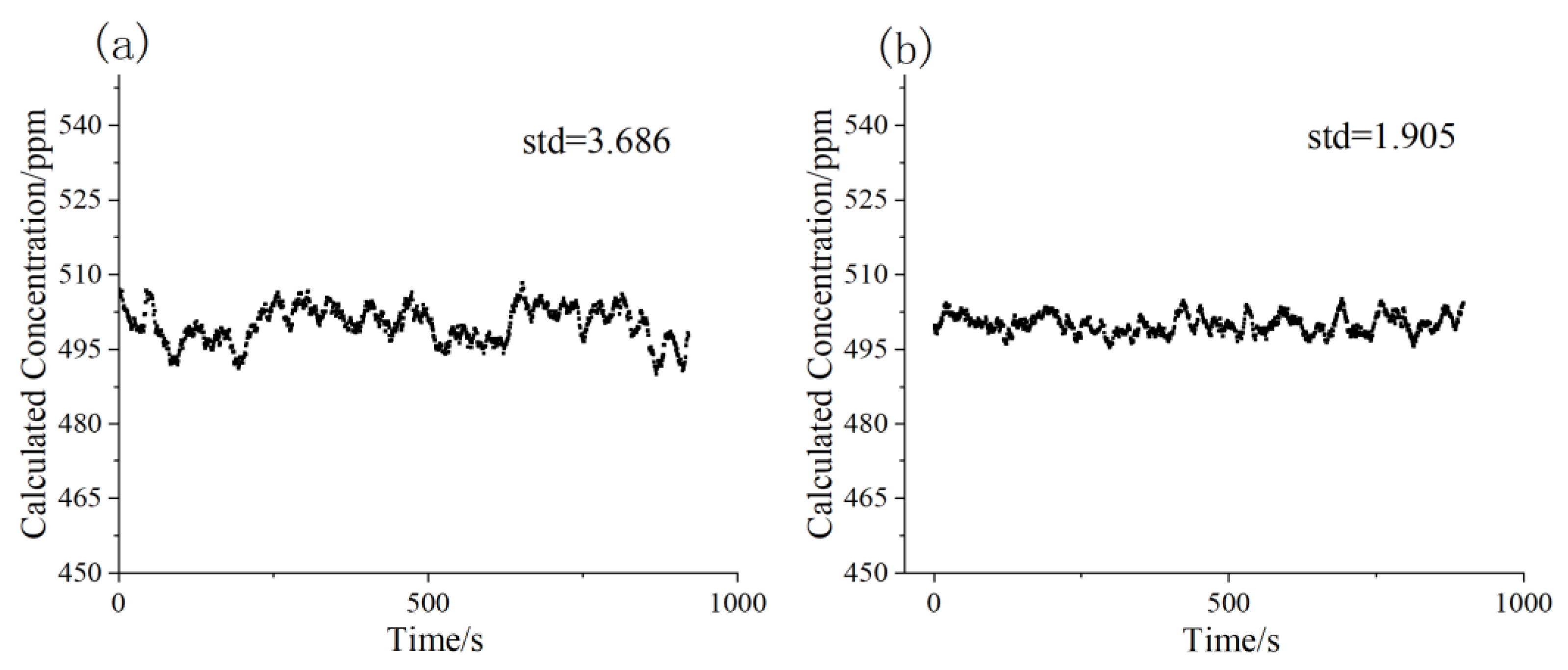

The variances of methane concentration calibration by second harmonic peak and $2f/1f$ signals are 3.686 and 1.905, respectively. This finding indicates that the $2f/1f$ normalization processing of the signal can significantly reduce data variability, enhance overall detection accuracy, and decrease the lower detection limit.

5.2. Suppress Temperature-Induced Signal Drift

The tunable laser is very sensitive to temperature changes. Every 2 °C change in laser shell temperature causes a 2.67 pm shift in the emitted laser light from the 1653 nm laser [27]. Changes in ambient temperature can also result in a change in the signal. When the temperature changes, the gas pattern changes, which leads to a change in its reading.

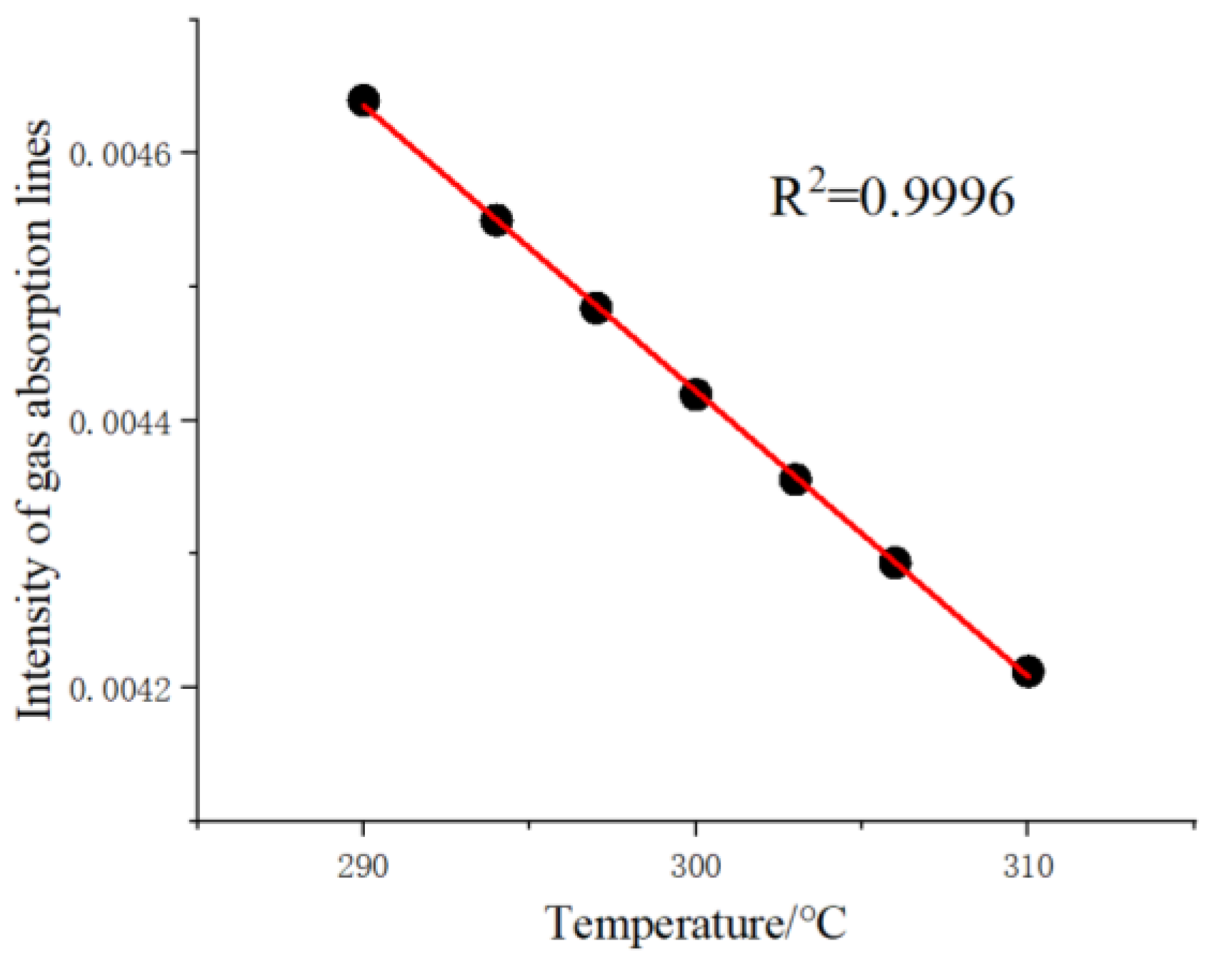

The variation in gas absorption spectral lines can be determined through calculations using a relatively complex formula [28]. However, we may alternatively obtain methane absorption intensities at different temperatures from the HITRAN database, as illustrated in Figure 8. The data reveal an approximately linear relationship between methane absorption intensity and temperature within common operational ranges. Specifically, a 10 °C temperature increase corresponds to approximately a 5% decrease in methane spectral absorption intensity. This relationship significantly facilitates the compensation of temperature-induced reading drift in practical applications.

This problem was also found in our preliminary experiments. Since the ambient temperature can be obtained from the temperature sensor, it is possible to suppress the drift caused by temperature by conducting experiments at different temperatures to obtain the relationship between the readings and the temperatures. In the laboratory, while the ambient temperature can be adjusted by air conditioning, the relevant data were recorded and analyzed.

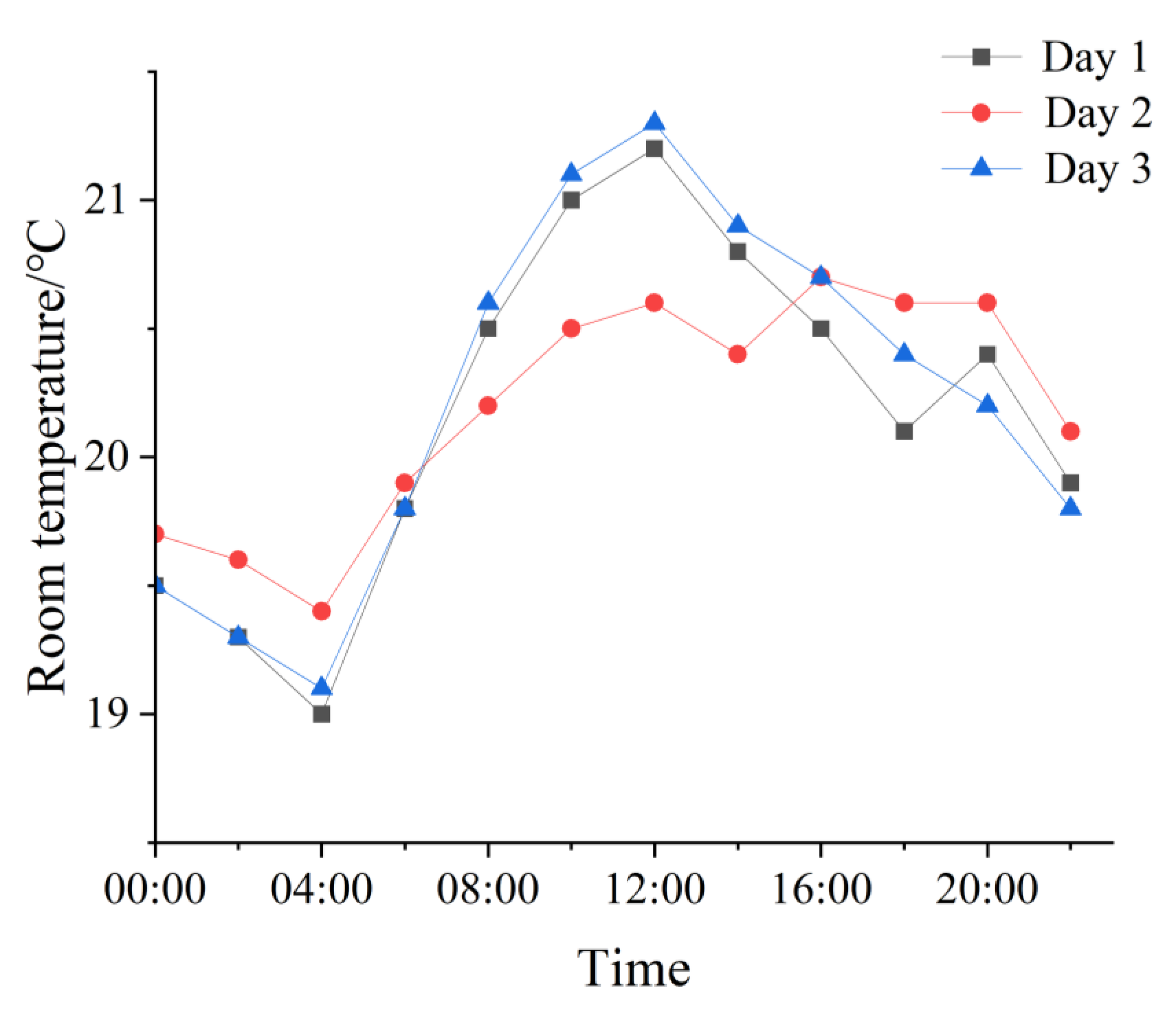

We conducted a three-day temperature monitoring experiment in the laboratory. The measurement results are shown in Figure 9. During the daytime, the indoor temperature gradually increased due to personnel activity and rising outdoor temperatures. At night, the temperature progressively decreased as staff departed and solar radiation diminished. The monitoring data demonstrate that even in an enclosed room, temperature is not constant, exhibiting a diurnal fluctuation range of approximately 2 °C.

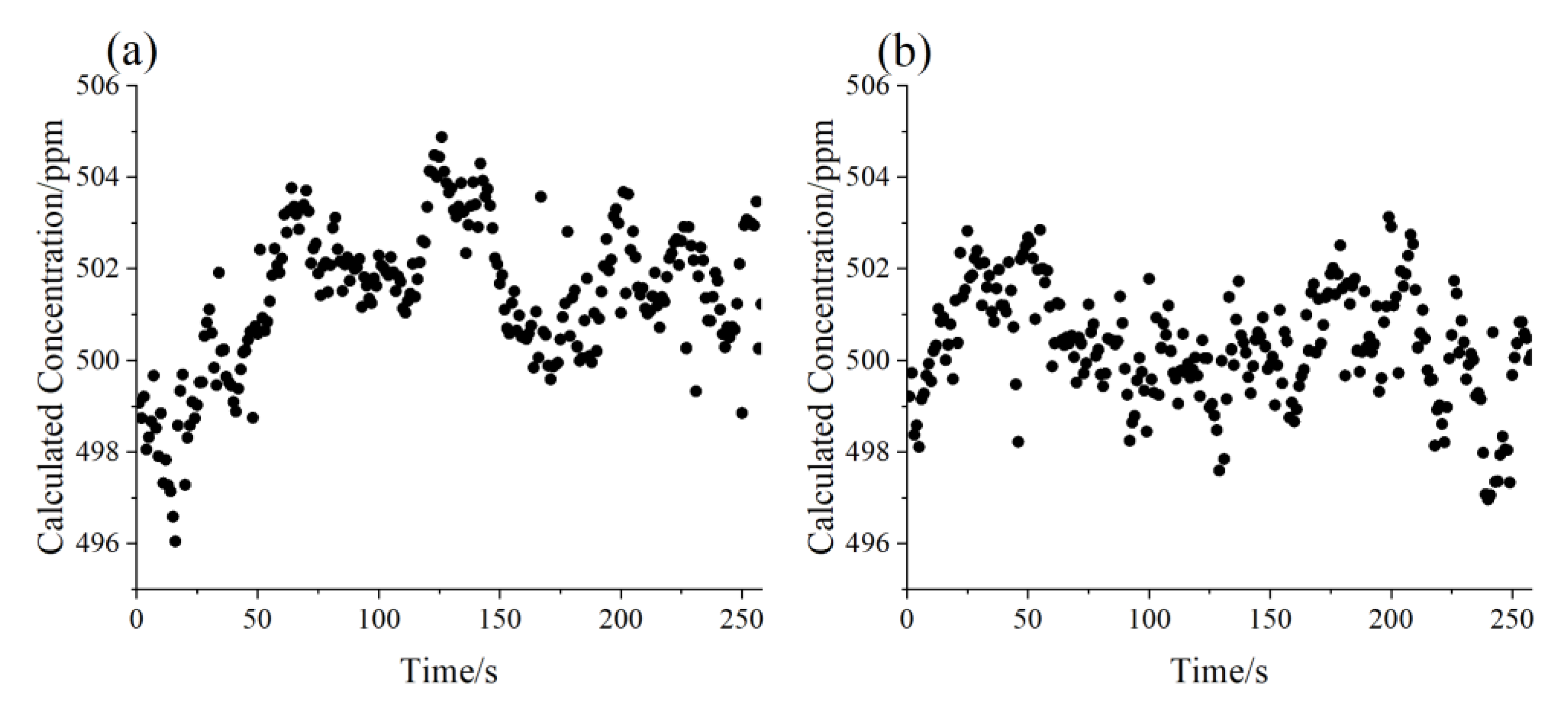

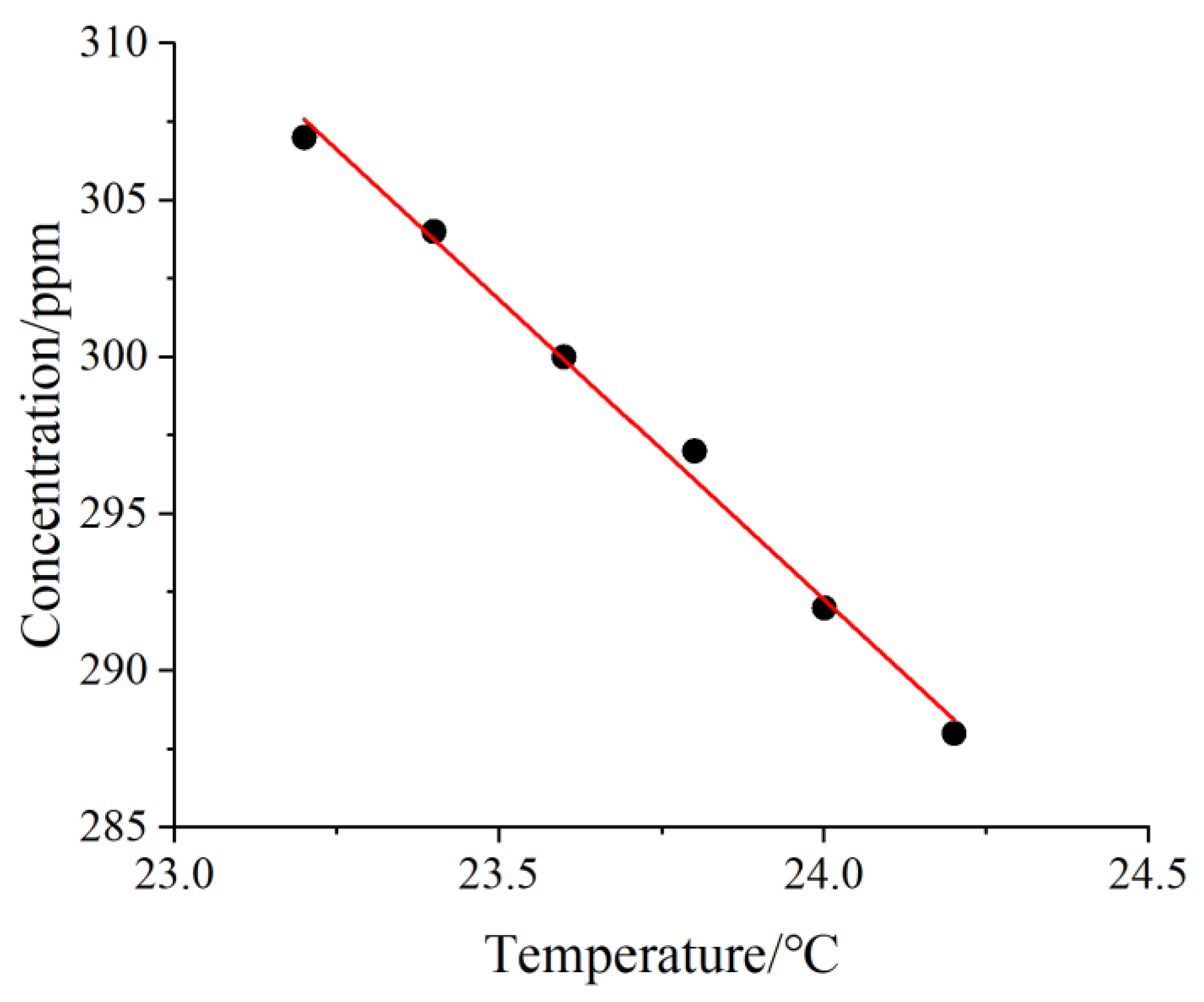

As can be seen from Figure 10, there is a strong linear relationship between the room temperature and the instrumental indications in this temperature interval, enabling a linear fit to be performed to minimize temperature-induced errors. In the end, the standard deviation decreased from 2.3 in Figure 11a to 1.6 in Figure 11b with the help of the temperature sensor through the algorithmic correction, proving that the method is successful in suppressing the signal variation caused by the temperature change in both the atmosphere and the laser.

5.3. Allan Analysis of Variance

The Allan variance of the entire system is also calculated in Figure 12. Allan deviation analysis is a method of assessing the error level across various time scales, frequently employed in the analysis of instabilities in the domain of gas detection.

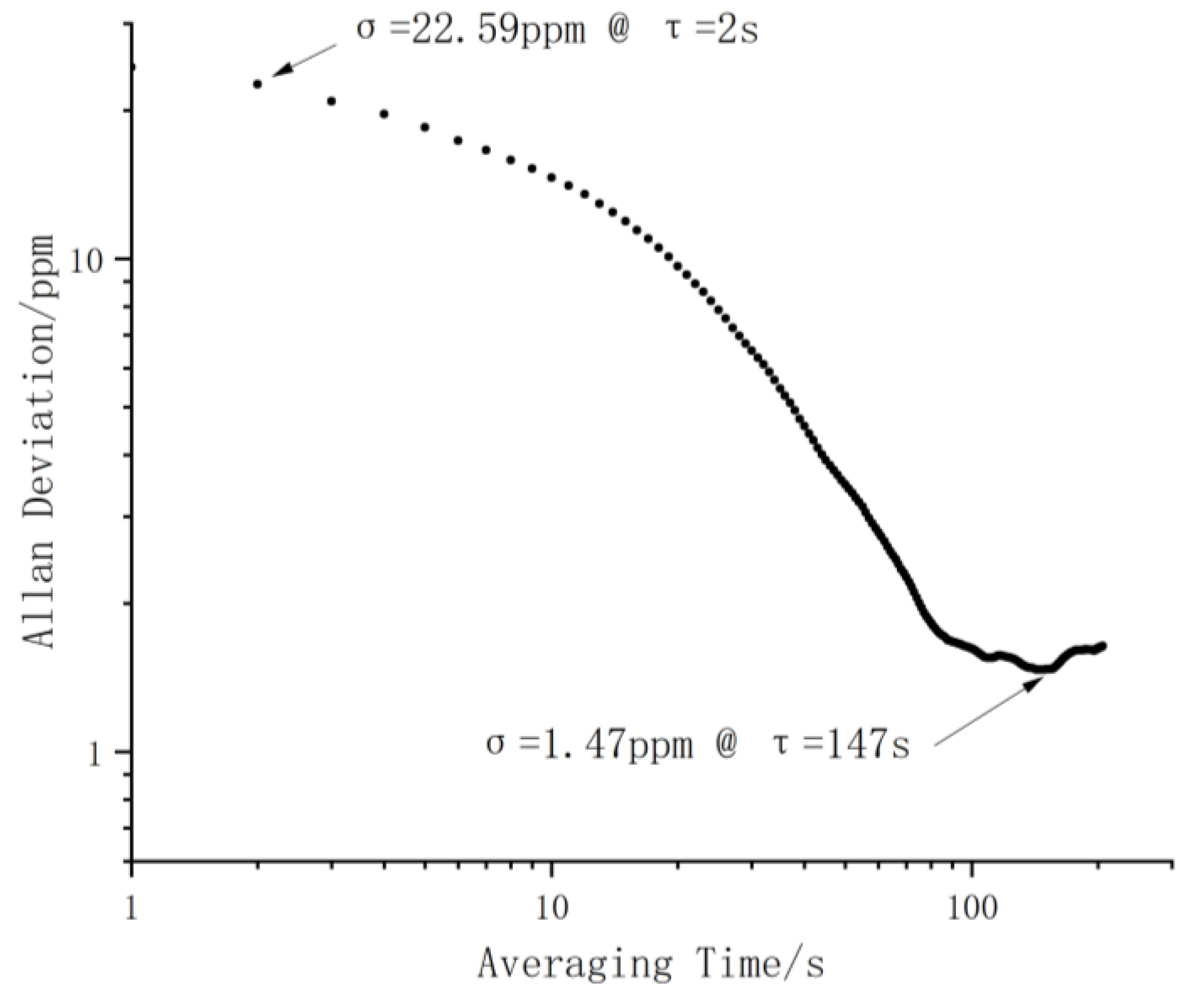

Allan deviation plotted in a log–log scale form indicated that an LoD of 22.59 ppm is achieved with a 2 s integration time and a measurement precision of 1.47 ppm is estimated with integration times at 147 s in Figure 12. Allan variance analysis shows that the methane telemetry system has good stability. Notably, the Allan deviation fails to exhibit the characteristic ${\tau }^{-0.5}$ scaling law prior to reaching its minimum value. This anomalous behavior is likely due to excessive flicker noise ($1/f$ noise) and random walk noise within the system, which could be caused by laser-related instabilities, electronic noise, or other factors. Consequently, the telemetry system designed in this paper is capable of both rapid responsiveness and ensuring high detection performance, thereby meeting the requirements for warning of coal spontaneous combustion.

5.4. Stability Difference Under Different Signal Strengths

In the context of methane telemetry, signal interference arising from factors such as light intensity fluctuation, ambient gas disturbance, and the coal surface reflection coefficient frequently compromise the accuracy of measurement outcomes. To investigate the impact of signal strength on the measurement value, the intensity of the light is regulated by employing an optical fiber attenuator, thereby enabling the simulation under varying signal strengths.

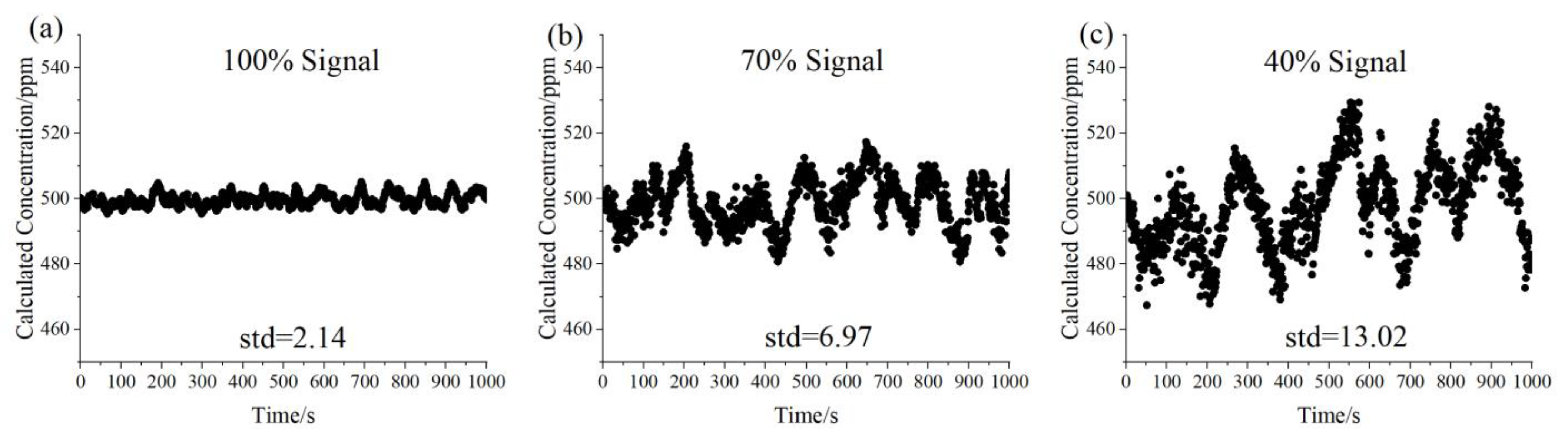

In order to verify the influence of signal strength on the solution value, the experiments of no signal attenuation, 30% attenuation, and 60% attenuation are carried out by using an optical fiber attenuator. The gas cavity was filled with 500 ppm of methane, and the three groups of experiments were tested for 5 min. As is shown in Figure 13, The standard deviations were 2.14, 6.97 and 13.02, respectively. Figure 14 illustrates the light reflection characteristics at varying distances. Given the minimal angle $\theta$ in practical scenarios, the reflection intensity can be approximated as uniform across different angles, with $\theta$ exhibiting a proportional relationship to the received signal strength.

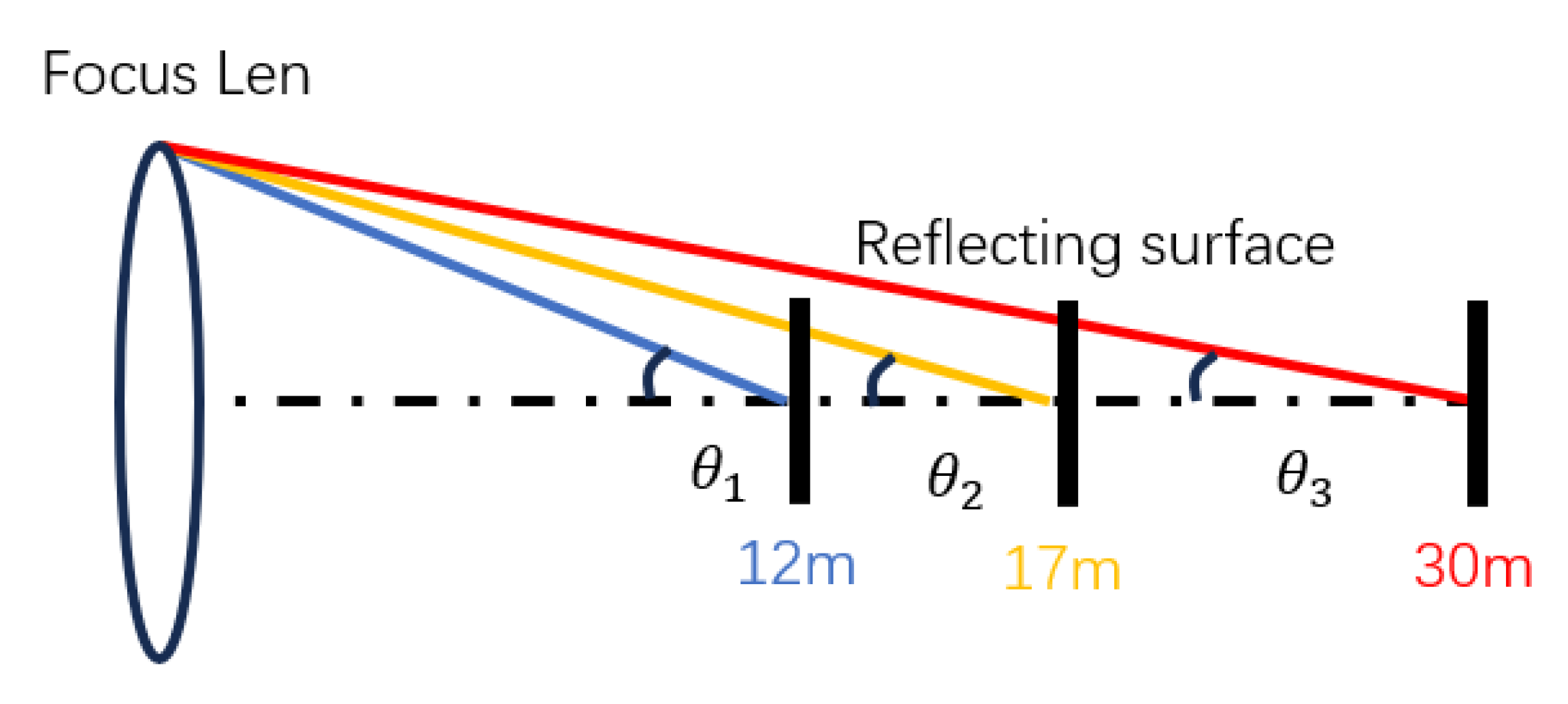

Given the lens’s diameter of 50 mm, the blue curve represents the reflection profile at a lens-to-surface distance of 12 m. The angle ${\theta }_1$ can be derived from Equation (17):

$${\theta }_1=arctan{\displaystyle \frac{0.05}{12}}=0.2387°$$

(17)

Using the signal at 12 m as the reference baseline, when the signal attenuation reaches 30% and 60%, respectively, the corresponding distances can be determined as follows:

$${\theta }_2=0.7{\theta }_1=0.167°$$

(18)

$${\theta }_3=0.4{\theta }_1=0.0955°$$

(19)

Substituting θ₂ and θ₃ into the calculation yields corresponding distances of 17 m and 30 m for 70% and 40% of the reference signal intensity, respectively. If the units are converted to ppm·m, they are 8.25 ppm·m, 6.41 ppm·m, and 4.5 ppm·m, respectively. As mentioned above, the lower limit of coal smolder detection should be 50 ppm, so the difference between the highest detection value and the lowest detection value should be controlled within 50 ppm as far as possible, which can improve the reliability of an early warning and shorten the response time from smolder to alarm. When the distance becomes longer, the detection accuracy of methane concentration is rather higher, taking into account the effect of atmospheric background methane concentration. Measurements at 17 m and 30 m require 1.42 and 2.5 times more detection deviation than at 12 m. At the same time, considering the differences between the actual situation and the laboratory, the working distance of the coal smolder warning system designed in this paper should be within 17 m, and the effect is better when it is within 12 m. When the working distance exceeds 17 m, the detection accuracy will be greatly reduced, and the response time will be greatly increased. Beyond 30 m, the system’s efficacy is significantly diminished, its response time is substantially prolonged, and the credibility is significantly diminished. The underlying cause of this phenomenon is that even in the absence of visible smoke, the detection system may erroneously interpret a methane reading exceeding 50 ppm as a false positive.

6. Conclusions

This study presents a novel TDLAS-based methane telemetry system optimized for early coal smoldering detection, addressing critical gaps in coal safety. Through outdoor simulations, a 50 ppm methane threshold is established as a reliable warning indicator. The system integrates $2f/1f$ normalized signal processing, reducing the detection limit to 1.47 ppm (147 s integration), while a temperature compensation algorithm cuts measurement variance by 30%. Rigorous testing confirms an operational range of 12 m (optimal) to 17 m—surpassing prior TDLAS limitations—enabling the real-time, long-distance monitoring of low-concentration methane emissions during early smoldering. This innovation resolves delays and false alarms in coal safety systems, offering a proactive solution to mitigate combustion risks in the storing of coal.
