# Kramers–Kronig Transmission with a Crosstalk-Dependent Step Multiple-Input Multiple-Output Volterra Equalizer in a Seven-Core Fiber

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

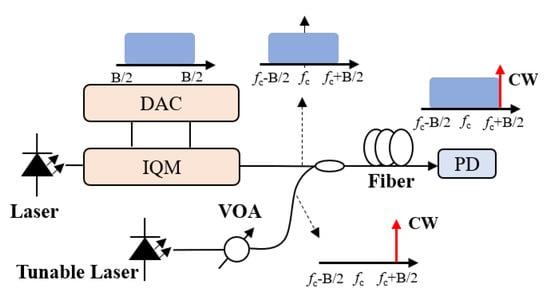

## 2. Principle of KK Transmission System

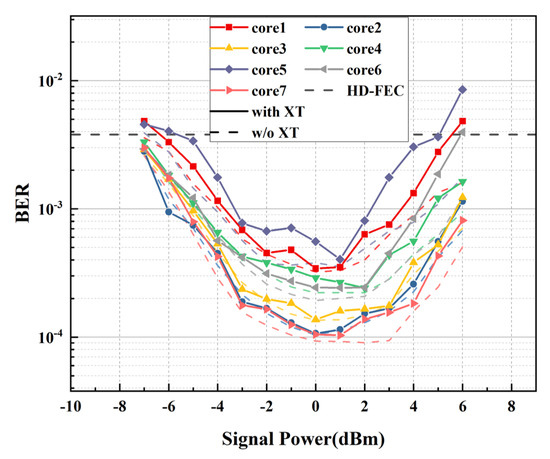

## 3. Experimental Setup and Analysis of Seven-Core Transmission System with KK Receiver

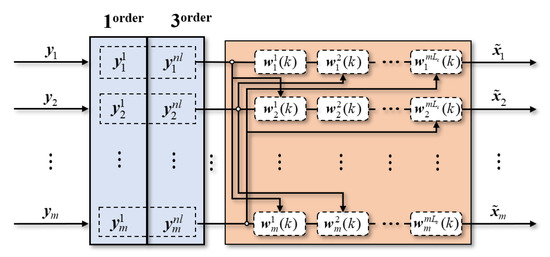

## 4. XT-MIMO Nonlinear Equalization Algorithm Based on Volterra Series

- Assume that the 16-QAM signal data matrix for all cores input to the equalizer is represented as$$\begin{array}{cc}\hfill \mathit{D}& =\left[\begin{array}{cccc}{y}_{1}\left(1\right)& {y}_{1}\left(2\right)& \dots & {y}_{1}\left(n\right)\\ {y}_{2}\left(1\right)& {y}_{2}\left(2\right)& \dots & {y}_{2}\left(n\right)\\ \dots & \dots & \dots & \dots \\ {y}_{m}\left(1\right)& {y}_{m}\left(2\right)& \dots & {y}_{m}\left(n\right)\end{array}\right]=\left[\begin{array}{c}{\mathit{y}}_{1}\\ {\mathit{y}}_{2}\\ \dots \\ {\mathit{y}}_{m}\end{array}\right].\hfill \end{array}$$
- Calculate the third-order nonlinear length as$$\begin{array}{ccc}\hfill {L}_{nl}& =& \sum _{{v}_{3}={v}_{1}}^{{L}_{3}}\sum _{{v}_{2}={v}_{3}}^{{L}_{3}}\sum _{{v}_{1}=1}^{{L}_{3}}\hfill \\ & =& \frac{1}{12}[3{L}_{3}\left({L}_{3}+1\right)+{L}_{3}\left({L}_{3}+1\right)\left(2{L}_{3}+1\right)].\hfill \end{array}$$
- Calculate the total channel length as$$\begin{array}{c}\hfill {L}_{c}={L}_{1}+{L}_{nl}.\end{array}$$
- Initialize the butterfly equalizer, and the tap coefficient of the equalizer can be expressed as$$\begin{array}{cc}\hfill \mathit{w}\left(k\right)& =\left[\begin{array}{cccc}{w}_{1}^{0}\left(k\right)& {w}_{2}^{0}\left(k\right)& \dots & {w}_{m}^{0}\left(k\right)\\ {w}_{1}^{1}\left(k\right)& {w}_{2}^{1}\left(k\right)& \dots & {w}_{m}^{1}\left(k\right)\\ \dots & \dots & \dots & \dots \\ {w}_{1}^{m{L}_{c}}\left(k\right)& {w}_{2}^{m{L}_{c}}\left(k\right)& \dots & {w}_{m}^{m{L}_{c}}\left(k\right)\end{array}\right]=\left[\begin{array}{cccc}{\mathit{w}}_{11}\left(k\right)& {\mathit{w}}_{12}\left(k\right)& \dots & {\mathit{w}}_{1m}\left(k\right)\\ {\mathit{w}}_{21}\left(k\right)& {\mathit{w}}_{22}\left(k\right)& \dots & {\mathit{w}}_{2m}\left(k\right)\\ \dots & \dots & \dots & \dots \\ {\mathit{w}}_{m1}\left(k\right)& {\mathit{w}}_{m2}\left(k\right)& \dots & {\mathit{w}}_{mm}\left(k\right)\end{array}\right].\hfill \end{array}$$Let ${w}_{i}^{\u2308{H}_{1}\u2309}\left(0\right)(i=1,2,\dots ,m)$ is 1, where ${H}_{1}=\frac{{L}_{1}}{2}$ and the other terms of $\mathit{w}\left(0\right)$ are 0. ${\mathit{w}}_{ij}\left(k\right)(i,j=1,2,...,m)$ is a column vector of length ${L}_{c}$.
- Intercept the $(k+1)\u2308{H}_{1}\u2309-\u230a{H}_{1}\u230b$ to $(k+1)\u2308{H}_{1}\u2309+\u230a{H}_{1}\u230b$ signals of each core from $k=1$ and arrange them in reverse order to obtain the linear input sequence of the equalizer for each channel as$$\begin{array}{cc}\hfill {\mathit{y}}_{i}^{1}\left(k\right)& =\left[\begin{array}{c}{y}_{i}((k+1)\u2308{H}_{1}\u2309+\u230a{H}_{1}\u230b)\\ \dots \\ {y}_{i}((k+1)\u2308{H}_{1}\u2309-\u230a{H}_{1}\u230b)\end{array}\right].\hfill \end{array}$$Intercept the signals from $(k+1)\u2308{H}_{1}\u2309-\u230a{H}_{3}\u230b$ to $(k+1)\u2308{H}_{3}\u2309+\u230a{H}_{3}\u230b$ of each core and arrange them in reverse order, using (12) to find the cubic product of the input signals corresponding to the third-order Volterra kernel for each channel.$$\begin{array}{cc}\hfill {\mathit{y}}_{i}^{nl}\left(k\right)& =\left[\begin{array}{c}{y}_{i}\left(A\right){y}_{i}\left(A\right){y}_{i}\left(A\right)\\ \dots \\ {y}_{i}(A-{v}_{3}){y}_{i}(A-{v}_{2}){y}_{i}(A-{v}_{1})\\ \dots \\ {y}_{i}\left(B\right){y}_{i}\left(B\right){y}_{i}\left(B\right)\end{array}\right],\hfill \end{array}$$$$\begin{array}{cc}\hfill A& =(k+1)\u2308{H}_{3}\u2309+\u230a{H}_{3}\u230b\hfill \\ \hfill B& =(k+1)\u2308{H}_{3}\u2309-\u230a{H}_{3}\u230b.\hfill \end{array}$$
- Splice the linear sequence with a third order to obtain the input sequence for each channel, shown as$$\begin{array}{cc}\hfill {\mathit{y}}_{i}\left(k\right)& =\left[\begin{array}{c}{\mathit{y}}_{i}^{1}\left(k\right)\\ {\mathit{y}}_{i}^{nl}\left(k\right)\end{array}\right].\hfill \end{array}$$
- Splice the MIMO equalizer input sequence of each channel into a MIMO input sequence, as shown in (14).$$\begin{array}{cc}\hfill \mathit{y}\left(k\right)& =\left[\begin{array}{cccc}{\mathit{y}}_{1}\left(k\right)& {\mathit{y}}_{2}\left(k\right)& \dots & {\mathit{y}}_{m}\left(k\right)\\ {\mathit{y}}_{2}\left(k\right)& {\mathit{y}}_{1}\left(k\right)& \dots & {\mathit{y}}_{1}\left(k\right)\\ \dots & \dots & \dots & \dots \\ {\mathit{y}}_{m}\left(k\right)& {\mathit{y}}_{m}\left(k\right)& \dots & {\mathit{y}}_{m-1}\left(k\right)\end{array}\right]\hfill \end{array}$$
- Calculate the MIMO output signal as$$\begin{array}{c}\hfill \tilde{\mathit{x}}\left(k\right)={\mathit{w}}^{T}(k-1)\mathit{y}\left(k\right)=\left[\begin{array}{c}{\tilde{x}}_{1}\left(k\right)\\ {\tilde{x}}_{2}\left(k\right)\\ \dots \\ {\tilde{x}}_{m}\left(k\right)\end{array}\right].\end{array}$$
- Calculate the error as$$\begin{array}{c}\hfill \epsilon \left(k\right)=\mathit{d}\left(k\right)-\tilde{\mathit{x}}\left(k\right)=\left[\begin{array}{c}{\epsilon}_{1}\left(k\right)\\ {\epsilon}_{2}\left(k\right)\\ \dots \\ {\epsilon}_{m}\left(k\right)\end{array}\right].\end{array}$$
- Update the inverse of the correlation matrix as [34]:$$\begin{array}{cc}\hfill {\mathbf{R}}_{D,i}^{-1}\left(k\right)& =\frac{1}{\lambda}[{\mathbf{R}}_{D,i}^{-1}(k-1)-\frac{{\mathbf{R}}_{D,i}^{-1}(k-1){\mathit{y}}_{i}\left(k\right){\mathit{y}}_{i}^{T}\left(k\right){\mathbf{R}}_{D,i}^{-1}(k-1)}{\lambda +{\mathit{y}}_{i}^{T}\left(k\right){\mathbf{R}}_{D,i}^{-1}(k-1){\mathit{y}}_{i}\left(k\right)}].\hfill \end{array}$$

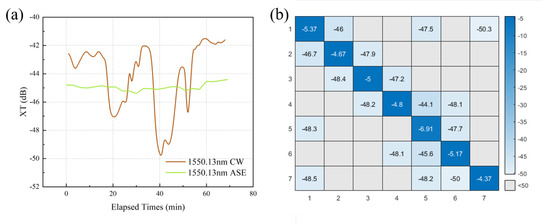

- Calculate the crosstalk coefficient matrix according to the measured crosstalk matrix as$$\begin{array}{cc}\hfill {\mathit{XT}}_{opt}\left(k\right)& =\left[\begin{array}{cccc}X{T}_{opt,11}\left(k\right)& X{T}_{opt,12}\left(k\right)& \dots & X{T}_{opt,1m}\left(k\right)\\ X{T}_{opt,21}\left(k\right)& X{T}_{opt,22}\left(k\right)& \dots & X{T}_{opt,2m}\left(k\right)\\ \dots & \dots & \dots & \dots \\ X{T}_{opt,m1}\left(k\right)& X{T}_{opt,m2}\left(k\right)& \dots & X{T}_{opt,mm}\left(k\right)\end{array}\right],\hfill \end{array}$$$$\begin{array}{c}\hfill X{T}_{opt,ij}\left(k\right)=\rho \frac{X{T}_{ij}\left(k\right)-X{T}_{min}\left(k\right)}{X{T}_{max}\left(k\right)-X{T}_{min}\left(k\right)}(i,j=1,2,...,m).\end{array}$$$X{T}_{ij}\left(k\right)$ represents the value of the measured crosstalk level of k-th time interval, $X{T}_{max}\left(k\right)$ and $X{T}_{min}\left(k\right)$ are the maximum and minimum values in the crosstalk matrix, respectively. $\rho $ is the scaling factor. For example, in Figure 3b, $X{T}_{12}\left(k\right)={10}^{-46.7/10}$, $X{T}_{max}\left(k\right)={10}^{-4.67/10}$ and $X{T}_{min}\left(k\right)={10}^{-50.3/10}$, which is negligible for less than −50 dB (gray cells in the crosstalk matrix), corresponding to $X{T}_{opt,ij}\left(k\right)$ of 0. Since the inter-core XT changes relatively slowly, the crosstalk matrix is collected once in one minute. We use the average crosstalk power in one minute for the calculation of the algorithm crosstalk coefficient, i.e., $X{T}_{ij}\left(1\right)=X{T}_{ij}\left(2\right)=...=X{T}_{ij}\left(k\right)$. The transmitted signal is processed with the crosstalk matrix in the corresponding time interval. Considering that ${\mathit{XT}}_{opt}\left(k\right)$ is a singular matrix, the inverse matrix of ${\mathit{XT}}_{opt}\left(k\right)$ is$$\begin{array}{cc}\hfill {\mathit{XT}}_{opt}^{-1}\left(k\right)& =\left[\begin{array}{cccc}X{T}_{opt,11}^{\prime}\left(k\right)& X{T}_{opt,12}^{\prime}\left(k\right)& \dots & X{T}_{opt,1m}^{\prime}\left(k\right)\\ X{T}_{opt,21}^{\prime}\left(k\right)& X{T}_{opt,22}^{\prime}\left(k\right)& \dots & X{T}_{opt,2m}^{\prime}\left(k\right)\\ \dots & \dots & \dots & \dots \\ X{T}_{opt,m1}^{\prime}\left(k\right)& X{T}_{opt,m2}^{\prime}\left(k\right)& \dots & X{T}_{opt,mm}^{\prime}\left(k\right)\end{array}\right],\hfill \end{array}$$
- Update the tap coefficient of the equalizer using (20) and (21):$$\begin{array}{c}\hfill {\mathit{w}}_{ij}\left(k\right)={\mathit{w}}_{ij}(k-1)+X{T}_{opt,ij}^{\prime}\frac{{\mathit{R}}_{D,i}^{-1}(k-1){\mathit{y}}_{i}\left(k\right)}{\lambda +{\mathit{y}}_{i}^{T}\left(k\right){\mathit{R}}_{D,i}^{-1}(k-1){\mathit{y}}_{i}\left(k\right)}{\epsilon}_{i}\left(k\right).\end{array}$$See Appendix A for a detailed explanation of the derivation process.
- Repeat steps 5 to steps 12 until the end of the training signal is updated and converged.
- Extract the payload signal and repeat steps 5 to steps 8 until the end of the payload signal is updated, and complete the MIMO equalization.

## 5. Experimental Results and Performance Analysis of XT-MIMO Nonlinear Equalization

## 6. Conclusions and Discussion

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A

## References

- Cisco, U. Cisco Annual Internet Report (2018–2023) White Paper; Cisco: San Jose, CA, USA, 2020. [Google Scholar]
- Wang, F.; Yao, H.; Wang, J.; Mai, T.; Xin, X.; Guizani, M. Hybrid optical-electrical data center networking: Challenges and solutions for bandwidth resource optimization. IEEE Commun. Mag.
**2022**, 60, 90–96. [Google Scholar] [CrossRef] - Chai, F.; Zhang, Q.; Yao, H.; Xin, X.; Gao, R.; Guizani, M. Joint Multi-task Offloading and Resource Allocation for Mobile Edge Computing Systems in Satellite IoT. IEEE Trans. Veh. Technol.
**2023**, 72, 7783–7795. [Google Scholar] [CrossRef] - Richardson, D.J.; Fini, J.M.; Nelson, L.E. Space-division multiplexing in optical fibres. Nat. Photonics
**2013**, 7, 354–362. [Google Scholar] [CrossRef] - Saridis, G.M.; Alexandropoulos, D.; Zervas, G.; Simeonidou, D. Survey and evaluation of space division multiplexing: From technologies to optical networks. IEEE Commun. Surv. Tutor.
**2015**, 17, 2136–2156. [Google Scholar] [CrossRef] - Puttnam, B.J.; Rademacher, G.; Luís, R.S. Space-division multiplexing for optical fiber communications. Optica
**2021**, 8, 1186–1203. [Google Scholar] [CrossRef] - Zhou, S.; Liu, X.; Gao, R.; Jiang, Z.; Zhang, H.; Xin, X. Adaptive Bayesian neural networks nonlinear equalizer in a 300-Gbit/s PAM8 transmission for IM/DD OAM mode division multiplexing. Opt. Lett.
**2023**, 48, 464–467. [Google Scholar] [CrossRef] [PubMed] - Zhu, L.; Yao, H.; Chang, H.; Tian, Q.; Zhang, Q.; Xin, X.; Yu, F.R. Adaptive Optics for Orbital Angular Momentum-Based Internet of Underwater Things Applications. IEEE Internet Things J.
**2022**, 9, 24281–24299. [Google Scholar] [CrossRef] - Zhang, J.; Liu, J.; Lin, Z.; Liu, J.; Shen, L.; Yu, S. Nonlinearity-aware adaptive bit and power loading DMT transmission over low-crosstalk ring-core fiber with mode group multiplexing. J. Light. Technol.
**2020**, 38, 5875–5882. [Google Scholar] [CrossRef] - Tan, H.; Deng, J.; Zhao, R.; Wu, X.; Li, G.; Huang, L.; Liu, J.; Cai, X. A free-space orbital angular momentum multiplexing communication system based on a metasurface. Laser Photonics Rev.
**2019**, 13, 1800278. [Google Scholar] [CrossRef] - Liu, J.; Zhu, G.; Zhang, J.; Wen, Y.; Wu, X.; Zhang, Y.; Chen, Y.; Cai, X.; Li, Z.; Hu, Z.; et al. Mode division multiplexing based on ring core optical fibers. IEEE J. Quantum Electron.
**2018**, 54, 1–18. [Google Scholar] [CrossRef] - Zhu, G.; Hu, Z.; Wu, X.; Du, C.; Luo, W.; Chen, Y.; Cai, X.; Liu, J.; Zhu, J.; Yu, S. Scalable mode division multiplexed transmission over a 10-km ring-core fiber using high-order orbital angular momentum modes. Opt. Express
**2018**, 26, 594–604. [Google Scholar] [CrossRef] [PubMed] - Zhu, B. SDM Fibers for Data Center Applications. In Proceedings of the 2019 Optical Fiber Communications Conference and Exhibition (OFC), San Diego, CA, USA, 3–7 March 2019; p. M1F.4. [Google Scholar]
- Butler, D.L.; Li, M.J.; Li, S.; Geng, Y.; Khrapko, R.R.; Modavis, R.A.; Nazarov, V.N.; Koklyushkin, A.V. Space division multiplexing in short reach optical interconnects. J. Light. Technol.
**2016**, 35, 677–682. [Google Scholar] [CrossRef] - Qian, D.; Ip, E.; Huang, M.F.; Li, M.J.; Dogariu, A.; Zhang, S.; Shao, Y.; Huang, Y.K.; Zhang, Y.; Cheng, X.; et al. 105 Pb/s Transmission with 109 b/s/Hz Spectral Efficiency using Hybrid Single-and Few-Mode Cores. In Proceedings of the Frontiers in Optics, Rochester, NY, USA, 14–18 October 2012; p. FW6C.3. [Google Scholar]
- Kong, D.; Jørgensen, A.; Henriksen, M.; Klejs, F.; Ye, Z.; Helgason, Ò.; Hansen, H.; Hu, H.; Yankov, M.; Forchhammer, S.; et al. Single dark-pulse kerr comb supporting 1.84 Pbit/s transmission over 37-core fiber. In Proceedings of the CLEO: QELS_Fundamental Science, Washington, DC, USA, 10–15 May 2020; p. JTh4A.7. [Google Scholar]
- Hayashi, T.; Nagashima, T.; Morishima, T.; Saito, Y.; Nakanishi, T. Multi-core fibers for data center applications. In Proceedings of the 45th European Conference on Optical Communication (ECOC 2019), Dublin, Germany, 22–26 September 2019; pp. 1–4. [Google Scholar]
- Le, S.T.; Schuh, K.; Tan, H.N. A closed-form expression for direct detection transmission systems with Kramers-Kronig receiver. IEEE Photonics Technol. Lett.
**2018**, 30, 2048–2051. [Google Scholar] [CrossRef] - Zhong, K.; Zhou, X.; Huo, J.; Yu, C.; Lu, C.; Lau, A.P.T. Digital signal processing for short-reach optical communications: A review of current technologies and future trends. J. Light. Technol.
**2018**, 36, 377–400. [Google Scholar] [CrossRef] - Mecozzi, A.; Antonelli, C.; Shtaif, M. Kramers–Kronig coherent receiver. Optica
**2016**, 3, 1220–1227. [Google Scholar] [CrossRef] - Liu, Y.; Li, Y.; Song, J.; Yue, L.; Zhou, H.; Luo, M.; He, Z.; Qiu, J.; Zuo, Y.; Li, W.; et al. Transmission of a 112-Gbit/s 16-QAM over a 1440-km SSMF with parallel enabled by an overlap approach and bandwidth compensation. Opt. Express
**2021**, 29, 8117–8129. [Google Scholar] [CrossRef] - Mecozzi, A.; Antonelli, C.; Shtaif, M. Kramers–Kronig receivers. Adv. Opt. Photonics
**2019**, 11, 480–517. [Google Scholar] [CrossRef] - Luís, R.S.; Rademacher, G.; Puttnam, B.J.; Awaji, Y.; Wada, N. Long distance crosstalk-supported transmission using homogeneous multicore fibers and SDM-MIMO demultiplexing. Opt. Express
**2018**, 26, 24044–24053. [Google Scholar] [CrossRef] - Fontaine, N.K.; Doerr, C.R.; Mestre, M.A.; Ryf, R.R.; Winzer, P.J.; Buhl, L.L.; Sun, Y.; Jiang, X.; Lingle, R. Space-division multiplexing and all-optical MIMO demultiplexing using a photonic integrated circuit. In Proceedings of the OFC/NFOEC, Los Angeles, CA, USA, 4–6 March 2012; pp. 1–3. [Google Scholar]
- Randel, S.; Corteselli, S.; Badini, D.; Pilori, D.; Caelles, S.; Chandrasekhar, S.; Gripp, J.; Chen, H.; Fontaine, N.K.; Ryf, R.; et al. First real-time coherent MIMO-DSP for six coupled mode transmission. In Proceedings of the 2015 IEEE Photonics Conference (IPC), Reston, VA, USA, 4–8 October 2015; pp. 1–2. [Google Scholar]
- Beppu, S.; Igarashi, K.; Kikuta, M.; Soma, D.; Nagai, T.; Saito, Y.; Takahashi, H.; Tsuritani, T.; Morita, I.; Suzuki, M. Weakly coupled 10-mode-division multiplexed transmission over 48-km few-mode fibers with real-time coherent MIMO receivers. Opt. Express
**2020**, 28, 19655–19668. [Google Scholar] [CrossRef] - Luis, R.S.; Puttnam, B.J.; Rademacher, G.; Awaji, Y.; Wada, N. On the use of high-order MIMO for long-distance homogeneous single-mode multicore fiber transmission. In Proceedings of the 2017 European Conference on Optical Communication (ECOC), Gothenburg, Sweden, 17–21 September 2017; pp. 1–3. [Google Scholar]
- Shibahara, K.; Mizuno, T.; Lee, D.; Miyamoto, Y. Advanced MIMO signal processing techniques enabling long-haul dense SDM transmissions. J. Light. Technol.
**2017**, 36, 336–348. [Google Scholar] [CrossRef] - Chen, X.; Antonelli, C.; Chandrasekhar, S.; Raybon, G.; Mecozzi, A.; Shtaif, M.; Winzer, P. Kramers–Kronig receivers for 100-km datacenter interconnects. J. Light. Technol.
**2018**, 36, 79–89. [Google Scholar] [CrossRef] - Mecozzi, A. A necessary and sufficient condition for minimum phase and implications for phase retrieval. arXiv
**2016**, arXiv:1606.04861. [Google Scholar] - Antonelli, C.; Shtaif, M.; Mecozzi, A. Modeling of nonlinear propagation in space-division multiplexed fiber-optic transmission. J. Light. Technol.
**2015**, 34, 36–54. [Google Scholar] [CrossRef] - Chen, X.; Chandrasekhar, S.; Randel, S.; Gu, W.; Winzer, P. Experimental quantification of implementation penalties from limited ADC resolution for Nyquist shaped higher-order QAM. In Proceedings of the 2016 Optical Fiber Communications Conference and Exhibition (OFC), Anaheim, CA, USA, 20–24 March 2016; p. W4A.3. [Google Scholar]
- Zhang, J.; Yu, J.; Li, X.; Wei, Y.; Wang, K.; Zhao, L.; Zhou, W.; Kong, M.; Pan, X.; Liu, B.; et al. 100 Gbit/s VSB-PAM-n IM/DD transmission system based on 10 GHz DML with optical filtering and joint nonlinear equalization. Opt. Express
**2019**, 27, 6098–6105. [Google Scholar] [CrossRef] - Mathews, V.J.; Lee, J. A fast recursive least-squares second order Volterra filter. In Proceedings of the ICASSP-88, International Conference on Acoustics, Speech, and Signal Processing, New York, NY, USA, 11–14 April 1988; pp. 1383–1384. [Google Scholar]

**Figure 2.**Experimental setup for the seven-core KK 16-QAM coherent optical communication system (TLS: tunable laser source; AWG: arbitrary waveform generator; IQM: I/Q modulator; EA: electric amplifier; OC: optical coupler; VOA: variable optical attenuator; DL: delay line; EDFA: erbium-doped fiber amplifier; OS: optical switch; PD: photodetector; DPO: digital phosphor oscilloscope). Inset (

**i**) shows the spectrum of transmitted signals. Inset (

**ii**,

**iii**) show the transmitter and receiver DSP, respectively.

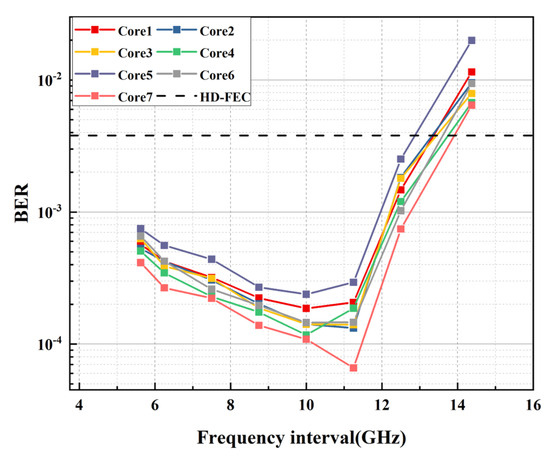

**Figure 6.**BER as a function of frequency interval when carrier power is 10 dBm and the signal power is 0 dBm.

**Figure 7.**BER as a function of frequency interval when carrier power is 10 dBm and the signal power is 0 dBm.

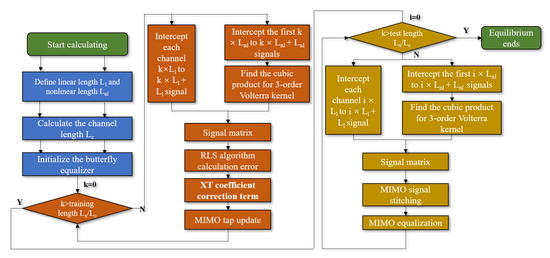

**Figure 9.**Flow diagram of the XT-MIMO nonlinear equalization algorithm based on the Volterra series.

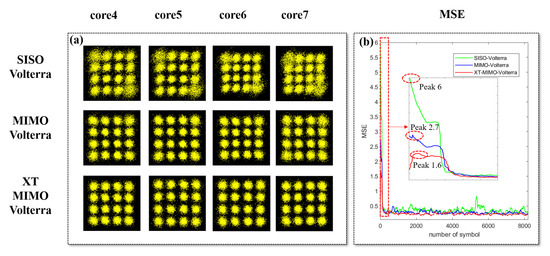

**Figure 10.**Experimental results: (

**a**) the constellation diagram and (

**b**) the mean square error curve of the signal after passing through the SISO-Volterra algorithm, the MIMO-Volterra algorithm, and the XT-MIMO-Volterra algorithm, respectively.

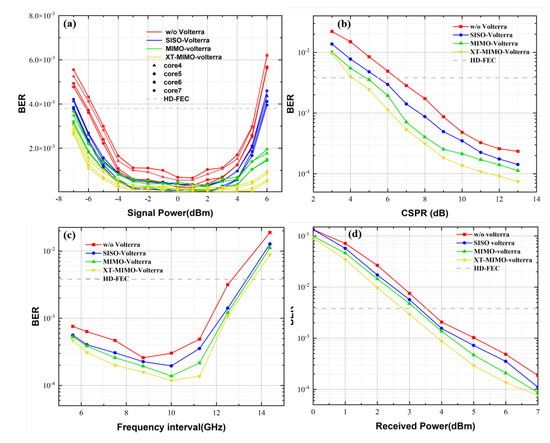

**Figure 11.**Experimental results. (

**a**) BER as a function of signal power when the carrier power is 10 dBm, (

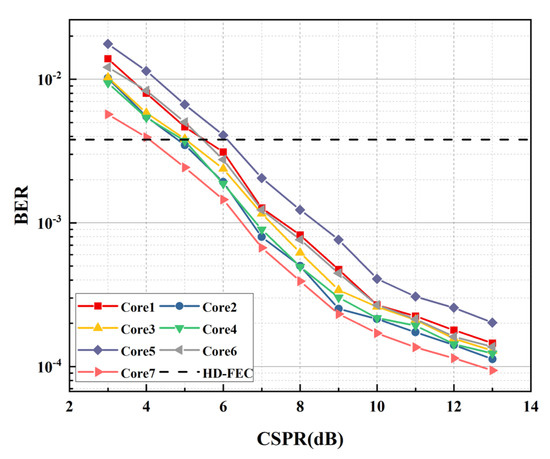

**b**) BER as a function of CSPR when the carrier power is 10 dBm, (
