Single-Layered Phase-Change Metasurfaces Achieving Polarization- and Crystallinity-Dependent Wavefront Manipulation

Abstract

As a promising platform for versatile electromagnetic (EM) manipulations, metasurfaces have drawn wide interest in recent years due to their unique EM properties and small footprints. However, although great efforts have been made to achieve multifunctionalities, the design of tunable metasurfaces with high compactness is still challenging. Here, a simple yet powerful design methodology for single-layered reconfigurable metasurfaces composed of nonvolatile phase-change material Ge₂Sb₂Se₄Te₁ (GSST) is proposed with average working amplitudes of 72.6% and 53% at different crystallization levels. The proposed metasurfaces could not only enable independent phase control at different crystallization levels but also introduced another polarization degree of freedom. As a proof of concept, we numerically demonstrate three kinds of metadevices in the infrared region achieving a multi-focus metalens with tunable foci, multistate vortex beam generator with adjustable topological charges and multi-channel meta-hologram with three independent information channels. It is believed that these multifunctional metasurfaces with both tunability and compactness are promising for various applications including information encryption, chiroptical spectroscopy, chiral imaging and wireless communication.

1. Introduction

As the planar version of metamaterials, metasurfaces composed of periodically arranged subwavelength meta atoms have attracted wide interest in recent years due to their enriched degree of freedoms to manipulate and control electromagnetic (EM) waves in terms of amplitude, phase and polarization [1,2,3,4]. By introducing strong localized interactions between incident EM waves and meta atoms, metasurfaces with planar geometries and small footprints can achieve similar or even better performances than traditional bulky and heavy optical devices, and exhibits great advantages in modern optics and photonics for integration and miniaturization [5,6,7]. To date, many exotic phenomena and applications based on metasurfaces have been realized such as beam deflection [8,9], perfect EM absorption [10,11], full-color nanopainting [12,13,14], gain enhancement [15,16], spatial filter [17], sub-diffraction imaging [18,19,20] and meta-holography [21,22,23]. Moreover, recent research has also demonstrated that properly designed metasurfaces can even achieve counterintuitive multi-functionalities by merging different manipulation mechanisms such as carpet cloaking [24,25], direction multiplexing [26,27,28], intelligent antennas [29] and spin decoupling [30,31].

Although great efforts have been made to improve the performances and enrich the functionalities of metasurfaces, a great challenge in this field is that most of the current designs lack the flexibility and their EM performances are fixed once fabricated, which further hindered their practical applications. As a result, reconfigurable metasurfaces with freely adjustable EM properties have been proposed. By introducing external stimuli, such as heat, electrostatic, stress or magnetic forces, their corresponding performances can be actively manipulated [32,33,34]. Among them, reconfigurable metasurfaces based on phase-change materials (PCMs) have been treated as promising candidates for next-generation tunable devices since their optical performance can be easily changed by heating or laser ablation. So far, various PCM-based platforms, including GeSbTe alloys [35,36,37,38], Sb₂S₃ [39,40], vanadium dioxide (VO₂) [41,42] and many others [43,44], have been proposed and various promising applications such as switchable optical modulation [45,46], tunable wavefront control [47,48], active chirality [49] and dynamic color [50] display have been demonstrated. However, although the above mentioned works have further improved the tunability of phase-change metasurfaces, how to integrate more functionalities without the sacrifice of compactness is still challenging.

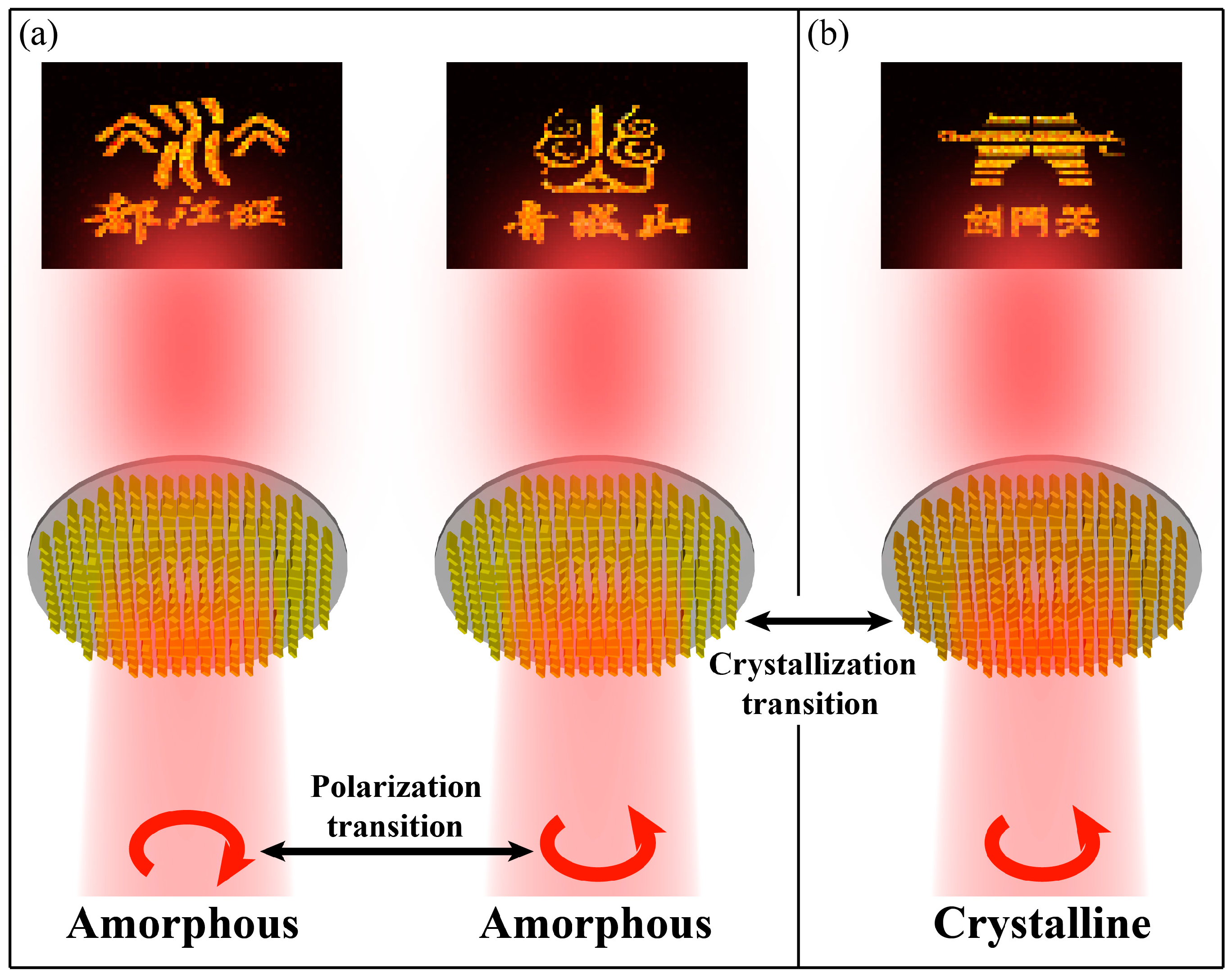

In this work, we proposed a design methodology for single-layered metasurfaces achieving both polarization- and crystallinity-dependent wavefront manipulations in infrared region. By taking advantage of the tunability of PCM Ge₂Sb₂Se₄Te₁ (hereinafter referred to as GSST) and combining multiple phase manipulation mechanisms, three independent information channels can be obtained with low cross talk. To further illustrate this issue, Figure 1 depicts the schematic of the proposed methodology. As shown in Figure 1a, when GSST is in the amorphous state (A-state), two different meta-holograms can be observed in the far field under right-handed circularly polarized (RCP) and left-handed circularly polarized (LCP) incidences. When varying the crystallinity of GSST to the crystalline state (C-state), as shown in Figure 1b, another meta-hologram can be observed and previous images in the A-state are perfectly hidden. Compared with previously reported works [37,38,39,40], the proposed metasurfaces could not only enable independent phase control at different crystallization levels but also introduce another polarization degree of freedom, which may pave a new way to realize active and multifunctional EM devices.

2. Design Principles and Simulation Results

The three-dimensional and top view of the proposed meta atom is shown in Figure 2a,b, respectively, which consists of a rectangular GSST nanofin on a barium fluoride (BaF₂) substrate. The optimized period for the meta atom is p = 5 μm and the thickness for all meta atoms is fixed at H = 7 μm. The working wavelength for the proposed meta atoms is designed for λ = 10.6 μm, which is the operation wavelength of commercial CO₂ lasers. By adjusting the length L and width W, six-levelled phase shift meta atoms are optimized to cover 0-2π both in the A- and C-states. As a result, a total number of 6 × 6 meta atoms are designed. The detailed geometric parameters and optical responses are shown in Figure S1 and Table S1. Figure 2c,d shows the simulated transmitted cross-polarized phase shift and amplitude, respectively, where i and j represent the number of the meta atom while the color of the pixel corresponds to the results in the A-state and the position of each pixel indicates the results in the C-state. It can be inferred from Figure 2c that for a given phase shift at A-state, six kinds of meta atoms can be chosen that can fully cover 0–2π at C-state. The average cross-polarized amplitude for the A- and C-states is 72.6% and 53%, respectively, which is sufficient for most wavefront manipulation applications. Finite element method in CST Microwave Studio is employed with unit cell boundaries in the xy directions and open boundary in the z direction. A fine tetrahedral mesh was applied with an adaptive mesh refinement to ensure the accuracy of the results. The optical constants data of the used materials are given in Figure S2 [51,52]. Here, the use of a BaF₂ substrate is due to its low permittivity in the infrared region that could reduce the reflectance at the bottom surface. Meanwhile, the choice of GSST as the PCM in the proposed design can be attributed to two main reasons. Firstly, GSST possesses high optical transparency with ultralow loss in both the A- and C-states in the simulated working wavelength, which is essential for wavefront manipulations [53]. Secondly, GSST exhibits a large optical contrast (Δn > 1.5) between the A- and C-states, which makes the optimization of 6 × 6 meta atoms accessible [52].

To further illustrate the working mechanism of the proposed design, when considering the circularly polarized incidence of [1 − iσ]^T normally illuminating the meta atoms, the resulting transmitted EM wave can be described as [28]

$$\cos \frac{\delta }{2}{\exp }^{i\phi }\left[\begin{array}{c}1\\ -i\sigma \end{array}\right]-i\sin \frac{\delta }{2}{\exp }^{i(-2\sigma \theta +\phi )}\left[\begin{array}{c}1\\ i\sigma \end{array}\right]$$

(1)

where φ is the polarization-independent propagation phase determined by the geometric parameters of the meta atom. −2σθ is the geometric phase (also known as the Pancharatnam–Berry phase) where σ = ±1 denotes the circular polarization direction of the transmitted wave and θ is the rotation angle for the meta atom as shown in Figure 2b. δ is the phase difference for two orthogonal linear polarizations along the major and minor axes and can be assumed as δ = π in our case since only the cross-polarized components are considered. Therefore, when GSST is in the A-state, the implemented phase for the cross-polarized components under RCP and LCP incidence can be described as φ_A ± 2θ, where φ_A is the propagation phase in A-state. In such case, if two independent phase distributions ψ₁ and ψ₂ are designed for opposite spin states, φ_A and θ can be expressed by [54]

$${\phi }_A=\frac{1}{2}[({\psi }_1-2n_1\pi )+({\psi }_2-2n_2\pi )]$$

(2)

$$\theta =\frac{1}{4}[({\psi }_1-2n_1\pi )-({\psi }_2-2n_2\pi )]$$

(3)

where n₁ and n₂ are two arbitrary integers and are both chosen as zero in our case. Therefore, ψ₁ and ψ₂ can be calculated as

$${\psi }_1={\phi }_A+2\theta$$

(4)

$${\psi }_2={\phi }_A-2\theta$$

(5)

When GSST changes to the C-state, the geometric phase remains unchanged since it is only determined by the rotation angle for the meta atom, while the propagation phase φ_C can be designed accordingly. Therefore, the implemented phase for the cross-polarized components under RCP and LCP incidences can be described as φ_C ± 2θ. It should be mentioned that since θ is fixed according to Equation (3), desired phase distributions ψ₃ can only be encoded to a certain circular polarization. For example, if ψ₃ is encoded for the RCP incidence, it can be written as

$${\psi }_3={\phi }_C-2\theta$$

(6)

In such case, the implemented phase ψ₄ under the LCP incidence can be calculated as

$${\psi }_4={\phi }_C+2\theta$$

(7)

Since the parameters on the right side of Equation (7) have been determined by Equations (2)–(4), ψ₄ cannot be designed arbitrarily and often results to meaningless far field results. Therefore, by properly choosing the sizes and arrangements of the meta atoms, three independent information channels denoted by ψ₁, ψ₂ and ψ₃ can be obtained. To further demonstrate the versatility of the proposed design methodology, three kinds of multifunctional metasurfaces are simulated and characterized in the following part.

The first functional device is multi-focus metalens whose focus can be adjusted by changing the crystallization levels of GSST and the incident circular polarization. To reduce the simulation complexity, the diameter of the metalens is set as 120 μm with 24 meta atoms in length. The implemented phase distributions for ψ_i (i = 1, 2, 3) can be described by

$${\psi }_i(x,y)=(2\pi /\lambda )[\sqrt{{(x-x_i)}^2+{(y-y_i)}^2+f_i{}^2}-f_i]$$

(8)

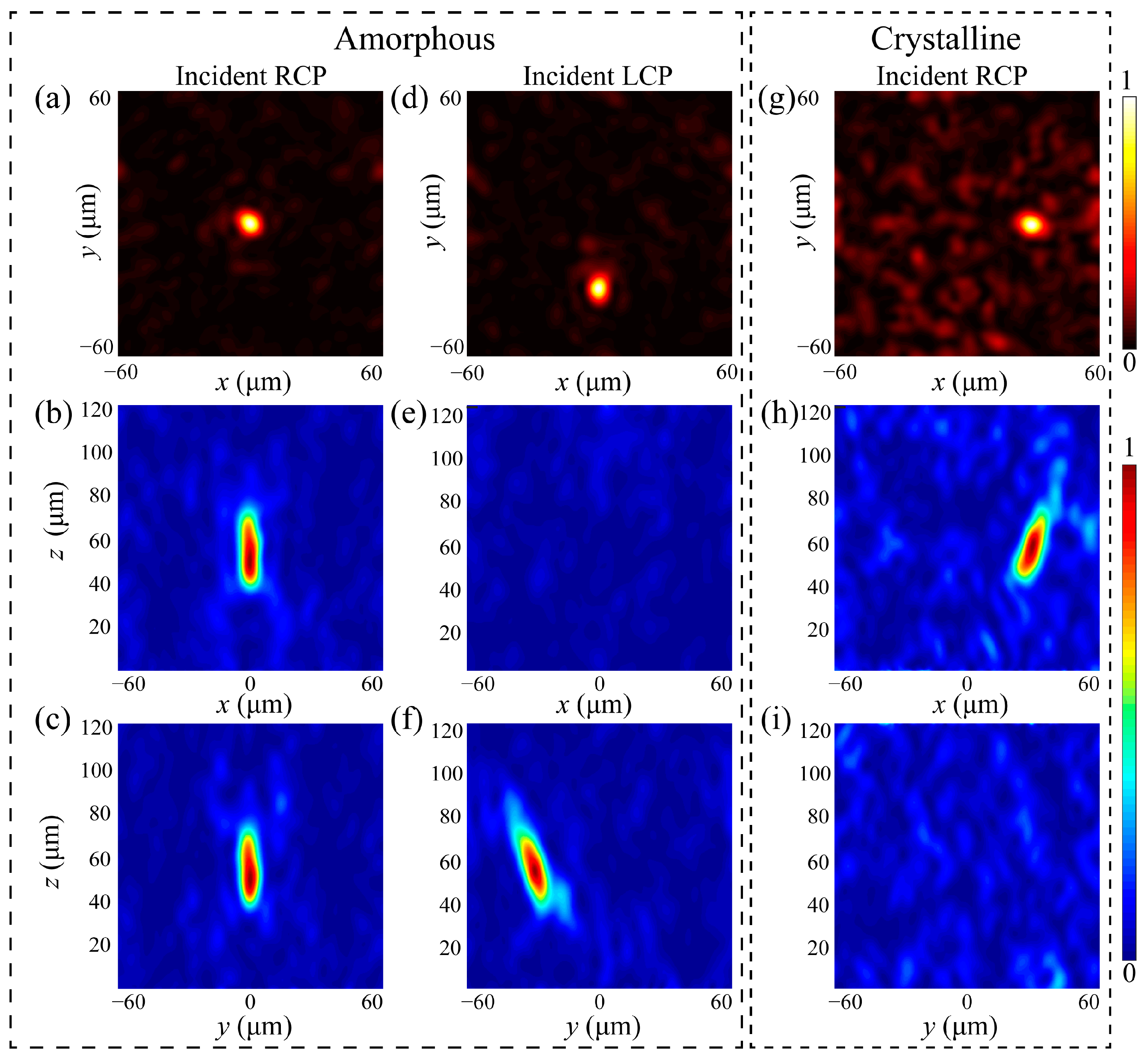

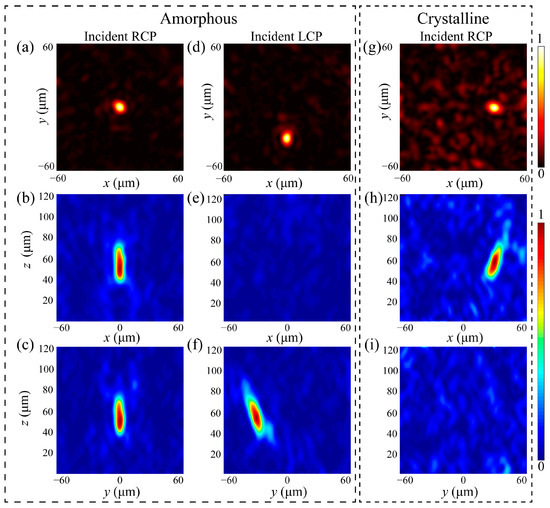

where (x, y) is the spatial location, (x_i, y_i) is the lateral displacement of the focal points and f_i is the designed focal lengths. In our case, (x₁, y₁) = (0,0), (x₂, y₂) = (0, −30 μm), (x₃, y₃) = (30 μm, 0) and f_i is fixed at 60 μm as shown in Figure S3. The time domain solver of CST Microwave Studio was employed for the simulations with open boundaries in all directions. Figure 3 depicts the corresponding simulated electric field distributions at different observation planes obtained by the built-in electric field monitors in CST Microwave Studio at λ = 10.6 μm. It can be inferred that the simulated results agreed well with the designs based on Equation (6). Moreover, the observed results in Figure 3e,i also indicate that the cross talk between different information channels can be ignored. The slight distortion of the focus can be attributed to the limited sample size and can be further improved with a larger diameter. Compared with previously reported works with fixed or symmetrical focal performance [55,56], the proposed metalens had the capability to adjust the focus, which may find many exciting applications for imaging and sensing.

The second functional device is a multistate vortex beam generator as shown in Figure S4 in which the topological charge of the generated vortex beam can be actively tuned. A vortex beam is a light beam carrying orbital angular momentum (OAM) that exhibits a spiral phase front of exp (ilϕ) [57], where ϕ = arctan (x/y) is the azimuthal angle and l is the topological charge. Since l can be any integer, vortex beams have been considered to be promising information carriers in optical and quantum communication systems. In the design process, the diameter of the designed vortex beam generator is the same as that for the above metalens. The phase distributions for focused vortex beam with different topological charges are encoded to ψ_i (i = 1, 2, 3) that can be described by

$${\psi }_i=(2\pi /\lambda )[\sqrt{x^2+y^2+f^2}-f]+l_i\varphi$$

(9)

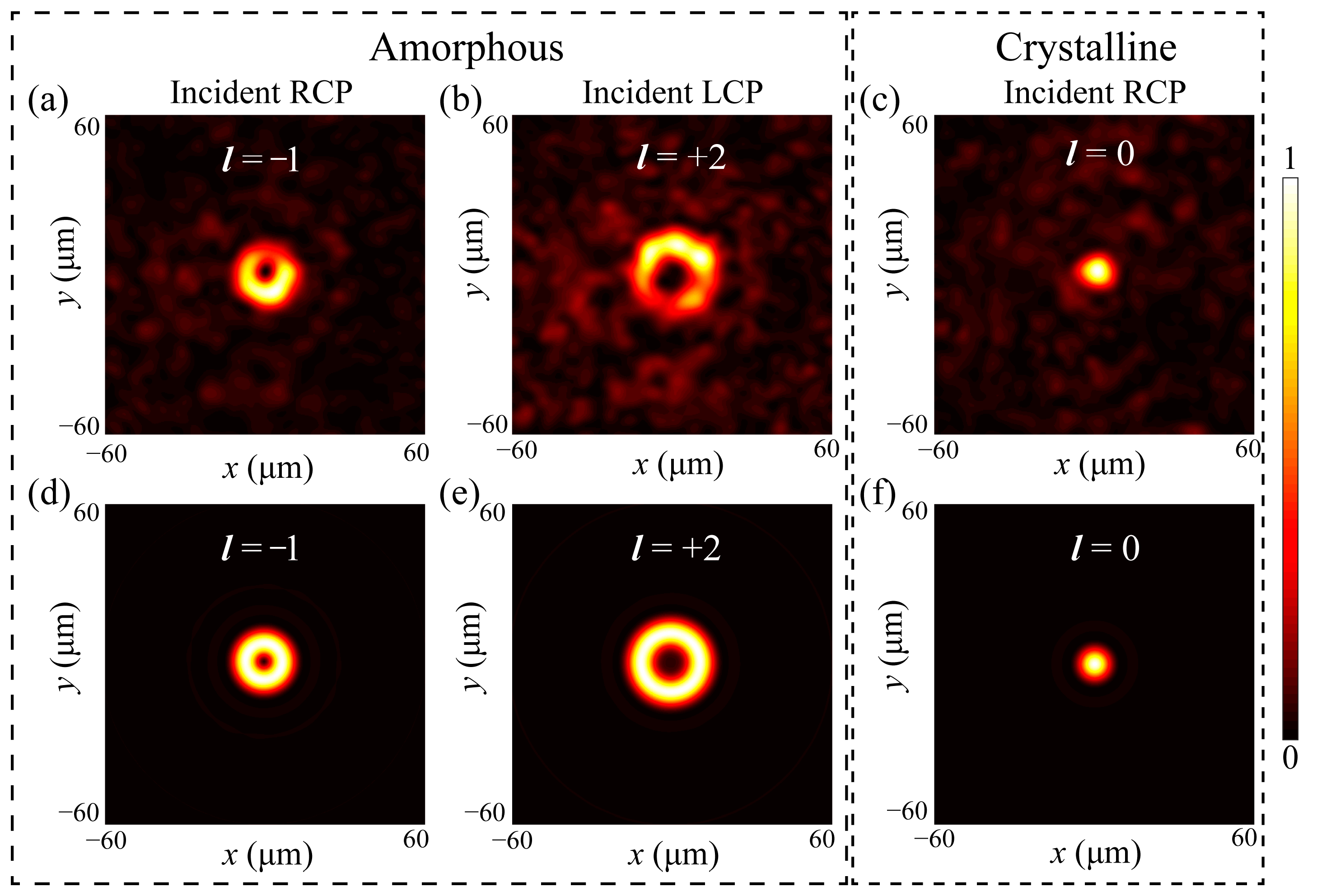

where f = 80 μm, l_i = −1, +2 and 0 for i = 1, 2 and 3. The simulated electric field distributions at z = f is shown in Figure 4a–c. As illustrated in Figure 4a,b, the donut-shaped patterns can be observed that demonstrate the generation of vortex beams. Moreover, the diameter of the donut-shaped pattern in Figure 4b was larger than those in Figure 4a,c indicating that the topological charge in this case was larger than the other cases, which is also a typical feature for vortex beams. The corresponding calculated results based on vectorial diffraction theory [58] are shown in Figure 4d–f. It can be inferred that the simulated results agreed quite well with their theoretical counterparts, which further demonstrates the validation of the proposed design method.

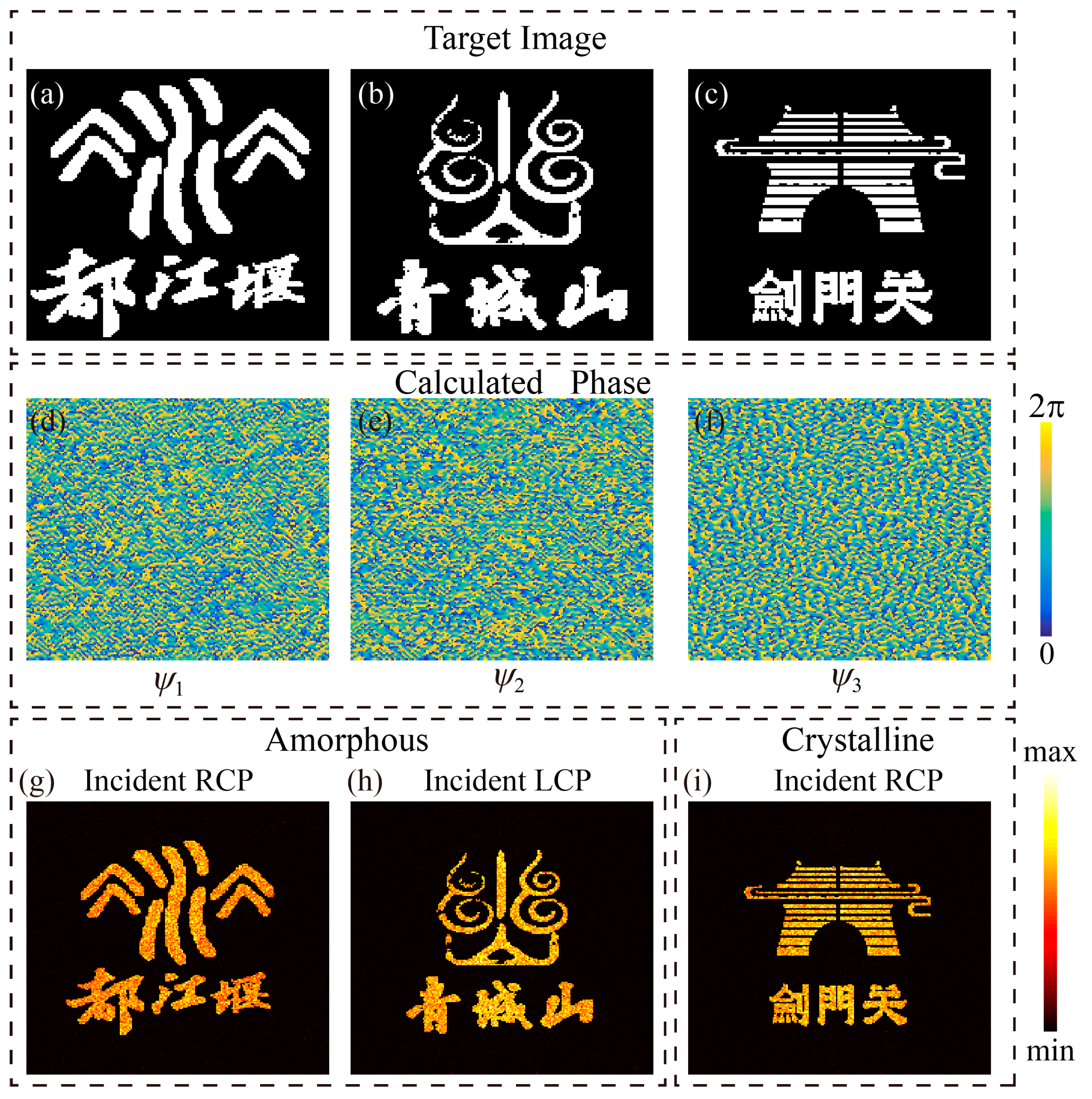

Moreover, the simultaneous polarization- and crystallinity-dependent performance provided by the proposed metasurface can also find a wide variety of applications associated with information encryption. As a proof of concept, the third functional device is a multi-channel meta-hologram in which the observed images can be tuned under certain conditions. In the design process, the metasurface contained 1 × 10⁶ meta atoms with dimensions of 5 mm × 5 mm. To calculate the phase distributions for the meta-hologram, the Gerchberg–Saxton (GS) algorithm was used. Since the image plane is designed in the Fraunhofer region, the ideal phase distribution can be calculated after several iterations of Fourier transforms. Then, the implemented phase distributions ψ_i (i = 1, 2, 3) can be obtained by discretizing the ideal phase distributions to six levels as shown in Figure 5d–f. Figure 5g–i shows the calculated far field intensity distributions under different polarized incidences and crystallization levels at λ = 10.6 μm, which was obtained by using the vectorial diffraction theory. The amplitude and phase at each location on the metasurface was retrieved from corresponding simulated results in Figure 2c,d. It can be inferred that when GSST is in the A-state, different information can be read out under opposite incident spin states. Then, when GSST changes to the C-state, the previous holographic images in the A-state can barely be observed and another new image can be observed, which confirms that the information coded in a certain crystallization level cannot be decoded in the other state.

3. Conclusions

It should be mentioned that although subsequent experiments were not carried out in this work, the fabrication of structured phase-change meta atoms with high aspect ratios and the corresponding optical measurements have been demonstrated by many previously reported works and is accessible by the state-of-the-art nanofabrication and measurement technologies [37,38]. To illustrate this issue, a feasible fabrication process and a measurement setup is schematically proposed in Figures S5 and S6, respectively. Moreover, although the reamorphization of GSST meta atoms with large thicknesses is still challenging and the fully reamorphization of the proposed devices may not be achievable at present, this problem may be solved in the near future since the theoretically reversible thickness of GSST films can approach several micrometers and the achieved reamorphization thickness has already increased from initial tens of nanometers to the current hundreds of nanometers. Moreover, by applying the proposed methodology at higher frequencies, the thickness of GSST can be further reduced to meet the requirement for reamorphization according to the scalability of Maxwell’s equations.

In summary, a generalized design methodology for multifunctional reconfigurable metasurfaces is proposed in this paper. By taking advantage of properly designed meta atoms and the large optical contrast of GSST, independent multi-channel wavefront manipulation can be achieved according to the incident circular polarization and GSST crystallization levels. To illustrate the priority of the presented principle, three kinds of functional metasurfaces were theoretically calculated and numerically simulated and all metasurfaces exhibited polarization- and crystallinity-dependent performance with low cross talk. The physical mechanism for the proposed devices can be attributed to the combined effect of geometric phase and propagation phase. Moreover, owing to the scalability of Maxwell’s equations, the design methodology can be further used for other frequencies, which may enable more fascinating applications in integrated optics and photonics.
