Spin Hall Effect of Two-Index Paraxial Vector Propagation-Invariant Beams

Abstract

We investigate a simple paraxial vector beam, which is a coaxial superposition of two single-ringed Laguerre–Gaussian (LG) beams, linearly polarized along the horizontal axis, with topological charges (TC) n and −n, and of two LG beams, linearly polarized along the vertical axis, with the TCs m and −m. In the initial plane, such a vector beam has zero spin angular momentum (SAM). Upon propagation in free space, such a propagation-invariant beam has still zero SAM at several distances from the waist plane (initial plane). However, we show that at all other distances, the SAM becomes nonzero. The intensity distribution in the cross-section of such a beam has 2m (if m > n) lobes, the maxima of which reside on a circle of a certain radius. The SAM distribution has also several lobes, from 2m till 2(m + n), the centers of which reside on a circle with a radius smaller than that of the maximal-intensity circle. The SAM sign alternates differently: one lobe has a positive SAM, while two neighbor lobes on the circle have a negative SAM, or two neighbor pairs of lobes can have a positive and negative SAM. When passing through a plane with zero SAM, positive and negative SAM lobes are swapped. The maximal SAM value is achieved at a distance smaller than or equal to the Rayleigh distance.

1. Introduction

As we have demonstrated in [1], in the tight focus of a two-index cylindrical vector beam, the spin Hall effect arises. Therefore, we can suppose that a similar 3D spin Hall effect can also arise in a similar paraxial vector beam, for instance, a propagation-invariant beam obtained as a superposition of Laguerre–Gaussian beams. Previously, the possibility of the 3D spin Hall effect in vector paraxial beams was discovered in [2,3]. As was shown in [2], the spin Hall effect arises in a vector Gaussian beam with several polarization singularities (V-points), i.e., points with indefinite polarization, embedded in the waist plane and residing evenly on a circle of a certain radius. In [3], a vector beam that has an infinite number of the polarization singularities residing on a straight line in the cross-section of the Gaussian beam was studied. It was also shown that upon the propagation of such a paraxial beam in free space, the 3D spin Hall effect arises. Under the spin Hall effect, we understand a phenomenon where a vector beam has inhomogeneous linear polarization in the initial plane (waist plane), but, upon beam propagation, only a finite number of planes exists where the polarization singularities are reconstructed and polarization is inhomogeneous linear, but in all the other transverse planes, there are areas with spin of different sign, i.e., areas where the spin angular momentum (SAM) has a different sign or the third Stokes parameter changes its sign. Thus, due to the beam diffraction in free space, initial inhomogeneous linear polarization becomes inhomogeneous elliptic and the areas with left and right elliptic polarization are separated in the transverse beam section.

Earlier, the spin Hall effect was investigated in microresonators [4], metamaterials [5], dielectric gratings [6], as well as in free space under tight focusing conditions [7]. In [8], the tight focusing of a radially polarized light field was studied. The spin Hall effect in the focus of a radially polarized optical vortex [9] was studied in [10]. In [11], the 3D SAM distribution was investigated in the tight focus of an optical vortex with linear polarization. Tight focusing of an azimuthally polarized optical vortex was studied in [12]. In [13], angular momentum (AM) was studied in the tight focus of hybrid cylindrical vector beams. The orbital motion of microparticles trapped in the tight focus of circularly and radially polarized optical vortices was considered in [14]. In [15], spin-orbital conversion was observed in nonparaxial beams with hybrid polarization. Such hybridly polarized beams in the tight focus were considered in [16]. In [17], the tight focusing of circularly polarized Bessel beams was studied, whereas tight focusing of the high-order Poincaré beams was investigated in [18]. Finally, in [19], spin-orbital conversion after a spherical lens was studied.

In this work, we consider a paraxial vector beam, which is propagation-invariant, i.e., its intensity distribution upon free-space propagation changes only in scale, both theoretically and numerically. For such a beam, we derive the longitudinal component of the SAM vector at an arbitrary distance from the initial plane. It is demonstrated that such a beam has zero SAM in the initial plane, and, at several distances from the waist, the SAM becomes zero again. However, at all the other distances from the waist, the SAM is nonzero. At these distances, the cross-section of the beam has several areas where the SAM is of a different sign, i.e., photons in these areas have spins of opposite signs, which is a manifestation of the spin Hall effect. We note that earlier, the spin Hall effect was studied in uniaxial crystals [20].

2. Field Components and Intensity Distribution of the Two-Index Vector Laguerre–Gaussian Beams

We consider here an initial paraxial vector light field given by

$$E\left(r,\phi ,0\right)=\left[\begin{array}{c}{\left(r/w_0\right)}^m\cos \left(m\phi +\alpha \right)\\ {\left(r/w_0\right)}^n\cos \left(n\phi +\beta \right)\end{array}\right]\exp \left(-\frac{r^2}{w_0^2}\right).$$

(1)

In Equation (1), (r, φ) are the polar coordinates in the beam section. If α = 0 and β = –π/2, such a field reduces to a field with a generalized radial polarization of the order (n, m). If α = π/2 and β = 0, such a field reduces to a field with a generalized azimuthal polarization.

Upon free space propagation, the field acquires the following field components:

$$\{\begin{array}{l}{E}_x\left(r,\phi ,z\right)=\frac{w_0}{w}{\left(\frac{r}{w}\right)}^m\exp \left[ikz-\frac{r^2}{w^2}+\frac{ik{r}^2}{2R}-i\left(m+1\right)\zeta \right]\cos \left(m\phi +\alpha \right),\\ E_y\left(r,\phi ,z\right)=\frac{w_0}{w}{\left(\frac{r}{w}\right)}^n\exp \left[ikz-\frac{r^2}{w^2}+\frac{ik{r}^2}{2R}-i\left(n+1\right)\zeta \right]\cos \left(n\phi +\beta \right),\end{array}$$

(2)

where $w$, R, and ζ are, respectively, the beam radius, wavefront curvature, and the Gouy phase at a distance z:

$$\begin{array}{l}w=w\left(z\right)=w_0\sqrt{1+{\left(\frac{z}{z_0}\right)}^2},\\ R=R\left(z\right)=z\left[1+{\left(\frac{z_0}{z}\right)}^2\right],\\ \zeta =\zeta \left(z\right)=\arctan \left(\frac{z}{z_0}\right),\end{array}$$

(3)

and $z_0=k{w}_0^2/2$ is the Rayleigh distance, k = 2π/λ is the wavenumber, and λ is the wavelength. We consider a paraxial monochromatic light field, and its longitudinal component E_z can be neglected. Therefore, transverse components of the SAM vector of such a field are also negligible since they are proportional to the longitudinal field component E_z. The tight focusing of a beam, similar to the beam from Equation (2), the longitudinal component of which can no longer be neglected, was studied earlier in our work [1].

The intensity distribution in such a light field reads as

$$\begin{array}{l}I\left(r,\phi ,z\right)={\left|E_x\left(r,\phi ,z\right)\right|}^2+{\left|E_y\left(r,\phi ,z\right)\right|}^2\\ ={\left(\frac{w_0}{w}\right)}^2\exp \left(-\frac{2r^2}{w^2}\right)\left[{\left(\frac{r}{w}\right)}^{2m}{\cos }^2\left(m\phi +\alpha \right)+{\left(\frac{r}{w}\right)}^{2n}{\cos }^2\left(n\phi +\beta \right)\right].\end{array}$$

(4)

The total power per unit length of such a field is equal to

$$W={\displaystyle \underset{0}{\overset{\infty }{\int }}{\displaystyle \underset{0}{\overset{2\pi }{\int }}I\left(r,\phi ,z\right)rdrd\phi }}=\pi {\left(\frac{w_0}{2}\right)}^2\left[\left(\frac{1+{\delta }_{0,m}}{2^m}\right)m!+\left(\frac{1+{\delta }_{0,n}}{2^n}\right)n!\right],$$

(5)

with δ_0,m being the Kronecker delta.

3. Spin Angular Momentum Density of the Two-Index Vector Beams

For nonparaxial vector light fields, all three components of the SAM density vector are significant. For instance, it is the transverse spin density that is responsible for generating the tight focus “optical wheels” [21] or polarization Möbius stripe [22]. However, for the paraxial light fields studied in the current work, only the longitudinal component of the SAM vector is nonzero. The longitudinal components of the spin angular momentum density (S_z) can be obtained by using the following general formula:

$$S_z=2\mathrm{Im}\left\{E_x^{\ast }{E}_y\right\}.$$

(6)

For the considered light field (2), it is equal to

$$\begin{array}{l}{S}_z=2\mathrm{Im}\left\{\begin{array}{l}\frac{w_0}{w}{\left(\frac{r}{w}\right)}^m\exp \left[-\frac{r^2}{w^2}-\frac{ik{r}^2}{2R}+i\left(m+1\right)\zeta \right]\cos \left(m\phi +\alpha \right)\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\times \frac{w_0}{w}{\left(\frac{r}{w}\right)}^n\exp \left[-\frac{r^2}{w^2}+\frac{ik{r}^2}{2R}-i\left(n+1\right)\zeta \right]\cos \left(n\phi +\beta \right)\end{array}\right\}\\ \\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=2{\left(\frac{w_0}{w}\right)}^2{\left(\frac{r}{w}\right)}^{m+n}\exp \left(-\frac{2r^2}{w^2}\right)\cos \left(m\phi +\alpha \right)\cos \left(n\phi +\beta \right)\sin \left[\left(m-n\right)\zeta \right].\end{array}$$

(7)

It is seen that the SAM density does not change its distribution on propagation in space but changes its value and sign. It is also seen from Equation (7) that the full spin density, i.e., integral of S_z over the whole beam section, is equal to zero at any value z. This is explainable since the integral of cos(x) over the polar angle φ from 0 to 2π is zero. Thus, the full longitudinal spin is conserved upon the propagation of the beam (2).

The SAM density in Equation (7) is the absolute value, but for determining the polarization ellipticity, this value should be compared with the intensity. For instance, circular polarization (C-points) occur in points where S_z = ±I, or E_y = ±iE_x. The latter condition leads to the following equation:

$${\left(\frac{r}{w}\right)}^{n-m}\cos \left(n\phi +\beta \right)=\pm i\exp \left[i\left(n-m\right)\zeta \right]\cos \left(m\phi +\alpha \right).$$

(8)

It has the solution only if $\cos \left[\left(n-m\right)\zeta \right]=0$, i.e., C-points can occur only in the following planes:

$$z=z_0\tan \left[\frac{\pi +2\pi p}{2\left(n-m\right)}\right],$$

(9)

with p being an integer number.

It is seen that if n = m + 1, then the C-points can be only in far field, z → ∞.

In the planes given by the condition $\cos \left[\left(n-m\right)\zeta \right]=0$, coordinates of the C-points can be found by solving the equation

$${\left(\frac{r}{w}\right)}^{n-m}\cos \left(n\phi +\beta \right)=\pm \cos \left(m\phi +\alpha \right).$$

(10)

Since the notable intensity is concentrated near the rings with the radii w(m/2)^1/2 and w(n/2)^1/2, then r > w (if n and m exceed 2) and thus the C-points should be located at the polar angles such that $\cos \left(n\phi +\beta \right)\approx 0$.

At certain planes, the SAM density turns to zero, i.e., there are planes with linear polarization:

$$S_z=0,\sin \left[\left(m-n\right)\zeta \right]=0,\zeta =\frac{\pi p}{m-n},z=z_0\tan \left(\frac{\pi p}{m-n}\right),$$

(11)

with p being an arbitrary integer number.

As indicated in Equation (11), if m and n are of the same parity, then there are |m − n|/2 planes (including the initial plane z = 0) with linear polarization. In the far field, (i.e., p = |m − n|/2), polarization is also linear. Thus, between these planes, there are |m − n|/2 planes with locally maximal SAM density.

If m and n have different parity, then there are |m − n + 1|/2 planes (including the initial plane z = 0) with linear polarization. Between these planes, there are |m − n + 1|/2 planes with locally maximal SAM density.

Solving an equation ∂S_z/∂r = 0, we obtain that in each transverse plane, maximal SAM density occurs on a circle with the radius given by

$$r_{\max \hspace{0.17em}Sz}=\frac{\sqrt{m+n}}{2}w.$$

(12)

This radius is between the radii of maximal intensity of the components E_x and E_y, which are equal, respectively, to

$$r_{\max \hspace{0.17em}Ix}=\sqrt{m/2}w,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{r}_{\max \hspace{0.17em}Iy}=\sqrt{n/2}w.$$

(13)

Below, we consider some partial cases.

If n = 2m, α = 0, β = −π/2 then the SAM density reads as

$$S_z=-4{\left(\frac{w_0}{w}\right)}^2{\left(\frac{r}{w}\right)}^{3m}\exp \left(-\frac{2r^2}{w^2}\right){\cos }^2\left(m\phi \right)\sin \left(m\phi \right)\sin \left(m\zeta \right).$$

(14)

The cosine turns to zero at φ = φ₁ = (π/2 + πp)/m, whereas the sine turns to zero at φ = φ₂ = (πp)/m. At φ = φ₁, the SAM density does not change its sign, whereas at φ = φ₂, it changes the sign. Thus, the SAM density distribution has a petal shape, where the petals of one sign are present in pairs.

If n = 3m, β = 3α, then the SAM density is given by

$$\begin{array}{l}{S}_z=-2{\left(\frac{w_0}{w}\right)}^2{\left(\frac{r}{w}\right)}^{4m}\exp \left(-\frac{2r^2}{w^2}\right)\cos \left(m\phi +\alpha \right)\cos \left(3m\phi +3\alpha \right)\sin \left(2m\zeta \right)\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=\left\{\cos 3\theta =\cos \theta \left(4{\cos }^2\theta -3\right)\right\}\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}=-2{\left(\frac{w_0}{w}\right)}^2{\left(\frac{r}{w}\right)}^{4m}\exp \left(-\frac{2r^2}{w^2}\right){\cos }^2\left(m\phi +\alpha \right)\left[4{\cos }^2\left(m\phi +\alpha \right)-3\right]\sin \left(2m\zeta \right).\end{array}$$

(15)

At $\phi ={\phi }_1=\pi /\left(2m\right)-\alpha /m+\pi p/m$, S_z = 0, but it does not change sign.

At $\phi ={\phi }_2=\pm \pi /\left(6m\right)-\alpha /m+\pi p/m$, S_z = 0, and it changes sign.

Thus, the SAM density distribution has a petal shape with zero values at the angles φ₁ and φ₂. Since at φ = φ₁, the SAM density does not change its sign, the petals of one sign are present in pairs, whereas the petals of the opposite sign are present in singles.

For other choices of the indices n and m, the distribution of lobes with the spin of different signs is different. Some possible distributions of areas with left and right elliptic polarization in the section of the beam (2) are obtained by numerical simulation and are shown in the next section.

4. Numerical Simulation

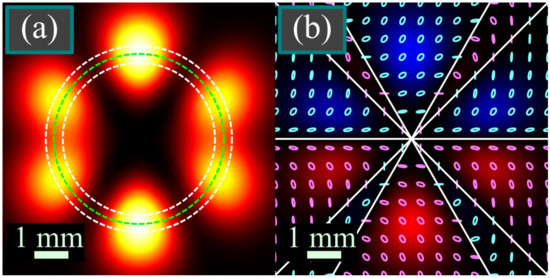

Figure 1 illustrates the intensity and SAM density distributions of the light field (2) when m = 2, n = 3, α = 0, and β = −π/2. In this case, the cosines in Equation (7) turn to zero for different polar angles and thus the SAM density should contain 2(m + n) = 10 zero lines. Figure 1 confirms this. The distributions were obtained by theoretical Formula (2) and compared with the Fresnel transform

$$E\left(r,\phi ,z\right)=\frac{-ik}{2\pi z}{\displaystyle \underset{0}{\overset{\infty }{\int }}{\displaystyle \underset{0}{\overset{2\pi }{\int }}E\left(r^{\prime },{\phi }^{\prime },0\right)\exp \left\{\frac{ik}{2z}\left[{r^{\prime }}^2+r^2-2r{r}^{\prime }\cos \left({\phi }^{\prime }-\phi \right)\right]\right\}{r}^{\prime }d{r}^{\prime }d{\phi }^{\prime }}},$$

(16)

implemented numerically as the convolution using fast Fourier transform. The obtained images were visually indistinguishable. The polarization ellipses were obtained by M.V. Berry’s formulae [23]:

$$\begin{array}{c}A=\frac{1}{\left|\sqrt{E\cdot E}\right|}\mathrm{Re}\left\{E\sqrt{E^{\ast }\cdot E^{\ast }}\right\},\\ B=\frac{1}{\left|\sqrt{E\cdot E}\right|}\mathrm{Im}\left\{E\sqrt{E^{\ast }\cdot E^{\ast }}\right\},\end{array}$$

(17)

where A and B are the semiaxes vectors of the polarization ellipse.

Now, we consider the degenerate cases when the zeros of the cosines in Equation (7) coincide.

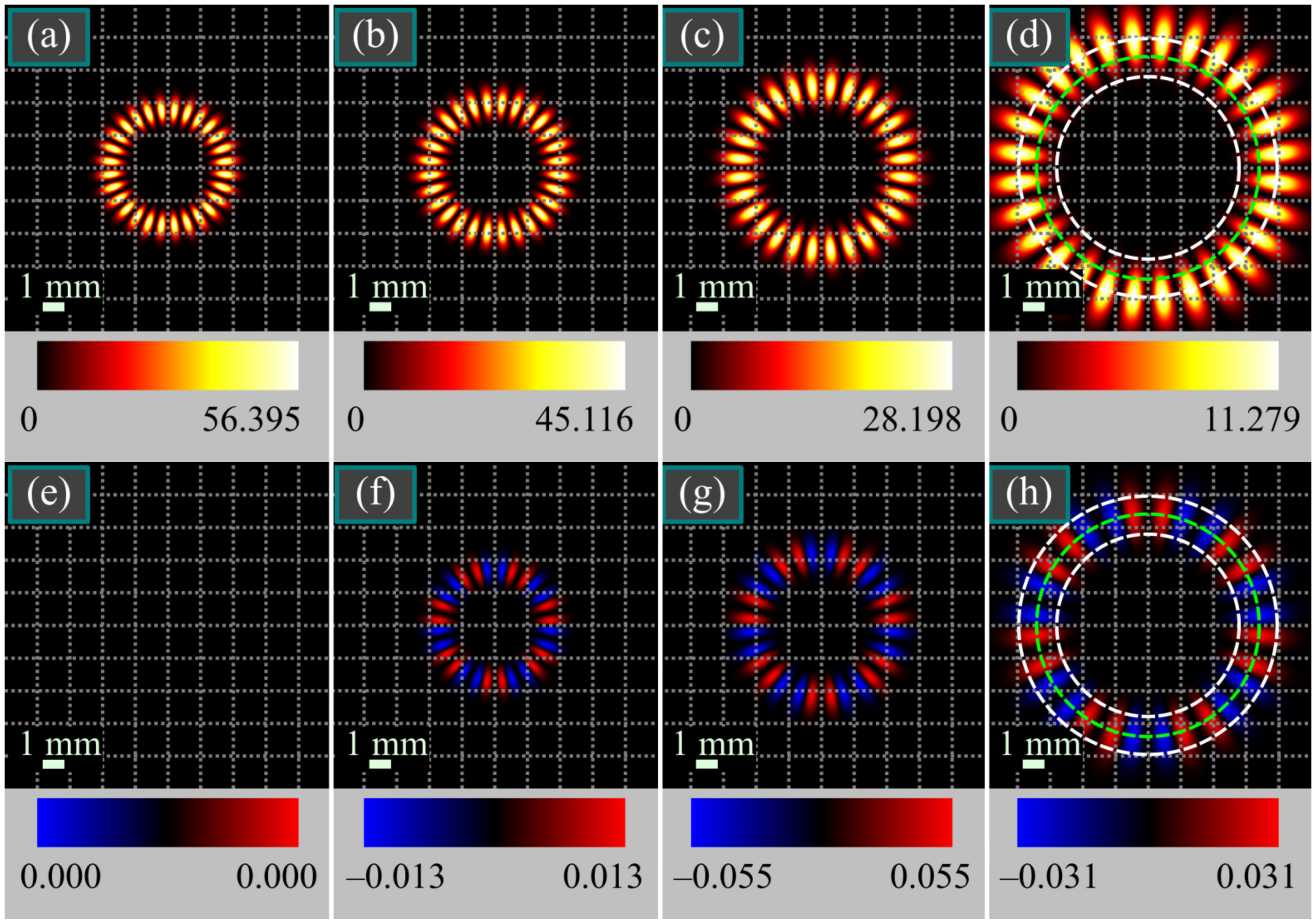

Figure 2 illustrates the intensity and SAM density distributions of the light field (2) in several transverse planes when n = 2m, α = 0, and β = –π/2.

Figure 2 confirms that the SAM density distribution has a petal shape and that the petals of one sign are present in pairs (blue and red pairs in Figure 2f–h).

We note that the energies of the E_x and E_y field components are different and equal, respectively, to $W_x=\left(\pi w_0^2/2\right)\left(m!/2^m\right)$ and $W_y=\left(\pi w_0^2/2\right)\left(n!/2^n\right)$. Therefore, regarding the intensity distributions, only one field component is notable whereas the other is insignificant. Indeed, since in this case n = 2m and m = 7, the energies ratio is W_x/W_y = 7·10⁻⁶. Nevertheless, these components interact and the weak component affects the SAM density distribution. It is seen in Figure 2d that the ring of the maximal intensity of the E_x-component is outside the area of notable intensity (inner white ring in Figure 2d,h), but the E_x-component affects the radius of the maximal-SAM ring (green middle ring in Figure 2d,h).

According to Equation (11), zero SAM density should be in the following planes: z = 0, z = z₀ tan(π/7) ≈ 0.48z₀, z = z₀ tan(2π/7) ≈ 1.25z₀, and z = z₀ tan(3π/7) ≈ 4.38z₀. That is why the petal colors in Figure 2f and Figure 2g (z = z₀/2 and z = z₀) are the same, whereas in Figure 2h (z = 2z₀) they are inverted.

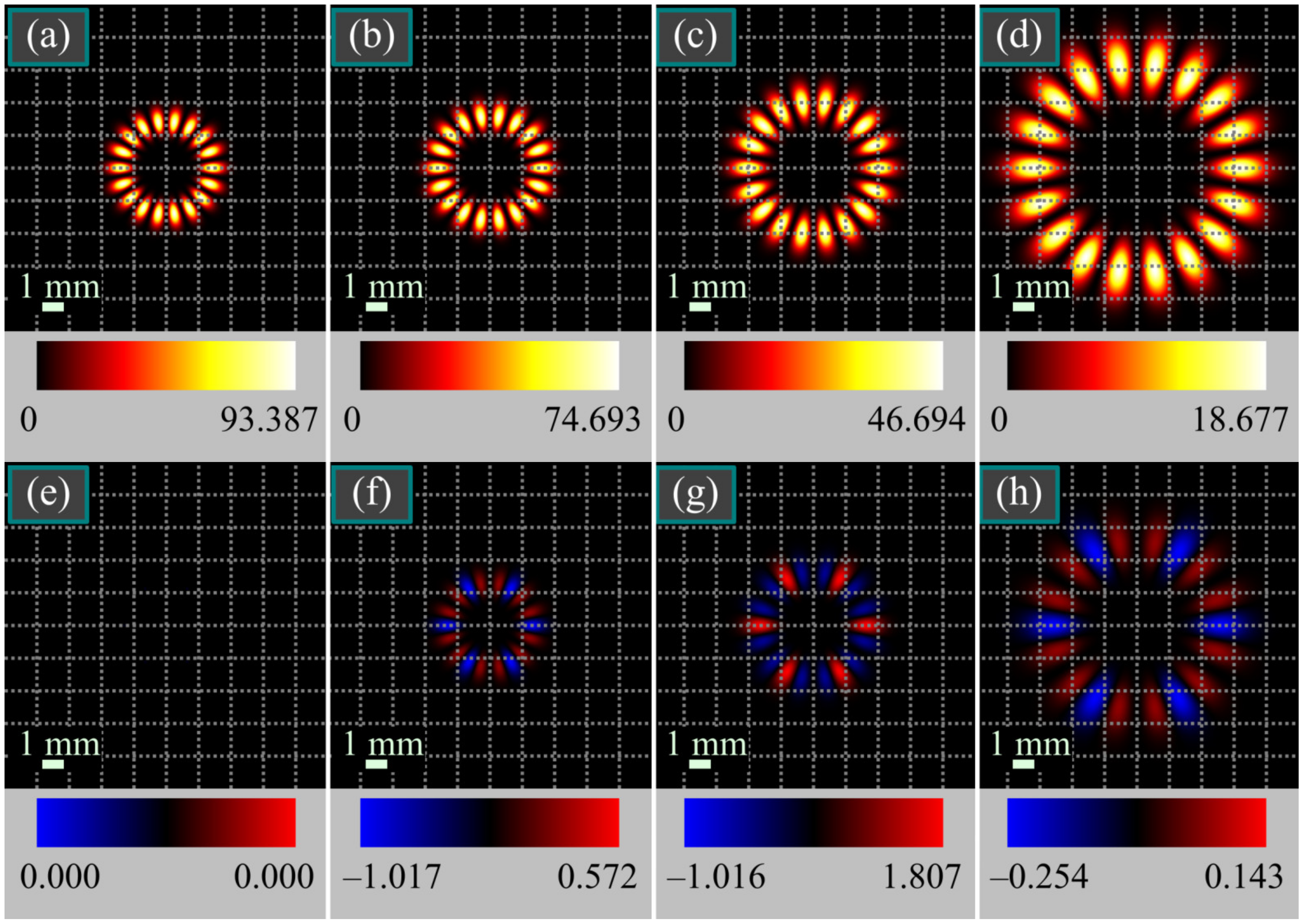

Figure 3 shows the intensity and SAM density distributions of the light field (2) in several transverse planes when n = 3m and α = β = 0.

Figure 3 confirms that the SAM density consists of petals, and the petals of one sign are present in pairs, whereas the petals of the opposite sign are present in singles.

According to Equation (11), zero SAM density should be in the following planes: z = 0, z = z₀ tan(π/6) ≈ 0.58z₀, and z = z₀ tan(π/3) ≈ 1.73z₀. These distances explain why the petals in Figure 3g (z = z₀) are inverted compared to petals in Figure 3f (z = z₀/2), and the petals in Figure 3h (z = 2z₀) are inverted compared to petals in Figure 3g (z = z₀).

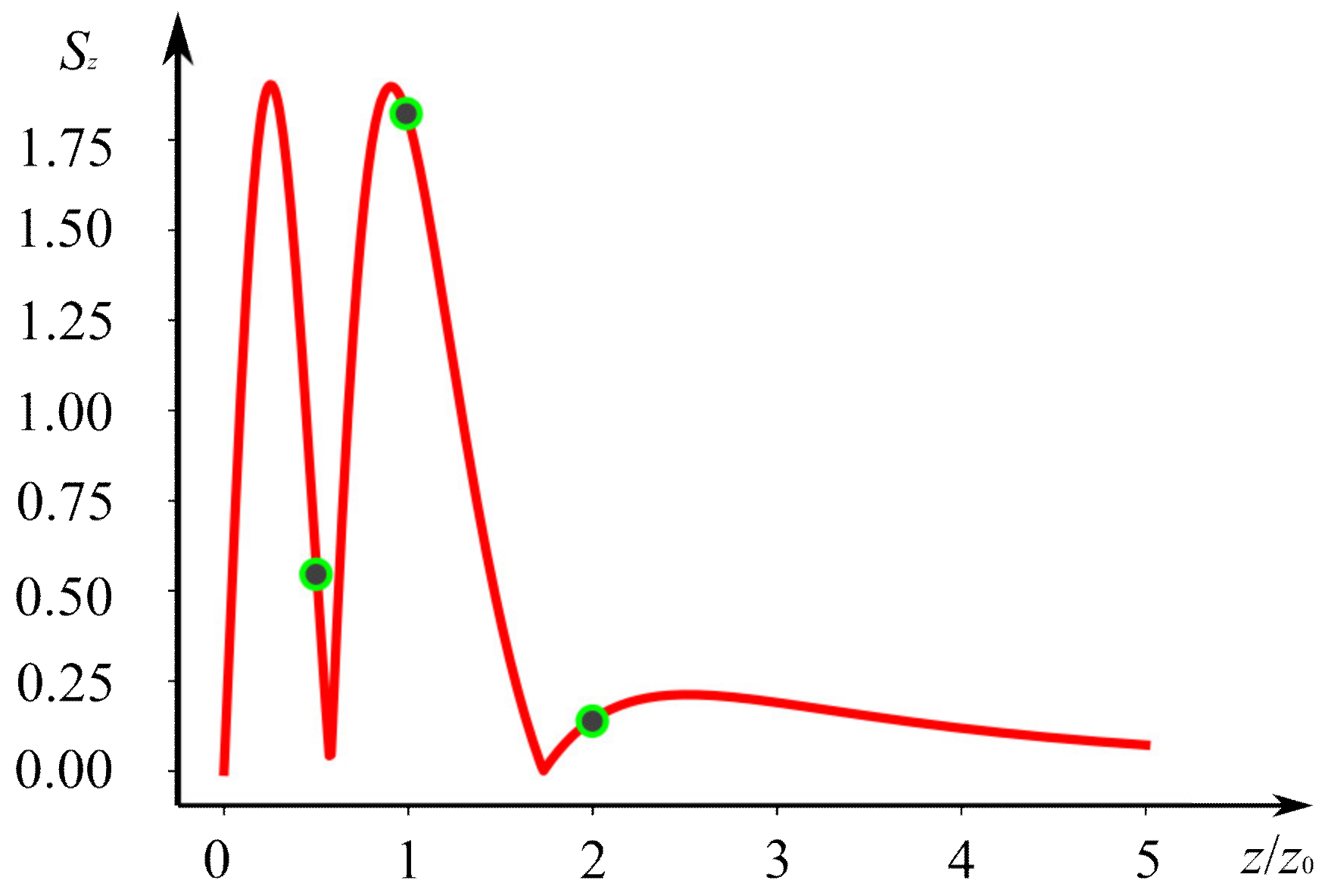

Figure 4 depicts the dependence of the maximal SAM density in each transverse plane on the propagation distance for the light field from Figure 3.

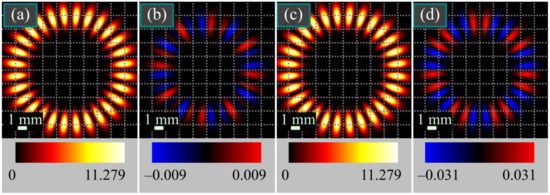

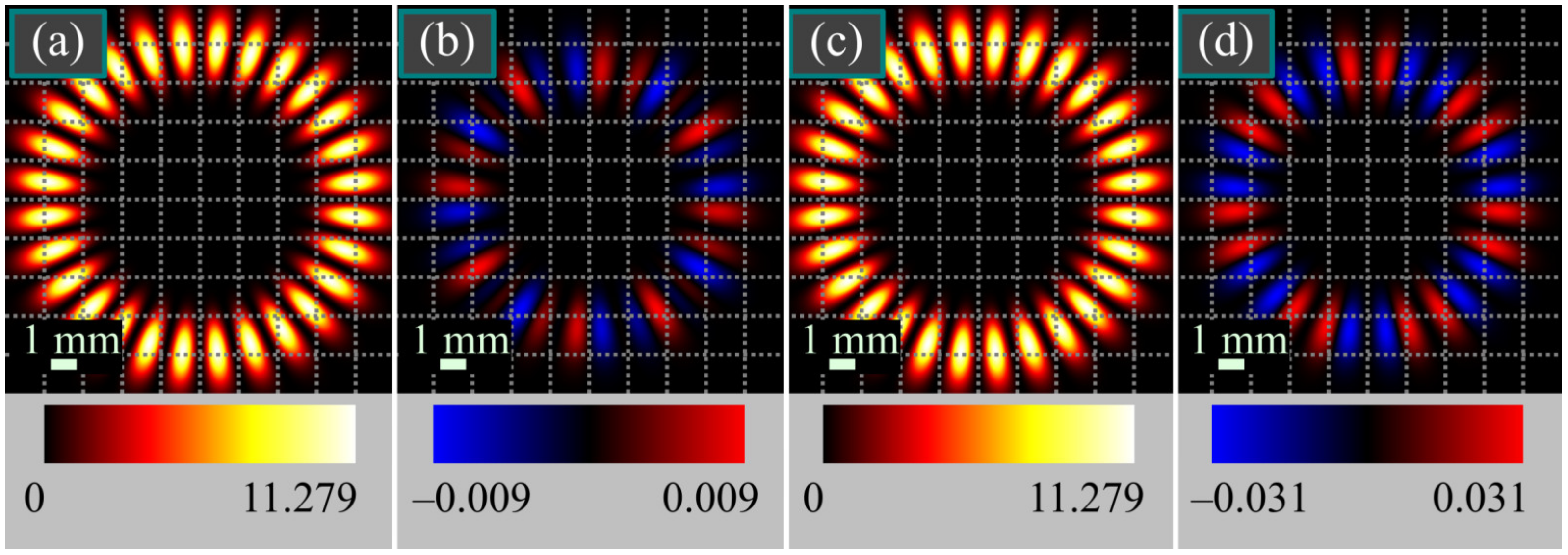

If the index n is high, but the index m is low, the intensity distribution of the component E_y significantly overwhelms that of the component E_x. Thus, for two close values m, the intensity distributions should look the same, but the SAM density distributions should be different. Figure 5 shows the intensity and SAM density distributions of the light field (2) in the plane z = 2z₀ when n = 14, m = 6 (Figure 5a,b), m = 7 (Figure 5c,d), and α = β = 0.

It is seen that, indeed, despite identical intensity distributions, SAM density distributions are qualitatively different. Thus, such beams can be used for hidden data transmission. If the incoming optical beam is identified by its intensity distribution, then it is not seen how it changes the third Stokes parameter, used for encoding the hidden data.

5. Discussion

There are a lot of works reporting on the spin Hall effect in various devices, like microresonators [4], metamaterials [5], or dielectric gratings [6]. The current work is our third work (after [2,3]) investigating the spin Hall effect in free space and without tight focusing conditions. In contrast to [2,3], there is no need to generate multiple spatially separated polarization singularities. Instead, one singularity in the beam center should be generated, but it should have a different order in the horizontal and vertical field components. We have not conducted an experiment yet, since generating such beams requires, after splitting the incoming light field into orthogonally polarized fields, either combining two different-order fork gratings on a spatial light modulator, or encoding two amplitude-phase distributions into phase-only elements using a technique like those described in [24,25]. However, the studied beams are easy to identify by using polarization analyzers and then by simply counting the lobes with right and left elliptic polarization.

6. Conclusions

In this work, we have demonstrated theoretically and by numerical simulation that when a vector propagation-invariant beam with two different indices propagates in free space, there are several planes, transverse to the optical axis, including the initial plane, where the spin density is zero. In the whole space between these planes, the spin Hall effect arises, i.e., there are several areas in the beam section, the count of which depends on the beam indices, where the spin is of different signs. Thus, the polarization state changes over the beam section from left circular and elliptic polarization to right circular and elliptic polarization, and, what is interesting, the intensity distribution in the beam section is not changed upon propagation, whereas the polarization state in each point is changed. This is because different transverse components of the electric field strength vectors E_x and E_y have different Gouy phases, and at different distances from the beam waist, the difference between the Gouy phases makes a different contribution to the spin angular momentum distribution. The beams studied here can be used for hidden data transmission in wireless telecommunication systems, if the data are transmitted by changing the polarization state without modifying the intensity distribution [26,27,28]. In addition, the investigated beams can be used as optical traps for several microparticles [29] or as pumping beams for pumping disc lasers based on whispering gallery modes, or for other perspective lasers [30].
