Processing Accuracy of Microcomb-Based Microwave Photonic Signal Processors for Different Input Signal Waveforms

Abstract

Microwave photonic (MWP) signal processors, which process microwave signals based on photonic technologies, bring advantages intrinsic to photonics such as low loss, large processing bandwidth, and strong immunity to electromagnetic interference. Optical microcombs can offer a large number of wavelength channels and compact device footprints, which make them powerful multi-wavelength sources for MWP signal processors to realize a variety of processing functions. In this paper, we experimentally demonstrate the capability of microcomb-based MWP signal processors to handle diverse input signal waveforms. In addition, we quantify the processing accuracy for different input signal waveforms, including Gaussian, triangle, parabolic, super Gaussian, and nearly square waveforms. Finally, we analyse the factors contributing to the difference in the processing accuracy among the different input waveforms, and our theoretical analysis well elucidates the experimental results. These results provide guidance for microcomb-based MWP signal processors when processing microwave signals of various waveforms.

1. Introduction

Microwave signal processors have found wide applications in telecommunication and radar systems [1,2,3,4]. Traditional microwave signal processors relying on electronic devices exhibit significant loss and strong crosstalk when handling high-frequency microwave signals, which make them suffer from limited operation bandwidths. To overcome this restriction, microwave photonic (MWP) signal processors that perform signal processing functions based on MWP technologies have attracted great interest [3,4,5,6].

A variety of MWP signal processors have been demonstrated by exploiting different optical filtering modules to process microwave signals that are modulated onto a single optical carrier [7,8,9,10,11,12,13,14,15,16,17]. Although these approaches perform well regarding achieving specific processing functions, they face limitations in their reconfigurability to realize diverse processing functions based on a single system. On the contrary, in MWP signal processors implemented based on the transversal filter structure [18], input microwave signals are modulated onto multiple optical carriers with adjustable time delays and tap weights before summing via photodetection. This enables high reconfigurability to achieve various processing functions without changing any hardware [2,18].

For MWP signal processors implemented by the transversal filter systems, a large number of taps, or the wavelength channels provided by multi-wavelength optical sources, are required to improve their performance. Compared to other multi-wavelength optical sources, such as discrete laser arrays [19,20,21], fibre Bragg grating arrays [22,23,24], laser frequency combs generated by electro-optic (EO) modulation [25,26,27], and mode-locked fibre lasers [28,29], optical microcombs can provide significantly increased numbers of wavelength channels by using compact micro-scale resonators [30,31], which is critical for improving the processing accuracy of MWP transversal signal processors. They also have the ability to offer broad Nyquist zones, which allow for large processing bandwidths [4,32,33]. With these advantages, a variety of signal processing functions have been successfully demonstrated using microcomb-based MWP signal processors, such as differentiation [34], integration [35], Hilbert transform [36], arbitrary waveform generation [37], and convolutional processing [38,39]. In addition to applications in microwave photonics, optical microcombs have also found wide applications in communications [40,41,42], logic operation [43], and sensing [44,45].

Although a range of signal processing functions have been realized, they only used Gaussian input waveforms for demonstrations, while the ability to handle various input signal waveforms is essential for practical applications. In this paper, we experimentally demonstrate the capability of microcomb-based MWP signal processors for dealing with various input signal waveforms. We investigate the processing accuracy of different input waveforms, including Gaussian, triangle, parabolic, super Gaussian, and nearly square waveforms. We also perform theoretical analysis and discuss the reasons for the difference in the processing accuracy among the different input waveforms. These results offer a valuable guide for microcomb-based MWP signal processors to handle microwave signals with different waveforms.

2. Microcomb-Based MWP Signal Processors

MWP signal processors based on the transversal filter are implemented based on MWP technologies, which can overcome the electrical bandwidth bottleneck by providing a substantially increased processing bandwidth. An MWP transversal signal processor has high reconfigurability in terms of its spectral transfer function, which can be expressed as [4]

$$H(\omega )=\underset{n=0}{\sum ^{M-1}}{a}_n{e}^{-j\omega n\mathsf{\Delta }T},$$

(1)

where ω is the angular frequency of the input microwave signal to be processed, M is the tap number, a_n (n = 0, 1, 2, …, M − 1) is the tap coefficient of the nth tap, and ΔT is the time delay between adjacent taps. By properly designing the various tap coefficients a_n (n = 0, 1, 2, …, M − 1), different signal processing functions can be realized by using a single system without changing the hardware.

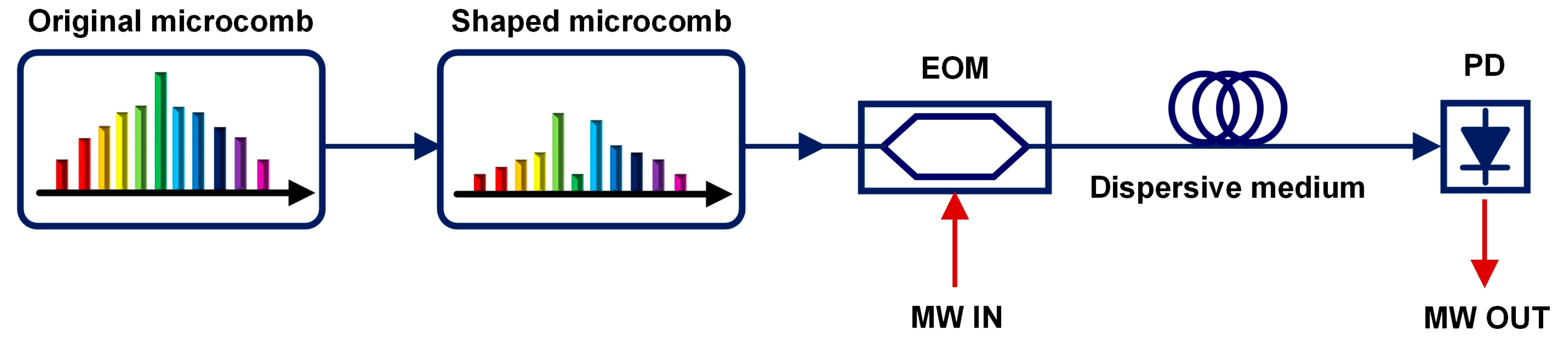

Optical microcombs enable MWP transversal systems to have small size, weight, and power consumption (SWaP) [30,31,46,47], and excellent compatibility with monolithic integration, making them powerful alternatives to conventional multi-wavelength optical sources. Figure 1 shows the schematic of a microcomb-based MWP signal processor. An optical microcomb is used to generate multiple wavelength channels that act as discrete taps for the transversal signal processor. The generated optical microcomb is spectrally shaped according to the designed tap coefficients a_n (n = 0, 1, 2, …, M − 1). Next, all of the wavelength channels of the shaped optical microcomb are imprinted with the input microwave signal via an electro-optic modulator (EOM), leading to the generation of multiple microwave replicas. Following this, the modulated optical signals transmit through a dispersive medium to introduce time delays ∆T, which progressively separate the microwave replicas. Finally, the delayed replicas are summed upon photodetection via a photodetector.

In principle, the microcomb-based MWP signal processor in Figure 1 can work with different types of optical microcombs, such as single soliton [48,49,50], dark soliton [51,52], and soliton crystal [53,54]. Before spectral shaping is used to achieve the desired tap coefficients, the initial comb with non-uniform power distributions in the comb lines can be amplified and pre-shaped to obtain a uniform power distribution. Therefore, the initial spectral shape of optical microcomb is not an essential factor for the realization of MWP transversal signal processors. It is also worth mentioning that as the optical microcomb primarily functions as a multi-wavelength source for the transversal signal processor, it can operate under relatively incoherent conditions. However, in many practical applications, high-coherence optical combs are still preferred. Optical microcombs operating under different states, including different types of solitons, as well as incoherent and especially chaotic states [49], can introduce additional noise and instability, thus leading to a decrease in the processing accuracy [30,46,47].

The operation bandwidth of the microcomb-based MWP transversal signal processor in Figure 1 is determined by both the comb spacing and time delay between adjacent wavelength channels. Generally, it remains constant unless there are changes to the hardware within the system, such as using an MRR with a different free spectral range (FSR) or employing a dispersion medium with a different length or dispersion parameter. According to the Nyquist sampling theorem, the sampling rate of a continuous-time bandwidth-limited signal needs to exceed twice its maximum frequency component to avoid aliasing. This constraint sets an upper threshold for the bandwidth of the input microwave signal to be processed, which should not surpass half of the microcomb’s comb spacing. On the other hand, the bandwidth of the input microwave signal should not exceed half of the FSR of the RF spectral response (FSR_RF), i.e., 1/2 · FSR_RF = 1/(2∆T). This sets another limitation for the maximum bandwidth of the input microwave signal. In our work, we focus on the influence of different temporal waveforms of input microwave signals on the processing accuracy of the signal processors. Detailed discussion on the influence of the input signal bandwidth on the processing accuracy can be found in Ref. [30].

3. Experimental Results

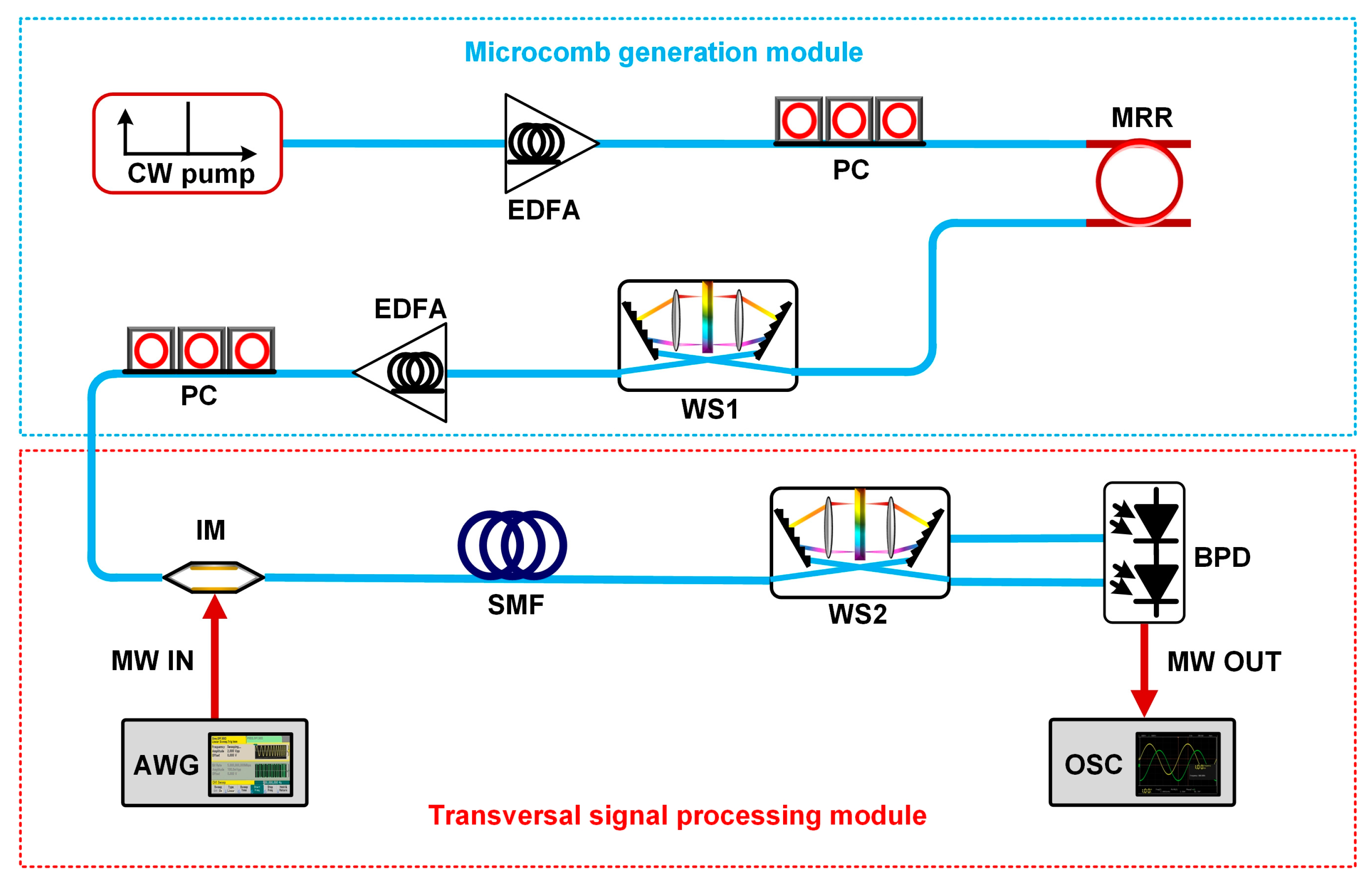

In our experimental demonstration, we implemented the microcomb-based MWP signal processors based on the setup shown in Figure 2, which consisted of a microcomb generation module and a transversal signal processing module. In the microcomb generation module, the optical microcomb was generated by a microring resonator (MRR) made from high-index doped silica glass [55]. The high-index doped silica glass offers attractive material properties for microcomb generation, including ultra-low linear loss (~0.06 dB/cm), a moderate nonlinear parameter (~233 W⁻¹·km⁻¹), and a negligible nonlinear loss even at extremely high intensities (~25 GW·cm⁻²) [55]. The MRR had a quality factor of ~1.5 × 10⁶. A continuous-wave (CW) light was amplified to ~32.1 dBm by an erbium-doped fibre amplifier (EDFA) and used to pump the MRR. The polarization of the CW pump was adjusted to TE polarization, which aligned with the TE-polarized resonance of the MRR at ~1551.23 nm. When the pump power of the CW laser was sufficiently high and its wavelength was swept across the MRR’s resonance at ~1551.23 nm, optical parametric oscillation occurred, resulting in the generation of a palm-like soliton crystal microcomb [56], as shown in Figure 3a. The MRR was designed to have a radius of ~592 μm, which corresponded to a comb spacing of ~0.4 nm or ~49 GHz. In our experimental demonstration, 20 comb lines were employed as discrete taps. The initially generated microcomb exhibited non-uniform power distributions among the comb lines, and so it was shaped by the first waveshaper (WS1, Finisar) to flatten the comb lines. This was carried out to achieve a higher signal-to-noise ratio and reduce the required loss control range for the second waveshaper in the transversal signal processing module, which further shaped the comb lines according to the designed tap coefficients.

In the transversal signal processing module, the shaped microcomb was modulated by the input microwave signal via an intensity modulator (IM) (iXblue). The input microwave signal was multicast onto different wavelength channels, resulting in the generation of multiple microwave replicas. Next, the microwave replicas were transmitted through a spool of single mode fibre (SMF), which served as the dispersive medium that introduced a time delay between adjacent wavelength channels, i.e., ∆T in Equation (1). The time delay ∆T can be further expressed as [4]

$$∆T=L\times D_2\times \mathsf{\Delta }\lambda$$

(2)

where L is the fibre length, D₂ is the second-order dispersion parameter, and ∆λ is the comb spacing. In our experiments, these parameters were L = ~5.124 km, D₂ = ~17.4 ps/nm/km, and ∆λ = ~0.4 nm, which resulted in a time delay ∆T = ~35.7 ps.

After passing the dispersive medium, the comb lines were spectrally shaped by the second waveshaper (WS2, Finisar) according to the designed tap coefficients a_n (n = 0, 1, 2, …, M − 1). Finally, the delayed microwave replicas were summed upon photodetection via a balanced photodetector (BPD, Finisar). The BPD separated the wavelength channels into two categories according to the sign of tap coefficients, achieving both positive and negative tap coefficients.

We took the first-order differentiation as an example to investigate the influence of different input signal waveforms on the processing accuracy of microcomb-based MWP signal processors. The spectral transfer function of the first-order differentiation can be described by [3]

$$H(\omega )=j\omega ,$$

(3)

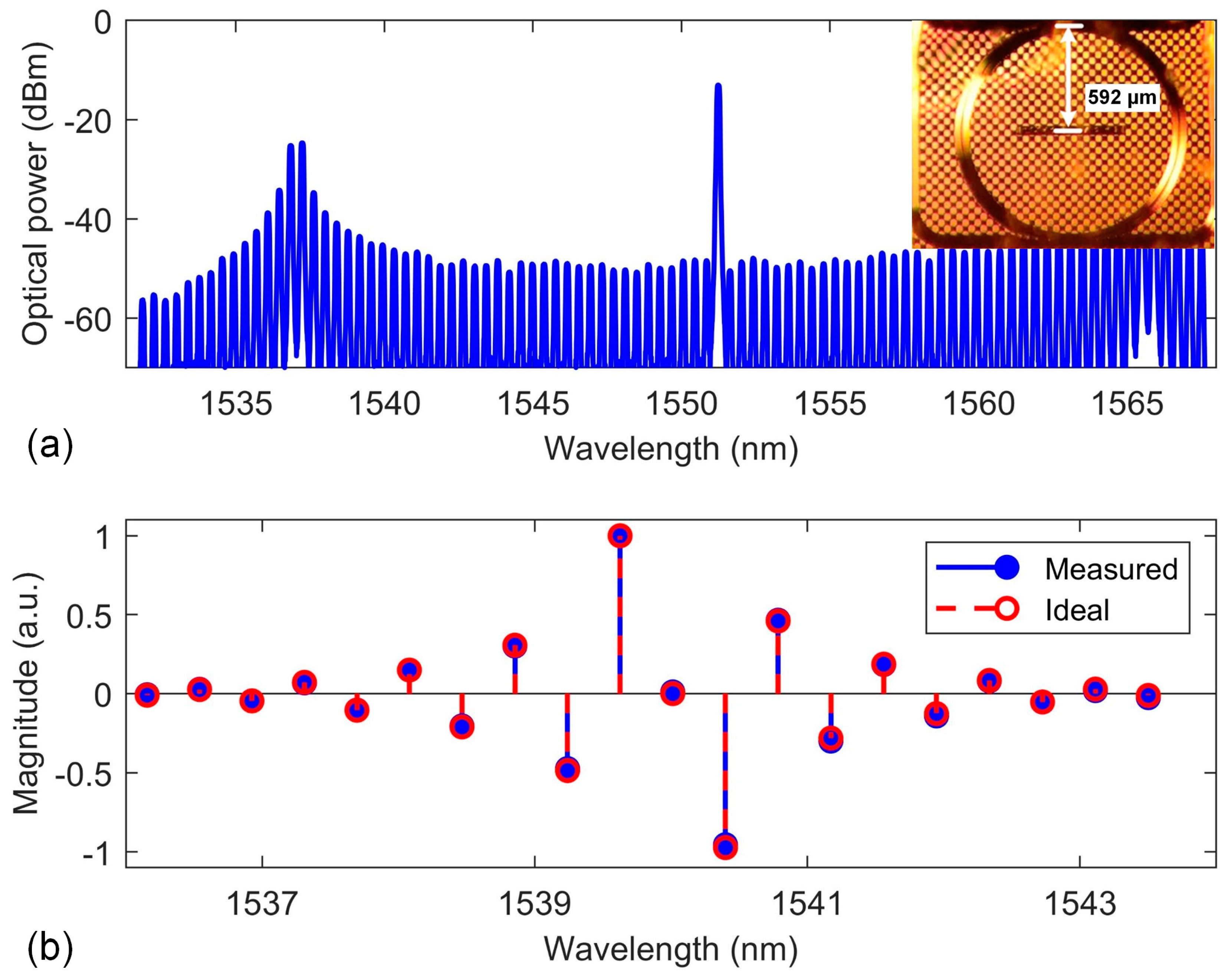

where j = $\sqrt{-1}$, and ω is the angular frequency. The ideal tap coefficients were calculated by performing an inverse Fourier transform of Equation (3), and the results are shown in Figure 3b. For comparison, the measured tap coefficients after spectral shaping of the comb lines are also shown. As can be seen, the measured tap coefficients closely matched with the ideal tap coefficients, indicating the achievement of effective spectral shaping.

We selected five different temporal waveforms for the input microwave signal, including Gaussian, triangle, parabolic, super Gaussian, and nearly square waveforms. The input microwave signals were generated by an arbitrary waveform generator (AWG, Keysight). As mentioned in Section 2, to prevent aliasing, the sampling rate of the input microwave signal needs to exceed twice its maximum frequency component. Thus, the bandwidth of the input microwave signal to be processed should not surpass half of the microcomb’s comb spacing, i.e., ~24.5 GHz. In addition, the FSR of the RF spectral response (FSR_RF) of the differentiator was 1/∆T = ~28 GHz. Therefore, the bandwidth of the input microwave signal should not exceed 28/2 =~14 GHz. Considering these factors, in our experiments, we employed input microwave signals with a full width at half maximum (FWHM) of ~0.2 ns (Figure 4a) and the primary frequency components resided within 14 GHz.

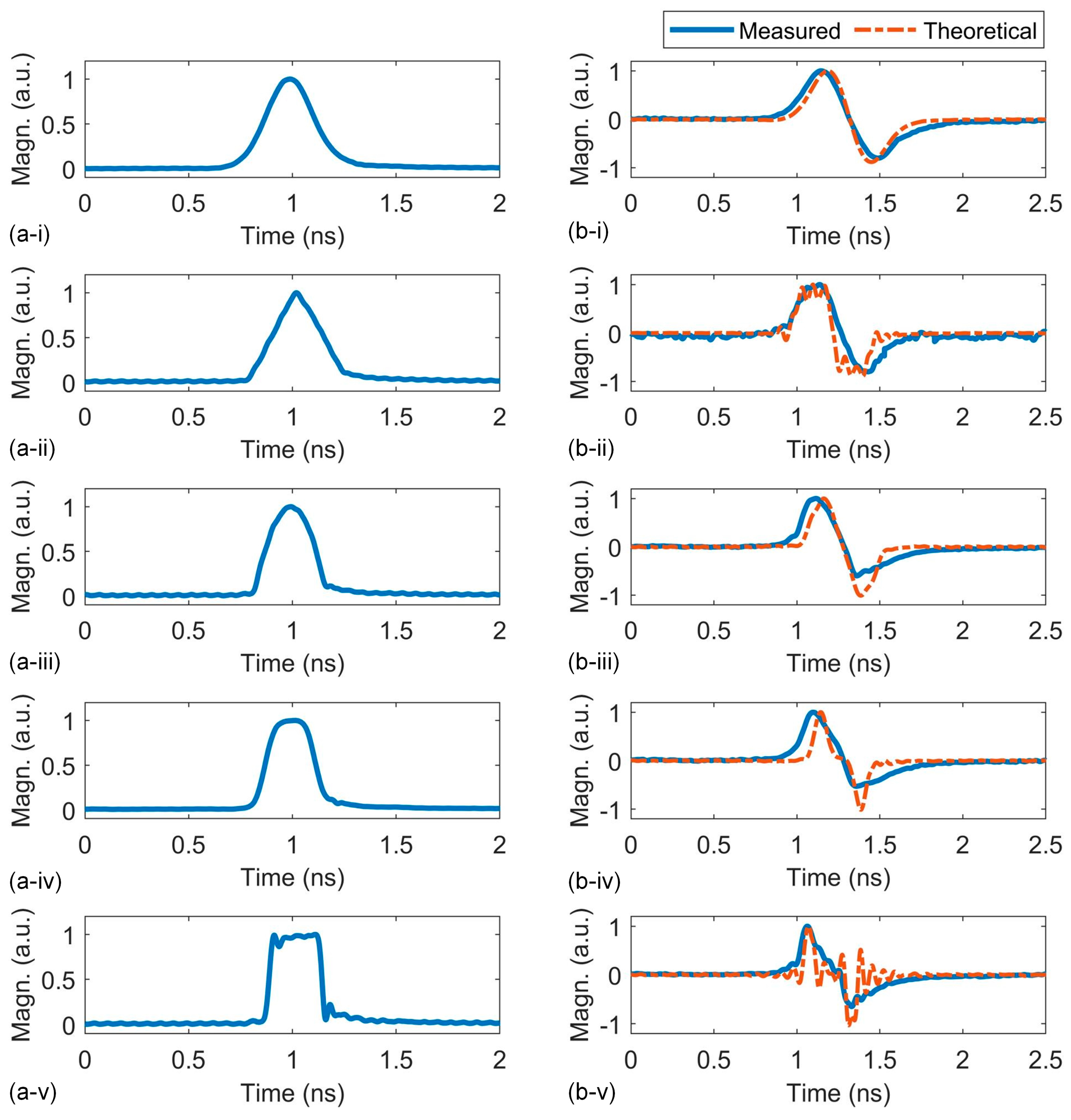

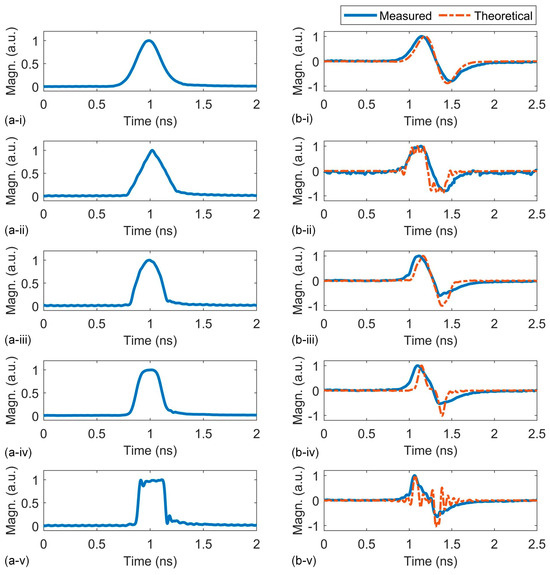

The signal processing results are shown in Figure 4b, which were measured by a high-speed real-time oscilloscope (OSC, Keysight). The theoretical outputs are also shown for comparison, which were calculated based on Equations (1)–(3). To facilitate a fair comparison, we used the recorded waveforms generated by the AWG as the input signal waveforms to calculate the theoretical outputs. As can be seen, all the measured outputs match with their corresponding theoretical outputs. Nevertheless, different input waveforms exhibit differences in the discrepancies between them. The Gaussian input waveform shows the lowest discrepancies, whereas the nearly square waveform displays the highest.

To quantify the processing accuracy of the processing results, the concept of root mean square error (RMSE) is introduced, which is defined as [30]

$$\mathrm{RMSE}=\sqrt{{\sum }_{i=1}^k\frac{{\left(Y_i-y_i\right)}^2}{k}}$$

(4)

where Y₁, Y₂, …, Y_k are the values of theoretical processing results; y₁, y₂, …, y_k are the values of measured output waveforms.

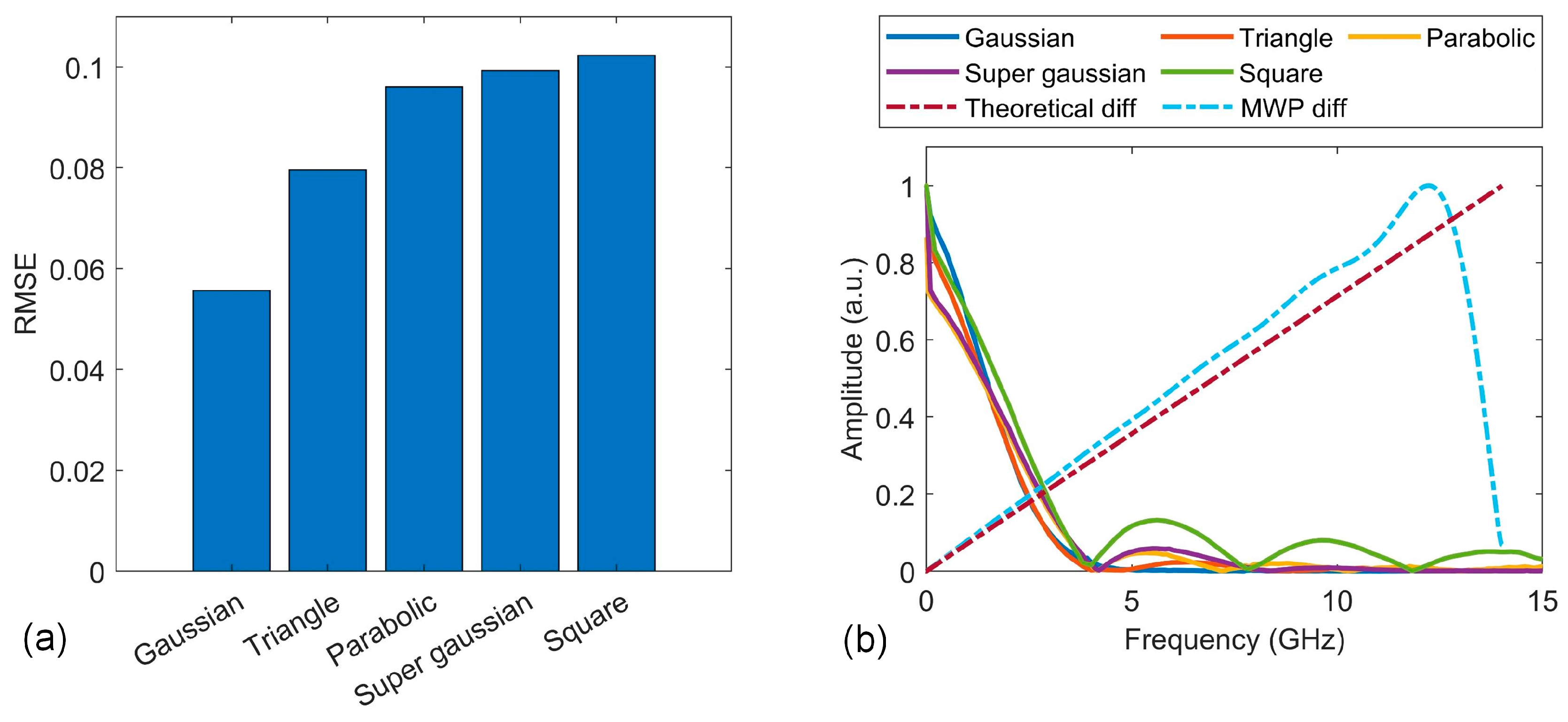

Figure 5a shows the RMSEs between the measured output waveforms and the theoretical processing results for different input signal waveforms. The Gaussian and nearly square waveforms have the lowest and highest RMSE values, showing agreement with the results in Figure 4b.

To analyse the reason for the differences in the processing accuracy for different waveforms, we further plot the amplitude frequency response of the processor and a theoretical differentiator in Figure 5b, together with the spectra of input signals with different waveforms. It can be seen that the deviations between the response of the transversal signal processor and the theoretical differentiator become more significant in the high-frequency range. On the other hand, the nearly square waveform contains greater high-frequency components than other waveforms, resulting in a reduction in its processing accuracy. In contrast, the Gaussian waveform has the least high-frequency components, enabling the highest level of processing accuracy.

4. Discussion

Based on the experimental results in Section 3, it can be seen that the processing accuracy varies for different input signal waveforms, even when performing the same processing function. The processing accuracy improves when there is better overlap between the high-intensity frequency components of the input signal and the low-error region of the MWP processor’s response spectrum.

In our system, uncertainties and noise are introduced by several sources due to the imperfect response of practical devices [57]. These sources can be classified into two categories, relying on whether amplitude or phase errors are introduced to the taps. The sources for amplitude errors include the amplitude noise of microcombs, chirp of EOM, high-order dispersion of SMF, shaping errors of waveshapers, intensity noise of PD, and limited response bandwidth and uneven transmission response of EOM and PD. The sources of phase errors include the phase noise of microcombs, high-order dispersion of SMF, and shot noise of PD.

To reduce the amplitude and phase noises of microcombs, mode-locking approaches, such as power kicking [58], self-injection locking [59], forward and backward tuning [60], filter-driven four-wave mixing (FWM) [61], two-colour pumping [62], integrated heaters [51], EO modulation [63], and self-referencing [64], can be employed to achieve microcombs with high coherence and stability [3,4]. Recently, some mode-locking approaches such as filter-driven FWM and self-injection locking have experienced significant improvement [61,65]. Some advanced mode-locking approaches have also been proposed, such as nonlinear dynamics engineering [66], cryogenic cooling [67], and auxiliary laser heating [68]. There are two main directions that are crucial for future improvement in practical applications. One involves achieving easily operated mode-locking without complex procedures [66] or self-emergence microcombs [69], the other is realizing mode-locking systems on a single chip, where, for example, significant advances have been achieved through the integration of actuators for the piezoelectric control of microcombs [70].

Introducing feedback control can effectively alleviate processing errors induced by slowly varying noises, such as the uneven gain or transmission response and shaping errors [3,30]. A feedback control loop can be adopted to calibrate the tap coefficients set for the second waveshaper in Figure 2, where the powers of comb lines are detected and then compared with the desired tap coefficients, yielding error signals for calibration. To further reduce the processing errors, two-stage feedback control can be introduced. One feedback loop can be employed in the microcomb generation module to achieve a uniform power distribution of the comb lines. This allows for uniform wavelength channel link gain and can also reduce the loss control range for spectral shaping in the transversal signal processing module. To minimize the intensity noise, multiple iterations along the entire feedback loop can be conducted. To reduce the phase noise, calibration can be achieved by using the phase-modulating capabilities of the waveshaper to compensate for the discrepancies between the measured and ideal phase response.

The photodetector in Figure 2 induces both intensity and phase noise. The intensity noise can be largely cancelled out by employing a BPD based on a balanced detection scheme. The phase noise arises from the shot noise, which causes random power fluctuations in the output microwave signal. The shot noise restricts the lowest achievable phase noise floor, and can be mitigated by using highly sensitive PDs [71].

Comb multiplexing technologies [72] hold promise in supplying additional discrete wavelength channels for the MWP transversal signal processors, which is beneficial for improving their processing accuracy. However, the augmentation of wavelength channels would also lead to a reduction in the channel spacing or processing bandwidth for the MWP transversal signal processors. Consequently, there is a trade-off that needs to be taken into account in practical applications [30,46,47].

For on-chip microcomb-based MWP signal processors, to improve the processing accuracy, feedback control is also required. Self-calibrating photonic integrated circuits have been proposed recently [73,74], where the calibration of impulse response was realized by introducing an optical reference path to establish a Kramers–Kronig relationship, followed by the computation of amplitude and phase errors. Apart from feedback control, there are some other ways to further alleviate the uncertainties and noise in the system. The chirp of silicon EOM can be minimized through the adoption of push–pull configurations and a p-n depletion mode structure [75], together with proper bias point calibration methods [76]. Gradient-descent control and calibration procedures can be employed to mitigate the shaping errors of integrated optical spectral shapers [76]. Integrated optical delay elements can introduce additional loss, especially when waveguides with high propagation loss are used. The incorporation of adiabatic Euler bends can be beneficial for achieving low-loss and low-crosstalk waveguide bends [77]. In addition, to enable large-scale integration, a wavelength-addressable serial integration scheme can be employed [78].

5. Conclusions

In summary, we experimentally demonstrate that microcomb-based MWP signal processors are capable of processing microwave signals with different temporal waveforms. We characterize the processing accuracy for different input signal waveforms, including Gaussian, triangle, parabolic, super Gaussian, and nearly square waveforms. We find that the difference in the processing accuracy for various input waveforms mainly results from the difference in their frequency components, as well as their overlap with the processor’s frequency response that exhibits different degrees of deviation from the ideal response. These results provide a useful guidance for microcomb-based MWP signal processors to process microwave signals with various waveforms.
