Response of Lead Fluoride (PbF₂) Crystal under X-ray and Gamma Ray Radiation

Abstract

Background: In this research, the response of a 10 × 10 × 10 mm³ commercially available PbF₂ crystal was experimentally assessed under X-ray and gamma ray radiation to verify the possible application of this material in X-ray medical imaging. Methods: The measurements were performed under X-ray from 50 to 130 kVp and gamma ray excitation (Tc-99m 140 keV and I-131 365 keV). The PbF₂ response was experimentally assessed by the determination of the absolute luminescence efficiency (AE), X-ray luminescence efficiency (XLE), and the stopping power of this scintillating crystal in terms of the energy absorption efficiency (EAE). The results were compared with bismuth germanate (BGO) crystal, which is commonly used in medical imaging modalities. Results: The AE of PbF₂ gradually decreased from 50 kVp up to 130 kVp. The maximum value was 0.61 efficiency units (EU) at 140 keV, and the minimum value was 0.03 EU at 71 keV (130 kVp). Similarly, low values appeared for the XLE, where the maximum value was 16.9 × 10⁻⁵ at 140 keV. Conclusions: These findings show that the PbF₂ scintillator has unacceptably low luminescence efficiency. Although PbF₂ can effectively absorb radiation, the scintillation light, at room temperatures, is negligible, and, thus, it could not be used in medical imaging applications in the examined energy range.

1. Introduction

Scintillators have been extensively examined in recent years with respect to a number of applications in high-energy physics, security systems, geophysical exploration, astrophysics laboratories, and, mainly, in medical diagnostics [1,2,3,4]. These radiation detection materials convert energy absorbed by X and γ radiation in sparks, i.e., photons of the optical region [5,6]. The most common inorganic scintillators are LSO, BGO, LYSO, YAP, NaI(Tl), CsI(Tl), CsI(Na), CdWO₄, and GAGG, and they have been well investigated. However, the list of inorganic scintillators is growing every year, and researchers all over the world are trying to develop new, heavy, non-hygroscopic scintillator materials which will have low production costs [7,8,9,10,11]. Inorganic scintillators are applied in various modalities of medical diagnostics: positron emission tomography (PET), single-photon emission computed tomography (SPECT), mammography, thermography, elastography, electrocardiography (ECG), etc. [12,13,14,15,16].

Medical imaging prioritizes limiting exposure to ionizing radiation to the lowest possible levels, as is recommended by the As Low As Reasonably Achievable (ALARA) principle [17]. However, the rapid development of medical imaging modalities sets new demands on scintillator properties. More specifically, scintillator properties such as rapid decay time are very significant for time-of-flight (TOF) applications in PET [18,19,20].

The accurate registration of the coincidence gamma photons is defined by the coincidence time resolution (CTR) of the detector. Nowadays, the shortest CTR reported value for a commercial device is 214 picoseconds (ps), when most of the devices on the market have CTR values from 310 ps to 400 ps [21,22,23]. The achievement of a 10 ps CTR limit will permit major improvement in TOF-PET performance. This will result in an increase in the accuracy and in the radiopharmaceutical factor to the millimeter and enhance the signal-to-noise ratio [24]. Therefore, during the past decades, investigation and progress of fast scintillators is on the rise [25]. Moreover, timing resolution will improve if gamma ray detection can be improved using Cherenkov light, produced by charged particles moving in a transparent material with velocities greater than 3 × 10⁸ m/s in the medium [26,27,28].

Fluoride single crystals have a broad transparency spectrum starting from the vacuum ultraviolet (VUV) to the infrared (IR) area. Furthermore, these crystals have several possibilities as VUV and IR scintillators [29].

Among the fluoride single crystals, a PbF₂ single crystal was selected as a possible scintillator for medical imaging [30]. The PbF₂ crystal is visually transparent, starting from 0.25 μm up to 15 μm, and its thermal conductivity (28 W/m/K) is very high [7]. The candidate crystal (PbF₂) has a huge advantage over formal scintillator materials, i.e., the large atomic number of lead (Pb) (Z = 82) increases the probability of a photoelectric effect [28]. For that reason, the absorption of all gamma ray energy in a unique interaction within the scintillator material also shows an increased probability [29]. Additionally, it is very dense (7.77 g/cm³) and has a very high photoelectric fraction, 46%, which, in turn, provides great stopping power for the 511 KeV photons [30]. PbF₂ is an extremely successful gamma ray absorber due to its high Z and density [31,32]. The recovery time of PbF₂ under the exposure of gamma rays (105 Gy for 14 days) has been estimated in the work of Kozma et al. from measurements of transmission spectra in the order of a few days [33].

It is a very fast material (decay time–6 and 30 ns) with a very low (0.93 cm) radiation length and a 2.2 cm Moliere radius [31]. The X-ray luminescence of orthorhombic PbF₂ has been previously reported at room temperatures, even with low energy excitation (30–50 kV) [32,33]. Furthermore, it is a low-cost material with a melting point of 822 °C [10]. These properties make PbF₂ a potential candidate for radiation detection, since a fine crystal (about 10 mm thick) will reduce the dispersion and the trajectory length of photons [34].

In this research, the luminescence efficiency (AE) of a cubic 10 mm commercially available PbF₂ single crystal was examined to investigate the efficiency of this medium in detecting ionizing radiation for X-ray and gamma ray medical radiographic applications. Excitation was experimentally measured for X-ray voltages from 50 to 130 kVp (X-ray radiography) and gamma rays (Tc-99m at 140 keV and I-131 at 365 keV). The PbF₂ response was experimentally assessed by the determination of the AE (describing the light output power per incident X-ray exposure). Additionally, X-ray luminescence efficiency (XLE) was examined, and, finally, the stopping power of this scintillating crystal was calculated via the energy absorption efficiency (EAE).

2. Materials and Methods

For the current research, a cubic PbF₂ polished crystal was purchased (Advatech, London, UK) [34]. Dimensions of the crystal were 10 × 10 × 10 mm³.

2.1. Calculations

Energy Absorption Efficiency (EAE)

Energy absorption efficiency is expressed by the percentage of incident X-ray energy absorbed in the examined crystal. In our investigation, this energy fraction was defined as a function of X-ray tube voltage (in kVp). EAE is determined by [35,36]:

$$EAE\left(E\right)=\frac{{\int }_0^{E_0}{\Phi }_0\left(E\right)E\left(\frac{{\mu }_{en}\left(E\right)/\rho }{{\mu }_{att}\left(E\right)/\rho }\right)\left(1-e^{-\left({\mu }_{att}\left(E\right)/\rho \right)dW}\right)dE}{{\int }_0^{E_0}{\Phi }_0\left(E\right)EdE},$$

(1)

where Φ₀(E) is the incident X-ray photon fluence on the scintillator; E is the photon energy; μ_en(E)/ρ is the corresponding total mass energy absorption coefficient; μ_att(E)/ρ is the radiation photon total mass attenuation coefficient; Τ is the thickness of the crystal; and the density is ρ (in g/cm³) [37,38,39]. Coefficients data for lead fluoride elements were obtained from the National Institute of Standards and Technology (NIST) data using the XmuDat photon attenuation database software [40,41,42].

2.2. Experiments

Experiments were performed using X-ray excitation by a CPI Inc. CMP 200 DR X-ray generator and an IAE model RTM90HS X-ray unit, from 50 to 130 kVp. An additional 20 mm Al filter was used to simulate attenuation by the human body. All experiments were performed at room temperature, with short exposure time intervals (1 s) to keep exposure as low as possible and no visible degradation of transparency (aging effects) [43]. Furthermore, Tc-99m (140 keV) and I-131 (365 keV) were also used to irradiate the crystal sample.

2.2.1. Absolute Efficiency (AE) and Output Signal

The luminescence efficiency and the output signal were defined for a range of X-ray energies. An integrating sphere (Oriel 70451) was used to collect the incident light energy of the crystal [37]. A photomultiplier tube (PMT) (EMI 9798) was used as a biased photodiode to collect the light at the output port, and an electrometer (Model 6430 Keithley) was connected to detect its current [38]. A digital multimeter (RTI Piranha P100B) provided the radiation dose rates.

Absolute efficiency describing the light output power per incident X-ray exposure was defined as [44,45]:

$$AE={\eta }_A=\frac{\dot{{\Psi }_{\lambda }}}{\dot{X}}=\left(\frac{i_{elec}}{S{\eta }_p{\alpha }_s{c}_g}\right){\dot{X}}^{-1}$$

(2)

where S is the scintillator’s irradiated area (in mm²); i_elec is the current of the PMT (in pA); η_p is the photocathode’s peak photosensitivity (pA W⁻¹); c_g is the geometric light collection efficiency of the experimental configuration; and α_s is the spectral matching factor connecting the emitted light spectrum of the scintillator and the spectral response of the photocathode. The units are: 1 EU = 1 μW m⁻²/(mR s⁻¹).

By multiplying the AE by exposure, the output signal can be obtained [37]. The output signal is expressed (in µW m⁻²).

2.2.2. X-ray Luminescence Efficiency (XLE)

XLE is a unitless quantity that characterizes energy-integrating detectors by quantifying the efficiency of the latter in converting X-rays to visible photons. XLE (η_Ψ) can be described as the ratio of the light energy flux produced by the crystal divided by the X-ray energy flux [35]:

$${\eta }_{\Psi }={\Psi }_{\Lambda }/{\Psi }_0$$

(3)

3. Results

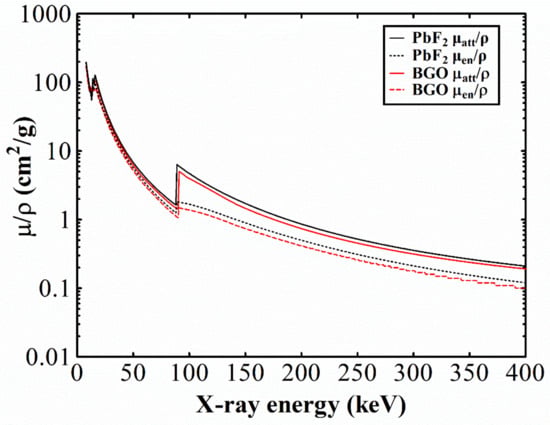

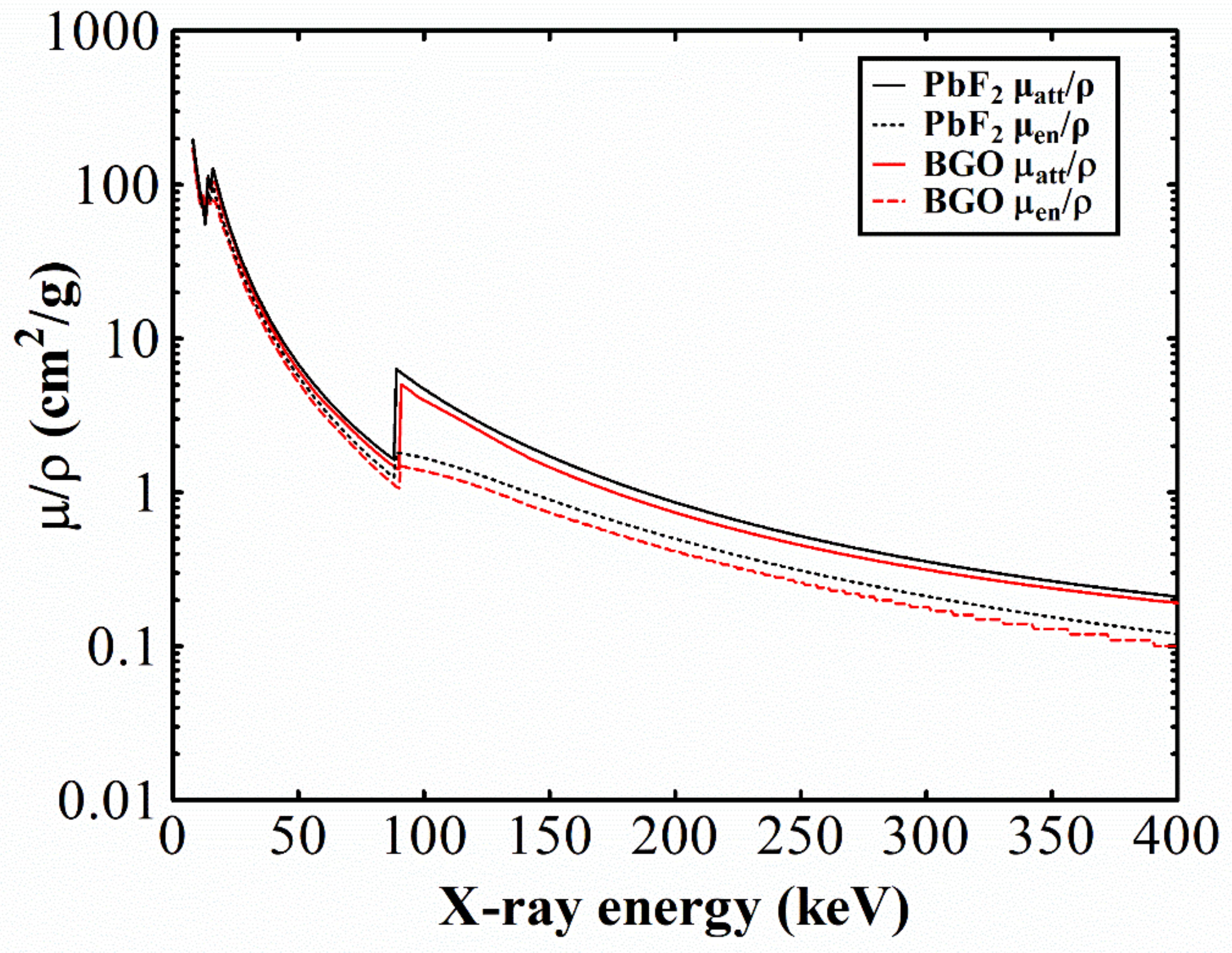

Figure 1 shows the energy absorption coefficients (μ_en(E)/ρ) and the attenuation coefficients (μ_att(E)/ρ) of PbF₂ and BGO for an energy range up to 400 keV. The corresponding X-ray experimental range of this study is up to 365 keV. The characteristic photoelectric absorption edges are also shown at the energy levels of ~13 keV, ~15 keV, and ~88 keV. From the calculated results shown in Figure 1, it can be depicted that PbF₂ seems to adequately absorb radiation with attenuation coefficient values higher than BGO across the examined energy range. These results show a crystal that fulfills the stopping power criteria required in applications such as medical imaging.

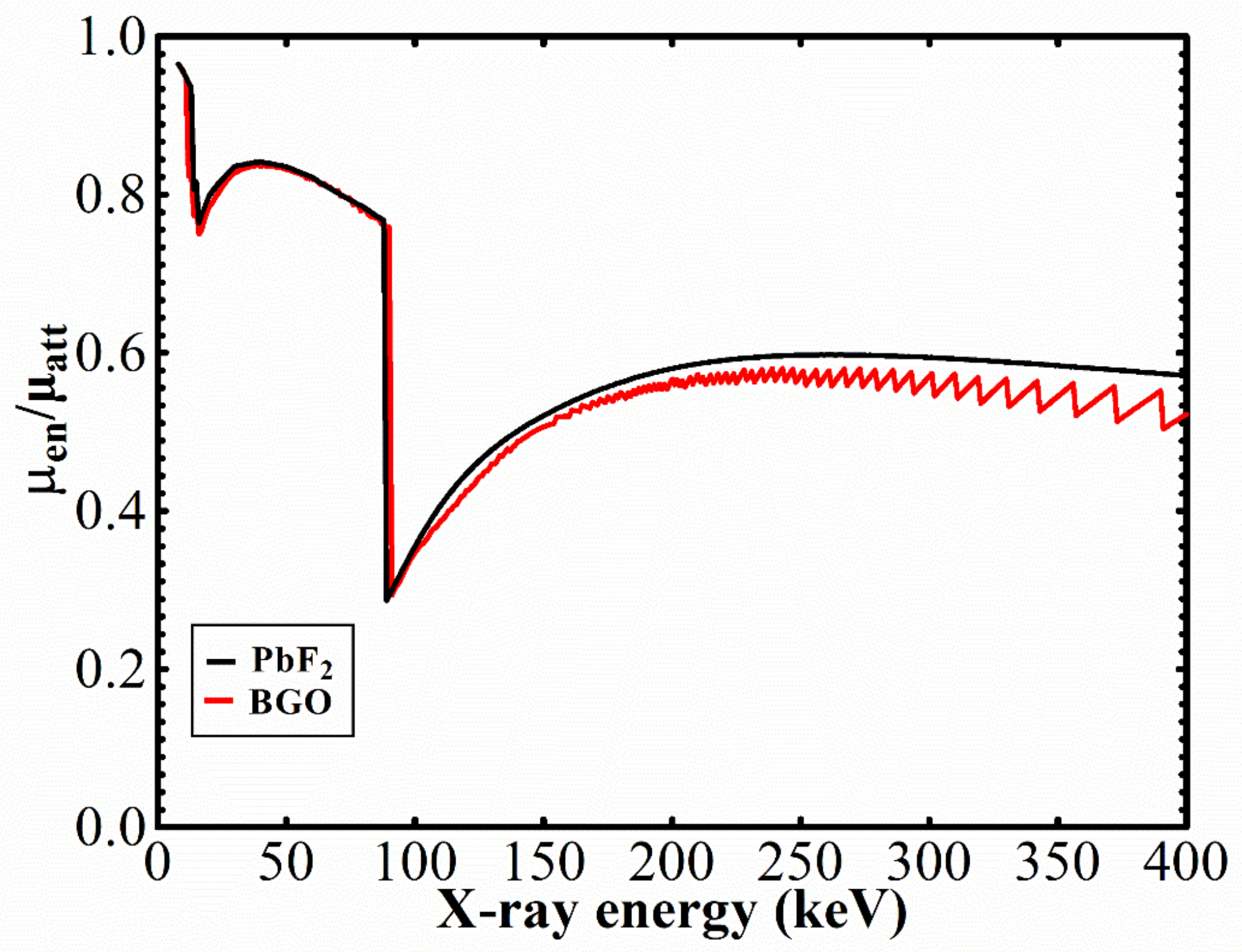

Figure 2 shows the ratio of the attenuation coefficients (μ_en/μ_att) that is used in Equation (1). In this figure, one can see the steep reduction in the coefficients ratio μ_en/μ_att occuring at the energy levels at which characteristic energy is produced. For example, this effect is evident at ~88 keV, due to the characteristic k-edges of the material.

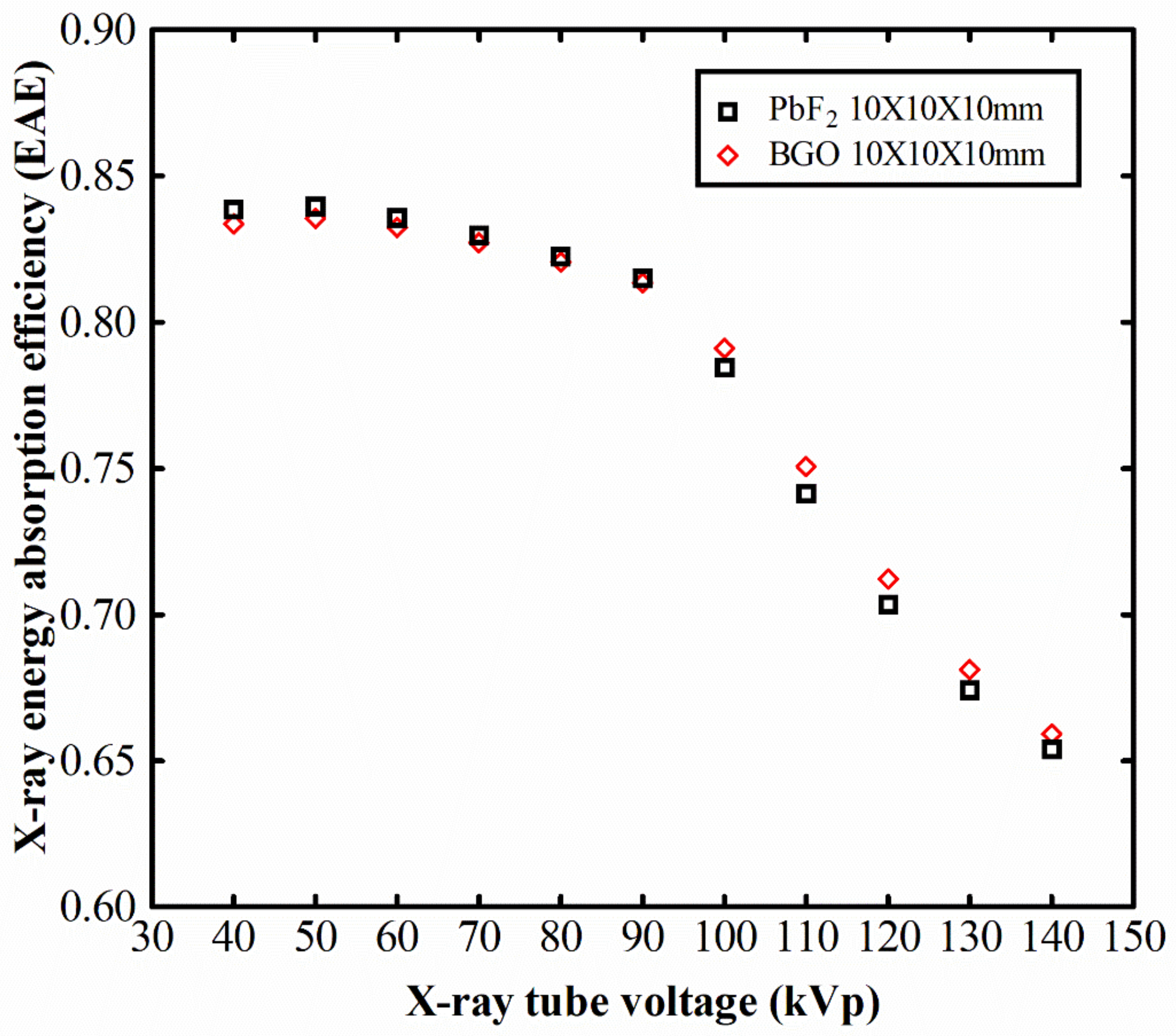

This effect contributes to the reduction in the energy absorption values of both materials. The reduction can be clearly shown after 90 kVp (Figure 3). In this figure, the EAE of PbF₂ is slightly higher than BGO up to 90 kVp. Thereafter, BGO shows slightly higher values. This change is also shown in Figure 2, in which the coefficients ratio of BGO overcomes PbF₂ in the k-edge energy level.

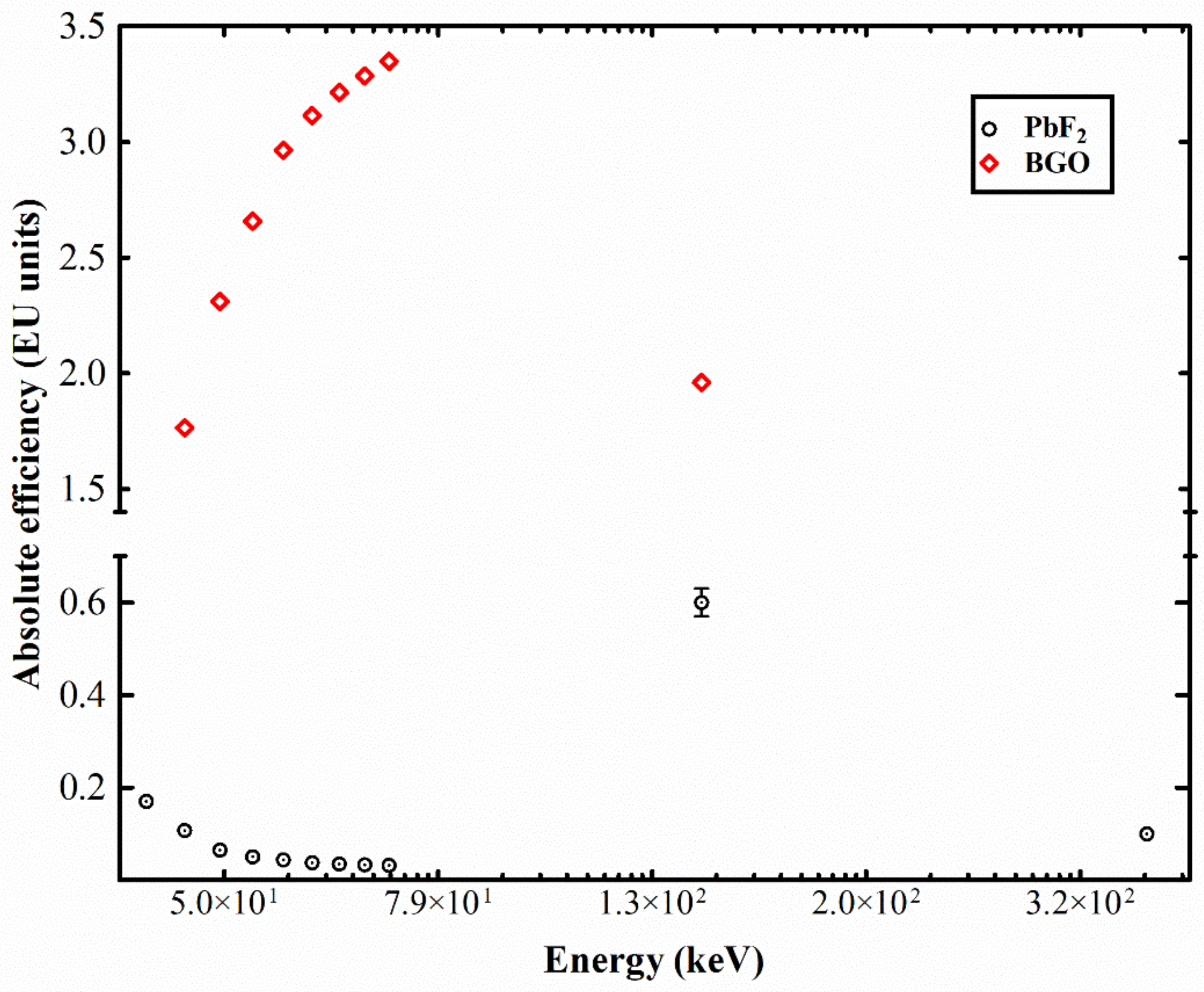

From the calculated results and the announced properties of PbF₂, further experimental investigation of the internal material properties was deemed appropriate in order to determine its suitability for application in radiographic imaging. Thus, Figure 4 shows the luminescence efficiency values of PbF₂ compared with a commercially available crystal used in PET scanners (BGO). Results are shown for the X-ray radiography and gamma ray energy ranges. However, whereas BGO values increased as the X-ray energy increased, the corresponding values of PbF₂ decreased in the whole X-ray energy range, with a minimum value of 0.03 EU at 71 keV. At this energy, BGO showed its maximum, with a value of 3.35 EU. In the gamma ray energy range, BGO [46] showed lower AE values, whereas, at the energy of 140 keV (Tc-99m), PbF₂ showed the maximum AE value (0.59 EU). The corresponding value for BGO was 1.96 EU. For higher gamma ray energies (365 keV I-131), the absolute efficiency values for the two materials were 0.1 EU for PbF₂ and 1.35 EU for BGO. This negligible output of PbF₂ has been previously depicted [40,41].

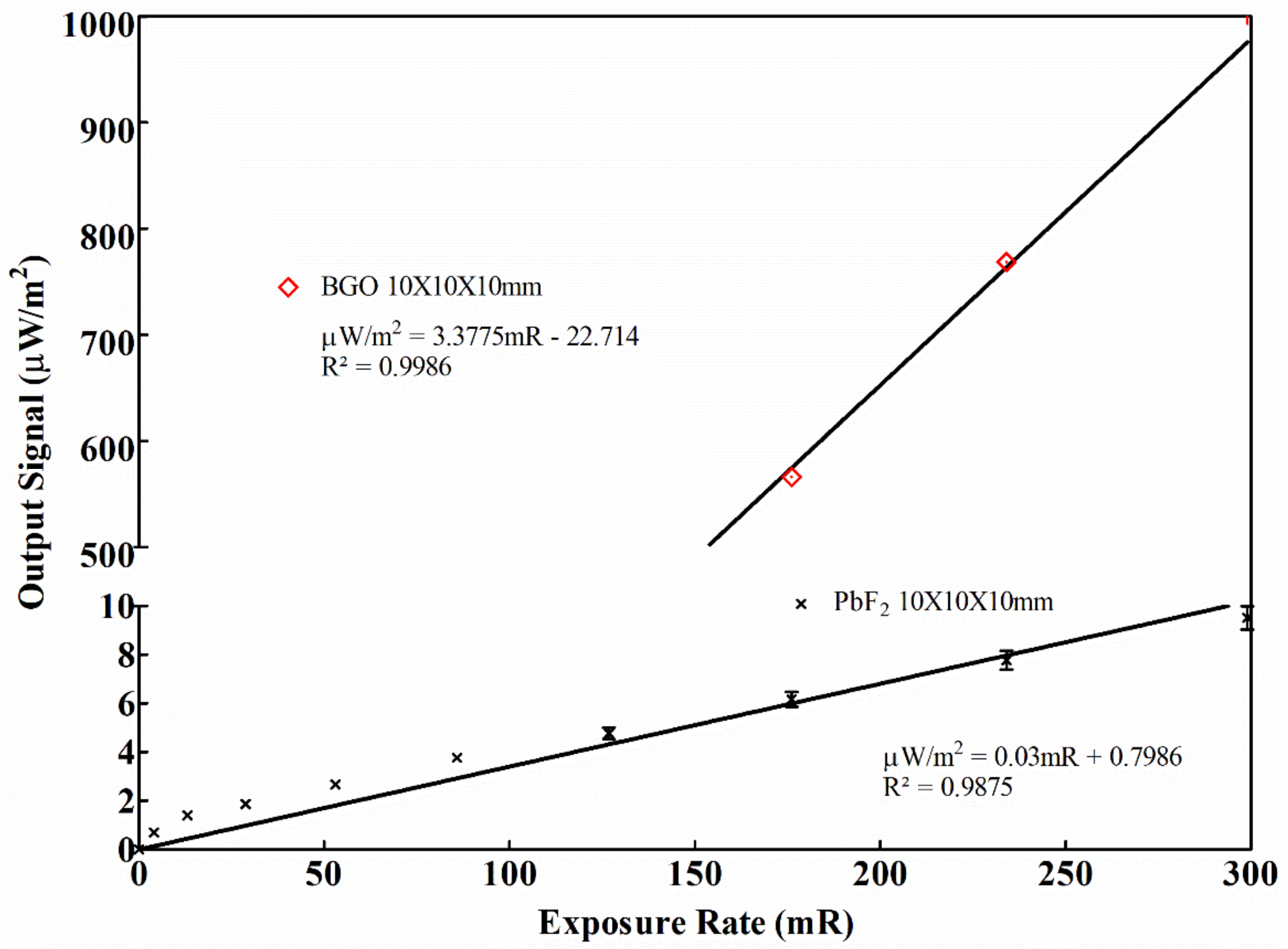

Regarding the output signal (Figure 5), a linear relationship was observed for both crystals in the X-ray energy range, with BGO having an R² value of 0.9986 and PbF₂, a value of 0.9875. The differences between the slope (i.e., detector optical gain) values (3.37 for BGO and 0.03 for PbF₂) reveal the unsuitability of PbF₂ for medical imaging applications in the radiographic energy range, despite the lower density of BGO (7.13 g/cm³) compared to PbF₂ (7.77 g/cm³).

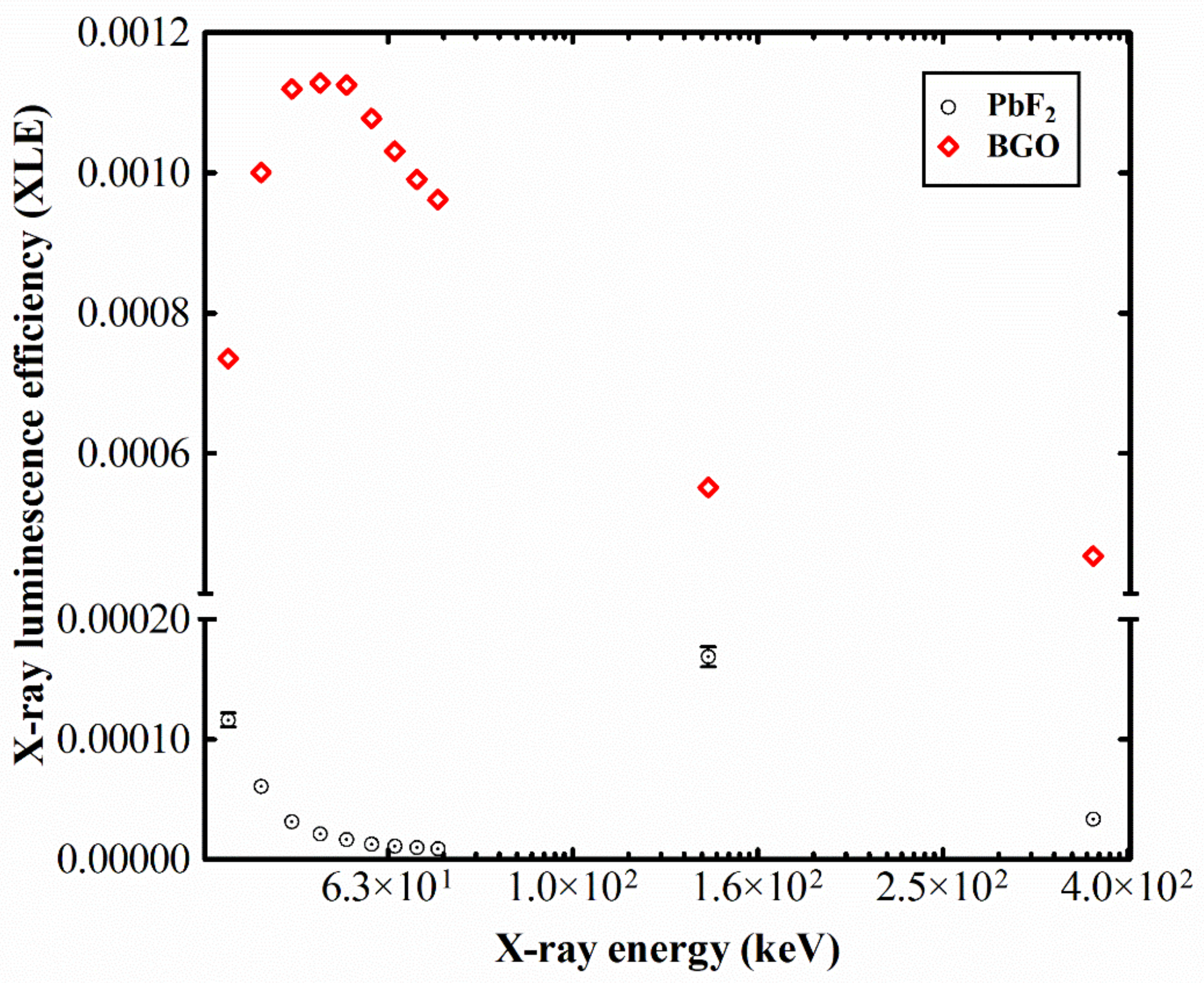

XLE values of PbF₂ are shown in Figure 6, against the corresponding values for BGO. PbF₂ XLE values started from 11.6 × 10⁻⁵ at 42.39 keV and decreased constantly thereafter in the whole radiographic range. The corresponding maximum value of BGO in the radiographic range was 11 × 10⁻⁴ at 53 keV. Under Tc-99m gamma ray excitation, the XLE of PbF₂ showed a local maximum (12.6 × 10⁻⁵ at 140 keV). In this energy, BGO had an XLE value of 55.1 × 10⁻⁵. Under I-131 gamma ray energy (365 keV), the X-ray luminescence efficiency of PbF₂ dropped to 3.4 × 10⁻⁵, whereas the corresponding BGO value was 45.4 × 10⁻⁵. Generally, XLE values follow a similar trend to the absolute efficiency, except for the fact that the differences in shape of AE and XLE curves are attributed to the fact that the LE is not affected by the X-ray fluence to exposure conversion factor.

4. Discussion

In recent years, a number of articles have depicted the potentiality of PbF₂ for use in various applications, among them medical imaging [20,47,48,49]. The single crystal PbF₂ has been extensively studied as a Cherenkov radiator for electromagnetic calorimetry. Thus, it would be very useful for many medical applications if it could be scintillated with a reasonable light output and a short decay time. Furthermore, the X-ray luminescence of orthorhombic PbF₂ has been previously reported at room temperatures, even with the low energy excitation that can be found in mammography and general radiography (30–50 kV) [32,33]. The provided high density value (ρ = 7.77), high atomic number (Ζ = 82), its transparency in near-UV radiation, and the low cost of this material, along with references for possible applications in medical imaging, intrigues the scientific curiosity for further investigation to verify or not the above-mentioned allegations [43,50]. Despite these advantages, during this study on the PbF₂ crystal, the produced light output (X-ray energy range) was extremely low [51].

However, all results converge on the conclusion that PbF₂ scintillation is quenched in the X-ray and gamma ray energy ranges in room temperature conditions. This is in accordance with previously published works, in which it was stated that PbF₂ emission was limited to a restricted number of photons/MeV of deposited energy [32,44]. Lead fluoride can be found in orthorhombic (space group 62, $D_{2h}^{16}$, cotunnite-type) and cubic (space group 225, $O_h^5$, fluorite-type) crystalline phases [52,53]. The properties of binary lead halides such as PbF₂ strongly depend on the presence of self-trapped carriers. These defects (self-trapped electrons, STEL, or self-trapped holes, STH) show low stability, and only 0.1 eV is enough for their delocalization, even at very low temperatures. The strong hole-trapping on Pb results in the extremely low light output of PbF_2. The Pb²⁺ ion belongs to the family of the ⁶S₂ ions. These ions are characterized by excitations from ¹S₀ ground state to the ³P₁, ³P₂, and ¹P₁ excited states. In this configuration, a relatively small lattice parameter is observed (5.94 A), and the Pb–Pb distance of 4 A results in a large wave function overlap and energy propagation through the crystal lattice [51,54].

Luminescence can be observed at liquid helium temperatures, depending upon the structure of the material (cubic or orthorhombic), since the very small energy of the self-trapped electrons (0.1 eV) eliminates the possibility for experimental light detection at higher temperatures [53,55]. The luminescence spectra of PbF₂ have been reported at temperatures of −271 °C, with a maximum at 2.2 eV [45]; however, luminescence is negligible for temperatures above −123 °C [53].

In order to avoid the hole-trapping, which results in extremely low absolute efficiency (AE), it would be useful to further examine the luminescence spectra of PbF₂ at temperatures near absolute zero (i.e., −271 °C) [55].

5. Conclusions

This research aimed to examine the possible application of the PbF₂ crystal to radiographic and nuclear medicine imaging. To this end, luminescence and scintillation properties of this material were examined in these energy ranges. The theoretical results regarding the attenuation coefficients and the energy absorption efficiency, in combination with the high stopping power of the material, showed promise, comparable to the established BGO crystal and even slightly higher. However, the experimental findings regarding the luminescence output of PbF₂ showed a completely different reality, with values significantly lower than BGO and, in every case, unacceptable for medical imaging applications.
