An Effective New Treatment of Fluoride-Containing Sludge Resulting from the Manufacture of Photovoltaic Cells

Abstract

The circular economy and maximization of environmental sustainability are increasingly becoming the vision and mission of companies competing in present-day global markets. In particular, in the energy sector, the transition from fossil fuels to renewable sources of energy has become the widespread mantra. One typical example is the deployment of devices which produce clean energy, such as solar photovoltaic panels and solar thermal panels, wind generators, tidal stream generators, wave power generators, etc. These are undoubtedly generating clean energy, but their manufacture creates hazardous by-products, the disposal of which results in increased environmental pollution. Chemical Vapor Deposition (CVD) is widely used in manufacturing of solar photovoltaic cells. In these processes, typically, crystalline silicon is precipitated from chlorosilanes, iodides, bromides and fluorides. Polluting by-products include deposition of a silicon film, formation of SiO₂ powder and formation of toxic vapors of HF, SiH₄ and PH₃. Usually, these gaseous products are eliminated in a central scrubber, whose unwanted by-product consists in large quantities of hazardous fluorine-containing sludge. This article concerns an effective and inexpensive detoxification of fluorinated sludge, developed by the authors during research into the sludge collected from the scrubber of a PV cell manufacturing plant located in southern Italy.

1. Introduction

Annual new solar PV system installations increased from 29.5 GW in 2012 to 107 GW world-wide in 2018. The global photovoltaic (PV) energy capacity was nearly 520 GW at the end of 2018 as installed power [1]. Thus, several hundred manufacturing plants have been setup worldwide, especially in Asia, to meet the growing demand.

China occupies a leading position with an installation rate of 175 GW at the end of 2018 (34% of the solar PV electric power capacity installed worldwide), thanks to the Chinese authorities’ ambitions for the development of the internal PV market.

Solar energy has significant advantages over traditional energy sources. First, it is an extremely pure form of energy and, second, its use on a large scale does not interfere with the Earth’s energy balance. It is estimated that without harm to the biosphere, it is possible to withdraw approximately 3% of the total solar irradiation of the planet.

However, environmental problems in the production of solar cells are similar to problems typical of the chemical and metallurgical industries. A variety of hazardous substances, including hydrochloric acid, sulfuric acid, nitric acid, hydrogen fluoride, and acetone are used in the solar cell production process.

The major raw material for the manufacture of silicon solar cells is trichlorosilane (a toxic silicon compound), which is subjected to distillation and is then reduced with hydrogen to obtain ultrapure crystalline silicon. Chemical vapor deposition (CVD) processes are widely used in solar cell manufacturing and include deposition of crystalline silicon from chlorosilanes, iodides, bromides, and fluorides [2].

Solar cells based on amorphous silicon (a-Si:H) can be fabricated from extremely abundant raw materials and involve almost no ecological risk during manufacturing, operation, and disposal. However, some hazardous gas (SiH₄, Si₂H₆, HF, PH₃ and SiF₄) mixtures are used to deposit a-Si:H. As a result, large quantities of unwanted by-products are generated, which usually go to the central scrubber of the plant. Their subsequent processing results in the formation of large quantities of hazardous fluoride-containing sludge, which is often discarded without further treatment. Its recycling is an important challenge for the photovoltaic industry [3,4]. If not properly treated or managed, it causes health and environmental problems. Instead, recycled, it can be recovered and transformed into artificial fluorite (CaF₂) or sodium fluorosilicate (NaSiF₆), which have economic and environmental benefits. Moreover, both materials can be used as substitutes for cement in construction.

Coagulation and lime precipitation are well-established techniques for fluoride removal. It has been previously demonstrated [5] that the removal of fluorides is maximized at pH 6–7 and that aluminum is a more effective additive than iron. In particular, aluminum and iron sulfates were added in different amounts with an initial fluoride concentration of 50 mg/L. The maximum fluoride removal was observed at pH 6–7 with an Al³⁺ concentration of 20 mmol/L.

In [6], aluminum sulfate (alum) and poly-aluminium chloride (PACl) were used as coagulants to remove fluoride, after which the sludge was used as a partial replacement for fine aggregates in the production of mortar.

Hu et al. [7] coupled electrocoagulation with flotation for the treatment of semiconductor production wastewater. The fluoride ions were partially removed by precipitation with calcium in the electrolytic cell, where sodium dodecyl sulphate was added to enhance flotation. These treatments were effective for reducing fluorides and suspended solids in the wastewater. Jiang and Zhou studied the effect of aluminum on the treatment of fluorine-containing synthetic wastewater by crystallization [8]. Wang et al. [9] demonstrated the effectiveness of calcium-containing precipitant calcite together with added precipitant fluorite to purify F-containing wastewater.

Instead of chemical precipitation, which produces large amounts of sludge, a fluidized bed reactor (FBR) can be applied to the treatment of wastewater containing fluorine [10]. This process represents a good alternative, in order to reduce solid waste and reuse calcium fluoride. Aldaco et al. [11] developed an original fluidization process to recover CaF₂ from a synthetic fluoride solution. Granular calcite and silica were used as seed materials so that calcium fluoride could be recovered by crystallization in the fluidized bed reactor. The inlet concentration of fluoride was 250 mg/L and the final fluoride conversion was 92%, with a CaF₂ content in the solid material of >97 wt%.

Shin et al. [12] precipitated more than 99 wt% HF and silicon during pretreatment of the solution and recovered Na₂SiF₆ with 98.2% commercial grade. The remaining solution contained 279 g/L acetic acid, 513 g/L nitric acid and some HF, and silicon was subjected to solvent extraction with 2-ethylhexyl alcohol. Acetic acid was stripped from the organic phase using deionized water, achieving 96.3% acetic acid recovery.

An integrated process including diffusion dialysis, anion exchange, and vacuum distillation was also developed to recover phosphoric acid from the mixed waste etching solutions containing CH₃COOH, HNO₃, and H₃PO₄ with Al and Mo as metal impurities [13]. Li et al. demonstrated the effectiveness of the phosphoric-sulfonic acid bifunctional group chelating resin to remove fluoride from the aqueous phase [14].

Quercia et al. [15] studied the possibility of SiO₂-CaCO₃ sludge recycling. The compressive strength and pozzolanic activity of standard cement pastes and mortars with 7wt% cement replacement were determined. The flexural and compressive strengths were similar to those of the fresh reference mortar. Nevertheless, minor replacement influenced the type and amount of hydrated phase, volume, porosity, and durability of the modified mortars, which requires further investigation.

Recycling of sludge composed of SiO₂-CaF₂ nanoparticles and recovered from treatment of wastewater of the semiconductor industry was investigated by Lee and Liu [16]. Dried and pulverized sludge was used to replace 5 to 20 wt% of the Portland cement in mortar. The compressive strength of the modified mortar was greater than that of the mortar composed of fresh cement after curing for 3 days. Moreover, the toxicity characteristic leaching procedure (TCLP) demonstrated that no heavy metals were released from the modified mortars. In another study, similar results were achieved using a different sludge produced from polishing operations of the integrated-circuit industry. This sludge, which is composed of hazardous compounds such as SiO₂, Al₂O₃, CaF₂, and unknown organics, was used to replace 10 wt% of the cement powder for concrete manufacturing. The compressive strength was comparable to that of ordinary Portland cement, whereas no metal release was detected by the TCLP test [15]. In another study, Lee [17] investigated the addition of PV sludge/fly-ash slag mixture for the production of cement mortar. The optimal mixture, as determined by the Taguchi method, was 20.9 wt% cement powder, 4.3% fly-ash slag, 3.4% PV sludge, and 71.4% sand. The optimal modified cement mortar showed increased compressive strength from the fourth day of curing onwards, reaching a maximum value of 132% after seven days with respect to the compressive strength of mortar composed of fresh Portland cement.

Bao et al. [18] attempted to recover silicon from PV waste sludge to manufacture next-generation lithium-ion batteries. The spray-drying method was used to recover silicon particles from the sludge, providing a high-grade and cost-effective silicon resource. Silicon carbide (SiC) is a reusable material in the slurry generated during wafer slicing. The slurry underwent filtration to remove organic liquids, was washed with ethanol, and underwent sequential treatments with NaOH and a mixture of HCl and HF to remove residual metals. The remaining SiC, once washed and dried, was used as a photocatalyst to produce hydrogen [19].

The recycling of PV industry sludge is important to prevent potential hazards to the environment. Thus, it is obvious that processing into a class of non-hazardous waste and further recycling will have a positive impact on the development of the industry. The aim of this study was to determine an efficient and low-cost detoxification of fluoride-containing sludge resulting from CVD processes collected after scrubber treatment in a PV plant located in Southern Italy.

2. Materials and Methods

2.1. Chemicals and Solutions

Silicon sludge waste was supplied by a PV thin-film solar cell plant located in Southern Italy. Fluoride-containing sludge resulting from CVD processes was collected after filter cartridge treatment.

Analytical grade reagents (Ca(OH)₂ and Al₂(SO₄)₃) were used for the experimental runs. For all fluoride-containing solutions, only polypropylene (PP) vessels were used for sample preparation and storage.

2.2. Analytical Methods

The XRF spectrophotometer (Spectro XEPOS 2000) and atomic spectroscope Agilent Synchronous Vertical Dual View (5100 ICP-OES, Agilent, Santa Clara, CA, USA) were used for chemical analyses of the wastewater and related precipitates.

Infrared spectroscopy (FTIR, Impact 410 Nicolet spectrophotometer, Thermo Fisher Scientific, Waltham, WA, USA) was used to characterize the obtained precipitate.

For fluoride content determination, the SPADNS method was used. Determining fluoride is based on the reaction of fluoride with a red solution of zirconium dye to form a colourless complex, so the colour intensity of the solution corresponds to its concentration, with a 95% confidence interval. The Dr. Lange F-Standard Cuvette Tests (0.1–2.5 mg/L F) were used and then fluoride were measured with a Dr. Lange Spectrophotometer 145 (XION 500, Hach Company, Loveland, CO, USA) at the 580 nm wavelength.

2.3. Experimental Methods

During the precipitation step, 10 wt% solutions of Ca(OH)₂ were gradually added to the studied sludge under constant stirring until reaching the desired pH. The mixture was further stirred for 2 h to ensure that precipitation equilibrium was reached. Precipitation tests were performed at pH 1.5–8.9 at room temperature (25 ± 2 °C). The final pH was then measured and the precipitate separated from the slurry via vacuum filtration, washed with demineralized water, and subsequently dried at 105 °C overnight. Precipitation tests with Al₂(SO₄)₃ were performed simultaneously with lime.

The settleability of the sludge obtained from the wastewater treatment was measured using the 30 min settling test (SV30 test). First, 100 mL of well-mixed sludge and treated water was transferred to a measuring cylinder and equilibrated for 30 min. The volume of the precipitated sludge was subsequently measured.

Moreover, to determine the hazard level of the solid precipitates, the samples were subjected to TCLP according to UNI EN 12457-2.

3. Results and Discussion

3.1. Characterization of the Sludge

To determine the chemical composition of the sludge (water content 84.6%), the samples were centrifuged to achieve liquid/solid phase separation.

Based on X-ray fluorescence (XRF) measurements, the main components of the crystal phase were found SiO₂ (

Table 1. Semiquantitative analysis of the crystal phase of the sludge.

	% w/w
	SiO2	SO3	Al2O3	P2O5	Fe2O3	K2O
Crystal Phase	99.65	0.22	0.03	0.026	0.018	0.011

).

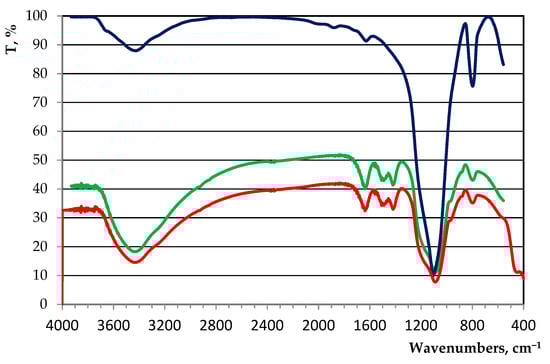

The crystal phase of the sludge obtained from wastewater treatment was analyzed by infrared (IR) spectroscopy. The obtained IR spectra of the crystal phase of the studied sludge before (green line) and after drying (red line) were characteristic of SiO₂ nH₂O (blue line; Figure 1).

The elution of fluoride ions from the sludge was studied. The crystal phase after filtration was washed with distillated water in a 2:1 ratio. Concentration of elements in the liquid phase of the sludge and washing water are given in

Table 2. Characterization of the Liquid Phase of the Sludge.

	pH	mg/L
		Si	F	K	Ca	Na	Fe	P	Al
Liquid phase	1.3	1612	6000	4.9	14.2	10.8	6.1	2.8	0.34
Washing water	1.5	1038	2260	1.5	9.0	2.9	2.0	0.6	0.14

.

The release of pollutants from the sludge may endanger landfill management. Based on the results of the analysis of the studied sludge, it can be classified as hazardous waste (CER code: 100118*) due to the high concentration of fluorine.

3.2. Efficiency of Fluoride Removal and Sludge Generation by Different Reagents

The core objective of these experimental studies was to achieve the production of non-hazardous waste. For this reason, various regents and procedures were applied.

In the first set of experiments, the efficiency of fluoride removal obtained after precipitation with Ca hydroxides was studied from pH 1.5 to 8.9. The composition of the liquid phase of the sludge after treatment at different pH values and centrifugation is presented in

Table 3. Quantitative analysis of the liquid phase of sludge after treatment with lime at different pH values.

pH	Ca(OH)2, g/L	mg/L
		Si	F	K	Ca	Na	Mg
1.5	-	1612.2	6000	4.9	14.2	10.8	4.5
4.2	5.2	119.3	185	6.1	13.2	0.2	1.1
6.2	10.5	82.7	68	4.7	24.5	0.4	1.5
8.9	12.2	76.8	37	4.8	31.9	3.4	1.89

.

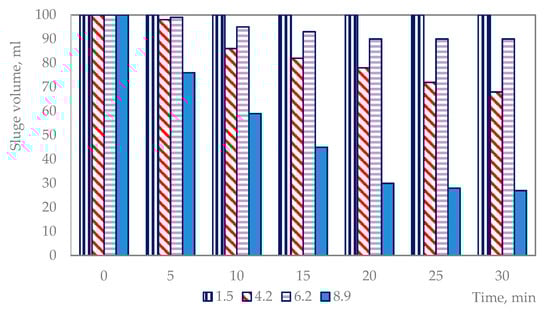

The settleability of the sludge generated by lime treatment was analyzed using the SV30 method. The sludge generated after treatment at pH 8.9 was completely precipitated within 20 min, whereas the sludge generated after treatment at pH values of 4.2 and 6.2 was not settled after 30 min (Figure 2).

By adding calcium hydroxide and correspondingly increasing the pH from 1.5 to 6.2, polymerization of the sol of [mH₄SiO₄nH₃SiO⁴⁻(n − x)H⁺]^x− to the gel xCaO^.ySiO₂^.zH₂O occurred. Here, the solvent molecules were enclosed in a flexible, but fairly stable three-dimensional network formed by the added hydroxide particles.

Increasing pH values above 7 resulted in the formation of negatively charged OH⁻ groups on the surface of the particles. This led to enhanced adsorptive capacity of Ca²⁺, creating favorable conditions for the formation and deposition of calcium-silicate complexes. Here, increasing the pH to 8–9 resulted in gel destabilization and improved filtration properties of the formed sludge.

The results of the experiments suggest that fluoride and phosphate removal by hydrated lime involves a combination of chemical adsorption on the surface of the lime particles, ion exchange of F⁻ with OH⁻, and some direct precipitation.

From

Table 4. Characterization of the liquid phase of sludge after treatment with lime.

	pH	mg/L
		Si	F	K	Ca	Na	P
Liquid phase	8.0	12	37	0.2	21.0	8.2	<0.1
Washing water 1	7.8	8.3	27.8	<0.1	7.5	1.5	<0.1
Washing water 2	7.1	4.3	16.4	<0.1	3.2	0.5	<0.1

, it is clear that fluoride removal from the liquid phase was 99.4% at pH 8.9, with final fluoride concentration in the solution of 37 mg/L.

After the crystal phase separation, two washing steps were performed. The residual solutions, washing water 1 and 2, contained concentrations of F⁻ of 27.8 and 16.4 mg/L (Table 4).

To reduce the residual fluoride content in the liquid phase, application of aluminium sulfate (Al₂(SO₄)₃18H₂O) was investigated. As the original liquid phase of the sludge was characterized by high pH value, reagent was added at the beginning, before adding calcium hydroxide. In this case, the aluminium salt hydrolysis products ([Al₈(OH)₂₀]⁺⁴) were the center of the formation of calcium phosphate and calcium fluoride during the addition of lime.

Alumina in the process of extracting fluoride ions acts as an anion exchange resin, whose surface was saturated with various adsorption centers [20,21]. On the other hand, along with the precipitation with lime, chemical interaction between the fluoride and aluminum ions with the formation of sorbed alumina fluoride complexes occurred as follows:

$${\mathrm{Al}}^{3+}+{\mathrm{nF}}^{-} \to {\left({\mathrm{AlF}}_{\mathrm{n}}\right)}^{3-\mathrm{n}}$$

(1)

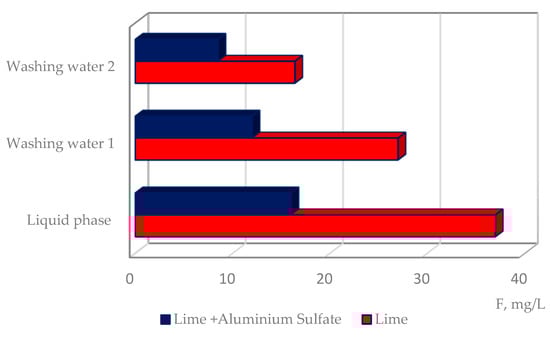

The results of the experiments demonstrate the advantages of sludge defluorination by lime combined with aluminium sulfate. Residual concentration of fluoride decreased from 37 to 14.9 mg/L (Figure 3).

The resulting crystal phase showed good filtration characteristics. The precipitate generated after treatment with lime and Al₂(SO₄)₃ was completely precipitated within 10 min, which is twice as fast as that observed when precipitating only with lime.

This research has proven that joint use of aluminum sulfate and lime was effective in the treatment of silicon sludge waste supplied by a PV thin-film solar cell plant. Results of the experiment identify the optimum dosage of reagents to obtain maximum fluoride removal and allow us to draw the following conclusions.

The process is more effective if staggered as follows:

• Adding powder of aluminum sulfate and stirring for 15 min. This time is required for hydrolysis of the reagent and formation of a positively charged complex [Al₈(OH)₂₀]⁺⁴ that can play the role of nucleating agent.
• Adding o10% solution of Ca(OH)₂ up to pH = 8–9 at constant mixing for 1 h 45 min.
• Following precipitation.

Under these conditions, the effect of the removal of fluoride from the liquid phase was 99.9 %. Concentration of fluorides in the liquid phase after treatment was below the discharge standard of fluoride in industrial wastewater (15 mg/L) which made it possible to reintroduce it into the scrubbing cycle.

On the other hand, according to the results of the TCLP test (UNI EN 12457-2) of the crystal phase, after lime and aluminium sulfate treatment, only 8.5 mg/L of fluorides remained in the solution. As a result, the lime-Al₂(SO₄)₃ treatment allowed the transformation of hazardous (CER 100118*) to non-hazardous (CER 100119) waste.

4. Conclusions

The results of the experiments demonstrate that sludge defluoridation via treatment with lime was 99.4%, with a residual fluorine content in the liquid phase of 37 mg/L.

The introduction of aluminium sulfate during the last stage of purification reduced the residual fluoride concentration in the liquid phase of the sludge to 14.9 mg/L and reduced the sedimentation rate of the crystal phase by half.

The obtained IR spectra and results of the XRF analysis of the crystal phase of the sludge were characteristic of SiO₂ nH₂O.

According to the TCLP test of the crystal phase, the lime-Al₂(SO₄)₃ precipitation of fluorides allowed for the transformation of hazardous waste (CER 100118*) to non-hazardous (CER 100119) waste according to the European Waste Catalogue and Hazardous Waste List.
