Next Article in Journal
The Influence of Hydrodynamic Changes in a System with a Pitched Blade Turbine on Mixing Power
Previous Article in Journal
Machine Learning for Ionic Liquid Toxicity Prediction
Previous Article in Special Issue
Magnetite and Hematite in Advanced Oxidation Processes Application for Cosmetic Wastewater Treatment
Review

Graphitic Carbon Nitride-Based Composite in Advanced Oxidation Processes for Aqueous Organic Pollutants Removal: A Review

Department of Mechanical, Chemical and Industrial Design Engineering, ETSIDI, Universidad Politécnica de Madrid (UPM), 28012 Madrid, Spain
*
Author to whom correspondence should be addressed.
Processes 2021, 9(1), 66; https://doi.org/10.3390/pr9010066
Received: 26 November 2020 / Revised: 26 December 2020 / Accepted: 27 December 2020 / Published: 30 December 2020

Abstract

In recent decades, a growing number of organic pollutants released have raised worldwide concern. Graphitic carbon nitride (g-C3N4) has drawn increasing attention in environmental pollutants removal thanks to its unique electronic band structure and excellent physicochemical stability. This paper reviews the recent progress of g-C3N4-based composites as catalysts in various advanced oxidation processes (AOPs), including chemical, photochemical, and electrochemical AOPs. Strategies for enhancing catalytic performance such as element-doping, nanostructure design, and heterojunction construction are summarized in detail. The catalytic degradation mechanisms are also discussed briefly.
Keywords: graphitic carbon nitride; aqueous organic pollutants removal; advanced oxidation processes graphitic carbon nitride; aqueous organic pollutants removal; advanced oxidation processes

1. Introduction

In recent years, environmental pollution, especially water pollution, is increasingly becoming a major concern worldwide. Many organic pollutions, such as pharmaceuticals and personal care products (PPCPs), pesticides, and organic dyes are toxic and refractory [1,2,3,4]. Various techniques have been developed to eliminate aqueous organic pollutants (e.g., extraction, adsorption, biological treatment, and advanced oxidation processes) [5,6,7,8,9]. Advanced oxidation processes (AOPs) are regarded as effective techniques for organic contaminants removal from water and wastewater [10,11,12,13,14].
The AOPs utilize highly reactive species (mainly hydroxyl radical, •OH) to oxide the organic pollutants into less toxic or no-toxic products such as CO2 and H2O [15,16]. According to supplied energies and reactive species, AOPs can be categorized as photocatalysis, electrocatalysis, sonolysis, ozonation, Fenton/Fenton-like reactions, and sulfate radical-based AOPs (SR-AOPs), among others [17,18]. In recent decades, numerous studies have been conducted to develop novel AOPs. Emerging energy sources (e.g., ionizing radiation with electron beams and γ-radiolysis, pulsed plasma, etc.) were applied, and different reactive species (such as periodate or ferrate reagent) were introduced [19,20,21,22]. Considering the merits of different AOPs, combinations of various processes are more common approaches to enhance degradation efficiency [21]. Although some AOPs (e.g., UV/H2O2, UV/peroxymonosulfate (PMS)) work properly without catalysts, employing catalysts can significantly reduce energy and reagent (source of reactive species) consumption [23]. Therefore, designing an effective and stable catalyst is a crucial strategy for the development of AOPs.
Graphic carbon nitride (g-C3N4), known as a metal-free polymer semiconductor, has attracted increasing attention due to its unique electronic band structure, anti-photocorrosion, excellent physicochemical stability, and easy availability [24,25]. The bandgap of g-C3N4 is about 2.7 eV, which enables it to absorb all viewing range of solar irradiation. The valance band (VB) and conduction band (CB) mainly encompass nitrogen and carbon pz orbitals while VB top and CB bottom are located at about +1.4 and −1.3 eV, respectively [26,27,28]. The study of g-C3N4 can be traced back to 1834, when Berzelius first synthesized a polymeric derivative of g-C3N4, and Liebig named it melon [29]. In 2006, Goettmann and his co-workers investigated Friedel–Crafts reactions that can be catalyzed by g-C3N4, which is its first application in the catalytic field [30]. In 2009, g-C3N4 was demonstrated as a good metal-free photocatalyst for water splitting by Wang et al. [26]. Up to now, g-C3N4 has been in-depth studied and extensively applied in photocatalysis. The g-C3N4 preparation relies on (solvo)thermal polymerization of nitrogen-rich precursors such as melamine, dicyandiamide, and urea [31]. In addition, hard/soft temple-assisted methods and sol-gel methods are frequently used to modify the synthesis approaches. The reaction parameters such as precursors and temperature could significantly affect the physicochemical property, including specific surface area, bandgap, etc. [32]. However, the pure g-C3N4 encounters several drawbacks, including tiny surface area, inefficient use of visible light, low electric conductivity, and fast recombination of photo-induced carriers, which are not beneficial to its catalytic activity [33,34]. To address these issues, a lot of efforts such as (1) engineering the nanostructure of g-C3N4 [27,35,36,37], (2) introducing heteroatoms (metals [38,39,40,41,42,43,44] or non-metals [45,46,47,48,49,50]), (3) coupling with other semiconductors [51,52,53,54,55,56,57] and (4) co-polymerization [58,59,60,61] were made. g-C3N4 based composites hold unique advantages for organic pollutants removal from groundwater and wastewater due to the good adsorption capacity of g-C3N4 for organic molecules, which could be attributed to strong intermolecular forces like hydrogen bonding, π-π interactions between pollutant molecules and residual amino groups in the g-C3N4 fragment [62,63]. On the other hand, introducing extra sources of reactive species such as H2O2 or PMS in photocatalysis can significantly increase degradation efficiency [64,65]. Furthermore, some studies have explored g-C3N4 based composites for organic pollutants removal without light irradiation in the presence of PMS or H2O2 [66,67,68,69].
Some excellent reviews on g-C3N4 based composites involving pollution remediation have been published [25,31,70,71]. g-C3N4 based composites as photocatalysts for water purification have been summarized in these reviews, while no reviews involve other AOPs such as chemical AOPs and electrochemical AOPs. The dramatically increasing amounts of g-C3N4 based composites in the range of AOPs fields requires a broader, thorough, and up-date assessment. This review is mainly focused on the application of g-C3N4 based composites in chemical AOPs and electrochemical AOPs. The challenge and strategies for enhancing photodegradation performance using g-C3N4 based composites as photocatalyst were also included.

2. Chemical AOPs

The chemical AOPs started as early as the application of the Fenton reaction to water treatment, in which •OH can be generated from the catalytic decomposition of H2O2 by Fe2+ for the destruction of various organic pollutants (Equation (1)) [10].
Fe2+ + H2O2 + H+ → Fe3+ + •OH + H2O
With the increasing demand for water treatment, various oxidants such as O3, PMS, peroxydisulfate (PDS) were applied in chemical AOPs. The PMS and PDS could be heterogeneous activated, and reactive species such as •SO4 are subsequently generated to degrade organic pollutants [72,73,74]. Table 1 summarizes the part of a representative study using g-C3N4 based composites as a catalyst in chemical AOPs.
Pure g-C3N4 holds inert activation performance of oxidants such as H2O2 and PMS. Considering that g-C3N4 has excellent affinity to entrap transition metal ions, metal doping is the main strategy for improving the catalytic activity. Oh et al. investigated the catalytic activities of Me-doped g-C3N4 (Me = Cu, Co, and Fe) as PMS activator for sulfathiazole degradation. Among the prepared catalyst, Co-doped g-C3N4 (0.59 wt% Co) exhibited the highest degradation efficiency for sulfathiazole, while excessive metal doping and surface defects (-C≡N) had a scavenging effect for •SO4 [91]. The authors further studied Fe-doped g-C3N4 for acid orange 7 degradation, and the non-radical pathway was proposed [84]. Li et al. prepared Fe doped g-C3N4 as PMS activator for phenolic compounds degradation. (Fe (V) = O) generated from the oxidation of Fe(III)-N was proposed as dominant reactive species [67]. In another work, Fe doped g-C3N4 was also employed in PMS activation for phenol degradation. Authors investigated the ratio of 46% and 54% of Fe (III) and Fe (II) via Mössbauer spectra, while the XPS survey spectra suggested the primary Fe on the surface of the catalyst was in the 3+ state. It was proposed that the Fe (II) complex heterolyzed at the O-O bond of activated PMS to form Fe (IV) = O, which was the primary active species [89]. In PMS/Mn-doped g-C3N4 system, superoxide radical was firstly generated due to the PMS bounding to the Mn-N site, and singlet oxygen produced by superoxide radical was proposed as the responsible reactive species for acetaminophen degradation [80]. Ma et al. synthesized Cu (I)-doped g-C3N4 for the removal of rhodamine B in a Fenton-like reaction. Cu (I) could be firmly embedded in g-C3N4 and reactive species produced by the interaction of H2O2 and Cu (I) [81]. The unique adsorption capacity of g-C3N4 for some organic pollutants also leads to superior degradation performance. Xie et al. investigated that different monochlorophenols isomers (2-chlorophenol, 3-chlorophenol, and 4-chlorophenol) could be degraded efficiently using Co-doped g-C3N4 as a catalyst in the presence of PMS. It was confirmed that the degradation rate was in the same order as the adsorption quantity [79]. This was attributed to the strong intermolecular forces between pollutant molecules and residual amino groups in the g-C3N4 fragment [92]. Pd-doped g-C3N4 was successfully synthesized by anchoring Pd nanoparticles on g-C3N4 using KBH4 reduction method, which was regularly active for PMS activation toward bisphenol A removal [82]. Metal oxide such as manganese oxide [85,90] and iron oxide [68] decorated on g-C3N4 are also employed for organic pollutions degradation via activating H2O2 or PMS (Figure 1). Lyu et al. prepared Cu (II)/CuAlO2/g-C3N4 composite as a Fenton-like catalyst. The Cu and C were investigated as dual reaction centers, and C-O-Cu acts as bridges to accelerating electrons transfer [75]. Nonmetal doping is also considered to be an efficient approach to improve electron transfer capability. Electronic structure modulation was achieved in oxygen-doped g-C3N4 for PMS activation, which was fabricated using urea and oxalic acid dihydrate [66]. The authors further investigated carbon and oxygen doped g-C3N4 exhibited better PMS activity due to its dual active sites-electron-poor C atoms and electron-rich O atoms [86]. Co-doping of iron and sulfur was found to be an approach to charge distribution and density of g-C3N4 for PMS activation [83]. To improve its chemical activity and electron transportation ability, Coupling nanocarbon materials g-C3N4 was developed to realize efficient PMS or H2O2 activation [87]. Moreover, combining nanocarbon materials and metal doping was frequently fabricated with g-C3N4 to exploit both materials’ synergistic effect [69,77,88].

3. Photochemical AOPs

Light irradiation is the most widely used method of applying additional energy to assist reactive species generating, which presents the advantages of simple, clean, relatively inexpensive, and efficient. TiO2 and ZnO were firstly used as photocatalysts for catalytic oxidation of organic contaminants. In this case, photocatalysis induces the formation of h+, •O2 and •OH, which act as principle reactive species for pollutants degradation. Consequently, visible light irradiations have been coupled with powerful oxidants such as H2O2 and PMS, including catalysis with a modified photocatalyst, resulting in various AOPs. In this section, the applications of these different AOPs as photocatalysis, Photo-Fenton (like) reactions, and photo-assisted sulfate radical based AOPs are summarized. Some representative applications of g-C3N4 based composites as a catalyst in photochemical AOPs are shown in Table 2.

3.1. Photocatalysis

As one typical technique of AOPs, photocatalytic degradation held the advantages of non-toxic, convenient operation, and high efficiency. With the irradiation of UV or visible light with energy larger than the semiconductor’s energy gap, the electron-donating and electron-accepting sites are formed in the surface of the semiconducting catalyst. The photogenerated electrons migrate from the valence band (VB) to the corresponding conduction band (CB), leaving holes in the VB, resulting in the electrons and holes occupying the CB and VB, respectively. Holes can directly oxidize pollutants or react with H2O/OH to produce hydroxyl radicals (Eθ(•OH/H2O) = 2.8 eV/NHE). Whereas the electrons capture dissolved oxygen (O2) to yield superoxide radical (Eθ(O2/•O2−) = −0.3 eV/NHE). The resulting •O2 are subsequently protonated to produce the •OH. Finally, those generated radicals take part in the oxidation of pollutants. In the early seventies, Fujishima and Honda showed the possibility of using the photo-excited semiconductor titanium dioxide (TiO2) to split water into hydrogen and oxygen in a photo-electrochemical solar cell [102]. This fundamental work led to developing a new AOP technology, based on semiconductor photocatalysis, for water purification.
g-C3N4 compounds have emerged as up-and-coming candidates to replace TiO2, owing to its graphite-like structure and medium bandgap [103,104]. However, the photocatalytic activity of g-C3N4 is still limited by its low electric conductivity and fast recombination of photo-induced carriers [105]. In this regard, modulating the nanostructure of g-C3N4 towards enhancing light harvest efficiency and catalytic mass-transfer is highly desirable. Researchers have made great efforts to design g-C3N4 with various structures, including 3D porous/nanospheres structure, 2D nanosheet and nanorod, etc. [27,37,106]. Such structures such as 3D porous and 2D nanosheet could provide high surface area, exposing more active sites for catalytic surface reactions. Furthermore, nanostructured g-C3N4 could significantly reduce photo-induced carriers’ transfer distance, leading to a lower recombination possibility. Moreover, the light quantum efficiencies could be significantly improved by constructing 0D, 1D nanorod, and 2D architectures g-C3N4 [107,108].
The VB top of g-C3N4 locates at about 1.4 V, leading to a small thermo-dynamic force for organic pollutants oxidation. Moreover, the more positive potential of •OH/H2O standard redox voltage results the hole cannot directly oxidize the H2O to generate •OH (Eθ(•OH/H2O) = 2.8 eV/NHE). To overcome this shortcoming, several elements of doping have been conducted [44,48,50,108]. Generally, metal doping occurs by inserting into the framework. In contrast, non-metal doping occurs in C or N atoms of g-C3N4 replaced by a heteroatom, which could enhance photocatalytic activity via improve the transfer and separation rates of photogenerated carriers and modulate bandgap [41,47]. Constructing heterojunction is another approach to enhance photodegradation performance for g-C3N4 [109,110]. Generally, Z-schemed heterojunction could be a good option that possesses higher redox potentials in forming reactive radicals and directly hole oxidation ability [111,112].

3.2. Photo-Fenton Like Processes

The Photo-Fenton process, the combination of ultraviolet or visible light with the conventional Fenton process, can enhance catalysts’ catalytic capacity and increase the degradation efficiency of organic pollutants and reduce iron sludge production [113]. The successive and competitive steps reaction mechanism for the photo-Fenton process are shown in Equations (2) and (3).
Fe2+ + H2O2 → Fe3+ + •OH + HO
Fe3+ + H2O + hv → •OH + Fe2+ + H+
As shown in Equation (2), Fe2+ rapidly reacts with H2O2 to generate Fe3+. The main form of Fe3+ is [Fe(OH)]2+ at pH 2.8–3.5, which plays a key role in reactions. Subsequently, the reduction of [Fe(OH)]2+ under light irradiation achieves redox recycling (Figure 2). Moreover, •OH can be generated via direct photolysis of H2O2 [16]. In the photo-Fenton process, the key is to accelerate the reduction of Fe3+ to Fe2+ via light irradiation. In the heterogeneous photo-Fenton reactions, the active sites’ redox cycle determines the reaction rate [114]. Although g-C3N4 cannot act as active sites for H2O2 decomposition, unique up conversion property, and substantial nitrogen coordinating sites make it become the ideal support for active sites [115]. In addition, the excellent photocatalytic activities of g-C3N4 based composites endue unique advantages as a catalyst for photo-Fenton-like reactions [116]. Metal doping into g-C3N4 is an important approach to enhance degradation efficiency in photo-Fenton reactions. Fe-doped g-C3N4 has been successfully synthesized by thermal shrinkage polymerization for aqueous organic pollutants degradation in photo-Fenton reactions. Introducing Fe in g-C3N4 accelerated the separation of photogenerated electron-holes. The Fe accepts electrons towards rapid reduction from trivalent to divalent, promoting the rapid generation of reactive species [117]. Another report about porous Fe-doped g-C3N4 revealed that the porous g-C3N4 structures enhance the photo-Fenton activity, owing to more active sites (Fe-N4) exposure [118]. An et al. embedded Fe into g-C3N4 by pyrolysis of Fe-N-containing precursor and melamine. The high-density Fe-Nx was investigated as a reactive site for H2O2 activation [119]. Another strategy used to realize efficient photo-Fenton-based degradation is heterojunction construction, including the Z scheme [120] and type II [121,122]. Zhang et al. prepared MnO2/Mn-modified alkalinized g-C3N4 by the calcination-impregnating method. It was proposed that Z-scheme charge transfer accelerated the redox cycle of the Mn4+/Mn3+/Mn2+ [123].

3.3. Photo-Assisted Sulfate Radical Based AOPs

Sulfate radical-based advanced oxidation processes (SR-AOPs) are increasingly gaining attention as an effective solution to the destruction of recalcitrant organics in water [124]. Among various approaches to generate sulfate radicals via activation of additional sources of reactive species (such as peroxymonosulfate (PMS) and persulfate (PS)), the photo-activation in the presence of a heterogeneous catalyst is worth mentioning [65]. The general mechanism is presented in Equations (4)–(8).
Photocatalyst + hv → e + h+
S2O82− + e → SO42− + SO4-
HSO5 + e → SO4- + OH
HSO5 + h+ → SO5- + H+
2SO5- → 2SO4- + O2
Firstly, photocatalysts are excited under light irradiation to form photo-induced electrons and holes. Then the •SO4 and •OH are generated through the combination of electrons and PMS or PS. When transition metals are constructed into photocatalysts, they could be potential reactive sites for PMS/PS activation (shown in Equations (9)–(12)).
Mn+ + HSO5 → M(n+1)+ + SO4 + OH
M(n+1)+ + HSO5 → Mn+ + SO5 + H+
M(n+1)+ + e → Mn+
Mn+ + h+ → M(n+1)+
Similar to the application in photo-Fenton-like reactions, g-C3N4 generally plays as reactive site supporters or participate in heterojunction construction in photo-assisted sulfate radical based AOPs. The TiO2/g-C3N4 composite was fabricated for paracetamol photocatalytic degradation in the presence of visible light and persulfate. As prepared composite held type II heterojunction, which inhibits the electron-hole recombination in photocatalyst and adding persulfate increased 13 times degradation rate [94]. Liang et al. prepared porous 0D/3D NiCo2O4/g-C3N4 composite for carbamazepine removal. 99% of degradation was achieved in 10 min under visible light irradiation [93]. Jin et al. constructed Z-scheme MoS2/A g/g-C3N4 via a method of chemical electrostatic adsorption. The deposited Ag further enhances photocatalytic activity via improving light utilization ability and the separation rate of photogenerated e/h+ pairs. The results indicated that the presence of PMS dramatically accelerates the photocatalytic reaction [96]. Through metal ions such as Fe and Co doping, enhancing photocatalytic activity and improving PMS activation could synchronize implementation towards an efficient organic pollutant removal [95,98].

4. Electrochemical AOPs

Electrochemical advanced oxidation processes (EAOPs) have gained increasing attention as one of the most potent classes of AOP [125,126,127]. The direct electrochemistry oxidation known as EAOP is anodic oxidation (AO), which is conveniently operated and widely used [125,128]. Electro-Fenton reaction (EF), also known as EAOPs involving the Fenton process, constitutes a clean and effective way to accelerate contaminants degradation via in situ electrocatalytically generated H2O2 from the oxygen reduction reaction (ORR) and regeneration of Fe2+ on the cathode [126] (Equations (13)–(15)).
O2 + 2H+ + 2e → H2O2(Eθ = 0.67 eV/SHE)
Fe3+ + e → Fe2+(Eθ = 0.77 eV/SHE)
Fe2+ + H2O2 → Fe3+ + •OH + OH (k = 76 M−1 s−1)
One of the EF technology’s key points is to fabricate a cathode with high efficiency towards ORR [129,130]. G-C3N4 have been recently considered for cathode modification, which can provide more active sites than other nitrogen-containing materials for electrocatalytic reactions to serve as ORR catalyst. Zhu et al. prepared g-C3N4 doped gas diffusion electrode as a cathode in electro-Fenton processes, and the H2O2 accumulation reached 2.59 mg h−1 cm−2, while it is 1.86 mg h−1 cm−2 using cathode without g-C3N4 doping [131]. Loading g-C3N4 on activated carbon fiber electrode was investigated as an efficient way to boost electrocatalytic activity for rhodamine B degradation in electro-Fenton processes, which was due to the g-C3N4 accelerated the cyclic utilization of ferrous ions on the surface of activated carbon fiber [132]. Furthermore, light irradiation was combined with electro-Fenton processes using g-C3N4/activated carbon fiber and g-C3N4/carbon nanotube electrodes as cathodes, which achieved higher H2O2 production [133,134]. Moreover, g-C3N4 based composites such as ZnO/g-C3N4 and TiO2/g-C3N4 severed as photoanodes were applied in photo-assisted anodic oxidation of organic pollution, which was attributed to the superior photocatalytic activity of g-C3N4 [135,136].

5. Conclusions and Perspectives

This review has shown the application of g-C3N4 based composites in various AOPs, including chemical AOPs, photochemical AOPs, and electrochemical AOPs. In the past years, g-C3N4 has been served as an excellent candidate for pollutants removal from water and wastewater thanks to the tunable electronic structure and excellent physicochemical stability. However, pristine g-C3N4 still suffered numerous issues such as smaller surface area, faster recombination of charge, and poor oxidant decomposition activity. It can be summarized the main challenges and strategies in the following aspect:
(1)
For chemicals AOPs, pristine g-C3N4 holds inert activation performance of oxidants such as H2O2 and PMS. Considering that g-C3N4 has excellent affinity to entrap transition metal ions, metal doping is the main strategy to improve the catalytic activity and electrons transfer capability. Combining nanocarbon materials and metal doping was also frequently fabricated with g-C3N4 to exploit both materials’ synergistic effect.
(2)
In the case of the photochemical technologies, the challenges for enhancing the photodegradation performance could be ascribed as (1) expand the absorption edge of g-C3N4 and enhance the light-harvesting capability, (2) make separating charge more efficient and suppress the recombination of photo-induced carriers, and (3) coordinate energy band structures to enhance reduction or oxidative capacity. The recent progress of g-C3N4 based composites regarding the photodegradation performance improvement include nanostructure design, element doping, hetero-junction construction, and co-polymerization.
(3)
Cathode modification in electron-Fenton processes is the major application of g-C3N4 based composites in electrochemical AOPs. The key to improving EF performance is to fabricate a cathode with superior ORR efficiency towards higher H2O2 production.
Although g-C3N4 based composite shows promising activity in various AOPs, the synergic effect between different components is still not fully understood. In addition, developing methods towards stable morphology/structure synthesis is highly demanded for practical applications.

Author Contributions

Y.S. wrote the paper with the assistance and supervision of A.J.D.s.-G. and M.J.M.d.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Spanish Ministerio de Ciencia e Innovación (MICINN) grant number MAT2017-84385-R.

Institutional Review Board Statement

“Not applicable” for studies not involving humans or animals.

Informed Consent Statement

“Not applicable” for studies not involving humans.

Acknowledgments

Yu Shen acknowledges support from the China Scholarship Council (CSC) scholarship (201807040073).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Krasner, S.W. The Formation and Control of Emerging Disinfection by-Products of Health Concern. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci. 2009, 367, 4077–4095. [Google Scholar] [CrossRef]
  2. Sauvé, S.; Desrosiers, M. A review of what is an emerging contaminant. Chem. Central J. 2014, 8, 15. [Google Scholar] [CrossRef]
  3. Oturan, M.A.; Aaron, J.-J. Advanced Oxidation Processes in Water/Wastewater Treatment: Principles and Applications. A Review. Crit. Rev. Environ. Sci. Technol. 2014, 44, 2577–2641. [Google Scholar] [CrossRef]
  4. Luo, Y.; Guo, W.; Ngo, H.H.; Nghiem, L.D.; Hai, F.I.; Zhang, J.; Liang, S.; Wang, X.C. A review on the occurrence of micropollutants in the aquatic environment and their fate and removal during wastewater treatment. Sci. Total. Environ. 2014, 473–474, 619–641. [Google Scholar] [CrossRef]
  5. Ternes, T.A.; Meisenheimer, M.; McDowell, D.; Sacher, F.; Brauch, H.-J.; Haist-Gulde, B.; Preuss, G.; Wilme, U.; Zulei-Seibert, N. Removal of Pharmaceuticals During Drinking Water Treatment. Environ. Sci. Technol. 2002, 36, 3855–3863. [Google Scholar] [CrossRef]
  6. Brown, D.; Laboureur, P. The aerobic biodegradability of primary aromatic amines. Chemosphere 1983, 12, 405–414. [Google Scholar] [CrossRef]
  7. Rebhun, M.; Meir, A.S.; Laor, Y. Using Dissolved Humic Acid to Remove Hydrophobic Contaminants from Water by Complexation−Flocculation Process. Environ. Sci. Technol. 1998, 32, 981–986. [Google Scholar] [CrossRef]
  8. Laine, D.F.; Cheng, I.F. The destruction of organic pollutants under mild reaction conditions: A review. Microchem. J. 2007, 85, 183–193. [Google Scholar] [CrossRef]
  9. Anandan, S.; Ponnusamy, V.K.; AshokKumar, M. A review on hybrid techniques for the degradation of organic pollutants in aqueous environment. Ultrason. Sonochem. 2020, 67, 105130. [Google Scholar] [CrossRef] [PubMed]
  10. Roberto, A.; Caprio, V.; Insola, A.; Marotta, R. Advanced Oxidation Processes (Aop) for Water Purification and Recovery. Catal. Today 1999, 53, 51–59. [Google Scholar]
  11. Herrmann, J.M.; Guillard, C.; Arguello, M.; Agüera, A.; Tejedor, A.; Piedra, L.; Fernández-Alba, A. Photocatalytic Degradation of Pesticide Pirimiphos-Methyl: Determination of the Reaction Pathway and Identification of Intermediate Products by Various Analytical Methods. Catal. Today 1999, 54, 353–367. [Google Scholar] [CrossRef]
  12. Gogate, P.R.; Pandit, A.B. A review of imperative technologies for wastewater treatment I: Oxidation technologies at ambient conditions. Adv. Environ. Res. 2004, 8, 501–551. [Google Scholar] [CrossRef]
  13. Gogate, P.R.; Pandit, A.B. A review of imperative technologies for wastewater treatment II: Hybrid methods. Adv. Environ. Res. 2004, 8, 553–597. [Google Scholar] [CrossRef]
  14. Zhang, M.-H.; Dong, H.; Zhao, L.; Wang, D.-X.; Meng, D. A review on Fenton process for organic wastewater treatment based on optimization perspective. Sci. Total. Environ. 2019, 670, 110–121. [Google Scholar] [CrossRef]
  15. Duesterberg, C.K.; Mylon, S.E.; Waite, T.D. pH Effects on Iron-Catalyzed Oxidation using Fenton’s Reagent. Environ. Sci. Technol. 2008, 42, 8522–8527. [Google Scholar] [CrossRef]
  16. Pignatello, J.J.; Oliveros, E.; Mackay, A. Advanced Oxidation Processes for Organic Contaminant Destruction Based on the Fenton Reaction and Related Chemistry. Crit. Rev. Environ. Sci. Technol. 2006, 36, 1–84. [Google Scholar] [CrossRef]
  17. Klavarioti, M.; Mantzavinos, D.; Fatta-Kassinos, D. Removal of residual pharmaceuticals from aqueous systems by advanced oxidation processes. Environ. Int. 2009, 35, 402–417. [Google Scholar] [CrossRef]
  18. Esplugas, S.; Giménez, J.; Contreras, S.; Pascual, E.; Rodríguez, M. Comparison of different advanced oxidation processes for phenol degradation. Water Res. 2002, 36, 1034–1042. [Google Scholar] [CrossRef]
  19. Bokare, A.D.; Choi, W. Singlet-Oxygen Generation in Alkaline Periodate Solution. Environ. Sci. Technol. 2015, 49, 14392–14400. [Google Scholar] [CrossRef]
  20. Ye, T.; Wei, Z.; Spinney, R.; Dionysiou, D.D.; Luo, S.; Chai, L.; Yang, Z.-H.; Xiao, R. Quantitative structure–activity relationship for the apparent rate constants of aromatic contaminants oxidized by ferrate (VI). Chem. Eng. J. 2017, 317, 258–266. [Google Scholar] [CrossRef]
  21. Trojanowicz, M. Removal of persistent organic pollutants (POPs) from waters and wastewaters by the use of ionizing radiation. Sci. Total. Environ. 2020, 718, 134425. [Google Scholar] [CrossRef] [PubMed]
  22. Shah, N.S.; Khan, J.A.; Sayed, M.; Khan, Z.U.H.; Iqbal, J.; Arshad, S.; Junaid, M.; Khan, H.M. Synergistic effects of H2O2 and S2O82− in the gamma radiation induced degradation of congo-red dye: Kinetics and toxicities evaluation. Sep. Purif. Technol. 2020, 233, 115966. [Google Scholar] [CrossRef]
  23. Buthiyappan, A.; Aziz, A.R.A.; Wan, M.A.W.D. Recent Advances and Prospects of Catalytic Advanced Oxidation Process in Treating Textile Effluents. Rev. Chem. Eng. 2016, 32, 1–47. [Google Scholar] [CrossRef]
  24. Zhu, J.; Xiao, P.; Li, H.; Carabineiro, S.A.C. Graphitic Carbon Nitride: Synthesis, Properties, and Applications in Catalysis. ACS Appl. Mater. Interfaces 2014, 6, 16449–16465. [Google Scholar] [CrossRef]
  25. Ong, W.-J.; Tan, L.-L.; Lling-Lling, T.; Yong, S.-T.; Chai, S.-P. Graphitic Carbon Nitride (g-C3N4)-Based Photocatalysts for Artificial Photosynthesis and Environmental Remediation: Are We a Step Closer To Achieving Sustainability? Chem. Rev. 2016, 116, 7159–7329. [Google Scholar] [CrossRef]
  26. Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater. 2009, 8, 76–80. [Google Scholar] [CrossRef]
  27. Xu, J.; Zhang, L.; Shi, R.; Zhu, Y. Chemical exfoliation of graphitic carbon nitride for efficient heterogeneous photocatalysis. J. Mater. Chem. A 2013, 1, 14766–14772. [Google Scholar] [CrossRef]
  28. Cui, Y.; Ding, Z.; Liu, P.; Antonietti, M.; Fu, X.; Wang, X. Metal-Free Activation of H2O2 by g-C3N4 under Visible Light Irradiation for the Degradation of Organic Pollutants. Phys. Chem. Chem. Phys. 2012, 14, 1455–1462. [Google Scholar] [CrossRef]
  29. Liebig, J. Uber einige Stickstoff—Verbindungen. Ann. Pharm. 1834, 10, 1–47. [Google Scholar] [CrossRef]
  30. Goettmann, F.; Fischer, A.; Antonietti, M.; Thomas, A. Metal-free catalysis of sustainable Friedel–Crafts reactions: Direct activation of benzene by carbon nitrides to avoid the use of metal chlorides and halogenated compounds. Chem. Commun. 2006, 4530–4532. [Google Scholar] [CrossRef]
  31. Sudhaik, A.; Raizada, P.; Shandilya, P.; Jeong, D.-Y.; Lim, J.-H.; Singh, P. Review on fabrication of graphitic carbon nitride based efficient nanocomposites for photodegradation of aqueous phase organic pollutants. J. Ind. Eng. Chem. 2018, 67, 28–51. [Google Scholar] [CrossRef]
  32. Kumar, S.; Karthikeyan, S.; Lee, A.F. g-C3N4-Based Nanomaterials for Visible Light-Driven Photocatalysis. Catalysts 2018, 8, 74. [Google Scholar] [CrossRef]
  33. Zhang, S.; Li, J.; Wang, X.; Huang, Y.; Zeng, M.; Xu, J. Rationally Designed 1d [email protected]3 Nanowire/Graphene/Protonated g-C3N4 Nanosheet Heterojunctions for Enhanced Photocatalysis Via Electrostatic Self-Assembly and Photochemical Reduction Methods. J. Mater. Chem. A 2015, 3, 10119–10126. [Google Scholar] [CrossRef]
  34. Ye, C.; Li, J.-X.; Li, Z.-J.; Li, X.-B.; Fan, X.-B.; Zhang, L.-P.; Chen, B.; Tung, C.; Wu, L. Enhanced Driving Force and Charge Separation Efficiency of Protonated g-C3N4 for Photocatalytic O2 Evolution. ACS Catal. 2015, 5, 6973–6979. [Google Scholar] [CrossRef]
  35. Bai, X.; Wang, L.; Zong, R.; Zhu, Y. Photocatalytic Activity Enhanced via g-C3N4 Nanoplates to Nanorods. J. Phys. Chem. C 2013, 117, 9952–9961. [Google Scholar] [CrossRef]
  36. Xu, J.; Wang, Y.; Zhu, Y. Nanoporous Graphitic Carbon Nitride with Enhanced Photocatalytic Performance. Langmuir 2013, 29, 10566–10572. [Google Scholar] [CrossRef]
  37. Zhang, M.; Xu, J.; Zong, R.; Liu, D. Enhancement of visible light photocatalytic activities via porous structure of g-C3N4. Appl. Catal. B Environ. 2014, 147, 229–235. [Google Scholar] [CrossRef]
  38. Chen, X.; Zhang, J.; Fu, X.; Antonietti, M.; Wang, X. Fe-g-C3N4-Catalyzed Oxidation of Benzene to Phenol Using Hydrogen Peroxide and Visible Light. J. Am. Chem. Soc. 2009, 131, 11658–11659. [Google Scholar] [CrossRef]
  39. Zhang, M.; Bai, X.; Liu, D.; Wang, J.; Liu, D. Enhanced catalytic activity of potassium-doped graphitic carbon nitride induced by lower valence position. Appl. Catal. B Environ. 2015, 164, 77–81. [Google Scholar] [CrossRef]
  40. Yan, S.; Yan, S.; Wang, J.; Huang, Y.A.; Wang, P.; Li, Z.; Zou, Z. Towards efficient solar hydrogen production by intercalated carbon nitride photocatalyst. Phys. Chem. Chem. Phys. 2013, 15, 18077–18084. [Google Scholar] [CrossRef]
  41. Wang, X.; Chen, X.; Thomas, A.; Fu, X.; Antonietti, M. Metal-Containing Carbon Nitride Compounds: A New Functional Organic-Metal Hybrid Material. Adv. Mater. 2009, 21, 1609–1612. [Google Scholar] [CrossRef]
  42. Yan, S.; Yan, S.; Wang, J.; Zou, Z. Ion coordination significantly enhances the photocatalytic activity of graphitic-phase carbon nitride. Dalton Trans. 2014, 43, 8178–8183. [Google Scholar] [CrossRef]
  43. Hu, S.; Ma, L.; You, J.; Li, F.; Fan, Z.; Lu, G.; Liu, D.; Gui, J. Enhanced visible light photocatalytic performance of g-C3N4 photocatalysts co-doped with iron and phosphorus. Appl. Surf. Sci. 2014, 311, 164–171. [Google Scholar] [CrossRef]
  44. Pan, H.; Zhang, Y.-W.; Shenoy, V.B.; Gao, H. Ab Initio Study on a Novel Photocatalyst: Functionalized Graphitic Carbon Nitride Nanotube. ACS Catal. 2011, 1, 99–104. [Google Scholar] [CrossRef]
  45. Liu, G.; Niu, P.; Sun, C.; Smith, S.C.; Chen, Z.; Lu, G.Q.; Cheng, H.-M. Unique Electronic Structure Induced High Photoreactivity of Sulfur-Doped Graphitic C3N4. J. Am. Chem. Soc. 2010, 132, 11642–11648. [Google Scholar] [CrossRef]
  46. Zhang, S.; Li, J.; Zeng, M.; Li, J.; Xu, J.; Wang, X. Bandgap Engineering and Mechanism Study of Nonmetal and Metal Ion Codoped Carbon Nitride: C+Fe as an Example. Chem.-A Eur. J. 2014, 20, 9805–9812. [Google Scholar] [CrossRef]
  47. Ma, X.; Lv, Y.; Xu, J.; Liu, Y.; Zhang, R.; Zhu, Y. A Strategy of Enhancing the Photoactivity of g-C3N4 via Doping of Nonmetal Elements: A First-Principles Study. J. Phys. Chem. C 2012, 116, 23485–23493. [Google Scholar] [CrossRef]
  48. Zhang, G.; Zhang, M.; Ye, X.; Qiu, X.; Lin, S.; Wang, X. Iodine Modified Carbon Nitride Semiconductors as Visible Light Photocatalysts for Hydrogen Evolution. Adv. Mater. 2014, 26, 805–809. [Google Scholar] [CrossRef]
  49. Wang, Y.; Di, Y.; Antonietti, M.; Li, H.; Chen, X.; Wang, X. Excellent Visible-Light Photocatalysis of Fluorinated Polymeric Carbon Nitride Solids. Chem. Mater. 2010, 22, 5119–5121. [Google Scholar] [CrossRef]
  50. Yan, S.C.; Li, Z.S.; Zou, Z.G. Photodegradation of Rhodamine B and Methyl Orange over Boron-Doped g-C3N4under Visible Light Irradiation. Langmuir 2010, 26, 3894–3901. [Google Scholar] [CrossRef]
  51. Di, J.; Xia, J.; Xia, J.; Xu, H.; Xu, L.; Xu, Y.; He, M.; Li, H. Preparation of sphere-like g-C3N4/BiOI photocatalysts via a reactable ionic liquid for visible-light-driven photocatalytic degradation of pollutants. J. Mater. Chem. A 2014, 2, 5340–5351. [Google Scholar] [CrossRef]
  52. Sui, Y.; Liu, J.; Zhang, Y.; Tian, X.; Chen, W. Dispersed conductive polymer nanoparticles on graphitic carbon nitride for enhanced solar-driven hydrogen evolution from pure water. Nanoscale 2013, 5, 9150–9155. [Google Scholar] [CrossRef]
  53. He, F.; Chen, G.; Yu, Y.; Hao, S.; Zhou, Y.; Zheng, Y. Facile Approach to Synthesize g-PAN/g-C3N4 Composites with Enhanced Photocatalytic H2 Evolution Activity. ACS Appl. Mater. Interfaces 2014, 6, 7171–7179. [Google Scholar] [CrossRef] [PubMed]
  54. Jin, Z.; Murakami, N.; Tsubota, T.; Ohno, T. Complete oxidation of acetaldehyde over a composite photocatalyst of graphitic carbon nitride and tungsten(VI) oxide under visible-light irradiation. Appl. Catal. B Environ. 2014, 150–151, 479–485. [Google Scholar] [CrossRef]
  55. Sridharan, K.; Jang, E.; Park, T.J. Novel visible light active graphitic C3N4–TiO2 composite photocatalyst: Synergistic synthesis, growth and photocatalytic treatment of hazardous pollutants. Appl. Catal. B Environ. 2013, 142–143, 718–728. [Google Scholar] [CrossRef]
  56. Miranda, C.; Mansilla, H.; Yáñez, J.; Obregón, S.; Colon, G. Improved photocatalytic activity of g-C3N4/TiO2 composites prepared by a simple impregnation method. J. Photochem. Photobiol. A Chem. 2013, 253, 16–21. [Google Scholar] [CrossRef]
  57. Zhou, X.; Jin, B.; Li, L.; Peng, F.; Wang, H.; Yu, H.; Fang, Y. A carbon nitride/TiO2 nanotube array heterojunction visible-light photocatalyst: Synthesis, characterization, and photoelectrochemical properties. J. Mater. Chem. 2012, 22, 17900–17905. [Google Scholar] [CrossRef]
  58. Fan, X.; Zhang, L.; Wang, M.; Huang, W.; Zhou, Y.; Li, M.; Cheng, R.; Shi, J. Constructing carbon-nitride-based copolymers via Schiff base chemistry for visible-light photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2016, 182, 68–73. [Google Scholar] [CrossRef]
  59. Chen, Z.; Pronkin, S.; Fellinger, T.-P.; Kailasam, K.; Vilé, G.; Albani, D.; Krumeich, F.; Leary, R.; Barnard, J.; Thomas, J.M.; et al. Merging Single-Atom-Dispersed Silver and Carbon Nitride to a Joint Electronic System via Copolymerization with Silver Tricyanomethanide. ACS Nano 2016, 10, 3166–3175. [Google Scholar] [CrossRef]
  60. Zhang, J.; Chen, X.; Takanabe, K.; Maeda, K.; Domen, K.; Epping, J.D.; Fu, X.; Antonietti, M.; Wang, X. Synthesis of a Carbon Nitride Structure for Visible-Light Catalysis by Copolymerization. Angew. Chem. Int. Ed. 2010, 49, 441–444. [Google Scholar] [CrossRef]
  61. Zhang, M.; Yao, W.; Lv, Y.; Bai, X.; Liu, Y.; Jiang, W.; Zhu, Y. Enhancement of mineralization ability of C3N4via a lower valence position by a tetracyanoquinodimethane organic semiconductor. J. Mater. Chem. A 2014, 2, 11432–11438. [Google Scholar] [CrossRef]
  62. Jin, J.; Sun, K.; Wu, F.; Gao, B.; Wang, Z.; Kang, M.; Bai, Y.; Zhao, Y.; Liu, X.; Xing, B. Single-solute and bi-solute sorption of phenanthrene and dibutyl phthalate by plant- and manure-derived biochars. Sci. Total. Environ. 2014, 473–474, 308–316. [Google Scholar] [CrossRef] [PubMed]
  63. Han, L.; Ro, K.S.; Sun, K.; Sun, H.; Wang, Z.; Libra, J.A.; Xing, B. New Evidence for High Sorption Capacity of Hydrochar for Hydrophobic Organic Pollutants. Environ. Sci. Technol. 2016, 50, 13274–13282. [Google Scholar] [CrossRef] [PubMed]
  64. Iervolino, G.; Zammit, I.; Vaiano, V.; Rizzo, L. Limitations and Prospects for Wastewater Treatment by UV and Visible-Light-Active Heterogeneous Photocatalysis: A Critical Review. Top. Curr. Chem. 2019, 378, 7. [Google Scholar] [CrossRef] [PubMed]
  65. Yang, Q.; Ma, Y.; Chen, F.; Yao, F.; Sun, J.; Wang, S.; Yi, K.; Hou, L.; Li, X.; Wang, D. Recent advances in photo-activated sulfate radical-advanced oxidation process (SR-AOP) for refractory organic pollutants removal in water. Chem. Eng. J. 2019, 378, 122149. [Google Scholar] [CrossRef]
  66. Gao, Y.; Zhu, Y.; Lyu, L.; Zeng, Q.; Xing, X.; Hu, C. Electronic Structure Modulation of Graphitic Carbon Nitride by Oxygen Doping for Enhanced Catalytic Degradation of Organic Pollutants through Peroxymonosulfate Activation. Environ. Sci. Technol. 2018, 52, 14371–14380. [Google Scholar] [CrossRef]
  67. Li, H.; Shan, C.; Panab, B. Fe(III)-Doped g-C3N4 Mediated Peroxymonosulfate Activation for Selective Degradation of Phenolic Compounds via High-Valent Iron-Oxo Species. Environ. Sci. Technol. 2018, 52, 2197–2205. [Google Scholar] [CrossRef]
  68. Ding, Q.; Lam, F.L.; Hu, X. Complete degradation of ciprofloxacin over g-C3N4-iron oxide composite via heterogeneous dark Fenton reaction. J. Environ. Manag. 2019, 244, 23–32. [Google Scholar] [CrossRef]
  69. Fang, L.; Liu, Z.; Zhou, C.; Guo, Y.; Feng, Y.; Yang, M. Degradation Mechanism of Methylene Blue by H2O2 and Synthesized Carbon Nanodots/Graphitic Carbon Nitride/Fe(II) Composite. J. Phys. Chem. C 2019, 123, 26921–26931. [Google Scholar] [CrossRef]
  70. Chen, Z.; Zhang, S.; Liu, Y.; Alharbi, N.S.; Rabah, S.O.; Wang, S.; Wang, X. Synthesis and fabrication of g-C3N4-based materials and their application in elimination of pollutants. Sci. Total. Environ. 2020, 731, 139054. [Google Scholar] [CrossRef]
  71. Jiang, W.; Luo, W.; Wang, J.; Zhang, M.; Liu, D. Enhancement of catalytic activity and oxidative ability for graphitic carbon nitride. J. Photochem. Photobiol. C Photochem. Rev. 2016, 28, 87–115. [Google Scholar] [CrossRef]
  72. Oh, W.-D.; Dong, Z.; Lim, T.-T. Generation of sulfate radical through heterogeneous catalysis for organic contaminants removal: Current development, challenges and prospects. Appl. Catal. B Environ. 2016, 194, 169–201. [Google Scholar] [CrossRef]
  73. Hu, P.; Long, M. Cobalt-catalyzed sulfate radical-based advanced oxidation: A review on heterogeneous catalysts and applications. Appl. Catal. B Environ. 2016, 181, 103–117. [Google Scholar] [CrossRef]
  74. Kasprzyk-Hordern, B.; Ziółek, M.; Nawrocki, J. Catalytic ozonation and methods of enhancing molecular ozone reactions in water treatment. Appl. Catal. B Environ. 2003, 46, 639–669. [Google Scholar] [CrossRef]
  75. Lyu, L.; Yan, D.; Yu, G.; Cao, W.; Hu, C. Efficient Destruction of Pollutants in Water by a Dual-Reaction-Center Fenton-Like Process over Carbon Nitride Compounds-Complexed Cu(II)-CuAlO2. Environ. Sci. Technol. 2018, 52, 4294–4304. [Google Scholar] [CrossRef]
  76. Zhou, C.; Liu, Z.; Fang, L.; Guo, Y.; Feng, Y.; Yang, M. Kinetic and Mechanistic Study of Rhodamine B Degradation by H2O2 and Cu/Al2O3/g-C3N4 Composite. Catalysts 2020, 10, 317. [Google Scholar] [CrossRef]
  77. Guo, F.; Lu, J.; Liu, Q.; Zhang, P.; Zhang, A.; Cai, Y.; Wang, Q. Degradation of Acid Orange 7 by peroxymonosulfate activated with the recyclable nanocomposites of g-C3N4 modified magnetic carbon. Chemosphere 2018, 205, 297–307. [Google Scholar] [CrossRef]
  78. Pi, Y.; Gao, H.; Cao, Y.; Cao, R.; Wang, Y.; Sun, J. Cobalt ferrite supported on carbon nitride matrix prepared using waste battery materials as a peroxymonosulfate activator for the degradation of levofloxacin hydrochloride. Chem. Eng. J. 2020, 379, 122377. [Google Scholar] [CrossRef]
  79. Xie, M.; Tang, J.; Kong, L.; Lu, W.; Natarajan, V.; Zhu, F.; Zhan, J. Cobalt doped g-C3N4 activation of peroxymonosulfate for monochlorophenols degradation. Chem. Eng. J. 2019, 360, 1213–1222. [Google Scholar] [CrossRef]
  80. Fan, J.; Qin, H.; Jiang, S. Mn-doped g-C3N4 composite to activate peroxymonosulfate for acetaminophen degradation: The role of superoxide anion and singlet oxygen. Chem. Eng. J. 2019, 359, 723–732. [Google Scholar] [CrossRef]
  81. Ma, J.; Jia, N.; Shen, C.; Liu, W.; Wen, Y. Stable cuprous active sites in Cu+-graphitic carbon nitride: Structure analysis and performance in Fenton-like reactions. J. Hazard. Mater. 2019, 378, 120782. [Google Scholar] [CrossRef] [PubMed]
  82. Wang, Y.; Cao, D.; Liu, M.; Zhao, X. Insights into heterogeneous catalytic activation of peroxymonosulfate by Pd/g-C3N4: The role of superoxide radical and singlet oxygen. Catal. Commun. 2017, 102, 85–88. [Google Scholar] [CrossRef]
  83. Wang, S.; Liu, Y.; Wang, J. Iron and Sulfur Co-Doped Graphite Carbon Nitride (FeOy/S-g-C3N4) for Activating Peroxymonosulfate to Enhance Sulfamethoxazole Degradation. Chem. Eng. J. 2020, 382, 122836. [Google Scholar] [CrossRef]
  84. Oh, W.-D.; Ng, C.-Z.; Ng, S.L.; Lim, J.-W.; Leong, K.-H. Rapid degradation of organics by peroxymonosulfate activated with ferric ions embedded in graphitic carbon nitride. Sep. Purif. Technol. 2020, 230, 115852. [Google Scholar] [CrossRef]
  85. Li, J.; Fang, J.; Gao, L.; Zhang, J.; Ruan, X.; Xu, A.; Li, X. Graphitic carbon nitride induced activity enhancement of OMS-2 catalyst for pollutants degradation with peroxymonosulfate. Appl. Surf. Sci. 2017, 402, 352–359. [Google Scholar] [CrossRef]
  86. Zhu, Y.; Chen, Z.; Gao, Y.; Hu, C. General synthesis of carbon and oxygen dual-doped graphitic carbon nitride via copolymerization for non-photochemical oxidation of organic pollutant. J. Hazard. Mater. 2020, 394, 122578. [Google Scholar] [CrossRef]
  87. Wei, M.; Gao, L.; Li, J.; Fang, J.; Cai, W.; Li, X.; Xu, A. Activation of peroxymonosulfate by graphitic carbon nitride loaded on activated carbon for organic pollutants degradation. J. Hazard. Mater. 2016, 316, 60–68. [Google Scholar] [CrossRef]
  88. Li, H.; Shan, C.; Panab, B. Development of Fe-doped g-C3N4/graphite mediated peroxymonosulfate activation for degradation of aromatic pollutants via nonradical pathway. Sci. Total. Environ. 2019, 675, 62–72. [Google Scholar] [CrossRef]
  89. Feng, Y.; Liao, C.-Z.; Kong, L.; Wu, D.; Liu, Y.; Lee, P.-H.; Shih, K. Facile synthesis of highly reactive and stable Fe-doped g-C3N4 composites for peroxymonosulfate activation: A novel nonradical oxidation process. J. Hazard. Mater. 2018, 354, 63–71. [Google Scholar] [CrossRef]
  90. Chen, C.; Xie, M.; Kong, L.; Lu, W.; Feng, Z.; Zhan, J. Mn3O4 Nanodots Loaded g-C3N4 Nanosheets for Catalytic Membrane Degradation of Organic Contaminants. J. Hazard. Mater. 2020, 390, 122146. [Google Scholar] [CrossRef]
  91. Oh, W.-D.; Chang, V.W.; Hu, Z.-T.; Goei, R.; Lim, T.-T. Enhancing the catalytic activity of g-C3N4 through Me doping (Me = Cu, Co and Fe) for selective sulfathiazole degradation via redox-based advanced oxidation process. Chem. Eng. J. 2017, 323, 260–269. [Google Scholar] [CrossRef]
  92. Qin, Z.; Wang, M.; Li, R.; Chen, Y. Novel Cu3P/g-C3N4 p-n heterojunction photocatalysts for solar hydrogen generation. Sci. China Mater. 2018, 61, 861–868. [Google Scholar] [CrossRef]
  93. Jiang, J.; Wang, X.; Zhang, C.; Li, T.; Lin, Y.; Xie, T.; Dong, S. Porous 0D/3D NiCo2O4/g-C3N4 Accelerate Emerging Pollutant Degradation in PMS/Vis System: Degradation Mechanism, Pathway and Toxicity Assessment. Chem. Eng. J. 2020, 397, 125356. [Google Scholar] [CrossRef]
  94. Du, X.; Bai, X.; Xu, L.; Yang, L.; Jin, P. Visible-Light Activation of Persulfate by TiO2/g-C3N4 Photocatalyst toward Efficient Degradation of Micropollutants. Chem. Eng. J. 2020, 384, 123245. [Google Scholar] [CrossRef]
  95. Li, R.; Huang, J.; Cai, M.; Huang, J.; Xie, Z.; Zhang, Q.; Liu, Y.; Liu, H.; Lv, W.; Liu, G. Activation of peroxymonosulfate by Fe doped g-C3N4 /graphene under visible light irradiation for Trimethoprim degradation. J. Hazard. Mater. 2020, 384, 121435. [Google Scholar] [CrossRef]
  96. Jin, C.; Kang, J.; Li, Z.; Wang, M.; Wu, Z.; Xie, Y. Enhanced visible light photocatalytic degradation of tetracycline by MoS2/Ag/g-C3N4 Z-scheme composites with peroxymonosulfate. Appl. Surf. Sci. 2020, 514, 146076. [Google Scholar] [CrossRef]
  97. Dikdim, J.M.D.; Gong, Y.; Noumi, G.B.; Sieliechi, J.M.; Zhao, X.; Ma, N.; Yang, M.; Tchatchueng, J.B. Peroxymonosulfate improved photocatalytic degradation of atrazine by activated carbon/graphitic carbon nitride composite under visible light irradiation. Chemosphere 2019, 217, 833–842. [Google Scholar] [CrossRef]
  98. Wang, L.; Guo, X.; Chen, Y.; Ai, S.; Ding, H. Cobalt-doped g-C3N4 as a heterogeneous catalyst for photo-assisted activation of peroxymonosulfate for the degradation of organic contaminants. Appl. Surf. Sci. 2019, 467–468, 954–962. [Google Scholar] [CrossRef]
  99. Lin, K.-Y.A.; Zhang, Z.-Y. Degradation of Bisphenol A using peroxymonosulfate activated by one-step prepared sulfur-doped carbon nitride as a metal-free heterogeneous catalyst. Chem. Eng. J. 2017, 313, 1320–1327. [Google Scholar] [CrossRef]
  100. Dong, L.; Xu, T.; Chen, W.; Lu, W. Synergistic multiple active species for the photocatalytic degradation of contaminants by imidazole-modified g-C3N4 coordination with iron phthalocyanine in the presence of peroxymonosulfate. Chem. Eng. J. 2019, 357, 198–208. [Google Scholar] [CrossRef]
  101. Dong, Q.; Chen, Y.; Wang, L.; Ai, S.; Ding, H. Cu-modified alkalinized g-C3N4 as photocatalytically assisted heterogeneous Fenton-like catalyst. Appl. Surf. Sci. 2017, 426, 1133–1140. [Google Scholar] [CrossRef]
  102. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Natature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  103. Kumar, A.; Kumar, A.; Sharma, G.; Ala’a, H.; Naushad, M.; Ghfar, A.A.; Stadler, F.J. Quaternary Magnetic BiOCl/g-C3N4/Cu2O/Fe3O4 Nano-Junction for Visible Light and Solar Powered Degradation of Sulfamethoxazole from Aqueous Environment. Chem. Eng. J. 2018, 334, 462–478. [Google Scholar] [CrossRef]
  104. Kumar, A.; Sharma, S.K.; Sharma, G.; Naushad, M.; Stadler, F.J. CeO2/g-C3N4/V2O5 Ternary Nano Hetero-Structures Decorated with Cqds for Enhanced Photo-Reduction Capabilities under Different Light Sources: Dual Z-Scheme Mechanism. J. Alloy. Compd. 2020, 838, 155692. [Google Scholar] [CrossRef]
  105. Tay, Q.; Kanhere, P.D.; Ng, C.F.; Chen, S.; Chakraborty, S.; Huan, A.C.H.; Sum, T.C.; Ahuja, R.; Chen, Z. Defect Engineered g-C3N4 for Efficient Visible Light Photocatalytic Hydrogen Production. Chem. Mater. 2015, 27, 4930–4933. [Google Scholar] [CrossRef]
  106. Duan, J.; Chen, S.; Jaroniec, M.; Qiao, S.Z. Porous C3N4[email protected] Films as Catalyst Electrodes for Highly Efficient Hydrogen Evolution. ACS Nano 2015, 9, 931–940. [Google Scholar] [CrossRef]
  107. Zhao, Y.; Zhao, F.; Wang, X.; Xu, C.; Zhang, Z.; Shi, G.; Qu, L. Graphitic Carbon Nitride Nanoribbons: Graphene-Assisted Formation and Synergic Function for Highly Efficient Hydrogen Evolution. Angew. Chem. Int. Ed. 2014, 53, 13934–13939. [Google Scholar] [CrossRef]
  108. Yu, J.C.; Yu, J.C.; Shen, Z.; Chan, D.K.L.; Gu, T. g-C3N4 quantum dots: Direct synthesis, upconversion properties and photocatalytic application. Chem. Commun. 2014, 50, 10148–10150. [Google Scholar] [CrossRef]
  109. Iqbal, J.; Shah, N.S.; Sayed, M.; Imran, M.; Muhammad, N.; Howari, F.M.; Alkhoori, S.A.; Khan, J.A.; Khan, Z.U.H.; Bhatnagar, A.; et al. Synergistic effects of activated carbon and nano-zerovalent copper on the performance of hydroxyapatite-alginate beads for the removal of As3+ from aqueous solution. J. Clean. Prod. 2019, 235, 875–886. [Google Scholar] [CrossRef]
  110. Kumarab, A.; Kumarib, A.; Sharmaab, G.; Dua, B.; Naushad, M.; Stadler, F.J. Carbon quantum dots and reduced graphene oxide modified self-assembled [email protected]3N4/[email protected]3N4 metal-free nano-photocatalyst for high performance degradation of chloramphenicol. J. Mol. Liq. 2020, 300, 112356. [Google Scholar] [CrossRef]
  111. Liu, Y.; Wang, R.; Yang, Z.; Du, H.; Jiang, Y.; Shen, C.; Liang, K.; Xu, A.-W. Enhanced visible-light photocatalytic activity of Z-scheme graphitic carbon nitride/oxygen vacancy-rich zinc oxide hybrid photocatalysts. Chin. J. Catal. 2015, 36, 2135–2144. [Google Scholar] [CrossRef]
  112. Yu, W.; Xu, D.; Peng, T. Enhanced photocatalytic activity of g-C3N4 for selective CO2 reduction to CH3OH via facile coupling of ZnO: A direct Z-scheme mechanism. J. Mater. Chem. A 2015, 3, 19936–19947. [Google Scholar] [CrossRef]
  113. Hernandez, R.; Zappi, M.E.; Colucci, J.; Jones, R. Comparing the performance of various advanced oxidation processes for treatment of acetone contaminated water. J. Hazard. Mater. 2002, 92, 33–50. [Google Scholar] [CrossRef]
  114. Xi, J.; Xia, H.; Ning, X.; Zhang, Z.; Liu, J.; Mu, Z.; Zhang, S.; Du, P.; Lu, X. Carbon-Intercalated 0D/2D Hybrid of Hematite Quantum Dots/Graphitic Carbon Nitride Nanosheets as Superior Catalyst for Advanced Oxidation. Small 2019, 15, e1902744. [Google Scholar] [CrossRef] [PubMed]
  115. Wen, J.; Xie, J.; Chen, X.; Li, X. A review on g-C3N4-based photocatalysts. Appl. Surf. Sci. 2017, 391, 72–123. [Google Scholar] [CrossRef]
  116. Mamba, G.; Mishra, A. Graphitic carbon nitride (g-C3N4) nanocomposites: A new and exciting generation of visible light driven photocatalysts for environmental pollution remediation. Appl. Catal. B Environ. 2016, 198, 347–377. [Google Scholar] [CrossRef]
  117. Hu, J.; Zhang, P.; An, W.; Liu, L.; Liang, Y.; Cui, W. In-situ Fe-doped g-C3N4 heterogeneous catalyst via photocatalysis-Fenton reaction with enriched photocatalytic performance for removal of complex wastewater. Appl. Catal. B Environ. 2019, 245, 130–142. [Google Scholar] [CrossRef]
  118. Miao, W.; Liu, Y.; Chen, X.; Zhao, Y.; Mao, S. Tuning layered Fe-doped g-C3N4 structure through pyrolysis for enhanced Fenton and photo-Fenton activities. Carbon 2020, 159, 461–470. [Google Scholar] [CrossRef]
  119. An, S.; Zhang, G.; Wang, T.; Zhang, W.; Li, K.; Song, C.; Miller, J.T.; Miao, S.; Wang, J.; Guo, X. High-Density Ultra-small Clusters and Single-Atom Fe Sites Embedded in Graphitic Carbon Nitride (g-C3N4) for Highly Efficient Catalytic Advanced Oxidation Processes. ACS Nano 2018, 12, 9441–9450. [Google Scholar] [CrossRef]
  120. Raizada, P.; Khan, A.A.P.; Singh, P. Construction of carbon nanotube mediated Fe doped graphitic carbon nitride and Ag3VO4 based Z-scheme heterojunction for H2O2 assisted 2,4 dimethyl phenol photodegradation. Sep. Purif. Technol. 2020, 247, 116957. [Google Scholar] [CrossRef]
  121. Wang, H.; Xu, Y.; Jing, L.; Huang, S.; Li, H.; He, M.; Xu, H.; Li, H. Novel magnetic BaFe12O19/g-C3N4 composites with enhanced thermocatalytic and photo-Fenton activity under visible-light. J. Alloy. Compd. 2017, 710, 510–518. [Google Scholar] [CrossRef]
  122. Yoon, M.; Oh, Y.; Hong, S.; Lee, J.S.; Boppella, R.; Kim, S.H.; Mota, F.M.; Kim, S.O.; Kim, D.H. Synergistically enhanced photocatalytic activity of graphitic carbon nitride and WO3 nanohybrids mediated by photo-Fenton reaction and H2O2. Appl. Catal. B Environ. 2017, 206, 263–270. [Google Scholar] [CrossRef]
  123. Zhang, Q.; Peng, Y.; Deng, F.; Wang, M.; Chen, D. Porous Z-scheme MnO2/Mn-modified Alkalinized g-C3N4 Heterojunction with Excellent Fenton-like Photocatalytic Activity for Efficient Degradation of Pharmaceutical Pollutants. Sep. Purif. Technol. 2020, 246, 116890. [Google Scholar] [CrossRef]
  124. Anipsitakis, G.P.; Dionysiou, D.D. Degradation of Organic Contaminants in Water with Sulfate Radicals Generated by the Conjunction of Peroxymonosulfate with Cobalt. Environ. Sci. Technol. 2003, 37, 4790–4797. [Google Scholar] [CrossRef]
  125. Martínez-Huitle, C.A.; Ferro, S. Electrochemical oxidation of organic pollutants for the wastewater treatment: Direct and indirect processes. Chem. Soc. Rev. 2006, 35, 1324–1340. [Google Scholar] [CrossRef]
  126. Brillas, E.; Sirés, I.; Oturan, M.A. Electro-Fenton Process and Related Electrochemical Technologies Based on Fenton’s Reaction Chemistry. Chem. Rev. 2009, 109, 6570–6631. [Google Scholar] [CrossRef]
  127. Comninellis, C.; Kapalka, A.; Malato, S.; Parsons, S.A.; Poulios, I.; Mantzavinos, D. Advanced oxidation processes for water treatment: Advances and trends for R&D. J. Chem. Technol. Biotechnol. 2008, 83, 769–776. [Google Scholar] [CrossRef]
  128. Panizza, M.; Cerisola, G. Direct and Mediated Anodic Oxidation of Organic Pollutants. Chem. Rev. 2009, 109, 6541–6569. [Google Scholar] [CrossRef]
  129. Nidheesh, P.V.; Gandhimathi, R. Removal of Rhodamine B from aqueous solution using graphite–Graphite electro-Fenton system. Desalin. Water Treat. 2014, 52, 1872–1877. [Google Scholar] [CrossRef]
  130. Le, T.X.H.; Bechelany, M.; Lacour, S.; Oturan, M.A.; Oturan, M.A.; Cretin, M. High removal efficiency of dye pollutants by electron-Fenton process using a graphene based cathode. Carbon 2015, 94, 1003–1011. [Google Scholar] [CrossRef]
  131. Zhu, Y.; Qiu, S.; Deng, F.; Zheng, Y.; Li, K.; Ma, F.; Liang, D. Enhanced degradation of sulfathiazole by electro-Fenton process using a novel carbon nitride modified electrode. Carbon 2019, 145, 321–332. [Google Scholar] [CrossRef]
  132. He, Z.; Chen, J.; Chen, Y.; Makwarimba, C.P.; Huang, X.; Zhang, S.; Chen, J.; Song, S. An activated carbon fiber-supported graphite carbon nitride for effective electro-Fenton process. Electrochim. Acta 2018, 276, 377–388. [Google Scholar] [CrossRef]
  133. Yu, F.; Wang, Y.; Ma, H.; Chen, Y. Enhancement of H2O2 production and AYR degradation using a synergetic effect of photo-electrocatalysis for carbon nanotube/g-C3N4 electrodes. New J. Chem. 2018, 42, 16703–16708. [Google Scholar] [CrossRef]
  134. Yu, F.; Wang, Y.; Ma, H.; Dong, G. Enhancing the yield of hydrogen peroxide and phenol degradation via a synergistic effect of photoelectrocatalysis using a g-C3N4/ACF electrode. Int. J. Hydrog. Energy 2018, 43, 19500–19509. [Google Scholar] [CrossRef]
  135. Wang, J.; Yang, Z.; Gao, X.; Yao, W.; Wei, W.; Chen, X.; Zong, R.; Liu, D. Core-shell g-C3N4@ZnO composites as photoanodes with double synergistic effects for enhanced visible-light photoelectrocatalytic activities. Appl. Catal. B Environ. 2017, 217, 169–180. [Google Scholar] [CrossRef]
  136. Su, Y.; Liu, G.; Zeng, C.; Lu, Y.; Luo, H.; Zhang, R. Carbon Quantum Dots-Decorated TiO2/g-C3N4 Film Electrode as a Photoanode with Improved Photoelectrocatalytic Performance for 1,4-Dioxane Degradation. Chemosphere 2020, 251, 126381. [Google Scholar] [CrossRef]
Figure 1. (a) Schematic illustration of the catalytic mechanism of g-C3N4/CDs/Fe(II) in the presence of H2O2, reprinted with permission from [68]. Copyright 2019 American Chemical Society. (b) Proposed mechanism of PMS activation by gCN-Fe3 for AO7 removal, reprinted with permission from [83]. Copyright 2018 Elsevier.
Figure 1. (a) Schematic illustration of the catalytic mechanism of g-C3N4/CDs/Fe(II) in the presence of H2O2, reprinted with permission from [68]. Copyright 2019 American Chemical Society. (b) Proposed mechanism of PMS activation by gCN-Fe3 for AO7 removal, reprinted with permission from [83]. Copyright 2018 Elsevier.
Processes 09 00066 g001

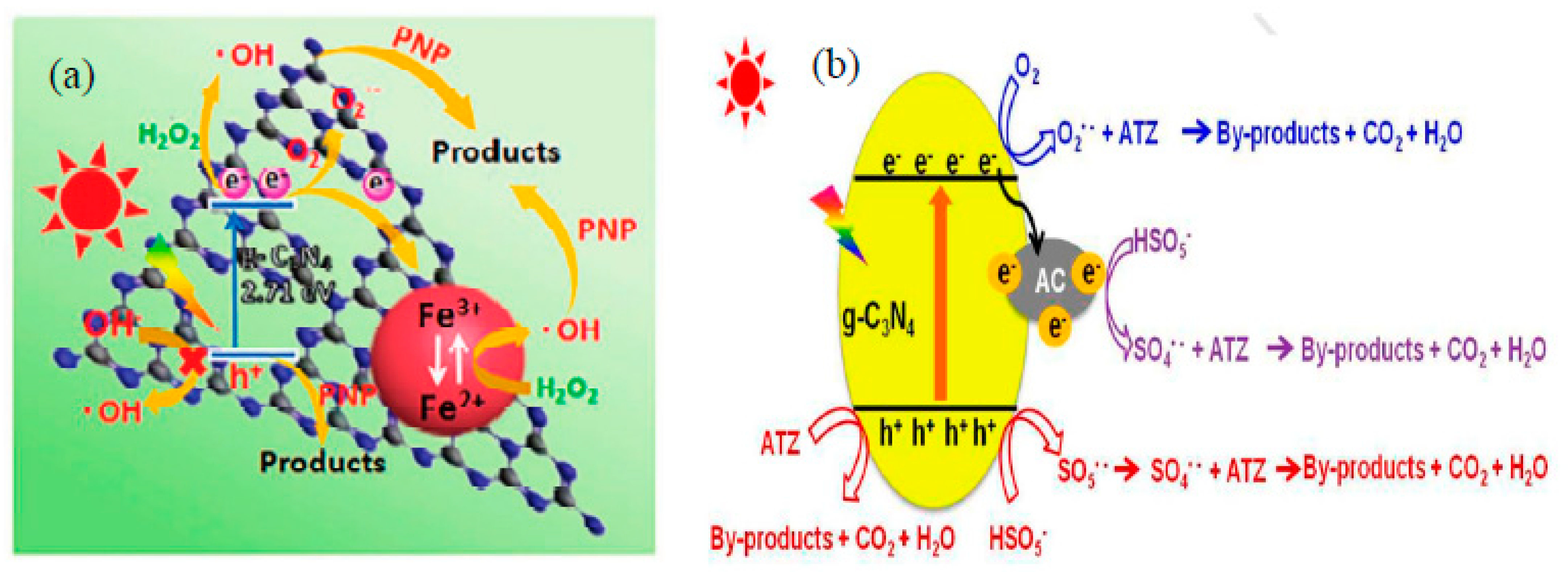

Figure 2. (a) schematic illustration of the catalytic mechanism of Fe2O3 QDs/g-C3N4-900 in H2O2/vis system, reprinted with permission from [113]. Copyright 2019 John Wiley & Sons, Inc. (b) Mechanism of photocatalytic degradation of atrazine with PMS, reprinted with permission from [96]. Copyright 2018 Elsevier.
Figure 2. (a) schematic illustration of the catalytic mechanism of Fe2O3 QDs/g-C3N4-900 in H2O2/vis system, reprinted with permission from [113]. Copyright 2019 John Wiley & Sons, Inc. (b) Mechanism of photocatalytic degradation of atrazine with PMS, reprinted with permission from [96]. Copyright 2018 Elsevier.
Processes 09 00066 g002
Table 1. Graphic carbon nitride (g-C3N4) based composites for chemical advanced oxidation processes (AOPs).
Table 1. Graphic carbon nitride (g-C3N4) based composites for chemical advanced oxidation processes (AOPs).
CatalystTarget ContaminantsOxidantReaction ConditionsPerformanceRef.
Cu(II)/CuAlO2/g-C3N4Bisphenol A (BPA)H2O2BPA, 25 mg/L; catalyst, 1 g/L; H2O2, 10 mM; T, 35 °C; pH, 795.5% in 120 min[75]
Cu/Al2O3/g-C3N4Rhodamine B (RhB)H2O2RhB, 20 mg/L; catalyst, 1 g/L; H2O2, 10 mM; T, 25 °C; pH, 4.996.4% in 100 min[76]
Iron oxide/g-C3N4CiprofloxacinH2O2ciprofloxacin, 20 mg/L; catalyst, 1 g/L; H2O2, 5.6 mM; pH, 3100% in 60 min[68]
g-C3N4/carbon nanotubes/Fe(II)Methylene blueH2O2Methylene Blue, 90 mg/L; catalyst, 0.5 g/L; H2O2, 1 mM; T, 25 °C; pH, 4.966.8% in 1 h[69]
Fe3O4@C/g-C3N4Acid orange 7 (AO 7)PMSAO 7, 20 mg/L; catalyst, 0.6 g/L; PMS, 0.1 g/L; T, 25 °C; pH, 497% in 20 min[77]
CoFeO2/g-C3N4LevofloxacinPMSlevofloxacin, 10 mg/L; catalyst, 0.15 g/L; PMS, 0.5 mM; T, Room temperature; pH, 3100% in 60 min[78]
Co-doped g-C3N44-chlorophenolPMS4-chlorophenol, 50 mg/L; catalyst, 1 g/L; PMS, 2.5 mM100% in 30 min[79]
Mn-doped g-C3N4AcetaminophenPMSacetaminophen, 20 mg/L; catalyst, 0.05 g/L; PMS, 0.8 g/L; pH, 6.5100% in 15 min[80]
Cu+-g-C3N4Rhodamine BH2O2Rhodamine B, 50 mg/L; catalyst, 0. 8 g/L; H2O2, 40 mM; pH, neutral99.2% in 1 h[81]
Pd/g-C3N4BPAPMSBPA, 20 mg/L; catalyst, 0.1 g/L; PMS, 1 mM; T, 25 °C; pH, 991% in 60 min[82]
FeOy/S-g-C3N4SulfamethoxazolePMSsulfamethoxazole, 10 mg/L; catalyst, 0.5 g/L; PMS, 0.8 mM; T, 25 °C; pH, 3.54100% in 60 min[83]
Fe(III)-doped g-C3N4AO 7PMSAO 7, 8.5 mg/L; catalyst, 0.1 g/L; PMS, 0.1 g/L; pH, 3–497% in 30 min[84]
cryptomelane-type manganese oxide/g-C3N4AO 7PMSAO 7, 0.13 mM; catalyst, 0.2 g/L; PMS, 0.65 mM; T, 8 °C; pH, 7.2588% in 30 min[85]
carbon and oxygen dual-doped g-C3N4BPAPMSBPA, 0.1 mM; catalyst, 0.5 g/L; PMS, 5 mM; T, 30 °C; pH, 6.7100% in 60 min[86]
Active carbon/g-C3N4AO 7PMSAO 7, 50 mg/L; catalyst, 0.2 g/L; PMS, 0.4 g/L; T, 27 °C; pH, 3.82100% in 20 min[87]
Fe-doped g-C3N4/graphite4-chlorophenolPMS4-chlorophenol, 0.1 mM; catalyst, 0.1 g/L; PMS, 0.1 mM; pH, 3100% in 10 min[88]
Oxygen-doped g-C3N4BPAPMSBPA, 0.05 mM; catalyst, 1 g/L; PMS, 10 mM; T, 30 °C; pH, 3–9100% in 60 min[66]
Fe(II)-doped g-C3N4PhenolPMSphenol, 0.1 mM; catalyst, 1 g/L; PMS, 5 mM; T, 23 °C; pH, 2.6100% in 20 min[89]
Mn3O4/g-C3N44-chlorophenolPMS4-chlorophenol, 50 mg/L; catalyst, 0.3 g/L; PMS, 1 mM; T, 25 °C; pH, 4100% in 40 min[90]
Table 2. g-C3N4 based composites for photochemical AOPs.
Table 2. g-C3N4 based composites for photochemical AOPs.
CatalystTarget ContaminantsLight SourceReaction ConditionsPerformanceRef.
NiCo2O4/g-C3N4Carbamazepine500 W Xenon lamp, Visible lightcarbamazepine, 10 mg/L; catalyst, 0.5 g/L; PMS, 1 mM;100% in 10 min[93]
TiO2/g-C3N4Acetaminophen300 W Xenon lamp, Visible lightacetaminophen, 5 mg/L; catalyst, 0.5 g/L; PS, 2 mM; pH, 7100% in 30 min[94]
Fe doped g-C3N4/grapheneTrimethoprim350 W Xenon lamp, Visible lightTrimethoprim, 0.02 mM; catalyst, 0.5 g/L; PMS, 0.2 mM; pH, 6100% in 120 min[95]
MoS2/A g/g-C3N4Tetracycline300 W Xenon lamp, Visible lighttetracycline, 20 mg/L; catalyst, 0.2 g/L; PMS, 0.1 mM; T, 20 °C; pH, 5.598.9% in 50 min[96]
activated carbon/g-C3N4Atrazine300 W Xenon lamp, Visible lightatrazine, 5 mg/L; catalyst, 1 g/L; PMS, 5 mM; T, 25 °C; pH, 5.5697.5% in 120 min[97]
Cobalt-doped g-C3N4Rhodamine B500 W halogen tungsten lamp, Visible lightrhodamine B, 10 mg/L; catalyst, 0.4 g/L; PMS, 0.12 mM; T, 25 °C; pH, 4.68100% in 25 min[98]
Sulfur-doped/g-C3N4Bisphenol A150 W Visible light lampBisphenol A, 50 mg/L; catalyst, 0.3 g/L; PMS, 0.3 g/L; T, 20 °C; pH, 585% in 120 min[99]
g-C3N4-imidazole-based ligand-FePcCl16CarbamazepineXenon lamp, Visible lightcarbamazepine, 25μM; catalyst, 0.1 g/L; PMS, 0.3 mM; pH, 795% in 25 min[100]
Cu-modified alkalinized g-C3N4Rhodamine Bhalogen tungsten lamp, Visible lightrhodamine B, 10 mg/L; catalyst, 0.4 g/L; H2O2, 9.8 mM; pH, 4.695% in 10 min[101]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Back to TopTop
