Next Article in Journal
Environmental Remediation of Antineoplastic Drugs: Present Status, Challenges, and Future Directions
Previous Article in Journal
Designing the Next Generation of Fe0-Based Filters for Decentralized Safe Drinking Water Treatment: A Conceptual Framework
Open AccessFeature PaperArticle

Influence of Electrostatic Interactions During the Resorcinol-Formaldehyde Polymerization on the Characteristics of Mo-Doped Carbon Gels

Department of Inorganic Chemistry, Faculty of Sciences, University of Granada, Avda. Fuente Nueva, s/n., ES18071 Granada, Spain
*
Author to whom correspondence should be addressed.
Processes 2020, 8(6), 746; https://doi.org/10.3390/pr8060746
Received: 9 June 2020 / Revised: 23 June 2020 / Accepted: 23 June 2020 / Published: 26 June 2020
(This article belongs to the Special Issue Advances in Supported Nanoparticle Catalysts)

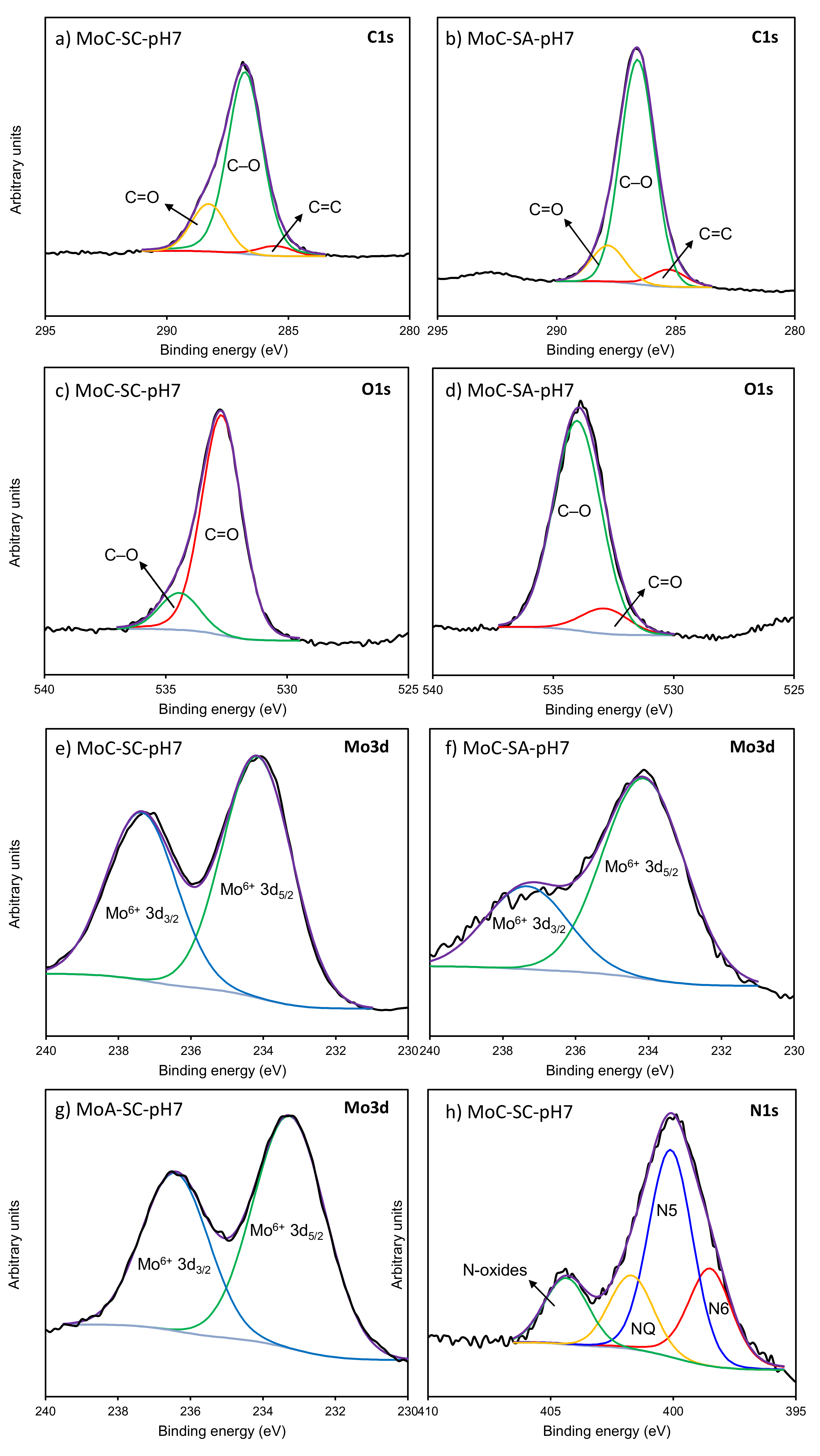

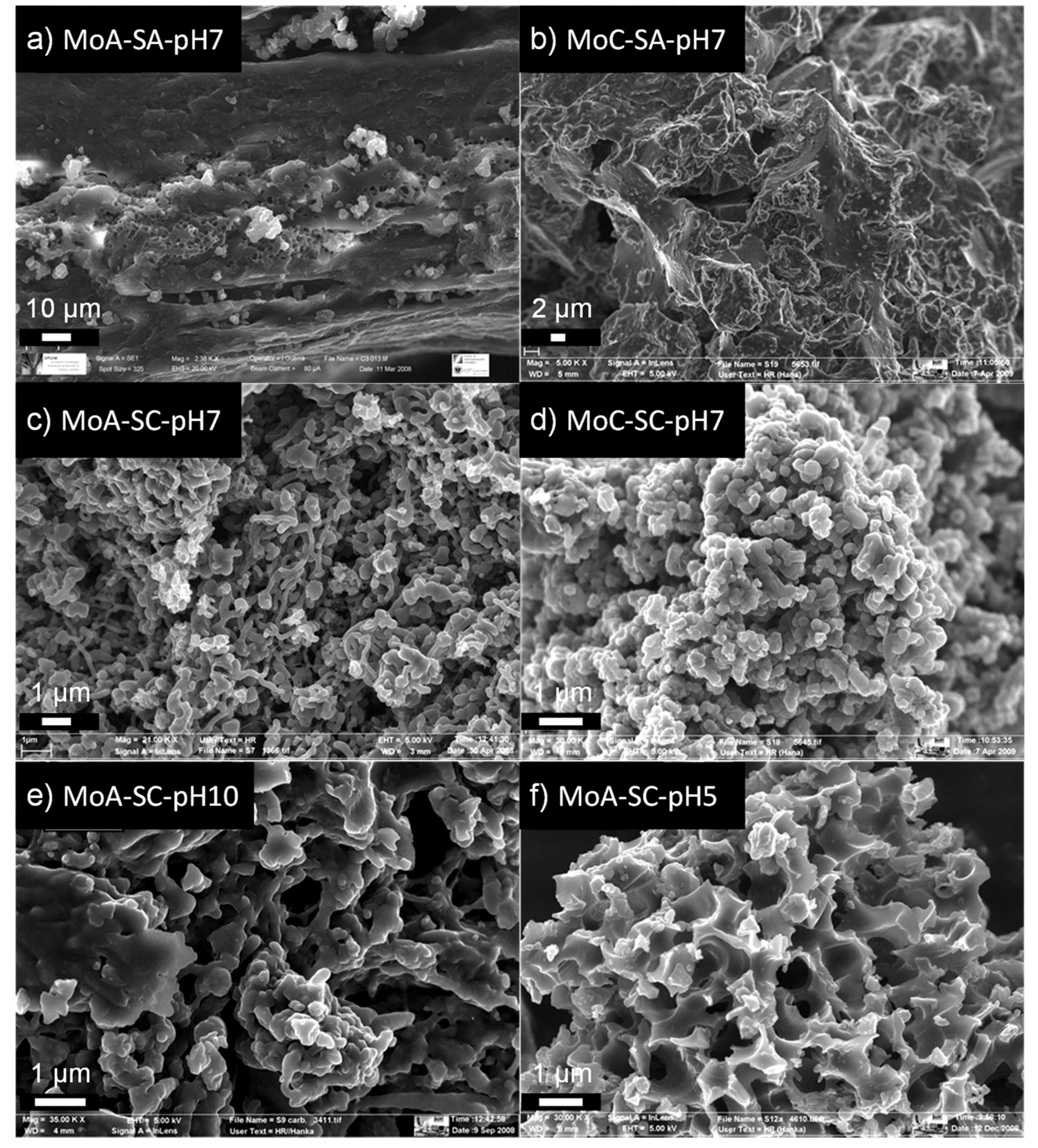

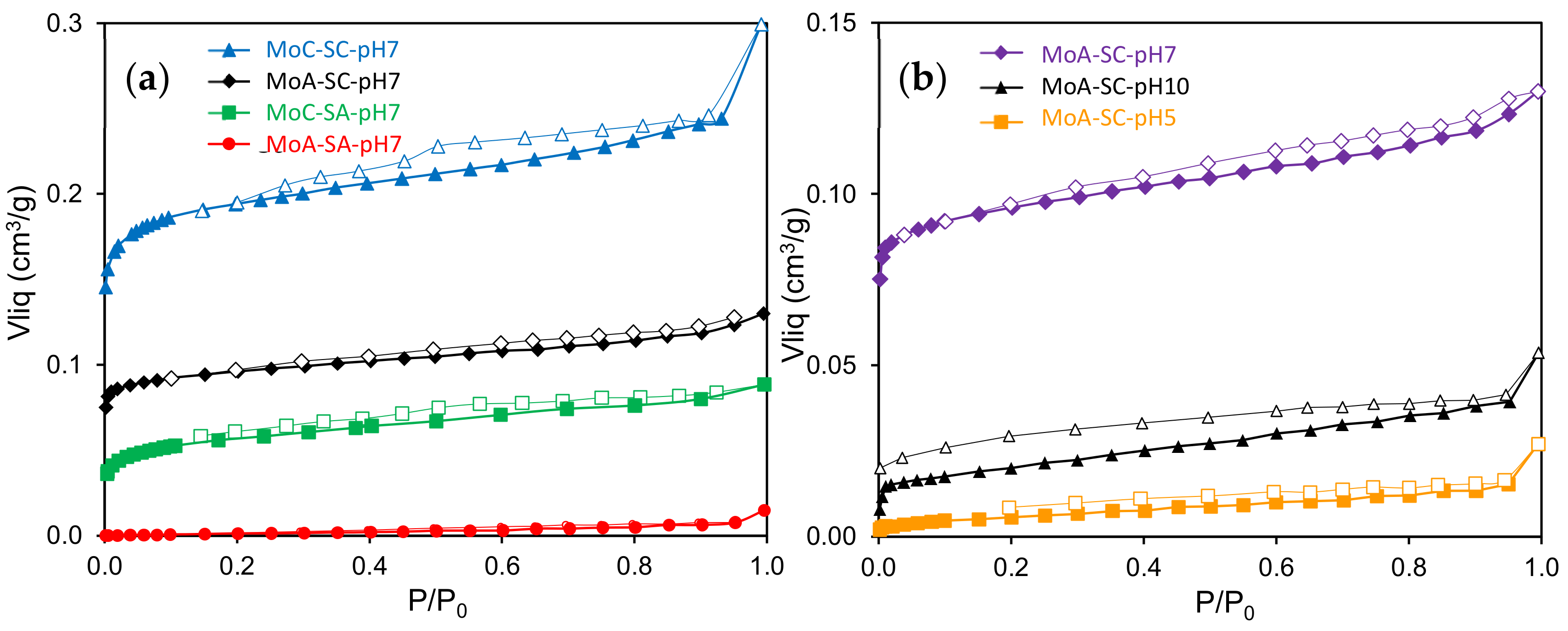

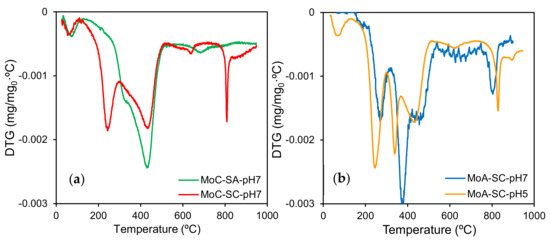

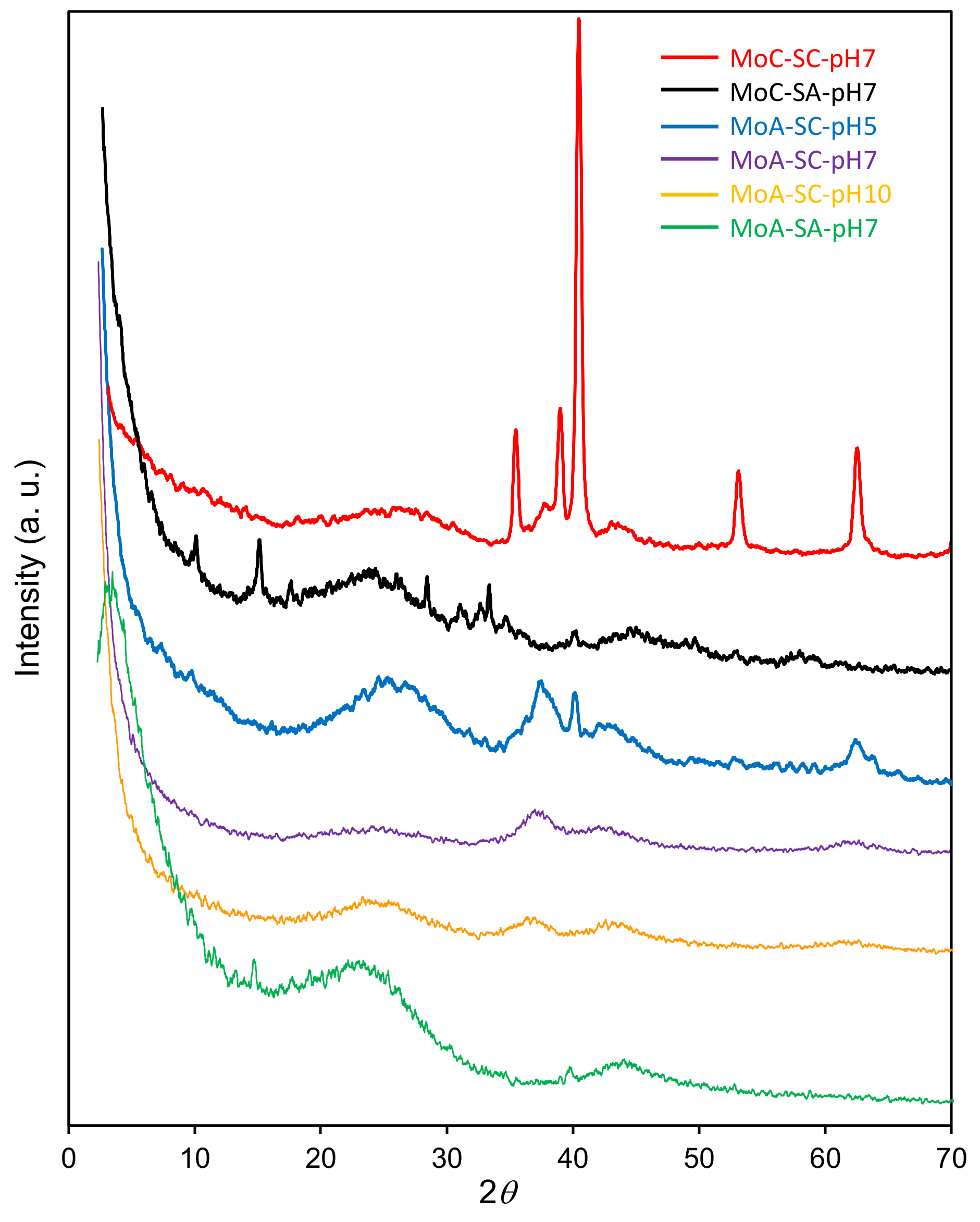

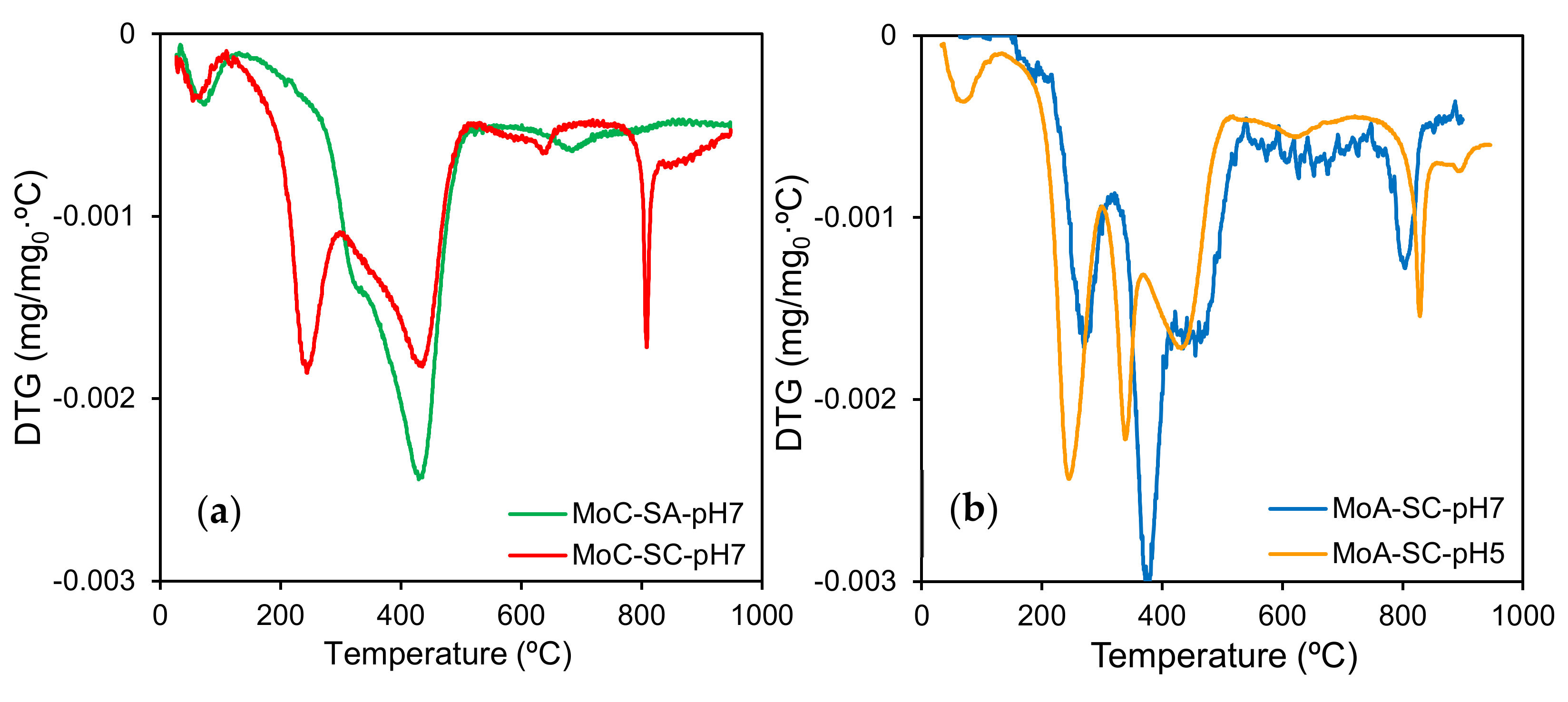

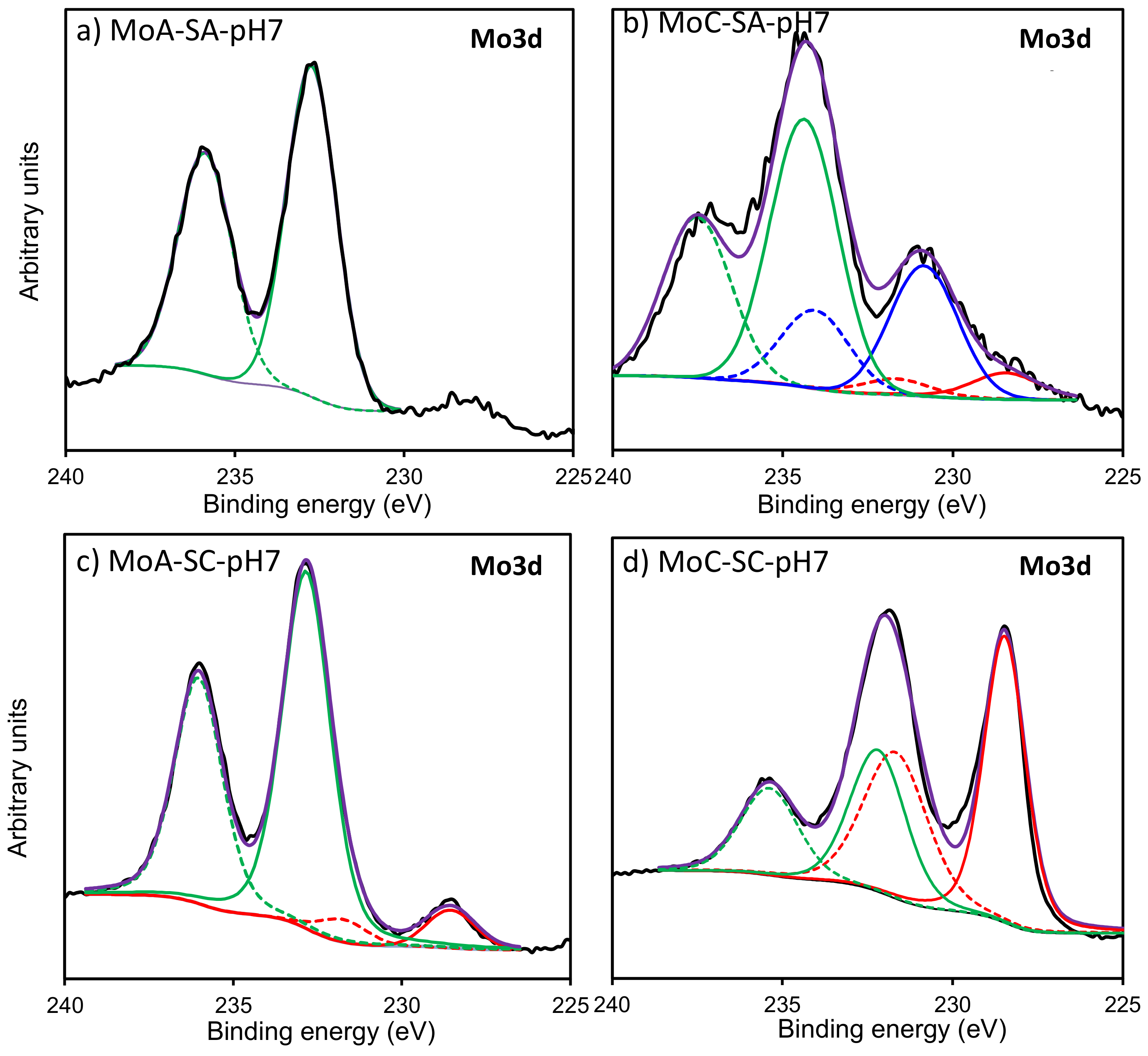

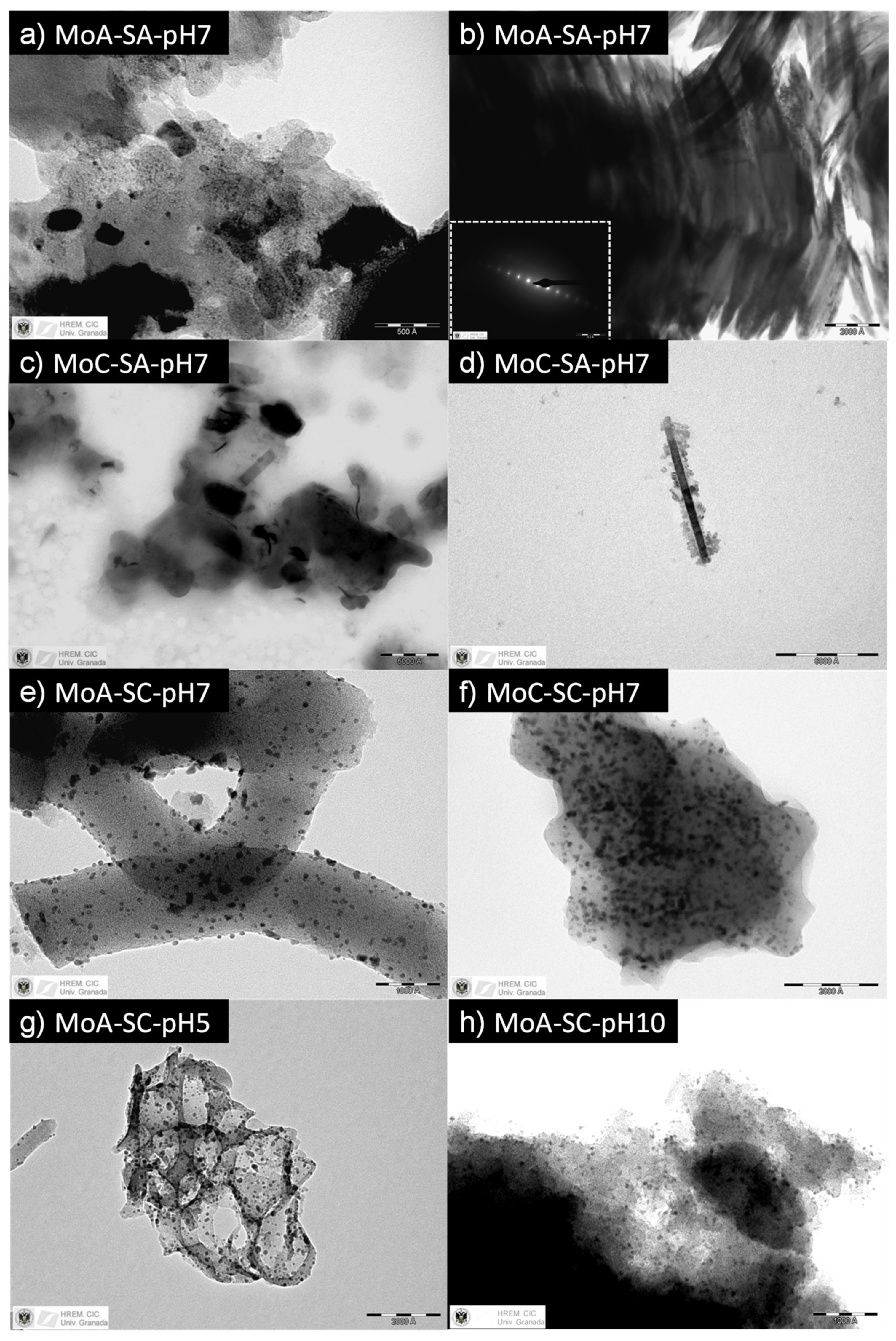

The resorcinol (R)-formaldehyde (F) polymerization was carried out in different experimental conditions to obtain RF/Mo doped carbon xerogels with different morphology, porosity and nature and dispersion of metal. Attractive or repulsive electrostatic interactions were forced in the starting aqueous solution of RF-monomers using different synthesis conditions, namely, combinations of cationic or anionic surfactants, Mo-precursors and pH values. The results showed that when both cationic surfactant and Mo-precursor were used at neutral pH, attractive interactions with the anionic RF-macromolecules are favored during polymerization and the final carbon xerogel exhibited the most developed porosity and the strongest Mo-organic phase interaction, leading to deeper Mo-phase reduction during carbonization and the formation of highly-dispersed crystalline nanoparticles of Mo2C. On the contrary, the use of both anionic surfactant and Mo-precursor leads to repulsive interactions, which generates less porous carbon gels with a Mo-phase formed by large MoO3 platelet structures and low Mo-surface contents. RF/Mo-doped gels with intermediate properties were obtained by combining cationic and anionic surfactants, metal precursors or both. After carbonization, the obtained materials would be suitable to be used directly as catalysts with different physicochemical properties and active phases. View Full-Text
Keywords: resorcinol-formaldehyde polymerization; surfactants; Mo-doping; chemical interactions; carbon xerogels; physicochemical properties; metal nanoparticles resorcinol-formaldehyde polymerization; surfactants; Mo-doping; chemical interactions; carbon xerogels; physicochemical properties; metal nanoparticles
Show Figures

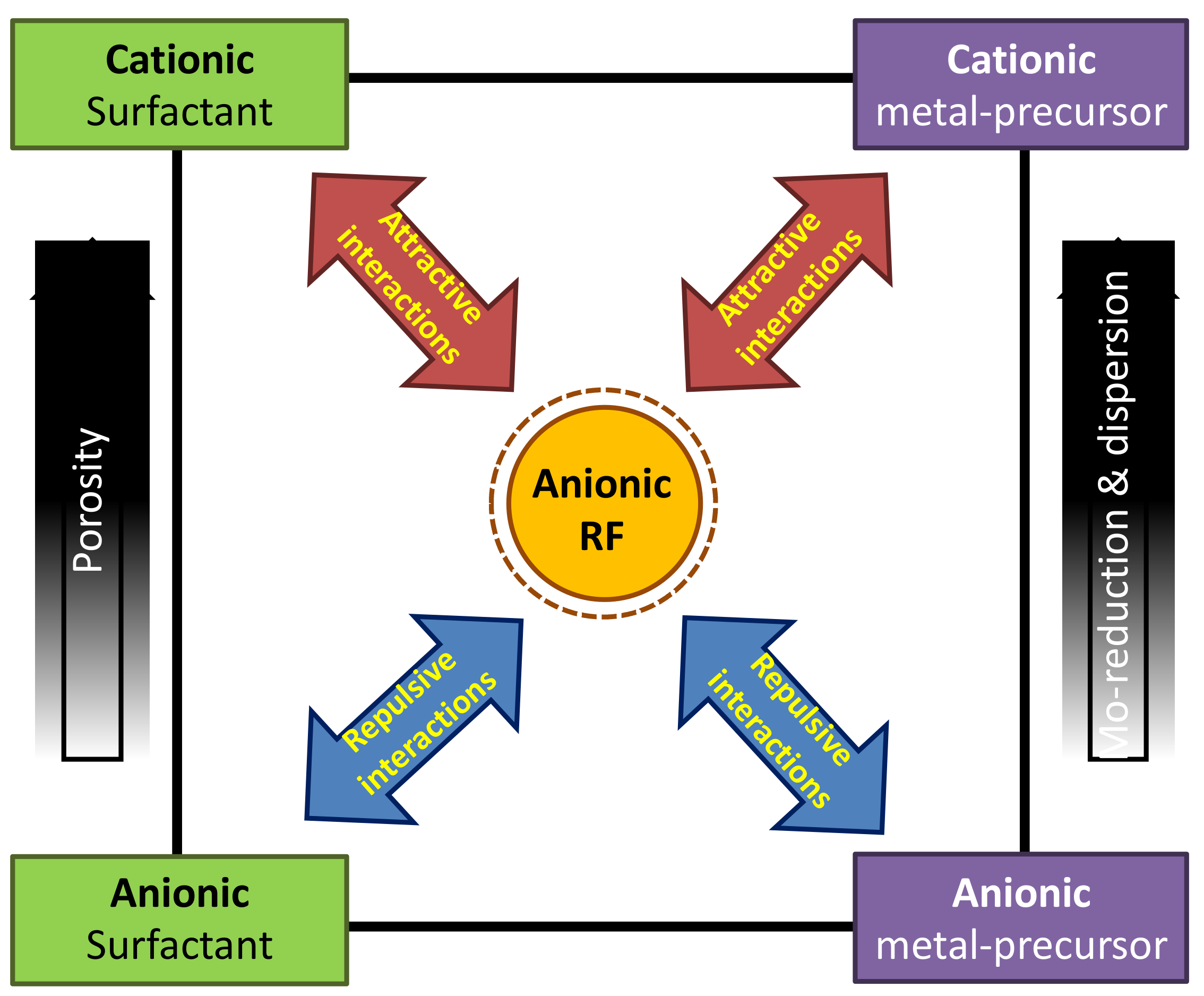

Figure 1

MDPI and ACS Style

Morales-Torres, S.; Jirglová, H.; Pastrana-Martínez, L.M.; Maldonado-Hódar, F.J. Influence of Electrostatic Interactions During the Resorcinol-Formaldehyde Polymerization on the Characteristics of Mo-Doped Carbon Gels. Processes 2020, 8, 746.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
