Open AccessArticle

A Method of Bending Shrinkage Groove on Vortex Suppression and Energy Improvement for a Hydrofoil with Tip Gap

1
State Key Laboratory of Hydroscience and Engineering, Department of Energy and Power Engineering, Tsinghua University, Beijing 100084, China
2
College of Marine Power Engineering, Naval University of Engineering, Wuhan 430033, China
*
Author to whom correspondence should be addressed.
Processes 2020, 8(10), 1299; https://doi.org/10.3390/pr8101299
Received: 16 September 2020 / Revised: 9 October 2020 / Accepted: 13 October 2020 / Published: 16 October 2020
(This article belongs to the Section Energy Systems)
Hydro energy is a kind of typical renewable energy, which can be converted by hydraulic machinery. However, tip leakage vortex (TLV) has a significant negative influence on the flow pattern and energy performance of hydraulic machinery. In this paper, a bending shrinkage groove (BSG) is proposed to suppress the TLV and improve the energy performance of a hydrofoil first, and then a parametric optimization design method is briefly introduced and applied to determine the optimal configuration of the groove. The main geometric parameters of the groove are selected as optimized variables and three different groove configurations are selected from the optimization result. Finally, the performance improvement of the hydrofoil with groove, the sensitivity analysis of the optimization variables, and the groove impacts on the TLV and flow patterns are investigated. The results demonstrate that the preferred groove reduces the non-dimensional Q criterion vortex isosurfaces area (Qarea = 2 × 107) by 5.13% and increases the lift drag ratio by 17.02%, comparing to the origin hydrofoil. Groove depth d and groove width w are proved to have more significant impacts on the hydrofoil energy performance. The TLV and flow patterns are greatly affected by the different BSG configurations, and the wider BSG contributed to reducing the area of TLV, at the cost of energy performance deterioration. View Full-Text
Keywords: bending shrinkage groove; tip gap; parametric design; vortex suppression bending shrinkage groove; tip gap; parametric design; vortex suppression
Show Figures

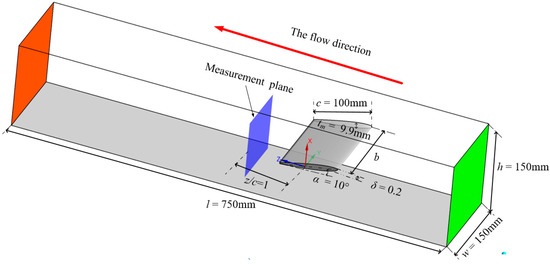

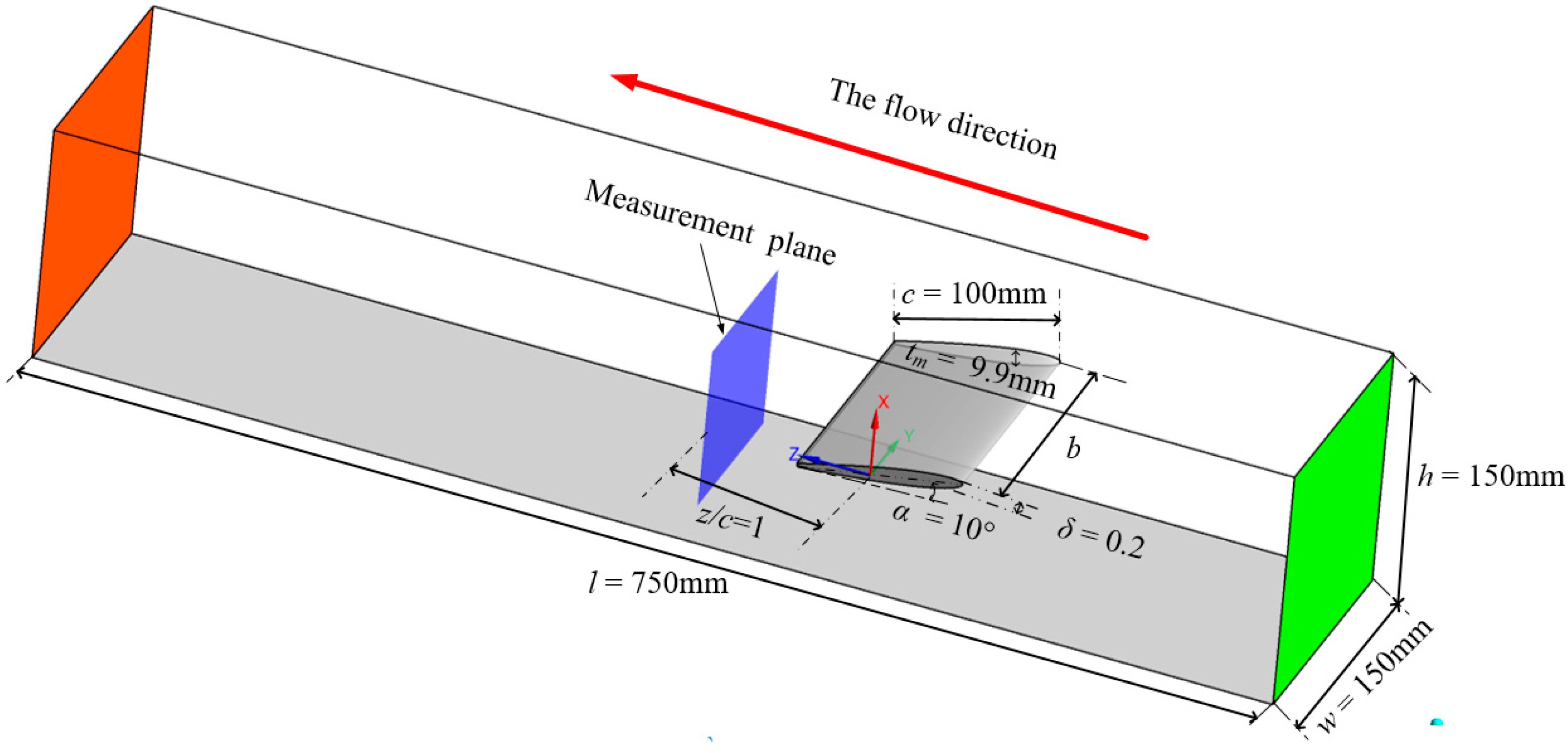

Figure 1

MDPI and ACS Style

Hu, Z.; Huang, C.; Huang, Z.; Zhang, J. A Method of Bending Shrinkage Groove on Vortex Suppression and Energy Improvement for a Hydrofoil with Tip Gap. Processes 2020, 8, 1299.
