Reclaimed Municipal Wastewater Sand as a Viable Aggregate in Cement Mortars: Alkaline Treatment, Performance, Assessment, and Circular Construction Applications
Abstract
1. Introduction
- Interference with Cement Hydration: Organic compounds can retard or inhibit the hydration of Portland cement by adsorbing onto the surface of cement grains or by complexing with calcium ions, delaying strength development and reducing early-age performance [1].
- Poor Interfacial Bonding: Residual organic matter acts as a barrier between sand particles and the cement paste matrix, weakening the interfacial transition zone (ITZ). This leads to reduced bond strength and increased porosity at the microstructural level.
- Microbial Activity and Long-Term Instability: If not properly neutralized. Organic components can foster microbial growth or decay within hardened mortars, resulting in odour formation, material degradation, and potential bio-corrosion over time.
2. Materials and Methods
2.1. Materials
- Cement: CEM I 42.5R conforming to EN 197-1 standards [44].
- Aggregates:
- ○
- Natural, standardized norm sand (0–2 mm) (symbol in the research—SN) per EN 196-1 [45],
- ○
- Quartz sand according to building standards (symbol in the research—ST),
- ○

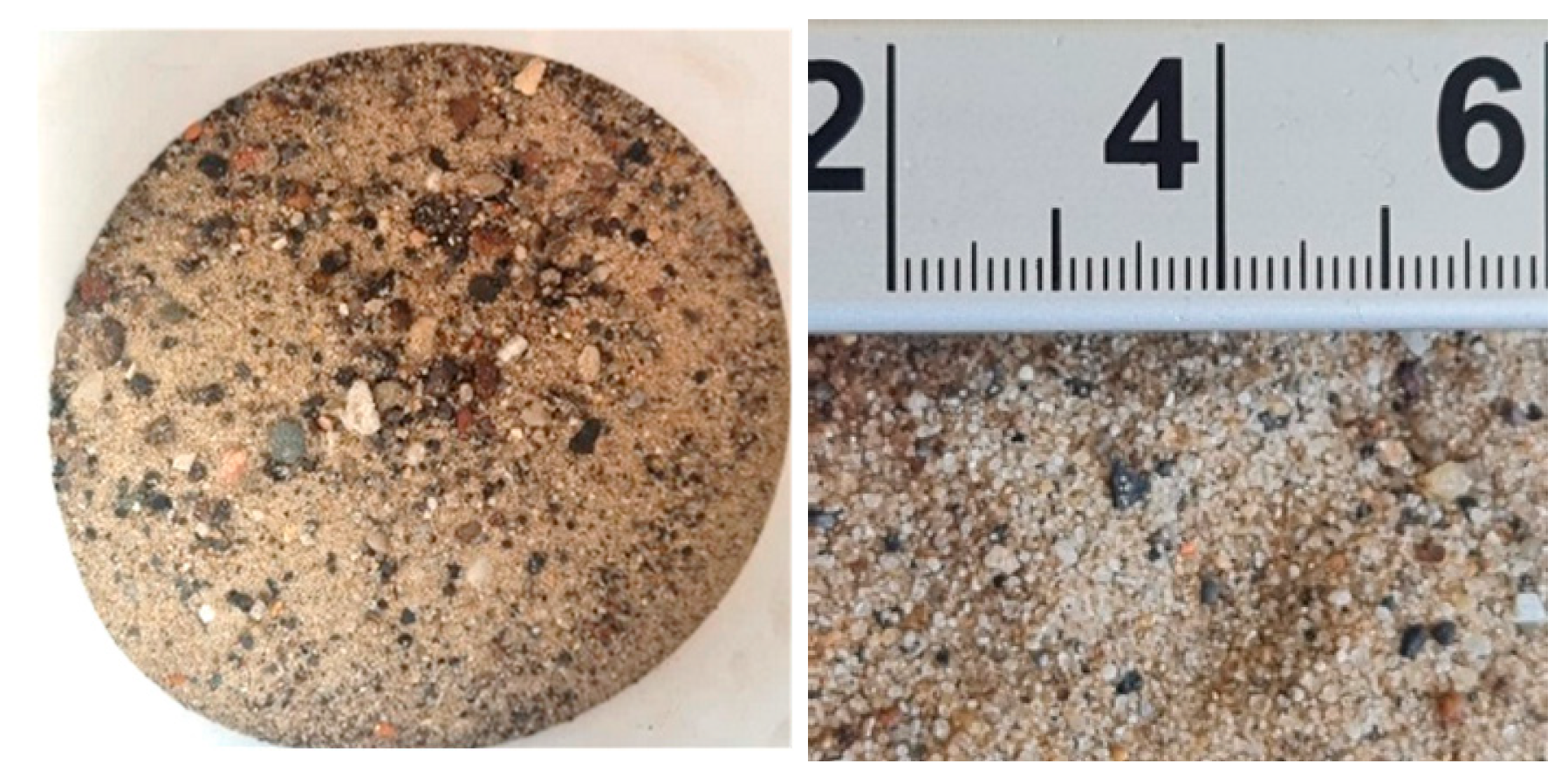

- WWTP sand sourced from the grit removal systems of a municipal wastewater treatment plant, containing organic residues and fine silts,
- Sodium hydroxide (NaOH) reagent grade (30% stock solution),
- Potable water,
- Polycarboxylate superplasticizer in a dosage of 0.40% mass of cement.
2.2. Methods

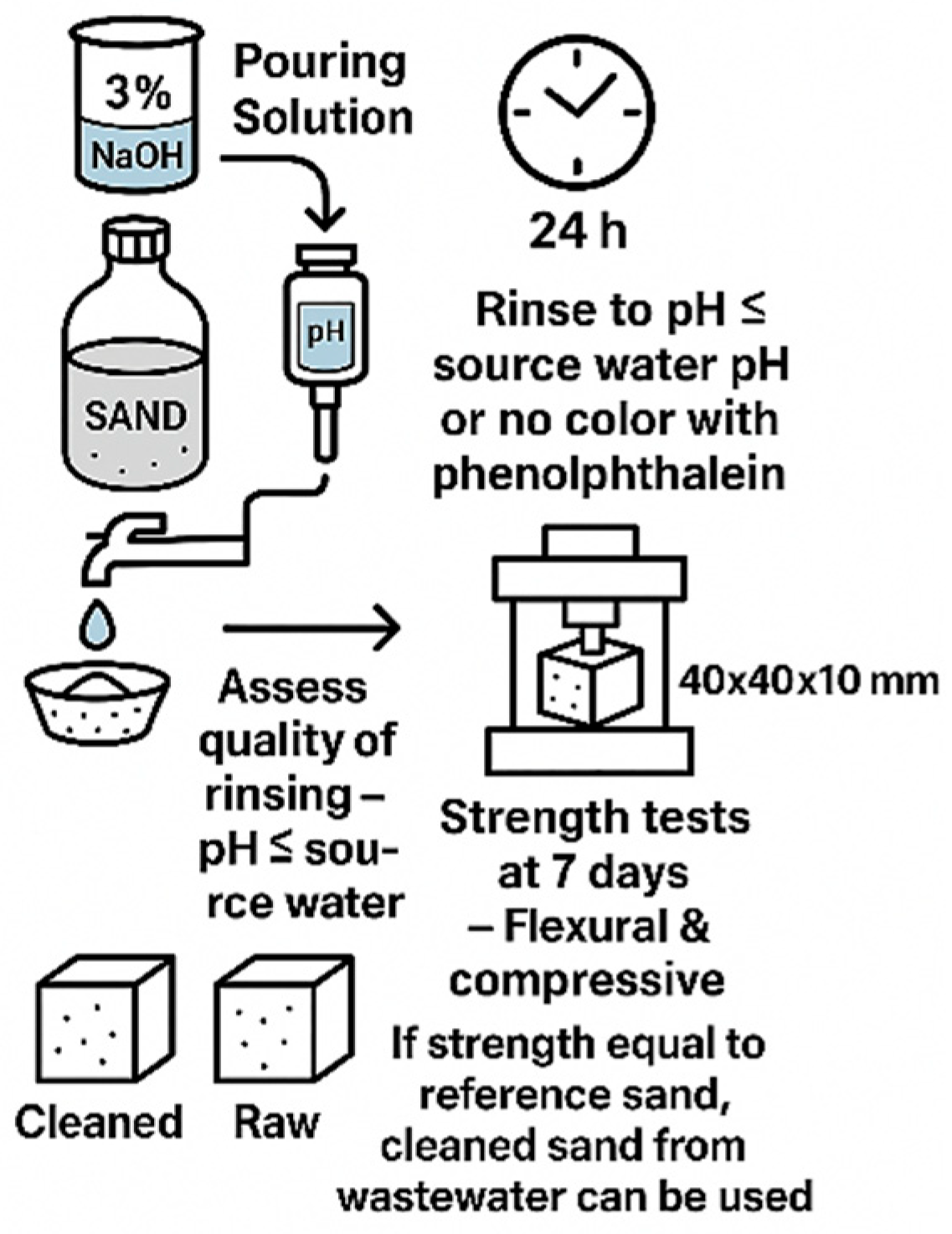

2.2.1. Sand Pretreatment Procedure

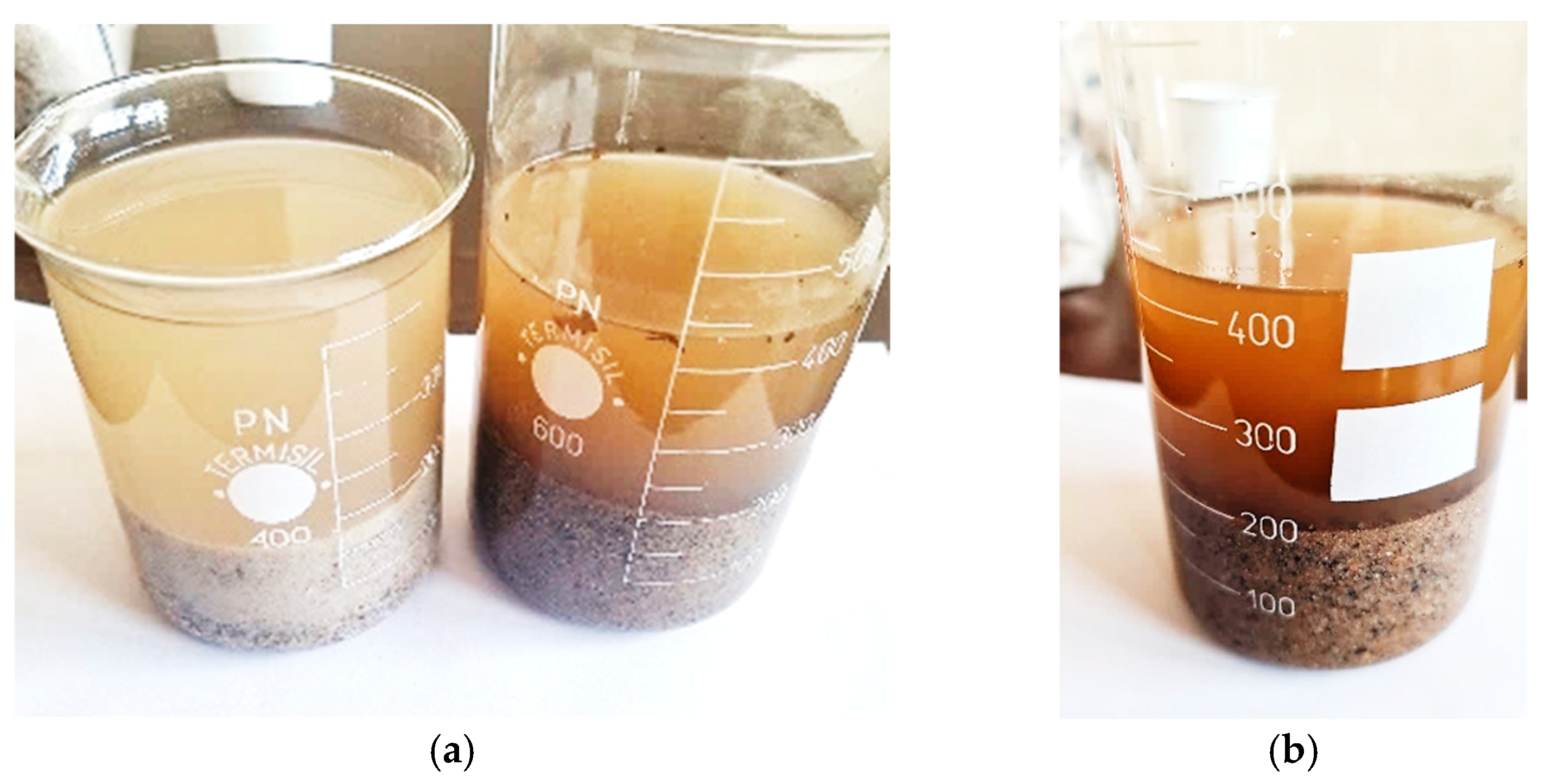

- Washing the sand: Weigh approx. 130 mL (by volume) of sand and put it in an airtight, colorless bottle [56].
- Rinsing and checking cleanliness: After 24 h, strain and rinse the sand with clean water—rinsing several times until the rinsing water reaches: pH ≤ pH of the water used for the first rinse (e.g., pH value); or no color in phenolphthalein test (rinse water without pink coloration) [56,57]. Use pH paper, a pH meter, or phenolphthalein to ensure that no NaOH is left [57].
- A minimum NaOH concentration of 2% is highly effective in reducing the impact of organic impurities.
- Mortars prepared with WWTP sand treated with 2% NaOH show significantly improved workability and compressive strength, reaching over 98% of the strength of reference mortars with standard sand.
- Flowability increased substantially compared to untreated sand, indicating cleaner particle surfaces and lower water demand.
2.2.2. Testing of Sand and Mortar Procedures
3. Results and Discussion

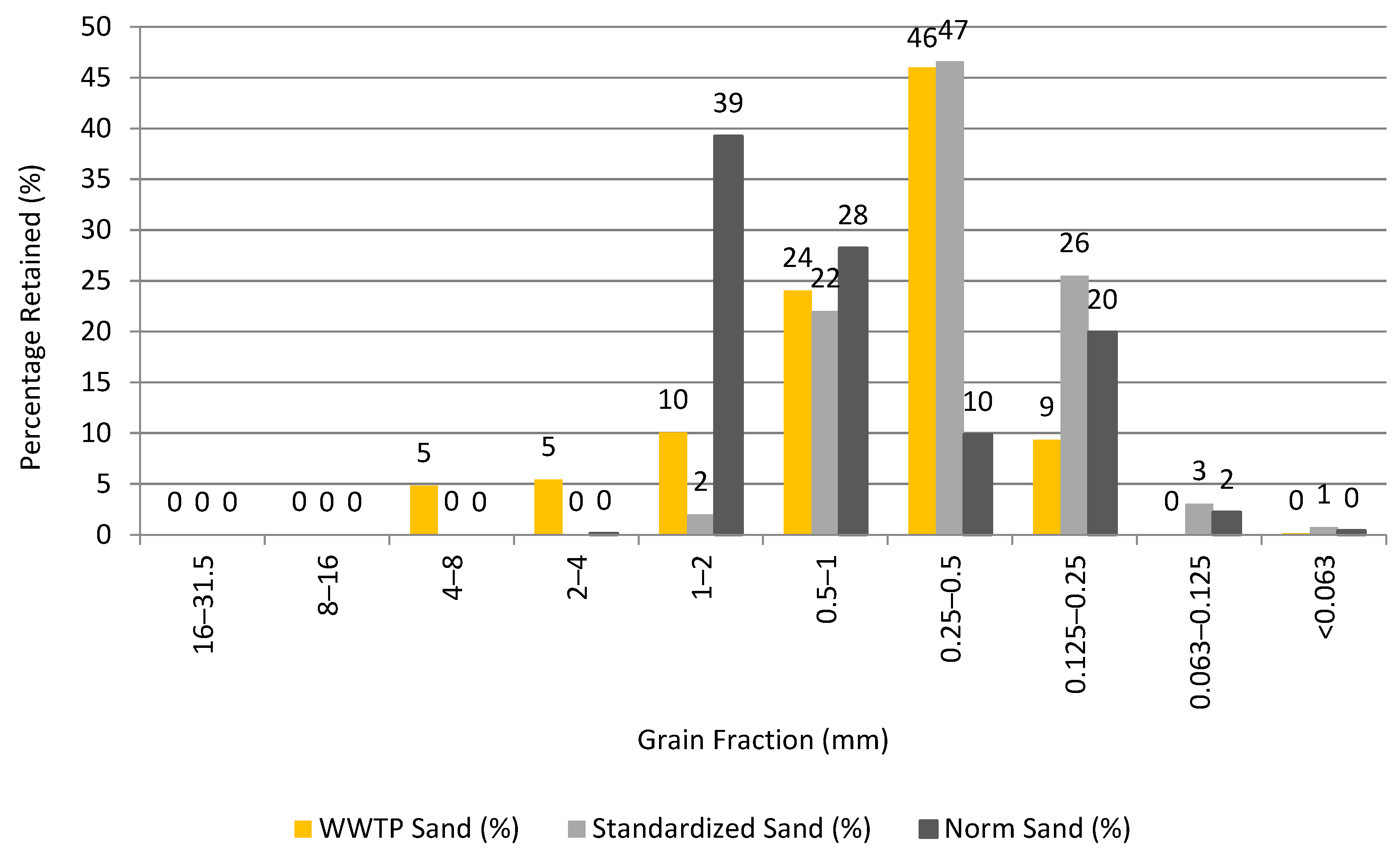

3.1. Particle Size Distribution of Sands
- WWTP Sand exhibits a dominant content in the 0.25–0.5 mm fraction, accounting for approximately 46% of the total mass. Additionally, it contains a significant amount of 0.5–1.0 mm grains (24%). However, it also retains a considerable proportion of fines (<0.25 mm), making up roughly 10% of the material. The elevated presence of fine particles may increase water demand and negatively affect mortar workability and consistency. Furthermore, the lack of coarser fractions above 1 mm suggests a limited grading range, which could impact packing density and mechanical stability.
- Norm Sand presents a more balanced granulometric profile. It contains a substantial amount of coarse sand (1–2 mm) at 39%, combined with 28% in the 0.5–1.0 mm range. This balanced distribution contributes to better particle interlock. Compactness and reduced voids in mortar. The lower content of fines (<0.25 mm) also implies more favourable water-to-cement ratio management during mixing. This grading is characteristic of well-performing sands in structural mortars and plasters.
- Standardized Sand, which complies with EN 196-1 (Methods of Testing Cement—Determination of Strength, demonstrates the highest uniformity among the tested samples. The dominant fraction is 0.25–0.5 mm (46.6%), accompanied by a moderate amount of 0.5–1.0 mm (22%). This composition adheres closely to the requirements of EN 196-1. which specifies that standardised sand must consist of three nearly equal proportions (⅓ each) of 0.5–1.0 mm, 0.25–0.5 mm, and 0.125–0.25 mm fractions and contain minimal fines below 0.125 mm. The standardised grading ensures reproducibility in strength testing and serves as the benchmark for comparing cement mortars.

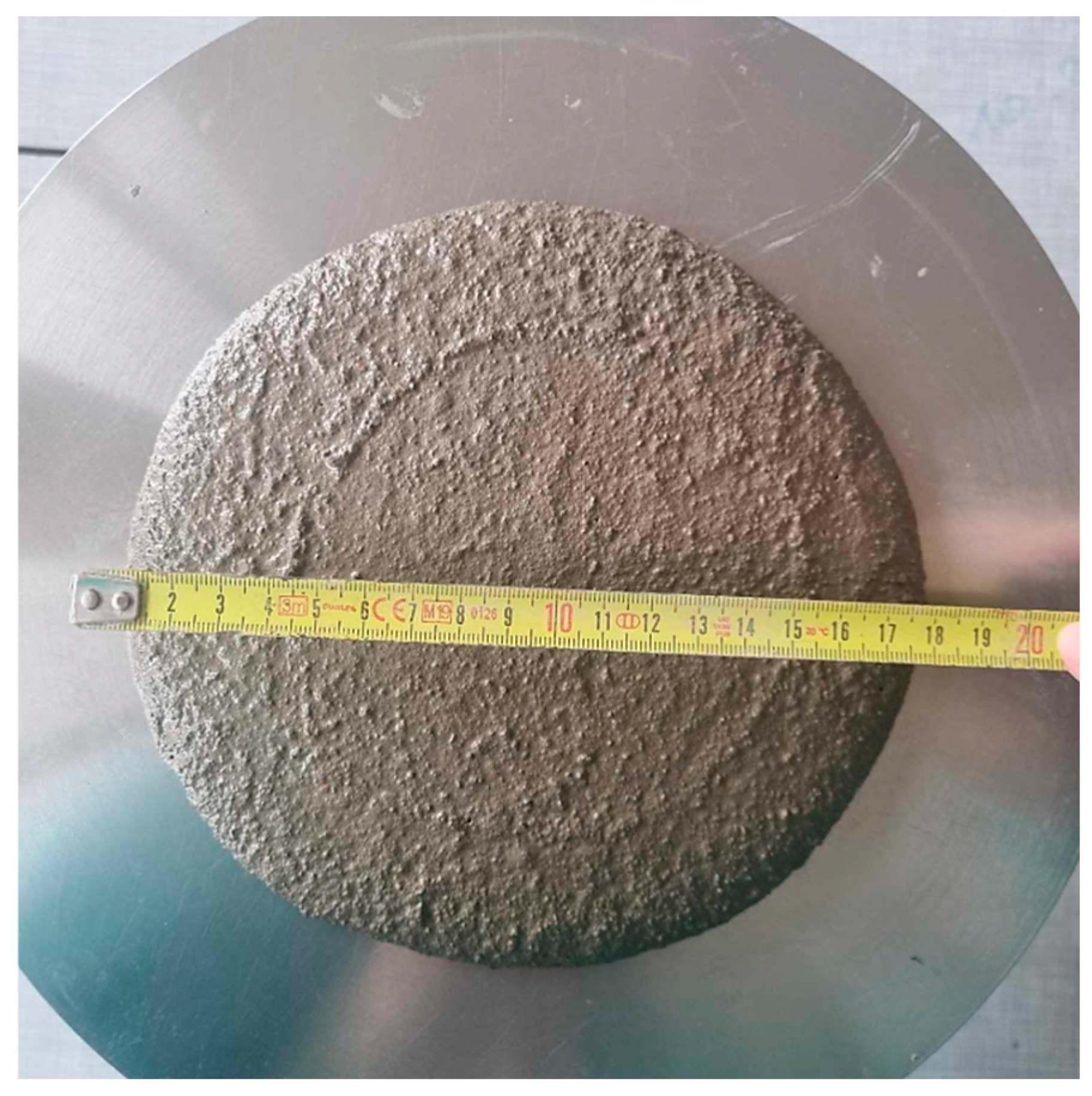

3.2. Rheological Properties of Mortar

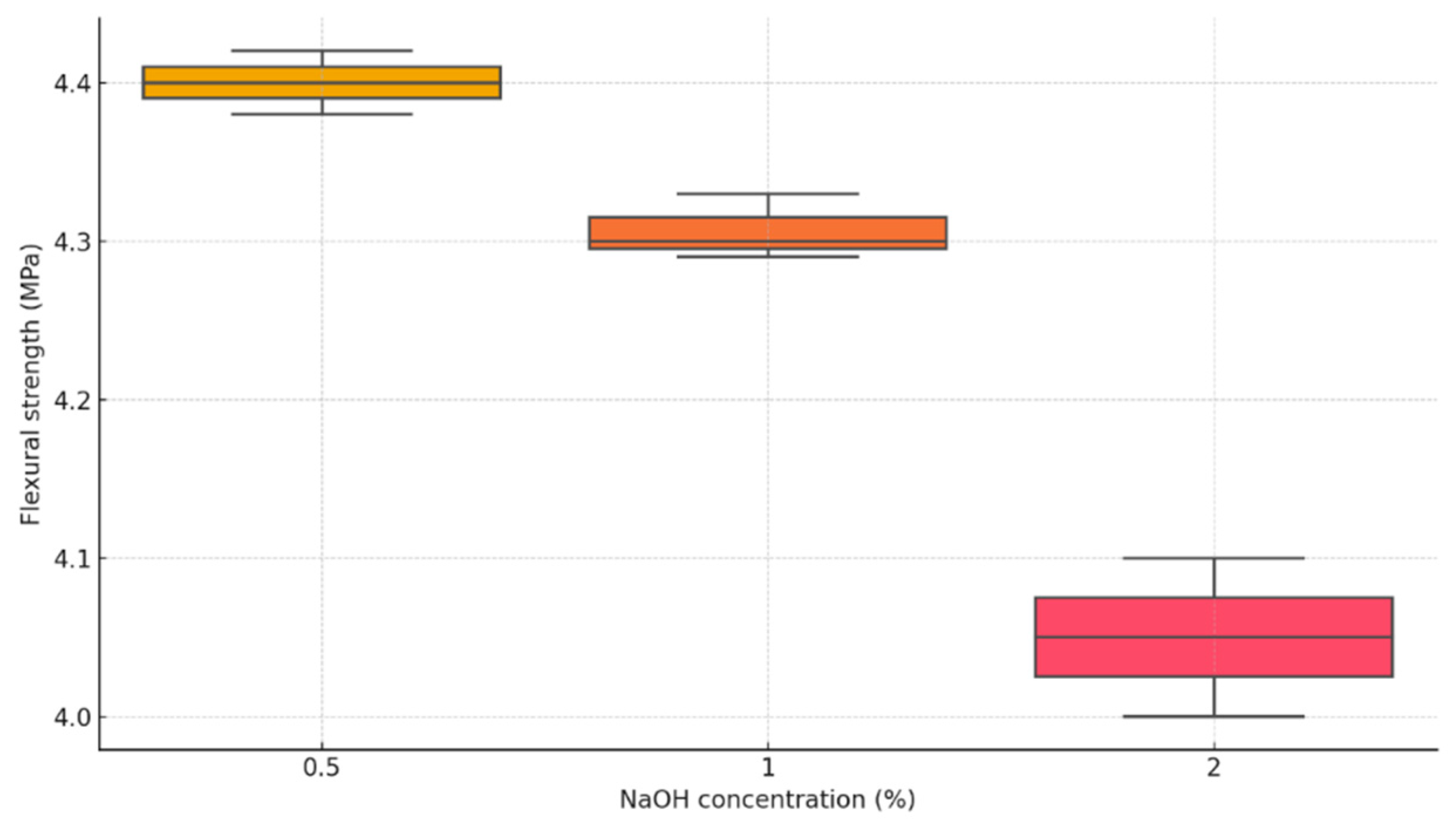

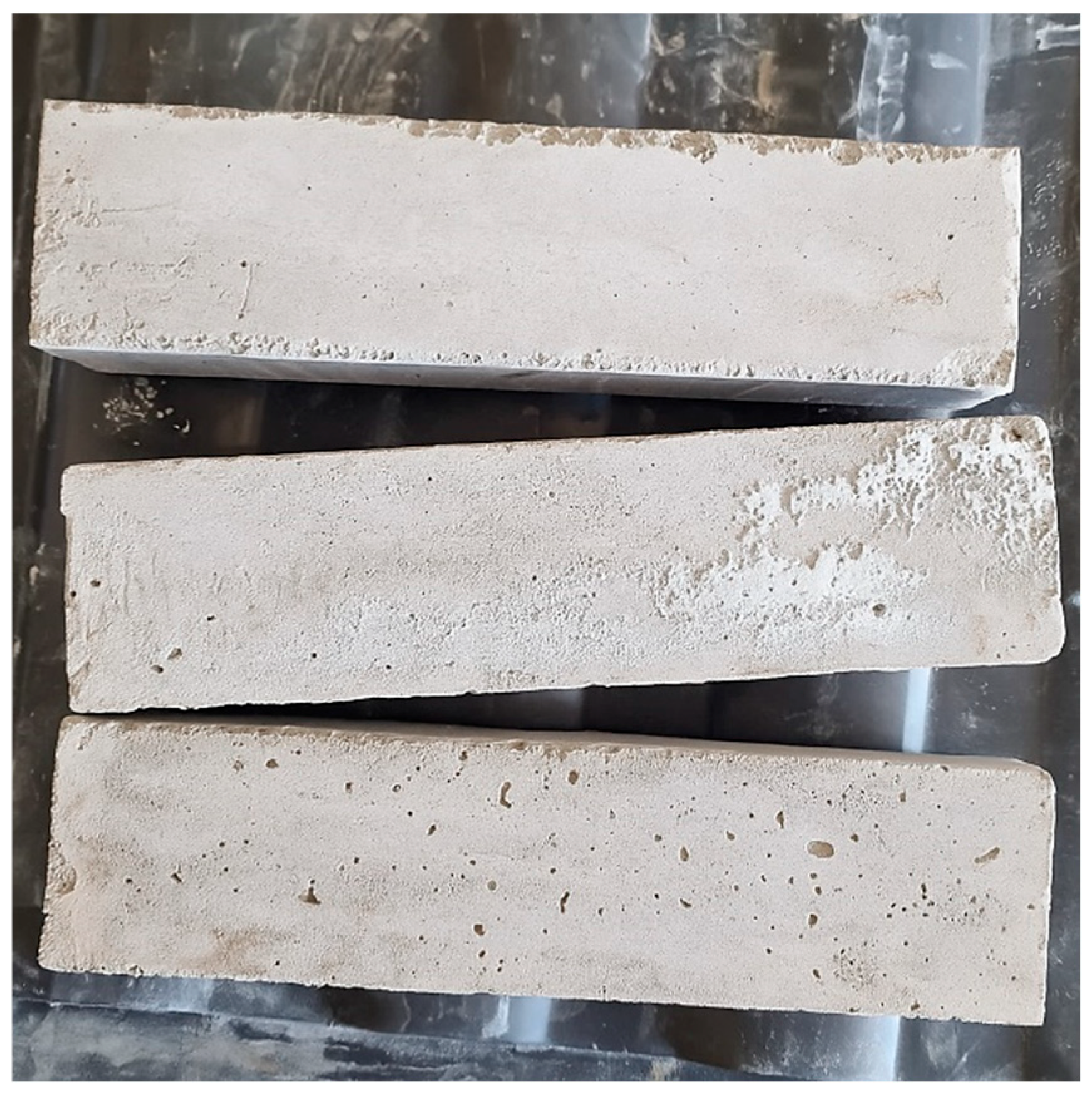

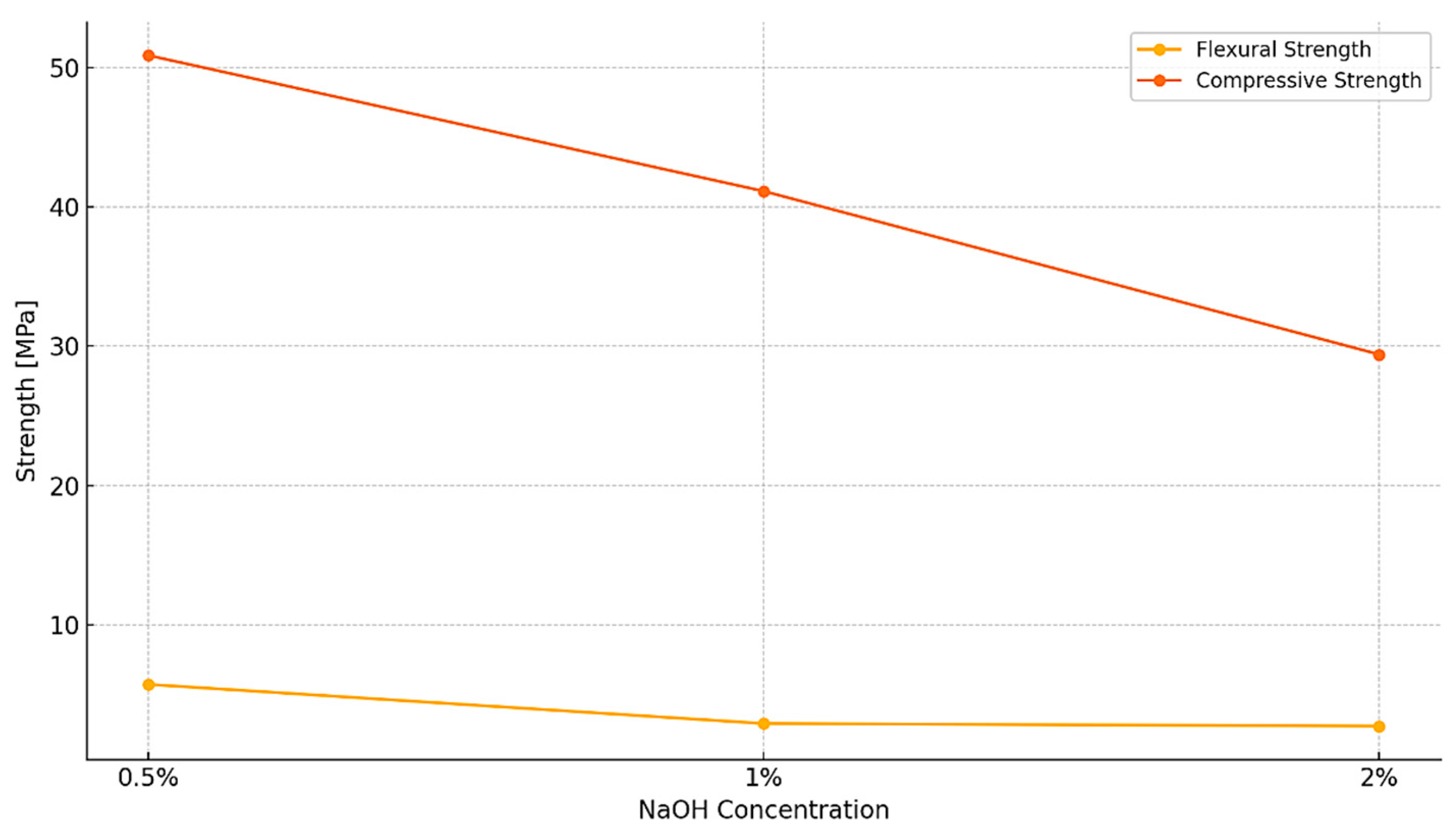

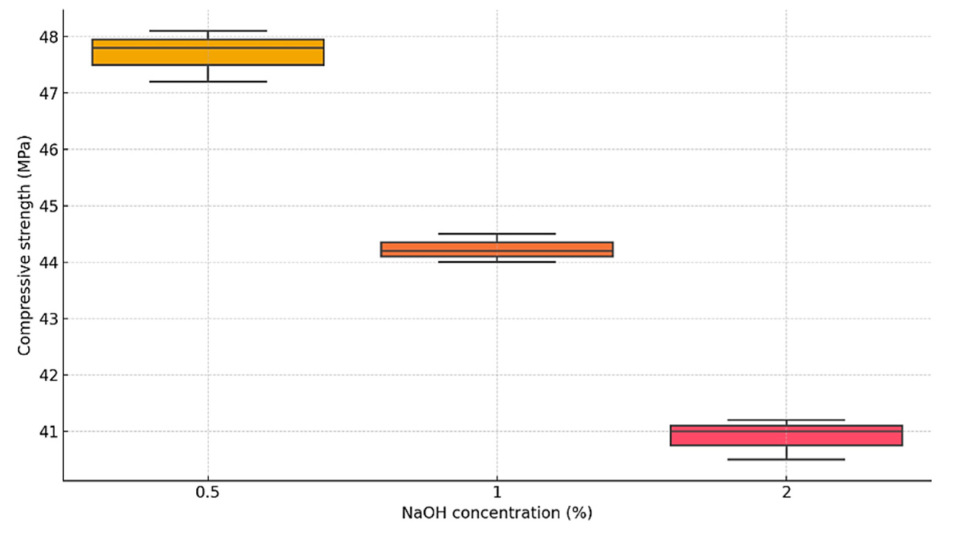

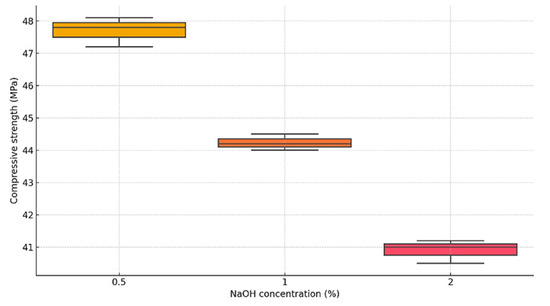

3.3. Compressive Strength of Mortar
- Inhibit regular cement hydration.
- Increase water demand during mixing.
- Disrupt aggregate–paste bonding in the interfacial transition zone.
- Result in reduced structural integrity and long-term durability.
4. Additional Remarks on the Circular and Technical Relevance of Alkaline Pretreated WWTP Sand
- Proper post-treatment rinsing of NaOH-washed sand is crucial to remove excess soluble alkalis. This reduces the total alkali content available in the cementitious matrix, thereby minimizing the risk of ASR. Especially when used with reactive or partially reactive aggregates.
- The use of low-alkali cements (e.g., those with a total alkali content ≤ 0.60% Na2Oeq) can further help lower the overall alkali loading in the system [54]. This is particularly beneficial when complete rinsing of the aggregate cannot be guaranteed or when using reclaimed sands from industrial or wastewater sources.
5. Conclusions
- As authors previously mentioned [9], the untreated alkaline by WWTP sand significantly reduces (>35%) the mechanical performance of cement mortars. Compressive strength dropped by over 30% compared to reference mortars using standardized sand. This confirms the adverse effect of organic and fine impurities present on the surface of unwashed sand particles.
- The results analysed in the article demonstrated that alkaline pretreatment with sodium hydroxide (NaOH) enables the effective reuse of WWTP-derived waste sand (code 19 08 02) in cement mortars based on CEM I 42.5 R, achieving mechanical and rheological properties comparable to those of mortars made with conventional sand. The most favourable results were obtained for 0.5% NaOH, which provided an optimal balance between cleaning efficiency and mechanical performance, restoring compressive strength to over 94% of the reference level and increasing flowability to 165 mm. Although higher concentrations, such as 2% NaOH, are commonly recommended or required by standards for removing organic matter from fine aggregates, this study suggests that lower concentrations may be more beneficial in practical applications due to reduced material degradation. Nevertheless, 2% NaOH remains the normative benchmark in several testing protocols, particularly for confirming the absence of harmful organic impurities.
- Overall, the alkaline cleaning process presents a simple, scalable, and low-energy solution for converting unused WWTP waste sand into a valuable secondary raw material for construction. Importantly, the proposed alkaline treatment process is simple, low-energy, and scalable, and it can be implemented directly at the wastewater treatment facility during the valorization of separated sand. Additionally, the alkaline leachate produced during cleaning can be repurposed to neutralize the acidic pH of other contaminated fractions, contributing to broader waste stabilization and integrated environmental management.
Final Remarks
- -
- The alkaline environment is controlled and chemically balanced by aluminosilicate precursors (e.g., slag, fly ash, metakaolin) [54].
- -
- The treated sand can act as a non-reactive filler or part of the fine aggregate fraction.
- -
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Zhu, H.; Yuan, Q.; Wang, L.; Fan, J. Effect of sludge-derived organics on cement hydration. Constr. Build. Mater. 2018, 185, 580–589. [Google Scholar]
- Saikia, N.; de Brito, J. Use of industrial waste in concrete: A review. Resour. Conserv. Recycl. 2012, 66, 117–129. [Google Scholar]
- Weng, L.; Sagoe-Crentsil, K. Performance of geopolymer paste and mortar with sand. Constr. Build. Mater. 2007, 21, 1727–1734. [Google Scholar]
- Behnood, A.; Golafshani, E.M. Predicting strength of recycled aggregate concrete. Constr. Build. Mater. 2018, 174, 258–273. [Google Scholar]
- Limbachiya, M.C.; Leelawat, T.; Dhir, R.K. Performance of Recycled Aggregate Concrete. Waste Manag. 2004, 24, 31–39. [Google Scholar]
- UN Environment. Sand and Sustainability: Finding New Solutions for Environmental Governance of Global Sand Resources; GRID-Geneva: Geneva, Switzerland, 2019. [Google Scholar]
- Torres, A.; Brandt, J.; Lear, K.; Liu, J. A looming tragedy of the sand commons. Science 2017, 357, 970–971. [Google Scholar] [CrossRef] [PubMed]
- Purnell, P. Circular economy and construction materials. Buildings 2015, 5, 307–320. [Google Scholar]
- Silva, J.A. Wastewater Treatment and Reuse for Sustainable Water Resources Management: A Systematic Literature Review. Sustainability 2023, 15, 10940. [Google Scholar] [CrossRef]
- Zhang, Y.; Han, Y.; Du, W. Risks and barriers of reclaimed aggregates. Resour. Conserv. Recycl. 2019, 143, 253–260. [Google Scholar]
- Yu, A.; Li, Q.; Liu, M.; Cui, X. WWTP sand characteristics and reuse potential. Constr. Build. Mater. 2020, 259, 120394. [Google Scholar]
- Jassim, A.A.; Aziz, H.A. Sludge sand in sustainable mortars. J. Mater. Res. Technol. 2021, 15, 2807–2818. [Google Scholar]
- EN 12620:2002 + A1:2008; Aggregates for concrete. European Committee for Standardization (CEN): Brussels, Belgium, 2008. Available online: https://standards.iteh.ai/catalog/standards/cen/e6a513fd-4734-4f9f-aadc-0dd96c0c6f50/en-12620-2002-a1-2008 (accessed on 1 July 2025).
- PN-B-06711: 1979; Mineralne Kruszywa do Betonu—Wymagania i Badania. Polski Komitet Normalizacyjny (PKN): Warszawa, Polska, 1979. Available online: https://sklep.pkn.pl/pn-b-06711-1979p.html (accessed on 1 July 2025).
- ASTM C40-23; Standard Test Method for Organic Impurities in Fine Aggregates for Concrete. ASTM International: West Conshohocken, PA, USA, 2023. Available online: https://store.astm.org/c0040_c0040m-20.html (accessed on 1 July 2025).
- ASTM C87/C87M-23; Standard Test Method for Effect of Organic Impurities in Fine Aggregate on Strength of Mortar. ASTM International: West Conshohocken, PA, USA, 2023. Available online: https://www.astm.org/c0087_c0087m-23.html (accessed on 1 July 2025).
- ASTM C117-23; Standard Test Method for Materials Finer than 75-μm (No. 200) Sieve in Mineral Aggregates by Washing. ASTM International: West Conshohocken, PA, USA, 2023. Available online: https://www.astm.org/c0117-23.html (accessed on 1 July 2025).
- ASTM C88/C88M-24; Standard Test Method for Soundness of Aggregates by Use of Sodium Sulfate or Magnesium Sulfate. ASTM International: West Conshohocken, PA, USA, 2024. Available online: https://www.astm.org/c0088_c0088m-24.html (accessed on 1 July 2025).
- ASTM D5821-13; Standard Test Method for Determining the Percentage of Fractured Particles in Coarse Aggregate. ASTM International: West Conshohocken, PA, USA, 2013.
- ASTM C33-08; Standard Specification for Concrete Aggregates. ASTM International: West Conshohocken, PA, USA, 2008. Available online: https://store.astm.org/c0033_c0033m-08.html (accessed on 1 July 2025).
- ASTM C1260-14; Standard Test Method for Potential Alkali Reactivity of Aggregates (Mortar-Bar Method). ASTM International: West Conshohocken, PA, USA, 2014. Available online: https://www.astm.org/c1260-14.html (accessed on 1 July 2025).
- ASTM C1293:; Standard Test Method for Determination of Length Change of Concrete Due to Alkali-Silica Reaction. ASTM International: West Conshohocken, PA, USA, 2020. Available online: https://www.astm.org/c1293-20.html (accessed on 1 July 2025).
- Park, J.; Lee, J.; Jeon, C.S. Recycling of wastewater treatment plant sludge for use as construction material. J. Environ. Manag. 2020, 267, 110642. [Google Scholar]
- Liu, S.; Jin, R.; Li, B.; Wen, Z.; Yin, Z. Valorisation of construction and demolition waste as fine aggregate in concrete. J. Clean. Prod. 2021, 280, 124505. [Google Scholar]
- Górka, J.; Poproch, D.; Cimochowicz-Rybicka, M.; Łuszczek, B. Characteristics of sand recovered from the municipal wastewater treatment plant. Gospod. Surowcami Miner.—Miner. Resour. Manag. 2023, 39, 109–123. [Google Scholar] [CrossRef]
- Yu, H.; Zhu, K.; Guo, R.; Zhang, C.; Liu, H. Influence of EPS on particle surface characteristics and fouling behavior in filtration. Sci. Total Environ. 2017, 592, 76–83. [Google Scholar]
- Flemming, H.-C.; Wingender, J. The biofilm matrix. Nat. Rev. Microbiol. 2010, 8, 623–633. [Google Scholar] [CrossRef]
- Zuo, W.; Stathopoulos, V.N.; Papangelakis, V.G. Biofilm detachment under chemical cleaning conditions in MBRs: A modeling approach. J. Membr. Sci. 2015, 478, 264–275. [Google Scholar]
- 0Czop, M.; Zajusz-Zubek, E.; Łaźniewska-Piekarczyk, B. Use of Sands from Wastewater Treatment Plants as a Substitute for Natural Aggregate in the Context of a Circular Economy. Sustainability 2025, 17, 5471. [Google Scholar] [CrossRef]
- Scrivener, K.L.; Nemati, K.M. The effect of interfacial transition zone on the mechanical properties of cement paste. Cem. Concr. Res. 1996, 26, 659–666. [Google Scholar]
- Li, H.; Xiao, J.; Sun, L.; Wang, X. The interfacial transition zone in recycled aggregate concrete. Constr. Build. Mater. 2012, 35, 1045–1055. [Google Scholar] [CrossRef]
- Wang, K.; Li, L.; Liu, T.; Zhang, Y. Influence of Sand Washing with NaOH Solution on Mortar Properties. Constr. Build. Mater. 2018, 165, 130–139. [Google Scholar] [CrossRef]
- Ma, Y.; Zhang, M.; Lin, J. Chemical cleaning for sludge dewatering: Mechanisms and application. Water Res. 2016, 106, 303–313. [Google Scholar]
- Chen, L.; Gu, Y.; Zhang, J.; Wang, X.; Zhou, J. Influence of NaOH treatment on sludge dewaterability. J. Environ. Sci. 2015, 33, 146–152. [Google Scholar] [CrossRef]
- Xu, G.; Wang, J.; Li, G. Degradation of EPS and membrane fouling control by chemical cleaning. J. Membr. Sci. 2018, 550, 263–272. [Google Scholar]
- Gao, P.; Wang, Y.; Huang, W. Effects of NaOH on cement paste structure. Constr. Build. Mater. 2020, 251, 118964. [Google Scholar]
- Li, Y.; Fang, X.; Gao, J. Effects of NaOH-treated sand on mortar properties. Constr. Build. Mater. 2023, 377, 131020. [Google Scholar]
- Bieker, M.; Cornel, P.; Wagner, M. Separation of grit and grease in municipal wastewater treatment plants—State of the art and operational experience. Water Sci. Technol. 2010, 62, 141–148. [Google Scholar]
- Ormsby, R.; McNally, C.; Richardson, M. Moisture condition and the compressive strength of compacted construction and demolition waste. Waste Manag. 2012, 32, 656–661. [Google Scholar]
- PN-EN 933-1:2012; Tests for Geometrical Properties of Aggregates—Part 1: Determination of Particle Size Distribution—Sieving Method. Comite Europeen de Normalisation: Brussels, Belgium, 2012.
- Kim, S.H.; Park, K. Characterization of cement–aggregate ITZ using microstructural analysis. Cem. Concr. Res. 2014, 59, 21–28. [Google Scholar]
- Shi, C.; Krivenko, P.V.; Roy, D. Alkali-Activated Cements and Concretes; Taylor & Francis: London, UK, 2006. [Google Scholar]
- Bernal, S.A.; Provis, J.L.; Rose, V.; Mejía de Gutiérrez, R. Chemical activation of slag and fly ash. Cem. Concr. Compos. 2011, 33, 46–54. [Google Scholar] [CrossRef]
- PN-EN 197-1:2012; Cement—Part 1: Composition, Specifications and Conformity Criteria for Common Cements. Polish Committee for Standardization: Warsaw, Poland, 2012.
- PN-EN 196-1:2016; Methods of Testing Cement—Part 1: Determination of Strength. Comite Europeen de Normalisation: Brussels, Belgium, 2016.
- Chen, J.; Li, Y.; He, S.; Wang, X. Characteristics of WWTP residual sand and potential utilization. Environ. Technol. 2019, 40, 3815–3825. [Google Scholar]
- Fudala, J.; Małachowska, A.; Zawadzki, P. Sand from WWTP as secondary raw material. Waste Manag. 2021, 123, 147–156. [Google Scholar]
- European Commission. Closing the Loop—An EU Action Plan for the Circular Economy; COM(2015) 614 Final; European Commission: Brussels, Belgium, 2015. [Google Scholar]
- Peduzzi, P. Sand mining threatens ecosystems. Environ. Sci. Policy Sustain. Dev. 2014, 56, 22–27. [Google Scholar]
- EN 1744-1-1:2009/A1:2012; Tests for Chemical Properties of Aggregates—Part 1: Chemical Analysis. European Committee for Standardization (CEN): Brussels, Belgium, 2012. Available online: https://standards.iteh.ai/catalog/standards/cen/03d127d5-e84c-47e7-803f-fb1a2c6a0cf5/en-1744-1-2009-a1-2012 (accessed on 1 July 2025).
- EN 13639:2002; Determination of total organic carbon in limestone. European Committee for Standardization (CEN): Brussels, Belgium, 2002. Available online: https://standards.iteh.ai/catalog/standards/cen/6ba4eb56-963b-4bde-97e5-9339f36d8ab3/en-13639-2002 (accessed on 1 July 2025).
- De Belie, N.; Sas, W.; Boel, V.; De Schutter, G. Effects of nano-silica on strength and microstructure of cement-based materials. Cem. Concr. Compos. 2012, 34, 1072–1078. [Google Scholar]
- Ramachandran, V.S. Concrete Admixtures Handbook; Noyes Publications: Park Ridge, NJ, USA, 1995. [Google Scholar]
- Thomas, M.D.A. The Effect of Supplementary Cementing Materials on Alkali-Silica Reaction: A Review. Cem. Concr. Res. 2011, 41, 1224–1231. [Google Scholar] [CrossRef]
- ACI Committee 201. Guide to Durable Concret; ACI 201.2R-01; American Concrete Institute: Farmington Hills, MI, USA, 2001. [Google Scholar]
- Kosmatka, S.H.; Kerkhoff, B.; Panarese, W.C. Design and Control of Concrete Mixtures, 14th ed.; Portland Cement Association: Skokie, IL, USA, 2002. [Google Scholar]
- Mindess, S.; Young, J.F.; Darwin, D. Concrete, 2nd ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2003. [Google Scholar]
- Yamaguchi, N.; Komatsuzaki, M. Influence of alkali treatment on cement hydration kinetics. J. Mater. Civ. Eng. 2019, 31, 04019289. [Google Scholar]
- Singh, N.B.; Middendorf, B.; Gevorgyan, A.; Chundeli, R.K. Hydration of slag cement: Activation mechanisms. Constr. Build. Mater. 2015, 91, 46–54. [Google Scholar]
- Wang, P.; Trettin, R. Influence of alkali activation on microstructure of slag cement pastes. Adv. Cem. Res. 2004, 16, 1–8. [Google Scholar] [CrossRef]
- Cao, J.; Liu, J.; Wang, Y. Mechanistic insights into alkaline degradation of organics. Chem. Eng. J. 2017, 327, 886–895. [Google Scholar]
- Fang, Y.; Xu, H.; Wang, C.; Chen, Y. Alkaline hydrolysis mechanism of EPS from activated sludge. Water Res. 2016, 102, 583–591. [Google Scholar]
- PN-EN 1015-3:2000; Methods of Test for Mortar for Masonry—Determination of Consistency of Fresh Mortar (by Flow Table). Polish Committee for Standardization: Warsaw, Poland, 2000.
- Mehta, P.K.; Monteiro, P.J.M. Concrete: Microstructure, Properties, and Materials, 4th ed.; McGraw-Hill: New York, NY, USA, 2014. [Google Scholar]
- UN General Assembly. Transforming Our World: The 2030 Agenda for Sustainable Development; Resolution A/RES/70/1; United Nations: New York, NY, USA, 2015. [Google Scholar]
- Haque, M.; Miah, M.J. CO2 emissions from aggregate transport. Environ. Clim. Technol. 2020, 24, 297–308. [Google Scholar]
- Tam, V.W.Y.; Tam, C.M. Reuse of construction waste aggregates. Constr. Build. Mater. 2008, 22, 1111–1119. [Google Scholar]
- Pombo, O.; Rivela, B.; Neira, I. Comparative LCA of concrete with natural and recycled aggregate. Sustainability 2017, 9, 1725. [Google Scholar]
- Kazmierczak, J.; Nowak, A. Techno-economic analysis of sand reuse. J. Clean. Prod. 2021, 317, 128366. [Google Scholar]
- Zhang, L.; Xiao, Y.; Zhang, W. Circular economy in construction industry. J. Environ. Manag. 2022, 305, 114407. [Google Scholar]
- Ghisellini, P.; Cialani, C.; Ulgiati, S. A review on circular economy in construction. J. Clean. Prod. 2016, 114, 11–32. [Google Scholar] [CrossRef]
- Ellen MacArthur Foundation. Towards the Circular Economy; Report Vol. 1; Ellen MacArthur Foundation: Cowes, UK, 2013. [Google Scholar]
- Meddah, M.S.; Bali, A. Use of recycled sand in cement mortar. Constr. Build. Mater. 2014, 23, 709–714. [Google Scholar]
- Li, H.; Cui, X.; Sun, L. ITZ microstructure of mortars with recycled sand. Constr. Build. Mater. 2021, 271, 121548. [Google Scholar]
- Palacios, M.; Puertas, F. Effectiveness of superplasticizers on alkali-activated fly ash pastes. Cem. Concr. Res. 2005, 35, 1358–1367. [Google Scholar] [CrossRef]
- Neville, A.M. Properties of Concrete, 5th ed.; Pearson Education Limited: London, UK, 2011. [Google Scholar]
- Taylor, H.F.W. Cement Chemistry, 2nd ed.; Thomas Telford: London, UK, 1997. [Google Scholar]
- ASTM C1260-22; Standard Test Method for Potential Alkali Reactivity of Aggregates (Mortar-Bar Method). ASTM International: West Conshohocken, PA, USA, 2022.
- Provis, J.L.; van Deventer, J.S.J. Geopolymers: Structure, Processing, Properties and Industrial Applications; Woodhead Publishing: Cambridge, UK, 2009. [Google Scholar] [CrossRef]
Criteria | EN 12620:2002 +A1:2008 [13]/PN-B-06711:2020-03 [14]+ | ASTM Standards (e.g., ASTM C40 [15], ASTM C87 [16]) |
---|---|---|
Organic impurities | Colorimetric NaOH test; solution color must not be darker than standard | ASTM C40 [15], Colorimetric NaOH test ASTM C87 [16]: strength impact evaluation |
Fines content (<0.063 mm) | Natural sand ≤ 3%; Crushed sand ≤ 1%; For architectural concrete ≤ 1% | ASTM C117 [17]: Max fines content not specified, but measured and controlled via tests |
Harmful impurities (sulfates, chlorides, lignite, etc.) | Sulfate ≤ 0.5% by mass; avoid sulfides, lignite, gypsum | ASTM C88 [18]. Sulfate soundness test; limits based on durability classes |
Foreign substances (e.g., wood, metal, glass) | Total foreign matter ≤ 0.5% by mass | ASTM D5821 [19] & ASTM C33 [20]: Foreign matters should be absent or minimal |
Alkali–silica reactivity (ASR) | Required testing if reactive silica is present (e.g., opal, chalcedony) | ASTM C1260 [21], C1293 [22] Mandatory tests for ASR potential in aggregates |
Method | Cleaning Agent/Process | NaOH Concentration/Contact Time | Effect on Cementitious Strength | Environmental and Cost Aspects | Practical Cse |
---|---|---|---|---|---|
Physical (mechanical rinsing) | Water rinsing, mechanical separation, sediment removal | Continuous flow (no chemicals used) | Significantly lowers LOI (e.g., 1–2%); minimal impact on strength [38] | High water and energy demand; no chemical waste | Used in WWTPs (e.g., Germany, Poland); recovered sand reused for backfilling [38] |
Chemical (alkalis, acids, oxidants) | Strong NaOH, HCl, O3, H2O2, KMnO4 | ~0.5–1.0 M for several minutes | May degrade organic matter; slight surface alteration of silica [32] | Chemical residues require neutralisation; higher treatment cost and load [32] | Mostly lab-based; applied to remove residual organics from sand |
Biological (composting) | Organic amendments (compost), microbial degradation | Days to months of incubation | Up to 90% degradation of phenolic/humic substances; stable product [39] | Low chemical input; requires space and long treatment time | Demonstrated in foundry sand; reused in geotechnical or landscaping applications [39] |
Low-NaOH Washing * | Low-concentration aqueous NaOH | 0.1–0.2 M for 15–30 min | Efficient organic removal: no significant strength loss observed | Low chemical usage; lower pH of effluent; reduced environmental impact | Demonstrated suitability for cement mortars; validated through mechanical testing |
Test Objective | European Standard (EN) | American Standard (ASTM) | Description |
---|---|---|---|
Effect of organic impurities on mortar strength | No direct EN equivalent available | ASTM C87/C87M-23 [16] | Test method to evaluate impact of organic impurities on mortar strength |
Detection of organic contaminants | (EN 933-1:2012 [40]) (sieve analysis—indirect) | ASTM C40 [15] | Visual colorimetric test with sodium hydroxide and tannic acid solutions |
pH of sand slurry (indicator of impurities) | EN 1744-1 [50] | Partially covered in ASTM C87 [16] | Measures pH of aqueous sand solution; lower pH may indicate organic presence |
Total organic carbon content | EN 13639 [51] | No direct ASTM equivalent | Determination of total organic carbon (TOC) via combustion method |
Rinsing verification using phenolphthalein | Not standardized in EN | ASTM C87 [16]+ phenolphthalein indicator | Rinsing until solution shows no pink color; ensures effective impurity removal |
Aspect | ASTM C40 [15] | ASTM C87/C87M-23 [16] | EN Standards (933-1 [40]). (1744-1 [50], 13639 [51]) |
---|---|---|---|
Purpose | Qualitative detection of organic impurities | Quantitative assessment of strength effect | General chemical characterization, not specific to organics |
NaOH solution concentration | ~3% NaOH (prepared by mixing 3% NaOH with sand-water) | Typically 3% NaOH in washing solution (when used) | Not specified (NaOH not directly mentioned) |
Sand contact time | 24 h standing with NaOH | 24 h soaking in NaOH, followed by washing | Not defined |
Indicator method | Color change vs. reference (tannic acid, standard vial) | Strength test after soaking and rinsing | pH, TOC levels, conductivity, or loss on ignition |
Evaluation of cleanliness | Visual color comparison (dark = contaminated) | Flexural/compressive strength compared to reference | pH near-neutral, TOC < 1%, color and odor optional observations |
Effectiveness confirmation | No pink color after rinsing and pH neutrality | Strength of mortar ≥ 95% of control sample | Acceptable TOC values or meeting chemical limits |
Common application | Initial screening tool | Full verification for construction use | General aggregate quality control |
NaOH Concentration (%) | Flow Spread (cm) |
---|---|
WTTP without NaOH | 14.2 |
WTTP 0.5 | 16.2 |
WTTP 1.0 | 17.0 |
WTTP 2.0 | 18.5 |
NS | 16.25 |
Type of Sand | Compressive Strength [MPa] | Mean Flexural Strength [MPa] | Mean Compressive Strength [MPa] | Standard Deviation [MPa] | Strength Reduction [%] (vs. Norm) | Min [MPa] | Max [MPa] | Coefficient of Variation [%] |
---|---|---|---|---|---|---|---|---|
ST sand | 29.4 30.2 31.1 28.9 30.6 30.3 | 4.70 | 30.08 | 39.00 | 49% | 2.9 | 31.1 | 2.67 |
WWTP sand | 49.8 50.6 47.9 51.1 48.7 50.2 | 6.64 | 49.72 | 1.21 | - | 47.9 | 51.1 | 2.43 |
NaOH Concentration | No. Series | Compressive Strength 1 [MPa] | Compressive Force 1 [N] | Compressive Strength 2 [MPa] | Compressive Force 2 [N] | Compressive Strength 3 [MPa] | Compressive Force 3 [N] |
---|---|---|---|---|---|---|---|
0.5% | 1 | 52.36 | 83,776 | 50.62 | 80,992 | 51.44 | 82,304 |
0.5% | 2 | 52.56 | 84,096 | 51.36 | 82,176 | 54.36 | 86,976 |
0.5% | 3 | 51.53 | 82,448 | 48.00 | 76,800 | 50.03 | 80,048 |
1% | 1 | 38.72 | 61,952 | 37.75 | 60,400 | 36.79 | 58,864 |
1% | 2 | 44.61 | 71,376 | 43.06 | 68,896 | 41.73 | 66,768 |
1% | 3 | 41.69 | 66,704 | 40.99 | 65,584 | 41.59 | 66,544 |
2% | 1 | 30.34 | 48,544 | 29.19 | 46,704 | 30.74 | 49,184 |
2% | 2 | 31.17 | 49,872 | 31.56 | 50,496 | 31.97 | 51,152 |
2% | 3 | 27.67 | 44,272 | 25.62 | 40,992 | 25.09 | 40,144 |
NaOH Concentration | Compressive Strength 4 [MPa] | Compressive Force 4 [N] | Compressive Strength 5 [MPa] | Compressive Force 5 [N] | Compressive Strength 6 [MPa] | Compressive Force 6 [N] |
---|---|---|---|---|---|---|
0.5% | 52.41 | 83,856 | 53.55 | 85,680 | 49.79 | 79,664 |
0.5% | 53.79 | 86,064 | 50.77 | 81,232 | 49.88 | 79,808 |
0.5% | 48.61 | 77,776 | 49.43 | 79,088 | 48.97 | 78,352 |
1% | 35.48 | 56,768 | 37.76 | 60,416 | 36.3 | 58,080 |
1% | 42.43 | 67,888 | 44.11 | 70,576 | 44.82 | 71,712 |
1% | 42.01 | 67,216 | 42.21 | 67,536 | 42.89 | 68,624 |
2% | 29.79 | 47,664 | 32.37 | 51,792 | 29.85 | 47,760 |
2% | 32.57 | 52,112 | 31.03 | 49,648 | 30.00 | 48,000 |
2% | 27.60 | 44,160 | 26.32 | 42,112 | 26.18 | 41,888 |
NaOH Concentration Used in the Treatment Procedure of WTTP Sand | No. Series | Mean Flexural Strength [MPa] | Maen Compressive Strength [MPa] |
---|---|---|---|
0.5% | 1 | 6.29 | 51.55 |
2 | 5.23 | 51.93 | |
3 | 5.63 | 49.12 | |
1% | 1 | 2.85 | 37.44 |
2 | 2.57 | 43.74 | |
3 | 3.31 | 42.18 | |
2% | 1 | 2.55 | 30.05 |
2 | 2.93 | 31.55 | |
3 | 2.70 | 26.62 |
NaOH Conc. | Flexural Mean [MPa] | Flexural Std [MPa] | Compressive Mean [MPa] | Compressive Std [MPa] |
---|---|---|---|---|
0.5% | 5.72 | 0.54 | 50.87 | 1.52 |
1% | 2.91 | 0.37 | 41.12 | 3.28 |
2% | 2.73 | 0.19 | 29.41 | 2.53 |
Source | Sum of Squares | DF | F-Value | p-Value |
---|---|---|---|---|
Between Groups (NaOH concentration) | 4237.90 | 2 | 356.86 | 1.03 × 10−30 |
Within groups (residual) | 302.83 | 51 | – | – |
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2025 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Łaźniewska-Piekarczyk, B.; Czop, M.J. Reclaimed Municipal Wastewater Sand as a Viable Aggregate in Cement Mortars: Alkaline Treatment, Performance, Assessment, and Circular Construction Applications. Processes 2025, 13, 2463. https://doi.org/10.3390/pr13082463
Łaźniewska-Piekarczyk B, Czop MJ. Reclaimed Municipal Wastewater Sand as a Viable Aggregate in Cement Mortars: Alkaline Treatment, Performance, Assessment, and Circular Construction Applications. Processes. 2025; 13(8):2463. https://doi.org/10.3390/pr13082463
Chicago/Turabian StyleŁaźniewska-Piekarczyk, Beata, and Monika Jolanta Czop. 2025. "Reclaimed Municipal Wastewater Sand as a Viable Aggregate in Cement Mortars: Alkaline Treatment, Performance, Assessment, and Circular Construction Applications" Processes 13, no. 8: 2463. https://doi.org/10.3390/pr13082463
APA StyleŁaźniewska-Piekarczyk, B., & Czop, M. J. (2025). Reclaimed Municipal Wastewater Sand as a Viable Aggregate in Cement Mortars: Alkaline Treatment, Performance, Assessment, and Circular Construction Applications. Processes, 13(8), 2463. https://doi.org/10.3390/pr13082463
