Intelligent Deep Learning Modeling and Multi-Objective Optimization of Boiler Combustion System in Power Plants

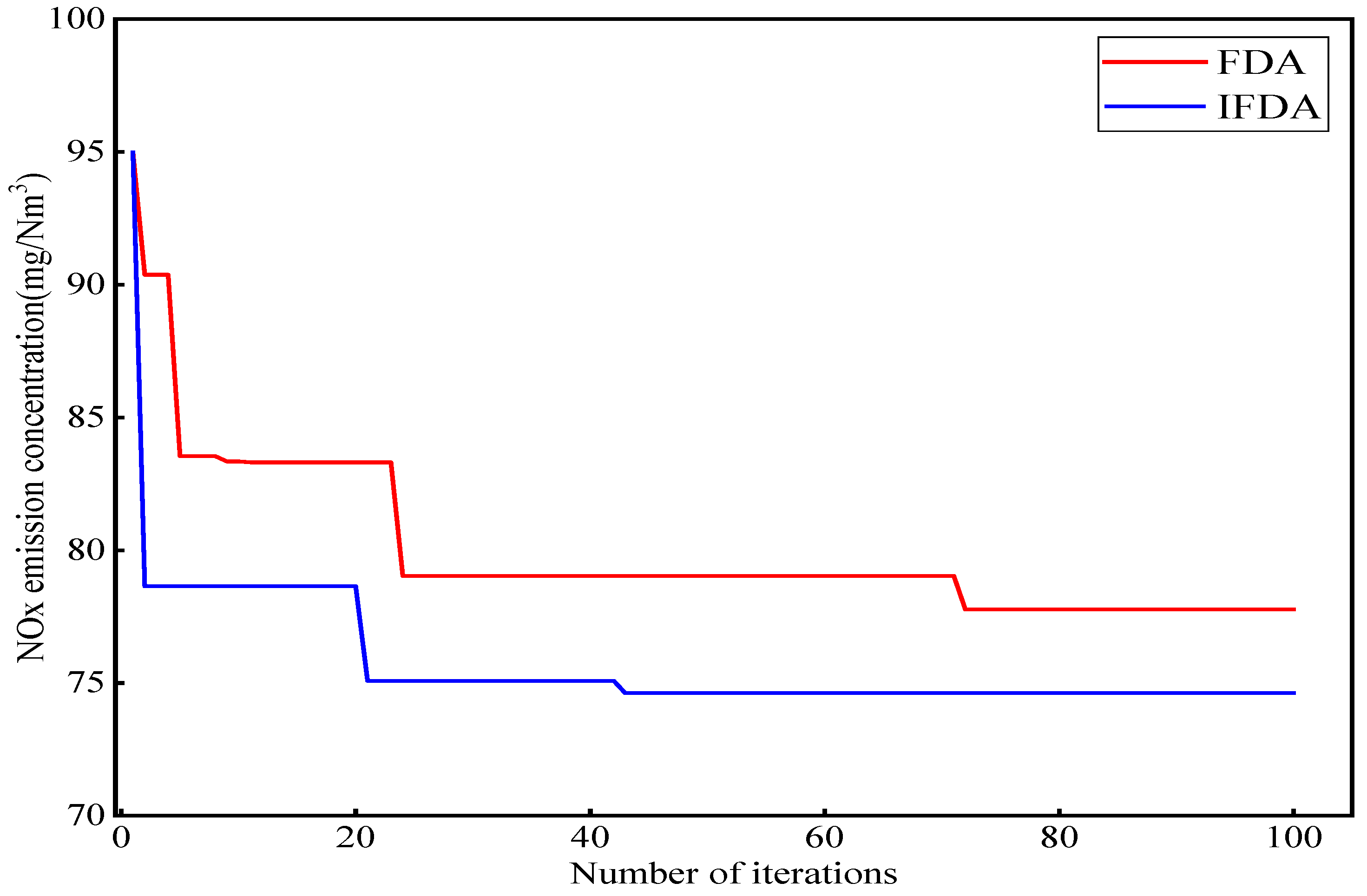

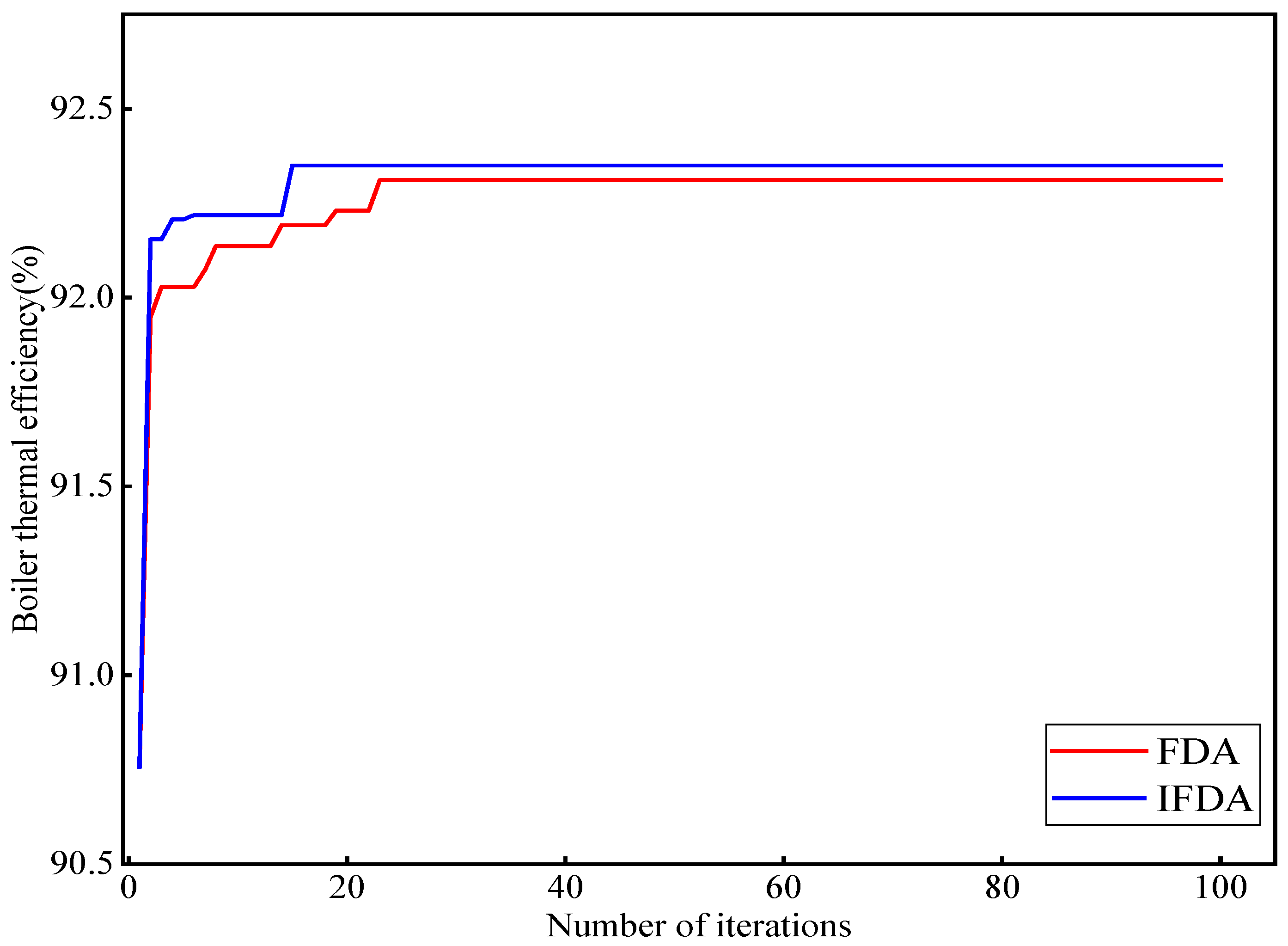

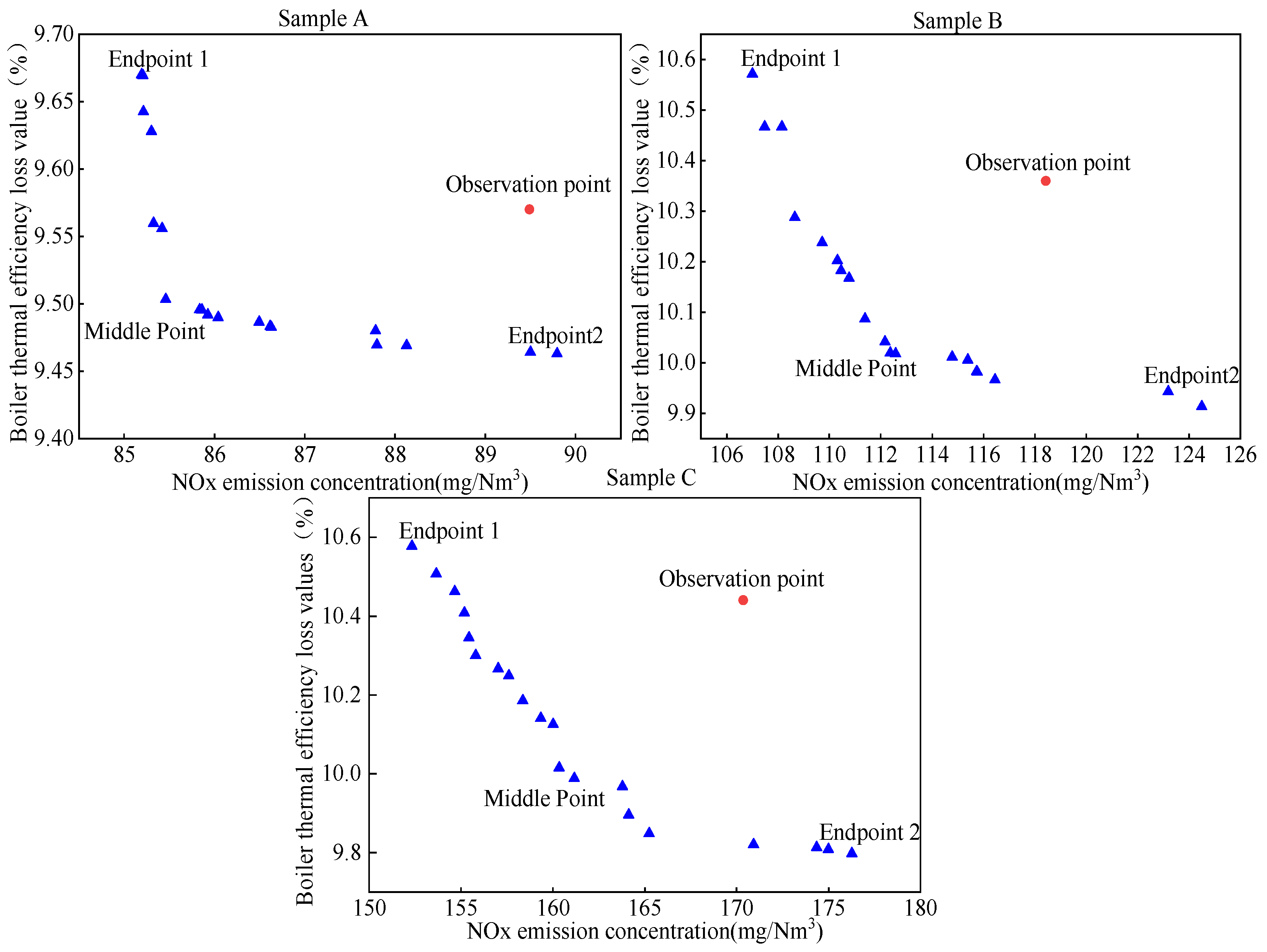

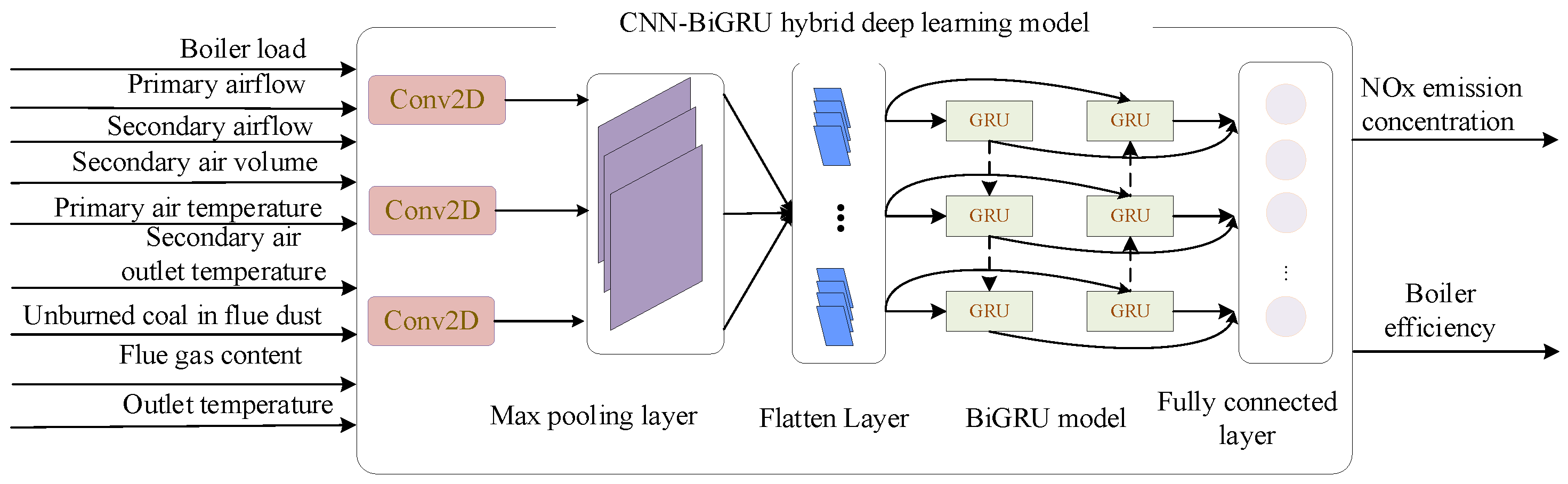

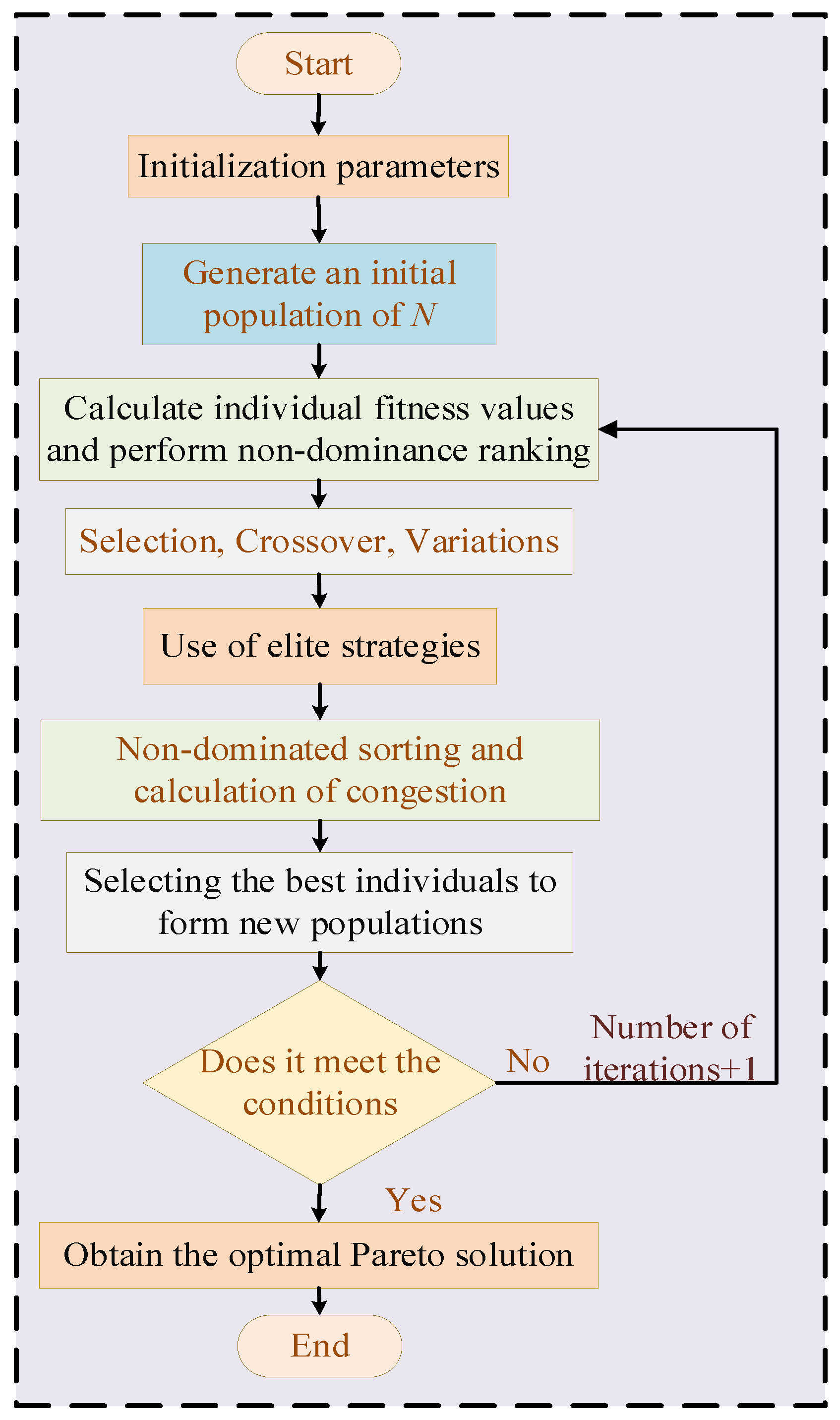

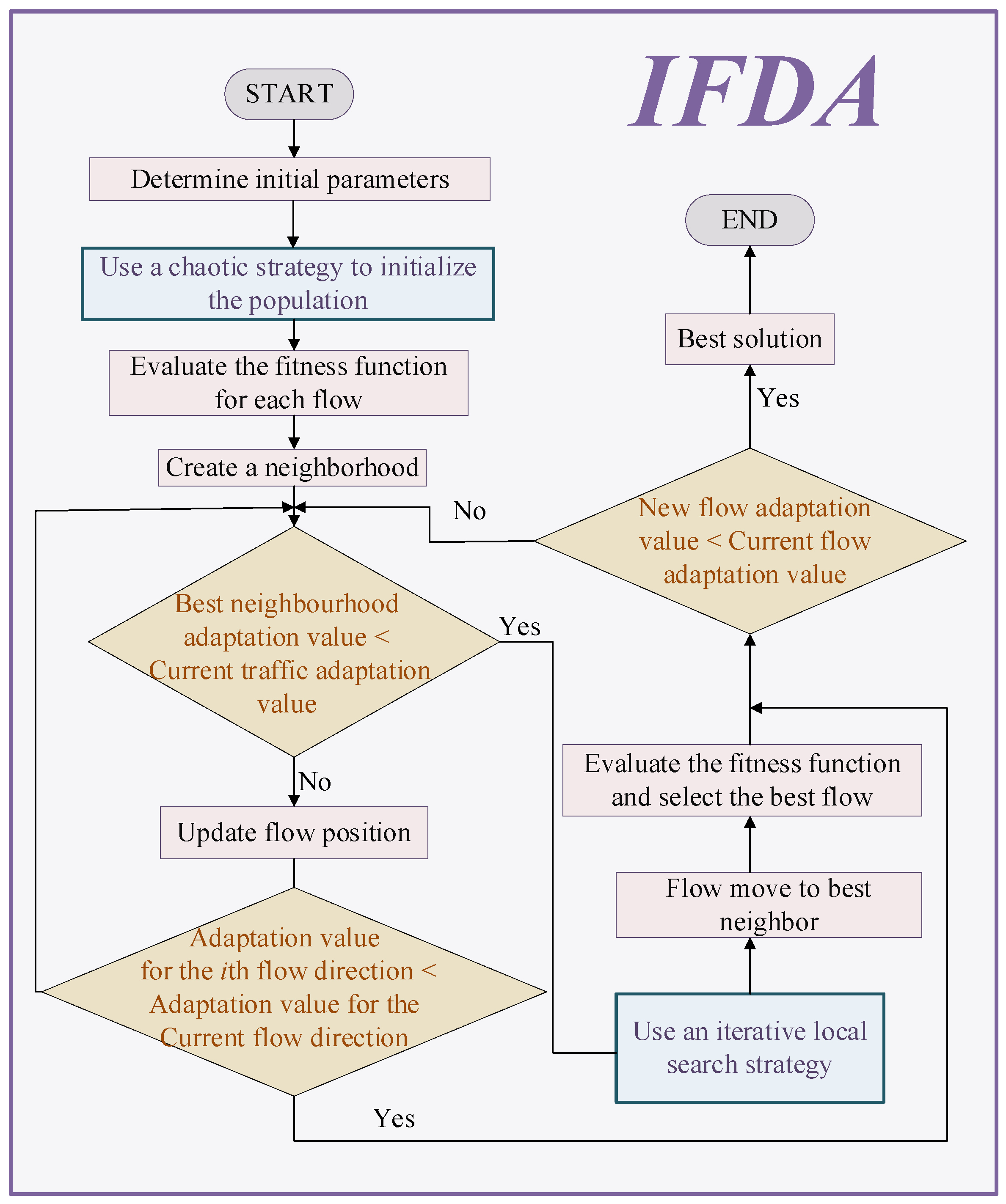

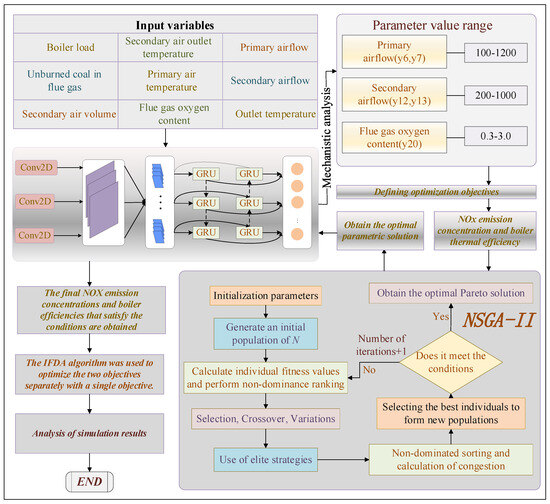

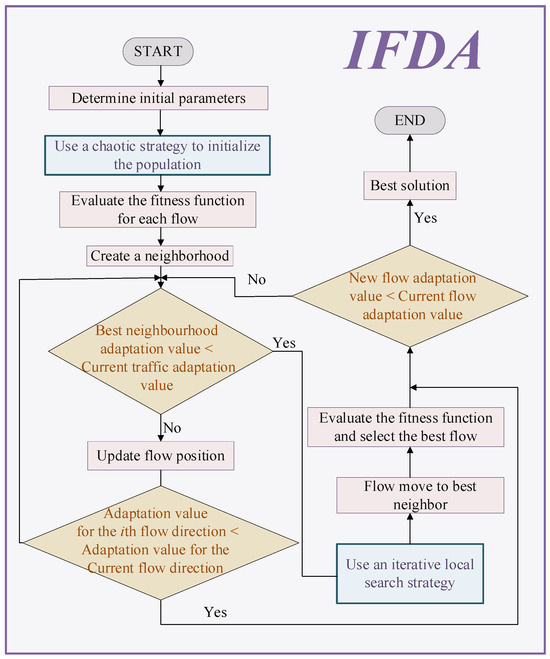

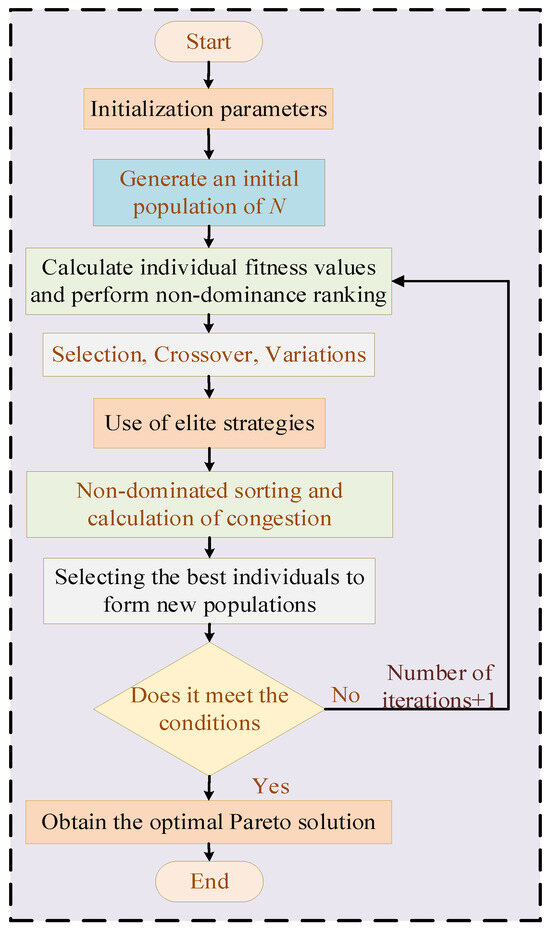

The internal combustion process in a boiler in power plants has a direct impact on boiler efficiency and NOx generation. The objective of this study is to propose an intelligent deep learning modeling and multi-objective optimization approach that considers NOx emission concentration and boiler thermal efficiency simultaneously for boiler combustion in power plants. Firstly, a hybrid deep learning model, namely, convolutional neural network–bidirectional gated recurrent unit (CNN-BiGRU), is employed to predict the concentration of NOx emissions and the boiler thermal efficiency. Then, based on the hybrid deep prediction model, variables such as primary and secondary airflow rates are considered as controllable variables. A single-objective optimization model based on an improved flow direction algorithm (IFDA) and a multi-objective optimization model based on NSGA-II are developed. For multi-objective optimization using NSGA-II, the average NOx emission concentration is reduced by 5.01%, and the average thermal efficiency is increased by 0.32%. The objective functions are to minimize the boiler thermal efficiency and the concentration of NOx emissions. Comparative analysis of the experiments shows that the NSGA-II algorithm can provide a Pareto optimal front based on the requirements, resulting in better results than single-objective optimization. The effectiveness of the NSGA-II algorithm is demonstrated, and the obtained results provide reference values for the low-carbon and environmentally friendly operation of coal-fired boilers in power plants.
