Article

Insights on the Separation of Kraft Lignin from Betaine-Based Eutectic Solvents: A Liquid–Liquid Equilibrium and Partitioning Study

by
Fernanda Sossai Altoé
,
Dulce Maria Santos
,
Sérgio M. Vilas-Boas
* and
Mariana Conceição da Costa
*
Department of Process and Product Design (DDPP), School of Chemical Engineering (FEQ), University of Campinas (UNICAMP), Av. Albert Einstein, 500, Campinas 13083-852, São Paulo, Brazil
*
Authors to whom correspondence should be addressed.
Processes 2025, 13(12), 3784; https://doi.org/10.3390/pr13123784
Submission received: 15 October 2025 / Revised: 9 November 2025 / Accepted: 21 November 2025 / Published: 23 November 2025
(This article belongs to the Special Issue Green Solvent for Separation and Extraction Processes)
Browse Figures
Versions Notes

Abstract

Lignocellulosic biomass, composed predominantly of cellulose, hemicellulose, and lignin, is the main raw material for biorefineries. Eutectic solvents (ESs) are promising green alternatives for biomass delignification due to their low cost, reduced toxicity, and high lignin solubilization capacity. However, challenges associated with lignin recovery and ES recycling hinder their industrial application. This work addresses this challenge by investigating the liquid–liquid equilibrium (LLE) and the Kraft lignin partition (KLignin) in biphasic solvent systems composed of betaine-based ES, water, and a cosolvent (1-butanol or ethyl acetate) at 298.2 K. Four hydrogen bond donors (HBDs) were used to prepare the ESs: urea, ethylene glycol, 1,3-propanediol, and 1,4-butanediol. In nearly all systems, lignin was found to preferentially partition to the top, cosolvent-rich phase, supporting the viability of this recovery approach. In general, 1-butanol created larger biphasic regions, and for the systems with 1,3-propanediol and 1,4-butanediol as HBDs, yielded higher lignin partition than ethyl acetate. The system containing 1,4-butanediol-based ES with 1-butanol was identified as the most promising, achieving exceptionally high KLignin values (up to 456.5). These results provide fundamental data for designing effective lignin recovery and ES recycling processes in biorefineries.

1. Introduction

The global economy remains heavily dependent on fossil fuels and petroleum-derived products to meet energy demands and supply essential chemicals, including fuel oils, polymers, and key organic compounds [1]. However, this long-term reliance is fundamentally unsustainable, as petroleum reserves are being progressively depleted due to the accelerated growth of modern society [2]. Furthermore, the combustion of fossil fuels is the primary source of anthropogenic CO2 emissions, a major driver of the greenhouse effect and global warming [3]. To illustrate the scale of the issue, an estimated 36 billion tons of CO2 are emitted annually to satisfy global energy and fuel demands, with fossil fuels accounting for approximately 85–90% of this total [4,5]. Consequently, there is an urgent and growing demand for more sustainable alternatives to transition away from a petroleum-based economy [2,6,7].
In this context, lignocellulosic biomass stands out as a strategic alternative, widely regarded as the only renewable resource with realistic potential to replace petroleum for both energy generation and the production of platform chemicals [2,8]. This biomass presents low-cost, high-energy density, rich aromatic content, and widespread availability in nature [7,9]. Structurally, lignocellulosic biomass is primarily composed of two polysaccharides–cellulose (30–50%) and hemicellulose (19–45%)–and lignin (15–35%) [10]. These components are intricately interconnected, forming a recalcitrant crystalline structure that strongly resists destruction due to the presence of hydrogen bonds and Van der Waals forces, which is a primary challenge for its valorization in biorefineries [9,11].
While the polysaccharide fractions of the lignocellulosic biomass are widely valorized, lignin’s potential remains far unexplored. Cellulose is used in the production of several manufactured products, including paper, food packaging films, biosorbents, cardboard, cellophane, and biofuels. Hemicellulose, on the other hand, has applications in the food and pharmaceutical industries, as well as in polymer manufacturing and chemical production, including compounds such as furfural, furfuryl alcohol, ethanol, ethyl levulinate, and γ-valerolactone [12,13].
The case of lignin, however, is quite different. As the second most abundant natural macromolecule and a rich source of aromatics, it holds significant potential in high-value products, including bioplastics, composites, resins, carbon fibers, nanoparticles, and biofuels [13,14,15,16,17,18]. Nevertheless, its chemical valorization still faces considerable challenges stemming from its complex structure, high chemical stability, and low solubility in conventional solvents [19]. As a result of these difficulties, the vast majority of lignin is underutilized [12,20]. An estimated 98% of the nearly 150 million tons of lignin generated annually by pulp and paper mills is simply burned for low-value energy recovery [6], leaving only 2% for higher value-added applications [10,12,21]. Therefore, lignin valorization becomes essential to enhance the efficiency and profitability of biorefinery processes and to ensure the full utilization of lignocellulosic biomass [22,23].
Among the most widely employed lignin extraction processes in the pulp and paper industry, the Kraft process stands out as an energy-efficient and extensively used method [24,25]. This process, however, employs harsh solvents (typically sodium hydroxide and sodium sulfide) that irreversibly alter the native lignin, resulting in a structurally complex and highly condensed material known as Kraft lignin [26,27,28]. This complexity hinders its characterization and limits its direct use in high-value applications [9,29,30]. However, a parallel and pressing challenge remains the valorization of the vast quantities of Kraft lignin already produced annually. Therefore, developing effective separation technologies to refine the existing industrial byproduct into more homogeneous and well-defined fractions is critical to unlocking its potential for advanced bioproducts [31,32,33].
In the search for greener delignification and lignin valorization technologies, eutectic solvents (ESs) have emerged as a highly promising class of solvents. They have garnered interest from the scientific community for lignocellulosic biomass pretreatment due to their evidenced ability to solubilize lignin [34,35,36,37,38]. Moreover, under optimized conditions, ES can achieve selective fractionation of biomass—as a result of their high lignin dissolution capacity and concomitant poor cellulose and hemicellulose dissolution capacity [39,40]—resulting in the formation of a lignin-ES-rich phase and a solid pulp composed mainly of cellulose and hemicellulose [41]. This inherent selective capacity makes ES excellent candidates for developing integrated biorefinery processes for the complete valorization of lignocellulosic biomass, given that ES are capable of selectively fractionating certain regions of lignin [41,42,43].
Deep eutectic solvents (DESs) are eutectic mixtures, typically composed of a hydrogen-bond acceptor (HBA) and a hydrogen-bond donor (HBD), that exhibit a significant negative deviation from the ideal thermodynamic behavior, resulting in a eutectic point temperature lower than that of the corresponding ideal liquid mixture [44,45,46]. Furthermore, these systems—which generally contain at least one component that is solid at room temperature—exist as stable liquids across a certain composition range at mild operating temperatures [45]. In this work, however, the more general term “eutectic solvent” will be used to refer to the selected mixtures, as their complete solid–liquid phase diagrams are not available in the literature. In general, ES are valued for their straightforward preparation and appealing properties for a wide range of applications, including low toxicity and high biodegradability, negligible vapor pressure and low flammability, good thermal and chemical stability, and a high solubilization capacity for various compounds [45,46].
Despite the ESs’ great potential in processing Kraft lignin, their industrial application is hindered by the challenge of efficient solvent recovery and recycling [9,47]. The most common strategy uses large amounts of water as an anti-solvent [48,49,50]. In this process, water disrupts the hydrogen-bond network of the ES, causing the solvent to dissolve in the aqueous phase while the lignin, which is sparingly soluble in water, precipitates [51]. The primary drawback of this approach, however, is the high energy costs associated with removing the large amount of water needed to recycle the ES.
To overcome the high energy costs of water-based precipitation, alternative strategies have been recently exploited, such as the use of liquid–liquid extraction processes [24,25,48,49]. This technique involves adding an organic cosolvent or a cosolvent/water mixture to the ES-lignin medium to form a biphasic system. The goal is for the lignin to be selectively partitioned into the organic phase, leaving the hydrophilic ES concentrated in the aqueous phase [48]. The viability of this approach, however, depends on the careful selection of the cosolvent and ensuring that the energy savings outweigh the costs of its recovery. Despite its promise, this strategy is a recent innovation in the context of lignin-ES recovery, and the lack of available fundamental thermodynamic data hampers its development. Key information, such as liquid–liquid equilibrium (LLE) phase diagrams and partition coefficients, is essential for process design but is largely absent in the literature. To our knowledge, only a single study from Smink and collaborators [48] has reported such data for ES-lignin systems, highlighting a knowledge gap that remains to be addressed.
To address this knowledge gap, the present study provides new experimental LLE and lignin partitioning data in ternary systems composed of an ES, water, and an organic cosolvent at 298.15 K. For LLE studies, the binodal curves were determined using the cloud point titration method [52] and correlated with the Merchuk [53] and Hu [54] empirical models. To evaluate lignin-ES separation potential, Kraft lignin partition coefficients were also measured for the resulting biphasic systems using the shaken flask method combined with UV–vis spectroscopy [55]. The ESs investigated were prepared using betaine as HBA and for different HBDs: urea, ethylene glycol, 1,3-propanediol, and 1,4-butanediol; the cosolvents were 1-butanol and ethyl acetate. These ES precursors were selected based on their green credentials: natural origin, biodegradability, and ability to form stable molecular structures [56,57,58,59], while the cosolvents were chosen based on technical feasibility, low cost, and toxicity [60,61,62,63]. Specifically regarding betaine, unlike choline derivatives (such as choline chloride), this compound stands out for its industrial origin, being obtained from renewable sources as a by-product of sugar production, rather than from fossil sources [56,64,65]. Furthermore, betaine-based ESs have already been applied in various fields, including lignocellulosic biomass pretreatment [66,67], protein extraction [68], polyphenol extraction [57], enzymatic reactions [69], gasoline purification [70], carbon dioxide absorption [71], and electrochemical applications [72]. Despite their interesting characteristics and broad potential for application, the literature still lacks comprehensive data and in-depth studies on betaine-based ESs.

2. Materials and Methods

2.1. Materials

Eucalyptus urograndis Kraft lignin, obtained from industrial black liquor, was kindly supplied by Suzano S.A. (Suzano, Brazil). All other reactants were used as received from the supplier, without further purification. Detailed information on each compound, including chemical structure, purity, and supplier, is provided in Table 1. Bidistilled water was used throughout the experiments.

2.2. Eutectic Solvent Preparation

The ESs were prepared using the heating and stirring method proposed by Abbott et al. [73]. In brief, betaine (BET) as the HBA was mixed with HBD–urea (U), ethylene glycol (EG), 1,3-propanediol (PROP), or 1,4-butanediol (BUT)–at a specific molar ratio. The mixture was placed in sealed glass flasks and stirred at a controlled temperature between 333.15 and 353.15 K until a clear, homogeneous liquid was formed, a process that typically required 30 to 120 min. Following preparation, the ESs were cooled to room temperature, and their final water content was determined by Karl Fischer titration (831 KF coulometer, Metrohm, Herisau, Switzerland). The specific HBA:HBD molar ratios and the measured water content for each ES are detailed in Table 2.
The molar ratios were selected based on the following rationale: the 2:3 ratio for the BET:U ES corresponds to the eutectic point reported in the literature [74] for a mixture with 2% of water; for the BET:BUT ES, the 1:9 ratio was the only composition from a wide screening (from 1:9 to 4:1) that remained a stable liquid after 12 h; and for BET:EG (1:3) and BET:PROP (1:4), the selected compositions were the lowest HBD molar ratios found to form a stable homogeneous liquid after 12 h in preliminary tests.
It is important to note that the water content values reported in Table 2 correspond to the moisture measured immediately after the preparation of the ESs, as no water was intentionally added during the process. Notably, the urea-based ESs exhibited higher water content, which is attributed to the hygroscopic nature of urea, causing it to absorb moisture from the ambient [75,76]. The ES water content was always taken into consideration in the composition calculations for all subsequent LLE and partitioning experiments.

2.3. Binodal Curve

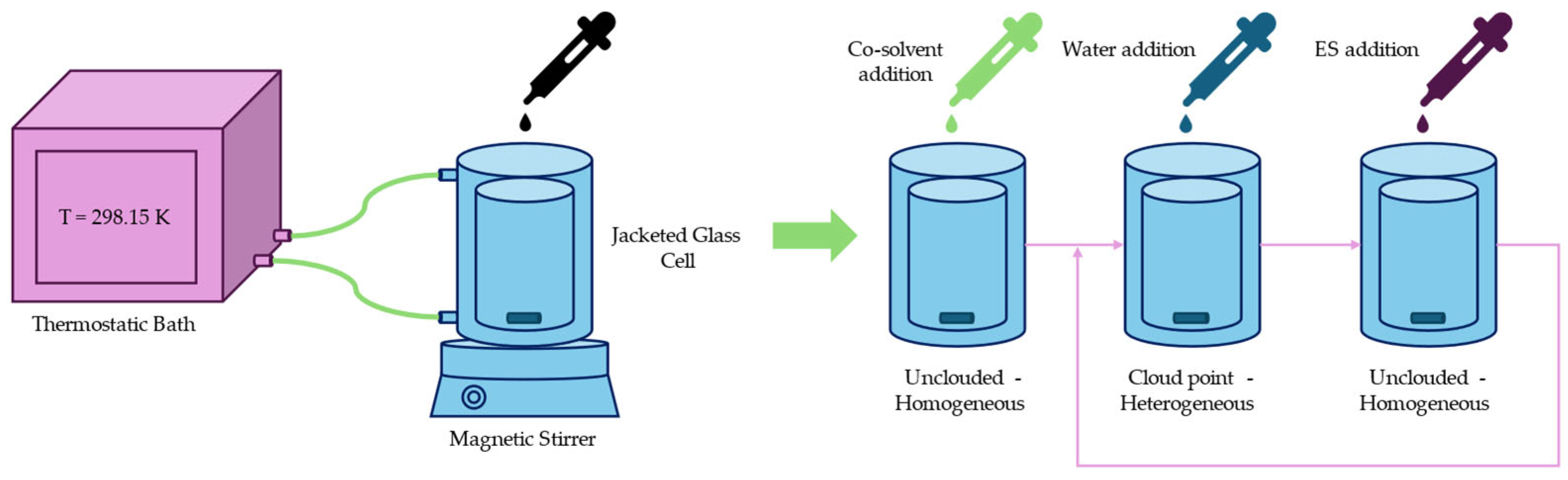

The binodal curves of ternary systems {organic cosolvent + water + ES} were determined using the cloud-point titration method [52,55] at 298.2 K ± 0.5 K and local ambient pressure (95.0 ± 2 kPa). The procedure was carried out in a jacketed glass cell (21 cm3) connected to a thermostatic circulating bath (TE–184, Tecnal, Piracicaba, Brazil) and placed on a magnetic stirrer (Fisatom 752, Fisatom, São Paulo, Brazil). In total, eight biphasic systems investigated resulted from the combination of the four selected ESs (BET:U, BET:EG, BET:PROP, and BET:BUT) with one of the two organic solvents, 1-butanol (1-But) or ethyl acetate (EA), in water.
To begin the titration, a known mass of water was placed in the cell under constant magnetic stirring (200 rpm). The organic cosolvent was then added dropwise until the solution became visually turbid (cloud point), indicating the formation of a second phase. Subsequently, a known amount of the ES was titrated into the biphasic system until the turbidity disappeared, restoring a single homogeneous phase. The mass of each component was recorded at the point of phase transition to determine a single point of the binodal curve. This procedure was repeated multiple times to map the entire curve and is schematically illustrated in Figure 1:
The mass of each component (water, cosolvent, and ES) added to the system was recorded using an analytical balance (AUY220, reproducibility of ±1 × 10−4 g, Shimadzu, Kyoto, Japan). The resulting experimental data were correlated using the empirical equation proposed by Merchuk et al. [53] (Equation (1)) and Hu et al. [54] (Equation (2)):
Y = A e ( B X 0.5 −   C X 3 )
Y = e ( A + B X 0.5 + C X + D X 2 + E X 3 )
in these equations, Y and X represent the mass fractions of the cosolvent and water, respectively. The parameters A, B, C, D, and E are adjustable parameters obtained by non-linear regression of the experimental data. For the modeling, the ES was treated as a single pseudo-component. This pseudo-ternary approach is a necessary simplification for applying these models, which are based on a component mass balance [77,78,79,80].
The agreement between the model and experimental data was evaluated using the coefficient of determination (R2) and the mean squared error (MSE), shown in Equation (3) and Equation (4), respectively:
R 2 = 1 −   ∑ 0 N ( Y e − Y p ) 2 ∑ 0 N ( Y e − Y ¯ e ) 2
M S E = ∑ 0 N ( Y e − Y p ) 2 N
where Y e and Y p represent the experimental and predicted mass fractions of the cosolvent, respectively, Y ¯ e is the mean of experimental mass fractions of the cosolvent, and N is the number of data points.

2.4. Kraft Lignin Partitioning

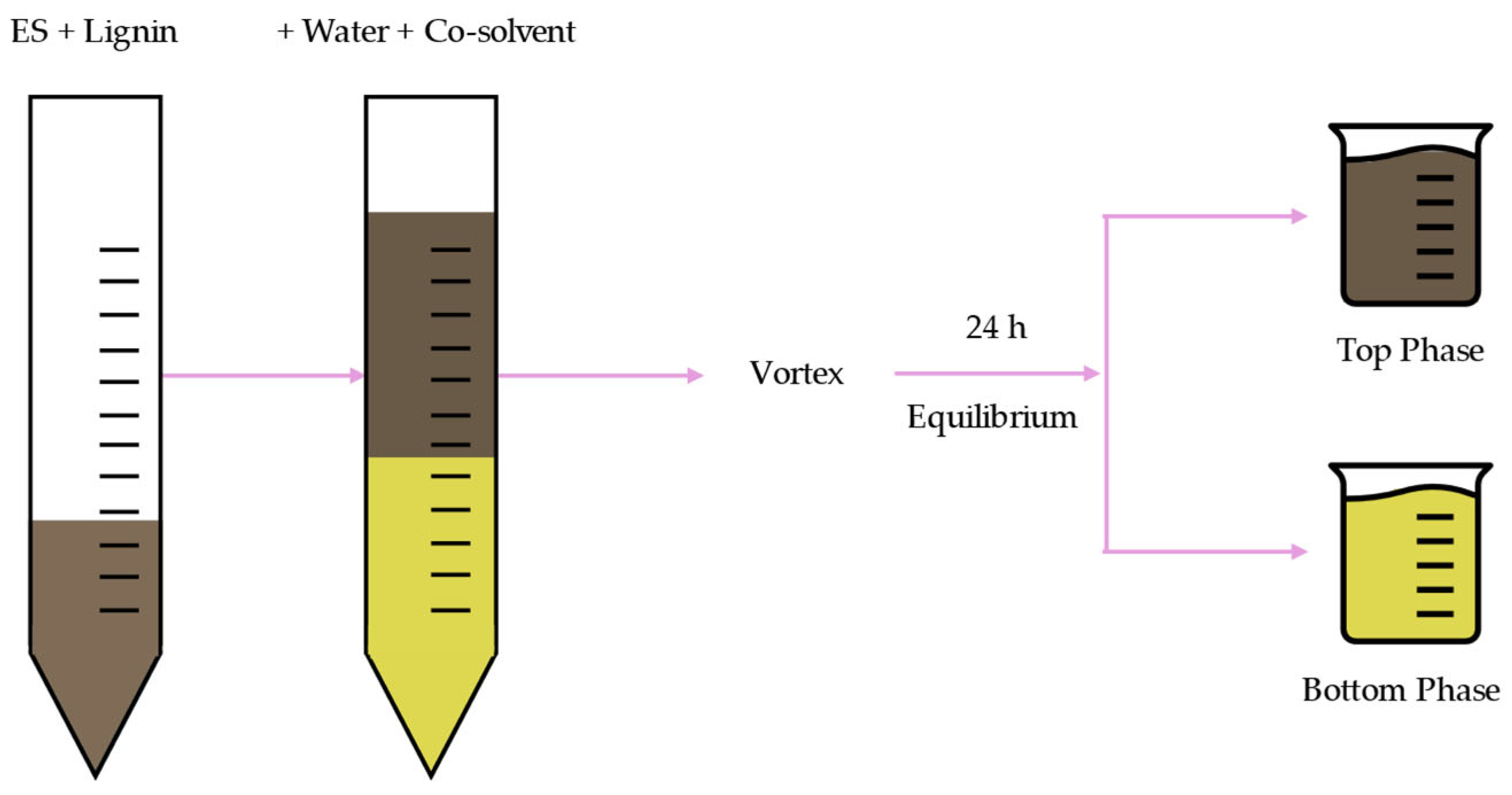

The Kraft Lignin partition coefficient (KLignin) determined in this work is defined as the ratio of lignin concentration in the top phase ( [ l i g n i n ] T ) to that in the bottom phase ( [ l i g n i n ] B ), both expressed in g⸱cm3, as shown in Equation (5):
K L i g n i n   =   [   l i g n i n   ] T [   l i g n i n   ] B
For each system, KLignin values were determined at five distinct compositions, which were selected to fall within the biphasic region of the previously determined binodal curves. The procedure began by preparing a stock solution of Kraft lignin (~10 mg) dissolved in a known mass of corresponding ES. A sample of this stock solution was then transferred to a 15 mL centrifuge tube, along with gravimetrically known amounts of water and the organic cosolvent (AUY220, reproducibility of ±1 × 10−4 g, Shimadzu, Kyoto, Japan). The sealed tubes were homogenized by vortex (AP59, Phoenix Luferco, Araraquara, Brazil) and then placed in a thermostatic bath (MA-184, Marconi, Piracicaba, Brazil) at 298.15 ± 0.5 K for 24 h to ensure thermodynamic equilibrium was reached. After the equilibration period, the top and bottom phases were carefully separated using plastic syringes and weighed. This procedure is illustrated in Figure 2:
The density of each phase was measured using a vibrating-tube densimeter (DM45, ±1 × 10−5 g⸱cm−3, Mettler Toledo, Columbus, OH, USA). To quantify the lignin content, a precisely weighted sample of each phase was diluted in dimethyl sulfoxide (DMSO) and its absorbance was measured at 280 nm using an UV–Vis spectrophotometer (UV-1700, Shimadzu, Kyoto, Japan). This wavelength was chosen as it is characteristic of lignin [55,81,82,83]. The lignin concentration in each phase was then calculated from a pre-established calibration curve (Figure S1 of the Supplementary Materials, SM), allowing for the determination of KLignin through Equation (5).

3. Results and Discussion

3.1. Phase Diagrams

The determination of LLE phase diagrams is crucial for assessing the viability of separation processes, such as fractionation and partition of biomolecules like lignin. These diagrams provide a fundamental understanding of the system’s behavior at specific compositions. In this study, the ability of 1-butanol and ethyl acetate to form biphasic systems with aqueous solutions of betaine-based ESs was investigated by determining their binodal curves at 298.15 K and ambient pressure (95.0 kPa). The experimental data, reported as mass fraction (Tables S1–S8 of the SM), were correlated with the Merchuk (Equation (1)) and Hu (Equation (2)) models using the curve_fit function from the Python (version 3.12.11) scipy.optimize library. This function relies on the Levenberg–Marquardt algorithm [84] to perform the non-linear parameter fitting. The resulting ternary diagrams, plotted on mass fraction basis, are presented in Figure 3, Figure 4, Figure 5 and Figure 6, and the adjusted parameters for Merchuk and Hu correlations are listed in Table 3 and Table 4, respectively.

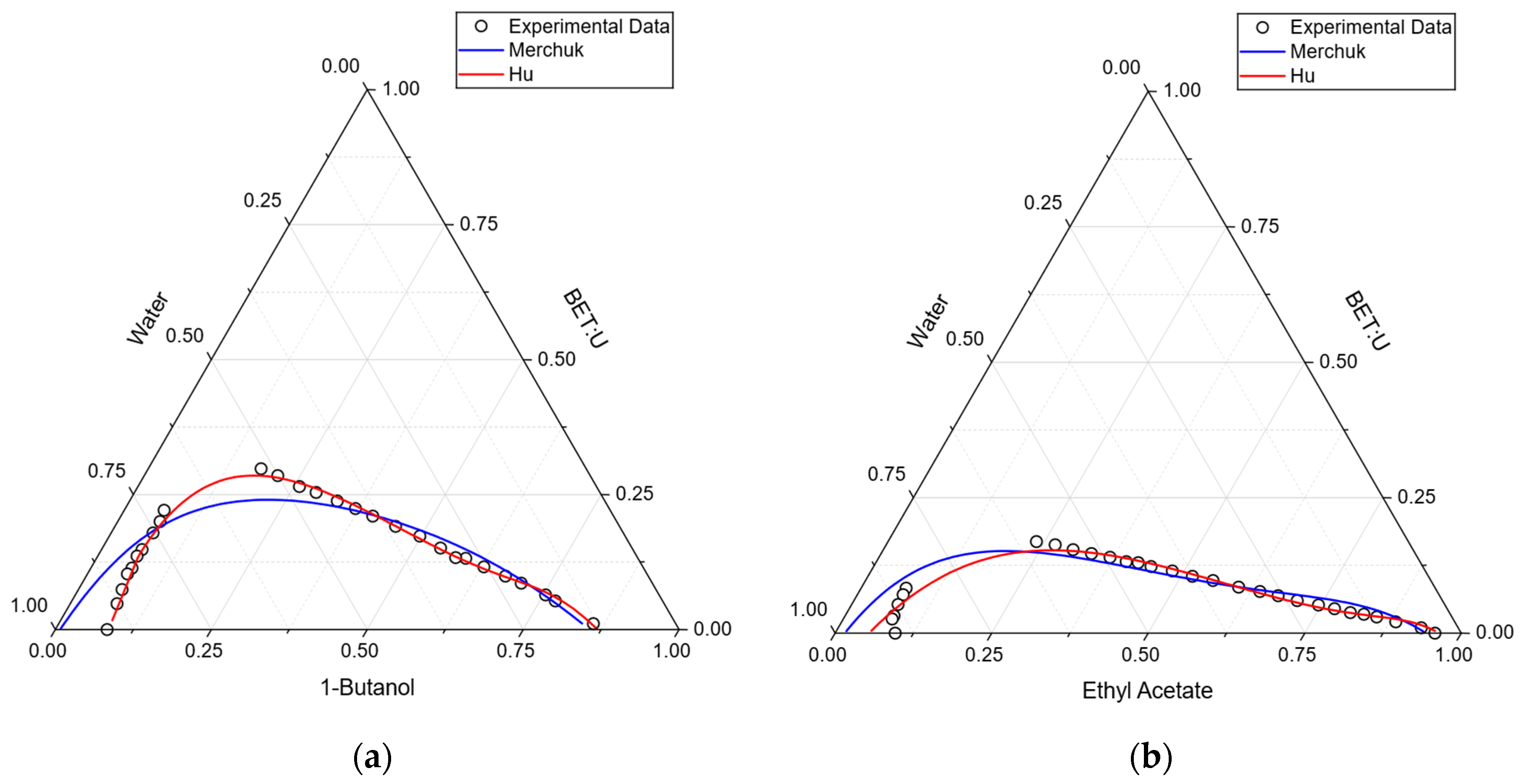

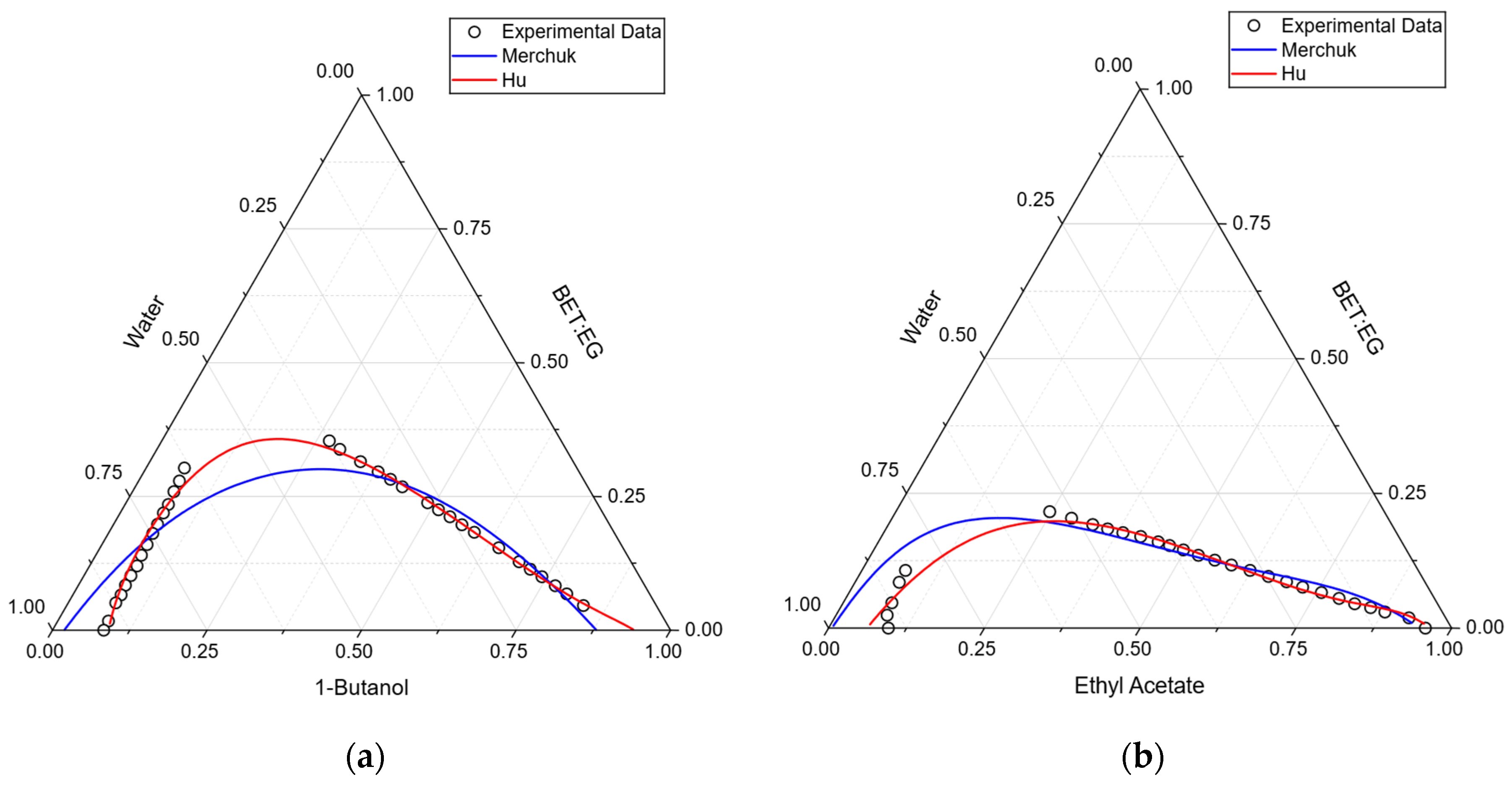

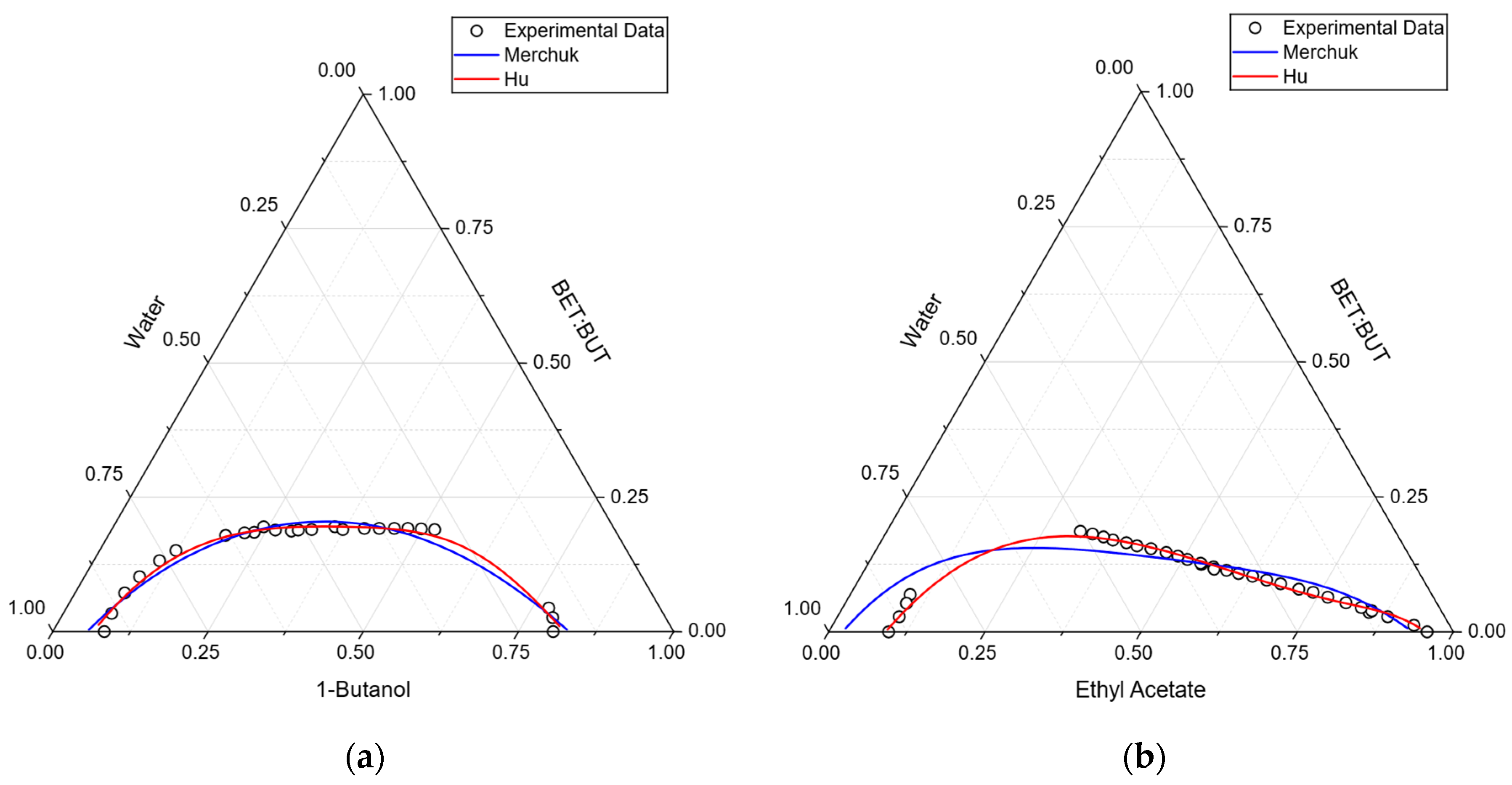

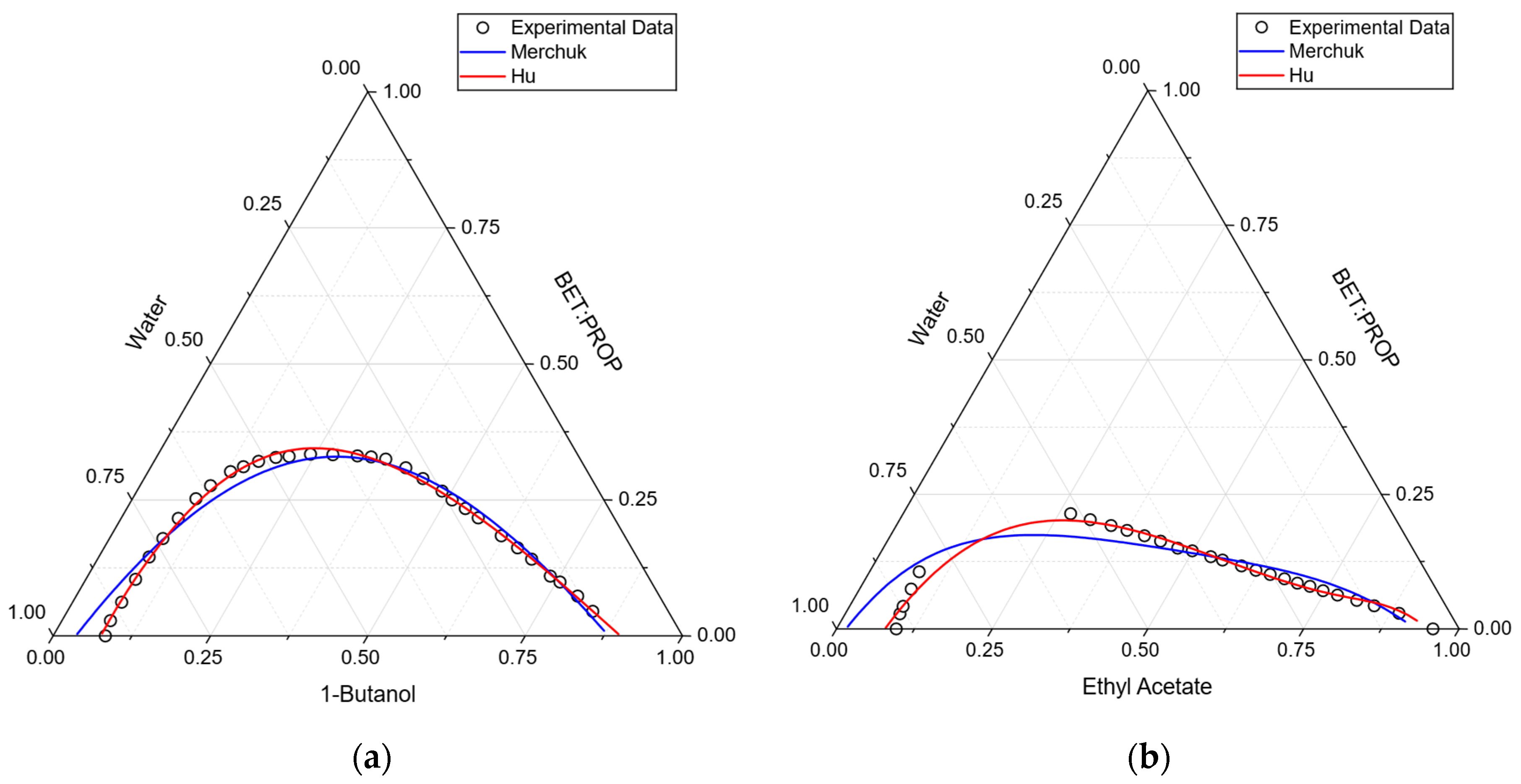

A comparison of the phase diagrams reveals a clear trend based on the hydrogen-bond donor used in the ES formulation. For both tested cosolvents, the systems containing ethylene glycol-based ESs (BET:EG) or 1,3-propanediol-based ESs (BET:PROP) consistently exhibited the largest biphasic regions. In contrast, systems containing urea (BET:U) and 1,4-butanediol (BET:BUT) showed smaller immiscibility regions. This behavior can be attributed to the polarity of the HBDs. When comparing the diols, ethylene glycol and 1,3-propanediol are more polar than 1,4-butanediol [85] (Table S9 in SM). This higher polarity likely increases the overall hydrophilicity of the resulting EG- and PROP-based ES, strengthening their affinity for the aqueous phase and thus increasing their immiscibility with the organic cosolvents over a wider compositional range. In the case of the BET:U system, despite its strong interaction with water [74], a direct comparison with the diol-based systems containing diols is restricted due to their structural differences. Conversely, the higher miscibility of the urea– and 1,4–butanediol–based ESs may pose a practical limitation for their recovery via liquid–liquid extraction.
When evaluating the effect of the cosolvent, 1-butanol generally resulted in a more extensive biphasic region than ethyl acetate in most cases. This suggests that the alcohol is a more effective phase-separating agent for these aqueous ES solutions, providing greater operational flexibility since the formation of two phases occurs over a wider compositional window.
It is noteworthy that most of the binodal curves do not include experimental points near the critical (plait) point. This is a limitation of the cloud point method, as the visual detection of the subtle turbidity in this region is inherently difficult, leading to a higher experimental [86,87,88]. However, for two systems, BET:PROP (Figure 5a) and BET:BUT (Figure 6a), compositions close to the plait point could be reliably determined. For the remaining systems, the phase separation was too indistinct in this region to be accurately measured.
Regarding the applied correlation approaches, the three-parameter Merchuk model [53] was chosen as it is a well-established approach for describing binodal curves of aqueous two-phase systems containing alternative solvents, while the five-parameter Hu model [54] was selected for comparison, as it has a higher number of adjustable parameters and was expected to provide a more precise correlation [77,89,90,91,92]. An analysis of statistical metrics (Table 3 and Table 4) demonstrates the superior performance of the Hu model. The five-parameter model provided an excellent correlation for all systems, with coefficient of determination (R2) values consistently greater than 0.995. In contrast, the three-parameter Merchuck model yielded less precise fits for the studied systems, with R2 values ranging from 0.987 to 0.995. These differences are visually confirmed in Figure 3, Figure 4, Figure 5 and Figure 6, where the Hu model accurately traces the entire composition ranges, whereas the Merchuk model exhibits higher deviations, particularly in the water-rich region.
It is important to note that the Merchuk model was developed for aqueous systems with polyethylene glycol (PEG) and inorganic salts, which are chemically distinct from the ES and cosolvents evaluated in this work. Furthermore, the absence of experimental data near the critical region in most of the studied systems may have also contributed to the observed deviations, as such data were included in Merchuk’s original work [53].
Given its evidenced robustness in describing the binodal curves, the Hu model was used to establish a qualitative ranking of the based on the extent of their biphasic regions of the aqueous systems. This ranking, from the largest to the smallest immiscibility area, is the following: BET:EG + 1-But ≈ BET:PROP + 1-But > BET:U + 1-But > BET:EG + EA ≈ BET:PROP + EA ≈ BET:BUT + 1-But > BET:BUT + EA > BET:U + EA.

3.2. Kraft Lignin Partitioning

The Kraft lignin partition coefficient (KLignin), defined in Equation (5), was measured to evaluate the distribution of lignin between the two phases. The results are summarized in Figure 7, which plots KLignin as a function of the global ES mass fraction for the systems containing 1-butanol (a) and ethyl acetate (b). The y-axis was plotted on a logarithmic scale (base 2) to facilitate the visualization of the curves. For improved clarity, the curves presented in Figure 7 have been individually plotted in Figures S2–S5 (available in the SM). The complete experimental data, including the KLignin values, for the five distinct global mass compositions and the corresponding phase densities, are provided in Tables S10–S17 of the SM.

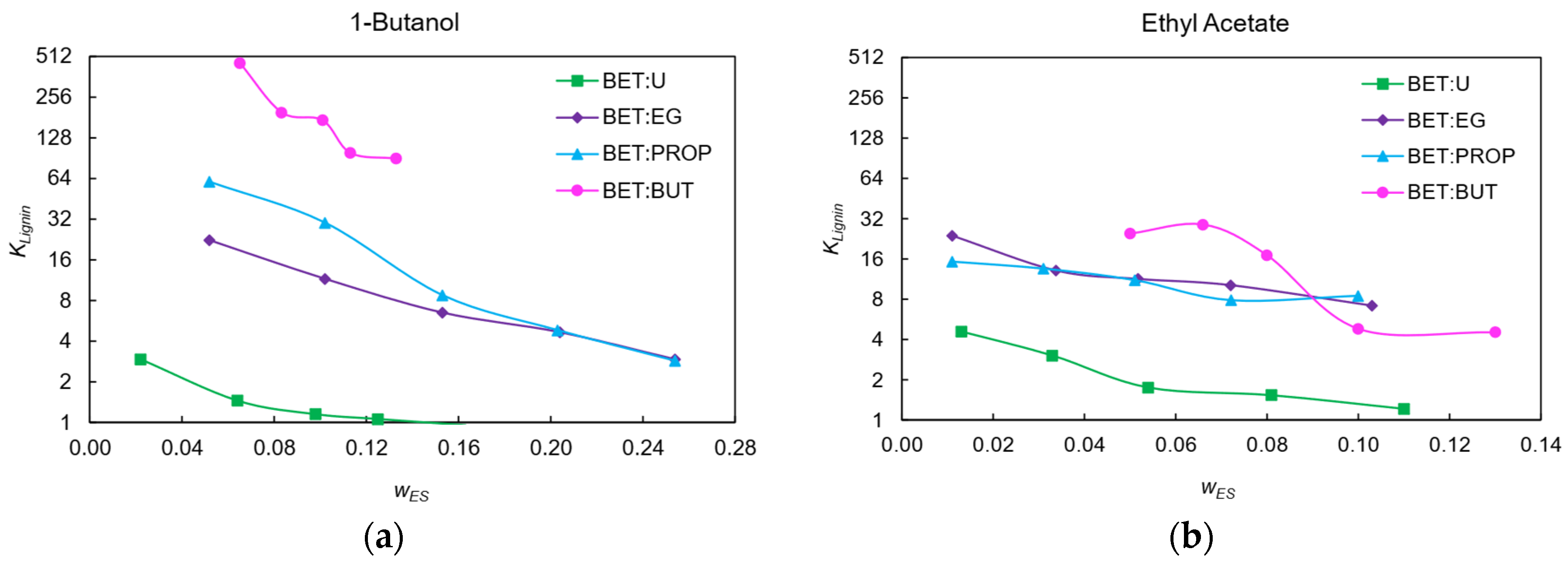

The partitioning results (Figure 7, Tables S9–S16) show that the KLignin values were greater than 1 for nearly all the systems studied. The only exception was a single point in the {1-But + BET:U} system (wBET:U = 0.163), where KLignin was 0.9. This result indicates a strong preferential partitioning of lignin into the top, cosolvent-rich phase. This behavior is driven by the pronounced hydrophobic character of lignin [51], which has very low water solubility [19,42,51,93] and a higher affinity with organic-rich media [94]. Furthermore, while lignin is soluble in pure ESs, the literature confirms that its solubility drops sharply as the water content in the aqueous ES solution increases [19,42,93].
A second trend observed in Figure 7 is that KLignin values generally decrease as the overall mass fraction of ES increases. Due to their hydrophilic nature, the betaine-based solvents studied here are expected to concentrate in the bottom (aqueous) phase upon the addition of mildly polar organic cosolvent (e.g., ethyl acetate, 1-butanol), a behavior registered in the literature reports for other hydrophilic ESs [48,49]. Since ESs are typically good solvents for dissolving lignin [19,42,93,95], increasing their overall concentration in the system enhances the aqueous phase capacity to retain lignin, which in turn reduces the partition to the top phase.
The combination of these two behaviors—lignin preferentially migrating to the top phase while the ES tends to remain in the bottom phase [48,49,96]—indicates that liquid–liquid extraction using aqueous mixtures of 1-butanol or ethyl acetate could be a viable strategy for recovering Kraft lignin and enabling the potential for ESs reuse, which is in line with previous works [24,25,49].
Further analysis reveals that the lignin partition behavior is strongly dependent on the specific ES + cosolvent combination. For the systems based on the urea ES (BET:U), the partitioning was modest with both tested solvents: KLignin values ranged from 0.9 to 2.9 with 1-butanol and from 1.2 to 4.6 with ethyl acetate. Similarly, for the ethylene glycol ES (BET:EG), higher partition coefficients were obtained, but no substantial difference was observed between the systems containing 1-butanol (2.9 ≤ KLignin ≤ 22.3) and ethyl acetate (7.2 ≤ KLignin ≤ 23.8). In contrast, the choice of solvent had a much more pronounced impact on the systems containing 1,3-propanediol (BET:PROP) and 1,4-butanediol (BET:BUT). In the case of BET:PROP, a broader range of partition coefficient values was obtained when 1-butanol (2.9 ≤ KLignin ≤ 60.4) was used compared to ethyl acetate (7.9 ≤ KLignin ≤ 15.3). For the systems with BET:BUT, very high partition coefficients were observed for the system with 1-butanol (89.8 ≤ KLignin ≤ 456.5), while ethyl acetate yielded significantly lower values, ranging from 4.5 to 24.7. These results demonstrate that the synergistic effect between the HBD and the cosolvent is the critical factor in achieving high lignin partition coefficients.
A comparison with previously reported data highlights the strong potential of the biphasic systems proposed in this work for the recovery of Kraft lignin from its mixtures with most of the investigated betaine-based solvents. For instance, Dias et al. (2020) [55] investigated the potential of water/acetone solutions to fractionate Kraft lignin/protic ionic liquids mixtures, reporting lignin partition coefficients in the range of 0.6 to 5.0. Similarly, Xin et al. (2012) [63] reported the partition coefficients of different lignin types in mixtures of ionic liquid ([C2mim][OAc]) and water/ethyl acetate, water/1,4-dioxane and water/THF (tetrahydrofuran). For Kraft lignin, the ranges of partition coefficients were 0.0 ≤ KLignin ≤ 2.0 for ethyl acetate, 0.0 ≤ KLignin ≤ 1.0 for 1,4-dioxane, and 0.0 ≤ KLignin ≤ 4.0 for tetrahydrofuran (THF). In the present study, higher partition coefficients were obtained for most of the tested systems, particularly for the BET:BUT + 1-butanol combination, which yielded partition coefficients that are orders of magnitude higher, evidencing a greater driving force for the transfer of lignin to the organic phase. The comparison is limited to IL-based systems due to the lack of reported data for eutectic solvents in the literature, which underscores the novelty of this work.

4. Conclusions

This work investigated the liquid–liquid equilibrium (LLE) and Kraft lignin partitioning in biphasic systems composed of betaine-based ES, water, and an organic cosolvent (butanol or ethyl acetate). For LLE modeling, the five-parameter Hu model generally provided a significantly more accurate description of the binodal curves than the Merchuk model. The experimental data showed that 1-butanol generally created larger biphasic regions compared to ethyl acetate, and in nearly all systems, lignin preferentially partitioned to the organic phase (KLignin > 1), supporting the viability of liquid–liquid extraction to separate lignin from the ES. A more detailed analysis revealed that 1-butanol also yielded substantially higher partition coefficients for the systems containing BET:PROP and BET:BUT, with the latter combination emerging as the most promising for lignin recovery. This system exhibited the highest lignin partition coefficient values, with values often exceeding 100 (wBET:BUT ≤ 0.101) and a maximum of 456.5 (wBET:BUT ≤ 0.065).
To the best of our knowledge, this is the first study to report liquid–liquid equilibrium data and Kraft lignin partition for systems containing betaine-based ESs. The results provide valuable insights for the design of lignin recovery processes and offer evidence that liquid–liquid extraction is a viable approach for the selective separation of lignin from these ESs, with 1-butanol emerging as a particularly effective cosolvent. This work contributes to expanding the limited experimental dataset for these systems, supporting the continued development of ESs-based processes for lignocellulosic biomass valorization strategies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pr13123784/s1, Figure S1: Calibration curve of the UV-Vis spectrophotometric analysis of Kraft lignin. The plot shows the Kraft lignin concentration in dimethyl sulfoxide (g/g) (y-axis) as a function of the absorbance at 280 nm (x-axis). The line represents the linear regression used to determine the lignin concentrations in the experiments; Figure S2: Kraft lignin partition coefficient as a function of the overall mass fraction of the BET:U eutectic solvent for systems containing (a) 1-butanol and (b) ethyl acetate; Figure S3: Kraft lignin partition coefficient as a function of the overall mass fraction of the BET:EG eutectic solvent for systems containing (a) 1-butanol and (b) ethyl acetate; Figure S4: Kraft lignin partition coefficient as a function of the overall mass fraction of the BET:PROP eutectic solvent for systems containing (a) 1-butanol and (b) ethyl acetate; Figure S5: Kraft lignin partition coefficient as a function of the overall mass fraction of the BET:BUT eutectic solvent for systems containing (a) 1-butanol and (b) ethyl acetate; Table S1: Experimental mass fraction (w) data for the binodal curve of {1-butanol (1) + water (2) + BET:U (3)} at 298.15 K and 95.0 kPa; Table S2: Experimental mass fraction (w) data for the binodal curve of {ethyl acetate (1) + water (2) + BET:U (3)} at 298.15 K and 95.0 kPa; Table S3: Experimental mass fraction (w) data for the binodal curve of {1-butanol (1) + water (2) + BET:EG (3)} at 298.15 K and 95.0 kPa; Table S4: Experimental mass fraction (w) data for the binodal curve {ethyl acetate (1) + water (2) + BET:EG (3)} at 298.15 K and 95.0 kPa; Table S5: Experimental mass fraction (w) data for the binodal curve of {1-butanol (1) + water (2) + BET:PROP (3)} at 298.15 K and 95.0 kPa; Table S6: Experimental mass fraction (w) data for the binodal curve of {ethyl acetate (1) + water (2) + BET:PROP (3)} at 298.15 K and 95.0 kPa; Table S7: Experimental mass fraction (w) data for the binodal curve of {1-butanol (1) + water (2) + BET:BUT (3)} at 298.15 K and 95.0 kPa; Table S8: Experimental mass fraction (w) data for the binodal curve of {ethyl acetate (1) + water (2) + BET:BUT (3)} at 298.15 K and 95.0 kPa; Table S9: Et(30) parameters for alcohol HBDs studied in this work; Table S10: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {1-butanol (1) + water (2) + BET:U (3)} system; Table S11: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {ethyl acetate (1) + water (2) + BET:U (3)} system; Table S12: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {1-butanol (1) + water (2) + BET:EG (3)} system; Table S13: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {ethyl acetate (1) + water (2) + BET:EG (3)} system; Table S14: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {1-butanol (1) + water (2) + BET:PROP (3)} system; Table S15: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {ethyl acetate (1) + water (2) + BET:PROP (3)} system; Table S16: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {1-butanol (1) + water (2) + BET:BUT (3)} system; Table S17: Global compositions (w), phase densities (dTop and dBottom), and Kraft lignin partition coefficients (KLignin) for the {ethyl acetate (1) + water (2) + BET:BUT (3)} system.

Author Contributions

F.S.A.: conceptualization, methodology, validation, investigation, data curation, formal analysis, writing (original draft), visualization, software. D.M.S.: validation, investigation, data curation. S.M.V.-B.: conceptualization, methodology, visualization, supervision, writing (review and editing). M.C.d.C.: conceptualization, resources, visualization, writing (review and editing), supervision, project administration, funding acquisition. All authors have read and agreed to the published version of the manuscript.

Funding

This study was financed, in part, by the Agência Nacional do Petróleo, Gás Natural e Biocombustíveis (ANP) through the Programa de Recursos Humanos (PRH—2024/10556-0). The authors are also grateful to The Coordination for the Improvement of Higher Education Personnel (CAPES, Brazil)—Finance Code 001, the National Council for Scientific and Technological Development (CNPq—312848/2023-4, 444231/2024-2, and 443214/2024-7), the São Paulo Research Foundation (FAPESP—2024/11984-6, 2024/01069-9, and 2025/20664-8) and FAEPEX Unicamp for the financial support.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Materials. Further inquiries can be directed to the corresponding authors.

Acknowledgments

The authors would also like to thank Suzano S.A. for providing the isolated Kraft lignin used in the assays.

Conflicts of Interest

The authors declare no conflicts of interest. The funding sponsors had no role in the design of the study; in the collection, analysis, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.
