Article

Vertebral Body Tethering in AIS Management—A Preliminary Report

by
Aurélien Courvoisier
1,2,*,
Alice Baroncini
3,
Clément Jeandel
2,
Clémentine Barra
4,
Yan Lefevre
5,
Federico Solla
6,
Richard Gouron
7,
Jean-Damien Métaizeau
8,
Marie-Christine Maximin
2 and
Vincent Cunin
4
1
TIMC, University Grenoble Alpes, CNRS, UMR 5525, VetAgro Sup, Grenoble INP, CHU Grenoble Alpes, 38000 Grenoble, France
2
Grenoble Alps Scoliosis and Spine Center, Grenoble Alps University Hospital, Bvd de la Chantourne, CEDEX 09, 38043 Grenoble, France
3
Department of Orthopaedics, RWTH Uniklinik Aachen, Pauwelsstraße 30, 52074 Aachen, Germany
4
Service d’Orthopédie Pédiatrique, Hôpital Femme Mère Enfant, Hôpitaux civils de Lyon, 59 Bd Pinel, 69500 Bron, France
5
Service d’Orthopédie Pédiatrique, CHU de Bordeaux, Pl. Amélie Raba Léon, 33000 Bordeaux, France
6
Service d’Orthopédie Pédiatrique, Fondation Lenval, 57 Avenue de la Californie, 06200 Nice, France
7
Service d’Orthopédie Pédiatrique, CHU d’Amiens, Université Picardie Jules Verne, Chemin du Thil, CS 52501, CEDEX 1, 80025 Amiens, France
8
Service d’Orthopédie Pédiatrique, Centre Hospitalier Universitaire F.Mitterrand Dijon-Bourgogne, 14 Rue Paul Gaffarel, 21000 Dijon, France
*
Author to whom correspondence should be addressed.
Children 2023, 10(2), 192; https://doi.org/10.3390/children10020192
Submission received: 12 December 2022 / Revised: 30 December 2022 / Accepted: 17 January 2023 / Published: 20 January 2023
(This article belongs to the Section Pediatric Orthopedics & Sports Medicine)
Browse Figures
Review Reports Versions Notes

Abstract

:
Vertebral Body Tethering (VBT) is a recently developed surgical technique for the treatment of progressive and severe scoliosis in patients with significant growth potential. It has been used since the first exploratory series, which showed encouraging results on the progressive correction of the major curves. This study reports on a retrospective series of 85 patients extracted from a French cohort, with a follow-up at a minimum of two years after a VBT with recent screws-and-tether constructs. The major and compensatory curves were measured pre-operatively, at the 1st standing X-ray, at 1 year, and at the last available follow-up. The complications were also analyzed. A significant improvement was observed in the curve magnitude after surgery. Thanks to growth modulation, both the main and the secondary curves continued to progress over time. Both the thoracic kyphosis and lumbar lordosis remained stable over time. Overcorrection occurred in 11% of the cases. Tether breakage was observed in 2% of the cases and pulmonary complications in 3% of the cases. VBT is an effective technique for the management of adolescent idiopathic scoliosis patients with residual growth potential. VBT opens an era of a more subtle and patient-specific surgical management of AIS that considers parameters such as flexibility and growth.

1. Introduction

Vertebral Body Tethering (VBT) is a recently developed surgical technique for the treatment of progressive and severe scoliosis in patients with significant growth potential. The principle of the technique relies on vertebral growth modulation, which is a direct application of the Hueter–Volkman law on the spine and was first described by Crawford in 2010 [1].
Specific medical implants have been developed for VBT and are composed of screws that are placed on the lateral aspect of each vertebral body, on the convex side of the curve, and a single synthetic tether spans between the screws. Tension is then applied to the tether to obtain a peri-operative correction, which is equivalent to a “brace-effect”. The correction improves over time due to a “convex side epiphysiodesis effect” if the patient has significant remaining growth. Flexibility and growth, in this order, are the two main pre-requisites for a successful VBT. VBT is a minimally invasive procedure performed by most surgeons through thoracoscopy or mini-open thoracotomy [2]. The two main objectives of the technique are to avoid fusion and to maintain spine flexibility.
Since the first exploratory series, which showed encouraging results [3,4,5] on the progressive correction of the major curve, the indications have been refined and the longer-term results (2 to 5 years) consolidated the first observations [1,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. These retrospective series also showed the maintenance of the mobility of the instrumented spine and a neutral or positive effect on sagittal balance [24], and they confirmed the low risk of immediate complications [25,26,27,28,29]. However, other studies have reported unpredictable results and a higher number of revision surgeries in patients treated with VBT compared to those treated with posterior fusion [26,30]. Overall, the authors agree on the power of growth modulation and studies are being conducted to optimize the eligibility criteria for VBT in an effort to limit the rate of revisions [6,31,32].
Several techniques and implants have been used in our centers in the almost decade-long experience with VBT, with successes and failures. The indications and technical aspects have been rationalized. This study reports on a series of 85 patients with a follow-up at a minimum of two years after a VBT with recent screws-and-tether constructs.

2. Materials and Methods

The present bi-centric retrospective study was performed according to the French reference methodology MR-004 between 2017 and 2020 and authorized by our institution. The study has been approved by the SFAR Ethical Committee: IRB 00010254-2021-202. All parents and patients received an information letter. The present study was conducted according to the STROBE statement [33].

2.1. Patient Selection

The inclusion criteria were:
-
Diagnosis of idiopathic scoliosis from 9 to 14 years old;
-
Severe curve (>40° for thoracic scoliosis/>35° for lumbar scoliosis);
-
Skeletal immaturity assessed by a Risser index between 0 and 2;
-
Surgical treatment using the “vertebral growth modulation” technique using screws and synthetic tether.
Patients who lacked a minimum 2-year follow-up were excluded from the study.

2.2. Surgical Technique

2.2.1. Right Thoracic Curves

All procedures were performed through the thoracoscopic approach with one-lung ventilation in the left lateral decubitus. A paravertebral bloc is systematically performed [34]. Four to five incisions on the mid-axillary line (15 mm—trocar size) were typically sufficient to perform the entire procedure. A small approach of the vertebral pleura consisted in coagulation of the segmental vessels in the middle of the lateral aspect of the convex side of each vertebral body. The use of a Pediguard (Spineguard—France), a threaded electronic conductivity device, is systematic in our hands to secure the tap trajectory while limiting radiation exposure [35]. The screws are then inserted in the vertebral body. The screws at each end of the construct are slightly tilted (downward at the upper end and upward at the lower end) to improve the strength of the construct. The cord is progressively placed within the screw heads from the cranial to the caudal end. Curve correction is performed with a combination of contraction maneuvers on the counter torques connected to the screws and tension of the tether. A standard suction bottle chest drain is placed in the thorax and is removed at day 1 [36]. Patients walk at day 1 and are usually discharged at day 2 or 3 post-op.

2.2.2. Lumbar Curves

The procedure is very similar to the one described above, except for the screws at L2 and below. The thoracic screws are placed through the thoracoscopic approach with one-lung ventilation in the right lateral decubitus. Three further thoracoscopic incisions are usually sufficient to insert T11, T12, and L1 screws on the left side. A mini-lumbotomy is then performed to approach the sub-diaphragmatic vertebrae. We usually perform a single tether construct. L2, L3, and L4 screws are placed through a trans-psoas approach. A small incision is performed in the diaphragm pillar close to the spine to slide the cord from the thorax down to the lower screws. A special attention to the genito-femoral nerve needs to be observed when placing the L3 screw. Paresthesia of the proximal and antero-medial aspect of the thigh is frequent after this surgery even when the nerve is not damaged. Post-op medication with Gabapentine is systematic in our patients.

2.2.3. Double Curves

Both the lumbar and the thoracic procedures are sequentially performed (lumbar first), usually on the same day. Selective thoracic VBT is possible in some cases for double curves (Figure 1 and Figure 2). In some cases, spontaneous correction of the lumbar curve is not effective. In those cases, the lumbar procedure is postponed. The neutral vertebra located at the junction is instrumented on both sides.

2.3. Post-Operative Management

The first full-spine erect radiograph (EOS–EOS-Imaging–France) is performed at day 2, then at 3, 12, 18 and 24 months post-op, and then once a year until skeletal maturity and at least 5 years post-op.
All patients are braced for 6 weeks after surgery to restrain activity. Soft sports (swimming, biking) are authorized after 6 weeks until 3 months post-op. Full return to sport is authorized after 3 months (with contact sports such as rugby, the time is 12 months).
The device removal is not planned systematically.

2.4. Outcomes of Interest

Baseline demographic data such as gender, age at surgery, skeletal maturity (Risser grade and evaluation of the triradiate cartilage—TRC) and Lenke curve type were collected.
The major, instrumented and compensatory curves were measured pre-operatively, at the 1st standing X-ray, at 1 year, and at the last available follow-up using the Cobb method. The thoracic kyphosis and lumbar lordosis were also evaluated at the same timepoints. Radiographic data were collected on the whole spine anteroposterior and lateral whole spine EOS scans (EOS-Imaging).
The duration of the hospitalization and the presence and localization of pain were also recorded.
The rate of the surgical-approach-related (vascular or any organ damage) and implant-related complications (tether breakage, screw pullout) was evaluated. The number of surgical revisions was recorded.

2.5. Statistical Analysis

The statistical analysis was performed on Excel (Microsoft). Continuous data were expressed as mean and standard deviation, while the categorical variables were expressed as percentages. A two-sided, paired t-test was performed to compare the radiographic data from the 1st standing X-ray with those from the last follow-up to assess the growth modulation effect and the variations in the sagittal parameters. A 95% confidence interval was set for all comparisons (p = 0.05).

3. Results

3.1. Patient Selection and Demographic Data

During the observation period, 87 patients meeting the inclusion criteria were treated with VBT at six institutions. Two patients were excluded because they lacked the minimum required follow-up; so, the data from 85 patients were available for this analysis (Figure 3).
The baseline characteristics of the patients in the series are described in Table 1.
The collected radiographic data are summarized in Table 2. Overall, a significant improvement was observed in the curve magnitude after surgery. Thanks to the growth modulation, both the main and the secondary curves continued to progress over time. Both the thoracic kyphosis and the lumbar lordosis remained stable over time.

3.2. Radiological Outcome at Last Follow-Up

At the last follow-up, the patients included at Risser 0 TRC closed or above (82%) had all reached Risser 3 or more. Eleven (13%) patients included at Risser 0 TRC open had also reached Risser 3 or more at the last follow-up. Four (5%) patients with severe but flexible curves included at Risser 0 TRC open were still at Risser 2 with ongoing significant growth.

3.3. Complications

The type of complications observed in the cohort and the relative treatment are shown in Table 3.

4. Discussion

The main finding of the present study is that VBT allows an initial correction of the major curve, which improves over time, from the first post-operative year (Figure 1, Figure 2, Figure 4 and Figure 5). The current cohort is one of the largest in the published literature with a minimum 2-year follow-up. Our findings support most of the reported outcomes in the largest published series, particularly when comparing the major curve measurements at the last follow-up (Table 4). VBT allows a progressive improvement of major curve measurements from 50° to 20° in patients included at around 12 years old. Other series had smaller major curve improvement, which was related to either a higher age at surgery [37] or to a lack of initial pre-operative correction [3,19,21].
If the residual growth is a fundamental element, the flexibility of the curvature is the essential parameter. The initial intraoperative correction (the “brace” effect) is necessary to trigger the modulation phenomenon. The subtlety of the VBT technique lies in the choice of the initial correction, which depends on the amplitude of the curvature and the growth potential. In comparison, fusion is more predictable because it circumvents these parameters.
Sagittal balance in spine surgical treatments has been better understood and evaluated over the past ten years. Our study confirmed the results of a recent work which showed the positive or neutral effect of the VBT technique on the profile [24] (Figure 2 and Figure 6). The mobility, even partial, of the spine allows it to maintain a capacity for compensation. Thus, profile anomalies might be better absorbed than in fusion patients.
Immediate post-operative complications were rare and benign. They were essentially pulmonary. Aseptic pleural effusions have been reported [25], which were rare in our series. The limited approach to the pleura and the use of a simple suction bottle drain [36] might limit the risk of pleural complications. Recent studies have shown that the short-term lung function is not affected by the development of complications [25].
Overcorrection is now a well-known and predictable phenomenon (here 11%), which concerns the youngest patients with open TRC [6]. It often begins at the bottom of the construct between T10 and L1 for thoracic curves. Optimizing surgical timing will help reduce this complication, which may justify cutting the cord in areas undergoing overcorrection (Figure 4). Tether breakages are commonly reported in the literature in lumbar constructs but are not systematically a source of revision surgery [30]. The data observed in the present study confirm this finding.
The failures of the procedure were linked either to the curves that were too rigid and severe or to an “adding-on” phenomenon resulting from poor selection of the instrumented lower end vertebra. Thus, for long thoracic curvatures, we recommend choosing the most neutral vertebra (L2 or even L3) (Figure 5, Figure 6 and Figure 7).
This work is the result of a learning curve of a recent technique. The selection criteria were broad and experience is now refining them. The main limitations of this study were its retrospective, uncontrolled nature and the absence of long-term data. However, 95% of the patients included in the study have reached Risser 3 or more. The construction of prospective randomized studies in spine surgery is complex but now necessary to compare the different treatments.
It is becoming clearer today that the success of the VBT technique lies as much in the patient selection as in the technical realization. Data are accumulating on the relevance of the technique and its effectiveness in a now well-defined population: short Lenke 1 thoracic curvature, greater than 45°, flexible, Risser 0 (Figure 1) The combination of data from the literature with the results of this French series can make it possible to rationalize the indications and thus progressively integrate VBT into the care of our scoliotic patients.

5. Conclusions

VBT is an effective technique for the management of adolescent idiopathic scoliosis patients with residual growth potential. In our view, VBT opens an era of a more subtle and patient-specific surgical management of AIS that considers parameters such as flexibility and growth. The global philosophy is to restore not only a normal spine shape but also a normal function. In this line, with our actual knowledge, revisions may be necessary to fine-tune the treatment. For selected patients, fusion no longer represents the only viable option for severe curves. With more experience, surgeons will learn how to use VBT along with fusion or other treatments to restore the most appropriate function for each patient’s spine.

Author Contributions

Conceptualization, A.C. and V.C.; methodology, A.C.; validation, Y.L., R.G., F.S. and J.-D.M.; formal analysis, A.C.; investigation, C.J., M.-C.M. and C.B.; data curation, C.J. and C.B.; writing—original draft preparation, A.C.; writing—review and editing, A.B.; supervision, A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Clinical Trials and Research Department of Grenoble Alps University Hospital (French Reference Methodology MR004 and 9 February 2022). The study was approved by the SFAR Ethical Committee IRB 00010254-2021-202.

Informed Consent Statement

Informed consent was obtained from all the subjects involved in the study. Written informed consent has been obtained from the parents to publish this paper.

Data Availability Statement

Not applicable.

Conflicts of Interest

AC is a consultant for Zimvie.

References

  1. Crawford, C.H., 3rd; Lenke, L.G. Growth modulation by means of anterior tethering resulting in progressive correction of juvenile idiopathic scoliosis: A case report. J. Bone Jt. Surg. 2010, 92, 202–209. [Google Scholar] [CrossRef]
  2. Parent, S.; Shen, J. Anterior Vertebral Body Growth-Modulation Tethering in Idiopathic Scoliosis: Surgical Technique. J. Am. Acad. Orthop. Surg. 2020, 28, 693–699. [Google Scholar] [CrossRef]
  3. Newton, P.O.; Kluck, D.G.; Saito, W.; Yaszay, B.; Bartley, C.E.; Bastrom, T.P. Anterior Spinal Growth Tethering for Skeletally Immature Patients with Scoliosis: A Retrospective Look Two to Four Years Postoperatively. J. Bone Jt. Surg. 2018, 100, 1691–1697. [Google Scholar] [CrossRef] [PubMed]
  4. Samdani, A.F.; Ames, R.J.; Kimball, J.S.; Pahys, J.M.; Grewal, H.; Pelletier, G.J.; Betz, R.R. Anterior vertebral body tethering for immature adolescent idiopathic scoliosis: One-year results on the first 32 patients. Eur. Spine J. 2015, 24, 1533–1539. [Google Scholar] [CrossRef] [PubMed]
  5. Samdani, A.F.; Ames, R.J.; Kimball, J.S.; Pahys, J.M.; Grewal, H.; Pelletier, G.J.; Betz, R.R. Anterior vertebral body tethering for idiopathic scoliosis: Two-year results. Spine 2014, 39, 1688–1693. [Google Scholar] [CrossRef]
  6. Mariscal, G.; Morales, J.; Perez, S.; Rubio-Belmar, P.A.; Bovea-Marco, M.; Bas, J.L.; Bas, P.; Bas, T. Meta-analysis on the efficacy and safety of anterior vertebral body tethering in adolescent idiopathic scoliosis. Eur. Spine J. 2022. [Google Scholar] [CrossRef]
  7. Samdani, A.F.; Pahys, J.M.; Ames, R.J.; Grewal, H.; Pelletier, G.J.; Hwang, S.W.; Betz, R.R. Prospective Follow-up Report on Anterior Vertebral Body Tethering for Idiopathic Scoliosis: Interim Results from an FDA IDE Study. J. Bone Jt. Surg. 2021, 103, 1611–1619. [Google Scholar] [CrossRef]
  8. Rushton, P.R.P.; Nasto, L.; Parent, S.; Turgeon, I.; Aldebeyan, S.; Miyanji, F. Anterior Vertebral Body Tethering for Treatment of Idiopathic Scoliosis in the Skeletally Immature: Results of 112 Cases. Spine 2021, 46, 1461–1467. [Google Scholar] [CrossRef]
  9. Lonner, B.; Weiner, D.A.; Miyanji, F.; Hoernschemeyer, D.G.; Eaker, L.; Samdani, A.F. Vertebral Body Tethering: Rationale, Results, and Revision. Instr. Course Lect. 2022, 71, 413–425. [Google Scholar]
  10. Duarte, M.P.; Aubin, C.E.; Cobetto, N.; Roy-Beaudry, M.; Bellefleur, C.; Turgeon, I.; Labelle, H.; Guy, A.; Barchi, S.; Parent, S. 3D Radiological Outcomes and Quality of Life of Patients with Moderate Idiopathic Scoliosis Treated with Anterior Vertebral Growth Modulation vs Bracing: 2-Year Follow-up. Spine 2022, 47, 1063–1070. [Google Scholar] [CrossRef]
  11. Bernard, J.; Bishop, T.; Herzog, J.; Haleem, S.; Lupu, C.; Ajayi, B.; Lui, D.F. Dual modality of vertebral body tethering: Anterior scoliosis correction versus growth modulation with mean follow-up of five years. Bone Jt. Open 2022, 3, 123–129. [Google Scholar] [CrossRef] [PubMed]
  12. Takahashi, Y.; Saito, W.; Yaszay, B.; Bartley, C.E.; Bastrom, T.P.; Newton, P.O. Rate of Scoliosis Correction After Anterior Spinal Growth Tethering for Idiopathic Scoliosis. J. Bone Jt. Surg. 2021, 103, 1718–1723. [Google Scholar] [CrossRef] [PubMed]
  13. Pehlivanoglu, T.; Oltulu, I.; Erdag, Y.; Korkmaz, E.; Sarioglu, E.; Ofluoglu, E.; Aydogan, M. Double-sided vertebral body tethering of double adolescent idiopathic scoliosis curves: Radiographic outcomes of the first 13 patients with 2 years of follow-up. Eur. Spine J. 2021, 30, 1896–1904. [Google Scholar] [CrossRef] [PubMed]
  14. Pehlivanoglu, T.; Oltulu, I.; Erdag, Y.; Akturk, U.D.; Korkmaz, E.; Yildirim, E.; Sarioglu, E.; Ofluoglu, E.; Aydogan, M. Comparison of clinical and functional outcomes of vertebral body tethering to posterior spinal fusion in patients with adolescent idiopathic scoliosis and evaluation of quality of life: Preliminary results. Spine Deform. 2021, 9, 1175–1182. [Google Scholar] [CrossRef]
  15. Hegde, S.K.; Venkatesan, M.; Akbari, K.K.; Badikillaya, V.M. Efficacy of Anterior Vertebral Body Tethering in Skeletally Mature Children with Adolescent Idiopathic Scoliosis: A Preliminary Report. Int. J. Spine Surg. 2021, 15, 995–1003. [Google Scholar] [CrossRef]
  16. Baker, C.E.; Milbrandt, T.A.; Larson, A.N. Anterior Vertebral Body Tethering for Adolescent Idiopathic Scoliosis: Early Results and Future Directions. Orthop. Clin. N. Am. 2021, 52, 137–147. [Google Scholar] [CrossRef]
  17. Baker, C.E.; Kiebzak, G.M.; Neal, K.M. Anterior vertebral body tethering shows mixed results at 2-year follow-up. Spine Deform. 2021, 9, 481–489. [Google Scholar] [CrossRef]
  18. Pehlivanoglu, T.; Oltulu, I.; Ofluoglu, E.; Sarioglu, E.; Altun, G.; Korkmaz, M.; Yildirim, K.; Aydogan, M. Thoracoscopic Vertebral Body Tethering for Adolescent Idiopathic Scoliosis: A Minimum of 2 Years’ Results of 21 Patients. J. Pediatr. Orthop. 2020, 40, 575–580. [Google Scholar] [CrossRef]
  19. Newton, P.O.; Bartley, C.E.; Bastrom, T.P.; Kluck, D.G.; Saito, W.; Yaszay, B. Anterior Spinal Growth Modulation in Skeletally Immature Patients with Idiopathic Scoliosis: A Comparison with Posterior Spinal Fusion at 2 to 5 Years Postoperatively. J. Bone Jt. Surg. 2020, 102, 769–777. [Google Scholar] [CrossRef]
  20. Hoernschemeyer, D.G.; Boeyer, M.E.; Robertson, M.E.; Loftis, C.M.; Worley, J.R.; Tweedy, N.M.; Gupta, S.U.; Duren, D.L.; Holzhauser, C.M.; Ramachandran, V.M. Anterior Vertebral Body Tethering for Adolescent Scoliosis with Growth Remaining: A Retrospective Review of 2 to 5-Year Postoperative Results. J. Bone Jt. Surg. 2020, 102, 1169–1176. [Google Scholar] [CrossRef]
  21. Wong, H.K.; Ruiz, J.N.M.; Newton, P.O.; Gabriel Liu, K.P. Non-Fusion Surgical Correction of Thoracic Idiopathic Scoliosis Using a Novel, Braided Vertebral Body Tethering Device: Minimum Follow-up of 4 Years. JBJS Open Access 2019, 4, e0026. [Google Scholar] [CrossRef] [PubMed]
  22. Ergene, G. Early-term postoperative thoracic outcomes of videothoracoscopic vertebral body tethering surgery. Turk. J. Thorac. Cardiovasc. Surg. 2019, 27, 526–531. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Joshi, V.; Cassivi, S.D.; Milbrandt, T.A.; Larson, A.N. Video-assisted thoracoscopic anterior vertebral body tethering for the correction of adolescent idiopathic scoliosis of the spine. Eur. J. Cardio Thoracic Surg. 2018, 54, 1134–1136. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Baroncini, A.; Trobisch, P.; Blau, C.; Golias, C.; Kobbe, P.; Eschweiler, J.; Tingart, M.; Migliorini, F. Analysis of the pulmonary function in patients undergoing vertebral body tethering for adolescent idiopathic scoliosis. Eur. Spine J. 2021. [Google Scholar] [CrossRef] [PubMed]
  25. Trobisch, P.; Migliorini, F.; Vanspauwen, T.; Baroncini, A. Pulmonary Complications after Vertebral Body Tethering: Incidence, Treatment, Outcomes and Risk Factor Analysis. J. Clin. Med. 2022, 11, 3778. [Google Scholar] [CrossRef]
  26. Shin, M.; Arguelles, G.R.; Cahill, P.J.; Flynn, J.M.; Baldwin, K.D.; Anari, J.B. Complications, Reoperations, and Mid-Term Outcomes Following Anterior Vertebral Body Tethering Versus Posterior Spinal Fusion: A Meta-Analysis. JBJS Open Access 2021, 6, e21.00002. [Google Scholar] [CrossRef]
  27. Shen, J.; Parent, S. Iatrogenic dural tear after growth modulation in AIS: An unusual complication and its management. Spine Deform. 2021, 9, 1699–1703. [Google Scholar] [CrossRef]
  28. Meyers, J.; Eaker, L.; von Treuheim, T.D.P.; Dolgovpolov, S.; Lonner, B. Early operative morbidity in 184 cases of anterior vertebral body tethering. Sci. Rep. 2021, 11, 23049. [Google Scholar] [CrossRef]
  29. Abdullah, A.; Parent, S.; Miyanji, F.; Smit, K.; Murphy, J.; Skaggs, D.; Gupta, P.; Vitale, M.; Ouellet, J.; Saran, N.; et al. Risk of early complication following anterior vertebral body tethering for idiopathic scoliosis. Spine Deform. 2021, 9, 1419–1431. [Google Scholar] [CrossRef]
  30. Baroncini, A.; Trobisch, P.; Eschweiler, J.; Migliorini, F. Analysis of the risk factors for early tether breakage following vertebral body tethering in adolescent idiopathic scoliosis. Eur. Spine J. 2022, 31, 2348–2354. [Google Scholar] [CrossRef]
  31. Newton, P.O.; Takahashi, Y.; Yang, Y.; Yaszay, B.; Bartley, C.E.; Bastrom, T.P.; Munar, C. Anterior vertebral body tethering for thoracic idiopathic scoliosis leads to asymmetric growth of the periapical vertebrae. Spine Deform. 2022, 10, 553–561. [Google Scholar] [CrossRef] [PubMed]
  32. McDonald, T.C.; Shah, S.A.; Hargiss, J.B.; Varghese, J.; Boeyer, M.E.; Pompliano, M.; Neal, K.; Lonner, B.S.; Larson, A.N.; Yaszay, B.; et al. When successful, anterior vertebral body tethering (VBT) induces differential segmental growth of vertebrae: An in vivo study of 51 patients and 764 vertebrae. Spine Deform. 2022, 31, 2348–2354. [Google Scholar] [CrossRef] [PubMed]
  33. von Elm, E.; Altman, D.G.; Egger, M.; Pocock, S.J.; Gotzsche, P.C.; Vandenbroucke, J.P.; Initiative, S. The Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) statement: Guidelines for reporting observational studies. J. Clin. Epidemiol. 2008, 61, 344–349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Mathew, S.; Milbrandt, T.A.; Potter, D.D.; Larson, A.N. Thoracic paravertebral nerve catheter reduces postoperative opioid use for vertebral body tethering patients. Spine Deform. 2021, 9, 1601–1607. [Google Scholar] [CrossRef] [PubMed]
  35. Da Paz, S.; Trobisch, P.; Baroncini, A. The use of electronic conductivity devices can effectively reduce radiation exposure in vertebral body tethering. Eur. Spine J. 2022. [Google Scholar] [CrossRef]
  36. Ruzic, J.C.; Moreno, A.; Morin, C. [Simplified technique for thoracic drainage in anterior surgery of scoliosis in the child]. Rev. Chir. Orthop. Reparatrice Appar. Mot. 1998, 84, 550–553. [Google Scholar]
  37. Baroncini, A.; Courvoisier, A.; Berjano, P.; Migliorini, F.; Eschweiler, J.; Kobbe, P.; Hildebrand, F.; Trobisch, P.D. The effects of vertebral body tethering on sagittal parameters: Evaluations from a 2-years follow-up. Eur. Spine J. 2021, 31, 1060–1066. [Google Scholar] [CrossRef]
  38. Alanay, A.; Yucekul, A.; Abul, K.; Ergene, G.; Senay, S.; Ay, B.; Cebeci, B.O.; Yalinay Dikmen, P.; Zulemyan, T.; Yavuz, Y.; et al. Thoracoscopic Vertebral Body Tethering for Adolescent Idiopathic Scoliosis: Follow-up Curve Behavior According to Sanders Skeletal Maturity Staging. Spine 2020, 45, E1483–E1492. [Google Scholar] [CrossRef]
Children 10 00192 g001 550
Figure 1. Radiographs of a 12-year-old patient, Risser 0, with a main thoracic curve. The major curve measured 46° pre-operatively, improved to 24° after surgery to 10° at last follow-up (3 y po—Risser 4). Note the spontaneous correction of the lumbar curve over time in this selective VBT.
Figure 1. Radiographs of a 12-year-old patient, Risser 0, with a main thoracic curve. The major curve measured 46° pre-operatively, improved to 24° after surgery to 10° at last follow-up (3 y po—Risser 4). Note the spontaneous correction of the lumbar curve over time in this selective VBT.
Children 10 00192 g001
Children 10 00192 g002 550
Figure 2. Same patient as Figure 1 Lateral view X-rays throughout follow-up, showing the slight kyphosis improvement and lordosis stability: kyphosis and lordosis are, respectively, 26/55 pre-op, 30/55 at 4 months po, and 35/58 at 36 months po.
Figure 2. Same patient as Figure 1 Lateral view X-rays throughout follow-up, showing the slight kyphosis improvement and lordosis stability: kyphosis and lordosis are, respectively, 26/55 pre-op, 30/55 at 4 months po, and 35/58 at 36 months po.
Children 10 00192 g002
Children 10 00192 g003 550

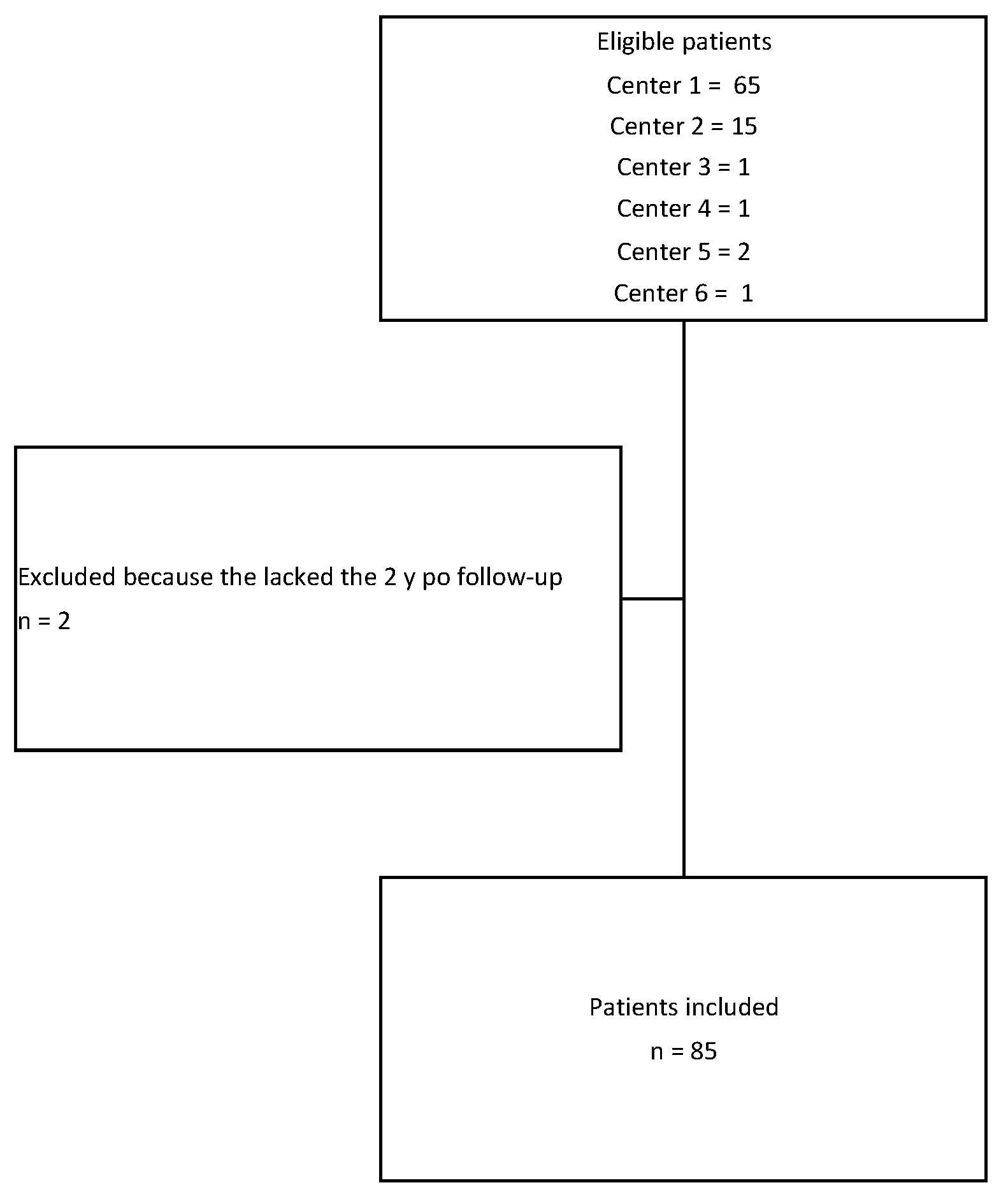

Figure 3. Flowchart of the study.
Figure 3. Flowchart of the study.
Children 10 00192 g003
Children 10 00192 g004 550
Figure 4. Radiographs of a 11-year-old patient, Risser 0, TRC open, with a main thoracic curve. The curve measured 57° pre-operatively, improved to 26° after surgery, to 11° at last follow-up (2.5 y po). The patient was revised 1.5 po for tether release between T10 and L11. Note the control of the overcorrection after the revision.
Figure 4. Radiographs of a 11-year-old patient, Risser 0, TRC open, with a main thoracic curve. The curve measured 57° pre-operatively, improved to 26° after surgery, to 11° at last follow-up (2.5 y po). The patient was revised 1.5 po for tether release between T10 and L11. Note the control of the overcorrection after the revision.
Children 10 00192 g004
Children 10 00192 g005 550
Figure 5. Radiographs of a 12.5-year-old patient, Risser 0, with a main long thoracic curve (lower end vertebra at L3. The major curve measured 57° pre-operatively and improved to 27° after surgery. Note the progressive frontal rebalance due to the thoraco-lumbar growth modulation. At last follow-up (2.5 y po), the major curve was measured at 9°.
Figure 5. Radiographs of a 12.5-year-old patient, Risser 0, with a main long thoracic curve (lower end vertebra at L3. The major curve measured 57° pre-operatively and improved to 27° after surgery. Note the progressive frontal rebalance due to the thoraco-lumbar growth modulation. At last follow-up (2.5 y po), the major curve was measured at 9°.
Children 10 00192 g005
Children 10 00192 g006 550
Figure 6. Same patient as Figure 6. Lateral radiographs evolution over the same period of 2.5 years. Note the progressive restoration of the sagittal balance (kyphosis 30° to 40° and lordosis 25° to 38°).
Figure 6. Same patient as Figure 6. Lateral radiographs evolution over the same period of 2.5 years. Note the progressive restoration of the sagittal balance (kyphosis 30° to 40° and lordosis 25° to 38°).
Children 10 00192 g006
Children 10 00192 g007 550
Figure 7. Radiographs of a 12-year-old patient, Risser 0, with a main long thoracic curve (lower end vertebra at L3. The curve measured 53° pre-operatively and was not improved after surgery. An adding-on was observed at 1 y po. A fusion was performed. In this case, 2 mistakes during this index surgery need to be exposed: wrong LIV level (L2 or L3), not enough pre-op correction.
Figure 7. Radiographs of a 12-year-old patient, Risser 0, with a main long thoracic curve (lower end vertebra at L3. The curve measured 53° pre-operatively and was not improved after surgery. An adding-on was observed at 1 y po. A fusion was performed. In this case, 2 mistakes during this index surgery need to be exposed: wrong LIV level (L2 or L3), not enough pre-op correction.
Children 10 00192 g007
Table
Table 1. Summary of patients’ characteristics. Continuous data are presented as mean (standard deviation).
Table 1. Summary of patients’ characteristics. Continuous data are presented as mean (standard deviation).
Patients’ Characteristics
nTotal
Age surgery (years)12.5 (9; 14)
Follow-up (years)2.6 (2; 7)
Risser0TRC Open15 (17%)85
TRC closed46 (55%)
113 (15%)
211 (13%)
GenderF73 (85%)
M12 (15%)
Lenke types1A40 (47%)
1B12 (14%)
1C17 (20%)
5C5 (6%)
2A11 (13%)
Table
Table 2. Comparison of the coronal and sagittal radiological parameters between post-op day 3 and last follow-up (95% of the patients were Risser 3 or more at last f/u; 5% were still at Risser 2 with ongoing significant growth). The curvatures were measured using the Cobb method. The results are expressed as mean and standard deviations.
Table 2. Comparison of the coronal and sagittal radiological parameters between post-op day 3 and last follow-up (95% of the patients were Risser 3 or more at last f/u; 5% were still at Risser 2 with ongoing significant growth). The curvatures were measured using the Cobb method. The results are expressed as mean and standard deviations.
Pre-opPost-op Day 3Post-op 1yLast f/up-Value
Major curve49°(8,9°)27°(12°)22°(12°)19°(14°)<0.01
Secondary curve27°(14°)23°(15°)22°(11°)17°(10°)<0.01
Instrumented curveNA26°(11°)23°(10°)20°(14°)<0.01
Kyphosis (T1–T12)20°(13°)23°(13°)25°(12°)24°(14°)0.06
Lordosis (L1–L5)36°(12°)32°(13°)40°(7°)40°(8°)0.07
Table
Table 3. Summary of the complication and revision rates. (thor.: thoracic curve, po: post-operative).
Table 3. Summary of the complication and revision rates. (thor.: thoracic curve, po: post-operative).
ComplicationsPatientsCurve TypeTreatmentTime to Diagnosis
Right shoulder pain14 (15%)10 right thor./5 DoublePainkillersImmediate post-op
Aseptic pleural effusion1 (1%)Right thor.Drainage 2 weeks45 days po
Pneumothorax2 (2%)Right thor.Drainage 2 daysImmediate post-op
Overcorrection10 (11%)10 right thor.5 tether releaseBetween 1,5, and 2 y po
Tether breakage2 (2%)Lumbar-2 y po
Cranial screw slippage6 (7%)Thor.-18 months po
Curve progression5 (2 adding-on) (5%)Thor.Fusion1 y po
Table
Table 4. Comparison of the main published series on VBT in AIS. (OC: overcorrection; PTX: pneumothorax).
Table 4. Comparison of the main published series on VBT in AIS. (OC: overcorrection; PTX: pneumothorax).
AuthorsPatients f/u (y)AgePre-op (°)Last f/u (°)Kyphosis Pre-op (°)Kyphosis Last f/u (°)Lordosis Pre-op (°)Lordosis Last f/u (°)ComplicationsRevisions
Samdani 2014 [5]11212.344.213.520.821.647.554.91 atélectasia2 OC
Wong 2019 [21]541141.132.1----1 pneumonia, 2PTX, 2 pleural effusion1 OC, 1 Fusion
Alanay 2020 [38]312.212.14612----2 atelectasia, 1 chylothorax, 1 pleural effusion2 OC
Hoernschemeyer 2020 [20]293.112.74919----1 PTX, 1 syncope,2 fusions, 4 OC
Newton 2018 [3]172.51152272522--2 atelectasia 4 OC, 4 fusions, 1 rupture
Newton 2020 [19]233.41253332519--1 atelectasia, 1 Horner3 OC, 3 tether rupture, 1 fusion
Pehlivanoglu 2020 [18]21211.148.21026.82651.351.81 chylothorax1 re-VBT
Baroncini 2021 [37]86213.25228.528.33347.548.45 pleural effusion5 re-VBT/1 irritation psoas
Samdani 2021 [7]574.612.440.418.715.519.6---5 OC/2 fusions
Rushton 2021 [8]1123.112.750.825.7 ---25 complications15 (7 fusions)
Courvoisier 2022852.612.54919202436401 pleural effusion, 2 PTX5 fusions, 10 OC
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Courvoisier, A.; Baroncini, A.; Jeandel, C.; Barra, C.; Lefevre, Y.; Solla, F.; Gouron, R.; Métaizeau, J.-D.; Maximin, M.-C.; Cunin, V. Vertebral Body Tethering in AIS Management—A Preliminary Report. Children 2023, 10, 192. https://doi.org/10.3390/children10020192

AMA Style

Courvoisier A, Baroncini A, Jeandel C, Barra C, Lefevre Y, Solla F, Gouron R, Métaizeau J-D, Maximin M-C, Cunin V. Vertebral Body Tethering in AIS Management—A Preliminary Report. Children. 2023; 10(2):192. https://doi.org/10.3390/children10020192

Chicago/Turabian Style

Courvoisier, Aurélien, Alice Baroncini, Clément Jeandel, Clémentine Barra, Yan Lefevre, Federico Solla, Richard Gouron, Jean-Damien Métaizeau, Marie-Christine Maximin, and Vincent Cunin. 2023. "Vertebral Body Tethering in AIS Management—A Preliminary Report" Children 10, no. 2: 192. https://doi.org/10.3390/children10020192

APA Style

Courvoisier, A., Baroncini, A., Jeandel, C., Barra, C., Lefevre, Y., Solla, F., Gouron, R., Métaizeau, J.-D., Maximin, M.-C., & Cunin, V. (2023). Vertebral Body Tethering in AIS Management—A Preliminary Report. Children, 10(2), 192. https://doi.org/10.3390/children10020192

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
