Generalized Net Model of Forest Zone Monitoring by UAVs
2. Materials and Methods
- drone resilience to unfavorable environmental influence;
- carrying capacity which allows for the transportation of necessary equipment (1–5 kg; in fire extinguishing, up to 30 kg);
- sufficient flight duration to explore a large perimeter of the observation zone (30–120 min);
- drone adaptability for installing (embedding) different types of video and sensory equipment (video cameras, thermovision cameras, LiDAR, sensor for air parameter analysis, mapping sensors, etc.);
- speed for approaching the object and precise positioning (for instance, 50–60 km/h for the approach, and capability for positioning the drone in the air over the object);
- ease of use (comfortable joystick for manipulation and helm or tablet for observation);
- price for acquisition, exploitation, and servicing.
- transmission speed from UAV to base station (depot, center of operations), which may reach 20 Mbit/s for high-resolution video streaming;
- distance of communication: required distance for ensuring lossless data transmission (e.g., 20 km);
- energy consumed for the communication;
- the size and weight of the device.

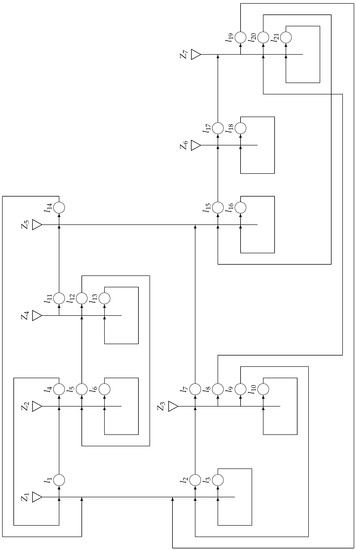

3. Description of Generalized Net Model of Forest Terrain Monitoring
- tokens, which represent the drones. First, they are in place , which denotes the drone depot or center of operation. Drones are either reconnaissance drone or specialized drone
- tokens, which represent the firefighting command located at place , and particular squad that attends the detected zone of the fire;
- tokens, which represent communicated signals from drones to the operational center and the firefighting command or from the firefighting squad at the fire site to the center of operation.
- “The moment for take-off of subsequent reconnaissance drone has come”;
- “There is a signal from the reconnaissance drone regarding the presence of potential danger”.
- “The fly-through of the region is completed, and no accidents have occurred”,
- “Detected fire or potential danger for its occurrence”,
- “The fly-through of the region has not been completed”.
- “Fire detected by reconnaissance drone”;
- “Additional information about the fire must be gathered”;
- “The task of the drone is completed”;
- “The drone is still traveling to the the area for observation”.
- “There is fire or potential danger of fire occurrence.”
- “The check for fire or potential danger of fire occurrence is complete”.
- “Fire is detected”.
- “The firefighting squad has arrived at the location of the fire”;
- “The firefighting squad is still on the way”.
- “Specialized drone must be dispatched to gather additional information”;
- “The fire is extinguished, and the firefighting squad must return to the base”;
- “The fire has not been extinguished yet”.
