Using a Fuzzy Inference System to Obtain Technological Tables for Electrical Discharge Machining Processes
Abstract
1. Introduction
2. State of the Art

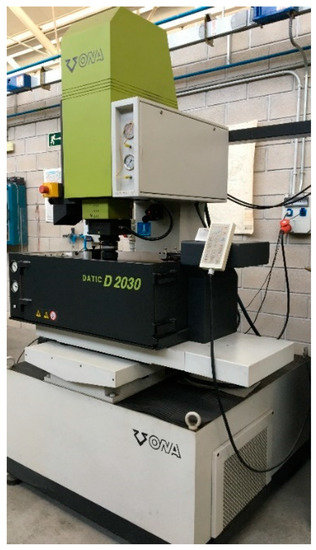

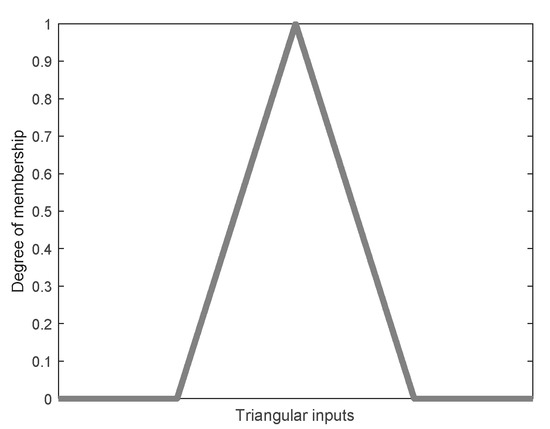

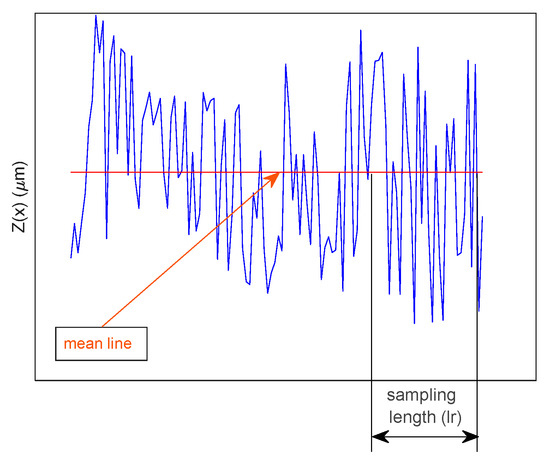

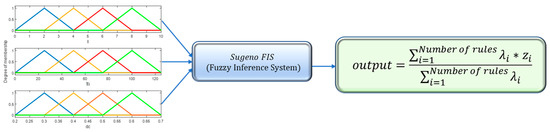

3. Methodology
Algorithm 1. Methodology for obtaining the technological tables. FIS—fuzzy inference system. |
|
4. Results and Discussion

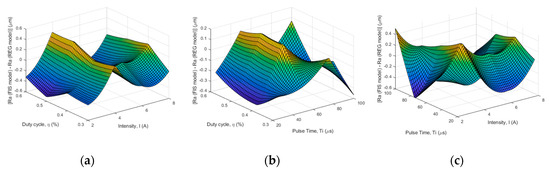

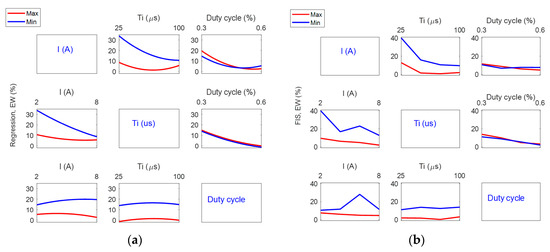

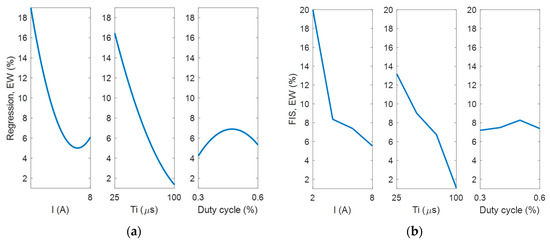

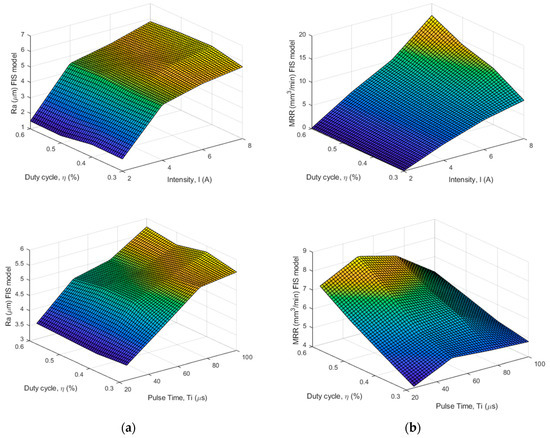

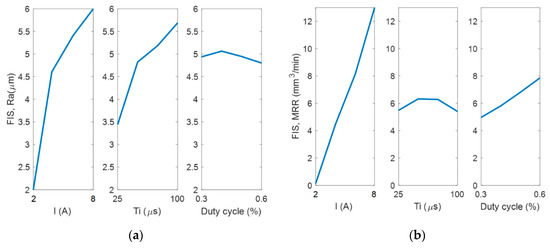

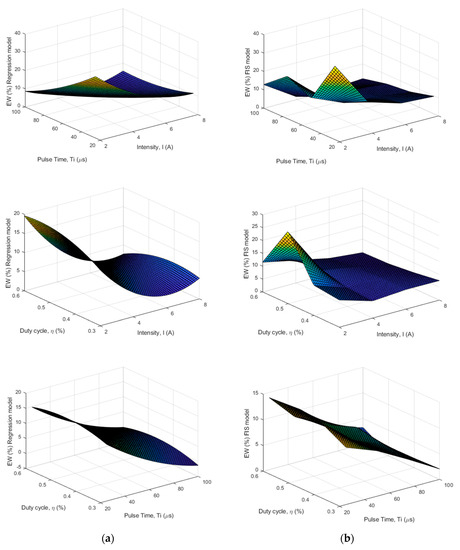

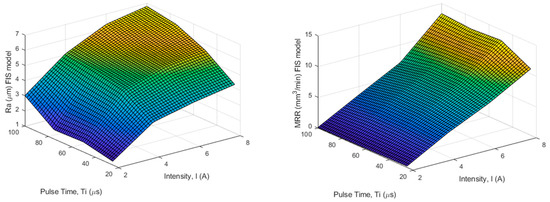

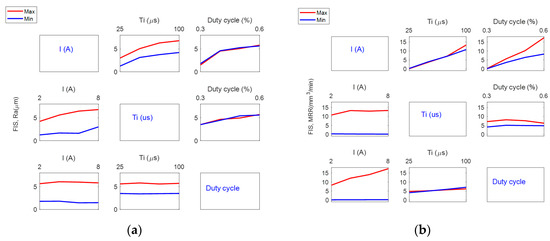

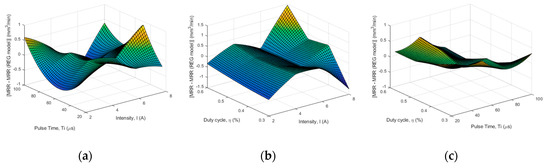

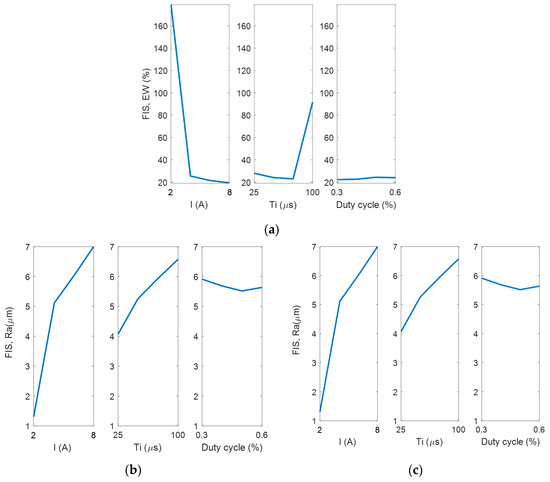

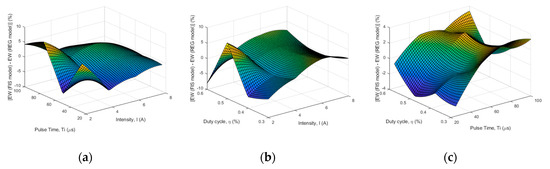

4.1. Analysis of Experimentation Using the FIS

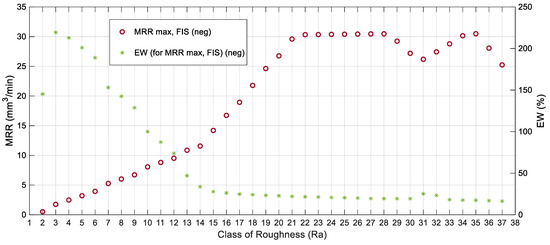

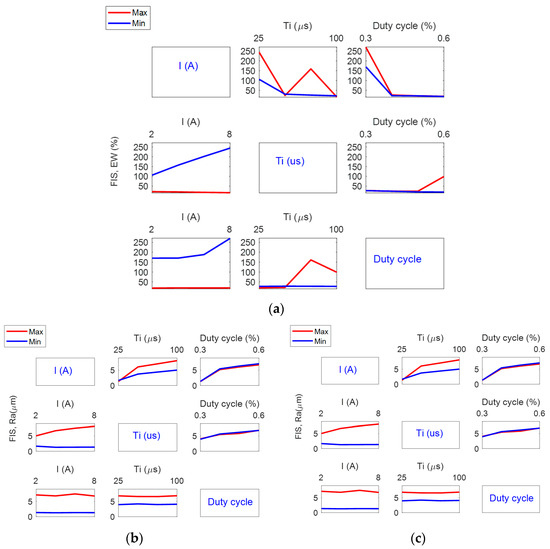

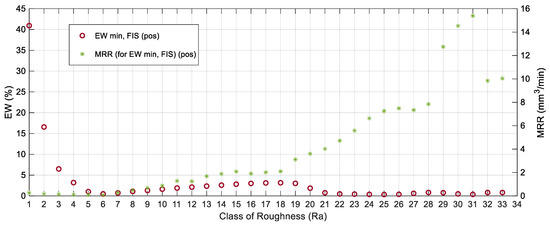

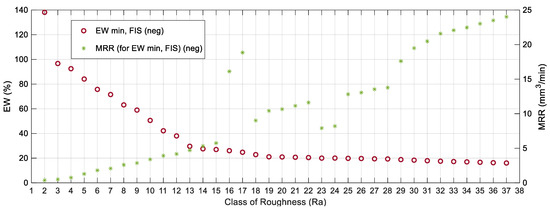

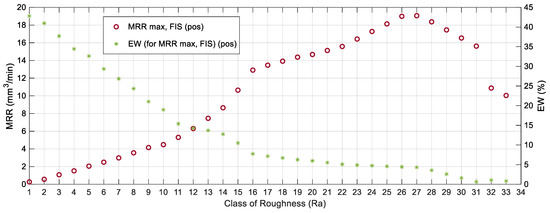

4.2. Development of the Technological Tables
5. Conclusions
Funding
Conflicts of Interest
Appendix A
