Theory for the Beam Splitter in Quantum Optics: Quantum Entanglement of Photons and Their Statistics, HOM Effect

Abstract

The theory of the beam splitter (BS) in quantum optics is well developed and based on fairly simple mathematical and physical foundations. This theory has been developed for any type of BS and is based on the constancy of the reflection coefficients R (or the transmission coefficient T, where $R+T=1$) and the phase shift $\varphi$. It has recently been shown that the constancy of these coefficients cannot always be satisfied for a waveguide BS, where R and $\varphi$ depend in a special way on photon frequencies. Based on this, this review systematizes the concept of BS in quantum optics into “Conventional” and frequency-dependent BS, and also presents the theory of such BS. It is shown that the quantum entanglement, photon statistics at the output ports, and the Hong–Ou–Mandel (HOM) effect for such BS can be very different. Taking into account the fact that the waveguide BS is currently acquiring an important role in quantum technologies due to the possibility of its miniaturization, this review will be useful not only for theoreticians, but also for experimenters.

1. Introduction

The beam splitter (BS) is one of the main devices not only in classical optics, but also in quantum optics. A beam splitter is an optical device that splits a beam of light into a transmitted and a reflected beam. This is the most important device for many optical and measuring systems. For example, such systems can be interferometers: Michelson–Morley, Mach–Zehnder, and Hong–Ou–Mandel [1,2,3,4]. Despite its simple purpose—to separate the incident beam—the beam splitter in quantum optics has a much broader meaning [1,2]. In quantum optics, two modes of the electromagnetic field are usually considered (two input and output ports), because even if one input port remains unused, it should be considered as an input for vacuum fluctuations [5]. The main value in quantum optics is the quantum states of the electromagnetic field at the output ports of the beam splitter. Depending on the reflection coefficient R (similar to the transmission coefficient T, where $R+T=1$) and the input states of the electromagnetic field, the quantum states of interest can be obtained at the output ports of the BS. This can be used in many applications of quantum technologies. For example, BS is used in linear optical quantum computing Indeed, Knill et al. showed in 2001 that it is possible to create a universal quantum computer using only BS, phase shifts, photodetectors and single photon sources (KLM protocol) [6]. In addition, using BS, you can create quantum entanglement between the input modes of electromagnetic fields [4,7,8], simulate quantum transport [9], and determine the degree of identity of photons [4,10], etc. BS is an integral part of quantum metrology [11] and quantum information [12], including two- and multi-photon interference [4,13].

In this review, we will consider two-port beam splitters, since they are the most important and frequently used in quantum technologies. It is well known that such beam splitters can be of various types and properties. By types, BS are divided into ways of their manufacture, for example, a cubic BS or a waveguide BS, see Figure 1. The BS can be a glass plate with a silver or dielectric coating, a glass cube with a coating in a diagonal plane, two glass plates with parallel planes, between which a coating is located, or a coating deposited on films. A waveguide BS is two waveguides brought close enough together so that the electromagnetic fields overlap; in this case it is a directional coupler (e.g., Refs. [14,15]). Waveguide BS have an advantage over many types of beam splitters because they are much smaller than them, and also have many other advantages [7,9,16]. Subdivision by properties usually means the use of polarized or non-polarized BS or other unique properties. In quantum optics, the BS can generally be represented as in (independent of the type of BS) Figure 1a, and the schematic designations depend on their types, e.g., as in Figure 1b, see Ref. [17].

Figure 1. (a) A BS scheme with two input ports and two output ports, where annihilation operators 1 and 2 modes on the input ports represent ${\widehat{a}}_1$ and ${\widehat{a}}_2$, respectively, and on the BS output ports represent ${\widehat{b}}_1$ and ${\widehat{b}}_2$, respectively. The BS is represented as a “black box” in which “mixing” of the electromagnetic field input modes takes place. (b) The BS with free space optics, i.e., cubic BS (top) and fiber optics, i.e., waveguide BS (bottom).

Without going into the technical details and properties of these beam splitters (there are quite a few reviews on this topic, see, e.g., [7,18]), we can say that in quantum optics there are two main parameters in BS, this is its reflection coefficient R (or transmission coefficient T) and phase shift $\varphi$. Usually, to study the properties of electromagnetic waves (hereinafter referred to as photons) at the output ports of the BS or in technical devices where the BS is a component, in quantum optics it is considered that R and $\varphi$ are constant values, see for example Refs. [7,8,11,18,19,20,21]. This means that for finding quantum states of photons at the BS output ports, these quantities do not change, i.e., their definite values are always given. For example, in the Hong-Oy-Mandel (HOM) effect, these values $R=T=1/2$ and the effect is independent of phase $\varphi$. Of course, these values R and $\varphi$ depend in general on the wavelength (or frequency) of the incident field (regardless of the BS type), i.e., $R=R\left(\lambda \right)$, $\varphi =\varphi \left(\lambda \right)$, then this dependence should have no effect on photon states at the BS output ports if we fix their values. This has always seemed an obvious fact and has not been studied before. However, in general case R and $\varphi$ are not constant quantities and the dependence of R and $\varphi$ on frequencies is such that it can affect the photon states at the BS output ports. If R and $\varphi$ depend on frequencies in this way, then the quantum states at the BS output ports differ with respect to the case of quantum states at constant R and $\varphi$. It follows that quantum entanglement at such BS will be different from the case with constants R and $\varphi$. As it turns out, such BS is a waveguide beam splitter (the term “Fiber-optic splitter” is often used) which differs from many other types of BS by this property.

Recently [17,22,23] the theory of a frequency dependent waveguide BS was presented. In these papers, it was shown that if the BS is represented as a coupled waveguide, then the coefficients R and T depend on the frequencies of photons entering both ports of the BS. Taking into account the frequency dependence of the coefficients R and T, many known theories can be modified, for example, the HOM interference theory [24,25] or quantum entanglement of photons based on a beam splitter [22,23]. It should be added that such a frequency dependence of the coefficients R and T is inherent only in a waveguide beam splitter.

Thus, there is a need for a review on this topic, where BSs in quantum optics will be systematized into frequency-dependent and non-frequency-dependent “conventional” and based on such systematization, the quantum entanglement of photons at the output ports of the beam splitter is considered. In this review, such a systematization is carried out and not only the quantum entanglement of photons on such beam splitters is considered, but also the statistical properties of photons at the output ports and the HOM effect.

2. Beam Splitter in Quantum Optics

Since the BS produces separation of incoming beams, the quantum state of photons at the BS output ports is $|{\mathrm{\Psi }}_{out}⟩=e^{i\widehat{H}{t}_{BS}}|{\mathrm{\Psi }}_{in}⟩$, where $\widehat{H}$ is the Hamiltonian of the quantized electromagnetic field interacting with matter, $t_{BS}$ is the interaction time, and $|{\mathrm{\Psi }}_{in}⟩$ is the initial state of the electromagnetic field. It should be added that $\widehat{H}$ can be quite complex depending on the type of BS. In general, $|{\mathrm{\Psi }}_{in}⟩$ can be represented as in Refs. [13,26]

$$\begin{array}{c}\hfill |{\mathrm{\Psi }}_{in}⟩=\sum _{s_1,s_2}\frac{C_{s_1,s_2}}{\sqrt{s_1!s_2!}}{{\widehat{a}}_1}^{†}{}^{s_1}{{\widehat{a}}_2}^{†}{}^{s_2}{|0⟩}_1{|0⟩}_2,\end{array}$$

(1)

where the 1st and 2nd mode creation operators respectively represent ${{\widehat{a}}_1}^{†}$ and ${{\widehat{a}}_2}^{†}$, $s_1$ and $s_2$ are the quantum numbers of the 1st and 2nd modes, respectively (or the number of photons in the modes), $C_{s_1,s_2}$ are the expansion coefficients defining the initial state, ${|0⟩}_1{|0⟩}_2$ the vacuum states for modes 1 and 2, respectively (for convenience we will write ${|0⟩}_1{|0⟩}_2\to |0⟩$). It should be added that if the initial states are in the Fock state, then the coefficient $C_{s_1,s_2}=1$. In this case, it is easy to show (up to an insignificant phase) that [1,13,26]

$$\begin{array}{c}\hfill |{\mathrm{\Psi }}_{out}⟩=\sum _{s_1,s_2}\frac{C_{s_1,s_2}}{\sqrt{s_1!s_2!}}{{\widehat{b}}_1}^{†}{}^{s_1}{{\widehat{b}}_2}^{†}{}^{s_2}|0⟩,{{\widehat{b}}_k}^{†}=e^{i\widehat{H}{t}_{BS}}{{\widehat{a}}_k}^{†}{e}^{-i\widehat{H}{t}_{BS}}(k=1,2),\end{array}$$

(2)

where ${{\widehat{b}}_1}^{†},{{\widehat{b}}_2}^{†}$ are the creation operators at the output ports of the BS for modes 1 and 2, respectively. It turns out that these operators can be found in general terms without even considering a particular type of BS, just on the basis of general physical considerations.

It is well known that lossless two-mode BS (with two input and output ports) in quantum optics is described by the unitary matrix $U_{BS}$, which has the form [5,18,19,27]

$$\begin{array}{c}\hfill \left(\begin{array}{c}{\widehat{b}}_1\\ {\widehat{b}}_2\end{array}\right)=U_{BS}\left(\begin{array}{c}{\widehat{a}}_1\\ {\widehat{a}}_2\end{array}\right),U_{BS}=\left(\begin{array}{cc}\sqrt{T}& e^{i\varphi }\sqrt{R}\\ -e^{-i\varphi }\sqrt{R}& \sqrt{T}\end{array}\right);\end{array}$$

(3)

where the 1st and 2nd mode annihilation operators respectively represent ${\widehat{a}}_1$ and ${\widehat{a}}_2$, and at the BS output ports ${\widehat{b}}_1$ and ${\widehat{b}}_2$; T and R are the transmittance and reflectance, respectively ($R+T=1$), and $\varphi$ is the phase shift. It should be added that in the literature one often sees the use of the BS matrix $U_{BS}$ in various representations. The most commonly used representation is when the phase shift $\varphi =\pm \pi /2$, the second representation often encountered is when $\varphi =0$, in these cases the $U_{BS}$ matrix is respectively

$$\begin{array}{c}\hfill U_{BS}=\left(\begin{array}{cc}\sqrt{T}& \pm i\sqrt{R}\\ \pm i\sqrt{R}& \sqrt{T}\end{array}\right),U_{BS}=\left(\begin{array}{cc}\sqrt{T}& \sqrt{R}\\ -\sqrt{R}& \sqrt{T}\end{array}\right).\end{array}$$

(4)

In fact, both representations can only be used when the result is independent of the phase shift $\varphi$. As will be shown below, many characteristics studied in quantum optics, such as the quantum entanglement of photons at the BS output ports, do not really depend on the phase. In spite of this we will use the general Equation (4).

It should be added that in reality photons are not monochromatic and the frequency distribution [1,5] must be taken into account. In this case the initial wave function of photons will be

$$\begin{array}{c}\hfill |{\mathrm{\Psi }}_{in}⟩=\sum _{s_1,s_2}\frac{C_{s_1,s_2}}{\sqrt{s_1!s_2!}}\int \varphi ({\omega }_1,{\omega }_2){{\widehat{a}}_1}^{†}{}^{s_1}{{\widehat{a}}_2}^{†}{}^{s_2}|0⟩d{\omega }_{1}d{\omega }_2,\end{array}$$

(5)

where $\varphi ({\omega }_1,{\omega }_2)$ is the joint spectral amplitude (JSA) of the two-mode wave function ($\int |\varphi ({\omega }_1,{\omega }_2){|}^{2}d{\omega }_{1}d{\omega }_2=1$). Given the frequency distribution, the output is

$$\begin{array}{c}\hfill |{\mathrm{\Psi }}_{out}⟩=\sum _{s_1,s_2}\frac{C_{s_1,s_2}}{\sqrt{s_1!s_2!}}\int \varphi ({\omega }_1,{\omega }_2){{\widehat{b}}_1}^{†}{}^{s_1}{{\widehat{b}}_2}^{†}{}^{s_2}|0⟩d{\omega }_{1}d{\omega }_2.\end{array}$$

(6)

2.1. Basic Expressions for Beam Splitters of Any Type

Let us consider the beam splitter in general terms without defining its type. We set the problem to find the matrix $U_{BS}$ on the basis of general physical considerations. This problem in quantum optics was solved quite a long time ago, see, e.g., [18,19,27]. The result has essentially always been the same—this BS matrix has been obtained in Equation (3). Let us present such a conclusion here in the simplest version. For this purpose we will disregard the effects of polarization, misalignment and imperfect beam collimation, as these can be incorporated into BS theory quite easily. The input (${\widehat{a}}_1,{\widehat{a}}_2$) and output (${\widehat{b}}_1,{\widehat{b}}_2$) annihilation operators, at some chosen frequency for linear BS, can be represented as

$$\begin{array}{c}\hfill \left(\begin{array}{c}{\widehat{b}}_1\\ {\widehat{b}}_2\end{array}\right)=\left(\begin{array}{cc}{U}_{11}& U_{12}\\ U_{21}& U_{22}\end{array}\right)\left(\begin{array}{c}{\widehat{a}}_1\\ {\widehat{a}}_2\end{array}\right).\end{array}$$

(7)

It should be added that the representation as Equation (7) is a direct consequence of the conservation of particles (photons) before and after their passage through BS. If photons before hitting the BS were $s_1+s_2$ and after passing through the BS became $n+m$, then for the number of photons to be conserved $s_1+s_2=n+m$ requires that the transformation matrix be in the form of Equation (7) [19,26]. The conversion matrix $U_{BS}$ contains the elements $U_{i,j}$ ($i,j=1,2$), which are generally complex and must be represented as $U_{i,j}=|U_{i,j}|e^{i{\varphi }_{i,j}}$. The well-known bosonic commutation relations at the output of the BS must also hold, i.e., $[{\widehat{b}}_i,{{\widehat{b}}_j}^{†}]={\delta }_{i,j}$. This commutation relation leads to the relations

$$\begin{array}{c}\hfill |U_{1,1}{|}^2+|U_{1,2}{|}^2=1,|U_{2,1}{|}^2+{|U_{2,2}|}^2=1,U_{1,1}{U}_{2,1}^{*}+U_{1,2}{U}_{2,2}^{*}=0.\end{array}$$

(8)

The last relation in Equation (8) can be simplified by reducing to two equations, and we get

$$\begin{array}{c}\hfill |U_{1,1}||U_{2,1}|=|U_{1,2}||U_{2,2}|,{\varphi }_{1,1}-{\varphi }_{1,2}={\varphi }_{2,1}-{\varphi }_{2,2}\pm \pi .\end{array}$$

(9)

As a result, from the first two ratios in Equation (8) and from the first relation in Equation (9) it can be deduced that $|U_{2,1}{|}^2=|U_{1,2}{|}^2=R={sin}^2\theta ,|U_{1,1}{|}^2={|U_{2,2}|}^2=T={cos}^2\theta$, where $0\le \theta \le \pi /2$. In this case, one can see that the relation $R+T=1$. From the point of view of physics, these coefficients R and T are the coefficients of reflection and transmission, respectively. The four-phase dependence can be reduced to a two-phase dependence by making phase substitutions in the form: ${\varphi }_{\tau }=1/2({\varphi }_{11}-{\varphi }_{22});{\varphi }_{\rho }=1/2({\varphi }_{12}-{\varphi }_{21}\mp \pi );{\varphi }_0=1/2({\varphi }_{11}+{\varphi }_{22})$. In this case, the BS matrix Equation (7) will be

$$\begin{array}{c}\hfill U_{BS}=e^{i{\varphi }_0}\left(\begin{array}{cc}cos\theta e^{i{\varphi }_{\tau }}& sin\theta e^{i{\varphi }_{\rho }}\\ -sin\theta e^{-i{\varphi }_{\rho }}& cos\theta e^{-i{\varphi }_{\tau }}.\end{array}\right)\end{array}$$

(10)

Equation (10) only has two phases left, since ${\varphi }_0$ is the phase multiplier, which is known to be negligible. We can see that by using the BS matrix in the form of Equation (10), the operators ${\widehat{b}}_1,{\widehat{b}}_2$ can be further simplified, and we obtain: ${\widehat{b}}_1=e^{i{\varphi }_{\tau }}(cos\theta {\widehat{a}}_1+sin\theta e^{i({\varphi }_{\rho }-{\varphi }_{\tau })}{\widehat{a}}_2)$; ${\widehat{b}}_2=e^{-i{\varphi }_{\tau }}(-sin\theta e^{-i({\varphi }_{\rho }-{\varphi }_{\tau })}{\widehat{a}}_1+cos\theta {\widehat{a}}_2)$. Again we have the irrelevant phase multipliers in front of the brackets, which can be disregarded. Introducing the notion of phase difference $\varphi ={\varphi }_{\rho }-{\varphi }_{\tau }$, we obtain the BS matrix $U_{BS}$ in the form Equation (3).

Representation of the wave function at the BS output ports in the case of monochromatic beam Equation (3) and non-monochromatic Equation (6) is based on the number of photons in each mode of the electromagnetic field. Since the electromagnetic field is two-mode, an alternative representation of Equations (3) and (6) is possible, which is based not on the number of photons in each mode, but on the angular momentum L, where there are also two quantum numbers, which are the orbital momentum l and the projection of orbital momentum on a chosen axis $-l\le m\le l$ [19,28]. For this we can introduce three new operators ${\widehat{L}}_i$ ($i=1,2,3$) which satisfy the commutation rules for angular momentum $[{\widehat{L}}_i,{\widehat{L}}_j]=i{ϵ}_{i,j,k}{\widehat{L}}_k]$ (${ϵ}_{i,j,k}$ is a Levi–Civita tensor), where

$$\begin{array}{c}\hfill {\widehat{L}}_1=\frac{1}{2}\left({{\widehat{a}}_1}^{†}{\widehat{a}}_2+{{\widehat{a}}_2}^{†}{\widehat{a}}_1\right),\\ \hfill {\widehat{L}}_2=\frac{1}{2i}\left({{\widehat{a}}_1}^{†}{\widehat{a}}_2-{{\widehat{a}}_2}^{†}{\widehat{a}}_1\right),\\ \hfill {\widehat{L}}_3=\frac{1}{2}\left({{\widehat{a}}_1}^{†}{\widehat{a}}_1-{{\widehat{a}}_2}^{†}{\widehat{a}}_2\right).\end{array}$$

(11)

The square, and projection, of the angular momentum are related to the Boson number operators via

$$\begin{array}{c}\hfill {\widehat{L}}^2=\sum _{i=1}^3{\widehat{L}}_i^2=\widehat{l}(\widehat{l}+1),{\widehat{L}}_3=\widehat{m},\\ \hfill \widehat{l}=\frac{1}{2}\left({\widehat{n}}_1+{\widehat{n}}_2\right),\widehat{m}=\frac{1}{2}\left({\widehat{n}}_1-{\widehat{n}}_2\right),\end{array}$$

(12)

where ${\widehat{n}}_1,{\widehat{n}}_2$ are operators of the number of particles (photons) in modes 1 and 2, respectively. The BS output ports will accordingly be

$$\begin{array}{c}\hfill {\widehat{L}}_1^{{}^{\prime }}=\frac{1}{2}\left({{\widehat{b}}_1}^{†}{\widehat{b}}_2+{{\widehat{b}}_2}^{†}{\widehat{b}}_1\right),\\ \hfill {\widehat{L}}_2^{{}^{\prime }}=\frac{1}{2i}\left({{\widehat{b}}_1}^{†}{\widehat{b}}_2-{{\widehat{b}}_2}^{†}{\widehat{b}}_1\right),\\ \hfill {\widehat{L}}_3^{{}^{\prime }}=\frac{1}{2}\left({{\widehat{b}}_1}^{†}{\widehat{b}}_1-{{\widehat{b}}_2}^{†}{\widehat{b}}_2\right).\end{array}$$

(13)

Thus, it is necessary to introduce a unitary operator $\widehat{U}$ that is defined by the expression ${\widehat{L}}_i^{{}^{\prime }}=\widehat{U}{\widehat{L}}_i{\widehat{U}}^{†}$. Since this operator is responsible for the transformation of the angular momentum, which is responsible for the symmetry during rotations, the general form of such an operator should be of the form $\widehat{U}=e^{-i\mathrm{\Phi }{\widehat{L}}_3}{e}^{-i\mathrm{\Theta }{\widehat{L}}_2}{e}^{-i\mathrm{\Psi }{\widehat{L}}_3}$, where the parameters ($\mathrm{\Phi },\mathrm{\Theta },\mathrm{\Psi }$) are quantum-mechanical counterparts to the classical Euler angles. Each angle has its own physical meaning, which we will try to define next. Using the Baker–Campbell–Hausdorff formula we can get [19]

$$\begin{array}{c}\hfill \left(\begin{array}{c}{\widehat{b}}_1\\ {\widehat{b}}_2\end{array}\right)=U\left(\begin{array}{c}{\widehat{a}}_1\\ {\widehat{a}}_2\end{array}\right),U=\left(\begin{array}{cc}cos(\mathrm{\Theta }/2)e^{i(\mathrm{\Psi }+\mathrm{\Phi })/2}& sin(\mathrm{\Theta }/2)e^{i(\mathrm{\Psi }-\mathrm{\Phi })/2}\\ -sin(\mathrm{\Theta }/2)e^{-i(\mathrm{\Psi }-\mathrm{\Phi })/2}& cos(\mathrm{\Theta }/2)e^{-i(\mathrm{\Psi }+\mathrm{\Phi })/2}.\end{array}\right)\end{array}$$

(14)

Let us compare the obtained Equations (10) and (14), then we get (up to an insignificant phase)

$$\begin{array}{c}\hfill \mathrm{\Theta }=2\theta ,\mathrm{\Phi }+\mathrm{\Psi }=2{\varphi }_{\tau },\mathrm{\Psi }-\mathrm{\Phi }=2{\varphi }_{\rho }.\end{array}$$

(15)

The result is

$$\begin{array}{c}\hfill \widehat{U}=e^{-i({\varphi }_{\tau }-{\varphi }_{\rho }){\widehat{L}}_1}{e}^{-2iarccos\sqrt{1-R}{\widehat{L}}_2}{e}^{-i({\varphi }_{\tau }+{\varphi }_{\rho }){\widehat{L}}_3}.\end{array}$$

(16)

If we introduce step-up and step-down operators ${\widehat{L}}_{\pm }={\widehat{L}}_1\pm i{\widehat{L}}_2$ (${\widehat{L}}_{+}={{\widehat{a}}^{†}}_1{\widehat{a}}_2,{\widehat{L}}_{-}={{\widehat{a}}^{†}}_2{\widehat{a}}_1$), then the operator $\widehat{U}$ can be represented as

$$\begin{array}{c}\hfill \widehat{U}={\widehat{D}}^{†}{e}^{-2i{\varphi }_{\tau }{\widehat{L}}_3},\widehat{D}=e^{\zeta {\widehat{L}}_{+}-{\zeta }^{*}{\widehat{L}}_{-}},\end{array}$$

(17)

where $\zeta =arccos\sqrt{1-R}{e}^{i\varphi }$ (where $\varphi ={\varphi }_{\rho }-{\varphi }_{\tau }$), and the operators ${\widehat{L}}_{\pm }$ have known properties ${\widehat{L}}_{\pm }|l,m⟩=\{l(l+1)-m(m\pm 1){\}}^{1/2}|l,m\pm 1⟩$. Equation (17) can be further simplified by ignoring the irrelevant phase factor which will give the operator $e^{-2i{\varphi }_{\tau }{\widehat{L}}_3}$, since $e^{-2i{\varphi }_{\tau }{\widehat{L}}_3}|l,m⟩=e^{-2i{\varphi }_{\tau }m}|l,m⟩$, then we get that $\widehat{U}={\widehat{D}}^{†}$. As a result, using Equation (17) we can find the wave function on the BS output ports $|{\mathrm{\Psi }}_{out}⟩={\widehat{U}}^{†}|{\mathrm{\Psi }}_{in}⟩$.

This result is scientifically quite interesting because without solving the Schrödinger equation we can find the wave function $|{\mathrm{\Psi }}_{out}⟩$ at the BS output ports knowing R and phase shift $\varphi$. Moreover, we are not interested in the type of BS and this solution is suitable for all two-port linear BS. Of course, with such a general consideration, the “nature” of the appearance of coefficients R and $\varphi$ in quantum optics is not clear, since they have been introduced as some constants having the properties of these coefficients. In spite of this, the “nature” of the appearance of these coefficients is well studied in classical optics for various types of BS. For different types of BS, these coefficients can be calculated using classical optics, where the dependence $R=R\left(\lambda \right)$ (or in the frequency representation $R=R\left(\omega \right)$) appears. It should be added that the phase shift $\varphi$ does not affect the intensity at the BS output ports, so it may not be considered. For example, for a cubic BS, which is often used in quantum optics experiments, the dependence can be represented in Figure 2.

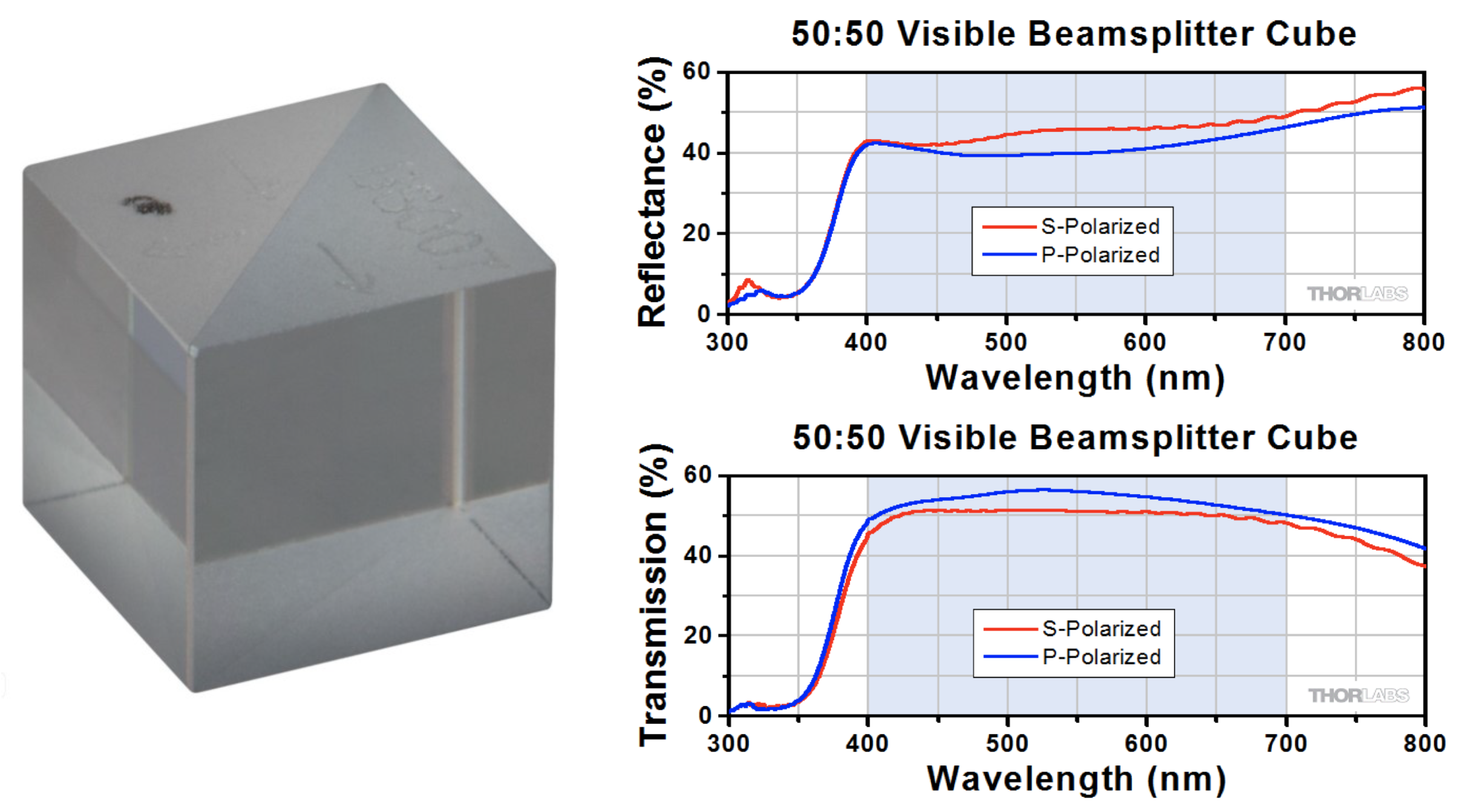

Figure 2. A sample of an non-polarizing cubic beam splitter (50:50), with an operating wavelength range of (400–700) nm, BS dimensions of 5 mm, is presented. The figures on the right show the dependence of the reflection coefficient R and transmittance T as a function of wavelength $\lambda$. BS fabrication accuracy: $T=47\pm 10\%$, $R=47\pm 10\%$, $R+T>90\%$ [29].

It should be added that to find the wave function ${\mathrm{\Psi }}_{out}$, taking into account the non-monochromaticity of photons, using Equation (6) there is a rather interesting case that is not discussed in the textbook and review literature, but that is fundamentally important for waveguide BS. Non-monochromatic photons are known to have some frequency distribution $\varphi ({\omega }_1,{\omega }_2)$, i.e., the frequencies ${\omega }_1,{\omega }_2$ are “blurred” and the amount of blurring is determined by the variance $\sigma$. It should be added that the optical sources (including single photon sources) that are commonly used are such that $\sigma \ll \omega$. In order to find ${\mathrm{\Psi }}_{out}$ it is necessary to integrate over the frequencies ${\omega }_1,{\omega }_2$, see Equation (6). With this integration, the coefficients R and T can be assumed to be constant, since $\left\{R\right(\omega \pm \sigma )-R(\omega \left)\right\}\to 0$. This is well seen from Figure 2, where by changing $\lambda$ by a small value $\Delta \lambda \ll \lambda$, the coefficients R and T will also change by a small value (i.e., $\Delta R\ll R$), whose change can be neglected. So by choosing constant values of R and T we do not make a mistake when R and T are smooth (no jumps) functions with respect to frequencies. Of course, it is reasonable to use such smooth functions and at first sight there can be no other options. As will be shown in the next section, such functions appear in the case of waveguide BS and this will significantly affect the statistical properties of photons at the BS output ports. Moreover, quantum entanglement of photons will strongly depend on it, which certainly changes the relation to the waveguide BS as a source of quantum entangled photons. Thus, in this review, BSs where R and $\varphi$ are assumed to be constant will be considered, which will be called “conventional” beam splitters, and where R and $\varphi$ are not constant, called frequency-dependent BSs. So far, there is information in the literature about only one frequency-dependent type of BS, which is the waveguide BS.

2.2. “Conventional” Waveguide Beam Splitter

It should be added that all the expressions obtained above for “conventional” BS, are suitable for waveguide BS. Nevertheless, we will show how in theory two coupled waveguides begin to exhibit BS properties. Consider two waveguides connected (coupled) to each other in a certain area of space, see Figure 3.

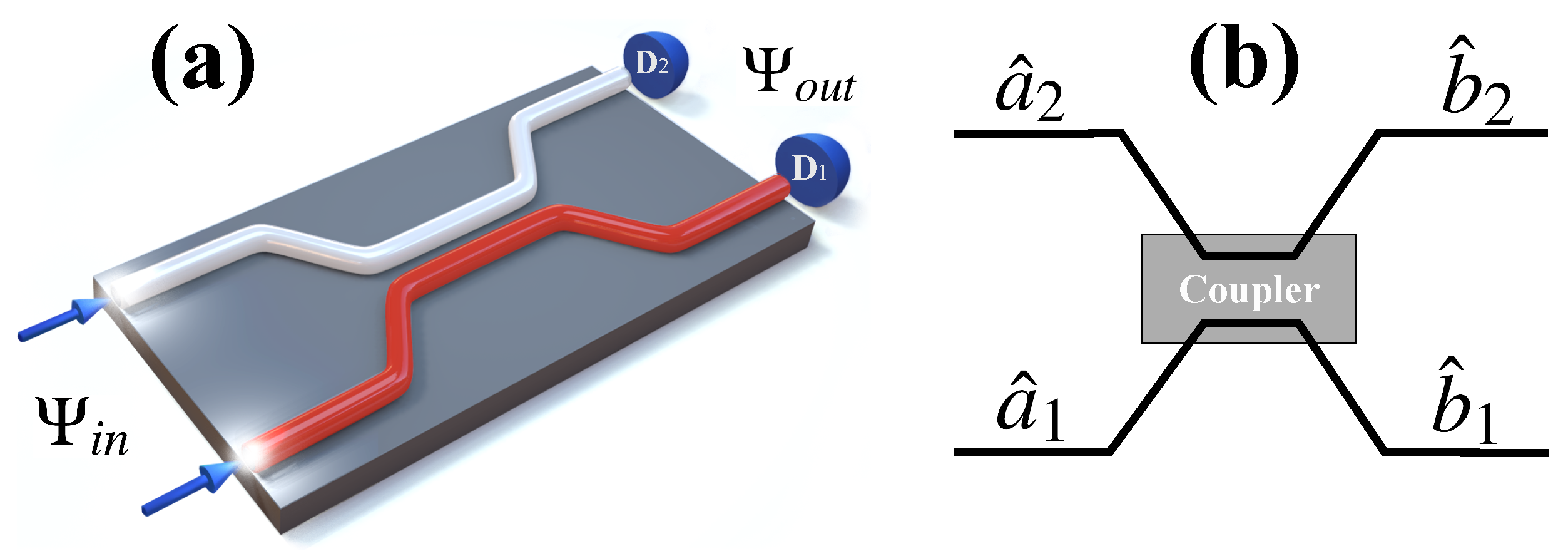

Figure 3. (a): A 3D representation of coupled waveguides, where ${\mathrm{\Psi }}_{in}$ and ${\mathrm{\Psi }}_{out}$ are the input and output (recorded by $D_1$ and $D_2$ detectors) wave function of photons, respectively. (b): Schematic 2D representation of such a BS, see Ref. [22].

The theory of coupled waveguides is now quite well developed [30]. This theory is based on coupling coefficients between neighbouring waveguides. It is generally believed that by setting these coupling coefficients one can regulate the photon states at the output ports of the waveguides. In fact, this theory is applicable for identical and monochromatic photons incident on incoming ports of waveguides. Or as an alternative representation: coupling coefficients depend on frequencies but they do not matter since these coefficients are given by constants. As it has been shown recently [17,21,22,24,25], on the basis of exact quantum-mechanical consideration, states of photons at the output ports of waveguides have strong dependence on their frequencies and to set coupling coefficients by constant values is not always correct and it can carry large errors. Waveguide theory (more exactly—a BS theory) under exact quantum-mechanical consideration in the particular case of monochromatic and identical photons turns into a waveguide theory with constant coefficients. Let us first introduce here the theory of waveguide BS based on constant coupling coefficients.

It is well known that for coupled waveguides one can compose a system of two equations [30]

$$\begin{array}{c}\hfill \frac{d{\widehat{a}}_1}{dz}=-i({\beta }_1+K_{11}){\widehat{a}}_1-i{K}_{12}{\widehat{a}}_2,\\ \hfill \frac{d{\widehat{a}}_2}{dz}=-i({\beta }_2+K_{22}){\widehat{a}}_2-i{K}_{21}{\widehat{a}}_1,\end{array}$$

(18)

where ${\beta }_1,{\beta }_2$ are the propagation constants for modes 1 and 2, respectively; $K_{12},K_{21}$ and $K_{11},K_{22}$ are the mutual and the self coupling coefficients, respectively; z is the coordinate at which the field characteristics are determined. Moreover, if the coupled waveguide system is lossless, self-consistency requires that Equation (18) satisfies the power conservation law, i.e., at the input and output ports the number of photons does not change. Because Equation (18) is independent of the initial condition, the coupling coefficients obey the following relations $K_{12}=K_{21}^{*}=\kappa$ and $K_{11},K_{22}$ have to be real. The solution of Equation (18) is conveniently found in the form ${\widehat{a}}_i\to {\widehat{a}}_i{e}^{-i/2({\beta }_1+{\beta }_2+K_{11}+K_{22})z}$. In this form, the coordinate z will have the meaning of the waveguides coupling region length. Using this form we obtain

$$\begin{array}{c}\hfill \frac{d{\widehat{a}}_1}{dz}=-i\delta {\widehat{a}}_1-i\kappa {\widehat{a}}_2,\\ \hfill \frac{d{\widehat{a}}_2}{dz}=+i\delta {\widehat{a}}_2-i\kappa {\widehat{a}}_1,\end{array}$$

(19)

where $\delta =1/2({\beta }_1-{\beta }_2+K_{11}-K_{22})$. In this form, solving Equation (19) is simple enough, e.g., [30]. If we adopt a new notation in the form ${\widehat{a}}_i\left(0\right)={\widehat{a}}_i$ and ${\widehat{a}}_i\left(z\right)={\widehat{b}}_i$, then we get

$$\begin{array}{c}\hfill \left(\begin{array}{c}{\widehat{b}}_1\\ {\widehat{b}}_2\end{array}\right)=\left(\begin{array}{cc}{u}_{11}& u_{12}\\ u_{21}& u_{22}\end{array}\right)\left(\begin{array}{c}{\widehat{a}}_1\\ {\widehat{a}}_2\end{array}\right),\end{array}$$

(20)

where $u_{11}=u_{22}^{*}=cos\left(Sz\right)-icos\eta sin\left(Sz\right)$ and $t_{12}=t_{21}=-isin\eta sin\left(Sz\right)$, and the parameters $S=\sqrt{{\delta }^2+{\kappa }^2},tan\eta =\kappa /\delta$. On ports 1 and 2 output, the probabilities of detecting photons would be, respectively $P_1={cos}^2\left(Sz\right)+{cos}^2\eta {sin}^2\left(Sz\right),P_2={sin}^2\eta {sin}^2\left(Sz\right)$. The maximum probability value on the the second output port is ${\left(P_2\right)}_{max}={sin}^2\eta$. If the photons propagate in waveguides without loss and the number of photons is conserved, then ${\left(P_2\right)}_{max}=1$, which means $\eta =\pm \pi /2$. In this case we will get

$$\begin{array}{c}\hfill \left(\begin{array}{c}{\widehat{b}}_1\\ {\widehat{b}}_2\end{array}\right)=\left(\begin{array}{cc}cos\left(\kappa z\right)& \pm isin\left(\kappa z\right)\\ \pm isin\left(\kappa z\right)& cos\left(\kappa z\right)\end{array}\right)\left(\begin{array}{c}{\widehat{a}}_1\\ {\widehat{a}}_2\end{array}\right).\end{array}$$

(21)

If we put $\sqrt{T}=cos\left(\kappa z\right)$, then the result in Equation (21) is the same as the beam splitter, see Equation (4). In this consideration, we have not only shown that coupled waveguides have BS property, but also found simple form reflections $R={sin}^2\left(\kappa z\right)$ [14].

Obviously, the case considered here is based on coupling coefficients, but does not reveal the “nature” of the appearance of these coefficients. Moreover, it is quite obvious, even by analogy with “conventional” BS, that there must be a dependence of reflection coefficients R on frequencies of the incident field, i.e., $R=R\left(\omega \right)$. In order to find this dependence it is necessary to consider a quantum mechanical system in which two quantized modes of the electromagnetic field interact with atoms of matter in coupled waveguides. Such a consideration was made recently in the papers [17,21,22,24,25] and the dependence not only of $R=R\left(\omega \right)$, but also of the phase shift $\varphi =\varphi \left(\omega \right)$ was found. Let us now turn to this theory.

2.3. Frequency-Dependent Waveguide Beam Splitter

Consider two coupled waveguides, along each of which photons propagate (further, the atomic system of units to be used will be: ℏ = 1; $|e|$ = 1; $m_e$ = 1, where ℏ is Dirac’s constant, e is the electron charge, and $m_e$ is the electron mass). These photons interact with atomic electrons. Let us represent the electromagnetic field of photons through the transverse vector potential $\mathbf{A}$ in the Coulomb gauge $div\mathbf{A}=0$ [1,5], then the Hamiltonian of a such system will be

$$\begin{array}{c}\hfill \left\{{\widehat{H}}_1+{\widehat{H}}_2+\frac{1}{2}\sum _a{\left({\widehat{\mathbf{p}}}_a+\frac{1}{c}{\widehat{\mathbf{A}}}_a\right)}^2+\sum _{a}U\left({\mathbf{r}}_a\right)\right\}\mathrm{\Psi }=i\frac{\partial \mathrm{\Psi }}{\partial t},\end{array}$$

(22)

where ${\widehat{H}}_i={\omega }_i{\widehat{a_i}}^{+}\widehat{a_i}$ is the Hamiltonian operator for the first ($i=1$) and second ($i=2$) modes (${\omega }_i$ is the frequency and $\widehat{a_i}$ is the photon annihilation operator in mode number i); $U\left({\mathbf{r}}_a\right)$ is the atomic potential acting on the electron with number a; ${\widehat{\mathbf{p}}}_a$ is the momentum operator of the electron with number a; ${\widehat{\mathbf{A}}}_a={\widehat{\mathbf{A}}}_{1,a}+{\widehat{\mathbf{A}}}_{2,a}$, where ${\widehat{\mathbf{A}}}_{i,a}=\sqrt{\frac{2\pi c^2}{{\omega }_{i}V}}{\mathbf{u}}_i({\widehat{a_i}}^{+}+\widehat{a_i})$ is the vector potential in dipole approximation for mode i, acting on an electron with number a (c is the speed of light, V is the modal volume, i.e., it is the Fourier transform of the vector potential $\mathbf{A}$ enclosed in a finite volume V, ${\mathbf{u}}_i$ is the polarization of the mode numbered i) [1,5]; the sum ${\sum }_a$ in Equation (22) is satisfied over all electrons of the two coupled waveguides interacting with photons. As a result, the Hamiltonian of Equation (22) will be

$$\begin{array}{c}\hfill \widehat{H}=\sum _{i=1}^2\left\{{\omega }_i{\widehat{a_i}}^{+}\widehat{a_i}+\overline{N}\frac{{\beta }_i^2}{2}{q}_i^2+{\beta }_i{q}_i{\mathbf{u}}_i\sum _a{\widehat{\mathbf{p}}}_a\right\}+\\ \hfill \overline{N}{\beta }_1{\beta }_2{q}_1{q}_2{\mathbf{u}}_1{\mathbf{u}}_2+\sum _a\frac{{\widehat{\mathbf{p}}}_a^2}{2}+\sum _{a}U\left({\mathbf{r}}_a\right),\end{array}$$

(23)

where ${\beta }_i=\sqrt{\frac{4\pi }{{\omega }_{i}V}}$, and the quantity $\overline{N}={\sum }_a$ is the number of electrons involved in the interaction with photons in two coupled waveguides. As can be seen, Equation (23) corresponds to the equation for coupled harmonic oscillators interacting with electrons of a polyatomic system. A similar system was considered in Ref. [21], and we obtain

$$\begin{array}{c}\hfill \widehat{H}=\sum _{i=1}^2\left\{\frac{\sqrt{A_i}}{2}\left({\widehat{P}}_i^2+y_i^2\right)+{\mathbf{D}}_i{y}_i\sum _a{\widehat{\mathbf{p}}}_a\right\}+\sum _a\frac{{\widehat{\mathbf{p}}}_a^2}{2}+\sum _{a}U\left({\mathbf{r}}_a\right),\end{array}$$

(24)

where $y_1=A_1^{1/4}\left(q_1/\sqrt{{\omega }_1}cos\alpha -q_2/\sqrt{{\omega }_2}sin\alpha \right)$ and $y_2=A_2^{1/4}(q_1/\sqrt{{\omega }_1}sin\alpha +$$q_2/\sqrt{{\omega }_2}cos\alpha )$ are new variables; ${\widehat{P}}_i=-i\partial /\partial y_i$; ${\mathbf{D}}_1={\beta }_1{A}_1^{-1/4}\sqrt{{\omega }_1}{\mathbf{u}}_{1}cos\alpha -{\beta }_2{A}_1^{-1/4}\sqrt{{\omega }_2}{\mathbf{u}}_{2}sin\alpha$; ${\mathbf{D}}_2={\beta }_1{A}_2^{-1/4}\sqrt{{\omega }_1}{\mathbf{u}}_{1}sin\alpha +{\beta }_2{A}_2^{-1/4}\sqrt{{\omega }_2}{\mathbf{u}}_{2}cos\alpha$. The study [31] showed that $tan\left(2\alpha \right)=C/(B_2-B_1)$, where $C=2\overline{N}{\beta }_1{\beta }_2\sqrt{{\omega }_1{\omega }_2}{\mathbf{u}}_1{\mathbf{u}}_2$; $B_i=({\omega }_i+\overline{N}{\beta }_i^2){\omega }_i$ and $A_i=B_i+{(-1)}^{i}C/2tan\alpha$. Obviously, the value of ${\beta }_i$ is very small in the case of single-photon interaction, see, e.g., Ref. [32], where ${\beta }^2/\omega \ll 1$, even in the case of strong focusing. In this case, the quantities ${\mathbf{D}}_1$ and ${\mathbf{D}}_2$ are negligible. This is an obvious fact, since these quantities are responsible for various inelastic transitions of electrons in an atom under the action of photons, which are usually negligible in lossless BS. As a result, the dynamics of two photons in BS will be described by the wave function

$$\begin{array}{c}\hfill |\mathrm{\Psi }\left(t_{BS}\right)⟩=e^{-i{\widehat{H}}_{BS}{t}_{BS}}|\mathrm{\Psi }\left(0\right)⟩,{\widehat{H}}_{BS}=\sum _{i=1}^2\frac{\sqrt{A_i}}{2}\left\{{\widehat{P}}_i^2+y_i^2\right\},\end{array}$$

(25)

where $t_{BS}$ is the photon interaction time in BS and $|\mathrm{\Psi }(0)⟩$ is the initial state of the photons before entering the BS. It should be added that the representation of the solution to the general Equation (22) in the form of Equation (25) allows us to determine in an analytical form the evolution of the operators $\widehat{a_1}$ and ${\widehat{a}}_2$ in Equation (3). Often, to calculate the required quantities, one needs electric field operators ${\widehat{E}}_1\left(t_1\right)$ and ${\widehat{E}}_2\left(t_2\right)$ at time instants $t_1$ and $t_2$ on the first and second detectors, respectively [33]. To do this, we need to find the evolution (in BS, as well as from BS to detectors) of the operators ${\widehat{E}}_{01}\left(0\right)$ and ${\widehat{E}}_{02}\left(0\right)$ for modes 1 and 2, respectively

$$\begin{array}{c}\hfill {\widehat{E}}_1\left(t_1\right)=e^{i{\widehat{H}}_0{t}_1}{e}^{i{\widehat{H}}_{BS}{t}_{BS}}{\widehat{E}}_{01}\left(0\right)e^{-i{\widehat{H}}_{BS}{t}_{BS}}{e}^{-i{\widehat{H}}_0{t}_1},\\ \hfill {\widehat{E}}_2\left(t_2\right)=e^{i{\widehat{H}}_0{t}_2}{e}^{i{\widehat{H}}_{BS}{t}_{BS}}{\widehat{E}}_{02}\left(0\right)e^{-i{\widehat{H}}_{BS}{t}_{BS}}{e}^{-i{\widehat{H}}_0{t}_2},\end{array}$$

(26)

where ${\widehat{H}}_0={\sum }_{i=1}^2{\omega }_i{\widehat{a_i}}^{†}\widehat{a_i}$ is the Hamiltonian of photons outside of BS. Because ${\widehat{E}}_{01}\left(0\right)\propto {\widehat{a}}_1$, and ${\widehat{E}}_{02}\left(0\right)\propto {\widehat{a}}_2$ (see, e.g., Refs. [1,5]), it is more convenient to consider not the electric field operators, but the photon creation and annihilation operators before entering BS (${\widehat{a}}_1$ and ${\widehat{a}}_2$) and on the detectors (${\widehat{b}}_1$ and ${\widehat{b}}_2$). To this end, we replace ${\widehat{E}}_{01}\left(0\right)\to {\widehat{a}}_1,{\widehat{E}}_{02}\left(0\right)\to {\widehat{a}}_2$ and ${\widehat{E}}_1\left(t_1\right)\to {\widehat{b}}_1\left(t_1\right),{\widehat{E}}_2\left(t_2\right)\to {\widehat{b}}_2\left(t_2\right)$. Including into account the time delay $\delta \tau$ for the spatial displacement of BS from the equilibrium position and the time delay $\tau$ between 1 and 2 mods (see Figure 4), we get (see supplementary materials in Ref. [24])

$$\begin{array}{c}\hfill {\widehat{b}}_1\left(t_1\right)=\sqrt{T}{e}^{-i{\omega }_1(t_1-\tau )}{\widehat{a}}_1+e^{i\varphi }\sqrt{R}{e}^{-i{\omega }_2(t_1+\delta \tau /2)}{\widehat{a}}_2,\\ \hfill {\widehat{b}}_2\left(t_2\right)=\sqrt{T}{e}^{-i{\omega }_2{t}_2}{\widehat{a}}_2-e^{-i\varphi }\sqrt{R}{e}^{-i{\omega }_1(t_2-\delta \tau /2-\tau )}{\widehat{a}}_1,\end{array}$$

(27)

where

$$\begin{array}{c}\hfill R=\frac{{sin}^2\left(\mathrm{\Omega }{t}_{BS}/2\sqrt{1+{\epsilon }^2}\right)}{(1+{\epsilon }^2)};cos\varphi =-\epsilon \sqrt{\frac{R}{T}},\\ \hfill T=1-R,\mathrm{\Omega }=\frac{8\pi \overline{N}{\mathbf{u}}_1{\mathbf{u}}_2}{({\omega }_1+{\omega }_2)V};\epsilon =\frac{{\omega }_2-{\omega }_1}{\mathrm{\Omega }}.\end{array}$$

(28)

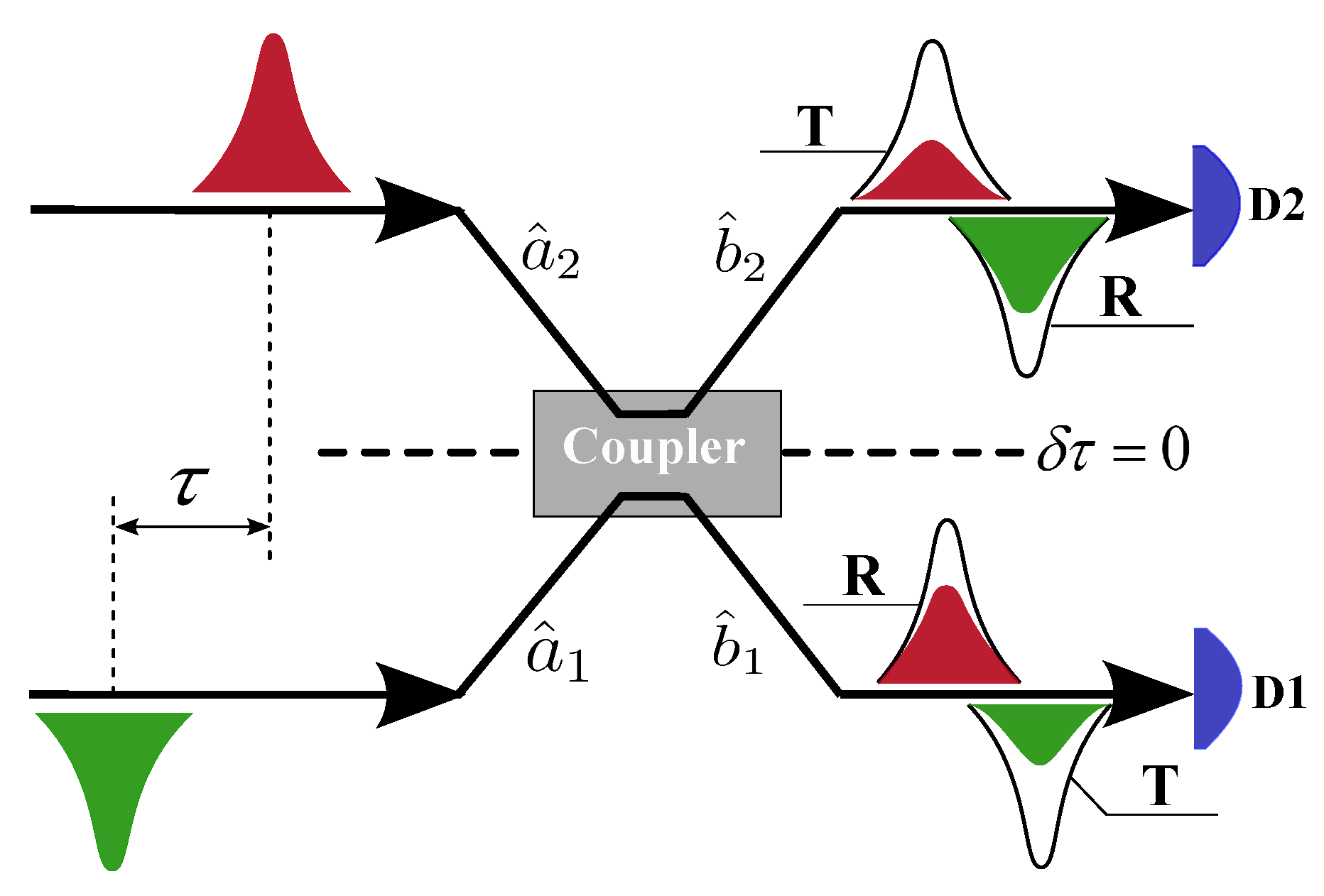

Figure 4. Schematic representation of a waveguide BS, where $D_1,D_2$ are the first and second detectors, respectively; $\tau$ is the time delay between modes 1 and 2, and $\delta \tau$ is the time delay caused by the spatial shift of the BS from its equilibrium position.

From (27) it can be seen that the matrix BS that is $U_{BS}$ completely corresponds to the matrix Equation (3) (needless to say, for $t_1=t_2=t$ and for $\delta \tau =\tau =0$). In addition, T and R are symmetric, i.e., if we change the first to the second mode ${\omega }_1\to {\omega }_2,{\mathbf{u}}_1\to {\mathbf{u}}_2$ and vice versa, then, as anticipated, the coefficients will not alter. If we assume that the photons are completely identical and monochromatic then $\epsilon =0$ (in reality this does not happen) and we obtain the “conventional” waveguide BS described above (at $\kappa =\mathrm{\Omega }/\left(2v\right)$, $z=v{t}_{BS}$, where v is the wave speed in the waveguide). This means that this particular case will fully coincide with Equation (21). It can be seen that the theory presented here is general, where the frequency dependencies of the reflection coefficient R and phase shift $\varphi$ are found. It should be added that going back to the universal system of units, the frequency is $\mathrm{\Omega }=\frac{8\pi \overline{N}{\mathbf{u}}_1{\mathbf{u}}_2}{({\omega }_1+{\omega }_2)V}\frac{e^2}{m}$.

From Equation (28) it can be seen that there is a new quantity characterizing BS and it is $\mathrm{\Omega }$. It can be qualitatively estimated if we take into account that most of quantum effects are observed at ${\omega }_2-{\omega }_1\ll {\omega }_1,{\omega }_2$. We will then be interested in the frequencies at ${\omega }_2\approx {\omega }_1$; then $\mathrm{\Omega }=4\pi n/{\omega }_0{\mathbf{u}}_1{\mathbf{u}}_2$, where ${\omega }_0=({\omega }_2+{\omega }_1)/2$, $n=\overline{N}/V$. In this representation ${\omega }_0$ can be thought of as a constant and n as the effective concentration. Moreover, even if the condition ${\omega }_2-{\omega }_1\ll {\omega }_1,{\omega }_2$ is not met, and ${\omega }_2-{\omega }_1\sim {\omega }_1,{\omega }_2$, then ${\omega }_0$ can be considered approximately constant when integrated over frequencies in Equation (6). Note that n is a characteristic of the waveguide BS, since it determines the coupling of effectively interacting $\overline{N}$ electrons to photons in the volume V. For example, if we consider the BS as a solid in which photons interact in a volume V, then n is the concentration of electrons in the solid. Since it is known that the concentration of atoms in a solid does not vary much, we get $\mathrm{\Omega }\sim ({10}^{14}-{10}^{17})$ rad/s for the optical frequencies (${\omega }_0\approx {10}^{15}$ rad/s) in this case (if of course ${\mathbf{u}}_1{\mathbf{u}}_2\sim 1$). It should be added that for this type of BS, the frequency $\mathrm{\Omega }$ can be represented by the known value for plasma frequency ${\omega }_p$, then $\mathrm{\Omega }={\mathbf{u}}_1{\mathbf{u}}_2{\omega }_p^2/{\omega }_0$. In a waveguide BS, the number of effectively interacting electrons $\overline{N}$ in the volume V is smaller than in a solid, hence $\mathrm{\Omega }$ will be smaller. In waveguide BS one can adjust $\mathrm{\Omega }$ by changing the effective interaction between photons.

From Equation (28) we can see that $R=R({\omega }_1,{\omega }_2)$ and $\varphi =\varphi ({\omega }_1,{\omega }_2)$, i.e., depends on the frequencies of modes 1 and 2. This is the main difference between waveguide BS and the other type of the waveguide, where the reflection coefficient R depends on the frequency of one mode. This result causes the reflection coefficient R to become “sensitive” to changes in any of the frequencies in the mode. Considering that the $\mathrm{\Omega }$ parameter is quite small, the dependence of the reflection coefficient R on the frequency can have a dramatic change. In other words, such a dependence has a resonance character at $({\omega }_2-{\omega }_1)\sim \mathrm{\Omega }$. Indeed, by changing $R({\omega }_1\pm {\sigma }_1,{\omega }_2\pm {\sigma }_2)$ the reflection coefficient value will change greatly at ${\sigma }_1\sim \mathrm{\Omega },{\sigma }_2\sim \mathrm{\Omega }$, where $\sigma$ is the variance that was described above. Otherwise, if ${\sigma }_1\ll \mathrm{\Omega }$, ${\sigma }_2\ll \mathrm{\Omega }$, then photons in the modes can be considered monochromatic and the resonance dependence $R({\omega }_1,{\omega }_2)$ disappears, which means in this case the reflection coefficient R can be considered constant and such waveguide BS becomes “conventional” [17].

3. Quantum Entanglement of Photons on a Beam Splitter

As is well known, quantum entanglement is a phenomenon where the quantum state of each group of particles cannot be described independently of the state of the others, including when the particles are separated by a large distance. Quantum entanglement is now one of the most important research topics [34]. In particular, quantum communication protocols such as quantum cryptography [35], quantum dense coding [36], quantum computing algorithms [37], and quantum state teleportation [38,39] can be explained by entangled states. One of the promising prospects for using quantum entanglement is to build a quantum computer that will surpass modern classical computers by many orders of magnitude. Moreover, the beam splitter could be used as a source of quantum entangled photons and be the basic building block of a quantum computer [6]. Without going into details of this topic, it is worth saying that a rather serious problem is the calculation of quantum entanglement for multiparticle systems, where different measures of quantum entanglement [34], such as Concurrence, Negativity, etc., are used. For the calculations of two-component systems, the quantum entanglement calculation is simpler and is based on well-known measures of quantum entanglement—these are von Neumann entropy, Schmidt parameter, etc. [34]. It should be added that in addition to quantum entanglement using BS, there is classical spatial entanglement for higher order transverse laser modes [5,40,41]. Moreover, there is a certain analogy between these kinds of entanglement [41]. Nevertheless, quantum and classical entanglement have the same name— “entanglement”—but physically they are not the same thing, and it is quantum entanglement that can be used in quantum technologies.

It is known that by Schmidt’s theorem [42,43] the wave function $|\mathrm{\Psi }(t)⟩$ of interacting systems 1 and 2 can be decomposed as $|\mathrm{\Psi }\left(t\right)⟩={\sum }_k\sqrt{{\lambda }_k\left(t\right)}|u_k(x_1,t)⟩|v_k(x_2,t)⟩$, where $|u_k(x_1,t)⟩$ is the pure state wave function of system 1 and $|v_k(x_2,t)⟩$ is the pure state wave function of system 2. Where ${\lambda }_k$ is the Schmidt mode, which is the eigenvalue of the reduced density matrix, i.e., ${\rho }_1(x_1,x_1^{{}^{\prime }},t)={\sum }_k{\lambda }_k\left(t\right)u_k(x_1,t)u_k^{*}(x_1^{{}^{\prime }},t)$ or ${\rho }_2(x_2,x_2^{{}^{\prime }},t)={\sum }_k{\lambda }_k\left(t\right)v_k(x_2,t)v_k^{*}(x_2^{{}^{\prime }},t)$. If we find the Schmidt mode ${\lambda }_k$, we can calculate the quantum entanglement of the system. To do this, we can use various measures of quantum entanglement, such as the Schmidt parameter [42,43]$K={\left({\sum }_k{\lambda }_k^2\right)}^{-1}$ or von Neumann entropy [44,45]$S_N=-{\sum }_k{\lambda }_{k}ln\left({\lambda }_k\right)$. The main difficulty in calculating quantum entanglement is to find ${\lambda }_k$ of the system in question.

3.1. Quantum Entanglement on a “Conventional” Beam Splitter

Quantum entanglement on “conventional” BS is quite well studied and presented in various works, see, e.g., Refs. [13,20,21,40,46,47,48]. Let us present here the simplest derivation of the quantum entanglement of the two-mode electromagnetic field on BS. The initial states of photons $|{\mathrm{\Psi }}_{in}⟩$ in BS ports 1 and 2 will be chosen as Fock states. Consideration of other initial states can be found in many works, but the basis of all works are Fock states. In this case, from Equation (2) we obtain

$$\begin{array}{c}\hfill |{\mathrm{\Psi }}_{in}⟩=\frac{1}{\sqrt{s_1!s_2!}}{{\widehat{a}}_1}^{†}{}^{s_1}{{\widehat{a}}_2}^{†}{}^{s_2}|0⟩,|{\mathrm{\Psi }}_{out}⟩=\frac{1}{\sqrt{s_1!s_2!}}{{\widehat{b}}_1}^{†}{}^{s_1}{{\widehat{b}}_2}^{†}{}^{s_2}|0⟩.\end{array}$$

(29)

To find ${\mathrm{\Psi }}_{out}$, one can use Equation (17), as was done in Ref. [20], who used the approach by Ref. [19]. This approach is not the easiest for calculating and analyzing quantum entanglement. The simplest approach was proposed by Ref. [21], using the approach by Ref. [49]. As a result, we obtained ${\lambda }_k\left(R\right)={\left|c_{k,s_1+s_2-k}\right|}^2$, where

$$\begin{array}{c}\hfill c_{k,p}=\sum _{n=0}^{s_1+s_2}{A}_{n,s_1+s_2-n}^{s_1,s_2}{A}_{n,s_1+s_2-n}^{*k,p}{e}^{-2inarccos\left(\sqrt{1-R}sin\varphi \right)},\\ \hfill A_{n,m}^{k,p}=\frac{{\mu }^{k+n}\sqrt{m!n!}}{{(1+{\mu }^2)}^{\frac{n+m}{2}}\sqrt{k!p!}}{P}_n^{(-(1+m+n),m-k)}\left(-\frac{2+{\mu }^2}{{\mu }^2}\right),\\ \hfill \mu =\sqrt{1+\frac{1-R}{R}{cos}^2\varphi }-cos\varphi \sqrt{\frac{1-R}{R}},\end{array}$$

(30)

where $P_{\gamma }^{\alpha ,\beta }\left(x\right)$ are Jacobi polynomials, k and p are the number of photons at the output ports 1 and 2 of the BS, respectively, with $k+p=s_1+s_2$. In the Equation (30), no matter what value $\varphi \in (0,\pi /2)$ we choose, the value ${\lambda }_k\left(R\right)$ will not depend on $\varphi$. This amazing property of Equation (30) can be used depending on the tasks under consideration. For example, if we choose $\varphi =0$, then when summing by n in (30), the exponent is replaced by ${(-1)}^n$. if we choose $\varphi =\pi /2$, then all the dependence on the reflection coefficient R will be concentrated in the exponent. In this way, the relationship of quantum entanglement with the reflection coefficient R was found. Figure 5 shows the dependence of quantum entanglement for the von Neumann entropy $S_N$ and the Schmidt parameter K, depending on the reflection coefficient R.

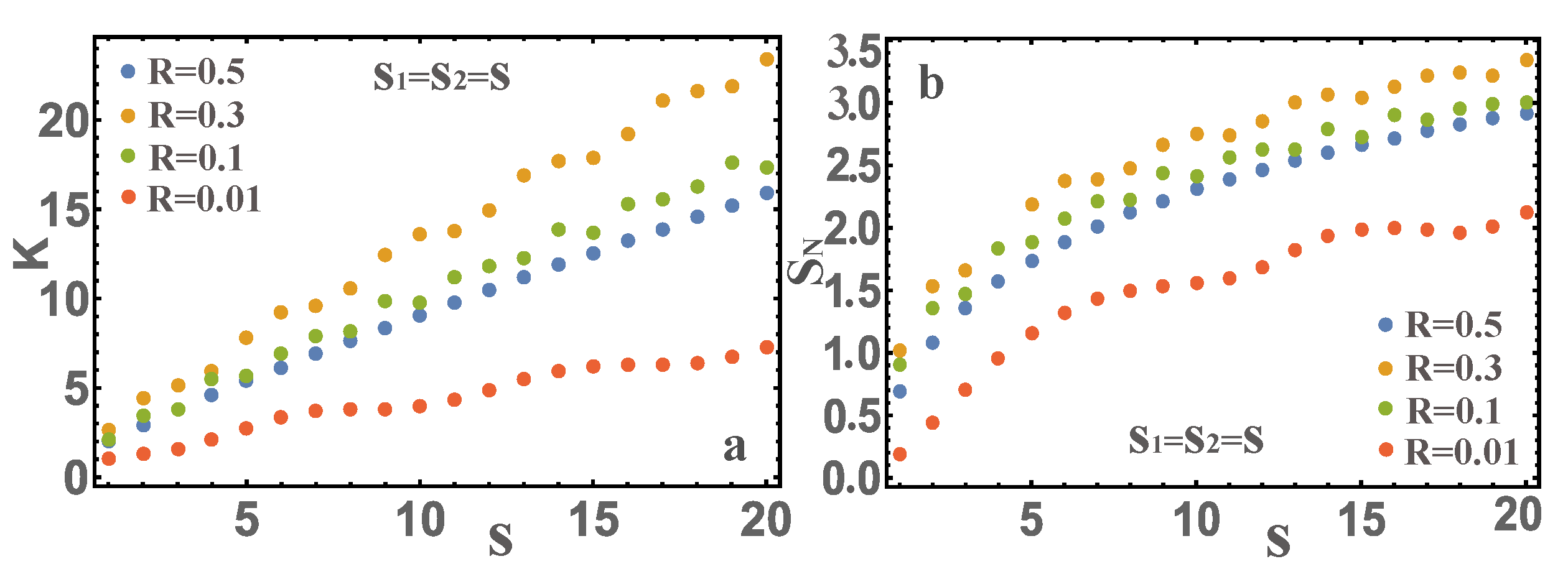

Figure 5. The dependence of the von Neumann entropy $S_N$ is shown in Figure (b), as well as the Schmidt parameter K in Figure (a) for various values of R and s.

For example, for $s_1=1$ and $s_2=1$, quantum entanglement will be in the following form

$$\begin{array}{c}\hfill S_N=-{(1-2R)}^{2}ln{(1-2R)}^2-4R(1-R)ln\left(2R(1-R)\right),\\ \hfill K=\frac{1}{1-8R(1-R)(1-3R(1-R\left)\right)}.\end{array}$$

(31)

For Equation (31) it is interesting to find the value R at which there will be the maximum quantum entanglement and this value $R=1/2(1\pm 1/\sqrt{3})$. At this value R, the quantum entanglement will be $S_N=ln3$ and $K=3$. This is quite an interesting result, since at first glance it seems that the maximum entanglement should be at $R=1/2$. Figure 5 shows that quantum entanglement strongly depends on the reflection coefficient R, but is always zero at $R=0,1$. The larger the quantum numbers $s_1,s_2$, the greater the quantum entanglement. You can see that there are two maxima quantum entanglement for different pairs $s_1,s_2$, except for the case when one of the quantum numbers is zero. No matter what measure of quantum entanglement we use, all dependencies are similar.

We also present quantum entanglement for various values of $s_1=s_2=s$ in Figure 6. The calculations are given for $R\in (0,1/2)$, since for symmetric values of $R\in (1/2,1)$, the results will be the same.

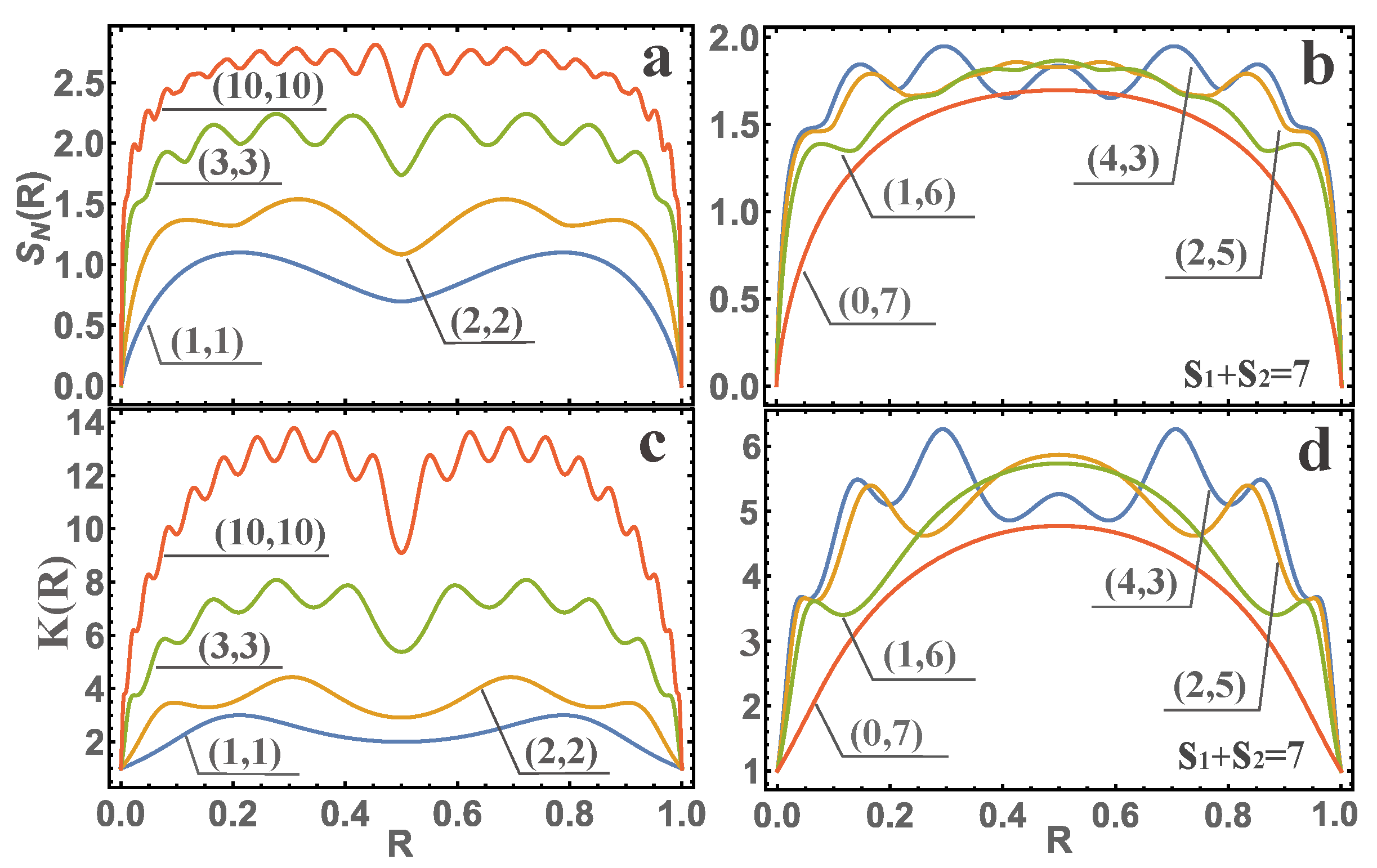

Figure 6. The dependence of the von Neumann entropy $S_N$ in Figures (a,b), and the Schmidt parameter in Figures (c,d) as a function of R are presented. The figures show the dependencies ($s_1,s_2$) for different values of the number of photons in modes 1 and 2, respectively. For example, when $s_1=1$ and $s_2=6$, notations (1,6) are introduced.

Figure 6 shows that the quantum entanglement at $s_1=s_2=s$ increases significantly with increasing s. For the Schmidt parameter K, this dependence is close to linear. Besides being able to obtain simple expressions for quantum entanglement, other physical characteristics can be calculated using Equation (30). For example, if one of the quantum numbers is zero, choose $s_2=0$, then in a very simple form one can find the average of the quantum numbers k and p (see Equation (30)). The result is $\overline{k}={\sum }_{k}k{\lambda }_k\left(R\right)=s_1(1-R)$ and $\overline{p}={\sum }_{p}p{\lambda }_p\left(R\right)=s_{1}R$.

One of the interesting applications of the results obtained is the possibility of obtaining the wave functions ${\mathrm{\Psi }}_{out}$ in Equation (29) that have practical applications by specifying the coefficient R. For example, we need a wave function $\mathrm{\Psi }\left(t\right)$ that defines the states of Holland–Burnett (HB) [50]. It is well known that this wave function is of great interest in various fields of physics, for example, in quantum metrology [11,51]. To do this, we need to select $R=1/2$ and $s_1=s_2=s$ (for even values s). As a result, we get the wave function ${\mathrm{\Psi }}_{out}$ in the form

$$\begin{array}{c}\hfill \mathrm{\Psi }=\sum _{n=0}^s{e}^{2in\varphi }\frac{\sqrt{\left(2n\right)!(2s-2n)!}}{2^{s}n!(s-n)!}|2n,2s-2n⟩.\end{array}$$

(32)

It should be added that by using the Equation (32) one can obtain an expression for quantum entanglement using the Schmidt parameter K in the form [21]

$$\begin{array}{c}\hfill K=\frac{\pi {(s!)}^2}{\Gamma {(s+1/2)}^2{}_4{F}_3(1/2,1/2,-s,-s;1,1/2-s,1/2-s;1)},\end{array}$$

(33)

where $\Gamma \left(x\right)$ is the gamma function, ${}_4{F}_3(x_1,x_2,x_3,x_4;y_1,y_2,y_3;1)$ is the generalized hypergeometric function. It should be added that the Equation (33) has a fairly simple approximation $K=s^{0.897}$. This clearly shows that quantum entanglement is unbounded from above, which was well known earlier (the more s, the more the quantum entanglement).

If we consider the case when in the initial state ${\mathrm{\Psi }}_{in}$ the number of photons in 1 mode $s_1$ and in the second one $s_2=0$. In this case the expression for quantum entanglement in the form of the Schmidt parameter will be

$$\begin{array}{c}\hfill K=\frac{1}{{(1-R)}^{2s_1}{{}_{2}F}_1\left(-s_1,-s_1;1;{\left(\frac{R}{1-R}\right)}^2\right)},\end{array}$$

(34)

where ${{}_{2}F}_1(a,b;c;x)$ is the Gaussian hypergeometric function. The general dependence of the Equation (34) can be seen from Figure 5b,d. In addition, by analyzing Equation (34), we can get that the maximum of this function at $R=1/2$. With this value of $R=1/2$, one can obtain a simpler expression for quantum entanglement

$$\begin{array}{c}\hfill K_{max}=2^{2s_1}\frac{{(s_1!)}^2}{\left(2s_1\right)!}.\end{array}$$

(35)

We can also find from Equation (35) the parameter K for large values of the quantum number $s_1$, and we get $K_{max}(s_1\gg 1)\to \sqrt{\pi s_1}$. It can be seen in this case that the quantum entanglement is unbounded from above (the more $s_1$, the more the quantum entanglement).

It should be added that the cases of quantum entanglement given here using BS are only some cases, and in reality there are many more.

3.2. Quantum Entanglement on a Waveguide Beam Splitter

Quantum entanglement on a frequency-dependent waveguide BS was recently considered in Refs. [22,23]. In these papers, it was shown that quantum entanglement would be defined in the same way as in the “Conventional” waveguide BS, with the only difference being that the Schmidt mode ${\lambda }_k$ must be replaced by ${\lambda }_k\to {\Lambda }_k$, where

$$\begin{array}{c}\hfill {\Lambda }_k=\int {|\varphi ({\omega }_1,{\omega }_2)|}^2{\lambda }_k\left(R\right)d{\omega }_{1}d{\omega }_2,{\lambda }_k\left(R\right)={\left|c_{k,s_1+s_2-k}\right|}^2.\end{array}$$

(36)

We will assume that there is no quantum entanglement of photons at the BS input ports. In other words, we will consider the incoming photon states as Fock states, but photons are not monochromatic. In this case, as is well known that the photon wave function is factorizable, i.e., ${\mathrm{\Psi }}_{in}=\int {\varphi }_1\left({\omega }_1\right)|s_1⟩d{\omega }_1\int {\varphi }_2\left({\omega }_2\right)|s_2⟩d{\omega }_2$, where $\varphi ({\omega }_1,{\omega }_2)={\varphi }_1\left({\omega }_1\right){\varphi }_2\left({\omega }_2\right)$. To analyze quantum entanglement we will use the von Neumann entropy $S_N=-{\sum }_k{\Lambda }_{k}ln\left({\Lambda }_k\right)$. Next, let us choose ${\varphi }_i\left({\omega }_i\right)$ ($i=1,2$) in the most commonly used form, which is the Gaussian distribution

$$\begin{array}{c}\hfill {\varphi }_i\left({\omega }_i\right)=\frac{1}{{\left(2\pi \right)}^{1/4}\sqrt{{\sigma }_i}}{e}^{-\frac{{({\omega }_i-{\omega }_{0i})}^2}{4{\sigma }_i^2}},\end{array}$$

(37)

where ${\omega }_{0i}$ is the mean frequency and ${\sigma }_i^2$ is the dispersion. Then we will assume that ${\omega }_{0i}/{\sigma }_i\gg 1$, which is applicable to most photon sources.

Figure 7 let us represent the dependence of the von Neumann entropy $S_N$ depending on the dimensionless parameter $\mathrm{\Omega }{t}_{BS}$ for identical photons, i.e., for ${\sigma }_1={\sigma }_2=\sigma$ and ${\omega }_{01}={\omega }_{02}={\omega }_0$.

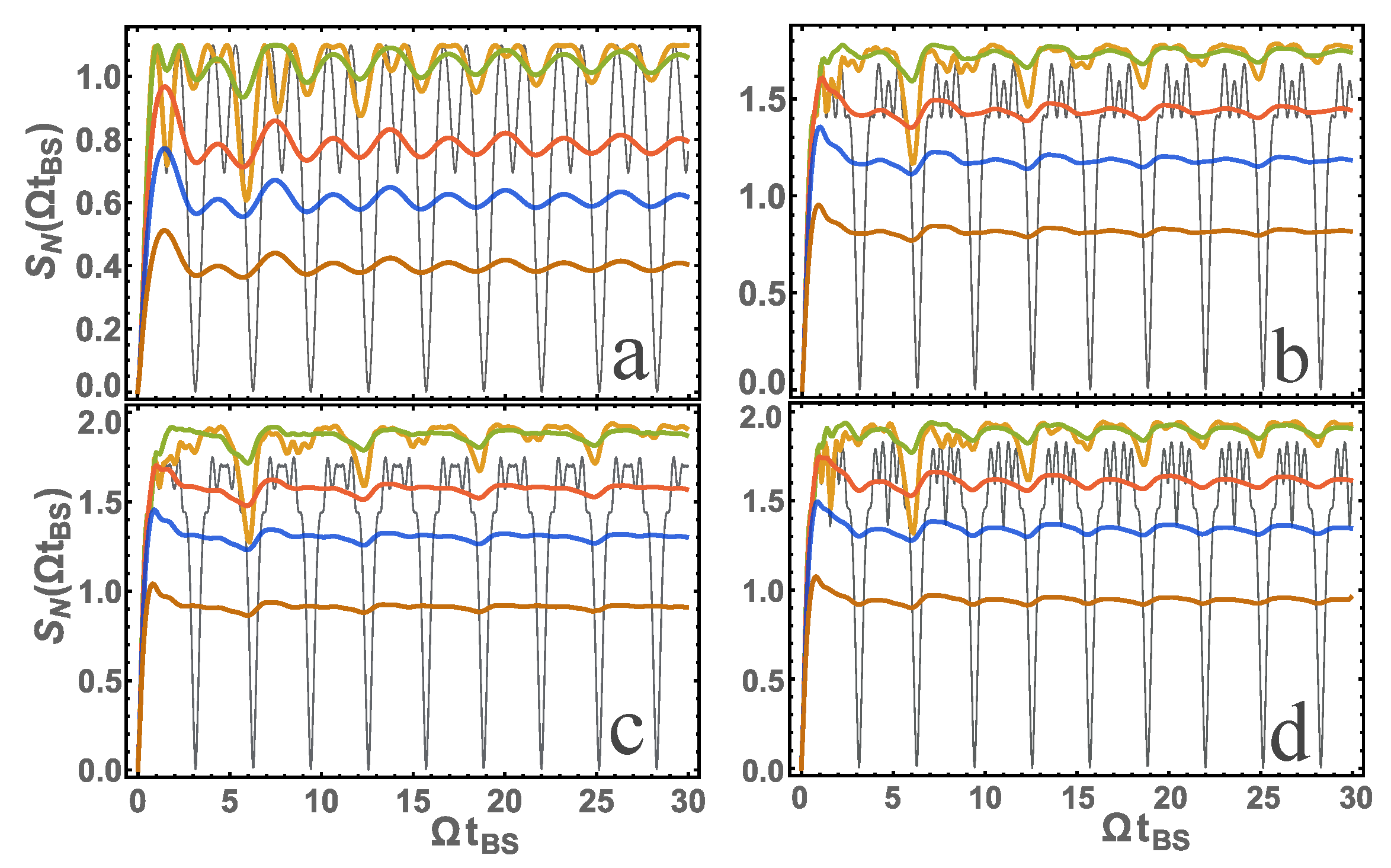

Figure 7. The dependence of the von Neumann entropy $S_N$ on the parameter $\mathrm{\Omega }{t}_{BS}$ is presented. In figures (a–d) the value of $S_N$ is presented for $|1,1⟩,|2,3⟩,|4,2⟩,|3,3⟩$, respectively (where $|s_1,s_2⟩$ are input states to 1 and 2 ports of the BS, respectively). All figures show the results for $\sigma /\mathrm{\Omega }=10$ (brown), $\sigma /\mathrm{\Omega }=5$ (blue), $\sigma /\mathrm{\Omega }=3$ (red), $\sigma /\mathrm{\Omega }=1$ (green), $\sigma /\mathrm{\Omega }=1/3$ (orange) from bottom to top, respectively. The thin curve is made at $\sigma /\mathrm{\Omega }=0$ (black).

We add that the results obtained for monochromatic photons, i.e., for $\sigma \to 0$ (more precisely, for $\sigma /\mathrm{\Omega }\ll 1$ such that $\sigma t_{BS}\ll 1$) are in agreement with the results of quantum entanglement “conventional” BS calculations, see for example Refs. [20,21]. Indeed, if we use the results for “conventional” BS with reflection coefficient $R={sin}^2\left(\kappa z\right)$ and, for example, [20] to calculate quantum entanglement (or the above method), we can get the results shown in Figure 7 for $\sigma /\mathrm{\Omega }=0$ (thin lines). Thus, our result is a more general one that is applicable to non-monochromatic photons.

One can see that there is a big difference between quantum entanglement of monochromatic and non-monochromatic photons. Moreover, in the case of non-monochromatic photons, when $\sigma /\mathrm{\Omega }\sim 1$, the quantum entanglement is larger. One can also see that in the case of non-monochromatic photons, when $\sigma /\mathrm{\Omega }\gtrsim 1$ and for relatively large $\mathrm{\Omega }{t}_{BS}$, the quantum entanglement becomes a constant value. In the case of monochromatic photons quantum entanglement is a periodic function.

As an example, let us consider in more detail the case of input photons in states $|1,1⟩$. This case is interesting because it realizes the case of the Hong–Ou–Mandel (HOM) [4,24] effect. To analyze this case, it is convenient to present a contour plot for von Neumann entropy as a function of two parameters $\sigma /\mathrm{\Omega }$ and $\mathrm{\Omega }{t}_{BS}$, see Figure 8a. Since at large $\mathrm{\Omega }{t}_{BS}$ (of course, the condition $\sigma t_{BS}\gg 1$ must also be satisfied) the quantum entanglement tends to a constant value; Figure 8b presents this constant value depending on the parameter $\sigma /\mathrm{\Omega }$. It is also possible to find an analytic dependence for quantum entanglement for the case $|1,1⟩$ as

$$\begin{array}{c}\hfill S_N=ln\frac{2{(1-\mathrm{J})}^{\mathrm{J}-1}}{{\left(2\mathrm{J}\right)}^{\mathrm{J}}},\mathrm{J}=1+\frac{3}{8}{\left(\frac{\mathrm{\Omega }}{\sigma }\right)}^2-\frac{\sqrt{\pi }}{16}{\left(\frac{\mathrm{\Omega }}{\sigma }\right)}^3\left\{3+10{\left(\frac{\sigma }{\mathrm{\Omega }}\right)}^2\right\}\mathrm{erf}\left(\frac{\mathrm{\Omega }}{2\sigma }\right)e^{{\left(\frac{\mathrm{\Omega }}{2\sigma }\right)}^2},\end{array}$$

(38)

where $\mathtt{erf}$ is an error function. It should be added that, to get the Equation (8) sine and cosine terms (rapidly oscillating terms at $\mathrm{\Omega }{t}_{BS}\to \infty$) must be ignored when integrating over frequencies.

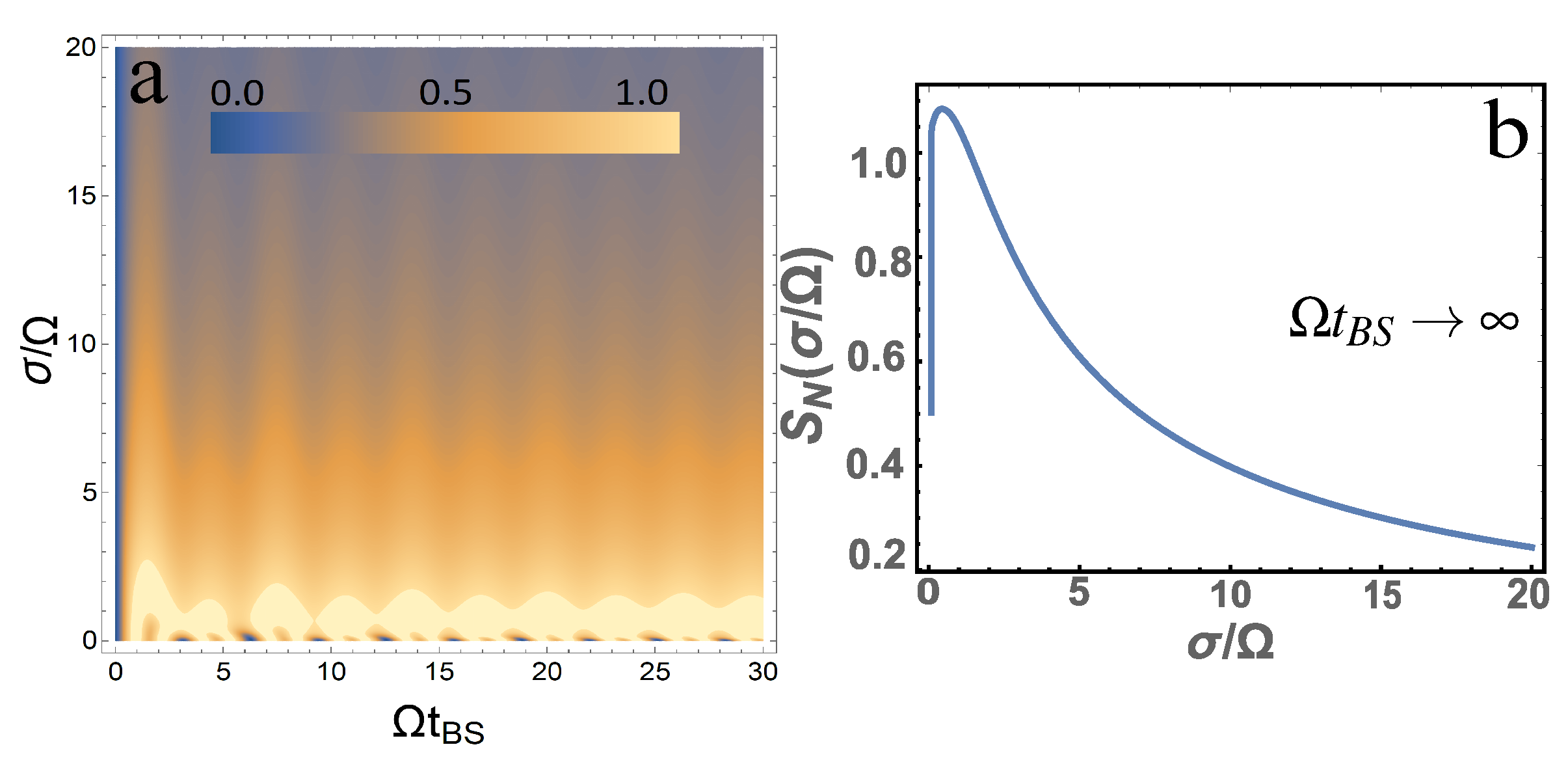

Figure 8. (a) A contour plot of the von Neumann entropy $S_N$ versus two parameters $\sigma /\mathrm{\Omega }$ and $\mathrm{\Omega }{t}_{BS}$ for the input state $|1,1⟩$ is presented. (b) von Neumann entropy $S_N$ is presented as a function of $\sigma /\mathrm{\Omega }$ in the limiting case $\mathrm{\Omega }{t}_{BS}\to \infty$ for the input state $|1,1⟩$, see Ref. [22].

It can be seen from the graphs obtained that the quantum entanglement has a maximum, which will be at $\sigma /\mathrm{\Omega }=0.44467$. It is also seen that the quantum entanglement is large at $\sigma /\mathrm{\Omega }\sim 1$, and as $\sigma /\mathrm{\Omega }$ increases, it tends to zero. As an example, let us give another calculation of quantum entanglement from the initial states $|0,2⟩$ at the same remaining parameters, see Figure 9.

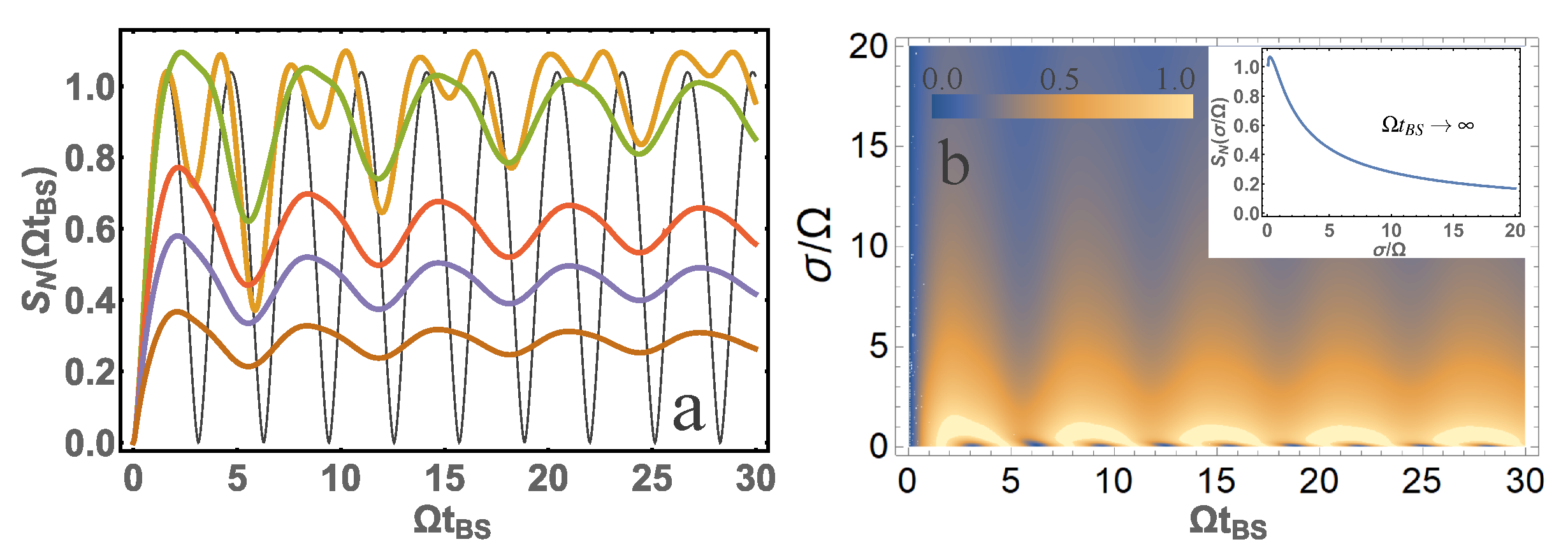

Figure 9. (a) The dependence of Von Neumann entropy $S_N$ on the parameter $\mathrm{\Omega }{t}_{BS}$ is presented for $\sigma /\mathrm{\Omega }=10$ (brown); $\sigma /\mathrm{\Omega }=5$ (blue); $\sigma /\mathrm{\Omega }=3$ (red); $\sigma /\mathrm{\Omega }=1$ (orange); $\sigma /\mathrm{\Omega }=1/3$ (green); $\sigma /\mathrm{\Omega }=0$ (black). (b) A contour plot of von Neumann entropy $S_N$ from two system parameters $\mathrm{\Omega }{t}_{BS}$ and $\sigma /\mathrm{\Omega }$ is presented. The inset is presented for $S_N$ at $\mathrm{\Omega }{t}_{BS}\to \infty$ depending on the parameter $\sigma /\mathrm{\Omega }$. Input photons are in the state $|0⟩,|2⟩$, see Ref. [23].

Figure 9 shows that the von Neumann entropy at $\sigma /\mathrm{\Omega }\gtrsim 1$ is quite different from the case of monochromatic photons $\sigma /\mathrm{\Omega }=0$. Figure 9b also shows that the large value of entropy is at $\sigma /\mathrm{\Omega }\sim 1$. The largest entropy value at $\mathrm{\Omega }{t}_{BS}\to \infty$ would be $S_N=1.092$ at $\sigma /\mathrm{\Omega }=0.24$.

In summary, it can be concluded that the waveguide BS can be a good source of quantum entangled photons. The entanglement can be easily adjusted by changing the $\mathrm{\Omega }$ parameter, e.g., by separating or bringing the waveguides closer together. It should be noted that a waveguide BS can be a source of large quantum entangled photons. Indeed, such a source generates almost maximum possible quantum entanglement at $\sigma /\mathrm{\Omega }\sim 1$ and $\mathrm{\Omega }{t}_{BS}>1$. Recall that the maximum quantum entanglement for von Neumann entropy in our case $S_N=ln(1+s_1+s_2)$[20,52]. If we consider constants R and T (monochromatic photons) the quantum entanglement is a periodic function of $\mathrm{\Omega }{t}_{BS}$, and for large $\mathrm{\Omega }{t}_{BS}\gg 1$ a rapidly oscillating relation, which is bad to use in quantum technologies.

4. Photon Statistics on the Beam Splitter

The statistical properties at the BS output ports are determined by the probability $P_k$ to detect k photons on port 1 and the probability $P_p$ to detect p photons on port 2. The statistical properties at the BS output ports have been studied in many works [13,19,20,21,22]. The initial states may depend on which photons are fed to the BS input ports. These states may differ not only in the distribution of photons in each mode, but also in the quantum entanglement of the electromagnetic modes of the incoming photons. We will limit ourselves here to considering the most important example—these are the incoming Fock states, since other cases can be represented based on them.

4.1. Photon Statistics on a “Conventional” Beam Splitter

In the case of “conventional” BS, the statistical properties at the BS output ports have been well studied in Ref. [19]. The simplest expressions for calculating statistical properties have been derived in Ref. [21], which are defined by Equation (30), where the probability $P_k={\lambda }_k$ and the probability $P_p={\lambda }_{s_1+s_2-k}$, since the number of photons is conserved, i.e., $s_1+s_2=k+p$. As an example, let us present the calculations for the case $|1,1⟩$ in Figure 10a,b and for the case $|0,2⟩$ in Figure 10c,d for the two reflection coefficient values $R=1/2,1/2(1+1/\sqrt{3})$. The choice of these values R is determined by the fact that for $|1,1⟩$ and $R=1/2$ the HOM effect occurs, and at $R=1/2(1+1/\sqrt{3})$ the quantum entanglement value is maximum (see Equation (31)).

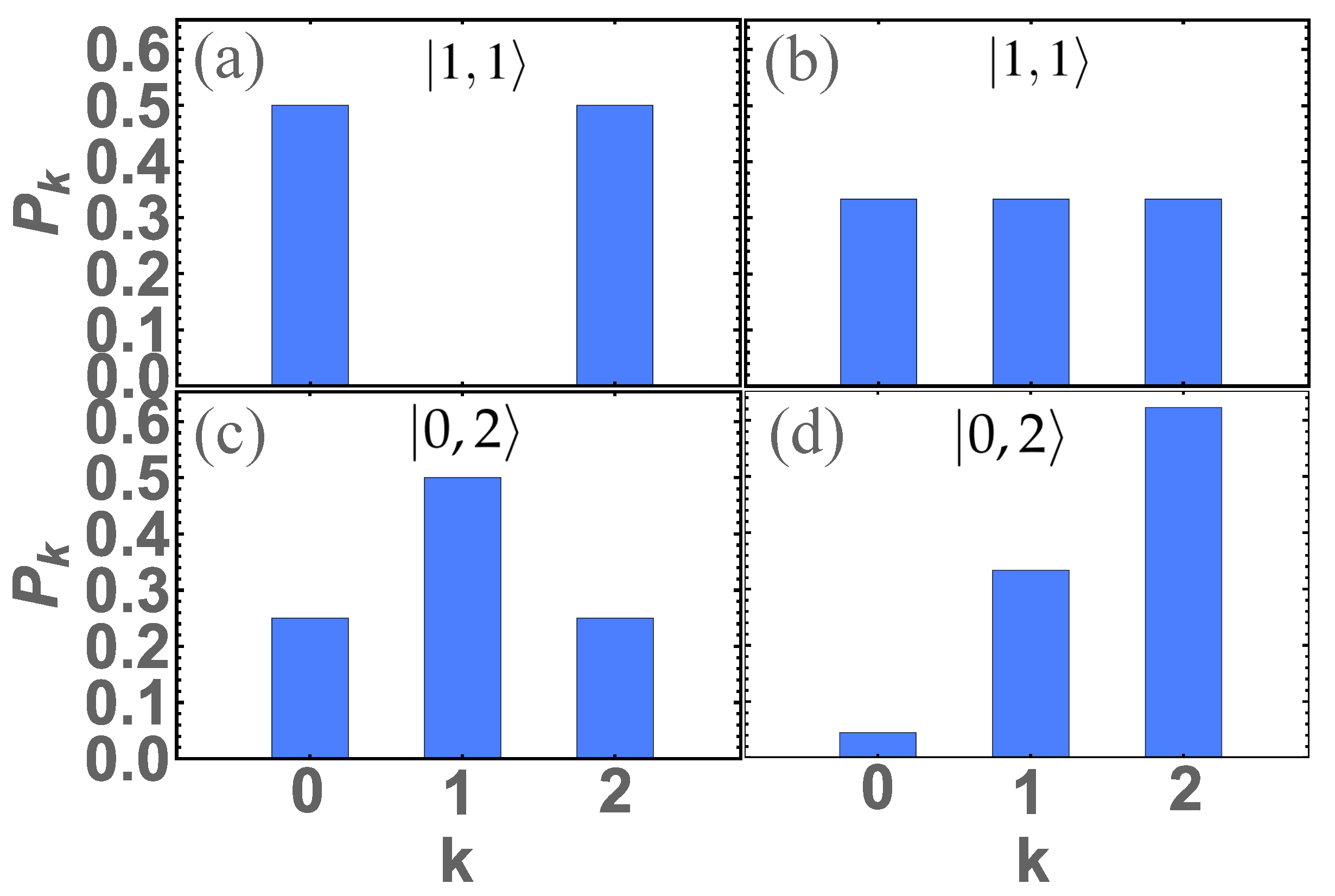

Figure 10. The calculation of probability $P_k$ for the case $|1,1⟩$ in Figures (a) at $R=1/2$ and (b) at $R=1/2(1+1/\sqrt{3})$ and for the case $|0,2⟩$ in Figures (c) at $R=1/2$ and (d) at $R=1/2(1+1/\sqrt{3})$ are presented.

It can be seen that the HOM effect does not appear at the maximum entanglement of photons, but at the maximum entanglement the distribution is equally probable. It should also be added that calculating the probabilities for any initial states is not difficult using Equation (30).

4.2. Photon Statistics on a Waveguide Beam Splitter

Let us consider the photon statistics at the BS output ports. Expressions to calculate the statistical properties were obtained in Ref. [22], which are defined by Equations (30) and (36), where probability $P_k={\Lambda }_k$ and probability $P_p={\Lambda }_{s_1+s_2-k}$. It should be added that when considering monochromatic photons the coefficients R and $\varphi$ would be constant, then following Equation (36) ${\Lambda }_k={\lambda }_k$. Thus, our consideration is general and in the particular case coincides with “conventional” BS. Let us compare the results in the case of monochromatic and non-monochromatic photons. To do this let us choose BS length $z=v{t}_{BS}$ and frequency $\mathrm{\Omega }=2\kappa v$ (see below, after Equation (28)) so that the reflection coefficient for monochromatic and identical photons is $R={sin}^2(\mathrm{\Omega }{t}_{BS}/2)=1/2$. In this case we will choose $\mathrm{\Omega }{t}_{BS}=5\pi /2$. Next we will consider the same (${\sigma }_1={\sigma }_2=\sigma$ and ${\omega }_{01}={\omega }_{02}={\omega }_0$) but not monochromatic photons, see Equation (37). We present for comparison the calculation results in the case of identical monochromatic photons for $R=1/2$ (at $\mathrm{\Omega }{t}_{BS}=5\pi /2$) and in the case of identical but not monochromatic photons (at $\mathrm{\Omega }{t}_{BS}=5\pi /2$), see Figure 11. From Figure 11a shows that for states $|1,1⟩$ when $\sigma /\mathrm{\Omega }=0$ the HOM effect [4] is realized, see Figure 10a. This means that only photon pairs are detected at the first or second detector (in the figure it is for $k=0$ and $k=2$) with probability $1/2$. With increasing $\sigma /\mathrm{\Omega }$ the HOM effect disappears and the photon statistics change dramatically. It is quite interesting to look at photon statistics at maximum quantum entanglement, see Figure 11b. These statistics are different from the statistics of the HOM effect of Figure 11a and from the statistics in the case of monochromatic photons at maximum quantum entanglement, see Figure 10b. At large $\sigma /\mathrm{\Omega }\gg 1$, the probability ${\Lambda }_k$ will tend to one for $k=1$. This means that photons will never arrive at the detectors in pairs. A similar analysis can quite easily be done for any input states $|s_1,s_2⟩$. The commonality for all cases will be a coincidence with the statistics for monochromatic photons at $\sigma /\mathrm{\Omega }=0$. In addition, the general probability behavior for any states $|s_1,s_2⟩$ will be at $\sigma /\mathrm{\Omega }\gg 1$. This is easily explained because at $\mathrm{\Omega }\to 0$ (same as $\sigma /\mathrm{\Omega }\gg 1$), the coupling between the waveguides in the BS weakens, which means that photons propagate along their waveguides.

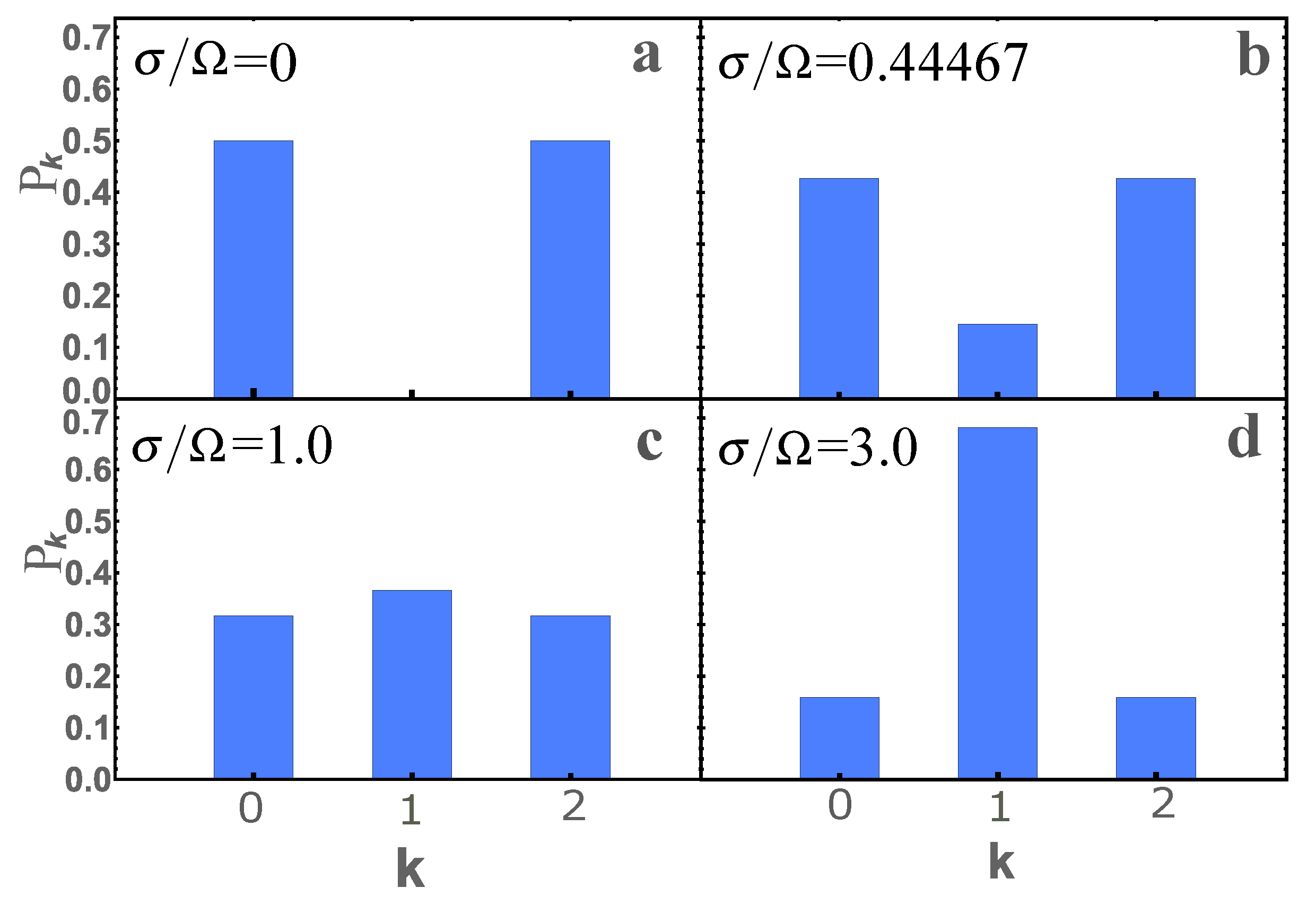

Figure 11. A histogram of the dependence of the probability $P_k$ of detecting k and $p=s_1+s_2-k$ (we consider the case $|1,1⟩$, where $s_1=s_2=1$) photons at the output of the first and second ports, respectively, for different values of $\sigma /\mathrm{\Omega }$.

We also consider the limiting case described above for quantum entanglement, this is the case for large $\mathrm{\Omega }{t}_{BS}$ (more precisely, the condition $\sigma t_{BS}\gg 1$ must also be satisfied) for the input state $|1,1⟩$. In this case, it is easy to obtain the probability of detecting photons on both detectors $P_{1,1}=\mathrm{J}$, where $\mathrm{J}$ is represented in Equation (38). The probability of detecting pairs of photons on 1 or 2 detectors will then be $P_{2,0}=P_{0,2}=1/2(1-P_{1,1})$. The results are presented in Figure 12. It is interesting enough to note that the minimum of the function $min\left\{P_{1,1}\right\}$ or the maximum of $max\{P_{2,0}=P_{0,2}\}$ for $\sigma /\mathrm{\Omega }=0.44029$ practically coincides with the maximum for quantum entanglement at $\sigma /\mathrm{\Omega }=0.44467$, see Figure 8b. This means that the maximum of quantum entanglement is realized when photons at the first and second detectors can be registered with a minimum probability. Or, which is the same, when pairs of photons can be recorded on detectors with maximum probability. Additionally, in the insets in Figure 12a,b the probabilities $P_{1,1}$ and $P_{2,0}=P_{0,2}$ are presented, respectively, depending on two parameters of the studied system $\sigma /\mathrm{\Omega }$ and $\mathrm{\Omega }{t}_{BS}$. It can be seen that taking into account the non-monochromaticity of photons significantly changes the probabilities, in comparison with monochromatic ones.

Figure 12. (a) The probability $P_{1,1}$. (b) The probability $P_{2,0}=P_{0,2}$ for $\mathrm{\Omega }{t}_{BS}\to \infty$ depending on the $\sigma /\mathrm{\Omega }$ parameter. Additionally, in (a,b) the contour plots for the probability $P_{1,1}$ and $P_{2,0}=P_{0,2}$ are presented, respectively, depending on two parameters of the studied system $\sigma /\mathrm{\Omega }$ and $\mathrm{\Omega }{t}_{BS}$.

It should be added that such an analysis, for quantum entanglement and photon statistics, is fairly easy to carry out for any photons input states $|s_1,s_2⟩$, as well as various BS parameters $\mathrm{\Omega },t_{BS}$ and the values of non-monochromaticity of photons ${\sigma }_1,{\sigma }_2$.

5. Hong–Ou–Mandel Effect

The HOM effect was first experimentally demonstrated by Hong et al. in 1987 [4]. The effect is thought to occur when two identical single-photon waves hit the BS 1:1 (with reflection coefficients R and transmittance T close to 1/2), one at each input port. When the photons are identical, then at the output ports of the BS we observe their quantum interference caused by their passage through the BS. HOM interference appears in many cases, both in fundamental studies of quantum mechanics and in practical implementations of quantum technologies [8,53]. The theoretical explanation of the HOM effect, based on constant coefficients R and T and bosonic photon statistics, is quite simple [1,5]. In this interpretation we are not interested in what happens to the incident photons in the BS. For this, we consider a lossless BS with constant coefficients R and T (i.e., “conventional” BS) and the BS is the source of two other photons obeying bosonic statistics. In this case, the wave function at the output ports ${\mathrm{\Psi }}_{out}={{\widehat{b}}_1}^{†}{{\widehat{b}}_2}^{†}|0⟩$, where ${\widehat{b}}_1,{\widehat{b}}_2$ is defined through the BS matrix as Equation (3). It is easy to see that ${{\widehat{b}}_1}^{†}{{\widehat{b}}_2}^{†}=(T-R){{\widehat{a}}_1}^{†}{{\widehat{a}}_2}^{†}+\sqrt{RT}\left(e^{-i\varphi }{\left({{\widehat{a}}_2}^{†}\right)}^2-e^{i\varphi }{\left({{\widehat{a}}_1}^{†}\right)}^2\right)$. Choosing the coefficients $R=T=1/2$ we get ${{\widehat{b}}_1}^{†}{{\widehat{b}}_2}^{†}=1/2\left(e^{-i\varphi }{\left({{\widehat{a}}_2}^{†}\right)}^2-e^{i\varphi }{\left({{\widehat{a}}_1}^{†}\right)}^2\right)$. It means that photons get to detectors only in pairs, i.e., the probability will be $P=1/2$ for each of detectors, which contradicts the classical representation of separation of two beams of light with coefficients $R=T=1/2$. In the classical notion at $R=T=1/2$ there can be four variants:

• The first and second photons fall on detectors 1 and 2, respectively;
• The first and second photons fall on detectors 2 and 1, respectively;
• The first and second photons fall on detector 1;
• The first and second photons fall on detector 2.

A total of four equally probable events gives a probability of $P=1/4$ for each of the four choices. Such a phenomenon is called the HOM effect (or HOM interference) and it is a good method to check the quantum properties not only of photons, but also of other particles. In other words, in the HOM effect, the probability of photons hitting the first and second detector $P_{1,2}={(R-T)}^2$, with equal R and T will be zero. If we consider non-monochromatic photons but identical frequency dependent BS, it is easy to see that $P_{1,2}=\int {|\varphi ({\omega }_1,{\omega }_2)|}^2{\left(R({\omega }_1,{\omega }_2)-T({\omega }_1,{\omega }_2)\right)}^{2}d{\omega }_{1}d{\omega }_2=\overline{{(R-T)}^2}$. Choosing $\overline{R}=\overline{T}=1/2$ we can get $P_{1,2}=4(\overline{T^2}-{\overline{T}}^2)=4(\overline{R^2}-{\overline{R}}^2)$, i.e., there is a fluctuation of the reflectance R and transmittance T, which was not considered before. These issues will be discussed in detail here.

5.1. Hong–Ou–Mandel Effect on a “Conventional” Beam Splitter

A schematic of the HOM interference experiment can be shown in Figure 4, with the difference that we consider “conventional” BS. The detector coincidence rate will drop to zero when identical input photons completely overlap in time. This is called the Hong–Ou–Mandel dip, or the HOM dip. Let us consider the general case not restricted to identical and monochromatic photons and to simultaneous registration by photon detectors. In this case we have to consider the output state as (see Equation (6)) $|{\mathrm{\Psi }}_{out}⟩=\int \varphi ({\omega }_1,{\omega }_2){{\widehat{b}}_1}^{†}{{\widehat{b}}_2}^{†}|0⟩d{\omega }_{1}d{\omega }_2$, where ${\widehat{b}}_1,{\widehat{b}}_2$ is defined by Equation (27). It should be added that we can get Equation (27) to find ${\widehat{b}}_1\left(t_1\right),{\widehat{b}}_2\left(t_2\right)$ quite easily if we consider ${\widehat{b}}_k\left(t_k\right)=e^{i{\widehat{H}}_0{t}_k}{\widehat{b}}_k\left(0\right)e^{-i{\widehat{H}}_0{t}_k}$, where ${\widehat{b}}_k\left(0\right)={\widehat{b}}_k$ from Equation (3), where $k=(1,2)$. We will assume the coefficients R and $\varphi$ to be constant, i.e., consider “conventional” BS. Consider the probability $P_{1,2}$ of co-detection of photons at 1 and 2 detectors (correlation between the two detectors). If our coincidence gate window takes counts for time $T_D$, then the frequency of coincidence between detectors 1 and 2 is proportional (see, e.g., [4,54,55]).

$$\begin{array}{c}\hfill P_{1,2}\propto {\int }_{-T_D/2}^{T_D/2}{\int }_{-T_D/2}^{T_D/2}⟨{\widehat{b}}_1^{†}\left(t_1\right){\widehat{b}}_2^{†}\left(t_2\right){\widehat{b}}_1\left(t_1\right){\widehat{b}}_2\left(t_2\right)⟩d{t}_{1}d{t}_2.\end{array}$$

(39)

Consider the case where the reaction time ${\tau }_D$ (time resolution) of detectors $D_1$ and $D_2$ in the experiment is many times slower than other time scales of the problem (the reaction time is large), then in this case $T_D\to \infty$. It should be added that the theory presented below is not difficult to generalize to the case when the detector reaction times are short, which is currently realized experimentally (e.g., [56,57]). The calculation of the correlation function (39) can be found in various papers depending on the JSA function $\varphi ({\omega }_1,{\omega }_2)$, e.g., [4,54,55,56,58,59]. As a result, the correlation function in general form will be at $R=T=1/2$

$$\begin{array}{c}\hfill P_{1,2}=\frac{1}{2}\left(1-\mathrm{Re}\{\int \varphi ({\omega }_1,{\omega }_2){\varphi }^{*}({\omega }_2,{\omega }_1)e^{-i({\omega }_2-{\omega }_1)(\delta \tau +\tau )}\}d{\omega }_{1}d{\omega }_2\right),\end{array}$$

(40)

where $P_{1,2}$ is normalized so that at $R=0$ the probability is $P_{1,2}=1$ (without BS the probability of detection is $100\%$), which corresponds to the standard normalization in HOM theory. In Equation (40) is usually replaced by $\Delta \tau =\delta \tau +\tau$ corresponding to the time between detection of 1 and 2 photons. It can be seen that at $\Delta \tau =0$ the correlation function $P_{1,2}=0$, only when the two photons are identical, i.e., at $\varphi ({\omega }_1,{\omega }_2)=\varphi ({\omega }_2,{\omega }_1)$. Thus, the HOM effect will be observed at photon identity and at $\Delta \tau =0$.

Here are examples of the calculated correlation functions $P_{1,2}$. We give the result obtained in the very first paper where this effect was demonstrated [4]

$$\begin{array}{c}\hfill P_{1,2}=\frac{1}{2}\left(1-e^{-{(\delta \omega \Delta \tau )}^2}\right),\end{array}$$

(41)

where $\delta \omega$ is the bandwidth at Gaussian $\varphi ({\omega }_0/2+\omega ,{\omega }_0/2+\omega )$. It should be added that sources of single photons are often used in experiments, but their initial state cannot always be determined by the Fock states. In other words, photons incident on the BS can be quantum entangled. One of the most commonly used sources of such photons is spontaneous parametric down-conversion (SPDC). In the case of such photons, the spectral function $\varphi ({\omega }_1,{\omega }_2)$ can have a complicated form. Quite a lot of such cases are considered in Ref. [58].

Here we have considered photons to demonstrate the HOM effect. This effect has a deeper meaning than demonstrated here. First of all, this is due to the fact that the HOM effect can be observed not only on photons, but also on other particles of both bosonic and fermionic nature [60,61,62].

5.2. Hong–Ou–Mandel Effect on a Waveguide Beam Splitter

While the HOM effect theory for “conventional” BS is well known and described in various literature, the HOM effect theory for frequency-dependent waveguide BS has only recently appeared [24,25]. This theory will be presented here in more detail. Now the scheme of the HOM experiment will look like Figure 4. The calculation of the correlation function is carried out in the same way as it is done in the case of “conventional” BS, with the only difference being that we consider the coefficients $R,T$ and $\varphi$ to be frequency dependent and do not fix their values. As a result, we get

$$\begin{array}{c}\hfill P_{1,2}={\int }_{-\infty }^{\infty }{\int }_{-\infty }^{\infty }{\left|{\xi }_1(t_1,t_2,\tau )-{\xi }_2(t_1,t_2,\tau ,\delta \tau )\right|}^{2}d{t}_{1}d{t}_2,\\ \hfill {\xi }_1(t_1,t_2,\tau )=\frac{1}{2\pi }\int \varphi ({\omega }_1,{\omega }_2)T({\omega }_1,{\omega }_2)e^{-i{\omega }_1(t_1-\tau )}{e}^{-i{\omega }_2{t}_2}d{\omega }_{1}d{\omega }_2,\\ \hfill {\xi }_2(t_1,t_2,\tau ,\delta \tau )=\frac{1}{2\pi }\int \varphi ({\omega }_1,{\omega }_2)R({\omega }_1,{\omega }_2)e^{-i{\omega }_2(t_1+\delta \tau )}{e}^{-i{\omega }_1(t_2-\delta \tau -\tau )}d{\omega }_{1}d{\omega }_2,\end{array}$$

(42)

where $P_{1,2}$ is normalized so that with $t_{BS}=0$ the probability is $P_{1,2}=1$. We then obtain

$$\begin{array}{c}\hfill \begin{array}{c}\hfill P_{1,2}=\int ({|\varphi ({\omega }_1,{\omega }_2)|}^2\left(T^2({\omega }_1,{\omega }_2)+R^2({\omega }_1,{\omega }_2)\right)-\\ \hfill 2\mathrm{Re}\left\{\varphi ({\omega }_1,{\omega }_2){\varphi }^{*}({\omega }_2,{\omega }_1)T({\omega }_1,{\omega }_2)R({\omega }_2,{\omega }_1)e^{-i({\omega }_2-{\omega }_1)\Delta \tau }\right\})d{\omega }_{1}d{\omega }_2.\end{array}\end{array}$$

(43)

It should be added that if T and R are assumed to be independent of frequencies and $T=R=1/2$, then Equation (43) corresponds to the well-known equation, e.g., [63,64,65], see above.

We next consider the case of identical photons at $\Delta \tau =0$, in this case $\varphi ({\omega }_1,{\omega }_2)=\varphi ({\omega }_2,{\omega }_1)$ and $R({\omega }_1,{\omega }_2)=R({\omega }_2,{\omega }_1)$, and the quantity

$$\begin{array}{c}\hfill P_{1,2}(\Delta \tau =0)=\overline{{(T-R)}^2}=\int {|\varphi ({\omega }_1,{\omega }_2)|}^2{\left(T({\omega }_1,{\omega }_2)-R({\omega }_1,{\omega }_2)\right)}^{2}d{\omega }_{1}d{\omega }_2.\end{array}$$

(44)

If in (44) we choose $\overline{T}=\overline{R}=1/2$, then we get $P_{1,2}=4(\overline{T^2}-{\overline{T}}^2)=4(\overline{R^2}-{\overline{R}}^2)$. In other words, there is a mean-square fluctuation of the coefficients of transmission T and reflection R, which leads to a nonzero value of $P_{1,2}$ in the case of identical photons. This conclusion is fundamental in the theory of HOM interference and was not previously obtained. In addition, from the previously obtained Equations (43) and (44) it follows that the $P_{1,2}(\Delta \tau \gg {\tau }_c)=2\overline{T^2}=2\overline{R^2}$ (${\tau }_c$ is the coherence time).

Let us present the results of calculating the value of $P_{1,2}$ for the case

$$\begin{array}{c}\hfill \varphi ({\omega }_1,{\omega }_2)=C{e}^{-\frac{{({\omega }_1+{\omega }_2-{\mathrm{\Omega }}_p)}^2}{2{\sigma }_p^2}}{e}^{-\frac{{({\omega }_1-{\omega }_{01})}^2}{2{\sigma }_1^2}}{e}^{-\frac{{({\omega }_2-{\omega }_{02})}^2}{2{\sigma }_2^2}}.\end{array}$$

(45)

We will be interested in the case applicable for most sources of photons ${\omega }_{02}-{\omega }_{01}\ll {\omega }_{01},{\omega }_{02}$; ${\omega }_{01}/{\sigma }_1\gg 1$; ${\omega }_{02}/{\sigma }_2\gg 1$, in this case the normalization constant $C=\frac{{({\sigma }_1^2+{\sigma }_2^2+{\sigma }_p^2)}^{1/4}}{\sqrt{\pi {\sigma }_1{\sigma }_2{\sigma }_p}}$. The function (45) allows us to analyze the value of $P_{1,2}$ for two cases that are of practical interest. The first case is spontaneous parametric down-conversion (SPDC), for example, for ${\mathrm{\Omega }}_p=2{\omega }_0;{\omega }_0={\omega }_{01}={\omega }_{02};{\sigma }_1={\sigma }_2=\sigma$ is SPDC of type I, where ${\sigma }_p$ is the bandwidth of the pump beam, ${\omega }_0$ and $\sigma$ are the central frequency and the bandwidth, respectively, for both the signal and the idle beams [66]. On the other hand, and for the second case, if we consider ${\sigma }_p\to \infty$ in (45), then this will be the case of Fock states (e.g., [58,66]). Indeed, in this case, in Equation (45), the $\varphi ({\omega }_1,{\omega }_2)$ function will be factorized, which corresponds to Fock states. Substituting (45) into (43) we obtain [17,24,25]

$$P_{1,2}={\int }_{-\infty }^{\infty }\{e^{-{(y-\frac{\Delta \omega }{{\mathrm{\Omega }}_g})}^2}\left(T^2\left(y\right)+R^2\left(y\right)\right)-2B{e}^{-{\left(\frac{\Delta \omega }{{\mathrm{\Omega }}_g}\right)}^2}T\left(By\right)R\left(By\right)e^{-y^2}cos\left(B\Delta \tau {\mathrm{\Omega }}_{g}y\right)\}\frac{dy}{\sqrt{\pi }},$$

(46)

where $B=A\sqrt{\frac{1+\frac{{\sigma }_p^2}{{\sigma }_1^2+{\sigma }_2^2}}{A^2+\frac{{\sigma }_p^2}{{\sigma }_1^2+{\sigma }_2^2}}}$ and $B\in (0,1)$; $A=\frac{2{\sigma }_1{\sigma }_2}{{\sigma }_1^2+{\sigma }_2^2};{\mathrm{\Omega }}_g=\sqrt{\frac{4{\sigma }_1^2{\sigma }_2^2+({\sigma }_1^2+{\sigma }_2^2){\sigma }_p^2}{{\sigma }_1^2+{\sigma }_2^2+{\sigma }_p^2}}$,

$$\begin{array}{c}\hfill \Delta \omega ={\omega }_{02}\frac{{\sigma }_p^2+2{\sigma }_1^2}{{\sigma }_1^2+{\sigma }_2^2+{\sigma }_p^2}-{\omega }_{01}\frac{{\sigma }_p^2+2{\sigma }_2^2}{{\sigma }_1^2+{\sigma }_2^2+{\sigma }_p^2}+{\mathrm{\Omega }}_p\frac{{\sigma }_2^2-{\sigma }_1^2}{{\sigma }_1^2+{\sigma }_2^2+{\sigma }_p^2},\end{array}$$

where $T\left(y\right)$ and $R\left(y\right)$ are determined by the Equation (28), with the only difference being that

$$\begin{array}{c}\hfill \mathrm{\Omega }=\frac{4\pi n}{{\omega }_0}{\mathbf{u}}_1{\mathbf{u}}_2,ϵ=\frac{{\mathrm{\Omega }}_g}{\mathrm{\Omega }}y,{\omega }_0=\frac{2{\sigma }_p{\sigma }_1^2{\sigma }_2^2+{\sigma }_p^2({\sigma }_2^2{\omega }_{01}+{\sigma }_1^2{\omega }_{02})}{4{\sigma }_1^2{\sigma }_2^2+({\sigma }_1^2+{\sigma }_2^2){\sigma }_p^2}.\end{array}$$

(47)

If we assume that ${\mathrm{\Omega }}_g/\mathrm{\Omega }\ll 1$, then T and R become constant quantities and such a BS becomes “conventional”, i.e., one can always choose $T=R=1/2$. From estimates of $\mathrm{\Omega }$ it can be seen that ${\mathrm{\Omega }}_g$ can be of the order of $\mathrm{\Omega }$, so it is necessary to take into account fluctuations of the coefficients R and T. The equation for $P_{1,2}$, in our case Equation (46) at constants $T=R=1/2$, is easily integrated and coincides with the known $P_{1,2}=1/2(1-B{e}^{-{(\Delta \omega /{\mathrm{\Omega }}_g)}^2}{e}^{-1/4{(B{\mathrm{\Omega }}_g\Delta \tau )}^2})$, e.g., [58]. Next, consider the value of $P_{1,2}$ as a function of $\Delta \tau {\mathrm{\Omega }}_g$ in the case ${\sigma }_1={\sigma }_2=\sigma$ for different values of ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ and $\Delta \omega /{\mathrm{\Omega }}_g$, but for $\mathrm{\Omega }{t}_{BS}$ such that $\overline{T}=\overline{R}=1/2$; see Figure 13: as ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ increases, the value of $P_{1,2}$ tends to one.

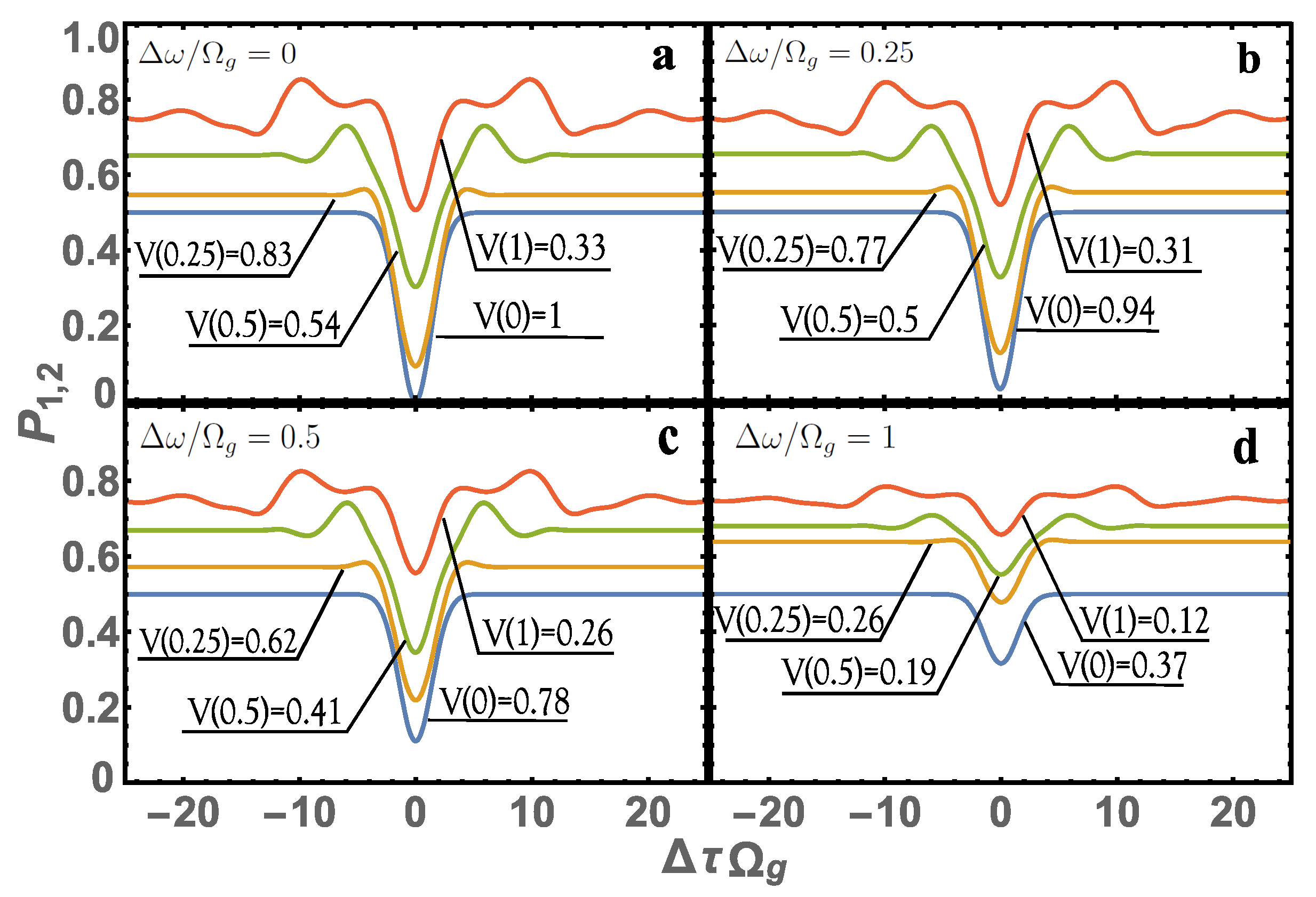

Figure 13. Dependence of $P_{1,2}$ on $\Delta \tau {\mathrm{\Omega }}_g$ (HOM dip). Case (a) corresponds to fully identical photons and cases (b–d) correspond to non-identical photons. Visibility $\mathrm{V}=\frac{P_{1,2}(\Delta \tau \gg {\tau }_c)-P_{1,2}(\Delta \tau =0)}{P_{1,2}(\Delta \tau \gg {\tau }_c)}=\mathrm{V}({\mathrm{\Omega }}_g/\mathrm{\Omega })$ depends on the parameter ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ (line color corresponds to: red at ${\mathrm{\Omega }}_g/\mathrm{\Omega }=1$, green at ${\mathrm{\Omega }}_g/\mathrm{\Omega }=0.5$, brown at ${\mathrm{\Omega }}_g/\mathrm{\Omega }=0.25$, blue at ${\mathrm{\Omega }}_g/\mathrm{\Omega }=0$). The case ${\mathrm{\Omega }}_g/\mathrm{\Omega }=0$ and visibility $\mathrm{V}\left(0\right)$ corresponds to the previously known HOM interference theory with constant coefficients $T=R=1/2$.

Figure 13 also shows that when accounting for T and R from frequency, $P_{1,2}$ can differ significantly from the previously known HOM interference theory. This means that even if the photons are identical and the beam splitter is perfectly balanced, then $P_{1,2}$ can differ significantly from zero, which cannot be the case with “conventional” BS. This clarification is very important, because using a frequency-dependent BS, even in the case of identical photons and balanced BS, it is impossible to determine the degree of photon identity using the HOM interferometer.

Let us give in more detail the case of the same photons and balanced BS, i.e., ${\sigma }_1={\sigma }_2=\sigma$, $\Delta \omega =0$ and $\Delta \tau =0$ the results obtained here can essentially differ from the standard HOM theory, where, as is well known, the visibility of $V=1$, see Figure 14.

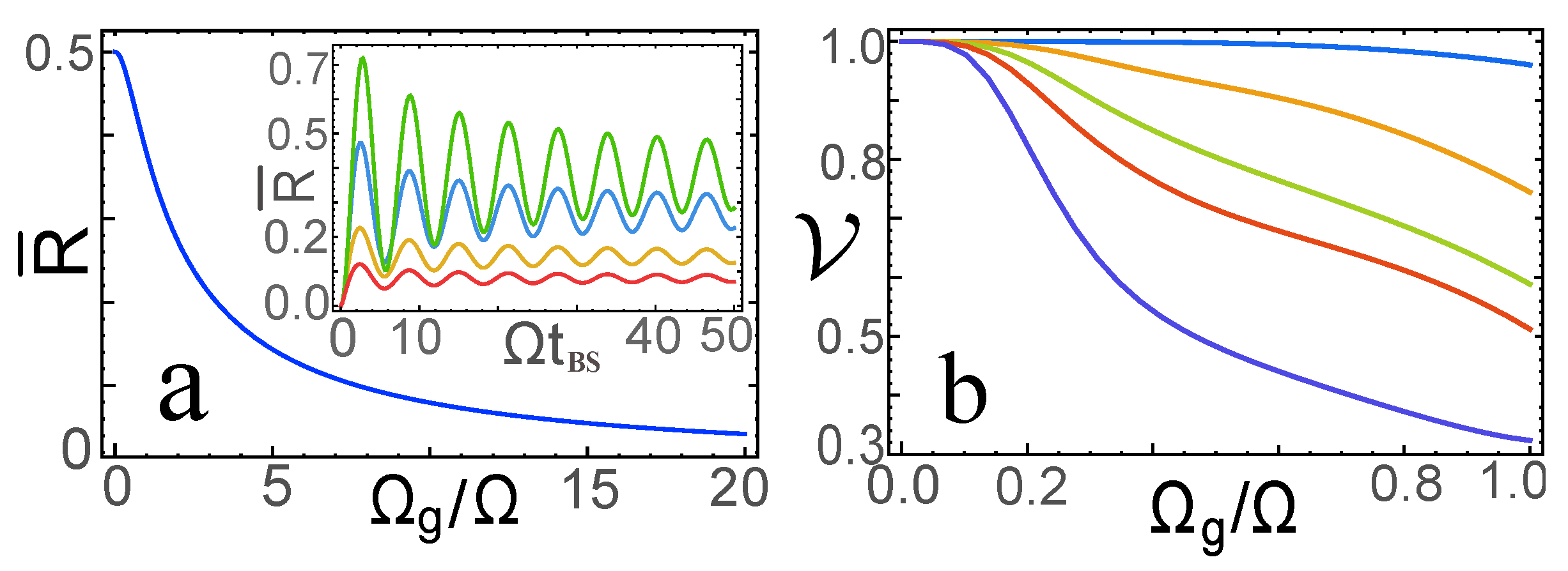

Figure 14. (a) The dependence of the average reflection coefficient $\overline{R}$ (see Equation (44)) as a function of ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ for large (asymptotic) values of $\mathrm{\Omega }{t}_{BS}\gg 1$. The internal tab contains $\overline{R}$ depending on $\mathrm{\Omega }{t}_{BS}$ for ${\mathrm{\Omega }}_g/\mathrm{\Omega }=1;2;5;10$ (top-down in figure). (b) The visibility of $\mathcal{V}$ at $\overline{R}=\overline{T}=1/2$ depending on ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ for five values of the lengths of the coupled waveguide, which corresponds to $\mathrm{\Omega }{t}_{BS}\approx 2;8;14;20;30$ (top-down in figure).

As can be seen from the figures, the standard HOM theory is applicable only for ${\mathrm{\Omega }}_g/\mathrm{\Omega }\ll 1$. Differences from standard HOM theory can be very large. This is especially noticeable in Figure 14b, where the visibility of V changes very much. You can also see in Figure 14a (tab), that only for certain $\mathrm{\Omega }{t}_{BS}$ for given ${\mathrm{\Omega }}_g/\mathrm{\Omega }$ you can choose $\overline{T}=\overline{R}=1/2$. Moreover, the number of choices $\mathrm{\Omega }{t}_{BS}$ is limited and depends on ${\mathrm{\Omega }}_g/\mathrm{\Omega }$, and therefore depends on the length of the coupled waveguide (length limited from above). There are no such limitations in the standard HOM theory [14]. For example, with ${\mathrm{\Omega }}_g/\mathrm{\Omega }>2$, the HOM effect cannot be realized, i.e., $\overline{R}<1/2$.

6. Conclusions

Thus, in this review paper, we considered the BS in quantum optics, as well as quantum entanglement and photon statistics at the BS output ports and the HOM effect. The special purpose of this work was to present the theory of the beam splitter in quantum optics and to systematize such BS into two types: “conventional” and frequency-dependent BS (waveguide BS). Based on this systematization, the quantum entanglement of photons and their statistics, as well as the HOM effect, are presented. It is shown that these two types of beam splitters, despite their common matrix BS (see Equation (3)), can have significantly different quantum entanglement, statistics, and HOM effect. We also presented the theory of a frequency-dependent beam splitter based on a waveguide BS, where the reflection coefficients R and the phase shift $\varphi$ are found. It is shown that the special dependence of R and $\varphi$ (see Equation (28)) on the frequencies of incoming photons determines such unique properties of the waveguide BS, which differ from “conventional” BS. Taking into account the fact that the waveguide BS is currently acquiring an important role in quantum technologies due to the possibility of its miniaturization, this review will be useful not only for theoreticians, but also for experimenters.
