# Novel Approach to Fault-Tolerant Control of Inter-Turn Short Circuits in Permanent Magnet Synchronous Motors for UAV Propellers

^{*}

## Abstract

**:**

## 1. Introduction

_{2}-emissions, lower noise, a higher efficiency, a reduced thermal signature (crucial for military applications), and simplified maintenance. However, several reliability and safety issues are still open, especially for long-endurance UAVs flying in unsegregated airspaces.

- Take-off weight: from 35 to 50 kg;
- Endurance: >6 h;
- Range: >3 km;
- Take-off system: pneumatic launcher;
- Landing system: parachute and airbags;
- Propulsion system: Permanent Magnet Synchronous Motor (PMSM) powering a twin-blade fixed-pitch propeller;
- Innovative sensing systems:
- ○
- Synthetic aperture radar, to support surveillance missions in adverse environmental conditions;
- ○
- Sense-and-avoid system, integrating a camera with a miniaturised radar, to support autonomous flight capabilities in emergency conditions.

## 2. Materials and Methods

#### 2.1. System Description

- An electromechanical section, with:
- ○
- Three-phase surface-mounted PMSM with phase windings in Y-connection;
- ○
- Twin-blade fixed-pitch propeller [41];
- ○
- Mechanical coupling joint.

- An Electronic Control Unit (ECU), including:
- ○
- CONtrol/MONitoring (CON/MON) module, for the implementation of the closed-loop control and health-monitoring functions;
- ○

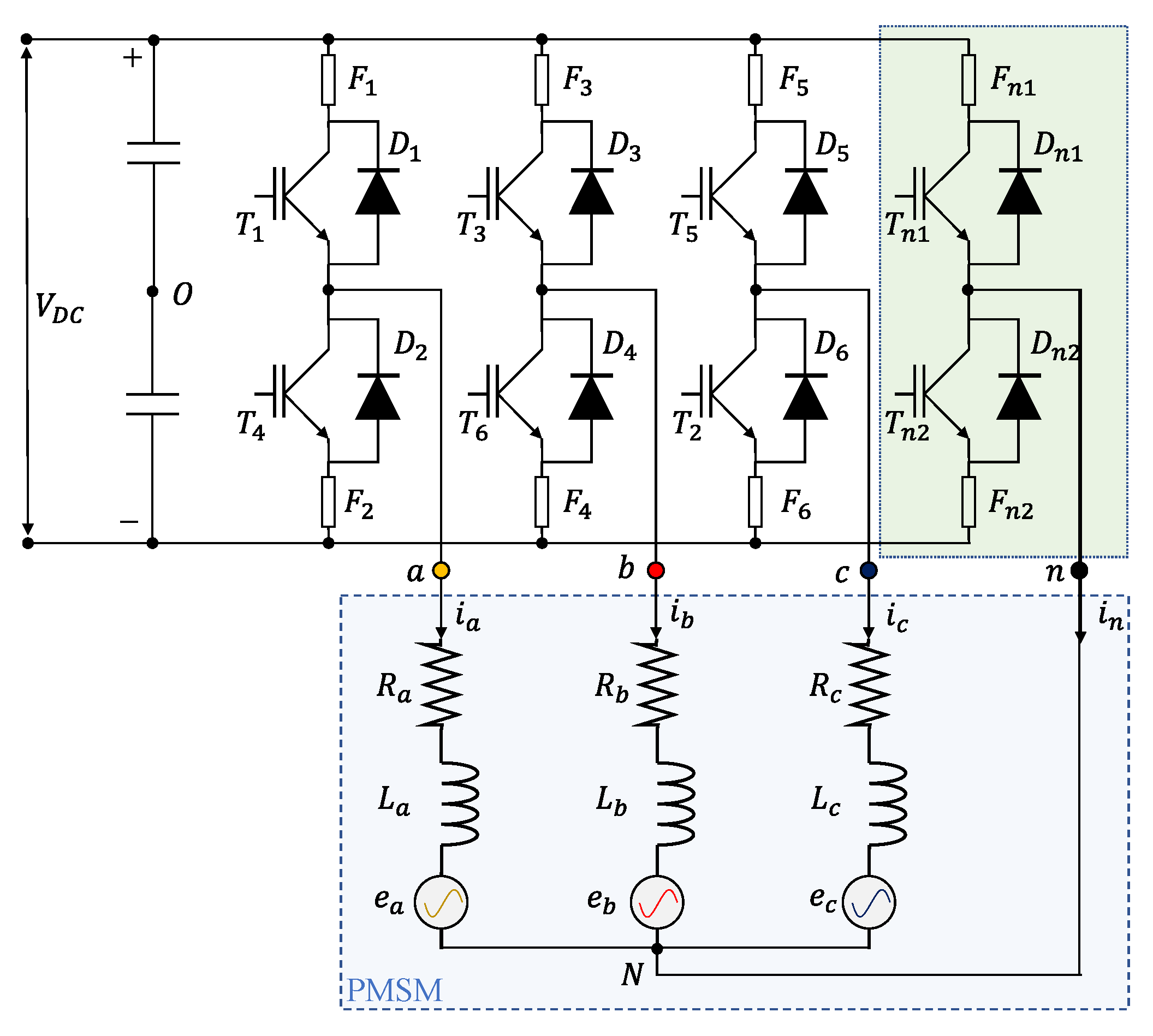

- Four-leg converter;
- ○
- Three current sensors (CSa, CSb, CSc), one per each motor phase;
- ○
- One Angular Position Sensor (APS), measuring the motor angle;
- ○
- A Power Supply Unit (PSU), converting the power input coming from the UAV electrical power storage system to all components and sensors;
- ○
- Data and power connectors for the interface with the Flight Control Computer (FCC) and the UAV electrical system.

#### 2.2. Model of the Aero-Mechanical Section

#### 2.3. Model of the PMSM with ITSC Fault

## 3. Fault-Tolerant Control System

#### 3.1. FDI Algorithm Conceptualization

- An ITSC fault can be detected by measuring the difference between the lengths of major and minor axes of the ellipse;
- An ITSC fault can be isolated by measuring the inclination of the major axis of the ellipse.

- The difference between the lengths of major and minor axes of the ellipse provides a symptom about the ITSC extension (fault detection);
- The inclination of the major axis of the ellipse provides a symptom about the ITSC location (fault isolation).

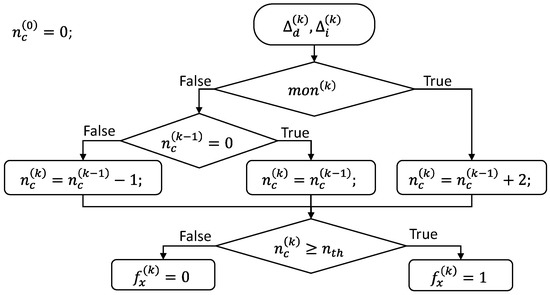

#### 3.2. FDI Algorithm Design and Implementation

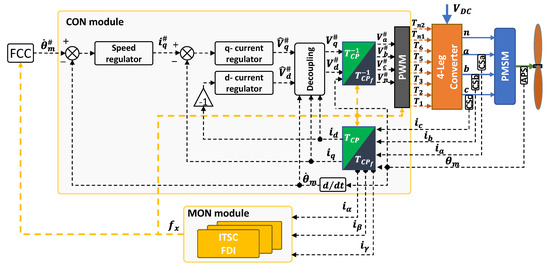

#### 3.3. Fault Accommodation Algorithm

- From the planar reference $\left({n}_{f},{b}_{f},{c}_{f}\right)$ to a planar reference frame $({\alpha}_{f},{\beta}_{f},{\mathit{\gamma}}_{f})$, in which the ${\alpha}_{f}$ axis has an opposite direction w.r.t. the neutral current axis ${n}_{f}$;
- From the planar reference $({\alpha}_{f},{\beta}_{f},{\mathit{\gamma}}_{f})$ to a planar rotating frame $({d}_{f},{q}_{f},{z}_{f})$ that maintains the same commands after the isolation (${i}_{d}{}_{f}={i}_{d}^{*}$ and ${i}_{q}{}_{f}={i}_{q}^{*})$.

## 4. Results and Discussion

#### 4.1. Failure Transient Characterization

^{−6}s integration step. It is worth noting that the choice of a fixed-step solver is not strictly related to the objectives of this work (in which the model is used for “off-line” simulations testing the FTC), but it has been selected for the next step of the project, when the FTC system will be implemented in the ECU boards via the automatic MATLAB compiler and executed in “real-time”.

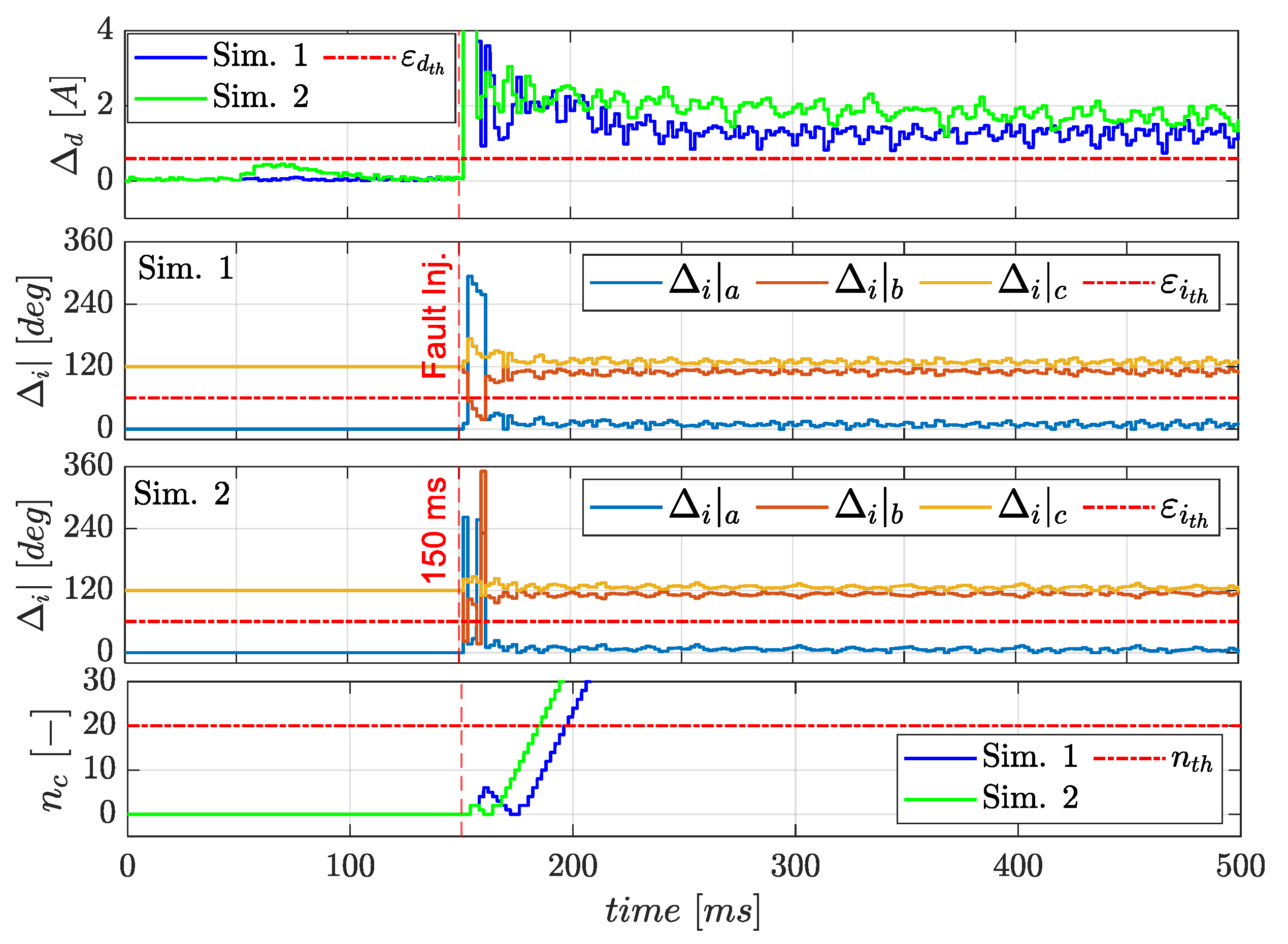

#### 4.2. FDI Parameters Definition

- Simulation 1: cruise speed hold,
- Simulation 2: maximum speed ramp demand.

#### 4.3. Critical Comparison with Other ITSC FDI Methods

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A

**.**It is worth noting that the matrix $\u2102$ is singular, and $\mathbb{S}$ is also singular if all data points lie exactly on an ellipse. Because of that, the computation of eigenvalues is numerically unstable and it can produce wrong results (as infinite or complex numbers). To overcome the drawback, Halìř [52] suggested to partition the $\u2102$ and $\mathbb{S}$ matrices. The constraint matrix is defined as:

## Appendix B

Definition | Symbol | Value | Unit |
---|---|---|---|

Cruise speed | ${\dot{\theta}}_{p}$_{|cruise} | 5800 | rpm |

Cruise power | P_{p|cruise} | 1100 | W |

Climb speed | ${\dot{\theta}}_{p}$_{|climb} | 7400 | rpm |

Climb power | P_{p|climb} | 3238 | W |

Definition | Symbol | Value | Unit |
---|---|---|---|

Stator phase resistance | R | 0.025 | Ω |

Stator phase inductance single module | L | 1 × 10^{−5} | H |

Pole pairs number | n_{d} | 5 | - |

Total turns number per phase | N | 36 | - |

Torque constant | k_{t} | 0.12 | Nm/A |

Back-electromotive force constant | k_{e} | 0.036 | V/(rad/s) |

Permanent magnet flux linkage | λ_{m} | 0.008 | Wb |

Maximum current (continuous duty cycle) | I_{sat} | 80 | A |

Voltage supply | V_{DC} | 36 | V |

Rotor inertia | J_{em} | 8.2 × 10^{−3} | kg·m^{2} |

Propeller diameter | D_{p} | 0.5588 | m |

Propeller inertia | J_{p} | 1.62 × 10^{−2} | kg·m^{2} |

Joint stiffness | K_{gb} | 1.598 × 10^{3} | Nm/rad |

Joint damping | C_{gb t} | 0.2545 | Nm/(rad/s) |

Insulation resistance coefficient | k_{Rf} | 11 | - |

Maximum cogging torque | Q_{cmax} | 0.036 | Nm |

Harmonic index of the cogging disturbances | n_{h} | 12 | - |

Definition | Symbol | Value | Unit |
---|---|---|---|

Control frequency | ${f}_{CL}$ | $20$ | $\mathrm{kHz}$ |

Ellipse measurement points | $n$ | $40$ | $-$ |

Sampling frequency $(={f}_{CL}/n)$ | ${f}_{FDI}$ | $500$ | $\mathrm{Hz}$ |

Detection index threshold | ${\epsilon}_{d}{}_{th}$ | $0.6$ | $\mathrm{A}$ |

Isolation index threshold | ${\epsilon}_{i}{}_{th}$ | $60$ | $\mathrm{deg}$ |

Fault counter threshold | ${n}_{th}$ | $20$ | $-$ |

## References

- Dipartimento di Ingegneria Civile e Industriale, Progetti istituzionali. TERSA (Tecnologie Elettriche e Radar per Sistemi aeromobili a pilotaggio remoto Autonomi). Available online: https://dici.unipi.it/ricerca/progetti-finanziati/tersa/ (accessed on 1 July 2022).
- Nandi, S.; Toliyat, H.; Li, X. Condition Monitoring and Fault Diagnosis of Electrical Motors—A Review. IEEE Trans. Energy Convers.
**2005**, 20, 719–729. [Google Scholar] [CrossRef] - NATO Standardization Agency. STANAG 4671—Standardization Agreement—Unmanned Aerial Vehicles Systems Airworthiness Requirements (USAR); NATO Standardization Agency (STANAG): Brussels, Belgium, 2009. [Google Scholar]
- Kontarcek, A.; Bajec, P.; Nemec, M.; Ambrožic, V.; Nedeljkovic, D. Cost-Effective Three-Phase PMSM Drive Tolerant to Open-Phase Fault. IEEE Trans. Ind. Electron.
**2015**, 62, 6708–6718. [Google Scholar] [CrossRef] - Cao, W.; Mecrow, B.; Atkinson, G.; Bennett, J.; Atkinson, D. Overview of Electric Motor Technologies Used for More Electric Aircraft (MEA). IEEE Trans. Ind. Electron.
**2012**, 59, 3523–3531. [Google Scholar] [CrossRef] - Suti, A.; Di Rito, G.; Galatolo, R. Fault-Tolerant Control of a Dual-Stator PMSM for the Full-Electric Propulsion of a Lightweight Fixed-Wing UAV. Aerospace
**2022**, 9, 337. [Google Scholar] [CrossRef] - De Rossiter Correa, M.; Jacobina, C.; Da Silva, E.; Lima, A. An induction motor drive system with improved fault tolerance. IEEE Trans. Ind. Appl.
**2001**, 37, 873–879. [Google Scholar] [CrossRef] - Ribeiro, R.; Jacobina, C.; Lima, A.; Da Silva, E. A strategy for improving reliability of motor drive systems using a four-leg three-phase converter. In Proceedings of the APEC 2001. Sixteenth Annual IEEE Applied Power Electronics Conference and Exposition (Cat. No. 01CH37181), Anaheim, CA, USA, 4–8 March 2001. [Google Scholar] [CrossRef]
- Suti, A.; Di Rito, G.; Galatolo, R. Fault-Tolerant Control of a Three-Phase Permanent Magnet Synchronous Motor for Lightweight UAV Propellers via Central Point Drive. Actuators
**2021**, 10, 253. [Google Scholar] [CrossRef] - Khalaief, A.; Boussank, M.; Gossa, M. Open phase faults detection in PMSM drives based on current signature analysis. In Proceedings of the XIX International Conference on Electrical Machines-ICEM 2010, Rome, Italy, 6–8 September 2010. [Google Scholar] [CrossRef]
- Li, W.; Tang, H.; Luo, S.; Yan, X.; Wu, Z. Comparative analysis of the operating performance, magnetic field, and temperature rise of the three-phase permanent magnet synchronous motor with or without fault-tolerant control under single-phase open-circuit fault. IET Electr. Power Appl.
**2021**, 15, 861–872. [Google Scholar] [CrossRef] - Faiz, J.; Nejadi-Koti, H.; Valipour, Z. Comprehensive review on inter-turn fault indexes in permanent magnet motors. IET Electr. Power Appl.
**2017**, 11, 142–156. [Google Scholar] [CrossRef] - Krzysztofiak, M.; Skowron, M.; Orlowska-Kowalska, T. Analysis of the Impact of Stator Inter-Turn Short Circuits on PMSM Drive with Scalar and Vector Control. Energies
**2021**, 14, 153. [Google Scholar] [CrossRef] - Arabaci, H.; Bilgin, O. The Detection of Rotor Faults By Using Short Time Fourier Transform. In Proceedings of the 2007 IEEE 15th Signal Processing and Communications Applications, Eskisehir, Turkey, 11–13 June 2007. [Google Scholar] [CrossRef]
- Mohammed, O.A.; Liu, Z.; Liu, S.; Abed, N.Y. Internal Short Circuit Fault Diagnosis for PM Machines Using FE-Based Phase Variable Model and Wavelets Analysis. IEEE Trans. Magn.
**2007**, 43, 1729–1732. [Google Scholar] [CrossRef] - Mazzoleni, M.; Di Rito, G.; Previdi, F. Fault Diagnosis and Condition Monitoring Approaches. In Electro-Mechanical Actuators for the More Electric Aircraft; Springer: Cham, Switzerland, 2021; pp. 87–117. [Google Scholar]
- Awadallah, M.; Morcos, M.; Gopalakrishnan, S.; Nehl, T. A neuro-fuzzy approach to automatic diagnosis and location of stator inter-turn faults in CSI-fed PM brushless DC motors. IEEE Trans. Energy Convers.
**2005**, 20, 253–259. [Google Scholar] [CrossRef] - Awadallah, M.; Morcos, M.; Gopalakrishnan, S.; Nehl, T. Detection of stator short circuits in VSI-fed brushless DC motors using wavelet transform. IEEE Trans. Energy Convers.
**2006**, 21, 1–8. [Google Scholar] [CrossRef] - Penman, J.; Sedding, H.; Lloyd, B.; Fink, W. Detection and location of interturn short circuits in the stator windings of operating motors. IEEE Trans. Energy Convers.
**1994**, 9, 652–658. [Google Scholar] [CrossRef] [Green Version] - Ebrahimi, B.M.; Faiz, J. Feature Extraction for Short-Circuit Fault Detection in Permanent-Magnet Synchronous Motors Using Stator-Current Monitoring. IEEE Trans. Power Electron.
**2010**, 25, 2673–2682. [Google Scholar] [CrossRef] - Aubert, B.; Régnier, J.; Caux, S. Kalman-filter-based indicator for online inter turn short circuits detection in permanent-magnet synchonous generator. IEEE Trans. Ind. Electron.
**2014**, 62, 1921–1930. [Google Scholar] [CrossRef] - Immovilli, F.; Bianchini, C.; Lorenzani, E.; Bellini, A.; Fornasiero, E. Evaluation of Combined Reference Frame Transformation for Interturn Fault Detection in Permanent-Magnet Multiphase Machines. IEEE Trans. Ind. Electron.
**2014**, 62, 1912–1920. [Google Scholar] [CrossRef] - Sarikhani, A.; Mohammed, O.A. Inter-Turn Fault Detection in PM Synchronous Machines by Physics-Based Back Electromotive Force Estimation. IEEE Trans. Ind. Electron.
**2012**, 60, 3472–3484. [Google Scholar] [CrossRef] - Urresty, J.C.; Riba, J.R.; Romeral, L. Diagnosis of Interturn Faults in PMSMs Operating Under Nonstationary Conditions by Applying Order Tracking Filtering. IEEE Trans. Power Electron.
**2012**, 28, 507–515. [Google Scholar] [CrossRef] - Hang, J.; Zhang, J.; Cheng, M.; Huang, J. Online Interturn Fault Diagnosis of Permanent Magnet Synchronous Machine Using Zero-Sequence Components. IEEE Trans. Power Electron.
**2015**, 30, 6731–6741. [Google Scholar] [CrossRef] - Boileau, T.; Leboeuf, N.; Nahid-Mobarakeh, B.; Meibody-Tabar, F. Synchronous Demodulation of Control Voltages for Stator Interturn Fault Detection in PMSM. IEEE Trans. Power Electron.
**2013**, 28, 5647–5654. [Google Scholar] [CrossRef] - Meinguet, F.; Semail, E.; Kestelyn, X.; Mollet, Y.; Gyselinck, J. Change-detection algorithm for short-circuit fault detection in closed-loop AC drives. IET Electr. Power Appl.
**2012**, 8, 165–177. [Google Scholar] [CrossRef] [Green Version] - Cardoso, A.J.M.; Cruz, A.M.A.; Fonseca, D.S.B. Inter-turn stator winding fault diagnosis in three-phase induction motors, by Park’s vector approach. IEEE Trans. Energy Convers.
**1999**, 14, 595–598. [Google Scholar] [CrossRef] - Cruz, S.M.A.; Cardoso, A.J.M. Stator winding fault diagnosis in three-phase synchronous and asynchronous motors, by the extended Park’s vector approach. IEEE Trans. Ind. Appl.
**2001**, 37, 1227–1233. [Google Scholar] [CrossRef] - Abitha, M.; Rajini, V. Park’s vector approach for online fault diagnosis of induction motor. In Proceedings of the 2013 International Conference on Information Communication and Embedded Systems (ICICES), Chennai, India, 21–22 February 2013. [Google Scholar] [CrossRef]
- Goh, Y.-J.; Kim, O. Linear Method for Diagnosis of Inter-Turn Short Circuits in 3-Phase Induction Motors. Appl. Sci.
**2019**, 9, 4822. [Google Scholar] [CrossRef] [Green Version] - Kim, K.H. Simple Online Fault Detecting Scheme for Short-Circuited Turn in a PMSM Through Current Harmonic Monitoring. IEEE Trans. Ind. Electron.
**2010**, 58, 2565–2568. [Google Scholar] [CrossRef] - Jung, J.H.; Lee, J.J.; Kwon, B.-H. Online Diagnosis of Induction Motors Using MCSA. IEEE Trans. Ind. Electron.
**2006**, 53, 1842–1852. [Google Scholar] [CrossRef] - Haddad, R.Z.; Strangas, E.G. On the Accuracy of Fault Detection and Separation in Permanent Magnet Synchronous Machines Using MCSA/MVSA and LDA. IEEE Trans. Energy Convers.
**2016**, 31, 924–934. [Google Scholar] [CrossRef] - Khan, M.A.S.K.; Rahman, M.A. Development and Implementation of a Novel Fault Diagnostic and Protection Technique for IPM Motor Drives. IEEE Trans. Ind. Electron.
**2008**, 56, 85–92. [Google Scholar] [CrossRef] - Park, C.H.; Lee, J.; Ahn, G.; Youn, M.; Youn, B.D. Fault Detection of PMSM under Non-Stationary Conditions Based on Wavelet Transformation Combined with Distance Approach. In Proceedings of the 2019 IEEE 12th International Symposium on Diagnostics for Electrical Machines, Power Electronics and Drives (SDEMPED), Toulouse, France, 27–30 August 2019. [Google Scholar] [CrossRef]
- Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.-C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis. Proc. R. Soc. London. Ser. A Math. Phys. Eng. Sci.
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Wang, C.; Liu, X.; Chen, Z. Incipient Stator Insulation Fault Detection of Permanent Magnet Synchronous Wind Generators Based on Hilbert–Huang Transformation. IEEE Trans. Magn.
**2014**, 50, 11. [Google Scholar] [CrossRef] - Skowron, M.; Orlowska-Kowalska, T.; Wolkiewicz, M.; Kowalski, C.T. Convolutional Neural Network-Based Stator Current Data-Driven Incipient Stator Fault Diagnosis of Inverter-Fed Induction Motor. Energies
**2020**, 13, 1475. [Google Scholar] [CrossRef] [Green Version] - Bellamy, W., III. Aviation Today. 19 February 2020. Available online: https://www.aviationtoday.com/2020/02/19/easa-expects-certification-first-artificial-intelligence-aircraft-systems-2025/ (accessed on 5 June 2022).
- APC Propellers TECHNICAL INFO. Available online: https://www.apcprop.com/technical-information/performance-data/ (accessed on 2 May 2021).
- Romeral, L.; Urresty, J.C.; Ruiz, J.R.R.; Espinosa, A.G. Modeling of Surface-Mounted Permanent Magnet Synchronous Motors With Stator Winding Interturn Faults. IEEE Trans. Ind. Electron.
**2010**, 58, 1576–1585. [Google Scholar] [CrossRef] - Vaseghi, B.; Nahid-Mobarakeh, B.; Takorabet, N.; Meibody-Tabar, F. Experimentally Validated Dynamic Fault Model for PMSM with Stator Winding Inter-Turn Fault. In Proceedings of the 2008 IEEE Industry Applications Society Annual Meeting, Edmonton, AB, Canada, 5–9 October 2008. [Google Scholar] [CrossRef]
- Jeong, I.; Hyon, B.J.; Kwanghee, N. Dynamic Modeling and Control for SPMSMs With Internal Turn Short Fault. IEEE Trans. Power Electron.
**2012**, 28, 3495–3508. [Google Scholar] [CrossRef] - Fortescue, C.L. Method of Symmetrical Co-Ordinates Applied to the Solution of Polyphase Networks. Trans. Am. Inst. Electr. Eng.
**1918**, 37, 1027–1140. [Google Scholar] [CrossRef] - Pratt, V. Direct least-squares fitting of algebraic surfaces. ACM SIGGRAPH Comput. Graph.
**1987**, 21, 145–152. [Google Scholar] [CrossRef] - Heidari, M.; Heigold, P. Determination of Hydraulic Conductivity Tensor Using a Nonlinear Least Squares Estimator. J. Am. Water Resour. Assoc.
**1993**, 29, 415–424. [Google Scholar] [CrossRef] - Macdonald, P.; Linnik, Y.; Elandt, R. Method of Least Squares and Principles of the Theory of Observation. J. R. Stat. Soc. Ser. D Stat.
**1962**, 12, 335–336. [Google Scholar] [CrossRef] - Leavers, V. Shape Detection in Computer Vision Using the Hough Transform; Springer: London, UK, 1992. [Google Scholar] [CrossRef]
- Bolles, R.; Fishler, M.A. A RANSAC-based approach to model fitting and its application to finding cylinders in range data. In Proceedings of the IJCAI’81: 7th International Joint Conference on Artificial Intelligence-Volume 2, Vancouver, Canada, 24 August 1981. [Google Scholar] [CrossRef]
- Gander, W.; Golub, G.; Strebel, R. Least-squares fitting of circles and ellipses. BIT Numer. Math.
**1994**, 34, 558–578. [Google Scholar] [CrossRef] - Halir, R.; Flusser, J. Numerically Stable Direct Least Squares Fitting of Ellipses. In Proceedings of the International Conference in Central Europe on Computer Graphics, Visualization and Interactive Digital Media, Plzeň, Czech Republic, 9–13 February 1998. [Google Scholar]
- Fitzgibbon, A.; Pilu, M.; Fisher, R. Direct least squares fitting of ellipses. In Proceedings of the 13th International Conference on Pattern Recognition, Vienna, Austria, 25–29 August 1996. [Google Scholar] [CrossRef]
- Weisstein, E.W. “Ellipse,” MathWorld—A Wolfram Web Resource, 17 December 2021. Available online: https://mathworld.wolfram.com/Ellipse.html (accessed on 2 June 2022).
- Zhou, X.; Sun, J.; Li, H.; Song, X. High Performance Three-Phase PMSM Open-Phase Fault-Tolerant Method Based on Reference Frame Transformation. IEEE Trans. Ind. Electron.
**2019**, 66, 7571–7580. [Google Scholar] [CrossRef]

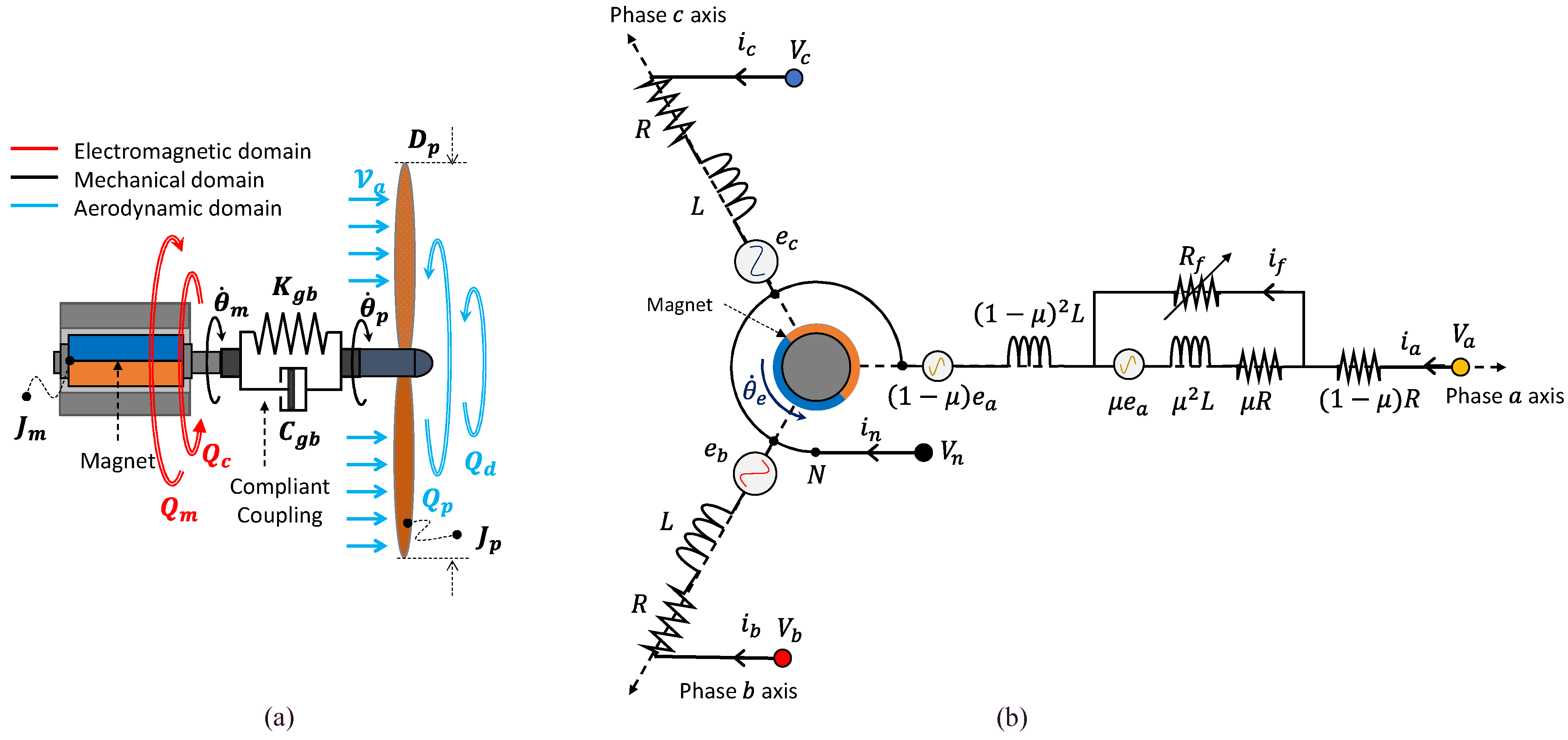

**Figure 4.**Full electric propulsion system: (

**a**) mechanical scheme; (

**b**) three-phase PMSM schematics with shorted turns in phase a (one pole pair and accessible neutral point).

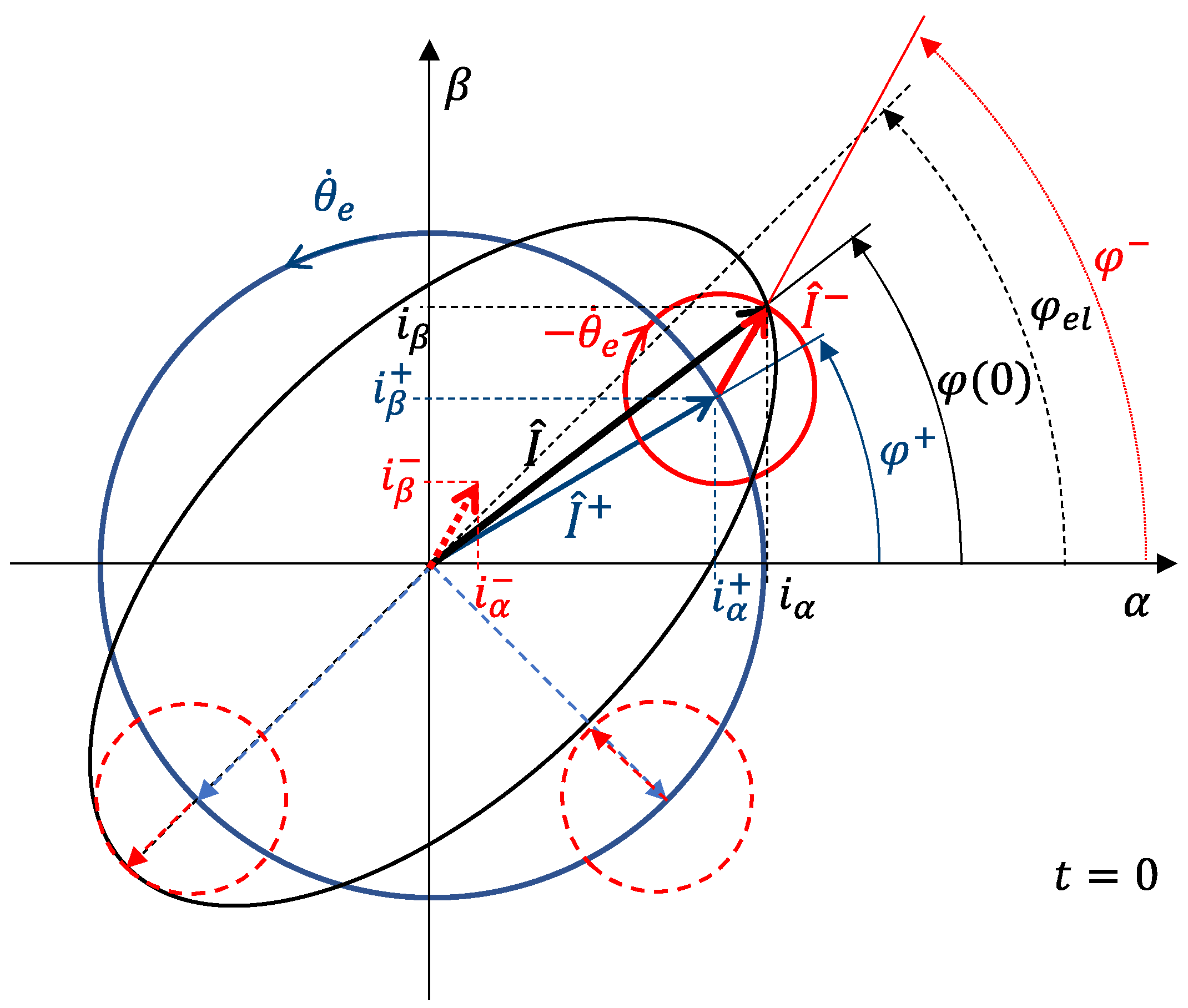

**Figure 5.**Decomposition of the current phasor in the Clarke plane into positive- and negative-sequence components.

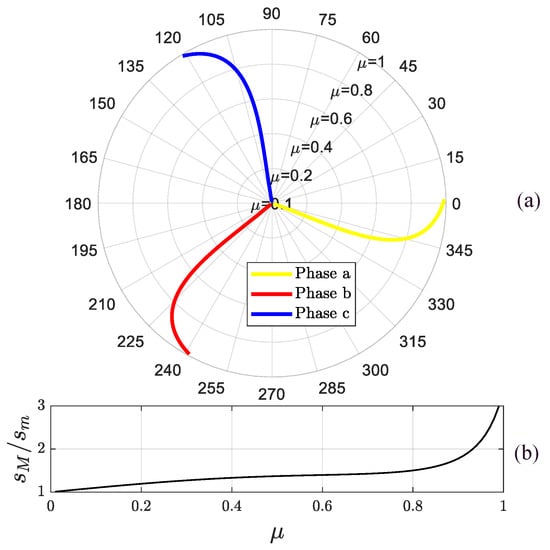

**Figure 6.**Inclination of the ellipse major axis (

**a**) and ellipses axis ratio (

**b**) under ITSC faults of different extensions and locations.

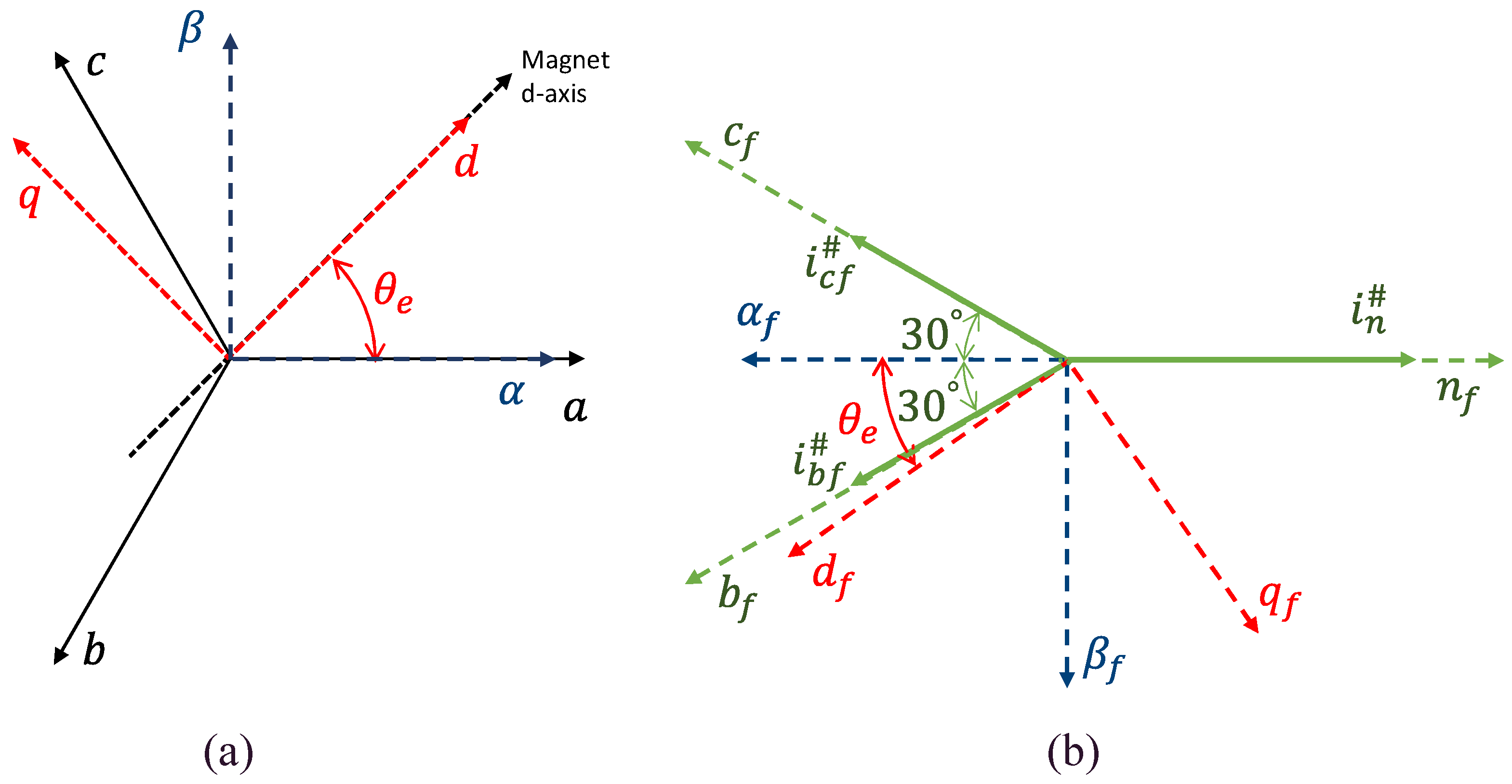

**Figure 8.**Reference frame transformation: (

**a**) normal Clarke–Park transformation, (

**b**) new transformation with phase a isolated.

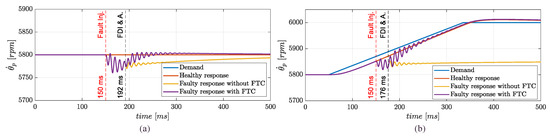

**Figure 10.**Propeller speed tracking with ITSC ($\mu =0.5$) on phase a at t = 150 ms: (

**a**) stationary and (

**b**) unsteady operations.

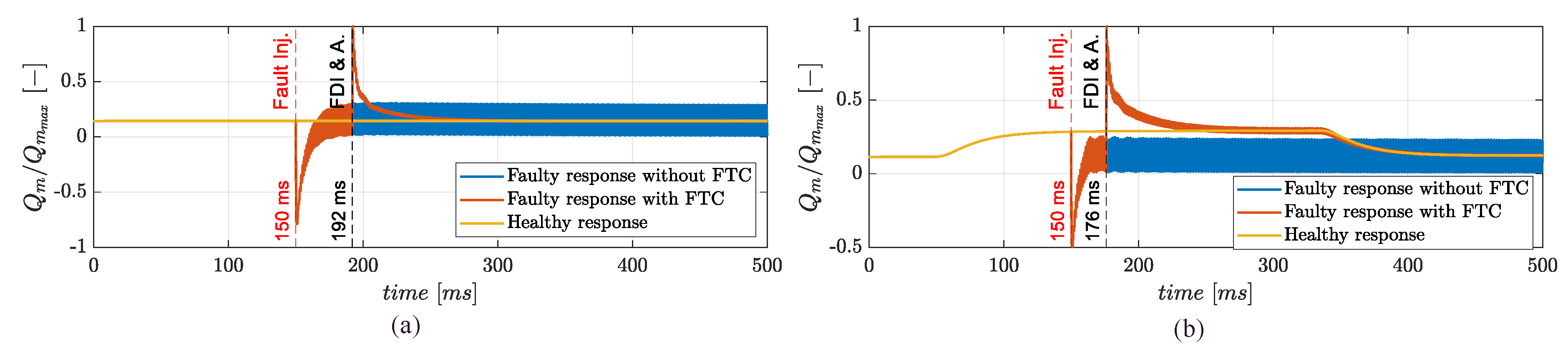

**Figure 11.**Normalized motor torque with ITSC ($\mu =0.5$) on phase a at t = 150 ms: (

**a**) stationary (${Q}_{{m}_{max}}\approx 12\mathrm{Nm}$) and (

**b**) unsteady operations (${Q}_{{m}_{max}}\approx 15\mathrm{Nm}$).

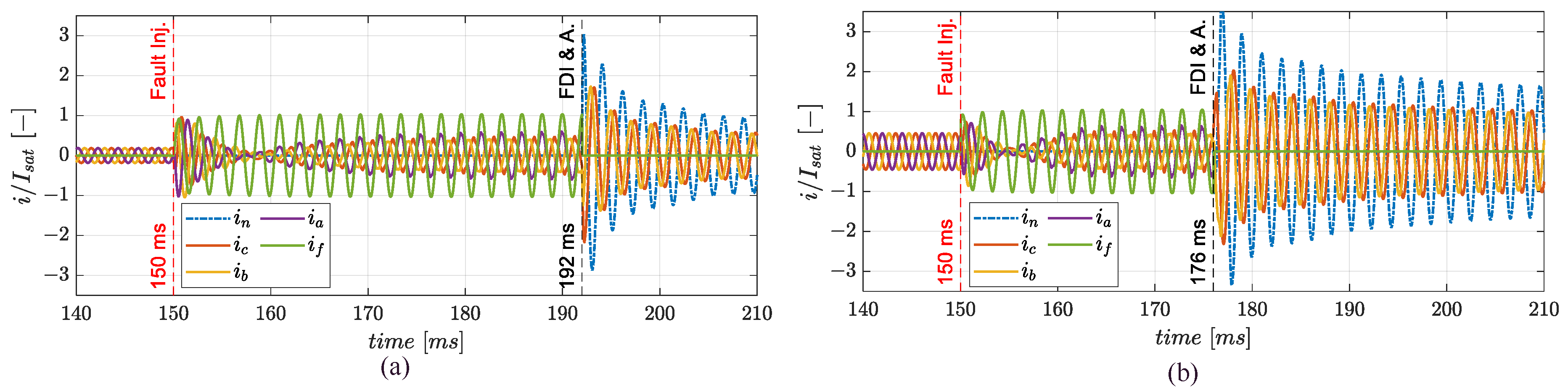

**Figure 12.**Normalized phase currents with ITSC ($\mu =0.5$) on phase a at t = 150 ms (${I}_{sat}=80\mathrm{A}$): (

**a**) stationary (

**b**) unsteady operations.

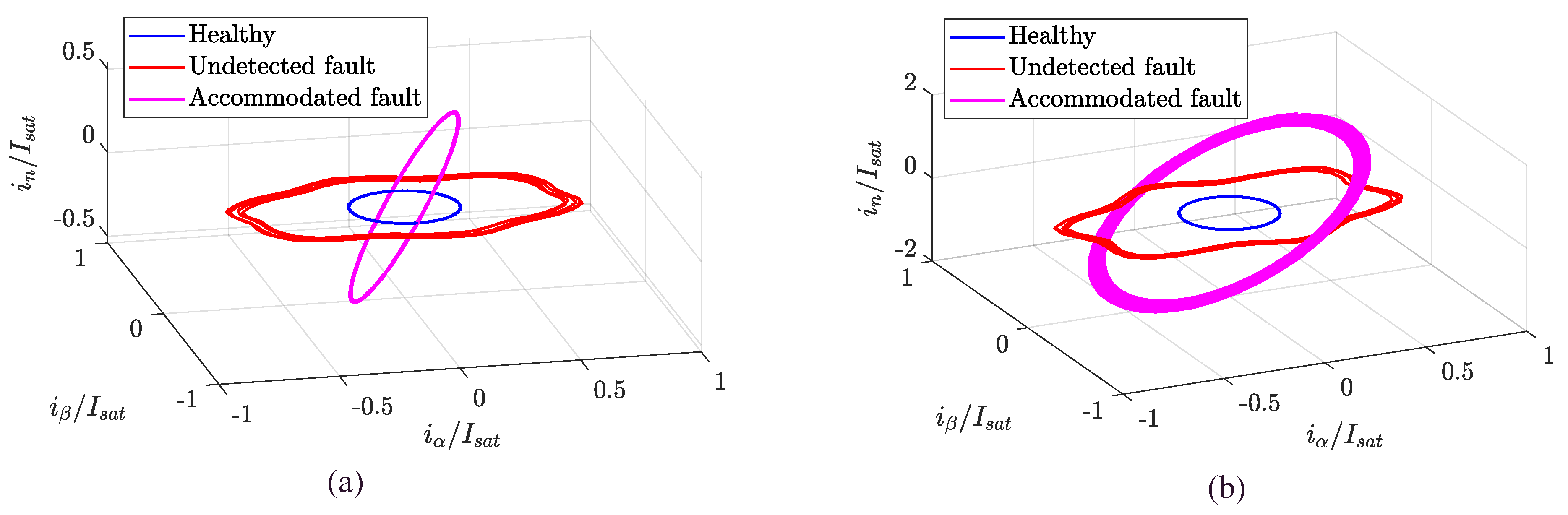

**Figure 13.**Current phasor trajectory in Clarke space with ITSC ($\mu =0.5$) on phase a (${I}_{sat}=80\mathrm{A}$): (

**a**) stationary (

**b**) unsteady operations.

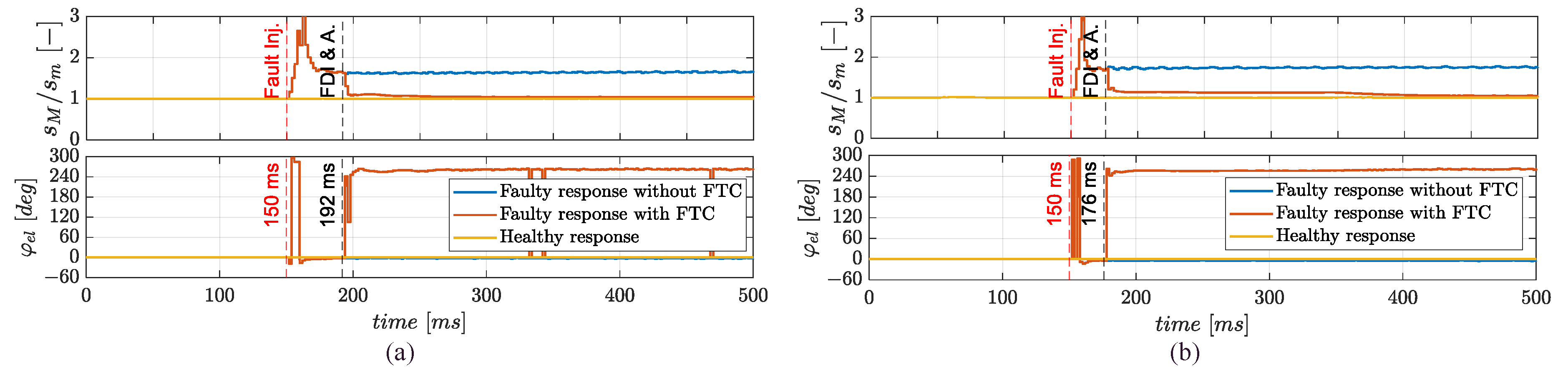

**Figure 14.**Ellipse parameters with ITSC ($\mu =0.5$) on phase a at t = 40 ms: (

**a**) stationary (

**b**) unsteady operations.

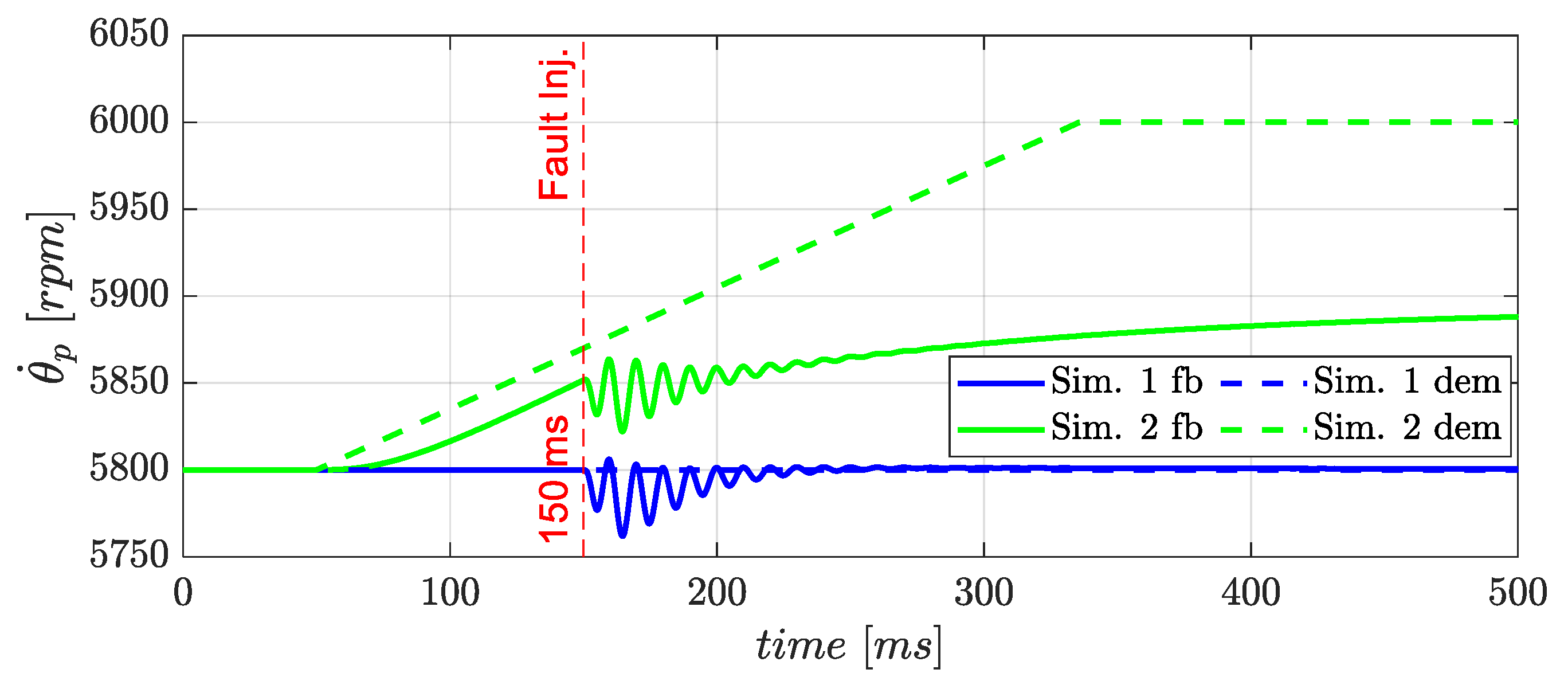

**Figure 15.**Propeller speed demands imposed for FDI design simulations (ITSC with $\mu =0.1$ at t = 150 ms).

Isolated Phase (w) | x | y | m |
---|---|---|---|

a | b | c | 0 |

b | c | a | 2 |

c | a | c | 1 |

Acronym | Method |
---|---|

C1 | Able to detect the faulty phase. |

C2 | Insensitive to operating loads. |

C3 | Robust against speed changes. |

C4 | Robust against current waveform. |

C5 | Minimum number of detected shorted turns. |

C6 | Electrical periods for FDI (latency time). |

C7 | Real-time computation. |

C8 | Tuning simplicity. |

Method | |||||
---|---|---|---|---|---|

Capability | M1 | M2 | M3 | M4 | M5 |

C1 | Yes | No | No | Yes | Yes |

C2 | No | No | Yes | No | Yes |

C3 | No | Yes | No | Not provided | Yes |

C4 | Not provided | Not provided | Not provided | Not provided | Yes |

C5 | 2 | 1 | 4 | 1 | 4 |

C6 | Not provided | Not provided | Not provided | 10 (200 ms) | 20 (40 ms) |

C7 | No | No | No | Yes | Yes |

C8 | Yes | No | Yes | No | Yes |
