Development of Detailed FE Numerical Models for Assessing the Replacement of Metal with Composite Materials Applied to an Executive Aircraft Wing

Valerio Acanfora
Roberto Petillo
Salvatore Incognito
Gerardo Mario Mirra
1 and
Aniello Riccio
Department of Engineering, University of Campania “L. Vanvitelli”, Via Roma, 29, 81031 Aversa, Italy
Protom Group s.p.a., Via Vicinale S.M. del Pianto, 80143 Napoli, Italy
Author to whom correspondence should be addressed.
Aerospace 2021, 8(7), 178;
Submission received: 28 May 2021 / Revised: 15 June 2021 / Accepted: 28 June 2021 / Published: 1 July 2021
(This article belongs to the Special Issue Aircraft Modeling for Design, Simulation and Control)


This work provides a feasibility and effectiveness analysis, through numerical investigation, of metal replacement of primary components with composite material for an executive aircraft wing. In particular, benefits and disadvantages of replacing metal, usually adopted to manufacture this structural component, with composite material are explored. To accomplish this task, a detailed FEM numerical model of the composite aircraft wing was deployed by taking into account process constraints related to Liquid Resin Infusion, which was selected as the preferred manufacturing technique to fabricate the wing. We obtained a geometric and material layup definition for the CFRP components of the wing, which demonstrated that the replacement of the metal elements with composite materials did not affect the structural performance and can guarantee a substantial advantage for the structure in terms of weight reduction when compared to the equivalent metallic configuration, even for existing executive wing configurations.

1. Introduction

Weight reduction together with the improvement of damage tolerance capabilities have always been the key design aspects in the development of structural components for the aerospace/aeronautical industry.
As a consequence of this everlasting challenge, composite materials have been introduced in aerospace applications more than 40 years ago, and now aerospace is still the industrial sector where composite are of major practice. Indeed, composites are characterised by significantly higher strength-to-weight and stiffness-to-weight ratios compared to metallic materials; hence, they have been, in the last years, heavily adopted to replace metals [1,2,3,4,5,6,7]. Examples of replacement activities can be found in the work of Baker, A. A., et al. that describes a cost-efficient methodology to replace metallic honeycomb panels with more durable stiffened graphite/epoxy composite panels [6].
Another example of metal replacement can be found in [7], where a new approach to aircraft design, replacing the classic metal structure with a composite wing whose shape was inspired by the Voronoi pattern (dragonfly wing), was established. This approach allowed considerably saving weight if compared to the equivalent metallic structure.
The adoption of composite materials as a substitute of metal alloys has also extended to industrial sectors other than aerospace. Indeed, Ning Haibin et al. [8] designed and produced an air conditioning roof door of a transport bus by replacing aluminium components with composites, allowing the achievement of excellent results in terms of mechanical performance and weight saving.
Metal replacement with composite has become a common practice in the last years, leading to the growth of focused research centres over the world finalised to promoting the development of advanced manufacturing and design technologies for composites [9].
However, even if composites may help to reduce weight and increase mechanical performances, they are characterised by damage mechanisms which are radically different from those exhibited by metallic materials and, in many circumstances, can become critical for composites applications. Damage mechanisms in composites can be easily classified into intra-laminar (fibre and matrix breakage) and inter-laminar (delaminations) damage [10,11,12,13,14].
Due to this critical damage behaviour, it can be mandatory, during the design phase of a new structural component, to perform detailed numerical analyses taking into account the failure mechanisms and their interactions.
In the present work, a detailed finite element model was developed, aimed to evaluate the feasibility and effectiveness of replacing metal components with carbon fibre-reinforced polymers in an executive aircraft wing. This numerical model takes into account the constraints arising from the manufacturing process to support, step by step, the fabrication of the component. The manufacturing technology considered for the fabrication of the investigated composite wing was the “Liquid Resin Infusion” (LRI).
LRI is a closed mould technology which, thanks to an imposed depression generated by a vacuum pump, allows “infusion” in liquid form through a dry preform. The LRI can be defined as an out-of-autoclave cost-efficient technology compared to other technologies, especially for the low materials and storage costs, even if the tooling cost may be relevant [15,16,17,18]. Although the LRI infusion process adopts low-cost materials it is still able to provide the composite component with considerable mechanical performance and stunning geometric tolerances, which can be compared to those of other more expensive manufactured technologies such as autoclave with Pre-Preg.
However, LRI technology performances are strongly dependent on the permeability of the fibres to resin during the process. For example, fabrics with more space between fibres are more permeable, and this greatly influences the LRI technology output in terms or rich resin areas. Hence, with this technology, it is necessary to define not only the correct layup to be used according to the required mechanical performances, but also the manufacturing constraints. All these process constraints were carefully considered in the FE model preparation. In particular, the transition between the different stacking sequence zones was controlled by implementing ramps in which the number of layers of the laminate was gradually reduced. Furthermore, in order to guarantee the symmetry conditions of the laminate, the elimination layers process was always carried out from the outside towards the middle plane of the laminate.
In the second section of this paper, the theoretical background considered for the developed numerical model to accurately represent the real physical behaviour of the composite structure subjected to the service loads is introduced. In the third section, the characteristics of the FE model developed in the finite element environment MSC NASTRAN are described. The fourth section is focused on the assessment of the numerical results obtained from the model. Actually, in this section, the numerical outputs (from linear and buckling analyses), in terms of strains and failure criteria, are verified and discussed together with instability performances of the designed wing with metal components replaced with CFRP.

2. Theoretical Background

In order to take into account the real operational conditions in describing the physical behaviour of the composite wing, it was necessary to consider, in the frame of the design activities, the following numerical and analytical (hand) methodologies:
  • the Huth–Schwarmann method was used to calculate the shear and stiffness of the fasteners;
  • a Nodal Constraint approach was used to link the degrees of freedom of the nodes of the different geometric model parts (separately meshed);
  • failure criteria for metallic alloys and composite materials were adopted to assess the structural integrity of both composite and metal components;
  • bearing factors were taken into account to investigate the stress distribution in the fastening zones for both metal and composite components;
  • linearized buckling analyses were adopted to investigate the structural stability under service loads.
The description of these methodologies is presented in the following subsections.

2.1. Huth–Schwarmann Method

There are many different types of fasteners in an airplane wing. A list of the fasteners considered in this work is provided below:
  • Fastener: HL11/HL70-D4.8; HL11/HL70-D6.35; HL12/HL86-D4.0; HL12/HL86-D4.8; HL12/HL86-D6.35; HL12/HL86-D7.93; MBF2011-D4.2; MBF2011-D4.8; MBF2011-D6.35; MBF2012/13-D4.2; NAS1097-D3.2; NAS7902-D4.2; NAS8803/7603-D4.8; NAS9302B-D3.2.
To calculate the shear and stiffness of these fasteners, several semi-empirical methods can be implemented. In this work, the Huth–Schwarmann method was adopted by evaluating the axial and shear stiffness of one-dimensional FEM elements called “Cbush”, used to model the fastener in the adopted finite element environment MSC NASTRAN.
According to the adopted method, the stiffnesses to be attributed to each fastener are evaluated by means of the following relations.
K x = E f A f t 1 + t 2
f S h e a r = ( t 1 + t 2 2 D ) a b n ( 1 t 1 E 1 + 1 n t 2 E 2 + 1 2 t 1 E f + 1 2 n t 2 E f )     K S h e a r = 1 f S h e a r
  • D is the fastener diameter
  • t1 and t2 represent the panels thickness
  • E1 and E2 are the in plane Young Modulus of the material considered
  • Ef is the Young Modulus of the fasteners.

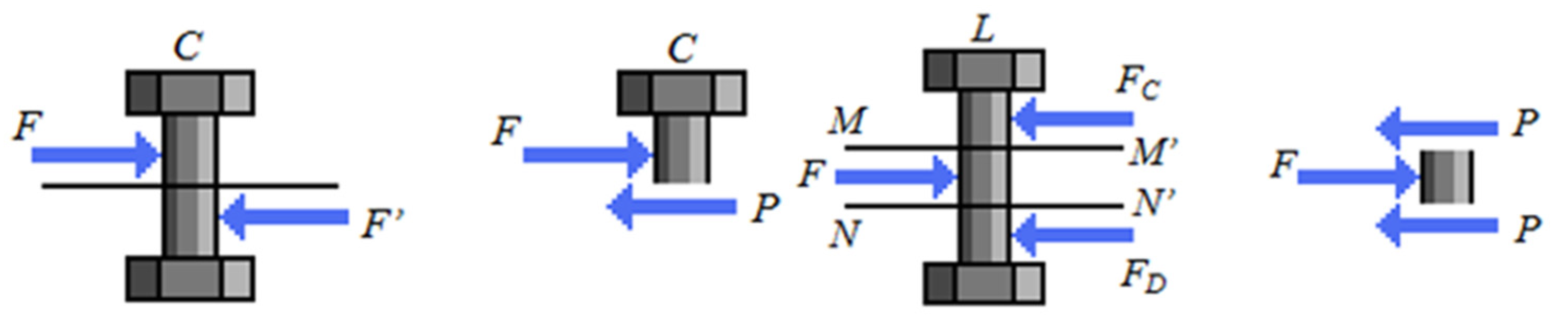

According to the adopted formulation, the stiffness depends on the diameter of the fastener, on the properties of the plate, on the type of connection (bolted metallic, riveted metallic or bolted graphite/epoxy) and, finally, on the coefficient “n”, which is related to the joint type (single or double lap). The shear stress in single-lap joints is:
τ s = F A
The shear stress in double-lap joints is:
τ d = F / 2 A
  • τ = shear stress;
  • F = force;
  • A = cross-sectional area of the bolt.
Equations (3) and (4) highlight that in single-lap joints, the shear stress P is equal to the applied tension force F, while in the case of double-lap joints, the shear stress P is equal to half the applied tension force F. Figure 1 shows a schematic illustration of single-lap and double-lap joints.
Since the composite materials are not isotropic, the previous formulation was slightly varied by differentiating the shear stiffness along direction 1 (0°) and direction 2 (90°) of the laminate.
f S h e a r 0 ° = ( t 1 + t 2 2 D ) a b n ( 1 t 1 E 1 0 ° + 1 n t 2 E 2 0 ° + 1 2 t 1 E f + 1 2 n t 2 E f )     K S h e a r 0 ° = 1 f S h e a r 0 °
f S h e a r 90 ° = ( t 1 + t 2 2 D ) a b n ( 1 t 1 E 1 90 ° + 1 n t 2 E 2 90 ° + 1 2 t 1 E f + 1 2 n t 2 E f )     K S h e a r 90 ° = 1 f S h e a r 90 °

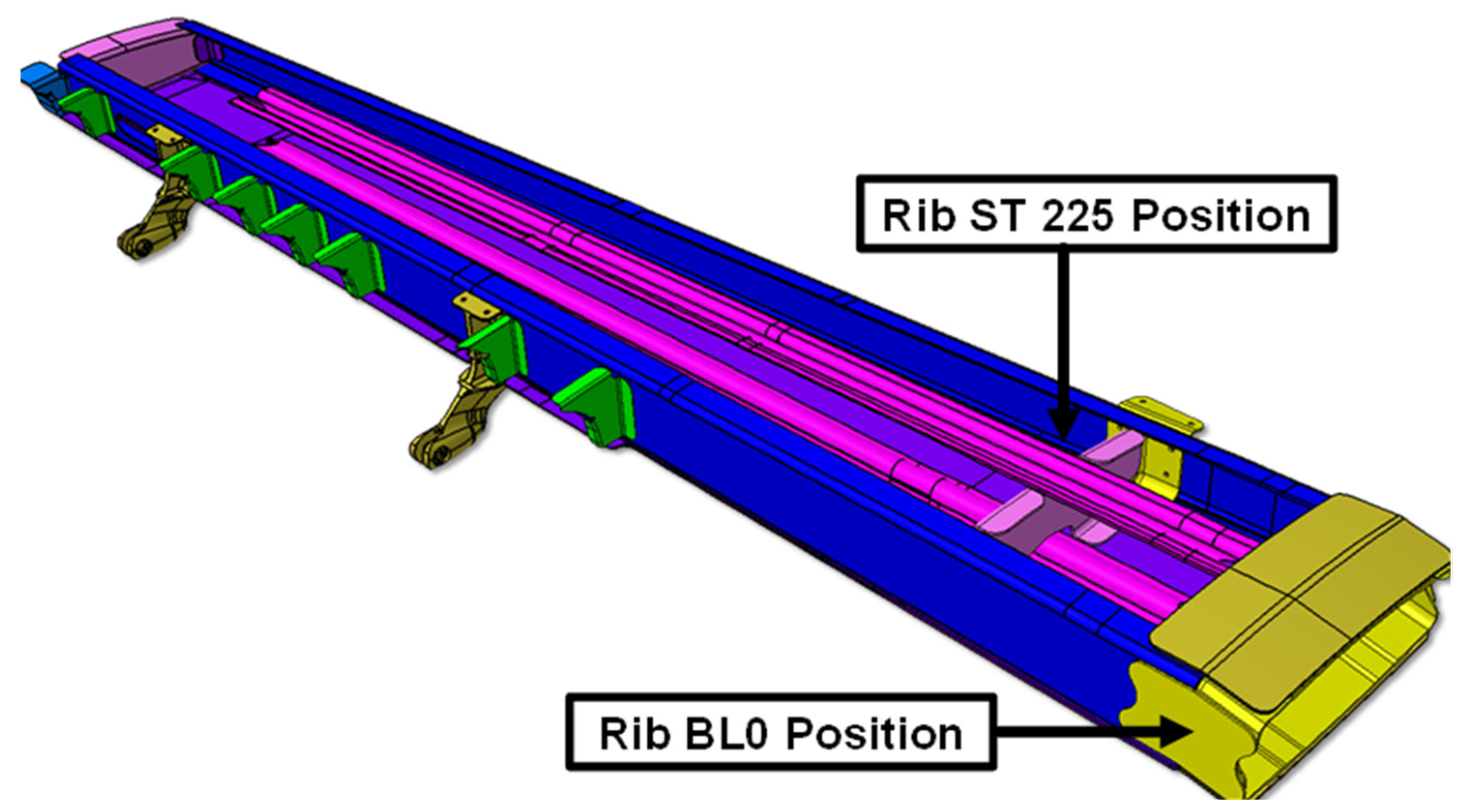

Figure 2 shows a view of the solid model of the wing, without the upper skin to highlight the ribs BL0 and ST225 where the Huth–Schwarmann method was used to calculate the shear and stiffness of fasteners. In Figure 3, the detail of the ribs BL0 and ST225 connections are given.

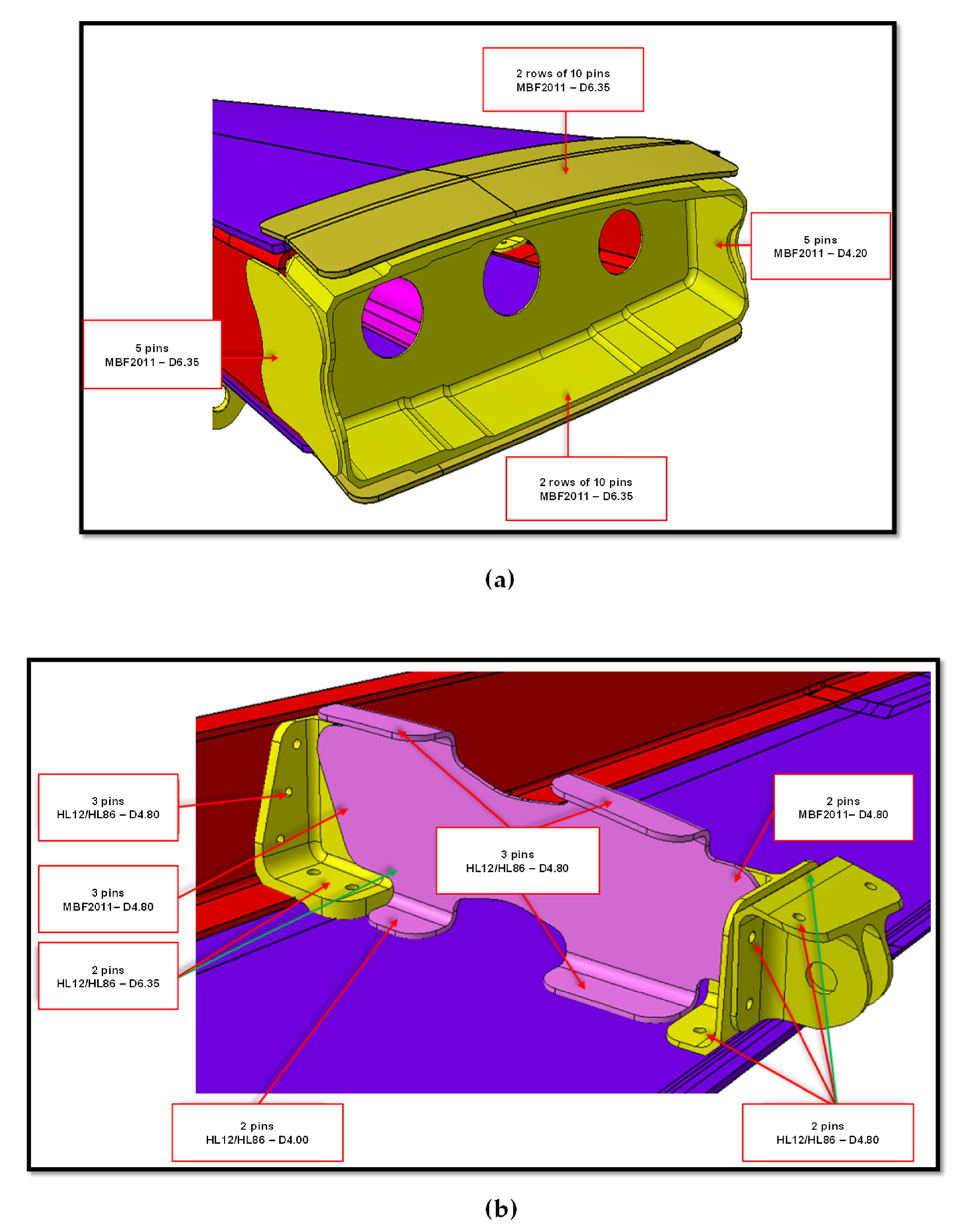

In particular, in Figure 3a, it is possible to observe the Rib BL0 and splices connections. These components, guarantee airfoil shape preservation at the root and allow the transfer of stresses from the skin to the spars. Figure 3b shows the Rib ST 225 and the fittings for connection to the spars. Finally, in Figure 4, an example of the application of the Huth–Schwarmann method to the Rib BL0 connection is introduced.

2.2. Nodal Constraints

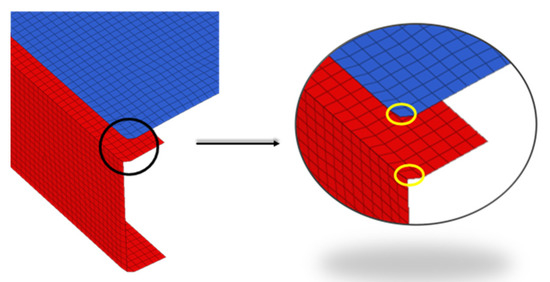

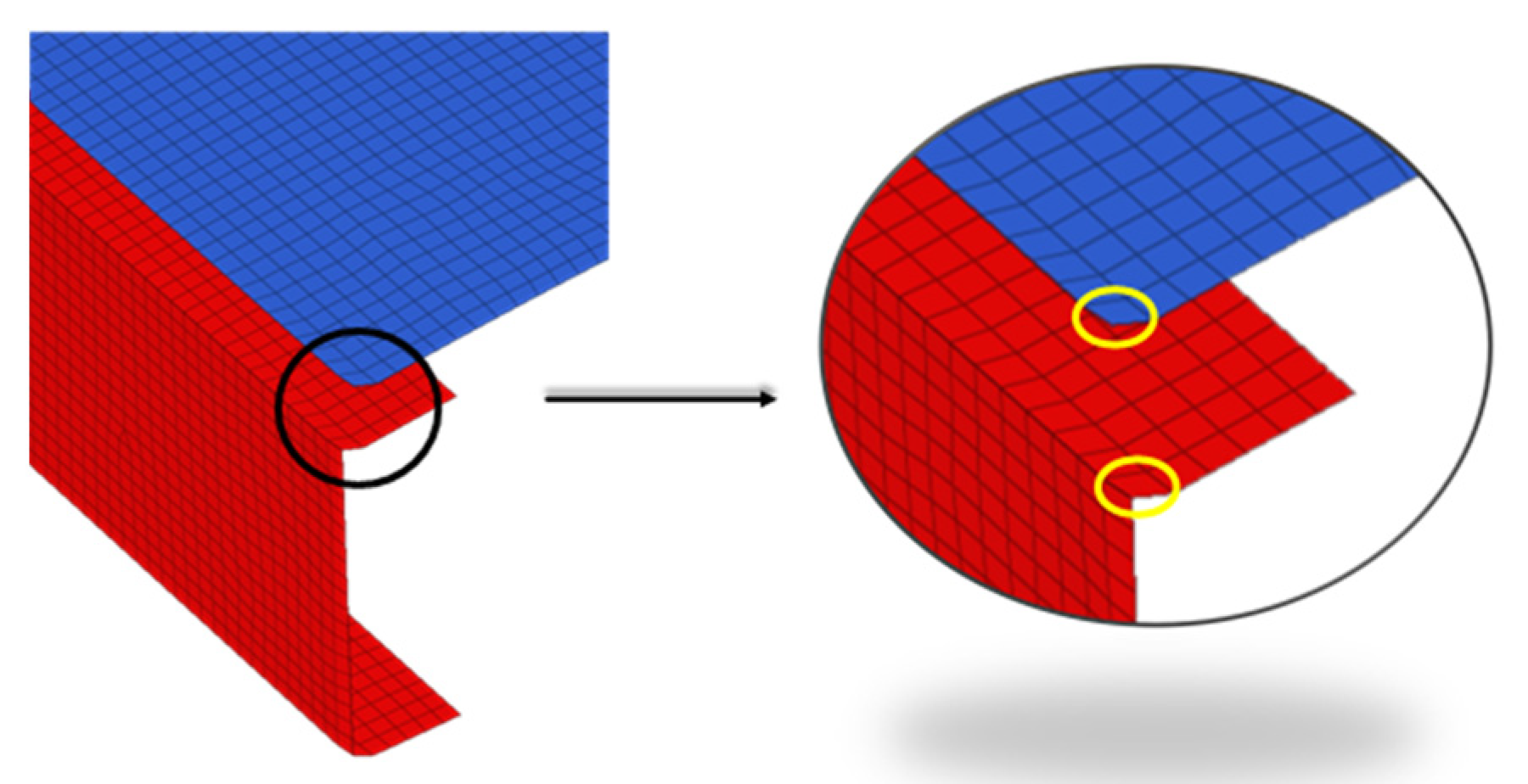

The Multi Points nodal constraints allow to connect nodes and DOFs in an FE model. They can simulate a “rigid connection” or create a “continuous distribution” of the load from one node to another according to their geometric parameters.
Two types of Nodal Constraints can be introduced:
  • “Single-Point Constraint”, which limits one or more DOFs of a single node;
  • “Multi-Points Constraints” (MPC) that allow defining the movement of a group of “Slave” nodes, controlled by an equation or a “Master” node.

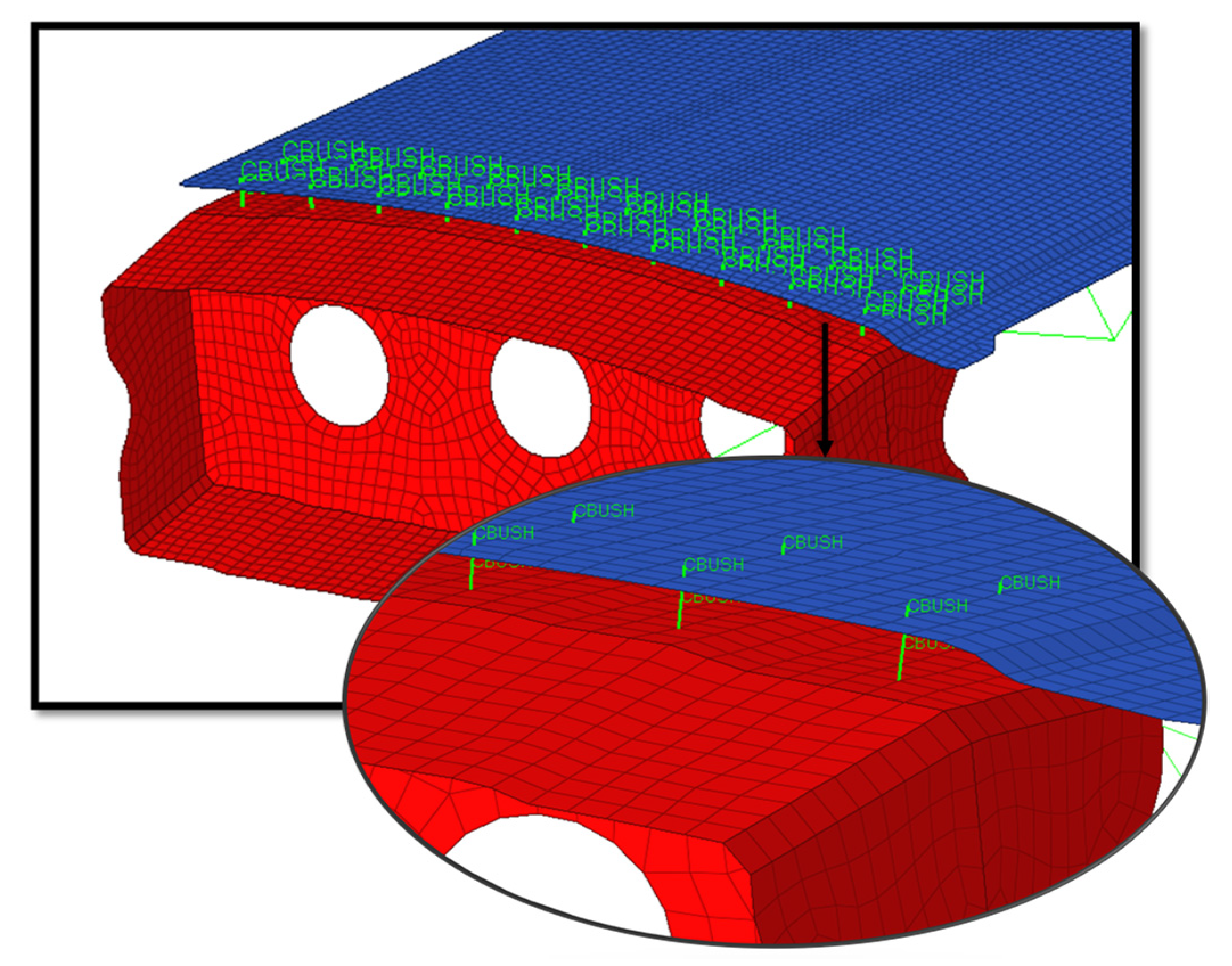

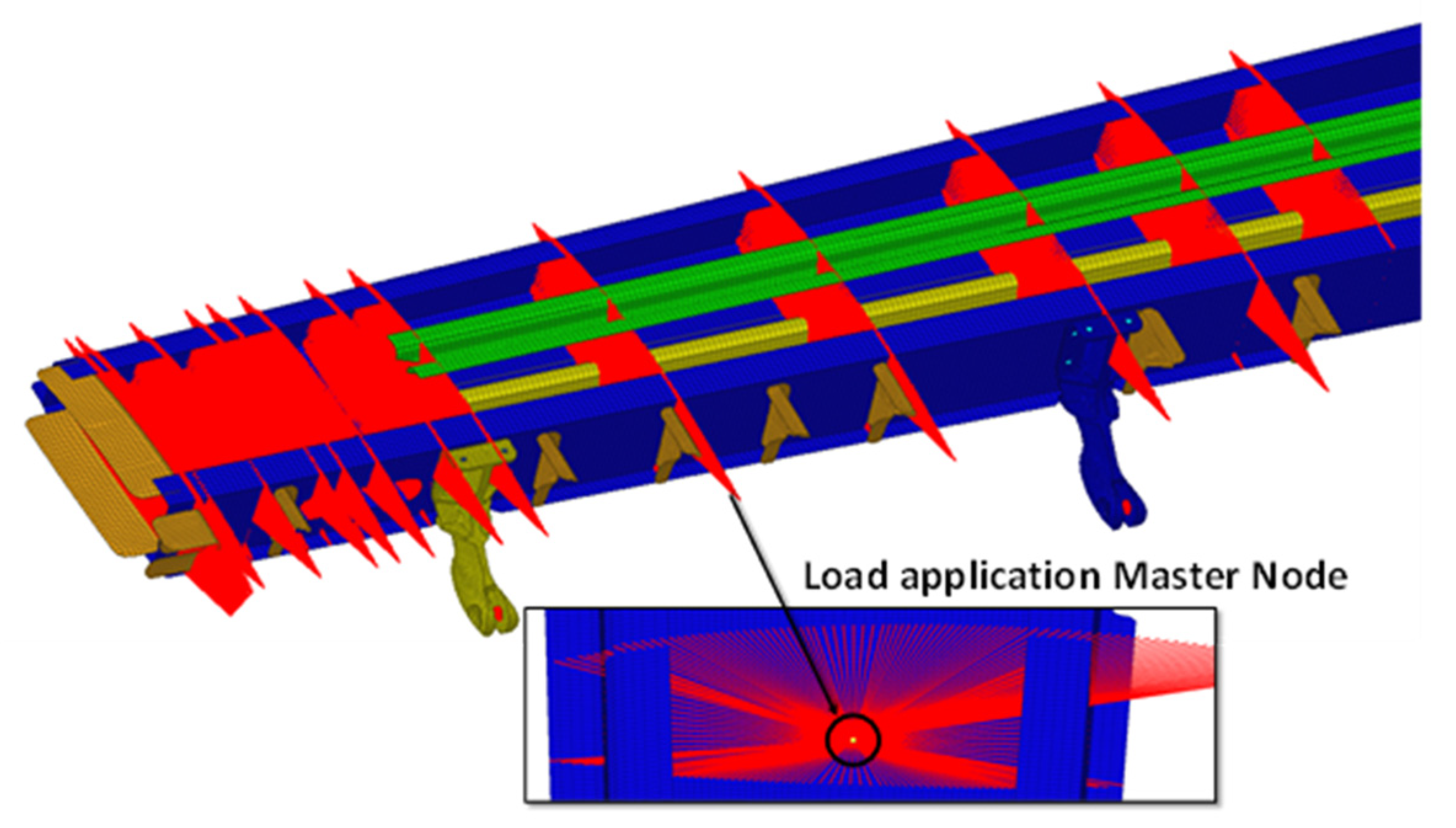

The approach selected in this work employed MPCs. Therefore, by means of MPCs, a rigid coupling between two nodes able to transfer the same translational and rotational deformations from the independent node (Master) to the dependent nodes (Slave) can be simulated. Here, this approach was employed to apply loads (Figure 5) and to connect surfaces with non-coincident meshes, such as that of panels with spars shown in Figure 6.

2.3. Failure Criteria for Damage Assessment

By performing static analyses in which different failure criteria for both composite and metallic components were included, the structural integrity of the wing was investigated. The failure criteria adopted for composite parts were based on the evaluation of the maximum strain, both in tension and in compression.
The check was performed at the lamina level in the composite laminates for layers oriented at 0°, 90° and 45°. For the Margin of Safety calculation, the following relations were used for tensile, compression and shear margins evaluation at each layer.
M S t = ε t ε t U L 1
M S c = ε c ε c U L 1
M S s = γ s γ s U L 1
  • ε t e ε t U L = Maximum Allowable Tensile Strain and Maximum Tensile Strain at Ultimate Load;
  • ε c e ε c U L = Maximum Allowable Compressive Strain and Maximum Compressive Strain at Ultimate Load;
  • γ t e γ t U L = Maximum Allowable Shear Strain and Maximum Shear Strain at Ultimate Load;
On the other hand, for metallic components, the Von Mises Maximum Allowable Stress compared to the Ultimate Stress F t u of the discussed metallic alloy was checked for the margin of safety calculation (Equation (10)).
M S V o n   M i s e s = F t u σ V M U L 1
where σ V M U L is the Von Mises Maximum Stress at Ultimate Load.

2.4. Bearing

The use of fasteners leads to the presence of holes in the components and the resulting localization of stresses, introducing a redistribution of loads within the laminate. High stress concentrations occurring around the holes cause the fasteners regions to be particularly exposed to failure and/or delamination.

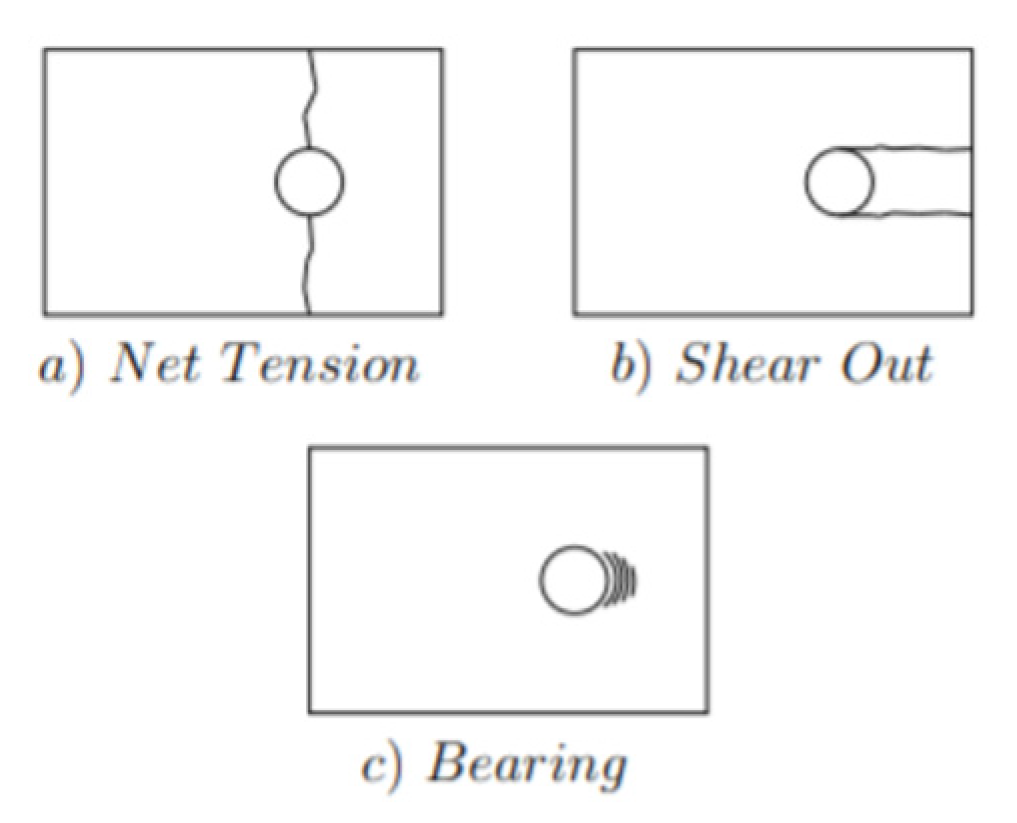

As shown in Figure 7, failure of the laminate at the fasteners regions usually occurs following three different modes (or a combination of them):
  • tensile failure;
  • shear failure;
  • bearing failure.
The bearing mode of failure depends essentially on geometric parameters, stacking sequence and fibre orientation. Bearing failure usually occurs when the rivet diameter is small if compared to the specimen width. This mode of failure results in the elongation of the hole.
Therefore, a careful study of the Bearing phenomenon is needed when fasteners connections are considered.
To correctly perform this verification, it is mandatory to distinguish between metallic and composite components.
For the metal parts, it is necessary to study the maximum allowable safety factor.
As shown in Equations (11) and (12), the margin of safety is evaluated as a function of the Allowable Bearing Load (Pbru), the Maximum Bearing Stress (Fbru), a Fitting Factor (FF), geometric forming factors (Dt) and the Bearing Distribution Factor (θ).
M S = P b r u F F P s h 1
P b r u = F b r u D t θ
  • Psh = Shear load acting on the pin;
  • D = hole diameter;
  • T = thickness;
  • Pbru (Allowable Bearing Load) = Fbru × D × t (is the theoretical maximum pressure which can be supported without Bearing failure;
  • Fbru = Maximum Bearing Stress of the Material (is the theoretical maximum stress which can be supported without Bearing failure);
  • θ = Bearing Distribution Factor (θ takes into account the actual Bearing stress distribution around the hole and is a function of the t/D ratio);
  • FF = Fitting Factor (a design analysis of structural joints and fittings shall consider a fitting factor of 1.15 to be applied to limit and ultimate the load conditions for all phases of service life.
The fitting factor is used to account for potential variations in internal load paths within the actual structure that are not covered by idealized analytical models. (JSC 65,828 Rev. B, change).

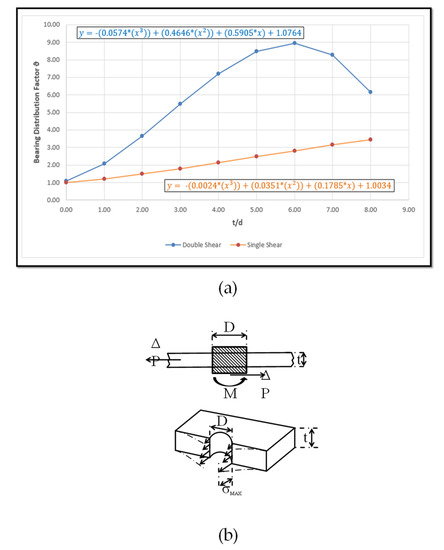

From Equation (12) and Figure 8, it is clear that the Bearing Distribution Factor takes into account the real distribution of the Bearing Stress around the hole and is a function of the t/D ratio. Therefore, it assumes a different distribution for each fastener and differs for single- or double-lap joints discussed in the previous subsection.
To study the maximum allowable safety margin for composite materials, in addition to the parameters considered for the metallic components, the Bearing Strength Variation Factor ( B V ) has to be considered.
The maximum allowable safety margin for composite materials is then evaluated according to Equation (13).
M S = P b r u F F P s h 1
where, differently from Equation (12), the allowable bearing load ids given by:
P b r u = F b r u D t B V θ
Indeed, as extensively illustrated by [19,20,21,22,23], differently from metallic configurations, the allowable bearing load depends on the layer orientation. Hence, according to the table in [22,23], the Bearing Strength Variation Factor can be considered as a factor taking into account the laminate stacking sequence.

2.5. Linear Buckling

To assess the structural stability under service loads, a linearized buckling analysis was performed. In linearized buckling analyses, a static load is applied to the structure, and the phenomenon is numerically investigated by solving the eigenvalue problem described in the following equation:
[ K a a + λ i K a a d ] { ϕ i }
  • K a a = Linear Stiffness;
  • K a a d = Differential Stiffness (load-dependent stiffness)
  • λ i = eigenvalues (critical loads multipliers);
  • ϕ i = eigenvectors (Buckling Modes).
Once the eigenvalues is identified, the critical buckling loads can be calculated by the following Equation (16):
{ P i C r i t } = λ i { P a }
In this equation, P a , is the applied static load vector.

3. FE Model

The development of the finite element model started from a preliminary geometry of the full metal wing defined in a CAD project. From this CAD project, the definition of surfaces for shell meshes and of all the geometrical parameters of the composite and metal components of the wing was carried out. The CAD model of the investigated half-wing is shown in Figure 9a. It consists of 14 components detailed in Table 1, where the constituent materials are highlighted.
As can be seen from Table 1, all the primary structural elements were replaced by CFRP IM7/977-2 composite material, whereas mainly the joining components, such as fittings, were still made of metal alloys.

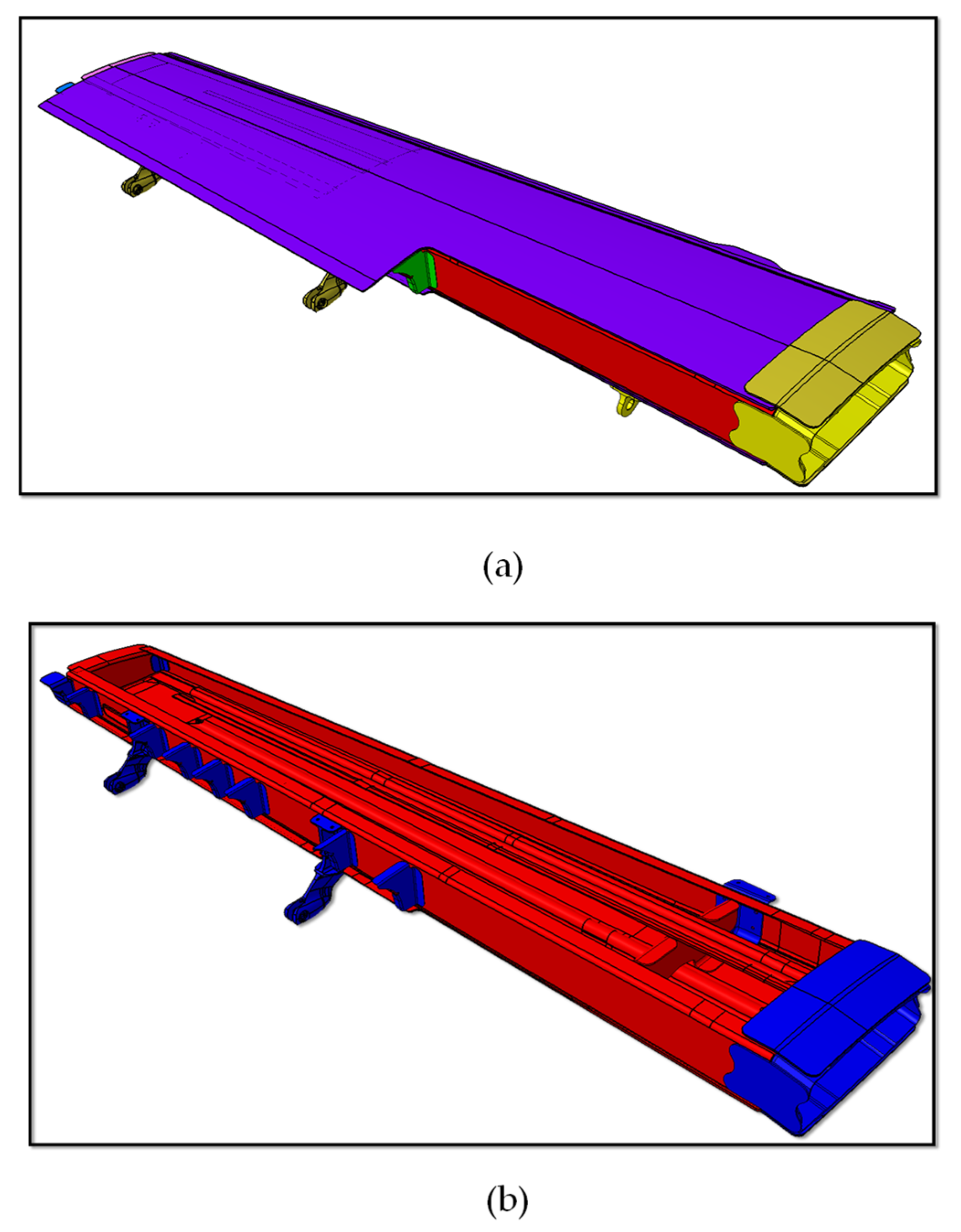

For an immediate detection of the composite and metal components, Figure 9b shows the half-wing without the upper skin, in which the composite structural components are in red, while the metal components are in blue.
The mechanical properties of the adopted materials are shown in Table 2 and Table 3 for the aluminium alloys and in Table 4 for the composite single layer (0.21 mm thickness)
From the CAD model, by means of the preprocessor software Hypermesh, the middle surfaces of each component were obtained. These surfaces were used as supporting geometry for the definition of a mesh based on shell elements.
To ensure a good quality of the numerical results, sensitivity analyses on the mesh size by applying a unitary flexural load on the investigated wing were performed. At each step, the size of the calculation grid element was halved by developing three different mesh configurations:
  • Configuration 1: mesh size 10 mm
  • Configuration 2: mesh size 5 mm
  • Configuration 3: mesh size 2.5 mm
In comparison to configuration 3, configuration 2 exhibited a 10% lower stress value and, at the same time, a computational time reduction of approximately 50%.
The trivial approach used for the design of the composite component layup for the replacement of metallic components consisted of the following steps:
  • Thickness extrapolation from the original metal component;
  • Plies number assignment;
  • Stacking sequence definition based on stiffness requirements and basic design rules with composites;
  • FEM analysis verification of component strength and stiffness requirements.
A trial-and-error approach started from a first tentative configuration with final verification by FEM analysis to check the strength and stiffness requirements satisfaction at each iteration. In case of no satisfaction of stiffness and strength requirements, a reformulation of the stacking sequence was performed, and a new design iteration was started. Specifically, three stacking sequences were defined:
  • Quasi-Isotropic: uniform stiffness in all directions;
  • Hard (more Plies at 0°)-Resistance for loads across the wingspan;
  • Soft (more Plies 45°)-Improve Bearing issues for joints.
In the frame of the design iterations, for each composite component, the stacking sequence was switched between the three basic sequences in order to magnify the aforementioned three different structural behaviours.
After performing all the iterations, it was possible to obtain a minimum mass configuration, able to fulfil the required safety conditions. Where possible, a quasi-isotropic sequence was preferred, in order to achieve uniform stiffness in all directions.
However, to enable the transition from one stacking sequence to another on the same component lightening the structure and allowing effective manufacturing through the LRI technology, series of ramps were set up.
These ramps allowed a progressive reduction in the number of plies, with a gradual transition from one sequence to another. Figure 10a shows the top panel discretized in different colours, representing the different stacking sequences employed, which are detailed in Figure 10b.

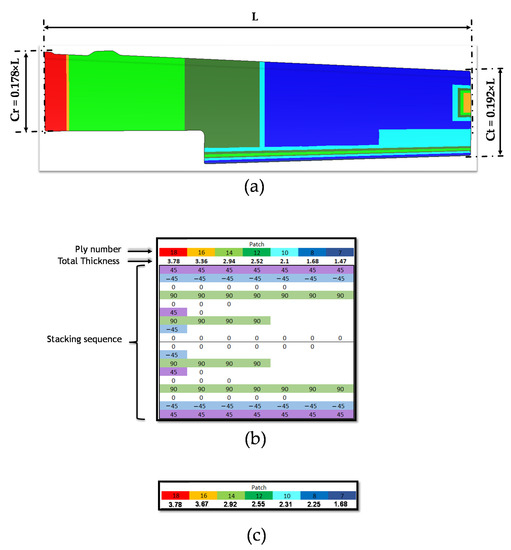

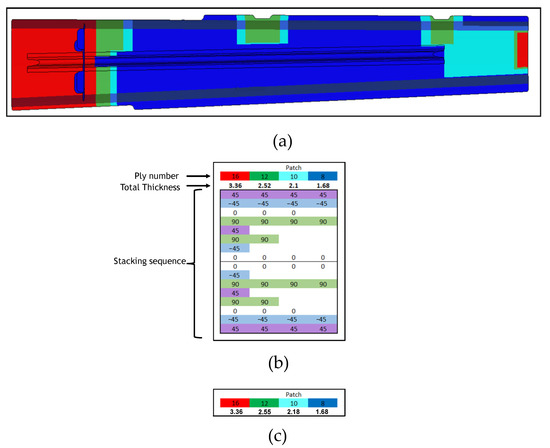

Moreover, in Figure 10, it is possible appreciate some geometrical information about the examined wing.
In particular, Figure 10a shows the half-wing span L and the length of the chord at the root and at the tip. Due to company directives, these three parameters are reported as ratio of L.
Figure 10b shows the thickness trend and the stacking sequences of the composite upper wing, highlighting the ramps adopted, and, finally, Figure 10c shows the thickness trend of the original aluminium upper wing.

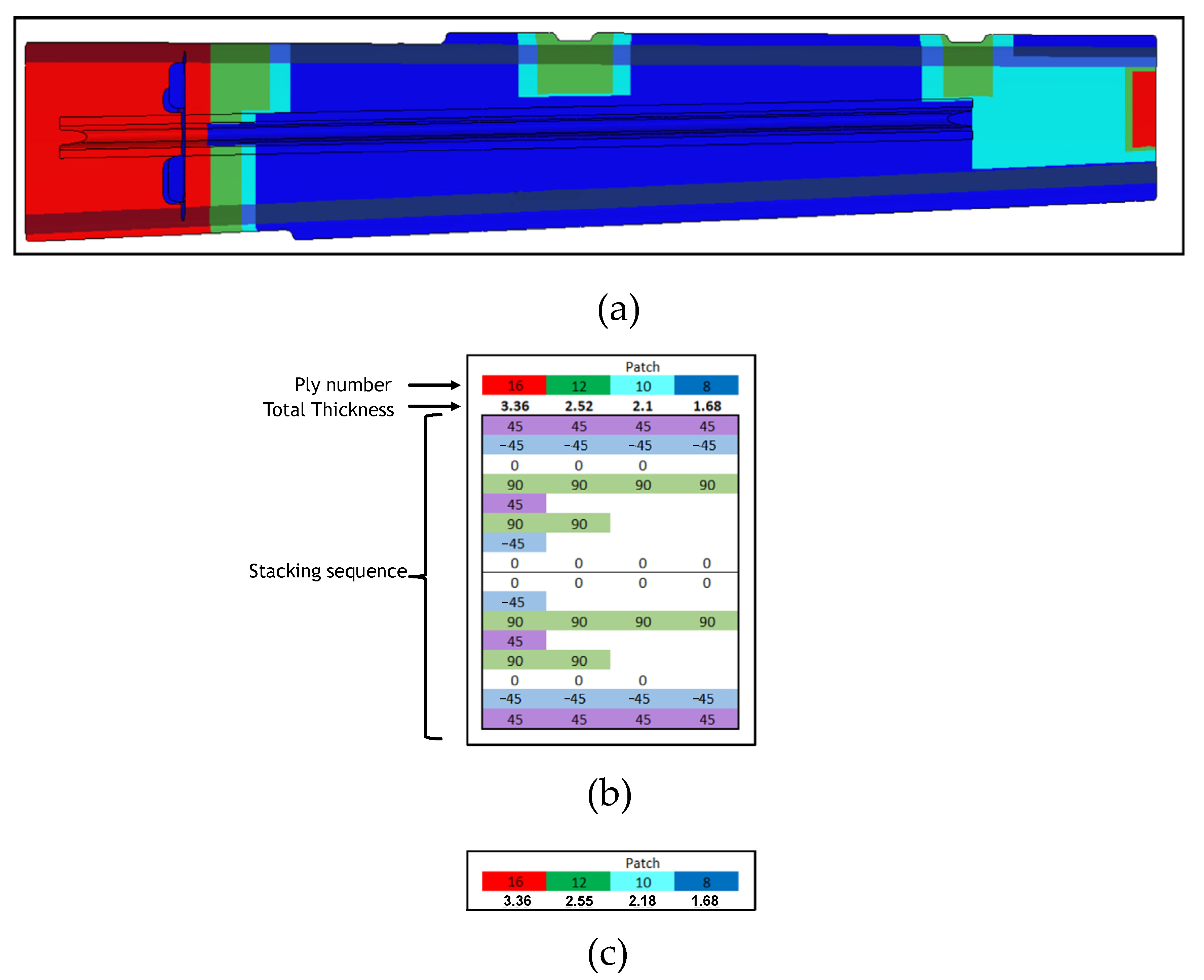

The specifications provided for the upper wing in Figure 10 are also indicated in Figure 11 for the lower wing.
It should be highlight that the approach followed, in the frame of this work, for metal replacement with composites, is quite trivial. Actually, this approach allows obtaining weight reduction and comparable stiffness and strengths with respect to metal solutions but does not make use of all the potential of composites structures. Indeed, a real optimization of the stacking sequence should have been performed without considering constraints on the orientation of the layers by adopting, for example, a double concept [24,25], bringing to the homogenization of the stacking sequence without the need of symmetry constraints. In this work, the trivial trial-and-error procedure, described above, was preferred due to process and available material constraints on the investigated executive aircraft wing.
For boundary conditions and loads definitions, five different conditions, representative of the most common operating loads, were simulated. As shown in Figure 5 and Figure 12, these conditions were applied at 15 different wing stations by using MPCs.
In particular, two loading stations were chosen at the flap interface points, in order to simulate the loads generated by the flaps. The applied load conditions are listed in Table 5.
As illustrated in Figure 13, to simulate the connection with the fuselage, nodal constraint conditions were introduced (MPCs) in the fuselage fittings.

4. Numerical Results

In this section the results from the numerical analyses performed on the investigated executive aircraft wing are introduced and commented.
First, the structural integrity was verified by means of numerical linear analysis simulations by performing the following checks:
  • Maximum Allowable Strain for the composite components;
  • Maximum Allowable Stress (Von Mises) for metallic components.
The composite parts were evaluated in terms of both tension and compression criteria at the layer level for each layer orientation (0°, 90° or ±45°).
The safety margins used to verify the structural integrity are the following:
  • ϵ T = 4500   μ ϵ ;
  • ϵ C = 3500   μ ϵ ;
  • σ T = 496 MPa (Al 7050-T7451);
  • σ T = 434 MPa (Al 2024-T3).
Subsequently, the following analyses were performed:
  • Joint analysis;
  • Bearing analysis of the metallic components;
  • Bearing analysis of the composite components.
Finally, a linear Buckling analysis was performed. In this simulation, through the application of a static load to the structure, which assumed a linear elastic behaviour, it was possible to verify the stability of the structure through the determination of the eigenvalues.

4.1. Failure Criteria Applied to the Composite Components

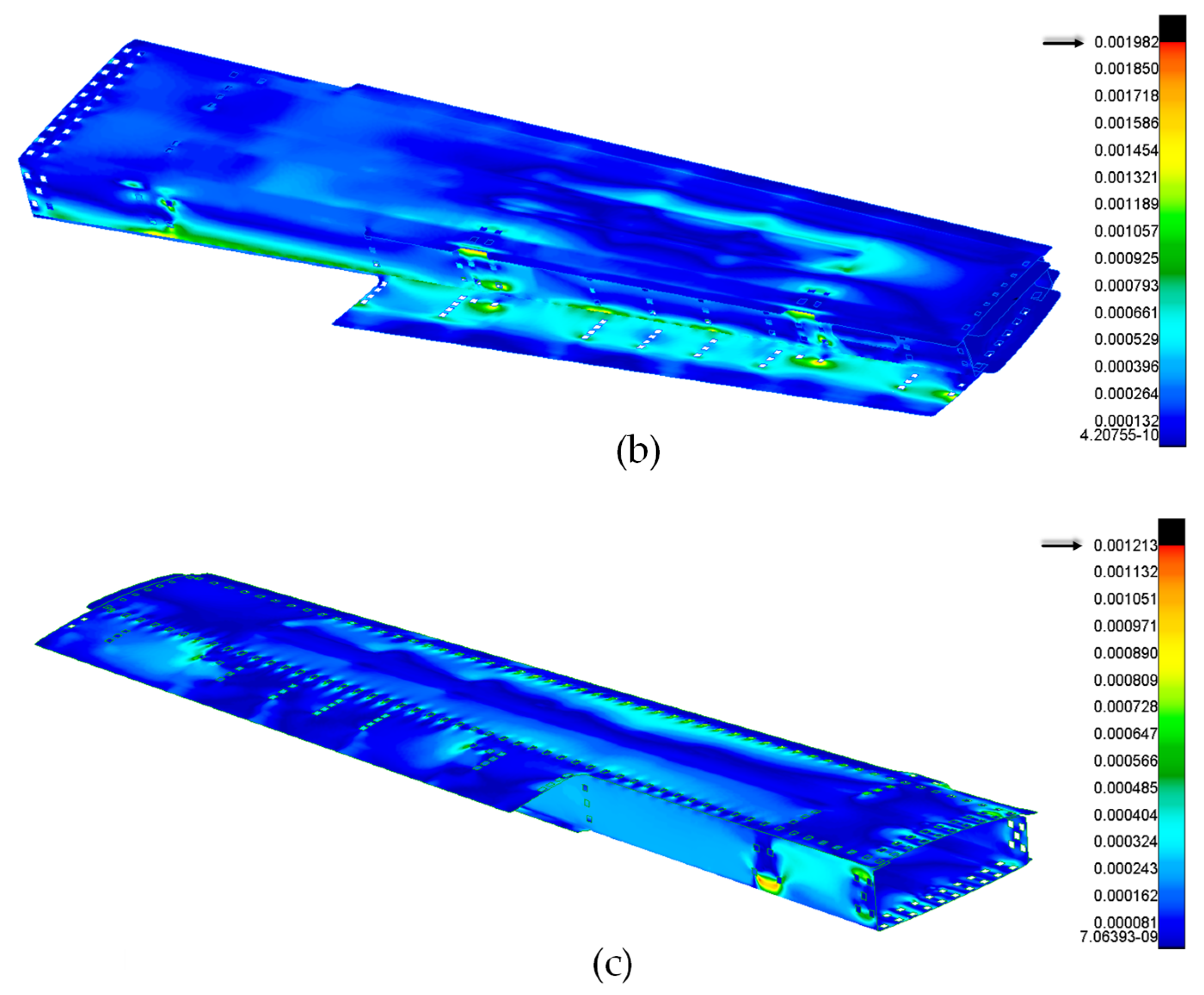

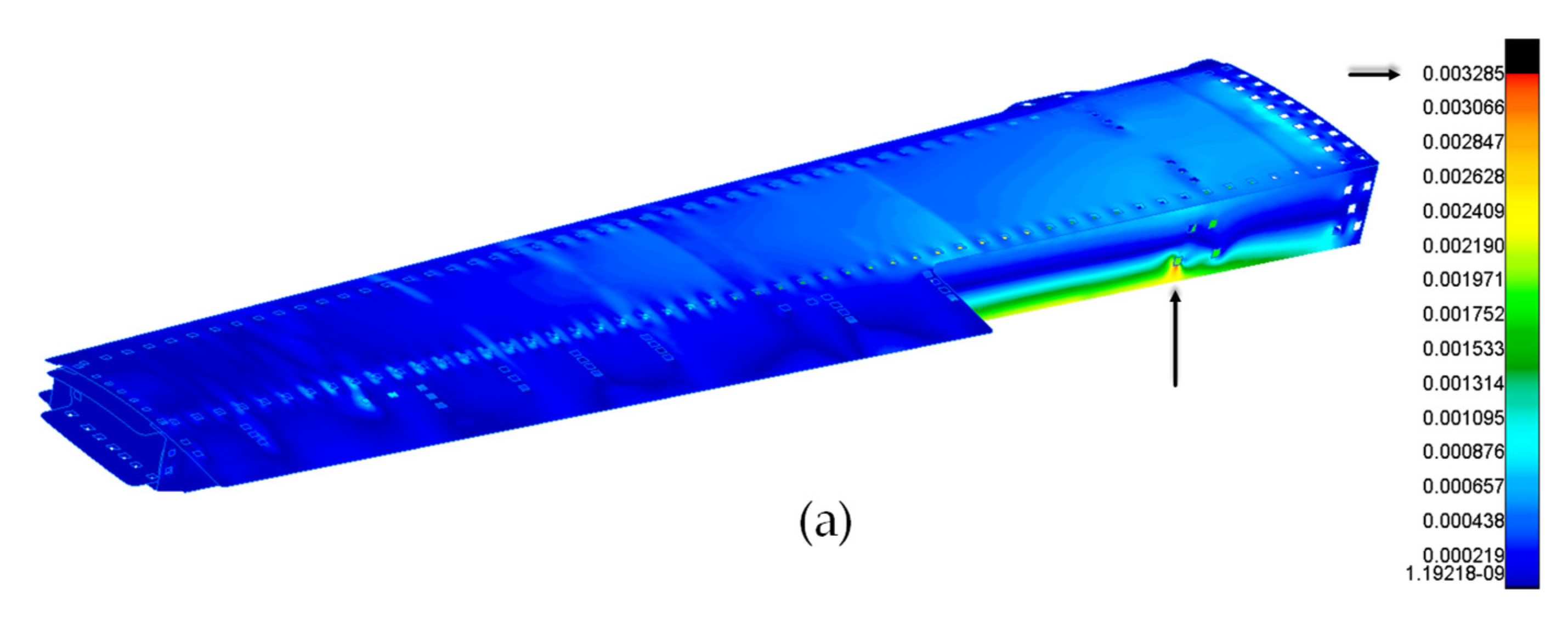

In this section, the results obtained by applying the failure criteria for composite components are presented. Figure 14 shows the tensile strains produced on the structure in the different layers.
The images shown plot the contour lines obtained as averages of the results of the individual loads applied. This allows an overall view in which it is evident that the configurations examined satisfied the design requirements.
The most stressed area, as can be seen from the results, was found at the connections to the fuselage, resulting from the application of the boundary conditions and the proximity to the constraint. It was possible to satisfy the requirements in this constrained region by introducing modifications to the fittings and to the thickness of the spars, followed by the correct choice of bolts, in the trial-and-error design procedure. The maximum deflection trend was consistent with the expectations and decreased towards the closure rib. As indicated in Figure 14, strains decreased for plies oriented at 90° and/or ±45°.

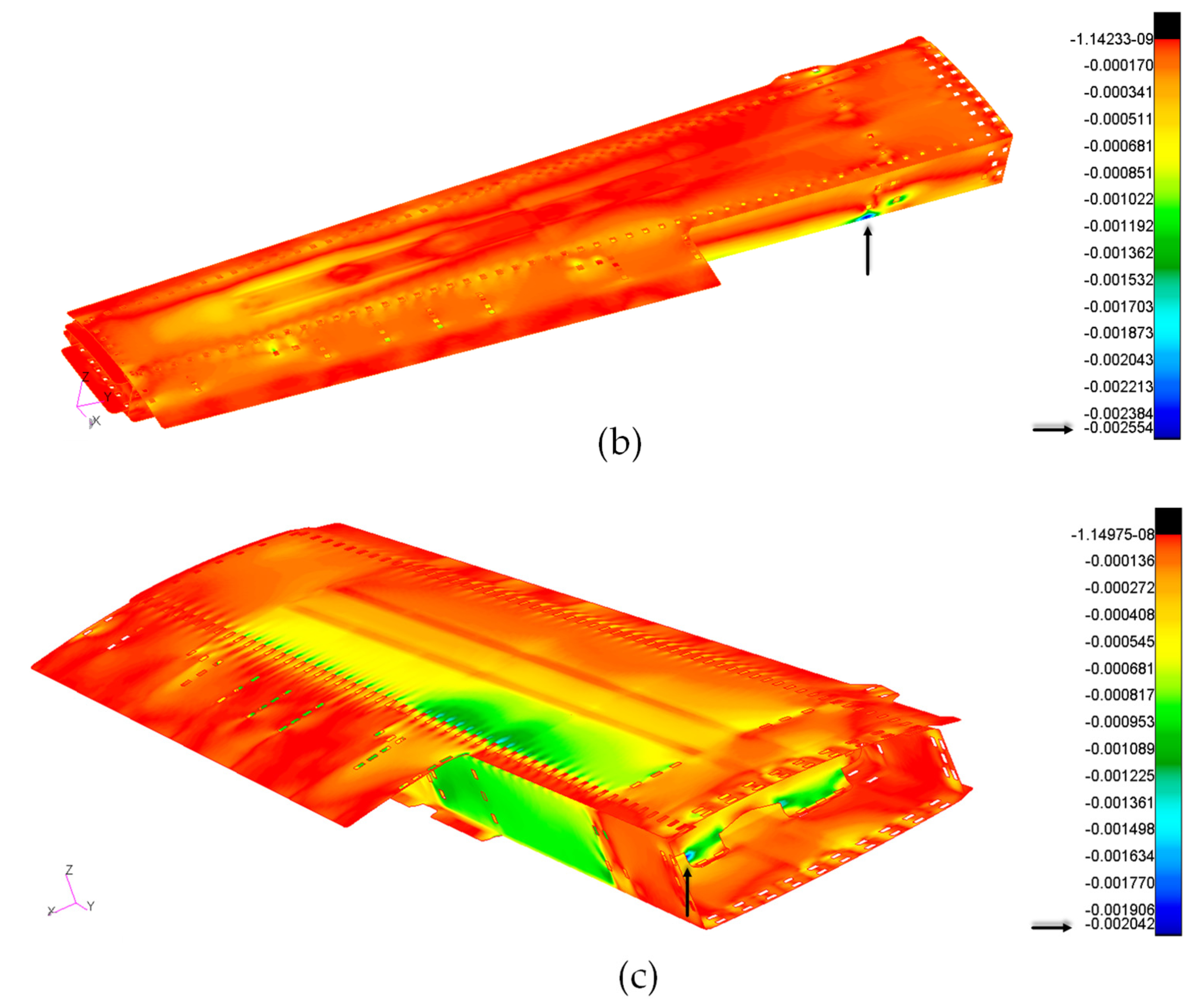

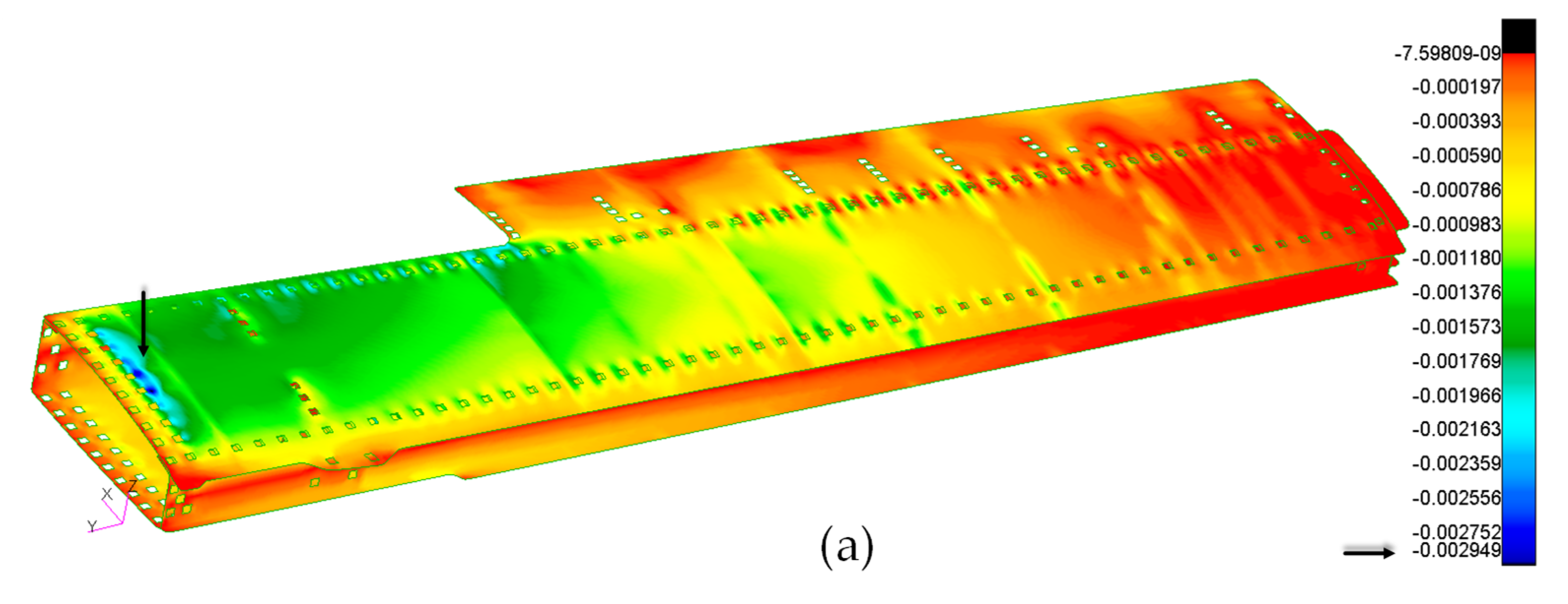

In Figure 15, the compressive strains produced on the structure are reported. As for the tensile case, images from a combination of the applied loads are shown for the compressive strains for the different layer orientations.
This time, as expected, in addition to the criticalities near the fuselage attachments, the upper skin seemed to be the most stressed component, especially in correspondence of Rib 0, which was compressed in the blue areas. These criticalities were considerably reduced by modifying the layup of the skin in the frame of the trial-and-error design procedure. The skin was reinforced with the addition of further layers and longer ramps near the critical areas.
Comparing the tensile and compressive strains, it is clear that, generally, the most critical conditions were obtained for compression strains.

4.2. Failure Criteria Applied to Metallic Components

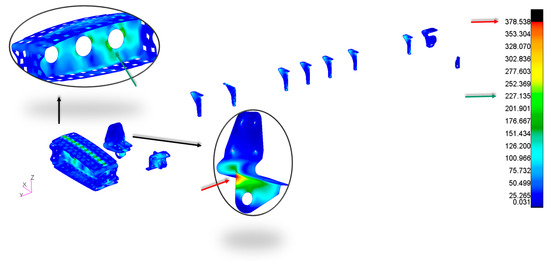

By analysing the Von Mises allowable stress, as illustrated in Figure 16, it was clear that the metallic components did not exceed the safety margins.
One of the most heavily loaded components was, once again, the fuselage fitting.

4.3. Buckling Analysis

Linearised buckling analyses were used to check for instability (which can be a critical phenomenon for composite materials under compression) under the five considered loading conditions.
The objective was to derive the eigenvalues, needed to calculate the critical loads, by assuming a linear elastic behaviour of the structure.
The minimum eigenvalue for each load configuration gave information on the percentage of service load needed to bring the structure into instability for each loading condition.

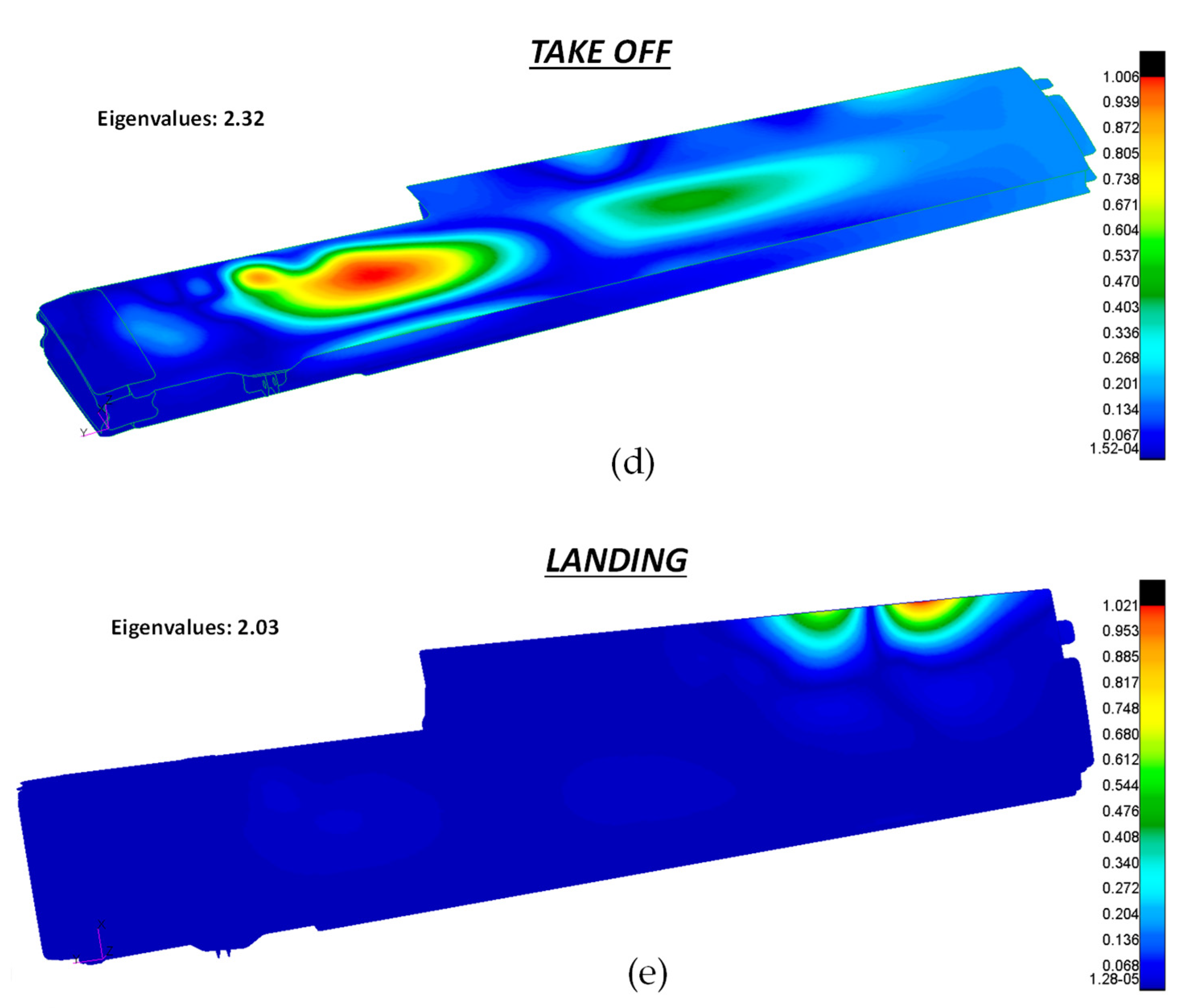

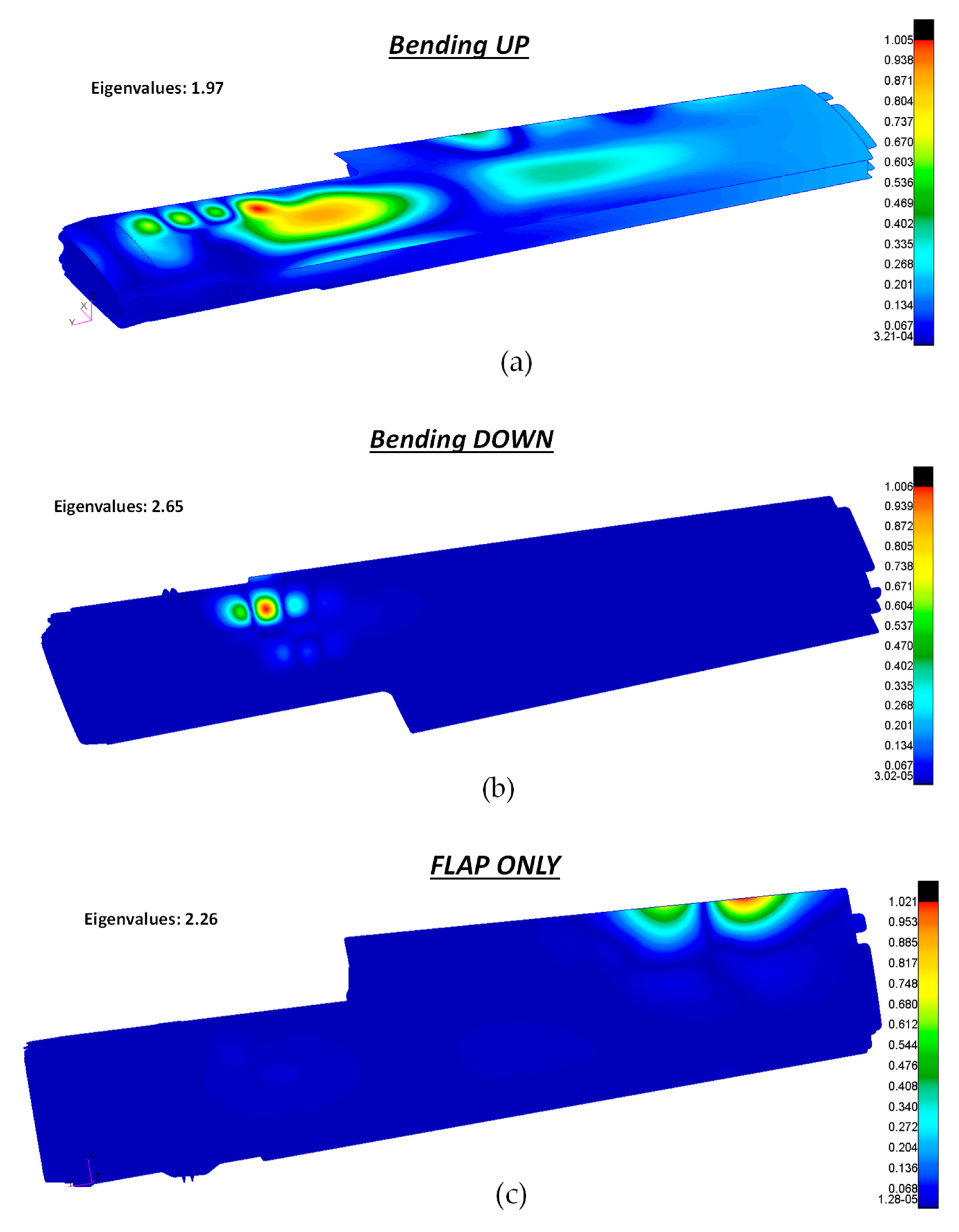

Figure 17 shows the buckling modes and the eigenvalues obtained for each of the five loading conditions defined in Table 5.
As can be seen in Figure 17, all eigenvalues were greater than 1 (this means that the service load must be multiplied for the eigenvalue to obtain the first critical buckling load; therefore structural stability was kept under the service load envelope). The most critical condition was the one obtained in the bending up phase, where the eigenvalue assumed the minimum value of 1.97.

4.4. Final Considerations

As seen in the frame of the last subsections, all the stiffness, strength and stability requirements were satisfied by the composite configurations. In addition, the substitution of metal alloy with composites as the primary structural elements of the wing led to a weight reduction of about 33.7% with respect to the full metal wing configuration. This result is very promising because, as already remarked, for this application, a real stacking sequence optimization was not performed. Actually, instead of adopting advanced layup optimization techniques for composites, a trivial trial-and-error procedure was applied due to manufacturing techniques and material constraints. Hence, weight saving can be strongly increased if the constraints on the manufacturing process and on the material are released. This will be the topic of a future research.

5. Conclusions

This work was focused on metal replacement with CFRP composites as primary structural components of an executive aircraft wing. The substitution of metal components with composite manufactured ones, led to a reduction in weight of about 33.7% and satisfied all the requirements in terms of safety margins and structural stability. An advanced numerical Fem model was developed taking into account stiffness, strength and stability constraints by means of a trial-and-error design procedure able to tailor the stacking sequence and to taper the composite laminate to trivially optimise the weight of the resulting wing configurations.
The manufacturing process selected for the CFRP composite was the low-cost Liquid Resin Infusion (LRI) process. The main objective, in a follow-on development on this subject, will be to tailor the manufacturing process in order to perform a one-shot manufacturing run of the wing (i.e., a production of a monolithic component), which will not only drastically reduce the assembly problems, but also allow the repeatability of the component.

Author Contributions

Conceptualization, V.A. and A.R.; Data curation, V.A. and A.R.; Formal analysis, G.M.M.; Funding acquisition, S.I. and A.R.; Investigation, G.M.M. and A.R.; Methodology, V.A. and A.R.; Project administration, R.P., S.I. and A.R.; Resources, A.R.; Software, V.A. and G.M.M.; Supervision, V.A. and A.R.; Validation, A.R.; Writing–original draft, G.M.M.; Writing–review & editing, V.A. and A.R. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ben, G.; Aoki, Y.; Sugimoto, N. Impact properties of CFRP/Al hybrid beam for absorbing impact energy in side collision of automobiles. In Proceedings of the ICCM International Conferences on Composite Materials, Kyoto, Japan, 3–8 July 2007. [Google Scholar]
  2. Cole, G.S.; Sherman, A.M. Lightweight materials for automotive applications. Mater. Charact. 1995, 35, 3–9. [Google Scholar] [CrossRef]
  3. Sinmazçelik, T.; Avcu, E.; Bora, M.T.; Çoban, O. A review: Fibre metal laminates, background, bonding types and applied test methods. Mater. Des. 2011, 32, 3671–3685. [Google Scholar] [CrossRef]
  4. Vogelesang, L.B.; Vlot, A. Development of fibre metal laminates for advanced aerospace structures. J. Mater. Process. Technol. 2000, 103, 1–5. [Google Scholar] [CrossRef]
  5. Boursier, B. A new highly formable quasi-isotropic prepreg for complex shape parts. VDI Ber. 2008, 2028, 37–45. [Google Scholar]
  6. Baker, A.A.; Callus, P.J.; Georgiadis, S.; Falzon, P.J.; Dutton, S.E.; Leong, K.H. An affordable methodology for replacing metallic aircraft panels with advanced composites. Compos. Part A Appl. Sci. Manuf. 2002, 33, 687–696. [Google Scholar] [CrossRef]
  7. Kawabe, H.; Aoki, Y.; Nakamura, T. Design of optimum aircraft structure inspired by dragonfly wings. In Proceedings of the American Society for Composites—35th Technical Conference, Online, 14–17 September 2020; pp. 1662–1674. [Google Scholar]
  8. Ning, H.; Pillay, S.; Vaidya, U.K. Design and development of thermoplastic composite roof door for mass transit bus. Mater. Des. 2009, 30, 983–991. [Google Scholar] [CrossRef]
  9. Mair, R.I. Advanced composite structures research in Australia. Compos. Struct. 2002, 57, 3–10. [Google Scholar] [CrossRef]
  10. Acanfora, V.; Sellitto, A.; Riccio, A.; di Caprio, F. Damage evolution in fuselage stiffened composite panels under asymmetrical bending loading conditions. AIP Conf. Proc. 2020, 2309. [Google Scholar] [CrossRef]
  11. Russo, A.; Sellitto, A.; Saputo, S.; Acanfora, V.; Riccio, A. Cross-influence between intra-laminar damages and fibre bridging at the skin-stringer interface in stiffened composite panels under compression. Materials 2019, 12, 1856. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Wicks, S.S.; de Villoria, R.G.; Wardle, B.L. Interlaminar and intralaminar reinforcement of composite laminates with aligned carbon nanotubes. Compos. Sci. Technol. 2010, 70, 20–28. [Google Scholar] [CrossRef]
  13. Llobet, J.; Maimí, P.; Turon, A.; Bak, B.L.V.; Lindgaard, E.; Carreras, L.; Essa, Y.; de la Escalera, F.M. A continuum damage model for composite laminates: Part IV—Experimental and numerical tests. Mech. Mater. 2021, 154. [Google Scholar] [CrossRef]
  14. Sengodan, G.A.; Allegri, G.; Hallett, S.R. Simulation of progressive failure in laminated composites under variable environmental conditions. Mater. Des. 2020, 196. [Google Scholar] [CrossRef]
  15. Guadagno, L.; Raimondo, M.; Vietri, U.; Barra, G.; Vertuccio, L.; Volponi, R.; Cosentino, G.; de Nicola, F.; Grilli, A.; Spena, P. Development of multifunctional carbon fiber reinforced composites (CFRCs)-Manufacturing process. AIP Conf. Proc. 2014, 1599. [Google Scholar] [CrossRef]
  16. Kleineberg, M.; Herbeck, L.; Schöppinger, C. Advanced liquid resin infusion—A new perspective for space structures. In Proceedings of the European Conference on Spacecraft Structures, Materials and Mechanical Testing, Toulouse, France, 11–13 December 2002. [Google Scholar]
  17. Tuloup, C.; Harizi, W.; Aboura, Z.; Meyer, Y.; Ade, B.; Khellil, K. Detection of the key steps during Liquid Resin Infusion manufacturing of a polymer-matrix composite using an in-situ piezoelectric sensor. Mater. Today Commun. 2020, 24, 101077. [Google Scholar] [CrossRef]
  18. Sirtautas, J.; Pickett, A.K.; George, A. Materials characterisation and analysis for flow simulation of liquid resin infusion. Appl. Compos. Mater. 2015, 22, 323–341. [Google Scholar] [CrossRef]
  19. Park, H.-J. Effects of stacking sequence and clamping force on the bearing strengths of mechanically fastened joints in composite laminates. Compos. Struct. 2001, 53, 213–221. [Google Scholar] [CrossRef]
  20. Aktas, A.; Dirikolu, M.H. The effect of stacking sequence of carbon epoxy composite laminates on pinned-joint strength. Compos. Struct. 2003, 62, 107–111. [Google Scholar] [CrossRef]
  21. Smith, P.A.; Pascoe, K.J. The effect of stacking sequence on the bearing strengths of quasi-isotropic composite laminates. Compos. Struct. 1986, 6, 1–20. [Google Scholar] [CrossRef]
  22. Heslehurst, R.B. Design and Analysis of Structural Joints with Composite Materials; DEStech Publications, Inc.: Lancaster, PA, USA, 2013. [Google Scholar]
  23. Heslehurst, R.B. Engineered Repairs of Composite Structures; CRC Press: Boca Raton, FL, USA, 2019. [Google Scholar]
  24. Vermes, B.; Tsai, S.W.; Riccio, A.; di Caprio, F.; Roy, S. Application of the Tsai’s modulus and double-double concepts to the definition of a new affordable design approach for composite laminates. Compos. Struct. 2021, 259, 113246. [Google Scholar] [CrossRef]
  25. Arteiro, A.; Sharma, N.; Melo, J.D.D.; Ha, S.K.; Miravete, A.; Miyano, Y.; Massard, T.; Shah, P.D.; Roy, S.; Rainsberger, R.; et al. A case for Tsai’s Modulus, an invariant-based approach to stiffness. Compos. Struct. 2020, 252, 112683. [Google Scholar] [CrossRef]
Figure 1. Single-lap and double-lap joints shear stresses.
Figure 1. Single-lap and double-lap joints shear stresses.
Aerospace 08 00178 g001
Figure 2. Wing without upper skin-rib BL0 and rib ST225 positioning in the wing.
Figure 2. Wing without upper skin-rib BL0 and rib ST225 positioning in the wing.
Aerospace 08 00178 g002
Figure 3. Joints details: (a) Rib BL0 zone; (b) Rib ST 225 connections.
Figure 3. Joints details: (a) Rib BL0 zone; (b) Rib ST 225 connections.
Aerospace 08 00178 g003
Figure 4. Example of fastener application via CBUSH elements for the Rib BL0 connection.
Figure 4. Example of fastener application via CBUSH elements for the Rib BL0 connection.
Aerospace 08 00178 g004
Figure 5. MPCs used for load applications (transfer of loads from one master node to a set of predefined nodes).
Figure 5. MPCs used for load applications (transfer of loads from one master node to a set of predefined nodes).
Aerospace 08 00178 g005
Figure 6. Spar (red)–upper skin (blue) MPCs connection.
Figure 6. Spar (red)–upper skin (blue) MPCs connection.
Aerospace 08 00178 g006
Figure 7. Tensile (a), Shear (b), and Bearing (c) failure.
Figure 7. Tensile (a), Shear (b), and Bearing (c) failure.
Aerospace 08 00178 g007
Figure 8. Bearing Distribution Factor. (a) Analytical evolution; (b) geometrical parameters.
Figure 8. Bearing Distribution Factor. (a) Analytical evolution; (b) geometrical parameters.
Aerospace 08 00178 g008
Figure 9. Half-Wing: (a) whole wing CAD model; (b) composite (red) and metal (blue) components.
Figure 9. Half-Wing: (a) whole wing CAD model; (b) composite (red) and metal (blue) components.
Aerospace 08 00178 g009
Figure 10. Geometrical information. (a) Half-wing dimensions and stacking sequence view of the upper skin highlighted by different colours; (b) stacking sequence details of the composite upper half wing; (c) thickness trend of the aluminium upper half wing.
Figure 10. Geometrical information. (a) Half-wing dimensions and stacking sequence view of the upper skin highlighted by different colours; (b) stacking sequence details of the composite upper half wing; (c) thickness trend of the aluminium upper half wing.
Aerospace 08 00178 g010
Figure 11. Geometrical information. (a) Stacking sequence view of the lower skin highlighted by different colours; (b) stacking sequence details of the composite lower half wing; (c) thickness trend of the aluminium lower half wing.
Figure 11. Geometrical information. (a) Stacking sequence view of the lower skin highlighted by different colours; (b) stacking sequence details of the composite lower half wing; (c) thickness trend of the aluminium lower half wing.
Aerospace 08 00178 g011
Figure 12. (a) Loading conditions; (b) detailed View.
Figure 12. (a) Loading conditions; (b) detailed View.
Aerospace 08 00178 g012

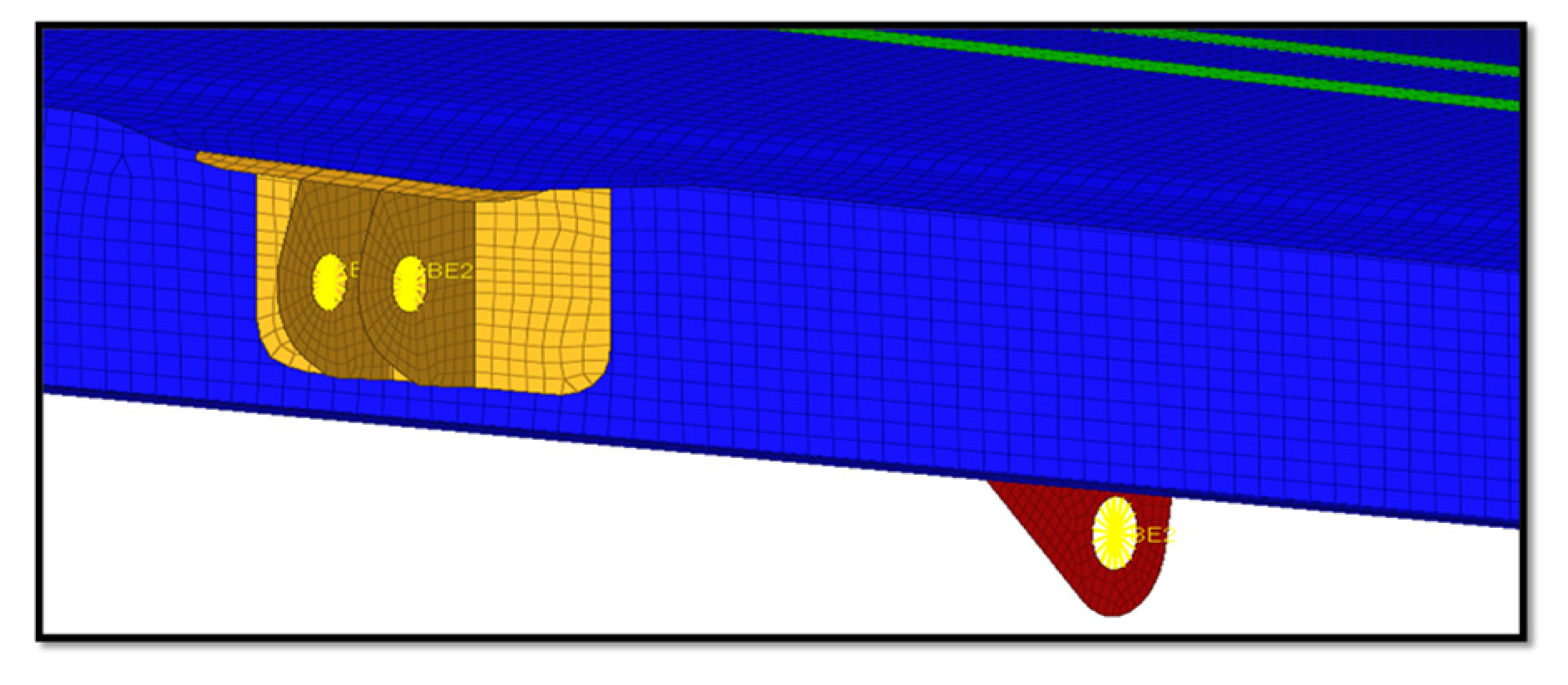

Figure 13. Boundary Conditions (wing–fuselage connection by MPCs).
Figure 13. Boundary Conditions (wing–fuselage connection by MPCs).
Aerospace 08 00178 g013
Figure 14. Maximum tensile strain. (a) Laminae direction 0°; (b) laminae direction 90°; (c) laminae direction ±45°.
Figure 14. Maximum tensile strain. (a) Laminae direction 0°; (b) laminae direction 90°; (c) laminae direction ±45°.
Aerospace 08 00178 g014aAerospace 08 00178 g014b
Figure 15. Maximum compressive strain. (a) Laminae direction 0°; (b) laminae direction 90°; (c) laminae direction ±45°.
Figure 15. Maximum compressive strain. (a) Laminae direction 0°; (b) laminae direction 90°; (c) laminae direction ±45°.
Aerospace 08 00178 g015aAerospace 08 00178 g015b
Figure 16. Maximum stress—Von Mises.
Figure 16. Maximum stress—Von Mises.
Aerospace 08 00178 g016
Figure 17. Buckling analysis output. (a) Bending up; (b) bending down; (c) flap only; (d) take off; (e) landing.
Figure 17. Buckling analysis output. (a) Bending up; (b) bending down; (c) flap only; (d) take off; (e) landing.
Aerospace 08 00178 g017aAerospace 08 00178 g017b
Table 1. Half-wing parts (constituent materials).
Table 1. Half-wing parts (constituent materials).
Rib BL0Al 7050-T7451
Fuselage FittingAl 7050-T7451
Rib ST 225 FittingAl 7050-T7451
Flap FittingAl 7050-T7451
SpliceAl 7050-T7451
Rib TEAl 2024-T3
Upper PanelCFRP-IM7/977-2
Lower PanelCFRP-IM7/977-2
Rear sparCFRP-IM7/977-2
Front sparCFRP-IM7/977-2
Upper StringerCFRP-IM7/977-2
Lower StringerCFRP-IM7/977-2
Rib ST 225CFRP-IM7/977-2
Closing RibCFRP-IM7/977-2
Table 2. Al 7050-T7451 properties.
Table 2. Al 7050-T7451 properties.
Al 7050-T7451 Properties
Density [t/mm3]2.83 × 10−9
Ftu [GPa]0.468
Fty [GPa]0.406
Fcy [GPa]0.420
Fsu [GPa]0.296
Fbru (e/D = 2.0) [GPa]0.972
E [GPa]71.016
Ec [GPa]73.084
Table 3. Al 2024-T3 properties.
Table 3. Al 2024-T3 properties.
Al 2024-T3 Properties
Density [t/mm3]2.78 × 10−9
Ftu [GPa]0.434
Fty [GPa]0.289
Fcy [GPa]0.268
Fsu [GPa]0.268
Fbru (e/D = 2.0) [GPa]0.889
E [GPa]72.394
Ec [GPa]73.773
Table 4. IM7/977-2 Composite properties.
Table 4. IM7/977-2 Composite properties.
IM7/977-2 Composite Properties
Density [t/mm3]1.58 × 10−9
E1 [GPa]153.0
E2 = E3 [GPa]10.30
G12 = G13 [GPa]6.0
G23 [GPa]3.7
ν12 = ν130.30
Table 5. Loading conditions.
Table 5. Loading conditions.
Loading ConditionDescription
Bending UpAerodynamic Loads + Flap Loads
Bending DownAerodynamic Loads + Flap Loads
Flap OnlyFlap Loading Introduction
Take-offAerodynamic Loads + Flap Loads
LandingAerodynamic Loads + Flap Loads
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Acanfora, V.; Petillo, R.; Incognito, S.; Mirra, G.M.; Riccio, A. Development of Detailed FE Numerical Models for Assessing the Replacement of Metal with Composite Materials Applied to an Executive Aircraft Wing. Aerospace 2021, 8, 178.

AMA Style

Acanfora V, Petillo R, Incognito S, Mirra GM, Riccio A. Development of Detailed FE Numerical Models for Assessing the Replacement of Metal with Composite Materials Applied to an Executive Aircraft Wing. Aerospace. 2021; 8(7):178.

Chicago/Turabian Style

Acanfora, Valerio, Roberto Petillo, Salvatore Incognito, Gerardo Mario Mirra, and Aniello Riccio. 2021. "Development of Detailed FE Numerical Models for Assessing the Replacement of Metal with Composite Materials Applied to an Executive Aircraft Wing" Aerospace 8, no. 7: 178.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
