Experimental Investigation of PWM Throttling in a 50-Newton-Class HTP Monopropellant Thruster: Analysis of Pressure Surges and Oscillations

Abstract

High-test peroxide (HTP) monopropellant thrusters are being considered for spacecraft lander missions due to their simplicity and reduced toxicity compared to traditional propellants. Pulse-Width Modulation (PWM) throttling is a key technique for precise thrust control in such systems. However, PWM throttling can lead to pressure surges and oscillations in the propellant feed system, potentially compromising system reliability. This study investigates the influence of PWM parameters, specifically duty cycle and frequency, on pressure surges and oscillations in a 50-newton-class HTP monopropellant thruster. The objective is to identify stable operating conditions that mitigate these effects, thereby enhancing the reliability of PWM throttling for lander applications. An experimental setup was developed, including a 50-newton-class thruster with a ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ catalyst and a solenoid valve for PWM control. Cold flow tests using water characterized the valve response and water hammer effects, while hot fire tests with 90 wt.% HTP were used to evaluate thruster performance under steady-state and PWM conditions. Analytical methods, including Joukowsky’s equation and power spectral density analysis, were used to interpret the data and understand the underlying mechanisms. The results showed that while surge pressures generally aligned with steady-state values, specific PWM conditions led to amplified surges, particularly at low duty cycles. Additionally, high duty cycles induced chugging instability. The natural frequencies of the feed system were found to play a crucial role in these phenomena. Stable operating conditions were identified by avoiding duty cycles that cause constructive interference of pressure waves. This research demonstrates that by carefully selecting PWM parameters based on the feed system’s dynamic characteristics, pressure surges and oscillations can be minimized, ensuring reliable operation of HTP monopropellant thrusters in PWM throttling mode. These findings contribute to the development of more efficient and safer propulsion systems for spacecraft landers.

1. Introduction

Thrust control refers to adjusting the thrust level generated by a propulsion system according to mission requirements and is primarily applied to liquid propellant rocket engines. It is utilized in missions such as acceleration control of launch vehicles, spacecraft rendezvous operations, and trajectory and attitude control of ballistic and interceptor missiles. For lander missions that require precise velocity and position control during terminal phase of the descent stage called powered descent, thrust control is considered one of the most crucial technologies for the soft landing of the spacecraft [1]. The principle of thrust control can be understood through the thrust equation expressed in Equation (1).

$$F=\dot{m}{V}_e+(P_e-P_a)A_e$$

(1)

Depending on the propellant and operating environment of the propulsion system, the exhaust velocity $V_e$ at the nozzle exit and the ambient pressure $P_a$ are influenced. Methods to control thrust involve adjusting the remaining variables in the thrust equation: the propellant flow rate $\dot{m}$, the nozzle exit area $A_e$, and the pressure of the exhaust gas $P_e$. The most commonly used method for thrust control is manipulating the flow rate of propellant injected into the thruster. In this context, “throttling”, which refers to controlling the propellant flow rate, is used synonymously with thrust control [1].

Pulse modulation throttling is a method of controlling the time-averaged thrust by modulating the pulse signal that drives the valve, thereby adjusting the opening and closing of the valve and manipulate the injection of the propellant. Pulse-Width Modulation (PWM) is a pulse modulation technique that operates at a constant frequency while changing a duty cycle, a proportion of the valve open time to a period of valve’s open/close cycle.

PWM thrust control is advantageous over other means of throttling for its technical simplicity and thus higher system reliability and lower cost of development [2]. Furthermore, various guidance and control algorithms for powered descent maneuvers using pulse modulation have already been studied, suggesting that such a throttling technique is suitable for use in small-sized lander spacecraft. A prominent example of the implementation of pulse modulation throttling in lander application is the Mars Polar Lander (MPL) [2], an unmanned mission that attempted to land on Mars using the MR-107N hydrazine monopropellant thruster with pulse modulation thrust control. Although the mission failed, the lessons learned were instrumental in the success of the Phoenix lander [3], which employed the same technique to achieve a controlled descent and successful landing on the Martian surface. In 2016, ESA’s unmanned Mars lander, Schiaparelli [4], implemented a pulse modulated retro-propulsion system for powered descent. Meanwhile, Earth-based lander test beds, such as NASA’s warm gas test article for the Robotic Lunar Lander Development Project [5] or KAIST’s DALBIT-1 [6], were developed, implementing pulse modulation thrust control to serve as flying test platforms for validating planetary landing technologies.

Nevertheless, PWM thrust control incorporates several significant drawbacks, including reduced propellant efficiency during transients, limited thrust levels, and substantial dependence on the performance of flow control valves. Notably, the abrupt closure of the valve during the cyclic operation of PWM throttling generates high surge pressure due to water hammer effects, potentially damaging the propellant feed system and leading to propulsion system failure [1]. Such amplified pressure oscillations may also induce unstable propellant injection and incomplete combustion, degrading performance and imposing excessive structural vibration. For instance, one hypothesized failure mode in the loss of the MPL was feed component failure due to a water-hammer-induced pressure surge [7]. A substantial amount of tests and verification were performed during the development of the subsequent Phoenix lander to mitigate the potential system failure caused by PWM throttling [3].

For stable and reliable PWM throttling, understanding the propulsion system’s response to the varying conditions of repetitive cycles is critical. The parameters of the modulated pulses, such as duty cycle and frequency, are known to govern the response of the feed system and thruster, significantly influencing the performance and structural integrity of the propulsion system. For example, pulse conditions that exacerbate oscillations throughout the propellant feed system and thruster could result in structural failure, leakage at feed components, or degradation and attrition of the catalyst. Martin et al. [8] reported that the conditions of high (greater than 80%) or low (less than 25%) duty cycles in 10 Hz frequency were avoided in the MPL mission to prevent the onset of excessive pressure oscillations, which may lead to system instability and potential thruster backflow.

In this study, PWM throttling was experimentally investigated using a 50-newton-class high-test peroxide (HTP) monopropellant thruster to identify pulse parameters exacerbating pressure surges and oscillations. The aim was to clarify relationships among valve response, propellant feed system properties, pulse conditions, and catalytic reactor responses amplifying these effects. Cold flow tests were conducted to characterize the valve and feed system responses to the steady-state and pulse operation. Subsequently, steady-state hot fire tests verified thruster performance fidelity. PWM throttling was then performed at 10 Hz, with duty cycles ranging from 10 to 80% in 10% increments, to assess system response to repeated propellant injection cycles. A mechanism causing excessive pressure surges and oscillations was proposed and validated with experimental data. Mathematical correlation of identifying the pulse conditions that invoke such phenomena was derived.

2. Experimental Setup

2.1. HTP Monopropellant Propulsion System

2.1.1. High-Test Peroxide (HTP)

Thrusters utilizing hydrazine-based liquid propellants, widely used since the early days of space development, provide high specific impulse for excellent propellant efficiency and a low adiabatic decomposition temperature for reliable operation. However, these propellants are highly toxic and carcinogenic [9]. Their extreme toxicity necessitates advanced safety equipment and machinery for handling. Additionally, environmental pollution from decomposition gases limits access to experimental facilities, elevating development time and costs.

Research is actively exploring environmentally friendly, cost-effective, and efficient alternatives to hydrazine-based propellants. Key candidates include hydroxylammonium nitrate (HAN), ammonium dinitramide (ADN), and high-test peroxide (HTP), with HTP being a leading focus. Compared to hydrazine, HTP is easier to handle, offers superior stability and storability, and reduces operational costs. Its decomposition into water and oxygen is non-toxic, making it a promising substitute for toxic propellants [9]. Per

Table 1. Performance comparison between hydrazine-based liquid propellant and high-concentration hydrogen peroxide.

Specification	Hydrazine (N2H4)	HTP (98 wt.%)
Vacuum specific impulse	244.8 s	188.2 s
Density	1.02 g/cm3	1.43 g/cm3
Specific heat	1.559 J/(g·K)	2.650 J/(g·K)
Decomposition product	Gaseous ${\mathrm{NH}}_3$, ${\mathrm{H}}_2$	Gaseous ${\mathrm{H}}_2$O, ${\mathrm{O}}_2$

, ${\mathrm{H}}_2{\mathrm{O}}_2$ has a lower specific impulse than hydrazine, reducing efficiency, but its high density yields a greater density-specific impulse and its high specific heat enhances stability [10,11]. HTP decomposes catalytically or thermally per Equation (2), producing high-temperature water vapor and oxygen.

$$2{\mathrm{H}}_2{\mathrm{O}}_2\to 2{\mathrm{H}}_2\mathrm{O}+{\mathrm{O}}_2+\mathrm{Heat}$$

(2)

Table 2. Performance comparison between different concentrations of the high-concentration hydrogen peroxide.

Density (wt.%)	Vacuum Specific Impulse (sec)	Adiabatic Decomposition Temperature (K)	Density @STP	Specific Heat @STP (J/(g · K))
85	162.04	910.26	1.3549	2.8538
90	172.62	1032.45	1.3815	2.7755
98	188.23	1228.08	1.4255	2.6503

presents the vacuum specific impulse, adiabatic decomposition temperature, density, and specific heat of high-test peroxide (HTP) at various concentrations. The specific impulse and adiabatic decomposition temperature were calculated using the NASA Chemical Equilibrium and Applications (CEA) code [12], while the density and specific heat values were obtained from Schumb et al. [13] and Giguère et al. [14], respectively. As the HTP concentration increases, its decomposition temperature, specific impulse, and density also increase, improving propellant performance. However, higher decomposition temperatures may accelerate catalyst degradation and reduce system reliability. Also, lower specific heat can further compromise thermal stability. A propellant with low specific heat capacity absorbs less thermal energy, resulting in more rapid transmission of temperature fluctuations within the catalytic bed. This reduces thermal buffering and increases the susceptibility of the propulsion system to combustion instability within the catalytic reactor. Moreover, higher concentrations are associated with increased cost. In this study, 90 wt.% HTP from HABO Chemical Company was selected as the monopropellant, considering cost-effectiveness and procurement feasibility.

2.1.2. ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ Catalyst

The catalyst in a thruster is exposed to a high temperature and pressure. During pulse operation, periodic injection of a high-momentum liquid propellant jet heightens mechanical and thermal stress. Hearn et al. [15] noted that this causes significant temperature fluctuations, weakening the bond between the catalyst support and active material due to differential thermal expansion. Excessive stress may fracture the catalyst, raising pressure drop and instability in the bed, leading to performance degradation or even system failure. Past studies [16,17,18] observed increased pressure drop and instability in HTP monopropellant thrusters after pulse operation, attributing it to catalyst damage from high-momentum propellant injection.

To stably perform PWM throttling of an HTP monopropellant thruster, it is essential to use a catalyst with high resistance to mechanical and thermal stress while maintaining adequate decomposition performance. In this study, a ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ catalyst based on a lanthanum-doped $\gamma$-alumina support was selected and used in experiments. The catalyst overcomes the limitations of conventional $\gamma$-alumina-based catalysts, which lack durability in high pressures and large thermal gradients, by doping the support with lanthanum to enhance resistance against mechanical and thermal stress. The ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ catalyst exhibited a lower Brunauer–Emmett–Teller (BET) surface area, and thus inferior reactivity compared to conventional $\gamma$-alumina-based catalysts, but was demonstrated to withstand greater compressive loads from the high-momentum liquid jet, making it suitable for pulse operation [19]. Catalyst preparation was conducted by following the procedures suggested by Kang et al. [19] and An et al. [20]. Lanthanum from a Lanthanum Nitrate solution (La${\left({\mathrm{NO}}_3\right)}_3$) was doped on commercial $\gamma$-alumina using the wet-impregnation method. Manganese Oxide (${\mathrm{MnO}}_2$) from a Sodium Permanganate solution (${\mathrm{NaMnO}}_4$) was then deposited on the catalyst support using the wet-impregnation method. Then, catalysts with a size of 16–18 mesh (1.19–1.00 mm) were selectively chosen and used for the test.

2.1.3. HTP Monopropellant Thruster

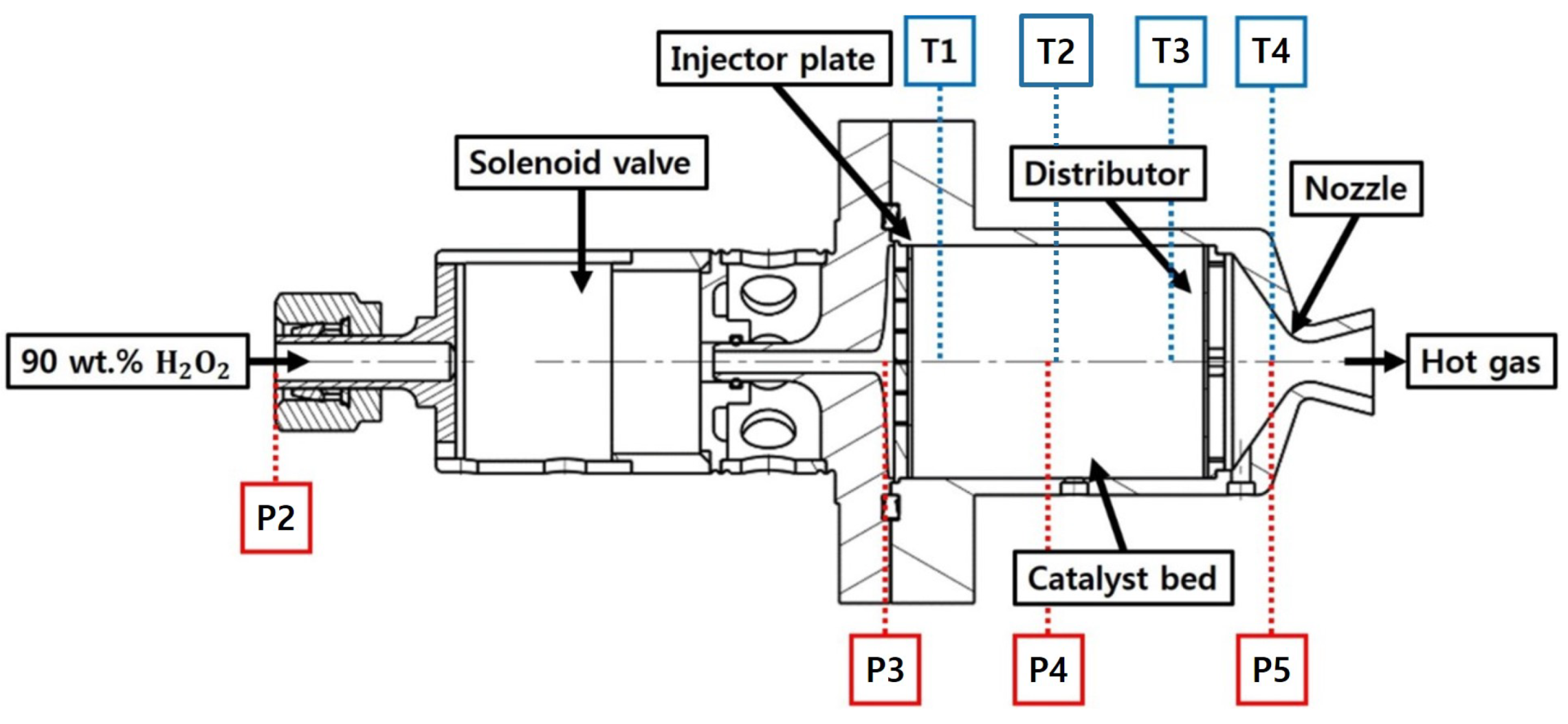

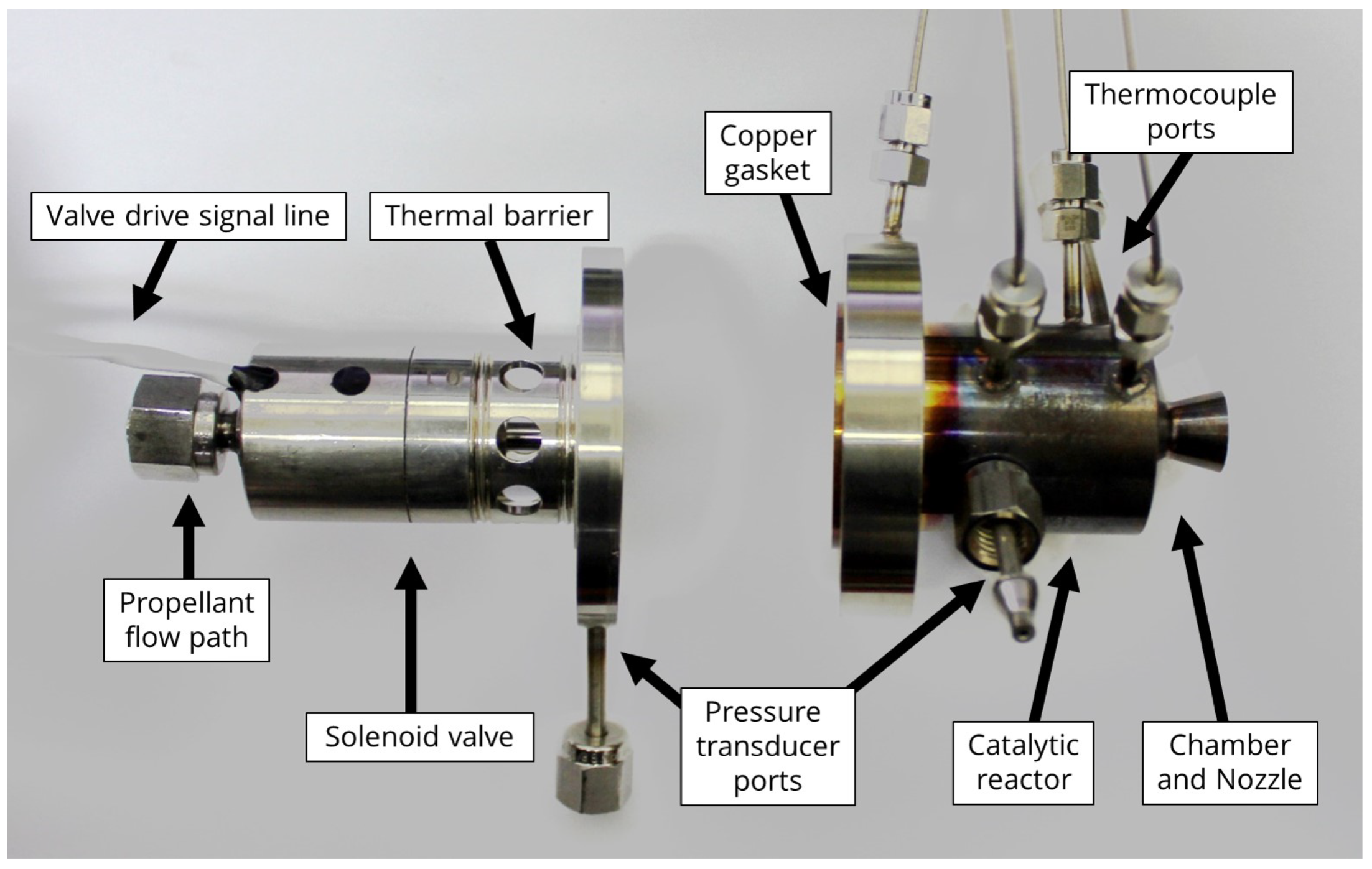

A 50-newton-class monopropellant thruster using 90 wt.% high-test peroxide (HTP) was designed and fabricated. Figure 1 shows its four main components: solenoid valve, injector, catalytic reactor, and chamber/nozzle assembly. The design parameters were obtained using Rocket Propulsion Analysis (RPA) software Standard Edition v.2.2.8 from RP Software+Engineering UG and are listed in

Table 3. Design specification of 50-newton-class HTP monopropellant thruster.

Parameters	Value	Unit
Thrust	50	N
Propellant	90 wt.% HTP
Chamber pressure	20	bar
Propellant mass flow rate	40.86	g/s
Theoretical C *	949.5	m/s
Catalytic reactor length	35	mm
Catalytic reactor diameter	28	mm
Nozzle type	${15}^{\circ }$ cone
Nozzle expansion ratio	3.18
Nozzle throat diameter	4.86	mm

. A suspended-armature solenoid valve from Space Solutions was mounted immediately upstream of the injector to reduce response time and dribble volume loss. Additionally, a thermal shield was incorporated to prevent heat transfer from the thruster to the valve and beyond.

To decouple the dynamic interaction between the propellant feeding system and the catalytic reactor, the injector was designed to impose a pressure drop of approximately 20% of the chamber pressure across the orifice. Assuming a discharge coefficient (${\mathrm{C}}_d$) of approximately 0.7, the injector was designed to exhibit 18 orifices of 350 µm diameter, providing 4 bar of pressure drop at the designed mass flow rate. Following the empirical approach from An et al. [21], the catalytic reactor size was determined based on catalyst decomposition capacity (Equation (3)). For the ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ catalyst, a conservative decomposition capacity of 1.9 g/(${\mathrm{s·cm}}^3$) was selected from prior studies. A 15° conical nozzle with a 4.86 mm throat diameter and 3.18 expansion ratio was selected to achieve 50 N thrust at sea level.

$$\begin{array}{c}\mathrm{Catalyst}\mathrm{decomposition}\mathrm{capacity}[\mathrm{g}/(\mathrm{s}·{\mathrm{cm}}^3)]=\\ \mathrm{Propellant}\mathrm{mass}\mathrm{flow}\mathrm{rate}/\mathrm{Volume}\mathrm{of}\mathrm{the}\mathrm{catalytic}\mathrm{reactor}\end{array}$$

(3)

2.1.4. Propellant Feeding System and DAQ

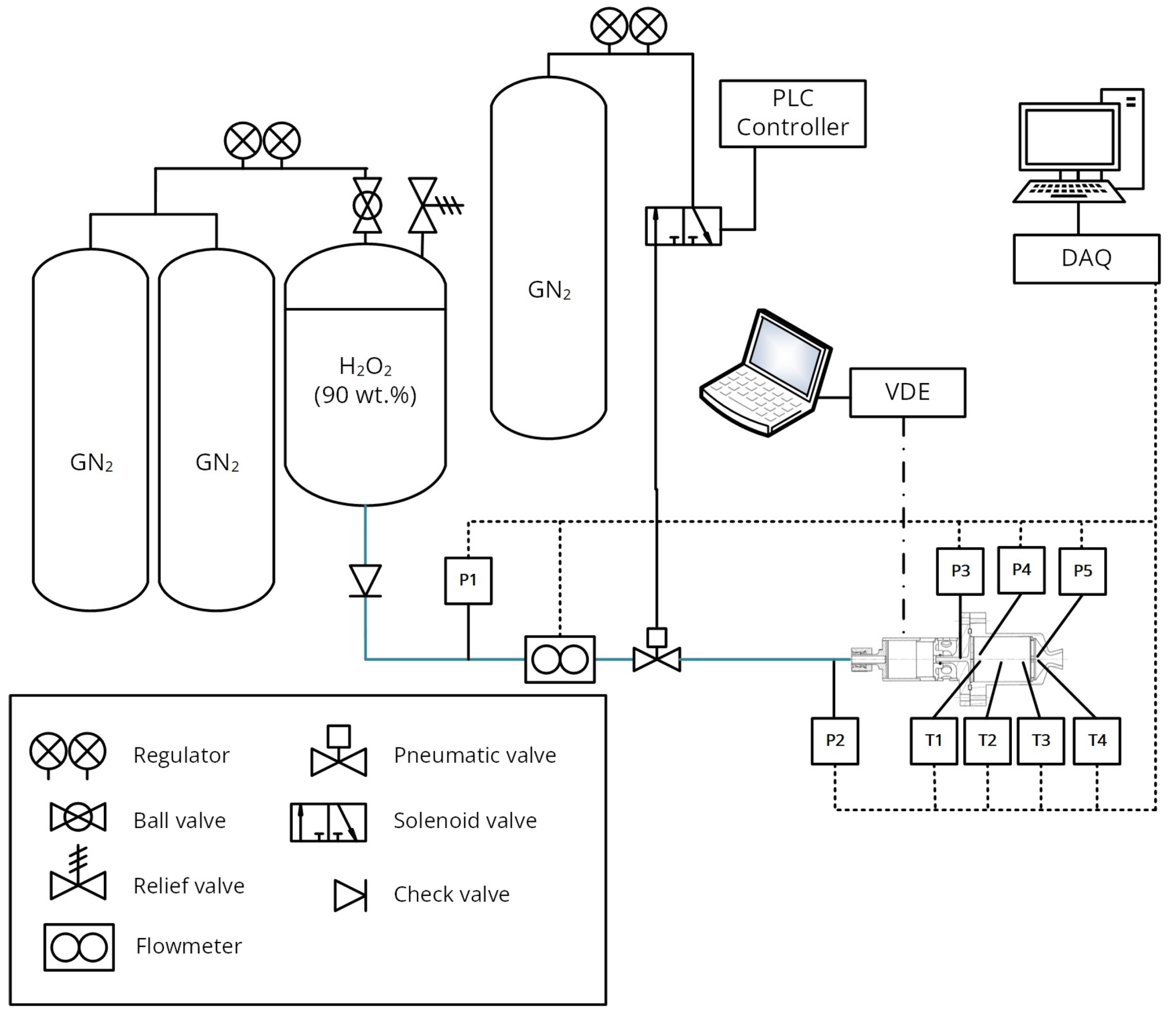

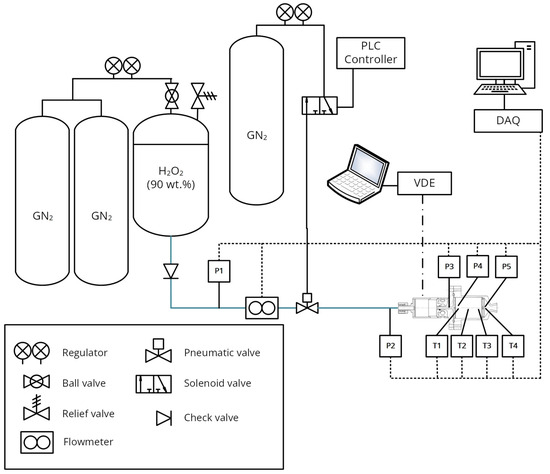

Figure 2 shows the propellant feeding system, designed to deliver the desired mass flow rate to the HTP monopropellant thruster by pressurizing the propellant tank with high-pressure nitrogen gas. A regulator upstream of the tank maintains constant pressure during operation. A check valve and relief valve prevent propellant backflow and vent gas from the tank during a pressure surge. Pneumatic valves control propellant and purging gas flow. A turbine flow meter measures the propellant’s volumetric flow rate once a steady state is reached. A solenoid valve is mounted closely upstream of the injector, operated with the modulated valve drive signals that will be further explained in Section 2.2.1.

Pressure, temperature, thrust, propellant flow rate, and command signals were measured using a National Instruments (NI) cDAQ-9174 equipped with NI-9220 and NI-9213 modules, operated via DASYLab v14. Pressure and thrust were recorded at 1000 Hz and temperature at 200 Hz, with a 100 kHz low-pass filter applied to suppress high-frequency noise. Pressure transducers (Sensys PSH series) rated at 70, 50, and 35 bar were installed, with higher-capacity sensors positioned downstream of the propellant tank and upstream of the solenoid valve to capture surge pressures. Temperature was measured using an Omega K-type thermocouple (Omega, Norwalk, CT, USA) connected to an NI-9213 DAQ module. Although the NI-9213 provides high-resolution data (nominal sensitivity < 0.25 °C), the overall system accuracy—considering sensor tolerance, cold junction compensation, and voltage-to-temperature conversion—is estimated at ±1–2 °C. Therefore, the reported temperatures are rounded to the nearest 0.1 °C to reflect practical measurement precision. Lastly, the thrust was measured with a calibrated Dacell CMM-2 load cell. The accuracies of the measurement instruments are listed in

Table 4. Accuracies of the measurement instruments.

Measurement Instrument	Specifications	Value
PSH pressure transducer, Sensys, Ansan, Republic of Korea	Accuracy	±0.15% of Full scale (RSS)
K-type thermocouple, Omega, Norwalk, CT, USA	Accuracy	±2.2 °C or ±0.75%
CMM-2, Dacell, Cheongju, Republic of Korea	Nonlinearity, Hystersis, Repeatability	≤1% of rated output

.

Pressure transducers were installed at five locations: P1 (downstream of the propellant tank), P2 (upstream of the solenoid valve), P3 (injector manifold), P4 (catalytic reactor inlet), and P5 (chamber). Temperature sensors were placed at four locations: T1 (catalytic reactor inlet), T2 (halfway through the reactor), T3 (catalytic reactor outlet), and T4 (chamber).

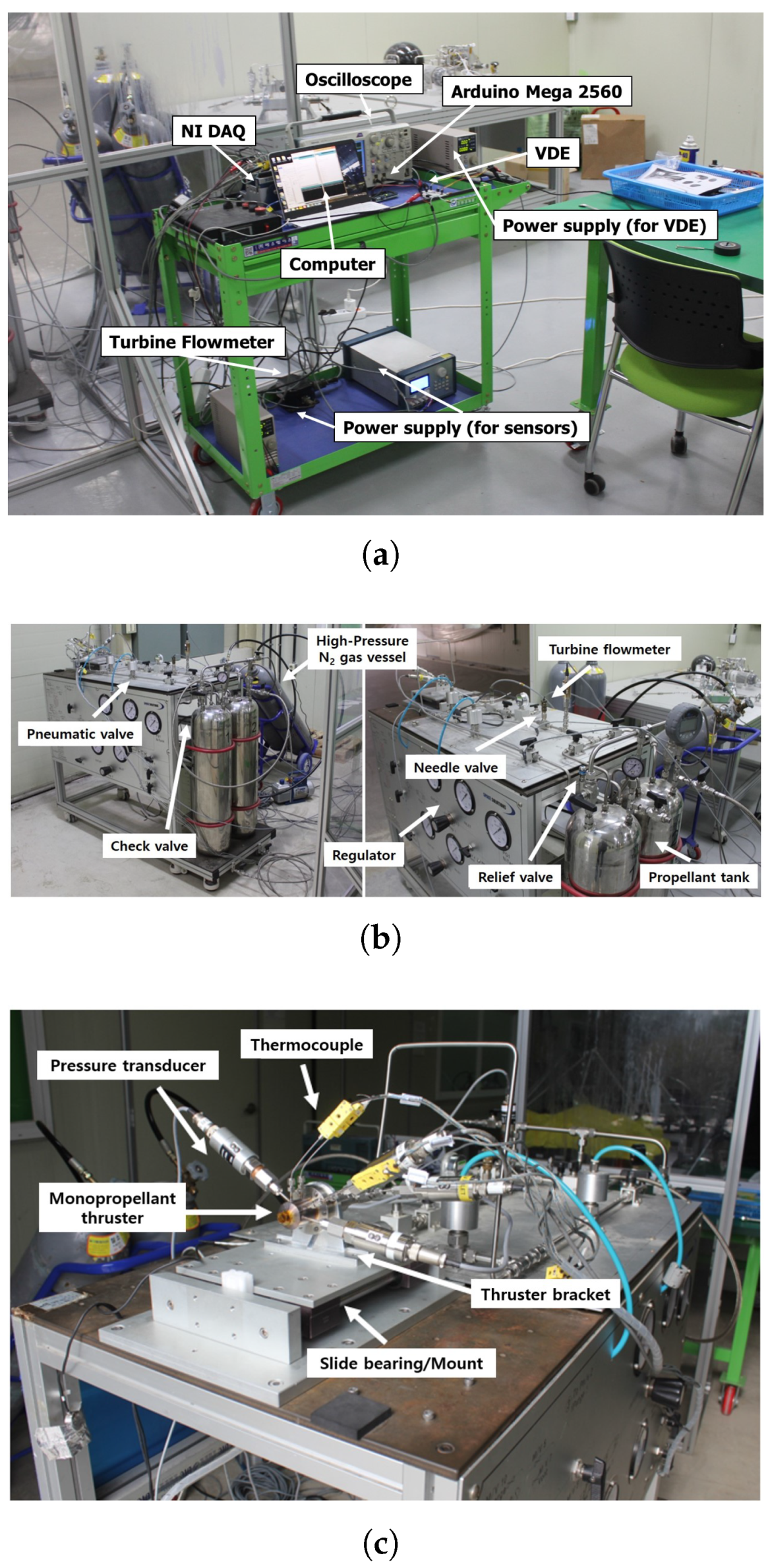

The integrated test setup, shown in Figure 3, includes the propellant feeding system, valve drive equipment, DAQ hardware, sensors, and thruster on a mobile platform. A polycarbonate shield protects operators from propellant leakage. The 50-newton-class HTP thruster was secured to a slide bearing via a bracket, with a load cell at the front measuring thrust.

2.2. Valve and Electronics

2.2.1. Solenoid Valve

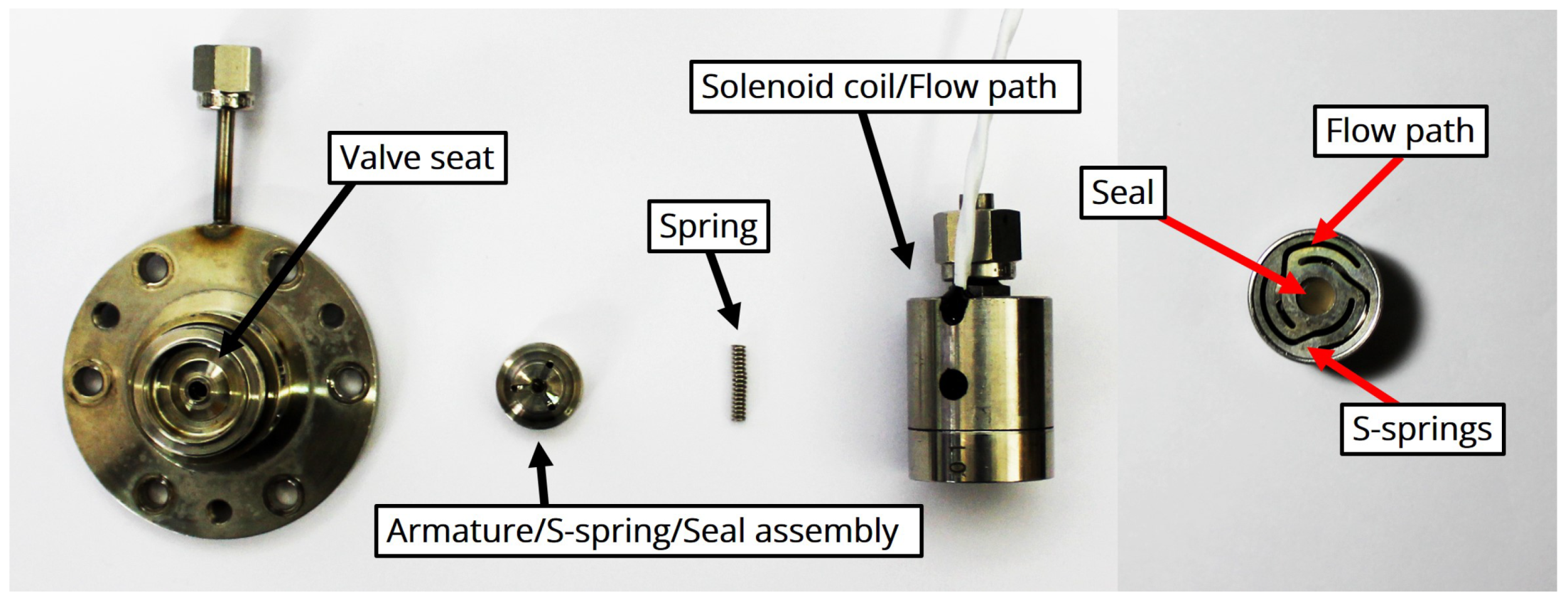

In this study, a solenoid valve designed and manufactured by Space Solutions was employed to regulate propellant injection using modulated valve drive signals. The solenoid valve, shown in Figure 4, integrates a suspended armature design with features of the sliding fit type. Although the sliding fit type is simpler, it is susceptible to surface friction and difficult to optimize for performance and reliability. Conversely, the suspended armature solenoid valve is compact, lightweight, highly resistant to mechanical abrasion and contamination, and generates minimal friction, making it ideal for long-term space applications. Figure 5 depicts the internal components of the solenoid valve: armature, S-spring, conventional spring, and elastomer seal. The S-spring is integrated with the armature, while the conventional spring is mounted on the opposite side. An elastomer seal, affixed to the armature’s base, obstructs the flow path when the armature contacts the valve seat in the absence of a drive signal.

2.2.2. Valve Control System

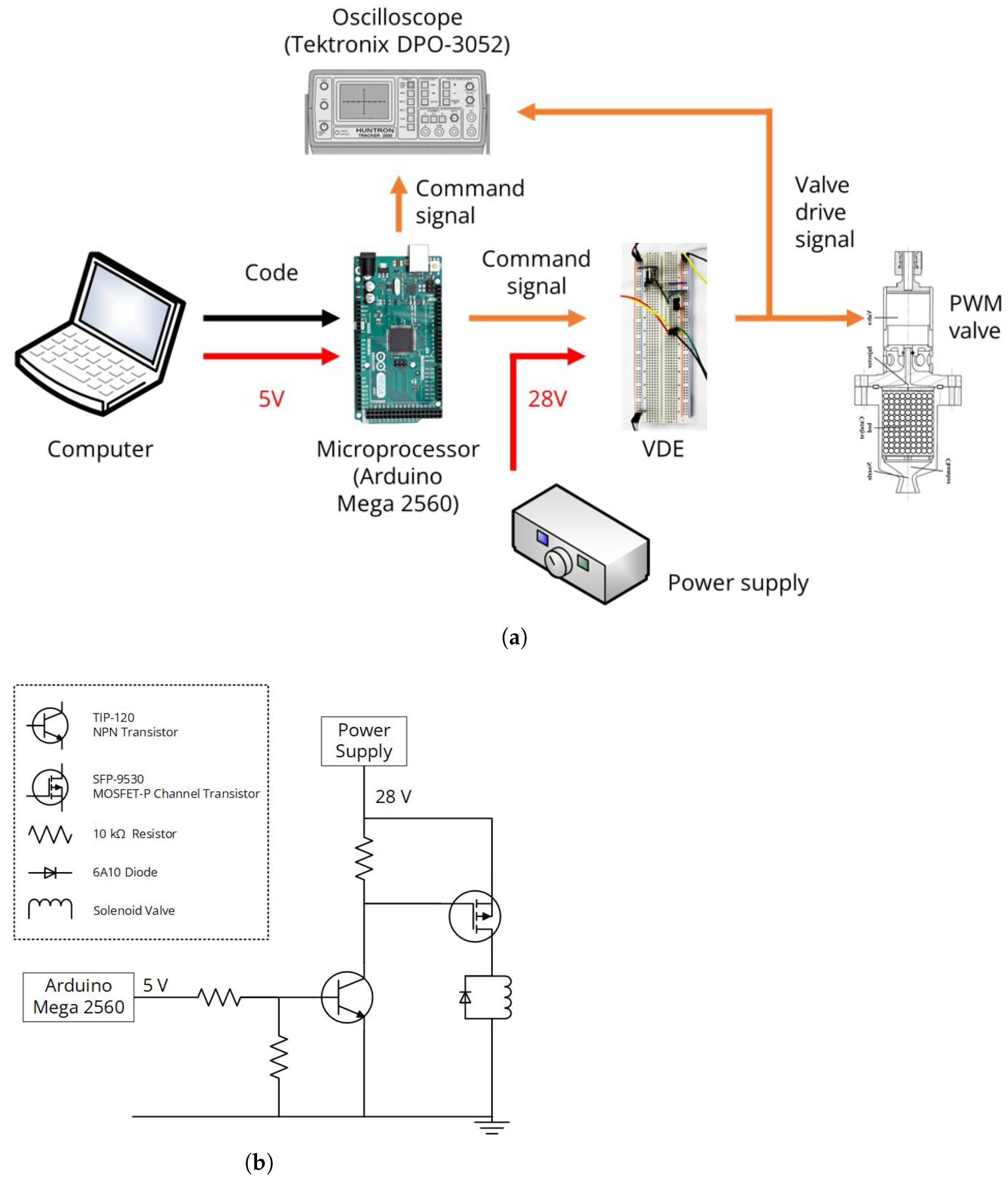

The valve control system generates drive signals with specified frequencies and duty cycles to operate the solenoid valve under predetermined pulse conditions. Figure 6a shows the five main components of the system: a computer, microprocessor, oscilloscope, power supply, and valve drive electronics (VDE) circuit. Figure 6b presents the VDE circuit diagram developed for this study. The computer, connected to the microprocessor, supplies power and uploads the control code developed using the Arduino IDE v.1.8.2. The Arduino Mega 2560 microprocessor generates the command signal and transmits it to both the VDE circuit and a data acquisition (DAQ) device. As the microprocessor output is limited to 5 V, the VDE circuit—powered by an external supply—amplifies the signal to 28 V, the operating voltage of the solenoid valve, while preserving waveform integrity. The design requirements listed in

Table 5. Design requirements of the valve control system.

Design Requirements	Value
Rise, fall time	<1 msec
Input voltage	28 ± 3 V
Duty cycle error between signals	<1%
Phase difference between signals	<1 msec

ensured precise valve actuation, including rise and fall times < 1 ms, duty cycle error < 1%, and phase difference < 1 ms. The VDE employs a P-channel MOSFET and PNP transistor, along with a flyback diode to suppress back EMF spikes. Following circuit validation, the SPF-9530 (MOSFET), TIP-120 (PNP transistor), and Diode Incorporated 6A10 (diode) manufactured by Fairchild, Sunnyvale, CA, USA were selected, with a 10 k$\Omega$ resistor. A DPO-3052 oscilloscope of Tektronix, Beaverton, OR, USA was used to verify system performance at 10 Hz with duty cycles ranging from 10% to 90%, representing operational extremes. As shown in

Table 6. Performance of the valve control system with respect to design requirements.

Specification	10% Duty Cycle	90% Duty Cycle
Rise time of command signal	9.32 ns	8.78 ns
Rise time of valve drive signal	120 ns	560 ns
Fall time of command signal	14.19 ns	−
Fall time of valve drive signal	20 μs	−
Valve drive voltage	25.6–28.4 V	24.8–28 V
Duty cycle error between signals	0.059%	0.07%
Duty cycle of command signal	9.794%	89.79%
Phase difference between signals at valve open	600 ns	560 ns
Phase difference between signals at valve closure	48 μs	−

, the system exceeded all design requirements and was subsequently employed in hot fire tests.

3. Experimental Results

3.1. Cold Flow Test

3.1.1. Valve Response Characteristics

A cold flow test using water as a simulant characterized valve response, excluding the catalytic reactor and chamber/nozzle assembly. The propellant tank was pressurized to replicate the mass flow rate of the hot fire test conditions. The opening response delay (ORD) is the time from the “On” pulse to the maximum upstream pressure drop; the closing response delay (CRD) is from the “Off” pulse to the maximum pressure surge. Post-opening perturbations arise from rarefaction waves, while post-closing perturbations stem from water-hammer-induced compression waves. Tests ran at 5 Hz and 10 Hz with duty cycles (DCs) of 10–90% in 10% increments were benchmarked against MPL, Mighty Eagle, and DALBIT-1 operations [5,6,8]. Analysis showed consistent ORD (8 ms) and CRD (25 ms) across frequencies and DCs, with valve response delay (VRD) from actuation onset to completion at 3.5 ms for both opening and closure. At $f_p=10$ Hz with DC = 80% and 90%, and at $f_p=5$ Hz with DC = 90%, the valve remained open, exhibiting no water hammer surge. Figure 7 illustrates the difference between intended (${\tau }_{\mathrm{off}}$) and actual (${\tau }_{\mathrm{off}}^{*}$) valve closure times, per Equation (4). A negative ${\tau }_{\mathrm{off}}^{*}$ indicates persistent valve opening during PWM throttling. For $0<{\tau }_{\mathrm{off}}^{*}<\mathrm{ORD}$, the solenoid’s electromagnetic force, exceeding spring force, sustains an open state and restrains the armature’s movement to the closed position. At 10 Hz with DC = 80% and 90%, the ${\tau }_{\mathrm{off}}^{*}$ values were 3 ms and −7 ms; at 5 Hz with DC = 90%, that value was 3 ms, suggesting a persistent open state. Reducing CRD is key to expanding the PWM thrust control range.

$$\begin{array}{c}{\tau }_{on}^{*}={\tau }_{on}-\mathrm{ORD}+\mathrm{CRD}={\displaystyle \frac{\mathrm{DC}}{100}}\times {\displaystyle \frac{1}{f_p}}-\mathrm{ORD}+\mathrm{CRD}\\ {\tau }_{off}^{*}={\tau }_{off}-\mathrm{CRD}+\mathrm{ORD}=(1-{\displaystyle \frac{\mathrm{DC}}{100}})\times {\displaystyle \frac{1}{f_p}}-\mathrm{CRD}+\mathrm{ORD}\end{array}$$

(4)

3.1.2. Pressure Surge by Water Hammer

Surge pressure is the rapid upstream pressure increase when fluid flow stops abruptly due to rapid valve closure. Excessive surge pressure can damage feed components or cause system failure, potentially impacting thruster performance. Prior studies [8,22,23] have modeled, tested, and analyzed water hammer effects during pulse modulation thrust control to evaluate their impact on propulsion system prior to hot fire tests. Generally, surge pressure is calculated using Joukowsky’s instantaneous water hammer equation (Equation (5)), based on fluid density $\rho$, speed of sound in the fluid c, and fluid velocity $\Delta V$. The speed of sound was calculated assuming a bulk modulus of water K at 2.2 GPa, a Young’s modulus of the propellant feed line E at 180 GPa, and pipe dimensions of 6.35 mm diameter D and 1.27 mm thickness e.

$$\begin{array}{c}\Delta P=-\rho c\Delta V\\ P_{\mathrm{surge}}=P_{\mathrm{steady}}+\Delta P\\ c=\sqrt{K^{*}/\rho }\mathrm{and}{K}^{*}=K/[1+\left(DK\right)/\left(eE\right)]\end{array}$$

(5)

Table 7. Comparison between the ideal pressure surge and the measurement acquired by the valve closure during steady-state operation.

Case Label	Surge Pressure (bar)
Joukowsky’s equation	29.59
Test 1	24.43
Test 2	25.75
Test 3	26.74

compares theoretical surge pressure, calculated via Joukowsky’s equation, with cold flow test measurements. The measured values closely match the theoretical predictions from Equation (5). Discrepancies likely arise from deviations in the time consumption for valve closure, feed component geometry with the actual propellant feeding system, and shear stress between the fluid and pipe wall.

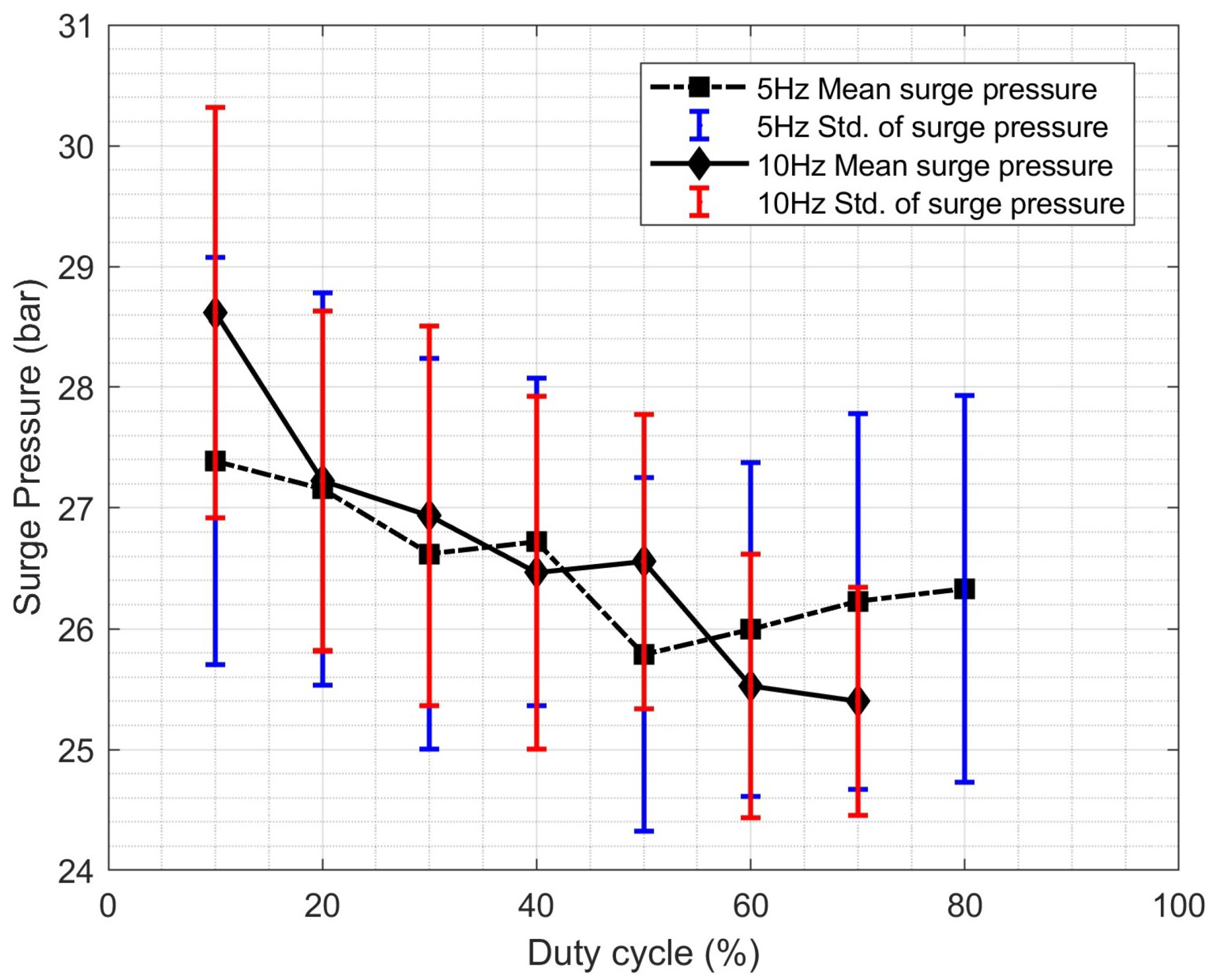

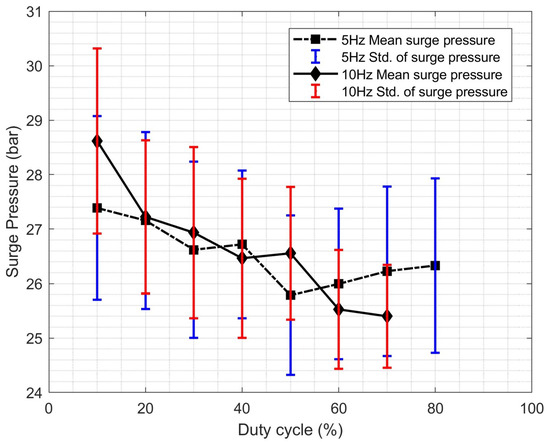

Figure 8 shows the mean and standard deviation of surge pressure during pulse operation at $f_p$ = 5 and 10 Hz with DC = 10% to 90%. As noted in Section 3.1.1, surge pressures could not be measured under conditions with insufficient valve closure. Surge pressures during pulse operation were comparable to steady-state values, with similar discrepancies between the theoretical and measured results. While repetitive valve actuation had minimal impact on surge pressure, a slight decrease in surge pressure was observed with increasing duty cycle. This trend likely stems from persistent pressure at the injector manifold, which buffers and curbs sudden liquid flow upon valve opening. Figure 9 displays the pressure measurements upstream of the valve and in injector manifold during $f_p$ = 10 Hz pulse operation with DC = 20% and 50%. Longer valve closure times (i.e., lower duty cycles) expel more liquid from the manifold, lowering manifold pressure. Upon valve opening, the increased pressure differential across the valve boosts mass flow rate, which stabilizes over time. However, with shorter valve open times, closure precedes stabilization of the enhanced flow. Per Equation (5), this results in elevated surge pressure, as is observed.

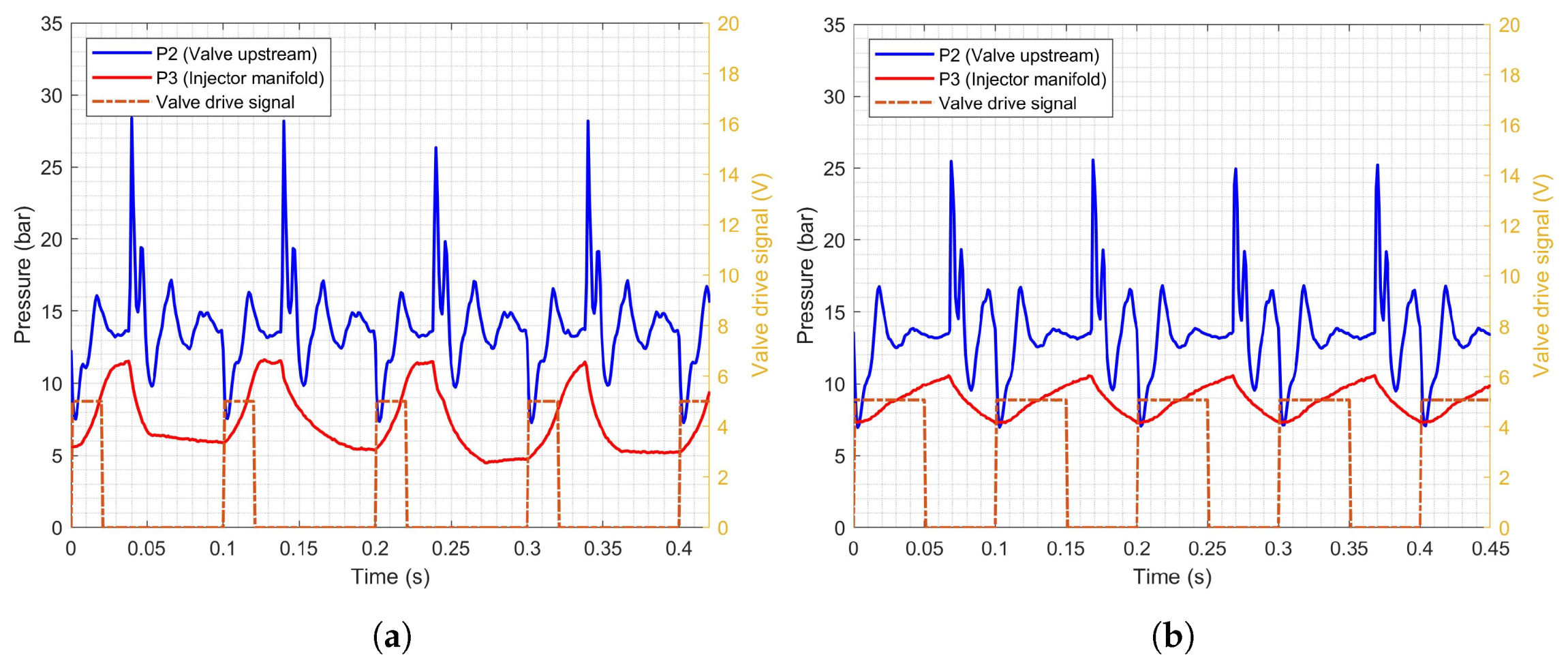

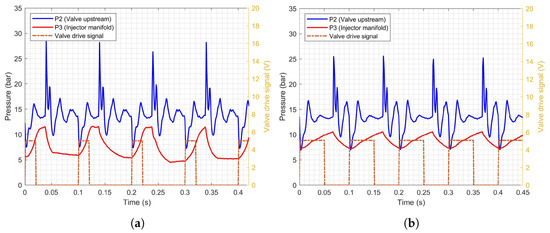

Notably, the water-hammer-induced pressure surge is immediately followed by a secondary spike and consistent-wavelength oscillations. This stems from water’s high bulk modulus, causing pressure fluctuations that drop below vapor pressure, inducing cavitation. Cavitation upstream of the valve triggers backflow, which collides with the wall, generating another surge. The less intense secondary spike raises the fluctuation’s trough above vapor pressure, after which normal perturbations resume.

3.2. Hot Fire Test

3.2.1. Steady-State Operation

Before pulse-mode hot fire tests, steady-state hot fire tests were used to evaluate thruster performance against design targets to detect design or fabrication flaws.

Table 8. Performance comparison between the designed value and the measurement acquired from steady-state hot fire tests.

Specification	Designed Value	Measurement Data
Chamber pressure	20 bar	18 bar
Propellant mass flowrate	40.86 g/s	39.5–43.5 g/s
Thrust	50 N	45.21–49.1 N
Sea-level specific impulse	124.75 s	109.1–124.7 s
Thermal efficiency (${\eta }_{\mathrm{th}}$)	−	98.44%
${\mathrm{C}}^{*}$ efficiency (${{\eta }_{\mathrm{C}}}^{*}$)	−	99.80%

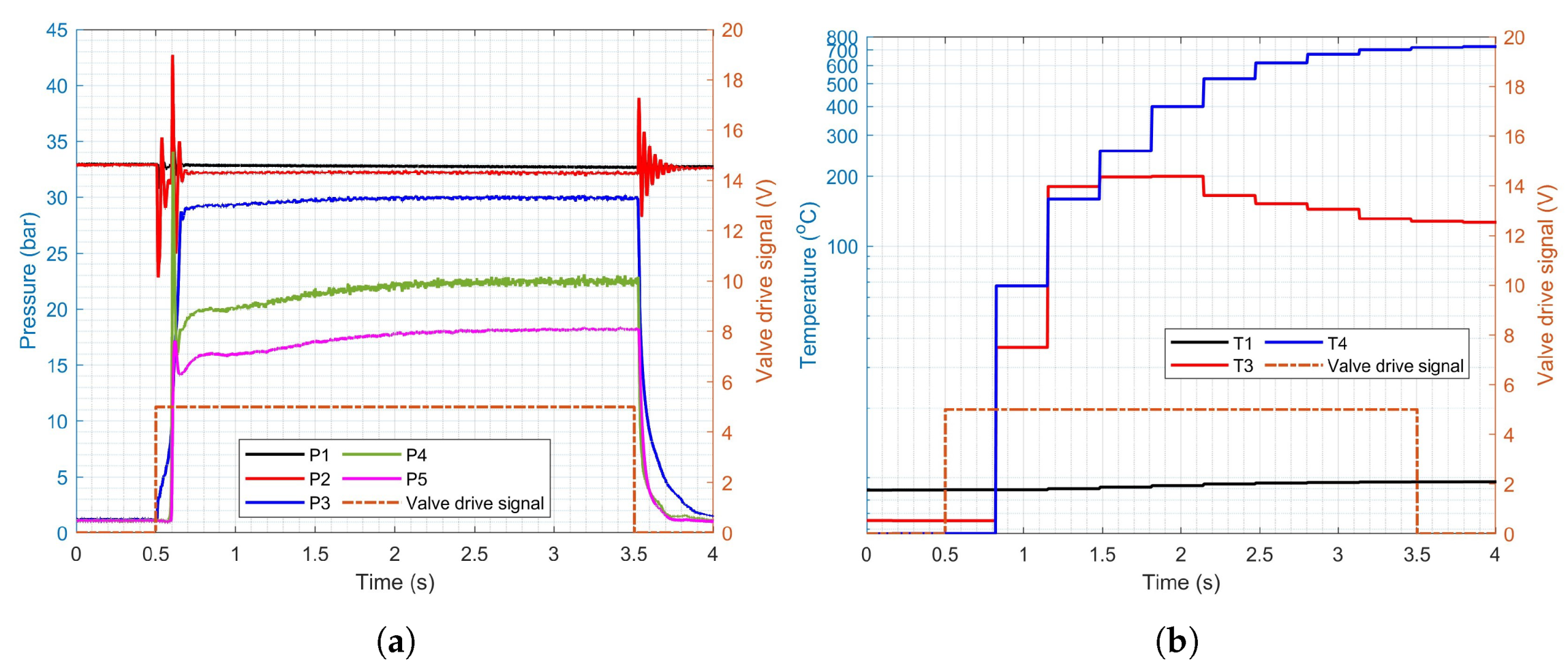

summarizes the predicted and measured steady-state test outcomes, while Figure 10 displays pressure and temperature data. The chamber pressure reached 18 bar, which is 2 bar less than the design value, due to a mismatch between the designed (4.86 mm) and fabricated (5.3 mm) nozzle throat diameters caused by fabrication error. This increased throat area reduced chamber pressure buildup, degrading performance. Also, a thermocouple failure hindered accurate temperature measurement at the catalytic reactor’s midpoint (T2) and so this measurement was not used in the analysis. Figure 10 shows temperature trends at the reactor inlet, outlet, and chamber. The chamber temperature of 734.6 °C closely aligned with the adiabatic decomposition temperature of 90 wt.% HTP (746.17 °C). The thermal and ${\mathrm{C}}^{*}$ efficiencies (${\eta }_{\mathrm{th}}$ and ${\eta }_{{\mathrm{C}}^{*}}$) calculated following Equation (6) suggest an effective catalyst bed design with minimal heat loss through the thruster walls.

$$\begin{array}{c}{\eta }_{\mathrm{th}}={\displaystyle \frac{T_{\mathrm{measured}}}{T_{\mathrm{adiabatic}\mathrm{decomposition}}}}\times 100\\ {\eta }_{{\mathrm{C}}^{*}}{\displaystyle \frac{C_{\mathrm{measured}}^{*}}{C_{\mathrm{theoretical}}^{*}}}\times 100\end{array}$$

(6)

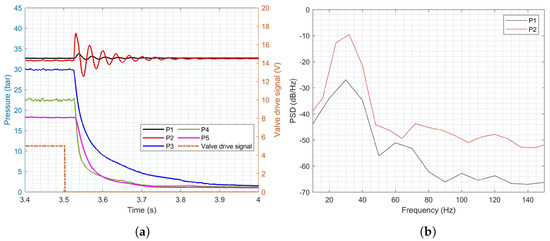

The mean surge pressure in steady-state hot fire tests was 39.33 bar, with a mean pressure upstream of the valve of 32 bar. The lower surge pressure relative to water likely stems from HTP’s smaller bulk modulus, preventing cavitation and the onset of the secondary water hammer.

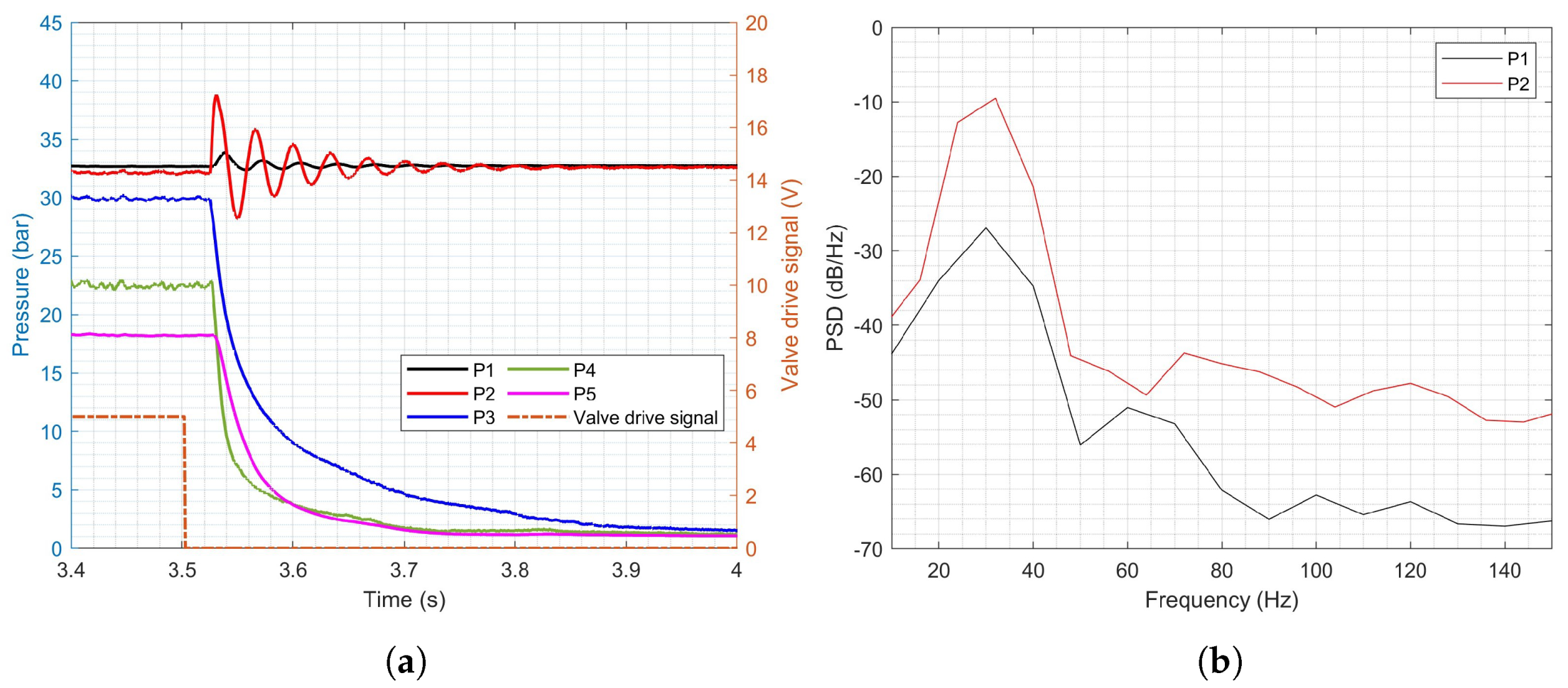

Feed line characteristics were investigated using the pressure perturbation measurements obtained from steady-state hot fire tests. The “ping test”, per Martin et al. [8], uses the pressure response after valve closure to determine the natural frequency of the propellant feeding system. To determine the natural frequency, pressure data obtained at the tank downstream (P1) and upstream of the solenoid valve (P2) were converted from the time to the frequency domain, as shown in a power spectral density (PSD) plot (Figure 11). The ping test indicated that the feed line’s natural frequency with the valve closed ($f_{close}$) was 36.11 Hz, regardless of the measuring position. Similarly, the feed line’s natural frequency with the valve opened ($f_{open}$) was obtained as 24.51 Hz through FFT analysis using the pressure oscillation measurement acquired upstream of the valve at the moment of valve opening.

3.2.2. PWM Throttling Operation

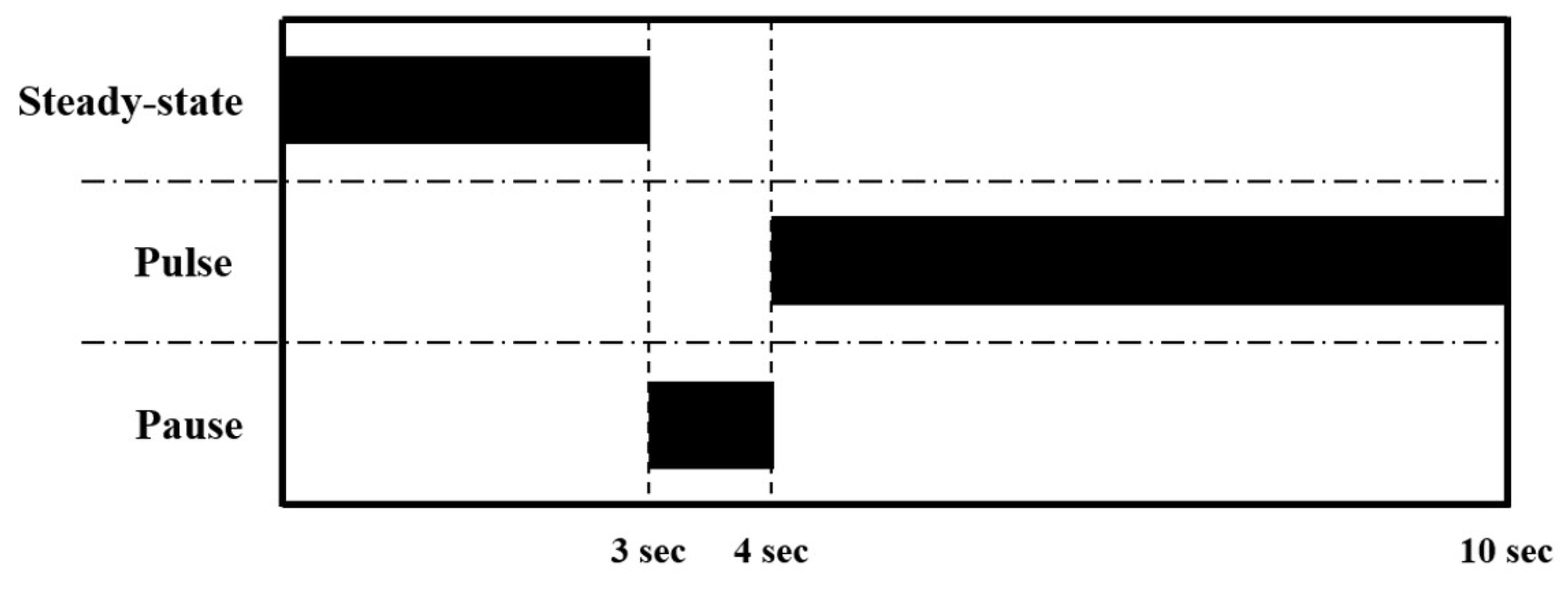

The hot fire test sequence for pulse operation, depicted in Figure 12, proceeded as follows. Since the decomposition capability of the catalyst is highly dependent on its temperature, it was essential to keep the catalyst’s temperature identical for all cases before the pulse mode firing begins in order to make an appropriate comparison Hence, the thruster operated steadily for 3 s to elevate the catalyst bed temperature, ensuring complete propellant decomposition. A 1-second pause then mitigated steady-state effects and water hammer perturbations from influencing the propulsion system operating PWM throttling. Subsequently, command signals for preset pulse conditions actuated the solenoid valve for 6 s, enabling thruster pulse operation. In the hot fire test, PWM throttling operated at $f_p=10$ Hz. A trade-off exists: higher frequencies favor precise and responsive maneuvers that are crucial for lander applications but require a high-performance solenoid valve with limited mass flow rate and DC range. Thus, 10 Hz is a suitable compromise for lander applications, validated by prior references including MPL, Phoenix, Mighty Eagle, and DALBIT-1 [3,5,6,8].

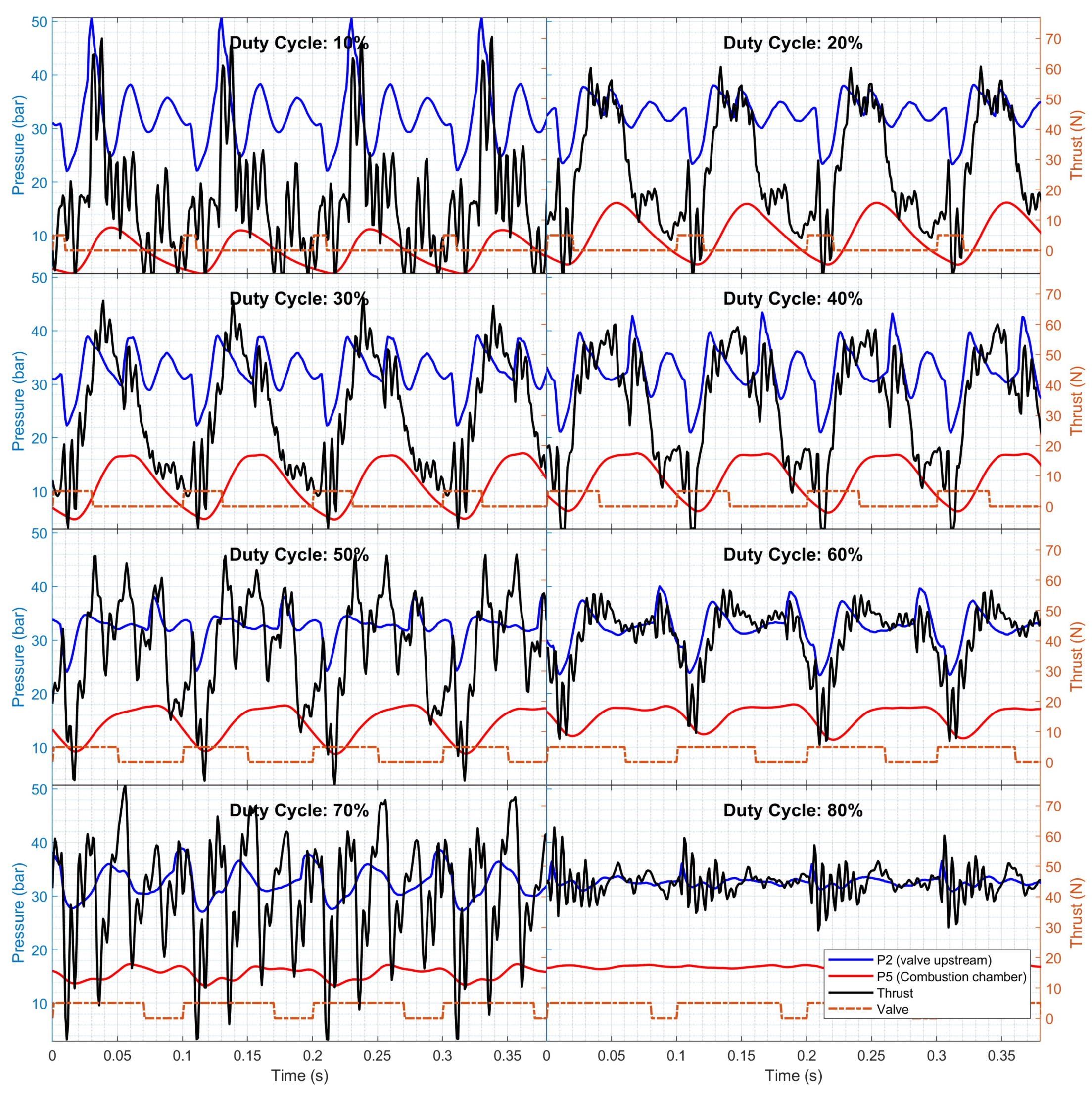

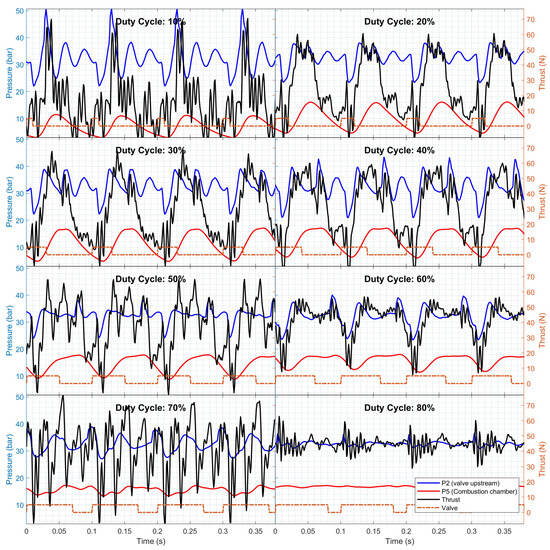

Figure 13 shows pressure, thrust, and valve drive signal data from a 50-newton-class HTP monopropellant thruster operated in pulse mode at $f_p$ = 10 Hz with DC = 10–90%. Pressure spikes and subsequent oscillations in the propellant feed system occur shortly after the “off” signal, while sharp pressure drops follow the “on” signal. These drops stem from rarefaction waves traveling through the feed line upon valve opening. Oscillations decay faster for rarefaction waves than for compression waves, as liquid flow dissipates and suppresses wave propagation. Similar to cold flow test results, the valve did not close at $f_p$ = 10 Hz with DC = 80 and 90% and at $f_p$ = 5 Hz with DC = 90%. Upstream pressure measurements showed no compression or rarefaction waves, indicating no valve actuation and thus no PWM throttling. Figure 13 displays fluctuating thrust readings during valve closure, likely due to structural vibration in the propellant feed system affecting the measurement device. This suggests that past pulse operations influence future fluid dynamics not only via wave propagation through the feed line but also through residual structural vibration.

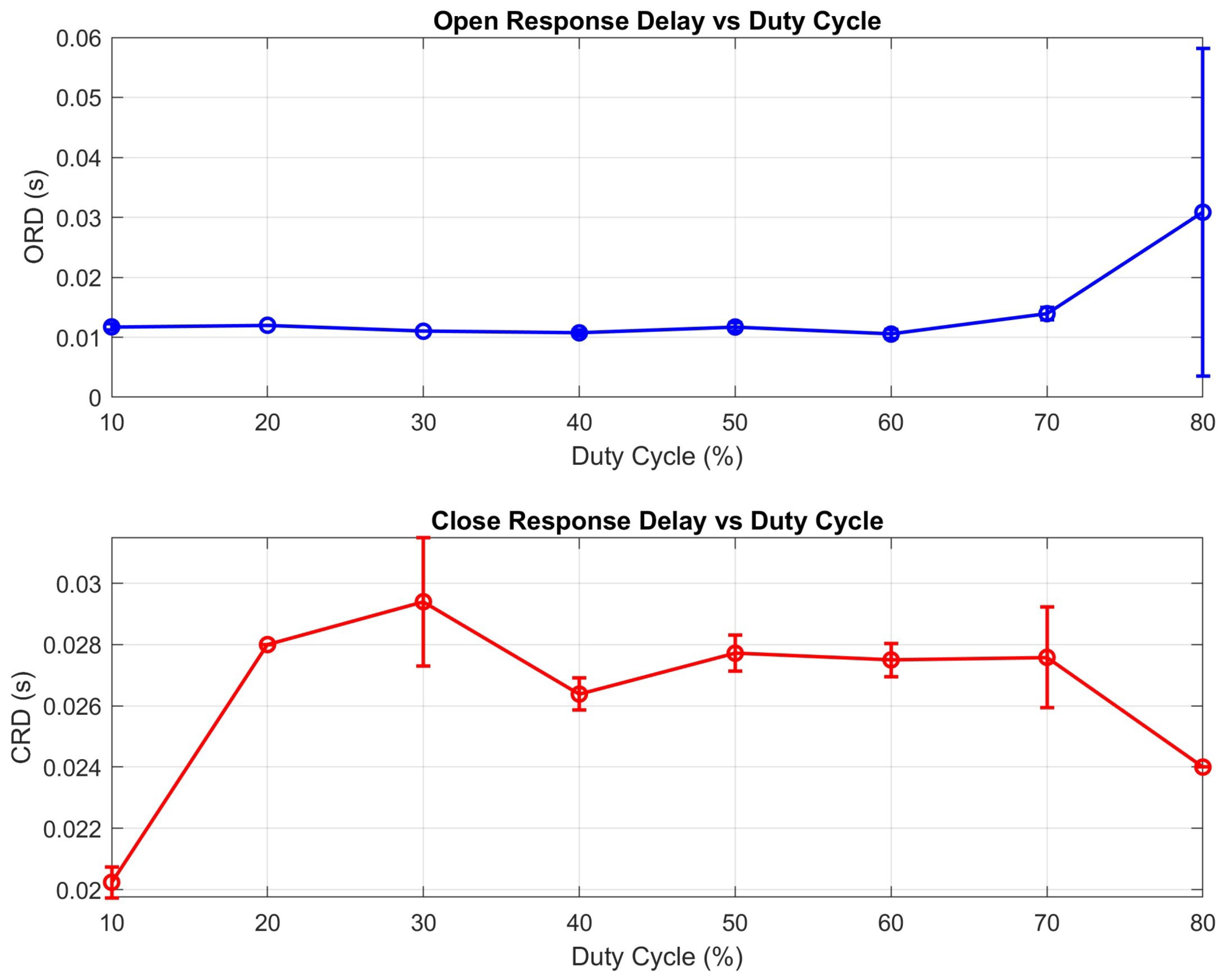

Figure 14 illustrates the opening response delay (ORD) and closing response delay (CRD) from PWM throttling at $f_p=10$ Hz across various duty cycles (DCs). Both ORD (11 ms) and CRD (27.5 ms) increased relative to the cold flow test, likely due to elevated upstream pressure. Data for DC = 80% are disregarded, as the prolonged CRD causes the valve to remain open throughout the pulse operation. Notably, the CRD at DC = 10% is shorter than the other pulse condition, which will be further described below.

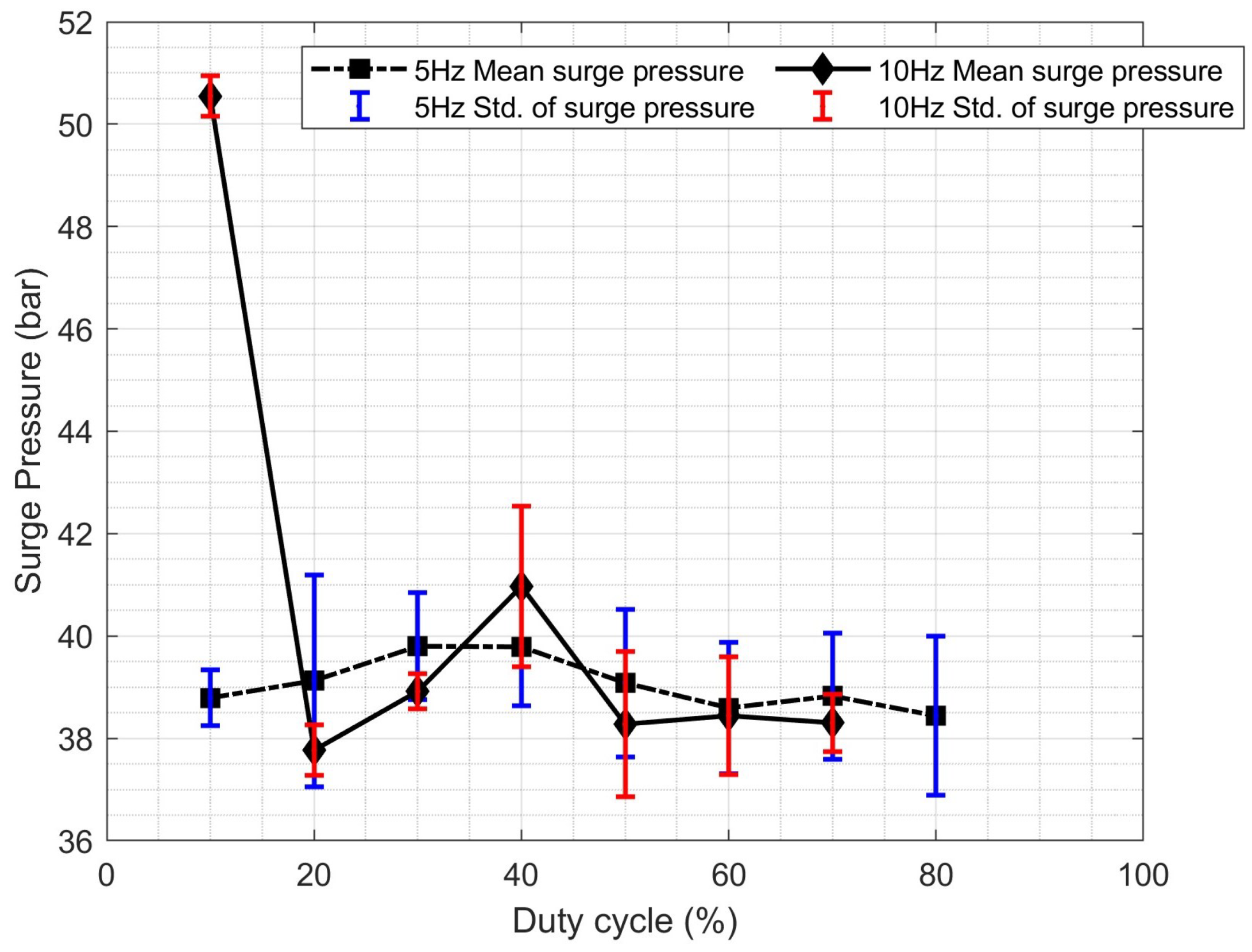

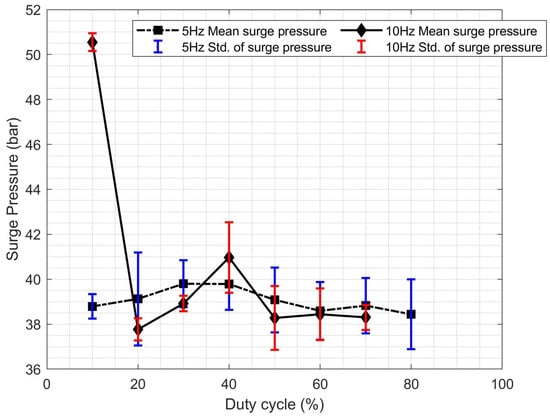

Water hammer pressures from pulse-width modulation (PWM) throttling at both frequencies were compared to steady-state measurements. Figure 15 shows the mean and standard deviation of surge pressures across duty cycles. In pulse operation, the surge pressures generally align with the steady-state value of 39.33 bar. However, at $f_p$ = 10 Hz with DC = 10% and 40%, the surge pressures exceed this average, peaking at 50.55 bar for the 10 Hz, 10% duty cycle condition. At $f_p$ = 5 Hz, surge pressure variations were minimal. Unlike cold flow tests, prolonged valve closure does not account for the amplification observed in the $f_p$ = 10 Hz with DC = 10% condition, as surge pressures remained stable at $f_p$ = 5 Hz, DC = 10% despite the injector manifold pressure being lower than that of the $f_p$ = 10 Hz, DC = 10% duty cycle.

The amplified surge pressure at $f_p=10$ Hz, DC = 10% likely explains the shorter CRD compared to other conditions. In the solenoid valve, an elastomer seal on the armature blocks the flow path when springs return it to its base upon power cessation. Elevated upstream pressure assists this motion. When surge pressure significantly exceeds that in other conditions, the increased force on the armature reduces closure time, thereby reducing CRD, as shown in Figure 14.

Prior research offers insight into this phenomenon. Martin et al. [8] noted that waves from prior water hammer events affect subsequent pressure fluctuations. The solenoid valve’s electromagnetic force induces fluid oscillations, generating compression or rarefaction waves in the feed line based on actuation mode. When the valve opens, a rarefaction wave is generated at $f_{\mathrm{open}}=24.51$ Hz. Conversely, a compression wave arises upon valve closure at $f_{\mathrm{close}}=36.11$ Hz. Thus, repetitive actuation fills the feed line with pressure waves at frequencies of either $f_{\mathrm{open}}$ or $f_{\mathrm{close}}$, propagating between the propellant tank and valve with varying phases. Superposition between these waves, under specific pulse conditions, can lead to amplified surge pressure or pressure drops, as shown in Figure 15. Two scenarios emerge: (1) valve closure induces a pressure surge via water hammer and the peak of the surge aligns with the crest of the pressure oscillation created from prior valve opening or (2) valve opening induces a perturbation and the phase of undermost pressure drop aligns with the trough created from the prior valve closure.

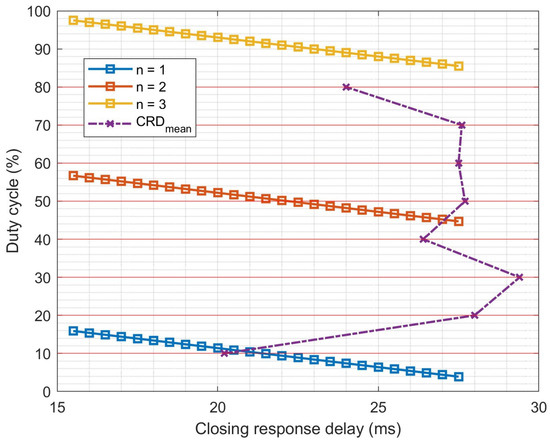

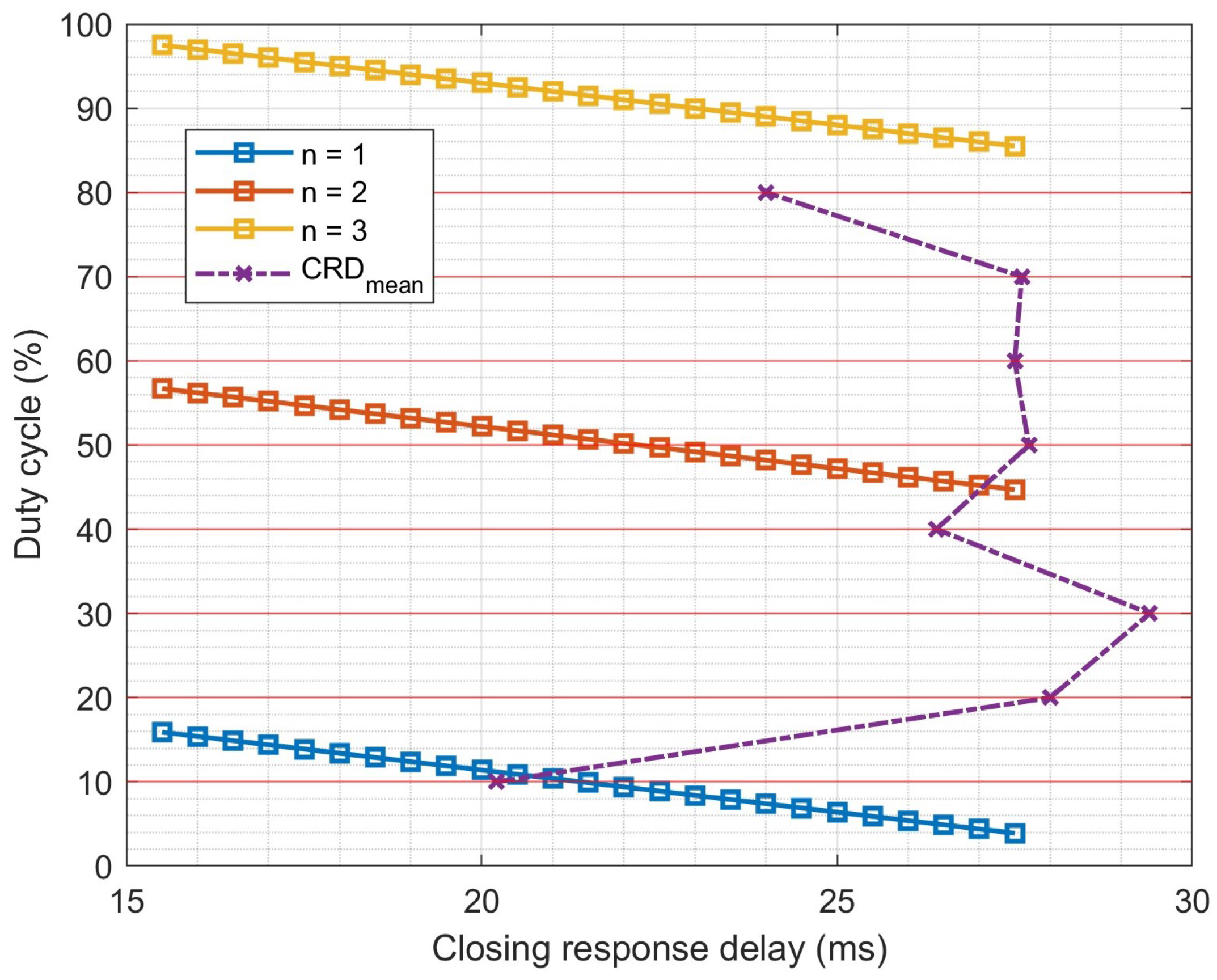

The first scenario is described by Equation (7), which identifies pulse conditions that satisfy the criterion for constructive interference of pressure waves from consecutive valve actuations. Notably, CRD decreases with escalating surge pressure. The extended propagation of a wave before it superposes with the next actuation gradually dampens its intensity, thereby reducing the interference effect of the pulse conditions with higher n values. Figure 16 depicts pulse conditions that satisfy this criterion with varying CRD. For n = 1 to 3, DC = 10% and 45% can provoke amplification, contingent on matching CRD to surge pressure. DC = 10% closely aligns with the criterion, explaining the amplified surge pressure in Figure 15, while DC = 40% borders an unstable point, offset by 5%, resulting in the moderate surge pressure increase The unstable point at $n=3$ (DC = 80%) cannot be achieved, as it causes the valve to remain open during PWM throttling.

$$\begin{array}{c}{\tau }_{on}^{*}={\displaystyle \frac{(2n-1)}{2f_{open}}}\\ {\tau }_{on}^{crit}=\left({\displaystyle \frac{{\mathrm{DC}}_1}{100}}\right){\displaystyle \frac{1}{f_p}}={\tau }_{on}^{*}-{\mathrm{CRD}}_{\mathrm{DC}1}+\mathrm{ORD})\\ {\mathrm{DC}}_1=100f_p({\displaystyle \frac{(2n-1)}{2f_{open}}}-{\mathrm{CRD}}_{\mathrm{DC}1}+\mathrm{ORD})\end{array}$$

(7)

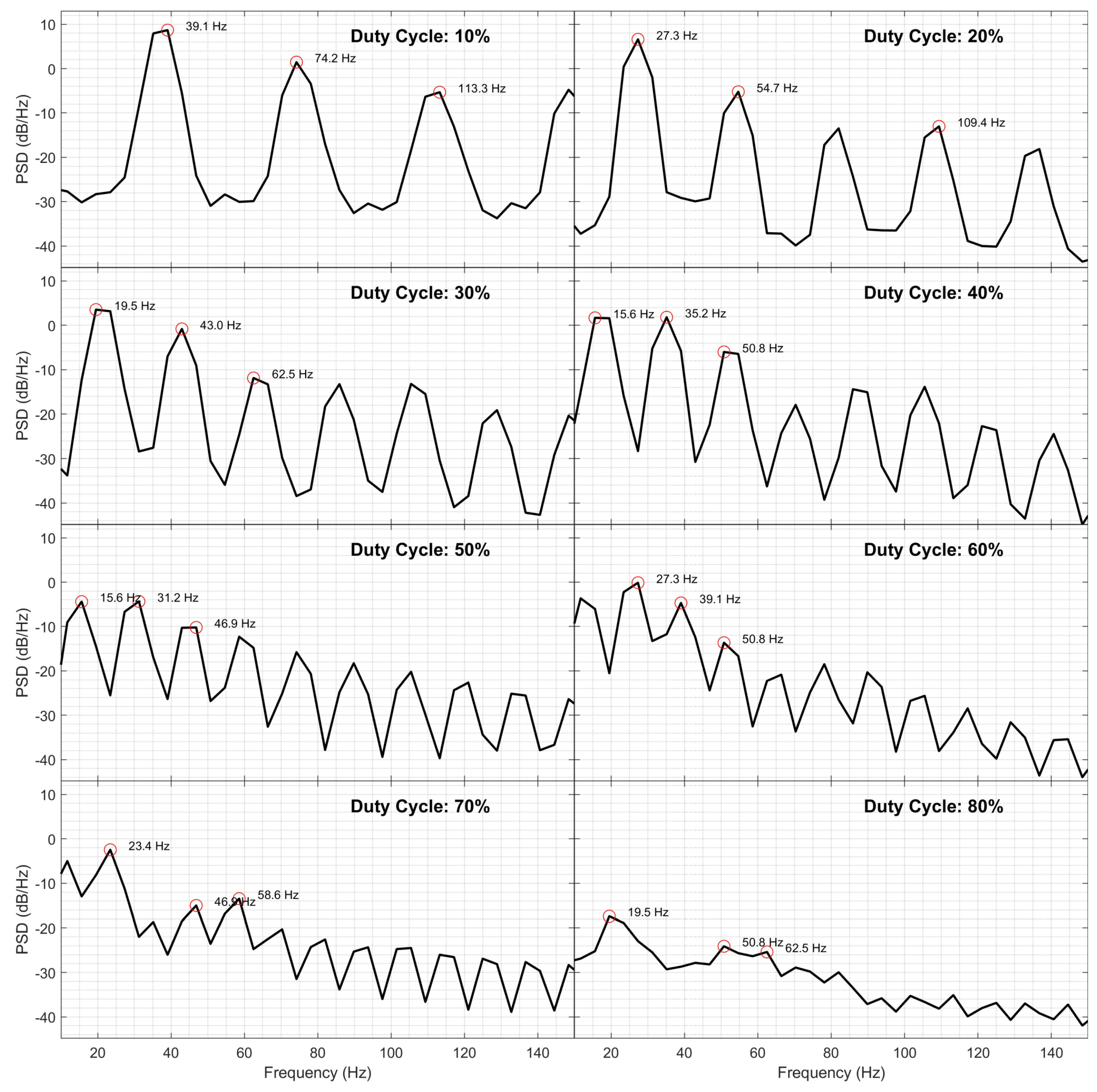

Figure 17 shows the power spectral density (PSD) estimate, derived via Welch’s method from pressure data at the solenoid valve upstream during valve opening. Due to abrupt flow changes from valve actuation, PSD analysis includes only measurements during valve opening. The figure reveals peaks at harmonics of the fundamental frequency, indicating that cyclic valve actuation serves as a source of forced oscillation. High surge pressure conditions (DC = 10% and 40%) exhibit a dominant peak, and its first overtone is near the natural frequency for the closed-valve configuration ($f_{\mathrm{close}}=36.11$ Hz). This demonstrates that existing perturbations constructively interfere with newly generated oscillations from a water hammer, intensifying the oscillation.

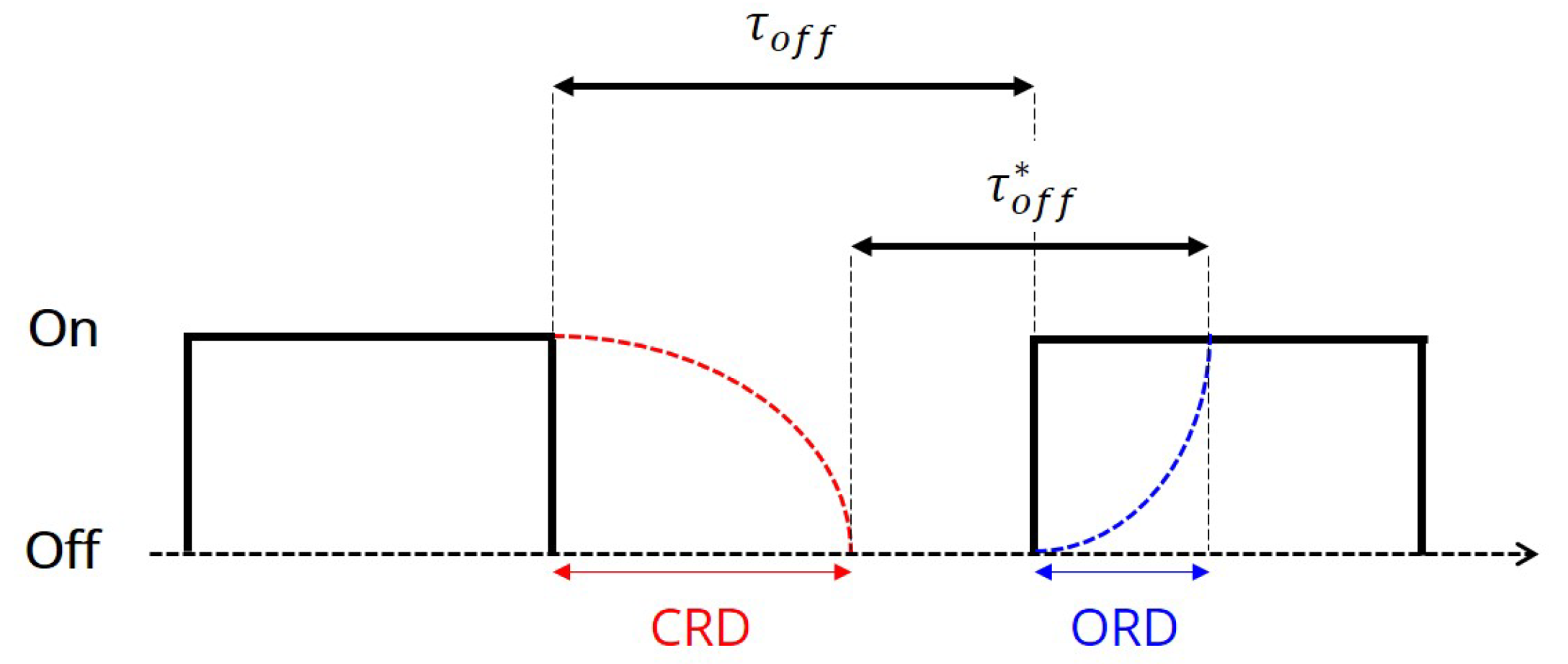

The second scenario is described by Equation (8), which identifies the pulse conditions where the opening of the valve constructively interferes with the existing perturbation created by the previous valve closure, so the pressure drop by the rarefaction wave can be amplified. Similar to the CRD shortening with the increase in mean and surge pressure, the drop in valve upstream pressure could also shorten the ORD by reducing the force acting on the armature that pushes it against the base.

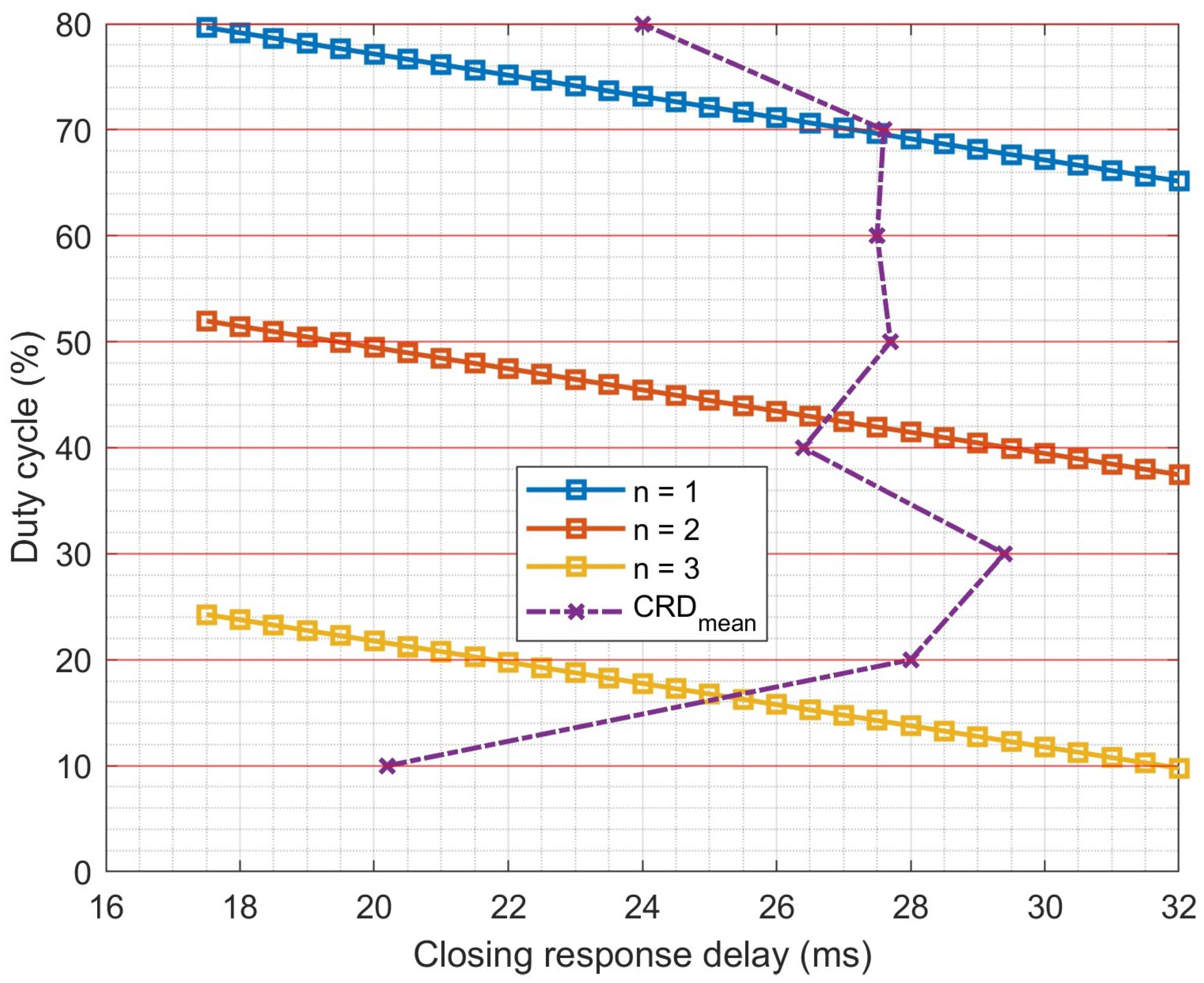

Figure 18 depicts the pulse conditions satisfying the criterion for varying CRD, which depends upon upstream valve pressure. For $n=1$ to 3, DC = 70%, 40%, and 16% can induce amplification if CRD aligns with surge pressure. DC = 70% matches the constructive interference condition, while DC = 40% nears the sufficient condition but undergoes greater damping in the first overtone due to extended propagation before interference. Unlike the first scenario, here, constructive interference significantly lowers pressure when the valve opens, flushing liquid out of the feed line. Given the valve closure duration and wave propagation dampening the perturbation, the pressure oscillation contributing to the surge pressure increase is negated by valve closure.

$$\begin{array}{c}{\tau }_{off}^{*}={\displaystyle \frac{2n-1}{2f_{close}}}\\ {\tau }_{off}^{crit}=(1-{\displaystyle \frac{{\mathrm{DC}}_2}{100}}){\displaystyle \frac{1}{f_p}}={\tau }_{off}^{*}+{\mathrm{CRD}}_{\mathrm{DC}1}-\mathrm{ORD}\\ {\mathrm{DC}}_2=100(1-f_p({\displaystyle \frac{2n-1}{2f_{close}}}+{\mathrm{CRD}}_{\mathrm{DC}1}-\mathrm{ORD}))\end{array}$$

(8)

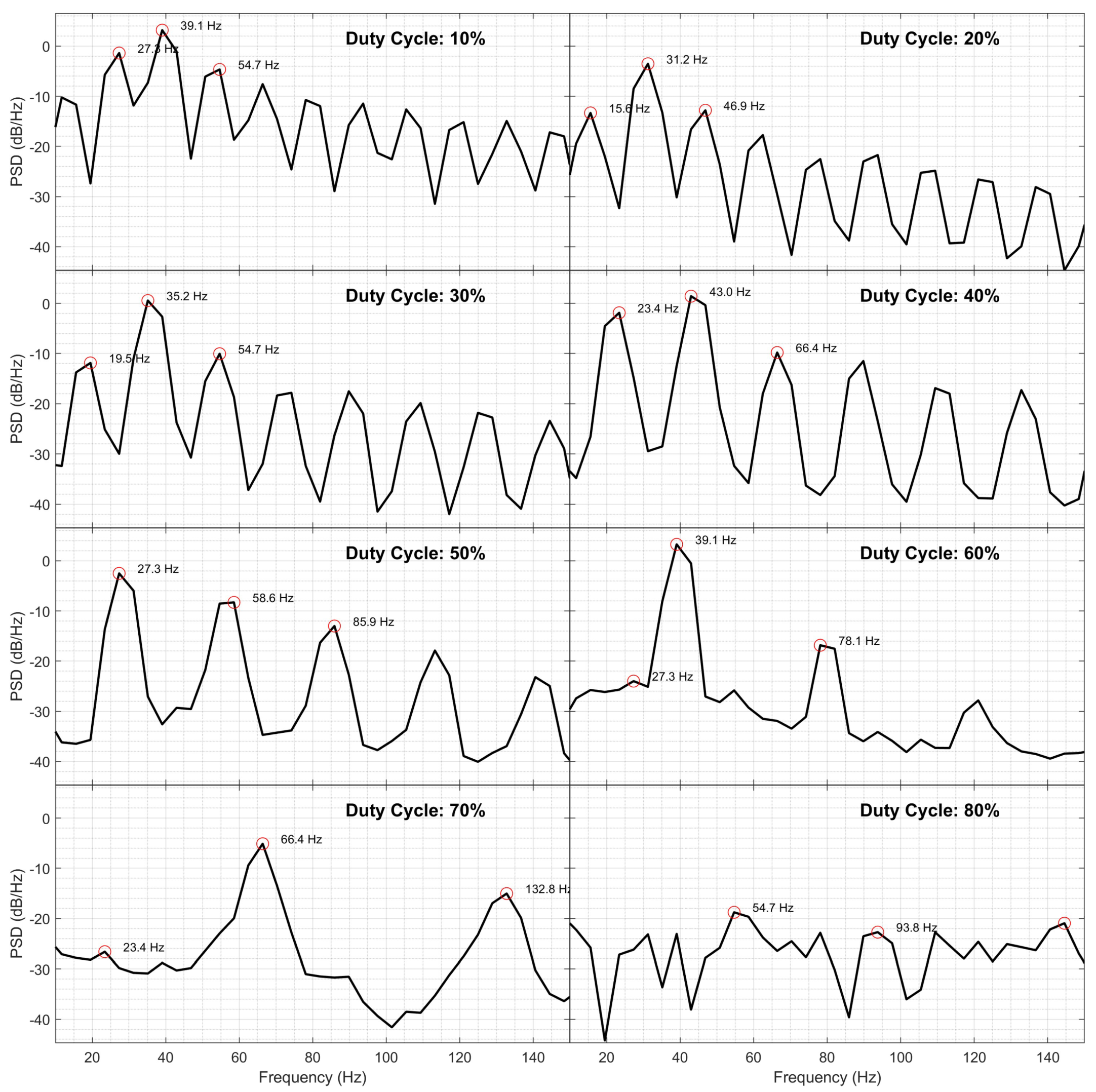

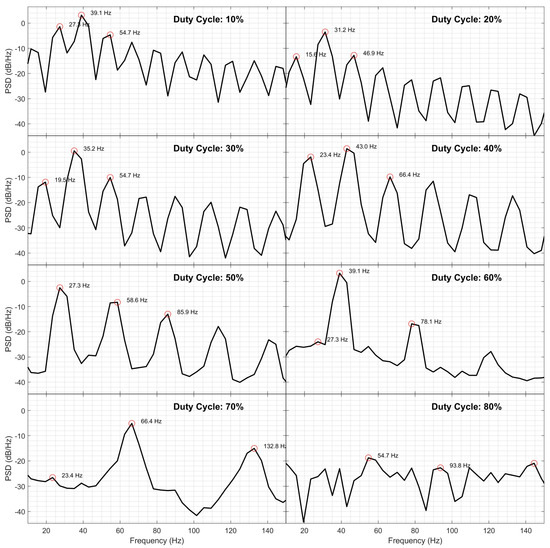

Figure 19 shows the PSD estimate from pressure measurements upstream of the valve while it is closed. Many peaks correspond to those in Figure 17, indicating that pressure perturbations persist through valve actuation. Notably, the PSD in the second scenario is less significant than the first, obscuring differences between conditions with and without constructive interference. This trend arises from liquid flow: when the valve opens, rarefaction waves propagating counter to the flow direction undergo significant energy loss, reducing perturbation amplitude despite constructive interference.

Reduced pressure during liquid injection significantly affects propulsion system stability. Chugging instability arises from dynamic interactions between the propellant feed and catalytic reactor; its suppression requires decoupling these dynamics with a sufficient pressure drop across feed components. If pressure during propellant injection decreases markedly, the reduced pressure drop heightens the likelihood of chugging instability onset. The pulse conditions for maximum rarefaction wave superposition are at a DC of 70%, with a valve closure duration (${\tau }_{\mathrm{off}}^{*}$) of 13.5 ms. This brief period limits gas ejection without propellant injection, sustaining high reactor pressure and further reducing the pressure drop, as shown in Figure 13. Conversely, smaller DCs involve discrete thrust generation without steady-state operation, rendering chugging instability less significant.

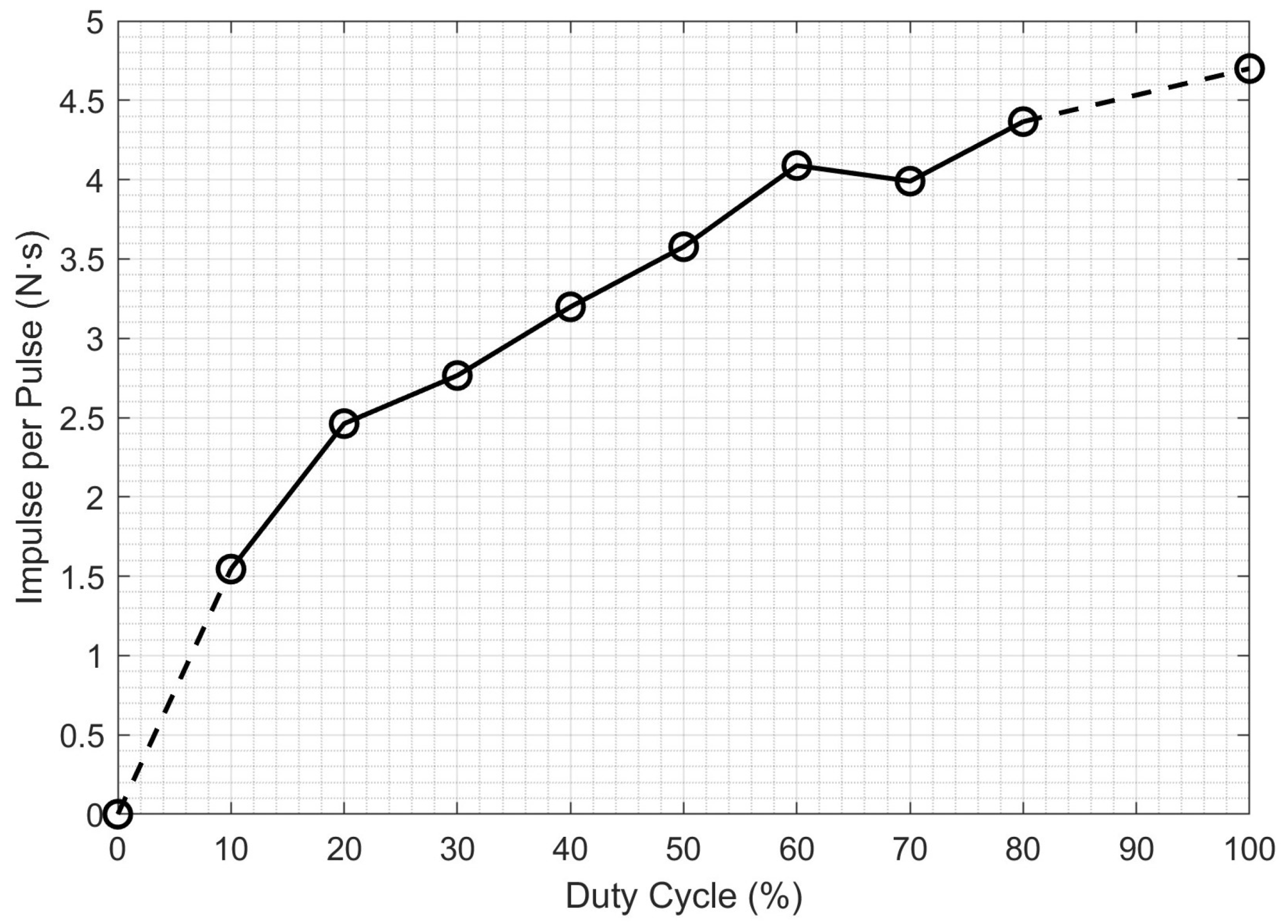

The ideal impulse per pulse under any operating condition is given by Equation (9). However, considering valve response delays, transient fluctuations in propellant injection, chugging instability, and residual pressure after valve closure, the actual impulse per pulse was calculated using Equation (10) and is presented in Figure 20. Negative thrust readings—primarily caused by structural vibrations in the thruster and feed system—were below the load cell’s offset and thus excluded from the impulse calculation.

The results show that, under 10 Hz operation, the impulse per pulse generally increases linearly with duty cycle (DC), except at 10% and 70%, where deviations were observed. At DC = 10%, the measured thrust was significantly reduced, likely due to amplified surge-induced structural vibrations that interfered with accurate force measurement. At DC = 70%, chugging instability—caused by insufficient pressure drop across feed components—led to periodic fluctuations in propellant injection, thereby reducing net thrust.

During steady-state operation, the measured average thrust was approximately 47.08 N, resulting in an impulse per pulse of about 4.7 N·s. The 10 Hz PWM modulation corresponds to a throttling ratio of approximately 1:3. The achievable throttling range is constrained by the valve’s actuation capability. If the valve could be actuated more rapidly (i.e., with shorter VRDs), the throttling range could be further expanded. Conversely, operating at lower frequencies enables additional reduction in impulse per pulse with minimal technical limitations. However, as the PWM frequency directly influences spacecraft controllability, a trade-off must be made between thrust resolution and control responsiveness.

$$\begin{array}{c}\mathrm{Impuse}\mathrm{per}\mathrm{pulse}=\mathrm{Thrust}\times \mathrm{Duty}\mathrm{cycle}\times (1/\mathrm{frequency})\end{array}$$

(9)

$$\begin{array}{c}{I}_{\mathrm{pulse}}={\int }_{t_0}^{t_0+\Delta t}F\left(t\right)dt,\Delta t={\displaystyle \frac{1}{f}}\end{array}$$

(10)

4. Conclusions

The study involved a 50-newton-class HTP monopropellant thruster tested under PWM throttling. The experimental configuration included a propellant feeding system, a solenoid valve for PWM control, and a thruster with a ${\mathrm{MnO}}_2{\mathrm{/La/Al}}_2{\mathrm{O}}_3$ catalyst. Cold flow tests utilized water, while hot fire tests employed 90 wt.% HTP, with data analyzed using tools like Joukowsky’s equation and PSD analysis.

Cold flow tests demonstrated consistent valve response characteristics. An ORD of 8 ms and a CRD of 25 ms were recorded across frequencies of 5 Hz and 10 Hz and duty cycles from 10% to 90%. At high duty cycles (e.g., 80% and 90% at 10 Hz), the valve remained open due to electromagnetic forces overpowering the spring, preventing water hammer surges. Surge pressures ranged from 24.43 to 26.74 bar, aligning closely with the theoretical prediction of 29.59 bar, though slight deviations suggest influences from valve closure timing and system geometry.

Hot fire tests provided critical insights into thruster performance. Steady-state operation yielded a chamber pressure of 18 bar, falling 2 bar short of the 20 bar design target due to a larger-than-intended nozzle throat (5.3 mm vs. 4.86 mm). The chamber temperature reached 734.6 °C, nearly matching the adiabatic decomposition temperature of 746.17 °C, confirming the catalyst’s high effectiveness. The mean surge pressure was 39.33 bar, which was lower than in cold flow tests; this was attributed to HTP’s reduced bulk modulus.

PWM throttling at 10 Hz across duty cycles from 10% to 80% revealed significant dynamics. Pressure spikes and oscillations occurred after valve closure, with surge pressures peaking at 50.55 bar at a 10% duty cycle due to the constructive interference of pressure waves. At high duty cycles (80% and 90%), the valve failed to close, disrupting PWM functionality. Chugging instability emerged at the 70% duty cycle, causing thrust fluctuations and highlighting the system’s sensitivity to PWM parameters. PSD analysis identified resonant frequencies (36.11 Hz valve closed; 24.51 Hz valve open), enabling parameter adjustments for stable operation with minimized surges.

The results underscore PWM throttling’s potential for precise thrust control in spacecraft, as well as for overcoming challenges like pressure surges and instability. HTP’s performance supports its role as a sustainable propellant alternative. Future efforts should prioritize optimizing feed system design to reduce oscillations, enhancing valve reliability at high duty cycles, and developing adaptive PWM strategies. Such improvements could broaden the thruster’s applicability to higher thrust classes and diverse missions, advancing efficient, eco-friendly propulsion technologies.
