Multiyear Rainfall and Temperature Trends in the Volta River Basin and their Potential Impact on Hydropower Generation in Ghana

Abstract

The effects of temperature and rainfall changes on hydropower generation in Ghana from 1960–2011 were examined to understand country-wide trends of climate variability. Moreover, the discharge and the water level trends for the Akosombo reservoir from 1965–2014 were examined using the Mann-Kendall test statistic to assess localised changes. The annual temperature trend was positive while rainfall showed both negative and positive trends in different parts of the country. However, these trends were not statistically significant in the study regions in 1960 to 2011. Rainfall was not evenly distributed throughout the years, with the highest rainfall recorded between 1960 and 1970 and the lowest rainfalls between 2000 and 2011. The Mann-Kendall test shows an upward trend for the discharge of the Akosombo reservoir and a downward trend for the water level. However, the discharge irregularities of the reservoir do not necessarily affect the energy generated from the Akosombo plant, but rather the regular low flow of water into the reservoir affected power generation. This is the major concern for the operations of the Akosombo hydropower plant for energy generation in Ghana.

1. Introduction

The demand for power as a result of population growth, rapid economic development, and urbanization has increased over the past decade in Africa. Hydropower remains the dominant source for the increasing electricity demand for the expanding industries and service sectors in the African continent. Until 1998, most of Ghana’s electricity was produced from two hydropower plants at Akosombo and Kpong. The recent commission of the third hydroelectric plant—Bui Power Authority—in 2013 is considered crucial for supplementing peak power requirements needed in the country. However, estimates suggest that Ghana has a resource potential of an additional 2000 MW of hydropower. About 1205 MW is expected to be produced from proven large hydro sources while the rest will come from medium to small scale plants. Climate change is one of the defining challenges to sustainable hydropower generation in Africa. Notwithstanding the existing challenges of climate variability, West Africa has great domestic hydropower energy potential, which could be harnessed to provide the much needed energy in an affordable and secure manner to support the socio-economic development of the region.

Climatic variability can be described as the annual difference in values of specific climatic variables within averaging periods (e.g., a 30-year period). These climatic variations have unexpected impacts on the frequency and intensity of precipitation and temperature distributions and patterns for many regions of the world. Spatial and temporal variations of precipitation and temperature may be influenced by changes in land cover [1,2], land use [3], and climate [4]. Also, the influences of large dams and human water use for food and energy production may have significant impacts on surrounding climate and precipitation patterns [5,6]. Hydropower generation is solely dependent on water and because evaporation dominates the water balance and governs the availability of water resources in arid and semi-arid areas [7,8], small changes in land use, precipitation, and temperature can lead to large changes in surface water flows [9] which in one way or another can affect the production of hydropower. The Intergovernmental Panel on Climate Change (IPCC) in its fifth assessment report (AR5) concluded that climate change is occurring faster than earlier reported [10]. Many future climate scenarios also point to the fact that the climate is changing rapidly globally [11].

Besides human changes to the water cycle by land and water uses (Jaramillo and Destouni, 2015) [12], temperature and precipitation are the essential components of weather systems that drive climate change effects and significantly affect the available water resources for hydropower generation. Therefore, it is very important to understand the impact of climate variability on hydropower generation in order to develop suitable mitigation measures since temperature and rainfall are highly variable spatially and temporarily at different local and regional scales. In this study, rainfall and temperature changes as recorded in 22 stations in Ghana are examined during the 1960–2011-time scale; additionally, the discharge and water level irregularities between 1965 and 2014 are also examined. The purpose of this paper is also to assess the potential impact of temperature and rainfall changes on hydropower generation.

2. Materials and Methods

2.1. Data Collection

Figure 1 shows the locations of weather stations that provided measurements which were used in order to understand the climate variability of rainfall within the country. Rainfall and temperature data from the various stations across Ghana and their trend over a period from 1960 to 2011 were analyzed to assess the climate variability. The data for the annual Akosombo plant discharge irregularities and the water levels of the Akosombo dam from 1965–2014, as well as the Akosombo energy production data, were also collected from the Volta River Authority (VRA). The runoff data from 1936–1984 was obtained from [13].

2.2. Data Quality Control

The serially complete dataset was created using the normal ratio method. The method has been originally used by [14]. Since then, the method has been widely used to reconstitute the climatological missing data [15,16]. The method is applied by estimating the missing climate data P_A at station A as a function of the normal monthly or annual data of the station under question and those of the neighboring stations for the period of missing data at the station under question.

$${{\displaystyle \mathrm{P}}}_{\mathrm{A}}=\frac{{\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{n}}\frac{{\mathrm{NR}}_{\mathrm{A}}}{{\mathrm{NR}}_{\mathrm{i}}}*{{\displaystyle \mathrm{P}}}_{\mathrm{i}}}}{\mathrm{n}}$$

(1)

where P_i is the data at surrounding stations, NR_A is the normal monthly or seasonal data at station A, NR_i is the normal monthly or seasonal data at station i, and n is the number of surrounding stations whose data are used for estimation. The missing data percentages of the stations considered in the study are reported in

Table 1. Data quality control.

Stations	Percentage of Missing Data (%)
	Annual Total Precipitation	Annual Minimum Temperature	Annual Maximum Temperature
Abetifi	1.92	40.38	40.38
Accra	1.92	5.80	5.80
Ada	0.00	0.00	0.00
Akatsi	40.38	34.62	34.62
Akim Oda	30.00	26.90	26.90
Akuse	36.5	15.38	13.50
Axim	0.00	9.62	9.62
Bole	3.80	17.30	17.30
Ho	0.00	7.70	9.62
Kete Krachi	0.00	15.40	15.40
Koforidua	9.60	7.70	23.10
Kumasi	0.00	0.00	0.00
Navrongo	0.00	34.62	32.70
Saltpond	0.00	11.50	11.50
Sefwi Bekwai	7.70	7.70	7.70
Sunyani	30	42.30	44.23
Takoradi	30	7.70	40.38
Tamale	0.00	0.00	3.80
Tema	9.60	3.80	3.80
Wa	0.00	0.00	0.00
Wenchi	0.00	13.50	11.50
Yendi	0.00	13.50	13.50

.

2.3. Mann-Kendall Test

In this study, the annual rainfall and temperature data for the 22 stations were obtained from the Ghana Meteorological Agency (GMA). The trend test of these stations was performed using the Mann Kendall (MK) non-parametric test to determine the significance of the observed trends. The Mann-Kendall test is a statistical test widely used for the analysis of trends in climatologic and hydrologic time series [17]. One advantage of this test is that the data need not conform to any particular distribution. The second advantage of the test is its low sensitivity to abrupt breaks due to non-homogeneous time series [18]. The Mann-Kendall test is applicable in cases when the data values x_i of a time series can be assumed to obey the model:

$${\mathrm{x}}_{\mathrm{i}}=\mathrm{f}({\mathrm{t}}_{\mathrm{i}})+{\mathsf{\epsilon }}_{\mathrm{i}}$$

(2)

where f(t) is a continuous monotonic increasing or decreasing function of time and the residuals ${\mathsf{\epsilon }}_{\mathrm{i}}$ can be assumed to be from the same distribution with zero mean value. It is therefore assumed that the variance of the distribution is constant in time. In this test, the null hypothesis of no trend (i.e., H₀) has been assumed. The observations (x_i) are randomly ordered in time, against the alternative hypothesis, H₁, where there is an increasing or decreasing monotonic trend. In this test, the number of annual values in the studied data series is denoted by ‘n’. If ‘n’ is at least 10, the normal approximation test is used. However, if the data values are less than 10, the Mann-Kendall test statistic S is calculated using the formula

$$\mathrm{S}={\displaystyle \sum }_{\mathrm{k}=1}^{\mathrm{n}-1}{\displaystyle \sum }_{\mathrm{j}=\mathrm{k}+1}^{\mathrm{n}}\mathrm{sgn}({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}})$$

(3)

where x_j and x_k are the annual values in years j and k, j > k, respectively, and

$$\mathrm{sgn}({\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}})=\{\begin{array}{c}1\\ 0\\ -1\end{array}\begin{array}{c}\mathrm{if}{\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}>0\\ \mathrm{if}{\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}=0\\ \mathrm{if}{\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}<0\end{array}$$

(4)

If n is 9 or less, the absolute value of S is compared directly to the theoretical distribution of S derived by Mann and Kendall. The two-tailed test is used for four different significance levels α: 0.1, 0.05, 0.01, and 0.001. At a certain probability level H₀ is rejected in favour of H₁ if the absolute value of S equals or exceeds a specified value S_a/2, where S_a/2 is the smallest S which has the probability less than α/2 to appear in case of no trend. A positive value of S indicates an upward trend whereas a negative value indicates a downward trend. The significance level 0.001 means that there is a 0.1% probability that the values x_i are from a random distribution and with that probability we make a mistake when rejecting the H₀ of there not being a trend. However, if there are several tied values (i.e., equal values) in the time series, it may reduce the validity of the normal approximation when the number of data values is close to 10. First, the variance (S) is computed by the following equation which takes into account that ties may be present.

$$\mathrm{VAR}(\mathrm{S})=\frac{1}{18}[\mathrm{n}(\mathrm{n}-1)(2\mathrm{n}+5)-{\displaystyle \sum }_{\mathrm{p}=1}^{\mathrm{q}}({\mathrm{t}}_{\mathrm{p}}-1)(2{\mathrm{t}}_{\mathrm{p}}+5)]$$

(5)

Here q is the number of tied groups and t_p is the number of data values in the pth group. The values of S and VAR(S) are used to compute the test statistics Z as follows:

$$\mathrm{Z}=\{\begin{array}{c}\frac{\mathrm{S}-1}{\sqrt{\mathrm{Var}(\mathrm{S})}}\\ 0 \\ \frac{\mathrm{S}+1}{\sqrt{\mathrm{Var}(\mathrm{s})}}\end{array}\begin{array}{c}\mathrm{if}\mathrm{S}>0\\ \mathrm{if}\mathrm{S}=0\\ \mathrm{if}\mathrm{S}<0\end{array}$$

(6)

The presence of a statistically significant trend is evaluated using the Z value and here the statistic Z has a normal distribution. Significance level α is used for testing either an upward or downward monotone trend (a two-tailed test). If Z appears greater than Zα/2 where α depicts the significance level, then the trend is considered to be significant. The value for Zα/2 is obtained from the standard normal cumulative distribution tables for the significance levels (α) 0.001, 0.01, 0.05, and 0.1 [19].

2.4. Sen’s Slope Estimator

Theil-Sen’s slope estimator (Q_med) results from consideration of all possible combinations of data pairs within the whole data set [20]. A positive value of Q_med indicates an “upward trend” (increasing values with time), while a negative value of Q indicates a “downward trend” [21]. If a linear trend is present in a time series, then the true slope (change per unit time) can be estimated by using a simple non-parametric procedure developed by [22]. This means that linear model f(t) can be described as:

$$\mathrm{f}(\mathrm{t})=\mathrm{Qt}+\mathrm{B}$$

(7)

where Q is the slope and Bis a constant. To derive an estimate of the slope Q, the slopes of all data pairs are calculated as:

$${\mathrm{Q}}_{\mathrm{i}}=\frac{{\mathrm{x}}_{\mathrm{j}}-{\mathrm{x}}_{\mathrm{k}}}{\mathrm{j}-\mathrm{k}},\mathrm{i}=1,2,\dots ,\mathrm{N},\mathrm{j}>\mathrm{k}$$

(8)

If there are n values x_j in the time series, we get as many as $\mathrm{N}=\mathrm{n}(\mathrm{n}-1)/2$ slope estimates Q_i. The Sen’s estimator of slope is the median of these N values of Q_i. The N values of Q_i are ranked from the smallest to the largest and the Sen’s estimator is

$$\mathrm{Q}=\{\begin{array}{c}{\mathrm{Q}}_{\frac{\mathrm{N}+1}{2}}\\ \left({\mathrm{Q}}_{\frac{\mathrm{N}}{2}}+{\mathrm{Q}}_{\frac{\mathrm{N}+2}{2}}\right)\end{array}\begin{array}{c}\mathrm{if}\mathrm{N}\mathrm{is}\mathrm{odd}\\ \mathrm{if}\mathrm{N}\mathrm{is}\mathrm{even}\end{array}$$

(9)

A $100(1-\mathsf{\alpha })\%$ two-sided confidence interval about the slope estimate is obtained by the non-parametric technique based on the normal distribution. The method is valid for n as small as 10 unless there are many ties [23]. At first we compute

$${\mathrm{C}}_{\mathrm{a}={\mathrm{Z}}_{1-\frac{\mathsf{\alpha }}{2}}}\sqrt{\mathrm{VAR}(\mathrm{S})}$$

(10)

where ${\mathrm{Z}}_{1-\frac{\mathsf{\alpha }}{2}}$ is obtained from the standard normal distribution and VAR(S) has been defined in Equation (5). Next ${\mathrm{M}}_1=(\mathrm{N}-{\mathrm{C}}_{\mathrm{a}})/2$ and ${\mathrm{M}}_2=(\mathrm{N}+{\mathrm{C}}_{\mathrm{a}})/2$ are computed. The lower and upper limits of the confidence interval, Q_min and Q_max, are the M₁th largest and the (M₂ + 1)th largest of the N ordered slope estimates Q_i. If M₁ and/or M₂ are not whole numbers, the respective limits are interpolated. To obtain an estimate of B the n values of differences x_i − Qt_i are calculated. The median of these values gives an estimate of B [24]. The estimates for the constant B of lines of the 99% and 95% confidence intervals are calculated by a similar procedure.

2.5. Volta Basin Average Precipitation, Temperature, and Actual Evapotranspiration (AET)

For the spatial consideration of rainfall, the Thiessen method [25] was used to estimate the average value representative of the Volta Basin. The Inverse Distance Weighting (IDW) approach was considered for mapping the spatial distribution of the annual average precipitation, and minimum and maximum temperature. The Actual Evapotranspiration (AET) was estimated based on the Equation (11) as

$$\mathrm{AET}=\mathrm{P}-\mathrm{R}-\Delta \mathrm{S}$$

(11)

With P: precipitation, R: runoff, and ΔS: change in water storage (ΔS). However, for long term average estimate, $\Delta S \approx 0$ on the hydrological basin scale [5,26]. The study of AET is important since it determines how much water will stay in the reservoir. If AET is higher than expected, then evaporation will occur at the surface of the reservoir and will therefore reduce the volume of water in the reservoir. This is why it is important to know the trend in AET or AET/P.

3. Results and Discussions

3.1. Rainfall Variability in Ghana (1960–2010)

The results from the study show that the highest annual rainfall recorded for all the 22 stations between 1960 and 2011 was 4000 mm. Such a rainfall was recorded in Kumasi, Kete Krachi, and Bole. However, Kumasi and Bole showed a downward trend, but not statistically significant while Kete Krachi showed no trend (

Table 2. Summary of the statistical trend test.

Stations	Meteorological Parameters				Stations	Meteorological Parameters
	Test	Rainfall	Tmin	Tmax		Test	Rainfall	Tmin	Tmax
Wa	Zs	0.189	5.650 ***	5.729 ***	Akatsi	Zs	1.302	5.871 ***	4.585 ***
	Qmed	0.254	0.031	0.028		Qmed	2.316	0.025	0.021
Navrongo	Zs	0.402	2.675 **	2.044 *	Sefwi Bekwai	Zs	−1.673 +	3.512 ***	5.184 ***
	Qmed	0.600	0.010	0.008		Qmed	−2.719	0.021	0.041
Bole	Zs	−0.663	4.151 ***	4.332 ***	Kumasi	Zs	−0.813	5.548 ***	6.179 ***
	Qmed	−1.573	0.019	0.022		Qmed	−2.067	0.025	0.034
Tamale	Zs	−0.213	4.798 ***	4.814 ***	Akim Oda	Zs	−1.594	5.816 ***	5.224 ***
	Qmed	−0.429	0.020	0.024		Qmed	−4.111	0.019	0.025
Yendi	Zs	−0.402	4.530 ***	3.606 ***	Koforidua	Zs	−1.634	5.816 ***	5.563 ***
	Qmed	−0.894	0.022	0.022		Qmed	−3.901	0.029	0.028
Kete Krachi	Zs	0.000	4.435 ***	3.930 ***	Axim	Zs	−1.728+	2.872 **	3.496 ***
	Qmed	0.000	0.024	0.029		Qmed	−7.744	0.014	0.017
Ho	Zs	−1.610	6.432 ***	5.216 ***	Ada	Zs	−0.876	4.774 ***	2.257 *
	Qmed	−2.448	0.026	0.022		Qmed	−2.098	0.021	0.011
Wenchi	Zs	0.032	5.619 ***	4.995 ***	Takoradi	Zs	−1.018	5.390 ***	3.314 ***
	Qmed	0.071	0.024	0.024		Qmed	−2.048	0.026	0.015
Sunyani	Zs	−2.723 **	2.304 *	4.695 ***	Accra	Zs	−0.797	6.558 ***	3.969 ***
	Qmed	−6.167	0.009	0.023		Qmed	−1.693	0.036	0.019
Akuse	Zs	−2.943	4.411 ***	5.809 ***	Tema	Zs	−0.734	7.182 ***	5.842 ***
	Qmed	−5.967 **	0.020	0.028		Qmed	−1.650	0.041	0.022
Abetifi	Zs	0.103	5.406 ***	5.547 ***	Saltpond	Zs	−1.594	5.399 ***	4.057 ***
	Qmed	0.243	0.020 ***	0.018		Qmed	−3.877	0.024	0.031

Table 2 shows the statistics of the trend test for each of the stations. Z_s: Mann-Kendall test, Q_med: Sen’s slope estimator (mm/year) for precipitation and °C/year, *** Statistically significant trends at the 0.1% significance level, ** Statistically significant trends at the 1% significance level, * Statistically significant trends at the 5% significance level, ⁺ Statistically significant trends at the 10% significance level.

). The lowest rainfall recorded was 200 mm at the Accra and Tema stations. The annual data for all the stations indicate that the highest rainfall (4000 mm) was recorded between 1960 and 1970 with few isolated high rainfall distributions occurring at some years across the stations. There was, however, a decrease (i.e., 8%–56%) shown in rainfall pattern in the 22 stations between 1970 and 2011. The lowest and highest decrease in rainfall in three sites were recorded respectively in Wenchi and Tema. Also, there were considerable variations in the annual rainfall patterns in some situations or geographic locations. The lowest variation occurred between 1980 and 1990 for stations like Tema, Accra, and Ada.

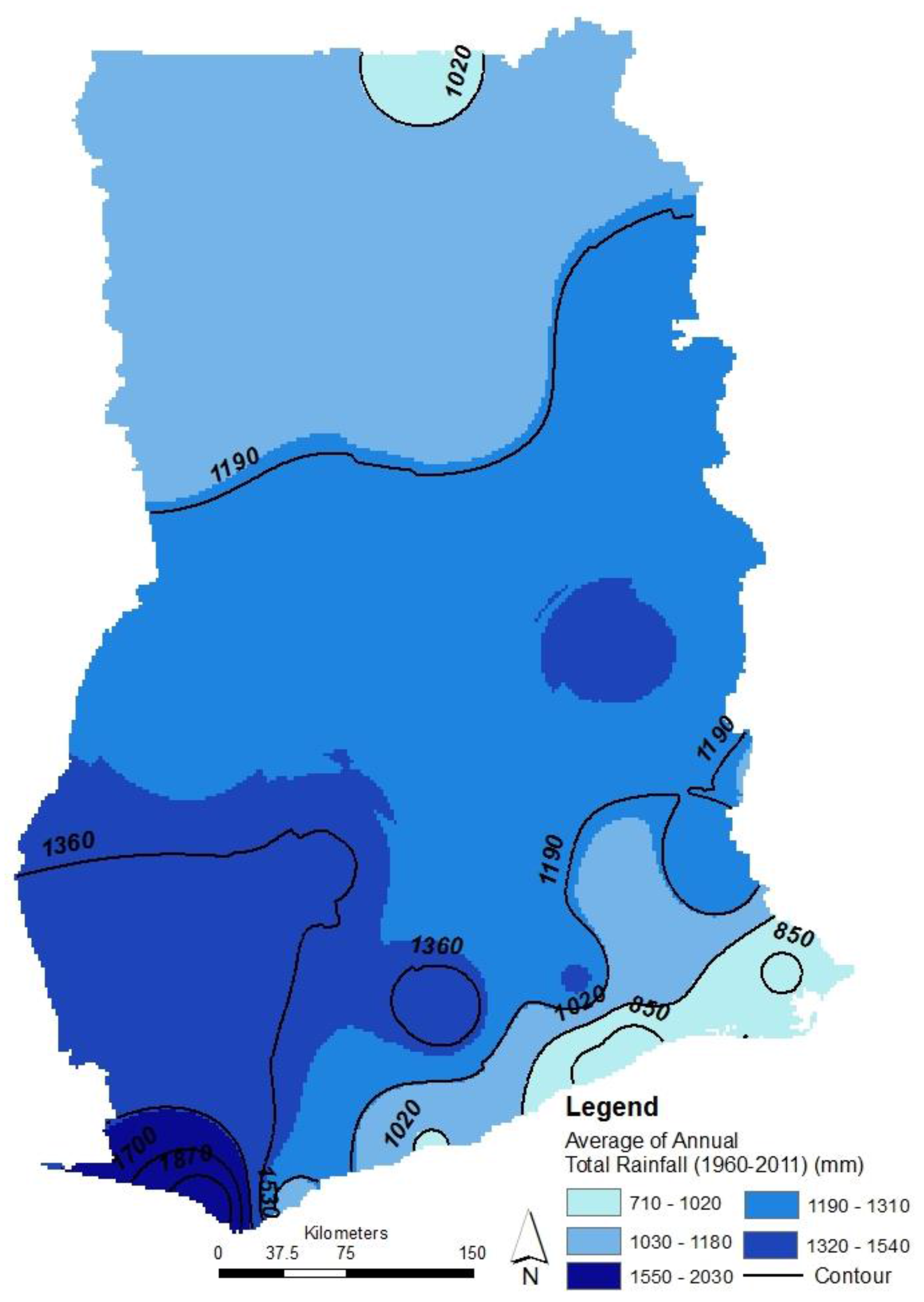

Figure 2 shows the spatial distribution of annual precipitation from 1960 to 2011. The annual average precipitation in Ghana varies between 710 mm and 2030 mm. The Inverse Distance Weighting interpolation suggests that the highest precipitation occurs around the south-west part of the country (1550 mm–2030 mm) and the lowest precipitation (710 mm–1020 mm) occurs around the extreme south-west and extreme north of the country. The northern and some parts of the southern of Ghana experience average annual precipitation amounts of 1030 mm to 1180 mm while a large part of the central part of the country from west to east experiences average annual precipitation of 1190 mm to 1310 mm.

The trends and the slope estimations of the rainfall data show that most of the stations experienced decreasing annual rainfall amount. Figure 3 shows that 16 stations out of the 22 appearing in this study presented a decreasing trend and 5 out of 16 stations revealed an upward trend. Only the Kete Krachi statistical test showed no trend, although not all the trend tests were significant, Akuse (Z_s = −2.943, Q_med = −5.967) and Sunyani (Z_s = −2.723, Q_med = −6.167) were significant at the 99% confidence interval and Axim (Z_s = −1728, Q_med = −7,744) was significant at the 90% confidence interval. Although the distribution in the basin is erratic, Figure 3 shows that most of the southern region of Ghana experienced a substantial decrease in annual in rainfall amount. In general, rainfall was not evenly distributed throughout the years in the stations studied. This has adverse effects on hydropower generation because the availability of water in the reservoir is the main lifeblood for energy generation. The erratic rainfall pattern in the country is directly affecting the electricity supply in Ghana. There were several reported cases between 2000 and 2011 of power rationing as a result of the low Akosombo dam levels [27,28]. Temporal variation of rainfall in four selected stations is depicted in Figure 4.

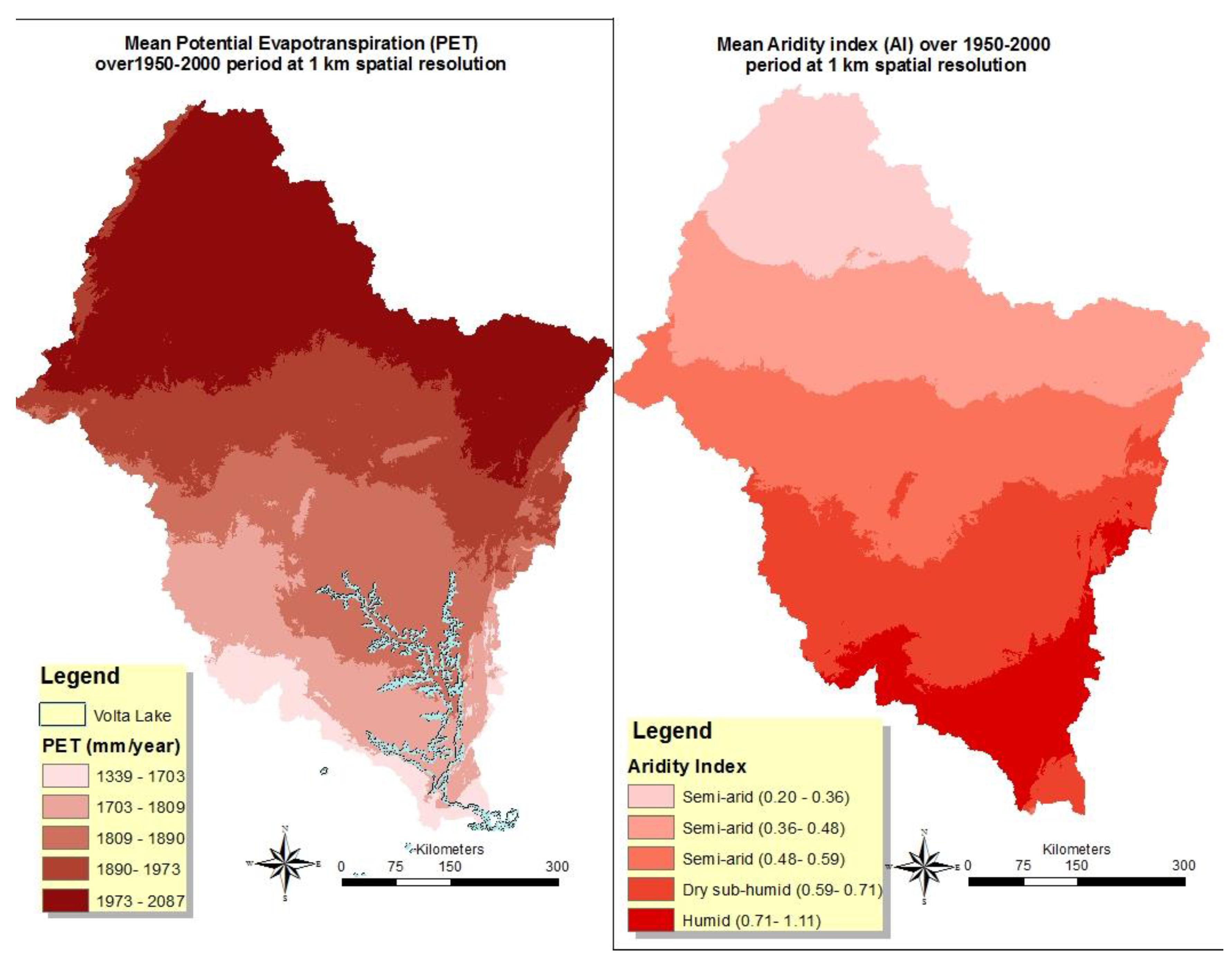

Figure 5 shows the potential evapotranspiration (PET) and the P/PET index of the Volta Basin with P the mean annual precipitation. The data was derived based on the Global Aridity and PET Database [29]. The PET represents the atmospheric water demand and aridity index (AI) expresses the precipitation availability over the atmospheric water demand. The long term average of PET and P/PET (1950–2000) gives an idea on the climatic conditions and the potential water losses in, around, and over the Volta Lake. The figure shows that the average PET over Volta Lake varies between 1339 mm/year and 1890 mm/year.

3.2. Temperature Variability in Ghana (1960—2011)

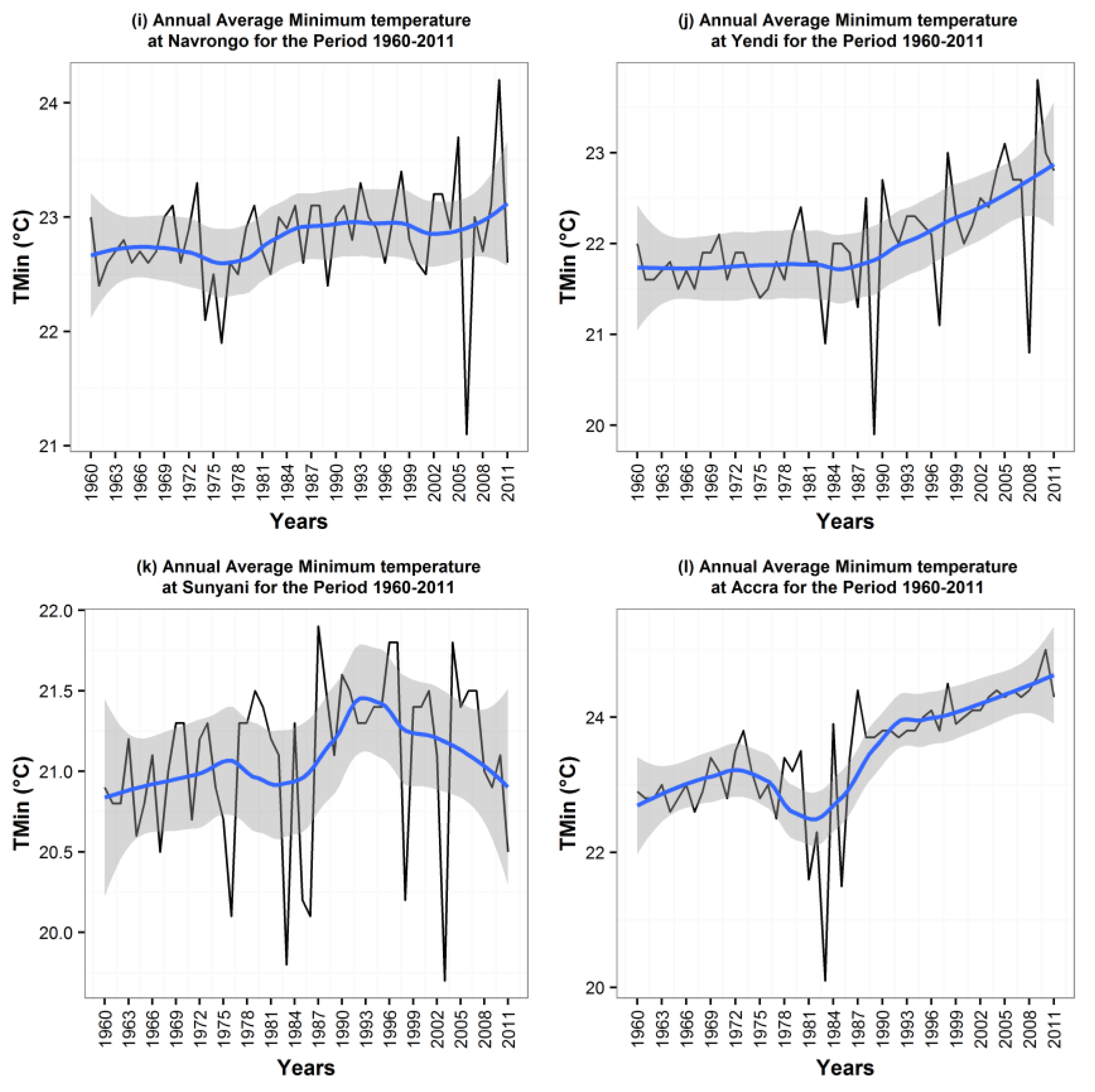

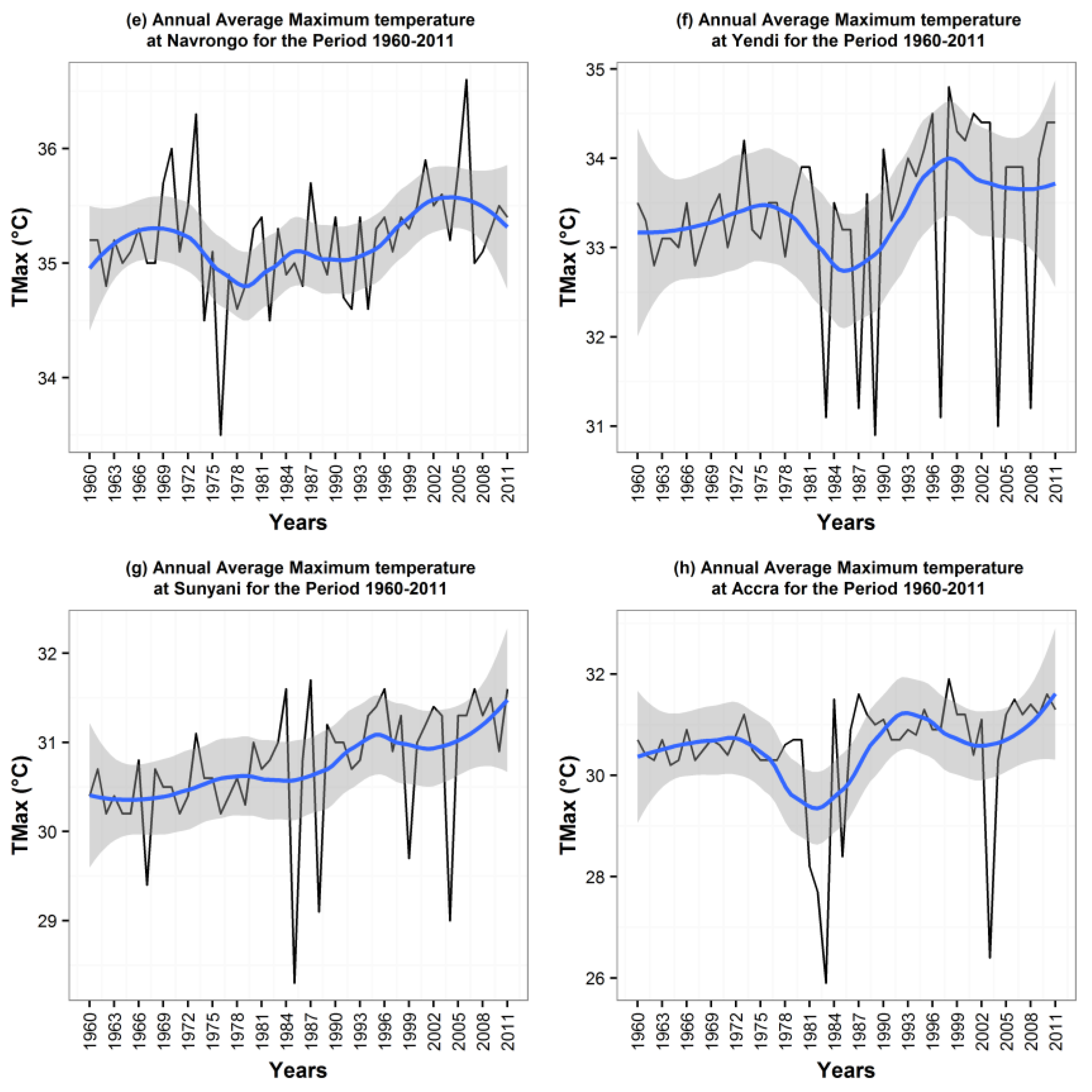

The findings (i.e., Figure 6 and Figure 7, and Table 2) from the study show increases in temperature in all the various stations studied, which have resulted in higher evaporation of water bodies. However, these may not be compensated due to the declining rainfall trend, especially between 1970 and 2011. Against this background, there were still instances of decreasing annual minimum and maximum temperatures between 1970 and 1980 in some of the stations such as Axim, Accra, Wa, Saltpond and Ho. Higher temperature and lower rainfall due to climate variability will influence water flow and extend dry season spells in the study regions. The rise in temperature, especially in a tropical climate, will increase evaporation from water and soil surfaces and transpiration from plants leading to drought. The annual minimum and maximum temperature trend for almost all the stations was positive, although the results are not statistically significant. The annual temperatures in the study regions were relatively high throughout the period of 1960–2011 and this has serious impacts on the hydrological cycle which significantly affects hydropower generation.

The average minimum annual temperature in Ghana varies between 20 °C and 24 °C. The spatial interpolation of the minimum temperature (Figure 8a) shows the highest values around the coastal line and the extreme north of Ghana while the lowest minimum temperatures are recorded around the central and the mid-west part of the country. The maximum annual average temperature in Ghana varies between 28 °C and 36 °C. The spatial interpolation of maximum temperature (Figure 8b) suggests that the highest maximum temperature values are measured in the northern part of the country while the lowest maximum temperature values are found around the coastal line.

Changes in temperature patterns may have effects on river systems which may affect hydroelectric production [30,31]. The increase in atmospheric temperature has been unprecedented in the past 25 years with eleven out of the twelve warmest years occurring between 1995 and 2006 [32]. In Ghana, climate change is being experienced through the rise in temperatures and unpredictable rainfall across all ecological zones [33].

Historical data reveals that rainfall was mostly high in the 1960s but decreased to low levels in the latter part of 1970s and early 1980s. This decline in rainfall patterns still prevails in recent times, and by using 20 years of data it was observed that temperatures in all zones in Ghana are rising, and that rainfall has been reducing and becoming increasingly erratic [34]. The impact of climate change is projected to be severe in Ghana, though there will be fluctuations in both annual temperatures and precipitation, hence increasing levels of uncertainty for conducting climate sensitive development planning. Based on the projection by [35], the trend for temperature over the period of 2010 to 2050 indicates warming in all regions of Ghana, with the highest temperature in the Northern, Upper East, and Upper West regions. The region with the lowest temperature is the Brong Ahafo region. These predictions are based on the various climate scenarios as developed in [34]. For instance, based on the scenario, it has been predicted that temperatures in the three regions of the north will rise by 2.1–2.4 °C by 2050. whereas the predicted rise in the Ashanti, Western, Eastern, Central, and Volta regions will be 1.7–2.0 °C, and that of the Brong Ahafo region will be 1.3–1.6 °C.

3.3. Discharge at Akosombo (1965–2014)

The Akosombo reservoir is fed by numerous tributary rivers to the Volta River, all of which rain-fed. The volume of water in the reservoir swells up during the rainy season and shrinks during the dry season. There is a large inflow of water into the reservoir in August during the peak rainfaill period and the reservoir attains its highest level in August/September. Spillage is always carried out in September mostly when the level of the Volta Lake rises above 84.3 m.a.s.l. However, the water level in the reservoir starts falling in October/November, with the onset of the harmattan (a dry and dusty northeasterly trade wind which blows from the Sahara Desert over the West Africa into the Gulf of Guinea between November–March) in the catchment area, and generally reaches its lowest level in May/July annually. Generally, the Akosombo Dam has experienced consistent reduction of water inflow into the reservoir mostly due to low rainfall patterns and high temperatures over the past years, and this has led to the occasional shut down of the turbines [36]. Therefore, discharge from the Akosombo Dam varies and depends on the amount of water inflow into the reservoir. However, other factors such as temperature also account for discharge at the dam.

From Figure 9, it can be seen that there is a cyclic nature of the rise and fall of the annual total discharge for Akosombo Dam from 1965–2014 as a result of the consistent fluctuation of rainfall distribution in Ghana and the Volta Basin. The Z_s value, which is 4.93, shows that there is a positive trend for the annual average discharge for Akosombo Dam (1965–2014). In contrast, the results from the statistics for water level in

Table 3. Trends test on water level and discharge.

Parameters	Test Zs	Significance	Qmed
Water level	−2.11	*	−7.974 (m/year)
Discharge	4.93	***	15,441.1(m3/year)

Z_s: Mann-Kendall test, Q_med: Sen’s slope estimator, *** statistically significant trends at the 0.1% significance level, * statistically significant trends at the 5% significance level.

show that the $\mathrm{Sen}’\mathrm{s}\mathrm{slope}=-7.974$, this indicates a downward trend that is statistically significant at the 95% confidence interval. In general, the upward trend for discharge and downward trend for water elevation was not consistent throughout the period of 1965–2014. Also, it can be noted that the decreases in water level of the Akosombo Dam cannot be directly linked to decreases in precipitation alone. However, other factors—for instance as you increase flow regulation in a basin, evapotranspiration is shown to increase, which will reduce runoff [12] and temperature changes—may be considered due to their effects on evapotranspiration.

3.4. Potential Impact of Rainfall and Temperature Variations on Hydropower Generation

In the previous sections, we attempted to describe the spatio-temporal variation of rainfall and temperature in Ghana. Although all the trends were not statistically significant, the general pattern of the trends suggests a relative change. Figure 9 and Figure 10 show the temporal variation of the average Volta Basin rainfall, discharge, water level, energy production, and actual evapotranspiration at Akosombo. While there is an obvious correlation between plant discharge and power production from 1980–2011 (with a correlation coefficient of R² = 0.95 for a linear model), the other parameters showed weak correlation. However, Figure 10 and Figure 11 show good correlation between power production and the other hydro-climatic parameters between the period of 1980–1990.

Figure 3 shows high potential evapotranspiration around Volta Lake. These relatively high values could result in important losses of water for Akosombo hydropower production. Although the fact that Volta Lake falls in the humid and dry-sub humid zone, the upper stream and the majority of the Volta Basin is under semi-arid conditions with high PET up to 2087 mm/year. This could lead to a deficit in rainfall with direct impacts on stream flow and consequently on hydropower production. As an example, Figure 10 reveals that with the decreasing trend of precipitation and energy production, there is a sharp increase in actual evapotranspiration. Jaramillo and Destouni (2015) [12] show that PET/P for the Volta Basin is, on average, 1.61 and has increased by 0.04 (4%) from 1955 to 2008 compare to the period 1901–1954 suggesting that the Volta Basin has become more “arid” with implications to the performance of the hydropower.

Electricity production in Ghana largely depends on hydropower production. In an era of changing climate, the challenge for hydropower plants to meet the country’s energy demand calls for innovation and the construction of additional power plants. One way of compensating the reduction in existing hydropower plant production due to climatic variations could be the exploitation of the mini to medium hydropower potential of Ghana. Referring to Figure 11, Ghana has potential for exploitable medium hydropower sites with the potential of some sites estimated to be over 75 MW. This could also help in meeting the growing demand for rural electrification.

4. Conclusions

Hydropower generation is highly dependent on available water resources. The impact of rainfall and temperature variability has a direct impact on electricity generation. This study examined the historical rainfall and temperature data across 22 stations in Ghana to understand the spatial and location specific trends over time. The paper also examined the discharge irregularities of the Akosombo Reservoir from 1965–2014 as way to contextualize the implications of climate variability on the performance of hydropower plants.

The results from the hydro-met stations across the country indicated an increasing trend of higher temperatures and declining rainfall patterns in various stations which will affect water availability and accessibility. The declining rainfall impacts on the performance of hydropower generation as exemplified at the three hydropower plants (Akosombo, Kpong and Bui) in Ghana. The rise in temperature will also increase evapotranspiration leading to water stress and drought, which will also affect the hydropower generation in Ghana. A deeper analysis of the Akosombo power generation reveals that the water level always drops, reaching its lowest in May/June each year, which has serious implications for power generation from the Akosombo Dam.

This study has revealed that hydropower is an important resource for Ghana’s future energy but changing hydrology due to changing climate has highlighted increasing uncertainties associated with hydropower generation. It means that Ghana will need to diversity its energy sources in order to build resilience in the country’s power sector as a way to supplement its energy demand during seasonal lows and address levels of variability in hydrogenation. This would need to involve government and energy providers to capitalize and invest in the oil and gas sector to power the thermal plants but more importantly integrating other renewable energy sources such as solar power to augment the electricity obtained from the hydropower plants. It is also envisaged that future hydropower plant investments in the country should take careful consideration into the rainfall and temperature impact on the potential for energy generation. Beyond these energy-specific interventions, there need to be considerable effort by individuals, non-governmental organizations and government institutions to uphold the principle of living in a green environment, which bring bottom-up actions to the broader goal of climate resilience. Such actions also acknowledge that interdependency between human and natural systems. For example, afforestation and improved management of catchments of hydroelectric dams would be necessary to minimize further increases in temperatures effects. Generally, the rise of temperatures would increase evaporation, thereby reducing the available water resources in the reservoirs for power generation.
