Identification and Characterization of a Streptomyces albus Strain and Its Secondary Metabolite Organophosphate against Charcoal Rot of Sorghum

by
Subramaniam Gopalakrishnan
1,*,
Rajan Sharma
1,*,
Vadlamudi Srinivas
1,
Nimmala Naresh
1,
Suraj P. Mishra
1,
Sravani Ankati
1,
Sambangi Pratyusha
1,
Mahalingam Govindaraj
1,
Susana V. Gonzalez
2,
Sondre Nervik
2 and
Nebojsa Simic
2,*
1
International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Patancheru 502 324, Telangana, India
2
Department of Chemistry, Faculty of Natural Sciences, Norwegian University of Science and Technology (NTNU), 7491 Trondheim, Norway
*
Authors to whom correspondence should be addressed.
Plants 2020, 9(12), 1727; https://doi.org/10.3390/plants9121727
Submission received: 9 November 2020 / Revised: 1 December 2020 / Accepted: 1 December 2020 / Published: 7 December 2020
(This article belongs to the Special Issue Biological Control of Plant Diseases)
Browse Figures
Versions Notes

Abstract

:
Streptomycesalbus strain CAI-21 has been previously reported to have plant growth-promotion abilities in chickpea, pigeonpea, rice, and sorghum. The strain CAI-21 and its secondary metabolite were evaluated for their biocontrol potential against charcoal rot disease in sorghum caused by Macrophomina phaseolina. Results exhibited that CAI-21 significantly inhibited the growth of the pathogen, M. phaseolina, in dual-culture (15 mm; zone of inhibition), metabolite production (74% inhibition), and blotter paper (90% inhibition) assays. When CAI-21 was tested for its biocontrol potential under greenhouse and field conditions following inoculation of M. phaseolina by toothpick method, it significantly reduced the number of internodes infected (75% and 45% less, respectively) and length of infection (75% and 51% less, respectively) over the positive control (only M. phaseolina inoculated) plants. Under greenhouse conditions, scanning electron microscopic analysis showed that the phloem and xylem tissues of the CAI-21-treated shoot samples were intact compared to those of the diseased stem samples. The culture filtrate of the CAI-21 was purified by various chromatographic techniques, and the active compound was identified as “organophosphate” by NMR and MS. The efficacy of organophosphate was found to inhibit the growth of M. phaseolina in the poisoned food technique. This study indicates that S. albus CAI-21 and its active metabolite organophosphate have the potential to control charcoal rot in sorghum.

1. Introduction

Sorghum [Sorghum bicolor (L.) Moench] is a nutrient-rich staple food crop for millions of rural communities in the semiarid tropics [1]. It is grown on 42 million hectares of land in the world, with a total production of 59 million tonnes [2]. The productivity of sorghum can be improved if the biotic stresses are well managed. Among the various biotic stresses of sorghum, charcoal rot, caused by Macrophomina phaseolina (Tassi) Goid., is an important disease of postrainy sorghum. It affects more than 500 plant species including legumes, vegetables, and cereals and devastates up to 100% of the crop [3].
M. phaseolina is a soil-borne root pathogen that naturally forms heat-tolerant sclerotia [4]. The pathogen survives predominantly as small black sclerotia in diseased root and stem debris or soil after the decay of the plant material in which they were formed, which serves as the primary source of charcoal rot infection [5]. Germination of sclerotia from sorghum stalks was found to be only 23% after 16 months in the soil, whereas sclerotia from other host plants are known to survive for up to 15 years [4]. The population of sclerotia in the soil is highly variable, and this variation in the primary inoculum density results in variable charcoal rot incidence in the field [6]. The inoculum density increases in the soil by continuous cultivation of susceptible cultivar in the same field. Under drought and high-temperature conditions, the mycelia of M. phaseolina deeply penetrate the host crop in search of nutrients, which leads to structural damage and death of the infected plants [7]. M. phaseolina produces a metabolite, phaseolinone, which causes vascular blockage that leads to the death of the whole plant [8,9]. This disease affects large areas of postrainy sorghum production fields where moisture stress is predominant and causes a significant yield loss [10]; therefore, researchers around the world are making various attempts to manage this disease.
The biggest drawback in managing charcoal rot in sorghum is the lack of a high level of host-plant resistance in currently cultivated cultivars. Control of charcoal rot in sorghum is challenging, as no single control measure is fully effective. Advanced sowing date, use of pathogen-free (M. phaseolina-free) seed, solarization of soil, and treatment with thiram and carbendazim are some of the control measures usually employed to manage charcoal rot disease but with limited success [11,12]. Biocontrol of this soil and seed-borne pathogen has also been attempted with beneficial microorganisms such as Bacillus, Pseudomonas, Enterobacter, Trichoderma, Acinetobacter, Amycolatopsis, and Streptomyces [13,14,15,16,17]. This shows the importance of understanding the sorghum–M. phaseolina interactions and identifying more potent biocontrol strategies that could be combined with a moderate level of tolerance in the host to manage this disease.
Streptomyces albus strain CAI-21 has been previously reported to have plant growth-promotion (PGP) abilities in chickpea, pigeon pea, rice, and sorghum [18,19,20,21,22,23]. Further, in the preliminary investigation, CAI-21 and its culture filtrates were also found to inhibit M. phaseolina in the in vitro studies [18]. Therefore, CAI-21 was well adapted not only in the chickpea, pigeonpea, and rice rhizospheres but also in the sorghum rhizosphere, indicating its ability to survive under various natural conditions and its broad spectrum activities. The main objective of the present study was to screen S. albus CAI-21 for its biocontrol potential against charcoal rot disease in sorghum by dual-culture assay, secondary metabolite production assay, blotter paper assay, and greenhouse and field assays and to finally purify and identify the active secondary metabolite of CAI-21 responsible for the inhibition of M. phaseolina.

2. Results and Discussion

2.1. In Vitro Inhibitory Activity of S. albus CAI-21

The strain CAI-21 inhibited M. phaseolina in both dual-culture and secondary metabolite production assays. In the dual-culture assay, CAI-21 caused a 15 mm inhibition of M. phaseolina (Table 1 and Figure 1). This indicated the production of antifungal compounds (such as streptomycin and Actinovate) that may be involved in the inhibition of the hyphal growth of M. phaseolina, as there was no direct contact between the M. phaseolina and CAI-21. This hypothesis was confirmed in the secondary metabolite production assay as the organic fraction of the culture filtrate of CAI-21 inhibited M. phaseolina by 73.8% (Table 1 and Figure 2). Inhibition of M. phaseolina growth by PGP microbial strains is mainly attributed to their ability to produce antifungal compounds such as hydrolytic enzymes (cellulase and chitinase) and hydrocyanic acids (HCN) [24,25]. Plant growth-promoting rhizobacteria (PGPR) strains are mainly regarded as biocontrol agents as they potentially produce siderophores, chitinase, and HCN, which induce disease resistance in agriculturally important crops [26,27]. The strain S. albus CAI-21 has been previously reported to produce siderophore and HCN [18]. Therefore, it was speculated that S. albus CAI-21 may produce one or more secondary metabolites capable of inhibiting M. phaseolina.

2.2. In Vivo Biocontrol Potential of S. albus CAI-21

In the in vivo blotter paper assay, few disease symptoms (score 1 on 0–4 scale rating) and lesser root infections (10–20%) were observed in CAI-21-treated sorghum roots, whereas in the M. phaseolina-inoculated control, high disease severity with score 4 and 100% root infection were observed. The negative control plants were found to be healthy as these were without any disease symptoms or root infection (Table 2; Figure 3). Further, the sclerotia of M. phaseolina were not found in both in vitro and in vivo studies when treated with CAI-21. Based on both in vitro and in vivo studies, it was concluded that S. albus CAI-21 was capable of inhibiting M. phaseolina.

2.3. Greenhouse and Field Trials

In the greenhouse, when S. albus CAI-21 was evaluated for its biocontrol potential against M. phaseolina infection, the charcoal rot disease severity was reduced significantly compared to a positive control (only M. phaseolina was inoculated). The charcoal rot infection was observed in only 1 internode (75% less) in the CAI-21-treated plants when compared to the positive control, where up to 4 internodes were found to be infected. Further, the length of charcoal rot infection was only 3 cm (75% less) in the CAI-21-treated plants when compared to the positive control, where it was 12 cm (Table 3 and Figure 4A). In the field, the disease severity was significantly reduced in S. albus CAI-21-treated plants when compared to the positive control. The charcoal rot infection was observed in only 2.9 internodes in CAI-21-treated plants (48% less), whereas in the positive control, the infection was observed in 5.6 internodes on average. The length of charcoal rot infection was only 10 cm (51% less) in CAI-21-treated plants when compared to the positive control, where it was 19.5 cm (Table 3 and Figure 4B). The reduction of the disease severity could be due to enhanced biotic stress tolerance in the sorghum plants by the CAI-21. PGPR are widely reported for their secondary metabolite production and root-associated hormonal signaling [28]. Charcoal rot of sorghum has been reported to be managed under greenhouse conditions by Bacillus, Brevibacterium, Enterobacter, Acinetobacter, Pseudomonas, and Streptomyces [12,13,18]. However, under field conditions, there is only one report of managing the charcoal rot of sorghum using Amycolatopsis [17].
In the present investigation, when the S. albus CAI-21- and M. phaseolina-treated shoots were observed through the scanning electron microscope, the morphology and size of the phloem and xylem tissues were found to be normal and intact in the S. albus CAI-21- and M. phaseolina-treated stem samples when compared to positive control, where a major portion of the tissues (>90%) was found to be damaged (Figure 5). The tissues were normal and intact in the shoot samples from the negative control (healthy plants). This implies that M. phaseolina was not able to colonize in the CAI-21-treated sorghum plants. Similar observations were noted with Streptomyces strains BCA-546 and CAI-8 [13] and Amycolatopsis [17]. These results support the hypothesis that the PGPR not only enhance the plant growth through root colonization but also exhibit indirect benefits such as disease suppression as reported in other studies [29,30,31].

2.4. Purification of the Active Secondary Metabolite from S. albus CAI-21

Rhizospheric microbes often produce a wide variety of secondary metabolites that are known to aid in inhibiting fungal pathogens [32]. In this investigation, S. albus CAI-21 consistently inhibited M. phaseolina in dual-culture, secondary metabolite production, and blotter paper assays, and its antagonistic potential was further demonstrated under the greenhouse and field conditions. This may be due to the ability of CAI-21 to produce one or more antifungal compounds, and this perhaps prevented M. phaseolina colonization and further spread of charcoal rot infection in sorghum plants. To prove this hypothesis, the identification of one or more secondary metabolites responsible for the inhibition of M. phaseolina was carried out from the culture filtrates of S. albus CAI-21 by various chromatographic techniques. When the culture filtrates of CAI-21 were partitioned three times against ethyl acetate, organic ethyl acetate and aqueous fractions were obtained; however, the antagonistic activity was found only in the organic fraction. The active organic fraction was further purified on open column chromatography packed with C18 and eluted with incremental MeOH. Of all the fractions, only 90% of the MeOH fraction was found to be most active against M. phaseolina in growth inhibition followed by 100% of the MeOH fraction (Figure 6). Hence, 90% and 100% MeOH fractions were further purified in HPLC and analyzed through NMR and MS spectroscopy.

2.5. Identification of the Active Secondary Metabolite from S. albus CAI-21

Preliminary NMR analyses pointed out that both fractions still contained impurities, which interfered with the sample signals. The impurities were removed on the preparative HPLC, and the purified samples were dissolved in pure methanol. The final purified sample yielded 26 mg of white amorphous powder, which was submitted for further NMR and MS analyses.
The 1H NMR spectrum of the sample showed the presence of a 1,2,4-substituted benzene ring. By combining 1D and 2D NMR data (Figures S1–S4), two substituents were easily identified as t-butyl groups, while the third one contained heteroatoms, among which at least one was oxygen. The HR-MS analysis showed a mass of 662.4542 (Figure S5), which corresponded to the molecular formula C42H63O4P. The observed fragmentation pattern suggested a repetition of aromatic unit in the structure. The combined NMR and MS data were consistent with an organophosphate containing three substituted benzene rings (Figure 7).
Streptomyces is widely reported to produce secondary metabolites/antibiotics such as streptomycin, Actinovate, blasticidin-S, and validamycin. Among the known antibiotics available on the market, more than 60% of them are produced by the genus Streptomyces [43]. Some of the antibiotics produced by the genus Streptomyces include streptomycin (by S. griseus), Actinovate (by S. lydicus WYEC 108), blasticidin-S (by S. griseochromogenes), validamycin (by S. hygroscopicus), kasugamycin (by S. kasugaensis), oxytetracycline (by S. rimosus), polyoxins (by S. cacaoi var. asoensis), Mycostop (by Streptomyces sp. K61), azalomycin B (by Streptomyces sp. HAAG3-15), abamectin/avermectins (by S. avermitilis), emamectin benzoate (by S. avermitilis), polynactins (by S. aureus), natamycin (by S. natalensis and S. chattanoogensis), the diketopiperazine cyclo(Tre-Phe) (by Streptomyces sp. SAI-25), a novel fatty acid amide derivative (by Streptomyces sp. CAI-155), and milbemycin (by S. hygroscopicus subsp. aureolacrimosus), which are widely reported as crop protection agents [44,45,46,47]. Similarly, the organophosphate secreted by S. albus CAI-21 may be used in biological control of M. phaseolina.

3. Materials and Methods

3.1. PGP Microbe

One strain of Streptomyces albus CAI-21, previously identified by whole-genome sequencing and reported to have the capacity for PGP traits such as shoot mass, shoot volume, and root mass in sorghum [18,22], was collected from our lab and used in the present study.

3.2. In Vitro Dual-Culture and Secondary Metabolite Production Assays

S. albus CAI-21 was tested for its inhibitory activity against M. phaseolina (isolated from charcoal rot-infected sorghum plants at International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Patancheru, India) by dual-culture assay as described earlier [18]. In brief, a fungal disk (M. phaseolina) of 6 mm diameter was placed on one edge (1 cm from the corner) of the starch casein agar plate, and CAI-21 was streaked on the other edge of the plate (1 cm from the corner), followed by incubation at 28 ± 2 °C for 5 days. Inhibition of fungal mycelium (halo zone) around the CAI-21 was noted as positive, and the inhibition zone (in mm) was measured. Positive control plates contained only M. phaseolina, while negative control plates contained only sterile water. For the secondary metabolite production assay, CAI-21 was grown on starch casein broth (SCB; composition—soluble starch 10 g, casein 0.3 g, KNO3 2 g, MgSO4.7H2O 0.05 g, K2HPO4 2 g, NaCl 2 g, CaCO3 0.02 g, FeSO4.7H2O 0.01 g, and distilled water 1000 mL) at 28 ± 2 °C for seven days. After seven days of incubation, the cell-free supernatant was collected, and its secondary metabolites were extracted using ethyl acetate by the solvent partitioning method [48]. The pellet containing the biomass was discarded. The resultant aqueous and organic fractions were tested against M. phaseolina for their growth inhibition ability by the modified poisoned food technique [13]. In brief, potato dextrose agar plates with 0.1 mL of either organic or aqueous fractions were prepared. A fungal disc with 4 mm diameter of M. phaseolina was bored and placed at the center of the plate. After five days of incubation at 28 ± 2 °C, the fungal growth was measured and compared with the positive control plates, where only 0.1 mL of methanol was added, and chemical control plates, where only chlorpyriphos (20%) was added. Negative control plates contained only sterile water. Both the dual-culture and the secondary metabolite production assays were repeated thrice to confirm the results.

3.3. In Vivo Blotter Paper Assay

CAI-21 was evaluated for its antifungal activity against M. phaseolina on two-week-old seedlings of susceptible sorghum line 296B using a blotter paper assay [17]. In brief, a total of 3 treatments (CAI-21 + M. phaseolina inoculation; positive control, only M. phaseolina inoculation; and negative control, only sterile water) were tested. Fifteen plants were used per replicate, and 3 replications were made for each treatment. The symptoms of charcoal rot (black-colored infection and microsclerotia on the root surface) were recorded on a 0–4 rating scale (0 = no visible disease symptom; 4 = maximum disease symptoms; [49]). The percentage of infected roots on CAI-21-inoculated treatment compared with the positive (only M. phaseolina inoculated) control was also calculated. The assay was repeated twice to confirm the results.

3.4. Greenhouse Trials

CAI-21 was evaluated for its biocontrol potential against the charcoal rot of sorghum under greenhouse conditions. This was performed with the toothpick inoculation method [17,50]. In brief, a total of 3 treatments (CAI-21 + M. phaseolina inoculation; positive control, only M. phaseolina inoculation; and negative control, only water) were tested with 10 replications. The trial was conducted in a completely randomized design. A mixture of 2 kg of Vertisols, sand, and farmyard manure (at 3:2:1 ratio) was filled in 8-inch plastic pots. Sorghum seeds (line 296B) were surface-sterilized with 2.5% sodium hypochlorite solution in water for 3 min and rinsed several times with sterilized distilled water. The surface-sterilized seeds were soaked in CAI-21 suspension (at 108 CFU ml−1 grown in SCB separately; the CFU was calculated by the plate count method) or in sterilized water (for a negative control) for one hour. The treated seeds (three per pot) were sown immediately at 3 cm depth and thinned to one plant per pot after germination. Booster doses of CAI-21 (5 mL per seedling) were applied by the soil drench method at 15 and 30 days after sowing (DAS). Ten days after flowering, all the plants (except the ones in the negative control) were artificially inoculated by inserting a toothpick infested with the inoculum of M. phaseolina into the second internode of the stalk [50]. At harvest, the disease severity was recorded by measuring the number of internodes infected and the length of infection. The greenhouse trial was repeated twice to confirm the results.
At harvest, the stem samples were also examined by scanning electron microscopy (SEM) analysis for colonization of CAI-21 and for any morphological changes that might have occurred [13,51]. In brief, small pieces of the infected portion of the stem were cut, fixed in 2.5% glutaraldehyde in 0.1 M phosphate buffer (pH 7.2) for 24 h at 4 °C, and postfixed in 2% aqueous osmium tetroxide for 4 h. The stem samples were dehydrated with a series of graded alcohols and dried to a critical point with a critical point drying (CPD) unit. The processed samples were mounted over the stubs with double-sided carbon conductivity tape, and the samples were coated with a thin layer of gold using an automated sputter coater (Model—JEOL JFC-1600) for 3 min and scanned using SEM. SEM analysis was performed at RUSKA Lab, College of Veterinary Science, Rajendranagar, Hyderabad, India. The morphological changes of the cells were measured using SEM at the required magnifications.

3.5. Field Trials

CAI-21 was also evaluated for its biocontrol potential against charcoal rot of sorghum under field conditions at International Crops Research Institute for the Semi-Arid Tropics (ICRISAT), Patancheru, India, during the postrainy 2017−2018 cropping season by toothpick inoculation method, as described in greenhouse trials. During the cropping season, a minimum nighttime temperature range of 11–17 °C and a maximum daytime temperature range of 28–38 °C were recorded. The trial was conducted in a randomized complete block design (RCBD) with three replications. The plot size was 3 rows of 2 m long with a row-to-row spacing of 75 cm and a plant-to-plant spacing of 10 cm. Sorghum seeds (line 296B) were sown in the field at a depth of 5 cm to achieve an estimated plant stand density of 60 plants per replication. A total of three treatments (CAI-21 + M. phaseolina inoculation; positive control, only M. phaseolina inoculation; and negative control, only water) were evaluated. Just before sowing, the seeds of 296B were treated with CAI-21 (containing 108 CFU mL−1) for 50 min and sown by hand. CAI-21 (1000 mL; 108 CFU mL−1) was also applied every 15 days in the soil close to the plant until the flowering stage. Plants were artificially inoculated with the M. phaseolina, by inserting a toothpick infested with M. phaseolina into the second internode of the sorghum stalk 10 days after 50% flowering. The growth of the M. phaseolina on toothpicks was achieved as described earlier [50]. Irrigation was withheld in the experimental plots at 50% flowering to ensure adequate soil moisture stress to facilitate disease development. At the physiological maturity stage (~35 days after inoculation of M. phaseolina), the disease severity was recorded by measuring the length of infection (in cm) and the number of internodes infected.

3.6. Purification and Identification of Active Metabolite from S. albus CAI-21

CAI-21 was grown on SCB at 28 °C for 7 days in an orbital shaker at 120 rpm. At the end of the 7-day incubation, the culture was centrifuged at 12,000× g for 15 min at 4 °C, and the supernatant (cell-free culture filtrates) was collected. The culture filtrates (10 L) were partitioned three times against ethyl acetate (EtOAc; one-third of the volume each time), and the resultant organic (EtOAc) and aqueous fractions were evaporated and collected in methanol (10 mL). Both organic and aqueous fractions were tested against M. phaseolina by a modified poisoned food technique [13].
The organic fraction, which showed antagonistic potential, was subjected to C18 open column chromatography. The column (23 × 3.6 cm) was packed with C18 (Wakosil 40C18, Wako, Osaka, Japan) one day prior to allow the C18 to settle in the column. After conditioning the C18 column, the bioactive fraction was loaded and eluted with a gradient of methanol in Milli-Q water (5%, 10%, 20%, 40%, 60%, 80%, and 100% MeOH). All the collected fractions were evaluated for their antagonistic activity against M. phaseolina by the poisoned food technique [13].
The most bioactive open-column chromatography fraction was further purified on HPLC (Water alliance 2695 separation module, Waters, Milford, Massachusetts, USA; UV detector/254 nm; Atlantis C18 analytical column, 5 µm, 250 × 4.6 mm, flow rate 0.5 mL min−1; gradient method with acetonitrile/water) and subjected to structural identification studies. Removal of impurities in the purified sample was performed with a preparative HPLC Agilent 1260 Infinity instrument, Santa Clara, USA equipped with two G1361A 1260 Prep Pumps, a G2260A 1260 Prep ALS, G1316A 1260 TCC Switching Valve, a G7114A 1260 Variable Wavelength Detector, and a G7102 1290 Evaporative Light Scattering Detector. An Agilent 5 Prep-C18 (21.2 × 150 mm, 5 µm) column was used with a flow of 20 mL/min. Samples were dissolved in pure methanol and eluted isocratically in methanol/water 80:20 for 4.5 min and then isocratically in pure methanol for 8.5 min. The fraction at tR = 11.64 min was collected in a G1364B 1260 FC-PS fraction collector and evaporated in a smart evaporator under a stream of nitrogen.

3.7. Characterization of the Purified Compound

3.7.1. Mass Spectrometry (MS)

An accurate mass determination was carried out on a “Synapt G2-S” Q-TOF instrument from Waters™ (Milford, Massachusetts, USA). Samples were ionized using an ESI (Electrospray ionization) probe in positive mode. No chromatographic separation was used previously for the mass analysis. The calculation of the exact mass and spectral processing was performed using Waters™ MassLynx V4.1 SCN871 software.

3.7.2. Nuclear Magnetic Resonance (NMR)

NMR data were acquired using a Bruker Avance III HD spectrometer, operating at a proton frequency of 600.18 MHz, with a 5 mm triple-resonance cryogenic CP-TCI probe, and equipped with a z-gradient. The samples containing a solution of 15 mg of the substance in chloroform-d (CDCl3) were measured at 300 K, using TMS signal as a reference. The following 1D and 2D pulse sequences from the Bruker User Library were used for the NMR experiments: 1H 1D (600 MHz), 13C 1D (150 MHz), 2D heteronuclear single quantum coherence (HSQC) with multiplicity editing, 2D heteronuclear multiple bond correlation (HMBC) with threefold low-pass J-filter to suppress one-bond correlations, and 2D H–H-correlation spectroscopy (COSY) with gradient pulses for selection.

3.8. Statistical Analysis

The data were analyzed statistically by analysis of variance (ANOVA; Genstat 20. version) in a completely randomized design (CRD) for greenhouse and randomized complete block design (RCBD) for field studies to evaluate the efficiency of S. albus CAI-21. The mean values for both greenhouse and field studies were compared at 5% level of significance.

4. Conclusions

It is concluded from the results of this study that CAI-21 may be the first Streptomyces strain to be reported to manage the charcoal rot of sorghum in both greenhouse and field experiments. Furthermore, the active metabolite responsible for the inhibition of M. phaseolina was identified as an organophosphate. In the absence of a high level of genetic resistance in high-yielding varieties, CAI-21 and its metabolite could be effective in managing charcoal rot disease in sorghum. Thus, this strain may be used as an important tool in managing charcoal rot in sorghum. Further experiments are needed to determine the effectiveness of the CAI-21 and the organophosphate, as an effective antifungal compound, under different field conditions and using diverse sorghum cultivars. The biosafety issues related to the organophosphate secreted by the CAI-21, such as risk assessment for human and domestic pet health and environmental contamination, also need to be assessed before it is released in the environment.

Supplementary Materials

The following are available online at https://www.mdpi.com/2223-7747/9/12/1727/s1, Figure S1: Proton NMR spectrum; Figure S2: 13C NMR spectrum, Figure S3: 2D HSQC spectrum, Figure S4: 2D HMBC spectrum, Figure S5: MS TOF spectrum with identified M+H ion at m/z 663.4540.

Author Contributions

S.G. conceived the idea. S.G., R.S., and N.S. contributed to the sampling, methodology, and resources. V.S., N.N., S.P.M., S.A., S.P., M.G., S.V.G., and S.N. analyzed the data. The manuscript was written by S.G., R.S., M.G., S.V.G., S.N., and N.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been undertaken as part of the CGIAR Research Program on Grain Legumes Dry Land Cereals. ICRISAT is a member of CGIAR Consortium.

Acknowledgments

We thank PVS Prasad for his significant contribution in the laboratory, greenhouse, and field studies.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Proietti, I.; Frazzoli, C.; Mantovani, A. Exploiting nutritional value of staple foods in the world’s semi-arid areas: Risks, benefits, challenges and opportunities of sorghum. Healthcare 2015, 3, 172–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. FAOSTAT. Statistical Database 2018. Available online: http://faostat.fao.org (accessed on 20 September 2020).
  3. Patil, V.; Kamble, S. The influence of ultraviolet light on antagonistic activity of Trichoderma koningii against Macrophomina phaseolina causing charcoal rot of sweet potato. Int. J. Acad. Res. 2011, 3, 702–704. [Google Scholar]
  4. Kaur, S.; Dhillon, G.S.; Brar, S.K.; Vallad, G.E.; Chand, R.; Chauhan, V.B. Emerging phytopathogen Macrophomina phaseolina: Biology, economic importance and current diagnostic trends. Crit. Rev. Microbiol. 2012, 38, 136–151. [Google Scholar] [CrossRef] [PubMed]
  5. Khan, K.A.; Shoaib, A.; Awan, Z.A.; Basit, A.; Hussain, M. Macrophomina phaseolina alters the biochemical pathway in Vigna radiata chastened by Zn2+ and FYM to improve plant growth. J. Plant Interact. 2018, 13, 131–140. [Google Scholar] [CrossRef] [Green Version]
  6. ICRISAT (International Crops Research Institute for the Semi-Arid Tropics). Sorghum root and stalk rots, a critical review. In Proceedings of the Consultative Group Discussion on Research Needs and Strategies for Control of Sorghum Root and Stalk Rot Diseases, Bellagio, Italy, 27 November–2 December 1983; Patancheru, A.P., Ed.; ICRISAT (International Crops Research Institute for the Semi-Arid Tropics): Patancheru, India, 1984. [Google Scholar]
  7. Goudarzi, A.; Banihashemi, Z.; Maftoun, M. Effect of salt and water stress on root infection by Macrophomina phaseolina and ion composition in shoot in sorghum. Iran J. Plant Pathol. 2011, 47, 69–83. [Google Scholar]
  8. Baird, R.E.; Wadl, P.A.; Wang, X.; Johnson, D.H.; Rinehart, T.A.; Abbas, H.K.; Shier, T.; Trigiano, R.N. Microsatellites from the charcoal rot fungus (Macrophomina phaseolina). Mol. Ecol. 2009, 9, 946–948. [Google Scholar] [CrossRef] [PubMed]
  9. Mahdizadeh, V.; Safaie, N.; Goltapeh, E.M. Diversity of Macrophomina phaseolina based on morphological and genotypic characteristics in Iran. Plant Pathol. 2011, 27, 128–137. [Google Scholar] [CrossRef] [Green Version]
  10. Ghosh, T.; Biswas, M.K.; Guin, C.; Roy, P.A. Review on characterization, therapeutic approaches and pathogenesis of Macrophomina phaseolina. Plant Cell Biotechnol. Mol. Biol. 2018, 19, 72–84. [Google Scholar]
  11. Manjeet, A.; Umesh, D. Biochemical control of charcoal rot of Sorghum bicolor (L.) Moench. Int. J. Curr. Microbiol. App. Sci. 2013, 2, 19–23. [Google Scholar]
  12. Das, I.K.; Rakshit, S.; Sharma, K.K.; Chattannavar, S.N.; Gholve, V.M.; Jayalaksmi, S.K.; Tonapi, V.A. Development of a charcoal rot rating index for multilocation trials of sorghum. Crop Prot. 2018, 108, 102–109. [Google Scholar] [CrossRef]
  13. Alekhya, G.; Sharma, R.; Gopalakrishnan, S. Streptomyces spp., a potential biocontrol agent of charcoal rot of sorghum caused by Macrophomina phaseolina. Ind. J. Plant Protect. 2016, 44, 1–7. [Google Scholar]
  14. Khaledi, N.; Taheri, P. Biocontrol mechanisms of Trichoderma harzianum against soybean charcoal rot caused by Macrophomina phaseolina. J. Plant Protect. Res. 2016, 56, 21–31. [Google Scholar] [CrossRef] [Green Version]
  15. Torres, M.J.; Brandan, C.P.; Petroselli, G.; Erra-Balsells, R.; Audisio, M.C. Antagonistic effects of Bacillus subtilis subsp. subtilis and B. amyloliquefaciens against Macrophomina phaseolina: SEM study of fungal changes and UV-MALDI-TOF MS analysis of their bioactive compounds. Microbiol. Res. 2016, 182, 31–39. [Google Scholar] [CrossRef] [PubMed]
  16. Dey, S.; Dutta, P.; Majumdar, S. Biological control of Macrophomina phaseolina in Vigna mungo L. by endophytic Klebsiella pneumoniae HR1. Jordan J. Biol. Sci. 2019, 12, 219–227. [Google Scholar]
  17. Gopalakrishnan, S.; Srinivas, V.; Naresh, N.; Alekhya, G.; Sharma, R. Exploiting plant growth-promoting Amycolatopsis sp. for bio-control of charcoal rot of sorghum (Sorghum bicolor L.) caused by Macrophomina phaseolina (Tassi) Goid. Arch. Phytopathol. Plant Protect. 2019, 52, 543–559. [Google Scholar] [CrossRef]
  18. Gopalakrishnan, S.; Kiran, B.K.; Humayun, P.; Vidya, M.S.; Deepthi, K.; Rupela, O. Biocontrol of charcoal-rot of sorghum by actinomycetes isolated from herbal vermicompost. Afric. J. Biotechnol. 2011, 10, 18142–18152. [Google Scholar]
  19. Gopalakrishnan, S.; Humayun, P.; Srinivas, S.; Vijayabharathi, R.; Ratnakumari, B.; Rupela, O. Plant growth-promoting traits of biocontrol potential Streptomyces isolated from herbal vermicompost. Biocont. Sci. Technol. 2012, 22, 1199–1210. [Google Scholar] [CrossRef]
  20. Gopalakrishnan, S.; Srinivas, V.; Alekhya, G.; Prakash, B.; Kudapa, H.; Varshney, R.K. Evaluation of broad-spectrum Streptomyces sp. for plant growth-promotion traits in chickpea. Philipp. Agric. Sci. 2015, 98, 270–278. [Google Scholar]
  21. Gopalakrishnan, S.; Vadlamudi, S.; Kumar, C.V.S. Plant growth-promoting traits of Streptomyces sp. in pigeonpea. Leg. Perspec. 2016, 11, 43–44. [Google Scholar]
  22. Gopalakrishnan, S.; Thakur, V.; Saxena, R.K.; Vadlamudi, S.; Purohit, S.; Kumar, V.; Rathore, A.; Chitikineni, A.; Varshney, R.K. Complete genome sequence of sixteen plant growth-promoting Streptomyces strains. Sci. Rep. 2020, 10, 10294. [Google Scholar]
  23. Sathya, A.; Vijayabharathi, R.; Srinivas, V.; Gopalakrishnan, S. Plant growth-promoting actinobacteria on chickpea seed mineral density: An upcoming complementary tool for sustainable biofortification strategy. 3Biotech 2016, 6, 1–6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Alekhya, G.; Gopalakrishnan, S. Biological ccontrol and plant growth-promotion traits of Streptomyces species under greenhouse and field conditions in chickpea. Agric. Res. 2017, 6, 410–420. [Google Scholar] [CrossRef] [Green Version]
  25. Kim, Y.J.; Kim, J.H.; Rho, J.Y. Antifungal activities of Streptomyces blastmyceticus Strain 12-6 against plant pathogenic fungi. Mycobiology 2019, 49, 329–334. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Kumar, P.; Thakur, S.; Dhingra, G.K.; Singh, A.; Pal, M.; Harshvardhan, K.; Dubey, R.C.; Maheshwari, D. Inoculation of siderophore producing rhizobacteria and their consortium for growth enhancement of wheat plant. Biocat. Agric. Biotech. 2018, 15, 264–269. [Google Scholar] [CrossRef]
  27. Abo-Elyousr, K.A.M.; Bagy, H.M.M.K.; Hashem, M.; Almari, S.A.M.; Mostafa, Y.S. Biological control of the tomato wilt caused by Clavibacter michiganensis sub sp. michiganensis using formulated plant growth-promoting bacteria. Egypt J. Biol. Pest Control 2019, 29, 54. [Google Scholar] [CrossRef]
  28. Schlaeppi, K.; Bulgarelli, D. The plant microbiome at work. Mol. Plant Microbe. Interact. 2015, 28, 212–217. [Google Scholar] [CrossRef] [Green Version]
  29. Shrivastava, P.; Kumar, R.; Yandigeri, M.S. In vitro biocontrol activity of halotolerant Streptomyces aureofaciens K20: A potent antagonist against Macrophomina phaseolina (Tassi) Goid. Saudi J. Biol. Sci. 2017, 24, 192–199. [Google Scholar] [CrossRef] [Green Version]
  30. Hassan, M.K.; McInroy, J.A.; Kloepper, J.W. The interactions of rhizodeposits with plant growth-promoting rhizobacteria in the rhizosphere. Rev. Agric. 2019, 9, 142. [Google Scholar] [CrossRef] [Green Version]
  31. Khan, N.; Bano, A.; Ali, S.; Ali, B.M. Crosstalk amongst phytohormones from planta and PGPR under biotic and abiotic stresses. Plant Growth Regul. 2020, 90, 189–203. [Google Scholar] [CrossRef]
  32. Musilova, L.; Ridl, J.; Polivkova, M.; Macek, T.; Uhlik, O. Effects of secondary plant metabolites on microbial populations: Changes in community structure and metabolic activity in contaminated environments. Int. J. Mol. Sci. 2016, 17, 1205. [Google Scholar] [CrossRef] [Green Version]
  33. Lushchak, V.I.; Matviishyn, T.M.; Husak, V.V.; Storey, J.M.; Storey, K.B. Pesticide toxicity: A mechanistic approach. EXCLI J. 2018, 17, 1101–1136. [Google Scholar] [PubMed]
  34. Archer, T.L.; Segarra, E.; Bynum, E.D., Jr. Greenbug resistance management of sorghum with insecticide mixtures: A biological and economic analysis. J. Econ. Entomol. 1999, 92, 794–803. [Google Scholar] [CrossRef]
  35. Daglish, G.J.; Wallbank, B.E.; Nayak, M.K. Synergized Bifenthrin plus Chlorpyrifos-Methyl for control of beetles and Psocids in sorghum in Australia. J. Econ. Entomol. 2003, 96, 525–532. [Google Scholar] [CrossRef] [PubMed]
  36. Samota, M.K.; Priyanka, J.; Seth, G. Synthesis, characterization and biological activity of organophosphates derived from substituted Benzoxazole. Heteroat. Chem. 2009, 20, 232–234. [Google Scholar] [CrossRef]
  37. Fiore, M.F.; de Lima, S.T.; Carmichael, W.W.; McKinnie, S.M.K.; Chekan, J.R.; Moore, B.S. Guanitoxin, re-naming a cyanobacterial organophosphate toxin. Harmful Algae 2020, 92, 101737. [Google Scholar] [CrossRef] [PubMed]
  38. Petkowski, J.J.; Bains, W.; Seager, S. Natural Products Containing ‘Rare’ Organophosphorus Functional Groups. Molecules 2019, 24, 866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Neumann, R.; Peter, H.H. Insecticidal organophosphates: Nature made them first. Experientia 1987, 43, 1235–1237. [Google Scholar] [CrossRef]
  40. Kurokawa, T.; Suzuki, K.; Hayaoka, T.; Nakagawa, T.; Izawa, T.; Kobayashi, M.; Harada, N. Cyclophostin, acetylcholinesterase inhibitor from Streptomyces lavendulae. J. Antibiot. Res. 1993, 46, 1315–1318. [Google Scholar] [CrossRef] [Green Version]
  41. Quitschau, M.; Schuhmann, T.; Piel, J.; Zezschwitz, P.; Grond, S. The new metabolite (S)-Cinnamoylphosphoramide from Streptomyces sp. and its total synthesis. Eur. J. Org. Chem. 2008, 2008, 5117–5124. [Google Scholar] [CrossRef]
  42. McGrath, J.; Chin, J.; Quinn, J. Organophosphonates revealed: New insights into the microbial metabolism of ancient molecules. Nat. Rev. Microbiol. 2013, 11, 412–419. [Google Scholar] [CrossRef]
  43. Sharma, D.; Mayilraj, S.; Manhas, R.K. Streptomyces amritsarensis sp. nov., exhibiting broad-spectrum antimicrobial activity. Antonie Leeuwenhoek 2014, 105, 943–949. [Google Scholar] [CrossRef] [PubMed]
  44. Aggarwal, N.; Thind, S.K.; Sharma, S. Role of secondary metabolites of actinomycetes in crop protection. In Plant Growth-Promoting Actinobacteria; Gopalakrishnan, S., Sathya, A., Vijayabharathi, R., Eds.; Springer: Singapore, 2016; pp. 99–122. [Google Scholar]
  45. Gopalakrishnan, S.; Vijayabharathi, R.; Sathya, A.; Sharma, H.C.; Srinivas, V.; Bhimineni, R.K.; Gonzalez, S.V.; Melø, T.M.; Simic, N. Insecticidal activity of a novel fatty acid amide derivative from Streptomyces species against Helicoverpa armigera. Nat. Prod. Res. 2016, 30, 2760–2769. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Cao, P.; Li, C.; Wang, H.; Yu, Z.; Xu, X.; Wang, X.; Zhao, J.; Xiang, W. Community structures and antifungal activity of root-associated endophytic actinobacteria in healthy and diseased cucumber plants and Streptomyces sp. HAAG3-15 as a promising biocontrol agent. Microorganisms 2020, 8, 236. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Gopalakrishnan, S.; Humayun, P.; Kiran, B.K.; Kannan, I.G.K.; Vidya, M.S.; Deepthi, K.; Rupela, O. Evaluation of bacteria isolated from rice rhizosphere for biological control of sorghum caused by M. phaseolina. World J. Microbiol. Biotechnol. 2011, 27, 1313–1321. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Westley, J.W.; Evans, R.H., Jr.; Sello, L.H.; Troupe, N.; Liu, C.M.; Blount, J.F. Isolation and characterization of antibiotic X-14547 A, a novel monocarboxylic acid ionophore produced by Streptomyces antibioticus NRRL 8167. J. Antibiot. 1979, 32, 100–107. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Nene, Y.L.; Haware, M.P.; Reddy, M.V. Chickpea diseases: Resistance-screening techniques. ICRISAT Inf. Bull. 1981, 10, 5–7. [Google Scholar]
  50. Thakur, R.P.; Reddy, B.V.S.; Mathur, K. (Eds.) Screening techniques for sorghum diseases. In Information Bulletin No. 76; International Crops Research Institute for the Semi-Arid Tropics: Andhra Pradesh, India, 2007; p. 92. ISBN 978-92-9066-504-5. [Google Scholar]
  51. Bozzolla, J.J.; Russel, L.D. Electron Microscopy Principles and Techniques for Biologists, 2nd ed.; Jones and Barlett Publishers: Sudbury, MA, USA, 1999; pp. 19–24, 54–55, 63–67. ISBN 978-0867201260. [Google Scholar]
Plants 09 01727 g001 550
Figure 1. Growth inhibition of M. phaseolina (MP) caused by S. albus CAI-21 in comparison with non-inhibiting Streptomyces strain by dual-culture assay. Both MP and CAI-21 were plated on starch casein agar followed by incubation at 28 ± 2 °C for 120 h in the dark.
Figure 1. Growth inhibition of M. phaseolina (MP) caused by S. albus CAI-21 in comparison with non-inhibiting Streptomyces strain by dual-culture assay. Both MP and CAI-21 were plated on starch casein agar followed by incubation at 28 ± 2 °C for 120 h in the dark.
Plants 09 01727 g001
Plants 09 01727 g002 550
Figure 2. Growth inhibition of M. phaseolina (MP) caused by the S. albus CAI-21 by secondary metabolite production assay. Left picture: 0.1 mL of methanol was incorporated into the potato dextrose agar (PDA) plate followed by inoculation with 4 mm diameter of MP. Right picture: 0.1 mL of organic fraction in methanol of CAI-21 culture filtrate was incorporated into the PDA followed by inoculation with 4 mm diameter of MP. The plates were incubated at 28 ± 2 °C for 120 h in the dark.
Figure 2. Growth inhibition of M. phaseolina (MP) caused by the S. albus CAI-21 by secondary metabolite production assay. Left picture: 0.1 mL of methanol was incorporated into the potato dextrose agar (PDA) plate followed by inoculation with 4 mm diameter of MP. Right picture: 0.1 mL of organic fraction in methanol of CAI-21 culture filtrate was incorporated into the PDA followed by inoculation with 4 mm diameter of MP. The plates were incubated at 28 ± 2 °C for 120 h in the dark.
Plants 09 01727 g002
Plants 09 01727 g003 550
Figure 3. In vivo biocontrol potential of S. albus CAI-21 against charcoal rot as determined by blotter paper assay of sorghum roots. MP, M. phaseolina.
Figure 3. In vivo biocontrol potential of S. albus CAI-21 against charcoal rot as determined by blotter paper assay of sorghum roots. MP, M. phaseolina.
Plants 09 01727 g003
Plants 09 01727 g004 550
Figure 4. Biocontrol potential of S. albus CAI-21 against charcoal rot of sorghum under greenhouse (A) and field (B) conditions. MP, M. phaseolina.
Figure 4. Biocontrol potential of S. albus CAI-21 against charcoal rot of sorghum under greenhouse (A) and field (B) conditions. MP, M. phaseolina.
Plants 09 01727 g004
Plants 09 01727 g005 550
Figure 5. SEM photographs showing morphological changes in the stalks of sorghum of positive control (only MP), negative control, and S. albus CAI-21 + MP-treated plants. MP, M. phaseolina.
Figure 5. SEM photographs showing morphological changes in the stalks of sorghum of positive control (only MP), negative control, and S. albus CAI-21 + MP-treated plants. MP, M. phaseolina.
Plants 09 01727 g005
Plants 09 01727 g006 550
Figure 6. Inhibitory activity of the purified metabolite (90% and 100% MeOH fractions of the open column chromatography) of S. albus CAI-21 against M. phaseolina.
Figure 6. Inhibitory activity of the purified metabolite (90% and 100% MeOH fractions of the open column chromatography) of S. albus CAI-21 against M. phaseolina.
Plants 09 01727 g006
Plants 09 01727 g007 550

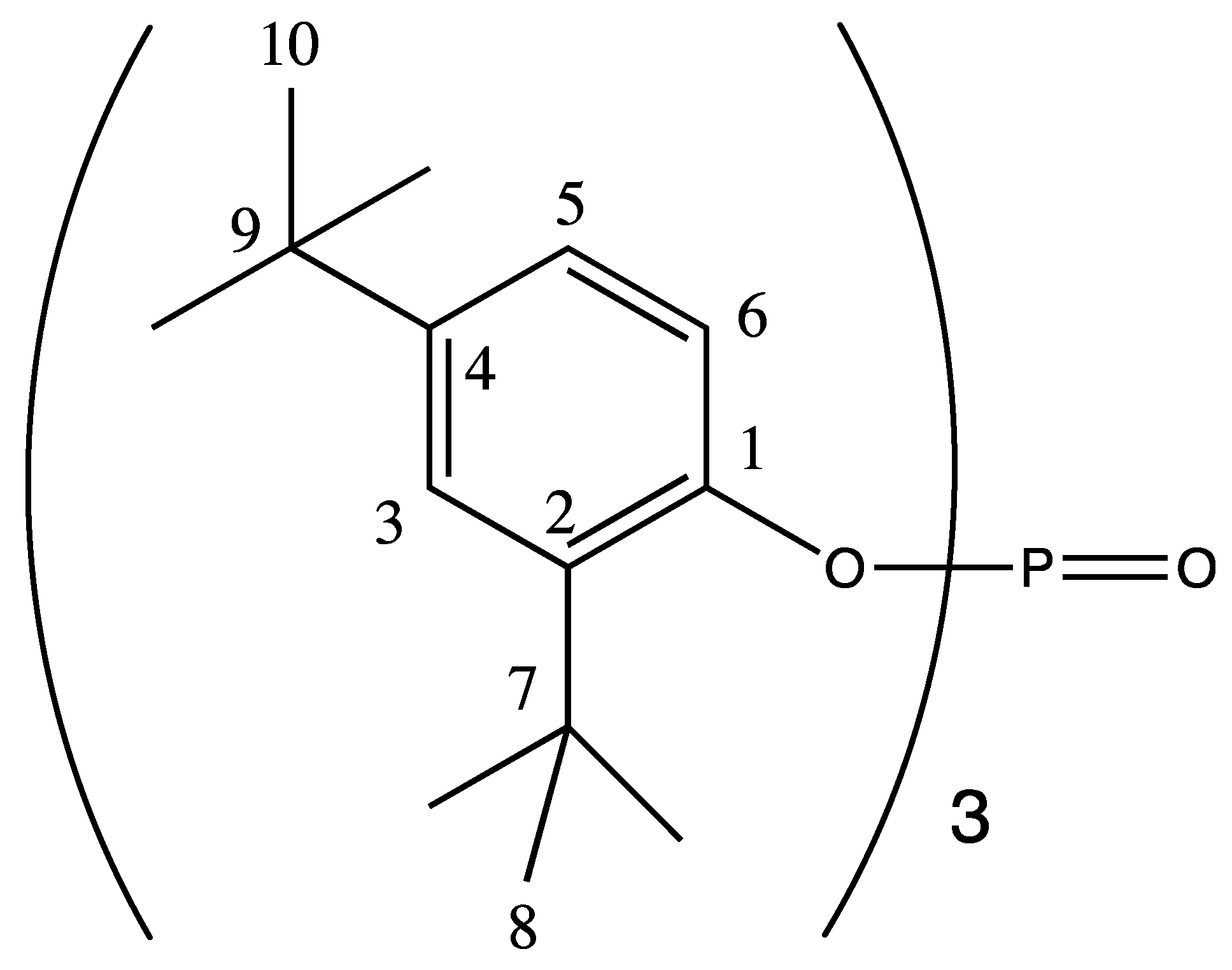

Figure 7. Structure of the identified compound. NMR data: 1H NMR (CDCl3, 600 MHz, 300 K) δ: 1.28 (bs, 27H, H-10), 1.33 (s, 27H, H-8), 7.12 (dd, 3H, J = 2.5/8.6 Hz, H-5), 7.36 (dd, 3H, J = 1.9/2.5 Hz H-3), 7.53 (dd, 3H, 4J1H,31P = 0.8Hz; 3JH,H = 8.6 Hz, H-6. 13C NMR (CDCl3, 150 MHz, 300 K) δ: 30.2 (C-8), 31.5 (C-10), 34.5 (C-9), 34.9 (C-7), 119.1 (d, 3J13C, 31P = 2.0 Hz, C-6), 124.0 (C-5), 124.5 (C-3), 138.5 (d, 3J13C, 31P = 9.0 Hz, C-2), 147.1 (C-4), 147.7 (d, 2J13C, 31P = 6.6 Hz, C-1).Organophosphates are well known for their pesticide and insecticide functions in agriculture as they work as a neurotoxin to kill pests [33]. Organophosphates, especially chlorpyrifos, were reported for the control of insect pests of many crops including sorghum such as Rhyzopertha dominica (F.), Tribolium castaneum (Herbst), Oryzaephilus surinamensis (L.), and Cryptolestes ferrugineus (Stephens) in combination with bifenthrin and piperonyl butoxide at the concentrations of 300 and 1200 ppm [34,35]. However, their fungicidal role was less explored and not reported in sorghum. The antifungal activity of different organophosphates (1a, 2a–b, 3a–b, and 4a–b) on Aspergillus niger and Fusarium oxysporum and their antifungal ability that increased with the increasing concentration from 50 to 200 ppm were reported [36]. Furthermore, all the known organophosphates are synthesized chemically and used for pest management. However, their biological synthesis is also reported in cyanobacteria [37] and Streptomyces. Streptomyces spp. are the major natural microbial source for many bioactive compounds with organophosphorus functional groups [38]. Streptomyces antibioticus DSM 1951, S. lavendulae NK901093, and Streptomyces sp. JP90 were reported to synthesize organophosphates that are potent insecticides [39,40,41]. Apart from organophosphates, which are phosphate esters, their structural analogues phosphonates are also reported from Streptomyces origin for insecticidal and herbicidal activities [42]. Similarly, the organophosphate from CAI-21 can be explored for the control of insect pests of sorghum in addition to charcoal rot.
Figure 7. Structure of the identified compound. NMR data: 1H NMR (CDCl3, 600 MHz, 300 K) δ: 1.28 (bs, 27H, H-10), 1.33 (s, 27H, H-8), 7.12 (dd, 3H, J = 2.5/8.6 Hz, H-5), 7.36 (dd, 3H, J = 1.9/2.5 Hz H-3), 7.53 (dd, 3H, 4J1H,31P = 0.8Hz; 3JH,H = 8.6 Hz, H-6. 13C NMR (CDCl3, 150 MHz, 300 K) δ: 30.2 (C-8), 31.5 (C-10), 34.5 (C-9), 34.9 (C-7), 119.1 (d, 3J13C, 31P = 2.0 Hz, C-6), 124.0 (C-5), 124.5 (C-3), 138.5 (d, 3J13C, 31P = 9.0 Hz, C-2), 147.1 (C-4), 147.7 (d, 2J13C, 31P = 6.6 Hz, C-1).Organophosphates are well known for their pesticide and insecticide functions in agriculture as they work as a neurotoxin to kill pests [33]. Organophosphates, especially chlorpyrifos, were reported for the control of insect pests of many crops including sorghum such as Rhyzopertha dominica (F.), Tribolium castaneum (Herbst), Oryzaephilus surinamensis (L.), and Cryptolestes ferrugineus (Stephens) in combination with bifenthrin and piperonyl butoxide at the concentrations of 300 and 1200 ppm [34,35]. However, their fungicidal role was less explored and not reported in sorghum. The antifungal activity of different organophosphates (1a, 2a–b, 3a–b, and 4a–b) on Aspergillus niger and Fusarium oxysporum and their antifungal ability that increased with the increasing concentration from 50 to 200 ppm were reported [36]. Furthermore, all the known organophosphates are synthesized chemically and used for pest management. However, their biological synthesis is also reported in cyanobacteria [37] and Streptomyces. Streptomyces spp. are the major natural microbial source for many bioactive compounds with organophosphorus functional groups [38]. Streptomyces antibioticus DSM 1951, S. lavendulae NK901093, and Streptomyces sp. JP90 were reported to synthesize organophosphates that are potent insecticides [39,40,41]. Apart from organophosphates, which are phosphate esters, their structural analogues phosphonates are also reported from Streptomyces origin for insecticidal and herbicidal activities [42]. Similarly, the organophosphate from CAI-21 can be explored for the control of insect pests of sorghum in addition to charcoal rot.
Plants 09 01727 g007
Table
Table 1. In vitro inhibitory activity of S. albus CAI-21 against M. phaseolina—dual-culture assay and secondary metabolite production assay.
Table 1. In vitro inhibitory activity of S. albus CAI-21 against M. phaseolina—dual-culture assay and secondary metabolite production assay.
TreatmentsDual-Culture
Assay @		Secondary Metabolite
Production Assay #
CAI-21 + MP1573.8
Positive control (only MP)00.0
Negative control (only sterile water)00.0
Chlorpyrifos 20%-68.8
SD6.837.2
LSD (5%)0.992.16
@, zone of MP growth inhibition in mm; #, percentage of MP growth inhibition by 10% of the organic fraction of the CAI-21 cell-free extract; -, not done; MP M. phaseolina; SE, standard error; LSD, least significant difference; SD, standard deviation.
Table
Table 2. Evaluation of S. albus CAI-21 for its biocontrol potential against charcoal rot of sorghum—blotter paper assay.
Table 2. Evaluation of S. albus CAI-21 for its biocontrol potential against charcoal rot of sorghum—blotter paper assay.
TreatmentsBlotter Paper Assay ^
Visual RatingRoot Infection (%)
CAI-21 + MP110
Positive control (only MP)4100
Negative control (only sterile water)00
SD1.847.7
LSD (5%)00
MP, M. phaseolina; ^, the symptoms of charcoal rot were noted in the 0–4 rating scale (0 = no visible symptom; 4 = maximum symptoms). The percentage of infected roots on CAI-21-inoculated treatment compared with positive control was also calculated; SE, standard error; LSD, least significant difference; SD, standard deviation.
Table
Table 3. Evaluation of S. albus CAI-21 for its biocontrol potential against charcoal rot of sorghum under greenhouse and field conditions.
Table 3. Evaluation of S. albus CAI-21 for its biocontrol potential against charcoal rot of sorghum under greenhouse and field conditions.
GreenhouseField
TreatmentsNumber of Internodes InfectedLength of Infection (cm)Number of Internodes InfectedLength of Infection (cm)
CAI-21 + MP1.0 **3.0 **2.9 ***10.0 ***
Positive control (only MP)4.012.05.619.5
Negative control0.00.00.00.0
SD1.85.52.48.4
LSD (5%)1.243.291.365.04
MP, M. phaseolina; **, statistically significant at 0.01; ***, statistically significant at 0.001; LSD, least significant difference; SD, standard deviation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gopalakrishnan, S.; Sharma, R.; Srinivas, V.; Naresh, N.; Mishra, S.P.; Ankati, S.; Pratyusha, S.; Govindaraj, M.; Gonzalez, S.V.; Nervik, S.; et al. Identification and Characterization of a Streptomyces albus Strain and Its Secondary Metabolite Organophosphate against Charcoal Rot of Sorghum. Plants 2020, 9, 1727. https://doi.org/10.3390/plants9121727

AMA Style

Gopalakrishnan S, Sharma R, Srinivas V, Naresh N, Mishra SP, Ankati S, Pratyusha S, Govindaraj M, Gonzalez SV, Nervik S, et al. Identification and Characterization of a Streptomyces albus Strain and Its Secondary Metabolite Organophosphate against Charcoal Rot of Sorghum. Plants. 2020; 9(12):1727. https://doi.org/10.3390/plants9121727

Chicago/Turabian Style

Gopalakrishnan, Subramaniam, Rajan Sharma, Vadlamudi Srinivas, Nimmala Naresh, Suraj P. Mishra, Sravani Ankati, Sambangi Pratyusha, Mahalingam Govindaraj, Susana V. Gonzalez, Sondre Nervik, and et al. 2020. "Identification and Characterization of a Streptomyces albus Strain and Its Secondary Metabolite Organophosphate against Charcoal Rot of Sorghum" Plants 9, no. 12: 1727. https://doi.org/10.3390/plants9121727

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
