Transcriptional and Post-Translational Regulation of Plant bHLH Transcription Factors during the Response to Environmental Stresses

by
Yasmina Radani
1,†,
Rongxue Li
1,†,
Harriet Mateko Korboe
1,
Hongyu Ma
2,* and
Liming Yang
1,*
1
State Key Laboratory of Tree Genetics and Breeding, Co-Innovation Center for Sustainable Forestry in Southern China, College of Biology and the Environment, Nanjing Forestry University, Nanjing 210037, China
2
College of Plant Protection, Nanjing Agricultural University, Nanjing 210095, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(11), 2113; https://doi.org/10.3390/plants12112113
Submission received: 19 April 2023 / Revised: 16 May 2023 / Accepted: 19 May 2023 / Published: 26 May 2023
(This article belongs to the Special Issue Abiotic Stress Signaling and Responses in Plants)
Browse Figures
Versions Notes

Abstract

:
Over the past decades, extensive research has been conducted to identify and characterize various plant transcription factors involved in abiotic stress responses. Therefore, numerous efforts have been made to improve plant stress tolerance by engineering these transcription factor genes. The plant basic Helix–Loop–Helix (bHLH) transcription factor family represents one of the most prominent gene families and contains a bHLH motif that is highly conserved in eukaryotic organisms. By binding to specific positions in promoters, they activate or repress the transcription of specific response genes and thus affect multiple variables in plant physiology such as the response to abiotic stresses, which include drought, climatic variations, mineral deficiencies, excessive salinity, and water stress. The regulation of bHLH transcription factors is crucial to better control their activity. On the one hand, they are regulated at the transcriptional level by other upstream components; on the other hand, they undergo various modifications such as ubiquitination, phosphorylation, and glycosylation at the post-translational level. Modified bHLH transcription factors can form a complex regulatory network to regulate the expression of stress response genes and thus determine the activation of physiological and metabolic reactions. This review article focuses on the structural characteristics, classification, function, and regulatory mechanism of bHLH transcription factor expression at the transcriptional and post-translational levels during their responses to various abiotic stress conditions.

1. Introduction

The basic Helix–Loop–Helix (bHLH) Transcription Factors (TF) are a large and diverse family of transcription factors characterized by a highly conserved bHLH domain [1]. The bHLH transcription factor conservatively contains two connected subregions, namely the basic region (b), which is an essential DNA-binding region, and the HLH region, which consists of 40–50 amino acid residues and participates in homodimerization or heterodimerization [2] (Figure 1A,B). The amino acid sequences outside the bHLH region are divergent, even in closely related proteins from the same species. These short conserved amino acid motifs are commonly present in related plant bHLH proteins and are generally conserved within each subfamily [3,4].
The bHLH motif was first discovered in the murine transcription factors E12 and E4 [5]. Since then, several bHLH genes have been discovered, providing an initial classification of animals that divided bHLH transcription factors into six subgroups (A to F) based on their protein sequences, differences in bHLH domains, and comparisons of the functions of different family members [6,7]. Furthermore, outside of mammals, multiple classifications of 15 to 25 subfamilies based on bHLH and non-bHLH motifs have been obtained [3,4,8]. As more species were included, the most recent classification allows them to be divided into 26 subgroups [1], reflecting a deep evolutionary relationship in plants. In addition, phylogenetic analysis of several atypical bHLH proteins extended the number of subfamilies to 32 [8].
Maize (Zea mays L.) was the first plant species in which the bHLH superfamily was first identified. Subsequently, 162 bHLH genes were identified in the model plant Arabidopsis thaliana [9], 167 in rice (Oryza sativa L.) [4] and 202 bHLH genes in Poplar [10]. The number of characterized and identified bHLH genes in plants has increased, showing their extensive and diverse functional involvement; 100 PmbHLH genes were identified in Prunus mume [11], 102 bHLH genes in walnut (Juglans regia L.) [12], 212 MibHLH genes in mango (Mangifera indica L.) [13], 37 SsbHLH genes in sugarcane (Saccharum spontaneum) [14], 110 IbbHLHs in sweetpotato (Ipomoea batatas (L.) Lam.) [15], 118 bHLH genes were identified in melon [16], 107 CabHLHs were identified in Capsicum annuum [17], and 85 bHLH proteins (GbbHLH) were obtained from Ginkgo biloba [18]. bHLH gene families are widespread in plants and have demonstrated their essential roles in various biological processes involved in normal plant growth and development [1], flowering [19], and metabolic biosynthesis, including anthocyanin [20]. Therefore, many of them have a role and regulatory function in signal transduction [21,22] and gene expression in response to abiotic stresses such as salinity, drought, low temperature, and nutrient deficiency [23,24].
Many research studies have paid close attention to regulatory genes, including bHLH TFs, which play essential roles in multiple abiotic stress responses by regulating the expression of a wide range of downstream stress-responsive genes by interacting with the specific cis-elements in their promoter region [25]. Therefore, genetically modifying the expression of TFs can strongly affect plant stress tolerance as it mimics or enhances stress signals to simultaneously regulate many downstream stress-responsive genes. In recent years, several mechanisms of regulation and tolerance of bHLH TF to abiotic stress in model and non-model plants have been revealed, providing a better and more detailed explanation of their intervention under specific stress conditions. bHLHs are involved in various functional gene approaches to significantly enhance stress tolerance in plants. They can be activated under multiple stresses and play an essential role in abiotic stress responses by regulating a wide range of downstream stress-responsive genes [26]. Meanwhile, bHLH TFs themselves undergo various modifications at the post-translational level, such as ubiquitination [27], phosphorylation [28], and sumoylation [29], thereby forming a regulatory complex network to modulate the expression of bHLH stress-responsive genes.

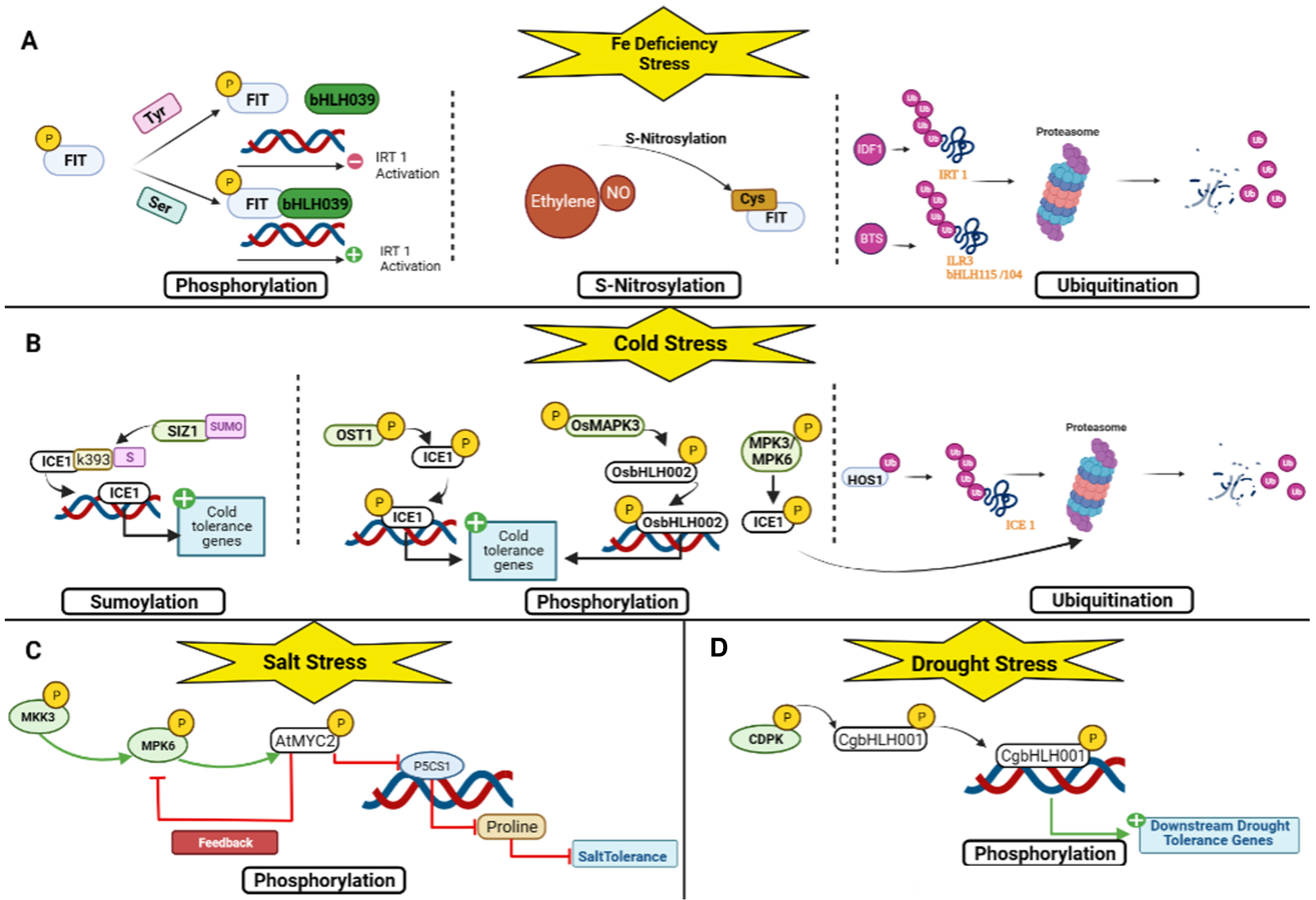

Both transcriptional and post-translational modifications contribute to this plant stress response regulatory function. In this review, we focused on the structure and gene classification of bHLH TFs, as well as recent studies on their expression and the different mechanisms of transcriptional and post-translational regulation under different abiotic stress conditions.

2. Structure and Gene Family of bHLH TFs

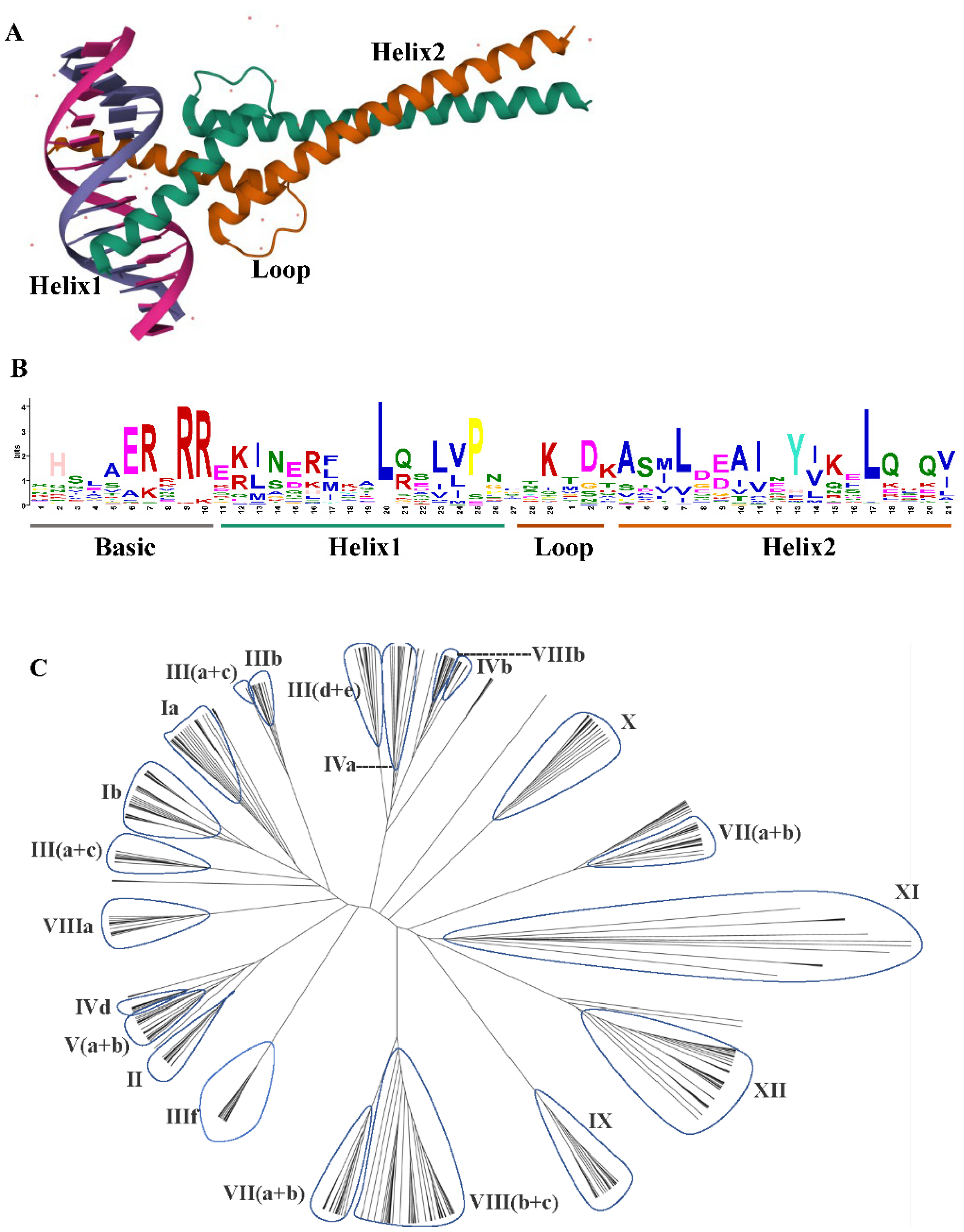

The bHLH TF family, known for its conserved bHLH domain [30], is considered the second largest gene family after the MYB family gene and is found in the majority of eukaryotes. With a total of ~60 amino acids, the bHLH transcription factor is divided into two functionally distinct regions. On the one hand, there is the primary region, which is located in the N-terminal domain and contains a total of 15 to 20 amino acids, including basic amino acid residues, and is responsible for DNA binding, with certain conserved amino acids responsible for recognition of the E-box, a hexanucleotide consensus sequence in DNA (5-CANNTG-3). Other residues, on the contrary, are specific for a different E-box region in DNA (e.g., the G-box [5-CACGTG-3]) in target genes [25,31]. According to Toledo-Ortiz et al., bHLH genes can be divided into E-box or non-E-box binders and DNA-binding or non-DNA-binding proteins. The Helix–Loop–Helix (HLH) region, on the other hand, is found in the C-terminal domain and is composed of hydrophobic residues rearranged into two amphipathic regions connected to a loop region forming a hydrophobic ring (Figure 1B). They are involved in homo- or heterodimerization, as shown in Figure 1A, and thus participate in protein–protein interaction and gene expression control [2]. The dimer structure is stabilized by the hydrophobic amino acids Isoleucine (I), Leucine (L), and Valine (V) in conserved positions in the bHLH domain [30].
Outside of the bHLH domain, bHLH proteins show little to nonexistent conservation [3]. However, some groups of bHLH show some conserved domains outside of bHLH, most of which have been previously characterized in animals. For example, there is the highly conserved Leucine Zipper (LZ) motif adjacent to the second helix of the bHLH domain, which is predicted to adopt a coiled-coil structure, allowing protein dimerization. The PAS domain, the orange domain, the WRPW motif, and the COE domain are other domains also found in bHLH proteins [6,32]. The bHLH motif was first identified by Massari and Murre in 1989. Then, with more identified bHLH proteins, the first classification of different family members of animal bHLH TFs was performed using only the bHLH motif. This classification led to the selection of four distinct groups based on amino-acid patterns and E-box-binding specificity [7]. This classification separated bHLH proteins into classes A, B, C, and D [7].
Using the entire protein sequence and not just the bHLH domain allowed the inclusion of additional domains associated with many other proteins (e.g., Zip, Orange, and PAS) that may play important roles in protein dimerization and DNA binding. Therefore, the classification was extended to include two additional groups (E and F) [6,33]. The characterized bHLH proteins have been restricted to animals. It has been suggested that the ancestral plant bHLH sequence was a group B protein present in early eukaryote evolution, from which bHLHs of different lineages independently evolved [6,7] and function in transcriptional regulation associated with various diverse functions in plants including anthocyanin biosynthesis, phytochrome signaling, globulin expression, fruit dehiscence, and carpel and epidermal development [3]. Furthermore, some studies have aimed to divide the large bHLH family into smaller subgroups based on their sequence homology [1,3,8]. In 2003, Heim et al. compared the genetic structure, number of introns, and conservative motifs of 133 bHLH isolates from Arabidopsis and rearranged them into 12 subgroups. Since then, Pires and Dolan have divided bHLH into 26 subgroups by phylogenetic analysis, using a total of 544 bHLH genes from 9 land plants and algae [1] (Figure 1C). Meanwhile, Carretero-Paulet et al. added 29 to the original 133 Arabidopsis bHLH and classified them into 32 subfamilies by phylogenetic analysis, intron pattern, and conservative protein motif structure using 9 plant species [8].
Mainly, members of the same bHLH subfamily generally share similar gene structure and the same non-bHLH conserved motifs, such as a Leucine Zipper (LZ) domain (shared between IVb subfamilies and between IVc subfamilies) [7]. There is also an ACT domain, which is a ligand-binding regulatory domain found in a diverse group of proteins, mainly metabolic enzymes. The occurrence of the ACT domain in some proteins from different bHLH subfamilies suggests that the ACT bHLH association occurred multiple times, possibly through domain shuffling processes, suggesting that domain shuffling processes may play a small role in the evolution of bHLH genes in plants [1]. Members of the same plant bHLH subfamily are also often involved in the same biological processes, such as subgroup Va, which is involved in brassinosteroid signaling [34], and the Active Phytochrome Binding (APB) motif, encoded in several proteins of subfamily VII (a + b), which mediate the binding of multiple A. thaliana bHLH proteins to phytochrome B [1,35].

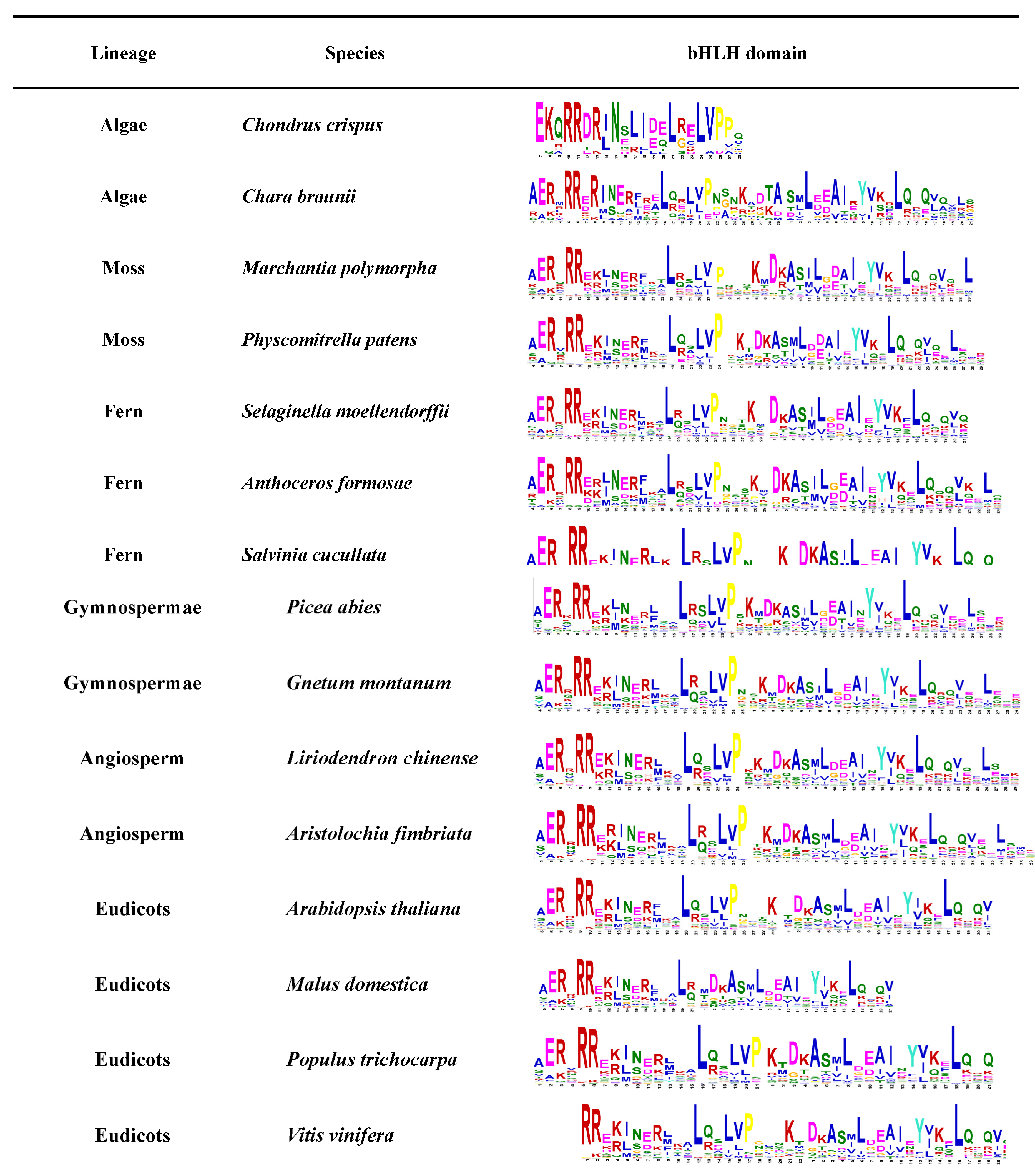

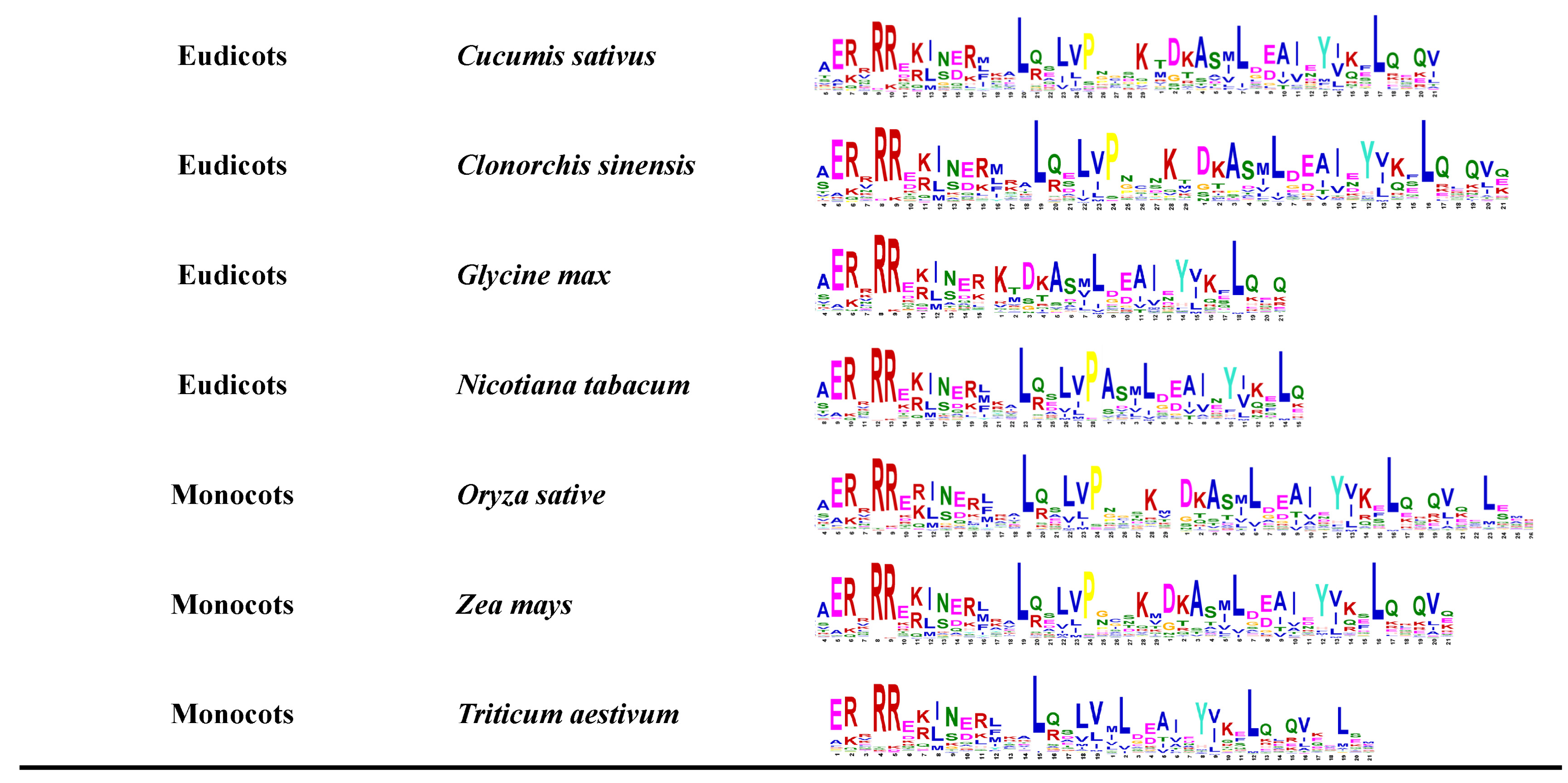

Plant bHLH diversity was already present in the early land plants before the moss and vascular plant lineages separated over 440 million years ago. Many current bHLH interactions also occurred in early land plants and were essentially conserved in the major plant groups [1]. The expansion of this family is closely related to plant evolution and diversity, not only in higher plants but also in lower plants such as algae, lichens, and mosses or non-plants such as mycobacteria [1]. The availability of a large number of land plants and algal genomes allowed further analysis of the conserved motifs of the bHLH gene family throughout the photosynthetic plant spectrum (Figure 2). Different numbers of members of the bHLH gene family have been identified in different species by searching for proteins containing the bHLH domain. The bHLH gene family was found to originate from Rhodophyta. The conservation of the bHLH conservative domain in different species was further predicted by MEME (Figure 2). According to the conservative motif, the bHLH domain will evolve to be more complete as species evolve. The evolution of the bHLH gene family also provides insights regarding the evolution of green algae into flowering plants through their adaptation to environmental changes [8]. Specifically, the genome-wide analysis of bHLH gene families from different species will help us to better understand the biological function, evolutionary origin, and expansion outcome of bHLH genes.

3. Regulation of bHLH TFs in Plant Stress Response

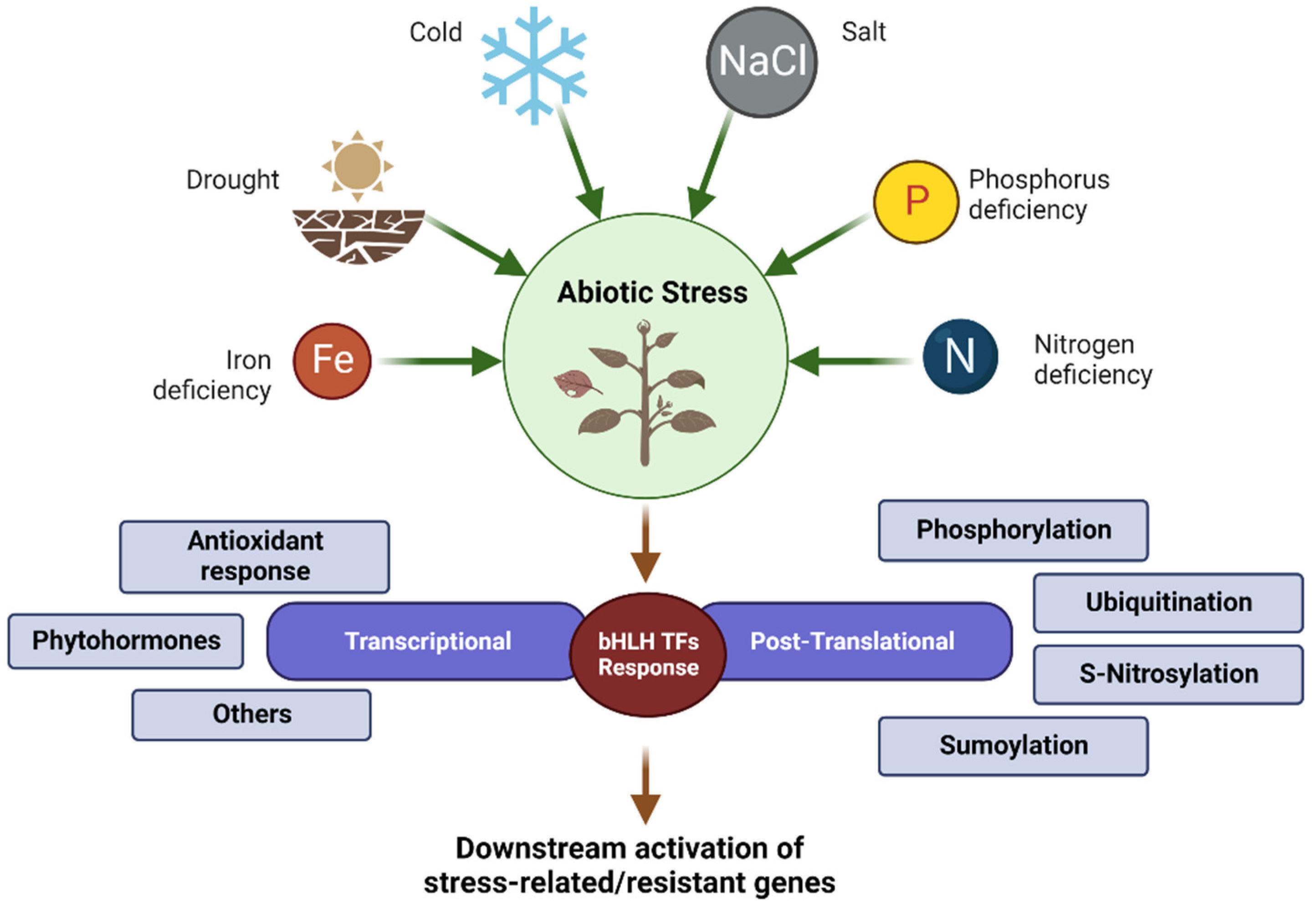

Previous research has revealed that the bHLH TF family can participate in the regulation of abiotic stresses such as drought, high salinity, low temperature, and nutrient deficiencies through transcriptional and post-translational modifications [36,37,38,39,40,41]. Transcriptome is commonly used in abiotic stress studies. Transcriptome technology can be used to identify key nodes or genes for stress resistance at the transcriptional regulatory level for subsequent research. In order to reveal the potential roles of bHLH members in various stress responses in different species, most functional signaling pathways of bHLH TF regulations were identified (Table 1 and Figure 3).

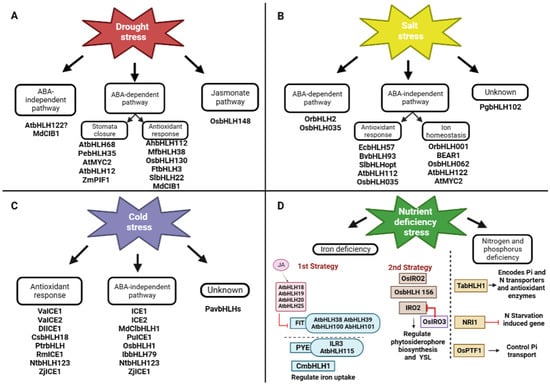

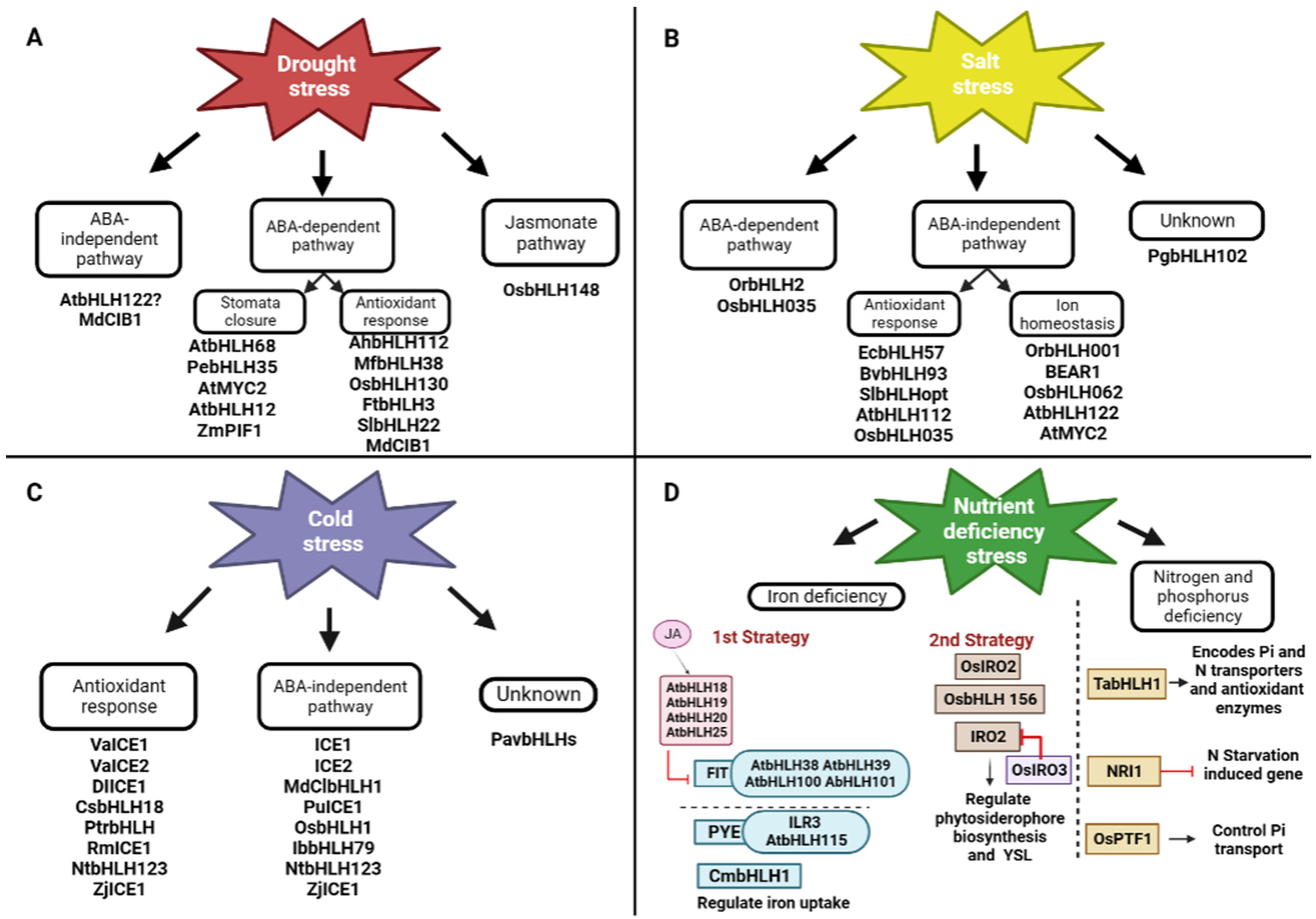

4. Drought Stress Response

One of the major environmental issues that reduces plant growth and development is drought. Drought-induced yield declines have been reported for many crop species, which depend on the severity and duration of the stress period and are associated with a decline in crop yield productivity [118]. Abscisic acid (ABA) is an important phytohormone that plays an important role in abiotic stress tolerance, whose main function appears to be the regulation of plant water balance and osmotic stress tolerance. Plant bHLH transcription factors generally respond to drought stress through both ABA-dependent and ABA-independent regulatory systems [119,120,121].
In peanuts (Arachis hypogaea), AhbHLH112 responds to drought stress by regulating antioxidant gene-mediated reactive oxidative species (ROS) scavenging or ABA-dependent pathways as, under drought stress, ABA accumulates, and blocks Ca2+ influx and membrane proton pumps, resulting in plasma membrane depolarization and stomatal closure, which is required to reduce water loss and maintain high water potential. Under drought stress, AhbHLH112 is induced and could activate antioxidant genes and promote ROS scavenging (POD) [42]. MfbHLH38 also acts positively on plant defenses via the ABA-dependent signaling pathway and enhances the ROS scavenging system, thereby reducing oxidative damage under stress [40]. Drought stress can also induce the accumulation of OsbHLH130, which activates OsWIH2 expression, and the latter improves rice drought tolerance by reducing the water loss rate and ROS accumulation [43]. FtbHLH3 responds to drought stress by increasing photosynthetic efficiency and upregulating the expression of critical genes in the ABA signaling pathway, the proline biosynthetic pathway, the ROS scavenging system, and the drought-responsive pathway [44]. SlbHLH22 also improved tomato plant stress resistance by inducing the expression of genes involved in flavonoid biosynthesis. Flavonoids can enhance plant tolerance to drought and salt stress due to their ability to scavenge superoxides, peroxides, and free radicals generated during stress through ABA biosynthesis and the ROS scavenging pathway, leading to stomatal closure, increased proline content, and enhanced CAT, POD, and SOD activities with reduced ROS accumulation, resulting in an improved tolerance under abiotic stress [45]. ZmPIF1 is a positive regulator of root development, ABA synthesis, signaling pathways, and drought tolerance. It was found that ZmPIF1 binds to the G-box element in the promoters of NCED, CBF4, ATAF2/NAC081, NAC30, and other transcription factors and positively regulates their expression [46]. Cryptochrome-interacting bHLH1 (MdCIB1), through ABA-dependent and ABA-independent signaling pathways, regulates ABA signal transduction, antioxidant system, osmotic balance, and expression levels of stress-related genes [47]. AtbHLH68 may positively respond to drought stress through ABA signaling and by regulating ABA homeostasis in Arabidopsis [48]. PebHLH35 in transgenic Arabidopsis confers drought tolerance by reducing stomatal density, opening, transpiration rate, and water loss, and increasing the chlorophyll content and photosynthesis rate [49]. AtMYC2 (AtbHLH006) is a transcriptional activator in ABA-inducible gene expression under drought stress in plants as it regulates the expression of rd22 [21]. The rd22 gene is a dehydration-responsive gene that is activated in Arabidopsis plants by exogenous ABA [122]. AtbHLH122 responds to drought stress via an ABA-independent pathway as it represses CYP707A3, an important ABA 8′-hydroxylase [123], increasing ABA content, and then expressing ABA-inducible genes. It functions as a positive regulator in drought, salt and osmotic signaling [50]. OsbHLH148 also responds to drought stress via a jasmonate signaling pathway. Jasmonates (JAs) are a class of oxygen-containing lipid derivatives (oxylipins) that are considered plant hormones necessary for plant growth and environmental adaptation [124]. In the absence of stress and JA, OsbHLH148 is repressed through its interaction with OsJAZ. Upon exposure to drought stress, JA increases, leading to the degradation of OsJAZ proteins. The released OsbHLH148 activates drought tolerance genes, including OsDREB1s, leading to drought tolerance [51] (Figure 4A).
Under drought and salt stress, the overexpression of CgbHLH001 can confer stress tolerance. Regulated by phosphorylation by a protein kinase such as calcium-dependent protein kinase (CDPK), CgbHLH001 acts as a positive regulator in controlling downstream relevant genes, thereby reducing ROS production and enhancing ROS scavenging ability and improving physiological performance [18] (Figure 5D).

5. Salt Stress Response

Salinity has two main effects on plants. It either induces osmotic stress or induces the instability of ions. Several bHLH transcription factors have been characterized in rice. There is OrbHLH001, a homologue of ICE1 (AtbHLH116), which activates OsAKT1, which enhances Na+ efflux and K+ uptake, thus controlling the Na+/K+ ratio in salt stress to confer salt stress tolerance [52]. BEAR1 (OsbHLH014), a bHLH transcription factor, plays a vital role in rice salt stress response. After receiving the salt stress signal, the BEAR1 protein as a transcriptional activator induces two pathways. On the one hand, it controls the gene expression level of the salt response signaling cascade. On the other hand, it regulates the Na+ /K+ balance and membrane stabilization genes and thus induces salt stress tolerance [53]. OsbHLH062 is involved in a jasmonate-dependent transcription regulatory module complex: Osbhlh062-JAZ9-OsNINJA. OsJAZ9 represents a transcriptional regulator and an essential element that modulates salt stress tolerance by binding OsbHLH062, a transcriptional activator, to OsNINJA, an essential repressor of basal jasmonate (JA) signaling. Under salt stress, JA levels increase. The JAZ protein OsJAZ9 is recruited by SCFCOI1 for ubiquitination by the 26S proteasome, leading to its degradation, releasing OsNINJA, and allowing OsbHLH062 to bind to the E-box and activate target genes. OsbHLH062 can bind to the E-box cis-element and the promoter of OsHAK21, including some of the ion transporters, thereby conferring salt stress tolerance [54]. AtbHLH122 inhibits CYP707A3 gene expression under NaCl stress [50]. In addition, Krishnamurthy et al. (2019) identified AtMYC2 and AtbHLH122 as upstream regulators of ABA-mediated AtNHX1 and AtNHX6, both Na+/H+ exchangers. In addition, the overexpression of EcbHLH57 enhanced tobacco resistance to salt stress by increasing the expression of stress-responsive genes such as LEA14, rd29A, rd29B, SOD, APX, ADH1, HSP70, and PP2C [55]. BvbHLH93 regulates salt stress tolerance by enhancing antioxidant activity and reducing ROS production, thereby maintaining ion homeostasis, but it needs further investigation at the transcriptional level [56]. SlbHLHopt is an essential regulator of water deficit and NaCl stress in transgenic Arabidopsis since it increases flavonoid content [57]. In Arabidopsis, AtbHLH112 regulates the expression of genes involved in abiotic stress tolerance by increasing proline levels and reducing ROS accumulation and water loss through the expression of Proline Dehydrogenase 1 (ProDH) [58]. OsbHLH035 responds to salt stress through an ABA-independent pathway by indirectly mediating the expression of OsHKT1s such as OsHKT1;3 and OsHKT1;5, which are sodium transporters that transfer Na+ from the xylem into xylem parenchyma cells, thus preventing the accumulation of Na+ in aerial tissues, since a higher concentration of Na+ in the roots causes osmotic stress [59]. OrbHLH2 in transgenic Arabidopsis improved salt tolerance through an ABA-independent pathway by increasing expression levels of DREB1A/CBF to confer improved plant tolerance to salt stress; however, more research is needed to determine its mode of action [60]. PgbHLH102 could respond to salt stress and higher salt concentrations, but its mode of action needs further investigation [61] (Figure 4B). Through an MKK3-MPK6-MYC2 cascade, AtMYC2 (AtbHLH006) also functions as a negative regulator of salt tolerance in A. thaliana. In brief, the MKK3-MPK6 module phosphorylates and hence activates AtMYC2 in response to salt stress. AtMYC2 binds to P5CS1, which is the main contributor to proline accumulation induced by stress [125], and regulates salt tolerance in Arabidopsis thaliana by inhibiting the synthesis of P5CS1 and proline [126] (Figure 5C).

6. Cold Stress Response

Cold stress, including chilling, adversely affects plant growth and development, limits the geographical distribution of plant species, and reduces crop yields worldwide [127]. For acclimation to cold stress, cold tolerance requires a downstream cascade of transcriptional regulation of target genes. Cold-responsive genes contain DRE/CRT cis-elements with a core sequence CCGAC [25,128]. C-repeat Binding Factors (CBFs) (CBF1, CBF2, and CBF3; also known as DREB1b, DREB1c, and DREB1a, respectively) are known genes that bind to these elements, triggering transcription of cold-responsive genes [129]. Since CBFs are only induced after 15 min of cold exposure, the intervention of another TF present in the cell is required [130]. In Arabidopsis, the most well-defined pathway is the ICE 1 (AtbHLH116) transcription factor, an ABA-independent pathway that binds to the CBF promoter and activates transcription of CBF1/3, which in turn induces the CRT/BRE genes responsible for cold tolerance [62]. ICE2 (BAC42644), a homologue of ICE1 (AtbHLH116), mediates the same ABA-independent pathway in cold tolerance [63]. MdCIbHLH1 also interferes with the CBF pathway by activating the transcription of CBF 1 and 2 [64]. PuICE1 demonstrates a CBF/DREB pathway that requires cold-induced protein-protein interactions with the Hepta-helical protein 1 (PuHHP1), which acts as a positive regulator of ABA-mediated stomatal closure in response to cold stress, thus increasing the levels of PuDREBa transcripts and positively regulating cold stress; however, more research is needed to experimentally clarify the physiological mechanism between PuHHP1 and PuICE1. [65,131]. In rice, OsbHLH1 expression is significant for cold tolerance as it might also regulate CBF/DREB1 gene expression [66]. The IbbHLH79 protein, an ICE1-like gene, can activate the CBF pathway and IbbHLH79-overexpressing transgenic plants show enhanced cold tolerance [15]. Using the NtCBFs signaling pathways, cold-activated NtbHLH123 and ZjbHLH76/ZjICE1 regulate the expression of their target genes or regulate stress-responsive genes such as CBFs associated with ROS scavenging, resulting in improved tolerance to cold stress [67,68,69]. VaICE1 and VaICE2 ICE-like TF play a positive role in freezing tolerance and influence cold stress-related factors such as electrolyte leakage and proline and malondialdehyde (MDA) levels, thereby reducing ROS damage and improving osmotic protection [70]. The overexpression of DlICE1 in transgenic Arabidopsis thaliana enhances cold tolerance by increasing proline content, reducing ion leakage and accumulation of MDA and ROS [71]. CsbHLH18 mediates a cold response by regulating antioxidant genes by binding to and activating the CsPOD promoter, thereby inducing ROS scavenging [72]. PtrbHLH also responds to cold stress by modulating POD and CAT [73,74]. RmICE1 also responds to cold stress by regulating antioxidant genes [75]. Several PavbHLH also demonstrated a cold response regulatory mechanism, but the molecular details require further studies [76] (Figure 4C). HOS1 encodes a ring finger protein with E3 ligase activity that reduces ICE1 (AtbHLH116) activity via the ubiquitination/proteasome pathway [132,133]. In addition, OST1 phosphorylates ICE1 (AtbHLH116) and inhibits HOS1-mediated degradation of ICE1, since the OST1 protein competes with HOS1 for binding to ICE1, thereby releasing ICE1 from the HOS1–ICE1 complex. The dual role of OST1 helps enhance ICE1 stability to increase CBF expression and freeze tolerance [134]. MKK2 is also activated by cold stress in plants and consequently activates MPK4 and MPK6 [135]. In brief, MPK3/6-mediated phosphorylation promotes ICE1 (AtbHLH116) degradation, with Ser94, Thr366, and Ser403 being important sites for phosphorylation-dependent degradation [28]. Subsequently, when ICE1 (AtbHLH116) levels accumulate, it is phosphorylated by MPK3/MPK6 and consequently cleared via the 26S proteasome pathway, which inhibits CBF-dependent cold signaling [136]. Another positive regulation is found in SUMO conjugation, which enhances ICE1 (AtbHLH116) activity. SIZ1 (SAP and Miz) encodes a SUMO-E3 ligase that is necessary for freezing tolerance, facilitates sumoylation of ICE1 (AtbHLH116), and recognizes K393 as the SUMO conjugation residue in the protein. SIZ-mediated SUMO1 conjugation to K393 affects the activity of ICE1 (AtbHLH116) to control CBF3/DREB1A expression and prevents access to the ubiquitination complex. A K393R mutation blocks ICE1 (AtbHLH116) sumoylation, represses expression of CBF3/DREB1A and its regulon genes, and reduces cold tolerance [29]. Under cold stress, active OsMAPK3 phosphorylates OsbHLH002, accumulating phospho-OsbHLH002, promoting trehalose-6-phosphate phosphatase 1 (OsTPP1) expression, and increasing trehalose content and resistance to chilling damage [137] (Figure 5B).

7. Iron Deficiency Response

Iron (Fe) is an essential element for plant survival and development as it is involved in several vital processes: photosynthesis, DNA synthesis, respiration, and chlorophyll synthesis. In Arabidopsis, FIT (AtbHLH029) is a well-known TF that plays a crucial role in Fe uptake via the first strategy [77], which consists of the acidification of the external environment mediated by membrane proton pumps, the Autoinhibited Plasma Membrane H+/ATPases (AHA2) [138], to release and solubilize the iron. It is then reduced from ferric iron to ferrous iron by Ferric Reduction Oxidase 2 (FRO2) [139] and transported through specific channels within the Iron-Regulated Transporter 1 (IRT1) in the plant [140]. It binds to the fer uptake genes FRO2 and IRT1. Since it cannot function alone, it forms heterodimers with the four bHLH TFs AtbHLH38, AtbHLH39, AtbHLH100, and AtbHLH101 [78,79,141,142]. There is also another protein, POPEYE (PYE) (AtbHLH47), that responds to Fe deficiency by using a network independent of FIT [80]. The dimers of ILR3 (AtbHLH105) and AtbHLH104 or ILR3 (AtbHLH105) and AtbHLH34 regulate PYE (AtbHLH47), which interacts with two bHLH transcription factors, ILR3 (AtbHLH105) and AtbHLH115 [81,82,143]. Four other bHLH partners of FIT (AtbHLH029) (AtbHLH18, AtbHLH19, AtbHLH20, and AtbHLH25) promote its degradation in response to JA induction, thereby antagonizing the activity of AtbHLH38, AtbHLH39, AtbHLH100, and AtbHLH101 and limiting Fe uptake [83]. At the transcriptional level, the active and inactive states are distinguished by specific covalent modifications. Suppose the transition from the inactive state to the active state is bottlenecked. In that case, this could be achieved by limiting the enzymes that can confer or remove covalent modifications to “activate” FIT (AtbHLH029). FIT (AtbHLH029) could be in a negative feedback loop, limiting its abundance. In the context of Fe regulation, the rapid switching off of FIT (AtbHLH029) could be to prevent Fe toxicity symptoms [39]. A study by Zhao et al. showed that chrysanthemum CmbHLH1 promoted iron absorption through H+-ATPase-mediated rhizosphere acidification. The second strategy is not based on the reduction of iron [84]. Nonetheless, it is chelated by phytosiderophores (PS) [144] and then transported by a specific transporter, the oligopeptide transporter YS1. This strategy led to the discovery of the transcription factors IDEF1 and IDEF2 in rice, which control the expression of phytosiderophore biosynthesis and YSL2 [145,146]. IRO2 in rice is a close homologue of bHLH39 and positively regulates phytosiderophore biosynthesis and YSL15 [41]. In rice, the iron-related transcription factor 3 (OsIRO3) (OsbHLH063), which belongs to the bHLH gene family, plays a critical role in maintaining iron homeostasis in an iron-deficient environment, as it negatively controls transcript levels of OsIRO2 (OsbHLH056) [85,86,87]. Ogo et al. (2007) found that the overexpression of OsIRO2/OsbHLH056 promotes iron uptake in rice following the 2nd strategy; however, its mode of action still needs further studies. Wang et al. studied the role of a new rice bHLH-type transcription factor, OsbHLH156, in iron homeostasis and found that OsbHLH156 greatly increased iron deficiency. They concluded that OsbHLH156 is required for a strategy II uptake mechanism in rice (Figure 4D). Ethylene (ET) and Nitric Oxide (NO) are required for complete upregulation of Fe-deficiency gene expression and FIT (AtbHLH029) protein abundance as they increase the accumulation of FIT by inhibiting proteasomal FIT (AtbHLH029) and thereby prevent its degradation. Therefore, they stabilize FIT (AtbHLH029) expression by nitrosylation of Cys residues present in FIT [147]. Therefore, this finding requires further elucidation. To limit Fe accumulation in plants, a RING-type E3 ubiquitin ligase called Degradation Factor 1 (IDF1) (AT4G30370) is directly involved in the degradation of IRT1 through ubiquitination [148,149]. To limit the excess of Fe, which can be toxic to plants, there is BRUTUS (BTS) (AT3G18290), a RING-type E3 ubiquitin ligase that plays a role as a negative regulator since it is induced in Fe deficiency and has been shown to target the bHLH transcription factors ILR3 (AtbHLH105) and bHLH115/104 for degradation via the 26S proteasome by its RING domain (E3 ligase), thus inhibiting the formation of heterodimer complexes of PYE/PYEL (AtbHLH47). This includes disrupting the activation of Fe-deficiency genes regulated by PYE (AtbHLH47). BTS (AT3G18290) contains a hemerythrin-like domain that can bind Fe. Fe binding to the hemerythrin-like domain of BTS is involved in its destabilization and subsequent degradation [27,150]. On the one hand, it has been shown that the phosphorylation of Ser 221 and Ser 272 in FIT (AtbHLH029) positively regulates FIT accumulation in the nucleus, enabling its dimerization to AtbHLH039 and its activation of IRT1 promoters [39]. On the other hand, phosphorylation of Tyr238 and Tyr278 reduces and inhibits heterodimerization of FIT (AtbHLH029) with AtbHLH039 and expression of IRT1 promoters, rendering FIT (AtbHLH029) inactive [41] (Figure 5A).

8. Phosphorus and Nitrogen Deprivation Stress Response

Phosphorus (P) and Nitrogen (N) are both indispensable macronutrients for plant growth and crop productivity. TabHLH1 is sensitive to external Pi and N deficiency stress. It confers enhanced tolerance to both Pi and N deficiency through the transcriptional modulation of a panel of genes encoding Phosphate Transporter (PT), Nitrate Transporter (NRT), and antioxidant enzymes [88]. NRI1, previously named Nitrogen Starvation-Induced Gene 17 (NSG17) (BAD44756.1), a basic Helix–Loop–Helix (bHLH) TF, represses the transcriptional activators of N starvation-induced genes to regulate N starvation-specific responses when sufficient N is supplied to C. reinhardtii [89]. OsPTF1 (AAO73566), responsible for tolerance to Pi starvation in rice, controls the Pi transport system in plants. OsPTF1 is an essential element involved in higher root growth and consequently higher uptake rates of Pi, and it is also involved in the efficient use of Pi in plants. Therefore, OsPTF1 has potential in engineering plants with higher Pi utilization efficiency [90] (Figure 4D).

9. Conclusions and Future Perspectives

To withstand environmental stresses, plants have evolved interdependent regulatory pathways that allow them to respond and adapt to the environment in a timely manner. Abiotic stress conditions affect many aspects of plant physiology and cause widespread changes in cellular processes. Research into plant defense mechanisms after abiotic stress is of great importance for subsequent breeding. As one of the most abundant transcription factor families in eukaryotes, members of the bHLH family have complex structures, large numbers, and diverse functions. Many studies have shown that bHLHs can regulate plant resistance to a variety of abiotic stresses. This review summarized the roles of the bHLH transcription factor family in the corresponding abiotic stresses in plants from two aspects. First, bHLH transcription factors show evolutionary differences in the conservative domain. Previous studies have shown that members of the same subfamily may regulate the synthesis of the same plant hormones [151]. Thus, there is reasonable speculation that members of the same subfamily may have evolved through genetic replication from the same ancestor. However, these assumptions still need to be verified. Second, we discussed how the bHLH transcription factor specifically regulates plant tolerance to abiotic stresses through transcriptional and post-translational modification pathways. Furthermore, with the development of transcriptome sequencing, transcriptome technology has been widely used in the study of plant stress tolerance. RNA-seq can quickly screen important functional genes by looking for genes with significant differences through samples, in order to find key nodes or genes for stress resistance at the transcriptional level for subsequent research. This naturally raises an interesting question: can bHLHs regulate plant tolerance to stress by controlling the synthesis of plant hormones or compounds via transcriptional or post-translational modification pathways?

Author Contributions

Project administration, L.Y. and H.M.; writing—original draft preparation, Y.R. and R.L.; visualization, R.L.; writing—review and editing, H.M.K., L.Y. and H.M.; funding acquisition, L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 31971682) and the Research Startup Fund for High-Level and High-Educated Talents of Nanjing Forestry University.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ACT domain, small regulatory domains initially found in AK, chorismate mutase, and TyrA (prephenate dehydrogenase); TFs, transcription factors; ACE, ACTIVATOR FOR CELL ELONGATION; AIF, ATBS1 (ACTIVATION-TAGGED BRI1 SUPPRESSOR 1)-INTERACTING FACTOR; ARF, AUXIN RESPONSE FACTOR; BEE, BR ENHANCED EXPRESSION; BEH, BES1-HOMOLOGUE; BES1, BRI1 EMS-SUPRESSOR 1; bHLH, basic helix–loop–helix; BIM, BES1-INTERACTING MYC-LIKE; BR, brassinosteroid; BRZ, brassinazole; CES, CESTA; CIB, CRYPTOCHROME INTERACTING bHLH; CIL, CIB1-LIKE PROTEIN; HOS1, high expression of osmotically responsive gene 1; NCED, 9-cis-epoxycarotenoid dioxygenase; CBF4, C-repeat-binding factor; GA, gibberellin; HBI1, HOMOLOGUE OF BEE2 INTERACTING WITH IBH1; HFR1, LONG HYPOCOTYL IN FAR-RED 1; IBH1, ILI1 BINDING BHLH 1; IBL1, IBH1-LIKE 1; KDR, KIDARI; PAR, PHYTOCHROME RAPIDLY REGULATED; phy, phytochrome; PIF, PHYTOCHROME INTERACTING FACTOR; PIL1, PIF3-LIKE 1; PRE, PACLOBUTRAZOL RESISTANCE; YSL, an iron-phytosiderophore transporter; ABA, abscisic acid; JA, jasmonic acid; P5CS1, pyrroline-5-carboxylate synthetase 1; FIT, FER-LIKE IRON DEFICIENCY-INDUCED TRANSCRIPTION FACTOR.
