Functional Antagonism of WRI1 and TCP20 Modulates GH3.3 Expression to Maintain Auxin Homeostasis in Roots

Abstract

Auxin is a well-studied phytohormone, vital for diverse plant developmental processes. The GH3 genes are one of the major auxin responsive genes, whose expression changes lead to modulation of plant development and auxin homeostasis. However, the transcriptional regulation of these GH3 genes remains largely unknown. WRI1 is an essential transcriptional regulator governing plant fatty acid biosynthesis. Recently, we identified that the expression of GH3.3 is increased in the roots of wri1-1 mutant. Nevertheless, in this study we found that AtWRI1 did not activate or repress the promoter of GH3.3 (proGH3.3) despite of its binding to proGH3.3. Cross-family transcription factor interactions play pivotal roles in plant gene regulatory networks. To explore the molecular mechanism by which WRI1 controls GH3.3 expression, we screened an Arabidopsis transcription factor library and identified TCP20 as a novel AtWRI1-interacting regulator. The interaction between AtWRI1 and TCP20 was further verified by several approaches. Importantly, we found that TCP20 directly regulates GH3.3 expression via binding to TCP binding element. Furthermore, AtWRI1 repressed the TCP20-mediated transactivation of proGH3.3. EMSAs demonstrated that AtWRI1 antagonized TCP20 from binding to proGH3.3. Collectively, we provide new insights that WRI1 attenuates GH3.3 expression through interaction with TCP20, highlighting a new mechanism that contributes to fine-tuning auxin homeostasis.

1. Introduction

The phytohormone auxin (indole-3-acetic acid; IAA) plays a pivotal role in plant developmental processes, such as embryogenesis, organogenesis, shoot and root growth, and organ patterning [1,2,3]. The Aux/IAA (AUXIN/INDOLE-3-ACETIC ACID), SAUR (small, auxin-induced RNA), and GH3 (Gretchen Hagen 3) are the major auxin responsive genes [2,4,5]. Changes in GH3 gene expression affect the plant developmental processes, such as the growth of hypocotyl, root, and shoot [6,7,8,9]. The GH3 gene family in Arabidopsis comprises 20 members [9]. Several GH3 genes control the formation of IAA-amino acid conjugates which play roles in storing, transporting, compartmentalizing, and metabolizing auxins [7,10]. These findings suggest that GH3s are essential for mediating auxin homeostasis and auxin-associated growth responses [11,12]. A majority of the GH3 gene promoters have been found to contain cis-acting auxin responsive elements (AuxREs) that are recognized by auxin response factors (ARFs) [2,4,13]. In addition, bZIP transcription factors (e.g., Arabidopsis bZIP11) have been found to bind the G-box-related element (GRE) in the GH3 promoter to activate GH3 expression [11,14].

2. Results and Discussion

We recently found that the GH3.3 gene is upregulated in the roots of Arabidopsis WRINKLED1 (AtWRI1) loss-of-function mutant (wri1-1) [15]. WRI1 is a member of APETALA2 (AP2) transcription factor family, well known for transcriptional regulation of plant oil accumulation [16,17]. WRI1 functions as a transcriptional activator of genes involved in oil biosynthetic pathways [18,19,20,21]. However, how AtWRI1 regulates the expression of GH3.3 is unclear. AtWRI1 is differentially expressed in Arabidopsis embryo over other vegetative tissues. AtWRI1 also displays significant expression in roots [15,16]. Interestingly, although AtWRI1 is able to bind to proGH3.3 [15], our dual-luciferase (LUC) transactivation assay showed that AtWRI1 did not activate or repress the promoter of GH3.3 (proGH3.3) (Supplementary Figure S1). We hence hypothesized that AtWRI1 regulates the expression of GH3.3 through the coordination with an alternative transcriptional regulator. To investigate the molecular mechanism by which WRI1 controls GH3.3 expression, we performed yeast-two-hybrid (Y2H) assay to screen an Arabidopsis transcription factor library [22], using truncated AtWRI1 variants (AtWRI1^1-306 and AtWRI1^58-240) as baits. The truncated AtWRI1 variants as baits are necessary to avoid high transactivation activity mediated by the C-terminus of AtWRI1 [23]. We identified a class I TEOSINTE BRANCHED1/CYCLOIDEA/ PROLIFERATING CELL FACTOR (TCP) family transcription factor TCP20 as a previously unknown interacting partner of AtWRI1. We confirmed that AtWRI1 physically interacts with TCP20 in yeast cells (Figure 1A). In the pull-down assays, His-tagged TCP20 was pulled down by the GST agarose-coupled AtWRI1 (Figure 1B), providing further evidence for the interaction between AtWRI1 and TCP20. To further validate the AtWRI1-TCP20 interaction in vivo, we conducted bimolecular fluorescence complementation (BiFC) assays by co-producing the split YFP fusions of the two proteins, nYFP-AtWRI1 and cYFP-TCP20, in Nicotiana benthamiana leaves. We detected YFP fluorescence in leaf samples that co-produced nYFP-AtWRI1 and cYFP-TCP20 (Figure 1C). Taken together, our results verified the physical interaction between AtWRI1 and TCP20.

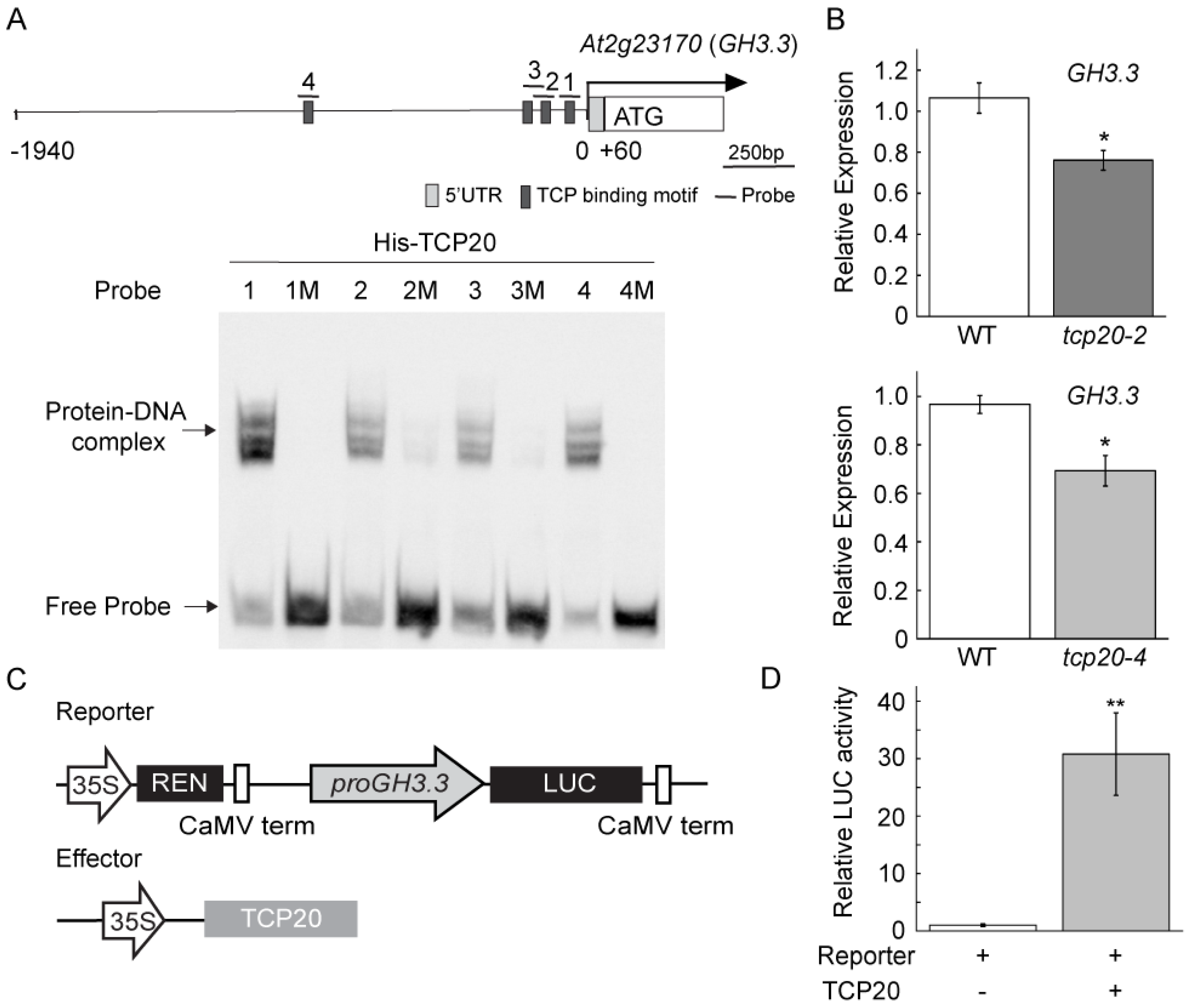

Previous studies show that TCP20 is highly expressed in Arabidopsis roots to regulate numerous genes that are important for plant development and signaling pathways [24,25,26]. However, the molecular mechanism underlying TCP20 working with AtWRI1 to regulate GH3.3 expression remains unknown. We thus analyzed proGH3.3 and found four putative TCP binding motifs in the promoter (Supplementary Figure S2). To test whether TCP20 binds to proGH3.3, we synthesized four DNA probes (Probe 1–4), each containing an individual putative TCP binding motif with flanking sequences on both sides (Figure 2A and Supplementary Figure S2) and performed electrophoretic mobility shift assay (EMSA) using TCP20 protein. Our result showed that TCP20 bound to all four DNA probes (probe 1–4; Figure 2A); however, TCP20 failed to bind to the DNA probes with nucleotide mutations at the TCP20 binding element (probe 1M–4M; Figure 2A), implying the binding specificity to the TCP motifs in the proGH3.3. To explore the transcriptional regulation of GH3.3 by TCP20, we subsequently characterized two homozygous Arabidopsis tcp20 T-DNA insertional lines (tcp20-2 (SALK_088460) and tcp20-4 (SALK_041906)). We examined the expression of GH3.3 in roots of tcp20 loss-of-function mutants and found significant downregulation of GH3.3 in both lines compared to wild-type (WT) (Figure 2B). We also examined the transactivation of TCP20 on proGH3.3 using dual-LUC transient expression assay in N. benthamiana leaves (Figure 2C). TCP20 significantly activated the LUC expression driven by proGH3.3 in the transient assay (Figure 2D). Taken together, these results indicate that TCP20 directly regulates GH3.3 expression through binding to the TCP binding motifs in its promoter.

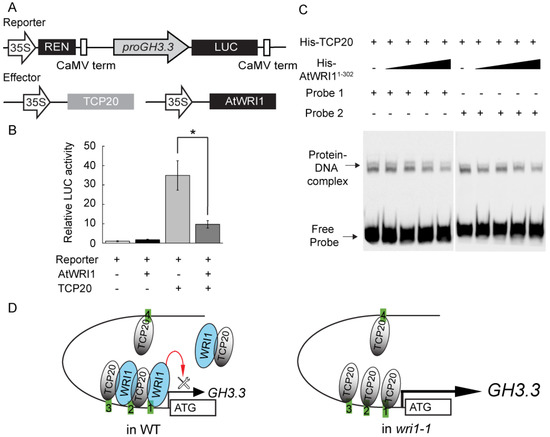

We next examined whether the transactivation activity of TCP20 on proGH3.3 is attenuated by interaction with AtWRI1. The reporter vector, in which the LUC gene expression is driven by proGH3.3, was transformed into N. benthamiana leaves, alone or in combination with the effectors in which TCP20 or AtWRI1 is controlled by the CaMV 35S promoter (Figure 3A). While TCP20 significantly activated proGH3.3, the activation was greatly reduced when AtWRI1 was co-expressed (Figure 3B), suggesting that AtWRI1 antagonizes TCP20 upon the interaction. We also conducted a promoter deletion assay to identify the regions in proGH3.3 critical for TCP20-AtWRI1 mediated expression. We generated three 5′-deletions in proGH3.3-LUC (Supplementary Figure S3). The full-length and truncated proGH3.3-LUC were transformed into N. benthamiana leaves alone, with AtWRI1, or with AtWRI1 and TCP20. The 1 kb deletion (from −1940 to −941 bp including one TCP binding motif) caused a significant reduction of LUC activity compared to the full-length promoter (Supplementary Figure S3). The 1.5 kb deletion (from −1940 to −441 bp) did not result in additional loss of activity compared to the 1 kb deletion. When all TCP binding motifs were deleted (−80 bp), less than 10% of the activity remained compared to the full-length promoter. In all cases except the −80 deletion, co-expression of TCP20 and AtWRI1 significantly reduced the transactivation of proGH3.3 by TCP20 (Supplementary Figure S3). These results indicated that the deletion of motif 4 resulted in approximately 70% reduction of TCP20 activation, although the activation of the promoter fragment containing motifs 1–3 was still 15-fold higher than the reporter-alone control. Further removal of motifs 1–3 greatly reduced the activation and abolished the antagonizing effect of AtWRI1. Therefore, while motif 4 contributes most to the TCP20-mediated activation, all four TCP binding motifs contribute to the TCP20 regulation of proGH3.3. This conclusion is consistent with the EMSA results showing TCP20 binding to all four TCP binding motifs (Figure 2A).

We demonstrated AtWRI1 attenuating the TCP20 activity on proGH3.3 possibly by interacting sequestering TCP20. Our previous work shows the binding of AtWRI1 to proGH3.3. Additionally, WRI1 did not activate or repress proGH3.3 in a transactivation assay suggesting that WRI1 likely requires a partner to function [15]. We therefore investigated whether AtWRI1 antagonizes TCP20 from binding to proGH3.3 in EMSA. The results revealed that AtWRI1 bound to probes 1, 2, and 3 in a TCP binding site-independent manner, as AtWRI1 bound the mutant probes (1M, 2M, and 3M) with equal affinity as the WT probes (Supplementary Figure S4). Since there is no recognizable WRI1 binding motif AW-box found in probes 1–3, AtWRI1 likely recognizes cryptic motifs that are close to the TCP binding motifs. Moreover, upon the addition of an increasing amount of AtWRI1^1-302, we detected reduced binding of TCP20 to probe 1 and 2 (Figure 3C), but not probe 3 and 4 (Supplementary Figure S5A), in a dose-dependent manner (Supplementary Figure S5B). We therefore speculate that AtWRI1 antagonizes the function of TCP20 through two potential mechanisms: 1) both transcription factors co-occupy proGH3.3, resulting in reduced activity of TCP20, and 2) the AtWRI1-TCP20 heterodimer reduces the amount of free TCP20 to activate proGH3.3 (Figure 3D). In the absence of AtWRI1, e.g., in wri1-1 mutant, GH3.3 is significantly upregulated (Figure 3D), leading to the increased production of IAA-Asp conjugates.

TCP20 is known to be involved in cell division, immunity, jasmonic acid biosynthesis, and nitrate foraging [27,28,29]. The regulation of auxin-responsive gene expression in this study defines a new role for TCP20 in Arabidopsis. Prior to this work, it was unclear how AtWRI1 affected auxin homeostasis through regulation of GH3.3 expression. By demonstration of the direct binding of both AtWRI1 and TCP20 to proGH3.3 and the protein-protein interaction of the two factors, we elucidate a previously unknown mechanism by which AtWRI1 antagonized the activity of TCP20 on GH3.3 to modulate auxin homeostasis.

3. Materials and Methods

3.1. Plant Materials

Arabidopsis and N. benthamiana plants were grown in a growth chamber at 23 °C with a photoperiod of 16 h light (100–150 μmol m⁻² s⁻¹ illumination)/8 h dark. Arabidopsis wild-type (Columbia ecotype) was used in this work. Seeds of the tcp20-2 (SALK_088460) and tcp20-4 (SALK_041906) mutants, which have been previously described [26], were obtained from the Arabidopsis Biological Resource Center (ABRC). Genotyping assay was conducted to confirm the homozygosity of tcp20-2 and tcp20-4 mutants. Reverse transcription-polymerase chain reaction assay was subsequently conducted to verify that the TCP20 expression was disrupted in tcp20-2 and tcp20-4 mutants. Seed sterilization and germination were performed as previously described [30].

3.2. Bioinformatic Analysis

In silico analysis of TCP binding sites was performed using AthaMap [31].

3.3. Plasmid Construction

Entry constructs subcloning and recombination with destination vectors [Y2H vectors, BiFC vectors (pSITE-nEYFP-C1 and pSITE-cEYFP-C1 [32]), and pEarleyGate binary vectors [33] were via Gateway LR reactions (Life Technologies, Waltham, MA, USA). To generate constructs for epitope-tagged recombinant protein production in E. coli, the full-length AtWRI1 and TCP20 were sub-cloned into pET41a-GST and pET41a-6×His vectors, respectively, [34]. AtWRI1^1-302 was sub-cloned into pNIC28-Bsa4 to produce an N-terminal 6×His-tagged protein (Protein Production Platform, Nanyang Technological University). To generate proGH3.3:LUC reporter constructs, various lengths of PCR amplified proGH3.3 were subcloned into the pGreenII 0800-LUC vector [35]. A list of the primers used for plasmid construction in this study is provided in Table S1.

3.4. Yeast Two-Hybrid Assay (Y2H)

For screening Arabidopsis transcription factor library, transcription factors were sub-cloned into the pDEST22 vector (prey) and transformed into yeast strain Y187 (Clontech, San Jose, CA, USA). AtWRI1 (AtWRI1^1-306 and AtWRI1^58-240) variants were sub-cloned into pDEST32 vector (bait) and introduced into yeast strain AH109. The prey and bait were mated and spotted on permissive (-Leu/-Trp) medium. After 3 days, the colonies were streaked onto stringent selective (-Leu/-Trp/-His) medium to screen positive interactions. TCP20 was subcloned into pDEST22 as the prey and AtWRI1 variants were subcloned into pDEST32 as the bait. The prey and bait constructs were transformed into Y187 and AH109, respectively. Then the prey and bait were mated and plated on -Leu/-Trp medium. To evaluate the interaction, transformants were streaked onto stringent selective (-Leu/-Trp/-His) medium.

3.5. Transient Expression in N. benthamiana, BiFC, and Confocal Microscopy

For BiFC assay, Agrobacterium tumefaciens cells carrying the nYFP and cYFP fusion constructs were resuspended in MMA medium (10 mM MgCl₂, 10 mM MES, 100 µM acetosyringone) to an OD₆₀₀ of 1.2 and adjusted to an OD₆₀₀ of 0.4 before infiltration into N. benthamiana leaves. The plasmid pEAQ HT producing the P19 protein was co-infiltrated with other constructs to maintain high expression in N. benthamiana leaves [36]. Healthy leaves of N. benthamiana plants were infiltrated with A. tumefaciens suspensions carrying nYFP and cYFP fusion constructs using a 1 mL blunt-end syringe. After agroinfiltration, plants were placed in a growth chamber. YFP fluorescence signals were detected by a confocal microscope 2–3 days post agroinfiltration.

3.6. Recombinant Protein Production, In Vitro Pull-Down Assays, and EMSA

Recombinant proteins, including the GST-AtWRI1 variants and His-TCP20, were produced in E coli strain BL21 (DE3). Protein induction, extraction and purification were conducted as described previously [23,34]. For in vitro pull-down assay, purified His-TCP20 protein was incubated with GST beads coupled with purified GST-AtWRI1 or GST protein in binding buffer [20 mM Tris-HCl (pH 7.4), 150 mM NaCl, 1 mM DTT, 0.1 mM EDTA (pH 8.0), 0.1% IGEPAL CA-630] at 4 °C overnight, followed by washing for 5 times with washing buffer (same as binding buffer). Then the samples were boiled in SDS-PAGE sample buffer at 95 °C for 5 min, followed by SDS-PAGE. The proteins were detected by immunoblot probed with anti-His antibody (Proteintech, Rosemont, IL, USA). EMSA was performed as described previously [34]. In brief, the 5′end biotin-labeled WT probes (1–4) and mutated probes (1M–4M) were used for EMSA. The standard binding reaction (20 µL) contained 0.05 µg/µL poly(dI-dC), 15 mM HEPES-KOH (pH 7.5), 7.5 mM KCl, 0.5 mM EDTA, 5% glycerol, 2 mM dithiothreitol, 1 µg/µL BSA, 2 fmol/µL of the hot DNA probe and ~1 pmol of His-TCP20. The binding competition assays were performed using ~1 pmol of His-TCP20 with addition of His-AtWRI1^1-302 as described in the figure legend. The reaction mixture was incubated at room temperature for 30 min. The DNA-protein complexes were resolved on 5% (w/v) non-denaturing polyacrylamide gels and subsequently transferred to nylon membranes. The band shifts were detected by a chemiluminescent nucleic acid detection module (Thermo Fisher Scientific, Waltham, MA, USA).

3.7. RNA Extraction, Quantitative Real-Time PCR (qRT-PCR)

Roots from 1-week-old Arabidopsis seedlings grown vertically on the regular growth medium were harvested, immediately frozen in liquid nitrogen, and stored at −80 °C freezer until use for RNA extraction. Total RNA was extracted using the Monarch Total RNA Miniprep Kit (New England Biolabs, Ipswich, MA, USA) following the supplier’s instructions. First-strand cDNA was synthesized using the qScript cDNA Synthesis Kit (Quantabio, Beverly, MA, USA). Quantitative real-time PCR (qRT-PCR) was conducted using Luna Universal qPCR Master Mix (New England Biolabs, Ipswich, MA, USA) according to the supplier’s instructions. Isopentenyl pyrophosphate:dimethylallyl pyrophosphate isomerase 2 (IPP2) gene was used as an internal control to normalize the gene expression. The primers used for qRT-PCR is provided in Table S2.

3.8. Transient Dual-Luciferase (Dual-LUC) Assays

Transient dual-LUC assays in N. benthamiana were conducted as described previously [37,38], with minor modifications. After agroinfiltration, plants were placed in a plant growth chamber, and leaf samples were harvested 3 d after infiltration for the dual-LUC assay using Dual-Luciferase Reporter 1000 Assay System (Promega, Madison, WI, USA). In brief, three leaf discs at agroinfiltration areas (5–6 mm in diameter) were excised and ground in liquid nitrogen to fine powder and homogenized in 100 µL Passive Lysis buffer (Promega, Madison, WI, USA). Subsequently, 5 µL of the extract was mixed with 40 µL Luciferase Assay Buffer, and the firefly LUC activity was measured by a cell imaging multimode plate reader (BioTek Cytation 5, Santa Clara, CA, USA). The reaction was stopped by addition of 40 µL Stop and Glo Buffer (Promega, Madison, WI, USA), and the Renilla (REN) LUC activity was measured. The firefly LUC activity was normalized to the REN LUC activity.

3.9. Accession Numbers

Accession numbers are as following: WRI1 (AT3G54320), TCP20 (AT3G27010), GH3.3 (AT2G23170).
