Seed Priming Boost Adaptation in Pea Plants under Drought Stress

by
Sally A. Arafa
1,
Kotb A. Attia
2,3,*,
Gniewko Niedbała
4,
Magdalena Piekutowska
5,
Salman Alamery
2,
Khaled Abdelaal
6,*,
Talal K. Alateeq
7,
Mohamed A. M. Ali
8,
Amr Elkelish
9 and
Shreen Y. Attallah
10
1
Department of Agricultural Botany, Faculty of Agriculture, Mansoura University, Mansoura 35516, Egypt
2
Department of Biochemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
3
Rice Biotechnology Lab, RRTC, Field Crops Research Institute, ARC, Sakha, Kafrelsheikh 33717, Egypt
4
Department of Biosystems Engineering, Faculty of Environmental and Mechanical Engineering, Poznań University of Life Sciences, Wojska Polskiego 50, 60-627 Poznań, Poland
5
Department of Geoecology and Geoinformation, Institute of Biology and Earth Sciences, Pomeranian University in Słupsk, Partyzantów 27, 76-200 Słupsk, Poland
6
PCRS Excellence Center, Plant Pathology and Biotechnology Lab, Department of Agricultural Botany, Faculty of Agriculture, Kafrelsheikh University, Kafrelsheikh 33516, Egypt
7
Department of Plant Production, College of Food Science and Agriculture, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
8
Department of Horticulture, College of Agriculture, New Valley University, El-Kharga 72511, Egypt
9
Botany Department, Faculty of Science, Suez Canal University Ismailia, Ismailia 41522, Egypt
10
Department of Vegetables, Faculty of Agriculture, Assiut University, Assiut 71515, Egypt
*
Authors to whom correspondence should be addressed.
Plants 2021, 10(10), 2201; https://doi.org/10.3390/plants10102201
Submission received: 11 September 2021 / Revised: 7 October 2021 / Accepted: 14 October 2021 / Published: 17 October 2021
(This article belongs to the Special Issue Plant Biostimulants)
Browse Figures
Versions Notes

Abstract

:
In the present investigation, we study the effect of Bacillus thuringiensis MH161336 (106–8 CFU/cm3), silicon (25 mL L−1), and carrot extract (75 mL L−1) as seed primers, individually or in combination, on morphological, physio-biochemical and yield components of drought-stressed pea plants (Master B) during 2019/2020 and 2020/2021 seasons. Our results indicated that drought causes a remarkable reduction in plant height, leaf area, number of leaves per plant, and number of flowers per plant in stressed pea plants during two seasons. Likewise, number of pods, pod length, seeds weight of 10 dried plants, and dry weight of 100 seeds were decreased significantly in drought-stressed pea plants. Nevertheless, seed priming with the individual treatments or in combination boosted the morphological, physio-biochemical, and yield characters of pea plants. The best results were obtained with the Bacillus thuringiensis + carrot extract treatment, which led to a remarkable increase in the number of leaves per plant, leaf area, plant height, and number of flowers per plant in stressed pea plants in both seasons. Moreover, pod length, number of seeds per pod, seeds weight of 10 dried plants, and dry weight of 100 seeds were significantly increased as well. Bacillus thuringiensis + carrot extract treatment led to improved biochemical and physiological characters, such as relative water content, chlorophyll a, chlorophyll b, regulated the up-regulation of antioxidant enzymes, increased seed yield, and decreased lipid peroxidation and reactive oxygen species, mainly superoxide and hydrogen peroxide, in drought-stressed pea plants.

1. Introduction

Pisum sativum L. is one of the most essential vegetable winter crops cultivated in Egypt, and most cultivars are grown for fresh and dry seeds because it contains a high amount of protein, vitamins, carbohydrates, and minerals like iron, phosphorus, and zinc [1]. Increasing the growth and yield of pea plants and other economic plants is considered an important target; there are many environmental factors that affect and harm the growth stages of many plants, such as salinity on strawberry, sweet pepper, rice, cucumber, and faba bean [2,3,4,5,6,7], and drought stress on faba bean, barley, sugar beet, maize and wheat plants [8,9,10,11,12,13,14].
Drought is one of the most serious problems in many countries, particularly in Egypt [8]. Under drought conditions, the growth stages of many plants were adversely affected, and many physiological changes were recorded, such as the decline in stem height, leaf number, leaf area, chlorophyll content, and sugar yield [9,14]. Physio-biochemical parameters such as relative water content, proline content, lipid peroxidation, superoxide, hydrogen peroxide, electrolyte leakage, and enzymes activity, as well as yield, were negatively affected under drought conditions in barley, faba bean, sugar beet, maize, wheat, and rice plants [7,12,15,16,17]. The decrease in cholorophyll A and b concentrations and the photosynthetic rate are among the most important physiological changes under water stress [10]. Under drought, the closed stomatal pores led to the decrease in carbon dioxide (CO2) uptake which causes a decrease in the photosynthetic rate because of the reduction in the activities of some special enzymes [18]. Additionally, relative water content (RWC) was significantly reduced in barley and bean plants under drought [10,13]. Reactive oxygen species (ROS) such as hydrogen peroxide (H2O2) and superoxide (O2•−), malondialdehyde (MDA) and electrolyte leakage (EL), are the main signals of biotic and abiotic stresses [18,19,20,21].
The increase in EL and MDA may be attributed to the oxidative stress of different organelles, like mitochondria and chloroplasts [22]. In addition, the overproduction of ROS is the key initiator of stress-associated lipid peroxidation and, finally, cell death [23]. Under drought stress, Abdelaal et al. [24] discovered remarkable increases in EL and MDA because of the damage of membranes and cytoplasm in water-stressed barley plants and sugar plants [3]. The accumulation of ROS, especially O2•− and H2O2, increased considerably under drought [3,4,5]. Superoxide and hydrogen peroxide can cause damaging effects to the chloroplast, mitochondria, proteins, and nucleic acids, resulting in cell death [24]. The activity of antioxidant enzymes that scavenge ROS with overproduction of the enzymes led to improve the oxidative stress tolerance under stress [25]. One of the significant enzymes involved in the antioxidant mechanisms is superoxide dismutase (SOD), which converts superoxide to hydrogen peroxide and consequently reduces the damage to proteins and DNA [26]. Additionally, catalase (CAT) is an important enzyme; it contributes with SOD in the degradation of hydrogen peroxide, causing a decrease in the production of the highly reactive radicals [27,28,29,30].
Application of plant growth-promoting bacteria (PGPB) such as Azotobacter, Bacillus and Rhizobium may be used to improve the yield not only under normal, but also under stress conditions [31,32] by the production of antioxidants, phytohormones and vitamins. Plant growth-promoting bacteria can be used in biofertilization [33,34,35] and as a biocontrol agent [36] to improve the yield production of crops under various conditions. Moreover, silicon can increase the growth and productivity of many plants; it is a significant element and leads to increase the growth and yield characters, mainly under stress factors [31,37]. Additionally, silicon treatment led to enhanced assimilation rate of carbon dioxide, and improved leaf number, chlorophyll concentration, and RWC, as well as yield production [2,8,31]. Carrot root extract is a natural plant extract and is considered a significant stimulant for growth and yield in many plants because it contains high amounts of protein, carbohydrates, and vitamins as bio-regulators, such as vitamin A, B1, B6, C, D, and E [38]. Kasim et al. [39] stated that seed priming with carrot extract was more effective in enhancing the physiological characters of drought-stressed faba bean plants. Moreover, carrot extract led to improve the cell membrane under environmental stress factors. Carotenoids contribute to protecting cells from oxidative stress in golden rice plants [40]. Therefore, the objective of our study was to evaluate the influence of Bacillus thuringiensis, silicon, and carrot extract on pea plants (Master B) under drought stress associated with the antioxidant defense system, chlorophyll concentration, RWC, and ROS, as well as seed yield.

2. Materials and Methods

2.1. Experimental Design and Plant Materials

Two field experiments were prepared in a private farm at Gharbia Governorate, Egypt, during the two winter seasons (2019/2020 and 2020/2021) to assess the influence of Bacillus thuringiensis MH161336 (106–8 CFU/cm3), silicon (25 mL L−1) as potassium silicate (K2SiO3), and carrot extract (75 mL L−1) as seed primers on morphological, physio-biochemical and yield characteristics of pea plants (Pisum sativum L.) (Master B) under drought stress (50% of normal irrigation). The control plants were irrigated with 10 irrigations, while the stressed plants received 5 irrigations. The irrigation scheduling was applied according to the soil water status known as the field capacity (FC). During precultivation at the beginning of each season, soil samples were taken by an Auger T-Handle at depths of 0–20 and 20–40 cm from the soil surface to determine the field capacity, wilting point (WP), and soil available water (SAW) in the laboratory of soil sciences. The biochemical and physiological studies were conducted in the Plant Pathology and Biotechnology Laboratory and EPCRS Excellence Center, Faculty of Agriculture, Kafrelsheikh University. The seeds of pea plants (Master B) were obtained from the Legume Division, Sakha, Agricultural Research Centre; the experiment was laid out in a completely randomized design with five replicates. The seeds were sterilized with sodium hypochlorite 2.5% and 70% ethanol and washed five times with distilled water. Pea seeds were prepared in four groups; the first group were primed by soaking in tap water for 10 h (control), the second group were treated with Bacillus thuringiensis MH161336 (106–8 CFU/cm3) and kept for 6 h at room temperature, the third were primed by soaking in silicon (25 mL L−1), and the fourth were primed in carrot extract (75 mL L−1) for 10 h. The concentration of the Bacillus, silicon and carrot extract was adjusted according to previous studies. Carrot root extract was prepared using 200 g fresh carrot roots and blended with 640 mL of tap water; then, the mixture was filtered using filter paper, and increased with tap water to one liter (100% carrot extract) [41]. The sowing of pea seeds was done on two sides of the ridge in hills at 10 cm apart (3 seeds per hill) on the 6th and 7th of September in the two seasons; respectively, seeds were thinned to one plant per hill after germination. During soil preparation, organic fertilizer was added at the rate of 48 m3 ha−1, and the plants were fertilized with recommended doses consistent with the recommendations of the Ministry of Agriculture. The chemical characters of the experimental soil during two growing seasons were studied before conducting the experiments and presented in Table 1. [42].

2.2. Morphological Characters

Pea samples were taken (10 plants per treatment) for morphological studies at 70 days from sowing; plant height (cm), leaf area (cm2), number of leaves plant−1, and number of flowers plant−1 were recorded.

2.3. Yield Characters

Green pods of the plants were harvested at the suitable maturing stage to determine number of pods plant−1 and pod length, and the number of seeds pod−1, seeds weight of 10 dried plants, and dry weight of 100 seeds were measured when the plants were dried at the end of the experiment.

2.4. Physiological and Biochemical Characters

2.4.1. Chlorophyll a and b Concentration

Assays of chlorophyll a and b concentrations were done in the fifth fresh pea leaf using acetone 80%. The samples of fresh pea leaves were kept in the solution overnight under dark conditions. The measures were determined at 663, 645, and 470 nm. The concentration of chlorophyll a and chlorophyll b was measured according to Lichtenthaler [43].

2.4.2. Maximum Quantum Efficiency of PS II (Fv/Fm)

Maximum quantum efficiency of PS II (Fv/Fm ratio) was recorded using a chlorophyll fluorometer at 60 days from the sowing. Pea leaves were kept in the dark for 30 min to simulate the reaction of photosystem II. The maximum efficiency of PSII was recorded as the ratio of (Fv) to (Fm) [44].

2.4.3. Determination of Relative Water Content

Ten discs of fresh pea leaves were used to measure RWC. Initially, the fresh weight (FW) for these discs was determined, then the discs were placed in distilled water to determine the turgid weight (TW) after 1 h; the dry weight (DW) was also determined in the dried discs after 24 h at 80 °C. RWC% was measured as follows: RWC = (FW − DW)/(TW − DW) × 100 [45].

2.4.4. Determination of Proline Content

The samples (500 mg) were taken from the fifth fresh pea leaf and placed in 3% sulphosalicylic acid and centrifuged at 3000× g for 20 min. Then, 2 mL of glacial acetic acid and 2 mL ninhydrin reagent was boiled for 1 h with 2 mL supernatant. Proline was assayed as μg g−1 FW at 520 nm using a spectrophotometer [46].

2.4.5. Determination of Lipid Peroxidation

The samples were taken from the fifth fresh pea leaf (100 mg), placed in 1% trichloroacetic acid and centrifuged for 5 min at 10,000× g, then 0.5% thiobarbituric acid was added. The samples were boiled for 30 min at 95 °C and placed on an ice bath, and centrifuged at 5000× g for 5 min. The measurements of lipid peroxidation were recorded as malondialdehyde (nmol g−1 FW) as follows: (MDA) = [6.45 × (A532 − A600) − (0.56 × A450)] × V − 1 W, where W = weight (g), V = volume (cm3) [47].

2.4.6. Assay of Electrolyte Leakage (EL%)

Ten discs of fresh pea leaves were placed in 25 cm3 deionized water (10 samples per treatment). The samples were shaken for 20 h, and electrical conductivity was measured (initial) for each vial, then the samples were placed in a water bath for 1 h at 80 °C and shaken at 21 °C for 20 h, and final conductivity was recorded. EL % was calculated as the following formula: initial conductivity/final conductivity × 100 [48].

2.4.7. Assay of Hydrogen Peroxide (H2O2) and Superoxide (O2•−)

According to Velikova et al. [49], the samples of fresh pea leaves (250 mg of fresh leaves) were homogenized using 5 mL of 5% TCA (trichloroacetic acid). The samples were centrifuged at 12,000× g at 4 °C for 15 min for the homogenates. The supernatant was gathered, added to 10 mM potassium phosphate buffer (pH 7.0) + 1 M KI, then hydrogen peroxide was measured spectrophotometrically at 390 nm as nmol g−1 FW. To determine superoxide (O2•−), the samples of fresh pea leaves (100 mg) were immersed in 10 mM K-phosphate buffer, pH 7.8, 0.05% NBT and 10 mM NaNO3 for 1 h at room temperature. The immersed solution (two millilitres) was heated for 15 min at 85 °C and cooled rapidly. Super oxide was measured spectrophotometrically at 580 nm (nmol g−1 FW).

2.4.8. Assay of Catalase (CAT) and Superoxide Dismutase (SOD) Activity

From the fifth fresh leaf, 0.5 g was taken, homogenized and centrifuged for 20 min at 12,000× g, then the total soluble enzyme activities were measured in the supernatant using a spectrophotometer [50]. CAT activity was assayed in the supernatant at 240 nm as µmol min−1 mg protein−1 based on the consumption of H2O2 [51]. The activity of SOD was determined at 560 nm as µmol min−1 mg protein−1 [52].

2.5. Statistical Analysis

The obtained data were analyzed with one-way analysis of variance (ANOVA) procedures [53], using the MSTAT-C statistical software package. The means between treatments were compared with Duncan’s post hoc test when the result of the omnibus multivariate F-test in one-way analysis of variance (ANOVA) was significant (p ≤ 0.05) [54].

3. Results

3.1. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Plant Height, Leaf Number Plant−1, and Leaf Area Plant−1 of Drought-Stressed Pea Plants

Our obtained results revealed that drought led to a remarkable decrease in leaf area, plant height and number of leaves plant−1 compared to the control treatment (Figure 1); nevertheless, seed priming with Bacillus thuringiensis, silicon, and carrot extract, individually or in combination (Bacillus thuringiensis + silicon or Bacillus thuringiensis + carrot extract), showed a significant increase in the number of leaves plant−1, plant height (cm) and leaf area plant−1 compared to the stressed untreated plants during 2019/2020 and 2020/2021 seasons. The highest values of plant height were obtained with Bacillus thuringiensis + carrot extract treatment, and the mean of increase during two seasons was 46.5%, followed by Bacillus thuringiensis treatment (37.14%), and then Bacillus thuringiensis + silicon (36.5%), when compared with stressed untreated plants. Additionally, the combination of Bacillus thuringiensis + carrot extract gave the highest value of leaf number with an increase of 44.11%, followed by Bacillus thuringiensis (33.7%), then the control treatment (33.11%), as compared with stressed untreated pea plants. Moreover, leaf area was increased significantly in stressed treated plants and the increase was 35.08% in the plants treated with Bacillus thuringiensis + carrot extract, compared with stressed untreated plants, followed by Bacillus thuringiensis + silicon (25.78%) then Bacillus thuringiensis treatment (24%), compared to stressed untreated pea plants during both seasons.

3.2. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Flowers Number Plant−1, Pods Number Plant−1 and Pod Length of Drought-Stressed Pea Plants

Drought stress led to remarkable decreases in number of flowers plant−1, number of pods plant−1 and pod length in stressed pea plants, compared with the control in both seasons (Figure 2). However, seed priming with Bacillus thuringiensis, silicon, and carrot extract, individually or in combination (Bacillus thuringiensis + silicon or Bacillus thuringiensis + carrot extract), led to a significant increase in the number of flowers plant−1, number of pods plant−1 and pod length in pea plants under drought. The treatment with Bacillus thuringiensis + carrot extract was superior, and the mean of increase during both seasons was 128.9% for the number of flowers plant−1, 130.18% for the number of pods plant−1, and 74.88% in pod length, compared with stressed untreated pea plants, followed by the control treatment, then Bacillus thuringiensis + silicon and Bacillus thuringiensis.

3.3. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Number of Seeds Pod−1, Seeds Weight of 10 Dried Plants and Dry Weight of 100 Seeds of Drought-Stressed Pea Plants

The presented results in Figure 3 indicated that drought stress caused a significant decrease in number of seeds pod−1, seeds weight of 10 dried plants and dry weight of 100 seeds of pea plants. However, application of Bacillus thuringiensis, silicon and carrot extract, individually or in combination (Bacillus thuringiensis + silicon or Bacillus thuringiensis + carrot extract), as seed primers led to mitigation of the negative effect of drought on number of seeds, seeds weight of 10 dried plants, and dry weight of 100 seeds of stressed pea plants during two seasons. Regarding our results, seed priming with Bacillus thuringiensis + carrot extract gave the maximum values of the number of seeds pod−1, seeds weight of 10 dried plants and dry weight of 100 seeds of stressed pea plants without any significant difference when compared to control, followed by Bacillus thuringiensis + silicon, then the individual treatments in both seasons. The best result of the number of seeds pod−1 as the mean of both seasons was 130.18%, the seeds weight of 10 dried plants was 95.86%, and the dry weight of 100 seeds was 81.46%, when compared with stressed untreated plants.

3.4. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Chlorophyll a, b Concentration and Maximum Quantum Efficiency of PS II (Fv/Fm) of Drought-Stressed Pea Plants

Our findings in Figure 4 exhibited that the concentration of chlorophyll a, b and maximum quantum efficiency of PS II (Fv/Fm) considerably decreased in pea plants under drought conditions compared with control plants during two seasons. Conversely, seed priming with all treatments caused a significant increase in chlorophyll a and b, as well as maximum quantum efficiency of PS II. In this regard, the maximum values of chlorophyll a were obtained with Bacillus thuringiensis + carrot extract (72%) and Bacillus thuringiensis + silicon (71.2%) without any significant difference (71.52%) when compared to the control treatment during the two seasons. Additionally, chlorophyll b was increased significantly because of treatment with Bacillus thuringiensis + carrot extract (78.68%) and Bacillus thuringiensis + silicon (77.04%), followed by individual treatments in stressed pea plants. Moreover, the high level of maximum quantum efficiency of PS II was observed during both seasons with Bacillus thuringiensis + carrot treatment (8.66) and the control, followed by the other treatments, when comparing with stressed untreated plants.

3.5. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Relative Water Content (RWC), Proline Concentration and Lipid Peroxidation (MDA) of Drought-Stressed Pea Plants

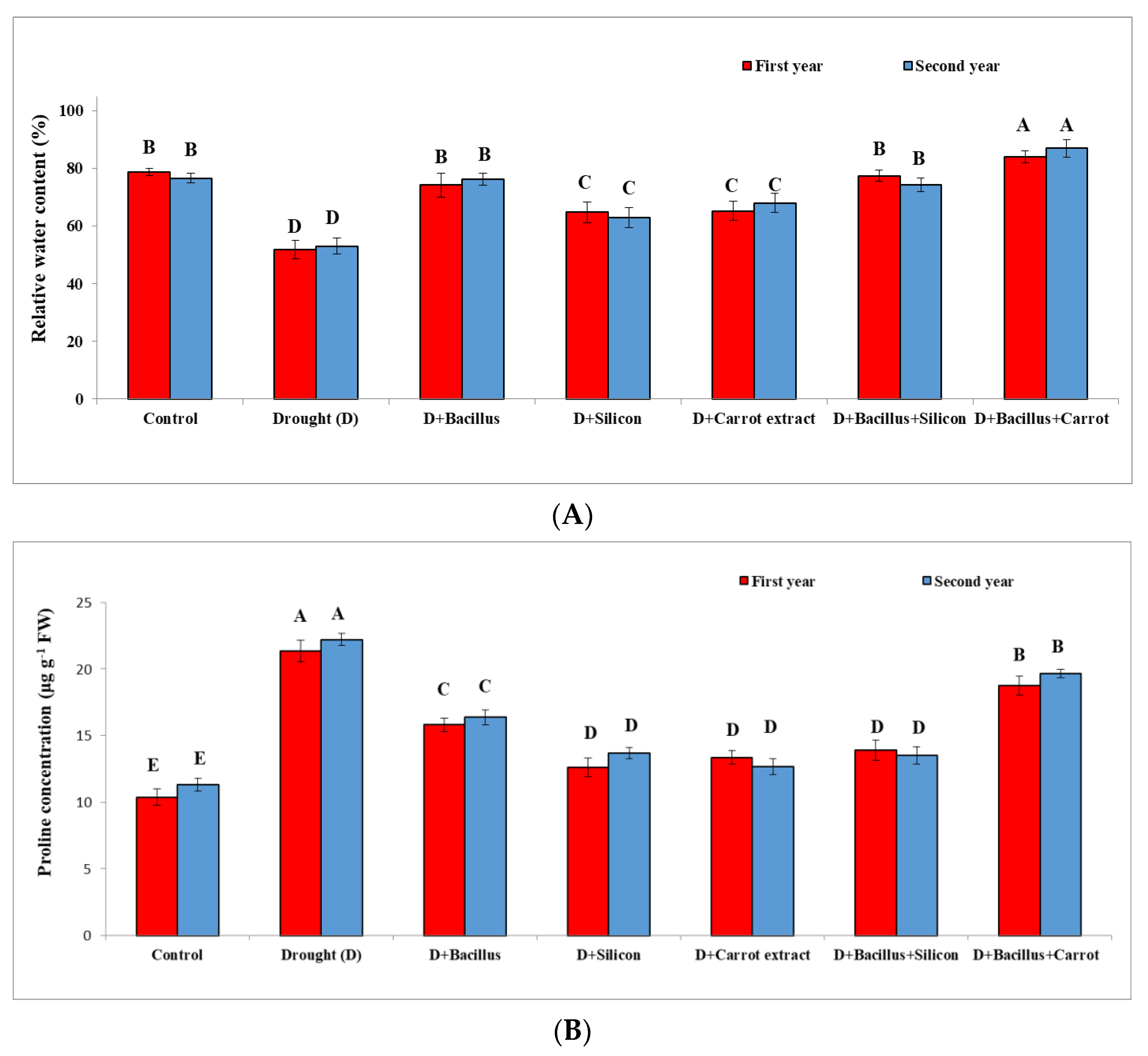

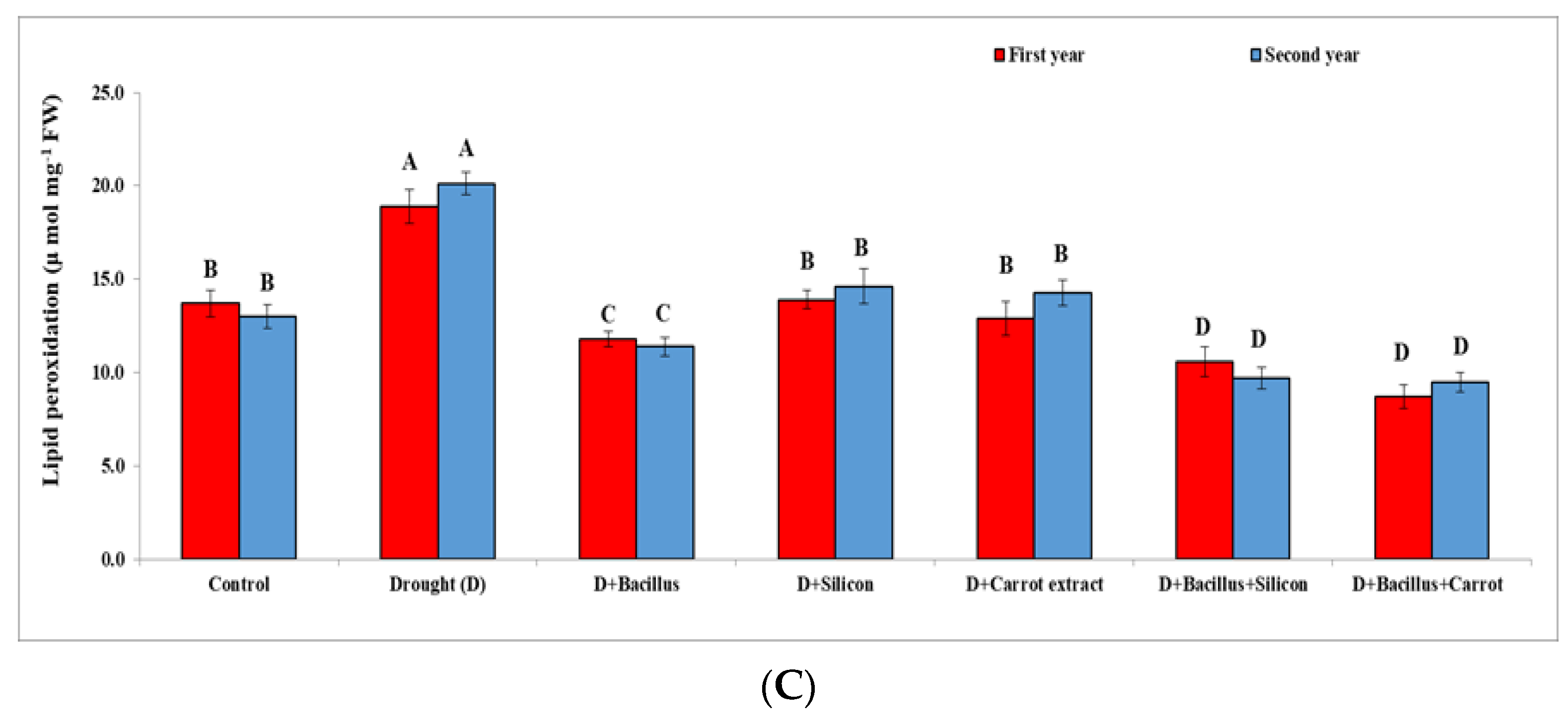

Drought stress had a significant effect on relative water content (RWC), proline concentration and lipid peroxidation (MDA), as indicated in Figure 5. Relative water content was significantly reduced in pea plants under drought compared to control treatments during two seasons. Conversely, RWC was increased significantly in stressed pea plants due to seed priming with all treatments; the highest level of RWC of the two seasons was achieved with Bacillus thuringiensis + carrot extract (63.47%), followed by control plants (48.37%), then the other treatments during both seasons. Regarding proline concentration, the stressed pea plants displayed a remarkable increase in proline during the two seasons. However, seed priming with Bacillus thuringiensis + carrot extract and Bacillus thuringiensis + silicon and the other treatments led to regulated proline concentration in the stressed pea plants, compared with the stressed untreated plants and control treatment during both seasons. According to various treatments, Bacillus thuringiensis + carrot extract decreased proline content (11.98%) compared with stressed untreated plants. MDA was significantly elevated in drought-stressed pea plants during both seasons compared to the control. On the other hand, MDA was decreased significantly with all treatments in the drought-stressed pea plants compared with untreated stressed plants during both seasons. The best treatment was Bacillus thuringiensis + carrot extract, which led to a decreased MDA level of 53.58%, and Bacillus thuringiensis + silicon (47.94%), which gave the minimum levels of MDA compared with the stressed untreated plants and control treatment.

3.6. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Electrolyte Leakage (EL%), O2•− and H2O2 Level of Drought-Stressed Pea Plants

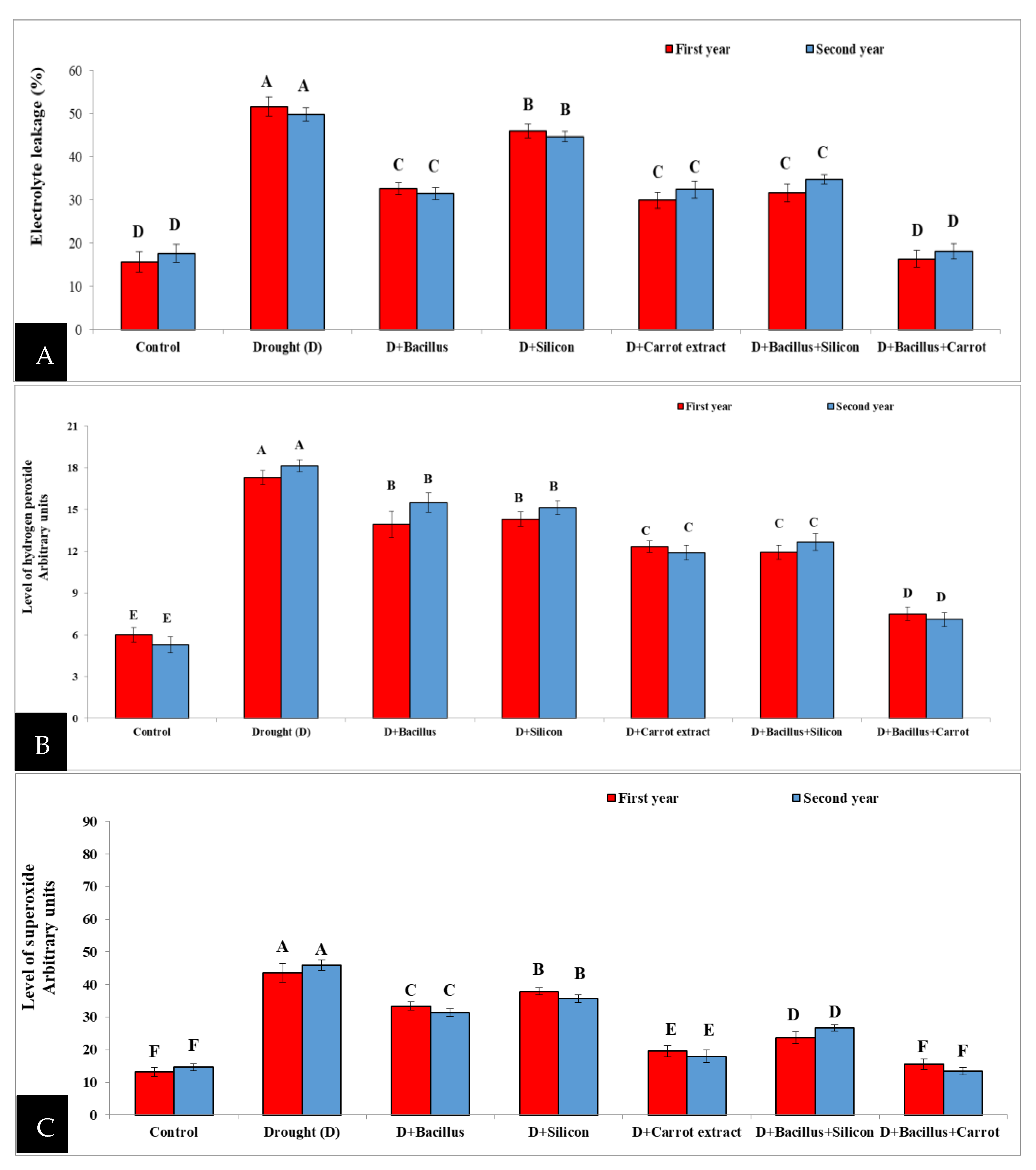

It is obvious from the obtained results in Figure 6 that electrolyte leakage (EL%), O2•− and H2O2 levels were significantly augmented in drought-stressed pea plants. EL% was significantly elevated in pea plants under drought conditions compared with the control during both seasons; however, seed priming led to a significant decrease in electrolyte leakage in drought-stressed pea plants. The best result was achieved with Bacillus thuringiensis + carrot extract treatment, and the decrease was (66%) compared with the stressed untreated pea plants, and without any significant difference when compared with the control treatment. Similarly, drought stress caused a significant increase in the levels of O2•− and H2O2 in drought-stressed pea plants compared to the control treatment. Nonetheless, seed priming with different treatments caused a significant decrease in superoxide and hydrogen peroxide levels in drought-stressed pea plants compared to stressed untreated plants. The reduction in hydrogen peroxide according to Bacillus thuringiensis + carrot extract treatment was 58.75%, while the decrease in superoxide was 44.55%, as compared to untreated stressed plants as the main of both seasons. Similarly, treatment with Bacillus thuringiensis + silicon was in the second level and led to a decrease in hydrogen peroxide of 30.50% and superoxide level of 42.07% in the stressed plants compared with untreated stressed plants.

3.7. Effect of Bacillus thuringiensis, Silicon and Carrot Extract on Catalase Activity (CAT) and Superoxide Dismutase (SOD) of Drought-Stressed Pea Plants

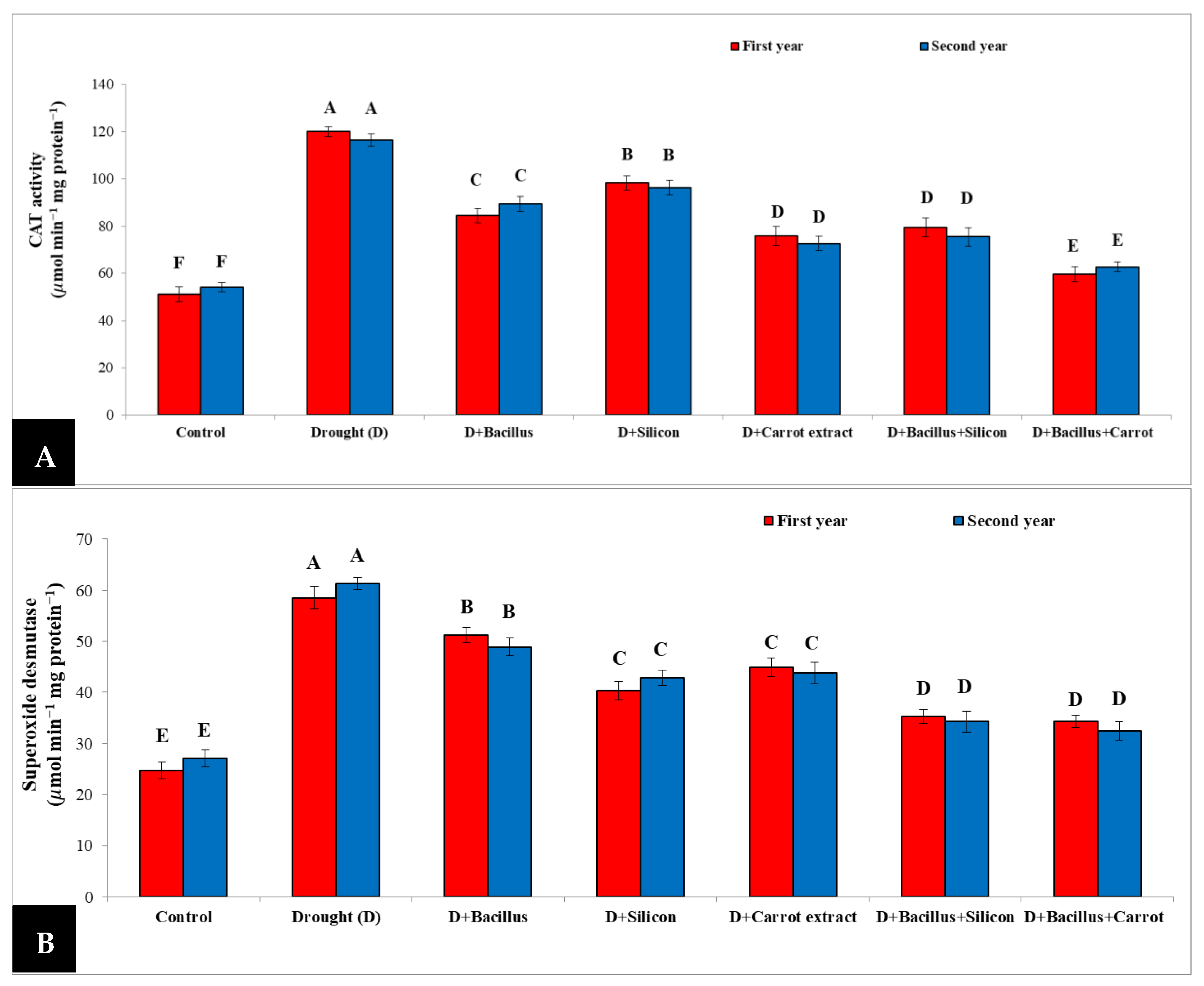

In the current study, the results in Figure 7 point out that drought stress caused a significant increase in enzyme activity, such as CAT and SOD, in pea plants during both seasons. Catalase activity significantly augmented in drought-stressed pea plants when compared with the control during two seasons. Nevertheless, seed priming with Bacillus thuringiensis + carrot extract and other treatments led to a decrease in the activity of CAT in drought-stressed pea plants; the best result was recorded with Bacillus thuringiensis + carrot extract, which decreased CAT activity to 47.69% compared with stressed untreated plants. Furthermore, SOD activity considerably augmented in stressed pea plants as compared with the control treatment; however, the activity of SOD was significantly reduced (43.94%) in drought-stressed pea plants due to treatment with Bacillus thuringiensis + carrot extract and Bacillus thuringiensis + silicon (41.68%), compared to stressed untreated pea plants.

4. Discussion

The adverse impacts of drought stress on pea plants were studied in both seasons; drought led to a remarkable decrease in plant height, leaf area, and number of leaves plant−1. This harmful effect of drought could be attributed to the reduction in water uptake from the rhizosphere and transport through xylem and phloem tissues of pea plants, reduced cell elongation and division, and consequently decreased plant height, number of leaves and leaf area. These results are in line with the results of some researchers in some other plants under drought, such as flax [10], barley [11,15], sugar beet [9], and faba bean plants [8,39]. Additionally, Abdelaal et al. [10] reported that drought stress negatively affected water status in sugar beet plants. Conversely, seed priming with Bacillus thuringiensis, silicon, and carrot extract, individually or in combination (Bacillus thuringiensis + silicon or Bacillus thuringiensis + carrot extract), led to alleviation of the adverse effects of drought on pea plants (Figure 1) and considerably increased plant height, leaf area and number of leaves. The best results were recorded with Bacillus + carrot extract treatment in the two seasons; the helpful effect of this treatment may be due to the vital role of Bacillus in alleviating the injurious effect of drought and increasing phosphate solubilization and phytohormones [40]. Moreover, carrot extract plays a significant role in producing indole acetic acid, which enhances root structure and increases the concentration of essential elements in stressed pea plants. Furthermore, the role of carrot extract is very significant due to the presence of some essential vitamins such as vitamin A and C, which play a significant role in improving plant status, consequently increasing plant height, leaf area, and number of leaves plant−1. Similar positive effects of Bacillus thuringiensis were observed in lettuce plants under salinity conditions [31], and the positive impacts of carrot extract were recorded in faba bean plants under drought stress [39].
Under drought conditions, the flowering stage and seed yield was considerably affected. All studied parameters such as flower number plant−1, pod number plant−1, pod length, seed number pod−1, seeds weight of 10 dried plants, and dry weight of 100 seeds were significantly reduced in drought-stressed pea plants during both seasons. The reduction in these parameters may be due to the damaging effect of drought on cell division and expansion, leaf and stem size, and the reduction in water and nutrient relations [55,56], which can result in a decrease in flower number plant−1, pod number plant−1, pod length, seeds weight of 10 dried plants and the dry weight of 100 seeds. However, a significant increase in these characters was achieved in drought-stressed pea plants with all seed priming treatments (Figure 2 and Figure 3) during two seasons. The best results were achieved with Bacillus thuringiensis + carrot extract, followed by Bacillus thuringiensis + silicon treatment.
In the present research, our results indicated a significant reduction in chlorophyll a, chlorophyll b concentration, and maximum quantum efficiency of PS II in drought-stressed pea plants during both seasons. This damaging impact of drought may be due to its role in chlorophyll degradation, stomatal closure, and reduced fixation of CO2, which causes extreme changes in photosynthesis [57], and consequently decreases chlorophyll a, chlorophyll b concentration, and the maximum quantum efficiency of PS II. The reduction in chlorophyll concentration under drought stress was recorded in various plants, including sugar beet [9], barley [10,24], and wheat plants [16]. Conversely, chlorophyll a and b concentration, and the maximum quantum efficiency of PS II, was considerably elevated in drought-stressed pea plants due to seed priming with Bacillus thuringiensis + carrot extract, followed by Bacillus thuringiensis + silicon treatment, then silicon and other treatments. The useful effect of Bacillus thuringiensis + carrot extract treatment could be attributed to the role of carrot extract in protecting the chlorophyll from oxidative damage under stress due to the presence of carotenoid and vitamin C [40]. Additionally, the positive effect of Bacillus thuringiensis could be attributed to its role in improving root growth and water uptake, as well as photosynthesis, under drought stress [40]. Such a positive impact was also recorded by many researchers in several other plants [31,36,40].
Biochemical characters such as proline concentration, electrolyte leakage, superoxide, hydrogen peroxide levels and lipid peroxidation were considerably elevated in pea plants as signals for oxidative stress under drought, while RWC was considerably decreased in pea plants compared with control treatments (Figure 5 and Figure 6). Drought stress had a negative effect on these characters; this effect may be due to the disorder of the plasma membrane and the harmful impact on selective permeability, dehydration of cytoplasm and membrane stability, resulting in decreased relative water content [10]; consequently, this increased the oxidative stress signals, such as proline concentration, MDA, hydrogen peroxide, EL and superoxide level in stressed pea plants in the two seasons. These results agree with the obtained results of some researchers; they found that MDA, proline concentration, EL, O2•− and H2O2 were significantly elevated under stressful conditions in various plants [10,58,59]. Likewise, proline was effective in regulating cell osmotic adjustment and decreasing the levels of ROS under stress [60]. In this regard, Sharma et al. [61] stated that increased proline content lowered ROS under drought stress.
Our results showed that the Bacillus with carrot extract treatments lead to more proline accumulation in pea plants. This may due to the Bacillus producing many beneficial compounds, for instance plant exopolysaccharides, phytohormones, 1-aminocyclopropane- 1-carboxylate deaminase, and volatile compounds [40,44]. All these compounds trigger the accumulation of all the plants osmolytes (proline), while carrot extract, which serves as a source of antioxidants, has important functions in enhancing plant growth. The β-carotene, which is the main content in carrot extract, which triggers the plants osmolytes, especially proline and glycine betaine [38,39].
Furthermore, antioxidant enzymes such as superoxide dismutase activity (SOD) and catalase (CAT) were considerably increased as a defense mechanism alongside drought stress in pea plants in comparison to the control treatment (Figure 7). The increase in CAT and SOD activity under drought may be due to their involvement in the tolerance of numerous stresses against oxidative damage [62]; they are essential in the scavenging of reactive oxygen species under stress conditions [36]. These findings are in line with the recorded results of Li et al. [63]. In the current study, the detrimental effects of drought can be alleviated by seed priming with Bacillus, silicon, and carrot extract, individually or in combination (Bacillus + silicon or Bacillus thuringiensis + carrot extract). This result could be due to the role of Bacillus as a source for cytokinin, auxin and nutrients, as well as the regulation of essential enzymes. Additionally, Bacillus can produce exopolysaccharides which improve soil structure, increase water availability [59], and consequently enhance physio-biochemical characters, such as chlorophyll concentration and RWC, and decrease electrolyte leakage superoxide and hydrogen peroxide in pea plants under stress conditions [32,64]. Interestingly, carrot extract can increase α-tocopherol, which may neutralize MDA levels by reducing reactive oxidative anions and increasing membrane stability, and induce and trigger the plant defenses by adjusting the CAT and SOD enzyme activity, which scavenge ROS and protect the cells from oxidative stress. These results are in line with the findings of Kasim et al. [39]; they indicate that carrot extract led to improved faba bean growth, and decreased MDA, CAT and POD activity under drought conditions. Furthermore, there are some important elements in carrot extract such as Ca, Mg, P, and K; it is well known that Mg is necessary for chlorophyll synthesis [65], while Ca can protect the cell membrane under stress conditions [66]. Generally, our findings showed the mitigation of drought effects on pea plants by Bacillus thuringiensis + carrot extract treatment; this treatment led to improved growth characteristics and increased yield characteristics of stressed pea plants.

5. Conclusions

In general, our results indicated that Bacillus MH161336 (106–8 CFU/cm3), silicon (25 mL L−1), and carrot extract (75 mL L−1) as seed primers, individually or in combination, enhanced the morpho-physiological and yield characteristics of pea plants (Master B) by alleviating the adverse impacts of drought stress. Leaf area, plant height (cm), number of leaves plant−1, and number of flowers plant−1 were increased significantly in stressed pea plants due to seed priming with the Bacillus thuringiensis + carrot extract treatment. Additionally, the number of pods plant−1, pod length, number of seeds pod−1, seeds weight of 10 dried plants, and dry weight of 100 seeds were significantly increased as well. Bacillus thuringiensis + carrot extract treatment led to improved biochemical and physiological characteristics, such as relative water content, chlorophyll a, and chlorophyll b, and regulated the up-regulation of antioxidant enzymes, and decreased lipid peroxidation and reactive oxygen species, mainly hydrogen peroxide and superoxide, in drought-stressed pea plants.

Author Contributions

Conceptualization, K.A., S.A.A., S.Y.A., M.A.M.A., S.A., T.K.A. and K.A.; methodology, K.A., S.A.A., G.N., M.P., S.Y.A., M.A.M.A.; software, K.A., S.A.A., S.A., T.K.A., G.N., M.P. and K.A.A.; validation, K.A., A.E., G.N., M.P. and M.A.M.A.; formal analysis, K.A., S.A., S.A., T.K.A., A.E., G.N., M.P. and K.A.A.; investigation, K.A., S.A.A., A.E. and M.A.M.A.; resources, K.A., S.A.A., S.Y.A. and M.A.M.A.; data curation, K.A. and S.A.A.; writing—original draft preparation, K.A., S.A.A., S.Y.A. and M.A.M.A.; writing—review and editing, K.A., M.A.M.A., S.Y.A., G.N., M.P., S.A.A., A.E., T.K.A. and K.A.A.; funding acquisition, K.A., S.A.A., S.Y.A., S.A., M.A.M.A., T.K.A. and A.E. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors extend their appreciation to the Researchers Supporting Project number (RSP-2021/241), King Saud University, Riyadh, Saudi Arabia. Also, many thanks to all members of the Plant Pathology and Biotechnology Lab, and the EPCRS Excellence Centre (Certified according to ISO/9001, ISO/14001 and OHSAS/18001), Dept. of Agric. Botany, Fac. of Agric.; Kafrelsheikh University, Kafr-Elsheikh, Egypt.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Khan, R.; Manzoor, N.; Zia, A.; Ahmad, I.; Ullah, A.; Shah, S.M.; Naeem, M.; Ali, S.; Khan, I.H.; Zia, D.; et al. Exogenous application of chitosan and humic acid effects on plant growth and yield of pea (Pisum sativum). Int. J. Biosci. 2018, 12, 43–50. [Google Scholar]
  2. El-Flaah, R.F.; El-Said, R.A.R.; Nassar, M.A.; Hassan, M.; Abdelaal, K.A.A. Effect of rhizobium, nano silica and ascorbic acid on morpho-physiological characters and gene expression of POX and PPO in faba bean (Vicia faba L.) under salinity stress conditions. Fresenius Environ. Bull. 2021, 30, 5751–5764. [Google Scholar]
  3. El-Banna, M.F.; Abdelaal, K.A.A. Response of Strawberry Plants Grown in the Hydroponic System to Pretreatment with H2O2 Before Exposure to Salinity Stress. J. Plant Production, Mansoura Univ. 2018, 9, 989–1001. [Google Scholar] [CrossRef]
  4. Helaly, M.N.; Mohammed, Z.; El-Shaeery, N.I.; Abdelaal, K.A.A.; Nofal, I.E. Cucumber grafting onto pumpkin can represent an interesting tool to minimize salinity stress. Physiological and anatomical studies. Middle East J. Agric. Res. 2017, 6, 953–975. [Google Scholar]
  5. Hasan, M.K.; El Sabagh, A.; Md, S.; Sikdar, I.; Alam, J.; Ratnasekera, D.; Barutcular, C.; Abdelaal, K.A.A.; Islam, M.S. Comparative adaptable agronomic traits of Blackgram and mungbean for saline lands. Plant Arch. 2017, 17, 589–593. [Google Scholar]
  6. ALKahtani, M.D.F.; Attia, K.A.; Hafez, Y.M.; Khan, N.; Eid, A.M.; Ali, M.A.M.; Abdelaal, K.A.A. Chlorophyll Fluorescence Parameters and Antioxidant Defense System Can Display Salt Tolerance of Salt Acclimated Sweet Pepper Plants Treated with Chitosan and Plant Growth Promoting Rhizobacteria. Agronomy 2020, 10, 1180. [Google Scholar] [CrossRef]
  7. Hafez, Y.; Elkohby, W.; Mazrou, Y.S.A.; Ghazy, M.; Elgamal, A.; Abdelaal, K.A. Alleviating the detrimental impacts of salt stress on morpho-hpysiological and yield characters of rice plants (Oryza sativa L.) using actosol, Nano-Zn and Nano-Si. Fresenius Environ. Bull. 2020, 29, 6882–6897. [Google Scholar]
  8. Abdelaal, K.A.A.; AlKahtani, M.D.F.; Attia, K.; Hafez, Y.; Király, L.; Künstler, A. The pivotal role of plant growth promoting bacteria in alleviating the adverse effects of drought and facilitating sustainable agriculture. Biology 2021, 10, 520. [Google Scholar] [CrossRef]
  9. AlKahtani, M.D.F.; Hafez, Y.M.; Attia, K.; Rashwan, E.; Husnain, L.A.; AlGwaiz, H.I.M.; Abdelaal, K.A.A. Evaluation of Silicon and Proline Application on the Oxidative Machinery in Drought-Stressed Sugar Beet. Antioxidants 2021, 10, 398. [Google Scholar] [CrossRef]
  10. Rashwan, E.; Alsohim, A.S.; El-Gammaal, A.; Hafez, Y.; Abdelaal, K.A.A. Foliar application of nano zink-oxide can alleviate the harmful effects of water deficit on some flax cultivars under drought conditions. Fresenius Environ. Bull. 2020, 29, 8889–8904. [Google Scholar]
  11. Abdelaal, K.A.A.; Attia, K.A.; Alamery, S.F.; El-Afry, M.M.; Ghazy, A.I.; Tantawy, D.S.; Al-Doss, A.A.; El-Shawy, E.S.E.; Abu-Elsaoud, A.M.; Hafez, Y.M. Exogenous Application of Proline and Salicylic Acid can Mitigate the Injurious Impacts of Drought Stress on Barley Plants Associated with Physiological and Histological Characters. Sustainability 2020, 12, 1736. [Google Scholar] [CrossRef] [Green Version]
  12. Sharar, M.; Saied, E.M.; Rodriguez, M.C.; Arenz, C.; Montes-Bayón, M.; Linscheid, M.W. Elemental Labelling and Mass Spectrometry for the Specific Detection of Sulfenic Acid Groups in Model Peptides: A Proof of Concept. Anal Bioanal Chem 2017, 409, 2015–2027. [Google Scholar] [CrossRef] [PubMed]
  13. EL Sabagh, A.; Hossain, A.; Barutçular, C.; Abdelaal, A.A.; Fahad, S.; Anjorin, F.B.; Islam, M.S.; Ratnasekera, D.; Kizilgeçi, F.; Yadav, S.; et al. Sustainable maize (Zea mays L.) production under drought stress by understanding its adverse effect, Survival mechanism and drought tolerance indices. J. Exp. Biol. Agric. Sci. 2018, 6, 282–295. [Google Scholar] [CrossRef]
  14. Abdelaal, K.A.A.; Rashed, S.H.; Ragab, A.; Hossian, A.; El Sabagh, A. Yield and quality of two sugar beet (Beta vulgaris L. ssp. vulgaris var. altissima Doll) cultivars are influenced by foliar application of salicylic Acid, irrigation timing, and planting density. Acta Agric. Slov. 2020, 115, 239–248. [Google Scholar] [CrossRef]
  15. Hafez, Y.M.; Attia, K.A.; Alamery, S.; Ghazy, A.; Al-Dosse, A.; Ibrahim, E.; Rashwan, E.; El-Maghraby, L.; Awad, A.; Abdelaal, K.A.A. Beneficial Effects of Biochar and Chitosan on Antioxidative Capacity, Osmolytes Accumulation, and Anatomical Characters of Water-Stressed Barley Plants. Agronomy 2020, 10, 630. [Google Scholar] [CrossRef]
  16. Abdelaal, K.A.A.; Elafry, M.; Abdel-Latif, I.; Elshamy, R.; Hassan, M.; Hafez, Y. Pivotal role of yeast and ascorbic acid in improvement the morpho-physiological characters of two wheat cultivars under water deficit stress in calcareous soil. Fresenius Environ. Bull. 2021, 30, 2554–2565. [Google Scholar]
  17. Omar, A.; Zayed, B.; Abdel Salam, A.; Hafez, Y.M.; Abdelaal, K.A.A. Folic acid as foliar application can improve growth and yield characters of rice plants under irrigation with drainage water. Fresenius Environ. Bull. 2020, 29, 9420–9428. [Google Scholar]
  18. Farooq, M.; Wahid, A.; Kobayashi, N.; Fujita, D.; Basra, S.M.A. Plant drought stress: Effects, mechanisms and management. Agron. Sustain. Dev. 2009, 29, 185–212. [Google Scholar] [CrossRef] [Green Version]
  19. Shahin, A.; Esmaeil, R.A.; Badr, M.; Abdelaal, K.A.A.; Hassan, F.A.S.; Hafez, Y.M. Phenotypic characterization of race-specific and slow rusting resistance to stem rust disease in promising wheat genotypes. Fresenius Environ. Bull. 2021, 30, 6223–6236. [Google Scholar]
  20. Esmail, S.M.; Omara, R.I.; Abdelaal, K.A.; Hafez, M. Histological and biochemical aspects of compatible and incompatible wheat-Puccinia striiformis interactions. Physiol. Mol. Plant Pathol. 2019, 106, 120–128. [Google Scholar] [CrossRef]
  21. El-Shawa, G.M.R.; Rashwan, E.M.; Abdelaal, K.A.A. Mitigating salt stress effects by exogenous application of proline and yeast extract on morphophysiological, biochemical and anatomical characters of calendula plants. Sci. J. Flowers Ornam. Plants 2020, 7, 461–482. [Google Scholar] [CrossRef]
  22. Hafez, Y.M.; Abdelaal, K.A. Investigation of susceptibility and resistance mechanisms of some Egyptian wheat cultivars (Triticum aestivum L.) inoculated with Blumeria graminis f.sp. tritici using certain biochemical, molecular characterization and SEM. J. Plant Prot. Path. Mansoura Univ. 2015, 6, 431–454. [Google Scholar] [CrossRef] [Green Version]
  23. Gaber, A.; Refat, M.S.; Belal, A.A.M.; El-Deen, I.M.; Hassan, N.; Zakaria, R.; Alhomrani, M.; Alamri, A.S.; Alsanie, W.F.; Saied, E.M. New Mononuclear and Binuclear Cu(II), Co(II), Ni(II), and Zn(II) Thiosemicarbazone Complexes with Potential Biological Activity: Antimicrobial and Molecular Docking Study. Molecules 2021, 26, 2288. [Google Scholar] [CrossRef] [PubMed]
  24. Abdelaal, K.A.A.; Hafez, Y.M.; El-Afry, M.M.; Tantawy, D.S.; Alshaal, T. Effect of some osmoregulators on photosynthesis, lipid peroxidation, antioxidative capacity and productivity of barley (Hordeum vulgare L.) under water deficit stress. Environ. Sci. Pollut. Res. 2018, 25, 30199–30211. [Google Scholar] [CrossRef] [PubMed]
  25. Bin-Jumah, M.; Abdel-Fattah, A.-F.M.; Saied, E.M.; El-Seedi, H.R.; Abdel-Daim, M.M. Acrylamide-Induced Peripheral Neuropathy: Manifestations, Mechanisms, and Potential Treatment Modalities. Environ Sci Pollut Res 2021, 28, 13031–13046. [Google Scholar] [CrossRef] [PubMed]
  26. Abdelaal, K.A.A.; El-Afry, M.; Metwaly, M.; Zidan, M.; Rashwan, E. Salt tolerance activation in faba bean plants using proline and salicylic acid associated with physio-biochemical and yield characters improvement. Fresenius Environ. Bull. 2021, 30, 3175–3186. [Google Scholar]
  27. Goswami, B.; Rankawat, R.; Gadi, B. Physiological and antioxidative responses associated with drought tolerance of Lasiurus sindicus Henr. Endemic to Thar desert. India. Rev. Bras. Bot. 2020, 43, 761–773. [Google Scholar]
  28. Singh, S.; Gupta, A.; Kaur, N. Diferential Responses of antioxidative defense system to long-term feld drought in wheat (Triticum aestivum L.) genotypes differing in drought tolerance. J. Agron. Crop Sci. 2012, 198, 185–195. [Google Scholar] [CrossRef]
  29. Hafez, Y.; Emeran, A.; Esmail, S.; Mazrou, Y.; Abdrabbo, D.; Abdelaal, K.H. Alternative treatments improve physiological characters, yield and tolerance of wheat plants under leaf rust disease stress. Fresenius Environ. Bull. 2020, 29, 4738–4748. [Google Scholar]
  30. Hafez, Y.M.; Abdelaal, K.A.A.; Badr, M.M.; Esmaeil, R. Control of Puccinia triticina the causal agent of wheat leaf rust disease using safety resistance inducers correlated with endogenously antioxidant enzymes up-regulation. Egypt. J. Biol. Pest Control 2017, 27, 1–10. [Google Scholar]
  31. AlKahtani, M.D.F.; Hafez, Y.M.; Attia, K.; Al-Ateeq, T.; Ali, M.A.M.; Hasanuzzaman, M.; Abdelaal, K.A.A. Bacillus thuringiensis and Silicon Modulate Antioxidant Metabolism and Improve the Physiological Traits to Confer Salt Tolerance in Lettuce. Plants 2021, 10, 1025. [Google Scholar] [CrossRef] [PubMed]
  32. ALKahtani, M.D.F.; Fouda, A.; Attia, K.; Al-Otaibi, F.; Eid, A.M.; Ewais, E.; Hijri, M.; St-Arnaud, M.; Hassan, S.; Khan, N.; et al. Isolation and Characterization of Plant Growth Promoting Endophytic Bacteria from Desert Plants and Their Application as Bioinoculants for Sustainable Agriculture. Agronomy 2020, 10, 1325. [Google Scholar] [CrossRef]
  33. Abdelaal, K.A.A. Pivotal Role of Bio and Mineral Fertilizer Combinations on Morphological, Anatomical and Yield Characters of Sugar Beet Plant (Beta vulgaris L.). Middle East J. Agric. Res. 2015, 4, 717–734. [Google Scholar]
  34. Abdelaal, K.A.A.; Tawfic, S. Response of Sugar Beet Plant (Beta vulgaris L.) to Mineral Nitrogen Fertilization and Bio-Fertilizers. Int. J. Curr. Microbiol. App. Sci. 2015, 4, 677–688. [Google Scholar]
  35. Abdelaal, K.A.A.; Badawy, S.A.; Abdel Aziz, R.M.; Neana, S.M.M. Effect of mineral nitrogen levels and biofertilizer on morphophysiological characters of three sweet sorghum varieties (Sorghum bicolor L. Moench). J. Plant Prod. Mansoura Univ. 2015, 6, 189–203. [Google Scholar]
  36. Hafez, Y.M.; Attia, K.A.; Kamel, S.; Alamery, S.; El-Gendy, S.; Al-Dosse, A.; Mehiar, F.; Ghazy, A.; Abdelaal, K.A.A. Bacillus subtilis as a bio-agent combined with nano molecules can control powdery mildew disease through histochemical and physiobiochemical changes in cucumber plants. Physiol. Mol. Plant Pathol. 2020, 111, 101489. [Google Scholar] [CrossRef]
  37. Abdelaal, K.A.A.; Mazrou, Y.S.A.; Hafez, Y.M. Silicon Foliar Application Mitigates Salt Stress in Sweet Pepper Plants by Enhancing Water Status, Photosynthesis, Antioxidant Enzyme Activity and Fruit Yield. Plants 2020, 9, 733. [Google Scholar] [CrossRef]
  38. Baranska, M.; Schulz, H.; Baranski, R.; Nothnagel, T.; Christensen, L.P. In situ simultaneous analysis of polyacetylenes, carotenoids and polysaccharides in carrot roots. J. Agric. Food Chem. 2005, 53, 6565–6571. [Google Scholar] [CrossRef]
  39. Kasim, W.A.; Nessem, A.A.; Gaber, A. Effect of seed priming with aqueous extracts of carrot roots, garlic cloves or ascorbic acid on the yield of Vicia faba grown under drought stress. Pak. J. Bot. 2019, 51, 1979–1985. [Google Scholar] [CrossRef] [Green Version]
  40. Armada, E.; Probanza, A.; Roldan, A.; Azcon, R. Native plant growth promoting Bacillus thuringiensis and mixed or individual mycorrhizal species improved drought tolerance and oxidative metabolism in Lavandula dentata plants. J. Plant Physiol. 2016, 192, 1–12. [Google Scholar] [CrossRef]
  41. Sofowora, A. Medicinal plants and traditional medicine in Africa; John Wiley: Chichester, UK, 1982; p. 179. [Google Scholar]
  42. Page, A.L. Methods of Soil Analysis. Part 2, Chemical and Microbiological Properties, 2nd ed.; Soil Science Society of America Inc.: Madison, WI, USA, 1982. [Google Scholar]
  43. Lichtenthaler, H.K. Chlorophylls and Carotenoids: Pigments of Photosynthetic Biomembranes. Methods Enzymol. 1987, 148, 350–382. [Google Scholar]
  44. Khan, N.; Bano, A.; Ali, S.; Babar, M.A. Crosstalk amongst phytohormones from plants and PGPR under biotic and abiotic stresses. Plant Growth Regul. 2020, 90, 189–203. [Google Scholar] [CrossRef]
  45. Sanchez, F.J.; de Andrés, E.F.; Tenorio, J.L.; Ayerbe, L. Growth of epicotyls, turgor maintenance and osmotic adjustment in pea plants (Pisum sativum L.) subjected to water stress. Field Crop. Res. 2004, 86, 81–90. [Google Scholar] [CrossRef]
  46. Bates, L.S.; Waldren, R.P.; Teare, I.D. Rapid determination of free proline for water-stress studies. Plant Soil 1973, 39, 205–207. [Google Scholar] [CrossRef]
  47. Davenport, S.B.; Gallego, S.M.; Benavides, M.P.; Tomaro, M.L. Behaviour of antioxidant defense system in the adaptive response to salt stress in Helianthus annuus L. cells. Plant Growth Regul. 2003, 40, 81–88. [Google Scholar] [CrossRef]
  48. Szalai, G.; Janda, T.; Padi, E.; Szigeti, Z. Role of light in post-chilling symptoms in maize. J. Plant Physiol. 1996, 148, 378–383. [Google Scholar] [CrossRef]
  49. Velikova, V.; Yordanov, I.; Edreva, A. Oxidative stress and some antioxidant systems in acid rain-treated bean plants. Plant Science 2000, 151, 59–66. [Google Scholar] [CrossRef]
  50. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein-dye binding. Anal. Biochem. 1976, 72, 248–254. [Google Scholar] [CrossRef]
  51. Havir, E.A.; McHale, N.A. Biochemical and developmental characterization of multiple forms of catalase in tobacco leaves. Plant Physiol. 1987, 84, 450–455. [Google Scholar] [CrossRef] [Green Version]
  52. Giannopolitis, C.N.; Ries, S.K. Superoxide dismutases: I. Occurrence in higher plants. Plant Physiol. 1977, 59, 309–314. [Google Scholar] [CrossRef]
  53. Gomez, K.A.; Gomez, A.A. Statistical Procedures for Agricultural Research, 2nd ed.; Wiley Inter Science: New York, NY, USA, 1984; pp. 1–690. [Google Scholar]
  54. Duncan, B.D. Multiple ranges and multiple F-test. Biometrics 1955, 11, 1–42. [Google Scholar] [CrossRef]
  55. Paine, J.A.; Shipton, C.A.; Chaggar, S. Improving the nutritional value of Golden Rice through increased pro-vitamin A content. Nature Biotechnol. 2005, 23, 482–487. [Google Scholar] [CrossRef]
  56. Verslues, P.E. Time to grow: Factors that control plant growth during mild to moderate drought stress. Plant Cell Environ. 2017, 40, 177–179. [Google Scholar] [CrossRef] [PubMed]
  57. Gupta, A.; Medina-Rico, A.; Delgado-Cano, A. The physiology of plant responses to drought. Science 2020, 368, 266–269. [Google Scholar] [CrossRef] [PubMed]
  58. Naseem, H.; Ahsan, M.; Shahid, M.A.; Khan, N. Exopolysaccharides producing rhizobacteria and their role in plant growth and drought tolerance. J. Basic. Microbiol. 2018, 58, 1009–1022. [Google Scholar] [CrossRef] [PubMed]
  59. Ghaffaria, H.; Tadayona, M.R.; Bahadora, M.; Razmjoo, J. Investigation of the proline role in controlling traits related to sugar and root yield of sugar beet under water deficit conditions. Agric. Water Manag. 2021, 243, 106448. [Google Scholar] [CrossRef]
  60. Wutipraditkul, N.; Wongwean, P.; Buaboocha, T. Alleviation of salt-induced oxidative stress in rice seedlings by proline and/or glycine betaine. Biol Plant 2015, 59, 547–553. [Google Scholar] [CrossRef]
  61. Sharma, S.; Villamor, J.G.; Verslues, P.E. Essential role of tissue specific proline synthesis and catabolism in growth and redox balance at low water potential. Plant Physiol 2011, 157, 292–304. [Google Scholar] [CrossRef] [Green Version]
  62. Chung, W.-H. Unraveling new functions of superoxide dismutase using yeast model system: Beyond its conventional role in superoxide radical scavenging. J. Microbiol. 2017, 55, 409–416. [Google Scholar] [CrossRef]
  63. Li, J.; Cang, Z.; Jiao, F.; Bai, X.; Zhang, D.; Zhai, R. Influence of drought stress on photosynthetic characteristics and protectiveenzymes of potato at seedling stage. J. Saudi Soc. Agric. Sci. 2017, 16, 82–88. [Google Scholar]
  64. Shah, G.; Jan, M.; Afreen, M.; Anees, M.; Rehman, S.; Daud, M.K.; Malook, I.; Jamil, M. Halophilic bacteria mediated phytoreme-diation of salt-affected soils cultivated with rice. J. Geochem. Explor. 2017, 174, 59–65. [Google Scholar] [CrossRef]
  65. Waraich, E.A.; Ahmad, R.; Ehsanullah, M.Y. Role of mineral nutrition in alleviation of drought stress in plants. Aust. J. Crop Sci. 2011, 5, 764–777. [Google Scholar]
  66. Mohamed, H.I.; Akladious, S.A. Influence of garlic extract on enzymatic and non-enzymatic antioxidants in soybean plants (Glycine max) grown under drought stress. Life Sci. J. 2014, 11, 46–58. [Google Scholar]
Plants 10 02201 g001 550

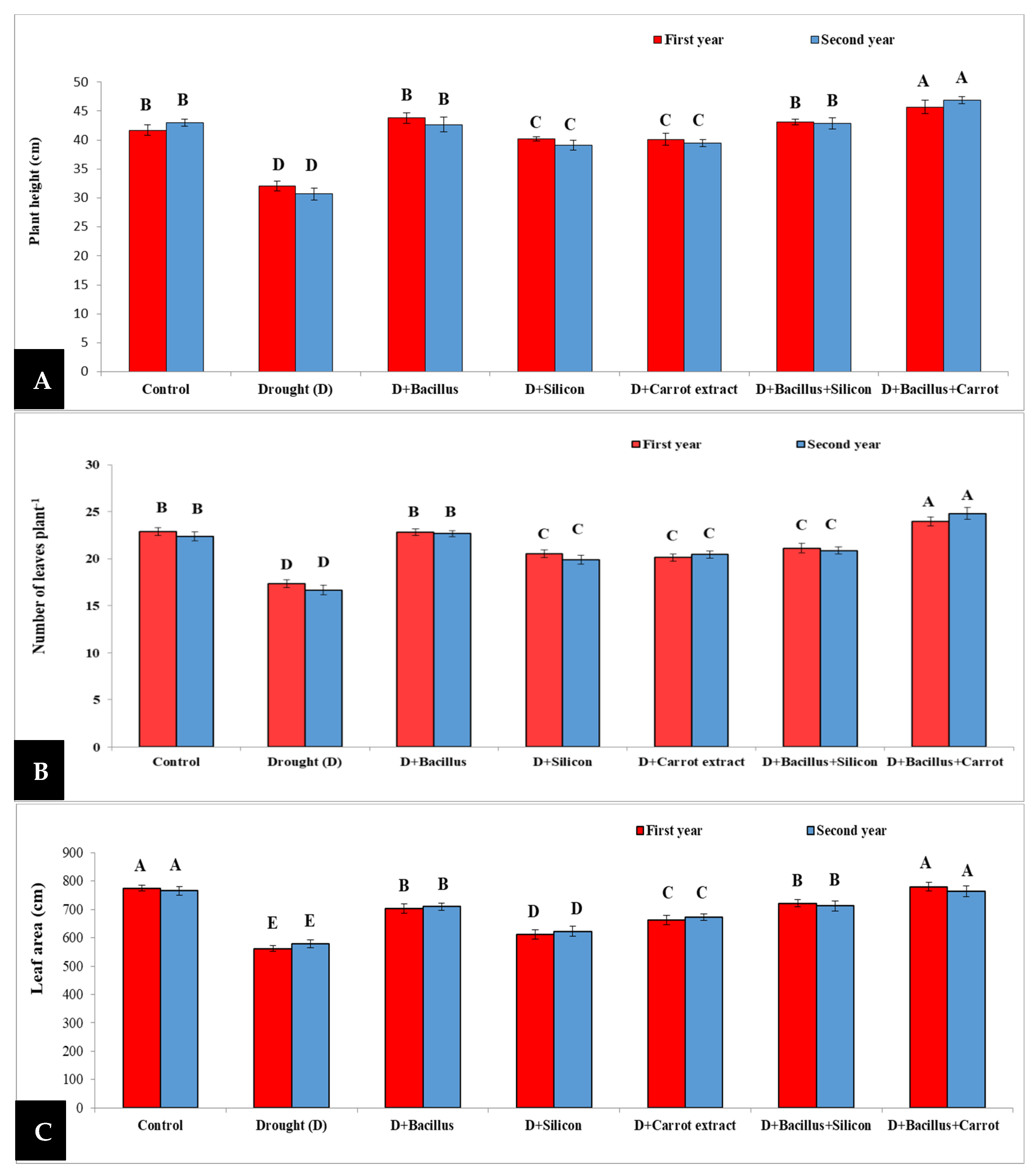

Figure 1. Effect of Bacillus thuringiensis, silicon, and carrot extract on plant height (A), number of leaves (B), and leaf area (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 1. Effect of Bacillus thuringiensis, silicon, and carrot extract on plant height (A), number of leaves (B), and leaf area (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g001
Plants 10 02201 g002 550

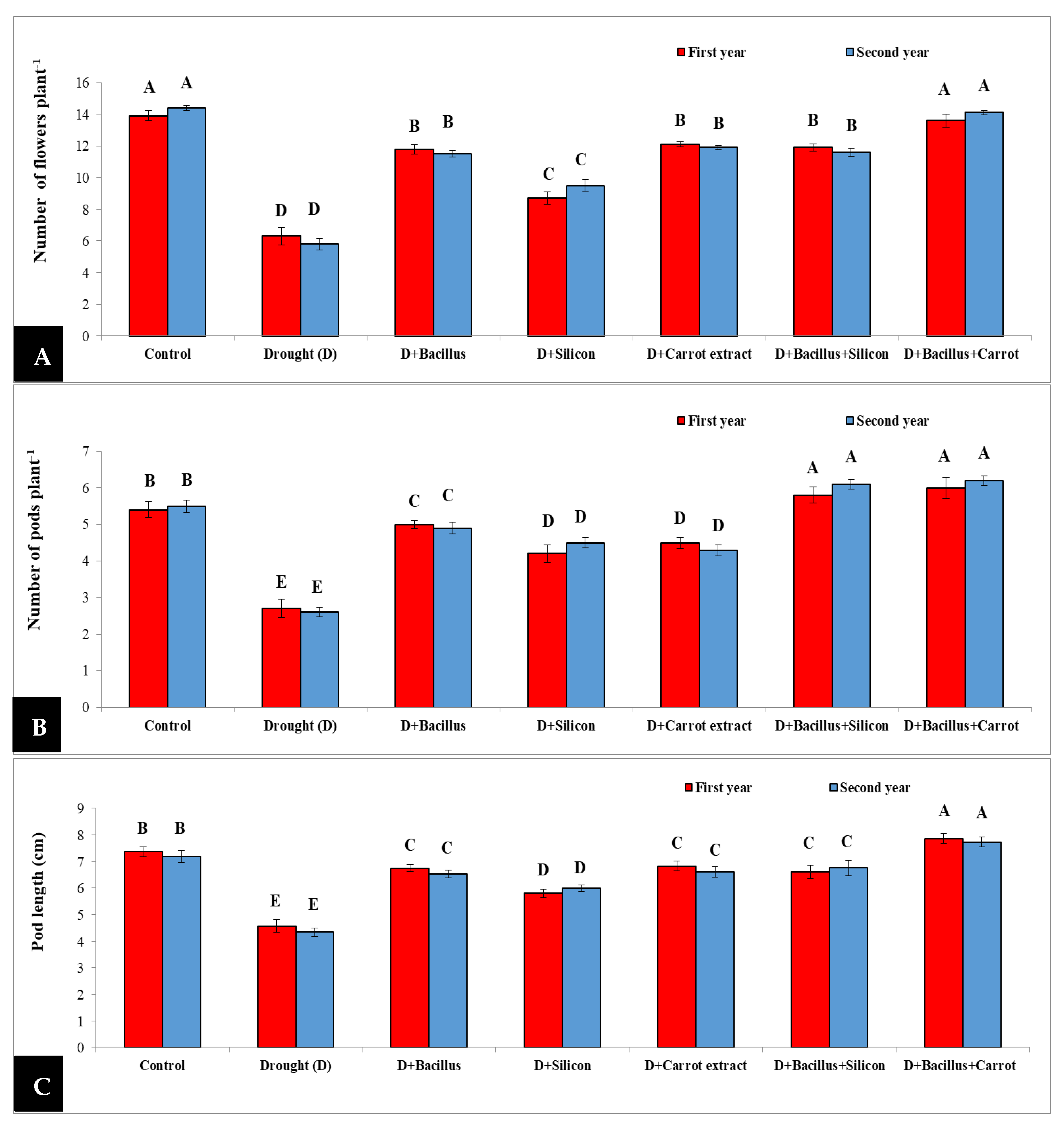

Figure 2. Effect of Bacillus thuringiensis, silicon and carrot extract on number of flowers plant−1 (A), number of pods plant−1 (B) and pod length (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 2. Effect of Bacillus thuringiensis, silicon and carrot extract on number of flowers plant−1 (A), number of pods plant−1 (B) and pod length (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g002
Plants 10 02201 g003 550

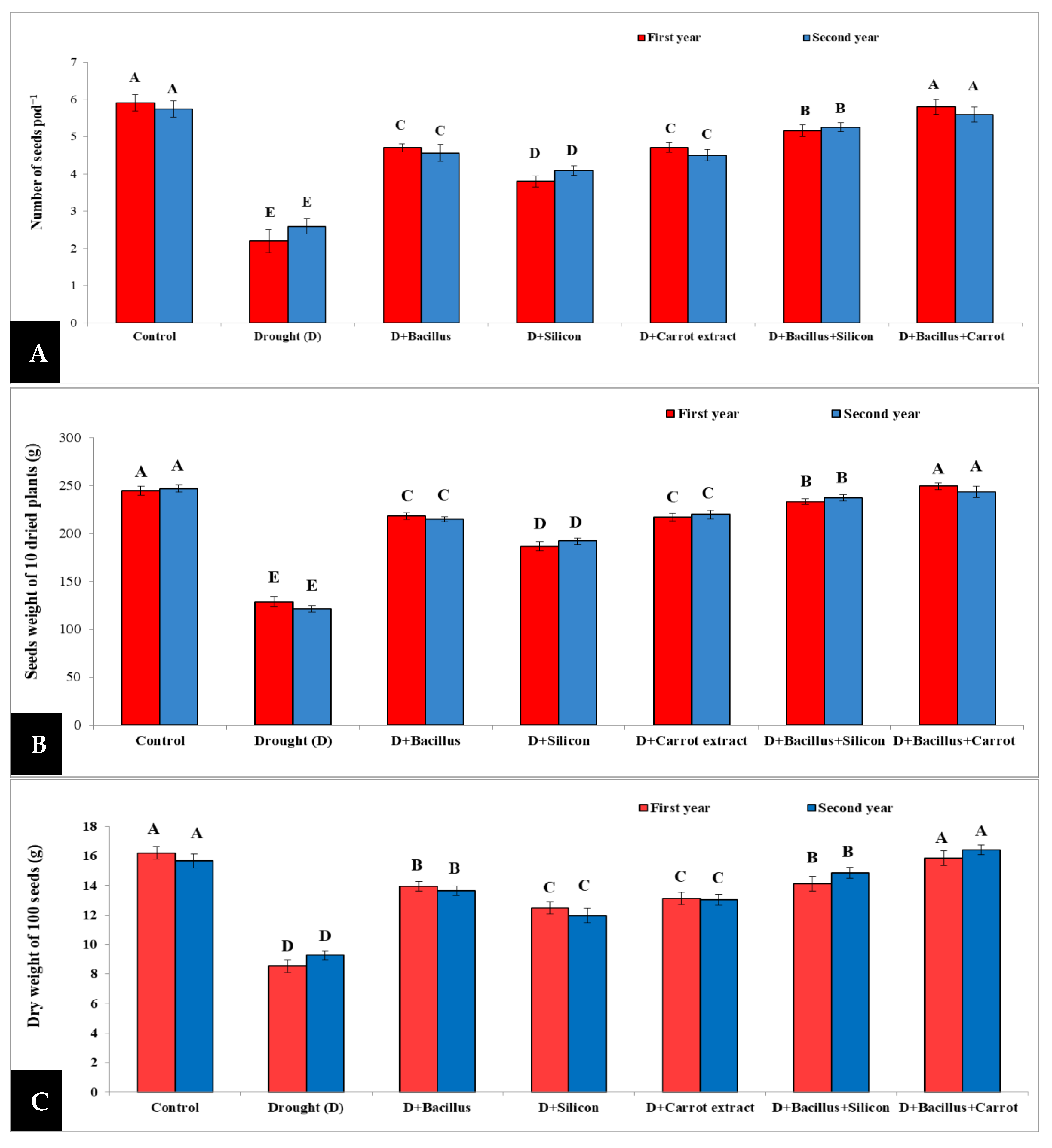

Figure 3. Effect of Bacillus thuringiensis, silicon and carrot extract on number of seeds pod−1 (A), seeds weight of 10 dried plants (B), and dry weight of 100 seeds (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 3. Effect of Bacillus thuringiensis, silicon and carrot extract on number of seeds pod−1 (A), seeds weight of 10 dried plants (B), and dry weight of 100 seeds (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g003
Plants 10 02201 g004 550

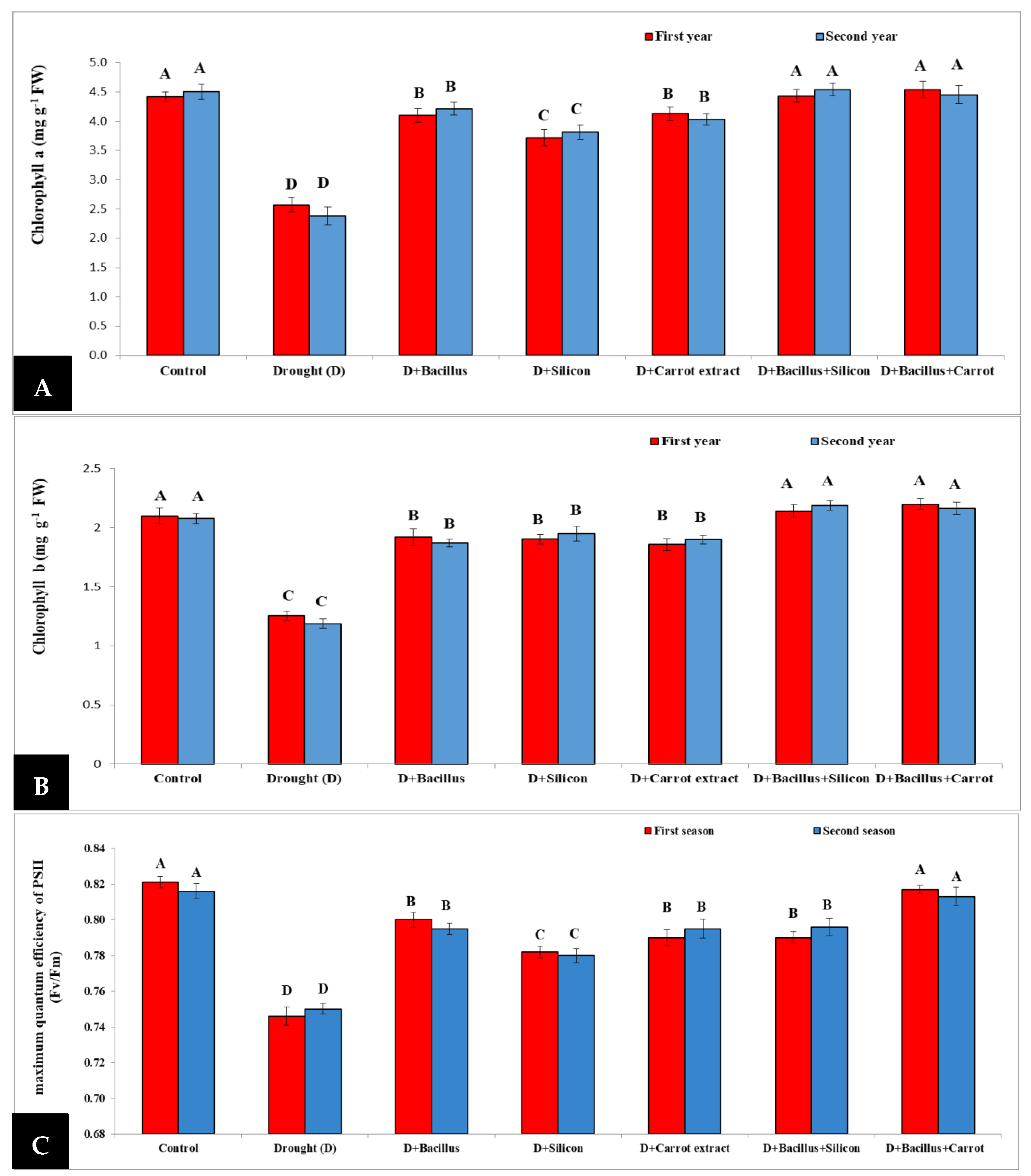

Figure 4. Effect of Bacillus thuringiensis, silicon and carrot extract on chlorophyll a (A), chlorophyll b (B) and maximum quantum efficiency of PS II (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 4. Effect of Bacillus thuringiensis, silicon and carrot extract on chlorophyll a (A), chlorophyll b (B) and maximum quantum efficiency of PS II (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g004
Plants 10 02201 g005a 550Plants 10 02201 g005b 550
Figure 5. Effect of Bacillus thuringiensis, silicon, and carrot extract on relative water content (A), proline concentration (B) and lipid peroxidation (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 5. Effect of Bacillus thuringiensis, silicon, and carrot extract on relative water content (A), proline concentration (B) and lipid peroxidation (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g005aPlants 10 02201 g005b
Plants 10 02201 g006 550
Figure 6. Effect of Bacillus thuringiensis, silicon and carrot extract on electrolyte leakage (A), hydrogen peroxide level (B) and superoxide level (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 6. Effect of Bacillus thuringiensis, silicon and carrot extract on electrolyte leakage (A), hydrogen peroxide level (B) and superoxide level (C) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g006
Plants 10 02201 g007 550
Figure 7. Effect of Bacillus thuringiensis, silicon and carrot extract on catalase activity (CAT) (A) and superoxide dismutase (SOD) (B) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Figure 7. Effect of Bacillus thuringiensis, silicon and carrot extract on catalase activity (CAT) (A) and superoxide dismutase (SOD) (B) of drought-stressed pea plants during 2019/2020 and 2020/2021 seasons. Different letters on the columns show significant differences between the treatments according to ANOVA, and Duncan’s post hoc test when the result of the omnibus multivariate F-test in ANOVA was significant (p ≤ 0.05). Data is the mean (±SE) of five replicates.
Plants 10 02201 g007
Table
Table 1. Chemical characters of the experimental soil during two growing seasons before conducting the experiments.
Table 1. Chemical characters of the experimental soil during two growing seasons before conducting the experiments.
SeasonsPH* EC
Ds/m		Mechanical AnalysisOrganic Matter (%)Total N (%)Total P (ppm)
Sand %Silt %Clay %
2019/20208.150.4722.1323.8947.881.790.1590.024
2020/20218.040.4922.3324.1246.541.820.1510.022
SeasonsSoluble cations
Meq/L
Na+K+Ca++Mg++SO4−−Cl−
2019/20202.090.182.072.542.130.46
2020/20212.160.152.032.281.860.51
* EC = Electrical conductivity.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arafa, S.A.; Attia, K.A.; Niedbała, G.; Piekutowska, M.; Alamery, S.; Abdelaal, K.; Alateeq, T.K.; A. M. Ali, M.; Elkelish, A.; Attallah, S.Y. Seed Priming Boost Adaptation in Pea Plants under Drought Stress. Plants 2021, 10, 2201. https://doi.org/10.3390/plants10102201

AMA Style

Arafa SA, Attia KA, Niedbała G, Piekutowska M, Alamery S, Abdelaal K, Alateeq TK, A. M. Ali M, Elkelish A, Attallah SY. Seed Priming Boost Adaptation in Pea Plants under Drought Stress. Plants. 2021; 10(10):2201. https://doi.org/10.3390/plants10102201

Chicago/Turabian Style

Arafa, Sally A., Kotb A. Attia, Gniewko Niedbała, Magdalena Piekutowska, Salman Alamery, Khaled Abdelaal, Talal K. Alateeq, Mohamed A. M. Ali, Amr Elkelish, and Shreen Y. Attallah. 2021. "Seed Priming Boost Adaptation in Pea Plants under Drought Stress" Plants 10, no. 10: 2201. https://doi.org/10.3390/plants10102201

APA Style

Arafa, S. A., Attia, K. A., Niedbała, G., Piekutowska, M., Alamery, S., Abdelaal, K., Alateeq, T. K., A. M. Ali, M., Elkelish, A., & Attallah, S. Y. (2021). Seed Priming Boost Adaptation in Pea Plants under Drought Stress. Plants, 10(10), 2201. https://doi.org/10.3390/plants10102201

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
