Registration of Multi-Sensor Bathymetric Point Clouds in Rural Areas Using Point-to-Grid Distances

1
Photogrammetry and Remote Sensing, Technical University of Munich, 80333 Munich, Germany
2
Steinbacher Consult Ingenieurgesellschaft GmbH & Co. KG, Neusaess, 86356 Augsburg, Germany
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2019, 8(4), 178; https://doi.org/10.3390/ijgi8040178
Received: 20 March 2019 / Revised: 25 March 2019 / Accepted: 2 April 2019 / Published: 5 April 2019
(This article belongs to the Special Issue Multi-Source Geoinformation Fusion)
  |
PDF [27576 KB, uploaded 5 April 2019]
  |

Abstract

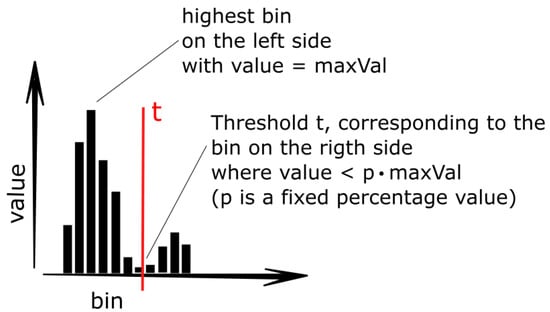

This article proposes a method for registration of two different point clouds with different point densities and noise recorded by airborne sensors in rural areas. In particular, multi-sensor point clouds with different point densities are considered. The proposed method is marker-less and uses segmented ground areas for registration.Therefore, the proposed approach offers the possibility to fuse point clouds of different sensors in rural areas within an accuracy of fine registration. In general, such registration is solved with extensive use of control points. The source point cloud is used to calculate a DEM of the ground which is further used to calculate point to raster distances of all points of the target point cloud. Furthermore, each cell of the raster DEM gets a height variance, further addressed as reconstruction accuracy, by calculating the grid. An outlier removal based on a dynamic threshold of distances is used to gain more robustness against noise and small geometry variations. The transformation parameters are calculated with an iterative least-squares optimization of the distances weighted with respect to the reconstruction accuracies of the grid. Evaluations consider two flight campaigns of the Mangfall area inBavaria, Germany, taken with different airborne LiDAR sensors with different point density. The accuracy of the proposed approach is evaluated on the whole flight strip of approximately eight square kilometers as well as on selected scenes in a closer look. For all scenes, it obtained an accuracy of rotation parameters below one tenth degrees and accuracy of translation parameters below the point spacing and chosen cell size of the raster. Furthermore, the possibility of registration of airborne LiDAR and photogrammetric point clouds from UAV taken images is shown with a similar result. The evaluation also shows the robustness of the approach in scenes where a classical iterative closest point (ICP) fails. View Full-Text
Keywords: airborne point clouds; registration; DEM; multi-sensor airborne point clouds; registration; DEM; multi-sensor
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
