Shallow Landslide Susceptibility Mapping in Sochi Ski-Jump Area Using GIS and Numerical Modelling

1
Department of Engineering and Ecological Geology, Faculty of Geology, Lomonosov Moscow State University, 119991 Moscow, Russia
2
Key Laboratory of Hydraulic and Waterway Engineering of Ministry of Education/National Engineering Research Center for Inland Waterway Regulation, Chongqing Jiaotong University, Chongqing 400074, China
3
Key Laboratory of Environmental Change and Natural Disaster of Ministry of Education/Academy of Disaster Reduction and Emergency Management, Faculty of Geographical Science, Beijing Normal University, Beijing 100875, China
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2019, 8(3), 148; https://doi.org/10.3390/ijgi8030148
Received: 30 January 2019 / Revised: 11 March 2019 / Accepted: 15 March 2019 / Published: 19 March 2019
(This article belongs to the Special Issue Geospatial Approaches to Landslide Mapping and Monitoring)
  |
PDF [42928 KB, uploaded 27 March 2019]
  |

Abstract

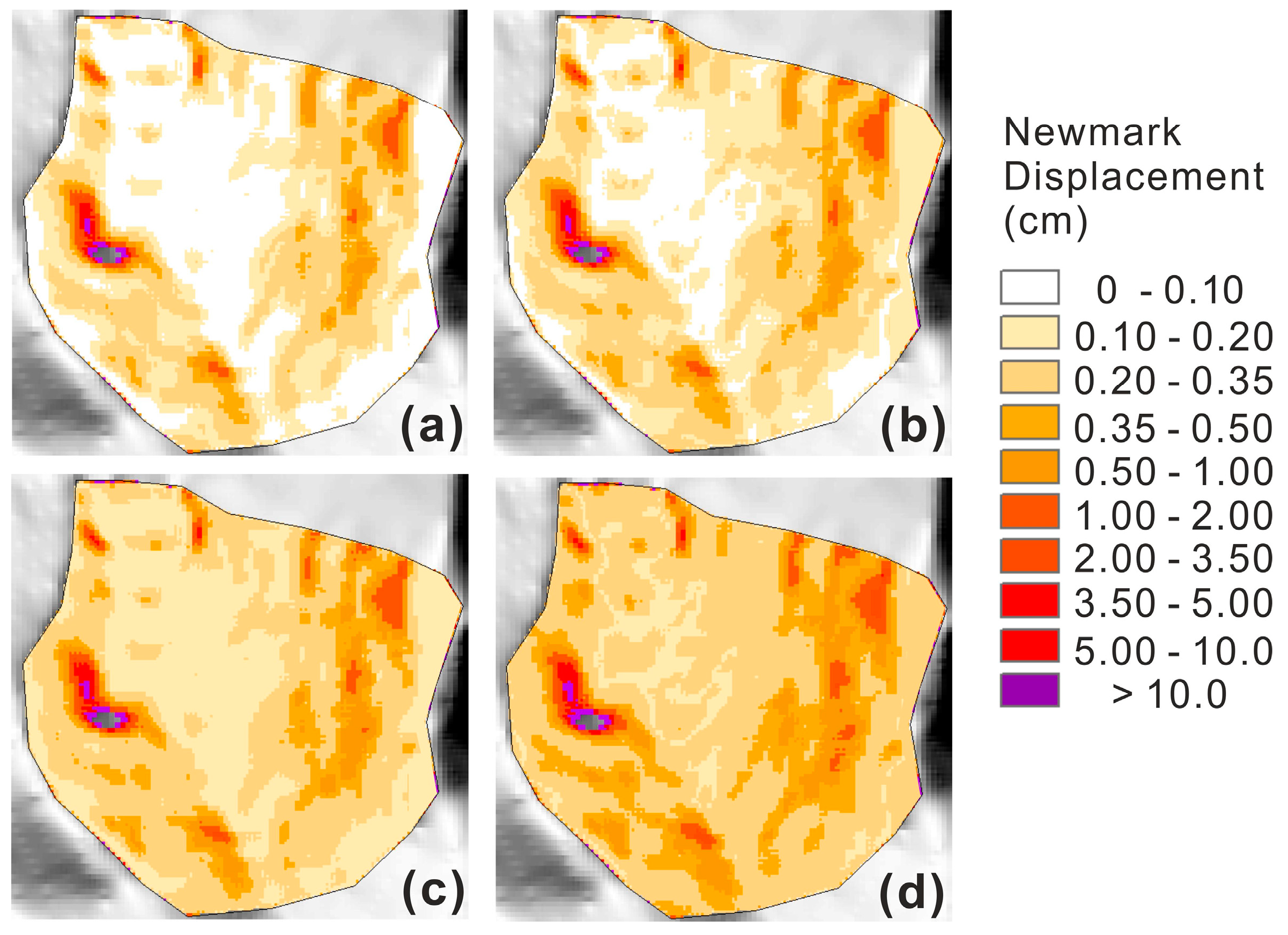

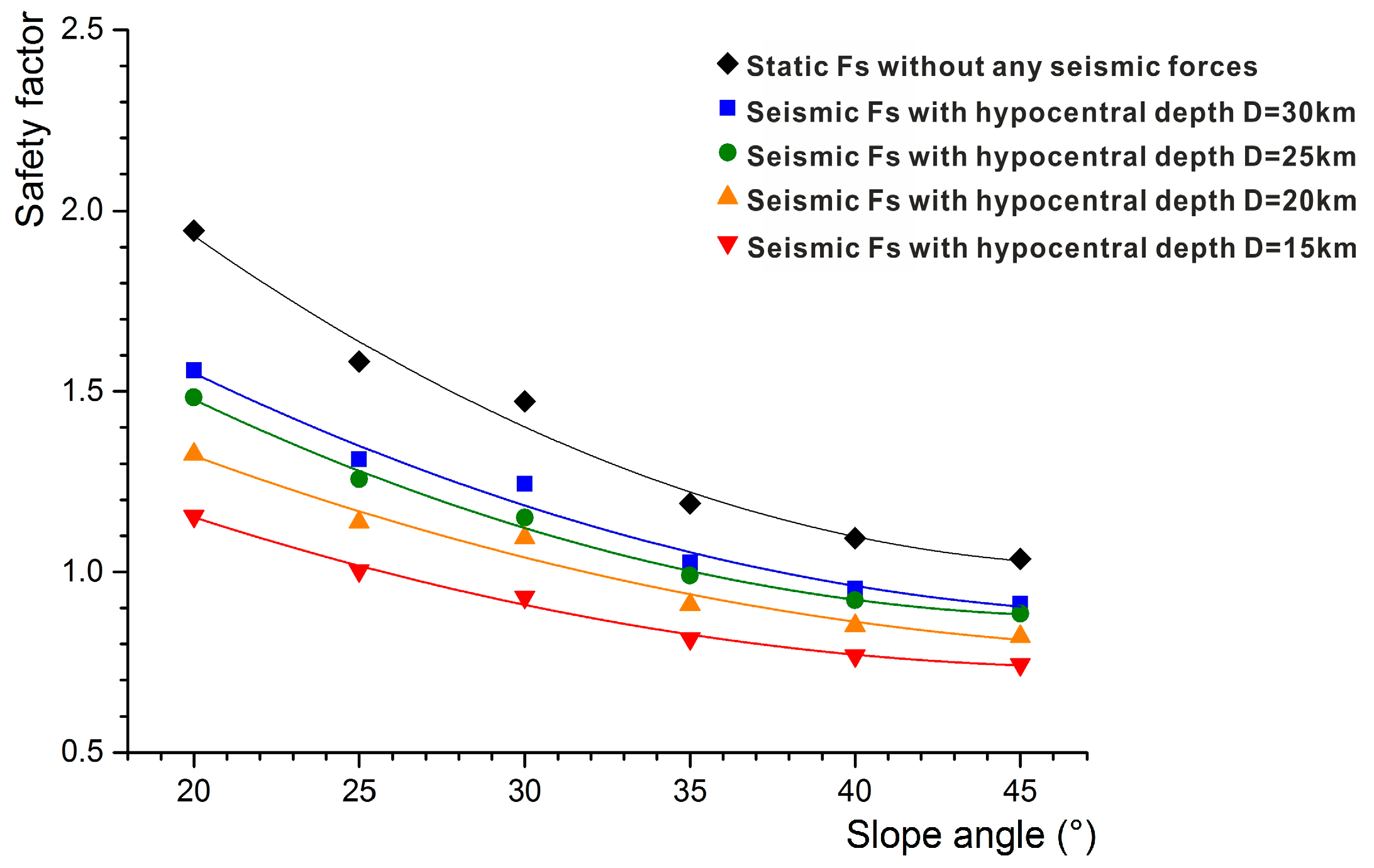

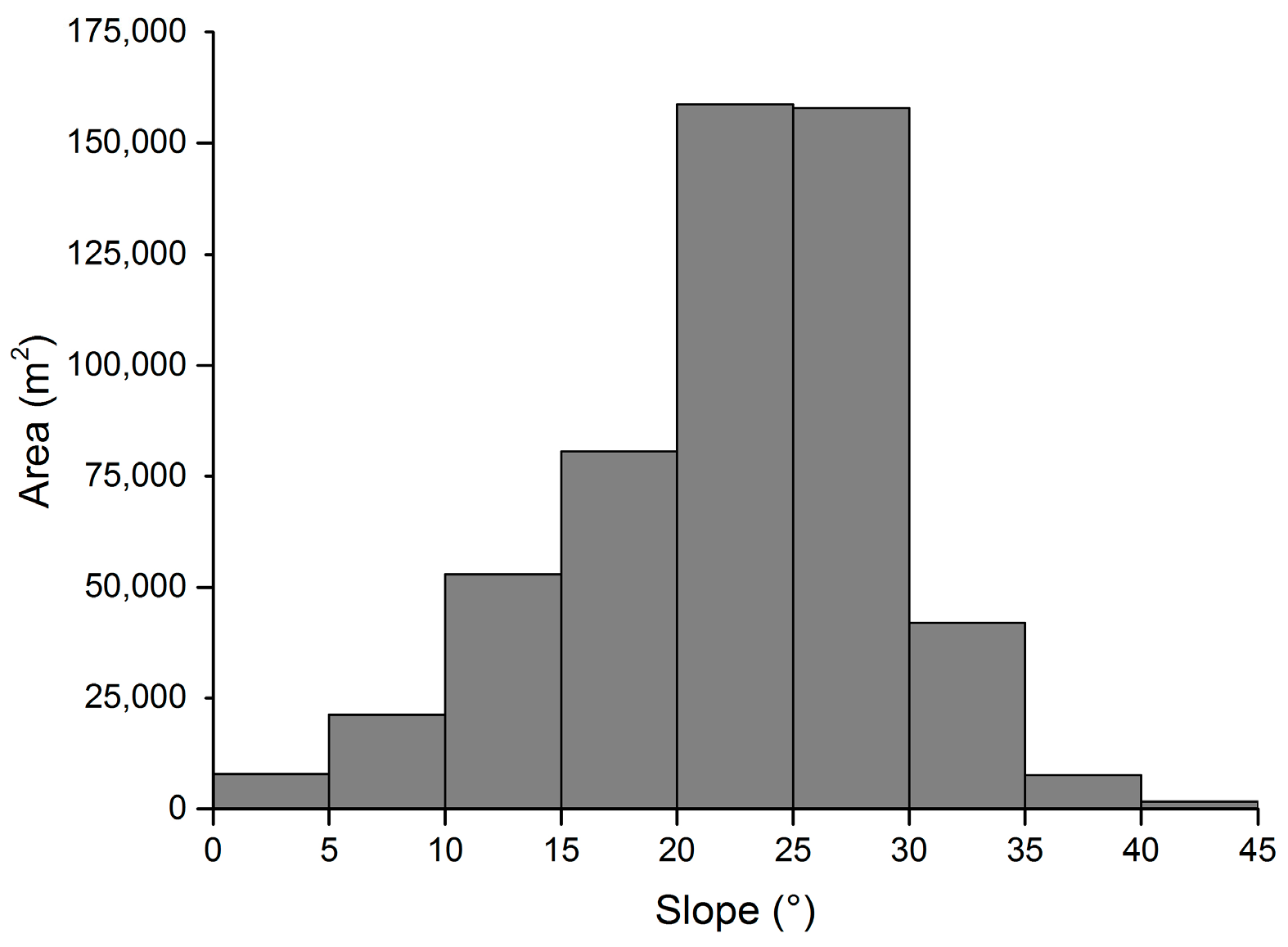

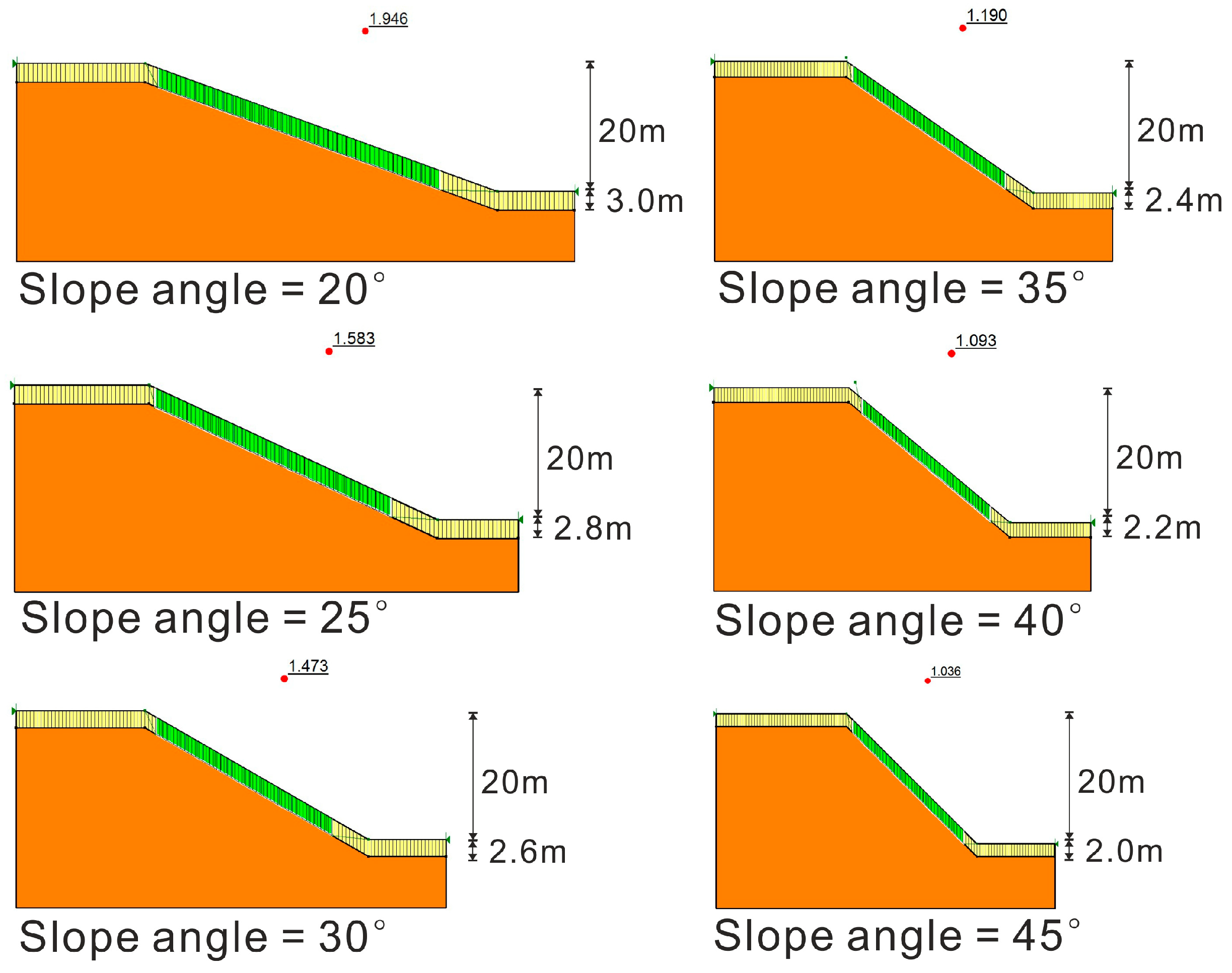

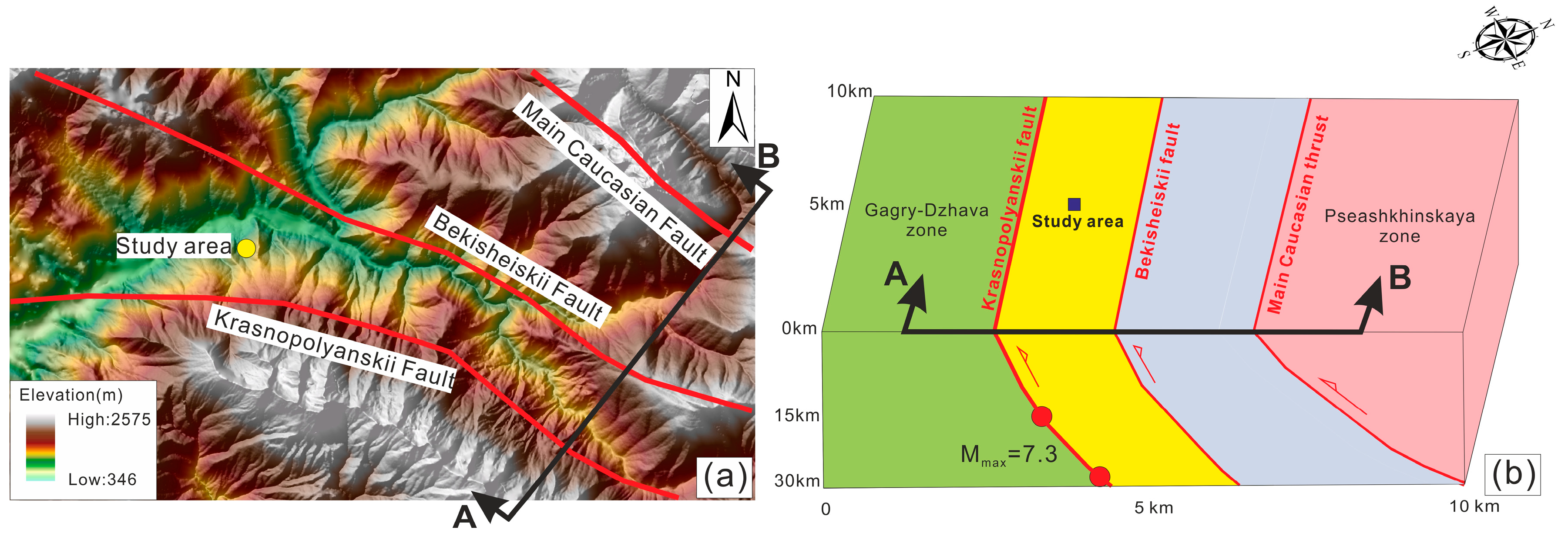

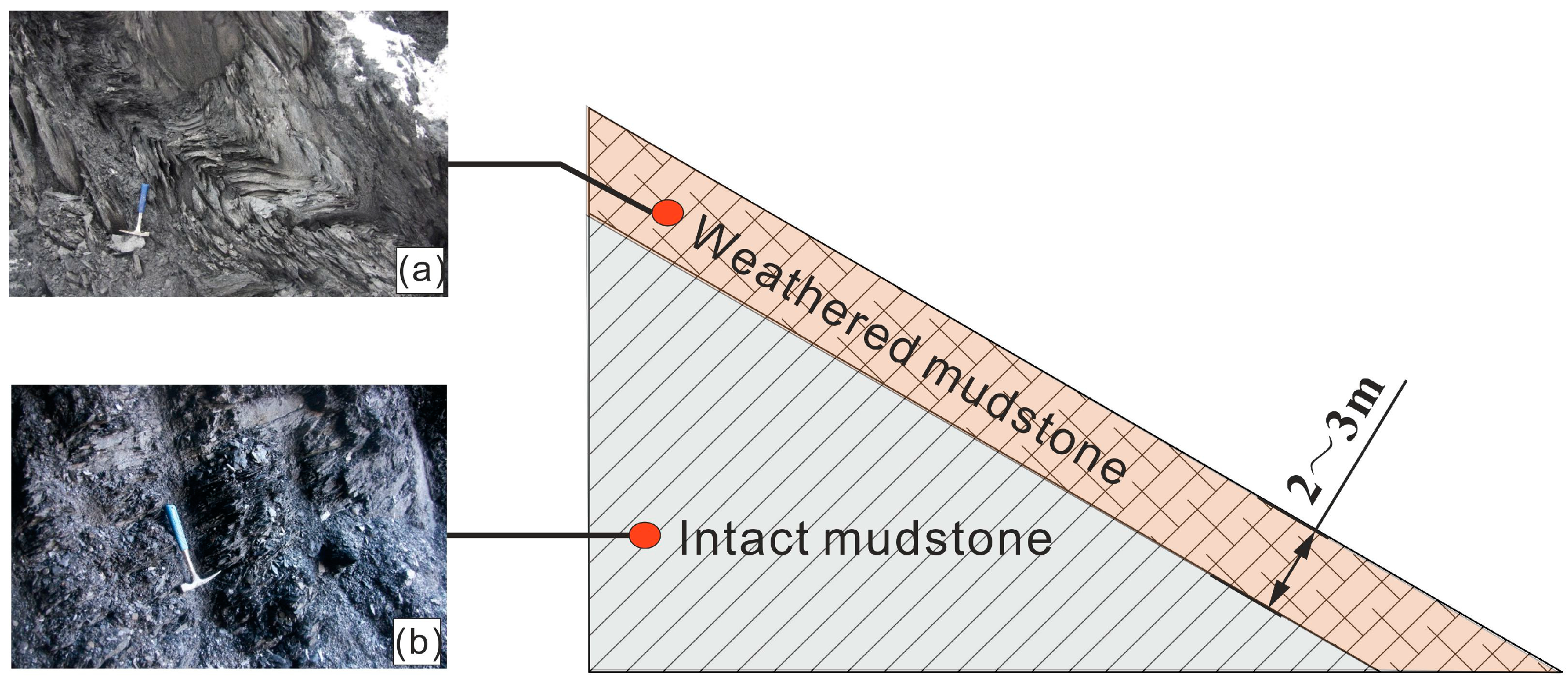

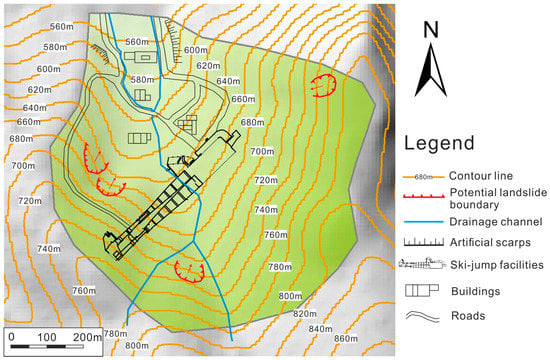

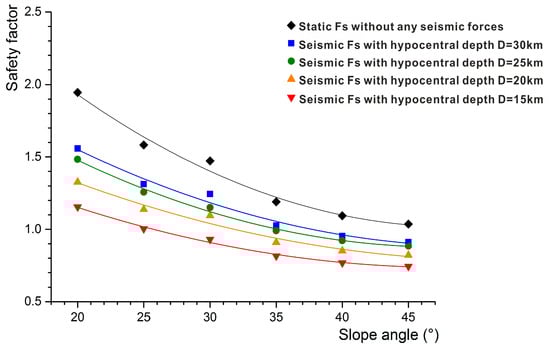

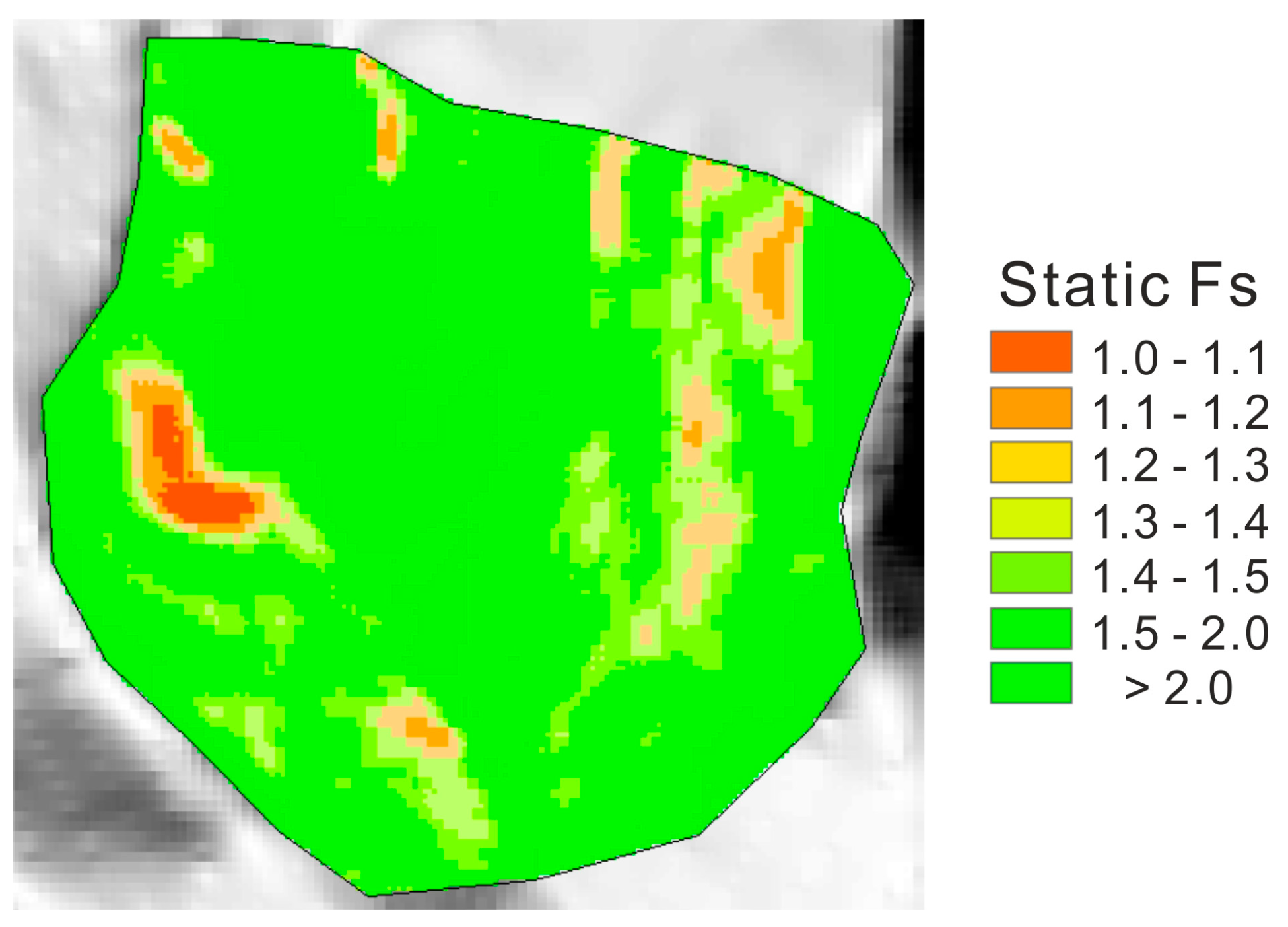

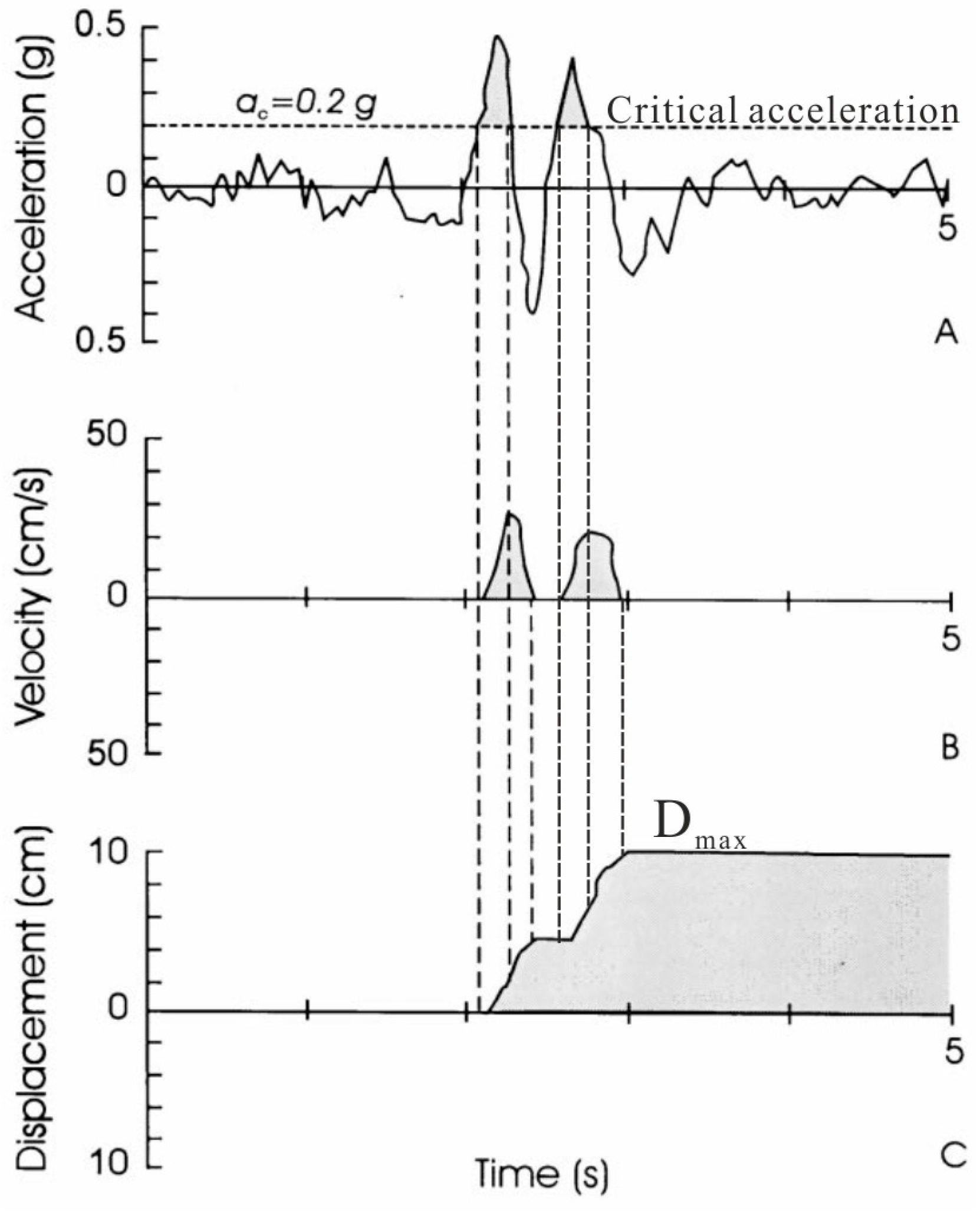

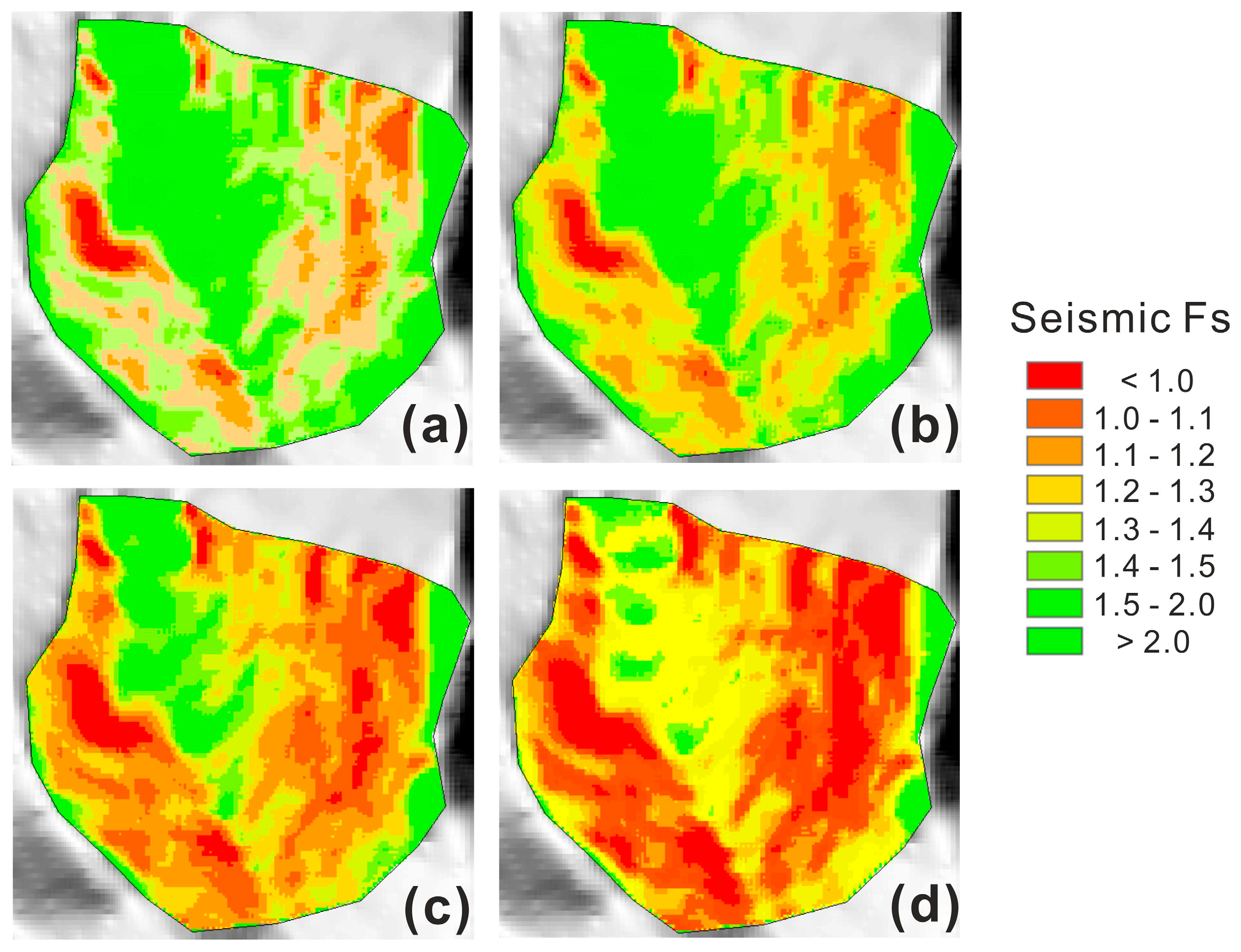

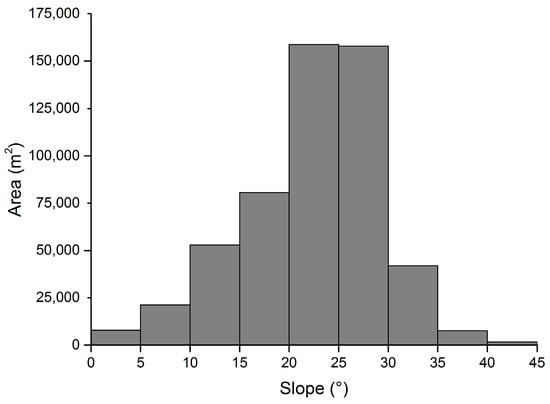

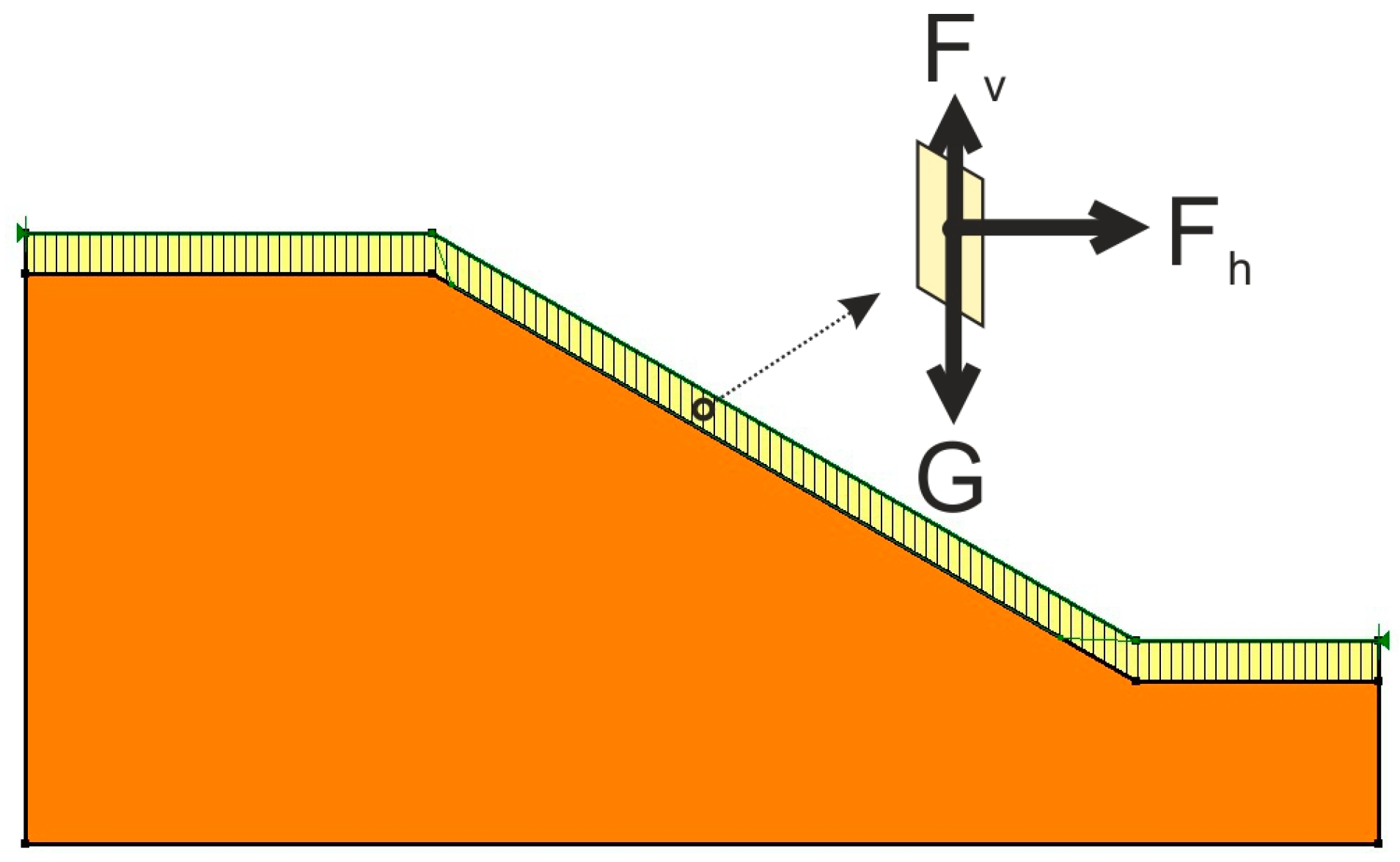

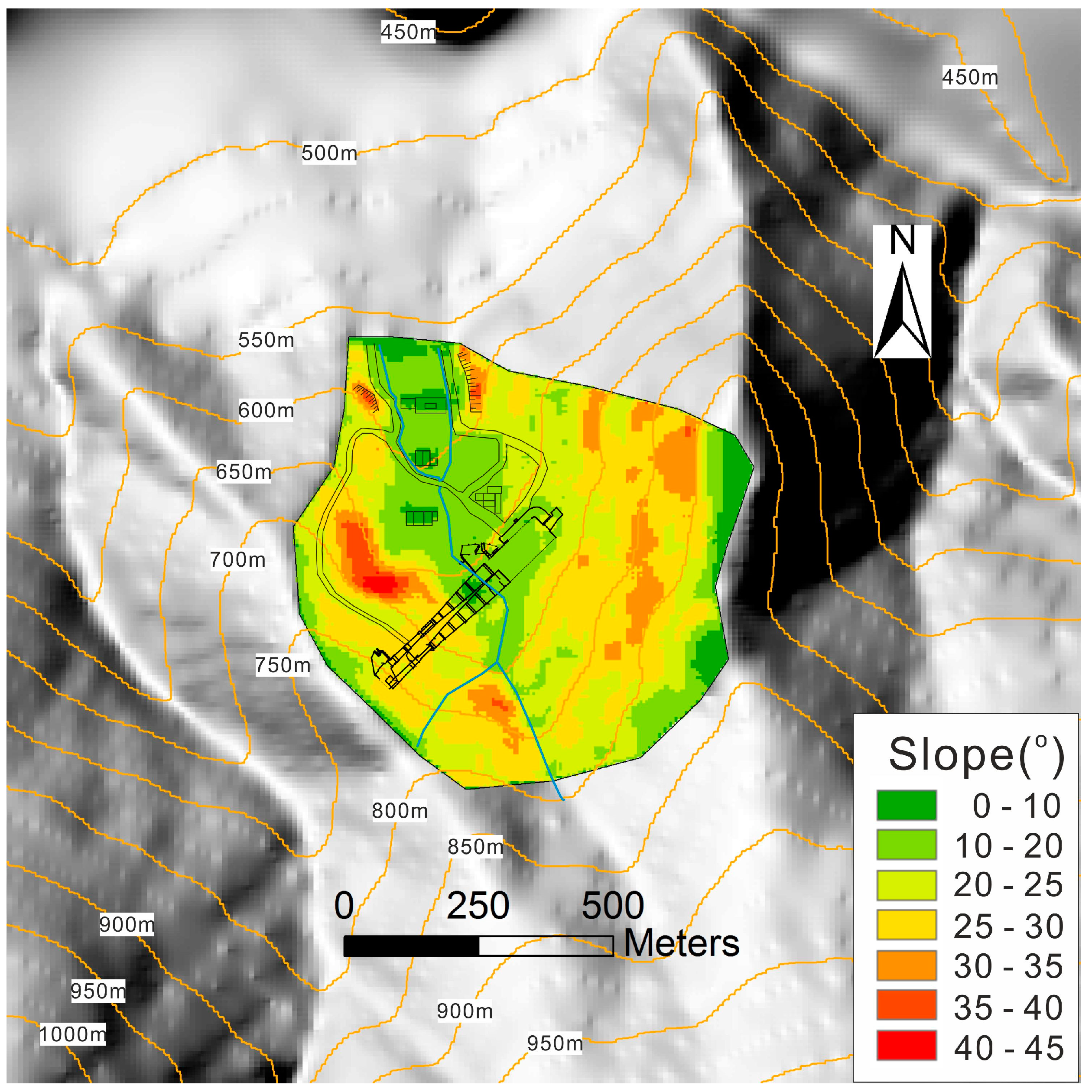

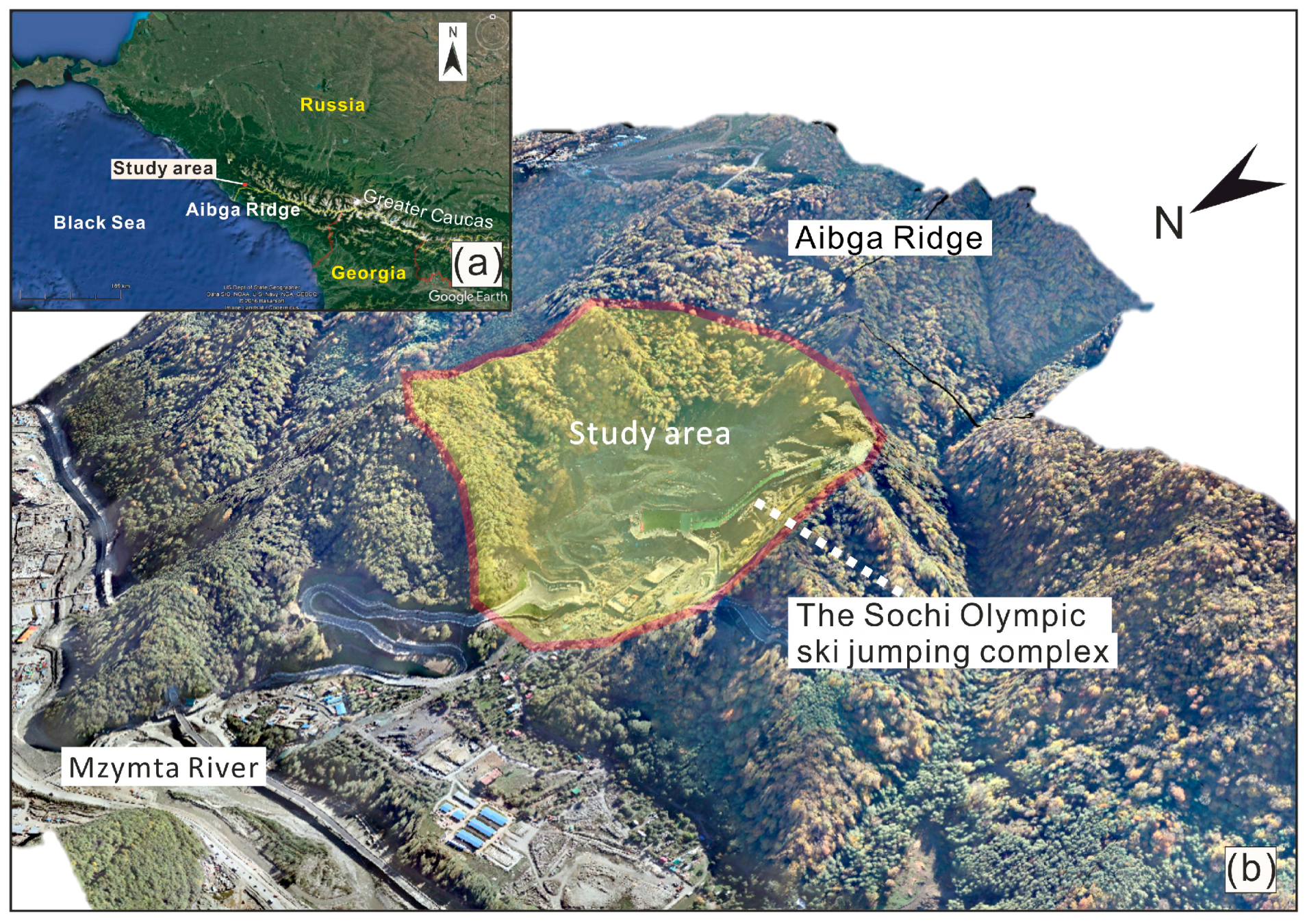

The mountainous region of Greater Sochi, including the Olympic ski-jump complex area, located in the northern Caucasus, is always subjected to landslides. The weathered mudstone of low strength and potential high-intensity earthquakes are considered as the crucial factors causing slope instability in the ski-jump complex area. This study aims to conduct a seismic slope instability map of the area. A slope map was derived from a digital elevation model (DEM) and calculated using ArcGIS. The numerical modelling of slope stability with various slope angles was conducted using Geostudio. The Spencer method was applied to calculate the slope safety factors (Fs). The pseudostatic analysis was used to compute Fs considering seismic effect. A good correlation between Fs and slope angle was found. Combining these data, sets slope instability maps were achieved. Newmark displacement maps were also drawn according to empirical regression equations. The result shows that the static safety factor map corresponds to the existing slope instability locations in a shallow landslide inventory map. The seismic safety factor maps and Newmark displacement maps may be applied to predict potential landslides of the study area in the case of earthquake occurrence. View Full-Text
Keywords: landslide; GIS; slope stability; safety factor; numerical modelling; seismic effect; Newmark displacement; Sochi landslide; GIS; slope stability; safety factor; numerical modelling; seismic effect; Newmark displacement; Sochi
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kang, K.; Ponomarev, A.; Zerkal, O.; Huang, S.; Lin, Q. Shallow Landslide Susceptibility Mapping in Sochi Ski-Jump Area Using GIS and Numerical Modelling. ISPRS Int. J. Geo-Inf. 2019, 8, 148.
