Article

Survey and Validation of tRNA Modifications and Their Corresponding Genes in Bacillus subtilis sp Subtilis Strain 168

by
Valérie de Crécy-Lagard
1,2,*,
Robert L. Ross
3,
Marshall Jaroch
1,
Virginie Marchand
4,
Christina Eisenhart
5,
Damien Brégeon
6,
Yuri Motorin
4 and
Patrick A. Limbach
5
1
Department of Microbiology and Cell Science, University of Florida, Gainesville, FL 32611, USA
2
Genetics Institute, University of Florida, Gainesville, FL 32611, USA
3
Department of Cancer Biology, University of Cincinnati, Cincinnati, OH 45221, USA
4
UMR7365 IMoPA CNRS-UL and UMS2008 CNRS-UL-INSERM, Université de Lorraine, Biopôle UL, 54000 Nancy, France
5
Department of Chemistry, University of Cincinnati, Cincinnati, OH 45221, USA
6
IBPS, Biology of Aging and Adaptation, Sorbonne University, 7 Quai Saint Bernard, CEDEX 05, F-75252 Paris, France
*
Author to whom correspondence should be addressed.
Biomolecules 2020, 10(7), 977; https://doi.org/10.3390/biom10070977
Submission received: 4 June 2020 / Revised: 26 June 2020 / Accepted: 27 June 2020 / Published: 30 June 2020
Browse Figures
Versions Notes

Abstract

:
Extensive knowledge of both the nature and position of tRNA modifications in all cellular tRNAs has been limited to two bacteria, Escherichia coli and Mycoplasma capricolum. Bacillus subtilis sp subtilis strain 168 is the model Gram-positive bacteria and the list of the genes involved in tRNA modifications in this organism is far from complete. Mass spectrometry analysis of bulk tRNA extracted from B. subtilis, combined with next generation sequencing technologies and comparative genomic analyses, led to the identification of 41 tRNA modification genes with associated confidence scores. Many differences were found in this model Gram-positive bacteria when compared to E. coli. In general, B. subtilis tRNAs are less modified than those in E. coli, even if some modifications, such as m1A22 or ms2t6A, are only found in the model Gram-positive bacteria. Many examples of non-orthologous displacements and of variations in the most complex pathways are described. Paralog issues make uncertain direct annotation transfer from E. coli to B. subtilis based on homology only without further experimental validation. This difficulty was shown with the identification of the B. subtilis enzyme that introduces ψ at positions 31/32 of the tRNAs. This work presents the most up to date list of tRNA modification genes in B. subtilis, identifies the gaps in knowledge, and lays the foundation for further work to decipher the physiological role of tRNA modifications in this important model organism and other bacteria.

1. Introduction

As adaptors between the mRNA and the elongation peptide, tRNAs are the central decoding elements of the translation process. All tRNA molecules harbor post-transcriptional modifications, and studies from the last 50 years have firmly established the diverse and critical roles that these play in the efficiency and accuracy of translation [1,2]. tRNA modifications can influence tRNA stability and quality control [3,4], they can be determinants or anti-determinants for other components of the translation apparatus such as aminoacyl-tRNA synthetases, and they can restrict or increase the decoding capacity of a given tRNA [5,6]. Since these roles are also modification specific, the effect of inactivating a given tRNA modification enzyme can range from cell death to only subtle phenotypes. For example, t6A37 is essential in E. coli, most certainly because it is a determinant for IleRS [7]. Lysidine (or k2C) is essential in many bacteria because it allows the modified minor tRNAIleCAU to decode AUA codons [8,9,10]. On the other hand, deleting most modification genes only gives rise to subtle fitness defects or to phenotypes which are observed in very specific conditions [1,11].
While the role of tRNA modifications as regulatory devices was proposed in the early 1990s by B.C. Persson [12], it is only recently that this model has gained traction [13,14]. Due to the degeneracy of the genetic code, the same amino acid can be encoded by different codons read by tRNAs with different modification profiles. Hence, if specific genes are enriched in codons decoded by a tRNA that harbors a given modification, changes in the level of this specific modification will modify the proteome. The identification of these Modification Tunable Transcripts (or MoTT) in a wide range of organisms (reviewed in [15]) has led to models for regulation in response to stress or metabolic imbalance. Other regulatory roles for tRNA modifications include their capacity to act as determinants for RNases [3] that can generate regulatory half-tRNA fragments, even if this has mostly been observed in eukaryotes [16,17].
To discover these regulatory roles, it is essential to have the foundational knowledge about which tRNA modifications are present in a given organism and which enzymes catalyze their synthesis. Unfortunately, to date, this knowledge is limited to only two bacteria. One is the Gram-positive Mycoplasma capricolum. Indeed, because of its small genome size and the pioneer work that generated all tRNA sequences, it was the first bacterium with a full set of predicted tRNA modification genes [18]. The other is the model Gram-negative Escherichia coli K12. As shown in Figure 1, decades of biochemical and genetic analyses have identified all the genes involved in the discovered tRNA modifications in this organism. These 59 tRNA modification enzymes and factors represent 1.5% of the E. coli encoded proteome.
Recently, a combination of mass spectrometry (MS) and tRNA-Seq methods to detect tRNA modifications was performed on Vibrio cholerae [19], and even though this bacteria is closely related to E. coli, novel modifications were identified. Full analysis of the modified nucleosides present in tRNAs has been performed for three Gram-positive organisms, Lactococcus lactis [20], Streptomyces griseus [21], and Mycobacterium bovis BCG [22], but the links with the corresponding genes were not made in these studies. Bacillus subtilis sp subtilis strain 168 is the model Gram-positive that was sequenced in 1997 [23], and an active community is keeping the genome annotation up to date [24,25]. Even the current knowledge of tRNA modification genes has not been well captured in SubtiWiki, as not all tRNAs have been sequenced. There are some clear gaps in knowledge, which we attempted to fill in the current study by analyzing the modifications found in B. subtilis tRNAs, using a combination of MS and tRNA-Seq methods, linking them to the corresponding validated or predicted gene, and experimentally testing a paralog case for the synthesis of the pseudouridines at positions 31 and 32.

2. Materials and Methods

2.1. Bioinformatic Analyses

The B. subtilis genome that was used was NC_000964. The presence and numbers of isoforms were extracted from the GtRNA database (http://gtrnadb.ucsc.edu/GtRNAdb2/genomes/bacteria/Baci_subt_subtilis_168/) [26]. The RNA sequence data were extracted from Modomics (http://modomics.genesilico.pl/sequences/list/?type_field=tRNA&subtype=all&species=4&display=Display&nomenclature=abbrev) [27] from tRNAdb (http://trnadb.bioinf.uni-leipzig.de/) [28] and TpsiC databases (http://tpsic.igcz.poznan.pl/info/start/) [29]. The information on all genes involved in tRNA modification in E. coli and B. subtilis (Tables S1 and S2) were gathered from the literature and further checked using Subtiwiki [24], Uniprot Id mapping tools [30], and BlastP [31] searches at NCBI [32], as well as Pathosystems Resource Integration Center (PATRIC) feature group tools [33]. The SEED database [34] was used to analyze physical clustering. Sequences were visualized using the integrated genome viewer (IGV) (http://software.broadinstitute.org/software/igv/) [35]. Clustergrammer (http://amp.pharm.mssm.edu/clustergrammer/) was used to visualize fitness and expression data as heatmaps [36]. The Colombos v3.0 database (http://colombos.net/) [37] was used to mine the available B. subtilis expression data. Using the list of predicted B. subtilis tRNA modification genes from Table S2 as input, an expression matrix comprised of 90 experiments (or contrasts) where these genes showed significant expression was generated from the data available in the database, and further analysis was conducted on this dataset. Each contrast is a single RNA-Seq or microarray experiment where RNA transcript levels for a test condition are compared to a reference culture. For each contrast, Colombos assigns a score that corresponds to how many genes show similar changes in expression. If the changes in expression, relative to their respective reference, increase or decrease uniformly for all the input genes, then a higher score is awarded to the contrast. In the case where a contrast’s tested condition causes the input genes to show dissimilar and noncoherent expression, a lower score is awarded to the contrast. From the list of 90 contrasts, 47 contrasts were selected, with scores less than 0.5, in order to analyze the conditions that caused the input genes to show dissimilar expression. To illustrate drastic changes in expression, 12 genes were selected that showed unique changes in expression values from 4.5 (red) to −5.0 (blue) across the 47 contrasts.

2.2. Strains and Media and Bulk tRNA Preparation

Bacillus subtilis subsp. subtilis str. 168 (RefSeq: NC_000964.3) was used as the wild-type strain. The mutants used were BKE11620 (trpC2 ΔyjbO::kan) and BKE09210 (trpC2 ΔyhcT::kan) [38]. Cells were grown in Luria–Bertani medium (LB), supplemented with kanamycin (5µg.mL−1) at 30 °C, and harvested at an OD (A600nm) of 0.6. Bulk RNA was extracted by hot acidic phenol [35] or using chaotropic agents [39].

2.3. Mass Spectrometry Analyses

2.3.1. LC-MS of Nucleosides

Digestion of the purified tRNA fraction was performed as previously described [39]. Separation was accomplished by reversed phase chromatography using an Acquity UPLC HSS T3, 1.8 µm, 1 mm × 100 mm column, (Waters, Milford, MA, USA) on a Vanquish Flex Quaternary UHPLC system (Thermo Fisher Scientific, San Jose, CA, USA). Mobile phase A consisted of 5.3 mM ammonium acetate (Thermo Fisher Scientific) in LC-MS grade water (Alfa Aesar, Haverhill, MA, USA), pH 5.3. Mobile phase B consisted of a 60:40 mixture of 5.3 mM ammonium acetate and acetonitrile (Honeywell Burdick & Jackson, Morris Plains, NJ, USA) with a gradient of 0% B (from 0 to 1.8 min), 2% B at 3 to 3.5 min, 3% B at 4.1 min, 5% B at 7 min, 25% B at 9 min, 35% B at 15 min, 99% B at 15.5 min (hold for 4.5 min), and 99% B at 20 min, then returning to 0% B at 25.5 min, at a flow rate of 100 µL min−1. The column temperature was set to 40 °C. Accurate mass values and physio-chemical properties were determined using Marvin 17.3.13.0 (https://chemaxon.com).
High resolution accurate mass (HRAM) analysis was performed on an Orbitrap Fusion Lumos Tribrid mass spectrometer (Thermo Fisher Scientific) interfaced with an H-ESI electrospray source in positive polarity mode. Full scan data were acquired at a resolution of 120,000, mass range 220–900 m/z, AGC 7.5e4, and IT 100 ms. Data-dependent top speed MS/MS spectra (1 s cycle, CID 40%) were acquired in the ion trap with rapid scan rate, AGC 1.0e5, and an injection time of 300 ms, with scan range mode set to auto m/z normal. The other instrumental conditions were as follows: quadrupole isolation of 1 m/z; RF 35%; sheath gas, auxiliary gas, and sweep gas of 30, 10, and 0 arbitrary units, respectively; ion transfer tube temperature of 289 °C; vaporizer temperature of 92 °C; and spray voltage of 3500 V. Data were analyzed using Xcalibur 4.0, Compound Discoverer 3.0, and mzVault 2.1 (Thermo Fisher Scientific). Fragment Ion Search (FISh) settings were set at a high mass accuracy of 2.5 ppm, a low mass accuracy of 0.5 Da, and a S/N of 5000.

2.3.2. LC-MS Analysis of Oligonucleotides

Separation was accomplished by HILIC chromatography, using a Shodex HILICPak VN-50 2D, 5 µm, 2 mm × 150 mm column, (Showa Denko, New York, NY, USA) on a Vanquish UHPLC system (Thermo Fisher Scientific, San Jose, CA, USA). Mobile phase A consisted of 50 mM ammonium bicarbonate (Sigma Aldrich, St. Louis, MO, USA) in 18 Ohm millipure water, pH 9.0. Mobile phase B consisted of acetonitrile (Honeywell Burdick & Jackson, Morris Plains, NJ, USA) 0.1% NH4OH, with a gradient of 30% B for 1.5 min, increasing to 35% B at 17 min, 70% B at 30 min, and holding for 2 min, then returning to 30% B at 32.1 min and re-equilibrating to 45 min at a flow rate of 200 µL min−1. The column temperature was set at 20 °C.
RNase T1 digestion products were analyzed using the Orbitrap Fusion Lumos Tribrid mass spectrometer (Thermo Fisher Scientific) interfaced with an H-ESI electrospray source in negative polarity mode. Data-dependent top speed MS/MS spectra (1 s cycle, CID 40%) were acquired in the ion trap with rapid scan rate, AGC 1.0e5, and an injection time of 300 ms. Data-dependent top speed MS/MS spectra (1 s cycle, CID 40%) were acquired in the ion trap with rapid scan rate, AGC 1.0e5, and an injection time of 300 ms. The other instrumental conditions were as follows: quadrupole isolation of 1.6 m/z; RF 30%; sheath gas, auxiliary gas, and sweep gas of 40, 8, and 1 arbitrary units, respectively; ion transfer tube temperature of 275 °C; vaporizer temperature of 320 °C; and spray voltage of 2500 V. Data were analyzed using Xcalibur 4.0 and RAMM 1.0 [40].

2.4. Identification of Modification by Next Generation Sequencing Methods

Deep sequencing-based identification of the B. subtilis tRNA modifications was performed using RiboMethSeq protocol, allowing us to map 2′-O-methylations by their protection to cleavage [41,42]. Reverse Transcriptase (RT) misincorporation signatures at RT-arresting nucleotides [43,44] were extracted from RiboMethSeq data and also from the RT-primer extension, using TTO-based ScriptSeq v2 (Illumina, San Diego, CA, USA) library preparation kit. RiboMethSeq analysis of tRNAs was performed using alkaline fragmentation of total B. subtilis RNA, followed by library preparation and sequencing [42]. RT misincorporation signatures were extracted from Samtools mpileup format and manually validated by inspection of aligned reads in *.bam file in IGV. Pseudouridine mapping (Psiseq) was performed in the tRNA-enriched fraction of B. sublitis RNAs, using a chemical-based protocol derived from CMCT (1-cyclohexyl-(2-morpholinoethyl)carbodiimide metho-p-toluene sulfonate)-chemical mapping protocol, and specifically adapted to tRNAs [45,46,47].

3. Results and Discussion

3.1. Identity and Position of tRNA Modifications in the Model Gram-Positive B. subtilis 168

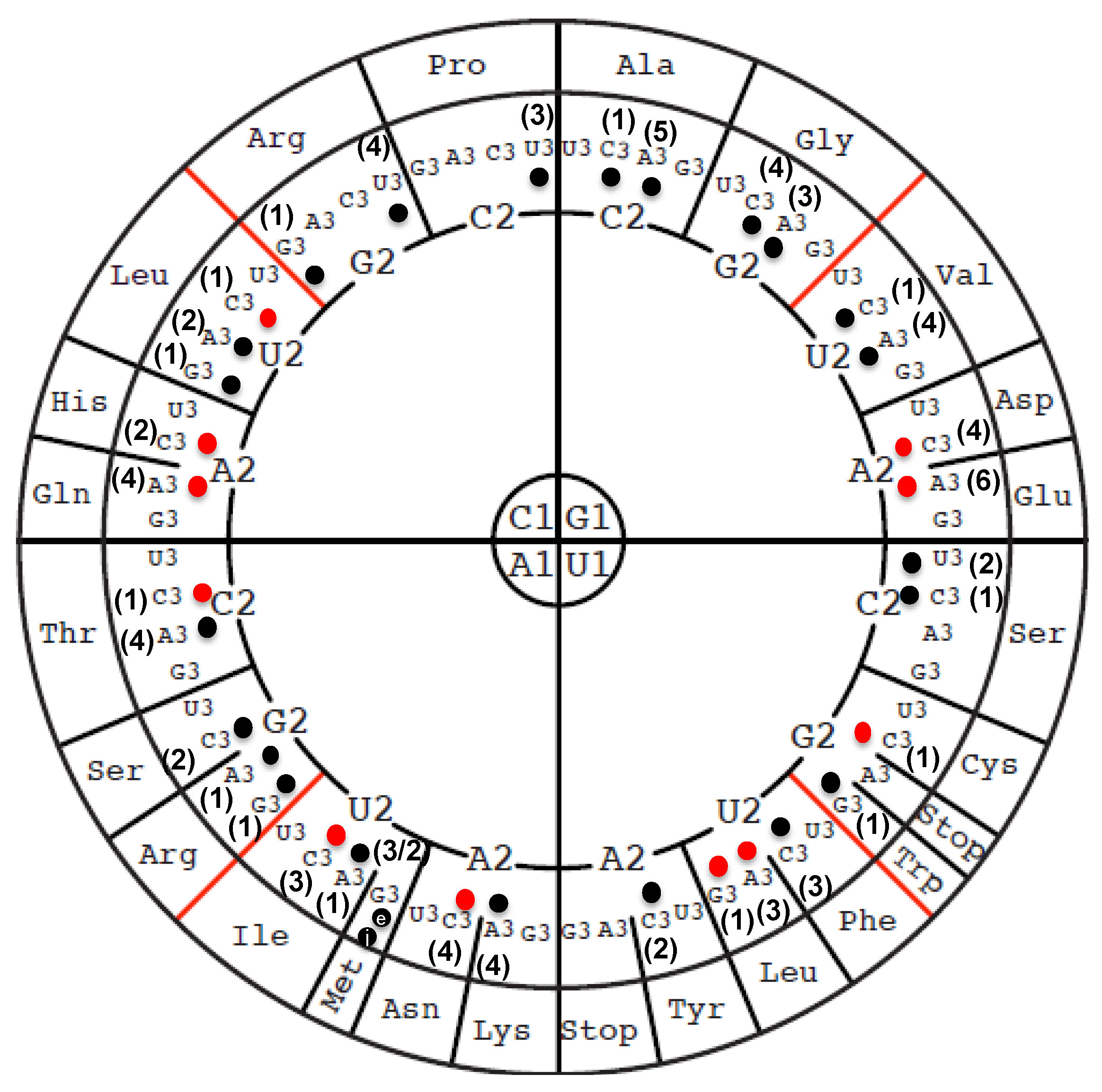

A total of 86 tRNA genes specifying 35 different iso-acceptors can be identified in the Bacillus subtilis 168 genome (Figure 2). The RNA sequences of 24 of these have been reported (black dots in Figure 2), but 11 tRNA isoacceptors remain to be sequenced (red dots in Figure 2). To fill this knowledge gap, different methods were combined. First, a comprehensive MS analysis of the bulk tRNA extracted from B. subtilis cells was performed. These data were complemented by analysis of the RT-arresting nucleotides and 2′-O-methylation by RiboMethSeq, as well as pseudouridines by PsiSeq.
Two types of LC-MS/MS analyses were performed. The first consisted of a total nucleoside identification assay, where an aliquot of the bulk tRNA is taken to its nucleoside monomers by enzymatic digestion to identify which modifications are present in the sample within the detection limits. In the second assay, an aliquot of the bulk tRNA is digested with base specific nucleases to create oligonucleotides that can be separated chromatographically by length and whose fragmentation ladder allows the placement of the modifications detected in the nucleoside assay into their proper sequence context. For modification mapping by LC-MS/MS, an initial survey scan was conducted using lower resolution mass analyzers (i.e., ion trap and q-TOF), and these data provided a rough map to guide higher resolution analyses conducted on the orbitrap. The mass spectrometry data reported here resulted from final verification using the orbitrap, with a few exceptions that are noted.
Next Generation Sequencing(NGS)-based analysis of the tRNA modifications (and, eventually, rRNA modifications) was performed using three complementary techniques. First, analysis of the RT-arrests and misincorporation profiles was performed using the TTO-based Illumina library preparation kit. However, random priming during the RT-primer extension step makes this kit more suitable for long RNAs (like rRNAs) and not for short tRNAs, thus these data were only used as a complement. The second and major approach used in the study was standard RiboMethSeq, initially developed for 2′-O-methylation detection. We also noticed that, in addition to 2′-O-methylations, moderate RiboMethSeq signals were frequently detected also for pseudouridines, dihydrouridines (D), and m7G residues, present in tRNAs. These data were used only as supplementary confirmation of known sites. In addition, the same RiboMethSeq datasets were used for the detection of RT-misincorporations. Direct ligation of 3′- and 5′-adapters to RNA or RNA fragments makes this approach unsuitable for the detection of hard RT-stops, but strong RT misincorporation profiles (e.g., Inosine, m1A, m3U, m,6,2A, m2,2G, s4U, etc.) were still detected, albeit with a somewhat lower efficiency due to the robustness of SuperScript III, which was used in the RT step. The third deep sequencing-based approach used a modified pseudouridine-specific chemical modification protocol and allowed the detection of candidate sites in the tRNAs. A summary of the RiboMethSeq and PsiSeq analyses of the B. subtilis tRNAs is given in Table S3.
Thirty-five modified ribonucleosides were identified in the bulk purified tRNA by LC-MS/MS (Table 1). Of these 35, 21 had previously been mapped in B. subtilis, as listed in Modomics or in additional studies [49,50]. Several modifications (epoxyQ (oQ), t6A, mnm5U, and nm5U) are intermediates in complex modification pathways [51,52,53]. Another two (2′-O-methylations Cm and U*m) were only detected by RiboMethSeq. Several modified ribonucleosides must result from rRNA contamination copurifying with the tRNA during anion exchange fractionation [39]. These include m4Cm, m6,2A, m2G, m2,2G, and Am. m4Cm is not found in any tRNA but is present at position 1402 of E. coli 16S rRNA [54]. This modification is conserved in other Gram-positive bacteria [55], with B. subtilis encoding the orthologs of the E. coli RmsH/RsmI enzymes involved in m4Cm1402 synthesis (BSU_00360 and BSU_00360, respectively). The contaminating rRNAs were abundant enough that they could be analyzed by NGS, and a candidate site for this rRNA modification (C*m) in B. subtilis rRNA was detected by RiboMethSeq, in a highly conserved sequence at position 1410 (equivalent to E. coli position 1402) (Figure S1). m6,2A is another 16S rRNA modification, found at two adjacent adenosines (A1518 and A1519, E. coli numbering), that is very conserved in rRNA but not found in tRNAs, and it is introduced by the KsgA enzyme [56,57] that is present in B. subtilis (BSU_00420). Both m6,2A residues are visible by their RT-signatures at the corresponding positions A1527 and A1528 in B. subtilis 16S rRNA, as shown Figure S1. Two other modifications detected in the MS analysis of bulk nucleosides were also attributed to rRNA contamination. The methylated guanosines m2G and m2,2G are found in archaeal and eukaryotic tRNAs, where they have structural roles [58,59,60], but they have never been identified in bacterial tRNAs. Both are found in bacterial rRNAs [55,61]. An ortholog of E. coli RsmD involved in m2G966 formation in 16S rRNA is present in B. subtilis (YlbH/BSU_15010). In Clostridium acetobutylicum and Thermus thermophilus, this position is actually modified to m2,2G [55], so this could also be the case in B. subtilis. In addition, an ortholog of E. coli RlmKL that is involved in m2G2445 in the formation 23S rRNA was identified in B. subtilis (YpsC/BSU_22170). We were able to tentatively map the m2,2G modification to CpG dimers (Cp[m2,2G]p) at the following positions: G285 in 16S rRNA and G2884 in 23S rRNA (Figure S1). Finally, the Am modification could also come from an rRNA modification, since a number of candidate Am sites were found (positions 224 and 1455 in 16S rRNA as well as 1075, 1524, 2220, and 2827 in 23S rRNA) (Figure S1).
Several observed modifications must be artifacts of the sample preparation. m1I has only been observed in archaeal tRNA [62] but could arise from the chemical or enzymatic deamination of m1A during the enzymatic digestion to nucleosides [63]. Similarly, oxidation inside the cell or during analysis is most certainly the source of 8-oxoG formation [64].
The base position cannot be determined for simple methylations by oligonucleotide mass mapping; for example, m1A, m2A, and m6A are all detected as only a methylated adenosine. We were able to map an adenosine methylation at position 37 on tRNAMetCAU, as well as ac4C at position 34 (Figure S2A). The sequence of the E. coli equivalent tRNA suggests that the probable modification is m6A. A methylated adenosine was also mapped to position 22 of the tRNALeu UAA (Figure S2B). This adenosine was identified as m1A, based on prior literature [65], and this was confirmed by RT-signature analysis (Figure S1 and Table S3). We also mapped the m2A found at position 37 of tRNAGlu UUC, having mnm5s2U at U34 (Figure S2C). The presence of m1A previously reported at position 58 of tRNALeu CAG [66] was never reproduced (Louis Droogmans, personal communication) and was not detected in our analyses. The unknown C32 modification in tRNALysTTT reported by Vold et al. [67] was not detected by either the LC-MS or the RiboMethSeq approach.
In addition, we mapped mnm5s2U (Figure S2D), as well as mnm5U (Figure S2E) and cmnm5s2U (Figure S2F), to different tRNAs (Table 1). The modification 5-methoxyluridine (mo5U) is found in a number of E. coli tRNAs at position 34. Here, we were able to map mo5U position 34 of tRNALeu UAG (Figure S2G). Moreover, 4-thiouridine was mapped to position 8 of tRNAGlnUUG by MS (Figure S2H) and of tRNALeuUAA by RT (Figure S1). The hypermodification ct6A, along with the t6A counterpart, was found in tRNAThr UGU (Figure S2I,J) and tRNAIle GAU (Figure S2K,L) at position 37. Queuosine was mapped to its normal position 34 in tRNAHisGUG and tRNAAsp GUC. (Figure S2M,N) with spectral complexity hindering the mapping of tRNATyr and tRNAAsn. Finally, the modification inosine was mapped to position 34 of the tRNAArgACG (Figures S1 and S2O). Due to either low abundance or spectral complexity we were unable to map all the modifications detected through nucleoside mass spectrometric analysis to an oligonucleotide sequence. For example, the modification cmnm5s2Um and ms2t6A were mapped to the anticodon of tRNALeuUAA, however the complexity of the MS/MS spectra makes this assignation tentative. The presence of 2′-O-methylation at the modified U*34 in tRNALeuUAA was also confirmed by RiboMethSeq (Figure S1). Mapped modification position for those which were detected are listed in Table 1.

3.2. Compilation of Predicted and Validated B. subtilis tRNA Modification Genes

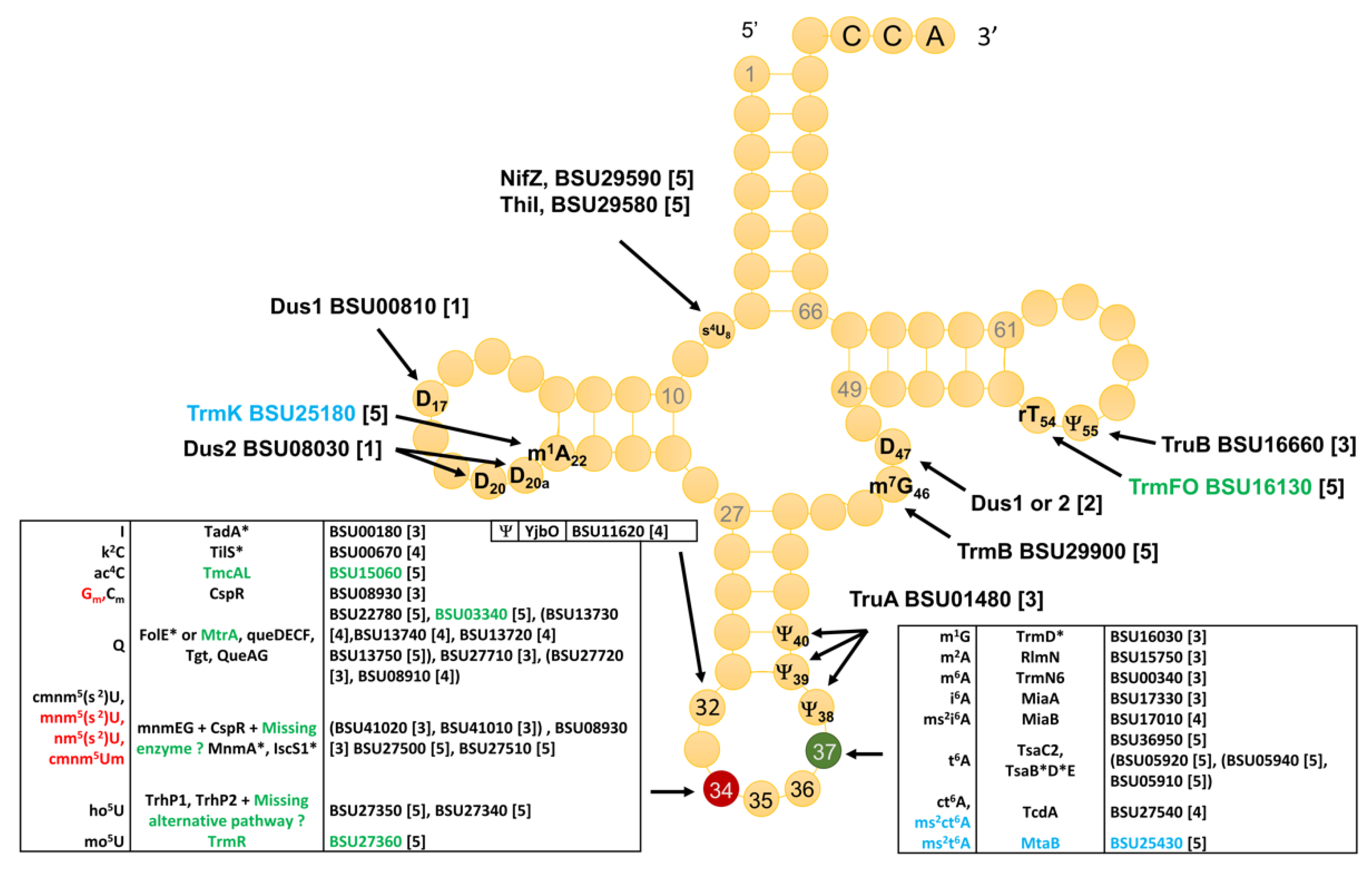

Combining literature searches with sequence similarity searches using the set of known enzymes of E. coli as input, and crossing these data with the list of tRNA modification genes in SubtiWiki [24], led to a list of tRNA modification genes in B. subtilis (Figure 3 and Table S3). The level of confidence for the various predictions was given by a score that ranged from (5) to (1) (see Figure 3 legend for the full description of the scoring system). This analysis led to the identification of 41 predicted tRNA modification genes in B. subtilis that will be discussed in more detail below.

3.3. The Majority of tRNA Modifications Are Introduced by Orthologs in E. coli and B. subtilis with Some Differences Observed in the Complex Pathways

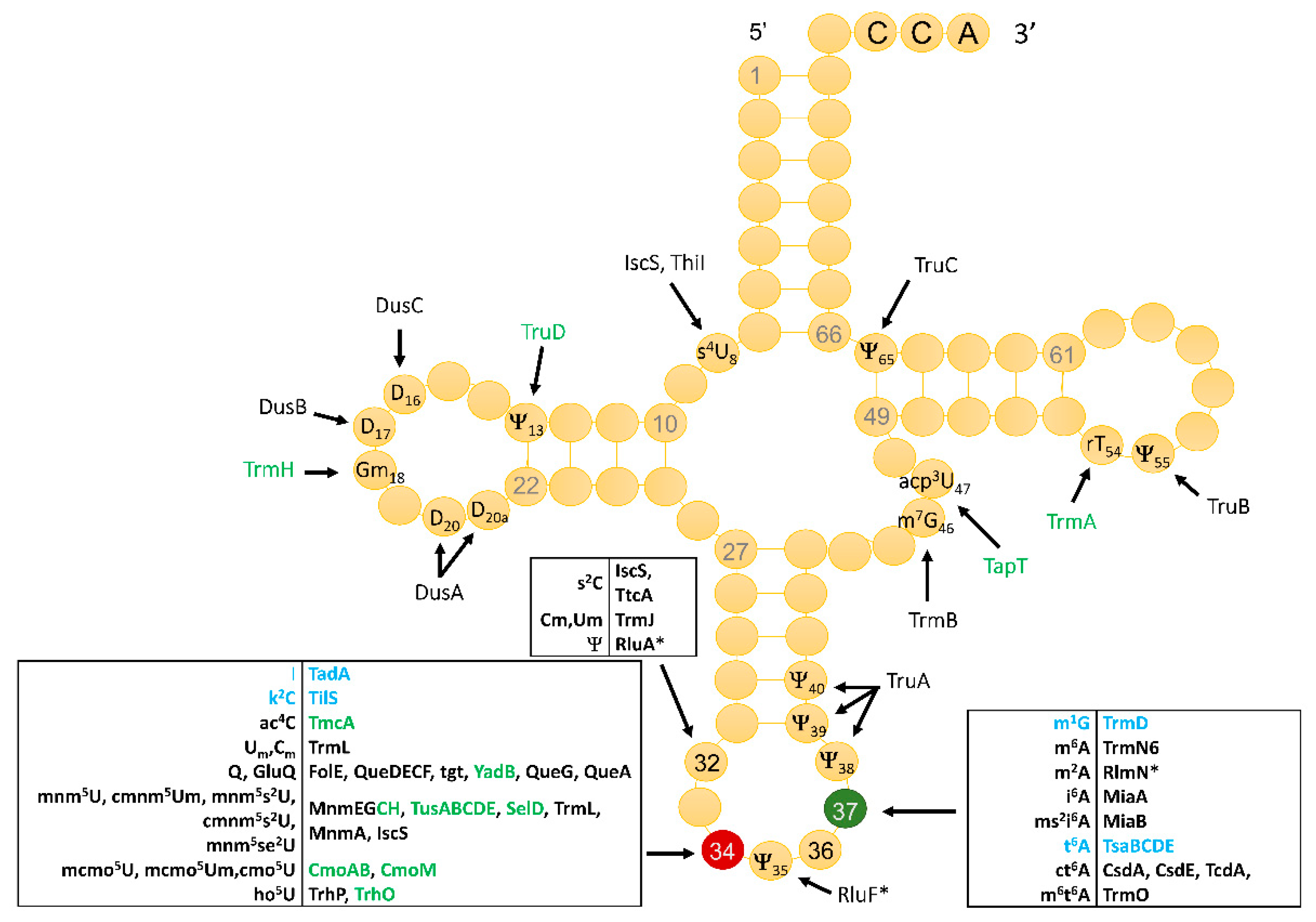

Many enzymes of the tRNA modification machinery are conserved between E. coli and B. subtilis. Indeed, out of the 41 proteins predicted to be involved in inserting tRNA modifications into the Gram-positive model, the majority (32/41) are clear orthologs of E. coli proteins. These include proteins involved in the synthesis of I34 (TadA), k2C34 (TilS), m1G37 (TrmD), i6A (MiaA) ms2i6A37 (MiaB/YmcA), ψ38/39 (TruA), m7G46 (TrmB), ψ55 (TruB), and m6A37 (TrmN/YabB), for which there is also experimental evidence of the presence of the modifications at these positions in the tRNA (Table 1). For RlmN/YloN, no tRNA sequence containing this modification is found in Modomics, but our analysis revealed a possible m2A at position 37 in tRNAGluUUC (see discussion above and Figure S2C).
For the enzymes involved in ribose methylation at position 34, the B. subtilis CspR is an ortholog of the E. coli TrmL, but U*m/Cm are found in E. coli tRNAs, while U*m/Gm/Cm were identified in the B. subtilis tRNAs by RiboMethSeq. We confirmed the 2′-O-methylation of Gm34 in tRNAPheGAA and identified Cm34 in tRNALeuCAA and U*m34 in tRNAGlnUUG and tRNALeuUAA (Figure S1). No signals corresponding to the 2′-O-methylation inserted in E. coli by the TrmH and TrmJ enzymes (Gm at position 18 and Um/Cm at position 32, respectively) (Figure 1) were identified in the B. subtilis tRNAs (data not shown).
In the cases of most multi-step pathways, such as those involved in s4U34, Q34, t6A37, and xm5s2U34 syntheses, many small variations can be found between the two model organisms; even the enzymes involved in the core machineries of theses pathways are conserved. The Q synthesis pathways are identical in E. coli and B. subtilis, with every step catalyzed by an orthologous enzyme. The only differences are that an additional enzyme (FolE2) can catalyze the first step in B. subtilis [69] and there is no ortholog of the GluQRS/YadB enzyme in B. subtilis [70]. The t6A37 synthesis core machineries are also very similar in the two model organisms, with differences found both at the beginning and end of the pathways. The enzymes that catalyze the first step are slightly different: TsaC in E. coli [71,72] and TsaC2, which carries an extra SUA5 domain, in B. subtilis [71,73]. In addition, different t6A hypermodifications are found in the two organisms. Whereas m6t6A is present in E. coli [74], ms2t6A is found B. subtilis, synthesized by the MiaB paralog MtaB [75,76]. An ortholog of the E. coli ct6A formation enzyme TcdA was validated in B. subtilis and both ct6A and ms2ct6A can be detected in this organism [68], even if we detected only ct6A in the current study (Table 1). It is not clear if additional sulfur transfer proteins are required in B. subtilis, like they are in E. coli (CsdAE) [53]. The xm5U derivatives identified in the B. subtilis tRNAs (Table 1) are similar to those present in E. coli, as confirmed by the Armengod laboratory [49]. The exception is cm5s2U, which might be an intermediate as the full synthesis of these complex modifications varies greatly depending on the media conditions [49]. Orthologs of two of the three E. coli enzymes involved in synthesizing this complex modification (MnmE, MnmG) are found in B. subtilis. However, no MnmC ortholog is present, an observation already made by the Armengod group, who also showed that another enzyme catalyzing the same activity must be present and that it does not require S-adenosyl-L-methionine [49]. There are also differences in the thiolation enzymes which synthesize the xs2U34 derivatives. If the enzyme that introduces the sulfur in tRNA, MnmA, is similar in both organisms, E. coli uses a whole sulfur relay system (TusABCDE) [77], while B. subtilis uses only one relay enzyme of the IscS family, YrvO/IscS1 [78,79]. Finally, in E. coli, the ribose methylase required to synthesize cmnm5Um is the multifunctional TrmL; it is therefore parsimonious to propose that, similarly, CspR catalyzes this reaction in B. subtilis, even though this has not been confirmed experimentally.

3.4. Modifications and Enzymes Specific to Bacillus subtilis

In addition to ms2t6A, another modification that is present only in B. subtilis and not E. coli is m1A22. This modification is inserted by the TrmK gene, which was described over 10 years ago [80] and is a marker of Gram-positive bacteria, as it is even found in those bacteria with minimal genomes, such as M. capricolum [18]. Gm34 in tRNAPheGAA (Table S3) is also found in B. subtilis but not E. coli and is reminiscent of eukaryotic tRNA modification profiles [81,82,83].
Moreover, beyond the MnmC discussed above, where a non-homologous enzyme, still to be discovered, must catalyze the same reaction in B. subtilis, several cases of non-orthologous replacement are found between the two model organisms. The first is the well-studied replacement of the SAM dependent E. coli methylase TrmA (COG2265) by the B. subtilis folate dependent enzyme TrmFO (COG1206) in order to synthesize m5U54 [84]. Another case has recently been discovered. In the synthesis of ac4C34, the E. coli TmcA acetyltransferase of the COG1444 family, which uses acetyl-coA donor for the acetyl group [85], has been replaced by the TmcAL (COG1323) protein in B. subtilis, which uses acetate and ATP to create an acetyl-AMP intermediate as the acetyl donor in different mechanisms [50].
The two other non-orthologous displacement examples are slightly more complex. Both E. coli and B. subtilis harbor the s4U8 modification, but the modification enzymes are slightly different [78,86]. The B. subtilis ThiI is shorter than the E. coli homolog, lacks the rhodanese domain, and is not involved in thiamin synthesis. In addition, Gram-positive organisms harbor dedicated cysteine desulfurase for specific thiofactor generation, whereas E. coli uses the generalist IscS for all of them. NifZ is the one dedicated cysteine desulfurase that is involved in s4U synthesis in B. subtilis [86]. Finally, different enzymes modify the ho5U precursor in order to give different xmo5U34 derivatives. In E. coli, the two CmoA and CmoB enzymes synthesize cmo5U34 in a complex reaction that uses a S-adenosyl-S-carboxymethyl-l-homocysteine (Cx-SAM) intermediate [87]; the cmo5U34 intermediate can be further modified to mcmo5U, and then mcmo5Um, by CmoM and TrmL, respectively [88]. In B. subtilis, a classical methyltransferase (TrmR) directly methylates ho5U34 to mo5U34 [89], and no orthologs of CmoM or TrmL are found. The enzymes involved in ho5U synthesis have been identified recently [90]. In E. coli, TrhP (formerly known as YegQ), a peptidase U32 family protein, is involved in prephenate-dependent ho5U formation, while TrhO (formerly known as YceA), a rhodanese family protein, catalyzes oxygen-dependent ho5U formation and bypasses cmo5U biogenesis in a subset of tRNAs under aerobic conditions. In B. subtilis, the TrhP homologs TrhP1/YrrN and TrhP2/YrrO are also involved in one pathway, but another pathway has also been predicted and the corresponding genes have not yet been identified [91].

3.5. Paralog Issues Make Direct Annotation Transfers Problematic for a Few Modifications

There are several cases in which the homologs of validated E. coli tRNA modification enzymes are found in B. subtilis but, because of the paralog issue, it is not possible to give a high confidence functional annotation without additional experiments. This is the case for the identification of the B. subtilis dihydrourine insertion enzymes. In E. coli, DusC modifies position 16, DusB modifies position 17, and DusA modifies positions 20 and 20a [92]. The three proteins are members of the same COG0042 family. Dihydrouridine is found at four different positions in B. subtilis tRNAs: D17, D20, D20a, and D47 (Figure 3). However, only two COG0042 members are encoded in the B. subtilis genome: Dus1 (BSU00810) and Dus2 (BSU08030). At this stage, without further biochemical and/or genetic experiments, it is not possible to predict which position each enzyme modifies.
Another case is the prediction of the B. subtilis pseudouridine synthase involved in the synthesis of ψ31/32 catalyzed in E. coli by RluA, an enzyme that modifies both rRNA and tRNA substrates. Searching the B. subtilis genome, using E. coli RluA as an input and using BlastP with default settings, identified the two RluA homologs YhcT and YjbO, both of which are COG0564 members. Here, again, it was impossible to predict if these proteins had the same substrate specificity as the E. coli RluA, or if they had each evolved to modify just tRNA or rRNA or just one position (31 or 32), or if they had another function in the cell. We therefore analyzed by Pseudo-Seq the bulk tRNA preparations extracted from B. subtilis strains lacking each gene, respectively. As shown in Figure 4 and Figure S3, the absence of YjbO led to the absence of ψ at position 31 in tRNATrpCCA, tRNACysGCA, tRNAArgCCG, and tRNAArgCCU, while these were not affected by the absence of YhcT. Similar results were observed for the presence of ψ at position 32 in tRNAArgCCU and tRNAProUGG (Figure S3), suggesting that YhbO was responsible for modifying both the 31 and 32 positions in the tRNAs.
Since YhcT did not seem to be involved in tRNA modification, we tested whether it could be modifying rRNA. Previous studies from the Ofengand laboratory [93,94] mapped ψ modifications in the 23S rRNAs of E. coli and B. subtilis and identified the corresponding E. coli genes. As shown in Table 2, 10 residues are modified to ψ in E. coli 23 S rRNA, but only four of those are also modified in B. subtilis. It was previously shown that the functional homolog of RluB in B. subtilis was YpuL/BSU23160, which was actually closer in sequence to the E. coli enzyme RsuA that modifies the small subunit [95]. PsiSeq analysis suggests that YhcT is the functional homolog of E. coli RluD and modifies positions 1940, 1944, and 1946 of the 23S rRNA, even if it is closer in sequence to RluA (Figure 4).
This leaves one pseudouridine synthase to be identified for the modification of position 2521(2520) in the 23S rRNA in B. subtilis. The equivalent position in E. coli (U2492) is not modified. A plausible candidate is the third COG0564 B. subtilis member, YlmL (BSU15460), a prediction that requires experimental validation. As a side note of this analysis, no ortholog of E. coli RluF was identified in B. subtilis, and in E. coli, this enzyme also modifies position 35 of tRNATyrQΨA [96]. We therefore predict that the corresponding B. subtilis tRNA is not modified with ψ at this same position, and this is confirmed by the PsiSeq analysis (Table S3).

3.6. System Analysis of tRNA Modification Genes in B. subtilis

As B. subtilis is such a prominent model organism, many whole genome datasets are available. These include mutant collections, phenotypic screens, TnSeq datasets, and gene expression data [24]. Many of the tRNA modification genes are poorly annotated and/or were only recently discovered, so we revisited several published genome-wide studies that used 42 B. subtilis tRNA modification genes as input.
Seven out of the 42 B. subtilis modification genes are essential (Figure 3) [38]. FolE/mtrA is essential because of its role in the synthesis of the tetrahydrofolate cofactor, but not its role in Q synthesis, as it can be replaced by folE2/yciA only under zinc limitation [69]. TilS is essential in most bacteria [10], with the rare exception of organisms such as Mycoplasma mobile that have changed the minor tRNAIle anticodon from CAU to UAU, making the lysidine modification dispensable [97]. The essentiality of trmD in many bacteria has already made it an antibacterial target [98]. Interestingly, two t6A37 synthesis genes are essential (tsaB and tsaD), whereas two others (tsaC and tsaE) are not, while all four orthologs are essential in E. coli [7]. This suggests that the essentiality of tsaBD in B. subtilis could be due to another role in the cell besides t6A formation in the tRNA. Finally, the iscS1 and mnmA involved in s2U34 formation are essential in B. subtilis but not in E. coli [99], for reasons that are not totally clear.
A phenotype screen testing several conditions (growth, C or N sources, and temperature sensitivity) of two ordered, barcoded, erythromycin-resistance- and kanamycin-resistance-marked single-gene deletion libraries is available [38]. Fitness scores are given for every gene in every condition tested. We extracted from these data the scores for the 35 predicted tRNA modification genes that are not essential (Table S4), and we visualized these data using clustergrammer, after transforming them into Z-scores. While transforming the fitness data into Z-scores may have exaggerated the differences between the ErmR and KanR datasets, it was noted in their original publication [40] that discrepancies between datasets could be caused by the downstream effects of the resistance cassettes that were used to prepare each library of mutants. Since we observed differences in the fitness data between the ErmR and KanR datasets for our list of genes, only the ErmR dataset was used to prepare Figure 5. Any phenotype observations from these datasets should be experimentally validated.

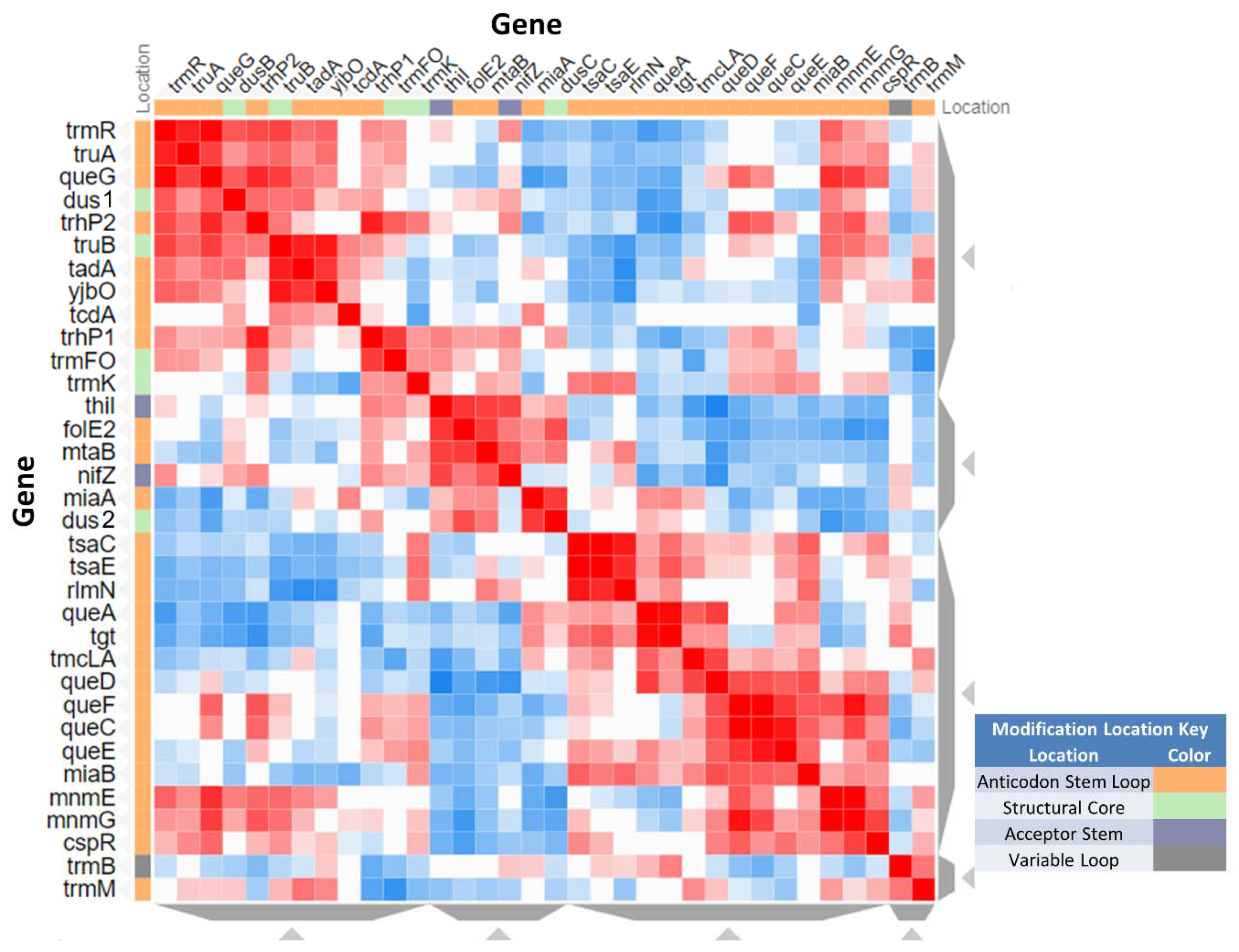

As shown in Figure 5, genes in same modification pathways, such as tsaC/tsaE (t6A37), tgt/queA (Q), queDCEF (Q precursor), and cmnm5U34 (mnmE/G), have similar or the same fitness profiles, suggesting a biological relevance that will need to be further studied.
We also looked at published B. subtilis Tn-Seq studies and found that three tRNA modification genes have been identified as being involved in sporulation (mnmE, mnmG, and miaA) [100], and mnmG was also important for germination [101].

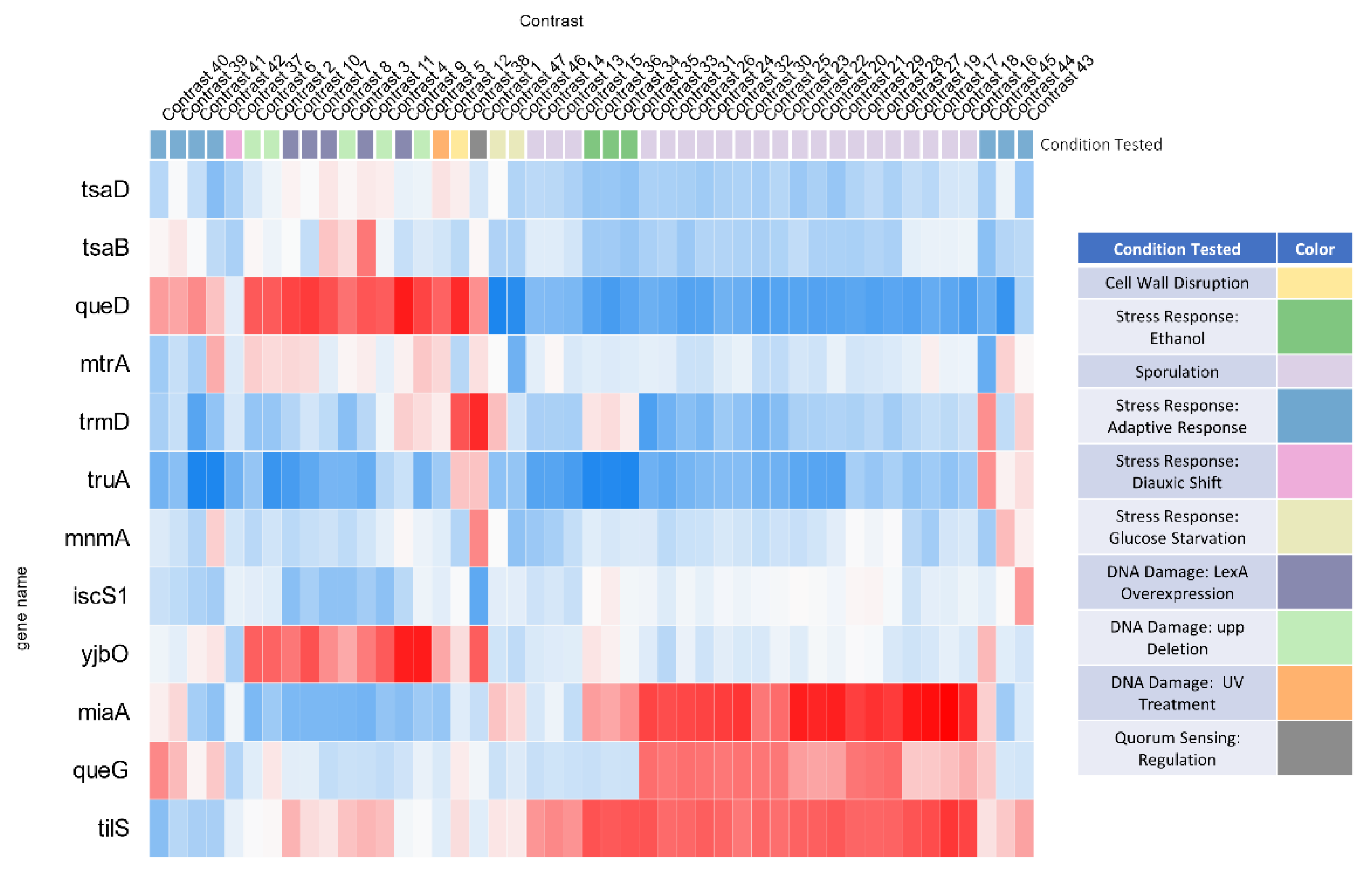

Using the list of locus tags as input, we analyzed the expression of 42 B. subtilis RNA modification genes in all transcriptomic data available in the Colombos database (41 tRNA modification and one involved in rRNA modification) [37] (Table S5). Some conditions lead to reductions or increases in most tRNA modification genes and are logically conditions where all translation genes would be expected to be affected, such as those that affect growth rate or transcription inhibition. To further explore the conditions where the response was specific to just a few genes, we focused on the conditions that led to differences in expression for just a subset of genes, as described in the Methods section. As shown in Figure 6, we found that twelve genes involved in the synthesis of Anticodon Stem Loop modifications (ψ31/32, Q34, ψ38/39, i6A37, t6A37, k2C34, s2U34) were up or down regulated in specific stress conditions, opening possible avenues for further exploration.

4. Conclusions

This study strengthens the efficiency of using an integrated strategy to identify tRNA modifications and the corresponding genes in a given organism, as recently illustrated with V. cholerae [19]. Mass spectrometry, tRNA-Seq, and comparative genomic methods do not give accurate or complete results on their own, but when they are used in combination, one can generate a high confidence tRNA modification map. Such integrated approaches involving both LC-MS analysis and the deep sequencing-based mapping of RNA modifications will be particularly useful for the analysis of still unexplored bacterial, archaeal, and eukaryotic organisms.
Even though we still have not been able to sequence all tRNA molecules of B. subtilis, and hence some modifications might remain to be to discovered and/or mapped, we do believe that the set of tRNA modification genes in B. subtilis is nearly complete, with only two predicted genes missing (the functional homolog of mnmC and an alternate ho5U synthesis gene) (Figure 3 and Table S3). The model Gram-positive B. subtilis harbors slightly fewer modifications (2/3) than the model Gram-negative E. coli but contains twice the amount found in the minimal Gram-positive M. capricolum (Table 3).
As shown in Figure S4, the levels of specific tRNA modifications can vary greatly between rare modifications such as k2C34 or abundant modifications such as i6A37. Further studies will be required to follow how modification levels change with growth conditions or stresses, but the transcriptomics and phenotype data do suggest that the levels of specific modifications are affected by growth conditions and that cellular processes that integrate tRNA modifications could be part of the regulatory loop in B. subtilis.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/10/7/977/s1, Table S1: Validated E. coli tRNA modification genes, Table S2: Predicted and validated B. subtilis modification genes, Table S3: Summary of B. subtilis tRNA modification mapping by RiboMethSeq and PsiSeq, Table S4: Fitness data for tRNA modification genes in B. subtilis, Table S5: Expression data tRNA modification genes in B. subtilis, Figure S1: Mapping of tRNA and rRNA modification by RiboMethSeq and derived RT-signatures, Figure S2: Tandem mass spectrum of different tRNAs at different positions, Figure S3: Bar plots for normalized PsiScore values for six B. subtilis tRNAs containing ψ31 and ψ32 residues, Figure S4: Relative ion abundances of tRNA modifications found in B. subtilis 168.

Author Contributions

Conceptualization, V.d.C.-L. and R.L.R.; Data curation, V.d.C.-L. and Y.M.; Formal analysis, V.d.C.-L., R.L.R. and Y.M.; Funding acquisition, V.d.C.-L., Y.M. and P.A.L.; Investigation, R.L.R., M.J., V.M., C.E. and D.B.; Methodology, R.L.R.; Project administration, V.d.C.-L. and Y.M.; Supervision, V.d.C.-L. and P.A.L.; Visualization, R.L.R., M.J. and Y.M.; Writing—original draft, V.d.C.-L., R.L.R., M.J., D.B. and Y.M.; Writing—review & editing, V.d.C.-L., C.E., Y.M. and P.A.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Institutes of Health (R01 GM70641 to V dC-L), EpiARN FRCR project from Grand Est Region to Y.M. and the National Science Foundation (NSF CHE 150357 to P.A.L.).

Acknowledgments

We thank Djemel Handame, and Louis Droogmans for insightful discussions. We acknowledge the early work in tRNA modification mapping by LC-MS/MS conducted by Collin Wetzel. VdC-L would like to thank the Eduardo Rocha laboratory (Pasteur Institute) for having hosted her during her 2017 sabbatical when this analysis was initiated.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
