Properties of the Geomagnetic Storm Main Phase and the Corresponding Solar Wind Parameters on 21–22 October 1999

Abstract

We use the SYM-H index to indicate the ring current index. We find that there were two periods during which the SYM-H index decreased quickly during the main phase of the geomagnetic storm on 21–22 October 1999. The first period from 11:44 p.m. UT on 21 October 1999 to 1:35 a.m. UT on 22 October 1999 is defined as step 1. Another period from 3:36 a.m. UT to 5:49 a.m. UT on 22 October 1999 is defined as step 3. The durations of step 1 and step 3 are defined as $\Delta t_1$ and $\Delta t_3$, respectively. The variation of the pressure-corrected SYM-H index during step 1 and step 3 are defined as $\Delta SYM{H}_{ob1}^{\ast }$ and $\Delta SYM{H}_{ob3}^{\ast }$, respectively. The interplanetary (IP) sources responsible for $\Delta SYM{H}_{ob1}^{\ast }$ and $\Delta SYM{H}_{ob3}^{\ast }$ are determined as the solar wind during period 1 and period 3, respectively. We find that the largest southward component of the interplanetary magnetic field ($B_{smax}$) during period 3 was larger than that during period 1, and the largest solar wind dawn-to-dusk electric field ($E_{ymax}$) during period 3 was also larger than that during period 1. We also find that the time integral of $E_y$ during period 3 was much larger than that during period 1. However, we find that $|\Delta SYM{H}_{ob1}^{\ast }|$ was larger than $|\Delta SYM{H}_{ob3}^{\ast }|$, and $|\Delta SYM{H}_{ob1}^{\ast }/\Delta t1|$ was larger than $|\Delta SYM{H}_{ob3}^{\ast }/\Delta t3|$, indicating that the geomagnetic activity intensity during a period does not depend on $B_{smax}$ or $E_{ymax}$, nor does it depend on the time integral of $E_y$. What is the reason for this? We find that the solar wind dynamic pressure during period 1 was larger than that during period 3, indicating that the geomagnetic storm intensity during a period not only depends on the solar wind speed and $B_s$, but it also depends on the solar wind dynamic pressure. The magnetosphere took 4 min to respond to the IP shock. When the z-component of the interplanetary magnetic field (IMF) turned from northward to southward, the response time of the SYM-H index to the southward component of the IMF was 21 min.

1. Introduction

A geomagnetic storm is a kind of important space weather phenomenon. The various effects of geomagnetic storms have been reviewed by Ganushkina et al. [1]. The basic condition for the occurrence of a geomagnetic storm is that the interplanetary magnetic field (IMF) has a southward component (Hereafter $B_s$) [2,3]. Generally, the stronger the storm, the bigger threat to the social economy [4]. Therefore, studying the relationship between the magnetic storm intensity and solar wind parameters is very important. Many researchers hold the concept that the intensity of a geomagnetic storm depends on the peak value of some kind of solar wind parameter. Therefore, they usually calculate the correlation coefficients (CCs) between the intensities of geomagnetic storms and the peak values of various solar wind parameters [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. Because only the peak value of $B_s$ (hereafter $B_{smax}$), or the peak value of the solar wind’s dawn-to-dusk electric field (hereafter the largest solar wind electric field $E_{ymax}$) has good correlation with the intensity of the corresponding storm, many researchers insist that the intensity of a geomagnetic storm mainly depends on $B_{smax}$ or $E_{ymax}$, with the solar wind density or dynamic pressure making a minor or even no contribution. Some researchers believe that these kinds of CCs are reasonable and propose some empirical formulae relating the intensity of a geomagnetic storm only to $B_{smax}$ [23,24,25].

The injection term of the ring current in the empirical equation created by Burton et al. [26] or the empirical equation created by O’Brien and McPherron [27] is a linear function of $E_y$. Hence, some researchers hold the concept that the intensity of a geomagnetic storm is closely associated with the time integral of $E_y$ during the main phase of a geomagnetic storm (hereafter $I\left(E_y\right)$). For example, Echer et al. [7] calculated the CC between the time integral of $E_y$ during the main phase of a geomagnetic storm and the intensity of a super geomagnetic storm (Dst $\le -250$ nT), and Lee et al. [28] calculated the CC between $I\left(E_y\right)$ and the intensities of the geomagnetic storms caused by different substructures of ICMEs. Statistical studies [29,30,31] have proven that the solar wind dynamic pressure is an important parameter for the intensity of the corresponding geomagnetic storm, along with the solar wind speed and the southward component of the IMF, and the statistical results revealed that the CC between the peak value of a given solar wind parameter and the intensity of an associated major geomagnetic storm has no physical meaning, in addition to the empirical formula created by Wang, Chao and Lin [32] being better than the one created by Burton et al. [26] and the one created by O’Brien and McPherron [27], namely in that the latter two formulas are incomplete.

Case studies [33,34,35] also support the conclusion that the solar wind dynamic pressure is an important parameter for the intensity of the corresponding geomagnetic storm, along with the solar wind speed and southward component of the IMF. However, no appropriate example has been found that can explain the following two questions: why the CC between the peak value of a given solar wind parameter and the intensity of an associated major geomagnetic storm has no physical meaning and why the CC between $I\left(E_y\right)$ and the intensity of the corresponding geomagnetic storm is incomplete.

The Dst index of the largest storm caused by a high-speed stream from a coronal hole is about $-180$ nT [36]. Hence, great geomagnetic storms (GGSs) (Dst $\le -200$ nT) can only be caused by coronal mass ejections (CMEs). Most GGSs occur around the solar maximum [37], among which one GGS occurred on 21–22 October 1999. The flux of E $>2$ MeV electrons reached a very high level after the recovery phase of the storm [33,38]. The interplanetary (IP) source responsible for the main phase of the storm was the interaction between CIR and ICME [39]. Dal Lago et al. [40] made a detailed study on the IP source of the storm. The Bs observed by ACE increased abruptly at 2:30 a.m. UT on 22 October 1999 from about $-9$ nT to about $-26$ nT within several minutes and then lasted for more than 3 h, resulting in the magnetic cloud being compressed by the high-speed stream from a coronal hole [39,40]. For convenience in describing this, the ICME with a $B_s$ lower than $-26$ nT is deemed the rear part of the ICME, while the rest of the ICME with a $B_s$ lower than 0 but larger than $-26$ nT is deemed the former part of the ICME. The peak values of $|B_s|$ and $E_y$ in the rear part of the ICME are much larger than those in the former part of the ICME. Dal Lago et al. [40] used the Dst index to describe the geomagnetic storm intensity and concluded that the GGS on 21–22 October 1999 was mainly caused by the rear part of the ICME, showing his support for the concept that the intensity of a geomagnetic storm is determined by $B_{smax}$ or $E_{ymax}$. Note that the time resolution of the Dst index is 1 h, which cannot describe the rapid variation in the ring current of a storm caused by the interaction between solar wind and the magnetosphere. The SYM-H index with a time resolution of 1 min can be treated as high time resolution of the Dst index [41], and hence it can be used to describe the rapid variation in the ring current of a geomagnetic storm caused by the interaction between solar wind and the magnetosphere. Therefore, it will be used in this study to analyze the properties of the storm’s main phase.

Is the conclusion in the article by Dal Lago et al. [40] correct? To answer the question, we will use the SYM-H index to study the properties of the storm’s main phase. The properties of the solar wind parameters responsible for the main phase of the storm will also be studied. This case study will tell us why the CC between the storm intensities and the peak values of various solar wind parameters have no physical meaning. This case study will also answer the question of why the CC between $I\left(E_y\right)$ and the geomagnetic storm intensity is incomplete. These are the motivations of this study. The organization of the rest of the article is as follows. Section 2 shows the data analysis. The final section includes the discussion and summary.

2. Data Analysis

2.1. Data Source

A solar wind with a time resolution of 1 min was obtained from the OMNI at the website https://omniweb.gsfc.nasa.gov/form/omni_min.html (accessed on 27 April 2022). The geomagnetic index used in this study was the SYM-H index, which was obtained from the website at http://wdc.kugi.kyoto-u.ac.jp/ (accessed on 27 April 2022).

2.2. Why Should We Use the SYM-H Index?

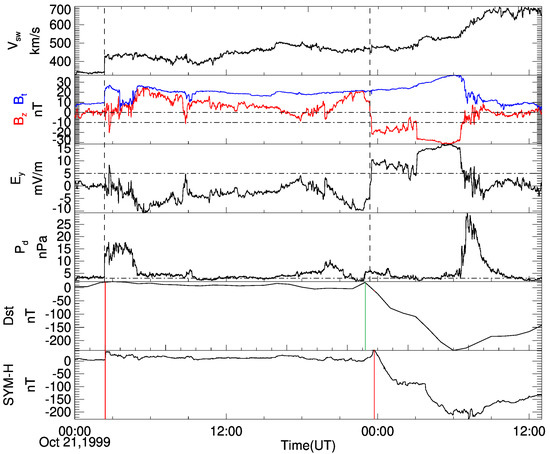

The first question that should be answered is why we should use the SYM-H index rather than the Dst index to study the properties of the main phase of a storm. To answer this question, a comparison between the SYM-H index and the Dst index, along with the corresponding solar wind parameters, is made and shown in Figure 1. An IP shock reached the magnetosphere at 2:21 a.m. UT on 21 October 1999, indicated by the first vertical dashed line. The SYM-H index increased suddenly at 2:25 a.m. UT on 21 October 1999, indicated by the first vertical red solid line, suggesting that the magnetosphere took 4 min to respond to the IP shock. However, we could not find any sudden increase in the Dst index. The Dst index began to decrease continuously from 11:00 p.m. UT on 21 October 1999, which is indicated by the vertical green solid line shown in Figure 1. The Dst index reached its lowest value of $-237$ nT at 6:00 a.m. UT on 22 October 1999. It is evident that the start and end time of the storm’s main phase, determined by the Dst index, were 11:00 p.m. UT on 21 October 1999 and 6:00 a.m. UT on 22 October 1999, respectively. It is noted that the z-component of the IMF was still northward at 11:00 p.m. UT on 21 October 1999. The z-component of the IMF turned southward at 11:23 p.m. UT on 21 October 1999, as indicated by the second vertical dashed line shown in Figure 1. Hence, it is impossible that the start time of the main phase of the storm was earlier than 11:23 p.m. UT on 21 October 1999, namely due to the start time determined by the Dst index not being reasonable. The start time of the storm’s main phase described by the SYM-H index had to be later than 11:23 p.m. UT on 21 October 1999 because the SYM-H index should take some time to respond to the southward component of the IMF [42]. The SYM-H index began to decrease from 11:44 p.m. UT on 22 October 1999, indicating that the start time of the main phase of the storm determined by the SYM-H index was 11:44 p.m. UT. It is evident that the SYM-H index took 21 min to respond to the southward component of the IMF. Anyway, the variation of the SYM-H index over time fit the temporal of the solar wind parameters better than the Dst index, although there were some differences between the SYM-H index and the Dst index [43]. We can see from Figure 1 that rapid variation of the ring current of the storm could not be seen from the variation of the Dst index over time. On the contrary, the variation of the SYM-H index over time could provide information on the rapid variation of the ring current of the storm. This is the reason why we used the SYM-H index to analyze the properties of the geomagnetic storm’s main phase in this study.

2.3. Properties of the Storm’s Main Phase

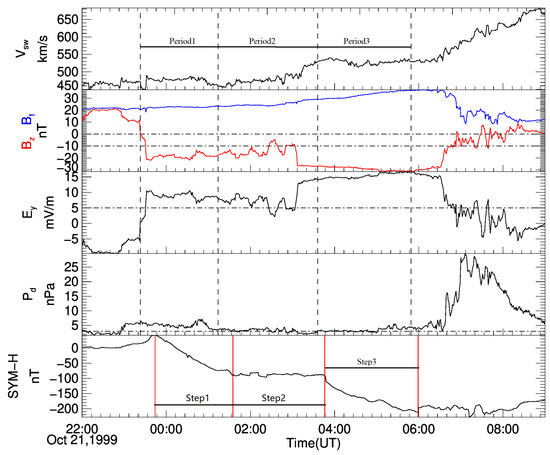

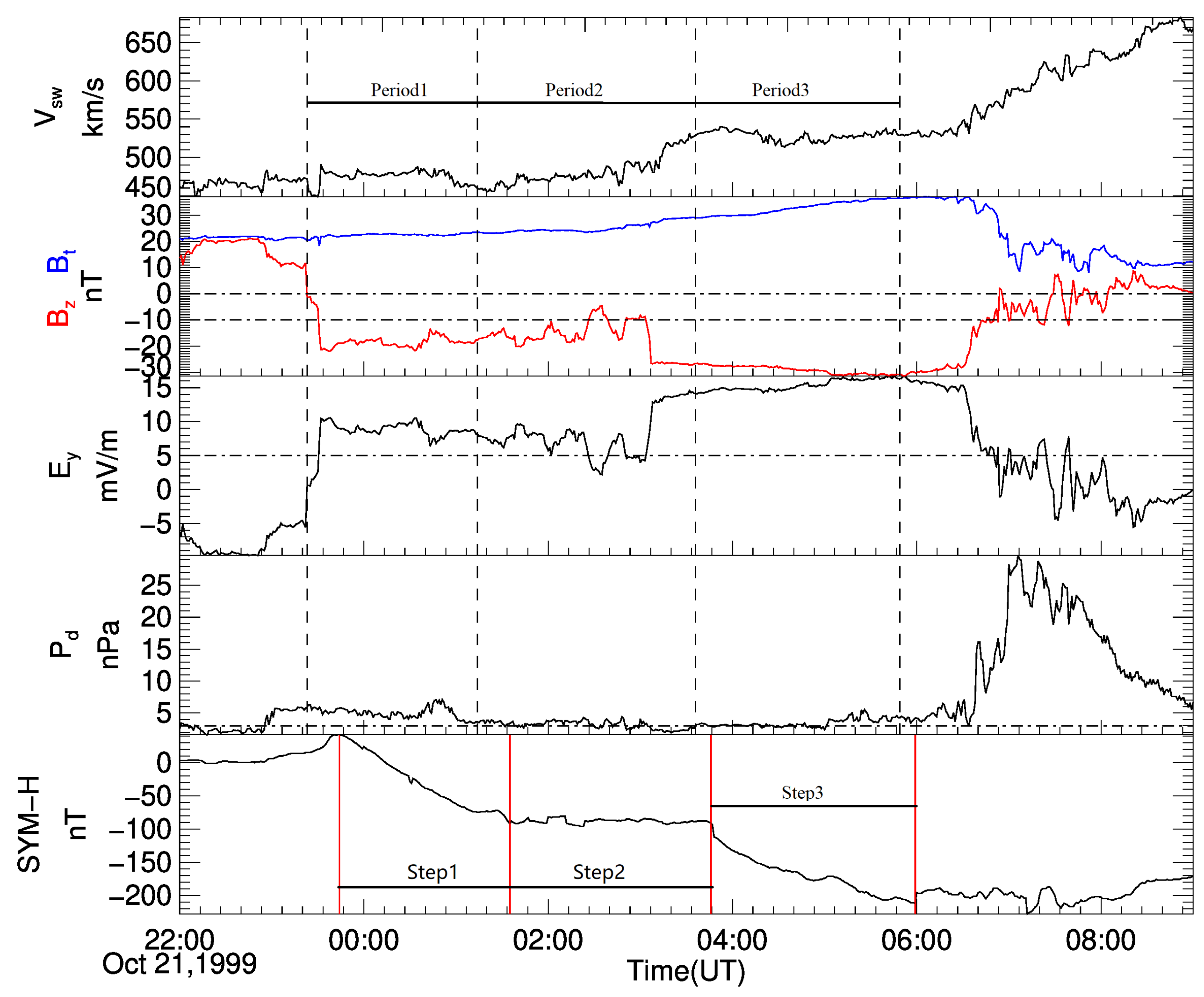

According to the variation in the SYM-H index during the storm’s main phase, we can easily find that the SYM-H index did not decrease in a sustained manner during the storm’s main phase, as shown in Figure 2. It is obvious that there were two periods during which the SYMH index decreased quickly. As shown in Figure 2, the SYM-H index decreased quickly during step 1 and step 3. The SYM-H index began to decrease continuously from the moment of 11:44 p.m. UT on 21 October 1999, which corresponds to the moment of 11:23 p.m. UT on 21 October 1999 when the z-component of the IMF turned southward. The time interval between 11:23 p.m. UT and 11:44 p.m. UT on 21 October 1999 is 21 min. The end time of step 1 was 1:35 a.m. UT on 22 October 1999, which corresponded to the solar wind time at 1:14 a.m. UT on 22 October 1999. Hence, the IP source responsible for step 1 was the solar wind during period 1 from 11:21 p.m. UT on 21 October 1999 to 1:14 a.m. UT on 22 October 1999. The start time of step 3 was 3:46 a.m. UT on 22 October 1999, when the SYM-H index began to decrease continuously again. The corresponding time of the solar wind should have been 3:36 a.m. UT on 22 October 1999 because the solar wind dynamic pressure started to be larger than 3 nPa. The time interval between the SYM-H index of step 3 and the solar wind of period 3 was 10 min. The end time of step 3 was 5:59 a.m. UT on 22 October 1999, and the corresponding time of the solar wind was determined to be 5:49 a.m. UT on 22 October 1999. The IP sources responsible for the variation in the SYM-H index during step 1 and step 3 were determined to be the solar wind during period 1 and period 3,respectively, as shown in Figure 2. To study the properties of the main phase of the storm during step 1 and step 3, the properties of the variation in the SYM-H index during the two steps will be calculated. The formula in Equation (7) in the article by Zhao et al. [31], which is listed below, will be used to calculate the real variation of the ring current during a period with the start time at $t_s$ and the end time at $t_e$:

$$\Delta SYM{H}_{ob}^{\ast }=SYM{H}_{ob}\left(t_e\right)-SYM{H}_{ob}\left(t_s\right)+7.26\sqrt{P_d}{{|}_{t_s}-7.26\sqrt{P_d}|}_{t_e}$$

(1)

where $SYM{H}_{ob}$ is the observed SYM-H index, $P_d$ is the solar wind dynamic pressure, $\sqrt{P_d}{|}_{t_s}$ and $\sqrt{P_d}{|}_{t_e}$ are the $\sqrt{P_d}$ at the times $t_s$ and $t_e$, respectively, abd $SYM{H}_{ob}^{\ast }$ is the pressure-corrected SYM-H index.

We set $\Delta t=t_e-t_s$, and then the averaged variation rate of the ring current during a period was calculated as shown below:

$$\Delta SYM{H}_{ob}^{\ast }/\Delta t$$

(2)

According to Equations (1) and (2), the derived $\Delta SYM{H}_{ob}^{\ast }$ and $\Delta SYM{H}_{ob}^{\ast }/\Delta t$ during step 1 and step 3 are listed in

Table 1. $\Delta SYM{H}_{ob}^{\ast }$ and $\Delta SYM{H}_{ob}^{\ast }/\Delta t$ during step 1 and step 3.

Step 1			Step 3
(11:44 p.m. 21 October ∼ 1:35 a.m. 22 October)			(3:46 a.m. ∼ 5:59 a.m. 22 October)
$\Delta {\mathit{SYMH}}_{\mathit{ob}\mathbf{1}}^{\ast }$	$\Delta {\mathit{t}}_{\mathbf{1}}$	$\Delta {\mathit{SYMH}}_{\mathit{ob}\mathbf{1}}^{\ast }/\Delta {\mathit{t}}_{\mathbf{1}}$	$\Delta {\mathit{SYMH}}_{\mathit{ob}\mathbf{3}}^{\ast }$	$\Delta {\mathit{t}}_{\mathbf{3}}$	$\Delta {\mathit{SYMH}}_{\mathit{ob}\mathbf{3}}^{\ast }/\Delta {\mathit{t}}_{\mathbf{3}}$
(nT)	(min)	(nT/min)	(nT)	(min)	(nT/min)
−136.23	111	−1.23	−124.88	133	−0.94

. As shown in Table 1, $|\Delta SYM{H}_{ob1}^{\ast }|$ was larger than $|\Delta SYM{H}_{ob3}^{\ast }|$, and $|\Delta SYM{H}_{ob1}^{\ast }/\Delta t_1|$ was larger than $|\Delta SYM{H}_{ob3}^{\ast }/\Delta t_3|$.

2.4. Properties of the Solar Wind Parameters during Period 1 and Period 3

The time integrals of $B_s$ during period 1 and period 3 were calculated as shown below:

$$I\left(B_s\right)={\int }_{t_1}^{t_2}{B}_{s}dt$$

(3)

where $B_s$ is the southward component of the IMF and $t_1$ and $t_2$ are the start and end times of the selected period, respectively. The averaged $B_s$ was calculated as shown below:

$$\overline{B_s}=I\left(B_s\right)/\Delta t$$

(4)

The time integrals of $E_y$ during period 1 and period 3 were calculated as shown below:

$$I\left(E_y\right)={\int }_{t_1}^{t_2}{E}_{y}dt$$

(5)

where $E_y$ is the solar wind electric field and $t_1$ and $t_2$ are the start and end time of the selected period, respectively. The averaged $E_y$ was calculated as shown below:

$$\overline{E_y}=I\left(E_y\right)/\Delta t$$

(6)

The derived $I\left(B_s\right)$ and $\overline{B_s}$ during period 1 and period 3, respectively, are listed in

Table 2. The derived $I\left(B_s\right)$, $\overline{B_s}$ and $B_{smax}$ during period 1 and period 3.

Period 1				Period 3
(11:23 p.m. 21 October ∼ 1:14 a.m. 22 October)				(3:36 a.m. ∼ 5:49 a.m. 22 October)
$\mathit{I}\left({\mathit{B}}_{\mathit{s}\mathbf{1}}\right)$	$\Delta {\mathit{t}}_{\mathbf{1}}$	$\overline{{\mathit{B}}_{\mathit{s}\mathbf{1}}}$	${\mathit{B}}_{\mathit{s}\mathbf{1}\mathit{max}}$	$\mathit{I}\left({\mathit{B}}_{\mathit{s}\mathbf{3}}\right)$	$\Delta {\mathit{t}}_{\mathbf{3}}$	$\overline{{\mathit{B}}_{\mathit{s}\mathbf{3}}}$	${\mathit{B}}_{\mathit{s}\mathbf{3}\mathit{max}}$
(nT·min)	(min)	(nT)	(nT)	(nT·min)	(min)	(nT)	(nT)
−1962.67	111	−17.52	−21.93	−3898.09	133	−29.09	−31.45

, while the derived $I\left(E_y\right)$ and $\overline{E_y}$ are listed in

Table 3. The derived $I\left(E_y\right)$, $\overline{E_y}$ and $E_{ymax}$ during period 1 and period 3.

Period 1				Period 3
(11:23 p.m. 21 October ∼ 1:14 a.m. 22 October)				(3:36 a.m. ∼ 5:49 a.m. 22 October)
$\mathit{I}\left({\mathit{E}}_{\mathit{y}\mathbf{1}}\right)$	$\Delta {\mathit{t}}_{\mathbf{1}}$	$\overline{{\mathit{E}}_{\mathit{y}\mathbf{1}}}$	${\mathit{E}}_{\mathit{y}\mathbf{1}\mathit{max}}$	$\mathit{I}\left({\mathit{E}}_{\mathit{y}\mathbf{3}}\right)$	$\Delta {\mathit{t}}_{\mathbf{3}}$	$\overline{{\mathit{E}}_{\mathit{y}\mathbf{3}}}$	${\mathit{E}}_{\mathit{y}\mathbf{3}\mathit{max}}$
(mV/m·min)	(min)	(mV/m)	(mV/m)	(mV/m·min)	(min)	(mV/m)	(mV/m)
934.37	111	8.34	10.55	2059.54	133	15.37	16.71

. We can see from Table 2 that $\left|I\right(B_{s1}\left)\right|$ was smaller than $\left|I\right(B_{s3}\left)\right|$, and $|\overline{B_{s1}}|$ was smaller than $|\overline{B_{s3}}|$. In addition, $|B_{s1max}|$ was smaller than $|B_{s3max}|$. As shown in Table 3, $I\left(E_{y1}\right)$ was smaller than $I\left(E_{y3}\right)$, and $\overline{E_{y1}}$ was smaller than $\overline{E_{y3}}$. In addition, $E_{y1max}$ was smaller than $E_{y3max}$.

The time integrals of $P_d$ during period 1 and period 3 were calculated as shown below:

$$I\left(P_d\right)={\int }_{t_1}^{t_2}{P}_{d}dt$$

(7)

where $P_d$ is the solar wind dynamic pressure and $t_1$ and $t_2$ are the start and end time of the selected period, respectively. The averaged $P_d$ was calculated as shown below:

$$\overline{P_d}=I\left(P_d\right)/\Delta t$$

(8)

The results of the calculation on the solar wind dynamic pressure are listed in

Table 4. The derived $I\left(P_d\right)$, $\overline{P_d}$ and $P_{dmax}$ during period 1 and period 3.

Period 1				Period 3
(11:23 p.m. 21 October ∼ 1:14 a.m. 22 October)				(3:36 a.m. ∼ 5:49 a.m. 22 October)
$\mathit{I}\left({\mathit{P}}_{\mathit{d}\mathbf{1}}\right)$	$\Delta {\mathit{t}}_{\mathbf{1}}$	$\overline{{\mathit{P}}_{\mathit{d}\mathbf{1}}}$	${\mathit{P}}_{\mathit{d}\mathbf{1}\mathit{max}}$	$\mathit{I}\left({\mathit{P}}_{\mathit{d}\mathbf{3}}\right)$	$\Delta {\mathit{t}}_{\mathbf{3}}$	$\overline{{\mathit{P}}_{\mathit{d}\mathbf{3}}}$	${\mathit{P}}_{\mathit{d}\mathbf{3}\mathit{max}}$
(nPa·min)	(min)	(nPa)	(nPa)	(nPa·min)	(min)	(nPa)	(nPa)
564.26	111	5.04	7.07	457.87	133	3.42	5.52

.

3. Discussion

The magnetosphere took 4 min to respond to the IP shock in our study, which is basically consistent with the result that the propagation time of the disturbance produced by an IP shock from the Earth’s bow shock to the ground, such as SSC, which was 5 min as obtained in the article by Villante et al. [44]. If the z-component of the IMF turned from south to north, the magnetosphere took 28–44 min to respond to the corresponding disturbance caused by the solar wind, but the response time of the magnetosphere to the disturbance caused by the solar wind was 17–25 min for the events with the z-component of the IMF turning from north to south [45]. The z-component of the IMF in the present study was in a northward direction and then turned southward at 11:23 p.m. UT on 21 October 1999, as indicated by the first vertical dashed line shown in Figure 2. The time interval between the moment when the z-component of the IMF turned from north to south and the moment when the SYM-H index began to decrease continuously was 21 min, indicating that the response time of the SYM-H index to the southward component of the IMF was 21 min, which was consistent with the result that the lag time varied from 17 to 25 min for 5 cases with northward-to-southward turnings in the article by Hairston and Heelis [45]. The response of the magnetosphere to the disturbance caused by the solar wind is very complicated (e.g., [42,46,47,48,49,50] and the references therein). Many more studies should be conducted to understand the time lag between the disturbance caused by the solar wind and the magnetosphere better.

If the geomagnetic activity intensity is determined by the peak value of $B_s$ or $E_y$, then the geomagnetic activity intensity caused by the solar wind during period 3 should be much stronger than that caused by the solar wind during period 1 because $|B_{s3max}|$ was larger than $|B_{s1max}|$, $E_{y3max}$ was much larger than $E_{y1max}$, and $\Delta t_3$ was longer than $\Delta t_1$, which can be seen from Table 2 and Table 3. However, $\Delta SYM{H}_{ob1}^{\ast }$ was larger than $\Delta SYM{H}_{ob3}^{\ast }$, indicating that the peak values of $B_s$ or $E_y$ were not the determining factors for the geomagnetic activity intensity. If the geomagnetic activity intensity depends on the time integral of the solar wind electric field, then the geomagnetic activity intensity caused by the solar wind during period 3 should be much stronger than that caused by the solar wind during period 1, because $I\left(E_{y3}\right)$ was much larger than $I\left(E_{y1}\right)$. However, $\Delta SYM{H}_{ob1}^{\ast }$ was larger than $\Delta SYM{H}_{ob3}^{\ast }$, indicating that the geomagnetic activity intensity was not determined by the time integral of the solar wind electric field either. What is the reason for this? We found that the solar wind dynamic pressure during period 1 was larger than that during period 3, as shown in Table 4. This is strong evidence that the solar wind dynamic pressure is an important factor for the geomagnetic activity intensity along with the solar wind speed and $B_s$. In this context, the empirical formulae that the intensity of a geomagnetic storm completely depends on the peak value of $B_s$, created by Gopalswamy et al. [23,24], or the empirical formula created by Shen et al. [25] have no physical meaning, because these formulae cannot reflect the sustained interaction between the solar wind and magnetosphere, and the contribution given by the solar wind dynamic pressure is neglected. As a matter of fact, some researchers have realized that the solar wind dynamic pressure may be important for the geomagnetic storm intensity. For example, Yermolaev et al. [51,52,53] suggested that sheath compression regions usually have a higher speed and higher dynamic pressure and therefore have a higher geomagnetic efficiency than magnetic clouds, implying that the solar wind dynamic pressure is an important parameter for the intensity of a geomagnetic storm.

We may need to adjust the start time and end time for the solar wind during period 1 and period 3 a little so that the IP source responsible for the variations in the SYM-H index during step 1 and step 3 are completely accurate. However, $|\Delta SYM{H}_{ob1}^{\ast }|/\Delta t_1$ was larger than $|\Delta SYM{H}_{ob3}^{\ast }/\Delta t_3|$, ensuring that the solar wind responsible for $\Delta SYM{H}_{ob1}^{\ast }$ had a higher geomagnetic efficiency than that responsible for $\Delta SYM{H}_{ob3}^{\ast }$.

The variation in the SYM-H index during step 2, shown in Figure 2, was very small, indicating that the injection term was almost equal to the decay term of the ring current. Therefore, we did not study the properties of the solar wind parameters during period 2, which was responsible for the variation in the SYM-H index during step 2.

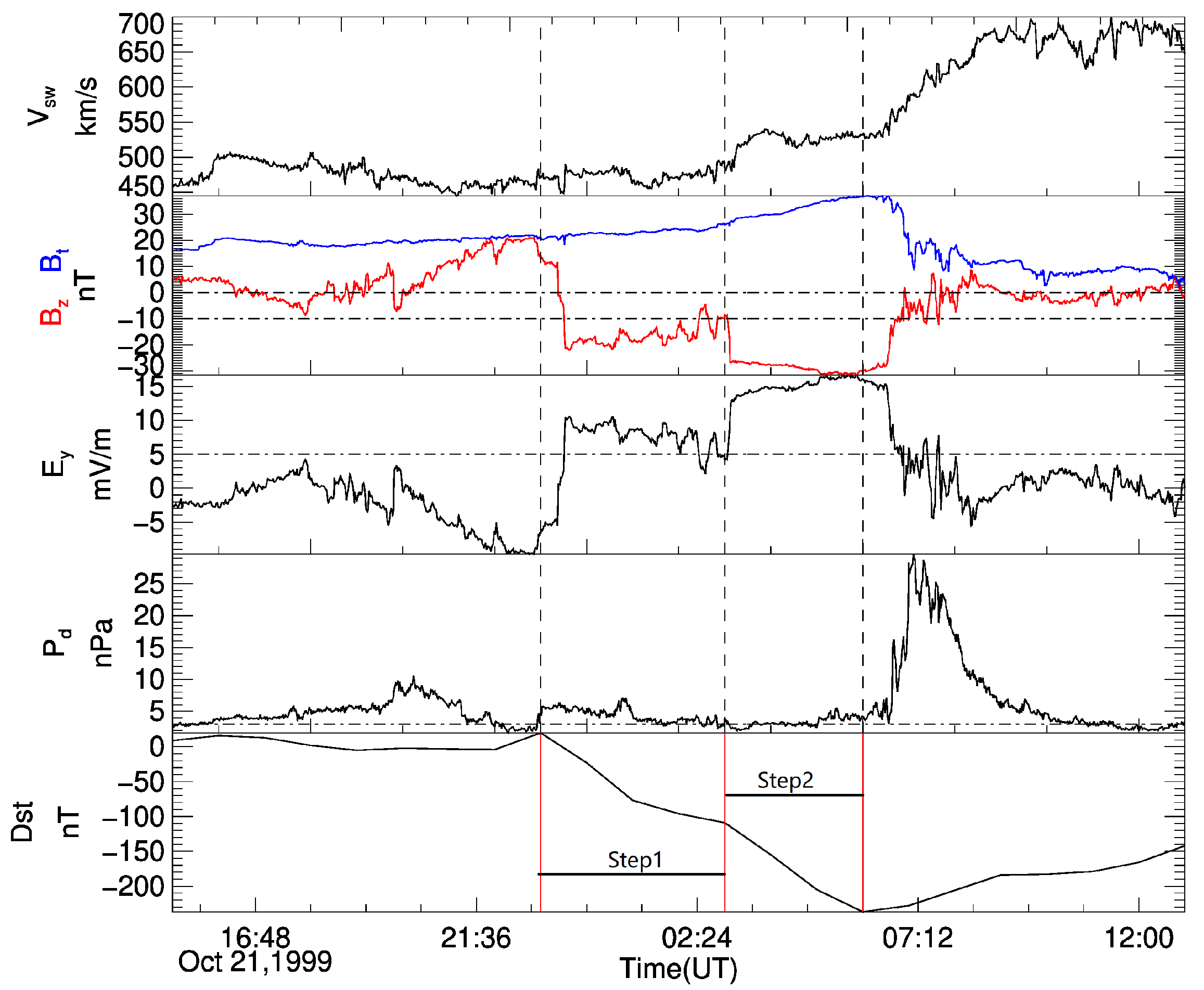

It should be noted that the main phase of the geomagnetic storm and the corresponding solar wind parameters for if we used the Dst index are shown in Figure 3. The main phase of the storm was constituted by step 1 and step 2. We used $\Delta Ds{t}_1$ and $\Delta Ds{t}_2$ to indicate the variation in the Dst index during step 1 and step 2, respectively, and we used $\Delta t_1$ and $\Delta t_2$ to indicate the duration of step 1 and step 2, respectively. The first, second and third vertical red solid lines stand for the moments of 11:00 p.m. UT on 21 October 1999, 3:00 a.m. UT on 22 October 1999 and 6:00 a.m. UT on 22 October 1999, respectively. Hence, $\Delta t_1$ was equal to 4 h, while $\Delta t_2$ was equal to 3 h. According to the Dst index, the value was 20 nT at 11:00 p.m. UT on 21 October 1999, while the value was $-109$ nT at 3:00 a.m. UT on 22 October 1999. Hence, the $\Delta Ds{t}_1$ was $-129$ nT. Similarly, $\Delta Ds{t}_2$ was $-128$ nT. However, $|\Delta Ds{t}_2/\Delta t_2|>|\Delta Ds{t}_1/\Delta t_1|$, namely because the Dst index decreased more rapidly during step 2 than during step 1. The Z-component of the IMF changed from $-8.72$ nT at 3:03 a.m. UT to $-26.61$ nT at 3:07 a.m. UT. Hence, the hourly averaged z-component of the IMF responsible for the variation in the Dst index during step 2 was much larger than that responsible for the variation in the Dst index during step 1. Because the z-component of the IMF during step 2 was much larger than that during step 1, this may be the reason why Dal Lago et al. [40] concluded that the larger value for $B_s$ led to the Dst index decreasing more rapidly during step 2 and that a larger $B_s$ value had higher geomagnetic efficiency. This tells us that if we use the Dst index in this case study, we cannot find the truth in how the solar wind dynamic pressure plays an important role in the geomagnetic activity’s intensity.

4. Summary and Conclusions

We studied the properties of the main phase of the geomagnetic storm that occurred on 21–22 October 1999 and then compared them with the corresponding solar wind parameters. The results are summarized below:

(1) The main phase of the geomagnetic storm that occurred on 1999 October 21–22 was split into three steps. The SYM-H index decreased quickly during step 1 and step 3, while the variation in the SYM-H index during step 2 was very small. The IP source responsible for the SYM-H index during step 1 and step 3 was the solar wind during period 1 and period 3, respectively. We found that $|B_{s3max}|$ was larger than $|B_{s1max}|$, $E_{y3max}$ was larger than $E_{y1max}$, and $\Delta t_3$ was longer than $\Delta t_1$. However, $\Delta SYM{H}_{ob1}^{\ast }$ was larger than $\Delta SYM{H}_{ob3}^{\ast }$, indicating that the CC between the intensity of a geomagnetic storm and the largest southward component of the IMF or the CC between the intensity of a geomagnetic storm and the largest solar wind electric field had no physical meaning. $I\left(E_{y1}\right)$ was smaller than $I\left(E_{y3}\right)$. However, $\Delta SYM{H}_{ob1}^{\ast }$ was larger than $\Delta SYM{H}_{ob3}^{\ast }$, indicating that the CC between the intensity of a geomagnetic storm and the time integral of the solar wind electric field during the main phase of the storm was incomplete. The reason that $\Delta SYM{H}_{ob1}^{\ast }$ was larger than $\Delta SYM{H}_{ob3}^{\ast }$ is that the solar wind dynamic pressure during period 1 was larger than that during period 3. This is evidence that the solar wind dynamic pressure is an important parameter for determining the intensity of a geomagnetic storm, along with the solar wind speed and the southward component of the IMF.

(2) The magnetosphere took 4 min to respond to the IP shock. The time lag between the moment when the z-component of the IMF turned from north to south and the moment when the SYM-H index began to decrease continuously was 21 min.
