Secondary Metabolites of Aeromonas veronii Strain A134 Isolated from a Microcystis aeruginosa Bloom

Plants and Environmental Sciences, the Hebrew University of Jerusalem, Edmond J. Safra Campus, Givat Ram, Jerusalem 9190401, Israel
Raymond and Beverly Sackler School of Chemistry and Faculty of Exact Sciences, Tel Aviv University, Tel Aviv 69978, Israel
Metabomed Ltd., Yavne 81220, Israel
The Yigal Allon Kinneret Limnological Laboratory, Israel Oceanographic and Limnological Research, Migdal 14950, Israel
Author to whom correspondence should be addressed.
Metabolites 2019, 9(6), 110;
Received: 13 May 2019 / Revised: 2 June 2019 / Accepted: 6 June 2019 / Published: 9 June 2019
(This article belongs to the Special Issue Metabolomics in Chemical Ecology)


Aeromonas veronii strain A134 was isolated from Microcystis aeruginosa colonies collected from Lake Kinneret (Sea of Galilee), Israel. The Aeromonas culture media inhibited the growth of M. aeruginosa (strain MGK). The crude extract of a large-scale culture of A. veronii A134 was separated in a few chromatographic steps to yield three new secondary metabolites, 9-chlorolumichrome (1), veronimide (2) and veronipyrazine (3), along with a known lumichrome and several known diketopiperazines. The structures of the new compounds were established by analyses of the data from 1D and 2D NMR experiments and HRMS data of the compounds, as well as a single-crystal X-ray analysis of synthetic 1. The structure elucidation and proposed biogenesis of the new compounds are described below.

Graphical Abstract

1. Introduction

Studies on the gram-negative bacteria Aeromonas species, which are ubiquitous worldwide in water bodies, have mostly focused on pathogen species associated with fish and human infections [1]. However, very few studies have investigated the biosynthetic capacity of this group of microorganisms. The presence of secondary metabolites has been recognized in various Aeromonas species [2] such as Aeromonas hydrophila, in which GC-MS analysis suggests the presence of 23 antifungal bioactive compounds [3]. Aeromonas salmonicida subsp. achromogenes strain NY4, on the other hand, exhibits the capacity to oxidize phenanthrene and to produce a large number of resulting degradation products [4]. In a recent study we showed interspecies interactions between the non-pathogenic Aeromonas veronii and a toxic cyanobacterium in a fresh body lake, implicating secondary metabolites in the cross-talk between these organisms. Enhanced lumichrome production by A. veronii in response to the presence of culture media from the toxic cyanobacterium Microcystis aeruginosa strain MGK and inhibition of MGK growth by applications of pure lumichrome implicated this metabolite in the cross-talk between these two microorganisms [5]. Analysis of its genome (accession no. PRJNA508461) using AntiSMASH [6] identified genes potentially encoding two unknown bacteriocins (ctg42_4, location: 1838–2506; ctg86_35, location: 34489–35346) and a gene cluster likely encoding a non-ribosomal peptide synthetase (ctg90_3, location: 1480–8956). Our present study aimed to identify novel secondary metabolites from A. veronii strain A134, which yielded, among others, three new metabolites—9-chlorolumichrome (1), veronimide (2) and veronipyrazine (3) (Figure 1). The structure elucidation of the new metabolites and their possible biogenesis are discussed below.

2. Results

2.1. Structure Elucidation of 9-Chlorolumichrome (1)

9-Chlorolumichrome (1) was isolated as a yellowish solid material, which presented high-resolution (HR) negative ESI-MS mass signals ([M−H]) at m/z 275.0356 and 277.0341 in a 3:1 ion intensity ratio, corresponding to the molecular formula C12H8N4O2Cl and 10 degrees of unsaturation. The 1H NMR spectrum (Table 1) of 1 resembled that of lumichrome [7] except for the absence of one singlet aromatic proton and small differences in the chemical shifts of its other proton signals when compared with those of lumichrome [8]. In the 13C NMR spectrum (Table 1) of 1, small changes in the chemical shifts of the carbons relative to those of lumichrome and an additional quaternary sp2 carbon instead of one of the sp2 methine carbons of lumichrome were observed. The latter data suggest that one of the aromatic methines (C-6 or C-9) of lumichrome was substituted by a chlorine atom. Analysis of the 2D NMR spectra of 1 and comparison of the chemical shifts of C-2, C-4 and C-10a with those of lumichrome established 1 as 9-chlorolumichrome. The chlorination of lumichrome with N-chlorosuccinimide using the procedure of Tanemura et al. [9] afforded a single product which presented NMR and MS data identical with those of 1. X-ray analysis of a crystal obtained from the synthetic material confirmed its structure as 9-chlorolumichrome (Figure S1).

2.2. Structure Elucidation of Veronimide (2)

Veronimide (2) was isolated as an amorphous solid that presented high-resolution ESI-MS mass signals ([M+Na]+) at m/z 249.1211 corresponding to the molecular formula C11H18N2O3Na and 4 degrees of unsaturation. In the 1H NMR spectrum (Table 2), 2 presented, among others, protons attributed to an amide (8.26 ppm), a formyl (8.03 ppm), a down field shifted methine (5.62 ppm), symmetric methylenes (3.66, 2.58, 1.95 ppm), a doublet methyl (0.86 ppm) and a triplet methyl (0.79 ppm). The 13C NMR spectrum of 2 revealed, among others, three carboxy carbons (175.7, 172.6, 161.3 ppm), an amino-methine (54.5 ppm) and an amino-methylene (45.7 ppm). Analysis of the COSY spectrum (Table 2) of 2 established two spin systems: methylenes 2 through 4 and NH-12 through CH3-11. These two spin systems could be extended through the HSQC and HMBC correlations (Table 2) to pyrrolidinonyl and N-formyl-isoleucyl sub-structures. To fulfil the molecular formula of 2, the latter two sub-structures could be connected only through the carboxyl group of the N-formyl-isoleucyl to the pyrrolidinonyl-nitrogen. The absolute stereochemistry of the chiral center of the isoleucine unit was established as L by Marfey’s analysis [10], establishing the structure of veronimide for 2.

2.3. Structure Elucidation of Veronipyrazine (3)

Veronipyrazine (3) was isolated as an amorphous white solid exhibiting negatively charged HRESI-MS mass signals ([M−H]) at m/z 185.0718, which corresponded to the molecular formula C11H9N2O and 8 degrees of unsaturation. The 1H NMR spectrum of 3 (Table 3) presented three singlet proton signals at the lower field of the spectrum (9.83, 8.97, 8.50 ppm), two doublet signals, 2H each, in the aromatic region of the spectrum (6.87, 7.93 ppm) and a singlet methyl signal resonating at 2.48 ppm. The 13CNMR spectrum of 3 (Table 3) presented eight aromatic signals, two of which doubled and a single methyl signal at the aliphatic region. The two aromatic doublet proton signals, 7.93 and 6.87 ppm (2H each), presented mutual COSY correlations suggesting a conjugated phenol ring. The remaining three singlet signals presented very weak COSY correlations of the signal at 8.50 ppm with those at 8.97 and 2.48 ppm, suggesting that they belong to the same aromatic spin system but are coupled through four or more bonds. The chemical shifts of the protons and carbons (Table 3), as well as the C–H coupling constants (obtained from the HSQC experiment), suggested that they belong to an heteroaromatic spin system. The heteroaromatic methine-2 presented HMBC correlation with the aromatic methyl-11. The latter methyl presented an additional HMBC correlation with an heteroaromatic quaternary imine carbon-3, suggesting a direct connection between them. The HMBC correlations of H-2 with C-3, C-5 and C-11, and of H-5 with C-3 and C-6, established the 1,4-pyrazine ring system. Finally, the HMBC correlation of H-8 and H-8’ with C-6 proved the connection of the phenol ring to the pyrazine ring through C-6, establishing structure of veronipyrazine for 3.

3. Discussion

Since the metabolome of A. veronii has not been previously studied, we decided to separate and characterize by NMR and MS those metabolites that were present in its extract in sufficient quantities. In the current research we isolated from the culture medium of A. veronii strain A134, which inhibited the growth of M. aeuroginosa strain MGK, three new metabolites, 9-chlorolumichrome (1), veronimide (2) and veronipyrazine (3), along with the known lumichrome, indole-3-glyoxylamide, cyclo-tyrosylprolyl [11], cyclo-valylprolyl [12], cyclo-isoleucylprolyl [13], cyclo-phenylalanylprolyl [12] and cyclo-tryptophylprolyl [12]. Due to the minute quantities of 13, they were tested only for the growth inhibition of M. aeuroginosa strain MGK by cell counting, but they were found to be inactive. The only active metabolite we isolated from the culture medium was lumichrome [5]. The abovementioned metabolites, 13, are most probably derived from the enzymatic transformation of primary metabolites rather than products of secondary metabolism by special biosynthetic genes. Lumichrome and 9-chlorolumichrome (1) are possibly derived from the hydrolysis of the sugar unit of riboflavin, which is followed by chlorination, probably by a flavin-dependent holgenase [14] (Scheme 1). Veronimide (2) seems to be an oxidation product of cyclo-isolecinylprolyl, probably resulting from the action of cytochrome-P450 or a similar oxidizing enzyme, which produces the peroxy-derivative 2a. Intermediate 2a is most probably converted to the corresponding alcohol 2b, which in turn is rearranged to veronimide (2) (Scheme 1). Veronipyrazine (3) is most probably derived from the reduction of one of the amide carboxamides and the subsequent double dehydration of cyclo-alanyl(4-hydroxy)phenylglycyl (Scheme 1). These findings for A. veronii strain A134, and those published for A. salmonicida subsp. achromogenes strain NY4 [4], suggest that Aeromonas spp. are capable of transforming primary metabolites to secondary-like metabolites but have very low capacity to produce secondary metabolites. How and whether these abilities are associated with their pathogenesis deserves further investigation.

4. Materials and Methods

4.1. General Experimental Procedures

Optical rotation values were obtained on a JASCO P-1010 polarimeter at the sodium D line (589 nm). UV spectra were recorded on an Agilent 8453 spectrophotometer. IR spectra were recorded on a Bruker Tensor 27 FT-IR instrument. NMR spectra were recorded on Bruker Avance and Avance III spectrometers at 500.13 MHz for 1H and 125.76 MHz for 13C. DEPT, COSY-45, gTOCSY, gROESY, gHSQC, gHMQC and gHMBC spectra were recorded using standard Bruker pulse sequences. NMR chemical shifts were referenced to TMS δH and δC = 0 ppm. High-resolution mass spectra were recorded on a Waters MaldiSynapt instrument (ESI) and LC-MS spectra were recorded on a Waters Xevo TQD instrument (ESI). HPLC separations were performed on a Merck Hitachi HPLC system (L-6200 Intelligent pump and L-4200 UV-VIS detector), a JASCO P4-2080 plus HPLC system with a multiwavelength detector and an Agilent 1100 Series HPLC system.

4.2. Isolation and Identification of A. veronii Strain A134

Water samples were collected from 52 Microcystis sp. surface scums at various sites in Lake Kinneret (Sea of Galilee), Israel, during a bloom event in February 2014. Aliquots of 100 µL were placed on 1.5% agar petri dishes containing Luria–Bertani (LB) medium and incubated at 30 °C. Single colonies were isolated and sub-cultured by streaking onto solid or into liquid LB; the latter were agitated (100 rpm) at 30 °C. Those isolates that were able to grow on polysaccharides isolated from Microcystis sp. were identified using their 16S rDNA sequences. DNA was isolated from LB grown cultures using phenol and chloroform by a standard method [15]. Sequencing of the 16S rDNA was performed by an ABI PRISM 3730xl DNA Analyzer [16]. The forward (F) and reverse (R) primers used were: F-AGAGTTTGATCMTGGCTCAG and R-TACGGYTACCTTGTTACGACTT. Analysis of the 16S rDNA sequence of strain A134 clearly indicated that the isolated bacterium was A. veronii (see phylogenetic tree in Figure S1 in the Supplementary Material).

4.3. Isolation and Identification of the Metabolites

A. veronii strain A134 cultures were grown in 20 L LB medium for two weeks and the cells were removed from the medium by centrifugation. The spent medium was freeze-dried and extracted with a 45:45:10 mixture of ethyl acetate/methanol/water yielding 28 g of crude extract. After each step of separation, 1H-NMR spectra and biological activity assays were performed in order to guide further separations. The extract was partitioned successively between petroleum ether, a mixture of 1:1 chloroform/methanol and water. The chloroform/methanol soluble material (18.5 gr) was separated on a reversed-phase C-18 open column eluted with a step-gradient of decreasing polarity, from 100% water to 100% methanol and 100% ethyl acetate. Fractions 5–9, which inhibited M. aeuroginosa strain MGK growth, were combined (1.2 gr) and further separated on a size exclusion Sephadex LH-20 column eluted with a 1:1 mixture of chloroform/methanol to afford two active fractions (9 and 10, 33.8 mg). The combined active fraction was separated on a preparative Phenomenex Hydro-RP HPLC column eluted with an isocratic solvent mixture of 2:1 0.1% aqueous TFA/CH3CN to afford in fraction 6 (tR 21.3 min, 1.5 mg, 0.005% yield of dry crude extract weight) lumichrome and in fraction 11 (tR 39.0 min, 0.4 mg, 0.001%) yield 9-chlorolumichrome (1). The combined non-active fractions (3–8, 0.42 g) from the size exclusion column were further separated on a Cosmosyl C-8 HPLC column eluted with 3:1 0.1% aqueous TFA/CH3CN to afford in fraction 2, cyclo-tyrosylprolyl (tR 14.8 min, 9.8 mg, 0.033% yield), in fraction 3, cyclo-valylproly (tR 15.8 min, 12.8 mg, 0.043% yield), in fraction 5, cyclo-isoleucylprolyl (tR 18.4 min, 8.4 mg, 0.028% yield), in fraction 9, cyclo-phenylalanylprolyl (tR 26.0 min, 79.6 mg, 0.265% yield) and in fraction 11, cyclo-tryptophylprolyl (tR 18.4 min, 7.3 mg, 0.024% yield). Fraction 6 (50.2 mg) and fraction 13 (16.1 mg) from the latter separation were further separated on the same column eluted with 45:55 MeOH/Water. Fraction 6 yielded in fraction 3, pure 2 (tR 27.4 min, 1.4 mg, 0.005% yield), while fraction 13 yielded in fraction 1, indole-3-glyoxylamide (tR 28.8 min, 3.4 mg, 0.011% yield) and in fraction 3, pure 3 (tR 38.3 min, 1.2 mg, 0.004% yield).
9-Chlorolumichrome (1): Crystalline yellowish solid (monoclinic, isopropanol); UV (MeOH) λmax (log ε) 221 (4.49) nm, 252 (4.44) nm, 267 (4.50) nm, 349 (3.97) nm, 391 (3.82) nm; IR (ATR Diamond) νmax 3709, 3691, 3648, 3606, 2360, 2341, 2273 cm−1; For 1H and 13C NMR data see Table 1; HRESIMS m/z 275.0356 [M-H] (Calcd. for C12H8N4O235Cl, 275.0336).
Veronimide (2): Amorphous white solid; [α]25D 26.7 (c 0.15, MeOH); UV (MeOH) λmax (log ε) 215 (3.70) nm; IR (ATR Diamond) νmax 3308, 2966, 2934, 2878, 2273, 1740, 1670 cm−1; For 1H and 13C NMR data see Table 2; HRESIMS m/z 249.1211 [M+Na]+ (Calcd. for C11H18N2O3Na, 249.1215). Retention times of the L-FDAA Marfey’s derivatives: L-Ile 49.0 min (D-Ile 53.2 min).
Veronipyrazine (3): Amorphous white solid; UV (MeOH) λmax (log ε) 202 (3.46), 243 (3.11), 269 (3.24), 290 (3.23), 325 (3.04) nm; IR (ATR Diamond) νmax 3212, 1670, 1636, 1611 cm−1; For 1H and 13C NMR data see Table 3; HRESIMS m/z 185.0718 ([M−H]) (Calcd. for C11H9N2O, 185.0715).

4.4. Synthesis of 9-Chlorolumichrome

Lumichrome 50 mg (0.207 mmol), N-chlorosuccinimide 55 mg (0.412 mmol) and FeCl3 anhydrous 3 mg (0.019 mmol) dissolved in DMF (10 mL) were stirred at rt for 5 days. The solvent was removed under reduced pressure and the residue was purified by column chromatography on silica gel, with a 10% step gradient from CHCl3 to MeOH, affording in fraction 1, 9-chlorolumichrome (23 mg, 0.098 mmol, 47% yield).

4.5. Determination of the Absolute Configuration of the Amino Acids

Compound 2 (0.25 mg) was hydrolyzed in 6N, HCl (1 mL). The reaction mixture was maintained in a sealed glass bomb at 104 °C for 16 h. The acid was removed in vacuo and the residue was re-suspended in 250 µL of water. FDAA solution ((1-fluoro-2,4-dinitrophenyl)-5-L-alanine amide) in acetone (115 µL, 0.03 M) and NaHCO3 (120 µL, 1M) was added to the reaction vessel. The reaction mixture was stirred at 40 °C for 2 h. Then HCl (2M, 60 µL) was added to each reaction vessel and the solution was evaporated in vacuo. The FDAA-amino acid derivatives from the hydrolysate were dissolved in 1 mL CH3CN and compared with standard FDAA-amino acids by HPLC analysis: LiChrospher 60, RP-select B (5 µm), flow rate 1 mL/min, UV detection at 340 nm, linear gradient elution from 9:1 0.1% aq. TFA buffer, pH 3: CH3CN to CH3CN, within 60 min. The absolute configuration of each amino acid was determined by spiking the derivatized hydrolysates with a d,l-mixture of isoleucine.

Supplementary Materials

The following are available online at, Figure S1. Phylogenetic tree of Aeromonas veronii strain A134; Figure S2. 1H NMR spectrum of isolated 9-chlorolumichrome (1) in DMSO-d6; Figure S3. Positive and negative ESIMS spectra of isolated 9-chlorolumichrome (1); Figure S4. HRESIMS of isolated 9-chlorolumichrome (1); Figure S5. 1H NMR spectrum of synthetic 9-chlorolumichrome (1) in DMSO-d6; Figure S6. 13C NMR spectrum of synthetic 9-chlorolumichrome (1) in DMSO-d6; Figure S7. HSQC spectrum of synthetic 9-chlorolumichrome (1) in DMSO-d6; Figure S8. HMBC spectrum of synthetic 9-chlorolumichrome (1) in DMSO-d6; Figure S9. COSY spectrum of synthetic 9-chlorolumichrome (1) in DMSO-d6; Figure S10. ESIMS of synthetic 9-chlorolumichrome (1); Figure S11. 1H NMR spectrum of veronimide (2) in DMSO-d6; Figure S12. 13C NMR spectrum of veronimide (2) in DMSO-d6; Figure S13. HSQC spectrum of veronimide (2) in DMSO-d6; Figure S14. HMBC spectrum of veronimide (2) in DMSO-d6; Figure S15. COSY spectrum of veronimide (2) in DMSO-d6; Figure S16. HRESIMS of veronimide (2); Figure S17. 1H NMR spectrum of veronipyrazine (3) in DMSO-d6; Figure S18. 13C NMR spectrum of veronipyrazine (3) in DMSO-d6; Figure S19. HSQC spectrum of veronipyrazine (3) in DMSO-d6; Figure S20. HMBC spectrum of veronipyrazine (3) in DMSO-d6; Figure S21. COSY spectrum of veronipyrazine (3) in DMSO-d6; Figure S22. HRESIMS of veronipyrazine (3); Figure S23. 1H NMR spectrum of indole-3-glyoxylamide in DMSO-d6; Figure S24. 13C NMR spectrum of indole-3-glyoxylamide in DMSO-d6; Figure S25. HSQC spectrum of indole-3-glyoxylamide in DMSO-d6; Figure S26. HMBC spectrum of indole-3-glyoxylamide) in DMSO-d6; Figure S27. COSY spectrum of indole-3-glyoxylamide in DMSO-d6; Figure S28. ESIMS of indole-3-glyoxylamide; Crystal Structure Report and Table S11: Data collection details for synthetic 9-chlorolumichrome (1); Table S2. Sample and crystal data for synthetic 9-chlorolumichrome (1); Table S3. Data collection and structure refinement for synthetic 9-chlorolumichrome (1); Table S4. Atomic coordinates and equivalent isotropic atomic displacement parameters (Å2) for synthetic 9-chlorolumichrome (1); Table S5. Atomic coordinates and equivalent isotropic atomic displacement parameters (Å2) for synthetic 9-chlorolumichrome (1); Table S6. Bond angles (°) and molecular structure for synthetic 9-chlorolumichrome (1); Table S7. Torsion angles (°) for synthetic 9-chlorolumichrome (1); Table S8. Anisotropic atomic displacement parameters (Å2) for synthetic 9-chlorolumichrome (1); Table S9. Hydrogen atomic coordinates and isotropic atomic displacement parameters (Å2) for synthetic 9-chlorolumichrome (1).

Author Contributions

Conceptualization, A.S., A.K. and S.C.; methodology, D.K.; G.W. and S.C.; formal analysis, D.K.; investigation, G.W., O.M. and D.K.; resources, D.K. and S.C.; data curation, G.W., D.K. and O.M.; writing—original draft preparation, G.W. and D.K.; writing—review and editing, A.S., A.K. and S.C.; visualization, G.W., D.K. and O.M.; supervision, S.C.; funding acquisition, A.K. and S.C.


This research was funded by the Israeli Ministry of Science and Technology and by the Israel Science Foundation Grant 1298/13. Gad Weiss was supported by Blue-Green Water Technologies Ltd. and the Yohai Ben-Nun memorial fund.


The authors thank Sophia Lipstman, Crystallography Laboratory, School of Chemistry, Tel Aviv University, for solving the crystallographic structure of compound 1.

Conflicts of Interest

The authors declare no conflict of interest, there is no connection between Metabomed Ltd. and the subject of this manuscript.


  1. Navarro, A.; Martinez-Murcia, A. Phylogenetic analyses of the genus Aeromonas based on housekeeping gene sequencing and its influence on systematics. J. Appl. Microbiol. 2018, 125, 622–631. [Google Scholar] [CrossRef] [PubMed]
  2. Gu, J.D.; Mitchell, R. Antagonism of bacterial extracellular metabolites to freshwater-fouling invertebrate zebra mussels, Dreissena polymorpha. J. Microbiol. 2001, 39, 133–138. [Google Scholar]
  3. Kamal, S.A.; Hamza, L.F.; Ibraheam, I.A. Characterization of antifungal metabolites produced by Aeromonas hydrophila and analysis of its chemical compounds using GC-MS. Res. J. Pharm. Tech. 2017, 10, 3845–3851. [Google Scholar] [CrossRef]
  4. Nie, M.; Nie, H.; Cao, W.; Wang, X.; Guo, Y.; Tian, X.; Yin, X.; Wang, Y. Phenanthrene Metabolites from a New Polycyclic Aromatic Hydrocarbon-Degrading Bacterium Aeromonas salmonicida subsp. Achromogenes Strain NY4. Polycyc. Arom. Compd. 2016, 36, 132–151. [Google Scholar] [CrossRef]
  5. Weiss, G.; Kovalerchick, D.; Murik, O.; De Philippis, R.; Carmeli, S.; Kaplan, A. Increased algicidal activity of Aeromonas veronii in response to Microcystis aeruginosa: Inter-species crosstalk and secondary metabolites synergism. Environ. Microbiol. 2019, 21, 1140–1150. [Google Scholar] [CrossRef] [PubMed]
  6. AntiSMASH Bacterial Version. Available online: (accessed on 30 December 2018).
  7. Karrer, P.; Salomon, H.; Schopp, K.; Schlittler, E.; Fritzsche, H. Ein neues Bestralungsproduckt des Lactoflavins: Lumichrom. Helv. Chim. Acta 1934, 17, 1010–1013. [Google Scholar] [CrossRef]
  8. Tsukamoto, S.; Kato, H.; Hirota, H.; Fusetani, N. Lumichrome, a larval, metamorphosis-inducing substance in the ascidian Halocynthia roretzi. Eur. J. Biochem. 1999, 264, 785–789. [Google Scholar] [CrossRef] [PubMed]
  9. Tanemura, K.; Suzuki, T.; Nishida, Y.; Satsumabayashi, K.; Horaguchiy, T. Halogenation of aromatic compounds by N-chloro-, N-bromo- and N-iodosuccinimide. Chem. Lett. 2003, 32, 932–933. [Google Scholar] [CrossRef]
  10. Marfey, P. Determination of D-amino acids. II. Use of a bifunctional reagent, 1,5-difluoro-2,4-dinitrobenzene. Carlsberg. Res. Commun. 1984, 49, 591–596. [Google Scholar] [CrossRef]
  11. Kumar, N.; Mohandas, C.; Nambisan, B.; Kumar, D.R.S.; Lankalapalli, R.S. Isolation of proline-based cyclic dipeptidets from Bacillus sp. N strain associated with rhabitid entomopathogenic nematode and its antimicrobial properties. World J. Microbiol. Biotechnol. 2013, 29, 355–364. [Google Scholar] [CrossRef]
  12. Li, X.; Dobrestov, S.; Xu, Y.; Xiao, X.; Hung, O.S.; Qian, P. Antifouling diketopiperazines produced by a deep-sea bacterium, Streptomyces fungicidicus. Biofouling 2006, 22, 187–194. [Google Scholar] [CrossRef]
  13. Wardecki, T.; Brotz, E.; De Ford, C.; von Loewenich, F.D.; Rebets, Y.; Tokovenko, B. Endophytic Streptomyces in the traditional medicinal plant Arnica montana L.: Secondary metabolites and biological activity. Antonie van Leeuwenhoek 2015, 108, 391–402. [Google Scholar] [CrossRef] [PubMed]
  14. Van Pee, K.-H.; Patallo, E.P. Flavin-dependent halogenases involved in secondary metabolism in bacteria. Appl. Microbiol. Biotechnol. 2006, 70, 631–641. [Google Scholar] [CrossRef] [PubMed]
  15. Schatz, D.; Keren, Y.; Hadas, O.; Carmeli, S.; Sukenik, A.; Kaplan, A. Ecological implications of the emergence of non-toxic subcultures from toxic Microcystis strains. Environm. Microbiol. 2005, 7, 798–805. [Google Scholar] [CrossRef] [PubMed]
  16. Detwiler, M.M.; Hamp, T.J.; Kazim, A.L. DNA sequencing using the liquid polymer POP-7 ™ on an ABI P. Benchmarks 2004, 36, 932–933. [Google Scholar]

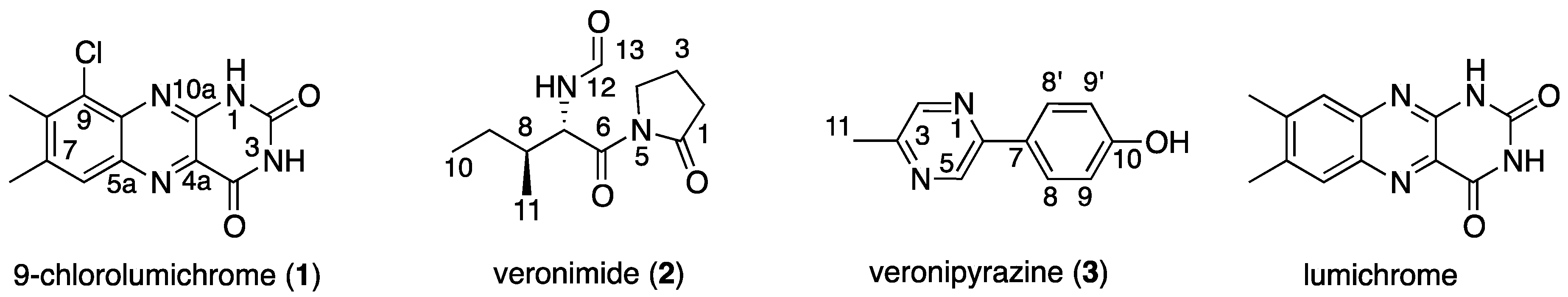

Figure 1. The new metabolites that were isolated from Aeromonas veronii strain A134.
Figure 1. The new metabolites that were isolated from Aeromonas veronii strain A134.
Metabolites 09 00110 g001

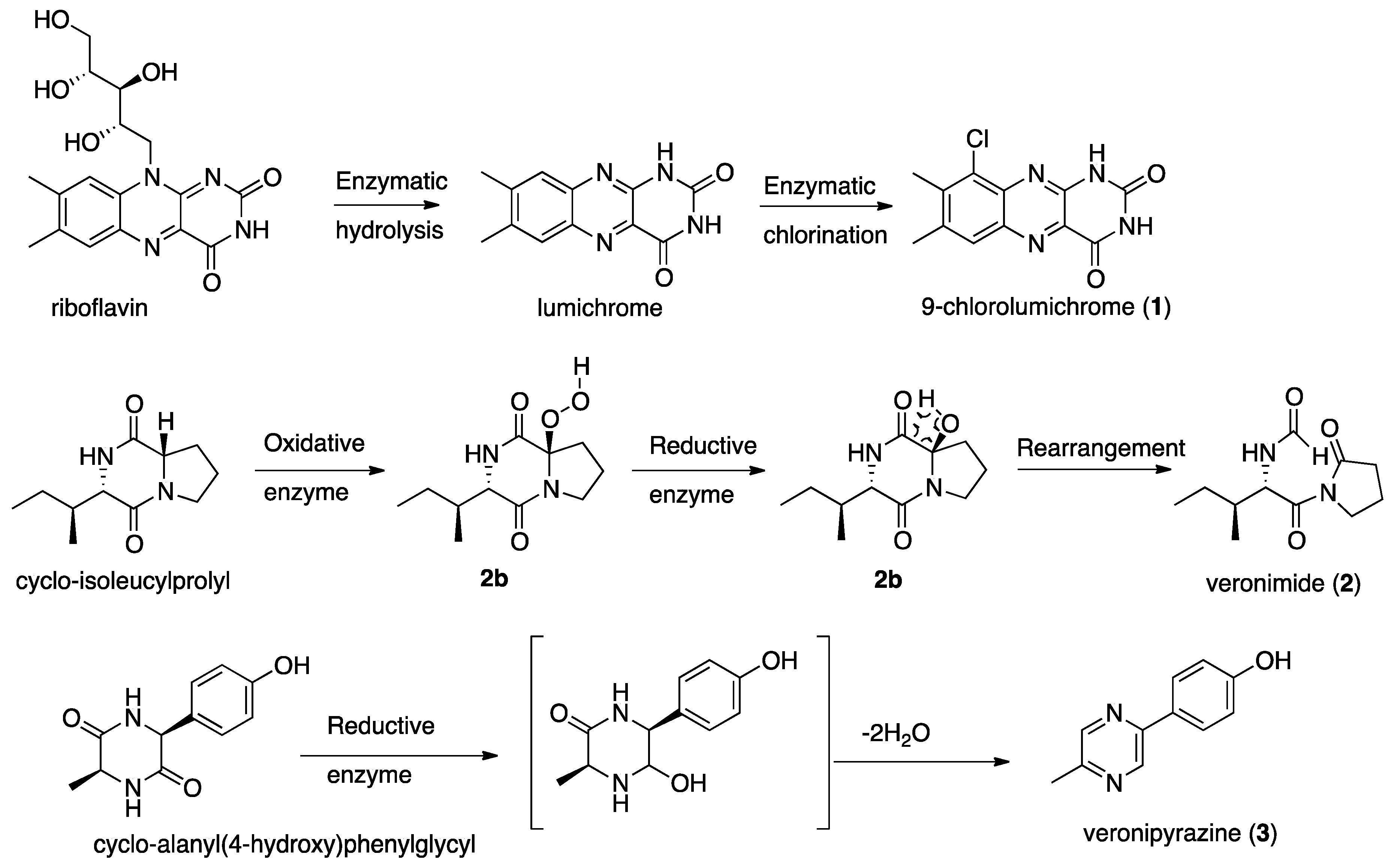

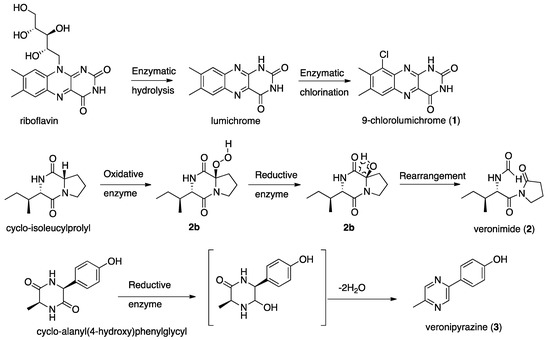

Scheme 1. Possible transformations leading to compounds 13.
Scheme 1. Possible transformations leading to compounds 13.
Metabolites 09 00110 sch001
Table 1. NMR data of 9-chlorolumichrome (1) and lumichrome in DMSO-d6a.
Table 1. NMR data of 9-chlorolumichrome (1) and lumichrome in DMSO-d6a.
9-Chlorolumichrome (1)Lumichrome
PositionδC, Mult.bδH, Mult.cLRd C-H CorrelationsδC, Mult.bδH, Mult.c
1-11.74, se--11.65, s
2150.2, C--150.3, C-
3-12.03, s--11.82, s
4160.5, C--160.8, C-
4a131.5, C-1, 3130.4, C-
5a138.3, C-6138.6, C-
6127.9, CH7.94, s11128.9, CH7.91, s
7139.0, C-6, 11, 12144.9, C-
8141.7, C-11, 12139.1, C-
9128.7, C-6, 12126.0, CH7.70, s
9a138.2, C-6141.8, C-
10a146.9, C--146.7, C-
1121.0, CH32.52, s619.8, CH32.45, s
1217.9, CH32.57, s1120.4, CH32.48, s
a 500 MHz for 1H and 125 MHz for 13C. b Multiplicity and assignment from HSQC experiment. c Determined by HMBC experiment. d Long-range. e Singlet.
Table 2. NMR data of veronimide (2) in DMSO-d6a.
Table 2. NMR data of veronimide (2) in DMSO-d6a.
PositionδC, Mult.bδH, Mult.c (J in Hz)COSY CorrelationsLRd C-H Correlations
1175.7, C--2a, 2b, 3a, 3b, 4a, 4b
233.4, CH2a 2.61, me
b 3.57, me
3a, 3b4a, 4b
316.9, CH2a 1.96, me
b 1.92, me
2a, 2b, 4a, 4b2a, 2b, 4a, 4b
445.7, CH2a 3.69, me
b 3.65, me
3a, 3b2a, 2b
6172.6, C--7
754.5, CH5.62, ddf (9.1, 4.4)8, 1212, 13
836.6, CH1.79, dddqg (10.0, 4.4, 3.9, 6.8)7, 9a, 9b, 117, 9a, 9b, 10, 11
923.2, CH2a 1.27, ddqh (13.5, 3.9, 7.4)
b 1.08, ddq (13.5, 10.0, 7.4)
8, 9b, 10
8, 9a, 10
7, 9a, 9b, 10, 11
1011.6, CH30.79, ti (7.4)9a, 9b9a, 9b
1116.1, CH30.85, dj (6.8)87, 9a, 9b
12-8.26, brdk (9.1)7, 13-
13161.3, CH8.03, sl127
a 500 MHz for 1H and 125 MHz for 13C. b Multiplicity and assignment from HSQC experiment. c Determined by HMBC experiment. d Long-range. e Second-order multiplet. f Double-doublet. g Double-double-double-quartet. h Double-double-quartet. i Triplet. j Doublet. k Broad-doublet. l Singlet.
Table 3. NMR data of veronipyrazine (3) in DMSO-d6a.
Table 3. NMR data of veronipyrazine (3) in DMSO-d6a.
PositionδC, Mult.b (JCH in Hz)δH, Mult.c (J in Hz)LRd C-H Correlations
2143.5, CH (181.4)8.50, brse11
3150.8, C-2, 5, 11
5140.0, CH (185.1)8.97, sf-
6149.0, C-2, 5, 8, 8’
7127.0, C-9, 9’
8, 8’128.0, CH × 27.92, dg × 2 (8.7)-
9, 9’115.9, CH × 26.87, d × 2 (8.7)9’, 9
10159.1, C-8, 8’, 9, 9’, 10-OH
10-OH-9.83, brs-
1120.9, CH32.48, s2
a 500 MHz for 1H and 125 MHz for 13C. b Multiplicity and assignment from HSQC experiment. c Determined by HMBC experiment. d Long-range. e Broad singlet. f Singlet. g Doublet.
