TransDiscovery: Discovering Biotransformation from Human Microbiota by Integrating Metagenomic and Metabolomic Data

by
Donghui Yan
,
Liu Cao
,
Muqing Zhou
and
Hosein Mohimani
*
Computational Biology Department, School of Computer Science, Carnegie Mellon University, Pittsburgh, PA 15213, USA
*
Author to whom correspondence should be addressed.
Metabolites 2022, 12(2), 119; https://doi.org/10.3390/metabo12020119
Submission received: 14 December 2021 / Revised: 19 January 2022 / Accepted: 24 January 2022 / Published: 26 January 2022
(This article belongs to the Special Issue Microbiome and Metabolome)
Browse Figures
Versions Notes

Abstract

:
The human microbiome is a complex community of microorganisms, their enzymes, and the molecules they produce or modify. Recent studies show that imbalances in human microbial ecosystems can cause disease. Our microbiome affects our health through the products of biochemical reactions catalyzed by microbial enzymes (microbial biotransformations). Despite their significance, currently, there are no systematic strategies for identifying these chemical reactions, their substrates and molecular products, and their effects on health and disease. We present TransDiscovery, a computational algorithm that integrates molecular networks (connecting related molecules with similar mass spectra), association networks (connecting co-occurring molecules and microbes) and knowledge bases of microbial enzymes to discover microbial biotransformations, their substrates, and their products. After searching the metabolomics and metagenomics data from the American Gut Project and the Global Foodomic Project, TranDiscovery identified 17 potentially novel biotransformations from the human gut microbiome, along with the corresponding microbial species, substrates, and products.

1. Introduction

The human microbiome consists of over 22 million genes [1], many of which are biotransformation enzymes that catalyze various chemical reactions. Currently, there is no systematic approach for assigning a function to these enzymes. Therefore, the activity and substrate specificity of these enzymes and their interactions with the host remain undetermined.
The products of microbial biotransformations could be both health-promoting and detrimental [2]. Health-promoting capacities include digestion of the dietary molecules that are indigestible by human enzymes and promoting absorption of nutrients [3]. These processes provide a great source of energy for the host and prevent the accumulation of toxic molecular byproducts [4,5,6,7]. Detrimental biotransformations include inactivation of drugs by the human microbiome [8]. Moreover, carcinogenic compounds formed during cooking procedures, such as acrylamide, are another example of detrimental biotransformations in the human microbiota [9,10,11,12]. A comprehensive understanding of how microbial enzymes transform dietary and drug molecules is crucial for inferring the effects of the microbiome in health and disease.
Functional profiling approaches are widely used for annotating the function of microbial enzymes [13,14]. However, these techniques suffer from several shortcomings. First, these methods are based on sequence homology, and they fail to correctly assign any metabolic function to ∼80% of microbial enzymes [14,15,16]. Moreover, metabolic function assignments are limited to the superfamily level, and these methods fail to predict the substrate specificity of the enzymes [17,18]. Currently, elucidation of novel biotransformations that microbial enzymes catalyze remains a time-consuming and expensive process that requires isolation of microbial strains and/or purification of microbial enzymes [19], which cannot be performed in a high-throughput manner.
Recent advances in metagenomics have enabled the collection of sequencing data on tens of thousands of human microbial communities as part of the Human Microbiome Project [20,21] and the American Gut Project (AGP) [22]. Moreover, high-throughput mass spectrometry technologies have enabled the collection of tandem mass spectral data on various environments, including the human gut microbiome [22] and human diet [23]. The molecular networking strategy (a network of spectra where similar molecules are connected to each other [24,25]) has further revealed thousands of variants of these known molecules that only appear in the gut environment (absent from food). Some of these variants are the products of the chemical biotransformation of dietary molecules by enzymes from either humans or their microbiome.
In the past, association network methods have been introduced for discovering biotransformations by detecting the cooccurrence of molecular and microbial features across various microbial communities [26,27,28]. In an association network, various statistical tests, including Pearson correlation, Spearman’s correlation, and mutual information, can be used to detect the relationship between a molecular feature and a microbial feature. While Pearson correlation focuses on measuring linear relationships, Spearman’s correlation serves the goal of obtaining monotonic relationships, and mutual information can be used to quantify the mutual dependence between two features. By using different correlation tests, different types of relations between molecular features and microbial features can be discovered.
While association networks have revealed several known and novel microbial natural products and biotransformations, these methods suffer from a common shortcoming that makes their application limited: All correlation-based methods report many strong correlations that do not correspond to any biological interactions, e.g., two features affected by a confounding feature could be correlated without any interaction. Therefore, association networks are dense networks with many spurious edges. These spurious edges require researchers to perform extensive computational searches to identify the true biological interactions from the network.
In this paper, we develop a culture-independent approach for assigning functions to microbial biotransformation enzymes and specifying their substrates and products based on large metagenomics and tandem mass spectral datasets. We introduce TransDiscovery, a computational framework that integrates molecular networks with association networks and knowledge bases of enzymatic transformations (e.g., BioTransformer [29]) to systematically characterize the microbial biotransformations. TransDiscovery overcomes the challenge of spurious edges in association studies by integrating association networks with molecular networks and biotransformation knowledge bases. TransDiscovery is based on the hypothesis that whenever a microbial enzyme biotransforms a substrate molecule into a product, we observe (i) a strong positive correlation between the enzyme or strain and the product, (ii) a strong negative correlation between the enzyme or strain and the substrate, and (iii) an edge in the molecular network between the substrate and the product (Figure 1). The positive and negative correlations correspond to the increase in abundance of the product and the decrease in the abundance of the substrate during the enzymatic reaction. The edge in the molecular network represents the structural similarity between the substrate and the product. These three relationships are referred to as golden triangles. By finding the triplets of substrates, products, and microbial strains that form a golden triangle, we ensure that the discovered biotransformations are biologically interpretable. With the idea of the golden triangles, the spurious edges will be filtered out from in the network, which decreases the false positives generated by using the correlation approach.
By applying TransDiscovery to the molecular and microbial features in the AGP and Global Foodomics Project (GFoP) datasets, we discovered 17 unique biotransformations of known substrates from PhenolDB [32], along with the corresponding microbial species and molecular products. Our framework is a step forward toward harnessing the big data of genomics/metagenomics, metabolomics, and the existing knowledge bases to illuminate the function of microbial enzymes and their role in health and disease.

2. Results

Overview of TransDiscovery. The TransDiscovery pipeline (Figure 1) starts with (a) samples of the human microbiome, then collects (b) mass spectra of small-molecule and (c) metagenomics data of microbes and extracts (d) molecular and (e) microbial feature profiles from the data. Afterwards, TransDiscovery constructs (f) the association network [26,27,28] of molecular and microbial features and (g) the molecular network [30] of tandem mass spectra. Further, (h) the integration of these two networks leads to the discovery of (i) candidate biotransformations. The structures of the (j) substrates can be annotated through a database search [31], while (k) the products can be further characterized through the in silico prediction of BioTransformer [29].
Forming the association network for the AGP dataset. We constructed an association network for 30,784 molecular features and 11,265 microbial features for 2125 human subjects in the AGP dataset using Spearman’s correlation with a p-value threshold of 10 − 4 [27]. The molecular features and microbial features were stored in two CSV files. In each file, each row represents one molecular or microbial feature, where each column represents one subject. This resulted in 9,883,612 molecule–microbe associations. Among the obtained associations, 1,379,075 had p-values below 10 − 4 and absolute r h o values over 0.1. Figure S1 shows the frequency of molecular and microbial features in different samples. All the features that formed a significant association appeared in at least a hundred samples.
Biotransformation of molecules from PhenolDB and HMDB. We predicted feasible biotransformations for molecules from PhenolDB and HMDB using BioTransformer [29]. The input comprised SMI files that recorded the smile string for each molecule in the database. This resulted in 2364 products for substrates from PhenolDB and 200,833 products for substrates from HMDB.
Constructing molecular networks. We constructed a molecular network for the tandem mass spectral data of AGP samples using a cosine threshold of 0.7. The input comprised mzML files that recorded the mass spectrometer output for each sample in the dataset. The resulting network contained 39,219 nodes and 41,296 edges. The molecular network of GFoP had 4950 nodes and 5593 edges. There were 2404 nodes at the intersection of AGP and GFoP, and these nodes had 4809 neighbors that were unique to AGP. Overall, we obtained 45,479 edges by combining the two networks.
Integrating the association network, molecular network, and predicted biotransformations. We integrated three previously obtained feature pair lists (Figures S2 and S3) to extract more reliable biotransformations (Figure 2). Specific mass annotations for the substrate identification process are listed in Table S1. Specific details of the molecular features in the identified biotransformations are listed in Table S2. Table 1 shows 17 biotransformations from PhenolDB that were retained based on Spearman’s rank correlation coefficients between the substrates or products and the strains. While most of the identified biotransformations held negative/positive correlations between microbial features and substrates/products, we noticed that for the decarboxylation of hydroxycinnamic acids by Lactobacillus [33], which has previously been reported in the literature, the same sign was shared in two correlations. The interpretation is that for some biotransformations, a higher abundance of the substrate results in a higher yield of the product.
Biotransformation identification with enzymatic features. We applied PICRUSt [35] to 11,265 taxonomy-annotated microbial features to obtain 1535 enzymatic features. These features were treated as the microbial feature input for TransDiscovery. We constructed an association network between these enzymatic features and 30,784 molecular features to obtain 7,075,238 molecule–enzyme associations with Spearman’s correlation p-value of less than 10 − 4 . These associations were integrated with the previously generated molecular network and substrate–product pairs from PhenolDB. The resulting 17 biotransformations are shown in Table S3.
Biotransformation identification with shotgun sequencing data. The shotgun sequencing data were available for 145 samples in the AGP dataset. We used KofamKOALA [36] to extract 1074 enzymatic features from the shotgun sequencing data and obtained 4597 associations between these enzymatic features and molecular features with a p-value cutoff of 10 − 3 . However, due to the limited sample size, we failed to identify any significant biotransformations in these association results (Table S4).
Degradation of riboflavin bySutterella. TransDiscovery identified a variant of riboflavin (Vitamin B2) with m/z 287.11 that was unique to the AGP dataset. Dereplicator+ [34] identified this variant as hydroxyethylflavine (Figure 3), which is a known product of the degradation of riboflavin by an unknown microbial strain in the human gut microbiota [37]. TransDiscovery identified a microbial strain that was negatively correlated with riboflavin and positively correlated with hydroxyethylflavine (p-value threshold of 10 − 5 ). The 16S rRNA of this microbial feature had 99.85% similarity to the Sutterella wadsworthensis strain SW4. Further genome annotations revealed that this strain had a gene cluster with ribonucleoside hydrolase and ribokinase, which are known to play a role in the degradation of riboflavin in Microbacterium maritypicum [38] and Devosia riboflavina [39]. The gene cluster of Sutterella is quite different from those of Microbacterium and Devosia, and its molecular product is also slightly different (hydroxyethylflavine is predicted in the case of Sutterella, versus lumichrome in the case of D. riboflavina and M. maritypicum), suggesting that this riboflavin degradation pathway might be novel.
Decarboxylation of hydroxycinnamic acids byEnterobacteria. The association networks revealed a strong negative correlation between various Enterobacteria species and p-coumaric acid (m/z 165.054), ferulic acid (m/z 175.064), and caffeic acid (m/z 181.094). The same Enterobacteria species showed strong positive correlations with molecular features with m/z 121.065, 137.060, and 151.074. These features matched the masses of p-coumaric, caffeic, and ferulic acid after the loss of CO 2 (43.989 Da). BioTransformer predicted that p-coumaric, caffeic, and ferulic acid are decarboxylated in the human gut environment. Moreover, decarboxylation of hydroxycinnamic acids by Enterobacteria has been previously reported in the literature [40]. Associating molecular features against KEGG enzymes further revealed strong positive associations of molecular features at m/z 121.065, 137.060, and 151.074 with phenolic acid decarboxylase (K13727), an enzyme frequently observed in Enterobacteria, Lactobacillus, and Actinomyces.
Dihydroxylation of hydroxybenzoic acid byBlautia. In the association network results, a strong negative association between hydroxybenzoic acid (m/z 139.039) and Blautia and a strong positive association between molecular features with m/z 123.044 and Blautia were identified. The mass for this molecular feature matched the loss of an oxygen atom (15.99 Da). It has been previously reported that hydroxybenzoic acid undergoes a dihydroxylation reaction with 4-hydroxybenzyl CoA reductase from the Blautia species [41,42].

3. Discussion

In this paper, we introduce TransDiscovery, a powerful method for systematically identifying microbial biotransformations by combining a molecular network, association network, and knowledge bases of microbial enzymes. Experimental advances in high-throughput sequencing and mass spectrometry technologies have enabled the collection of genomic and tandem mass spectrometry data from tens of thousands of human microbial communities. Tens of thousands of microbial features (microbial species) and molecular features (molecular substrates and products) from these communities, coupled with increasingly accessible knowledge bases of microbial enzymes, provide great opportunities to dissect the complex biotransformations from the human microbiome. By applying TransDiscovery to the existing database, 17 biotransformations were identified. While some of the biotransformations were validated by a literature search, others are potentially novel biotransformations for further experiments.
The Human Microbiome Project (HMP) has provided a comprehensive catalog of microbial genes in human microbiota. While this catalog is a gold mine for future studies of human health and disease, in order to fully utilize the promise of the HMP, we need to have a better understanding of the mechanisms of action for these genes and how they affect the human host.
Currently, there are no high-throughput technologies for revealing the activity of microbial enzymes, their substrates’ specificity, their molecular products, and their roles in health and disease. Tandem mass spectrometry is a promising technology for high-throughput identification of the substrates and products of microbial biotransformations. However, in contrast to the computational techniques available for high-throughput analysis of metagenomics data of the microbiome, well-established methods for tandem mass spectrometry data analysis are not available.
In the past, association studies have been applied for the detection of molecular products of microbial biotransformations. However, these techniques report many spurious pairs, as they are based on correlation, rather than causation. TransDiscovery improves association networks by integrating them with molecular networks and biotransformation knowledge bases to reliably discover microbial biotransformations.
After searching metagenomics and metabolomics data from the American Gut Project and Global Foodomics Project, TransDiscovery reported 17 potential biotransformations. Several of these biotransformations were validated by a literature search. Currently, there is no comprehensive database of microbial biotransformations. By searching against the most extensive databases, such as HMDB [43] and MetaCyc [44,45], only a few of the substrates identified by TransDiscovery had any reactions assigned to them. Moreover, the enzymes involved in these reactions are usually unknown. The remaining biotransformations predicted by TransDiscovery are potentially novel, and validating them requires further experimental investigations.
Discovery of novel biotransformations is a computationally laborious task, and usually, each paper in this area reports a single novel biotransformation. TransDiscovery enables the discovery of numerous biotransformations in a single study. Validation of the biotransformations predicted by TransDiscovery requires culturing of the predicted microbial strains in media containing the substrate and screening for the presence of the product molecule over time. Validation of the predicted gene clusters further requires knock-out experiments. Wet-lab validation can become a path to the confirmation of the results of TransDiscovery.
While so far, we mainly focused on reporting novel biotransformations identified by combining the AGP and GFoP datasets with PhenolDB, TransDiscovery can take any knowledge base of interest as input. Compared to PhneolDB, other knowledge bases, such as HMDB and FooDB, hold hundreds of times more chemical structures of small molecules from the human body. In the analysis between the AGP and GFoP datasets and HMDB, we were able to obtain hundreds of candidate biotransformations with an even more stringent r h o value threshold, which can be used for further experimental validation.
One of the limitations of reliance on marker gene data (16S) for the annotation of microbial features is that it makes it difficult to conduct accurate functional profiling analyses. Currently, TransDiscovery supports the incorporation of shotgun metagenomics data, which enable higher-resolution functional annotation. With shotgun metagenomics data, the identified biotransformations can be linked to the specific enzymes. This will not only help further screen valid biotransformations, but can also provide insight for interpretation and follow-up experiments. However, shotgun metagenomics are more expensive, and currently, there are only a limited number of public samples (a few hundred) with paired shotgun metagenomics and tandem mass spectrometry data. Therefore, it has been impossible to detect any highly significant associations based on shotgun metagenomics data.
Another limitation of the existing approaches is that, while extensive genomics data are available from reference microbial isolates, currently, reference metabolomics datasets from microbial isolates are not available. Reference genomics data have made it possible to map a large number of microbial features to their corresponding taxonomies, but currently, the majority of molecular features of the microbiome remain orphans, as it remains unclear whether they are produced by the host or the microbial strains. While TransDiscovery is a step forward toward annotation of the microbiome metabolites in complex datasets, the availability and incorporation of metabolomics data from reference microbial isolates can vastly increase the power of such computational approaches.
In conclusion, TransDiscovery provides a culture-free approach for assigning functions to microbial enzymes from complex microbial communities that does not require isolation of the microbes and purification of the enzymes. Applications of this strategy include high-throughput characterization of the biotransformation products of dietary molecules by enzymes from the human microbiota. We believe that with the rapid growth of mass spectrometry/metagenomics datasets and knowledge bases, TransDiscovery can become a crucial tool for better understanding gut microbial mechanisms.

4. Materials and Methods

Datasets. The AGP dataset [22] contains LC-MS/MS and 16S rRNA data from the human gut microbiomes of 2125 human subjects. Shotgun metagenomics data are also available for some of the samples. The GFoP dataset [23,46] contains LC-MS/MS data for 3579 food and 116 beverage samples. When generating features for the association network, Optimus [47] was used to extract 30,784 molecular features from the LC-MS data from the AGP dataset, and QIIME [48] was used to extract 11,265 unique microbial features from the 16S rRNA data based on the Green-Genes Database as the reference. The precursor ion mass tolerance was set to be 0.02 Da, and the retention time tolerance was set to be 5 for Optimus (default parameters). When generating nodes for the molecular network, LC-MS/MS spectra from AGP and GFoP were merged using MSCluster [49]. The precursor ion mass tolerance was set to be 0.02 Da for MSCluster (recommended by MSCluster for qTOF data). The resulting molecular network contained 41,765 nodes. The molecular features from Optimus and the molecular network were combined using a mass tolerance of 0.02 Da. We additionally annotated the extracted molecular features using a spectral library search and Dereplicator+ with default parameters. The spectral library search was level 2 identification, and Dereplicator+ was level 4 identification of metabolites, according to the Chemical Analysis Working Group Metabolomics Standard Initiative [50]. The Phenol Database (PhenolDB) [32] is a public database containing the chemical structures of 370 phenolic compounds. The Human Metabolome Database (HMDB) [43] is a public database containing the chemical structures of 41,919 small molecules from the human body.
Liquid chromatography mass spectrometry. The AGP dataset was collected on an UltiMate 3000 UHPLC system equipped with a reverse-phase C18 column coupled to a Bruker Impact HD quadrupole time-of-flight (qTOF) mass spectrometer [22]. The GFoP dataset was collected on an UltiMate 3000 UHPLC system equipped with a reverse-phase C18 column coupled to a Maxis qTOF Impact II mass spectrometer [23].
Molecular feature extraction. Molecular features of the LC-MS/MS data were extracted using Optimus [47]. The result was a feature intensity matrix F I , where thecell F I ( x , s ) represents the intensity of feature x in sample s. Features present in less than two samples were discarded.
Microbial feature extraction. Microbial features with taxonomy annotations used in the main analysis were extracted from the 16S rRNA data using QIIME [48]. The result was O T U M a t r i x , where the cell O T U M a t r i x ( y , s ) represents the count of OTU y in sample s. The strain annotation listed in Table 1 was obtained by matching the 16S rRNA data with the NCBI RefSeq database using BLAST alignment. The annotation scores are listed in Table S5. Additionally, we used PICRUSt [35] to predict the KEGG enzymes associated with taxonomies based on their 16S rRNA data. This resulted in E n z y m e M a t r i x , where E n z y m e M a t r i x ( z , s ) represents the abundance of KEGG enzyme z in sample s. Enzymatic features from shotgun sequencing data were identified using KofamKOALA [36]. This resulted in Shotgun-EnzymeMatrix, where Shotgun-EnzymeMatrix(e,s) represents the presence or absence of KEGG enzyme e in sample s. OTUMatrix, EnzymeMatrix, and Shotgun-EnzymeMatrix were correlated with the molecular features.
Association network construction. An association network was constructed by calculating a pairwise association test between molecular features and microbial features [27]. The statistical test used was Spearman’s correlation test. Given the molecular feature x and microbial feature y, the null hypothesis assumed that “the abundance of molecular feature x in samples” and “the count of microbial feature y in samples” were independent. If the probability of null hypothesis P x , y was lower than a threshold P t h r e s h o l d , then the null hypothesis was rejected and ( x , y ) were reported as associated.
Molecular network construction. A molecular network was constructed using the global natural-product social molecular networking (GNPS) infrastructure [30]. First, all of the MS/MS spectra were clustered by MSCluster [49], and identical spectra were merged into the same clusters and represented as nodes in the network. Then, the nodes were matched pairwise using the modification-tolerant spectral matching scheme [24]. Edges in the molecular network were formed when two nodes had cosine scores higher than a threshold of 0.7. The cosine score threshold of 0.7 was recommended by the Molecular Network software as the default value.
Identifying candidate biotransformations. In the molecular network, if two spectra (nodes) were very similar (high cosine similarity score), they were connected with an edge. Generally, spectral similarity implies structural similarity [51]. Under the hypothesis that the substrate and product of a biotransformation are structurally similar, candidate biotransformations were identified as triplets of microbial features, substrates, and products where there was (i) a positive correlation between the microbial feature and the product, (ii) a negative correlation between the microbial feature and the substrate, and (iii) an edge in the molecular network between the substrate and the product (Figure 4).
Substrate identification. The substrate molecular features were identified by searching them against a chemical structure database (e.g., PhenolDB [32] and HMBD [43]) using Dereplicator+ [34]. Precursor and product mass tolerance of 0.002 Da were used. Since Dereplicator+ currently cannot identify molecules with smaller masses, in the case of molecular features with precursor masses below 200 Da, only parent mass matching is performed.
Product identification. For each identified substrate molecule, we used BioTransformer [29] to identify the product. Given a substrate molecule, Biotransformer predicts the molecular product of a biotransformation using a rule-based approach, where the rules are extracted through literature mining.

Supplementary Materials

The following supplementary figures and tables are available online at https://www.mdpi.com/article/10.3390/metabo12020119/s1. Figure S1: Distribution of the samples counting molecular and microbial features that appear in the dataset. The label ’with-association’ represents features that form at least one significant correlation with p-value < 10 − 4 and a b s ( r h o ) > 0.1. None of the features present in less than 100 samples correspond to a significant correlation with other features. Features with more than 500 samples are not shown, Figure S2: The graph represents (a) 2364 substrate–product reaction pairs from BioTransformer between 370 phenol compounds and their predicted products. (b) A total of 45,479 molecule–molecule association pairs from the molecular network with 30,783 molecular features. (c) A total of 9,883,612 molecule–microbe association pairs from the association network between 30,783 molecular features and 11,265 microbial features. The numbers in the intercept area (d,e,f,g) represent numbers of pairs that exist in both (or all) studies, Figure S3: The graph represents (a) 200,833 substrate–product reaction pairs from BioTransformer between 41,919 HMDB molecules and their predicted products. (b) A total of 45,479 molecule–molecule association pairs from the molecular network between 30,783 molecular features. (c) A total of 9,883,612 molecule–microbe association pairs from the association network between 30,783 molecular features and 11,265 microbial features. The numbers in the intercept area (d,e,f,g) represent numbers of pairs that exist in both (or all) studies, Figure S4: The expected format for the input and output files in each step of TransDiscovery. The expected inputs for the association network are TSV files containing abundance tables for molecular and microbial features. The expected output is a TSV file with the statistic of the obtained associations. The expected input for molecular network is the mzML file containing the tandem mass spectrometry for each sample. The outputs are two TSV files with node information and edge information for the molecular network. The expected input for BioTransformer is an SMI file containing the smile strings for each molecule. The outputs are the reactions obtained by in silico search. The final output of TransDiscovery is a TSV file containing detailed information of every identified biotransformation, Figure S5: Integrating molecular and association networks. As the size of the network is enormous (41,765 nodes and 45,479 edges), here, we focus on some of the networking families that have a known molecule identified by Dereplicator as a polyphenol or a vitamin (25 molecules in total). As the association network is currently too dense to visualize, we only show the top two microbial features for each molecular feature (Fisher p-value of 1 × 10 − 5 ), Table S1: Mass annotation for matched molecular features obtained from AGP and molecules from PhenolDB, Table S2: Specific details of molecular features in identified biotransformations. The first two columns are the molecular masses for substrates and products. The following two columns are the p-values between the microbial features and substrate or product molecules, respectively. The last three columns are the number of samples that hold substrates, products, or substrate–product pairs for the 17 given biotransformations, Table S3: Identified biotransformations with enzymatic features as input. The enzymatic features were extracted from taxonomy-annotated microbial features using PICRUSt, Table S4: Biotransformations identified using enzymatic features from shotgun sequencing data with a p-value threshold of 10 − 3 . Due to the limited sample size, none of these identified biotranformations are significant (with p-values less than 10 − 4 ), Table S5: Bacterial species annotation for identified strains. The scores listed in the table were obtained by matching the strain sequence with the NCBI RefSeq database using BLAST alignment.

Author Contributions

Conceptualization, D.Y., L.C. and H.M.; methodology, D.Y., L.C. and H.M.; software, D.Y.; validation, D.Y., M.Z. and H.M.; formal analysis, D.Y.; investigation, D.Y., M.Z. and H.M.; resources, H.M.; data curation, D.Y. and L.C.; writing—original draft preparation, D.Y.; writing—review and editing, D.Y., L.C., M.Z. and H.M.; visualization, D.Y., L.C. and H.M.; supervision, H.M.; project administration, H.M.; funding acquisition, H.M. All authors have read and agreed to the published version of the manuscript.

Funding

The work of D.Y., L.C., M.Z. and H.M. was supported by National Institute of Health (DP2GM137413).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The TransDiscovery computer code is available on GitHub at https://github.com/mohimanilab/TransDiscovery (accessed on 13 December 2021).

Conflicts of Interest

H.M. is a co-founder and have equity interest from Chemia.ai, LLC. The other authors declare no competing interest.

References

  1. Tierney, B.; Yang, Z.; Luber, J.; Beaudin, M.; Wibowo, M.; Baek, C.; Mehlenbacher, E.; Patel, C.; Kostic, A. The Landscape of Genetic Content in the Gut and Oral Human Microbiome. Cell Host Microbe 2019, 26, 283–295. [Google Scholar] [CrossRef] [PubMed]
  2. Koppel, N.; Rekdal, V.; Balskus, E. Chemical transformation of xenobiotics by the human gut microbiota. Science 2017, 356, 1246–1257. [Google Scholar] [CrossRef] [PubMed]
  3. Sekirov, I.; Russell, S.L.; Antunes, L.C.M.; Finlay, B.B. Gut Microbiota in Health and Disease. Physiol. Rev. 2010, 90, 859–904. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Cardona, F.; Andres-Lacueva, C.; Tulipani, S.; Tinahones, F.; Queipo Ortuño, M.I. Benefits of polyphenols on gut microbiota and implications in human health. J. Nutr. Biochem. 2013, 24, 1415–1422. [Google Scholar] [CrossRef] [Green Version]
  5. Enright, E.; Gahan, C.; Joyce, S.; Griffin, B. The Impact of the Gut Microbiota on Drug Metabolism and Clinical Outcome. Yale J. Biol. Med. 2016, 89, 375–382. [Google Scholar]
  6. Larkin, T.; Price, W.; Astheimer, L. The Key Importance of Soy Isoflavone Bioavailability to Understanding Health Benefits. Crit. Rev. Food Sci. Nutr. 2008, 48, 538–552. [Google Scholar] [CrossRef] [Green Version]
  7. Saddam, A.; Rawat, P.; Meng, X.; Liu, W. Biotransformation of dietary phytoestrogens by gut microbes: A review on bidirectional interaction between phytoestrogen metabolism and gut microbiota. Biotechnol. Adv. 2020, 43, 107576. [Google Scholar] [CrossRef]
  8. Shen, L.; Ji, H.F. Bidirectional interactions between dietary curcumin and gut microbiota. Crit. Rev. Food Sci. Nutr. 2018, 59, 2896–2902. [Google Scholar] [CrossRef]
  9. Humblot, C.; Combourieu, B.; Väisänen, M.L.; Furet, J.P.; Delort, A.M.; Rabot, S. 1H Nuclear Magnetic Resonance Spectroscopy-Based Studies of the Metabolism of Food-Borne Carcinogen 2-Amino-3-Methylimidazo[4,5-f]Quinoline by Human Intestinal Microbiota. Appl. Environ. Microbiol. 2005, 71, 5116–5123. [Google Scholar] [CrossRef] [Green Version]
  10. Zhang, J.; Lacroix, C.; Wortmann, E.; Ruscheweyh, H.J.; Sunagawa, S.; Sturla, S.; Schwab, C. Gut microbial beta-glucuronidase and glycerol/diol dehydratase activity contribute to dietary heterocyclic amine biotransformation. BMC Microbiol. 2019, 19, 99. [Google Scholar] [CrossRef]
  11. Felton, J.; Knize, M.; Salmon, C.; Malfatti, M.; Kulp, K. Man exposure to heterocyclic amine food mutagens/carcinogens: Relevance to breast cancer. Environ. Mol. Mutagen. 2002, 39, 112–118. [Google Scholar] [CrossRef] [PubMed]
  12. Duda-Chodak, A.; Wajda, L.; Tarko, T.; Sroka, P.; Satora, P. Interactions between acrylamide, microorganisms, and food components—A review. Food Funct. 2016, 7, 1282–1295. [Google Scholar] [CrossRef] [PubMed]
  13. Börnigen, D.; Morgan, X.; Franzosa, E.; Ren, B.; Xavier, R.; Garrett, W.; Huttenhower, C. Functional profiling of the gut microbiome in disease-associated inflammation. Genome Med. 2013, 5, 65. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Lloyd-Price, J.; Mahurkar, A.; Rahnavard, G.; Crabtree, J.; Orvis, J.; Hall, B.; Brady, A.; Huot Creasy, H.; McCracken, C.; Giglio, M.; et al. Strains, functions and dynamics in the expanded Human Microbiome Project. Nature 2017, 550, 61–66. [Google Scholar] [CrossRef]
  15. Joice, R.; Yasuda, K.; Shafquat, A.; Morgan, X.; Huttenhower, C. Determining Microbial Products and Identifying Molecular Targets in the Human Microbiome. Cell Metab. 2014, 20, 731–741. [Google Scholar] [CrossRef] [Green Version]
  16. Levin, B.J.; Huang, Y.; Peck, S.; Wei, Y.; Campo, A.; Marks, J.; Franzosa, E.; Huttenhower, C.; Balskus, E. A prominent glycyl radical enzyme in human gut microbiomes metabolizes trans-4-hydroxy-L-proline. Science 2017, 355, 6325. [Google Scholar] [CrossRef] [Green Version]
  17. Franzosa, E.; Hsu, T.; Sirota-Madi, A.; Shafquat, A.; Abu-Ali, G.; Morgan, X.; Huttenhower, C. Sequencing and beyond: Integrating molecular ‘omics’ for microbial community profiling. Nat. Rev. Microbiol. 2015, 13, 360–372. [Google Scholar] [CrossRef] [Green Version]
  18. Schnoes, A.; Brown, S.; Dodevski, I.; Babbitt, P. Annotation Error in Public Databases: Misannotation of Molecular Function in Enzyme Superfamilies. PLoS Comput. Biol. 2009, 5, e1000605. [Google Scholar] [CrossRef]
  19. Zimmermann, M.; Zimmermann-Kogadeeva, M.; Wegmann, R.; Goodman, A. Mapping human microbiome drug metabolism by gut bacteria and their genes. Nature 2019, 570, 462–467. [Google Scholar] [CrossRef]
  20. Turnbaugh, P.; Ley, R.; Hamady, M.; Fraser-Liggett, C.; Knight, R.; Gordon, J. The human microbiome project: Exploring the microbial part of ourselves in a changing world. Nature 2007, 449, 804–810. [Google Scholar] [CrossRef]
  21. Integrative HMP (iHMP) Research Network Consortium; Proctor, L.; Sechi, S.; DiGiacomo, N.; Fettweis, J.; Jefferson, K.; Strauss, J.F., III; Rubens, C.; Brooks, J.; Girerd, P.; et al. The Integrative Human Microbiome Project: Dynamic Analysis of Microbiome-Host Omics Profiles during Periods of Human Health and Disease. Cell Host Microbe 2014, 16, 276–289. [Google Scholar] [CrossRef] [Green Version]
  22. Mcdonald, D.; Hyde, E.; Debelius, J.; Morton, J.; González, A.; Ackermann, G.; Aksenov, A.; Behsaz, B.; Brennan, C.; Chen, Y.; et al. American Gut: An Open Platform for Citizen Science Microbiome Research. mSystems 2018, 3, e00031-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Gauglitz, J.; Aceves, C.; Aksenov, A.; Aleti, G.; Almaliti, J.; Bouslimani, A.; Brown, E.; Campeau, A.; Caraballo Rodríguez, A.; Chaar, R.; et al. Untargeted Mass Spectrometry-Based Metabolomics Approach Unveils Molecular Changes in Raw and Processed Foods and Beverages. Food Chem. 2019, 302, 125290. [Google Scholar] [CrossRef]
  24. Watrous, J.; Roach, P.; Alexandrov, T.; Heath, B.; Yang, J.; Kersten, R.; Voort, M.; Pogliano, K.; Gross, H.; Raaijmakers, J.; et al. Mass spectral molecular networking of living microbial colonies. Proc. Natl. Acad. Sci. USA 2012, 109, E1743–E1752. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Wang, M.; Carver, J.; Phelan, V.; Sanchez, L.; Garg, N.; Peng, Y.; Nguyen, D.; Watrous, J.; Kapono, C.; Luzzatto Knaan, T.; et al. Sharing and community curation of mass spectrometry data with Global Natural Products Social Molecular Networking. Nat. Biotechnol. 2016, 34, 828–837. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Bouslimani, A.; Porto, C.; Rath, C.; Wang, M.; Guo, Y.; González, A.; Berg-Lyon, D.; Ackermann, G.; Christensen, G.; Nakatsuji, T.; et al. Molecular cartography of the human skin surface in 3D. Proc. Natl. Acad. Sci. USA 2015, 112, E2120–E2129. [Google Scholar] [CrossRef] [Green Version]
  27. Cao, L.; Shcherbin, E.; Mohimani, H. A Metabolome- and Metagenome-Wide Association Network Reveals Microbial Natural Products and Microbial Biotransformation Products from the Human Microbiota. mSystems 2019, 4, e00387-19. [Google Scholar] [CrossRef] [Green Version]
  28. Melnik, A.; Dorrestein, P.; Silva, R.; Hyde, E.; Aksenov, A.; Vargas, F.; Bouslimani, A.; Protsyuk, I.; Jarmusch, A.; Tripathi, A.; et al. Coupling Targeted and Untargeted Mass Spectrometry for Metabolome-Microbiome-Wide Association Studies of Human Fecal Samples. Anal. Chem. 2017, 89, 7549–7559. [Google Scholar] [CrossRef]
  29. Djoumbou, Y.; Fiamoncini, J.; Gil de la Fuente, A.; Greiner, R.; Manach, C.; Wishart, D. BioTransformer: A comprehensive computational tool for small molecule metabolism prediction and metabolite identification. J. Cheminform. 2019, 11, 2. [Google Scholar] [CrossRef] [Green Version]
  30. Quinn, R.; Melnik, A.; Vrbanac, A.; Fu, T.; Patras, K.; Christy, M.; Bodai, Z.; Belda-Ferre, P.; Tripathi, A.; Chung, L.; et al. Global chemical effects of the microbiome include new bile-acid conjugations. Nature 2020, 579, 123–129. [Google Scholar] [CrossRef]
  31. Mohimani, H.; Gurevich, A.; Mikheenko, A.; Garg, N.; Nothias, L.F.; Ninomiya, A.; Takada, K.; Dorrestein, P.; Pevzner, P. Dereplication of peptidic natural products through database search of mass spectra. Nat. Chem. Biol. 2016, 13, 30–37. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Rothwell, J.; Pérez-Jiménez, J.; Neveu, V.; Medina-Remón, A.; M’hiri, N.; Garcia, P.; Manach, C.; Knox, C.; Eisner, R.; Wishart, D.; et al. Phenol-Explorer 3.0: A major update of the Phenol-Explorer database to incorporate data on the effects of food processing on polyphenol content. Database J. Biol. Databases Curation 2013, 2013, bat070. [Google Scholar] [CrossRef] [PubMed]
  33. Gaur, G.; Oh, J.; Filannino, P.; Gobbetti, M.; Pijkeren, J.P.; Gänzle, M. Genetic Determinants of Hydroxycinnamic Acid Metabolism in Heterofermentative Lactobacilli. Appl. Environ. Microbiol. 2019, 86, e02461-19. [Google Scholar] [CrossRef] [PubMed]
  34. Mohimani, H.; Gurevich, A.; Shlemov, A.; Mikheenko, A.; Korobeynikov, A.; Cao, L.; Shcherbin, E.; Nothias, L.F.; Dorrestein, P.; Pevzner, P. Dereplication of microbial natural product through database search of mass spectra. Nat. Commun. 2018, 9, 4035. [Google Scholar] [CrossRef] [Green Version]
  35. Langille, M.; Zaneveld, J.; Caporaso, J.; Mcdonald, D.; Knights, D.; Reyes, J.; Clemente, J.; Burkepile, D.; Vega Thurber, R.; Knight, R.; et al. Predictive functional profiling of microbial communities using 16S rRNA marker gene sequences. Nat. Biotechnol. 2013, 31, 814–821. [Google Scholar] [CrossRef]
  36. Aramaki, T.; Blanc-Mathieu, R.; Endo, H.; Ohkubo, K.; Kanehisa, M.; Goto, S.; Ogata, H. KofamKOALA: KEGG Ortholog assignment based on profile HMM and adaptive score threshold. Bioinformatics 2019, 36, 2251–2252. [Google Scholar] [CrossRef] [Green Version]
  37. Barz, W.; Stadtman, E. Bacterial degradation of riboflavin. VII. Studies on the bacterial decomposition of 6,7-dimethylquinoxaline-2,3-diol. Arch. Mikrobiol. 1969, 67, 128–140. [Google Scholar] [CrossRef]
  38. Xu, H.; Chakrabarty, Y.; Philmus, B.; Mehta, A.; Bhandari, D.; Hohmann, H.P.; Begley, T. Identification of the First Riboflavin Catabolic Gene Cluster Isolated from Microbacterium maritypicum G10. J. Biol. Chem. 2016, 291, 23506–23515. [Google Scholar] [CrossRef] [Green Version]
  39. Kanazawa, H.; Shigemoto, R.; Kawasaki, Y.; Oinuma, K.I.; Nakamura, A.; Masuo, S.; Takaya, N. Two-Component Flavin-Dependent Riboflavin Monooxygenase Degrades Riboflavin in Devosia riboflavina. J. Bacteriol. 2018, 200, e00022-18. [Google Scholar] [CrossRef] [Green Version]
  40. Lindsay, R.; Priest, F. Decarboxylation of Substituted Cinnamic Acids by Enterobacteria: The Influence on Beer Flavour. J. Appl. Bacteriol. 1975, 39, 181–187. [Google Scholar] [CrossRef]
  41. Stevens, J.; Maier, C. The Chemistry of Gut Microbial Metabolism of Polyphenols. Phytochem. Rev. 2016, 15, 425–444. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Gibson, J.; Dispensa, M.; Harwood, C. 4-hydroxybenzoyl coenzyme A reductase (dehydroxylating) is required for anaerobic degradation of 4-hydroxybenzoate by Rhodopseudomonas palustris and shares features with molybdenum-containing hydroxylases. J. Bacteriol. 1997, 179, 634–642. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Wishart, D.; Djoumbou, Y.; Marcu, A.; Guo, A.; Liang, K.; Vázquez-Fresno, R.; Sajed, T.; Johnson, D.; Li, C.; Karu, N.; et al. HMDB 4.0: The human metabolome database for 2018. Nucleic Acids Res. 2017, 46, D608–D617. [Google Scholar] [CrossRef] [PubMed]
  44. Caspi, R.; Billington, R.; Fulcher, C.; Keseler, I.; Kothari, A.; Krummenacker, M.; Latendresse, M.; Midford, P.; Ong, Q.; Ong, W.; et al. The MetaCyc database of metabolic pathways and enzymes. Nucleic Acids Res. 2018, 46, D633–D639. [Google Scholar] [CrossRef] [Green Version]
  45. Clavel, T.; Henderson, G.; Engst, W.; Dore, J.; Blaut, M. Phylogeny of human intestinal bacteria that activate the dietary lignan secoisolariciresinol diglucoside. FEMS Microbiol. Ecol. 2006, 55, 471–478. [Google Scholar] [CrossRef]
  46. Gauglitz, J.; Morton, J.; Tripathi, A.; Hansen, S.; Gaffney, M.; Carpenter, C.; Weldon, K.; Shah, R.; Parampil, A.; Fidgett, A.; et al. Metabolome-Informed Microbiome Analysis Refines Metadata Classifications and Reveals Unexpected Medication Transfer in Captive Cheetahs. mSystems 2020, 5, e00635-19. [Google Scholar] [CrossRef] [Green Version]
  47. Protsyuk, I.; Melnik, A.; Nothias, L.F.; Rappez, L.; Phapale, P.; Aksenov, A.; Bouslimani, A.; Ryazanov, S.; Dorrestein, P.; Alexandrov, T. 3D molecular cartography using LC–MS facilitated by Optimus and ’ili software. Nat. Protoc. 2017, 13, 134–154. [Google Scholar] [CrossRef]
  48. Caporaso, J.; Kuczynski, J.; Stombaugh, J.; Bittinger, K.; Bushman, F.; Costello, E.; Fierer, N.; Peña, A.; Goodrich, J.; Gordon, J.; et al. QIIME allows analysis of high-throughput community sequencing data. Nat. Methods 2010, 7, 335–336. [Google Scholar] [CrossRef] [Green Version]
  49. Frank, A.; Bandeira, N.; Shen, Z.; Tanner, S.; Briggs, S.; Smith, R.; Pevzner, P. Clustering Millions of Tandem Mass Spectra. J. Proteome Res. 2008, 7, 113–122. [Google Scholar] [CrossRef]
  50. Sumner, L.; Amberg, A.; Barrett, D.; Beale, M.; Beger, R.; Daykin, C.; Fan, T.; Fiehn, O.; Goodacre, R.; Griffin, J.; et al. Proposed minimum reporting standards for chemical analysis: Chemical Analysis Working Group (CAWG) Metabolomics Standards Initiative (MSI). Metab. Off. J. Metab. Soc. 2007, 3, 211–221. [Google Scholar] [CrossRef] [Green Version]
  51. Varmuza, K.; Karlovits, M.; Demuth, W. Spectral similarity versus structural similarity: Infrared spectroscopy. Anal. Chim. Acta 2003, 490, 313–324. [Google Scholar] [CrossRef]
Metabolites 12 00119 g001 550

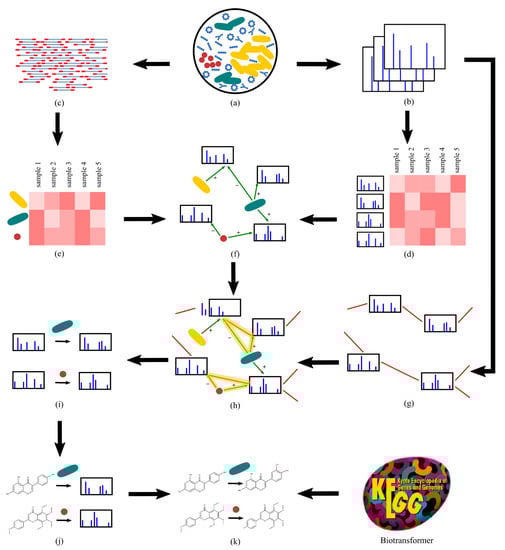

Figure 1. TransDiscovery framework for discovering novel biotransformations of human dietary ingredients by (a) the gut microbiome. Starting with (b) the mass spectral data of small gut molecules and (c) metagenomics data of gut microbes, the pipeline includes the following steps: extracting (d) molecular and (e) microbial features from raw data, (f) constructing an association network [26,27,28] of molecular and microbial features (edges shown in green), (g) constructing a molecular network [30] (edges shown in red), (h) integrating associations and the molecular network, (i) extracting candidate biotransformations as golden triangles, (j) identifying substrates of biotransformations with an in silico database search with Dereplicator+ [31], and (k) characterizing molecular products of known biotransformations using in silico predictions of BioTransformer [29]. Note that in steps (f,h–k), the nodes can represent either strains or enzymes. In steps (f,h), the plus and minus labels indicate that the substrate is negatively correlated with the microbial feature and the product is positively correlated with the microbial feature.
Figure 1. TransDiscovery framework for discovering novel biotransformations of human dietary ingredients by (a) the gut microbiome. Starting with (b) the mass spectral data of small gut molecules and (c) metagenomics data of gut microbes, the pipeline includes the following steps: extracting (d) molecular and (e) microbial features from raw data, (f) constructing an association network [26,27,28] of molecular and microbial features (edges shown in green), (g) constructing a molecular network [30] (edges shown in red), (h) integrating associations and the molecular network, (i) extracting candidate biotransformations as golden triangles, (j) identifying substrates of biotransformations with an in silico database search with Dereplicator+ [31], and (k) characterizing molecular products of known biotransformations using in silico predictions of BioTransformer [29]. Note that in steps (f,h–k), the nodes can represent either strains or enzymes. In steps (f,h), the plus and minus labels indicate that the substrate is negatively correlated with the microbial feature and the product is positively correlated with the microbial feature.
Metabolites 12 00119 g001
Metabolites 12 00119 g002 550

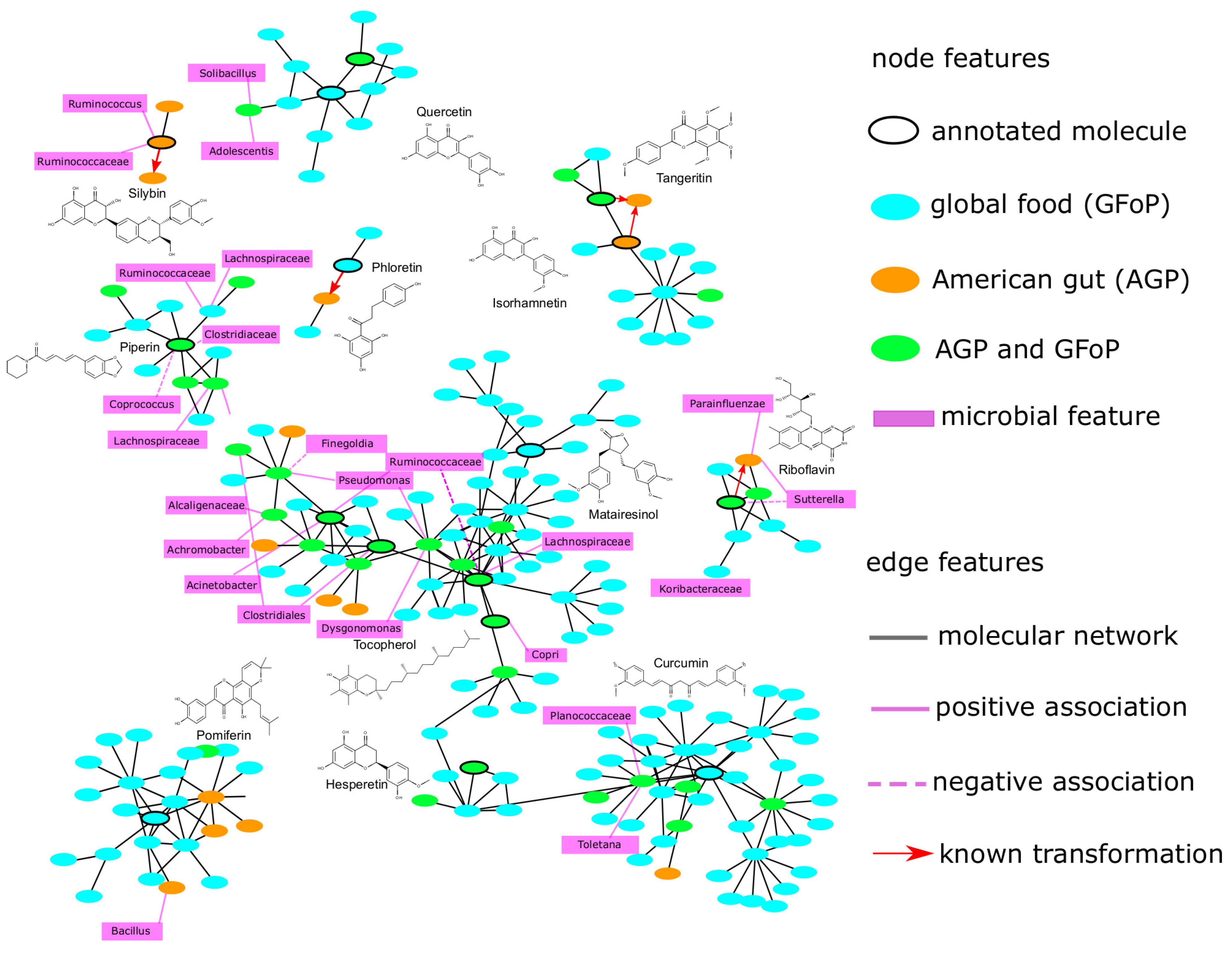

Figure 2. Integrating molecular and association networks. As the size of the network is enormous (41,765 nodes and 45,479 edges), here, we focus on some of the networking families that have a known molecule identified by Dereplicator+ [34] as a polyphenol or a vitamin (25 molecules in total). The network for all 25 molecules is shown in Figure S5. As the association network is currently too dense to visualize, we only show the top two microbial features for each molecular feature (Fisher p-value of 10 − 5 ). The known transformations were reported by BioTransformer [29]. By focusing solely on edges in the molecular network and association network, one can get a large number of potential biotransformations with a high chance of being spurious. However, focusing on the overlap between the two networks (golden triangles) results in a much smaller set of potential biotransformations, where many of them can be validated by a literature search.
Figure 2. Integrating molecular and association networks. As the size of the network is enormous (41,765 nodes and 45,479 edges), here, we focus on some of the networking families that have a known molecule identified by Dereplicator+ [34] as a polyphenol or a vitamin (25 molecules in total). The network for all 25 molecules is shown in Figure S5. As the association network is currently too dense to visualize, we only show the top two microbial features for each molecular feature (Fisher p-value of 10 − 5 ). The known transformations were reported by BioTransformer [29]. By focusing solely on edges in the molecular network and association network, one can get a large number of potential biotransformations with a high chance of being spurious. However, focusing on the overlap between the two networks (golden triangles) results in a much smaller set of potential biotransformations, where many of them can be validated by a literature search.
Metabolites 12 00119 g002
Metabolites 12 00119 g003 550

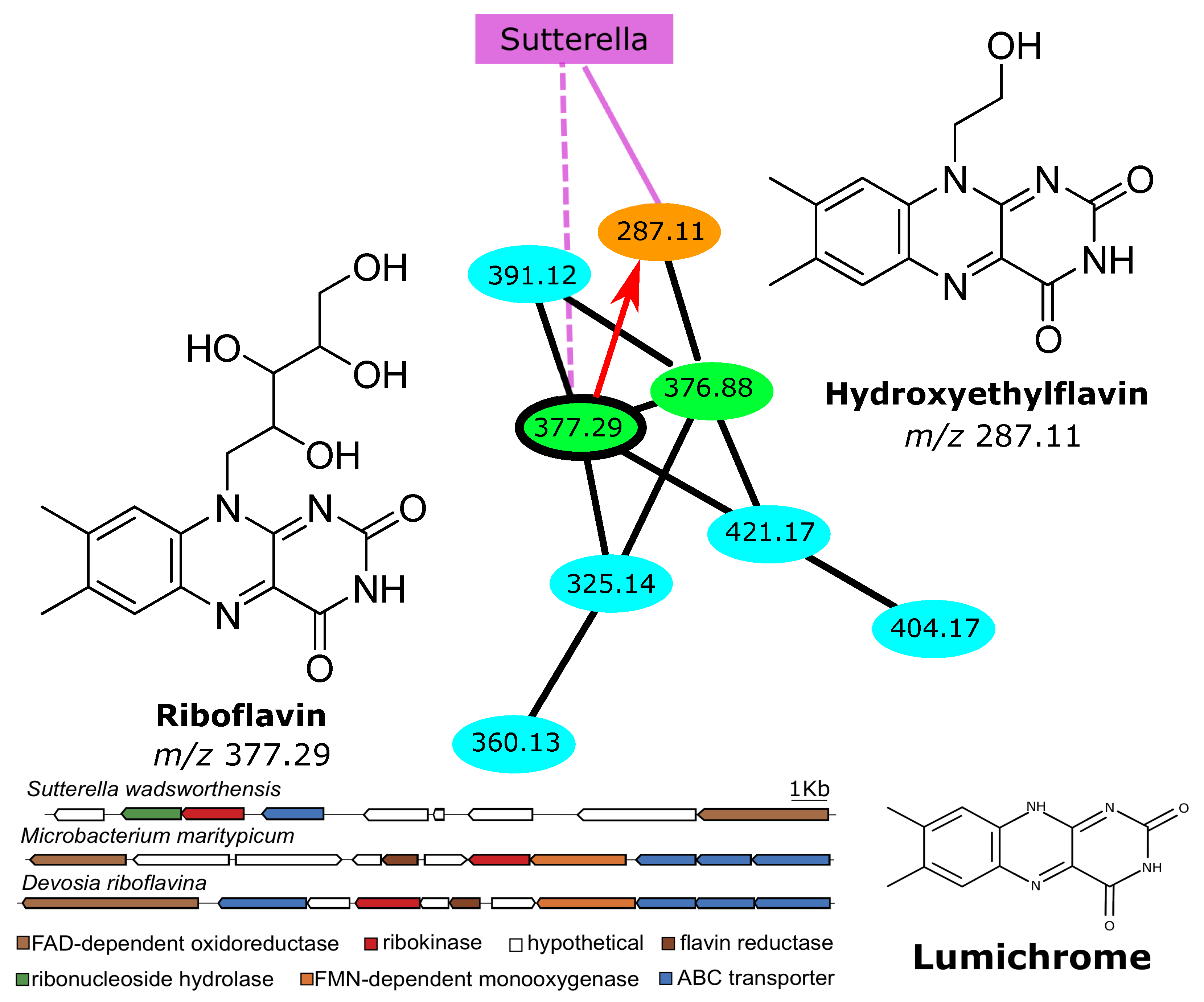

Figure 3. One of the molecular features (orange circle) in the molecular network (same color scheme as in Figure 2) is specific to AGP, and Dereplicator+ [34] identified it as hydroxyethylflavine, a known product of the degradation of riboflavin by an unknown microbial enzyme in gut microbiota [37]. A microbial feature annotated as Sutterella wadsworthensis is positively correlated with this product and negatively correlated with riboflavin (highlighted green circle). The predicted riboflavin degradation gene cluster in Sutterella wadsworthensis is shown, along with two known riboflavin degradation gene clusters from Microbacterium maritypicum and Devosia riboflavina. Sutterella wadsworthensis is predicted to degrade riboflavin to hydroxyethylflavine, while the other two bacteria degrade it to lumichrome.
Figure 3. One of the molecular features (orange circle) in the molecular network (same color scheme as in Figure 2) is specific to AGP, and Dereplicator+ [34] identified it as hydroxyethylflavine, a known product of the degradation of riboflavin by an unknown microbial enzyme in gut microbiota [37]. A microbial feature annotated as Sutterella wadsworthensis is positively correlated with this product and negatively correlated with riboflavin (highlighted green circle). The predicted riboflavin degradation gene cluster in Sutterella wadsworthensis is shown, along with two known riboflavin degradation gene clusters from Microbacterium maritypicum and Devosia riboflavina. Sutterella wadsworthensis is predicted to degrade riboflavin to hydroxyethylflavine, while the other two bacteria degrade it to lumichrome.
Metabolites 12 00119 g003
Metabolites 12 00119 g004 550

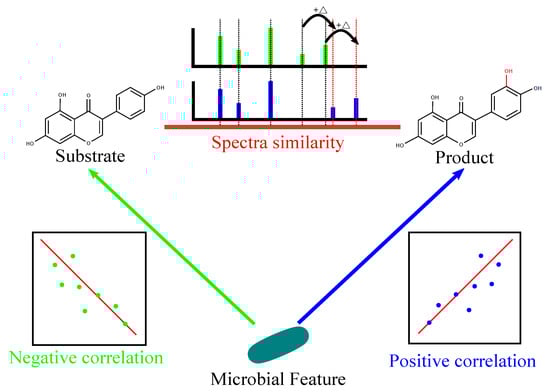

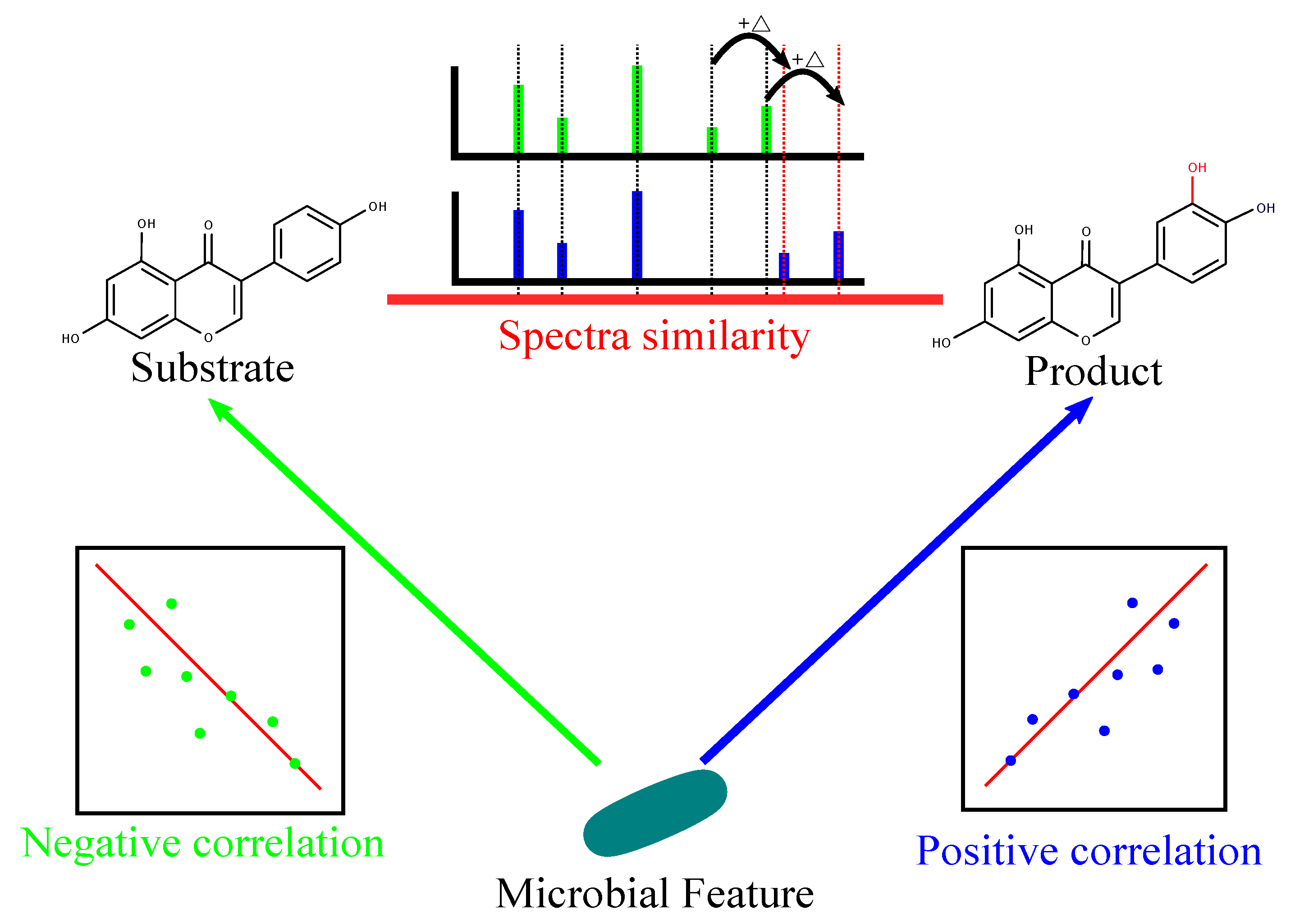

Figure 4. Candidate biotransformations were identified as triplets of microbial features, substrates, and products where there was (i) a positive correlation between the microbial feature and the product, (ii) a negative correlation between the microbial feature and the substrate, and (iii) an edge in the molecular network between the substrate and the product.
Figure 4. Candidate biotransformations were identified as triplets of microbial features, substrates, and products where there was (i) a positive correlation between the microbial feature and the product, (ii) a negative correlation between the microbial feature and the substrate, and (iii) an edge in the molecular network between the substrate and the product.
Metabolites 12 00119 g004
Table
Table 1. TransDiscovery identified 17 biotransformations. The columns ρ s and ρ p represent Spearsman’s rank correlation coefficients between the microbial features and substrate or product, respectively. The top biotransformations hold negative/positive biotransformations between substrates/products and microbial features, and the bottom ones do not.
Table 1. TransDiscovery identified 17 biotransformations. The columns ρ s and ρ p represent Spearsman’s rank correlation coefficients between the microbial features and substrate or product, respectively. The top biotransformations hold negative/positive biotransformations between substrates/products and microbial features, and the bottom ones do not.
Substrate NameBiotransformation NameList of All Strains that Are Observed ρ s ρ p Description
DihydroferuloylglycineHydrolysis of carboxylic acid esterPrevotella, etc.−0.160.17Lachnospiraceae bacterium AM48-27BH
5-(3 ′ ,4 ′ -dihydroxyphenyl)-valeric acidDehydroxylationPseudomonas; Enterobacteriaceae−0.140.11Escherichia coli DEC12C
Isoferulic acid; Ferulic acidAlpha, beta-ketoalkene double bond reductaseOscillospira, etc.−0.110.15Corynebacterium aurimucosum 911 CAUR
5-(3 ′ -Methoxy-4 ′ -hydroxyphenyl)-valerolactoneDehydroxylationMethanobrevibacter−0.110.10Methanobrevibacter woesei DSM 11979
3-Hydroxy-4-methoxyphenyllactic acid, etc.DehydroxylationDentocariosa−0.110.09Rothia dentocariosa 694 RDEN
Dihydrocaffeic acidCatechol O-methylationTissierellaceae; Finegoldia−0.100.16Peptoniphilus senegalensis JC140
Hydroxybenzoic acid; Protocatechuic aldehydeDehydroxylationBlautia−0.090.09Blautia wexlerae BIOML-A4
Dihydrosinapic acid, etc.DehydroxylationRuminococcaceae; Lachnospiraceae−0.090.09Lachnospiraceae bacterium MGYG-HGUT-00141
MatairesinolDehydroxylationPrausnitzii−0.080.11Faecalibacterium prausnitzii MGYG-HGUT-00195
3-Phenylpropionic acidBeta-Oxidation of carboxylic acidBlautia−0.080.09Blautia wexlerae BIOML-A4
p-Coumaric acid; m-Coumaric acidDehydroxylase; DehydroxylationFaecalibacterium; Prausnitzii0.130.14Veillonella parvula BIOML-A2
Dihydroferulic acidDehydroxylationClostridiales; Granulicatella0.110.14Ruminococcus bromii ATCC 27255
3-Hydroxyphenylvaleric acidDehydroxylationEnterobacteriaceae0.110.11Escherichia coli DEC12C
p-Coumaric acidDecarboxylation of phenolic acid/hydroxycinnamic acidBifidobacterium; Clostridiales; Lactobacillus0.100.17Lactobacillus casei NBRC 101979
5-(3 ′ ,4 ′ -dihydroxyphenyl)-valeric acidCatechol O-methylationDesulfovibrio; Enterobacteriaceae0.10−0.09Ruminococcus torques 2789STDY5608867
Protocatechuic acid, etc.Dehydroxylation; Aldehyde oxidationBacillales, etc.−0.10−0.10Finegoldia magna DSM 20470
3-Hydroxyphenylpropionic acid; Paeonol, etc.UDP-glucuronosyltransferasePseudomonas−0.09−0.09Pseudomonas fragi F1786
If multiple strains are included in one row, the ρ value for the first strain is shown.
