Nitrogen Availability Affects the Metabolic Profile in Cyanobacteria

Abstract

Nitrogen is essential for the biosynthesis of various molecules in cells, such as amino acids and nucleotides, as well as several types of lipids and sugars. Cyanobacteria can assimilate several forms of nitrogen, including nitrate, ammonium, and urea, and the physiological and genetic responses to these nitrogen sources have been studied previously. However, the metabolic changes in cyanobacteria caused by different nitrogen sources have not yet been characterized. This study aimed to elucidate the influence of nitrate and ammonium on the metabolic profiles of the cyanobacterium Synechocystis sp. strain PCC 6803. When supplemented with NaNO₃ or NH₄Cl as the nitrogen source, Synechocystis sp. PCC 6803 grew faster in NH₄Cl medium than in NaNO₃ medium. Metabolome analysis indicated that some metabolites in the CBB cycle, glycolysis, and TCA cycle, and amino acids were more abundant when grown in NH₄Cl medium than NaNO₃ medium. ¹⁵N turnover rate analysis revealed that the nitrogen assimilation rate in NH₄Cl medium was higher than in NaNO₃ medium. These results indicate that the mechanism of nitrogen assimilation in the GS-GOGAT cycle differs between NaNO₃ and NH₄Cl. We conclude that the amounts and biosynthetic rate of cyanobacterial metabolites varies depending on the type of nitrogen.

1. Introduction

Nitrogen is an important element for living things, being used in amino acids, nucleotides, lipids, and sugars, which are building blocks of all forms of life. Cyanobacteria are Gram-negative bacteria and are known to be oxygenic photosynthetic microorganisms that utilize solar energy to generate chemical energy (ATP and NADPH). Such chemical energy is used in the Calvin–Benson–Bassham cycle (CBB cycle), glycolysis, and tricarboxylic acid (TCA cycle). Similar to other organisms, non-diazotrophic cyanobacteria, such as Synechocystis sp. PCC 6803 can take up nitrogen as NO₃⁻, NO₂⁻, NH₄⁺, CO(NH₂)₂ (urea), and arginine [1,2]. Diazotrophic cyanobacteria (for example, Anabaena sp. PCC 7120) can fix N₂ in heterocyst cells using nitrogenase [3]. Cyanobacteria require reducing power when using the former nitrogen sources (NO₃⁻ and NO₂⁻), but not when using the latter (NH₄⁺, urea, and arginine). NO₃⁻ and NO₂⁻ transporters are already identified as NrtA-D. NH₄⁺ is transported by ammonium transporters Amt1-3 and urea by urea transporters UrtA-E [4,5,6]. NO₃⁻ in the cell is reduced to NO₂⁻ by ferredoxin-nitrate reductase, NarB, and finally reduced to NH₄⁺ by NirA [7,8]. Urea in the cell is converted by UreA-B to NH₃ [6,9]. NH₄⁺ is produced from arginine by arginine dihydrolase [2]. The GS (glutamine synthetase)-GOGAT (glutamate synthase or glutamine-oxoglutarate cycle amido transferase) cycle synthesizes glutamate and glutamine from NH₄⁺ and 2OG [10]. The resulting Glu is mainly consumed as a nitrogen source.

Although cyanobacteria can assimilate nitrogen compounds as mentioned above, the choice of nitrogen sources is important for cultivation because photosynthesis and growth are affected by the type of nitrogen source [11,12,13]. In addition, there are differences in gene expression associated with utilizing the nitrogen sources and changes in activity of enzymes involved in nitrogen assimilation when cyanobacteria are exposed to each of the nitrogen sources, NO₃⁻, NH₄⁺, and urea [14,15,16]. The physiological response of cyanobacteria to nitrogen sources also varies according to the species [13,17]. We previously reported that when Synechocystis sp. PCC 6803 was phototrophically cultivated in the presence of NH₄Cl, it produced a higher content of intracellular organic acids including malate, fumarate, and succinate under dark anoxic fermentation than cells grown in NaNO₃, resulting in increased succinate secretion [18]. In this way, the influences of different types of nitrogen sources have been investigated to reveal the physiological responses of cyanobacteria and their application. However, metabolites produced with different types of nitrogen sources have not been fully investigated, in contrast to the effects of nitrogen starvation [19,20]. Moreover, in our previous report, we revealed that the different metabolic profiles produced during dark anoxic cultivation after a transfer from phototrophic cultivation with different nitrogen sources enhanced the production of succinate. These findings prompted us to investigate the metabolic profiles under phototrophic conditions.

In this study, we aimed to clarify the metabolic responses to different nitrogen sources. For this purpose, we performed a combination of in vivo ¹⁵N-labeling of metabolites and metabolome analysis. The ¹⁵N-labeling technique is applied to detect metabolites of interest in cyanobacteria or to examine the metabolic behavior of a few metabolites [2,17,21,22]. This technique enables us to compare the metabolic turnover under different nitrogen sources by calculating the ¹⁵N labeling rate at each time point. Using this technique and metabolome analysis, we compared the metabolic profiles and synthesis rates of amino acids in Synechocystis sp. PCC 6803 when grown in NaNO₃ or NH₄Cl, revealing distinct metabolic profiles between the different nitrogen sources.

2. Results

2.1. Growth in Different Types of Nitrogen Source

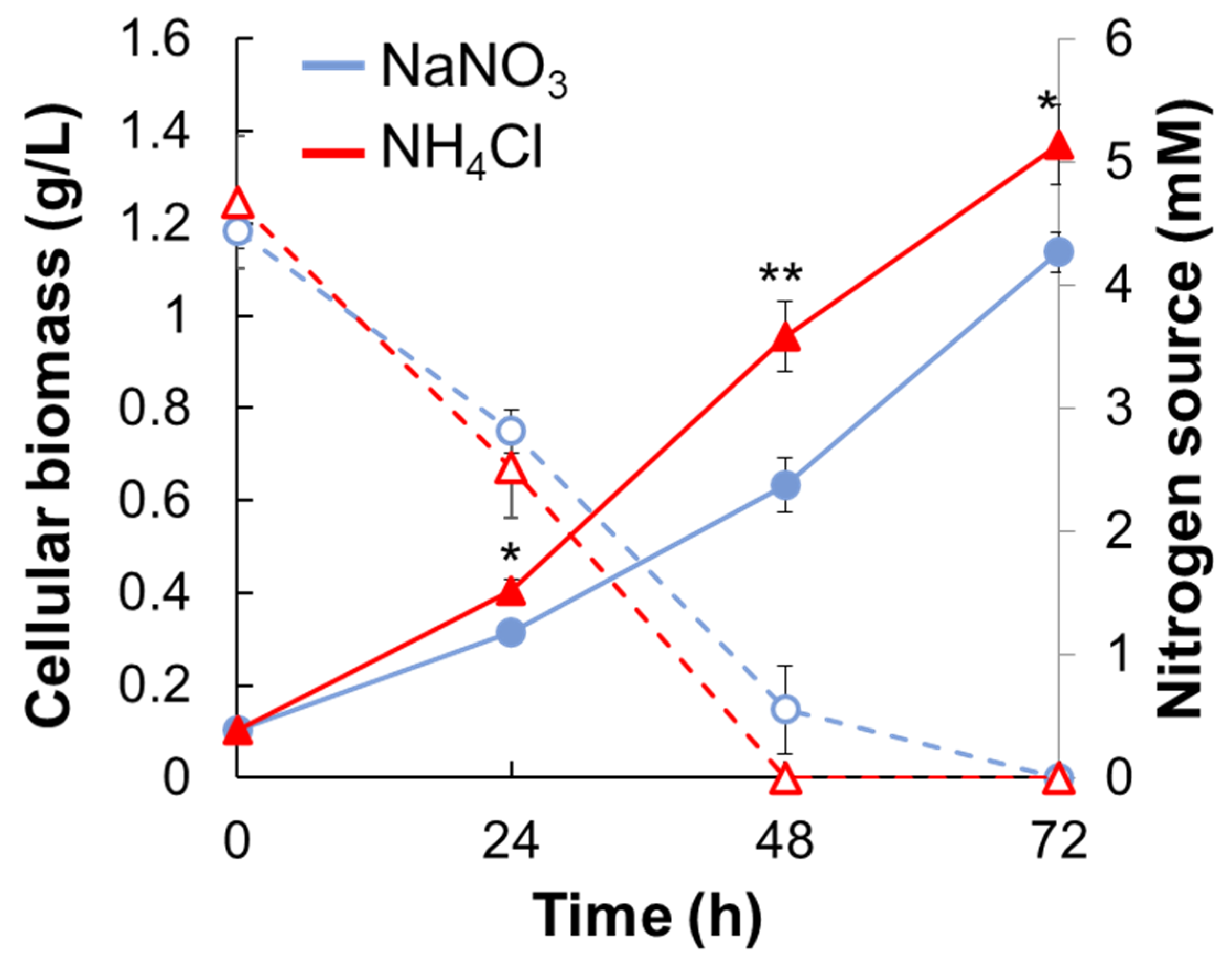

Synechocystis sp. PCC 6803 (hereafter Synechocystis) was cultivated in BG11 medium with 5 mM NaNO₃ or NH₄Cl (hereafter NaNO₃ medium or NH₄Cl medium) under phototrophic growth conditions (Figure 1 and Figure S1). The growth rate of Synechocystis was also calculated based on the growth data by 48 h when there are the residual nitrogen sources. The growth rate of Synechocystis grown in NaNO₃ medium or NH₄Cl medium was 0.028 ± 0.002 h⁻¹ and 0.036 ± 0.002 h⁻¹. The growth rate of Synechocystis in NH₄Cl medium was significantly faster than that in NaNO₃ medium throughout the cultivation. In contrast, there was no significant difference in the residual amounts of NaNO₃ and NH₄Cl in either medium.

2.2. Metabolome Analysis with Different Types of Nitrogen Source

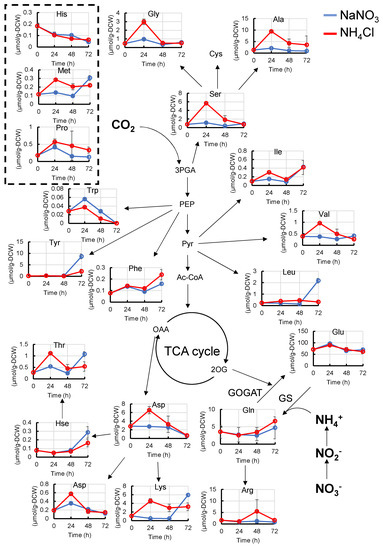

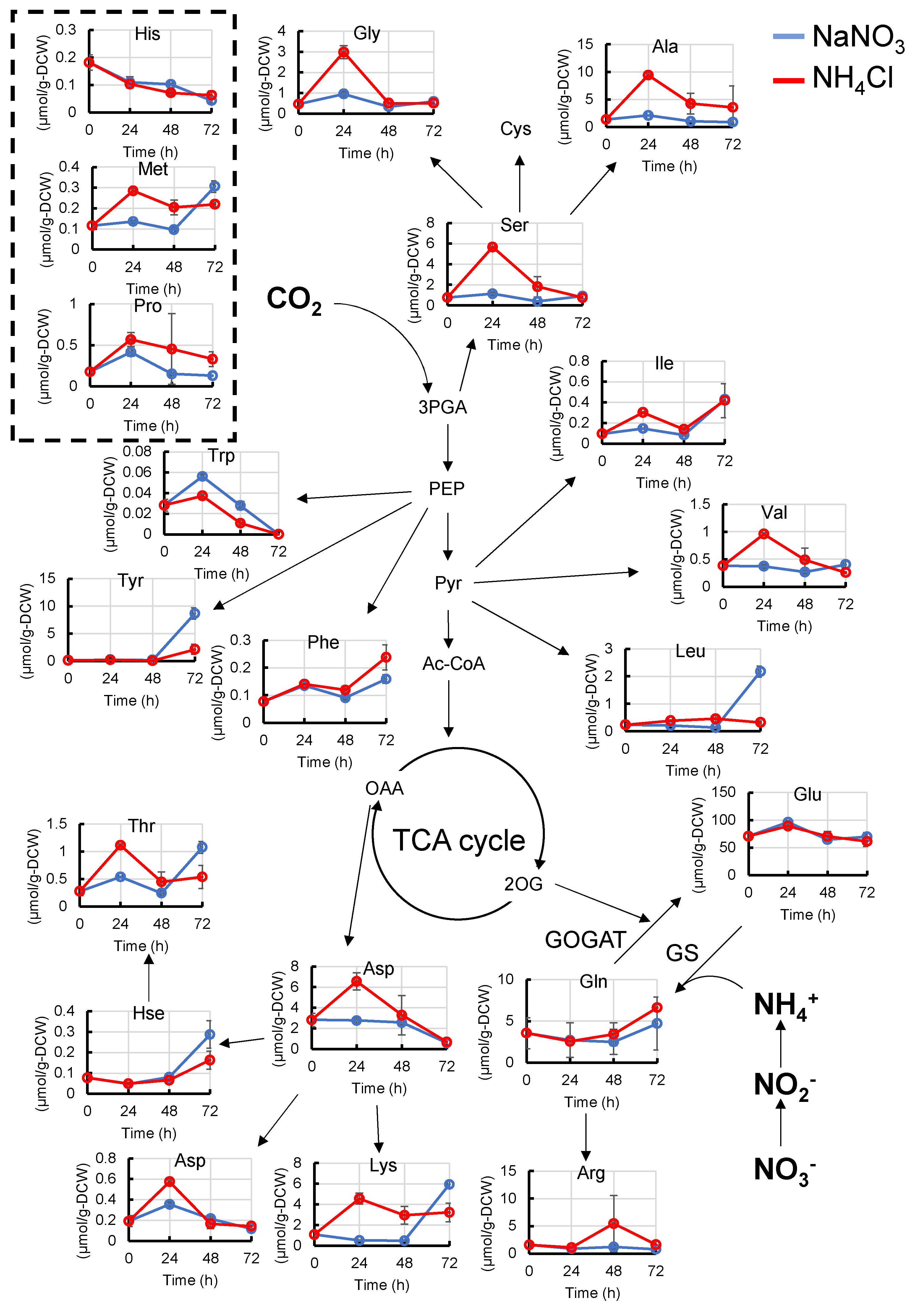

As nitrogen is thought to be assimilated mainly through the GS-GOGAT cycle, which synthesizes glutamate (Glu) and glutamine (Gln) from NH₄⁻ and 2OG, we first compared the amino acid levels with different nitrogen sources (Figure 2 and Figure S2). The pool sizes of serine (Ser), glycine (Gly), threonine (Thr), alanine (Ala), aspartate (Asp), asparagine (Asn), lysine (Lys), valine (Val), and isoleucine (Ile) when grown in NH₄Cl medium were higher than those in NaNO₃ medium 24 h after the start of cultivation. The pool sizes of methionine (Met) were still high 48 h after the start of cultivation. The pool sizes of Gln and Glu were the same between the NaNO₃ and NH₄Cl media. On the other hand, the pool size of tryptophan (Trp) when grown in NH₄Cl medium was lower than that in NaNO₃. Since Thr and Lys are synthesized from Asp, the pool sizes of Thr and Lys increased with an increase in Asp.

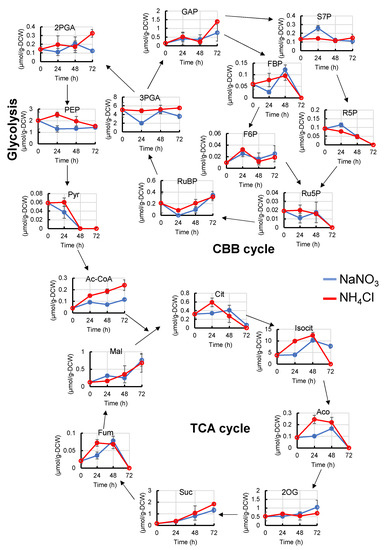

To understand why the differences in amino acid levels occur, we also examined some metabolites of the CBB cycle, glycolysis, and TCA cycle (Figure 3). After 24 h from the start of cultivation, the levels of ribulose-1,5-bisphosphate (RuBP), 3-phosphoglycerate (3PGA), phosphoenolpyruvate (PEP), acetyl-coenzyme A (Ac-CoA), citrate (Cit), aconite (Aco), isocitrate (Isocit), and fumarate (Fum) were higher, and sedoheptulose 7-phosphate (S7P) and ribose 5-phosphate (R5P) were lower than those with NaNO₃. In contrast, no difference was observed in the pool size of pyruvate (Pyr), although PEP, Ile, Val, and acetyl-CoA were increased. We speculate that Pyr synthesized from PEP may be immediately converted to Val, Ile, and Ac-CoA.

2.3. ¹⁵N-Turnover Analysis with Different Types of Nitrogen

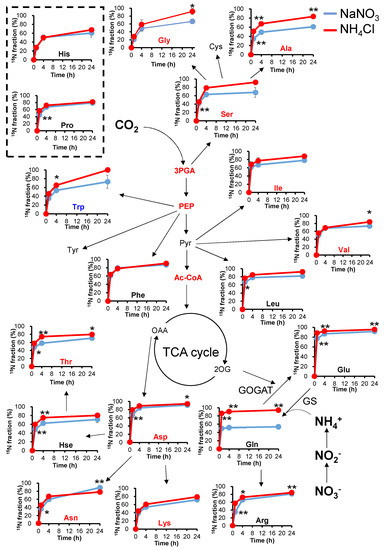

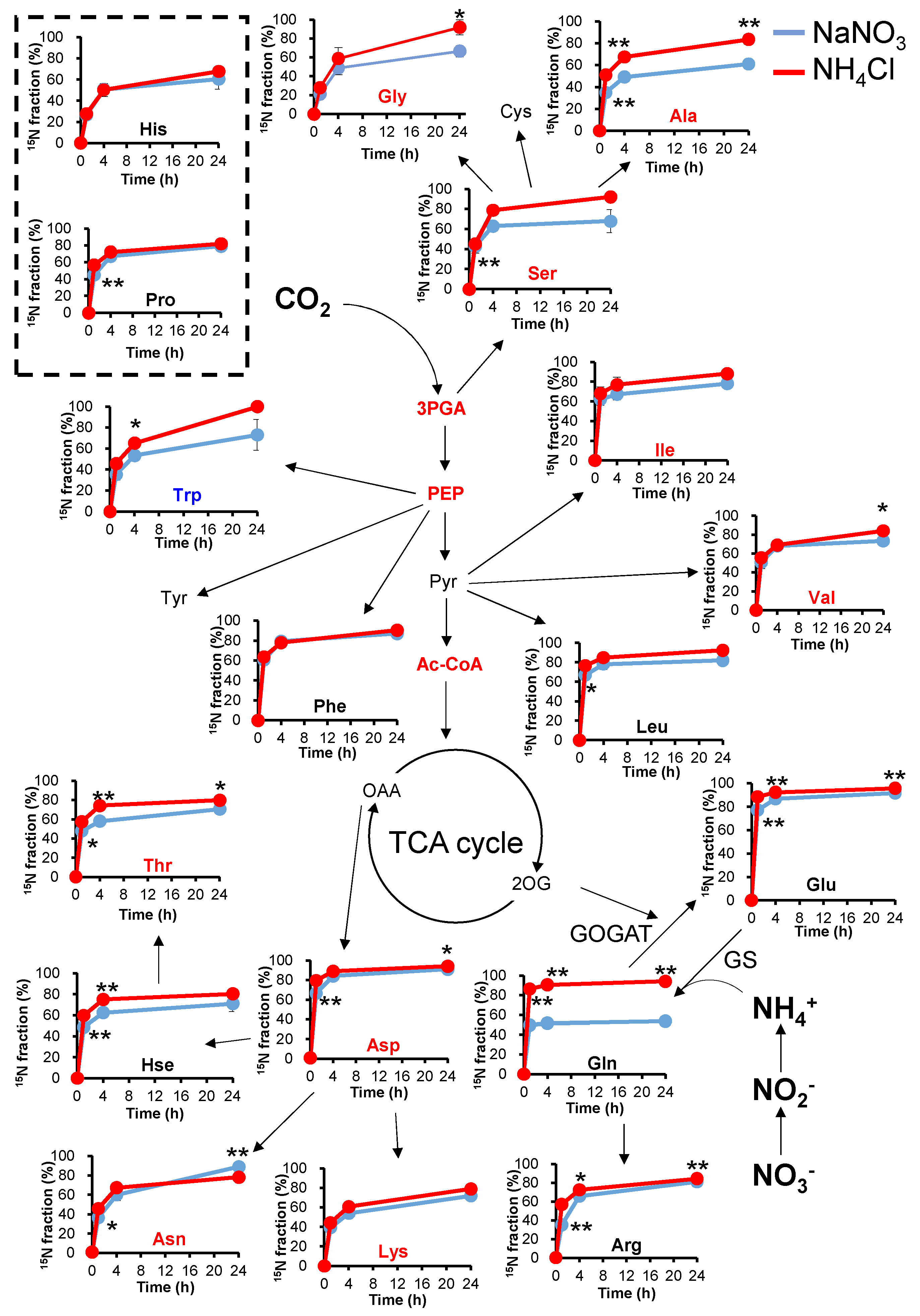

The growth rates and pool sizes of the metabolites were different in NaNO₃ and NH₄Cl. However, the nitrogen flow in the cell when grown in NaNO₃ or NH₄Cl media remains unclear. To reveal nitrogen flow with different nitrogen sources, we measured the time-resolved labeling rate of amino acids by ¹⁵N stable isotope labeling (Figure 4 and Figure S3). For this purpose, Synechocystis cells were taken after 24 h of cultivation and transferred to fresh BG11 medium containing ¹⁵NH₄Cl or Na¹⁵NO₃ (labeling time = 0 h). The labeling rates of Ala, Ser, and Gly, which are synthesized from 3PGA, were significantly higher in NH₄Cl medium than in NaNO₃ medium. The larger pool sizes of Ala, Ser, and Gly when Synechocystis are grown in NH₄Cl medium might result from the higher ¹⁵N labeling rate. The labeling rate of Glu and Gln were significantly higher in NH₄Cl medium than in NaNO₃ medium, which is consistent with a previous report [17]. However, the pool sizes of Glu and Gln did not change, as shown in Figure 2. This indicates that when Synechocystis is grown in NaNO₃ medium, one of the two nitrogen atoms in Gln is ¹⁴NH₄⁺, which can result from cellular nitrogen sources such as amino acids.

2.4. ¹⁵N Labelling Rate and Order in Glutamine Synthesis

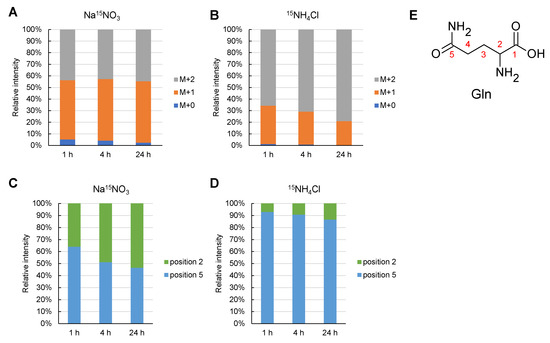

To elucidate the mechanism underlying the lower labeling rate of glutamine in the NH₄Cl medium, the position of the ¹⁵N-labeled nitrogen atom in the Gln molecule was examined using liquid chromatography-tandem mass spectrometry with the multiple reaction monitoring method (LC-MS/MS MRM) (Figure 5). ¹⁵N labeling conditions were the same as those for the experiments performed in Figure 4 (see Materials and Methods). The ¹⁵N labeling rate of Gln when cultured in Na¹⁵NO₃ was almost constant for 24 h after Synechocystis inoculation (Figure 5A,B). On the other hand, when cultured in ¹⁵NH₄Cl, the rate of ¹⁵N labeling of one of the two nitrogen atoms in Gln gradually decreased, and the unlabeled rate of Gln was 0.23% (2.5% in the presence of Na¹⁵NO₃). As shown in Figure 4, the total ¹⁵N labeling rate of the two nitrogen atoms in Gln was 71% in Na¹⁵NO₃ and 89% in ¹⁵NH₄Cl. Next, the position of the ¹⁵N-labelled nitrogen atom in glutamine was investigated. The positions of the ¹⁵N labeling are described as positions 2 and 5, which are the amino groups of the main and side chains (Figure 5E). Position 5 of Gln was preferentially labeled 1 h after Synechocystis was inoculated under culture conditions with Na¹⁵NO₃. After an interval of 24 h, the labeling rates of positions 2 and 5 became equal. On the other hand, in ¹⁵NH₄Cl medium, position 5 was always preferentially labeled during the period of 24 h after Synechocystis inoculation.

2.5. Nitrogen Assimilation Rate by Glutamine Synthase and Glutamate Dehydrogenase

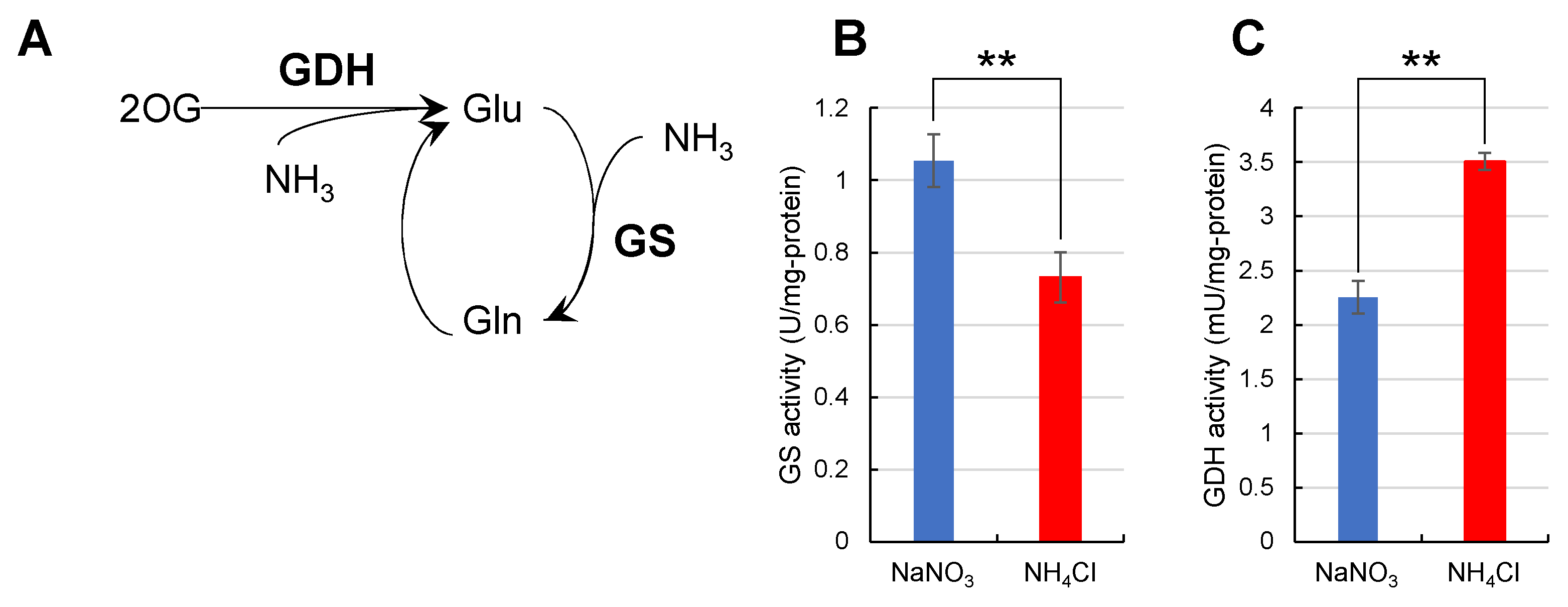

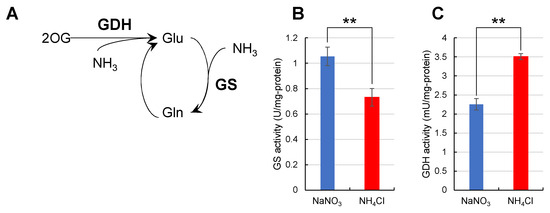

From these results, the enzymatic activity for Gln synthesis was assumed to be affected by the type of nitrogen source. To test this hypothesis, we measured the catalytic activities of glutamine synthetase (GS) and glutamate dehydrogenase (GDH) from whole-cell lysates (Figure 6). The catalytic activity of GS was 1.1 U/mg-protein when Synechocystis was grown in NaNO₃ medium and 0.73 U/mg-protein when grown in NH₄Cl medium. In a previous report, the expression level of GS was higher in NaNO₃ medium than in NH₄Cl medium [14]. When considered with the results from this previous report, the difference in the catalytic activity of GS in Figure 6B reflects the difference in the expression level of GS itself. On the other hand, the activity of GDH was 3.5 mU/mg-protein when Synechocystis was grown in NH₄Cl medium and 2.3 mU/mg-protein in NaNO₃ medium; the catalytic activity of GDH in NH₄Cl was higher than that in NaNO₃.

3. Discussion

3.1. Different Assimilation Mechanisms for Nitrogen Depending on the Nitrogen Source

In this study, we wished to elucidate the mechanisms by which Synechocystis grown under different nitrogen sources assimilates nitrogen, and more generally, to clarify how it responds to different nitrogen sources. Different types of nitrogen altered the growth rate, pool sizes of metabolites, and nitrogen assimilation rate of Synechocystis (Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5). In addition, the catalytic activities of GS and GDH were different for different types of nitrogen sources (Figure 6).

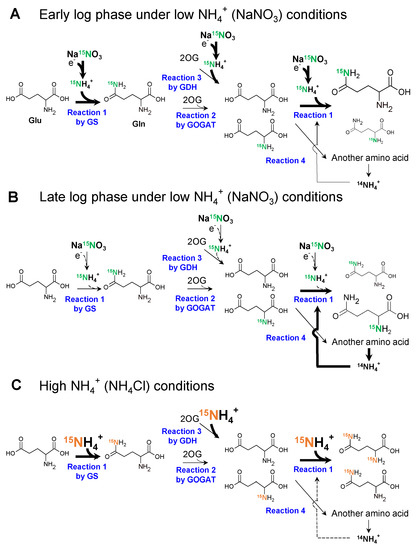

Based on the findings of this study, we propose a model for nitrogen assimilation by Synechocystis grown in different nitrogen sources (Figure 7). The model was prompted by ¹⁵N labeling experiments. In contrast to the assimilation of NH₄⁺, Synechocystis was unable to assimilate NO₃⁻ by itself and required an additional reducing power to convert it to NH₄⁺ (Figure 7A). This means that the reduction of NO₃⁻ appears to be the rate-limiting step for nitrogen assimilation. Therefore, at the beginning of the log phase, when there is sufficient photosynthetic reducing power, GS synthesizes Gln with ¹⁵NH₄⁺, resulting in the rapid labeling of the side chain of Gln with ¹⁵N (Reaction 1 in Figure 7A) [23]. This hypothesis is consistent with the finding that the preferentially ¹⁵N-labeled nitrogen was in position 5 until 1 h later (Figure 5C). Subsequently, the ¹⁵N labelled NH₂ group is rapidly transferred to 2OG by GOGAT, resulting in two Glu molecules (Reaction 2 in Figure 7A) [24]. GS can also synthesize doubly ¹⁵N-labeled Gln from newly reduced ¹⁵NH₄⁺ and ¹⁵N-labeled Glu (Reaction 1 in Figure 7A). Furthermore, ¹⁵N-labeled Glu can be used as a nitrogen source in another pathway to generate another amino acid (Reaction 4 in Figure 7A). However, the reducing power gradually decreased as the light transmittance of the culture medium decreased during the transition from the early log phase (Figure 7A) to the late log phase (Figure 7B). It has been previously shown that light is necessary to reduce NO₃⁻, and Fd, which accepts the reducing power from the photosystem, reduces NO₃⁻ and NO₂⁻ to NH₄⁺ [7,8,23,24]. Thus, GS cannot use the newly reduced ¹⁵NH₄⁺ but reuses ¹⁴NH₄⁺, which derived from amino acids due to the decrease in light (Figure 7B). As a result, Reaction 1 with ¹⁵NH₄⁺ in Figure 7 would not occur. In fact, the ¹⁵N labeling rate of position 2 in Figure 5C gradually increased and became equal to that of position 5 after 24 h. This can also explain why the ¹⁵N labeling rate of Gln was 50% (Figure 4) and 71% (Figure 5A).

In contrast to NO₃⁻, reducing power is not required to assimilate NH₄⁺. Figure 5D illustrates that position 5 in Gln is always dominant throughout the 24 h period, and Figure 5B indicates that 90% of nitrogen in all Gln molecules was labeled. The light conditions cannot be the rate-determining step to assimilate NH₄⁺, and Reaction 1 in Figure 7C continues unless NH₄⁺ is lacking. Therefore, we assumed that the ¹⁵N labeling rate quickly approached 90%, as shown in Figure 4 and Figure 5B.

We also considered the possibility that the higher labeling rate with ¹⁵NH₄Cl in Figure 4 and Figure 5 resulted from the higher activity of the GDH pathway, as shown in Figure 6C. However, such possibilities can be excluded because, in Figure 5D,E, position 2 should be preferentially labeled if the GDH pathway is activated when Synechocystis is cultivated in NH₄Cl medium. GDH synthesizes Glu from 2OG and NH₄⁺, suggesting that position 5 is not labeled [25] and GS activity was much higher than the activity of GDH (Figure 6).

The catalytic activity of GS was about 1000-fold higher than that of GDH in Figure 6B,C. For Synechocystis, GDH is not essential for growth under the high CO₂ conditions [26]. In Escherichia coli, GDH supplies glutamine in the absence of a carbon source because GDH can produce it without ATP originating from carbon utilization [27]. This means that the high CO₂ conditions which were adopted in our experiments might have caused the 1000-fold change differences between the catalytic activity of GS and GDH.

In this study, we found that the type of nitrogen sources can affect the metabolic profile of Synechocystis. The altered metabolic profile and labeling rate of Synechocytstis in Figure 2, Figure 3, Figure 4 and Figure 5 when Synechocystis was grown in NaNO₃ or NH₄Cl media came from the availability of nitrogen. When Synechocystis was grown in NH₄Cl medium, NH₄⁺ could be used without limitation unless NH₄Cl was absent in the medium. On the other hand, additional reducing power is required to use NaNO₃ because Synechocystis cannot use NO₃⁻ directly. This means that the amount of light transmitted, which is the source of reducing power, can be the rate-determining step. Thus, Synechocystis switch the main nitrogen sources from the external to internal nitrogen sources which arise from internal amino acids or proteins to produce glutamine during the change of growth stage when grown in NaNO₃ medium. This switch between external and internal nitrogen sources might enable Synechocystis to grow at the constant rate. When grown in NH₄Cl medium, the residual additional reducing power for Synechocystis to assimilate nitrogen enables it to supply reducing power to other pathways. The pool size of 3PGA increased and that of S7P and R5P decreased, as shown in Figure 3. The altered pool sizes of these metabolites might be caused by the enhanced CBB cycle, consuming the residual additional reducing power that was not used in the reduction of NO₃⁻. Accordingly, the abundance of some metabolites in glycolysis and TCA cycle, and amino acids including 3PGA itself increased in Figure 2 and Figure 3. We suspect the high cell growth rate was accomplished by higher abundance of those metabolites.

3.2. The Choice of Nitrogen Source: NO₃⁻ or NH₄⁺?

So far, we revealed that Synechocystis switches the main nitrogen sources from the external to internal nitrogen sources during the change of growth stage when grown in NaNO₃ medium and does not need to switch the nitrogen sources in NH₄Cl medium. This speculation suggests that NH₄⁺ is ideal nitrogen sources for Synechocystis. However, there is a side effect of using NH₄⁺ as a nitrogen source. The electron transport rate in Synechocystis decreased in the presence of over 15 mM NH₄Cl according to a previous report [11]. This means that excess NH₄⁺ can potentially inhibit photosynthesis in Synechocystis. In addition, GS-GOGAT cycle also requires the reducing power to assimilate nitrogen sources [1]. If the amount of NH₄⁺ supplied exceeds the reducing power from photosynthesis, the accumulation of NH₄⁺ would inhibit photosynthesis.

On the other hand, it is confirmed that there was no influence on photosynthesis over 15 mM NaNO₃ in the same previous report. We guess the reason the excess amount of NH₄⁺ cannot accumulate in the cell because the production of NH₄⁺ is dependent on the availability of reducing power arisen from photosynthesis. This means that all the nitrogen assimilation pathway is dependent on the photosynthesis when grown in NaNO₃, and it is beneficial for Synechocystis to perform the nitrogen assimilation in concert with photosynthesis and cell growth, preventing the excess accumulation of NH₄⁺ in the cell.

The proper type of nitrogen depends on the species of cyanobacteria, given that they can assimilate various types of nitrogen sources, such as NO₃⁻ and NH₄⁺, as shown in this paper. NH₄⁺ stimulated the growth of Synechocystis, as shown in Figure 1. In contrast, it attenuated the growth of Arthrospira (Spirulina) sp. [12,16] and did not affect the growth of Microcystis aeruginosa NIES-843 [17]. The reasons for the differing responses of cyanobacteria species to different types of nitrogen sources remain unclear. However, we revealed that the enhancement of metabolite pool size and nitrogen turnover by NH₄⁺ stimulated the growth of Synechocystis in this study. A comparison of the comprehensive metabolic profiles of these cyanobacteria species under different types of nitrogen might reveal the reasons for the different responses of cyanobacteria species.

4. Materials and Methods

4.1. Strain and Cultivation Conditions

Synechocystis sp. PCC 6803 strain was pre-cultivated in BG11 medium containing 20 mM HEPES-KOH (pH 7.7) and 17.6 mM NaNO₃ under 50 μmol photons m⁻² s⁻¹ at 30 °C for 4 days, as described previously [18]. After pre-cultivation, Synechocystis was inoculated into modified BG11 medium containing 50 mM HEPES-KOH (pH 7.7) and 5 mM NaNO₃ or NH₄Cl (NaNO₃ medium or NH₄Cl medium) and cultivated under 1% (v/v) CO₂ and 100 μmol photons m⁻² s⁻¹ at 30 °C. The culture medium was recovered at the indicated times described below for further analysis. Statistical analysis was conducted using Welch’s t-test (* <0.05, ** <0.01).

4.2. Measurement of the Intracellular Metabolite Concentration

Extraction and analysis of the intracellular metabolites was performed as previously reported [18]. The procedure is described briefly. For the analysis of the intracellular metabolite concentration, the culture medium corresponding to 5 mg of dry cell weight was recovered at 0, 24, 48, and 72 h after inoculation with Synechocystis. After filtration, the collected cells were washed with 20 mM (NH₄)₂CO₃. The intracellular metabolite was extracted using pre-cooled methanol containing the internal standard, and the water-soluble phase was collected by mixing chloroform. The soluble protein was removed by filtration, and the resultant water phase containing the metabolite was evaporated under vacuum. The dried metabolites were dissolved in pure water and subjected to CE-MS analysis.

4.3. ¹⁵N-Metabolic Turnover Analysis

The assimilation ratio of newly added nitrogen sources at each time point was determined using stable isotope ¹⁵N-labelled Na¹⁵NO₃ or ¹⁵NH₄Cl. Synechocystis was transferred to the modified BG11 medium containing 5 mM Na¹⁵NO₃ or ¹⁵NH₄Cl 24 h after inoculation and cultivated under 1% (v/v) CO₂ and 100 μ mol photons m⁻² s⁻¹ at 30 °C. The culture medium corresponding to 5 mg of dry cell weight was recovered at 0, 4, and 24 h, and the intracellular metabolites were analyzed by CE-MS as described above or by LC-MS/MS MRM. The procedure of sample preparation was the same as described above Section 4.2 (measurement of the intracellular metabolite concentration) and LC-MS/MS MRM analysis was performed by employing Nexera X2 high-performance liquid chromatography system and a LCMS-8060 triple quadrupole mass spectrometer (Shimadzu Corporation, Kyoto, Japan), as described previously [28]. The ¹⁵N labeling rate was calculated as performed in ¹³C labeling experiments in previous reports [18]. The relative isotopomer abundance (m_i) for each metabolite in which the i¹⁵N atoms were incorporated is calculated as follows:

$$m_i(\%)=\frac{M_i}{{{\displaystyle \sum }}_{j=0}^n{M}_j}\times 100$$

(1)

$${}_{}{}^{15}\mathrm{N} \mathrm{fraction}(\%)={\displaystyle \sum }_{i=1}^n\frac{i\times m_i}{n}$$

(2)

where M_i represents the isotopomer abundance of metabolite incorporating i¹⁵N atoms, and n is the number of nitrogen atoms in the metabolite. Statistical analysis was conducted using Welch’s t-test (* <0.05, ** <0.01).

4.4. Enzymatic Assay of Whole Cell Lysate

Synechocystis cells that were cultured in the presence of NaNO₃ or NH₄Cl were collected by centrifugation (3000× g, 4 °C, 10 min) and washed with nitrogen-free BG11 medium. The cells were collected by centrifugation and resuspended in 60 mM HEPES-KOH (pH 7.0). The suspended cells were disrupted by sonication, and the cell debris was removed by centrifugation (20,000× g, 4 °C, 20 min). After centrifugation, the supernatant was collected, and the protein concentration was determined using the Takara BCA Protein assay kit (Takara, Shiga, Japan). Glutamine synthetase (GS) assays were performed as described previously with some modifications [15]. Fifteen microliters of whole cell lysate containing 16 μg of protein was mixed well with 185 μL reaction solution 1 containing 60 mM HEPES-KOH (pH 7.0), 40 mM glutamine, 4 mM MnCl₂, 60 mM hydroxylamine, 1 mM ADP, and 20 mM sodium arsenate. Reaction solution 1 was incubated at 30 °C for 20 min and terminated by the addition of an equal volume of FeCl₃ solution containing 0.5 M HCl, 247 mM FeCl₃, and 196 mM trichloroacetate. GS activity (units/mg protein) was calculated at an absorption wavelength of 500 nm to determine the amount of γ-glutamylhydroxamate. The glutamate dehydrogenase (GDH) assay was performed as described previously with some modifications [29]. Whole cell lysate containing 0.24 mg of protein was mixed well with 875 μL reaction solution 2 containing 85 mM Tris-HCl (pH 8.0), 10 mM 2OG, and 50 mM NH₄Cl. The catalytic reaction of GDH was initiated by the addition of 50 μL of 0.2 mM NADPH, and the decrease in NADPH at absorption at 340 nm was monitored using a spectrophotometer V-670 (JASCO, Tokyo, Japan) to calculate GDH activity (mUnits/mg-protein). Statistical analysis was conducted using Welch’s t-test (* <0.05, ** <0.01).
