Review

Microparticles, Microspheres, and Microcapsules for Advanced Drug Delivery

by
Miléna Lengyel
1,
Nikolett Kállai-Szabó
1,
Vince Antal
1,
András József Laki
2,3 and
István Antal
1,*
1
Department of Pharmaceutics, Semmelweis University, Hőgyes E. str 7, 1092 Budapest, Hungary
2
Pázmány Péter Catholic University, Faculty of Information Technology and Bionics, Práter str 50/A, 1083 Budapest, Hungary
3
Department of Biophysics and Radiation Biology, Semmelweis University, Tűzoltó str. 37-47, 1094 Budapest, Hungary
*
Author to whom correspondence should be addressed.
Sci. Pharm. 2019, 87(3), 20; https://doi.org/10.3390/scipharm87030020
Submission received: 11 July 2019 / Revised: 31 July 2019 / Accepted: 1 August 2019 / Published: 9 August 2019
(This article belongs to the Special Issue New Insights into Drug Delivery and Absorption)

Abstract

:
Microparticles, microspheres, and microcapsules are widely used constituents of multiparticulate drug delivery systems, offering both therapeutic and technological advantages. Microparticles are generally in the 1–1000 µm size range, serve as multiunit drug delivery systems with well-defined physiological and pharmacokinetic benefits in order to improve the effectiveness, tolerability, and patient compliance. This paper reviews their evolution, significance, and formulation factors (excipients and procedures), as well as their most important practical applications (inhaled insulin, liposomal preparations). The article presents the most important structures of microparticles (microspheres, microcapsules, coated pellets, etc.), interpreted with microscopic images too. The most significant production processes (spray drying, extrusion, coacervation, freeze-drying, microfluidics), the drug release mechanisms, and the commonly used excipients, the characterization, and the novel drug delivery systems (microbubbles, microsponges), as well as the preparations used in therapy are discussed in detail.

Graphical Abstract

1. Introduction

Microparticles, microspheres, and microcapsules are common constituents of multiparticulate drug delivery systems offering numerous advantages based on their structural and functional abilities [1], and their application is suitable for convenient and tolerable drug administration via several routes.
Depending on the formulation, they can be incorporated into different pharmaceutical dosage forms such as solids (capsules, tablets, sachets), semisolids (gels, creams, pastes), or liquids (solutions, suspensions, and even parenterals).
An advantage of microcarriers over nanoparticles is that they do not traverse into the interstitium over the size of 100 nm transported by the lymph, and thus act locally [2]. Possibly toxic substances can be carried encapsulated and liquids can be handled as solids in the form of dried microparticles.
In the case of multiparticulates, the dose is distributed in many small separate particles, which carry and liberate a part of the dose, hence the malfunction of an individual subunit does not cause the failure of the whole dosage.
Multiparticulate drug delivery systems offer outstanding advantages to experts and patients, such as:
-
choice of dosage form for the desired drug delivery route (peroral tablets, parenteral injections);
-
modified and targeted (even site-specific) drug release and delivery;
-
more expectable pharmacokinetics with reduced intra- or inter-subject variability;
-
more homogenous distribution in the physiological environment;
-
stable fixed-dose combinations of drugs;
-
dose titration and less dose-dumping;
-
patient centricity through better compliance (e.g., patients with dysphagia) and adherence;
-
individual therapy (e.g., for pediatric or geriatric population);
-
improving stability of the medicinal preparations;
-
isolating the constituents to ensure better compatibility;
-
innovative products with a prolonged life cycle through patent protection.
From the viewpoint of technology, microencapsulation provides several advantages: microparticles are formulated in order to protect the core from the environment; masking an unpleasant taste; preserving volatiles or the viability of the cells; separating incompatible substances; protecting the body from the side effects; and optimizing, prolonging, or targeting the effect of a drug.
The polymer excipient protects the active pharmaceutical ingredient (API) from the environment (oxidation, temperature, pH) or the body from the irritative, or mucosa-damaging effect of the drug substance. The lesion (e.g., bisectioning) of the multiparticulate solid dosage form (i.e., micropellets in spansule or compressed) affects only a small number of units, thus does not result in a significant change of the blood level.
However, there are some limitations, such as higher product costs due to the more expensive excipients in the formulations or to the more sophisticated equipment and processes, as well as stricter quality control. In addition, some constituents may not meet the requirements for biocompatibility and biodegradation.

2. Construction and Structure

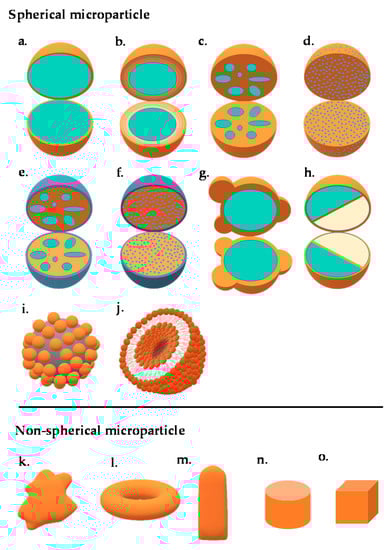

Microparticles’ sizes range from 1 to 1000 µm and the well-known matrix or reservoir structure they exist in have various different structures (Figure 1). Beyond the excipients used, the structure and the shape determines the function as well. Multiparticulate drug delivery systems (micropellets, microgranules, microspheres, microcapsules, microsponges, liposomal preparations) attract attention because of their wide range of favorable technological properties.
Microparticles may be characterized as either a homogenous or heterogenous structure depending on the formulation and processing. Usually the spheroid shape is preferred since it makes the further processing (e.g., coating) easier.

2.1. Microspheres and Microcapsules

Microspheres can be characterized as matrix systems in which the drug is homogeneously dispersed, either dissolved or homogenously suspended [3]. Microcapsules are heterogenous particles where a membrane shell is surrounding the core forming a reservoir (Figure 2) [4].
A classical microsphere structure contains solid or liquid API dispersed or dissolved in a matrix. Microcapsules are reservoirs of microscopic size surrounded by a wall that is able to control the release from the reservoir.
The size plays a role in the gastrointestinal performance: microparticles under 800 µm get through the pylorus without the influence of gastric emptying, thus eliminating the interpersonal and intrapersonal (nutrition-based) differences.
Particles larger than 100 nm stay at the site of administration until the phagosomal clearance. Lymphatic uptake and node accumulation is most significant between 10–80 nm [2]. The foreign body response is decreased by the application of spheres with a diameter of 1.5–2.5 mm compared to that of smaller diameter spheres [5].
The surface charge has a key role in the aggregation of the particles. Aggregation hinders optimal administration and drug delivery (e.g., compromises content uniformity of doses, occludes normal blood flow).
Porosity also has a significance in the in vivo performance in cell transplantation. Porous materials facilitate vascularization relative to non-porous biomaterials. A porosity of 30–40 μm leads to the polarization of macrophages, causing elevated tissue repair [5].
Several unique anisotropic colloidal microstructures have lately been created with special properties.

2.1.1. Janus Particles

These microparticles with a certain shape and phase anisotropy, created by alloying the distinct properties (hydrophilic, hydrophobic) of the separated excipients, are used as multifunctional imaging probes and sensors [6,7]. The anisotropic response to external signals has also been exploited in the preparation of color-changing traffic signals.

2.1.2. Patchy Particles

Spherical geometries with concave, convex, or flat patches on the polystyrene sphere’s surface have also been created via colloidal fusion and concomitant shrinking (Figure 1). The patchy particles can form clusters, and by patch-to-patch bonding between oil patches, can build supracolloidal architectures (tetrahedral, hexagonal) that can withstand drying forces and show the ability to reversibly expand several times their original volume in a swelling agent [8]. Microfluidic techniques give rise to the creation of anisotropic geometries.
Magnetic nanoparticles embedded into nonplanar, bullet-shaped microneedles give access to mild invasive therapy [9].

2.2. Liposomes

Liposomes are lipid vesicles with one or more phospholipid bilayers and their structure comprises small unilamellar vesicles (SUV: 20–100 nm), large unilamellar vesicles (LUV: >100 nm), multilamellar vesicles (MLV: >500 nm), oligolamellar (OLV: 0.1–1 µm), giant unilamellar liposomes (GUV: > 1 µm), and multivesicular vesicles (MVV: > 1 µm).
For ophthalmic delivery, they represent ideal drug delivery systems for both hydrophilic and hydrophobic APIs by performing a cell-membrane like structure. The negative or positive charge can contribute to the bioavailability: cationic liposomes (e.g., fabricated with didodecyldiethylammonium chloride, stearylamine) exhibited better efficacy at the surface of cornea with a negative charge. Liposomes can interact with the cells via several mechanisms: interaction with the cell surface components, fusion with the membrane, endocytosis via phagocytic cells, or swap by bilayer components. The methods of preparation are also versatile: solvent evaporation, double emulsion-evaporation, or reverse-phase evaporation [10].

2.3. Colloidosomes

Colloidosomes are microcapsules that contain a hollow or hydrogel core and their wall is composed of self-assembled colloidal particles. Their sizes range from 10–20 nm to micrometers. It was found that colloidosomes have selective permeability where drugs can diffuse through their shells via size exclusion [11]. They can be stabilized by solid excipients (e.g., Fe2O3, CaCO3, colloidal anhydrous silica) forming a Pickering emulsion [12]. Besides the emulsification, depending on the excipient thermal annealing and chemical cross-linking take part in the immobilization of the active ingredient.

3. Types and Mechanism of Drug Release

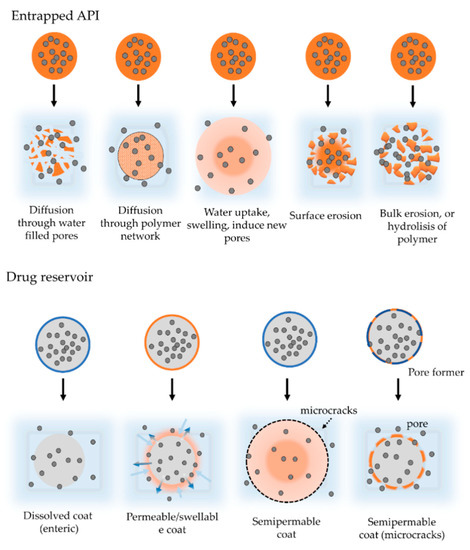

The process of drug release of microparticulates, produced by special manufacturing technologies and/or possibly containing special excipient(s), is the result of various phenomena and mechanisms (dissolution/diffusion, osmotically driven release, erosion) (Figure 3). Generally, these mechanisms take place side by side and one or the other mechanism provides a greater role during drug release [13]. In the microparticulate, when the active pharmaceutical ingredient is embedded in a polymer matrix (Figure 3), the behavior of the polymer system is crucial during dissolution, but depends on many factors (drug properties, formulation, release medium, etc.) [14].
In the case of a polymer matrix, the diffusion of the active ingredient can be through the intact polymer network or through the pores filled with water. Water-soluble drugs may also dissolve in the aqueous pore networks. Water uptake causes polymer chains to swell, indicating the formation of new pores and/or osmotic pressure. During swelling, the volume increases, the effective diffusion coefficient of the drug is increased, and more pharmacon molecules enter the aqueous part. Erosion of the polymer matrix (bulk/surface) is also possible.
In the case of polymer coated microparticles, the film-forming polymer may dissolve in the medium or act as a water-insoluble, permeable or semipermeable membrane. In the former case, the diffusion is predominantly due to the release of the active ingredient. In the case of a semipermeable coating, the osmotic phenomenon should be taken into account. It is also possible to use water-soluble pore formers, which, by creating pores, accelerate the dissolution profile [15,16].

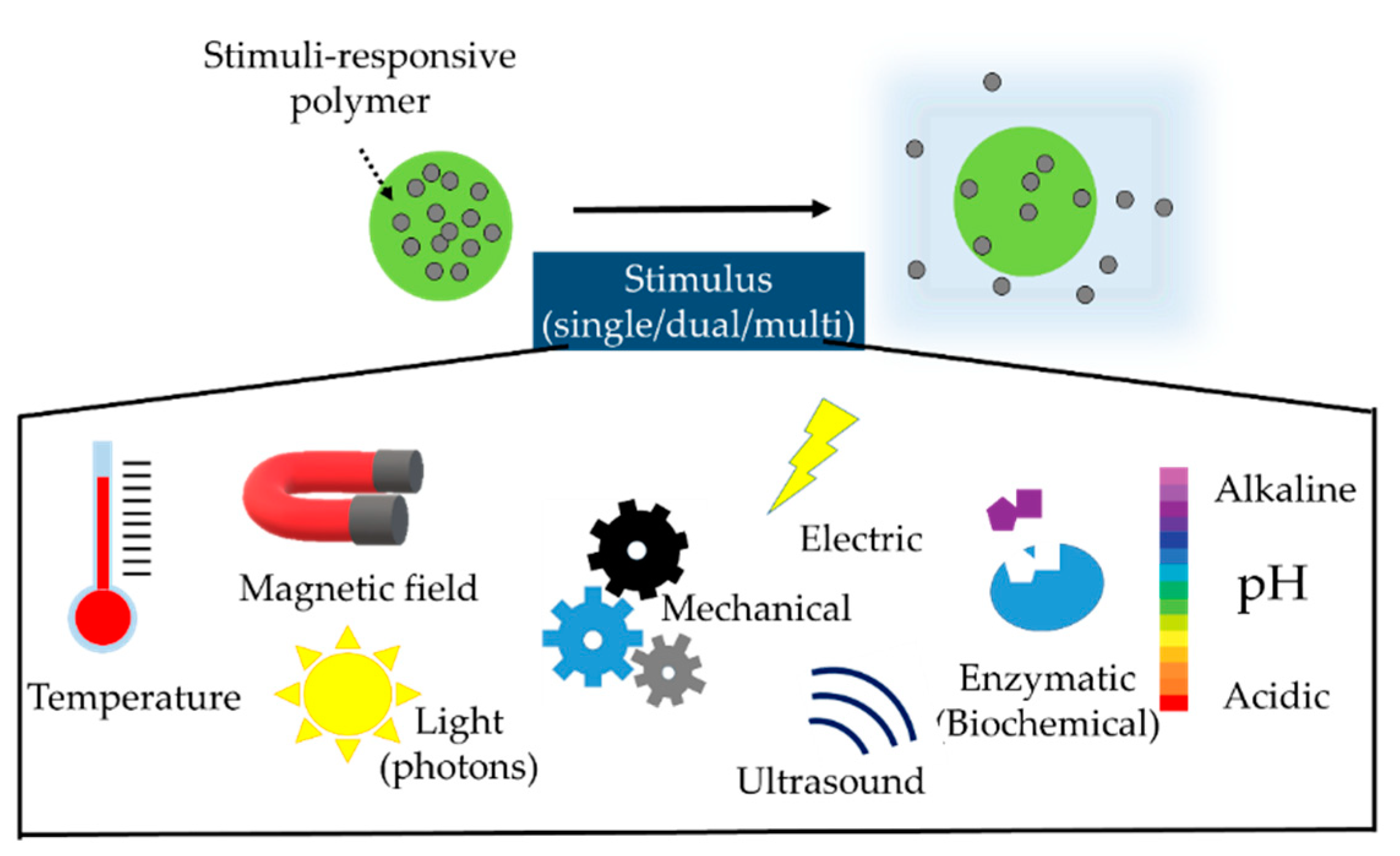

In the case of smart drug delivery microparticle systems, the release of the drug occurs via a stimulus. It is possible that one, two, or more (multiple) stimuli are required for dissolution (Figure 4). The stimulus for drug release may be internal or external and be classified as physical, chemical, or even microbiological. Opening and closing signals of these systems are also possible, creating feedback [17].

Magnetic Microcapsules

Magnetic microspheres are supramolecular particles that circulate through capillaries without causing occlusion in the form of emboly (<4 μm) but show a ferromagnetic character such that they can be dragged into the target tissue with a magnetic field of 0.5–0.8 T [18]. Magnetic microparticles for medical applications have been developed, such as magnetic resonance imaging (MRI) and drug delivery, and they are a promising choice in tumor therapy accompanied by hyperthermia. The release can be fine-tuned by the strength of the applied magnetic heating: with a gentle magnetic effect, the particles react with shrinkage and slow drug release, and with intense heating, the structure disruption induces the shrinking, which leads to a burst release [19].
Their great advantage lies in the effective method of targeting the drug molecule to the desired site to be treated (i.e., the tumor) with higher therapeutic efficacy and lower toxicity. The reduction of dosing frequency enhances the patient’s compliance.
The production involves emulsion methods (multiple and phase separation polymerization, solvent extraction, hot melt microencapsulation, dispersion copolymerization).

4. Formulation and Manufacturing

4.1. Composition and Excipients

The use of plant, animal, or microbial-origin biopolymers are propitious; semi-synthetic cellulose derivatives and biodegradable or non-biodegradable synthetic polymers are used as well. The formulation is usually based on polysaccharides or proteins, but waxes and lipids also play a role in the construction. Nonpolymer excipients play a role in crosslinking the polymer chains (CaCl2, glutaraldehyde, poly-l-lysine, etc.), thus forming and hardening the polymer network of the drug delivery systems. The most commonly used polymers and their important microencapsulation-related properties are summarized in Table 1, Table 2, Table 3, Table 4 and Table 5.
The combination of polymers of different properties is a common technique to improve the particle characteristics and performance. Because of their opposite charges, alginate and chitosan at low pH form a polyelectrolyte complex [76], thus decreasing the porosity of the polymer network and delay the release of the API (Table 6).
Funami et al. [97] proved that galactomannans, including guar gum, tara gum, LBG, or konjac gum (glucomannan), influence both the short- and long-term retrogradation process of starch by controlling the gelation, hindering the crystallization, and improving the water-holding capacity of starch.
Farris et al. [88] developed a peroral gene delivery system, where DNA was encapsulated in chitosan nanoparticles and the particles were protected from the gastric environment by embedding the nanoparticles into zein matrix microparticles with a W/O emulsification method. Zein forms a relatively brittle film; however, alginate was successfully administered to decrease the rigidity of the wall [87].
Several studies show that copolymerization between synthetic and natural polymers helps to increase biocompatibility and cell viability (agarose-Carbopol®, hyaluronic acid-polyethyleneglycol) [98]. Hydrophobic excipients (poly-ε-caprolactone) can modify the release of low-solubility drugs from alginate by forming hydrophobic interactions with the drug molecule, thus prolonged release can be reached [94].
Controlled-release, porous, floating microparticles were formulated by combining polypropylene-Eudragit® RS, ethylcellulose polymers [95].
Mahou et al. successfully studied the addition of vinyl-sulfone terminated polyethyleneglycol to alginate and thus eliminated the use of polycations for human foreskin fibroblast cell encapsulation from a cell culture medium [93].
Wells et al. reached prolonged drug release and light-sensitive drug delivery with the chemical modification of PEG and chemical crosslinking with alginate.
Dalpiaz et al. studied the nasal absorption of zidovudine by deoxycholic-acid-conjugated chitosan microparticles and found that the particles could get through the blood–brain barrier, in contrast with active efflux transporters in rats [99].
Alginate microcapsules show shrinking and lower stability in an acidic medium. κ-carrageenan locust bean gum gel beads show lower sensitivity to acidic conditions than alginate beads. A limitation of their use is that the formation of κ-carrageenan locust bean gum beads requires a higher amount of potassium or calcium ions, which in terms of a healthy diet, are not acceptable in high amounts. In cell transplantation, alginate is applied because of its excellent biocompatibility and biodegradability. Alginate, however, has some limitations: uneven porosity, poor mechanical strength, weak wall-formation, and easy rupture on reaction to osmotic change have been reported. To overcome these drawbacks, excipients such as the polyelectrolytes polystyrene sulfonate (PSS) and polyallylamine (PAA) were examined in cell microencapsulation, which improved the physical structure of polyelectrolyte gels and complexes by reducing pore size in the microcapsule membrane. Osmotic or mechanical stress caused lower cell leakage of these microcapsules [91]. The incorporation of PSS and PAA were shown to attract inflammatory cells and to trigger an immune response. The same study showed that ursodeoxycholic acid increased mechanical stability and did not affect cell viability.
Poly-l-ornithine in combination with alginate has been shown to prevent post-transplant inflammatory response and has protected the microcapsules in vivo over the first week after grafting [90].
As artificial cell therapy, an alginate structure strengthened by poly-l-lysine was used for encapsulation [100]. The alkylamino groups of the polyamide chain bonds via electrostatic interactions with alginate, thus the matrix structure has reduced porosity and good immunoprotection.

4.2. Processes for the Particle Formation

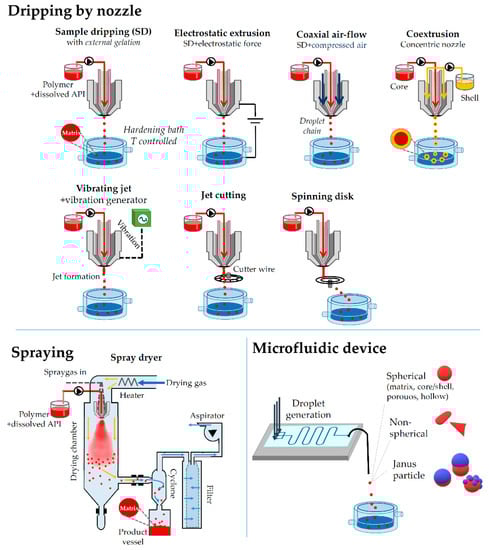

From the point of view of the industrial performance, the most important methods for microencapsulation are the air suspension method, spray-drying, and coacervation. Figure 5 summarizes the most important techniques.

4.2.1. Coacervation

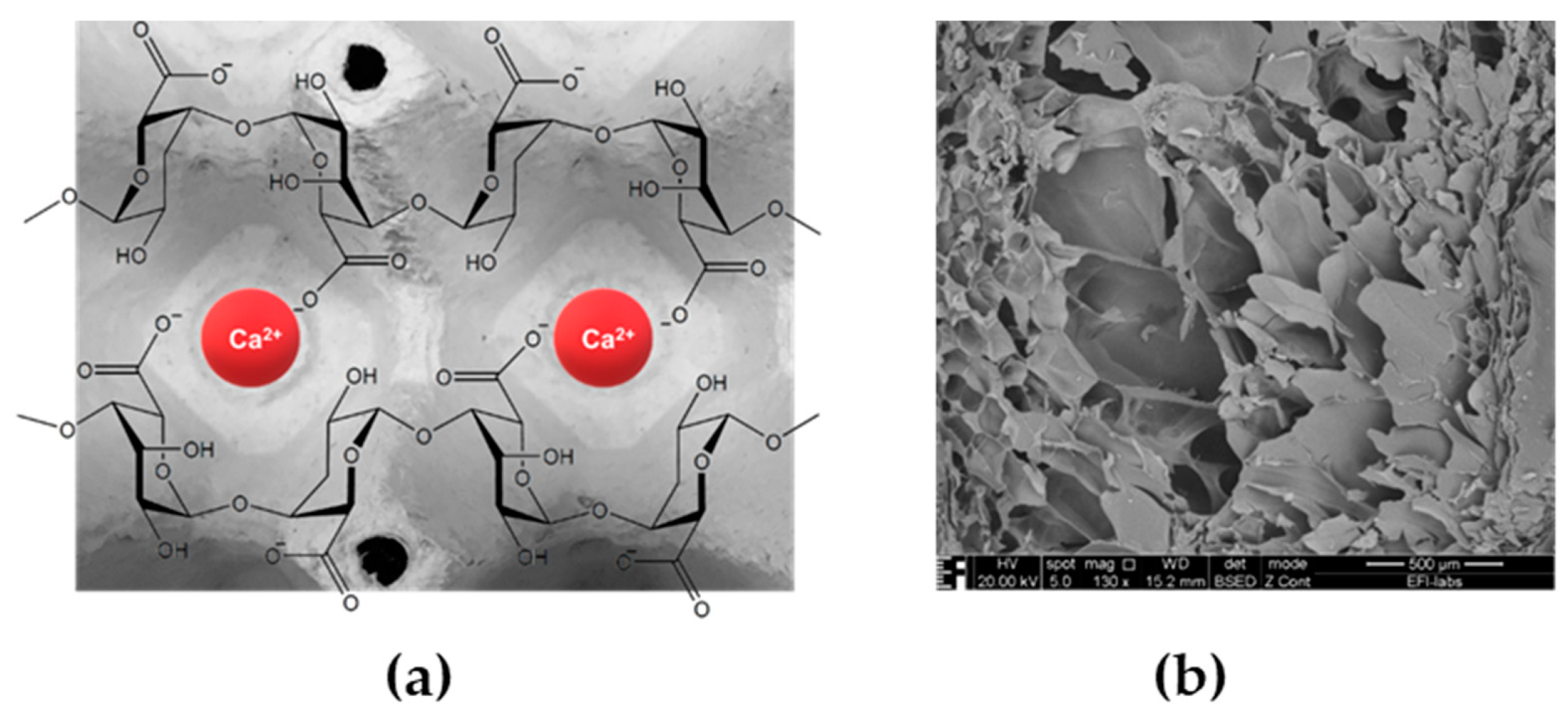

Coacervation related to the formation of calcium alginate can be considered a classical method for the preparation of microspheres and microcapsules. Calcium-ions form crosslinks between the α-l-guluronic acid and β-d-mannuronic acid units of alginate, thus organizing the polymer chains into an “eggbox-structure.” This chemical bonding gives the possibility of forming stable microspheres or core-shell structured microcapsules (Figure 6 and Figure 7).
Coacervation is defined as the separation of liquid phases in colloidal solutions [101]. During coacervation, the active ingredient can be dispersed in the coating polymer solution and at a specific environmental influence (ionic, pH, thermal change), phase separation occurs, while the core material is encapsulated by the wall-forming polymer. Simple coacervation is based on incompatibilities between the polymers. In most cases, it is caused by salting-out (di- or trivalent cation, as it happens with alginate and Ca2+ or Ba2+, pectin and Ca2+). The particle size mainly depends on the excipients’ properties (viscosity, surface tension) and stirrer setup [102,103].
During complex coacervation, polyelectrolyte polymers with opposite charges form an insoluble complex and meanwhile encapsulate the active ingredient. pH is important in complex coacervation, as the isoelectric point of the polymers has to be taken into consideration.
Hydrophobic components are often encapsulated with coacervation. In the case of hydrophilic components, a double emulsion process followed by a coacervation proves to be successful way to form a core–shell structure microcapsule [79]. As a result of coacervation, the product contains a high amount of solvent, which needs to be evaporated from the product.
For drying, besides the common processes, lyophilization (freeze-drying) offers a choice. This is an expensive method, but effective for heat-sensitive actives. Shrinking of the particles can be partly avoided; the end product, however, has a high porosity, which is an advantage in fast release preparations to promote the water uptake, but is an obvious drawback in the formulation of sustained-release preparations.

4.2.2. Air Suspension Method/Fluid-Bed Coating

(Wurster (1959)) [104] has successfully administered fluidization in macroencapsulation for the coating of solid particles, but it was also administered to encapsulate small particles in the size range of 74–250 μm by Hinkes et al. [105]. The great advantage is that during the process, the particles are suspended in an air (or inert gas) stream, in constant mixing, relative independently from each other and the wall material solution or dispersion is sprayed on their surface, then dried inside the coating chamber. The particle size can be tuned by the well-controllable process parameters: properties of the core (density, hygroscopicity, surface area, particle size and shape, melting point, wettability, solubility, volatility, compressibility, crystallinity, hardness, cohesiveness, adsorption, friability and flowability of the core material). Concentration and quantity of wall material, inlet, outlet air temperature, and spray settings are also critical for the process.

4.2.3. Extrusion through a Nozzle

Extrusion through a nozzle is a common method in the formation of gel particles. Many factors influence the formation of microgels: the concentration, feeding rate, and surface tension of the polymer solution, solvent, temperature, and nozzle diameter [3,106,107]. The solidification of the formed microgel particles is performed in an additional step. For solidification of the gel, coacervation (either simple or complex) is an optimal choice. The formed particles are collected in a solidification liquid (ionic or polymer solution). The size and shape control of particles is dependent on various factors. The distance, concentration, surface tension of the solidification liquid, and the time of the process have a significance in the particle size and the physical properties of the beads (gel strength, porosity, etc.). The most important limitations of the extrusion are the viscosity of the polymer because of potential blockage of the nozzle; as such, the settings for optimal, narrow particle size distribution, and shape are required. For the scale-up of the process, multiple-nozzle solutions have been presented.

4.2.4. Vibrational Jet/Electrostatic Extrusion

The particle formation via extrusion is completed by various processes: vibrational jet technique means that a changing frequency vibration separates the laminar jet into beads). At the electrostatic extrusion [108] the jet is subjected to an electric field, where having reached a certain voltage (5–6 kV), particles are created, the repulsive forces additionally hinder their aggregation. The applied elevated electric potential does not cause cell death [109].

4.2.5. Spinning Disk and Cutting Wire

These devices mechanically aid the particle formation and disaggregation [110].

4.2.6. Spray Drying

Spray drying is widely used in the industry for microencapsulation of volatiles, probiotics, and viable cells. Besides the obvious drawback (high loss, low yield), the numerous advantages make this technology very popular (uniform particle size, all steps carried out in one apparatus, use of organic solvents, the capability of encapsulating heat-labile materials). The emulsion is sprayed into a chamber, where warm air dries the particles, and as a result, regular shaped, micron-sized, uniform particles are created.
The extruded wax particles can be solidified using congealing, which offers a solution for embedding hydrophilic component to perform sustained release via the slow erosion of the wall in the biological medium.

4.2.7. Supercritical Fluid Precipitation

This technique is capable of constructing very uniform particles, but its use is more significant in nanoencapsulation [111].

4.2.8. Freeze-Drying

Freeze-drying is successfully used in the microencapsulation of protein APIs. The process consists of freezing, sublimation, primary drying, and secondary drying. At the freezing step, the eutectic point of the components is taken into consideration. Lyoprotectants or cryoprotectants (trehalose, dextran) can stabilize API molecules during the process by replacing water, forming a glassy matrix, reducing molecular mobility by establishing hydrogen or van der Waals bonds between the molecules [112]. Despite its high cost, it is an advantageous process for heat-sensitive molecules.
Freeze-drying provides solidification, which then allows particles to be reconstituted in an aqueous medium (Figure 8).
Table 7 summarizes the most important methods along with the parameters of the initial and final form of microparticles.

4.2.9. Microfluidics in Microparticle Fabrication

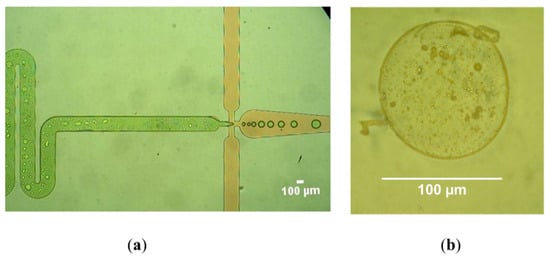

Microfluidics also presents promising results regarding microparticle production [113]. A wide range of microfluidic plates have been created concerning their various structure, material, and size [114]. Various methods are used for the engineering of microparticles such as continuous flow-based and electrowetting-based droplet generators.

Microfluidic Droplet Generators (MFDG)

Microfluidic droplet generators (MFDG) with a T-junction, co-flowing junction, and flow-focusing geometries are able to create, depending on the settings, monodisperse spherical or spheroid droplets [114]. The microfluidic-based droplet generation can be implemented using active or passive methods. In the passive method, droplets can be produced in squeezing, dripping, jetting, tip-streaming, and tip-multibreaking modes, depending on the competition between capillary, viscous, and inertial forces [115]. In active control, droplet generation can be manipulated by either applying additional forces from electrical, magnetic, and centrifugal controls, or modifying intrinsic forces via tuning fluid velocity and material properties including viscosity, interfacial tension, channel wettability, and fluid density [115].
Coaxially assembled devices, in combination with emulsification methods, led to the production of monodisperse microcapsules or Janus particles [116]. The polymerization occurs using a concomitant chemical or physical reaction based on the nature of the polymer [117]. Figure 9 presents particle formation through a PDMS (polydimethylsiloxane) hydrodynamic focusing apparatus of a W/O/W alginate system in oil as a carrier liquid. The alginate droplets were solidified via coacervation (own experiments).
Wu et al. [96] demonstrated that in the case of monodisperse rifampicin-PLGA core-shell microcapsules, the burst-release can be decreased with increased encapsulation efficiency, and the release can be controlled by increasing the wall thickness.

4.2.10. Lithography

Contact lithography was originally developed for the semiconductor industry. It is, however, successfully applied in the replication of nonspherical particles of 500–1000 µm in size. The pattern is transferred from a photomask to a photopolymerizable material (e.g., polyethylene-glycol- diacrylate) using light [118]. Continuous flow lithography has better particle resolution and improved throughput. The monomer solution is pumped through a microfluidic device, where photopolymerization occurs. The polymer particles (sometimes of extreme shape) are collected after having left the device [9,119] and have been used for the controlled synthesis of bullet-shaped, 12.4-µm long, magnetic and non-magnetic microparticles using stop-flow lithography, which gives the possibility of executing mild invasive drug delivery via microneedles.

5. Characterization

5.1. Morphology

Size plays a crucial role in the in vivo performance of microparticles. Particles larger than 100 nm stay at the site of administration until the phagosomal clearance. Lymphatic uptake and node accumulation is most significant between 10–80 nm [2].

5.1.1. Particle Size Analysis

Particle size analysis of microparticles above the diameter of 3 µm is in most cases carried out based on laser light diffraction (LD) method or using a Coulter counter. In LD, the distribution indicates the span-value, and d0.1, d0.5, and d0.9 are the parameters that can be used to compare the results. Span-value indicates the size distribution and is calculated based on the following equation:
Span   =   d 0.9 d 0.1 d 0.5
where 90% of the particles are under the diameter d0.9, 10% of the particles are under the diameter d0.1, and 50% are under the diameter d0.5.
The polydispersity index (PDI) determined by dynamic laser light scattering indicates the size distribution in the lower size region of microparticles.

5.1.2. AFM (Atomic Force Microscopy)

AFM is a technique providing information about the surface of microparticles in nanoscale by profiling the surface [120].

5.1.3. Coulter Counter

A Coulter counter gives an absolute particle number per volume unit for various size ranges and is very important in the particle analysis of microparticles for intravenous use [121].

5.1.4. Image Analysis

The shape determination can be more accurately achieved using microscopic (light or scanning electron microscopy) image analysis. The shape is characterized by the roundness, aspect ratio (AR), and the Feret-diameter. Roundness (R) is calculated using   R =   P 2 4 π A , where P is the perimeter, and A is the projection area. The aspect ratio is calculated using A R = D m a x D o , where Do is the longest orthogonal diameter perpendicular to Dmax.
The aerodynamic size distribution (indicator of the particle deposition during inhalation) can be investigated using cascade impactors (powders, aerosols, and sprays). The deposition is not solely based on the particle size, the flow depends on the particle shape and density as well [120].

5.2. Physicochemical Properties

Zeta-Potential Analysis

The surface charge of the particles influences physical properties (e.g., tendency to aggregation); it also has a tremendous role in their biological performance: negatively charged surfaces (polysaccharide-based natural molecules, e.g., polyalginic acid, hyaluronic acid, polymethacrylic acid, etc.) attract to tissues in inflammations and are hemocompatible. Positively charged microparticles (chitosan, Poly-l-lysine), however, present a mucoadhesive character and are non-hemocompatible [122]. Zeta potential and particle size can be determined using photon correlation spectroscopy. The dynamic light scattering measurement is based on the Brownian movement of the particles. Zeta potential measurements present valuable data concerning the aggregation potential of surface charged microparticles in a suspension (above ±30 mV stable suspended particles because of repulsion), and in indicating whether the surface-charged molecule is encapsulated or adsorbed on the surface [123].

5.3. Physical Properties

5.3.1. Density

The density of particles determines the floating capacity and concomitant disintegration or swelling of the particle. The pycnometric method with helium gas can be used to determine this value [124].

5.3.2. Porosity

The porosity of microparticles has a significant role in the water uptake, swelling, reconstitution, and release mechanisms. This parameter can be measured directly using mercury porosimeters [125].

5.3.3. Microcomputed Tomography

The indirect assessment of porosity can be deducted from a microcomputed tomography assay based on the 3D internal trabecular separation for calcium-alginate microparticles [126].

5.3.4. Flowability and Compressibility Studies

The flowability, Carr’s index, Hausner ratio, and angle of repose are significant for particles applied in the dry state. These tests can be executed as it is described in the official pharmacopoeias (e.g., European Pharmacopoeia, Unites States Pharmacopoeia).

5.3.5. Mechanical Test

The tensile strength and the elasticity of microparticles can be tested with a texture analyzer, where the compression force is detected relative to the distance, and the maximum compression force and hardness can be calculated, which indicate the mechanical resistance of the shell or the matrix structure [124].

5.3.6. Swelling

An equilibrium swelling study can be performed to observe the behavior of dry particles under various conditions (Figure 10). The swelling index (S%) can be calculated using the swollen particle diameter (ds) and the initial particle diameter prior to reconstitution (di), as follows:
S ( % ) = d s d i d i × 100

5.3.7. Wetting Property

The wetting property of the excipients can be determined using contact angle measurements [127,128].

5.4. Drug Entrapment Efficiency

The success of drug loading can be expressed by the actual loading and the entrapment (encapsulation) efficiency:
The actual drug loading is:
D L   ( % ) = d r u g     ( m g ) ( d r u g   +   p o l y m e r )   ( m g ) × 100
The general formula for calculating the entrapment efficiency value is:
E E   ( % ) = e n t r a p p e d   d r u g   c o n t e n t   ( m g ) t h e o r e t i c a l   d r u g   c o n t e n t   ( m g ) × 100
The ideal entrapment efficiency (100%) is influenced by various factors such as the type and circumstances of the process [129].

5.5. Drug Release

5.5.1. In Vitro Dissolution Test for Multiparticulates

USP 42-NF 37 suggests different methods for the dissolution of multiparticulate preparations. The apparatus and the volume are chosen based on the dosage form performance in the medium and the volume. Compendial rotating basket (USP Apparatus 1), a reciprocating cylinder (USP Apparatus 3) can be used for nondisintegrating coated beads, or a flow-through cell (USP Apparatus 4) can be used for multiple dosage forms (beaded products), where sink conditions are provided.
Polymers of ionic character perform differently under various pH conditions. The independence or dependence of drug release on the ionic strength of the medium can be proved using distinctive pharmacopoeial methods. The medium ranges between the physiological pH 1.2–7.5 hydrochloric acid or phosphate or acetate buffer with or without enzymes, depending on the route of administration or the behavior of the polymer in the medium (e.g., swelling, ionization (IEP)). The use of surfactants is possible, usually over its CMC value.
As a noncompendial apparatus, a mini-paddle-equipped small-volume apparatus, dialysis tubes, or rotating bottle can be used.
The in vitro release mechanisms (diffusion, erosion, osmotic release, or a combination of the previous) can be interpreted based on the models of Fick, Higuchi, Korsmeyer-Peppas, Weibull, and Kopcha [130,131].

5.5.2. Dissolution Test for Inhaled Particles

Inhaled particles deposit in the tracheobronchial tract depending on the size, density, and shape of the particles. The mucus layer that provides the absorption site for drugs has a small volume and the renewal of the absorption layer is different from that of the gastrointestinal tract; therefore, the development of dissolution methods different from the traditional is used. USP 2, the rotating paddle apparatus, can be used with certain modifications. The drug is set into a special cassette and an apparatus capable of a 150 mL dissolution medium is used, agitated using mini paddles [132].
The dialysis bag method is also useable. The drug is set in the semipermeable dialysis bag, which is immersed in the dissolution medium. The drug diffusion occurs between the two liquid phases, and although both static and sink-conditions are maintained, the method does not simulate the air–liquid transition.

5.5.3. In Vitro Performance of Intramuscular Injections

The in vitro dissolution study of the long-acting intramuscular injection, Risperdal® Consta®, where the small interstitial volume provides an alternative dissolution method, was carried out in a flow-through cell apparatus equipped with glass beads of 1 mm diameter and a pump [133]. The in vitro dissolution data of the accelerated test, performed at a temperature above the glass transition temperature of the polymer, correlated well with the previously published in vivo data.
In both the modified Franz diffusion cell [134] and Transwell® [135] systems, drug powder is poured on a semipermeable membrane, which is located above the acceptor medium and diffuses through the membrane during the test. Small volume, agitation, and regularly withdrawn samples (sink conditions) provide the in vitro simulation of the in vivo performance.
DissolveIt® apparatus [136] presents in vitro dissolution and absorption by mimicking the in vivo performance with a membrane separating the simulated air–blood barrier in the tracheobronchial region of the lung and a flowing blood simulant.

5.5.4. In Vitro Dissolution Test for Topical Microsponge Preparations

A Franz diffusion cell with silastic membranes and a sink condition providing solvents as an acceptor medium has been applied to test benzoyl-peroxid-containing microsponge gel preparations [64].

6. Other Studies

6.1. Spectrometry

Fourier-transform infrared (FT-IR) and powder X-ray diffractometry (PXRD) analysis can be performed to follow the intramolecular changes during microencapsulation [81]. Nuclear magnetic resonance (NMR) studies underline the conformational changes in polymers during complexation [137].

6.2. Thermoanalytical Methods

Thermogravimetry (TG) and differential scanning calorimetry (DSC) give valuable data of the thermal behavior of the polymer. The measurable glass transition temperature plays a significant role in the production and the release mechanisms as well.
In the case of mucoadhesive systems, the tensile strength test, shear strength test, and the peel-off test or in vitro wash-off test can be performed [61].

6.3. Biocompatibility

A tetrazolium-based colorimetric assay, such as an MTT (methylthiazolyldiphenyl-tetrazolium bromide) assay, proved good to screen the cytotoxicity of hydrophylic polymers [138].

7. Applications in the Therapeutical Practice

Several types of multiparticulate sytems and product examples are detailed in Table 8 according their type, dosage form with route of administration, drug and key excipient, and indication for use.
Solid multiparticulates usually involve coated pellets or microtablets in order to ensure gastric resistance (e.g., for acid labile proton pump inhibitor compounds) or to prolong the duration of action and optimize the pharmacokinetic profile. Smart carrier systems react to changing pH, electric impulse, magnetic field, and/or temperature, and have been developed in many platforms (pellets, microgranules, microspheres).
Patient-centric medication involves the development of patient-friendly devices (e.g., DPI—Dry Powder Inhaler) and administration routes. Inhalatives, ODTs, and nasal administration could be an opportunity to reach a systemic effect. There is broad research on this field, however, there is only a limited number of preparations approved by the authorities
Sustained-release injectable depot systems are capable of forming a reservoir at the site of administration and release the API over a longer period. This property is advantageous in the treatment of psychotic patients, or in the medication of children with acute diseases.

7.1. Insulin for Inhalation (Technosphere®)

AfrezzaTM is an immediate-release insulin formulation for Type 1 and Type 2 diabetes patients with an optimal bioavailability (25%). The pulmonary applied preparation consists of microparticles (2–3 µm) of self-assembled fumaryl diketopiperazine (FDKP) (Mw = 452.46 Da) molecules. In this preparation, FDKP nanocrystals are formed via a pH-induced crystallization process, and the nanocrystals are self-assembled into a spherical microparticle, like a deck of playing cards. The front and back sides of the “cards” provide the spheres with a high surface area, and the distance between the layers provide the extremely high porosity, low density, and convenient aerodynamic character to deposit into the distant alveolar regions where the API dissolves rapidly at the alveolar surfactant pH. Depending on the API molecular weight, local (>100,000 Da) or systemic absorption is possible. Special inhalers (Dreamboat® or Cricket®) are designed for optimal application [139].

7.2. Depocyte® (Parenteral Suspension)

Depocyte®, a liposomal product, is a pyrogen-free, parenteral suspension containing cytarabine developed for the treatment of neoplastic meningitis (NM) via controlled release. Depocyte® is a slow-release formulation created using DepoFoam™ technology, which includes microscopic spherical particles (3–30 µm) and is suitable for encapsulating hydrophilic compounds in a “honeycomb-like structure” of separated water-containing chambers. Lipid membranes separate each adjacent chamber. Drug release is carried out over an extended time via erosion and/or reorganization of the particles’ lipid membranes. The honeycomb architecture of multivesicular DepoFoam™ particles gives allows for a comparatively high drug loading. The injection comprising 96% aqueous foam and 4% biodegradable lipid [140] has to be administered intrathecally every two weeks and it is metabolized by the usual metabolic pathways for triglycerides, phospholipids, and cholesterol.

7.3. DepoDur™

Epidural morphine sulfate sustained-release liposome injection DepoDur™ is a single-dose preparation administered at the lumbar level by the epidural route before operations. The lipid foam contains multivesicular lipid-based particles with aqueous chambers that encapsulate the active drug. The foam releases morphine during a 48-h period via erosion, namely the rupture of the microvesicles (of 17–23 µm in median diameter).

7.4. Microsponge Delivery System (MDS)

Topical delivery of drugs can be achieved with microparticles of very high porosity. These structures (of particle size of 5–300 µm) can entrap and release drugs with a controlled rate as a response to special triggers—skin temperature change, rubbing, moisture, friction, etc.—while they do not penetrate into the skin and perform a local effect. MDSs can achieve a very high embedding capacity (50–60%), and as their pore size is very small (≈0.25 µm), bacteria cannot penetrate inside, they do not need preservatives to obtain stability. They are usually administered in the form of a gel, and the aforementioned physical and physicochemical tests have to be accomplished with rheological studies (viscoelasticity) [141]. The disadvantage is that by the production only organic solvent technologies proved to be effective.

7.5. Microbubbles

Microbubbles are used as ultrasound contrasting agents, gene delivery vesicles, O2 carriers, are thrombolytic, and facilitate the transport through the blood–brain barrier without inducing a tissue-damaging effect [142]. Microbubble formulations contain an emulsifier, phospholipids, or protein components, which, following sonication, entrap gases (O2, perfluorocarbons, or sulfur hexafluoride). The product can be preserved in a lyophilized form. The maximum size may not exceed 10 µm to avoid embolism in vivo [143].
The in vivo performance of microbubbles is influenced by the complement system of the immune system, which is responsible for the removal of drug molecules, bacterial cells, and microbubbles from the circulation. Studies pointed out that PEGylation reduces the immunogenicity of BSA (bovine serum albumin) microbubbles [143].

8. Summary

In the past few decades, numerous microparticulate formulations gained therapeutical and diagnostical significance. A great number of polymers have been tested, of which several have been proved effective.
To accomplish the traditional coacervation, new methods have been developed (freeze-drying, spray drying, microfluidic flow-focusing, lithography, etc.). The various created structures offer a large potential for the fine-tuning of drug release mechanisms and the optimization of the pharmacokinetic profile.

Author Contributions

Formulation, characterization, polymer excipients, and use (M.L.); processes, release mechanisms (N.K.-S.); preparation, samples, and photos (V.A.); microfluidics (A.J.L.); and content, structure, and therapeutical aspects (I.A.).

Funding

This review article received no external funding.

Acknowledgments

The authors thank Ágnes Sárádi-Kesztyűs for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bale, S.; Khurana, A.; Reddy, A.S.S.; Singh, M.; Godugu, C. Overview on Therapeutic Applications of Microparticle Drug Delivery Overview on Therapeutic Applications of Microparticulate Drug Delivery Systems. Crit. Rev. Ther. Drug Carr. Syst. 2016, 4, 309–361. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, B.H.; Longquin Hu, T.J.S. Drug Delivery to the Lymphatic System. In Drug Delivery Principles and Applications; Wang, B., Longquin Hu, T.J.S., Eds.; John Wiley and Sons Inc.: Hoboken, NJ, USA, 2016; p. 509. ISBN 9781118833230. [Google Scholar]
  3. Whelehan, M.; Marison, I.W. Microencapsulation using vibrating technology. J. Microencapsul. 2011, 28, 669–688. [Google Scholar] [CrossRef] [PubMed]
  4. Peanparkdee, M.; Iwamoto, S.; Yamauchi, R. Microencapsulation: A Review of Applications in the Food and Pharmaceutical Industries. Rev. Agric. Sci. 2016, 4, 56–65. [Google Scholar] [CrossRef]
  5. Desai, T.; Shea, L.D. Advances in islet encapsulation technologies. Nat. Publ. Gr. 2016, 16, 338–350. [Google Scholar] [CrossRef] [PubMed]
  6. Yi, Y.; Sanchez, L.; Gao, Y.; Yu, Y. Janus particles for biological imaging and sensing. Analyst 2016, 141, 3526–3539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Acter, S.; Cho, J.; Kim, J.W.; Byun, A.; Park, K.H.; Kim, J.W. Synthesis and shape control of uniform polymer microparticles by tailored adsorption of poly(ethylene oxide)-b-poly(ε-caprolactone) copolymer. Bull. Korean Chem. Soc. 2015, 36, 1467–1473. [Google Scholar] [CrossRef]
  8. Gong, Z.; Hueckel, T.; Yi, G.R.; Sacanna, S. Patchy particles made by colloidal fusion. Nature 2017, 550, 234–238. [Google Scholar] [CrossRef]
  9. Choi, K.; Salehizadeh, M.; Da Silva, R.B.; Hakimi, N.; Diller, E.; Hwang, D.K. 3D shape evolution of microparticles and 3D enabled applications using non-uniform UV flow lithography (NUFL). Soft Matter 2017, 13, 7255–7263. [Google Scholar] [CrossRef]
  10. Karami, N.; Moghimipour, E.; Salimi, A. Liposomes as a Novel Drug Delivery System: Fundamental and Pharmaceutical Application. Asian J. Pharm. 2018, 12, S31–S41. [Google Scholar]
  11. Rosenberg, R.T.; Dan, N.R. Diffusion through colloidosome shells. J. Colloid Interface Sci. 2011, 354, 478–482. [Google Scholar] [CrossRef]
  12. Yuan, Q.; Cayre, O.J.; Fujii, S.; Armes, S.P.; Williams, R.A.; Biggs, S. Responsive core-shell latex particles as colloidosome microcapsule membranes. Langmuir 2010, 26, 18408–18414. [Google Scholar] [CrossRef] [PubMed]
  13. Ozturk, A.G.; Ozturk, S.S.; Palsson, B.O.; Wheatley, T.A.; Dressman, J.B. Mechanism of release from pellets coated with an ethylcellulose-based film. J. Control. Release 1990, 14, 203–213. [Google Scholar] [CrossRef] [Green Version]
  14. Tang, E.S.K.; Chan, L.W.; Heng, P.W.S. Coating of multiparticulates for sustained release. Am. J. Drug Deliv. 2005, 3, 17–28. [Google Scholar] [CrossRef]
  15. Prajapati, V.D.; Jani, G.K.; Kapadia, J.R. Current knowledge on biodegradable microspheres in drug delivery. Expert Opin. Drug Deliv. 2015, 12, 1283–1299. [Google Scholar] [CrossRef] [PubMed]
  16. Doty, A.C. Mechanistic Analysis of In Vivo and In Vitro Drug Release From PLGA Microspheres. Ph.D. Thesis, University of Michigan, Ann Arbor, ML, USA, 2015. [Google Scholar]
  17. Bennet, D.; Kim, S.E.I. Application of Nanotechnology in Drug Delivery. In Polymer Nanoparticles for Smart Drug Delivery; Sezer, A.D., Ed.; InTechOpen: London, UK, 2014; ISBN 978-953-51-1628-8 b. [Google Scholar] [Green Version]
  18. Senyei, A.; Widder, K.; Czerlinski, G. Magnetic guidance of drug-carrying microspheres. J. Appl. Phys. 1978, 49, 3578–3583. [Google Scholar] [CrossRef]
  19. Farah, F.H. Magnetic Microspheres: A Novel Drug Delivery System. World, J. Pharm. Pharm. Sci. 2017, 3, 93–112. [Google Scholar] [CrossRef]
  20. Foox, M.; Zilberman, M. Drug delivery from gelatin-based systems. Expert Opin. Drug Deliv. 2015, 12, 1547–1563. [Google Scholar] [CrossRef]
  21. Rowe, R.C.; Sheskey, P.; Quinn, M. Handbook of Pharmaceutical Excipients, 7th ed.; Rowe, R.C., Sheskey, S.J., Cook, W.G.F.M., Eds.; Pharmaceutical Press: London, UK, 2009; ISBN 978-0857110275. [Google Scholar]
  22. Inada, A.; Oue, T.; Yamashita, S.; Yamasaki, M.; Oshima, T.; Matsuyama, H. Development of highly water-dispersible complexes between coenzyme Q10 and protein hydrolysates. Eur. J. Pharm. Sci. 2019, 136. [Google Scholar] [CrossRef]
  23. Ju, Z.Y.; Kilara, A. Gelation of pH-Aggregated Whey Protein Isolate Solution Induced by Heat, Protease, Calcium Salt, and Acidulant. J. Agric. Food Chem. 1998, 8561, 1830–1835. [Google Scholar] [CrossRef]
  24. Peng, Z.G.; Hidajat, K.; Uddin, M.S. Adsorption of bovine serum albumin on nanosized magnetic particles. J. Colloid Interface Sci. 2004, 271, 277–283. [Google Scholar] [CrossRef]
  25. Bouman, J. Controlled Release from Zein Matrices: Interplay of Drug Hydrophobicity and pH. Pharm. Res. 2016, 33, 673–685. [Google Scholar] [CrossRef] [PubMed]
  26. Yong, Z.; Lili, C.; Feng, L.; Nianqiu, S.; Chunlei, L.; Xianghui, Y.; Yan, C.; Wei, K. Design, fabrication and biomedical applications of zein-based nano/micro-carrier systems. Int. J. Pharm. 2016, 512, 191–210. [Google Scholar]
  27. Lopes-da-Silva, J.A.; Monteiro, S.R. Gelling and emulsifying properties of soy protein hydrolysates in the presence of a neutral polysaccharide. Food Chem. 2019, 294, 216–223. [Google Scholar] [CrossRef] [PubMed]
  28. Shah, A.V.; Serajuddin, A.T.M.; Mangione, R.A. Making All Medications Gluten Free. J. Pharm. Sci. 2018, 107, 1263–1268. [Google Scholar] [CrossRef] [PubMed]
  29. Ranjha, N.M.; Khan, H. Encapsulation and characterization of controlled release flurbiprofen loaded microspheres using beeswax as an encapsulating agent. J. Mater. Sci. Mater. Med. 2010, 21, 1621–1630. [Google Scholar] [CrossRef] [PubMed]
  30. Milanovic, J.; Manojlovic, V.; Levic, S.; Rajic, N.; Nedovic, V.; Bugarski, B. Microencapsulation of Flavors in Carnauba Wax. Sensors 2010, 10, 901–912. [Google Scholar] [CrossRef] [Green Version]
  31. Khor, C.M.; Ng, W.K.; Kanaujia, P.; Chan, K.P. Hot-melt extrusion microencapsulation of quercetin for taste-masking. J. Microencapsul. 2017, 34, 2048. [Google Scholar] [CrossRef]
  32. Gopal, K.; Singh, K.; Halder, S.; Pati, S.; Wang, J. Microencapsulation of Paraffin Wax Microspheres with Silver. Def. Sci. J. 2018, 68, 218–224. [Google Scholar]
  33. Rabani, F.; Aziz, A.; Jai, J.; Raslan, R.; Subuki, I. Microencapsulation of citronella oil by complex coacervation using chitosan-gelatin (b) system: Operating design, preparation and characterization. In MATEC Web of Conferences; EDP Sciences: Les Ulis, France, 2016. [Google Scholar]
  34. Hussain, S.A.; Abdelkader, H.; Abdullah, N.; Kmaruddin, S. Review on micro-encapsulation with Chitosan for pharmaceuticals applications. MOJ Curr. Res. Rev. 2018, 1, 77–84. [Google Scholar] [CrossRef]
  35. Cunha, L.; Rodrigues, S.; Rosa, A.M.; Faleiro, L.; Buttini, F.; Grenha, A. Inhalable chitosan microparticles for simultaneous delivery of isoniazid and rifabutin in lung tuberculosis treatment. Drug Dev. Ind. Pharm. 2019, 45, 1313–1320. [Google Scholar] [CrossRef]
  36. Lim, S.T.; Martin, G.P.; Berry, D.J.; Brown, M.B. Preparation and evaluation of the in vitro drug release properties and mucoadhesion of novel microspheres of hyaluronic acid and chitosan. J. Control. Release 2000, 66, 281–292. [Google Scholar] [CrossRef]
  37. Jia, X.; Yeo, Y.; Clifton, R.J.; Jiao, T.; Kohane, D.S.; Kobler, J.B.; Zeitels, S.M.; Langer, R. Hyaluronic Acid-Based Microgels and Microgel Networks for Vocal Fold Regeneration. Biomacromolecules 2006, 7, 3336–3344. [Google Scholar] [CrossRef] [PubMed]
  38. Eraso, M.O.; Aníbal, H. Use of Starches and Milk Proteins in Microencapsulation. Int. J. Veg. Sci. 2014, 20, 289–304. [Google Scholar] [CrossRef]
  39. Prabaharan, M. Prospective of guar gum and its derivatives as controlled drug delivery systems. Int. J. Biol. Macromol. 2011, 49, 117–124. [Google Scholar] [CrossRef]
  40. Kaity, S.; Isaac, J.; Ghosh, A. Interpenetrating polymer network of locust bean gum-poly (vinyl alcohol) for controlled release drug delivery. Carbohydr. Polym. 2013, 94, 456–467. [Google Scholar] [CrossRef] [PubMed]
  41. Street, K.; Davé, V.; McCarthy, S. Review of konjac glucomannan. J. Polym. Environ. 1997, 5, 237–241. [Google Scholar]
  42. Liu, J.; Xu, Q.; Zhang, J.; Zhou, X.; Lyu, F.; Zhao, P. Preparation, composition analysis and antioxidant activities of konjac. Carbohydr. Polym. 2015, 130, 398–404. [Google Scholar] [CrossRef] [PubMed]
  43. Necas, J.; Bartosikova, L. Carrageenan: A review. Vet. Med. 2013, 58, 187–205. [Google Scholar] [CrossRef]
  44. Sharratt, M.; Grasso, P.; Carpanini, F.; Gangolli, S.D. Carrageenan ulceration as a model for human ulcerative colitis. Lancet 1971, 297, 192–193. [Google Scholar] [CrossRef]
  45. Mano, F.; Reis, R.L.; Gasperini, L. Natural polymers for the microencapsulation of cells. J. R. Soc. Interface 2014, 11, 20140817. [Google Scholar] [Green Version]
  46. Kim, D.Y.; Kwon, D.Y.; Kwon, J.S.; Kim, J.H.; Min, B.H.; Kim, M.S. Stimuli-responsive injectable in situ-forming hydrogels for regenerative medicines. Polym. Rev. 2015, 55, 407–452. [Google Scholar] [CrossRef]
  47. Asghari-varzaneh, E.; Shahedi, M.; Shekarchizadeh, H. Iron microencapsulation in gum tragacanth using solvent evaporation method. Int. J. Biol. Macromol. 2017, 103, 640–647. [Google Scholar] [CrossRef] [PubMed]
  48. Edris, A.E.; Kalemba, D.; Adamiec, J.; Piaotkowski, M. Microencapsulation of Nigella sativa oleoresin by spray drying for food and nutraceutical applications. Food Chem. 2016, 204, 326–333. [Google Scholar] [CrossRef] [PubMed]
  49. Williams, P.A.; Phillips, G.O. Handbook of Hydrocolloids; CRC Press: Boca Raton, FL, USA, 2009; ISBN 9781845694142. [Google Scholar]
  50. Sammour, A. Optimization of the MIcroencapsulation of Lavender Oil by Spray Drying. J. Microencapsul. 2019, 17, 1–42. [Google Scholar]
  51. Endress, H. Nonfood Uses of Pectin; Academic Press, Inc.: Cambridge, MA, USA, 1991. [Google Scholar]
  52. Wong, T.W.; Colombo, G.; Sonvico, F. Pectin Matrix as Oral Drug Delivery Vehicle for Colon Cancer Treatment. AAPS PharmSciTech 2011, 12, 201–214. [Google Scholar] [CrossRef]
  53. Petri, D.F.S. Xanthan gum: A versatile biopolymer for biomedical and technological applications. J. Appl. Polym. Sci. 2015, 132. [Google Scholar] [CrossRef] [Green Version]
  54. Mahdi, M.H.; Conway, B.R.; Smith, A.M. Development of mucoadhesive sprayable gellan gum fluid gels. Int. J. Pharm. 2015, 488, 12–19. [Google Scholar] [CrossRef] [Green Version]
  55. Varshosaz, J.; Ahmadi, F.; Emami, J.; Tavakoli, N.; Minaiyan, M.; Mahzouni, P.; Dorkoosh, F. Microencapsulation of budesonide with dextran by spray drying technique for colon-targeted delivery: An in vitro/in vivo evaluation in induced colitis in rat. J. Microencapsul. 2011, 28, 62–73. [Google Scholar] [CrossRef]
  56. Kadota, K.; Yanagawa, Y.; Tachikawa, T.; Deki, Y.; Uchiyama, H.; Shirakawa, Y.; Tozuka, Y. Osaka University of Pharmaceutical Sciences, 4-20-1 Nasahara, Takatsuki, Osaka 569-Department of Chemical Engineering and Material Science, Doshisha University, 1-3. Int. J. Pharm. 2018. [Google Scholar] [CrossRef]
  57. Kshirsagar, A.C.; Yenge, V.B.; Sarkar, A.; Singhal, R.S. Efficacy of pullulan in emulsification of turmeric oleoresin and its subsequent microencapsulation. Food Chem. 2009, 113, 1139–1145. [Google Scholar] [CrossRef]
  58. Prajapati, V.D.; Jani, G.K.; Khanda, S.M. Pullulan: An exopolysaccharide and its various applications. Carbohydr. Polym. 2013, 95, 540–549. [Google Scholar] [CrossRef] [PubMed]
  59. Chowdary, K.P.R.; Rao, Y.S. Design and in vitro and in vivo evaluation of mucoadhesive microcapsules of glipizide for oral controlled release: A technical note. AAPS PharmSciTech 2004, 4, 87–92. [Google Scholar] [CrossRef] [PubMed]
  60. Cardenas-Bailon, F.; Osorio-Revilla, G.; Gallardo-Velazquez, T. Microencapsulation of insulin using a W/O/W double emulsion followed by complex coacervation to provide protection in the gastrointestinal tract. J. Microencapsul. 2015, 32, 308–316. [Google Scholar] [CrossRef] [PubMed]
  61. Mansuri, S.; Kesharwani, P.; Jain, K.; Tekade, R.K.; Jain, N.K. Mucoadhesion: A promising approach in drug delivery system. React. Funct. Polym. 2016, 100, 151–172. [Google Scholar] [CrossRef]
  62. Karewicz, A.; Zasada, K.; Bielska, D.; Douglas, T.E.L.; Jansen, J.A.; Leeuwenburgh, S.C.G.; Nowakowska, M. Alginate-hydroxypropylcellulose hydrogel microbeads for alkaline phosphatase encapsulation. J. Microencapsul. 2014, 2048, 68–76. [Google Scholar] [CrossRef] [PubMed]
  63. Katona, J.M.; Sovilj, V.J.; Petrović, L.B. Microencapsulation of oil by polymer mixture-ionic surfactant interaction induced coacervation. Carbohydr. Polym. 2010, 79, 563–570. [Google Scholar] [CrossRef]
  64. Jelvehgari, M.; Siahi-Shadbad, M.R.; Azarmi, S.; Martin, G.P.; Nokhodchi, A. The microsponge delivery system of benzoyl peroxide: Preparation, characterization and release studies. Int. J. Pharm. 2006, 308, 124–132. [Google Scholar] [CrossRef] [PubMed]
  65. Fundueanu, G.; Constantin, M.; Esposito, E.; Cortesi, R.; Nastruzzi, C.; Menegatti, E. Cellulose acetate butyrate microcapsules containing dextran ion-exchange resins as self-propelled drug release system. Biomaterials 2005, 26, 4337–4347. [Google Scholar] [CrossRef] [PubMed]
  66. Koga, C.C.; Lee, S.; Lee, Y. Consumer Acceptance of Bars and Gummies with Unencapsulated and Encapsulated Resveratrol. J. Food Sci. 2016, 81, 1222–1229. [Google Scholar] [CrossRef] [PubMed]
  67. Kapoor, D.N.; Bhatia, A.; Kaur, R.; Sharma, R.; Kaur, G.; Dhawan, S. PLGA: A unique polymer for drug delivery. Ther. Deliv. 2015, 6, 41–58. [Google Scholar] [CrossRef] [PubMed]
  68. Bilati, U.; Allémann, E.; Doelker, E. Poly(D,L-lactide-co-glycolide) protein-loaded nanoparticles prepared by the double emulsion method-Processing and formulation issues for enhanced entrapment efficiency. J. Microencapsul. 2005, 22, 205–214. [Google Scholar] [CrossRef] [PubMed]
  69. Qu, S.; Dai, C.; Yang, F.; Huang, T.; Hao, Z.; Tang, Q.; Wang, H. Cefquinome-Loaded Microsphere Formulations in Protection against Pneumonia with Klebsiella pneumonia Infection and Inflammatory Response in Rats. Pharm. Res. 2019, 36, 74. [Google Scholar] [CrossRef] [PubMed]
  70. Tian, Y.; Grishkewich, N.; Bromberg, L.; Hatton, T.A.; Tam, K.C. Cross-linked Pluronic-g-Polyacrylic acid Microgel system for the Controlled Release of Doxorubicin in Pharmaceutical Formulations. Eur. J. Pharm. Biopharm. 2017, 114, 230–238. [Google Scholar] [CrossRef] [PubMed]
  71. Al-kasmi, B.; Alsirawan, M.H.D.B.; Bashimam, M.; El-zein, H. Mechanical microencapsulation: The best technique in taste masking for the manufacturing scale-Effect of polymer encapsulation on drug targeting. J. Control. Release 2017, 260, 134–141. [Google Scholar] [CrossRef] [PubMed]
  72. Wang, W.; Liu, L.; Ju, X.; Zerrouki, D.; Xie, R.; Yang, L.; Chu, L. A Novel Thermo-Induced Self-Bursting Microcapsule with Magnetic—Targeting Property. Chem. Phys. Chem. 2009, 10, 2405–2409. [Google Scholar] [CrossRef] [PubMed]
  73. Li, X. Synthesis and properties of thermo-responsive guar gum/poly (N-isopropylacrylamide) interpenetrating polymer network hydrogels. Carbohydr. Polym. 2008, 71, 394–402. [Google Scholar] [CrossRef]
  74. Wattendorf, U.T.A.; Merkle, H.P. PEGylation as a Tool for the Biomedical Engineering of Surface Modified Microparticles. J. Pharm. Sci. 2008, 97, 4655–4669. [Google Scholar] [CrossRef]
  75. Heinemann, L.; Baughman, R.; Boss, A.; Hompesch, M. Pharmacokinetic and Pharmacodynamic Properties of a Novel Inhaled Insulin. J. Diabetes Sci. Technol. 2017, 11, 148–156. [Google Scholar] [CrossRef]
  76. Sæther, H.V.; Holme, H.K.; Maurstad, G.; Smidsrød, O.; Stokke, B.T. Polyelectrolyte complex formation using alginate and chitosan. Carbohydr. Polym. 2008, 74, 813–821. [Google Scholar] [CrossRef]
  77. Batubara, I.; Rahayu, D.; Mohamad, K.; Prasetyaningtyas, W.E. Leydig Cells Encapsulation with Alginate-Chitosan: Optimization of Microcapsule Formation. J. Encapsulation Adsorpt. Sci. 2012, 2, 15–20. [Google Scholar] [CrossRef] [Green Version]
  78. Capretto, L.; Mazzitelli, S.; Luca, G.; Nastruzzi, C. Preparation and characterization of polysaccharidic microbeads by a microfluidic technique: Application to the encapsulation of Sertoli cells. Acta Biomater. 2010, 6, 429–435. [Google Scholar] [CrossRef] [PubMed]
  79. Santos, M.G.; Bozza, F.T.; Thomazini, M.; Favaro-Trindade, C.S. Microencapsulation of xylitol by double emulsion followed by complex coacervation. Food Chem. 2015, 171, 32–39. [Google Scholar] [CrossRef] [PubMed]
  80. Shaddel, R.; Hesari, J.; Azadmard-damirchi, S.; Hamishehkar, H. Use of gelatin and gum Arabic for encapsulation of black raspberry anthocyanins by complex coacervation. Int. J. Biol. Macromol. 2017, 107, 1800–1810. [Google Scholar] [CrossRef] [PubMed]
  81. Bhattacharya, S.S.; Shukla, S.; Banerjee, S.; Chowdhury, P.; Chakraborty, P.; Ghosh, A. Tailored IPN Hydrogel Bead of Sodium Carboxymethyl Cellulose and Sodium Carboxymethyl Xanthan Gum for Controlled Delivery of Diclofenac Sodium. Polym. Plast. Technol. Eng. 2013, 52, 795–805. [Google Scholar] [CrossRef]
  82. Maciel, V.B.V.; Yoshida, C.M.P.; Pereira, S.M.S.S.; Goycoolea, F.M.; Franco, T.T. Nano- and Microparticles for Insulin Delivery. Molecules 2017, 22, 1707. [Google Scholar] [CrossRef]
  83. Rocha-Selmi, G.A.; Theodoro, A.C.; Thomazini, M.; Bolini, H.M.A.; Favaro-Trindade, C.S. Double emulsion stage prior to complex coacervation process for microencapsulation of sweetener sucralose. J. Food Eng. 2013, 119, 28–32. [Google Scholar] [CrossRef] [Green Version]
  84. Carneiro, H.C.F.; Tonon, R.V.; Grosso, C.R.F.; Hubinger, M.D. Encapsulation efficiency and oxidative stability of flaxseed oil microencapsulated by spray drying using different combinations of wall materials. J. Food Eng. 2013, 115, 443–451. [Google Scholar] [CrossRef] [Green Version]
  85. Fioramonti, S.A.; Stepanic, E.M.; Tibaldo, A.M.; Pavón, Y.L.; Santiago, L.G. Spray dried flaxseed oil powdered microcapsules obtained using milk whey proteins-alginate double layer emulsions. Food Res. Int. 2019, 119, 931–940. [Google Scholar] [CrossRef]
  86. Alvarado, Y.; Muro, C.; Illescas, J.; Díaz, M.D.C.; Riera, F. Encapsulation of Antihypertensive Peptides from Whey Proteins and Their Releasing in Gastrointestinal Conditions. Biomolecules 2019, 9, 164. [Google Scholar] [CrossRef]
  87. Riaz, T.; Iqbal, M.W.; Saeed, M.; Yasmin, I.; Hassanin, H.A.; Mahmood, S.; Rehman, A. In-vitro survival of Bifidobacterium bifidum microencapsulated in zein coated alginate hydrogel microbeads. J. Microencapsul. 2019, 36, 192–203. [Google Scholar] [CrossRef]
  88. Farris, E.; Brown, D.M.; Ramer-Tait, A.E.; Pannier, A.K. Chitosan-zein nano-in-microparticles capable of mediating in vivo transgene expression following oral delivery. J. Control. Release 2017, 249, 150–161. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Gardner, C.M.; Burke, N.A.D.; Stöver, H.D.H. Cross-linked microcapsules formed from self-deactivating reactive polyelectrolytes. Langmuir 2010, 26, 4916–4924. [Google Scholar] [CrossRef] [PubMed]
  90. Giovagnoli, S.; Blasi, P.; Luca, G.; Fallarino, F.; Calvitti, M.; Mancuso, F.; Ricci, M.; Basta, G.; Becchetti, E.; Rossi, C.; et al. Bioactive long-term release from biodegradable microspheres preserves implanted ALG-PLO-ALG microcapsules from in vivo response to purified alginate. Pharm. Res. 2010, 27, 285–295. [Google Scholar] [CrossRef] [PubMed]
  91. Mooranian, A.; Negrulj, R.; Al-Salami, H.; Morahan, G.; Jamieson, E. Designing anti-diabetic β-cells microcapsules using polystyrenic sulfonate, polyallylamine, and a tertiary bile acid: Morphology, bioenergetics, and cytokine analysis. Biotechnol. Prog. 2016, 32, 501–509. [Google Scholar] [CrossRef] [PubMed]
  92. Wells, L.A.; Sheardown, H. Photosensitive controlled release with polyethylene glycol-anthracene modified alginate. Eur. J. Pharm. Biopharm. 2011, 79, 304–313. [Google Scholar] [CrossRef] [PubMed]
  93. Mahou, R.; Meier, R.R.H.; Bühler, L.H.; Wandrey, C. Alginate-poly(ethylene glycol) hybrid microspheres for primary cell microencapsulation. Materials 2014, 7, 275–286. [Google Scholar] [CrossRef]
  94. Colinet, I.; Dulong, V.; Mocanu, G.; Picton, L.; Le Cerf, D. New amphiphilic and pH-sensitive hydrogel for controlled release of a model poorly water-soluble drug. Eur. J. Pharm. Biopharm. 2009, 73, 345–350. [Google Scholar] [CrossRef]
  95. Streubel, A.; Siepmann, J.; Bodmeier, R. Floating microparticles based on low density foam powder. Int. J. Pharm. 2002, 241, 279–292. [Google Scholar] [CrossRef]
  96. Wu, J.; Kong, T.; Yeung, K.W.K.; Shum, H.C.; Cheung, K.M.C.; Wang, L.; To, M.K.T. Fabrication and characterization of monodisperse PLGA-alginate core-shell microspheres with monodisperse size and homogeneous shells for controlled drug release. Acta Biomater. 2013, 9, 7410–7419. [Google Scholar] [CrossRef]
  97. Funami, T.; Kataoka, Y.; Omoto, T.; Goto, Y. Food hydrocolloids control the gelatinization and retrogradation behavior of starch. 2a. Functions of guar gums with different molecular weights on the gelatinization behavior of corn starch q. Food Hydrocoll. 2005, 19, 15–24. [Google Scholar] [CrossRef]
  98. Papa, S.; Veglianese, P. Improving the Pharmacodynamic and Pharmacological Profile of Bioactive Molecules Using Biopolymers; Elsevier Ltd.: Amsterdam, The Netherlands, 2016; ISBN 9780081002667. [Google Scholar]
  99. Dalpiaz, A.; Fogagnolo, M.; Ferraro, L.; Capuzzo, A.; Pavan, B.; Rassu, G.; Salis, A.; Giunchedi, P.; Gavini, E. Nasal chitosan microparticles target a zidovudine prodrug to brain HIV sanctuaries. Antiviral Res. 2015, 123, 146–157. [Google Scholar] [CrossRef] [PubMed]
  100. Haque, T.P.S. Superior Cell Delivery Features of Poly(ethylene glycol) Incorporated Alginate, Chitosan, and Poly-L-lysine Microcapsules. Mol. Pharm. 2004, 2, 29–36. [Google Scholar] [CrossRef] [PubMed]
  101. McNaught, A.W.A. International Union of Pure and Applied Chemistry Compendium of Chemical Terminology Gold Book; Version 2; Pergamon Press: Oxford, UK, 1978. [Google Scholar]
  102. Chuang, J.J.; Huang, Y.Y.; Lo, S.H.; Hsu, T.F.; Huang, W.Y.; Huang, S.L.; Lin, Y.S. Effects of pH on the Shape of Alginate Particles and Its Release Behavior. Int. J. Polym. Sci. 2017, 2017, 9. [Google Scholar] [CrossRef]
  103. Nemethova, V.; Lacik, I.; Razga, F. Vibration Technology for Microencapsulation: The Restrictive Role of Viscosity. J. Bioprocess. Biotech. 2015, 5. [Google Scholar] [CrossRef] [Green Version]
  104. Wurster, D.E.; Bhattacharjya, S.; Flanagan, D.R. Effect of Curing on Water Diffusivities in Acrylate Free Films as Measured via a Sorption Technique. AAPS PharmSciTech 2007, 8, 1–6. [Google Scholar] [CrossRef] [PubMed]
  105. Das, S.K.; David, S.R.; Rajabalaya, R.; Halder, T. Microencapsulation techniques and its practices. Int. J. Pharm. Sci. Tech. 2011, 6, 1. [Google Scholar]
  106. Poncelet, D. Microencapsulation: Fundamentals, methods and applications. In Surface Chemistry in Biomed Environmental Science; Springer: Dordrecht, The Netherlands, 2006; pp. 26–34. ISBN 140204741X. [Google Scholar]
  107. Klokk, T.I.; Melvik, J.E. Controlling the size of alginate gel beads by use of a high electrostatic potential. J. Microencapsul. 2002, 19, 415–424. [Google Scholar] [CrossRef]
  108. Watanabe, A.; Hanawa, T.; Sugihara, M.; Yamamoto, K. Development and pharmaceutical properties of a new oral dosage form of theophylline using sodium caseinate for the possible use in elderly patients. Int. J. Pharm. 1995, 117, 23–30. [Google Scholar] [CrossRef]
  109. Manojlovic, V.; Djonlagic, J.; Obradovic, B.; Nedovic, V.; Bugarski, B. Immobilization of cells by electrostatic droplet generation: A model system for potential application in medicine. Int. J. Nanomed. 2006, 1, 163–171. [Google Scholar] [CrossRef]
  110. Haeberle, S.; Naegele, L.; Burger, R.; Zengerle, R.; Ducrée, J. Alginate Micro-Bead Fabrication on a Centrifugal Microfluidics Platform. In Proceedings of the 2007 IEEE 20th International Conference on Micro Electro Mechanical Systems (MEMS), Hyogo, Japan, 21–25 January 2007. [Google Scholar] [CrossRef]
  111. Ezhilarasi, P.N.; Karthik, P.; Chhanwal, N.; Anandharamakrishnan, C. Nanoencapsulation Techniques for Food Bioactive Components: A Review. Food Bioprocess Technol. 2013, 6, 628–647. [Google Scholar] [CrossRef]
  112. Emami, F.; Vatanara, A.; Park, E.J.; Na, D.H. Drying technologies for the stability and bioavailability of biopharmaceuticals. Pharmaceutics 2018, 10, 131. [Google Scholar] [CrossRef] [PubMed]
  113. Dittrich, P.S.; Manz, A. Lab-on-a-chip: Microfluidics in drug discovery. Nat. Rev. Drug Discov. 2006, 5, 210–218. [Google Scholar] [CrossRef] [PubMed]
  114. Damiati, S. Microfluidic Devices for Drug Delivery Systems and Drug Screening. Genes 2018, 9, 103. [Google Scholar] [CrossRef] [PubMed]
  115. Zhu, P.; Wang, L. Lab on a Chip Passive and active droplet generation with microfluidics: A review. Lab Chip 2017, 17, 34–75. [Google Scholar] [CrossRef] [PubMed]
  116. Nisisako, T. Recent advances in microfluidic production of Janus droplets and particles. Curr. Opin. Colloid Interface Sci. 2016, 25, 1–12. [Google Scholar] [CrossRef]
  117. Fang, Y.; Li, L.; Vreeker, R.; Yao, X.; Wang, J.; Ma, Q.; Jiang, F.; Phillips, G.O. Rehydration of dried alginate gel beads: Effect of the presence of gelatin and gum arabic. Carbohydr. Polym. 2011, 86, 1145–1150. [Google Scholar] [CrossRef]
  118. Hakimi, N.; Tsai, S.S.H.; Cheng, C.H.; Hwang, D.K. One-step two-dimensional microfluidics-based synthesis of three-dimensional particles. Adv. Mater. 2014, 26, 1393–1398. [Google Scholar] [CrossRef]
  119. Le Goff, G.C.; Lee, J.; Gupta, A.; Hill, W.A.; Doyle, P.S. High-Throughput Contact Flow Lithography. Adv. Sci. 2015, 2, 1500149. [Google Scholar] [CrossRef]
  120. Shekunov, B.Y.; Chattopadhyay, P.; Tong, H.H.Y.; Chow, A.H.L. Particle size analysis in pharmaceutics: Principles, methods and applications. Pharm. Res. 2007, 24, 203–227. [Google Scholar] [CrossRef]
  121. Shahi, S.; Pharmaceuticals, L. Micro particles: An approach for betterment of drug delivery system. Int. J. Pharm. Res. Dev. 2014, 1, 99–115. [Google Scholar]
  122. Hasirci, V.; Hasirci, N. Fundamentals of Biomaterials; Springer: Berlin/Heidelberg, Germany, 2018; ISBN 9788847011946. [Google Scholar]
  123. Chou, D.K.; Krishnamurthy, R.; Randolph, T.W.; Carpenter, J.F.; Manning, M.C. Effects of Tween 20® and Tween 80® on the stability of Albutropin during agitation. J. Pharm. Sci. 2005, 94, 1368–1381. [Google Scholar] [CrossRef] [PubMed]
  124. Patel, M.A.; AbouGhaly, M.H.H.; Schryer-Praga, J.V.; Chadwick, K. The effect of ionotropic gelation residence time on alginate cross-linking and properties. Carbohydr. Polym. 2017, 155, 362–371. [Google Scholar] [CrossRef]
  125. Song, M.; Li, N.; Tiedt, L.R.; Degennaro, M.D.; de Villiers, M.M. Preparation and Characterization of Highly Porous Direct Compression Carrier Particles with Improved Drug Loading During an Interactive Mixing Process. AAPS PharmSciTech 2010, 11, 698–707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  126. Lengyel, M.; Balogh, E.; Szerőczei, D.; Dobó-Nagy, C.; Pápay, Z.; Stömmer, V.; Klebovich, I.; Antal, I. Study on process parameters and optimization of microencapsulation based on phase separation. Eur. J. Pharm. Sci. 2018, 122, 273–280. [Google Scholar] [CrossRef] [PubMed]
  127. Dong, W.Y.; Maincent, P.; Bodmeier, R. In vitro and in vivo evaluation of carbamazepine-loaded enteric microparticles. Int. J. Pharm. 2007, 331, 84–92. [Google Scholar] [CrossRef] [PubMed]
  128. Adebisi, A.O.; Conway, B.R. Preparation and characterisation of gastroretentive alginate beads for targeting H. pylori. J. Microencapsul. 2014, 31, 58–67. [Google Scholar] [CrossRef] [PubMed]
  129. El-Say, K.M. Maximizing the encapsulation efficiency and the bioavailability of controlled-release cetirizine microspheres using Draper–Lin small composite design. Drug Des. Dev. Ther. 2016, 10, 825–839. [Google Scholar] [CrossRef]
  130. Dredán, J.; Antal, I.; Rácz, I. Evaluation of mathematical models describing drug release from lipophilic matrices. Int. J. Pharm. 1996, 145, 61–64. [Google Scholar] [CrossRef]
  131. Tiǧli Aydin, R.S.; Pulat, M. 5-fluorouracil encapsulated chitosan nanoparticles for pH-stimulated drug delivery: Evaluation of controlled release kinetics. J. Nanomater. 2012, 2012, 42. [Google Scholar] [CrossRef]
  132. Son, Y.J.; McConville, J.T. Development of a standardized dissolution test method for inhaled pharmaceutical formulations. Int. J. Pharm. 2009, 382, 15–22. [Google Scholar] [CrossRef]
  133. Rawat, A.; Bhardwaj, U.; Burgess, D.J. Comparison of in vitro-in vivo release of Risperdal® Consta® microspheres. Int. J. Pharm. 2012, 434, 115–121. [Google Scholar] [CrossRef] [PubMed]
  134. Salama, R.O.; Traini, D.; Chan, H.; Young, P.M. Preparation and characterisation of controlled release co-spray dried drug–polymer microparticles for inhalation 2: Evaluation of in vitro release profiling methodologies for controlled release respiratory aerosols. Eur. J. Pharm. Biopharm. 2008, 70, 145–152. [Google Scholar] [CrossRef] [PubMed]
  135. Arora, D.; Shah, K.A.; Halquist, M.S.; Sakagami, M. In Vitro aqueous fluid-capacity-limited dissolution testing of respirable aerosol drug particles generated from inhaler products. Pharm. Res. 2010, 27, 786–795. [Google Scholar] [CrossRef] [PubMed]
  136. Gerde, P.; Malmlöf, M.; Havsborn, L.; Sjöberg, C.-O.; Ewing, P.; Eirefelt, S.; Ekelund, K. Dissolv It: An In Vitro Method for Simulating the Dissolution and Absorption of Inhaled Dry Powder Drugs in the Lungs. Assay Drug Dev. Technol. 2017, 15, 77–88. [Google Scholar] [CrossRef] [PubMed]
  137. Zhou, J.; Suo, Z. Strengthening Alginate/Polyacrylamide Hydrogels Using Various Multivalent Cations. ACS Appl. Mater. Interfaces 2013, 5, 10418–10422. [Google Scholar]
  138. Sgouras, D.; Duncan, R. Methods for the evaluation of biocompatibility of soluble synthetic polymers which have potential for biomedical use: 1-Use of the tetrazolium-based colorimetric assay (MTT) as a preliminary screen for evaluation of in vitro cytotoxicity. J. Mater. Sci. Mater. Med. 1990, 1, 61–68. [Google Scholar] [CrossRef]
  139. Leone-Bay, A.; Baughman, R.; Smutney, C.; Kocinsky, J. Innovations in Drug Delivery by Inhalation. OnDrugDelivery Magazine. November 2010, pp. 4–8. Available online: https://www.ondrugdelivery.com/wp-content/uploads/2018/11/Nov2010.pdf (accessed on 27 June 2019).
  140. Murry, D.J.; Blaney, S.M. Clinical pharmacology of encapsulated sustained-release cytarabine. Ann. Pharmacother. 2000, 34, 1173–1178. [Google Scholar] [CrossRef]
  141. Singhvi, G.; Manchanda, P.; Hans, N.; Dubey, S.K.; Gupta, G. Microsponge: An emerging drug delivery strategy. Drug Dev. Res. 2019, 80, 200–208. [Google Scholar] [CrossRef]
  142. Marquet, F.; Teichert, T.; Wu, S.Y.; Tung, Y.S.; Downs, M.; Wang, S.; Chen, C.; Ferrera, V.; Konofagou, E.E. Real-time, transcranial monitoring of safe blood-brain barrier opening in non-human primates. PLoS ONE 2014, 9, 1–11. [Google Scholar] [CrossRef]
  143. Upadhyay, A.; Dalvi, S.V.; Gupta, G.; Khanna, N. Effect of PEGylation on performance of protein microbubbles and its comparison with lipid microbubbles. Mater. Sci. Eng. C 2017, 71, 425–430. [Google Scholar] [CrossRef]
Figure 1. Schematic illustration of the different microparticle structures: (a) mononuclear/single core/core-shell, (b) multi-wall, (c) polynuclear/multiple core, (d) matrix, (e) coated polynuclear core, (f) coated matrix particle, (g) patchy microparticle, (h) dual-compartment microcapsule, (i) colloidosome, (j) giant liposome, (k) irregular-shaped microparticle, (l) torus-shaped microparticle, (m) bullet-shaped microparticle, (n) microtablet, and (o) cubic-shaped microparticle.
Figure 1. Schematic illustration of the different microparticle structures: (a) mononuclear/single core/core-shell, (b) multi-wall, (c) polynuclear/multiple core, (d) matrix, (e) coated polynuclear core, (f) coated matrix particle, (g) patchy microparticle, (h) dual-compartment microcapsule, (i) colloidosome, (j) giant liposome, (k) irregular-shaped microparticle, (l) torus-shaped microparticle, (m) bullet-shaped microparticle, (n) microtablet, and (o) cubic-shaped microparticle.
Scipharm 87 00020 g001

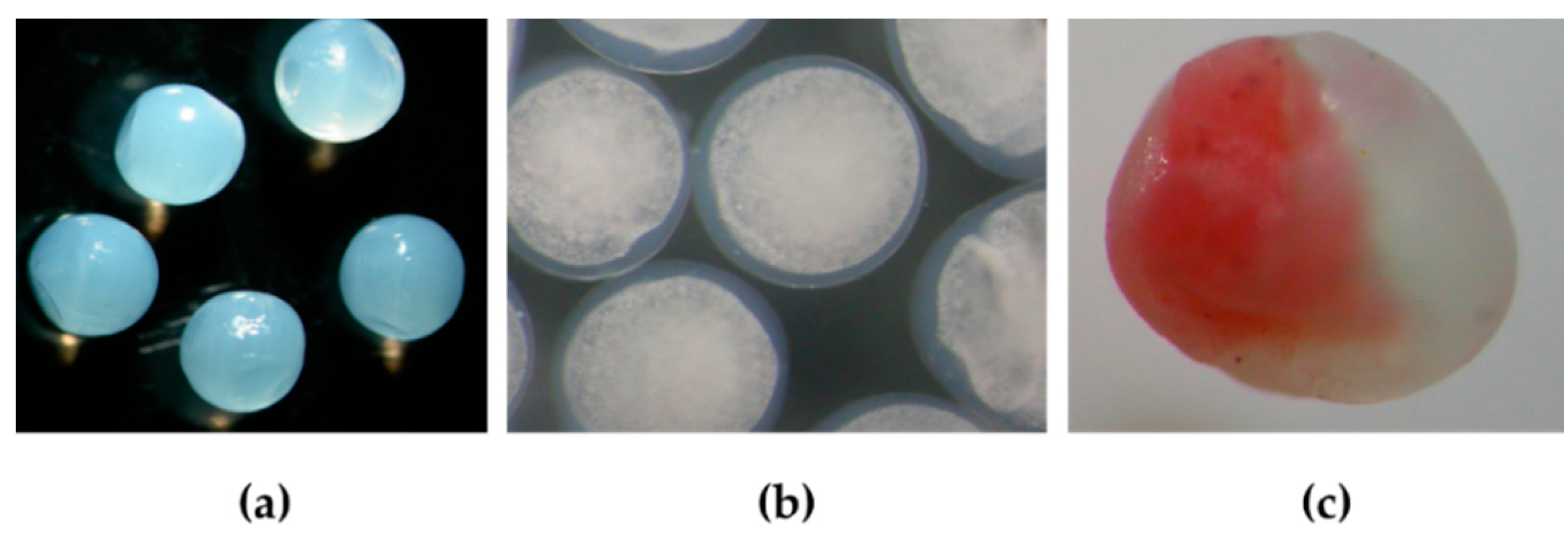

Figure 2. Structures of calcium alginate microparticles: (a) microspheres, (b) microcapsules W/O/W emulsion in core surrounded by calcium alginate shell, and (c) “Janus particle” (the particles were prepared by a Büchi B-390 Microencapsulator).
Figure 2. Structures of calcium alginate microparticles: (a) microspheres, (b) microcapsules W/O/W emulsion in core surrounded by calcium alginate shell, and (c) “Janus particle” (the particles were prepared by a Büchi B-390 Microencapsulator).
Scipharm 87 00020 g002

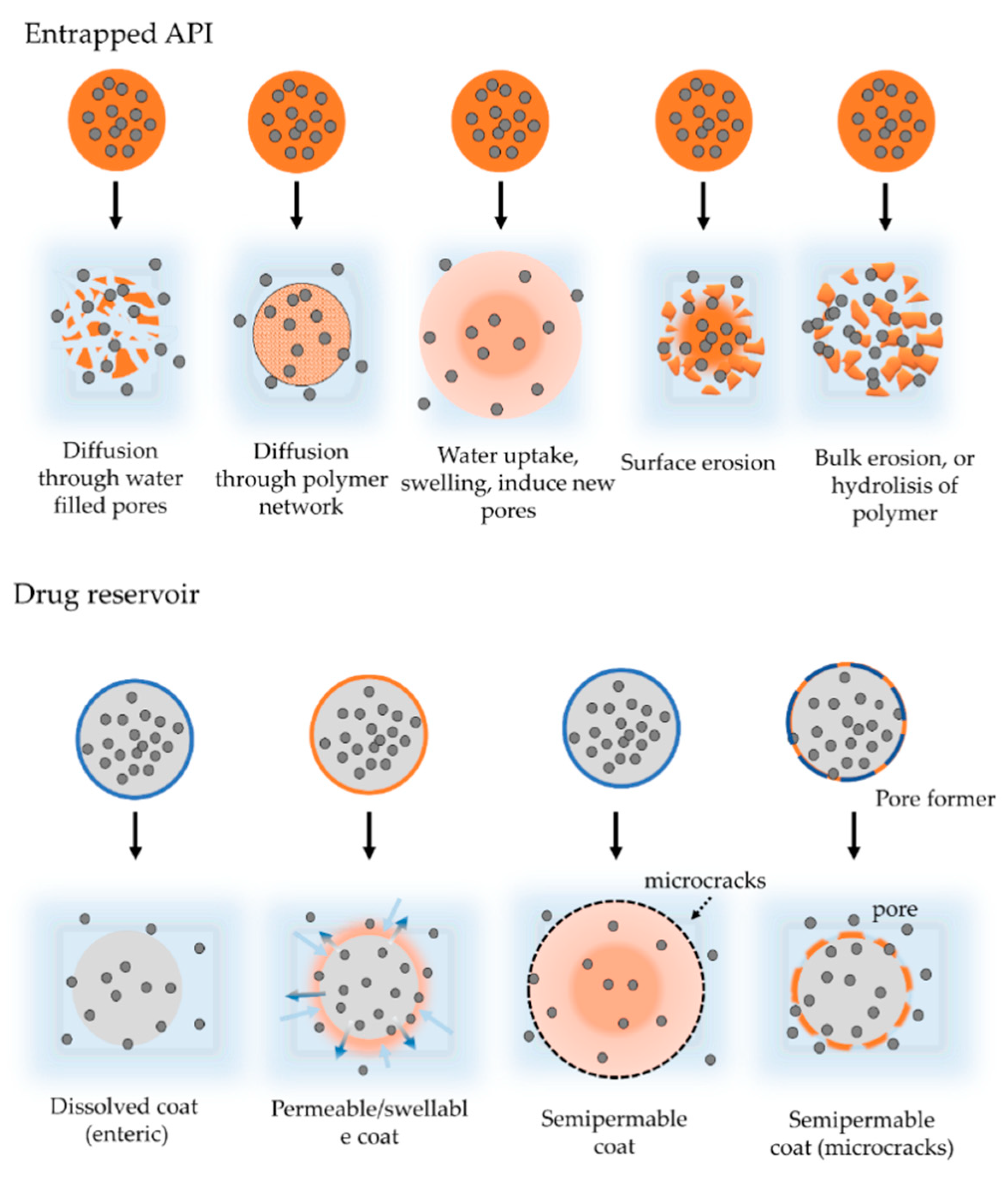

Figure 3. Release mechanisms in microencapsulated products.
Figure 3. Release mechanisms in microencapsulated products.
Scipharm 87 00020 g003
Figure 4. Smart release stimuli via microencapsulation.
Figure 4. Smart release stimuli via microencapsulation.
Scipharm 87 00020 g004
Figure 5. Preparation processes through droplet formation at an orifice.
Figure 5. Preparation processes through droplet formation at an orifice.
Scipharm 87 00020 g005
Figure 6. (a) Scheme for the interaction between calcium and alginate forming an eggbox-like structure. (b) Internal structure of the microsphere using scanning electron microscopy (SEM, magnification: 130×, scale bar indicates 500 µm).
Figure 6. (a) Scheme for the interaction between calcium and alginate forming an eggbox-like structure. (b) Internal structure of the microsphere using scanning electron microscopy (SEM, magnification: 130×, scale bar indicates 500 µm).
Scipharm 87 00020 g006

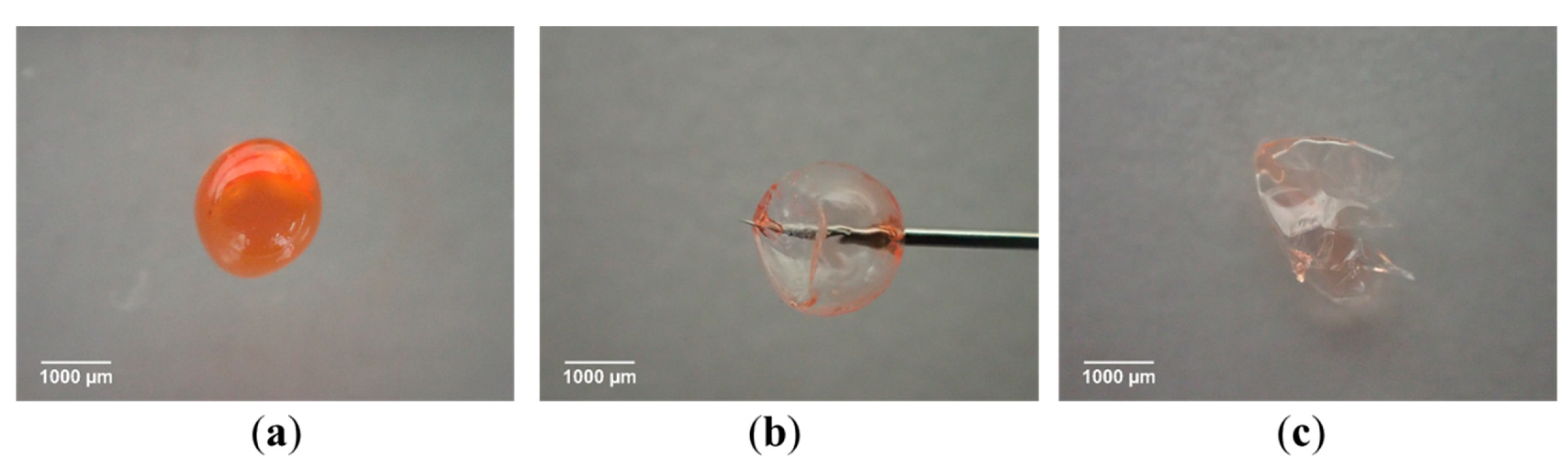

Figure 7. Images of a liquid core calcium alginate microcapsule prepared by vibration nozzle technique (prepared by Büchi B-390 Microencapsulator) followed by coacervation: (a) oil-filled hollow particles, (b) calcium alginate shell after removal of oil core, and (c) calcium alginate shell cut in half (average wall thickness: 8 µm) (Images: Nikon SMZ 1000 Microscope).
Figure 7. Images of a liquid core calcium alginate microcapsule prepared by vibration nozzle technique (prepared by Büchi B-390 Microencapsulator) followed by coacervation: (a) oil-filled hollow particles, (b) calcium alginate shell after removal of oil core, and (c) calcium alginate shell cut in half (average wall thickness: 8 µm) (Images: Nikon SMZ 1000 Microscope).
Scipharm 87 00020 g007

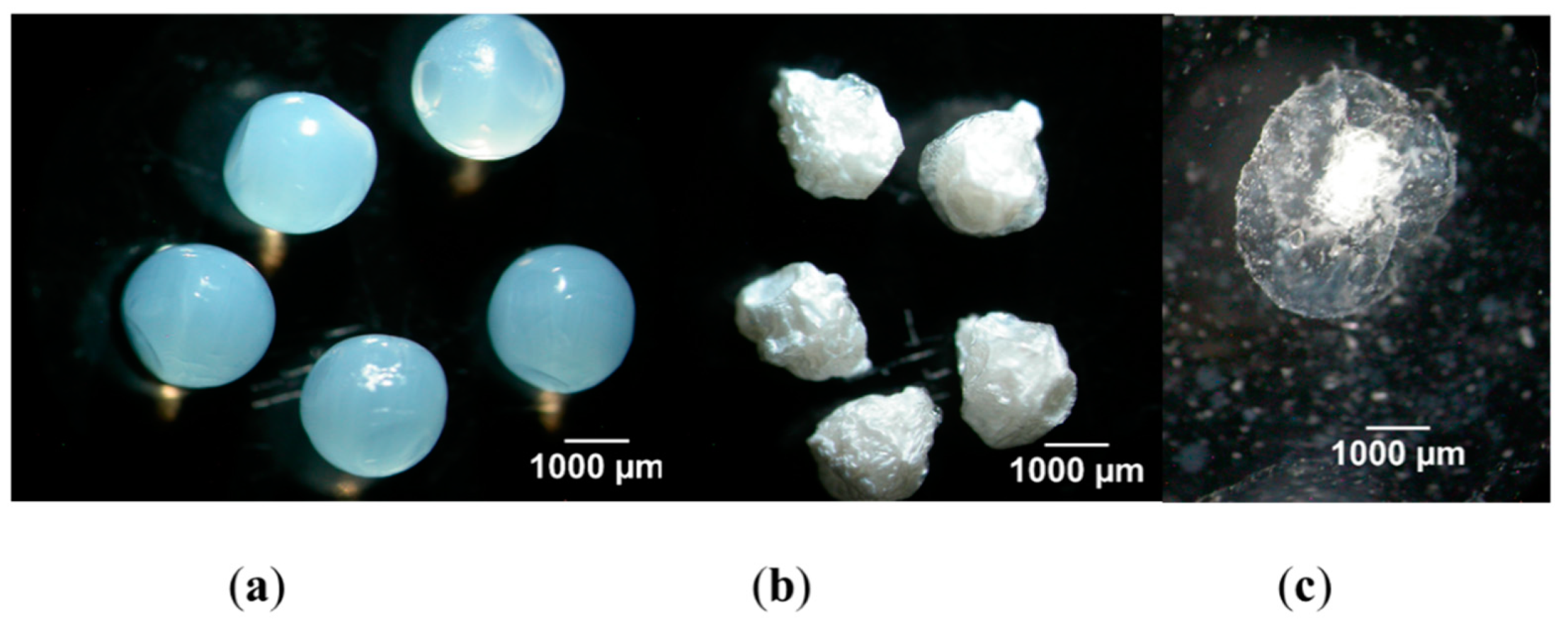

Figure 8. Calcium alginate microparticles: (a) initial (prepared using a Büchi B-390 Microencapsulator), (b) freeze-dried, and (c) reconstituted in a pH 6.8 phosphate buffer (60 min).
Figure 8. Calcium alginate microparticles: (a) initial (prepared using a Büchi B-390 Microencapsulator), (b) freeze-dried, and (c) reconstituted in a pH 6.8 phosphate buffer (60 min).
Scipharm 87 00020 g008
Figure 9. (a) Particle generation with microfluidics with a flow-focusing-based microfluidic droplet generator (MFDG). Particle formation was carried out with an own-developed hydrodynamic-focusing-based microfluidic device. (b) Emulsion coacervated particle fabricated using microfluidics.
Figure 9. (a) Particle generation with microfluidics with a flow-focusing-based microfluidic droplet generator (MFDG). Particle formation was carried out with an own-developed hydrodynamic-focusing-based microfluidic device. (b) Emulsion coacervated particle fabricated using microfluidics.
Scipharm 87 00020 g009

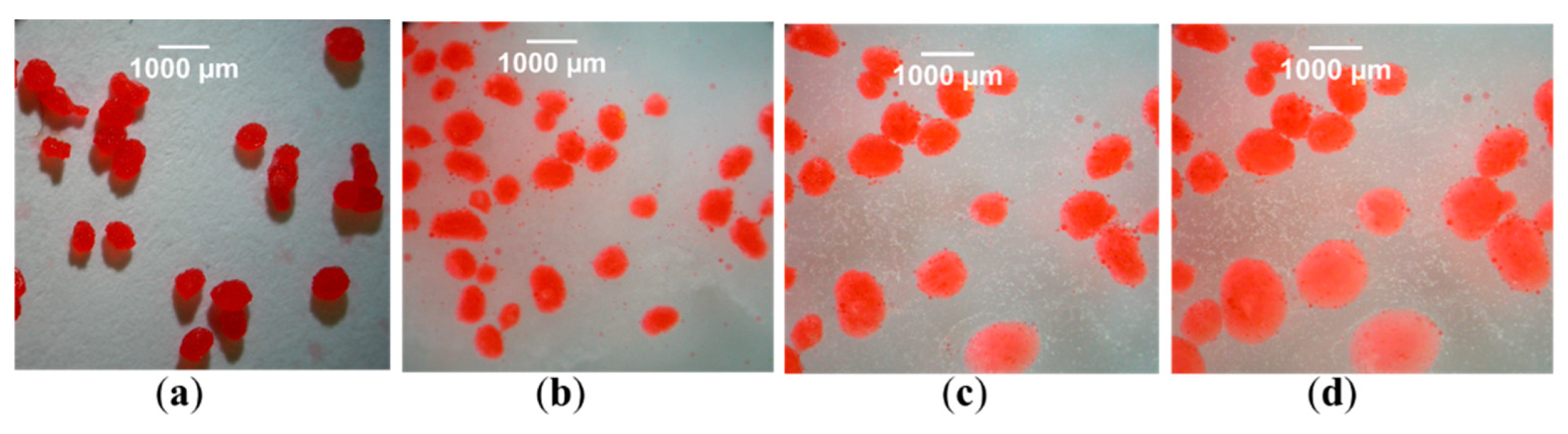

Figure 10. Swelling of air-dried O/W alginate (2%) microparticles (prepared using a Büchi B-390 Microencapsulator) in a pH 6.8 phosphate buffer: (a) initial, (b) after 5 min, (c) after 15 min, and (d) after 30 min (the oil phase contained Sudan III. as an indicator). Images: Nikon SMZ 1000 Stereomicroscope.
Figure 10. Swelling of air-dried O/W alginate (2%) microparticles (prepared using a Büchi B-390 Microencapsulator) in a pH 6.8 phosphate buffer: (a) initial, (b) after 5 min, (c) after 15 min, and (d) after 30 min (the oil phase contained Sudan III. as an indicator). Images: Nikon SMZ 1000 Stereomicroscope.
Scipharm 87 00020 g010
Table 1. Examples of proteins and waxes of plant or animal origin used in microencapsulation.
Table 1. Examples of proteins and waxes of plant or animal origin used in microencapsulation.
ExcipientPhysicochemical PropertiesApplication and BenefitsLimitationsRef.
GelatineAmphoteric
gelatin A (isoelectric point (IEP) pH: 7–9.4
gelatin B (IEP: pH 4.8–5.5)
Swells, then dissolves in water
At low pH coacervation with negatively charged polymers, high potential of crosslinking
emulsifier, stabilizer (high viscosity), binder
Thermoreversible gelling, implantable pulmonary delivery
pH-dependent, swelling, dissolution, erosion
Influence of pH and ionic strength on behavior
Need for preservation against possible prion (BSE) contamination
[20,21]
CaseinHydrophilic, metal binding
Insoluble in water at its IEP (pH 4.6)
calcium caseinate –reversible thermal gelation solubility increase (coenzyme Q10)Anaphylactic reactions[22]
Whey proteinInsoluble at its IEP
(pH 5.2)
Thermal gelation,
encapsulation of oils
film formation: gas barrier, good tensile strength
Thermally irreversible gel formation above 70 °C
Denatures at higher salt conc.
Anaphylactic reactions
[23]
AlbuminIEP: 4.7
Freely soluble in water
negative charge at pH 7.4
Pulmonary delivery
Alginate-albumin
Chemical degradation, denaturation at high salt conc., enzymes, heat[24]
Zeinα, β, γ, δ, zein with different Mw
amphiphilic character
IEP: 6.8
hydrophobic
Oral controlled release matrix and wallBrittle, rigid wall,
complex with a gelling component to plasticize
[25,26]
Soy proteinPartly soluble in water, depending on the extraction process; IEP 4.5Oral controlled release matrix and wall
Emulsifier, foaming agent
Sensitivity[27]
GlutenWater-insoluble; IEP:7.5Wall material,
good elastic, good thermoplastic properties
Gluten sensitivity[28]
Bees-wax
(Apis mellifera)
mp (melting point): 62–64 °C
HLBrequired = 12
Edible, easy use, smooth surface,
hot melt extrusion
prolonged release for hydrophilic substances, protection from chemical degradation
Oxidation[29]
Carnauba wax
(Copernica cerifera)
mp: 78–85 °C
HLBrequired = 12
Good compatibility
hot melt extrusion,
embedding water soluble components, taste masking
Oxidation[30,31]
Paraffin (hard)
(mineral)
mp: 50–61 °CEmbedding water soluble components
liquid paraffin in the emulsification process
Sensitivity[32]
Table 2. Examples of polysaccharides of various origin used in microencapsulation.
Table 2. Examples of polysaccharides of various origin used in microencapsulation.
ExcipientPhysicochemical PropertiesApplications and BenefitsLimitationsRef.
Chitosan
(deacylated chitin)
Soluble in weak acids
Mucoadhesive
reacts with negatively charged surfaces
Antifungal, antibacterial, reduces LDL (low-density lipoprotein), tissue regenerative, pulmonary delivery
Ionotropic gelation, coacervation with anions, modified emulsification
pH dependence
(insoluble above pH 6.5)
Addition of electrolytes precipitates chitosan in solution,
hygroscopic
[33,34,35]
Sodium hyaluronateAnionic character,
soluble in water,
high viscosity at low concentration
In microspheres nasal, vaginal, ophthalmic delivery systemsVery hygroscopic, when heated, emits Na2O[36,37]
Starch
(wheat, corn, potato, rice, tapioca)
Starch from different origins
Differ in particle size and shape
Soluble in hot water after a time of gelatinization
Spray drying, extrusion, molecular inclusion, coacervation with proteins, hydrocolloid-forming,
release via swelling, diffusion, erosion
Hygroscopic[38]
Guar gumWater soluble, nonionic, galactomannan
forms a thixotropic solution, stable at pH 4–10.5
Controlled-release,
colon-targeted release,
appetite suppressant,
thermoreversible
Needs preservation,
borate hinders swelling
[39]
Locust bean gum (LBG)/carob, ceratonia/Nonionic, galactomannan,
dispersible in hot water, soluble at higher temperature
Controlled release in combination pseudoplastic,
gelling with the addition of borate, solubility not affected by pH or ionic concentration
Low water solubility,
hypersensitivity
[40]
Konjac gumWater solubleElevation of temperature increases gelation,
antioxidant properties
Indigestable[41,42]
Κ, ι, λ−,
Carrageenan
Anionic polymer, ι−Carrageenan: shear thinning thixotropic gel formingλ−Carrageenan: highest anionic charge, high solubility, but no gelling,
κ, ι−Carrageenan: elastic gel is formed with K+, Ca2+, thermoreversible gel forming
Release by erosion (physical contact-Scentcaps®), effective against HPV (human papilloma virus)
Acid-catalyzed hydrolyses, especially at higher temperature and pH < 3
Administration of >2 g/kg orally Induces intestinal ulcers, not biodegradable
[43,44]
AgaroseSoluble in hot waterswelling, Thermoreversible gelation (at ≈37 °C) with hysteresisPoor biodegradability[45]
Sodium alginateWater soluble, anionic
coacervation with ions (Ca2+, Sr2+, Ba2+), polycations (chitosan) or poly-l-lysine
disintegrant, binder,
viscosity increasing
swelling ability (200–300× of its own weight from water)
pH-dependent swelling
nontoxic, nonirritant
low density (capable of floating in gastric juice) Diffusion, erosion,
in situ forming hydrogels
pH dependence (insoluble in acidic medium)
heat-sensitivity (hydrolysis)
microbial spoilage on storage (depolymerization)
[46]
TragacanthWater soluble arabinogalactan and swellable bassorin components,
swells quickly in water
Acid-resistance
emulsifier,
encapsulation of oils,
stabilizer in emulsions
Di/trivalent cations cause drop in viscosity because of precipitation[47]
Gum arabic/
Acacia gummi
(Ph. Eur.)
Water soluble, clear solution of pH 4.5,
protective colloid
Emulsifier, spray-dry encapsulation of flavor and of essential oils,
30% solution has a relatively low viscosity, Newtonian flow
permeable coating
dietary fiber
Variation dependent on source
pH, ionic strength influences viscosity (max at ≈pH 6–7)
[48,49,50]
Pectin
(low or high methoxylated)
(apple, citrus peel, beet)
Negatively charged moleculeGelation depends on the degree of esterification, cation (Ca,Zn) concentration in solution, temperature and pH
In situ gelling, sustained delivery, dietary fiber, drug delivery in colorectal carcinoma (5-FU),
antiviral activity
Gelling occurs at low pH (<3.5),
presence of sugars necessary for gelation of HM pectin
[51,52]
Table 3. Examples of polysaccharides of microbial fermentation used in microencapsulation.
Table 3. Examples of polysaccharides of microbial fermentation used in microencapsulation.
ExcipientPhysicochemical PropertiesApplications and BenefitsLimitationsRef.
Xanthan gumSoluble in warm and cold water, not affected by pH
anionic polyelectrolyte
No gelation at room temp, cryogelation possible, stable viscosity over wide pH range, surface activity, emulsion stabilizer, controlled-release, colon-targeted
swelling, diffusion, matrix erosion
Hydrolysis
Acceptable daily intake (WHO) 10 mg/kg BW
Contains cellulase
[53]
Gellan gumAnionic polyelectrolyte soluble in waterThermoreversible gelation with cations
sol-gel transition under physiological conditions
bioadhesive
nasal administration
Poor biodegragability[54]
DextranNeutral polymer,
solubility depends on degree of polymerization
Colon-targeted delivery,
formation of porous particle
pulmonary delivery
At parenteral adiminitration: possible platelet adhesiveness[55,56]
PullulanNeutral polymer
underivarized pullulan has high water solubility
Emulsifier
sustained-release preparations
Relatively high price[57,58]
Table 4. Examples of cellulose derivatives applied in microencapsulation.
Table 4. Examples of cellulose derivatives applied in microencapsulation.
ExcipientPhysicochemical PropertiesApplications and BenefitsLimitationsRef.
Methylcellulose (MC)Soluble in cold water
Tsol-gel: 80 °C
amphiphilic
Emulsifier, pseudoplastic solution, pH-independent gel formation above 50 °C, high variety in MwComplexation with surface-active components,
laxative
[59]
Carboxymethyl-cellulose sodium (CMC-Na)Anionic cellulose ether, dispersible in water (forms a colloidal solution)Injectable thermoreversible gel-forming, mucoadhesiveMicrobial instability
hygroscopicity
[60,61]
Hydroxypropyl-cellulose (HPC)Soluble in cold water, compatible with waxes, oils, Tsol-gel: 55 °CHigh surface activity
film-forming ability
Incompatible with alkaline substances, substituted phenol derivatives, anionic polymers increase viscosity[62]
Hydroxypropyl-methylcellulose (HPMC)Water soluble, nonionicReversible thermal gelation surface activity, emulsion stabilizer, film-forming abilityNo complex with metallic salts or ionic organics[63]
EthylcelluloseWater-insoluble,
hydrophobic coating
Film forming ability, membrane-controlled diffusion, modified release, floating, gastroretentive systemsOrganic solvent residuals[64]
Cellulose acetate butyrateInsoluble in water, soluble in aceton-water blendsSemipermeable coating, extended release formulations, diffusion, matrix erosionOrganic solvent residuals[65]
Table 5. Synthetic polymers applied in microencapsulations.
Table 5. Synthetic polymers applied in microencapsulations.
ExcipientPhysicochemical PropertiesApplications and BenefitsLimitationsRef.
Poly (lactic acid)
(PLA)
Insoluble in water
degrades to CO2 and H2O over 12–24 months
Biodegradability, prolonged-release in im or sc injections, implants, oral solid dispersionsDigestive tract influences degradation, parenteral administration is favorable, initial burst release may occur[64,65]
Polylactic acid-glycolic acid copolymer (PLGA)Insoluble in water
lactic acid-glycolic acid ratio influences degradation ability to thermoplastic gel forming
Injectable or implantable systems (microparticles, gels) for human and veterinary use,
pH-responsive/non-pH-responsive polymer degradation,
bone tissue engineering
Degrades into by-products that can induce inflammation[66,67,68,69]
Polyacrylic acid
(Carbopol)
Neutralization with alkaline chemicals for gellingBioadhesive, targeted delivery,
intranasal administration with microencapsulation
Neutralization at preparation, preservative needed[70]
PolymethacrylatesSoluble in organic solvents,
most of them are miscible with water
pH-dependent solubility, permeability
gastric or enteric targeted delivery possible
Water insolubility[71]
Poly-(N-isopropylacrylamide)LCST: 35–40 °CThermoresponsiveNot biodegradable[72,73]
Polyethylene glycolsLiquid or solid grades depending on the Mw, PEG (polyethylene glycol) 1500 freezing point at 37–41 °CPlasticizer in wall of compressible microcapsules,
oral insulin delivery
cell delivery in combination
Not biodegradable[74]
Fumaryl diketopiperazine (FDKP)High solubility at pH ≥ 6,
no biological activity
Self-assembled highly porous microparticles, Technosphere® carrierNot biodegradable, excreted via urine[75]
LCST: lower critical solution temperature.
Table 6. Synergistic polymer combinations.
Table 6. Synergistic polymer combinations.
PolymerActive IngredientParticle SizePhysicochemical MechanismsRef
Carbohydrate-Carbohydrate
Chitosan-alginateLeydig cells230–370 µmComplex coacervation[77]
Agarose-alginate (CaCl2)Sertoli cells250 µmMicrofluidics ionic gelation,[78]
Gum arabicXylitol100 µmdouble emulsion/coacervation[79]
Cellulose acetate butyrate (CAB)Sulfopropylated dextran microspheres40–120 µmO/W emulsification, solvent evaporation[65]
Gelatin + gum arabicRaspberry anthocyanins150 µmEmulsification, coacervation[80]
Maltodextrin + gum arabicLavender oil10–20 µmS/O/W emulsification, spray-drying[50]
CMC-Na + xanthan gumDiclofenac sodium1000–1500 µmEmulsification, ionic gelation,
Interpenetrating network
[81]
LBG + PVABuflomedil hydrochloride (BH)350–750 µmemulsification, Interpenetrating network[40]
Chitosan + pectinInsulin0.24–2 µmelectrostatic self-assembly[82]
Carbohydrate-Protein
Gelatin + gum arabicAspartame100 µmDouble emulsion/complex coacervation[83]
Gelatin + chitosanCitronella oil100 µmCoacervation[33]
whey Protein + maltodextrinFlaxseed oil≈10 µmemulsification, spray drying[84]
Whey protein + alginateFlaxseed oil<10 µmDouble layer emulsification
spray drying
[85]
Alginate + gelatinWhey peptides (antihypertensive activity1000 µmDripping, coacervation[86]
Alginate + zeinBifidobacterium bifidum1200–1700 µmExtrusion coacervation
shell-core
[87]
Chitosan-zeinOral gene delivery10 µmZein-sodium tripolyphosphate
W/O emulsion
[88]
Poly-l-lysinePoly (methyl vinyl ether-alt-maleic anhydride) (PMM0)400 µmprilling, coacervation[89]
Poly (l-ornithine) + alginate + PLA, PLGASuperoxide dismutase, ketoprofen500 µmW/O/W, O/W,
solvent evaporation
[90]
Poly (l-ornithine) + ursodeoxycholic acid,
Polystyrene sulfonate, polyallilamine
Pancreatic ß-cells700 µmComplex coacervation, vibrational jet[91]
Poly (ethylene glycol) (PEG)-anthracene
alginate
Coomassie blueno dataCoacervation[92]
Vinyl-sulfone terminated PEG + alginateHuman foreskin fibroblast550 µmSimple coacervation[93]
Alginate + Poly-ε-caprolactoneTheophylline800 µmComplex coacervation[94]
Polypropylene + PMMA + ethylcelluloseVerapamil150–200 µmO/W solvent evaporation[95]
PLGA-alginateRifampicin15–50 µmMicrofluidics[96]
Table 7. Classification of main procedures to prepare microparticles, spheres, and microcapsules.
Table 7. Classification of main procedures to prepare microparticles, spheres, and microcapsules.
MethodTypical Initial Form of the CoreApproximate Size (µm)StructureFinal State
MatrixCore/Shell
ChemicalInterfacial polymerizationIn emulsion or suspension0.1–500 Xwet (slurry), can be dried
In situ polymerizationIn emulsion or suspension1–1000 Xwet (slurry), can be dried
PhysicochemicalleftIn emulsion or suspension2–5000XXwet, can be dried
Dripping- (Vibrating nozzle-single; multiple)Droplet formulation/extrusion; coextrusion10–5000XXwet, can be dried
Solvent evaporationIn emulsion or suspension0.1–5000XXwet, can be dried
Spray drying (from solution)Droplet formulation/spraying1–100X dry
Spray chillingDroplet formulation/spraying1–100XXdry
Fluid bed coating/drum coatingSolid core particle100–5000 Xdry
Table 8. Types of multiparticulate systems in use.
Table 8. Types of multiparticulate systems in use.
TypeDosage FormKey ExcipientDrugIndicationProduct Example
MicropelletsPeroral pellets in capsuleHPCLansoprazoleProton pump inhibitorLansoprazole®
Enteric-coated microgranulesDelayed-release orally disintegrating tabletsMethacrylic acid, polyacrylateLansoprazoleProton pump inhibitorPrevacid® SoluTab™
Coated pelletsCompressing pellets into an extended release tabletHPC, ECMetoprolol succinateCardioselective beta blockersBetaloc® ZOK
MicrotabletsPeroral minitablets in capsuleMethacrylic acid-ethyl acrylate, MCCLipase, amylase,Enzyme supplyPangrol®
Dry powder (Technospheres®)inhalationFumaryl diketopiperazineInsulinDiabetesAfrezzaTM
MicrospheresIm suspension injectionPoly-d, l-lactid-co-glycolideRisperidoneSchizophreniaRisperdal® consta
MicrospheresPowder for injectionPoly-d, l-lactide-co-glycolideBromocriptineAcromegaly, parkinsonismParlodel® LAR
MicrospheresPowder and solvent for suspension and injectionPoly-d, l-lactide-co-glycolideOctreotideAcromegaly pancreatic tumorsSandostatin LAR®
MicrospheresProlonged-release suspension for injectionPoly-d, l-lactide-co-glycolideExenatideDiabetes type 2Bydureon®
Lyophilized microspheresSuspension depot injectionPoly-d, l-lactid-co-glycolideLeuprolide acetateEndometriosisLupron® depot
LiposomesLiposome inhalation suspensionCholesterol, dipalmitoylphosphatidylcholineAmikacinAntibacterialArikayce®
Liposomes (DepoFoam™)Powder for suspension for injectionCholesterol, DOPC, DPPGCytarabineNeoplastic meningitisDepocyte®
Liposomes (DepoFoam™)Powder for suspension for injectionCholesterol, DOPC, DPPG, tricaprylin, trioleinMorphineEpidural analgesiaDepoDur®
MicrobubblesIntravenous injectionAlbuminPerflutrenUltrasound contrast agentAlbunex®
MicrobubblesIntravenous injectionPEG 4000, DSPC, DPPG-Na, palmitic acidSulfur hexafluorideUltrasound contrast agentLumason/SonoVue®
MicrobubblesIntravenous injectionDPPA, DPPC, MPEG5000 DPPEPerflutrenUltrasound contrast agentDefinity®
MicrospongeTopical gelMethyl methacrylate/glycol dimethacrylate crosspolymerTretinoinAcne vulgarisRetin A® micro gel
MicrospongeTopical creamMethyl methacrylate glycol dimethacrylate crosspolymer, dimethicone.5-fluorouracilMultiple acne/solar keratosesCarac® cream 0.5%

Share and Cite

MDPI and ACS Style

Lengyel, M.; Kállai-Szabó, N.; Antal, V.; Laki, A.J.; Antal, I. Microparticles, Microspheres, and Microcapsules for Advanced Drug Delivery. Sci. Pharm. 2019, 87, 20. https://doi.org/10.3390/scipharm87030020

AMA Style

Lengyel M, Kállai-Szabó N, Antal V, Laki AJ, Antal I. Microparticles, Microspheres, and Microcapsules for Advanced Drug Delivery. Scientia Pharmaceutica. 2019; 87(3):20. https://doi.org/10.3390/scipharm87030020

Chicago/Turabian Style

Lengyel, Miléna, Nikolett Kállai-Szabó, Vince Antal, András József Laki, and István Antal. 2019. "Microparticles, Microspheres, and Microcapsules for Advanced Drug Delivery" Scientia Pharmaceutica 87, no. 3: 20. https://doi.org/10.3390/scipharm87030020

Article Metrics

Back to TopTop
