Resonant Cavity Antennas for 5G Communication Systems: A Review

Abstract

Resonant cavity antennas (RCAs) are suitable candidates to achieve high-directivity with a low-cost and easy fabrication process. The stable functionality of the RCAs over different frequency bands, as well as, their pattern reconfigurability make them an attractive antenna structure for the next generation wireless communication systems, i.e., fifth generation (5G). The variety of designs and analytical techniques regarding the main radiator and partially reflective surface (PRS) configurations allow dramatic progress and advances in the area of RCAs. Adding different functionalities in a single structure by using additional layers is another appealing feature of the RCA structures, which has opened the various fields of studies toward 5G applications. This paper reviews the recent advances on the RCAs along with the analytical methods, and various capabilities that make them suitable to be used in 5G communication systems. To discuss different capabilities of RCA structures, some applicable fields of studies are followed in different sections of this paper. To indicate different techniques in achieving various capabilities, some recent state-of-the-art designs are demonstrated and investigated. Since wideband high-gain antennas with different functionalities are highly required for the next generation of wireless communication, the main focus of this paper is to discuss primarily the antenna gain and bandwidth. Finally, a brief conclusion is drawn to have a quick overview of the content of this paper.

1. Introduction

Demand of high traffic capacity and speed in wireless communication systems led to the fifth-generation (5G) technologies [1]. The upcoming 5G technologies provide a multitude of advantages including high data rate, high reliability, and low power consumption. More important, it brings new born technologies to have smart cities and factories based on the industry 4.0 [2]. The millimeter-wave (MMW) frequency band has attracted significant attention among academic and industrial sectors, since it has enormous unlicensed bandwidth in comparison with other frequency bands [3]. Thus, MMW band can take an integral role in 5G communication systems. The MMW spectrum brings about compact structures and higher data rate. However, many concerns are remained, which should be addressed in the future communication technologies. One of these concerns is the high cost and complexity of fabrication processes within the MMW band. Another concern is the high energy loss of the MMW spectrum in comparison with the other frequency bands, which can be addressed by increasing the antenna gain.

New research directions have been done to find the effective solutions to address the aforementioned concerns over the MMW frequency band. Different antenna types with a variety of configurations have been proposed to compensate the high loss and propagation issues such as interference of the MMW spectrum. Directional antennas with medium to high gain characteristic are excellent candidates to compensate the high loss of the MMW spectrum compared to the conventional planar antennas. Antenna structures such as reflectors [4] or waveguide horns [5,6] and even array antennas [7] and dielectric lenses [8] are conventional structures, which have potential to achieve high-gain and wideband characteristic. However, they have some issues such as being bulky, heavy and complicated, and having lossy feeding networks, which in turn draws attention to other possible alternative solutions. In fact, designing a proper antenna that meets the requirements of the upcoming 5G communication systems in a simple, efficient, low-profile structure is of prime importance, which has been the subject of many researches.

There are different types of antennas, such as corrugated antennas [9,10,11], cavity-backed antennas [12,13], and SIW aperture antennas [14,15] that meet the requirement of having a high gain for 5G applications. Recently, much attention has been focused on the design of multi-functional antennas, which have a combination of characteristics in one single structure for different applications. In fact, having a high-gain antenna with features such as beam steering and circular polarization while being multi frequency band, compact, and wideband is desired. Such structures are highly required for the next communication systems, since they lead to lower cost, compact size and even lower power consumption. It is still challenging to obtain multiple functionalities in just one antenna structure.

Recently, resonant cavity antennas have been attracting a growing attention due to their planar configuration, low fabrication difficulty, high-gain characteristic and their capability of integration with other systems. Therefore, the RCAs with the capabilities of reconfigurability, polarization conversion, being wideband or multi-band, while keeping high gain features have been investigated in a variety of studies. This type of antennas, which are a promising candidate to be used in the future 5G communication systems over the MMW frequency band, will be reviewed in this paper. redAn example of their potential is the capability to be used in 5G wireless multiple-input-multiple-output (MIMO) systems due to having a low loss and compact structure with a high-gain characteristic. Besides, RCA structures can achieve steerable radiation patterns with a great radiation performance, which is an essential key for the future 5G base stations and mobile devices. Additionally, the RCAs can offer tilted radiation beam towards a desired direction, which is the demand of mobile communication base stations. Another potential use of the RCAs is in the wireless sensor network (WSN) for future 5G systems due to the requirement of using an efficient antenna with multi-function features to enrich the communication between the nodes [16,17,18,19,20].

1.1. History

RCAs were first introduced in 1956 by Trentini [21], who demonstrated how placing a partially reflective surface (PRS) above a waveguide aperture antenna structure can increase the antenna direactivity, significantly. Since then, further studies have been carried out in this area leading to introducing several PRS configurations with different functionalities in combination with various radiating elements inside the structure. In Reference [22,23], Alexopoulos et showed that using full dielectric PRS layers above the antennas can provide a remarkable directivity improvement. Then, in Reference [24,25], Jackson and Oliner conducted more studies on RCAs with multi-layer dielectric PRS. In Reference [26], James et al. added extra discussion to Terentini study and used a three-layer PRS to increase the gain of an aperture antenna. The conventional RC structures have utilized thick full dielectric or multi-layer PRS structures. By emerging electromagnetic band gap (EBG), metamaterial (MTM), and frequency selective surface (FSS) structures, the trend of studies changed to the design of metallo-dielectric PRS layers to take advantage of fewer layers, thinner layers, more degrees of freedom, and layers with flexible properties.

In the literature, RCAs have associated with different terminologies such as electromagnetic band gap (EBG) [27,28], RC structures [29], 2-D leaky-wave (LW) structures [30,31], PRS [32], and Fabry–Pérot Cavity (FPC) structures [33]. RCA structures consist of a PRS in parallel with a perfect electric/magnetic conductor or an impedance surface, which establish a cavity, fed by a main radiating element inside the cavity to excite the entire structure [21]. Open-ended waveguide, patch antenna, stacked antenna, dielectric resonant antenna (DRA), dipole antenna, and crossed bowtie dipole can be used as the main radiating element inside the cavity. The PRS layer might have different configurations as will be discussed later. It can be a full dielectric structure or a periodic structure composed of an array of metallic unit cells. Due to having a cavity with reflective surfaces, multiple reflections of electromagnetic wave happen. A proper cavity thickness (the distance between the PRS and the ground plane) can superimpose in-phase transmitted waves, which enhances the antenna gain significantly. The phase and magnitude of the PRS reflection behaviour have remarkable impact on the performance of the RCAs in terms of gain, bandwidth, beam angle and aperture efficiency. Therefore, designing the PRS structures has an imperative role in the design of the RCAs to achieve the desired performance.

1.2. Analytical Methods

The design of RCA structures for desired radiation performances, requires an appropriate theoretical analysis. Many studies have been focused on how these structures can be analyzed, which led to a variety of analytical methods such as ray tracing, transmission line (TL), LW, EBG, and the principle of reciprocity methods. Among the mentioned analytical methods, the ray tracing, TL, and LW methods are more used in the literature. In this subsection, a brief review of these three methods is prepared, and a short comparison between them is drown.

RCAs are parallel-plate waveguides leading to the leakage of the ray and known as 2-D periodic leaky-wave antennas (LWAs) [34]. Leaky-wave antennas are considered as antennas with a directive beam, scanning the space as a function of frequency. Leaky-wave antennas are a kind of phased array antennas without phase shifters, which leads to a compact structure with a low energy consumption. There are many studies in the literature in which the functionality of the resonant cavity is discussed by LW method [25,30,31,35,36,37,38]. Since comparing to other methods, this method is more efficient and accurate for different configurations of the RCAs; recent advanced studies are carried out using LW models, especially those with steering beam functionalities [34,39,40,41]. The transverse equivalent network model might be used to derive proper formulas in terms of the angle of the beam, gain, beamwidth, leaky-wave phase and attenuation constants of the structure. The propagation constant is dependent on the PRS reflection coeficient and the distance between the ground plane and the PRS structure placed above the main radiating element.

Another analysis technique for the RCA structures is the ray tracing method. The ray tracing method was first introduced by Terentini [21], in which the RCA is analyzed as a resonant microwave cavity structure known as a Fabry–Pérot cavity. The resonance condition, which is dependent on the phase and magnitude of the reflection coefficient of the PRS needs to be satisfied in order to improve the radiation characteristics of the antenna. According to the resonance condition, the distance between the PRS and the ground plane layers are adjusted to create in-phase superposition of waves leaking out from the structure, which leads to high directive radiation pattern. In the ray tracing model, the diffracted rays are not considered since the structure size is assumed infinite. Consequently, this model gives initial design values, which facilitates the designing process; however, it is not as accurate and general as leaky-wave analyses, due to having some approximations assumed. In fact, this method is more applicable when the goal is to increase the antenna gain and bandwidth, and even to change the antenna polarization [29,42].

The transmission-line (TL) method, as the ray tracing method, gives the initial values of antenna design, making it straightforward and time efficient. Many studies have been carried out to demonstrate the functionality of the resonant cavity structure by the TL model [22,23,30,35,38,43,44]. In [22], the TL analysis is used to derive some formulas related to the bandwidth, gain, and beamwidth of the RCAs. For this purpose, the entire RCA structure is modeled by TLs with different characteristics, and some lumped elements. As a result, the thickness of different parts and the properties of the PRS in terms of refection coefficient are calculated in order to improve radiation performance of the RCA structure. Using this method resulted in better evaluation of the directivity of RCAs [44].

2. Research Directions

The demand for compact high-gain antennas with simple feeding networks has highly increased for the next generation of communication systems. The RCAs have attracted the interest of antenna designers for a variety of study directions. The latest studies on the resonant cavity structures combined with other newly PRSs and main radiating structures demonstrate the flexibility of RCAs to be designed over MMW spectrum. In this section, the study directions of the RCAs with the recent investigations and applicable examples, specially over the MMW frequency band, are reviewed.

2.1. 3-dB Gain Bandwidth Improvement

RCAs are regarded as resonant structures with the drawback of narrow 3-dB gain bandwidth [36,37,45,46]. In Reference [45], the inverse proportionality between the maximum gain and 3-dB gain bandwidth of the RCAs is discussed and proved theoretically by the ray tracing analytical method. Higher gain contributes to narrower bandwidth, which has been considered as one of the concerns that has got the attention of researchers for many years. Consequently, many studies with different methods have been introduced to provide a solution to tackle the mentioned shortcomings of the RCAs. This section deals with presenting different methods carried out to increase the bandwidth of the RCAs.

2.1.1. Positive Reflection Phase Gradient

Inverting the reflection phase gradient of the PRS unit cell to achieve a positive slope is among the most famous and applicable methods in order to obtain wider 3-dB gain bandwidth in the design of the RCAs. References [47,48] are among the first studies conducted to demonstrate the possibility of achieving a positive reflection phase gradient to increase the 3-dB gain bandwidth. Changing the phase gradient behaviour can be achieved by using multi-layer PRS structures [49,50,51,52,53,54,55,56], thick full-dielectric PRSs [57], and thin one-layer metallo-dielectric PRSs [29,48,58,59,60,61,62]. One reason behind using multi-layer PRS structures is creating multiple resonances at different frequencies, which can satisfy the multi resonance conditions over a desired bandwidth. Permitivity and thicknesses of the dielectric slabs, the distances between layers, and other parameters have impact on creating multiple resonant frequencies. It is worth noting that using multi-layer PRSs make the RCAs thicker which might be one of the concerns in some applications.

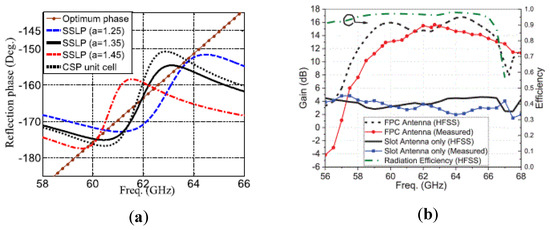

Several studies have been focused on achieving wider 3-dB gain bandwidth using PRS structures with positive phase slope over millimeter wave spectrum [40,63,64,65]. As an example, in Reference [65], a wideband high-gain MMW FPCA with the operating frequency of 60 GHz is introduced. A printed ridge-gap waveguide (PRGW) technology is used as the slot antenna feed, because it is a proper candidate to suppress the surface waves with a good functionality over the MMW spectrum. The PRS is composed of gridded square patch (GSP) and square slot-loaded patch (SSLP) structures etched on two different dielectric layers. The configuration of the PRS unit cell, PRGW, and FPCA structures are demonstrated in Figure 1. The wideband characteristic is achieved by using a double-layer PRS unit cell with positive reflection phase gradient as demonstrated in Figure 2a. The “a” is used as a scale factor to control the phase of the unit cell. A maximum gain of 16.8 dBi and 3-dB gain bandwidth of 12.5% are achieved as shown in Figure 2b.

2.1.2. PRS Unit Cell with Sharp Resonance

In the studies reviewed in the previous subsection, it was indicated that having a resonant frequency at the middle of a desired frequency band with a positive phase gradient leads to a wider 3-dB gain bandwidth. In some studies, it is proved that having a sharp resonance at the centre of a frequency band results in 3-dB gain improvement [56,66,67,68]. The phase variation can get a 180 degree jump at a resonant frequency to achieve a wide 3-dB gain bandwidth.

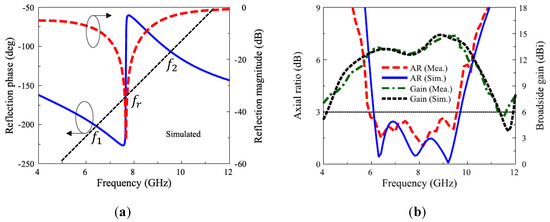

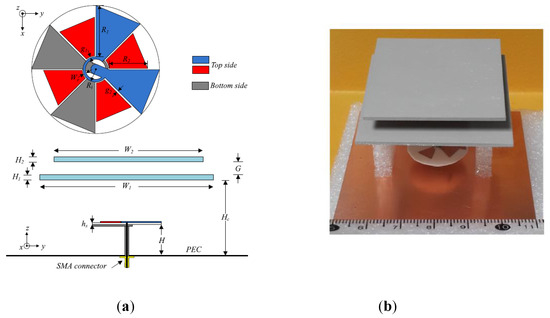

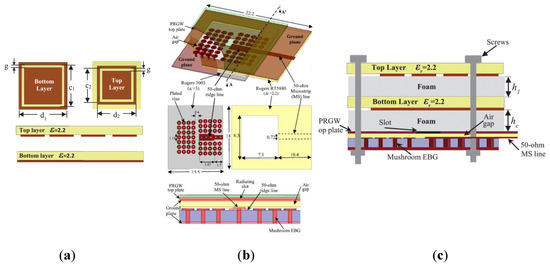

In Reference [67], as demonstrated in Figure 3, a dual-layer full-dielectric PRS structure with a high permitivity laminate substrate is proposed to provide a sharp resonant frequency. A crossed dipole is used as the main radiator inside the RCA structure which can result in a wide impedance bandwidth and suitable CP characteristic. Figure 4a demonstrates the behaviour of reflection coefficient of the proposed PRS with a sharp resonant frequency. As can be seen, the sharp resonance creates extra frequencies (except the center frequency) to satisfy the resonance conditions which is the reason to make the antenna wideband. The incorporation of the PRS and crossed dipole contributes to a 3-dB gain bandwidth of 50.9% with a maximum gain of 15 dBic, as can be seen in Figure 4b. It should be noted that the optimum results are provided by optimizing the distance between the PRS layers along with their size, and the distance between the ground plane and the PRS layers. The proposed antenna possess simple and compact geometry while providing a high gain and circular polarization, which makes it a suitable candidate to be used in base stations.

2.1.3. New Configuration of PRS Structures: Nonuniform PRS Structures

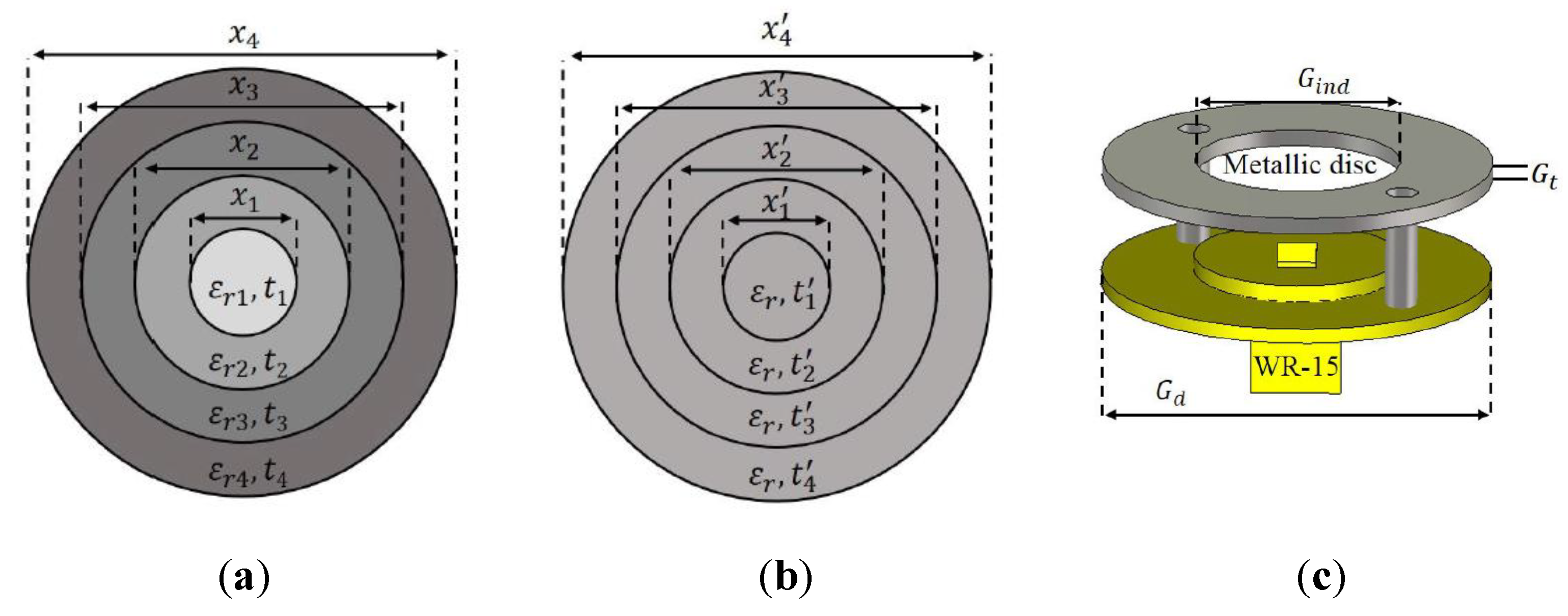

Recent non-uniform configurations of superstrates mostly presented by Baba and Hashmi et al., have been designed to provide a significant increment in 3-dB gain bandwidth of the RCAs [28,69,70,71,72]. The proposed PRS structures have taken advantage of the integration of different dielectric substrate slabs with different either thickness or permitivity. Basically, such structures are mainly used to compensate the non-uniform phase distribution of the RCA aperture as will be discussed later in the next section. In Reference [69], a planar PRS layer consisted of dielectric slabs with different permitivities is proposed. The proposed PRS named as transverse permitivity gradient (TPG) is a single-layer planar structure with the capability of the aperture phase correction using different sections with different permittivities. Next, Hashmi et al. demonstrated the possibility of a PRS structure composed of multiple dielectric slabs with different permitivity and thickness in order to improve the 3-dB gain bandwidth of a RCA [28,70]. They also investigated the PRS structures with stepped configurations and indicated how these stepped configurations can increase the antenna gain over a wide bandwidth. In Reference [71], the PRS structure is a stepped configuration with laminate substrates of different permitivity and thickness, whereas in [72], the PRS is the similar stepped configuration with just different thicknesses. A slot radiator fed by a waveguide is used as the main radiator for these structures.

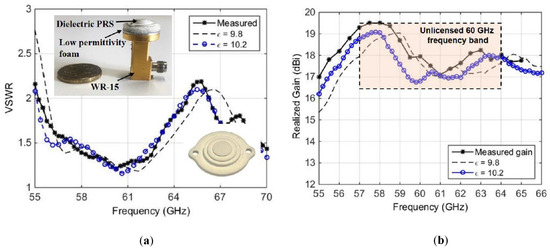

Recent investigations with stepped configurations have been done in millimetre wave frequency band to increase the antenna bandwidth [32,73,74], which shows the flexibility of RCAs for different frequency bands. In Reference [74], the application of two different non-uniform PRS structures to enhance the 3-dB gain bandwidth and maximum gain of the RCA are investigated over the MMW spectrum. The first PRS is composed of a four concentric full dielectric rings of different permitivity and thickness, whereas the second PRS is made of a single laminate substrate with the same permitivity and different thicknesses. Both of the PRS structures have an stepped configuration, and an open-ended WR-15 waveguide is used as the main radiator inside the cavity to feed the antenna. The antenna structure without PRSs and PRS prototypes are demonstrated in Figure 5. The antenna with the second PRS has a maximum measured gain of 19.5 dBi with a proper matching from 55.2 GHz to 65 GHz. The simulated and measured results are displayed in Figure 6. These kinds of non-uniform PRS structures achieve remarkable gain-bandwidth product (GBP), which is a true merit used in the comparison between different antennas. The proposed antenna in [74] has a simple structure with a high gain and low cross-polarization, which makes it beneficial for base stations, point-to-point communication systems, autonomous radars, remote sensing satellites, and Internet of things (IoT).

2.1.4. Shape Manipulation of the Conventional RCA Configuration

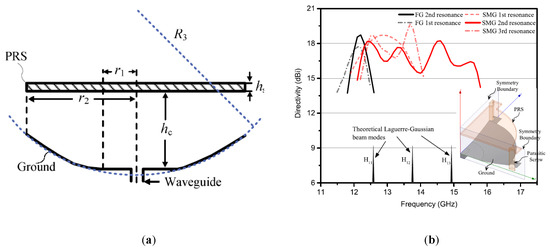

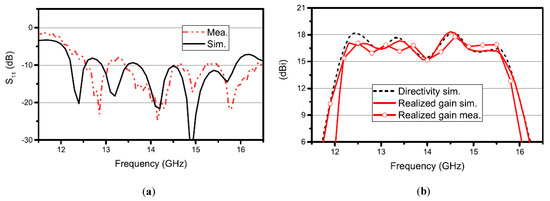

The demand for wideband high-gain antennas have led researchers to seek different and novel methods to efficiently enhance the antenna bandwidth without sacrificing the antenna performance. It is proved that the performance of FPCAs can be improved by curving the ground plane or PRS architecture. In Reference [75,76,77], manipulating the configuration of the ground plane and PRS structures so that the distance between the PRS layer and the ground plane gradually gets unequal values for different parts of the RCA structures are considered by different methods. These manipulated structures are capable to compensate and correct the phase and magnitude distribution far from the center of the PRS structure that results in a broader 3-dB gain bandwidth. In Reference [75], a shaped ground plane with a semi-spherical configuration is used to make the 3-dB gain bandwidth wider. The configuration of the proposed RCA structure is shown in Figure 7a. The antenna performance is compared with the performance of a conventional RCA with a flat ground plane, and the results are shown in Figure 7b. The RCA structure reported in [75] provides a measured 3-dB gain bandwidth of 25% with a maximum gain of 17.7 dBi as demonstrated in Figure 8. Similar works have been done for MMW spectrum by using unconventional RCA structures [78,79].

2.1.5. Array Feed

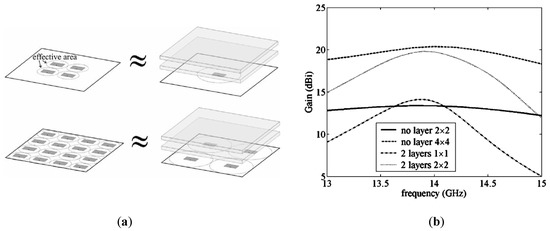

Using array antennas instead of single main radiator inside the cavity structure is another conventional method to increase the 3-dB gain bandwidth. This idea has been investigated in many studies [27,33,43,80], which mostly used complicated feeding networks. In Reference [43], an array of patch elements are used as the radiators. Besides, by adding two PRS layers above the array antennas, the radiation performance of the antenna is improved. The antenna configuration and the results of the antenna gain are demonstrated in Figure 9. As can be seen, the maximum gain of a 2 × 2 array patch antenna without any PRS layer is almost the same as a RCA with a single patch as the main radiator. Similarly, the results are same for a 4 × 4 patch array without PRS and a RCA with a 2 × 2 patch array as the main radiator.

Although using array source inside the cavity results in reasonable improvement of the gain and 3-dB gain bandwidth, it is not a good idea for millimeter wave spectrum. Difficult fabrication process and high loss caused by feed networks are two main issues that reduce the tendency to use array structures at those frequencies.

2.2. Directivity Enhancement: Aperture Efficiency Improvement

There is another group of studies which have been conducted to compensate the non-uniform aperture magnitude and phase distribution of the conventional RCA structure [66,81,82,83,84,85,86,87,88] and as a result to enhance the antenna directivity. Conventional and classical structures of the RCAs have non-uniform aperture phase and magnitude distribution, which result in the reduction of the antenna radiation performance. Compensating the non-uniform field distribution of a RCA aperture is an effective attempt to increase the antenna directivity and decrease side lobe level. Some of the studies have focused on the phase compensation [66,81,82,83,84,85], whereas the others have investigated the aperture magnitude compensation [86,87] for enhancing the antenna performance. In a few studies such as [88], both phase and magnitude are compensated to create remarkable aperture efficiency. Using a non-uniform PRS structure is the most common method to compensate the non-uniform magnitude and phase distribution of electric filed over the antenna aperture. Using phase compensation method is more applicable, because it leads to greater improvement in comparison with the magnitude compensation.

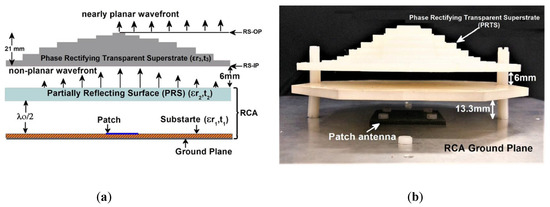

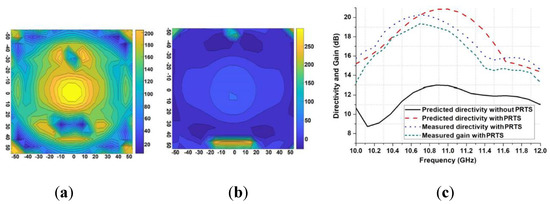

In Reference [82], an stepped superstrate is used to compensate the non-uniform aperture phase distribution of a RCA, which leads to a higher directivity and aperture efficiency. The structure is a phase rectifying transparent superstrate (PRTS), which was fabricated by 3-D printing technology and the main radiating element is a microstrip patch antenna with a full-dielectric PRS structure illustrated in Figure 10. Figure 11 shows the phase distribution and the directivity of the antenna, before and after applying PRTS structure. As can be seen, the phase distribution becomes almost uniform all over the aperture, since the PRTS placed above the PRS compensates the phase delay. According to the Figure 11c, the directivity gets a significant improvement when that the PRTS is placed above the entire RCA structure.

Additionally, a few other methods, such as using different geometries and sizes for the PRS structures located at different distances from the center of the aperture, have been used in the literature to improve the gain and aperture efficiency of the RCAs [79,89,90].

2.3. Circular Polarization

High-gain wideband circularly-polarized (CP) antennas are required in many applications such as radar, satellite, and mobile communication systems. In comparison with LP, CP antennas take advantage of lower the interference in multipath environments. Besides, CP antennas are independent of polarization between transmitters and receivers. Having RCAs with high-gain, wideband, and circular polarization has been a challenge which has been addressed in many studies [67,68,91,92,93,94,95,96,97,98,99,100,101,102,103,104].

Usually two different methods are used to achieve a high-gain CP RCA. The first one is to use a CP main radiator element and the radiation improvement of the entire structure is obtained through utilizing a PRS structure whose behaviour is independent of the polarization [67,68,91,92,93,94,95,96,97].

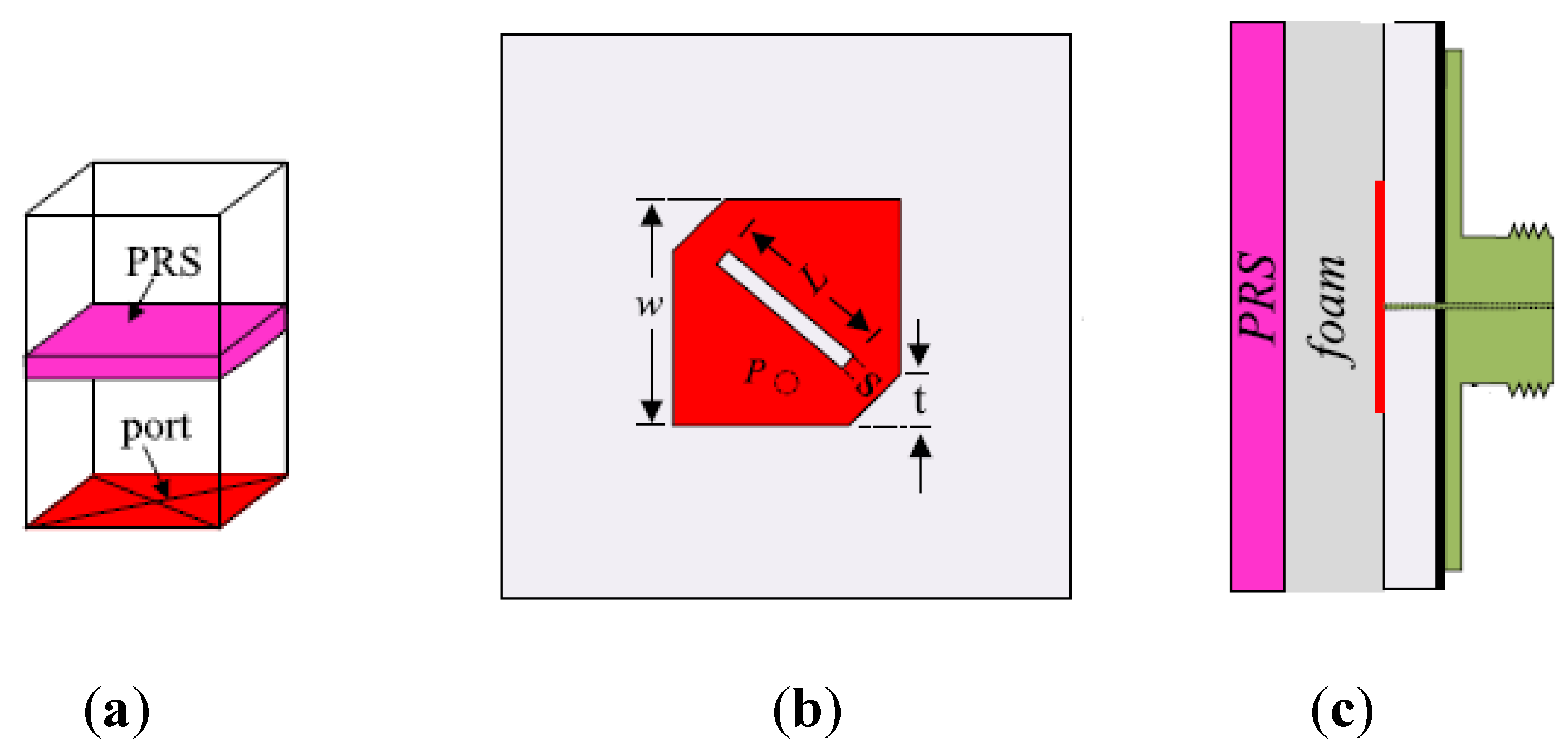

The other method is known as self-polarizing RCA. In this method, the linear-to-circular polarization conversion is the subject that is studied. A linearly polarized (LP) antenna is used as the main radiating feed and its polarization is converted to circular through using a proper PRS placed above the RCA [98,99,100,101,102,103,104]. This method is preferred, since it does not need any feeding networks to make circular polarization; however it might not obtain a wide bandwidth.

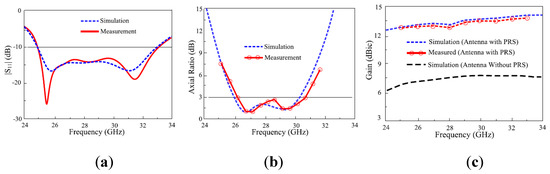

Many studies have been reported for designing a high-gain CP RCA over the MMW spectrum in the literature [42,105,106,107]. Some of them present a practical application of the CP RCAs for the 5G communication systems. In Reference [42], a CP high-gain RCA is designed for 5G multiple-input multiple output (MIMO) applications over 26 GHz to 31 GHz. A single-layer full dielectric PRS structure with a sharp resonant frequency is used to enhance the antenna radiation performance over a wide frequency band. A CP truncated patch antenna with a proper slot is placed inside the cavity to illuminate the entire structure as demonstrated in Figure 12. Figure 13 exhibits a 3-dB AR bandwidth of 17.5% with a maximum gain of 14.1 dBic achieved by the structure.

2.4. Reconfigurable RCAs

Reconfigurability of the RCAs is the capability of their structures to alter their radiation features by electrical elements or mechanical mechanism. A reconfigurable antenna might use different methods to alter operation frequency, radiation pattern, polarization, beamwidth, or even a combination of these variables.

Multi functional antennas are proper solution for newborn 5G millimeter wave frequency band, where the large size of the systems and the extra equipment to provide other functions are considered as potential problems. Reconfigurable antennas can offer other functionalities over multiple bands and can be efficient in variable environments in case they face a limitation or a new situation. Consequently, reconfigurable RCAs, due to their simple feed network and high-gain characteristic, can be considered as an efficient and low-cost option to mitigate the significant challenges in 5G applications. There are many studies in the literature concentrated on reconfigurable RCA structures. These studies investigate frequency [108,109,110,111,112], beamwidth [113,114,115], and polarization [116,117,118,119,120,121,122,123,124,125,126,127], and pattern reconfigurability [128,129,130,131,132,133,134,135,136,137,138,139].

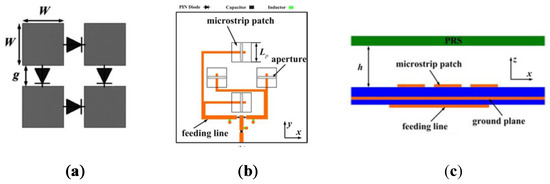

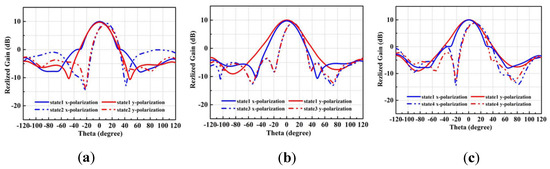

Polarization reconfigurability can be achieved by using either a reconfigurable main radiating element [116,117,118,119,120,121,122] or a dependent polarization PRS [123,124,125,126,127]. In Reference [140], a four-polarization-reconfigurable aperture-coupled patch antenna is designed as the main radiator of a RCA structure, which works with two different linear polarizations. The PRS structure is designed with adjustable reflection phase consisting of four PIN diodes to steer the RCA beam. The entire RCA configuration is shown in Figure 14. By a proper arrangement of the main radiating elements and PRS structure, a dual-polarized 2-D beam-steering functionality is achieved as shown in Figure 15.

Beam steering property is one of the demands of the new generation of wireless communications that enables the wide coverage. Using phased array antennas is the conventional solution for the communication coverage, in which the beam steering is realized by carefully adjusting the phase difference between the array elements. However, conventional phased array antennas suffer from high-cost fabrication process and complicated feeding networks with significant loss.

A variety of investigations have been carried out to demonstrate the capability of the RCAs to achieve reconfigured pattern in the millimeter wave frequency band. Many studies proposed that the main radiator placed inside the RCA structure takes the responsibility of the pattern reconfiurability [141,142,143] and the antenna radiation performance can be improved by using PRS structures. Other studies have proposed suitable PRS structures to manipulate the RCA radiation pattern instead of using a fed antenna with complicated feed networks [128,129,130,131,132,133,134,135,136,137,138,139]. PRS structures provide more degree of freedom to control the beam of the main radiator with other functionalities simultaneously without applying extra equipment. Therefore, many RCA structures have been proposed with either both pattern and polarization reconfigurability or pattern and beamwidth reconfigurability [115,140,144,145,146].

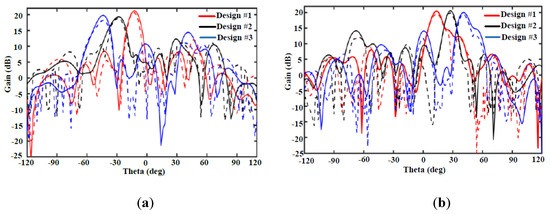

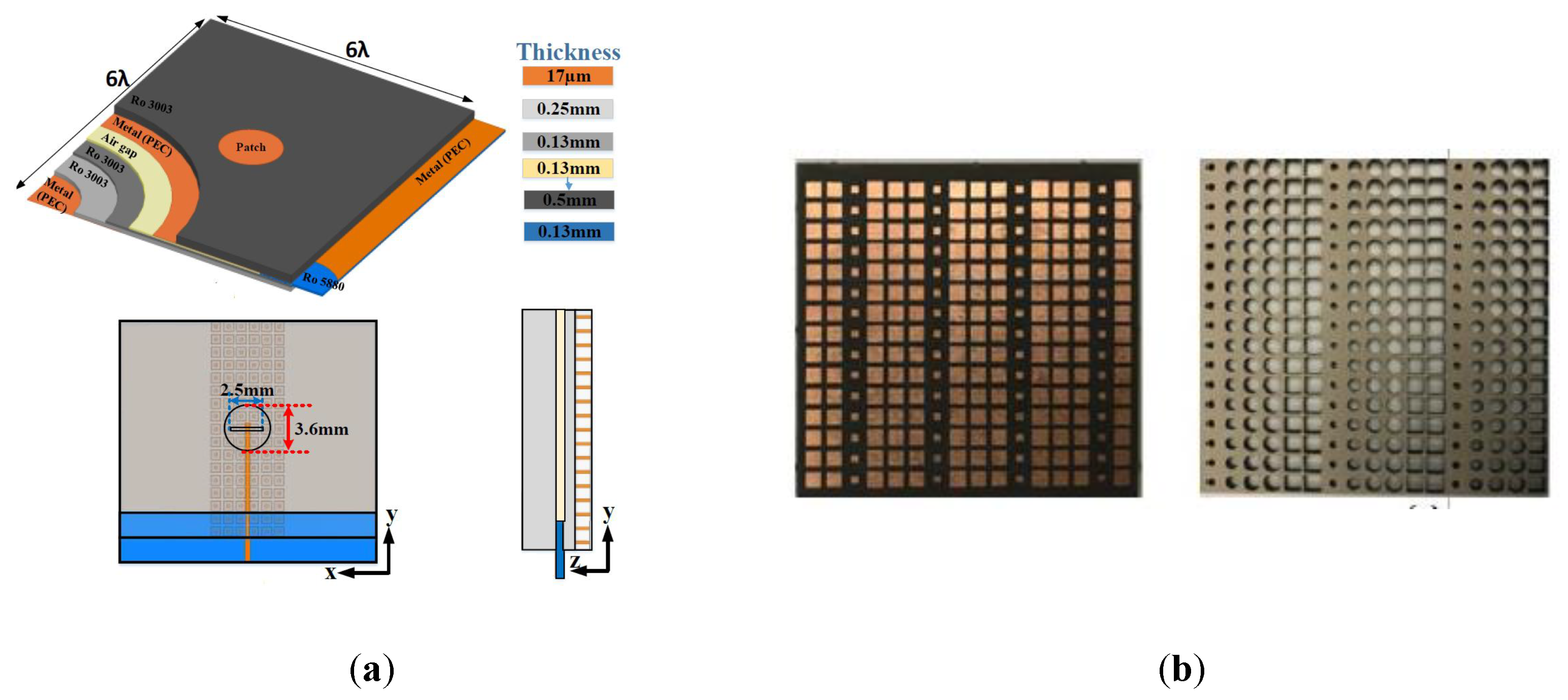

In References [139,146], the possibility of using RCA with reconfigurable pattern characteristic for 5G is illustrated. In Reference [139], the beam tilting of a RCA is investigated through four different techniques at 60 GHz. The techniques used for tilting the beam include wedge-shaped dielectric lens (WSDL), discrete multilevel grating dielectric (DMGD), printed gradient surface (PGS), and perforated dielectric gradient surface (PDGS), which are based on the phase gradient surface method. Among the mentioned techniques, PGS and PDGS have better performance inorder to provide reconfigurability feature. Figure 16a shows a printed ridge gap waveguide (PRGW) used as the main radiating element in [139]. Six different structures of the PGS and PDGS were proposed and their functionality is investigated while they are placed above the main radiator. Three designs #1, #2, #3 for PGS and PDGS structures were done for different tilt angles. A maximum gain of around 22 dBi is achieved when these structures are used to tilt the beam of the RCA. The simulated and measured results achieved by using these six superstrates are illustrated in Figure 17. As shown, the tilted beam angles of $\theta ={14}^{°}$, $\theta ={27}^{°}$ and $\theta ={44}^{°}$ are achieved by placing every design of PGS or PDGS above the main radiator. The proposed antenna in [139] is a potential candidate for narrow-band communication systems. It can be used in mobile devices due to its compact configuration with reconfigurable radiation pattern.

2.5. Further Fields of Study: Low Profile and Multi-Band RCAs

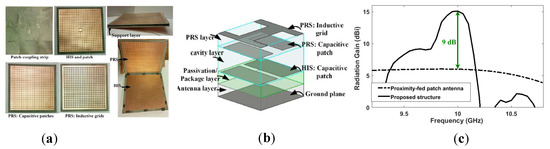

Reducing the total size of the RCAs, especially, the cavity height makes them more appealing for the future communication systems. Many works have been done to reduce the profile of RCAs [52,100,101,147,148,149,150,151,152,153,154,155,156,157]. Minimizing the cavity height so that the antenna performance does not have any degradation has been challenging. Based on the analytical models, the height of RCA structure is dependent on the sum of the reflection phase of the ground plane and PRS layer, which is approximately half of the wavelength. Consequently, a ground plane with zero reflection phase, which can be realized by employing high impedance surfaces (HIS) called artificial magnetic conductors (AMC) can minimize the cavity thickness. A compact multi-band high-gain RCA is presented in [156] using a FSS structure as ground plane with zero reflection phase. In some cases, using a ground plane with an associate reflection phase opposite to the PRS reflection phase sign shrinks the thickness of the cavity a lot [150]. In Reference [153], a miniaturized-element frequency selective surface (MEFSS) cover consisted of a PRS and HIS is proposed to improve the radiation gain of the antenna in chip while having a small cavity height. The MEFSS cover is designed to be placed on the chip to increase the antenna radiation performance in RFICs. As shown in Figure 18, the antenna radiation gain can be increased by 9 dB by placing the MEFSS cover on top of the antenna, while the cover is designed to have a very small cavity height by designing the PRS and HIS layers. A maximum gain of 14 dBi with a cavity height of $\lambda /30$ is achieved through using the proposed MEFSS. This antenna is applicable for radar and communication systems, as well as wireless sensor networks for the future 5G systems.

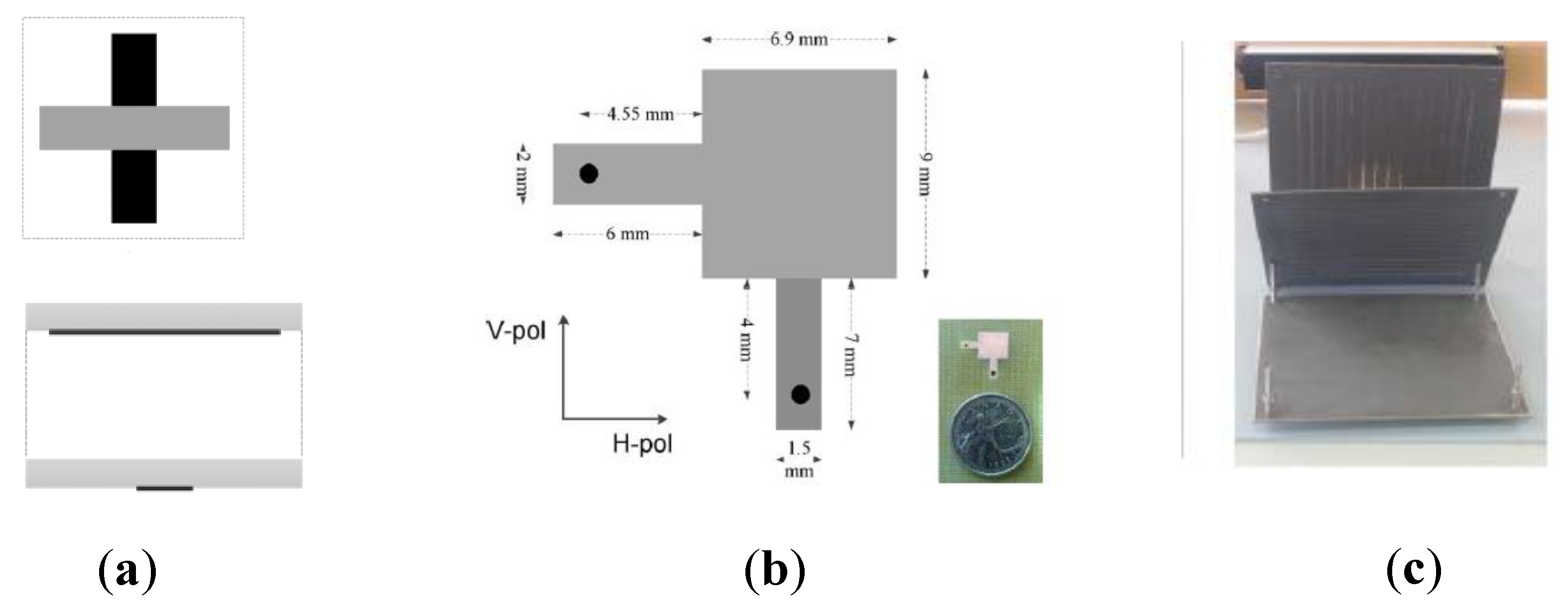

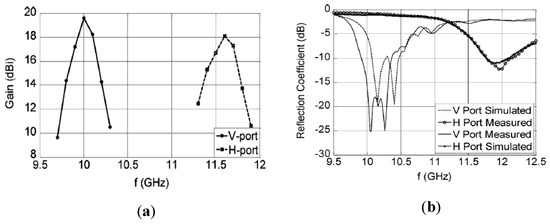

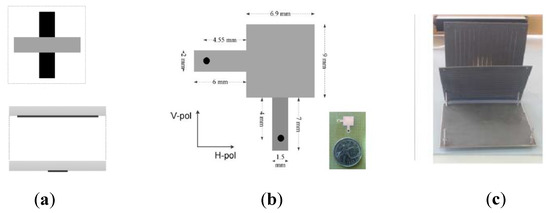

Multi-band high-gain antennas are highly required for the next communication systems. The capability of the RCA structures to possess the multi-band characteristic has been extensively investigated in the literature [156,158,159,160,161,162,163]. Generally, creating different resonances that satisfy the resonance conditions is the way to design multi-band RCAs. In Reference [159], a dual-band high-gain RCA with two vertical and horizontal polarizations is proposed. A dual-feed microstrip patch antenna is used as the main radiator, which has dual-band and dual-polarization characteristics. A PRS composed of double-layer orthogonal dipole arrays to create V-pol and H-pol is placed above the main radiator. The RPS unit cell is designed so that the resonance condition is satisfied over two different frequency bands with orthogonal polarizations in order to improve the radiation characteristic of the RCA. The configuration of the main radiator and PRS are shown in Figure 19. The lower band and upper band have a maximum gain of 19.6 dBi and 18 dBi at 10 GHz and 11.6 GHz, respectively, as shown in Figure 20. The polarization of the RCA is vertical and horizontal at lower and upper frequency bands, respectively.

Finaly,

Table 1. Comparison between different RCAs.

Ant	Max-gain (dB/dBic)	Pol.	Reconfigurability	${\mathbf{f}}_{\mathbf{min}}$ (GHz)	Size $({\mathit{\lambda }}_{\mathbf{min}}{)}^2$	H $\left({\mathit{\lambda }}_{\mathbf{min}}\right)$	BW (%)	PRS Layer (#)
[58]	17.2	LP	-	8.9	2.37 × 2.37	0.52	25.5	1
[61]	12.5	CP	-	6.5	1.56× 1.56	0.44	35.5	1
[67]	15	CP	-	6	1.2 × 1.2	0.6	47.4	2
[68]	13.5	CP	-	6	2 × 2	0.7	73.7	3
[93]	15.5	CP	-	6.3	1.7 × 1.7	0.46	25.6	1
[96]	11.45	CP	-	12.4	1.45 × 1.45	0.4	29.3	1
[72]	19.3	LP	-	10	2.5 × 2.5	0.4	51.8	stair-case
[65]	16.8	LP	-	58.6	4.33 × 3.52	0.5	12.5	2
[74]	19.5	LP	-	55.2	3.11 × 3.11	0.55	16.3	stair-case
[75]	17.7	LP	-	12.2	4.32 × 4.32	1	25	1
[82]	19	LP	-	10.3	3.95 × 3.95	0.5	9.4	one flat and one stair-case
[42]	14.1	CP	-	26	1.58 × 1.58	0.7	18.5	1
[140]	9.7	LP	pattern polarization	5.4	1.8 × 1.8	0.5	3.7	1
[109]	10	LP	frequency	5.2	4.16 × 4.16	0.4	13.4	1
[111]	14.1	LP	frequency	9.05	2.74 × 2.74	0.53	9.97	1
[114]	- - -	LP	beamwidth	1.985	3.3 × 3.3	0.5	5	1
[125]	14.1	LP/CP	polarization	9.6	2.83 × 2.83	1.06	6.7	3
[139]	22	LP	pattern	59	5.9 × 5.9	0.5	3.4	2
[115]	14.7	LP	pattern beamwidth	1.97	2.26 × 2.26	0.51	3	1
[145]	8	LP	pattern beamwidth	4.9	0.98 × 1.1	0.1	4	1
[153]	14	LP	- - -	9.94	3.2 × 3.2	0.03	2.97	1
[159]	19.6 18	LP(V) LP(H)	- - -	9.8 11.4	5 × 5 5.85 × 5.85	0.5 0.6	3 2.56	2

$f_{min}$ is the minimum operation frequency. ‘H’ is the height of the cavity which is the distance between the ground plane and the first layer of superstrates. BW is overlapped bandwidths of 3-dB AR, 3-dB gain, and $|S_{11}|$.

lists some of the RCAs discussed in this paper to comprehensively summarize different works. The performance of the antennas in terms of maximum gain, overlapped bandwidth, operating frequency, polarization, reconfigurability, entire size, the height of cavity, and the number of PRSs used is demonstrated.

3. Conclusions

Since there is a high interest both in academia and industry for the high-gain antennas, this paper provides a comprehensive discussion on the RCAs in terms of their challenges, applications, and research trend. The RCAs owing to their advantages such as simple feed structure, planar configuration, high-gain, low-cost fabrication, and ease of integration with other systems are promising candidates to be used in the next communication systems.

The mechanism of the RCAs has been presented by different techniques; among them are ray tracing, TL, and LW models. The research fields of the RCAs were briefly discussed through demonstrating the practical examples and recent studies covering their low-profile, high aperture efficiency, wide 3-dB bandwidth, beam-steering and CP features and multi-beam and reconfigurability capabilities, especially in the millimeter-wave frequencies for future developments.

Having wider 3-dB gain bandwidth is still challenging in the implementation of the RCAs. Efficient designs and techniques to make wider 3-dB gain bandwidth including using PRS unit cells with positive reflection phase gradient, sharp resonance, and non-uniform configurations were reviewed. Besides, the possibility to generate a wider 3-dB gain bandwidth by manipulating the configuration of the ground plane and PRS structures was briefly discussed.

Multi functional antennas are the desired solution for the 5G millimeter wave frequencies to avoid no extra equipment, which lead to bulky structures. Reconfigurability of RCAs offer altering operation frequency, polarization, radiation pattern, and beamwidth to address the potential problems of the next communication systems. Beam-steering and CP characteristics add more flexibility to the antennas to tolerate the environment issues and to have stable performance, as explained in this paper.

Multi-band and low-profile RCAs are attractive topics covered in this review paper. In order to decrease the cavity height, decreasing the sum value of reflection phase of the PRS unit cell and ground plane is required, which can be obtained by using AMC or HIS structures as the ground plane. It is explained that to design a multi-band RCA, it is required to create different resonances that satisfy the resonance condition, simultaneously.

In summary, it is the stable functionality and stunning performance of the RCAs over different frequency bands that make them attractive for the next generation wireless communication systems, i.e., fifth generation (5G).
