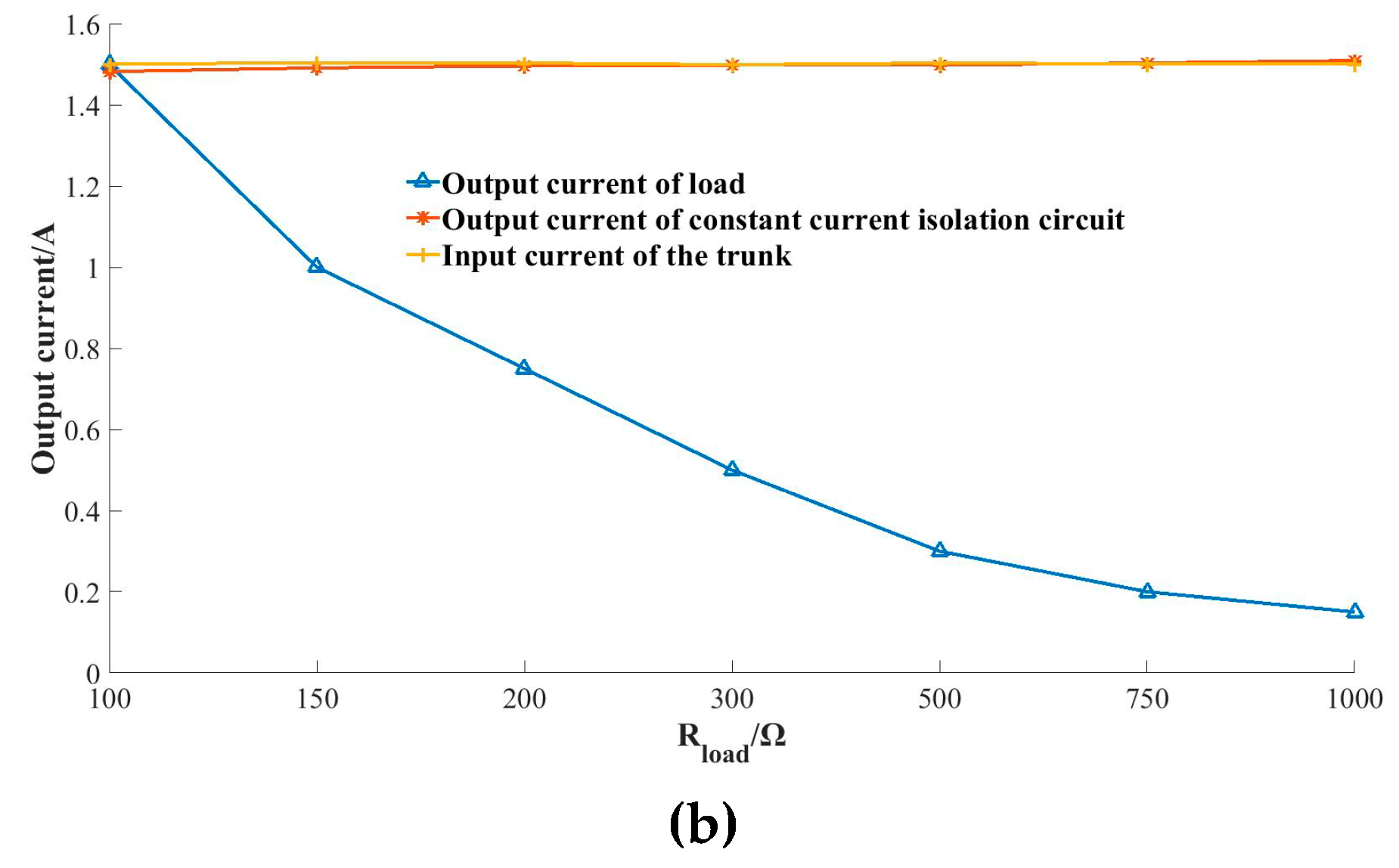

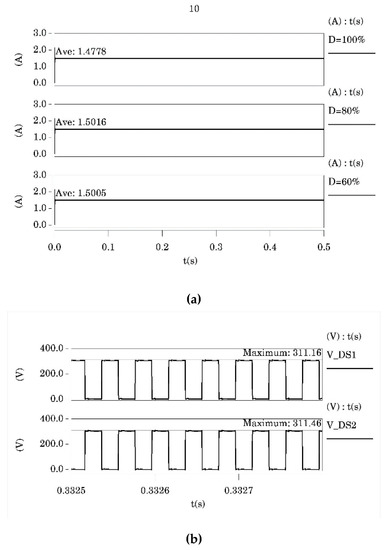

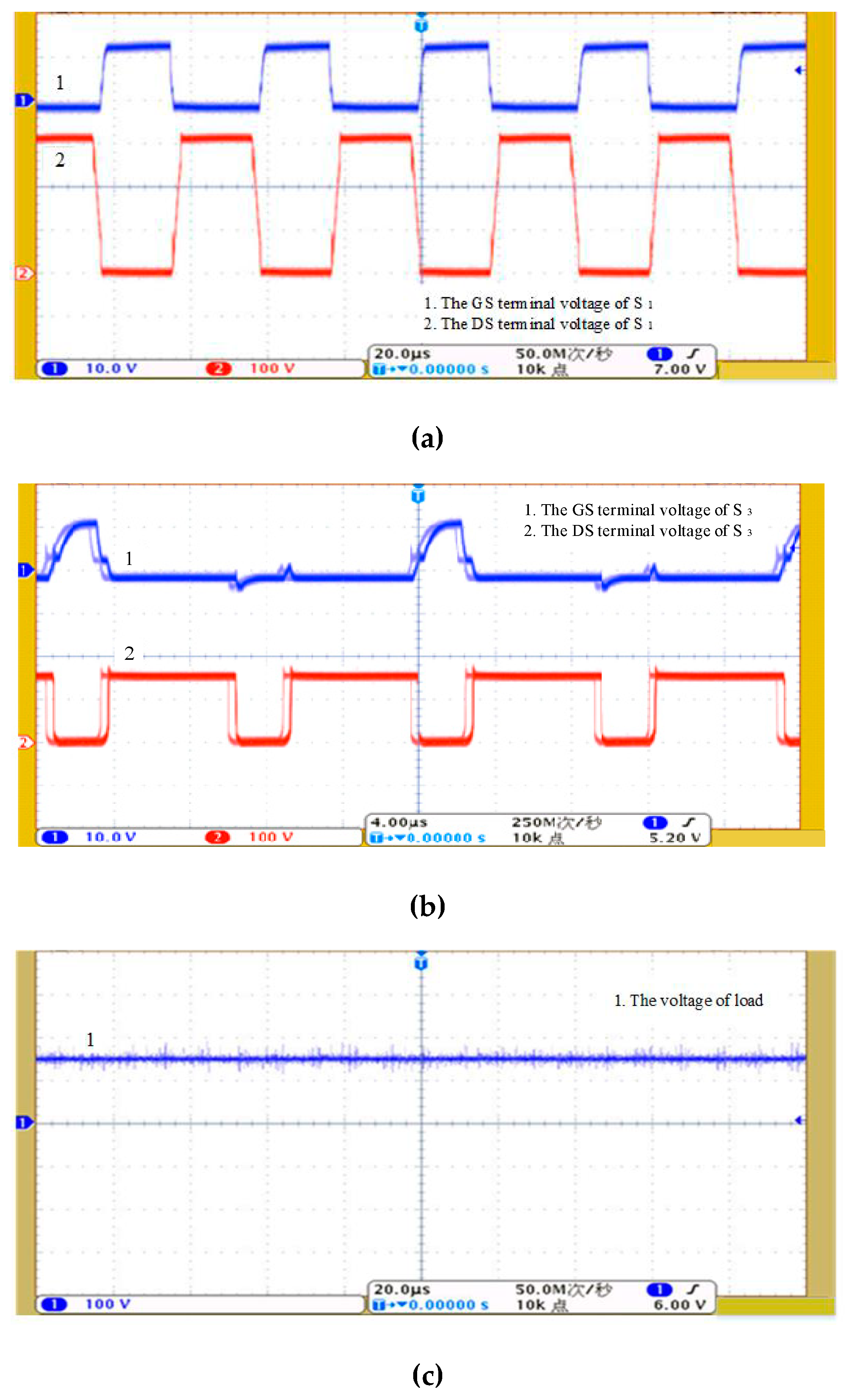

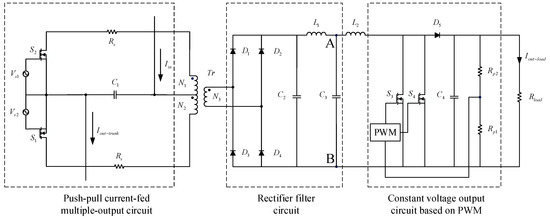

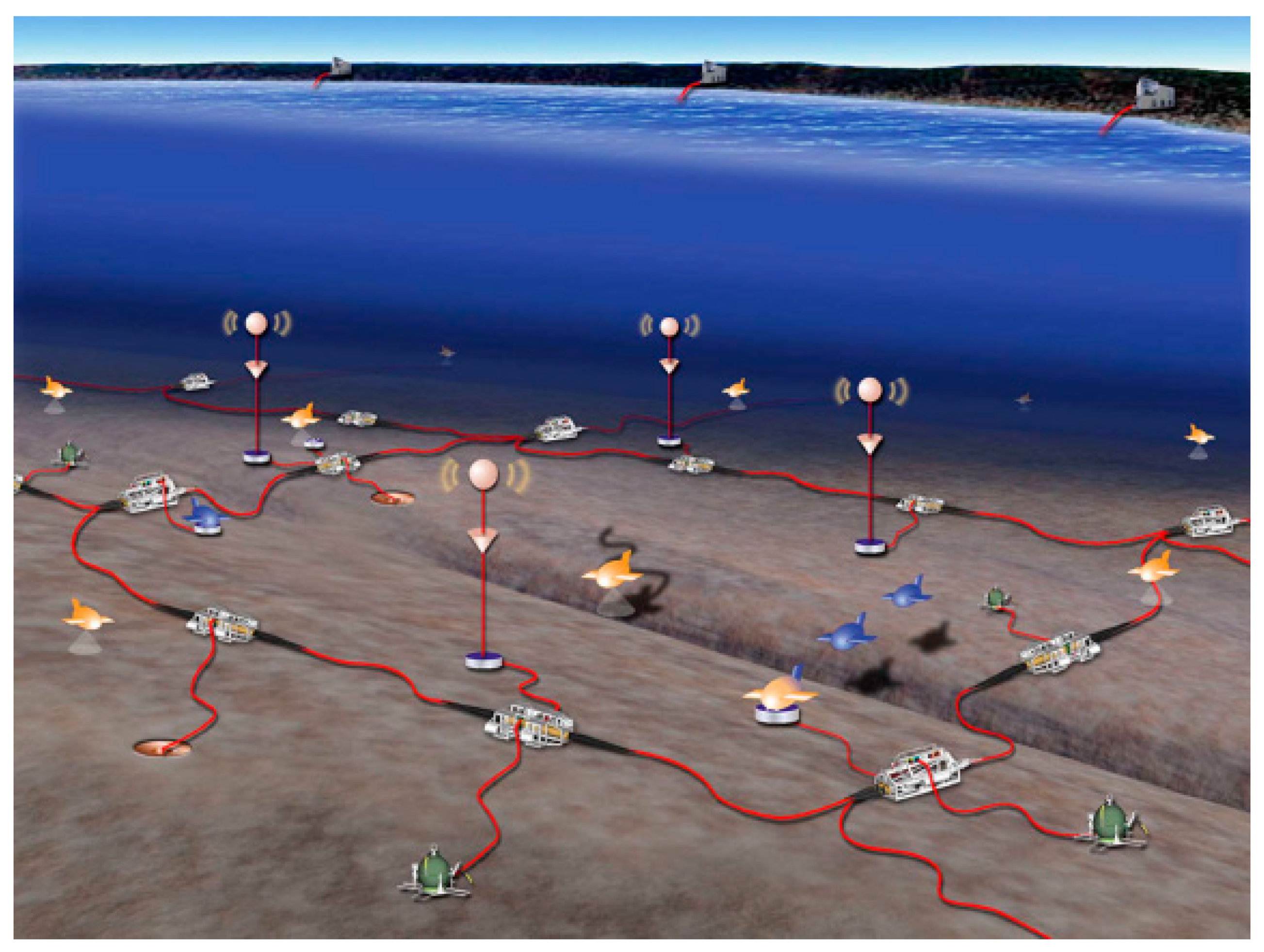

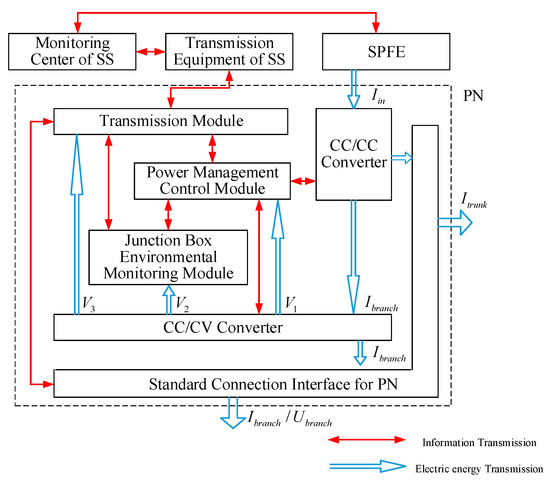

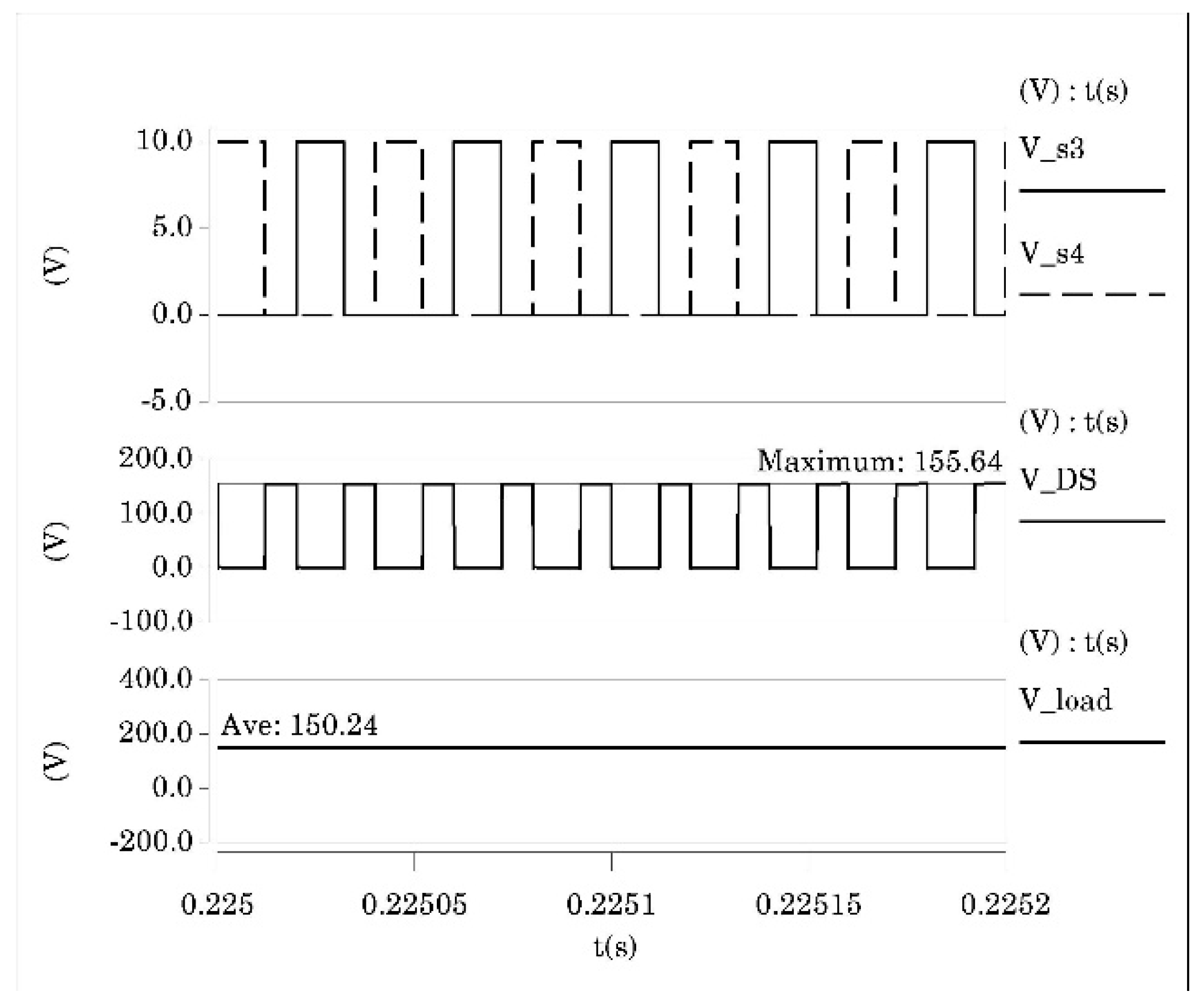

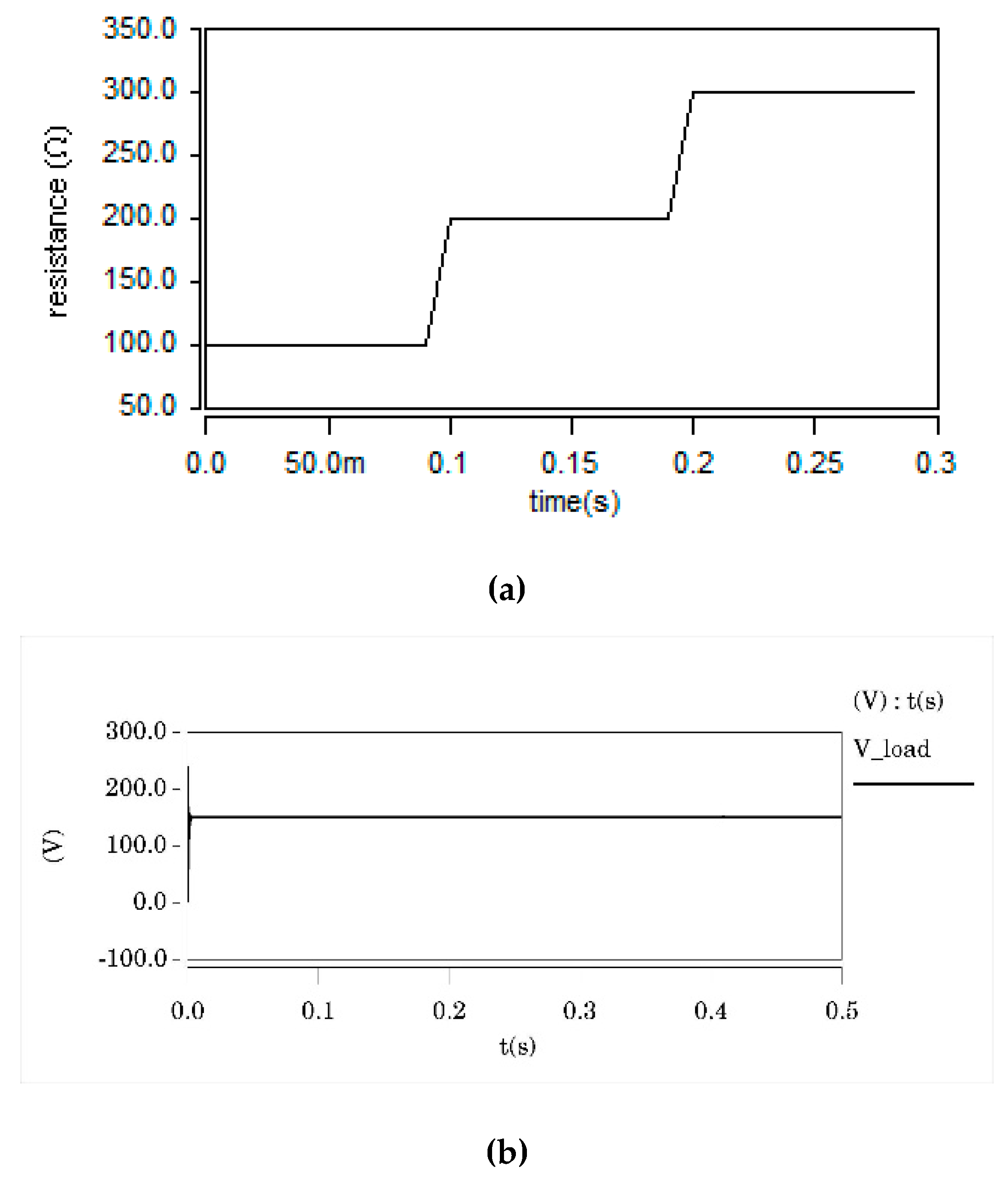

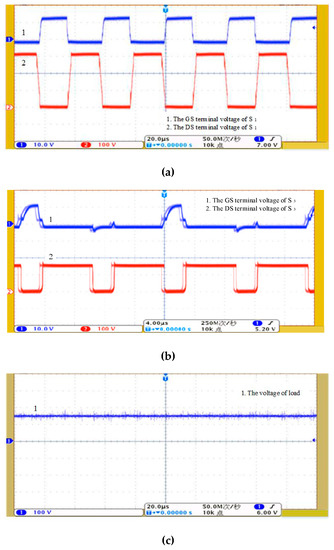

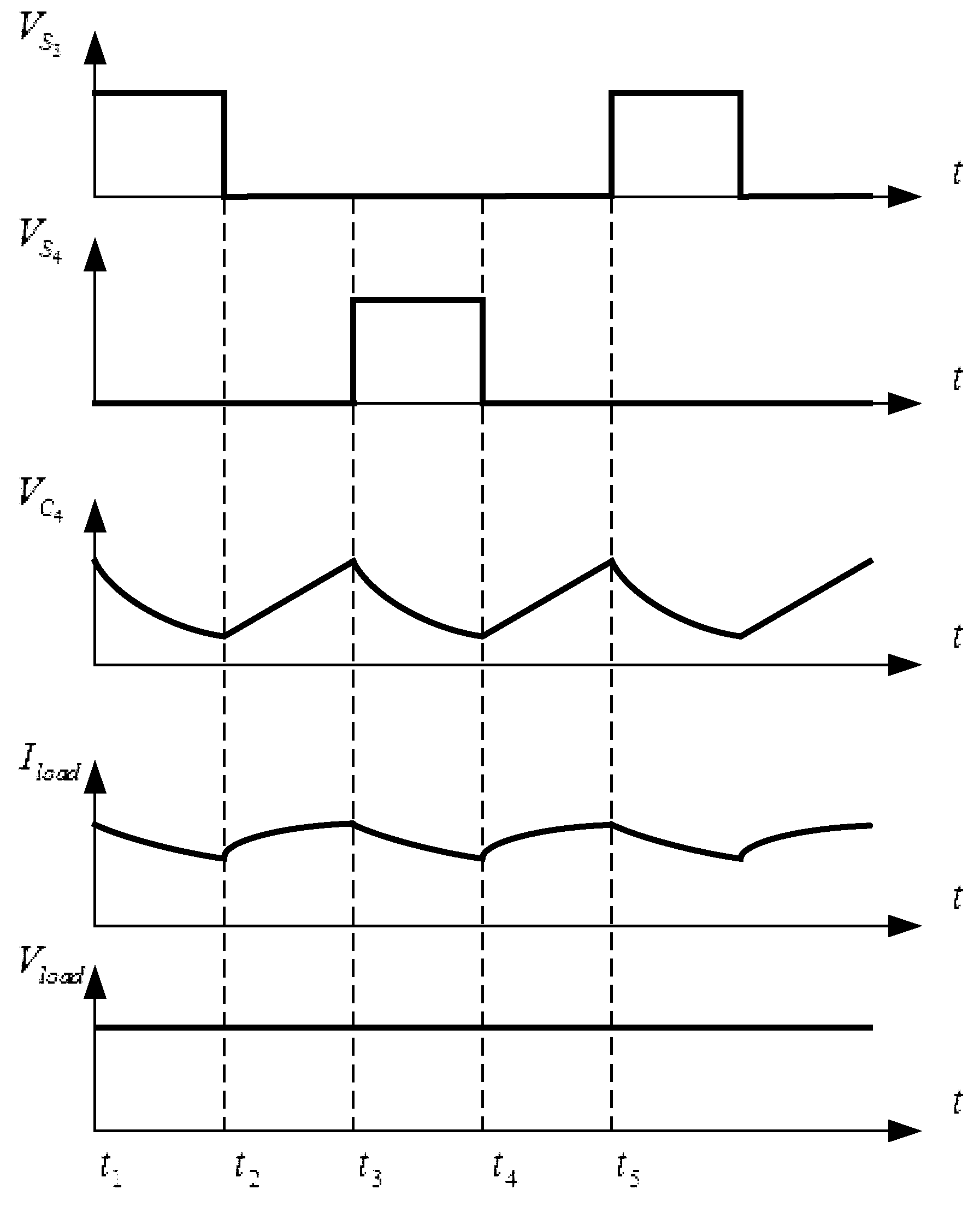

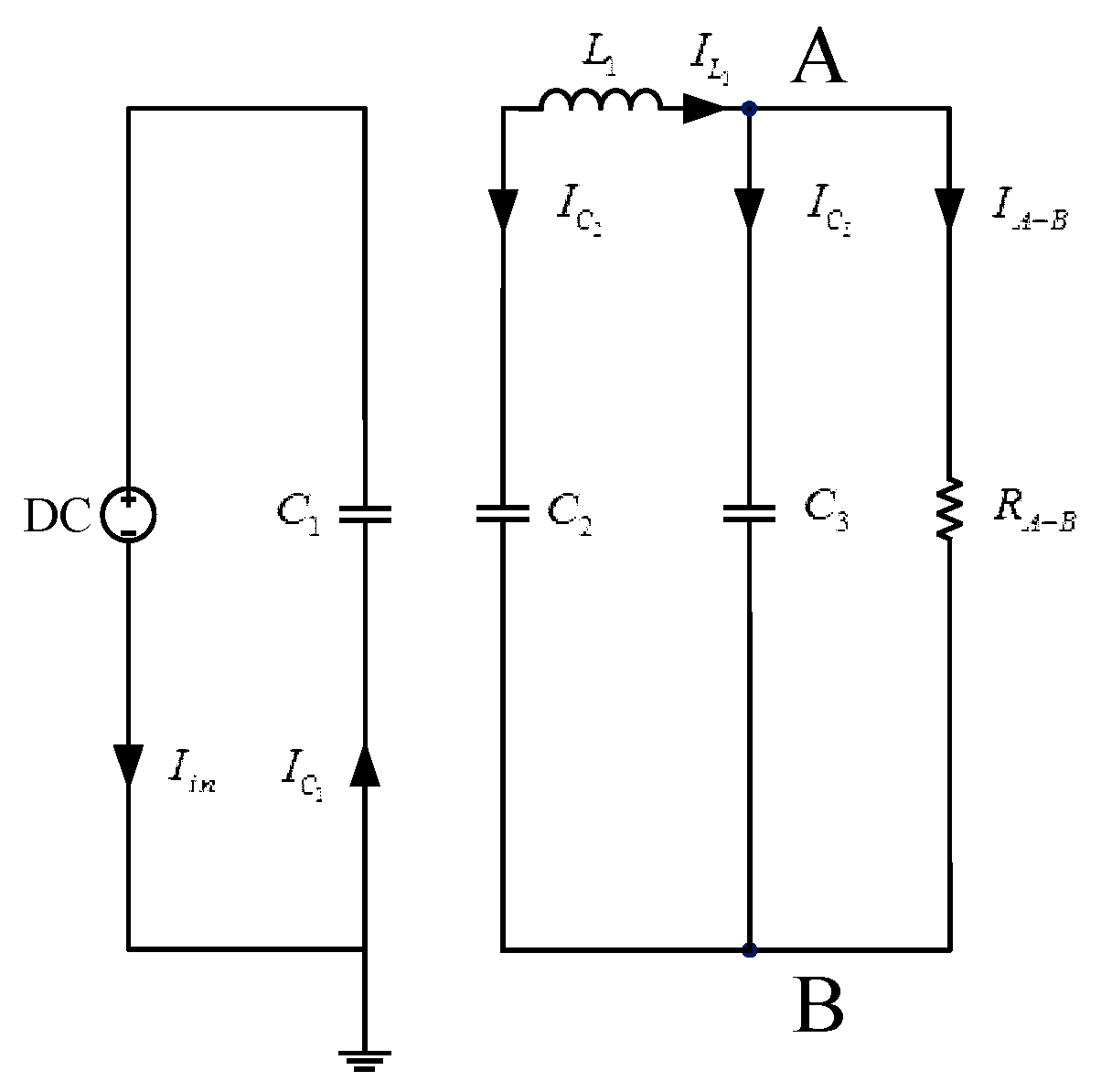

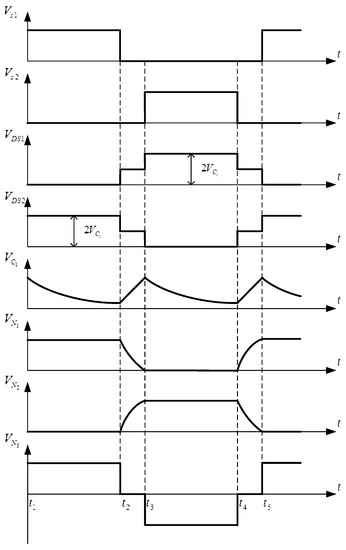

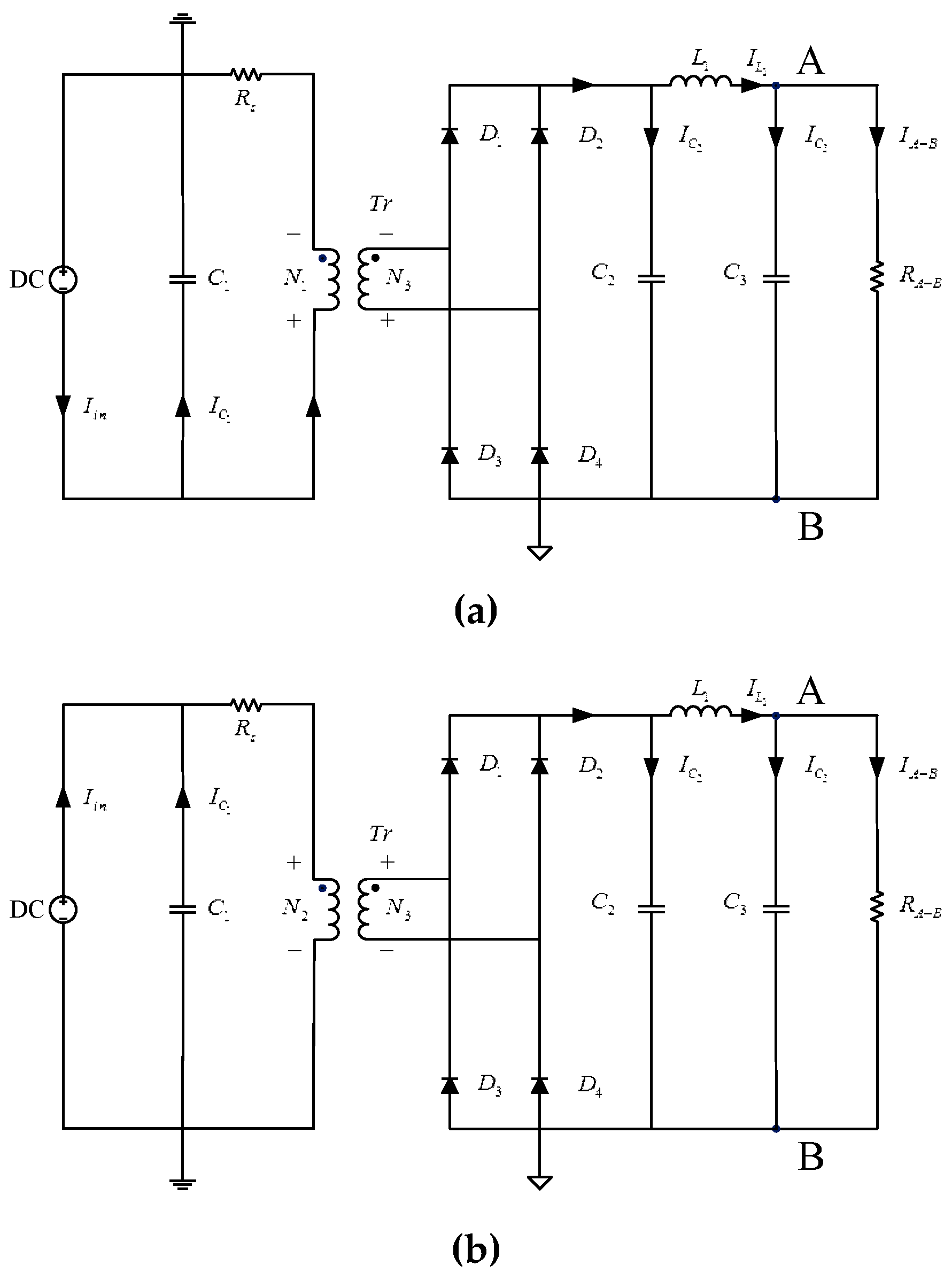

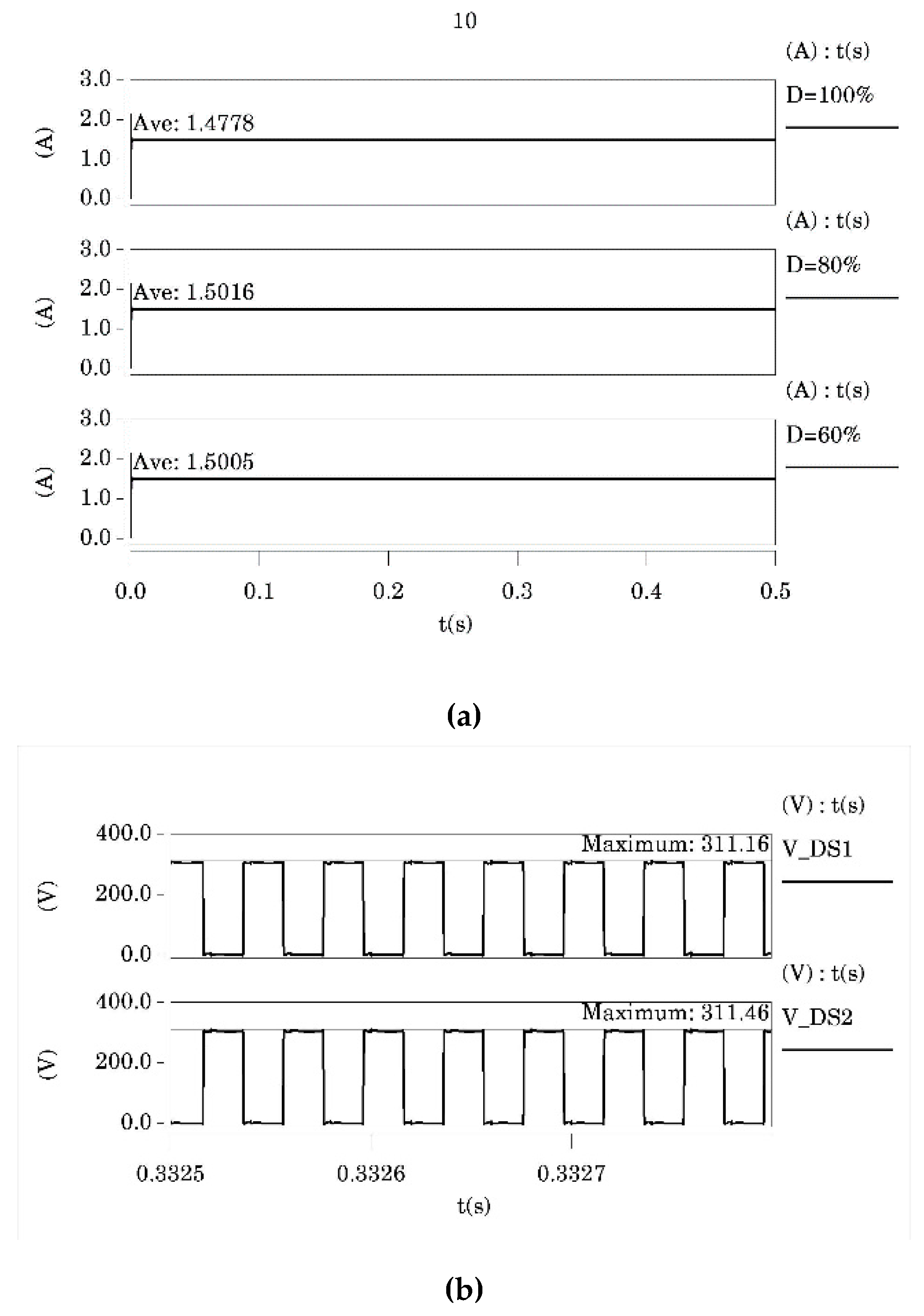

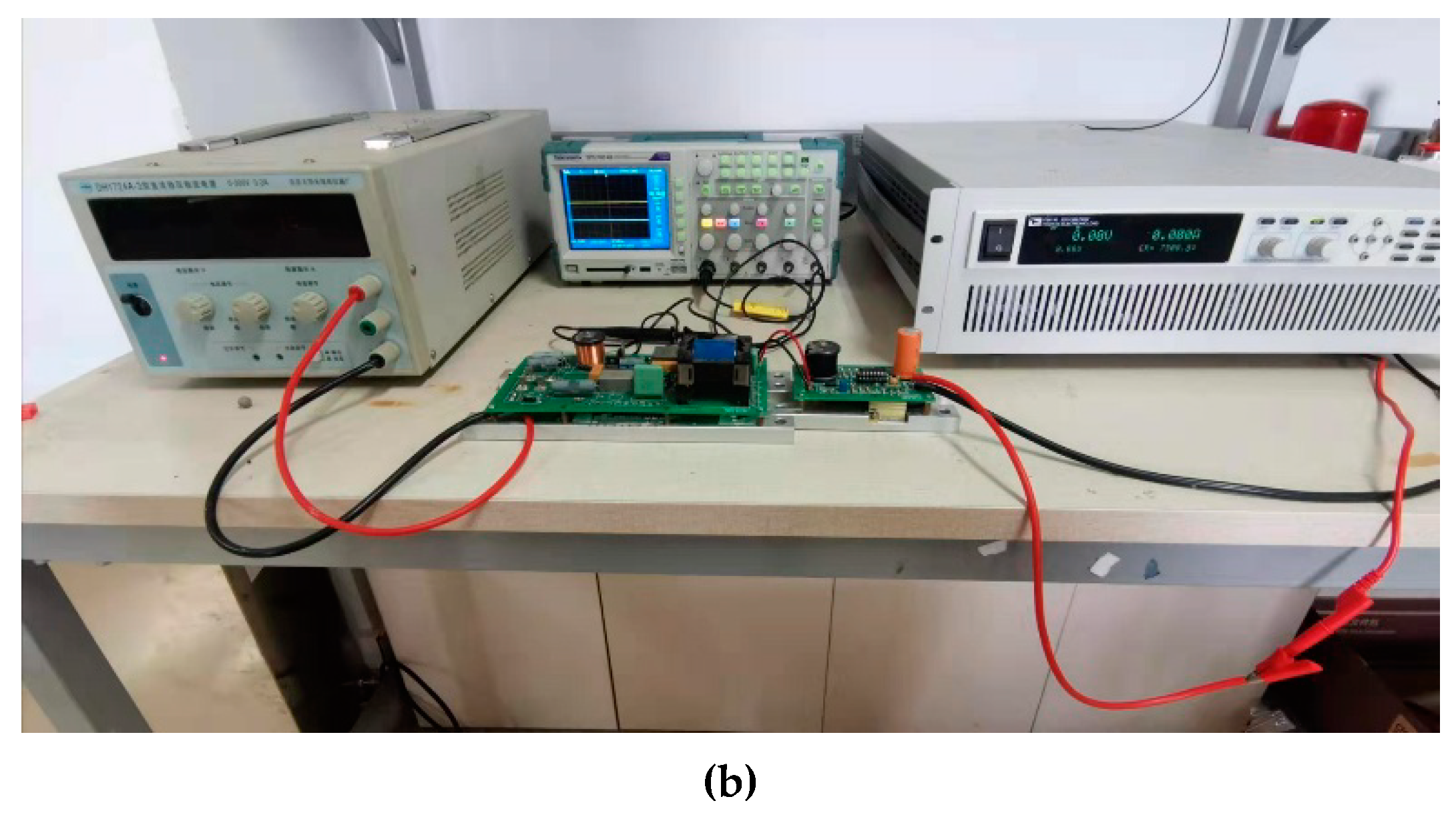

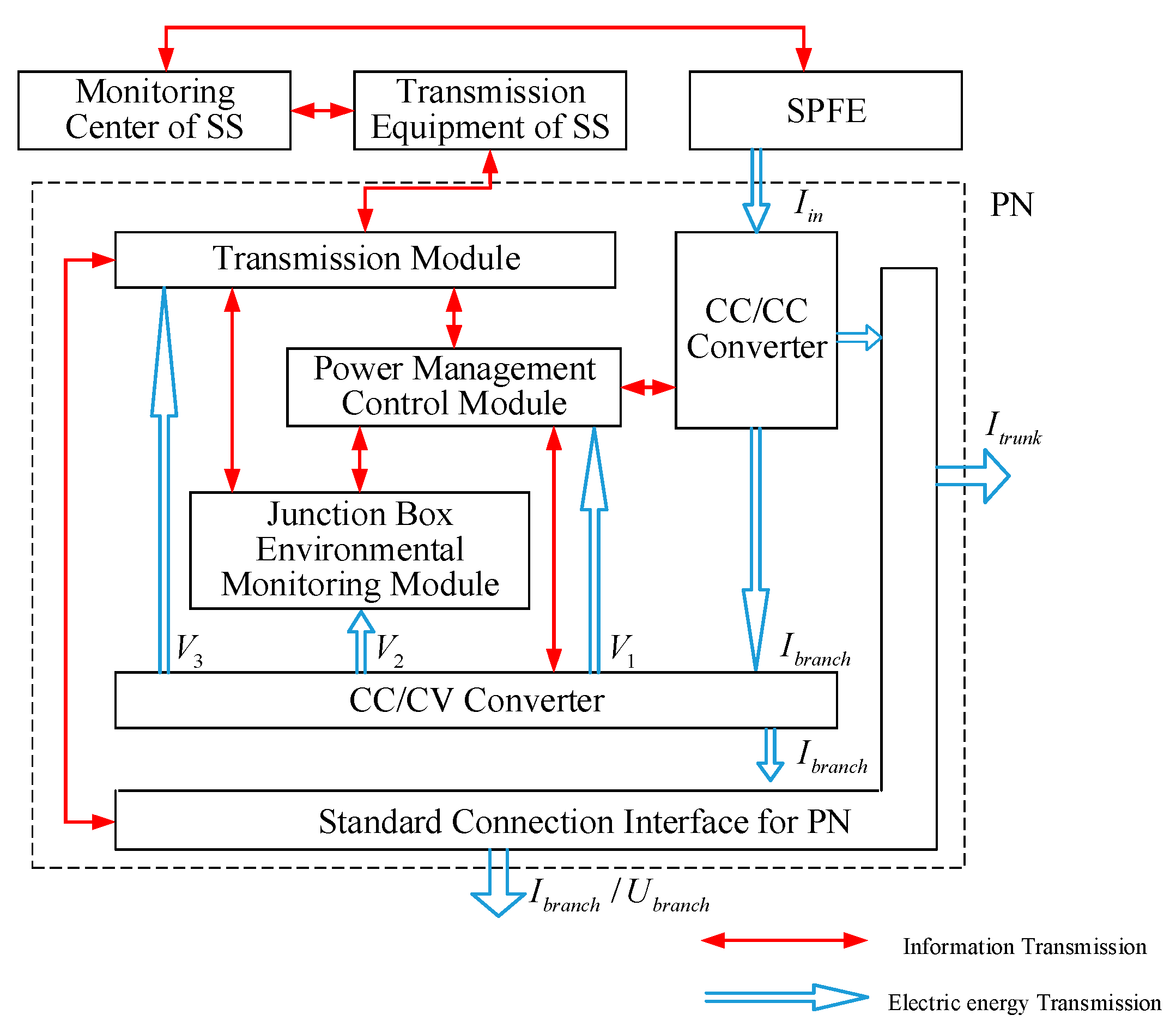

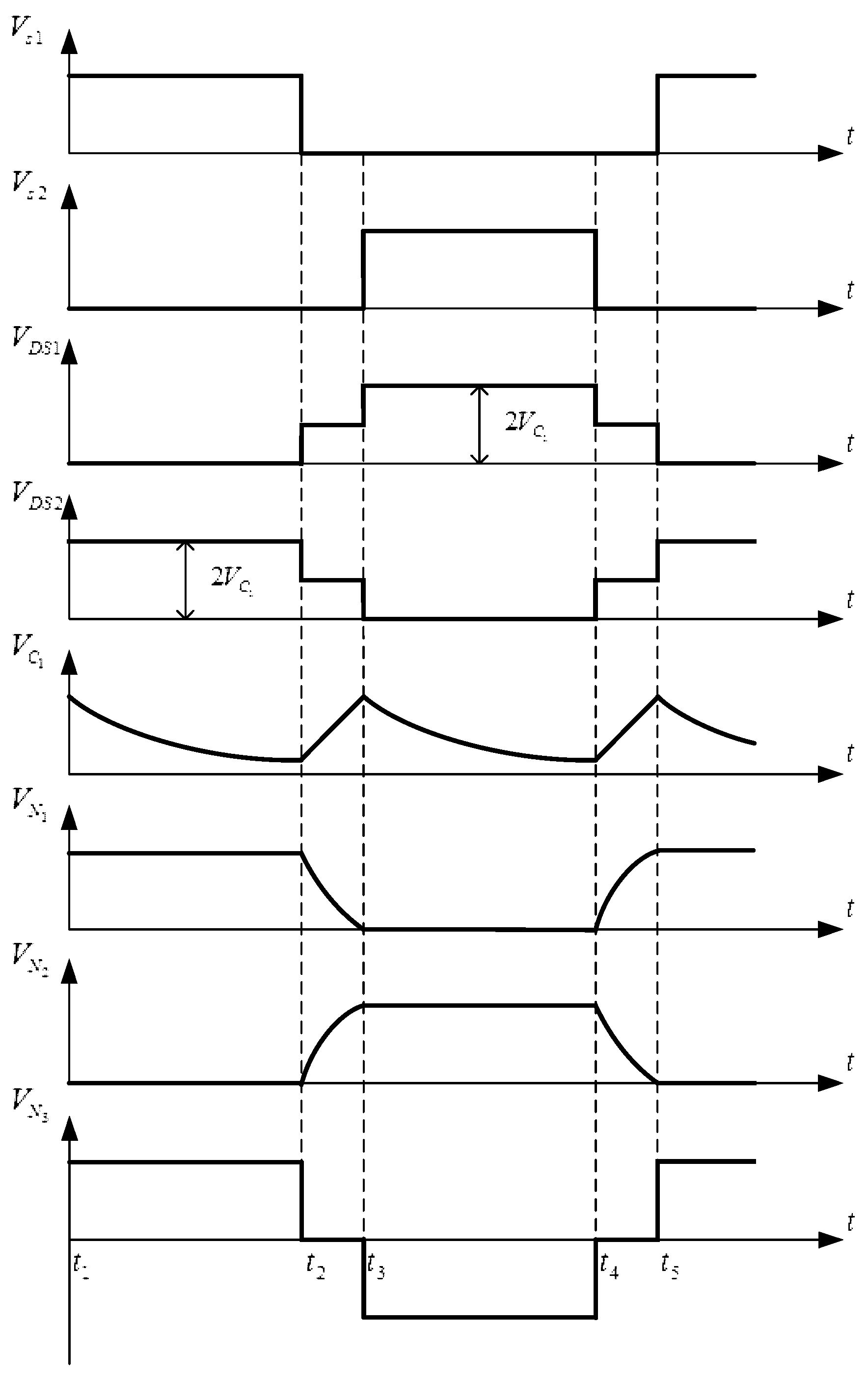

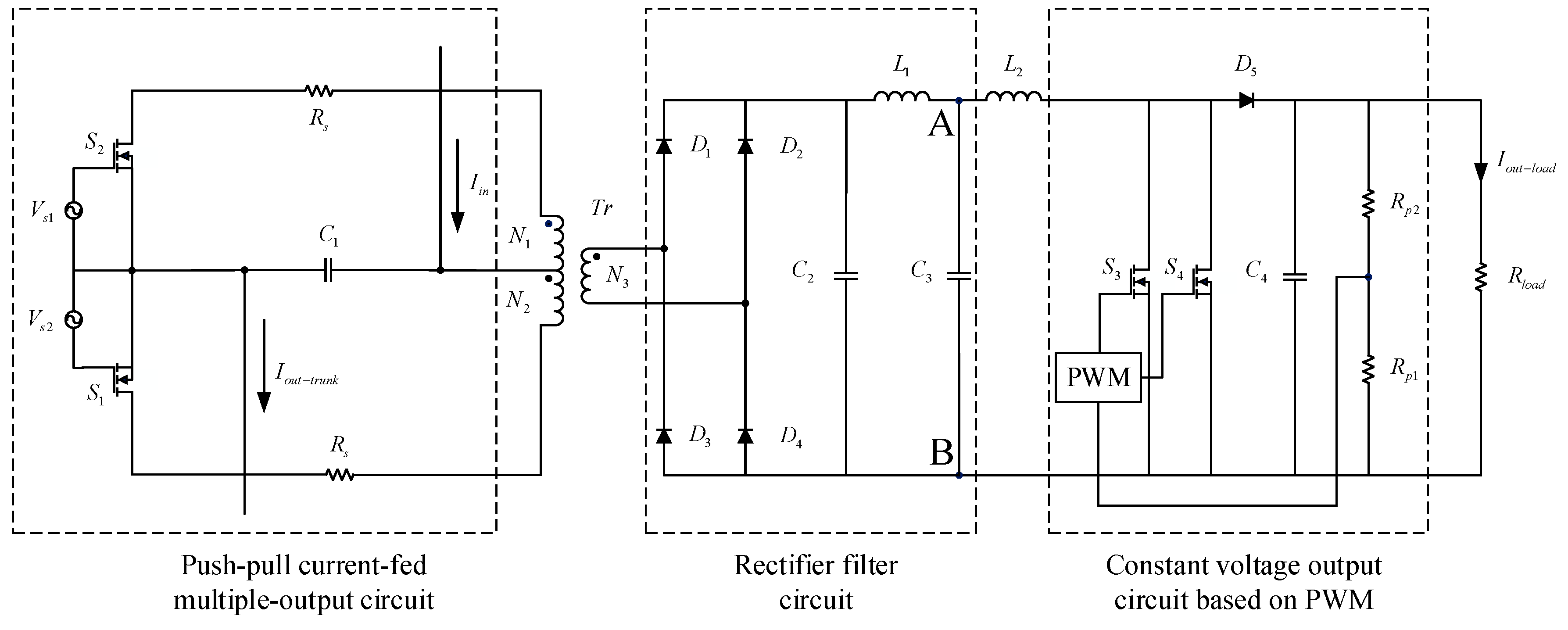

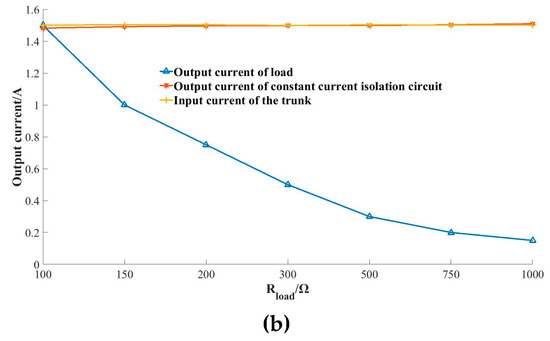

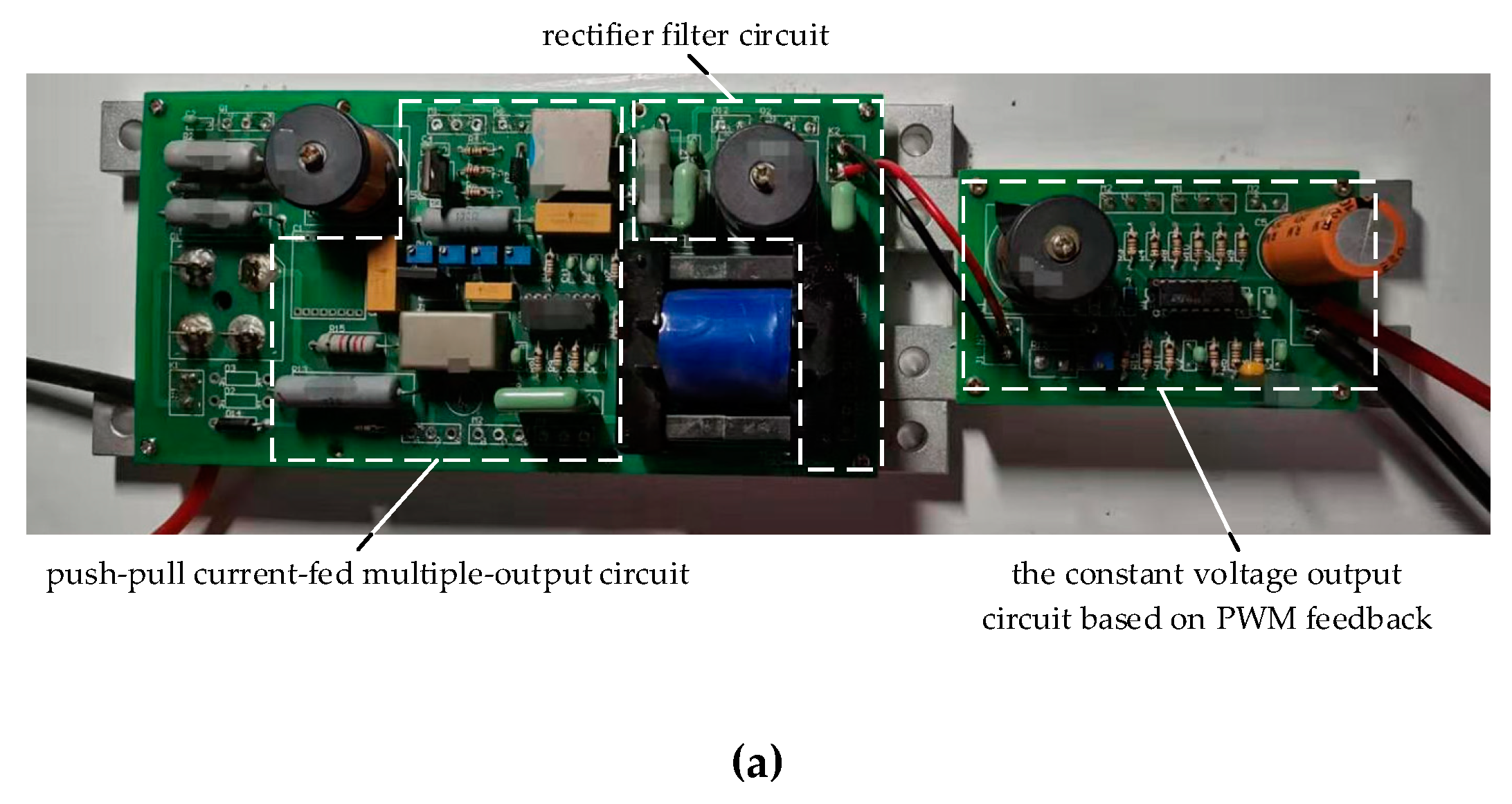

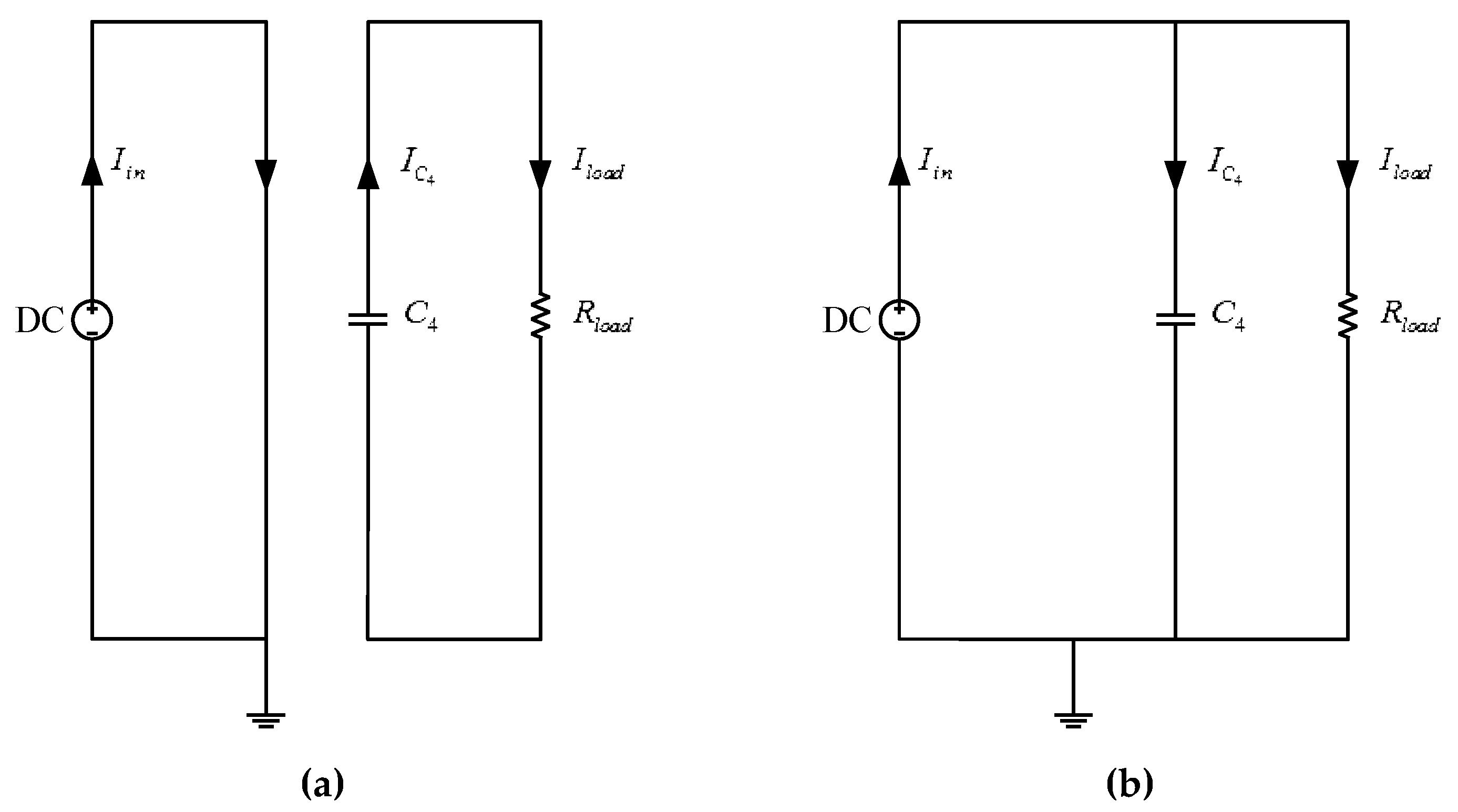

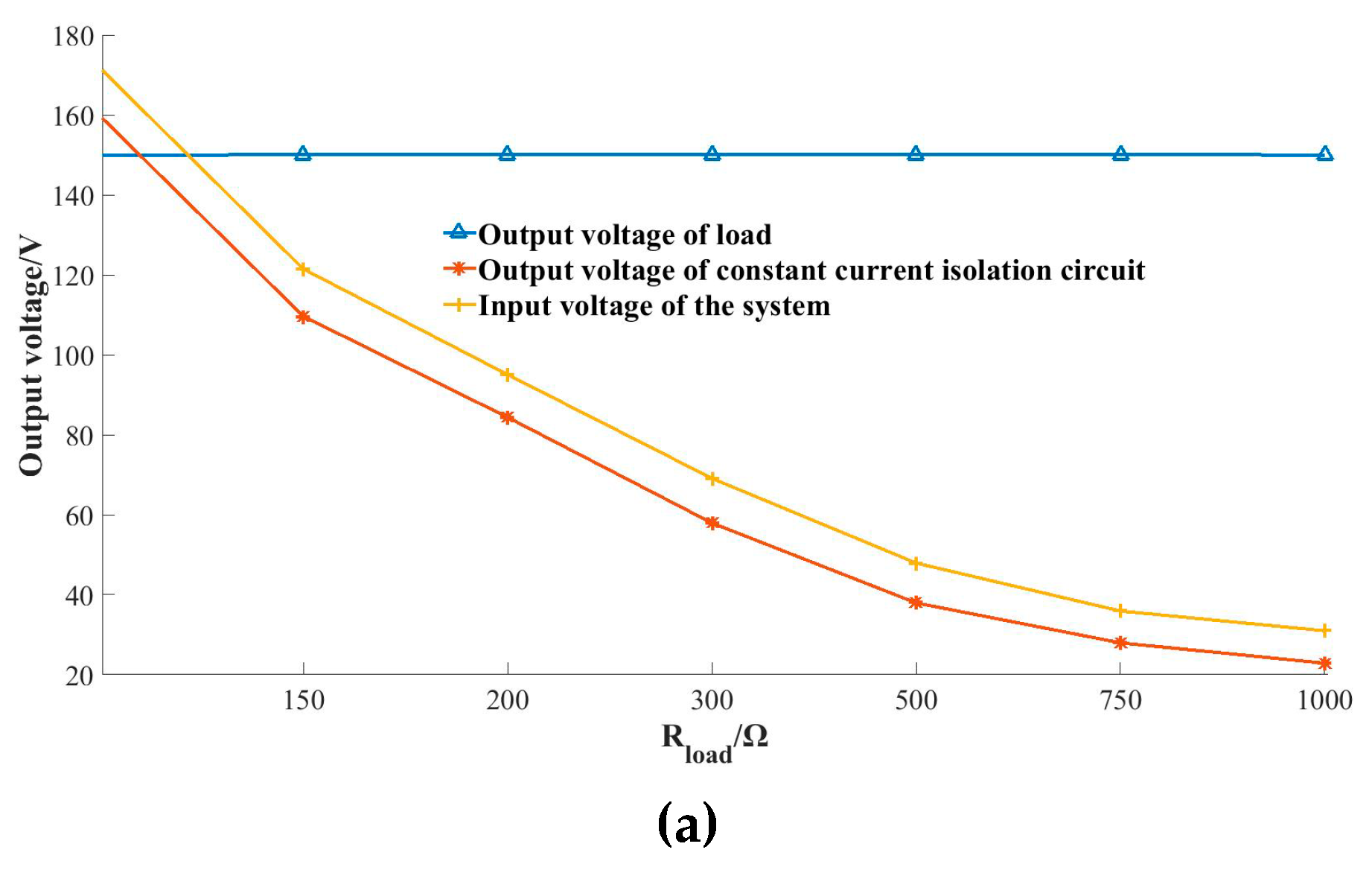

The underwater electric energy conversion modules are the equipment for distributing electric energy to the electric instruments in the cabled underwater information networks (CUINs), which are also related to the normal and stable operation of the underwater systems, the energy foundation and an important part of the network platform. Based on the classic push-pull high frequency switching circuit of constant voltage conversion, an isolated constant-current to constant-voltage (CC–CV) converter based on pulse width modulation (PWM) feedback was proposed in this paper. Through the theoretical analysis of the working principle of the CC–CV converter and the modeling of the converter circuit based on the state space method, it was verified that the designed converter can achieve the constant current to constant voltage transformation by high-frequency PWM feedback. Based on Saber simulation software, the circuit model of the CC–CV converter was built, and the feasibility of the design was proved by simulation analysis. According to the isolated high-frequency switching CC–CV converter circuit, the physical prototype was made. By adjusting the resistance value of the output load, the constant voltage (CV) characteristic of the output voltage of the converter was analyzed. Furthermore, the results show that the output voltage of the designed CC–CV converter is stable and the ripple of output voltage is less than 5%, when the input current or output load resistance is adjusted under the CC output status, which has the CV output characteristic. The CC–CV converter has good rationality and feasibility, and is suitable for the future development of the constant current remote power supply system of CUINs.
