It is well known that the four fundamental two-terminal circuit elements in electrical engineering are the resistor (R), inductor (L), capacitor (C), and memristor (M) [1
]. These four basic elements can be described using the following variables: electric current i
, voltage v
, charge q
and magnetic flux ϕ
]. There are many published papers describing methods to manufacture these components in conventional electronics, or in microelectronics, using various fabrication technologies. In microelectronics, these components are usually rigid and have a static geometrical shape.
In previous decades, the field of microfluidics as well as 3D microfluidics [3
] has been developing and growing rapidly, primarily thanks to a wide range of applications in biomedicine [4
]. Several fabrication technologies can be used for the manufacturing of microfluidic devices, such as: PDMS (PolyDiMethylSiloxane)-based, LTCC (Low Temperature Co-fired Ceramic), 3D printing, PCB (Printed Circuit Board)-based, xurography, etc. These technologies have their own advantages and disadvantages, but from the point of view of microfluidics, one of the most important characteristics is a resolution or minimal width of microfluidic channel which can be fabricated. The resolution in PDMS-based process can be around 10 μm, in LTCC around 60 μm, in PCB-based and using 3D printer around 100 μm, whereas by means of xurography, it is possible to fabricate routinely the channel width around 60 μm, and with carefully adjusted force, the lower limit can be 14 μm [5
]. Nevertheless, microfluidics can also have useful applications in electronics, bearing in mind that microfluidics-based electronics can provide flexible and transparent components [6
]. While the use of fluids and gels in the construction of various electronic devices has been demonstrated previously as reviewed below, to the best of our knowledge, literature reports demonstrating uniform fabrication techniques for microfluidic versions of the four passive electronic components are lacking.
The measurement of microfluidic channel electrical resistance was demonstrated in [7
] on a PDMS microfluidic device. Nine different designs were fabricated, twenty-seven devices were tested, and a correlation between electrical resistance and fluidic resistance was established. In [8
], the authors reported the use of a 3D printer and laser for manufacturing inductors and transformers of different shapes. They applied liquid conductive (galinstan) and magnetic (commercial ferrofluid) materials, achieving a maximum quality factor (Q-factor) value equal to 71. Banitorfian et al. [9
] presented a structure in the form of a solenoid from copper wire mounted on a PCB, through the middle of which a ferrofluid-filled tube was inserted. The volume of the ferrofluid in the tube regulated the penetration of the magnetic field along the length of the solenoid, and in that manner a variable inductor was achieved. However, this solution combined different manufacturing techniques which are not automated and it is not possible to obtain a compact electronic component. Elsewhere, a microfluidic chip featuring a channel going through the middle of a 0.025 mm-diameter copper wire coil was reported [10
], but was limited to a sensor application. The coil was created in the form of a solenoid with 600 turns and the internal diameter of the air-cored coil was 0.3 mm. A total inductance around 42.9 nH was obtained. The same author presented a similar inductive sensor application using a single layer planar coil with a diameter of 50 μm made from 33 turns of copper wire [11
]. The diameter of the microchannel was 270 μm, resulting in a total inductance of 1.25 μH.
Various capacitors featuring liquids have also been reported. For example, a ring-shaped plate capacitor was reported in [12
], not as a discrete component, but to function as a relative permittivity sensor. The fluid-filled channel in the sensor was lying perpendicular to the direction of the electrical conductors and pads. In another example [13
], the main idea of the authors was to modify the radio frequency (RF) characteristics of a microwave capacitor, fabricated using photolithography, and including spiral-shaped, deionized water-filled capacitor electrodes. In this way, the authors succeeded in increasing capacitance from 0.52 pF to 18.5 pF when the channel was empty or filled, respectively, in the frequency range from 0.1 GHz to 4 GHz. The same group of authors described a similar principle in [14
], for a continuously tuned capacitor. An interdigitated capacitor with a PDMS microreservoir of fluid on top of the structure was presented in [15
]. This device changed capacitance from 10 pF (in air) to 50 pF (in deionized water). In another report, a liquid metal (GaInSn)–liquid dielectric (silicone oil, glycerol, or water) capacitor structure was created using PDMS as a base material [16
]. The capacitor was composed of two cylindrical electrodes and obtained capacitance up to 10 pF depending on the gap between the electrodes and incorporated material. Further, a parallel plate capacitor and a planar spiral inductor were presented in [17
], creating a wireless biosensor with a microchannel inside the LC structure, fabricated in LTCC technology. The resonant frequency was changed with variation of the permittivity of the liquid in the microchannel in the LTCC structure. Another microfluidic device with a straight microchannel and two embedded single-layer inductance coils, as well as a micro capacitor, was reported in [18
], using PDMS and applied for the detection of contamination in hydraulic oil.
In accordance with the general trend of creating all-soft-matter components and circuits [15
], a prototype of quasi-liquid memristors was presented in [19
]. The device was composed of hydrogel layers doped with polyelectrolytes as an active material, with liquid metal electrodes [19
]. A change in the overall resistive state was achieved in accordance with the local change of pH in the gel. Furthermore, a fluidic memristor can also be designed to exhibit sensing properties using indium tin oxide (ITO) glass as substrate and bottom electrode, a TiO2
layer representing the active film, PDMS for the inlet and outlet chamber of the chip and Al top electrode [20
]. Sensing functions were realized through nine wells, each with a diameter of 1 mm, which acted as a liquid position area, allowing the device to detect the concentration of D-GLucose by measuring I–V characteristics and Roff
ratios. The manufacturing of a nanofluidic memristor suitable for use as a core element in neuromorphic computing within flexible devices was proposed in [21
]. A track-etching technique was used to form a conical nanochannel (minimum diameter of 6 nm) which was responsible for the hysteretic loop in the I–V curve as the positive bias voltage created a depletion state within the channel, which was filled with IL (ionic liquid)/water solution [21
]. From previously described state-of-the-art analysis in the field, it is obvious that there is a need for cost-effective, rapid prototyping technology which can be used for fabrication of all four fundamental elements. This paper addresses this challenge.
We here present the design, fabrication, and characterization of four fundamental circuit elements—R, L, C, and M. These components were fabricated using a rapid prototyping xurography technique, which is based on creating the different geometrical shapes of components in PolyVinyl Chloride (PVC) foils and laminating them under elevated temperature and pressure. Gold leaves were used as a conductive material, and after cutting separate layers in the desired pattern, multi-layered compact electronic structures were obtained. Electrical parameters were determined for all fabricated components, using impedance spectroscopy and I–V measurements. Resulting performances were better or comparable with previously published reports of components manufactured using sophisticated and costly technologies. The potential application domains of the proposed elements are: (1) development of a parallel world of microfluidics electronics using two-terminals components; (2) sensors’ applications, where in the channel can be injected some suspension, for example a drug; (3) inductive structures can be applied in microfluidic transformers with ferrofluid instead of a ferrite core between primary and secondary coils; and (4) in neuromorphic circuits (memristors are key elements in these circuits which can mimic brain behavior).
3. Results and Discussion

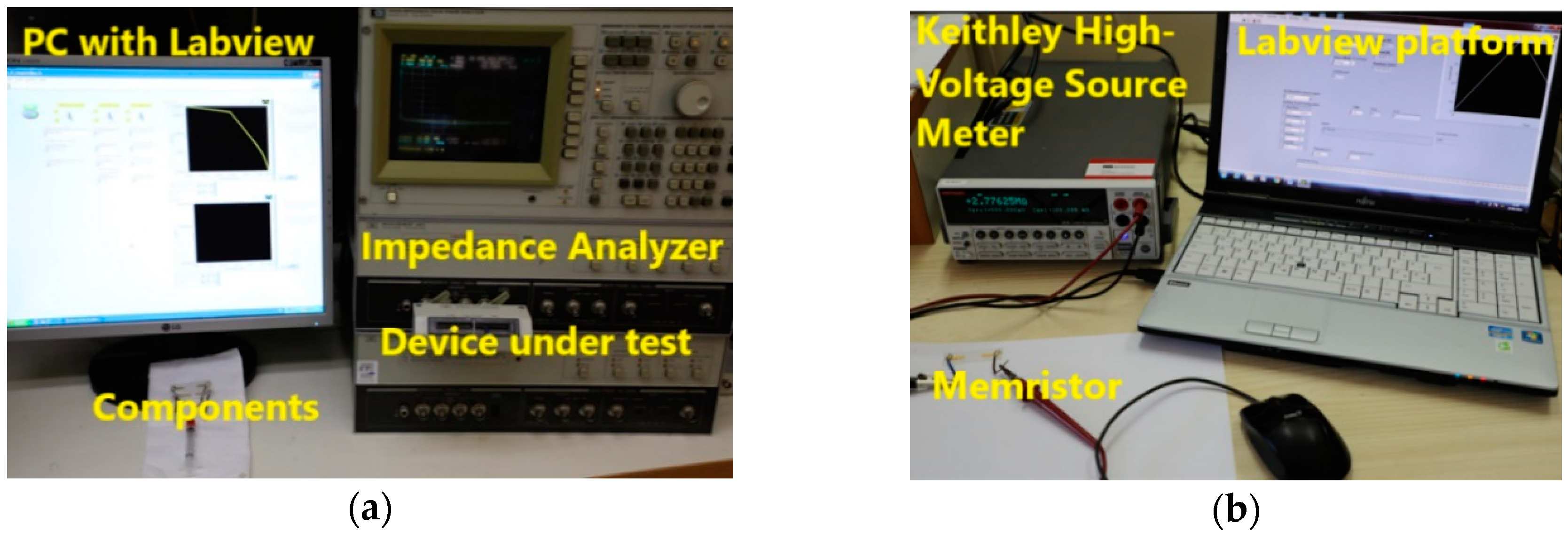

For testing the described components, we used an Impedance Analyzer HP4194A as well as Keithley 2410 High-Voltage Source Meter controlled with the LabVIEW platform. Part of the experimental setup can be seen in Figure 9

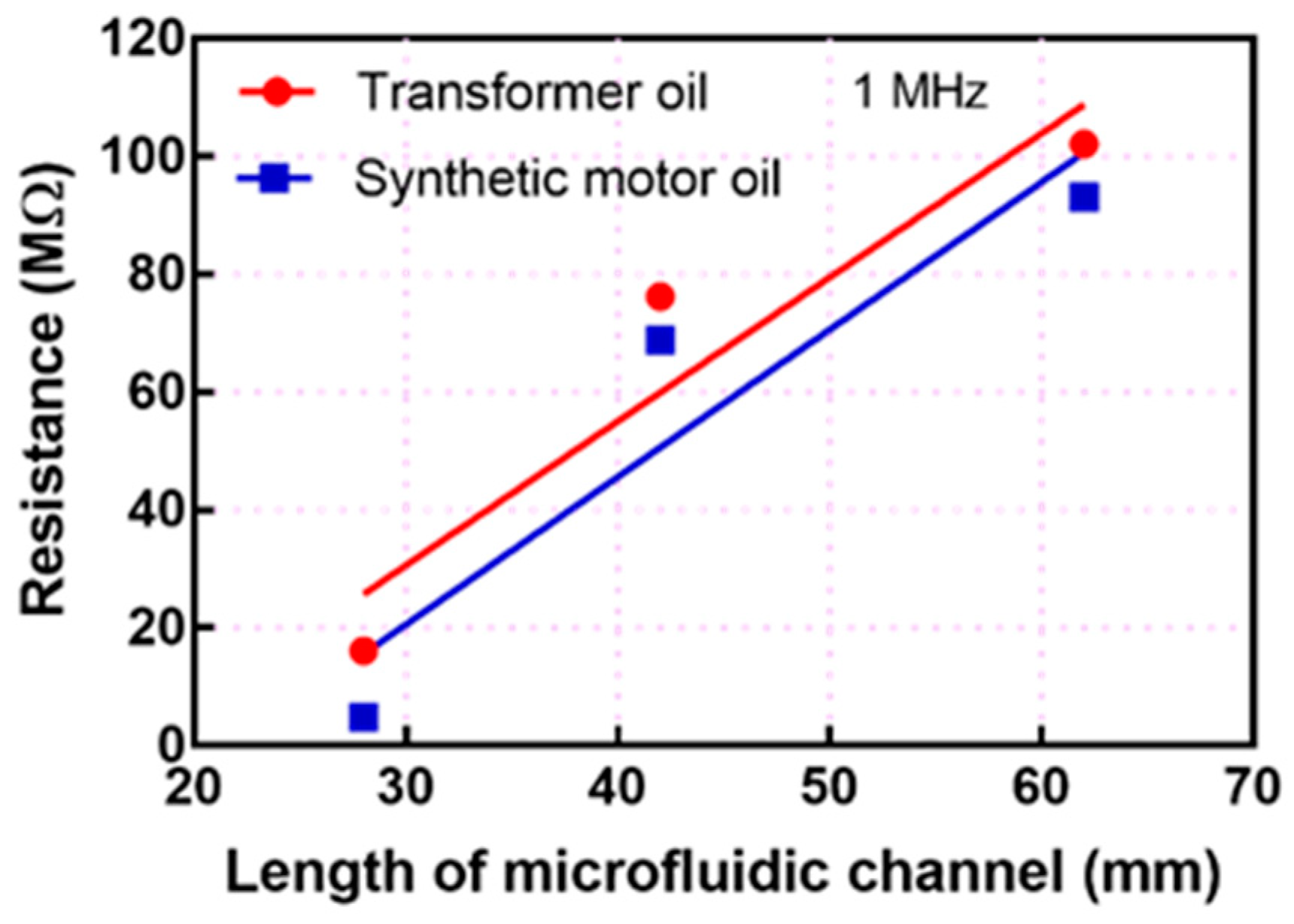

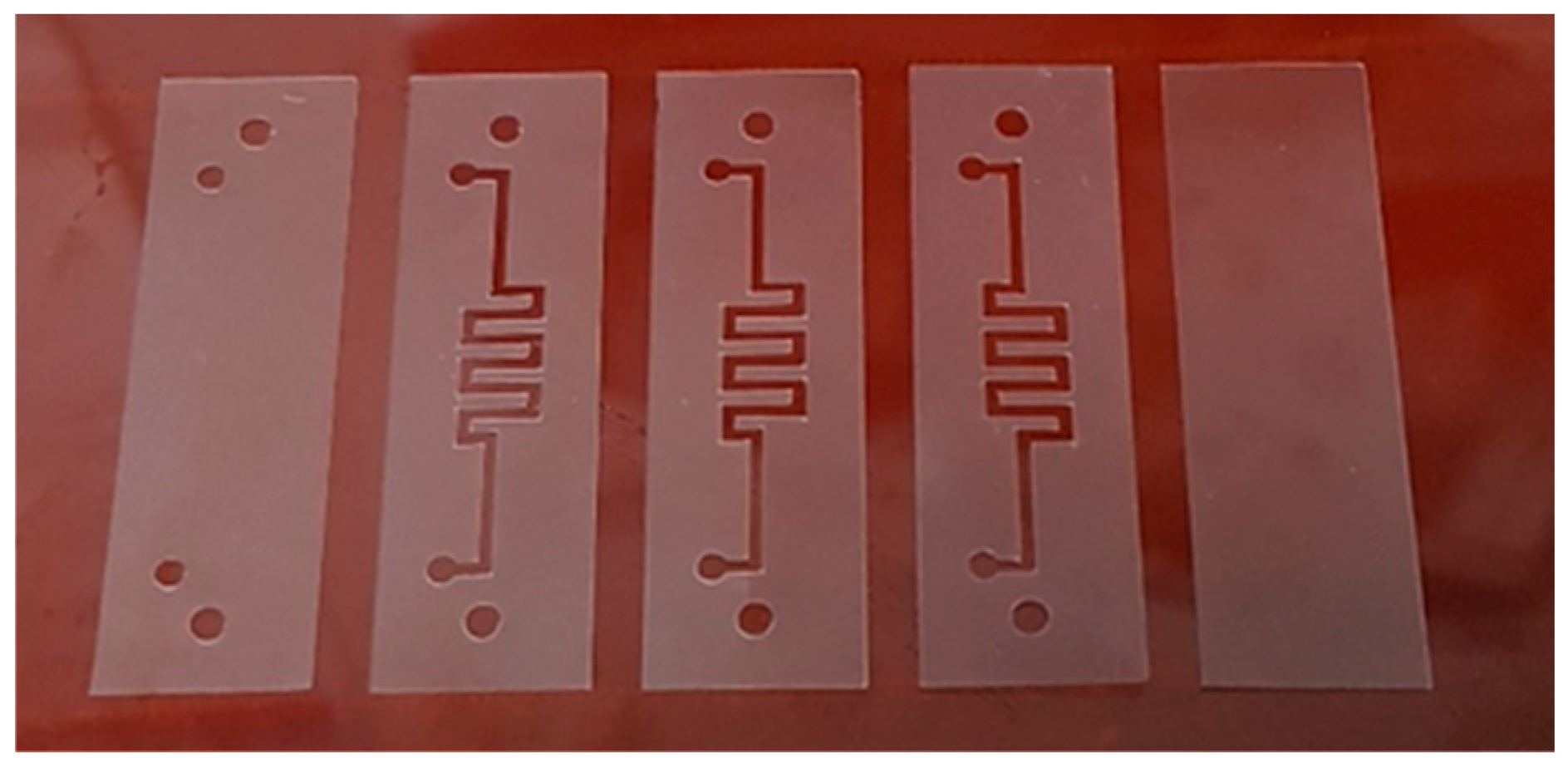

The three types of fabricated resistors were tested through the injection of transformer oil as a liquid material into the meander-shaped microfluidic channel. The measured resistance for these three cases of different length channels are presented in Figure 10
. From Figure 10
, it can be concluded that resistance is increased with increasing the length of the channel, which is in accordance with the equation: R
, where ρ
is the resistivity of the applied dielectrics, l
is the length of the microfluidic channels, and A
is the surface area (width of the channel × thickness of the channel). The total length of the channels for three types of fabricated structures were: 28 mm, 42 mm, and 62 mm. Transformer oil has higher resistivity than synthetic (motor oil) and, as a consequence, higher resistance value for the same channel length.

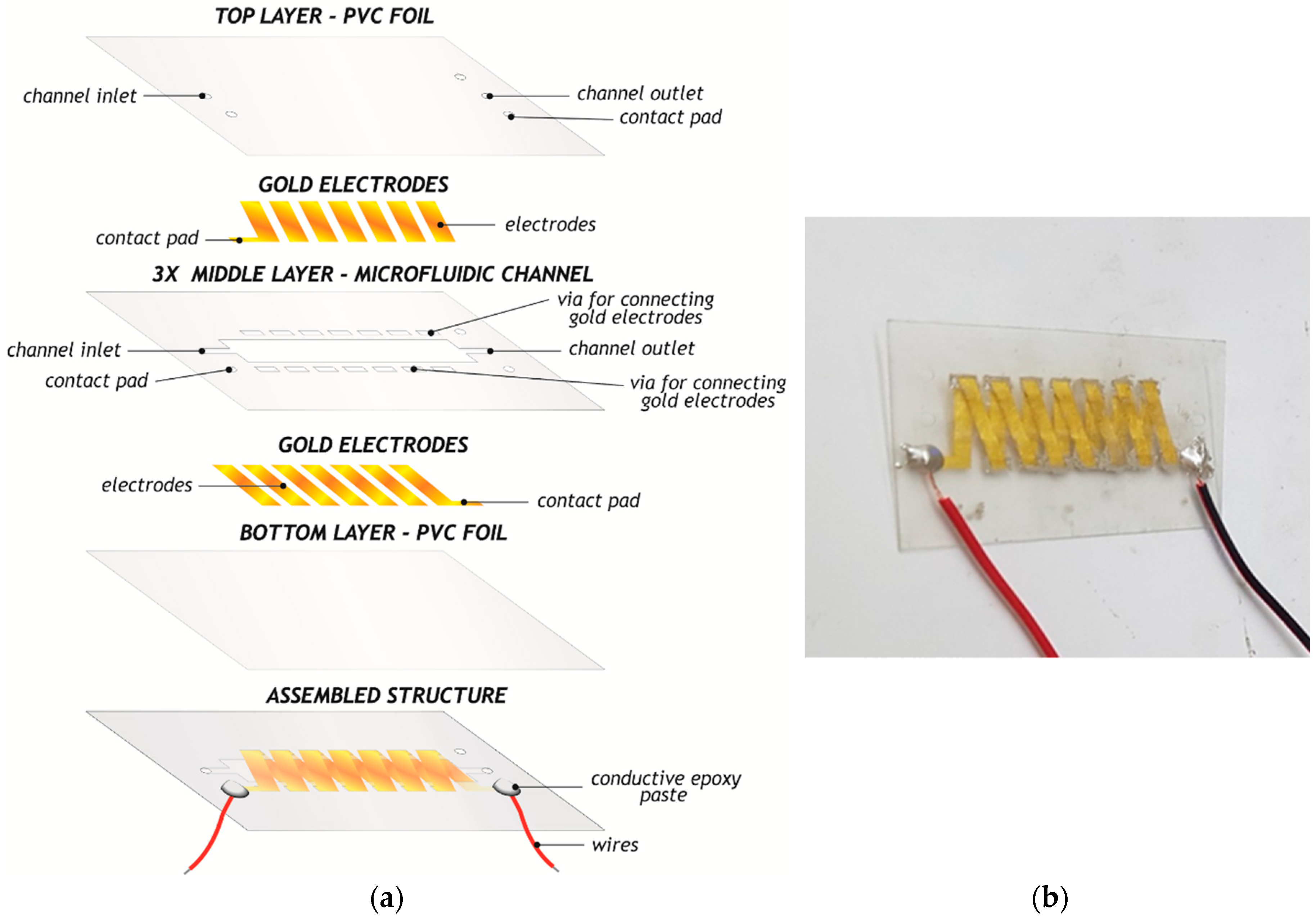

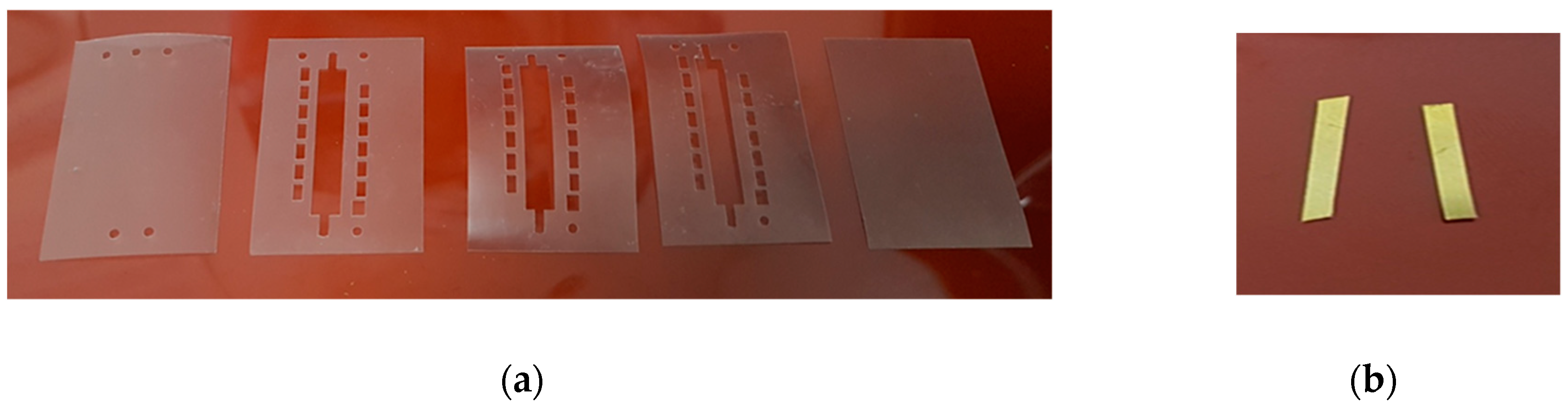

For the inductor, we studied the solenoid structure to achieve the best coupling between coils, which would result in higher mutual inductance and, consequently, higher total inductance of the component. In the channel, the liquid magnetic material—ferrofluid was injected in order to additionally increase the total inductance according to the following expression, , where A is cross-section area, N is number of turns, is the permeability in vacuum, is the relative permeability of ferrofluid, and l is the length of the channel equal to 4.5 cm.

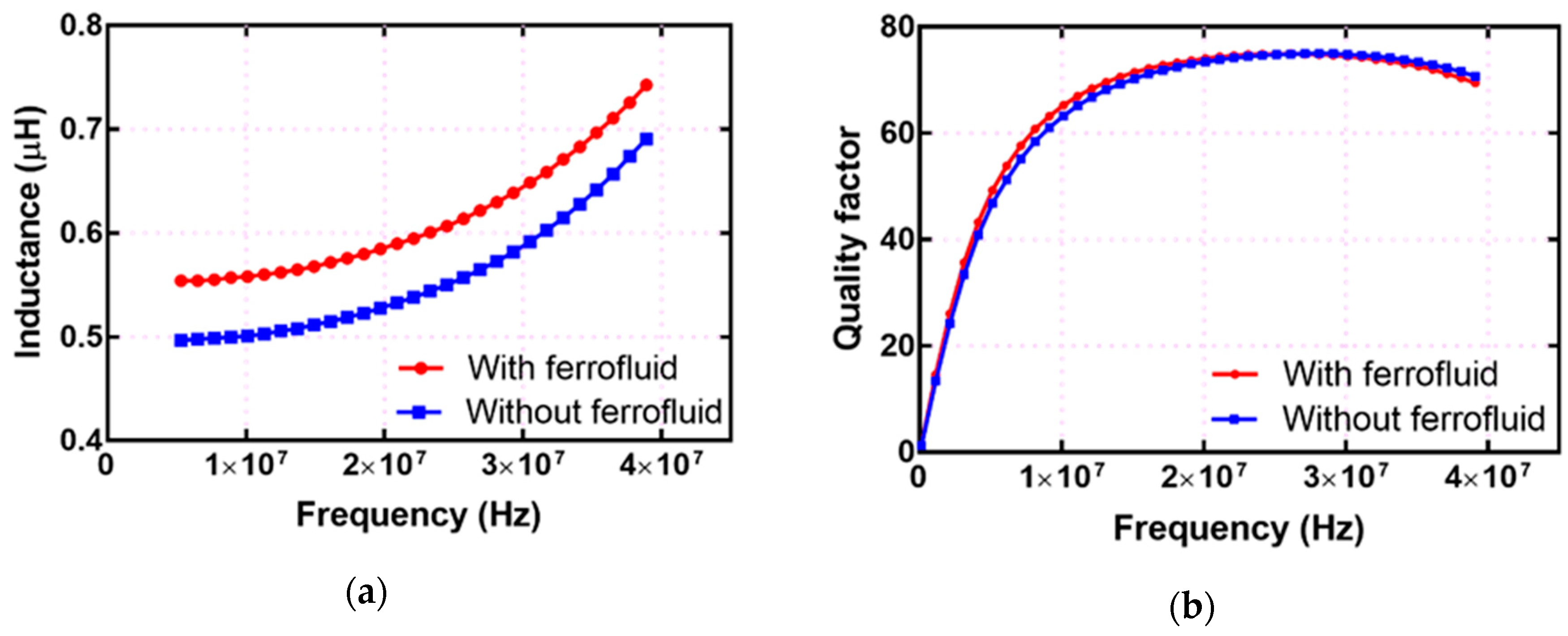

The measured inductance and quality factor, without and with ferrofluid inside the channel, are presented in Figure 11
. The total inductance is around 500 nH at the frequency of 10 MHz with an empty channel, whereas this value is equal to 560 nH with ferrofluid material inside of the channel, having the role of the liquid core for the solenoid. This is an approximately 12% increase in the total inductance. The advantage of our approach is that this increase in total inductance is not paid by increasing the weight and size of the component, which is usually the case in conventional ferrite-based inductors and transformers. The bulkiest part of the inductive components in classical electronics is the magnetic core. On the contrary, in microfluidics-based electronics we used a very small amount of liquid and the weight of the component changed can be measured in μg. The maximum value obtained for the quality factor was 75 at a frequency equal to 26 MHz. This maximum value was higher than the value published in [8
], which was 71.

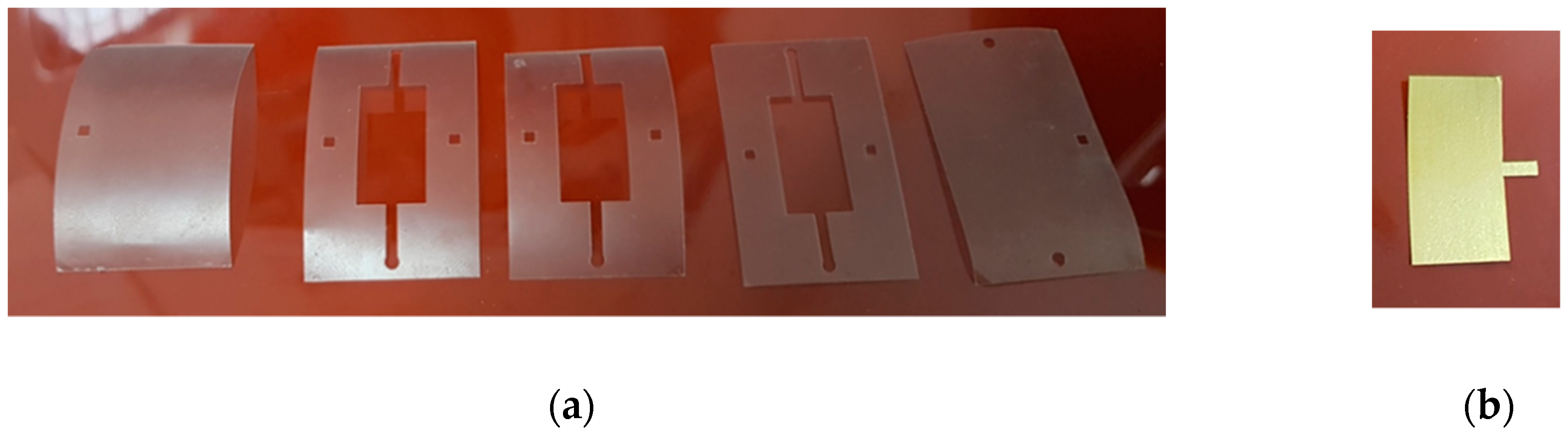

To test the capacitor, a solution of NaCl in different concentrations was injected into the microfluidic channel. In this way, the dielectric constant of the parallel plate capacitor was increased according to the formula
is the relative permittivity of dielectric inside of the channel, A
is the surface area of electrodes, and d

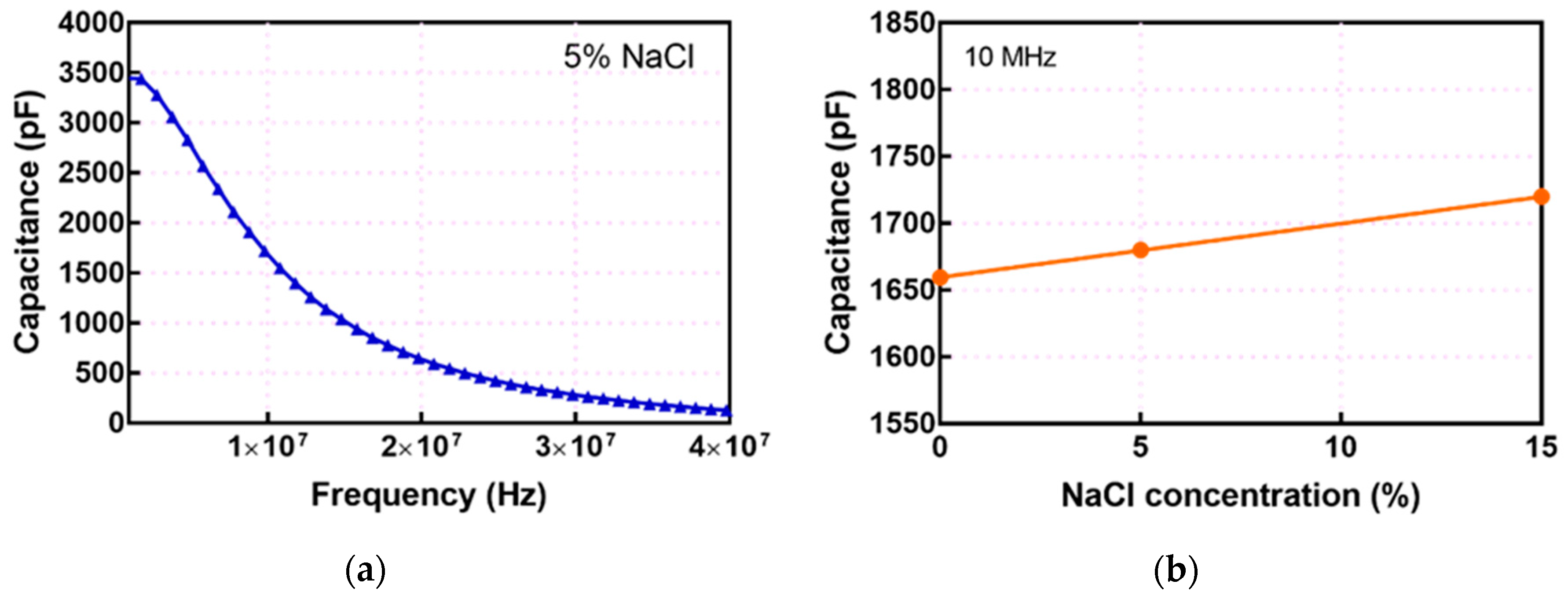

is the distance between them. Measured capacitance as a function of frequency for different concentrations of NaCl as a parameter is shown in Figure 12
. A higher concentration of NaCl was associated with a higher dielectric constant and increasing capacitance, as can be seen in Figure 12
b, presented at a constant frequency point of 10 MHz. Measured capacitance decreased with increasing frequency, bearing in mind that the same trend has a dielectric constant, due to different types of polarization which can be noticed from low frequencies towards the high frequency range.
For memristors, a solution of TiO2
nanopowder (1%) was prepared and injected into the straight line-shaped microfluidic channel. Measurements were performed using Keithley 2410 High-Voltage Source Meter controlled with the LabVIEW platform (ambient conditions, temperature
). The actuation voltage was a bipolar voltage waveform (0 V → Vmax
→ 0→ –Vmax
→ 0 V), triangular waveform, with a sweep speed of 1 V/ms and voltage amplitude of 20 V, as can be seen in Figure 13
a. Ground (referent) potential is connected to the microfluidic device inlet, while positive voltage is connected to the device’s outlet, as shown in Figure 9
b. Transition from High Resistive State (HRS)/ON state to Low Resistive State/OFF state occurs for negative voltage polarity. The obtained hysteresis loop in I–V characteristic (determined by the direction of switching) belongs to the non-crossing type (NCT), or tangential hysteresis loop, i.e., two parts of the loop only touch each other, and do not intersect [22
]. According to measured results, presented in Figure 13
a, we estimated OFF-to-ON resistive ratio around a factor of 2. Unlike other reported results in the literature for microfluidic memristors [20
], the current–voltage characteristics of the fabricated device exhibited hysteresis for both positive and negative polarities of actuation voltage; consequently it represents a bipolar class of resistive switching devices. Furthermore, existing loops in the 1st and 3rd quadrants of the I–V plane showed similar lobe area (close to symmetric loops), which indicates low dissipation, i.e., lower Joule heating compared to results reported in the literature [20
]. Increasing the amplitude of actuation voltage, the width of hysteresis loops was increased in both 1st and 3rd quadrant, indicating improvement in OFF-to-ON resistive ratio and potential application of these devices as multilevel memristors, Figure 13
This observation can be explained by the symmetric structure of the device as well as low-Ohmic contact between electrodes achieved by the combination of Au electrodes and silver paste contacts between the device and the wires.
The main advantages of the presented components can be summarized as follows: (1) rapid and precise applied xurographic technology; (2) robust and cost-effective components; (3) realization of discrete two-terminal basic electronics components in microfluidic world; (4) optical transparency and mechanical flexibility of fabricated components. If we can talk about some disadvantages of the proposed components, they might be: (1) limited resolution imposed by applied technology, which has consequences in total dimension of these fundamental circuit elements; (2) limited choice of conductive materials (gold, copper, aluminum) which can be used as materials in leaf form or foil structure.
